Omron E5EK PROGRAMMABLE TYPE, E5EK-T, E5EK User Manual

User's Manual

Cat. No. H089-E1-02

Digital Controller

(Programmable Type)

Preface

The E5EK-T is a high-performance programmable digital controller. The E5EK-T
allows the user to carry out the following:

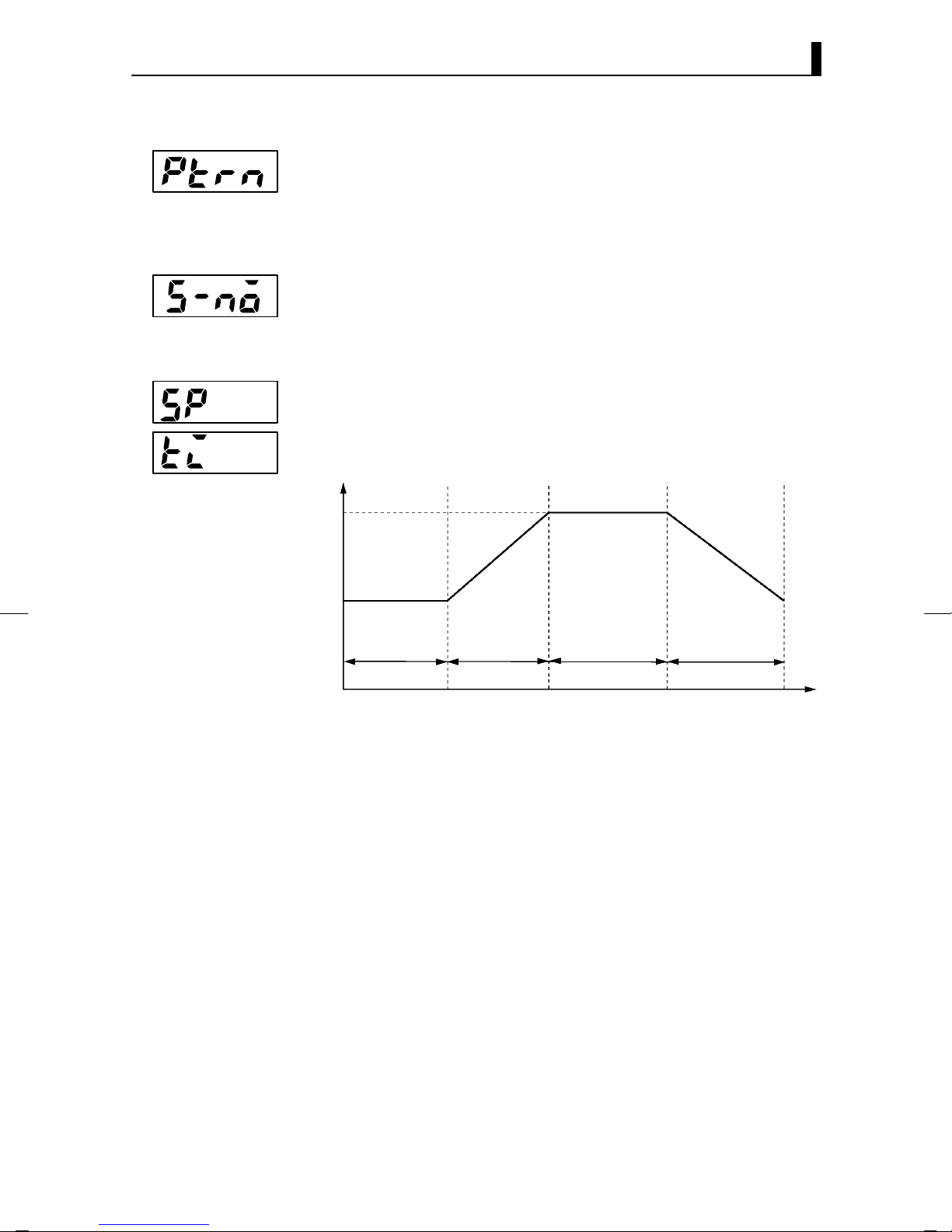

• Set program patterns to each step by time or ramp rise rate

• Execute advance, hold and reset step operations

• Execute continuous operation of all patterns and repeated operation of same pat-

terns

• Check the start of each step or program end time by signals.

• Count time from the beginning of each step (time signal)

• Select from many types of temperature and analog input (multi-input)

• Support position-proportional control (position-proportional type controllers only)

• Select output functions such as control output or alarm output (output assign-

ment)

• Use the HBA (heater burnout alarm) function (standard type controllers only)

• Monitor the control loop by LBA (Loop Break Alarm)

• Use the communications function

• Calibrate input or transfer output

• The E5EK-T also features a watertight construction (NEMA4: equivalent to

IP66).

This User’s Manual describes how to use the E5EK-T.
Before using your E5EK-T thoroughly read and understand this manual in order to
ensure correct use.
Also, store this manual in a safe place so that it can be retrieved whenever neces­sary.

PRECAUTIONS IN USING THE PRODUCT

When the product is used under the circumstances or environment below, ensure
adherence to limitations of the ratings and functions. Also, take countermeasures
for safety precautions such as fail-safe installations.

(1) Use under circumstances or environments which are not described in this user’s manual.
(2) Use for nuclear power control, railway, air craft, vehicle, incinerator, medical equipment, enter-

tainment equipment, safety device, etc.

(3) Use for applications where death or serious property damage is possible and extensive safety

precautions are required.

About this manual

(1) All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or trans-

mitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, with­out the prior written permission of OMRON.

(2) Moreover, because OMRON is constantly striving to improve its high-quality products, the information in

this manual is subject to change without notice.

(3) Every precaution has been taken in the preparation of this manual. Nevertheless, if you find any errors or

omissions, please contact the branch of OMRON or sales office listed at the end of this manual, and inform
them of the catalog No. on the front cover.

I

Conventions Used in This Manual

JMeanings of Abbreviations

Sometimes the following abbreviations are used in parameter names, figures and in text ex­planations. These abbreviations mean the following:

Symbol Term

PV Process value

SP (Present) set point *1

LBA Loop break alarm

HB Heater burnout

AT Auto-tuning

EU Engineering unit *2

*1 In program pattern diagrams, the present SP is indicated.

*2 _C, m, g and other units are indicated for scaled data. However, “EU” is used as the mini -

mum unit for the data. For example, for “50.02 (m)”, 1EU is taken as the minimum unit

0.01 (m).

JHow to Read Display Symbols

The following tables show the correspondence b etween the symbols displayed on the displays
and alphabet characters.

ABCDEF GHI J KL M

NOPQRST UVWXYZ

J“Reference” mark

This mark indicates that extra, useful information follows, such as supplementary explana­tions and how to apply functions.

II

JHow This Manual is Organized

Purpose Title Description

D Learning about the gener-

al features of the E5EK-T

Chapter 1 INTRODUC­TION

This chapter describes the fea­tures of the E5EK-T, n ames of
parts, and typical functions.

D Setting up

D Basic E5EK-T operations

D Applied E5EK-T opera-

tions

D Using a Position-propor-

tional type controller

D Communications with a

host computer

Chapter 2 PREPARA­TIONS

Chapter 3 BASIC OPERA­TION
Chapter 5 PARAMETERS

Chapter 4 APPLIED OP­ERATION
Chapter 5 PARAMETERS

Chapter 4 APPLIED OP­ERATION
/4.1 Selecting the Control
Method

Chapter 6 USING THE
COMMUNICATIONS
FUNCTION

This chapter describes the op­erations that you must carry
out (e.g. installation, wiring and
switch settings) before you can
use the E5EK-T.

These chapters describe using
basic control examples how to
use the front panel keys and
how to view the display when
setting the parameters of the
major functions for the E5EK-T.

These chapters describes the
important functions of the
E5EK-T an d how to use the pa­rameters for making full use of
the E5EK-T.

This chapter describes how to
use the functions related specifi­cally to position-proportional
type controllers.

This chapter mai nly describes
how to use the communications
commands, and gives program
examples.

D Calibration

D Troubleshooting

Chapter 7 CALIBRATION This chapter describes how the

user should calibrate the E5EK­T.

Chapter 8 TROUBLE­SHOOTING

This chapter describes what to
do if any problems o ccur.

III

PRECAUTIONS ON SAFETY

F Marks For Ensuring Safe Use and Their Meanings

This manual uses the following marks to indicate precautions for ensuring that the
E5EK-T is used safely.
The precautions indicated below describe important information regarding safety.
Be sure to follow the instructions described in these precautions.

WARNING

Incorrect handling may cause death or injury.

WARNING

Do not touch the terminals while the power is
ON.
This may cause an electric shock.

IV

NOTICE

Be sure to observe these precautions to ensure safe use.

F Do not use the product in places where explosive or flammable gases may be present.

F Never disassemble, repair or modify the product.

F Tighten the terminal screws properly.

F Use the specified size of solderless terminals for wiring.

F Use the product within the rated supply voltage.

F Use the product within the rated load.

F The life expectancy of the output relay varies considerably according to its switching capacity

and operating conditions. Be sure to use the output relay within its rated load and electrical life
expectancy. If the output relay is used beyond its life expectancy, its contacts may become fused or
burned.

F If you remove the controller from its case, never touch nor apply shock to the electronic parts

inside.

F Do not cover the E5EK-T. (Ensure sufficient space around the controller to allow heat radiation.)

F Do not use the controller in the following places:

• Places subject to icing, condensation, dust, corrosive gas (especially sulfide gas or ammonia gas).

• Places subject vibration and large shocks.

• Places subject to splashing liquid or oil atmosphere.

• Places subject to intense temperature changes.

• Places subject to heat radiation from a furnace.

F Be sure to wire properly with correct polarity of terminals.

F When wiring input or output lines to your controller, keep the following points in mind to reduce

the influence from inductive noise:

• Allow adequate space between the high voltage/current power lines and the input/output lines.

• Avoid parallel or common wiring with high voltage sources and power lines carrying large cur-

rents.

• Using separating pipes, ducts, and shielded line is also useful in protecting the controller, and its
lines from inductive noise.

F Cleaning: Do not use paint thinner or organic solvents. Use standard grade alcohol to clean the

product.

F Use a voltage (100 to 240 VAC at 50 to 60 Hz). At power ON, the prescribed voltage level must be

attained within two seconds.

F Allow as much space as possible between the controller and devices that generate a powerful high

frequency (high-frequency welders, high-frequency sewing machines, etc.) or surge. These devices
may cause malfunctions.

F If there is a large power-generating peripheral device and any of its lines near the controller, at-

tach a surge suppressor or noise filter to the device to stop the noise affecting the controller sys­tem. In particular, motors, transformers, solenoids and magnetic coils have an inductance compo­nent, and therefore can generate very strong noise.

F When mounting a noise filter on the power supply to the controller, be sure to first check the fil-

ter’s voltage and current capacity, and then mount the filter as close as possible to the controller.

V

F Use within the following temperature and humidity ranges:

• Temperature: -10_Cto55_C, humidity: 35%RH to 85%RH (with no icing or condensation)
If the controller is installed inside a control board, the ambient temperature must be kept to un ­der 55_C, including the temperature around the controller.
If the controller is subjected to heat radiation, use a fan to cool the surface of the controller to
under 55_C.

F Store within the following temperature and humidity ranges:

• Temperature: -25_Cto65_C, humidity: 35%RH to 85%RH (with no icing or condensation)

F Never place heavy objects on, or apply pressure to the controller that may cause it to deform and

deteriorate during use or storage.

F Avoid using the controller in places near a radio, television set, or wireless installation. These

devices can cause radio disturbances which adversely affect the performance of the controller.

VI

Table of Contents

Preface I......................................

Conventions Used in This Manual II...............

Precautions on Safety IV.........................

CHAPTER 1 INTRODUCTION 1--1...........................

This chapter introduces the names of parts on the E5EK-T and their functions.
For details on how to use the controller and parameter settings, see Chapter 2
onwards.

1.1 Names of parts 1--2..........................................

1.2 Input and Output 1--5.........................................

1.3 Program 1--8................................................

1.4 Parameters and Menus 1--9...................................

1.5 About the Communications Function 1--12.......................

1.6 About Calibration 1--13........................................

CHAPTER 2 PREPARATIONS 2--1...........................

This chapter describes the operations (e.g. setup, installation and wiring) you
should carry out before turning the E5EK-T ON.

2.1 Setup 2--2..................................................

2.2 Installation 2--5..............................................

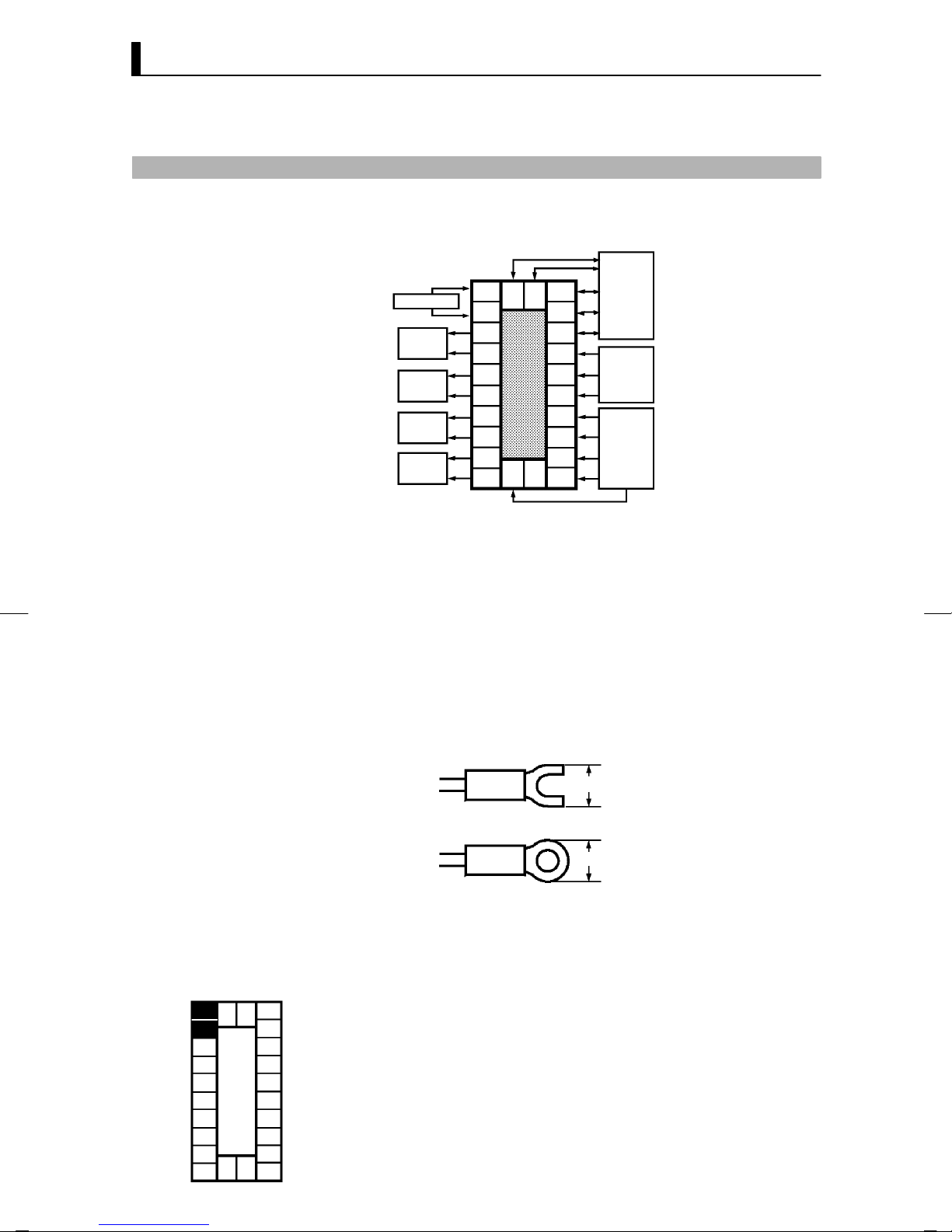

2.3 Wiring Terminals 2--8.........................................

CHAPTER 3 BASIC OPERATION 3--1........................

This chapter describes actual examples for understanding the basic operation of
the E5EK-T

3.1 Convention Used in this Chapter 3--2...........................

3.2 Setting Input Specifications 3--4...............................

3.3 Setting Output Specifications 3--7..............................

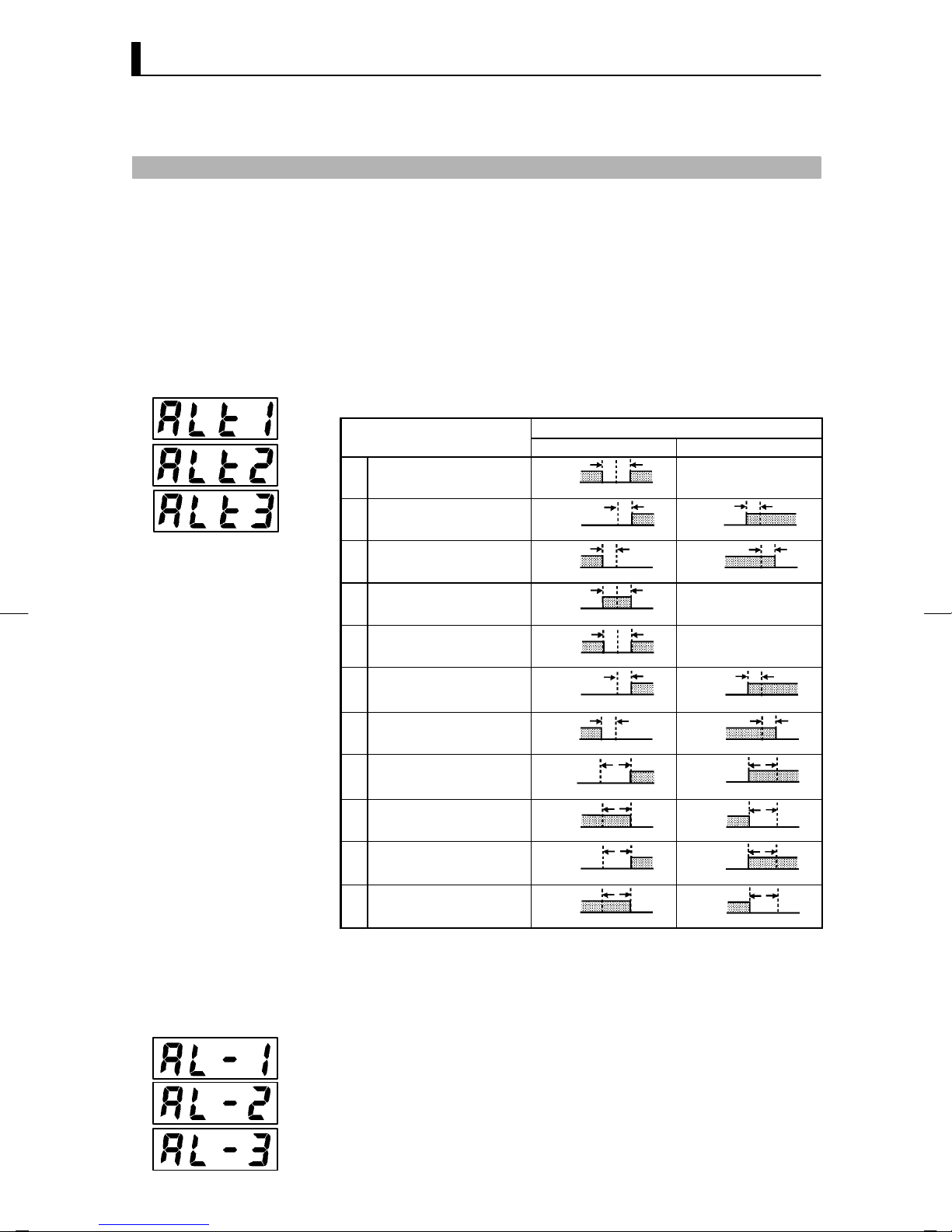

3.4 Setting Alarm Type 3--10.......................................

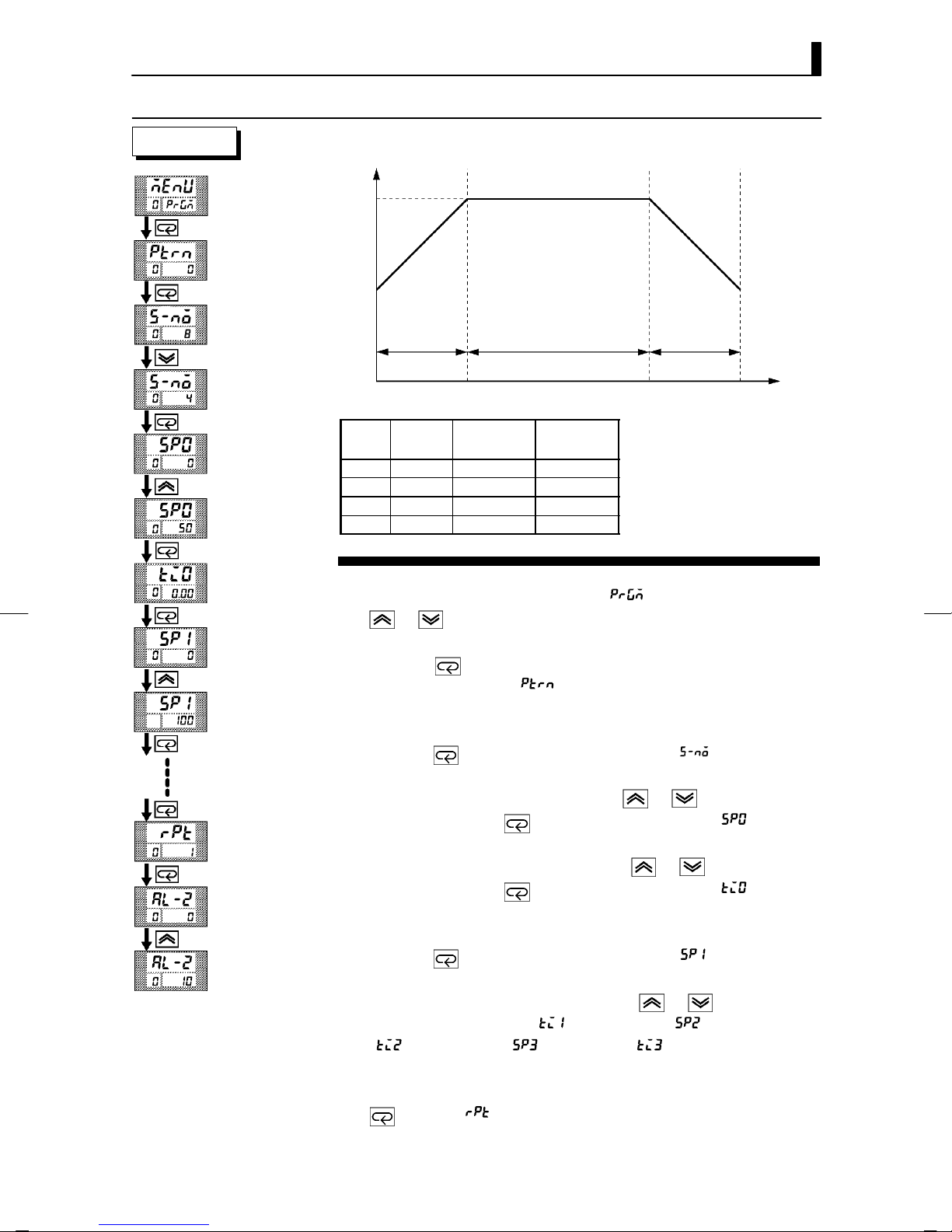

3.5 Setting Patterns 3--14.........................................

3.6 Protect Mode 3--19............................................

3.7 Starting and Stopping Operation 3--21...........................

3.8 Adjusting Control Operation 3--22...............................

CHAPTER 4 APPLIED OPERATION 4--1......................

This chapter describes each of the parameters required for making full use of the
features of the E5EK-T.
Read this chapter while referring to the parameter descriptions in chapter 5

4.1 Selecting the Control Method 4--2..............................

4.2 Operating Condition Restrictions 4--7...........................

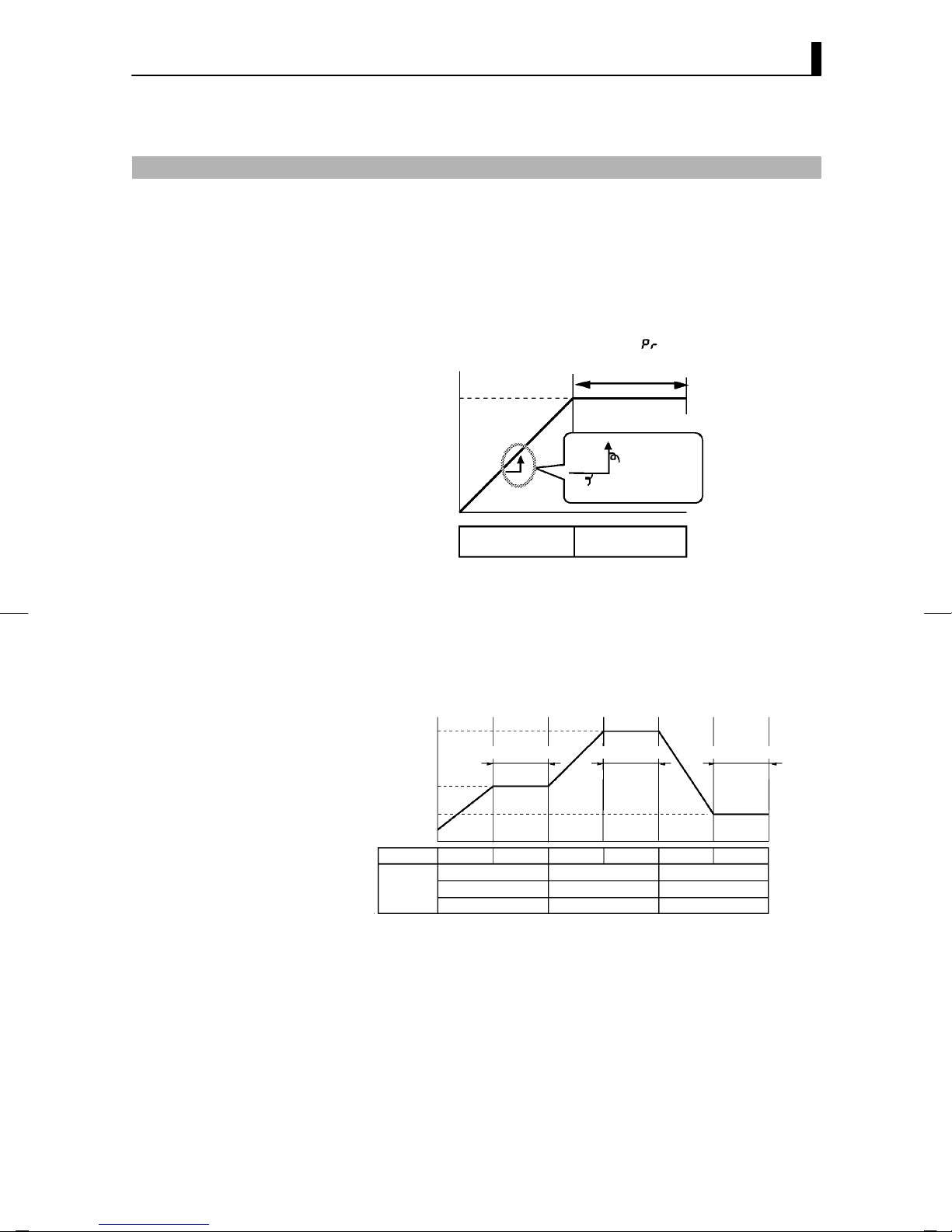

4.3 Ramp Rise Rate Setup Program 4--9...........................

4.4 Program Operation 4--13......................................

4.5 Wait Operation 4--16..........................................

4.6 Program output 4--17..........................................

4.7 Setting Running Conditions 4--19...............................

4.8 How to Use Event Input 4--21..................................

4.9 How to Use the Heater Burnout Alarm 4--23......................

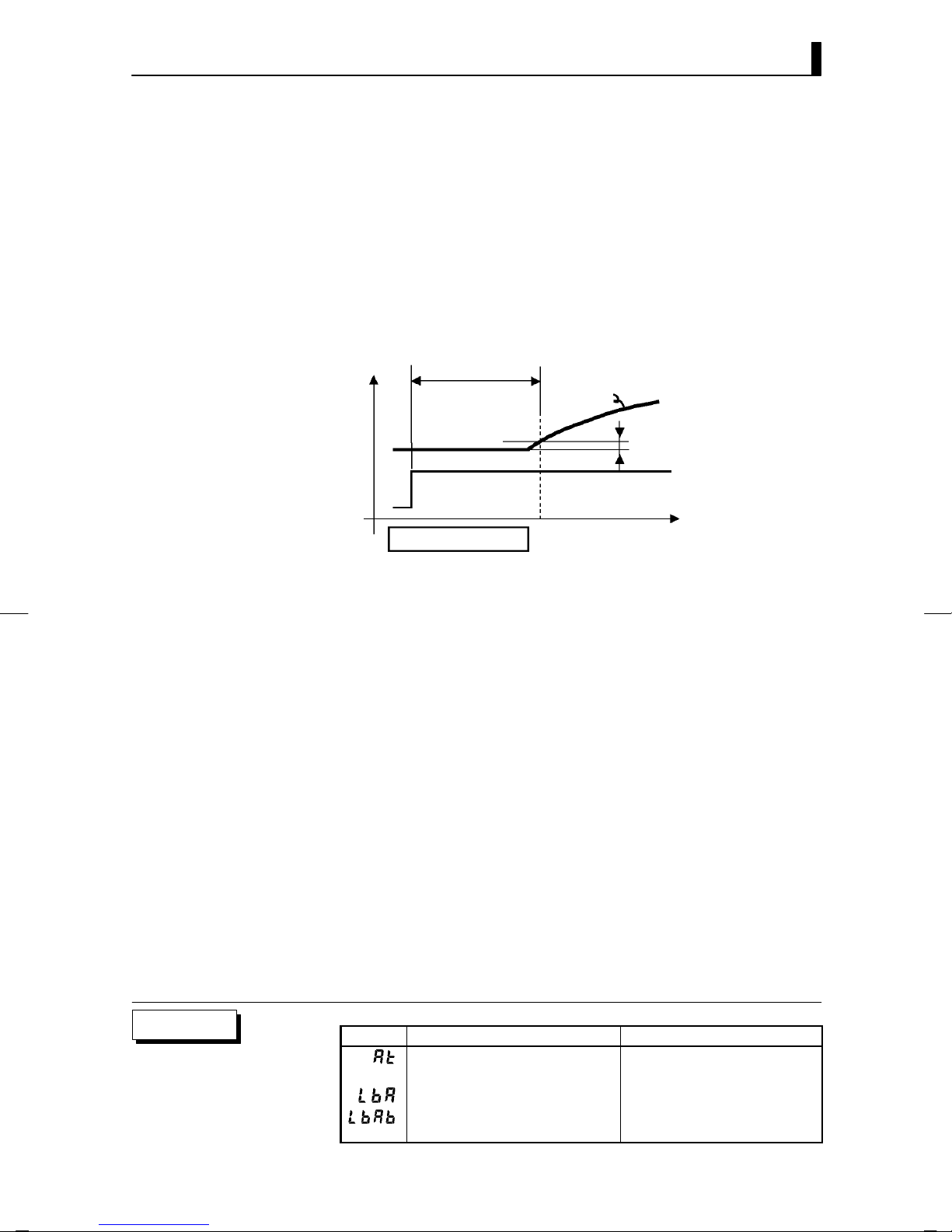

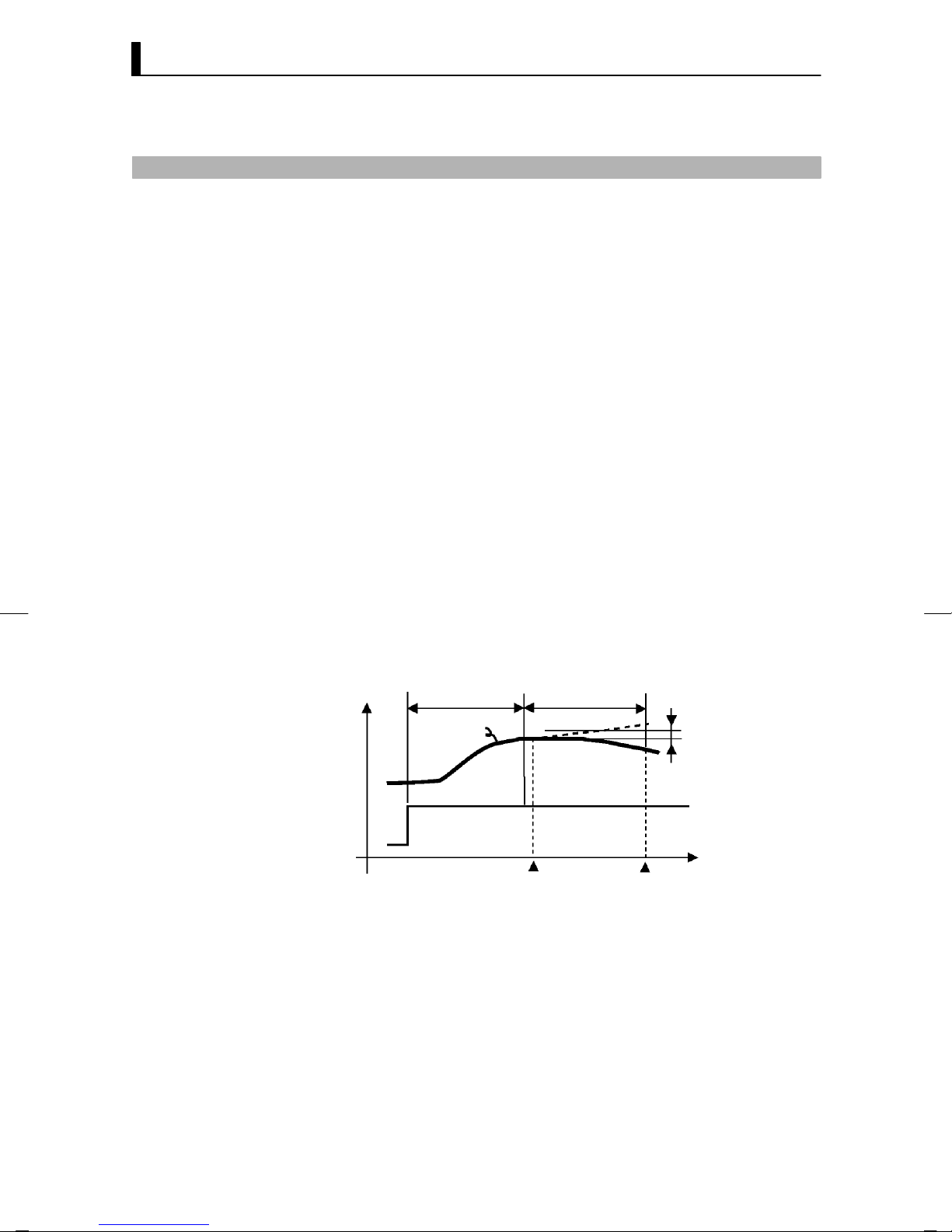

4.10 LBA 4--26....................................................

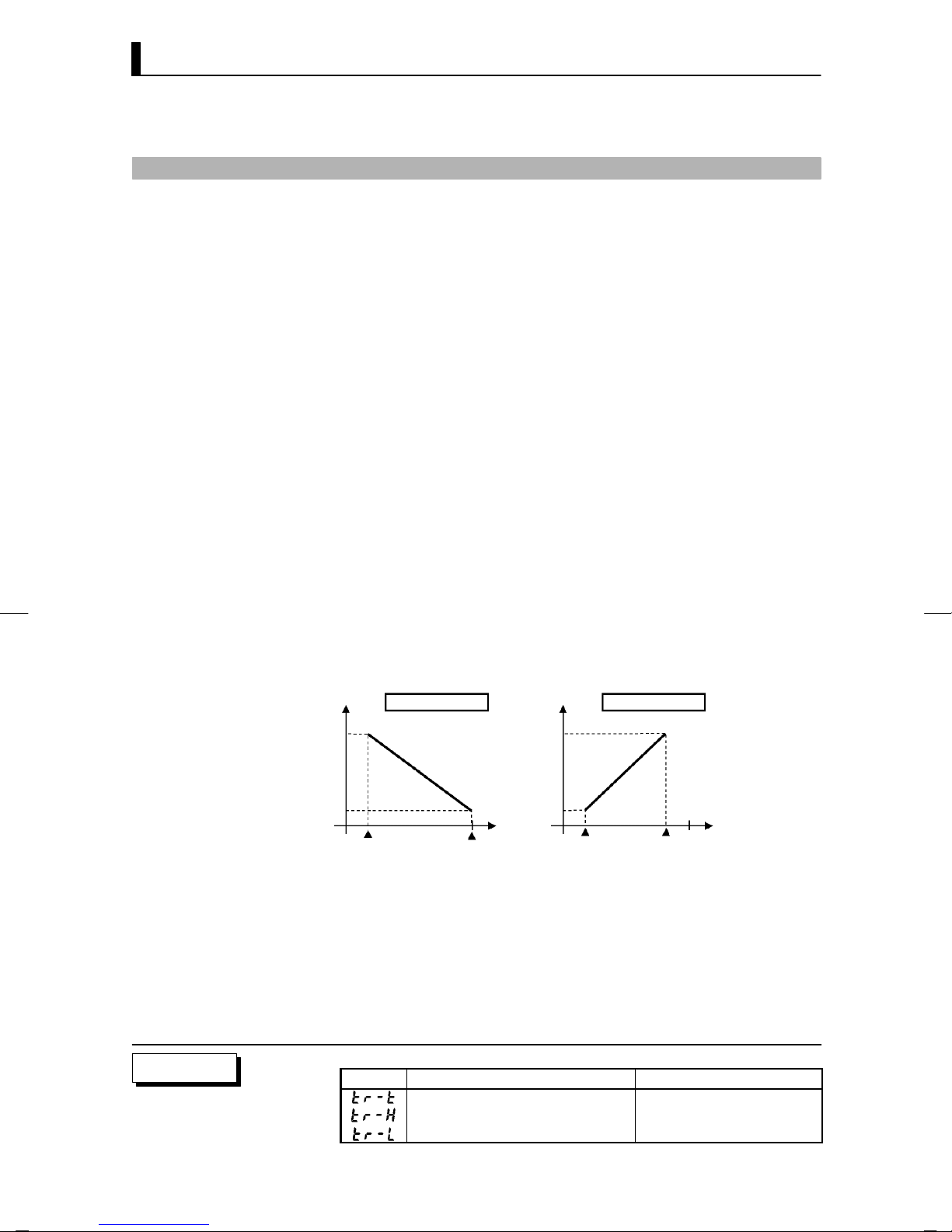

4.11 How to Use Transfer Output 4--28...............................

CHAPTER 5 PARAMETERS 5--1.............................

This chapter describes the parameters of the E5EK-T.
Use this chapter as a reference guide.

Conventions Used in this Chapter 5--2..............................

Protect Mode 5--3................................................

Manual Mode 5--5................................................

Level 0 Mode 5--6................................................

Program Mode 5--11...............................................

Level 1 Mode 5--17................................................

Level 2 Mode 5--24................................................

Setup Mode 5--30.................................................

Expansion Mode 5--38.............................................

Option Mode 5--46.................................................

Calibration Mode 5--52.............................................

CHAPTER 6 USING THE COMMUNICATIONS FUNCTION 6--1..

This chapter mainly describes communications with a host computer and com­munications commands

6.1 Outline of the Communications Function 6--2....................

6.2 Preparing for Communications 6--3............................

6.3 Command Structure 6--5......................................

6.4 Commands and Responses 6--7...............................

6.5 How to Read Communications Error Information 6--15.............

6.6 Program Example 6--17.......................................

CHAPTER 7 CALIBRATION 7--1.............................

This chapter describes procedures for each calibration operation.
Read this chapter only when the controller must be calibrated.

7.1 Parameter Structure 7--2.....................................

7.2 Calibrating Thermocouples 7--4................................

7.3 Calibrating Platinum Resistance Thermometers 7--7.............

7.4 Calibrating Current Input 7--9..................................

7.5 Calibrating Voltage Input 7--10..................................

7.6 Checking Indication Accuracy 7--12.............................

CHAPTER 8 TROUBLESHOOTING 8--1......................

This chapter describes how to find out and remedy the cause if the E5EK-T does
not function properly.
Remedy E5EK-T trouble in the order of the descriptions in this chapter

8.1 Initial Checks 8--2............................................

8.2 How to Use the Error Display 8-- 3..............................

8.3 How to Use the Error Output 8--5..............................

8.4 Checking Operation Restrictions 8--6...........................

APPENDIX

SPECIFICATIONS A--2........................

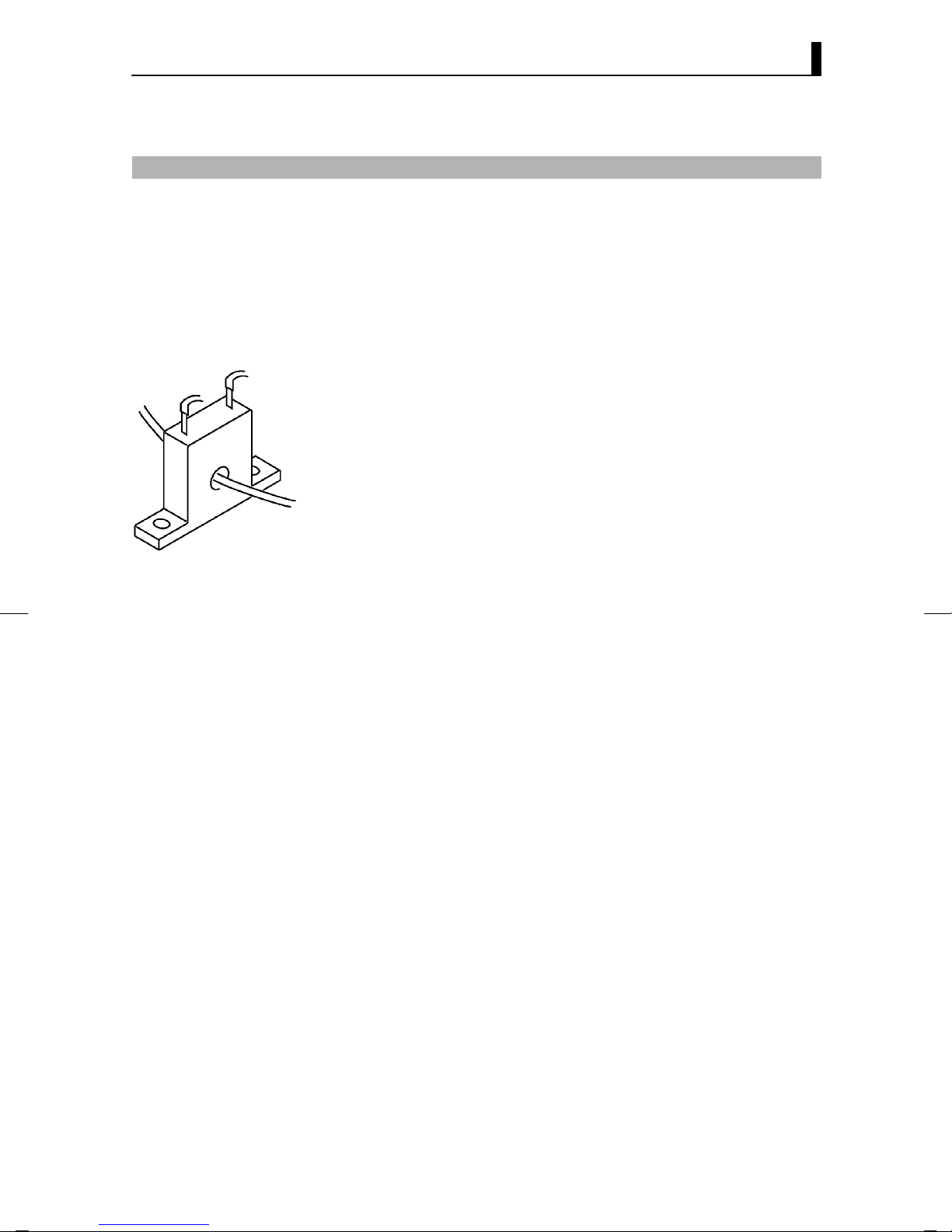

ABOUT CURRENT TRANSFORMER (CT) A--5...

CONTROL BLOCK DIAGRAM A--6..............

SETTING LIST A--8...........................

MODEL LIST A--12.............................

PARAMETER OPERATIONS LIST A--13..........

ASCII CODE LIST A--15........................

INDEX

REVISION HISTORY

CHAPTER1

CHAPTER 1

INTRODUCTION

This chapter introduces the names of parts on the E5EK- T and their
functions.
For details on how to use the controller and parameter settings, see
Chapter 2 onwards.

CHAPTER 1 INTRODUCTION

1.1 Names of parts 1-2........................

Main parts 1-2............................

Front panel 1-2...........................

About the displays 1-3.....................

How to use keys 1-4.......................

1.2 Input and Output 1-5......................

Input 1-5.................................

Output 1-6................................

1.3 Program 1-8..............................

How programs are structured 1-8...........

Program operation 1-8.....................

Alarm output 1-8..........................

Program output 1-8........................

1.4 P arameters and Menus 1-9.................

Parameter types 1-9.......................

Selecting modes 1-10........................

Selecting parameters 1-11...................

Fixing settings 1-11.........................

1.5 About the Communications Function 1-12....

1.6 About Calibration 1-13......................

1--1

CHAPTER 1 INTRODUCTION

1.1 Names of parts

JMain parts

Terminals

P2-6

Rear case

Front panel

This page

JFront panel

Pattern No.

Operation indicators

OUT1
SUB1
MANU
HOLD
WAIT

Display key

Run/Reset key

RUN/RST

1--2

OUT2
SUB2
RMT
RST
AT

PTN

RMT

OUT1 OUT2

RUN

RST

PV

SV

MANU

RSP SUB1

STOP

No.1 display

No.2 display

SUB2

AT

WAIT

Up k ey

Down ke y

E5EK

JAbout the displays

1.1 Names of parts

F No.1 display

F No.2 display

F Pattern No.

F Program status

indicators

F Op eration statu s

indicators

Displays the process value or parameter symbols.

Displays the set point, manipulated variable or parameter settings.

Displays pattern No..

Indicate how the present-SP of the operating step changes.

• OUT1
Lights when the pulse output function assigned to “control output 1”
is ON.

• OUT2
Lights when the pulse output function assigned to “control output 2”
is ON.

• SUB1
Lights when the pulse output function assigned to “auxiliary output
1” is ON.

• SUB2
Lights when the pulse output function assigned to “auxiliary output
2” is ON.

• MANU
Lights in the manual operation mode.

• RST
Lights when the control is in reset status.

• RMT
Lights during remote operation.

• HOLD
Lights when the program is in hold status.

• WAIT
Lights when the program is in wait status.

• AT
Flashes during auto-tuning.

1--3

CHAPTER 1 INTRODUCTION

JHow to use keys

RUN/RST

F key

F key

F key

The following describes basic key operations.

To change to run operation from the reset status, press this key for one

second minimum.
To change to the reset status from run operation, press this key for two
seconds minimum.

The functions of this key change according to how long it is pressed. If
the key is pressed for less than one second, the parameters are switched.

If the key is pressed for one second minimum, the menu display ap­pears. In key operations from here on, “press the key” refers to pressing
the key for less than one second.
For details on switching of parameters and menu display items, see

page 1-10.

Each press of

the No.2 display, while each press of the key decrements or returns
the values or settings on the No.2 display.

Functions vary, for example, when the

key increments or advances the values or settings on

RUN/RST

key is held down simul-

taneously with the

tails, see page 1-10. Also, chapters 3 and 4 describe examples using vari­ous key combinations.

key, or a key is held down continuously. For de-

1--4

1.2 Input and Output

1.2 Input and Output

T emperature input

Voltage input

Current input

CT input
Potentiometer

Event input

Controller

Control output
(heat)

Control output
(cool)

Alarm 1

Alarm 2

Alarm 3

HBA

LBA

Time signal 1

Time signal 2

Program end

Stage output

Error 1

Error 2

Control output 1

Control output 2

Auxiliary output 1

Auxiliary output 2

Transfer output

JInput

The E5EK-T supports the following inputs:

Temperature input, Current input, Voltage input, CT input/potentiom­eter, and Event input.

F Temperature input/Voltage input/Current input

• Only one of temperature input, current input and voltage input can
be selected and connected to the controller.

• The following input sensors can be connected for temperature input:

Thermocouple:K,J,T,E,L,U,N,R,S,B,W,PLII
Platinum resistance thermometer: JPt100, Pt100

• The following currents can be connected for current input:

4to20mA,0to20mA

• The following voltages can be connected for voltage input:

1to5VDC,0to5VDC,0to10VDC

F CT input/Poten -

tiometer

• Connect CT input when using the HBA (heater b urnout alarm) func­tion on a standard type controller (E5EK-TAA2). Note that CT input
cannot be used when the linear output unit is mounted.

• Connect the potentiometer when monitoring the valve opening on a
position-proportional type controller (E5EK-TPRR2).

1--5

CHAPTER 1 INTRODUCTION

F Event input

JOutput

F Ou tput assign-

ments

Add on the input unit (E53-CKB) when using event input. You can se­lect from the following five event inputs:

Run/Reset, Auto/Manual, Hold/Hold Cancel, Advance, Pattern

The output functions of the E5EK-T do not operate for five seconds after the
E5EK-T is turned ON.

The E5EK-T supports the following five outputs:

Control output 1
Control output 2
Auxiliary output 1
Auxiliary output 2
Transfer output

When using control output 1 and 2, set the output unit (sold sepa­rately). Nine output units are available to suit the output circuit config­uration.

When using transfer output, add on the communication unit
(E53-AKF).

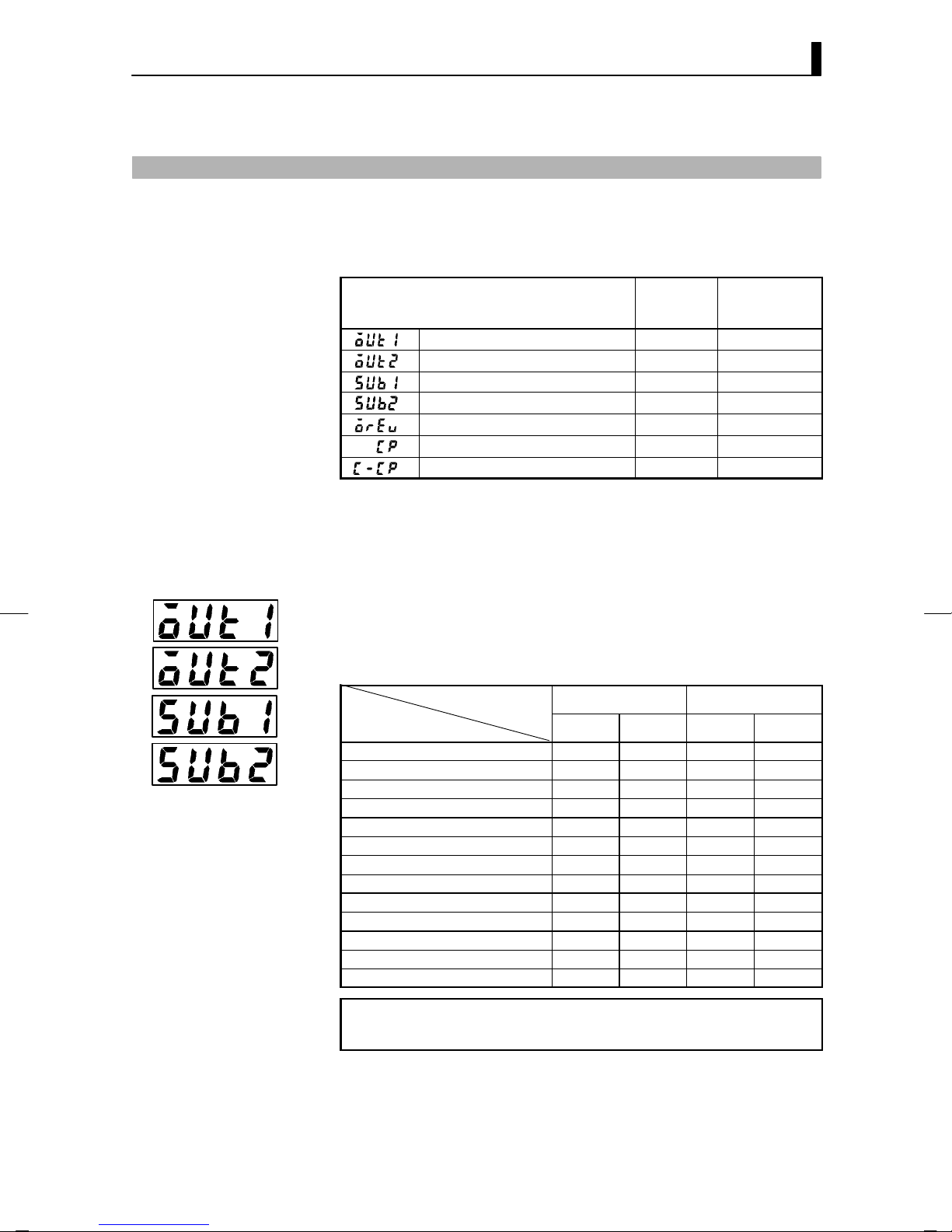

• The E5EK-T supports the following thirteen output functions:

Control output (heat), Control output (cool), Alarms 1 to 3, HBA,
LBA, Time Signals 1 and 2, Program End, Stage Output,
Error 1 (input error), Error 2 (A/D converter error)

• Assign these output functions to control output 1, control output 2,
auxiliary output 1, and auxiliary output 2.
However, note that as control output 1 is used as the open output and
control output 2 is used as close output on a position-proportional
type controller (E5EK-TPRR2), control outputs 1 and 2 cannot be
used as assignment destinations. Also, of the output functions, control
output (heat), control output (cool), HBA and LBA are disabled.

• On a standard type controller, there are restrictions on how assign­ment destinations (control output 1, control output 2, auxiliary out­put 1, and auxiliary output 2) can be used. For details, see Chapter 3
Basic Operation/3.3 Setting Output Specifications (page 3-7).

• In the example on the previous page, “control output (heat)” is as­signed to “control output 1”, “alarm 1” is assigned to “control output
2”, and “alarm 2” is assigned to “auxiliary output 1”. Accordingly, the
configuration is such that heating control output is connected to con­trol output 1, and alarm output is connected to control output 2 and
auxiliary output 1.

• Control outputs 1 and 2 are used depending on the differences in con­trol method as follows:

1--6

1.2 Input and Output

F Transfer ou t pu t

Control Method

Standard control E5EK-TAA2 AC100-240

E5EK-TAA2 AC/DC24

Heating and
cooling control

Position-propor­tional control

• The E5EK-T supports the following five transfer outputs:

Set point, Process value, Heating side manipulated variable,

Cooling side manipulated variable, Valve opening
However, note that heating/cooling side manipulated variables can be
output only on standard type controllers, and valve opening can be out­put only on position-proportional type controllers.

• These transfer outputs can be output after being scaled. Setting of an

upper limit value smaller than the lower limit value is allowed, so re­verse scaling can also be carried out.

E5EK-TAA2 AC100-240
E5EK-TAA2 AC/DC24

E5EK-TPRR2 AC100-240
E5EK-TPRR2 AC/DC24

Model

Control Output 1/

Control Output 2

Control output (heat)
/ Alarm, etc.

Control output (heat)
/ Control output (cool)

Open/Close

1--7

CHAPTER 1 INTRODUCTION

1.3 Program

JHow programs

are structured

E5EK-T allows you to configure programs made up of a maximum of
four patterns (pattern 0 to 3).
The number of steps (16 maximum) in each pattern can be specified in

parameters.

Pattern 3

Pattern 1

Pattern 0

Step 0 Step 1 Step 2 Step 15

• Generally, the “time setup method” is used to configure programs. By

this method, set points at each step and time are used as program ele­ments. However, the “ramp rise rate setup method” can also be used.
By this method, the set point, ramp time and soak times are used as
program elements.

JProgram opera-

tion

F Step operation

F Wait operation

JAlarm output

JProgram output

1--8

• Generally, the target patterns are specified before the program is

executed.

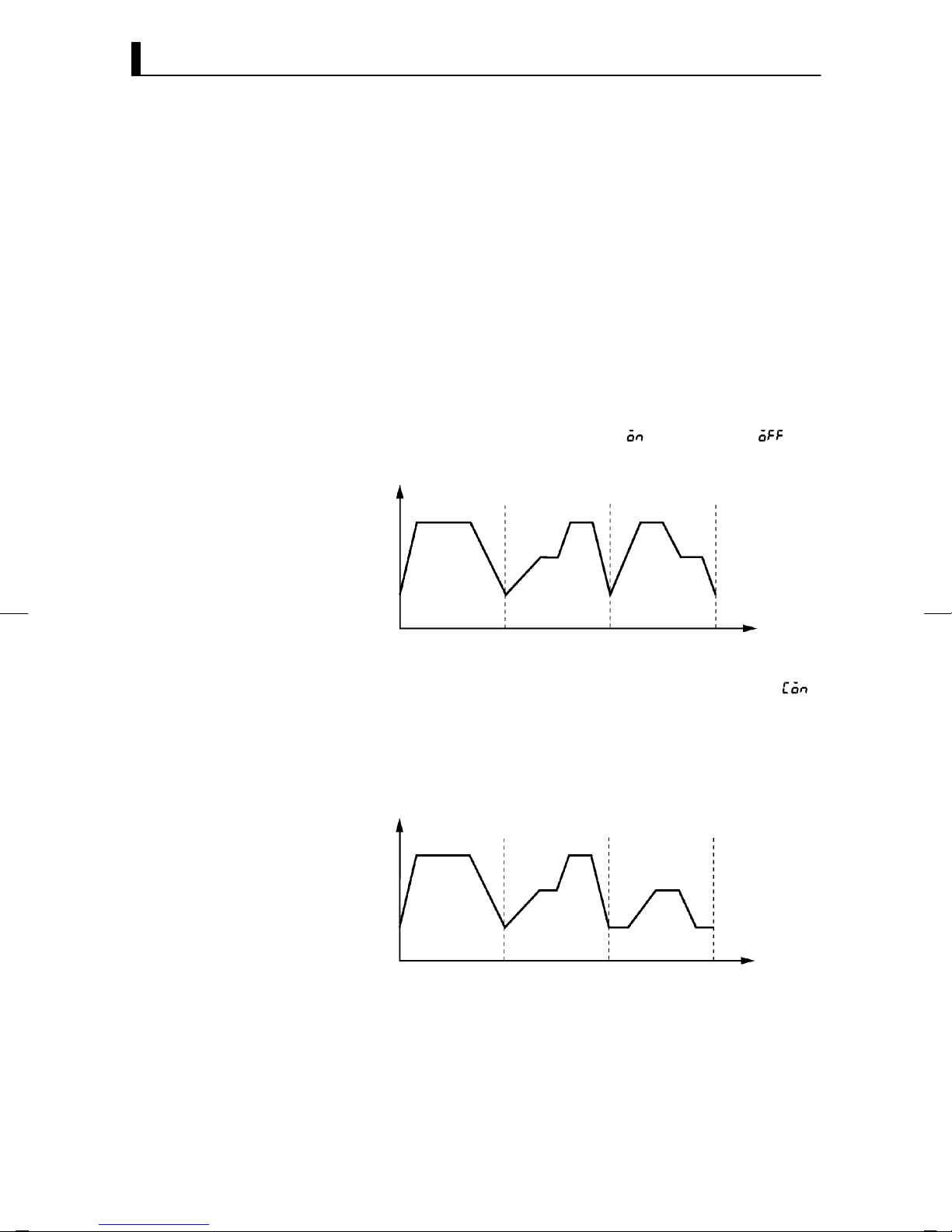

• In parameter setup, you can specify repeated execution of the same

pattern (Repeat) or consecutive execution of all patterns 0 to 3 (Run
all).

• During program operation, steps can be skipped (Advance) and the

control monitoring can be paused (Hold).

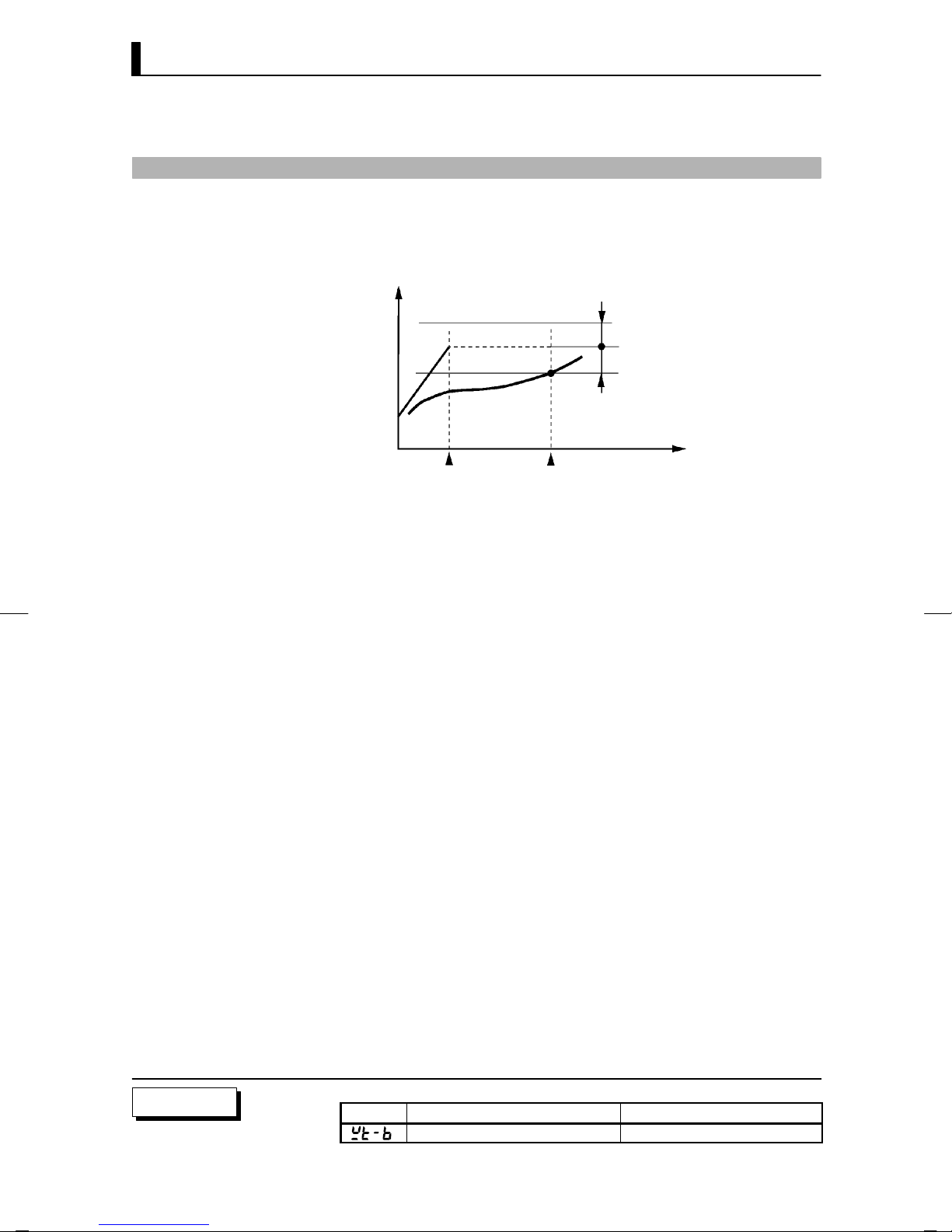

• When the wait width is specified in parameter setup, the program

does not go to the next step and waits until the PV reaches the speci­fied time (wait width) at the end of each step.

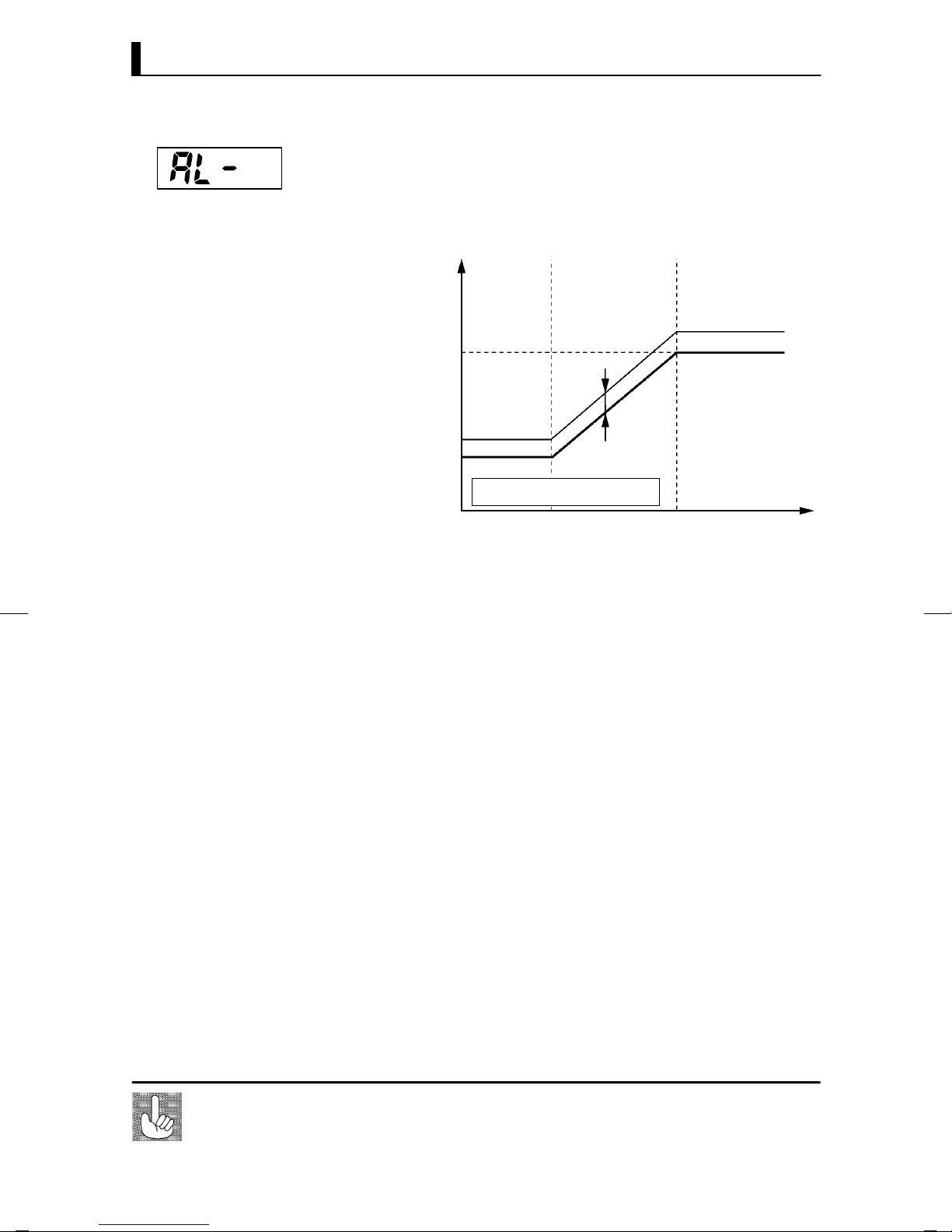

• Alarms that are assigned as outputs operate referenced to the alarm

values preset to each pattern.

• Time signals, program end and stage output can be output accor din g

to output assignment.

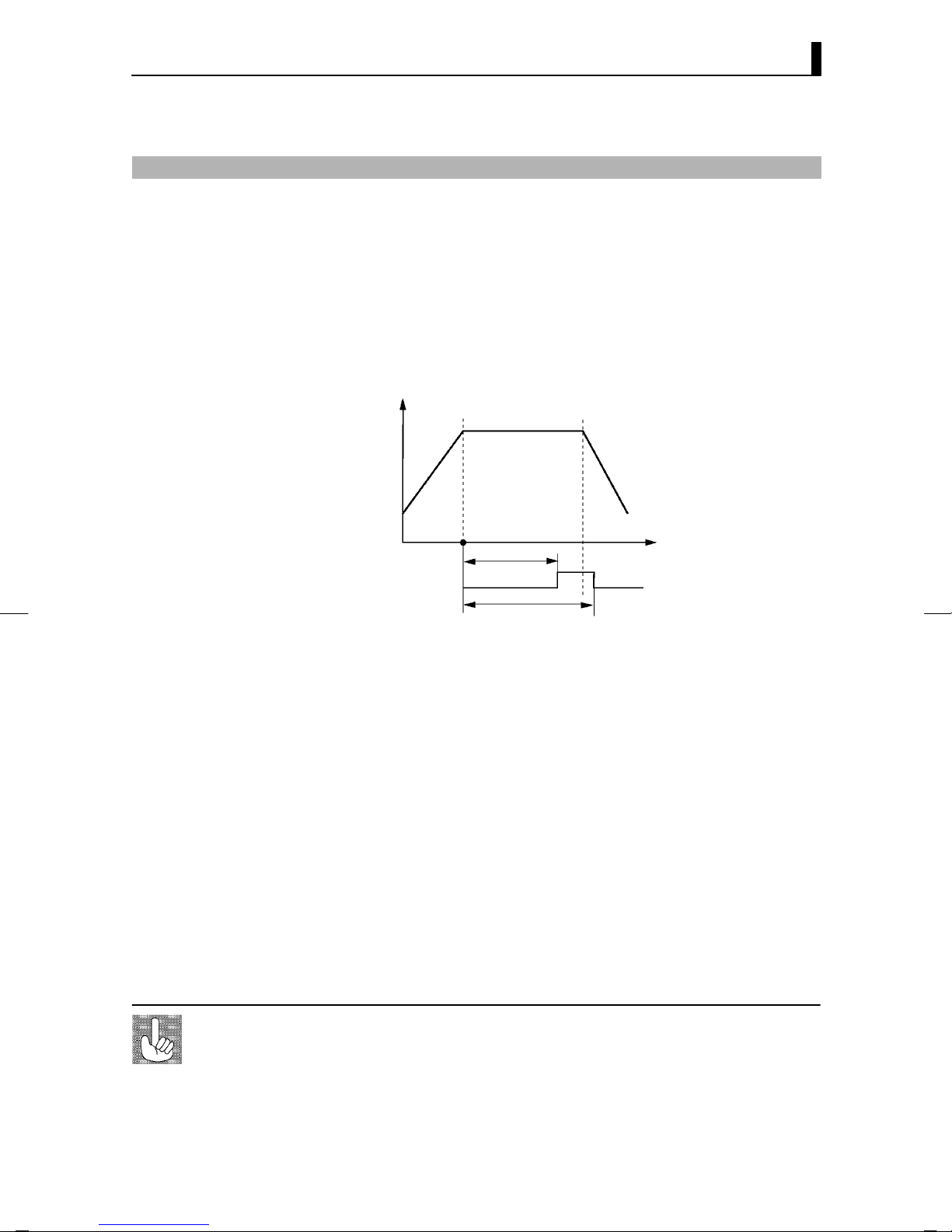

• ON/OFF signals are output as time signals according to the timer

that takes a specified step as its start point.

1.4 Parameters and Menus

1.4 Parameters and Menus

JParameter types

F Protect mode

F Manual mode

F L evel 0 mode

E5EK-T parameters are distributed between the following ten modes:

Protect mode

Manual mode

Level 0 mode

Program mode

Level 1 mode

Level 2 mode

Setup mode

Expansion mode

Option mode

Calibration mode

The settings of parameters in each of eight modes (excluding the protect

mode and manual mode) can be checked and modified by selection on
the menu display.

The protect function is for preventing unwanted modification of param-

eters, and switching between run and reset operation or auto and
manual operation.

In this mode, the controller can be switched to manual operation. The

manipulated variable can be manipulated manually only in this mode.

Set the controller to this mode during normal operation. In this mode,
you can change the set p oint and pattern during operation, and execute

step operation (e.g. advance). You can only monitor (not change) the
process value, step No., standby time, pattern elapsing time, pattern
execution count and manipulated variable.

F Program mode

F L evel 1 mode

F L evel 2 mode

F Setup mode

This is the programming mode. In this mode, you can set the number of
steps used in each pattern, pattern execution count, alarm values, set
points for each step, step time, and time signals for two steps.

This is the main mode for adjusting control. In this mode, you can
execute AT (auto-tuning), and set up the control period, PID parame­ters and heater burnout alarm (HBA) conditions.

This is the auxiliary mode for adjusting control. In this mode, you can
set the parameters for limiting the manipulated variable, switch be­tween the remote and local modes, and set the loop break alarm (LBA),
alarm hysteresis and the digital filter value of inputs.

This is the mode for setting the basic specifications. In this mode, you
can set parameters that must be checked or set before operation such as
the input type, scaling, output assignments and direct/reverse opera­tion.

1--9

CHAPTER 1 INTRODUCTION

F Expansion mode

F Option mode

F Calibration mode

JSelecting modes

This is the mode for setting expanded functions. In this mode, you can
set SP setting limitter, switching between advanced PID control or ON/
OFF control, program time unit, selection of step time/rate of rise p ro­gramming, time unit of ramp rise rate, and the time for automatic re­turn to the monitoring display.

This is the mode for setting optional functions. You can select this mode
only when an option unit is mounted in the controller. In this mode,
you can set the communications conditions, transfer output and event
input parameters to match the type of option unit mount in the control-

ler. Heater burnout alarm function and position-proportional travel
time are also located in this mode.

This mode is provided so that the user can calibrate inputs and output.

When calibrating input, the selected input type is calibrated. Whereas,
transfer output can be calibrated only when the communication unit
(E53-AKF) is set in the controller.

The following diagram shows the order in which modes are selected.

Power ON

+

1 second min.

Level 0 mode

1secondmin.

Manual mode

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

Program mode

Level 1 mode

Level 2 mode

Setup mode

Expansion mode

Option mode

Calibration mode

RUN/RST

1 second min.

RUN/RST

1 second min.

+

Protect mode

+

+

1 second min.

RUN/RST

1secondmin.

+

• To select the menu display in any of the above modes (excluding the

protect mode and manual mode), press the

key for 1 second mini­mum. When you have selected the menu display, the previous mode is
selected. For example, if you selected the menu display while in the
level 0 mode, the No.2 display changes to [

] as shown on the left.

• To move to the desired mode after you have entered the menu display,
select the desired mode using the

keys and hold down the

key for one second minimum. The display switches to the first

parameter of the mode that you specified.

1--10

1.4 Parameters and Menus

• Protected modes cannot be selected. Also, the menu display does not
appear when modes are protected up to the program mode.

• If you select [
the level 0, program, level 1 and level 2 modes, respectively, are se­lected.
These modes are selected with control still continuing.

• If you select[
setup, expansion, option and calibration modes, respectively, are se­lected.
When these modes are selected, the control is reset. So, control out­puts and auxiliary output are turned OFF. When another mode is se­lected while in these modes control, reset is canceled.

• To set the controller to the protect mode or to return to the level 0

mode from the protect mode, press the

simultaneously for 1 second minimum.

• To set the controller to the manual mode, press the
second minimum with the
modes. To return to the level 0 mode in the manual mode, press the

key for one second minimum with the key pressed. Be sure

to press the

], [ ], [ ]or[ ]inthe menudisplay,

][ ][ ]or[ ]inthe menudisplay,the

RUN/RST

keyhelddowninthelevel0to2

key first in this operation.

key and the key

key for one

JSelecting

parameters

JFixing settings

• When the controller is not in the manual mode, each press of the
key switches the parameter in the respective mode.

Parameter

1

• If you press the key when at the final parameter, the display re-
turns to the top parameter for the current mode.

• When you change parameter settings or contents, specify the parame­ter using the
two seconds or press the

• When another mode is selected, the content of the parameters before
the mode was selected is fixed.

• When you turn the power OFF, you must first fix the settings and pa­rameter contents (by pressing the
mode). The settings and parameter contents are sometimes not
changed by merely pressing the

Parameter

2

or keys, and either leave the setting for at least

Parameter

Parameter

3

key. This fixes the setting.

key or selecting another

or keys.

n

1--11

CHAPTER 1 INTRODUCTION

1.5 About the Communications Function

The E5EK-T can be provided with a communications function that al­lows you to check and set controller parameters from a host computer.

If the communications function is required, add on the communications
unit.
For details on the communications function, refer to Chapter 6.

F RS-232C

F RS-422

F RS-485

When using the communications function on the RS -232C interface,
add on the communications unit (E53-AK01).

When using the communications function on the RS-422 interface, add
on the communications unit (E53-AK02).

When using the communications function on the RS-485 interface, add
on the communications unit (E53-AK03).

1--12

1.6 About Calibration

The E5EK-T controller is calibrated before shipment from the factory.
So, the user need not calibrate the E5EK-T controller during regular

use.

However, if the E5EK-T controller must be calibrated by the user, use
the parameters provided for the user to calibrate temperature input,
analog input (voltage, current) and transfer output. In this case, note

that the results of calibration will not be assured.
Also, note that calibration data is updated to the latest value each time
that the E5EK-T controller is calibrated. Calibration data set before
shipment from the factory cannot be returned to after calibration by

the user.

1.6 About Calibration

F Calibrating

inputs

F Calibrating trans -

fer output

F Registering cal-

ibration data

The input type selected in parameters is the item to be calibrated. The
E5EK-T is provided with the following four calibration parameters:

• Thermocouple

• Platinum resistance thermometer

• Current input

• Voltage input

Two parameters are provided for thermocouple and voltage input.

Transfer output also can be calibrated when the communications unit
(E53-AKF) is added on.

When calibrating each item, the calibration data is temporarily regis­tered. This data can be registered as final calibration data only when all
items have been newly calibrated. So, all items must be temporarily
registered when the E5EK-T controller is calibrated.

When registering data, information regarding whether or not calibra­tion has been carried out is also registered.

To calibrate these items, the user must prepare separate measuring de­vices and equipment. For details on handling these measuring devices

and equipment, refer to the respective manuals.

For details, see Chapter 7 Calibration.

1--13

CHAPTER 1 INTRODUCTION

1--14

CHAPTER2

CHAPTER 2

PREPARATIONS

This chapter describes the operations (e.g. setup, installation and
wiring) you should carry out before turning the E5EK-T ON.

CHAPTER 2 PREPARATIONS

2.1 Setup 2-2.................................

Draw-out 2-2..............................

Setting up the output unit 2-3..............

Setting up the option unit 2-4...............

2.2 Installation 2-5............................

Dimensions 2-5............................

Panel cutout 2-5...........................

Mounting 2-6.............................

2.3 Wiring Terminals 2-8......................

Terminal arrangement 2-8.................

Precautions when wiring 2-8...............

Wiring 2-8................................

2--1

CHAPTER 2 PREPARATIONS

2.1 Setup

• On a standard type controller, set up the output units for control out­puts 1 and 2 before mounting the controller.

• On a position-proportional type controller, the relay output unit is
already mounted. So, this setup operation is unnecessary. (That is, do
not replace the currently mounted unit with other output units.)

• When setting up the output units, draw out the internal mechanism
from the housing, and insert the output units into the sockets for con­trol outputs 1 and 2.

JDraw-out

When drawing out the internal mechanism from the housing, prepare a

Phillips screwdriver matched to the size of the screw on the lower part
of the front panel.

(1) Press down on the hook on the top of the front panel, and turn the

Phillips screwdriver to the left to loosen the screw on the lower

part of the front panel.

Fixing Screw for
Front Panel

2--2

(2) Draw out the internal mechanism towards you holding both sides

of the front panel.

Tighten this screw by a torque of 0.3 to 0.5 N⋅m (approx. 3 to 5 kgf⋅cm).

JSetting up the output unit

2.1 Setup

F Before setup

F Procedure

• Check the type of the output unit you are about to set up.

• For details on types of output unit and main specifications, see page

2-7.

(1) Check the positions of the sockets you are about to insert the out-

put units into as shown in the following diagram.

OUT1

OUT2

Bracket

(2) R emove the power board in the direction of the arrow in the figure

below. The power board is connected to the control board by a con­nector at the center of the board.

Control board

Power board

(3) Insert the output unit for control output 1 into the socket “OUT1”

and the output unit for control output 2 into the socket “OUT2”.

(4) Fasten the output units with the bracket (accessory).

(5) Mount the power board at its original position.

2--3

CHAPTER 2 PREPARATIONS

JSetting up the option unit

F Before setup

F Procedure

• Check the type of the option unit you are about to set up.

• For details on types of option unit and main specifications, see Appen-

dix, Model List (page A-11) and Appendix, Option Unit Ratings and
Characteristics (page A-4).

• For details on the relationship between units and terminals, see page
2-8.

(1) R emove the power board and option boards in the order shown in

the following diagram.

2

1

(2) Insert the option unit into the socket for option 1. The following

diagram shows the relationship between option unit and mounting
position.

Option 1
E53--AKB: Event inputs 1/2
E53-- AK01: RS--232C
E53-- AK02: RS--422
E53-- AK03: RS--485
E53-- AKF: Transfer output

(3) Mount the option board and the power board in the order shown.

2--4

2.2 Installation

JDimensions

48

PV

2.2 Installation

13.5 100

PTN

MANU

RMT

OUT1 OUT2

STOP

RUN

RST

JPanel cutout

Unit (mm)

SV

91

SUB2RSP SUB1

AT

WAIT

E5EK

96

112

60 mm min

120 mm min

45

+0.6

0

92

+0.8

0

• Recommended panel thickness is 1 to 8
mm.

• Maintain the specified vertical and hori­zontal mounting space between each con­troller.
Controllers must not be closely mounted
vertically or horizontally.

2--5

CHAPTER 2 PREPARATIONS

JMounting

(1) Insert the E5EK-T controller into the mounting hole in the panel.

(2) Fit the mounting b racket (accessory) into the fixing slots on the top

and bottom of the rear case.

(3) Tighten the two mounting bracket screws alternately a little at a

time until the ratchet starts to slide.

2--6
