Omron E5CC, E5AC, E5EC User Manual

Download

Page 1

Introduction

Preparations

Digital Temperature Controllers

User’s Manual E5@C

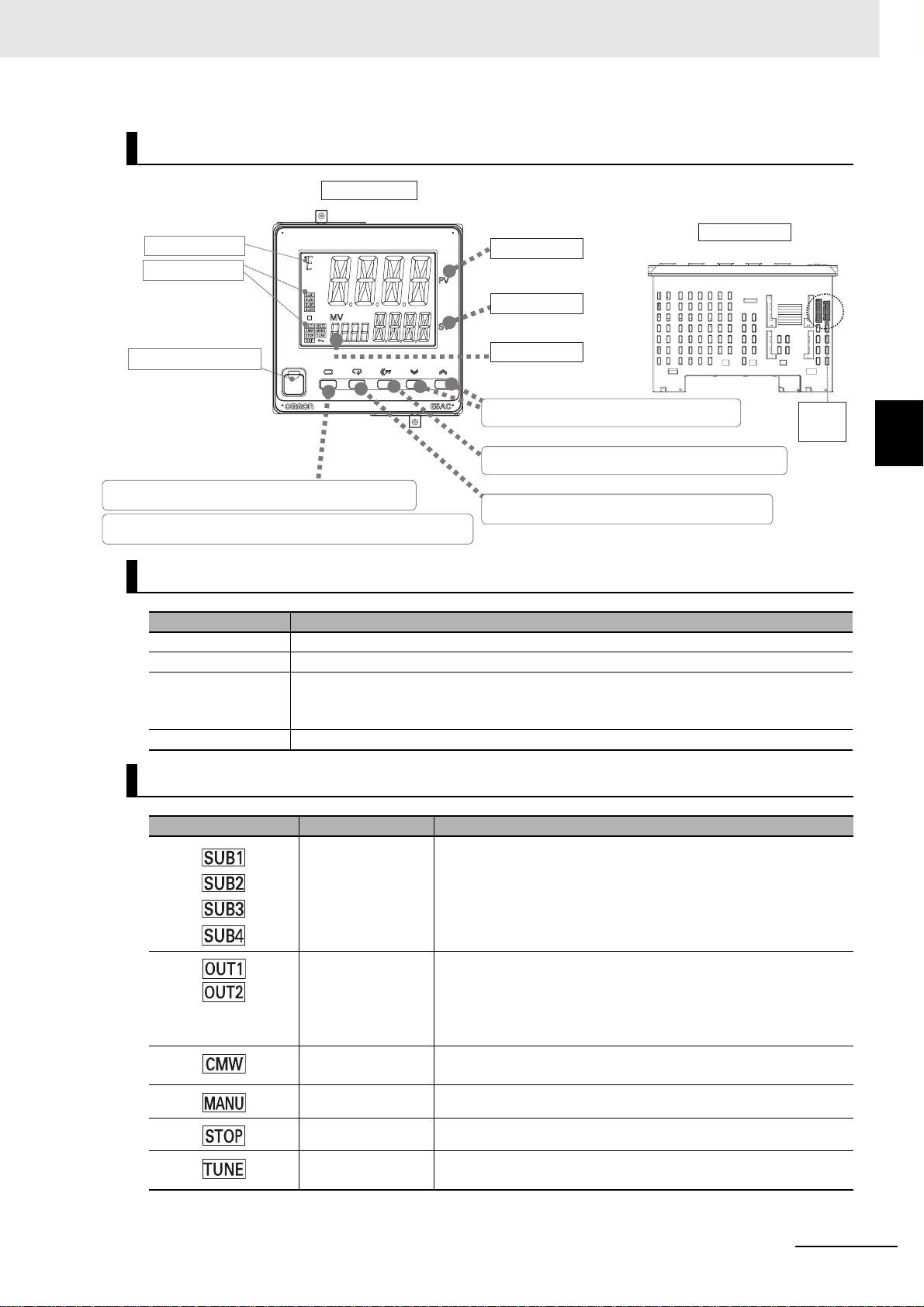

Part Names and

Basic Procedures

Basic

Operation

Advanced

Operations

Parameters

User Calibration

Appendices

Index

H174-E1-03

Page 2

Page 3

Preface

Thank you for purchasing an E5@C Digital Controller. This manual describes how to use the E5@C . Read th is manual thorough ly and be sure y ou understa nd it before attempting to use the Dig ita l Co ntro ller and use th e Digital Con trolle r cor rectl y acco rding t o the information provided. Keep this manu al in a sa fe place for easy reference. Ref er to the following manual for further information on communications: E5 Manual (Cat. No. H175).

Preface

C Digital Temperature Controllers Communications

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of OMRON. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed fo r damages resul ting from the use of the information contained in this publication.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 4

Read and Understand this Manual

Please read and understand this manual before using the products. Please consult your OMRON representative if you have any questions or comments.

Warranty and Limitations of Liability

WARRANTY

OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.

In no event shall the responsibility of OMRON f or an y act exceed the individual price of the product on which liability is asserted.

IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 5

Read and Understand this Manual

Application Considerations

SUITABILITY FOR USE

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's application or use of the products.

At the customer's request, OMRON will provide applicable third party cert ification documents identifying ratings and limitations of use that apply to the products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use.

The following are some examples of applications for which particular attention must be given. This is not intended to be an exhau stive list of all possible uses of the product s , no r is it int ended to imply t hat th e uses listed may be suitable for the products:

• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this manual.

• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safet y equipment, and installations subject to separate industry or government regulations.

• Systems, machines, and equipment that could present a risk to life or property.

Please know and observe all prohibitions of use applicable to the products. NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR

PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RA TED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 6

Read and Understand this Manual

Disclaimers

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other reasons.

It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.

PERFORMANCE DATA

Perf ormance data given in this manual is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON's test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.

ERRORS AND OMISSIONS

The information in this manual has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 7

Safety Precautions

Definition of Precautionary Information

The following notation is used in this manual to provide precautions required to ensure safe usage of the E5@C Digital Controllers. The safety precautions that are provided are extremely important to safety. Always read and heed the information provided in all safety precautions. The following notation is used.

Indicates a potentially hazardous situation which, if not avoided,

CAUTION

Symbols

may result in minor or moderate injury or in property damage.

Safety Precautions

Symbol Meaning

Caution

Prohibition

Mandatory

Caution

• General Caution

Indicates non-specific general cautions, warnings, and dangers.

• Electrical Shock Caution Indicates possibility of electric shock under specific conditions.

• General Prohibition Indicates non-specific general prohibitions.

• General Caution Indicates non-specific general cautions, warnings, and dangers.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 8

Safety Precautions

z Safety Precautions

Minor injury due to electric shock may occasionally occur. Do not touch the terminals while power is being supplied.

Electric shock, fire, or malfunction may occasionally occur. Do not allow metal objects, conductors, cuttings from installation work, or moisture to enter the Digital Cont roller or a Se tup Tool port. Attach the cov e r to t he fr ont- pa nel Set up Tool port wheneve r you are not using it to prevent foreign objects from entering the port.

Minor injury from explosion may occasionally occur. Do not use the product where subject to fla mmable or e xplos ive gas .

CAUTION

Fire may occasionally occur. Do not allow dirt or other foreign objects to enter a Setup Tool por t, or between the pins on the connectors on the Setup Tool cable.

Minor electric shock, fire, or malfunction may occasionally occur. Never disassemble, modify, or repair the product or touch any of the internal parts.

CAUTION - Risk of Fire and Electric Shock (a) This product is UL recognized as Open Type Process Control

Equipment. It must be mounted in an enclosure that does not allow fire to escape externally.

(b) More than one disconnect switch may be required to

de-energize the equipment before servicing.

interconnect the outputs of different Class 2 circuits.

If the output relays a re used p ast th eir life expectancy, contact fusing or burning may occasionally occur. Always consider the application conditions and use the output relays within their rated load and electrical life expectancy. The life expectancy of output relays varies considerably with the output load and switching conditions.

*1 A SELV circuit is one separated from the power supply with double insulation or reinforced insulation, that

does not exceed 30 V r.m.s. and 42.4 V peak or 60 VDC.

*2 A class 2 power supply is one tested and certified by UL as having the current and voltage of the

secondary output restricted to specific levels.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 9

CAUTION

Loose screws may occasionally result in fire. Tighten the terminal scr ews to the specified torque of 0.43 to 0.58 N·m.

Set the parameters of the product so that they are suitable for the system being controlled. If they are not suitable, unexpected operation may occasionally result in property damage or accidents.

A malfunction in the Digital Controller may occasionally make control operations impossible or prevent alarm outputs, resulting in property damage. To maintain safety in the event of malfunction of the Digital Controller, take appropriate safety measures, such as installing a monitoring device on a separate line.

Safety Precautions

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 10

Precautions for Safe Use

Precautions for Saf e Use

Be sure to observe the following precautions to prevent operation failure, malfunction, or adverse affects on the performance and functions of the product. Not doing so may occasionally result in unexpected events. Use the product within the specifications.

• The product is designed for indoor use only. Do not use or store the product outdoors or in any of the following locations.

Locations directly subject to heat radiated from heating equipment. Locations subject to splashing liquid or oil atmosphere. Locations subject to direct sunlight. Locations subject to dust or corrosive gas (in particular, sulfide gas and ammonia gas). Locations subject to intense temperature change. Locations subject to icing and condensation. Locations subject to vibration and large shocks.

• Use and store the Digital Controller within the rated ambient temperature and humidity. Gang-mounting two or more Digital Controller s, or mount ing Digital Controllers ab ov e each othe r ma y cause heat to build up inside the Digital Controllers, which will shorten their service life. In such a case, use forced coo ling by fans or other means of air ventilation to cool down the Digital Controllers.

• To allow heat to escape, do not block the area around the product. Do not block the ventilation holes on the product.

• Be sure to wire properly with correct polarity of terminals.

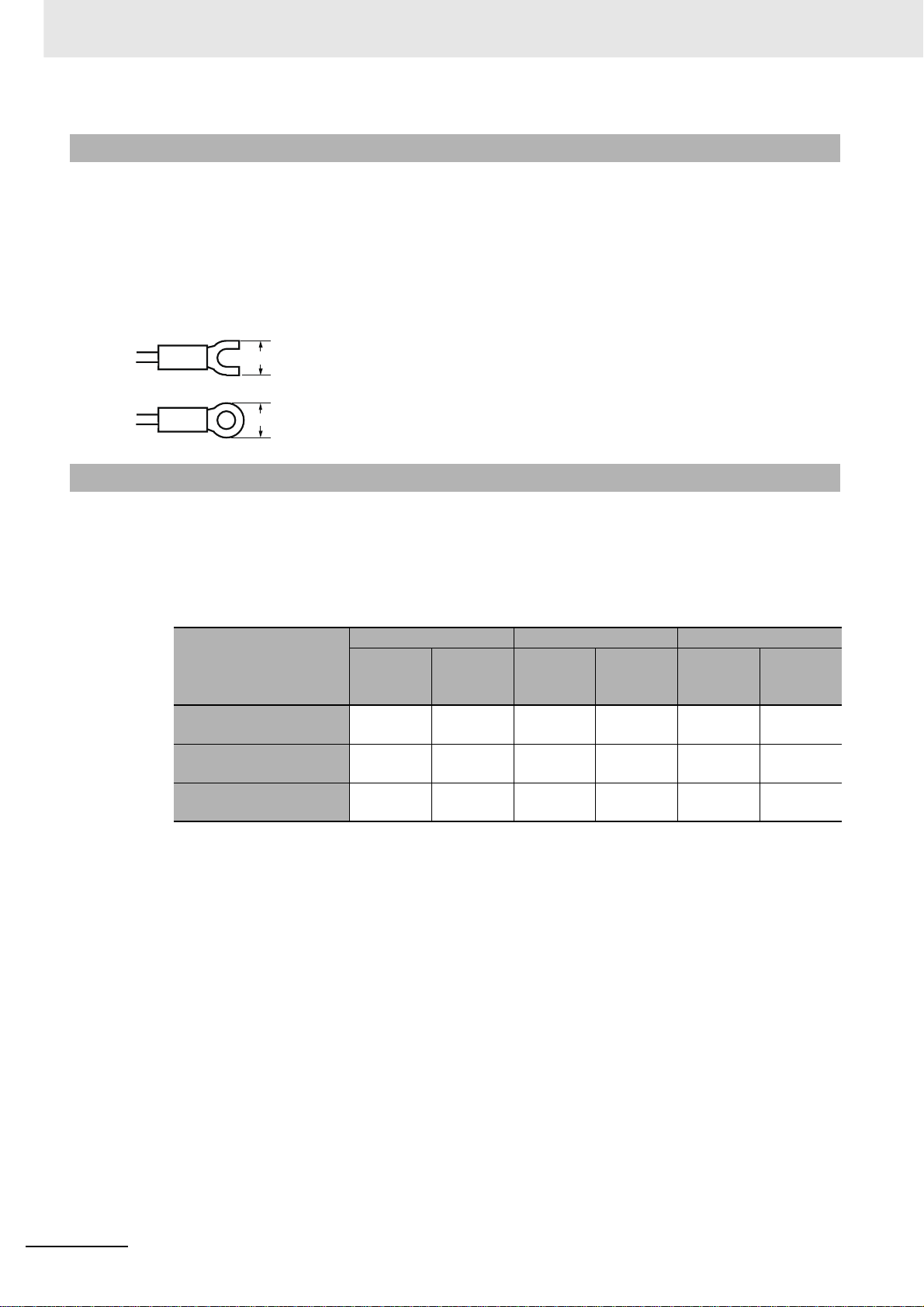

• Use the specified size of crimped terminals (M3, width of 5.8 mm or less) for wiring. To connect bare

wires to the terminal block, use copper braided or solid wires with a gage of AWG24 to AWG18 (equal to a cross-sectional area of 0.205 to 0.8231 mm

two wires of the same size and type, or two crimped termin als can be inserted into a single terminal.

• Do not wire the terminals that are not used.

• To avoid inductive noise, keep the wiring for the Digital Controller's terminal block away from power

cables that carry high voltages or large currents. Also, do not wire power lines together with or parallel to Digital Controller wiring. Using shielded cables and using separate conduits or ducts is recommended. Attach a surge suppressor or noise filter to peripheral devices that generate noise (in particular, motors, transformers, solenoids, magnetic coils or other equipment that have an inductance component). When a noise filter is used at the power supply, first check the voltage or cur rent, and attach the noise filter as close as possible to the Digital Controller. Allow as much space as possible between the Digital Controller and devices that generate powerful high frequencies (high-frequency welders, high-frequency sewing machines, etc.) or surge.

• Use this product within the rated load and power supply.

• Make sure that the rated voltage is attained within 2 seconds of turning ON the power using a switch

or relay contact. If the voltage is applied gradually, the power may not be r eset or outpu t malf uncti ons may occur.

• Make sure that the Digital Controller has 30 minutes or more to warm up after turning ON the power before starting actual control operations to ensure the correct temperature display.

• When executing self-tuning, turn ON power for the load (e.g., heater) at the same time as or before supplying power to the Digital Controller . If pow er is turned ON for the Digital Controller bef ore turning ON power for the load, self-tuning will not be performed properly and optimum control will not be achieved.

). (The stripping length is 6 to 8 mm.) Up to

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 11

Precautions for Safe Use

• A switch or circuit breaker should be provided close to Digital Controller. The switch or circuit breaker should be within easy reach of the operator, and must be marked as a disconnecting means for Digital Controller.

• Wipe off any dirt from the Digital Controller with a so ft dry cloth. Never use thinners, ben zine , alcoho l, or any cleaners that contain these or other organic solvents. Deformation or discoloration may occur.

• Design the system (e.g., control panel) considering the 2 seconds of delay in setting the Digital Controller’s output after the power supply is turned ON.

• The output will turn OFF when you move to the Initial Setting Level. Take this into consideration when performing control.

• The number of non-volat ile memory write operations is limited. Therefore, use RAM write mode when frequently overwriting data, e.g., through communications.

• Use suitable tools when taking the Digital Controller apart for disposal. Sharp parts inside the Digital Controller may cause injury.

• Do not connect cables to both the fr ont-panel Setu p Tool port and the top-panel Setup Tool port at the same time. The Digital Controller may be damaged or may malfunction.

• Do not exceed the communications distance that is given in the specifications. Use the specified communications cable.

• Do not turn the power supply to the Digital Controller ON or OFF while the USB-Serial Conversion Cable is connected. The Digital Controller may malfunction.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 12

Installation Precautions

z Service Life

Use the Digital Controller within the following temperature and humidity ranges: Temperature: −10 to 55°C (with no icing or condensation), Humidity: 25% to 85% If the Digital Controller is installed inside a control board, the ambient temperature must be kept to under 55°C, including the temperature around the Controller. The service life of electronic devices like Digital Controllers is determined not only by the number of times the relay is switched but also by the service life of internal electronic components. Component service life is affected by the ambient temperature: the higher the temperature, the shorter the service life and, the lower the temperature, the longer the service life. Therefore, the service life can be extended by lowering the temperature of the Digital Controller. When two or more Digital Controllers are mounted horizontally close to each other or vertically next to one another, the internal temperature will increase due to heat radiated by the Digital Controllers and the service life will decrease. In such a case, use forced cooling by fans or other means of air ventilation to cool down the Digital Controllers. When providing forced cooling, however, be careful not to cool down the terminals sections alone to avoid measurement errors.

z Ambient Noise

To avoid inductive noise, keep the wiring for the Digital Controller's terminal block wiring away from power cables carrying high voltages or large currents. Also, do not wire power lines together with or parallel to Digital Controller wiring. Using shielded cables and using separate conduits or ducts is recommended. Attach a surge suppressor or noise filter to peripheral devices that generate noise (in particular, motors, transformers, solenoids, magnetic coils or other equipment that have an inductance component). When a noise filter is used at the power supply, first check the voltage or current, and attach the noise filter as close as possible to the Digital Controller. Allow as much space as possible between the Digital Controller and devices that generate powerful high frequencies (high-frequency welders, high-frequency sewing machines, etc.) or surge.

z Ensuring Measurement Accuracy

When extending or connecting the thermocouple lead wire, be sure to use compensating wires that match the thermocouple types. When extending or connecting the lead wire of the platinum resistance thermometer, be sure to use wires that have low resistance and keep the resistance of the three lead wires the same. Mount the Digital Controller so that it is horizontally level. If the measurement accuracy is low, check to see if input shift has been set correctly.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 13

Installation Precautions

z Waterproofing

The degree of protection is as shown below. Sections without any specification on their degree of protection or those with IP@0 are not waterproof. Front pane l: IP66 Rear case: IP20, Terminal section: IP00 When waterproofing is required, insert the Waterproof Packing on the backside of the front panel. Keep the Por t Cover on the front-panel Setup Tool port of the E5EC/E5AC securely closed. The degree of protection when the Waterproof Packing is used is IP66. To maintain an IP66 degree of protection, the Waterproof Packing and the Por t Cover for the front-panel Setup Tool port must be periodically replaced because they may deteriorate, shrink, or harden depending on the operating environment. The replacement period will vary with the operating environment. Check the required period in the actual application. Use 3 years or sooner as a guideline. If the Waterproof Packing and Port Cover are not periodically replaced, waterproof performance may not be maintained. If a waterproof structure is not required, then the Waterproof Packing does not need to be installed.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 14

Precautions for Operation

• It takes approximately two seconds for the outputs to turn ON from after the power supply is turned

ON. Due consideration must be given to this time when incorporating Digital Controllers into a control panel or similar device.

• Make sure that the Digital Controller has 30 minutes or more to warm up after turning ON the power before starting actual control operations to ensure the correct temperature display.

• When using self-tuning, turn ON power for the load (e.g., heater) at the same time as or before supplying power to the Digital Controller . If pow er is turned ON for the Digital Controller bef ore turning ON power for the load, self-tuning will not be performed properly and optimum control will not be achieved. When starting operation after the Digital Controller has warmed up, turn OFF the power and then turn it ON again at the same time as turning ON power for the load. (Instead of turning the Digital Controller OFF and ON again, switchin g from STOP Mode to RUN Mode can also be used.)

• Avoid using the Digital Controller in places near a radio, television set, or wireless installing. The Digital Controller may cause radio disturbance for these devices.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 15

Preparations for Use

Be sure to thoroughly read and understand the manual pro v ided with t he product , and check the following points.

Timing Check point Details

Purchasing the product

Setting the Unit

Wiring Terminal wiring Do not subject the terminal screws to excessive stress (force) when

Operating environment

Product appearance

Product model and specifications

Product installation location

Power supply inputs

Ambient temperature

Vibration and shock

Foreign particles Install the product in a location that is not subject to liquid or foreign

After purchase, check that the product and packaging are not dented or otherwise damaged. Damaged internal parts may prevent optimum control.

Make sure that the purchased product meets the required specifications.

Provide sufficient space around the product for heat dissipation. Do not block the vents on the product.

tightening them. Make sure that there are no loose screws after tightening terminal screws to the specified torque of 0.43 to 0.58 N·m.

Be sure to confirm the polarity for each terminal before wiring the terminal block and connectors. Wire the power supply inputs correctly . Incorrect wiring will result in damage to the internal circuits.

The ambient operating temperature for the product is −10 to 55°C (with no condensation or icing). T o e xtend the service life of the product, install it in a location with an ambient temperature as low as possible. In locations exposed to high temperatures, if necessary, cool the products using a fan or other cooling method.

Check whether the standards related to shock and vibration are satisfied at the installation environment. (Install the product in locations where the contactors will not be subject to vibration or shock.)

particles entering the product.

Preparations for Use

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 16

Versions

Check the version on the nameplate on the E5@C Digital Controller or on the label on the packing box. If the version is not given, the version of the E5@C Digital Controller is version 1.0.

Product nameplate Package label

The version is given here.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 17

Revision History

A manual revision code appears as a suffix to the catalog number on the front cover of the manual.

Revision History

Cat. No.

Revision code Date Revised content

01 December 2011 Original production 02 January 2012 Page 9: Made correction in Precautions for Safe Use. 03 December 2012 • Made changes accompanying the addition of programless

H174-E1-03

Revision code

communications and component communications (version 1.1).

• Added E5EC/E5AC Digital Controllers with position-proportional control and E5AC Digital Controllers. (version 2.0).

• Corrected mistakes.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 18

Conventions Used in This Manual

Model Notation

“E5@C” is used to indicate information that is the same for the E5CC, E5EC, and E5AC Digital Controllers. “E5EC/E5AC-PR@” or “Position-propor tional Models” indicates the Digital Controllers with position-proportional control. “Standard Models” indicates other Digital Controllers.

Meanings of Abbreviations

The following abbreviations are used in parameter names, figures, and other descriptions. These abbreviations mean the following:

Symbol Term

PV Process value SP Set point SV Set value

AT Auto-tuning ST Self-tuning EU Engineering unit*

LBA Loop burnout alarm

HB Heater burnout HS Heater short

RSP Remote SP

LSP Local SP

* “EU” stands for Engineering Unit. EU is used as the minimum unit for engineering units such as °C, m, and g.

The size of the EU depends on the input type. For example, when the input temperature setting range is −200 to 1,300°C, 1 EU is 1°C, and when the input temperature setting range is −20.0 to 500.0°C, 1 EU is 0.1°C. For analog inputs, the size of the EU depends on the decimal point position of the scaling setting, and 1 EU is the minimum scaling unit.

000

: Indicates items that can be used only with the E5@C-@-0@.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 19

How to Read Display Symbols

The following tables show the correspondence between the symbols displayed on the displays and alphabet characters.

abcdefghijklm

ABCDEFGH I JKLM

nopqrstuVwxyz

NOPQRSTUVWXYZ

How This Manual is Organized

Conventions Used in This Manual

Goal Related sections Contents

Learning about the appearance, features, functions, and model numbers

Setting up the E5@C Section 2 Preparations This section describes the steps that are

Learning the basic procedures from turning ON the power supply to starting actual operation

Learning the basic operating methods

Learning advanced operating methods

Calibrating the E5@C Section 7 User Calibration This section describes the procedures that you

Learning the specifications and parameters of the E5@C

Section 1 Introduction ---

required before turning ON the power supply (including installation, terminal usage, wiring, and isolation/insulation block diagram). It also describes how to use the Setup Tool ports.

Section 3 Part Names and Basic Procedures

Section 4 Basic Operation Section 6 Paramete rs

Section 5 Advanced Operations Section 6 Paramete rs

Appendices ---

This section serves as a basic tutorial for first-time users of the E5@C.

These sections describe basic operating methods.

These sections describe advanced operating methods.

can use to calibrate the sensor or transfer output of the E5@C.

Related Manuals

Refer to the E5 mation on communications.

E5@C Digital Temperature Controllers User’s Manual (H174)

C Digital Temperature Controllers Communications Manual (Cat. No. H175) for infor-

Page 20

Conventions Used in This Manual

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 21

Sections in this Manual

Introduction

Preparations

Part Names and Basic Procedures

Basic Operation

Advanced Operations

Parameters

E5@C Digital Temperature Controllers User’s Manual (H174)

User Calibration

Appendices

Index

Page 22

CONTENTS

Preface .......................................................................................................................1

Read and Understand this Manual ..........................................................................2

Safety Precautions....................................................................................................5

Definition of Precautionary Information ......................................................................................................1-5

Symbols ....................................................................................................................................................1-5

Precautions for Safe Use..........................................................................................8

Installation Precautions..........................................................................................10

Precautions for Operation......................................................................................12

Preparations for Use...............................................................................................13

Versions ...................................................................................................................14

Revision History......................................................................................................15

Conventions Used in This Manual.........................................................................16

Model Notation .........................................................................................................................................1-16

Meanings of Abbreviations .......................................................................................................................1-16

How to Read Display Symbols .................................................................................................................1-17

How This Manual is Organized ................................................................................................................1-17

Related Manuals ......................................................................................................................................1-17

Sections in this Manual ..........................................................................................19

Section 1 Introduction

1-1 Appearance, Features, and Functions of the E5@C............................................................. 1-2

1-1-1 Appearance.................................................................................................................................1-2

1-1-2 Features......................................................................................................................................1-2

1-1-3 Main Functions............................................................................................................................1-3

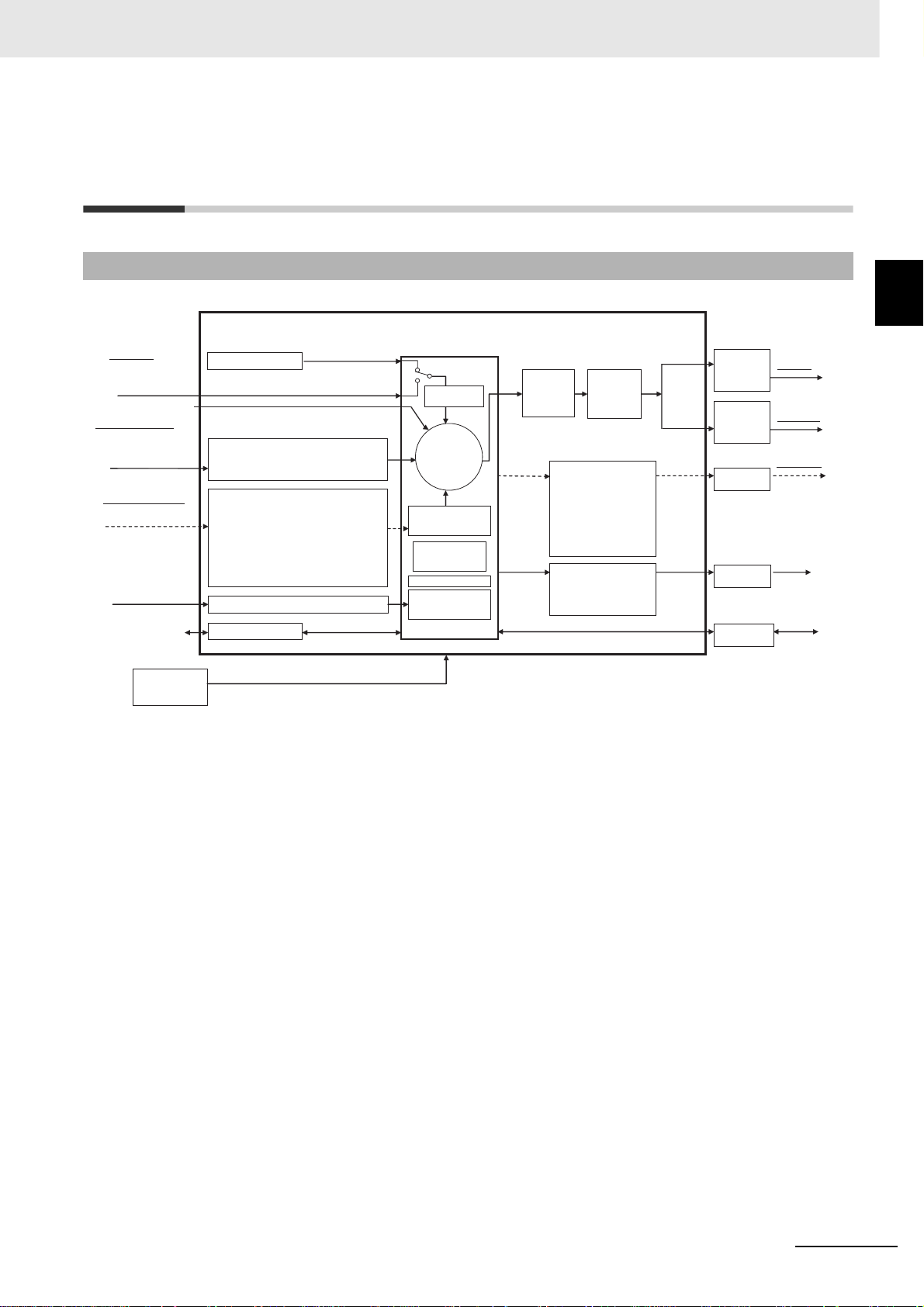

1-2 I/O Configuration and Model Number Legend...................................................................... 1-5

1-2-1 I/O Configuration.........................................................................................................................1-5

1-2-2 Model Number Legends..............................................................................................................1-6

Section 2 Preparations

2-1 Installation................................................................................................................................ 2-2

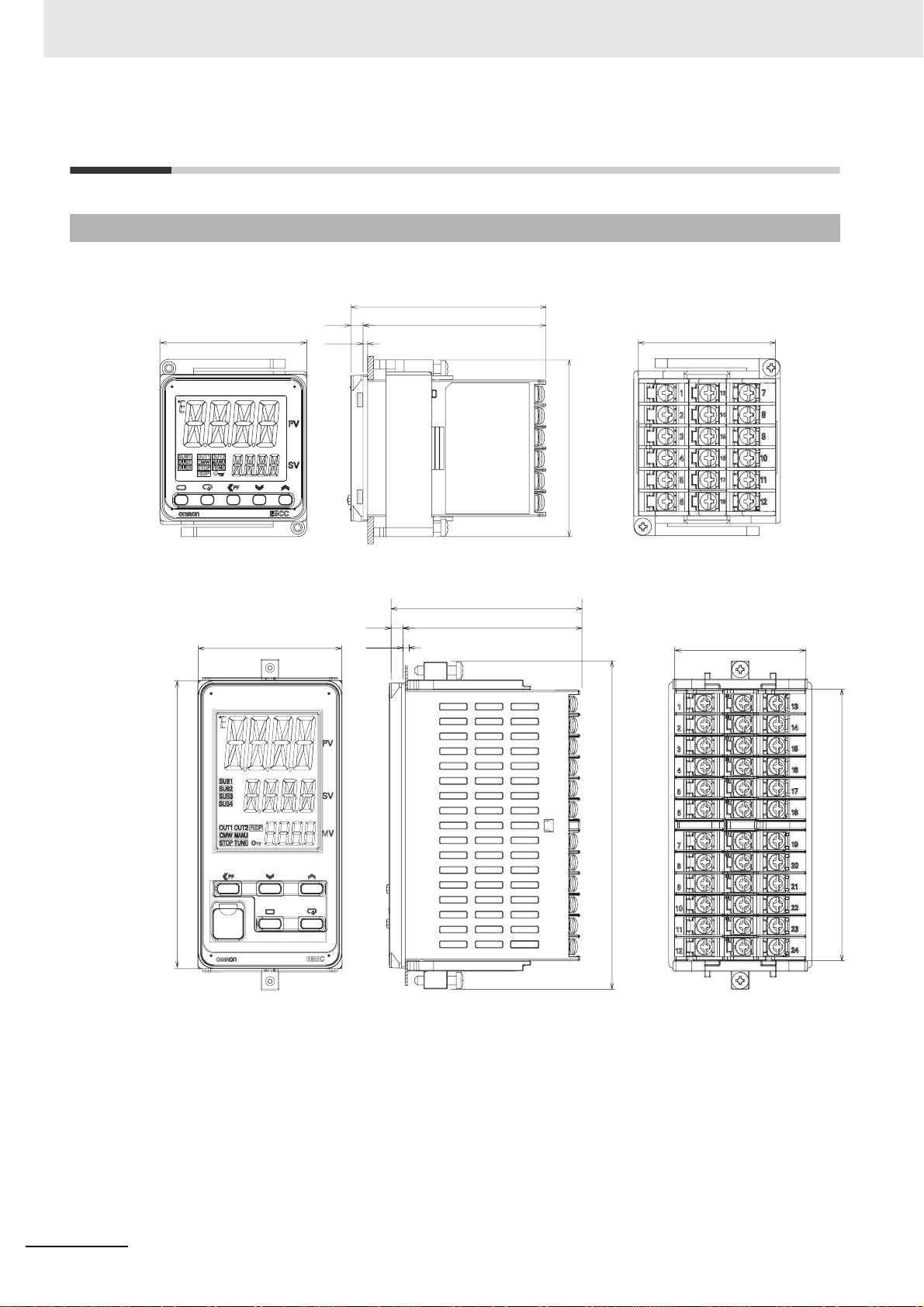

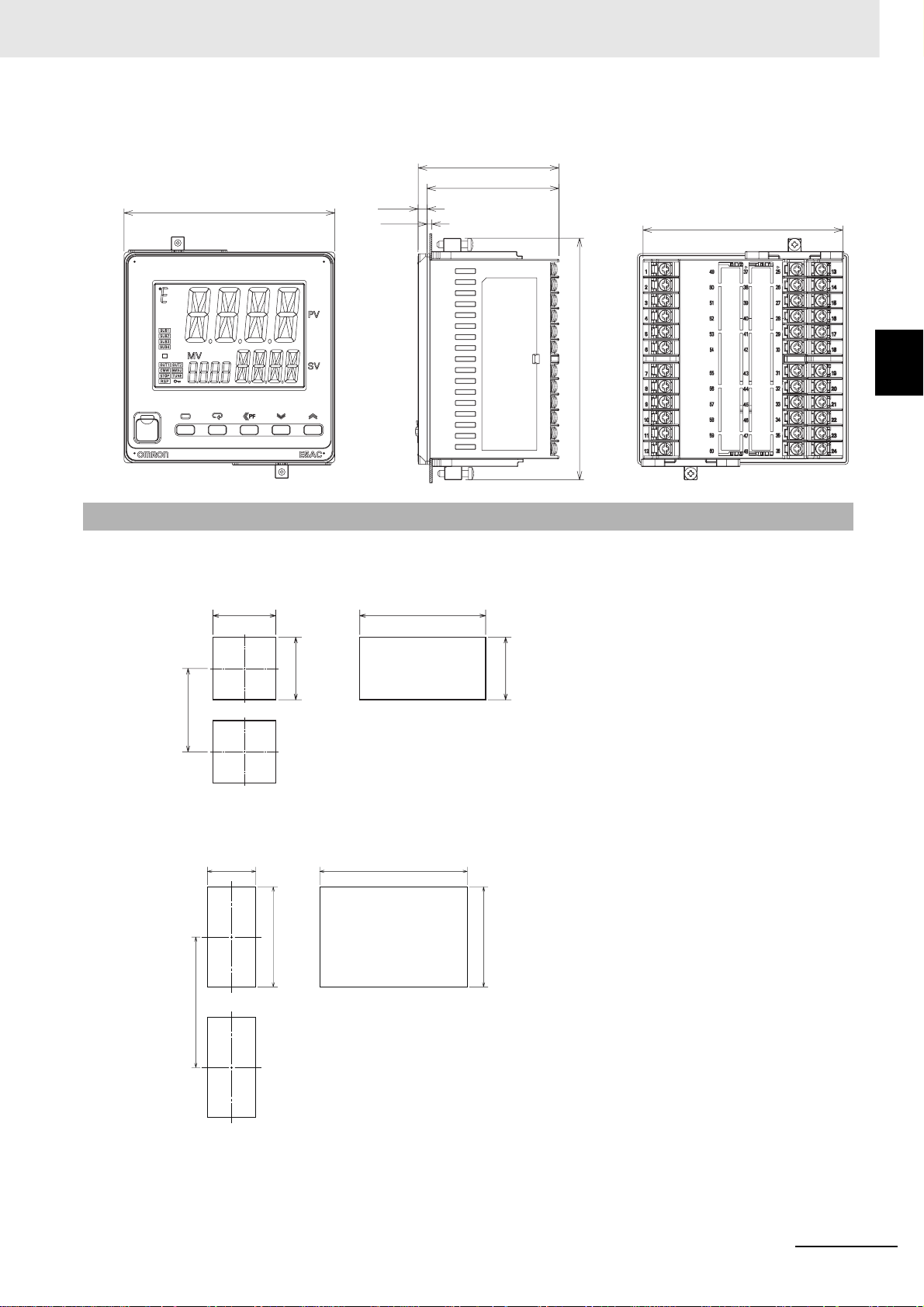

2-1-1 Dimensions (Unit: mm)................. ... ....................................... ... ..................................................2-2

2-1-2 Panel Cutout (Unit: mm)..............................................................................................................2-3

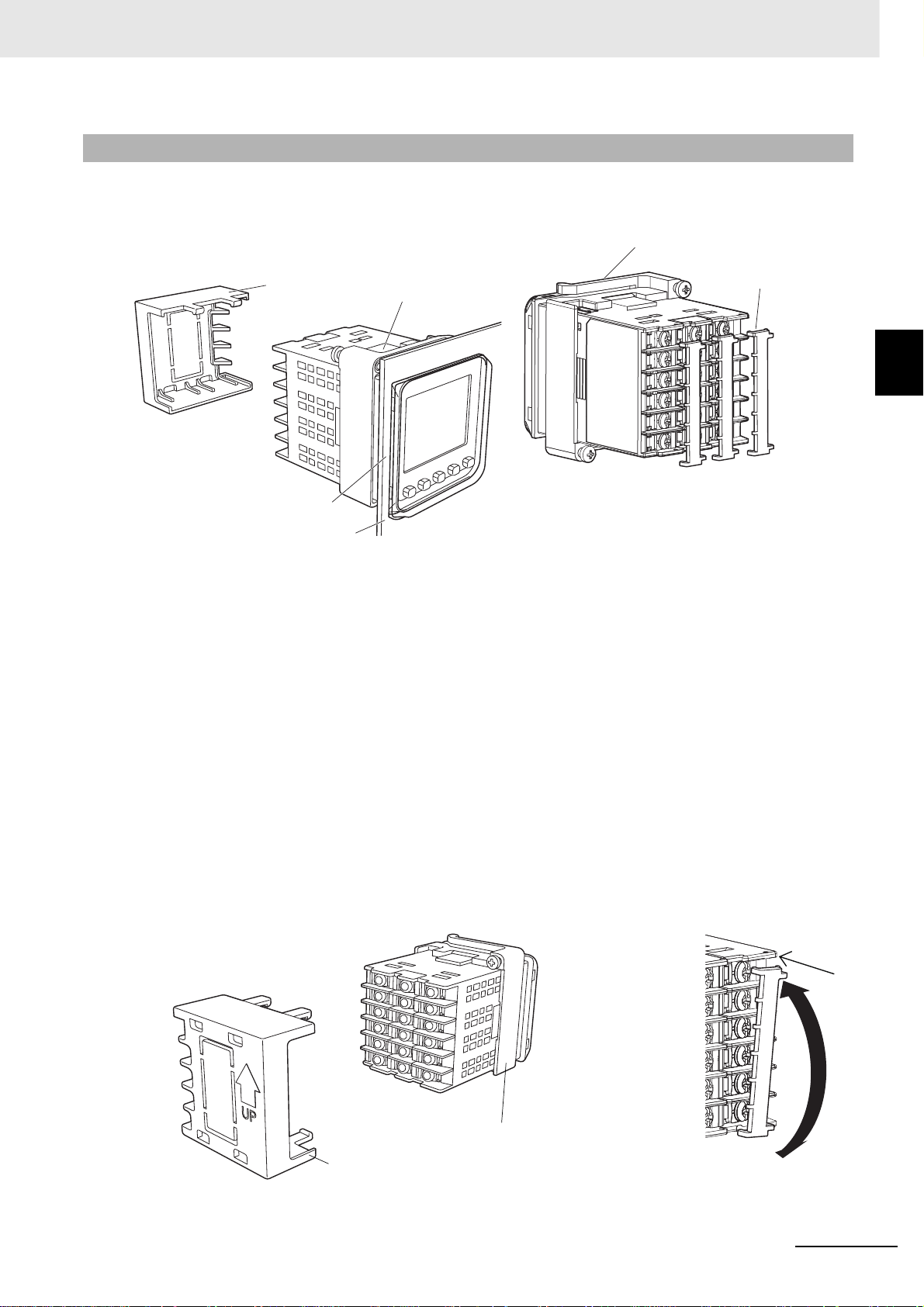

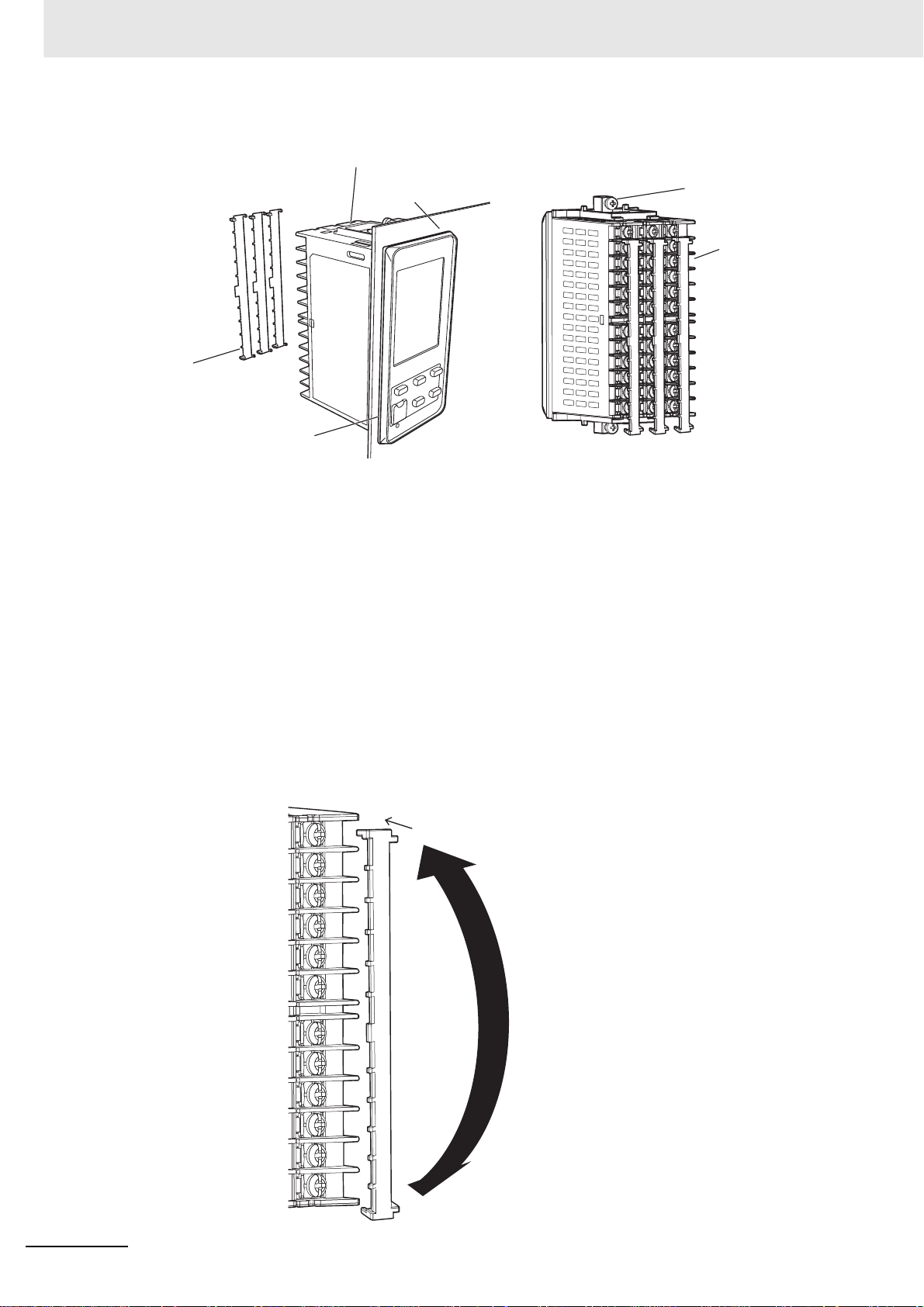

2-1-3 Mounting.....................................................................................................................................2-5

2-2 Using the Terminals................................................................................................................. 2-7

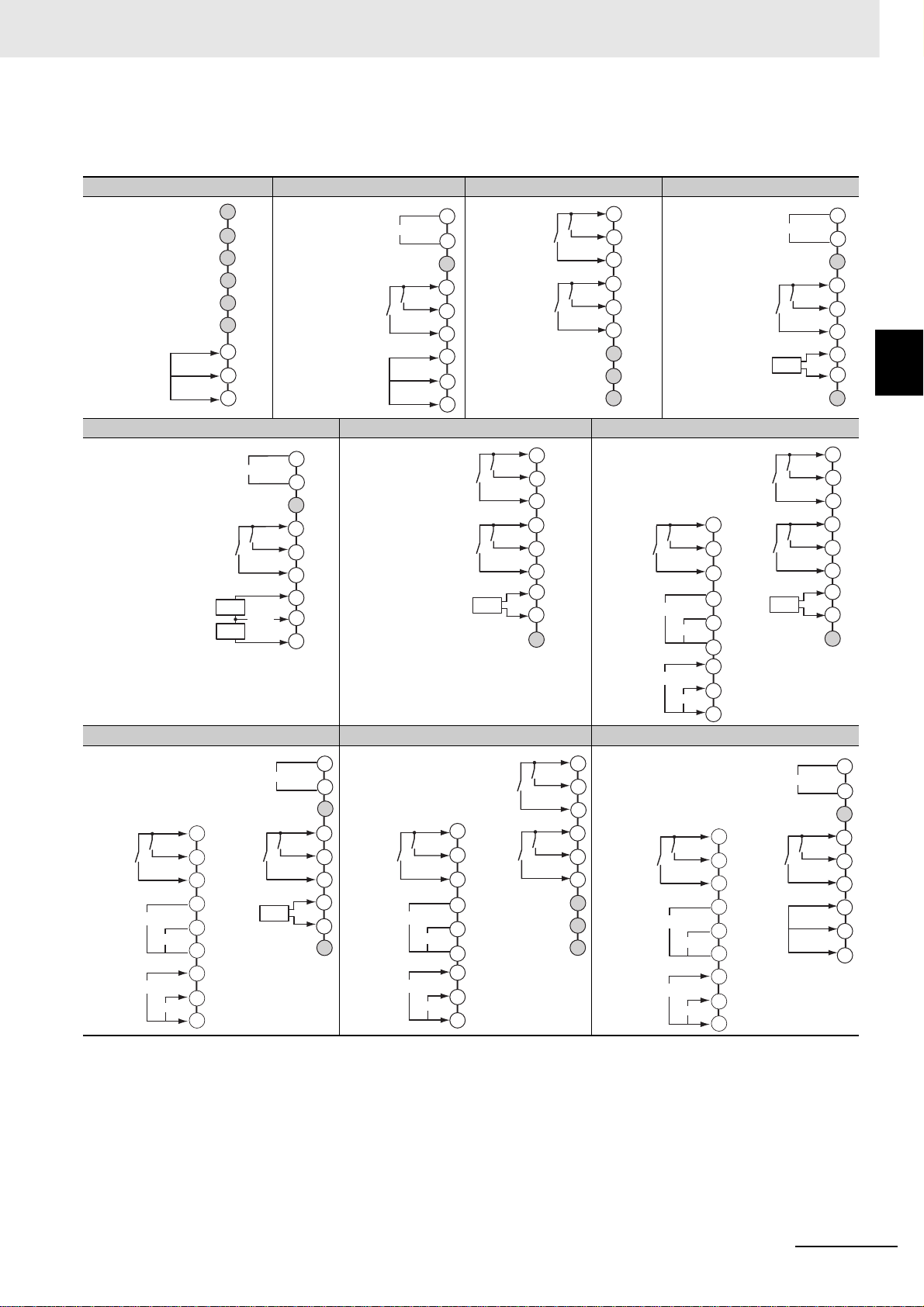

2-2-1 E5CC Terminal Block Wiring Example........................................................................................2-7

2-2-2 E5EC/E5AC Terminal Block Wiring Example............................................................................2-11

2-2-3 Precautions when Wiring..........................................................................................................2-16

2-2-4 Wiring........................................................................................................................................2-16

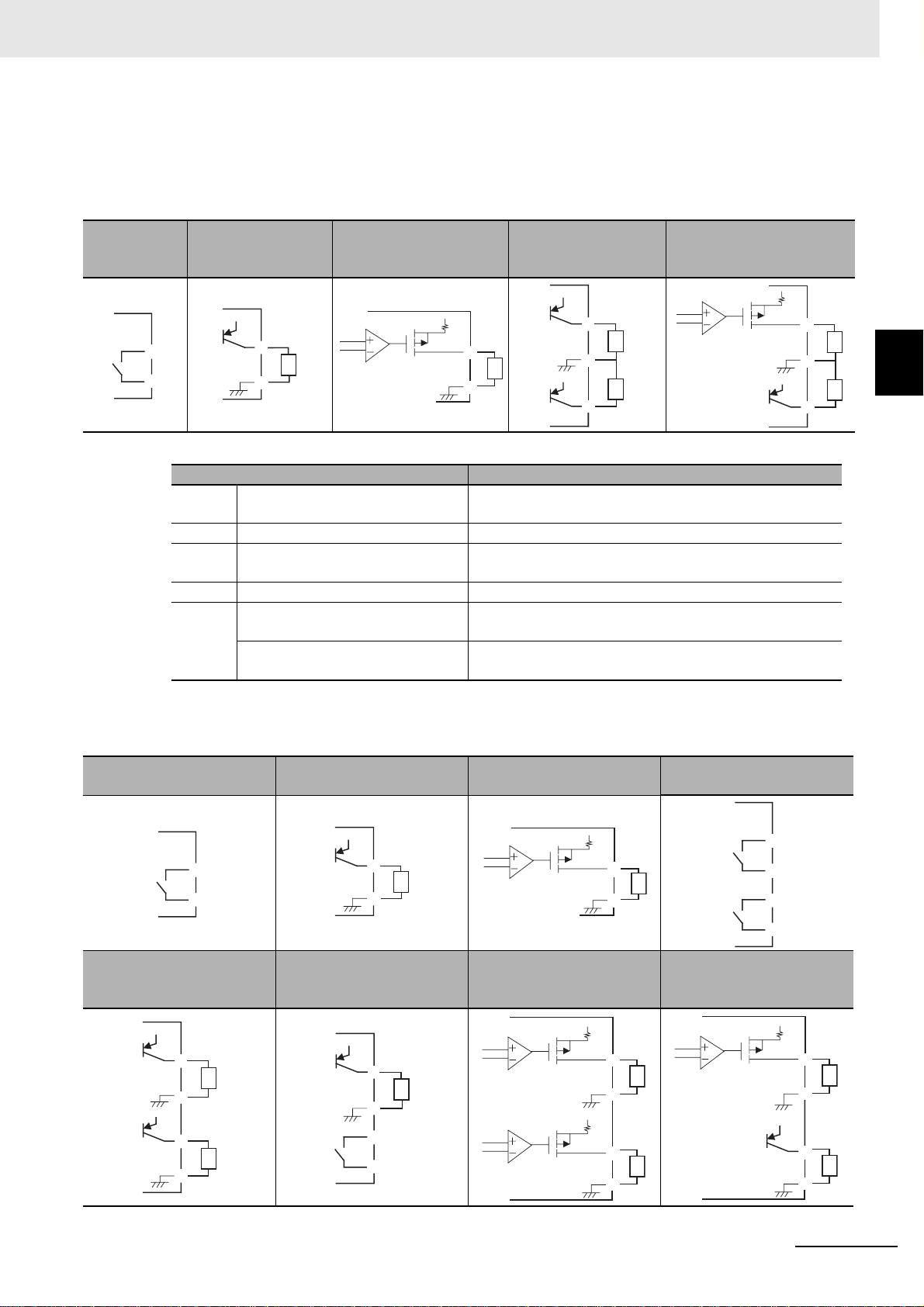

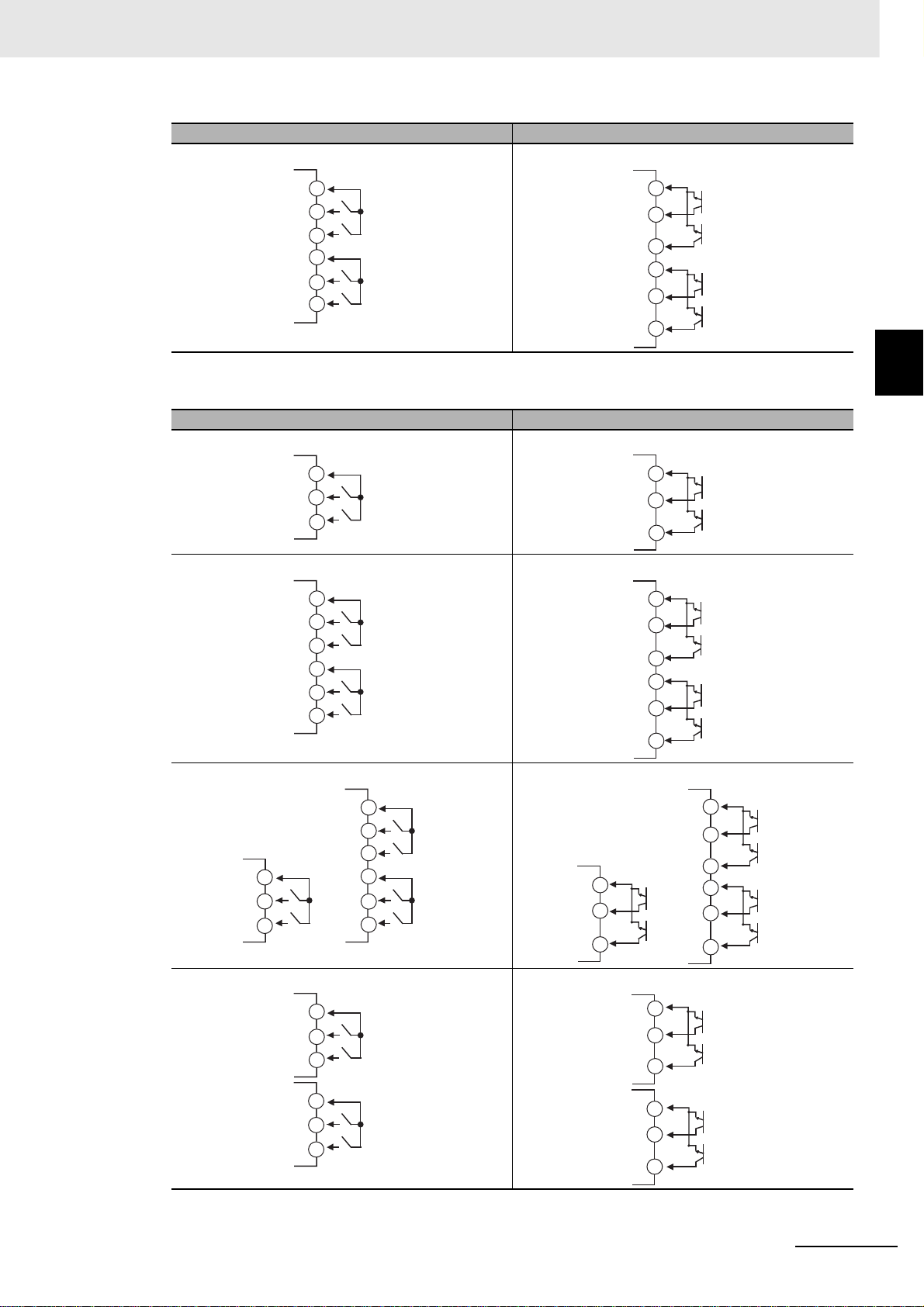

2-3 Insulation Block Diagrams....................................................................................................2-22

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 23

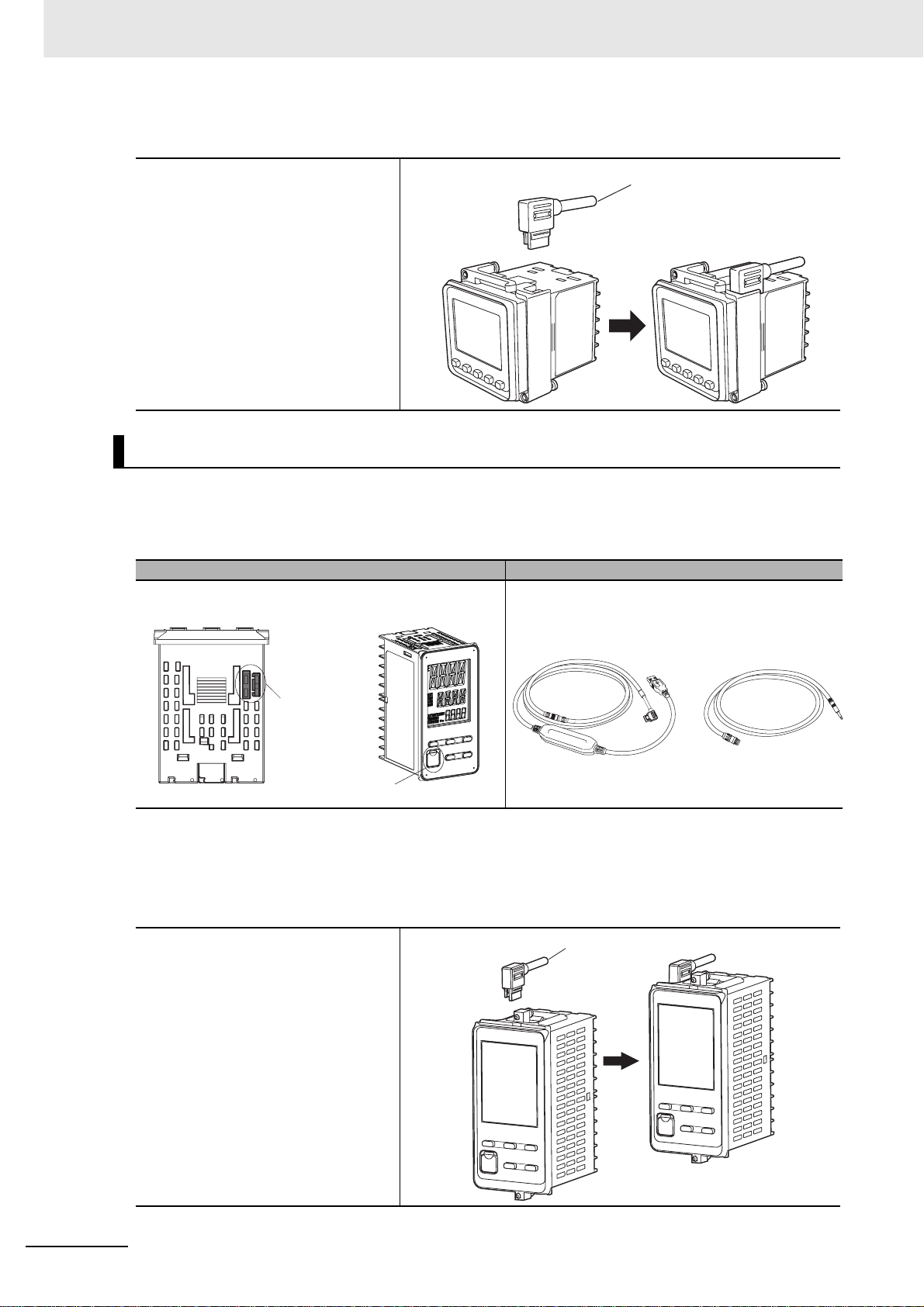

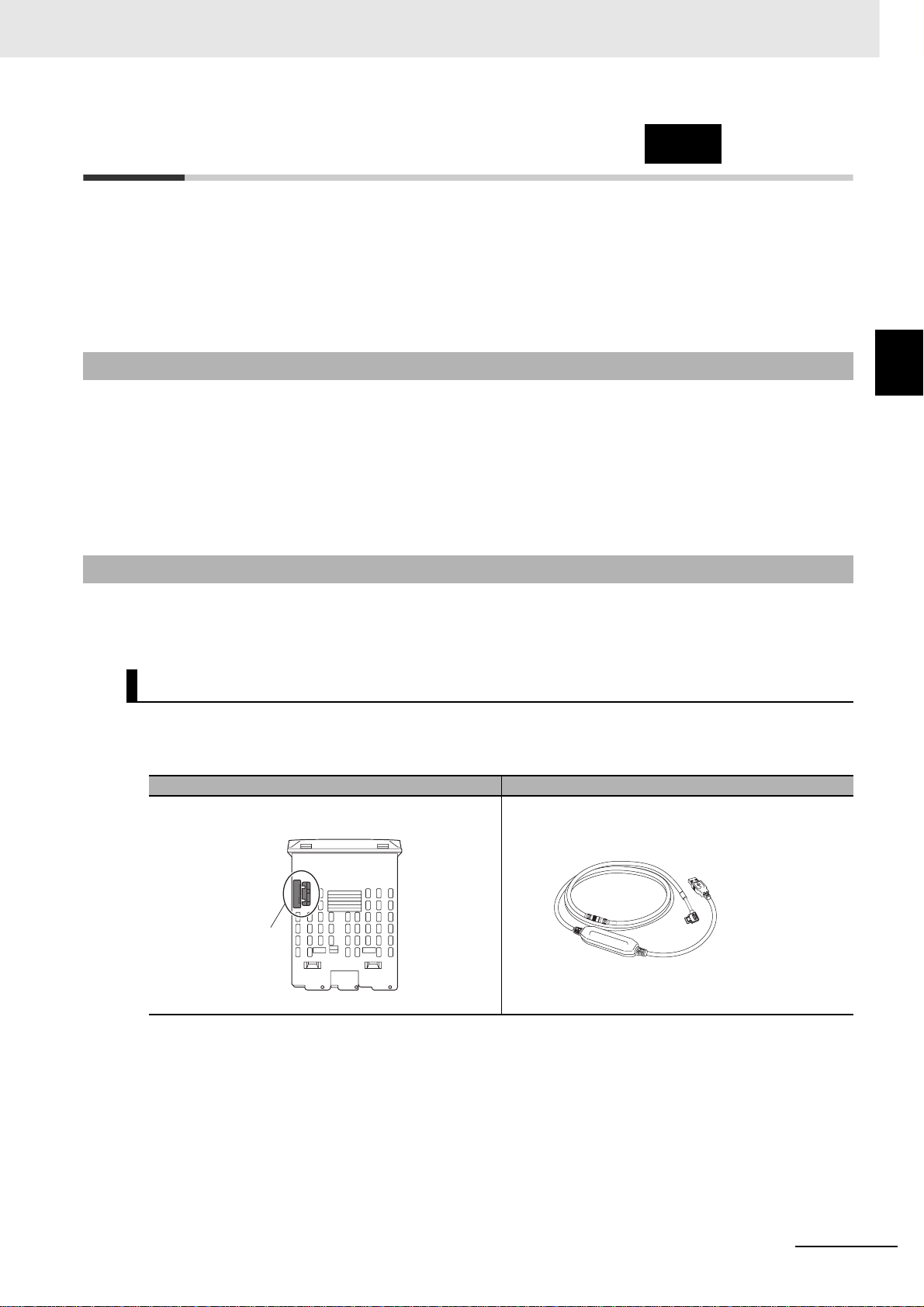

2-4 Using the Setup Tool Port .................................................................................................... 2-23

2-4-1 Procedure................................................................................................................................. 2-23

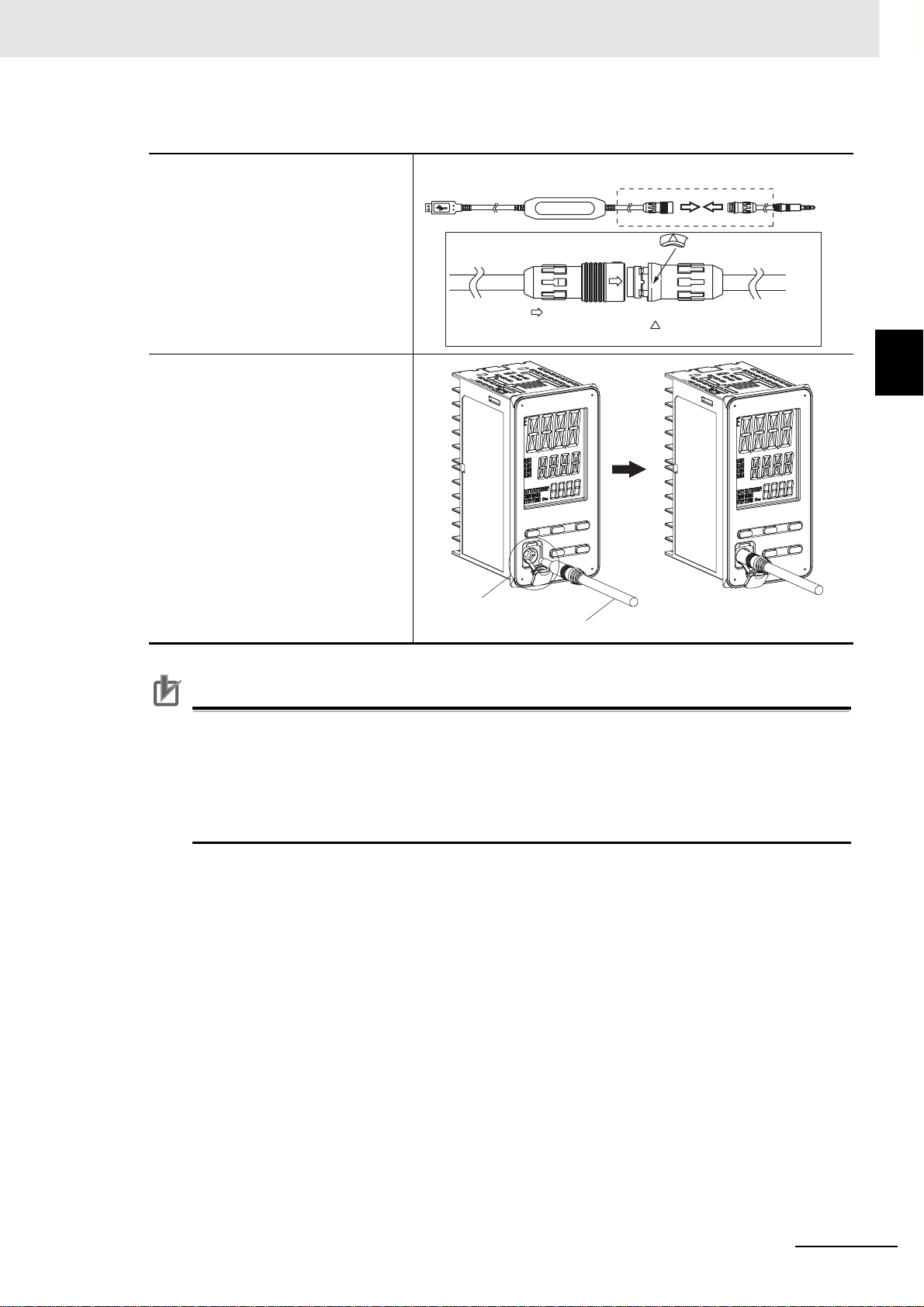

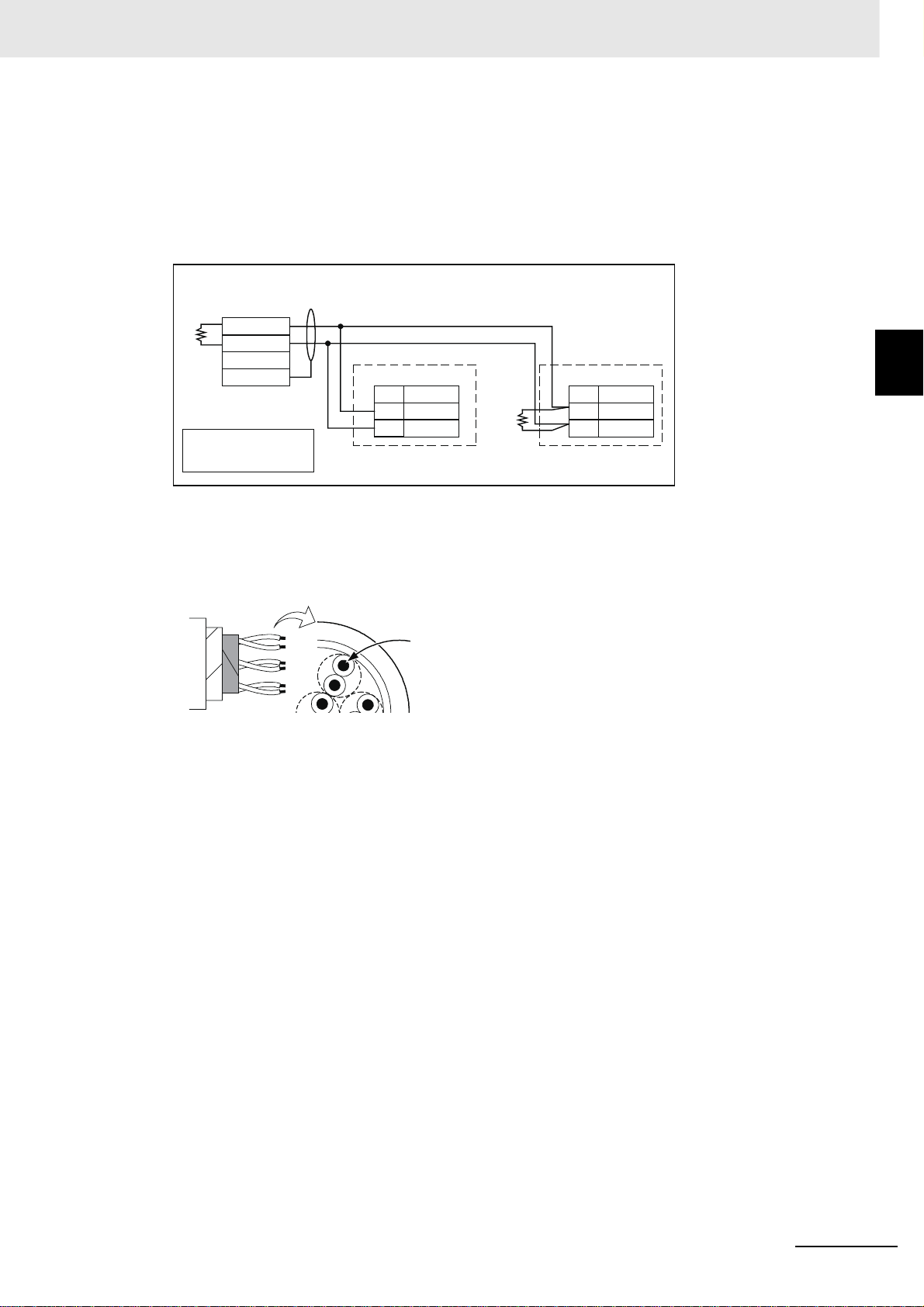

2-4-2 Connection Method.............................. ... ... ...............................................................................2-23

2-4-3 Installing the Driver...................................................................................................................2-26

Section 3 Part Names and Basic Procedures

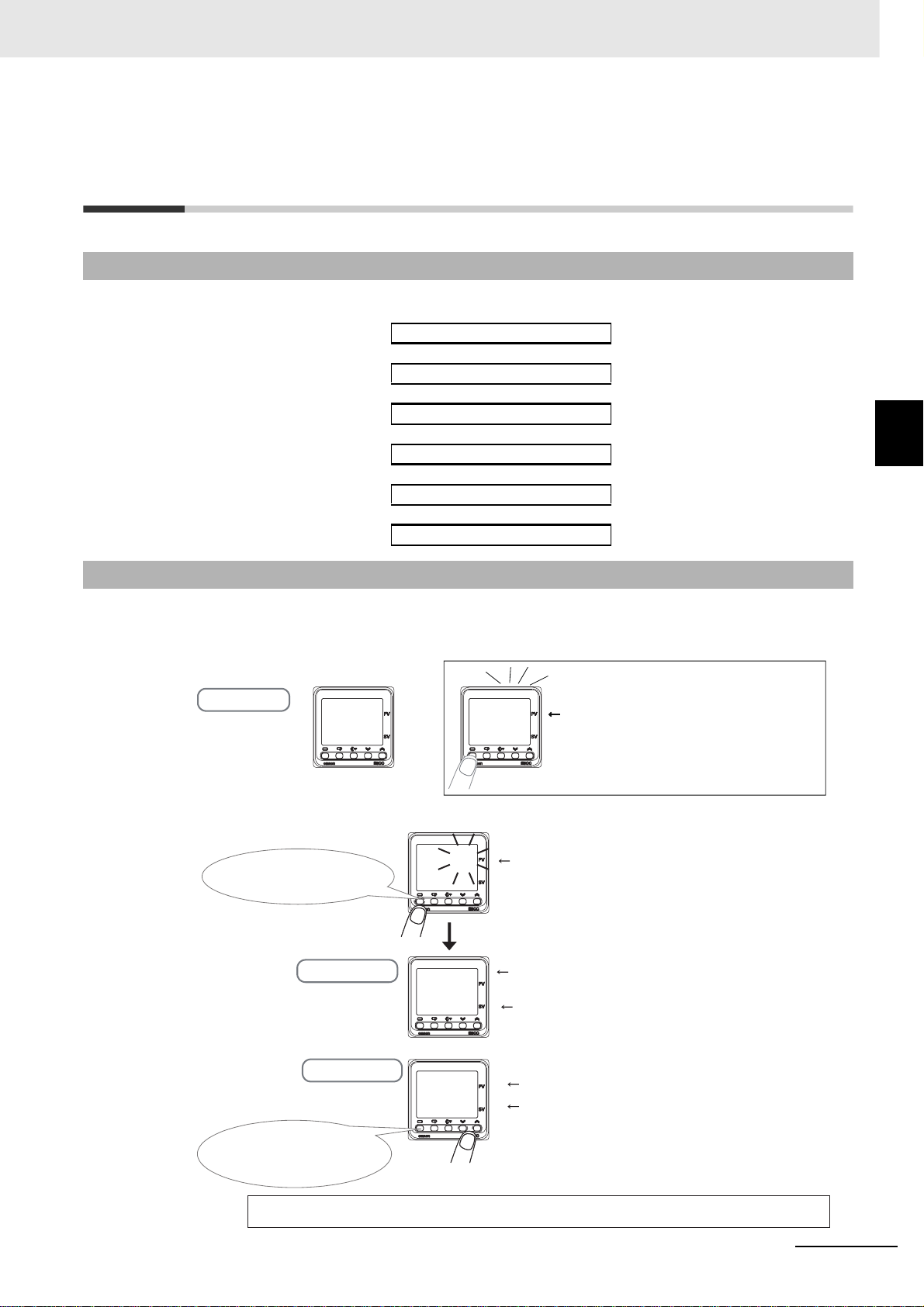

3-1 Basic Application Flow ........................................................................................................... 3-2

3-2 Power ON............................... .... ... ....................................... ... ... ... ... ......................................... 3-3

3-3 Part Names, Part Functions, and Setting Levels.................................................................. 3-4

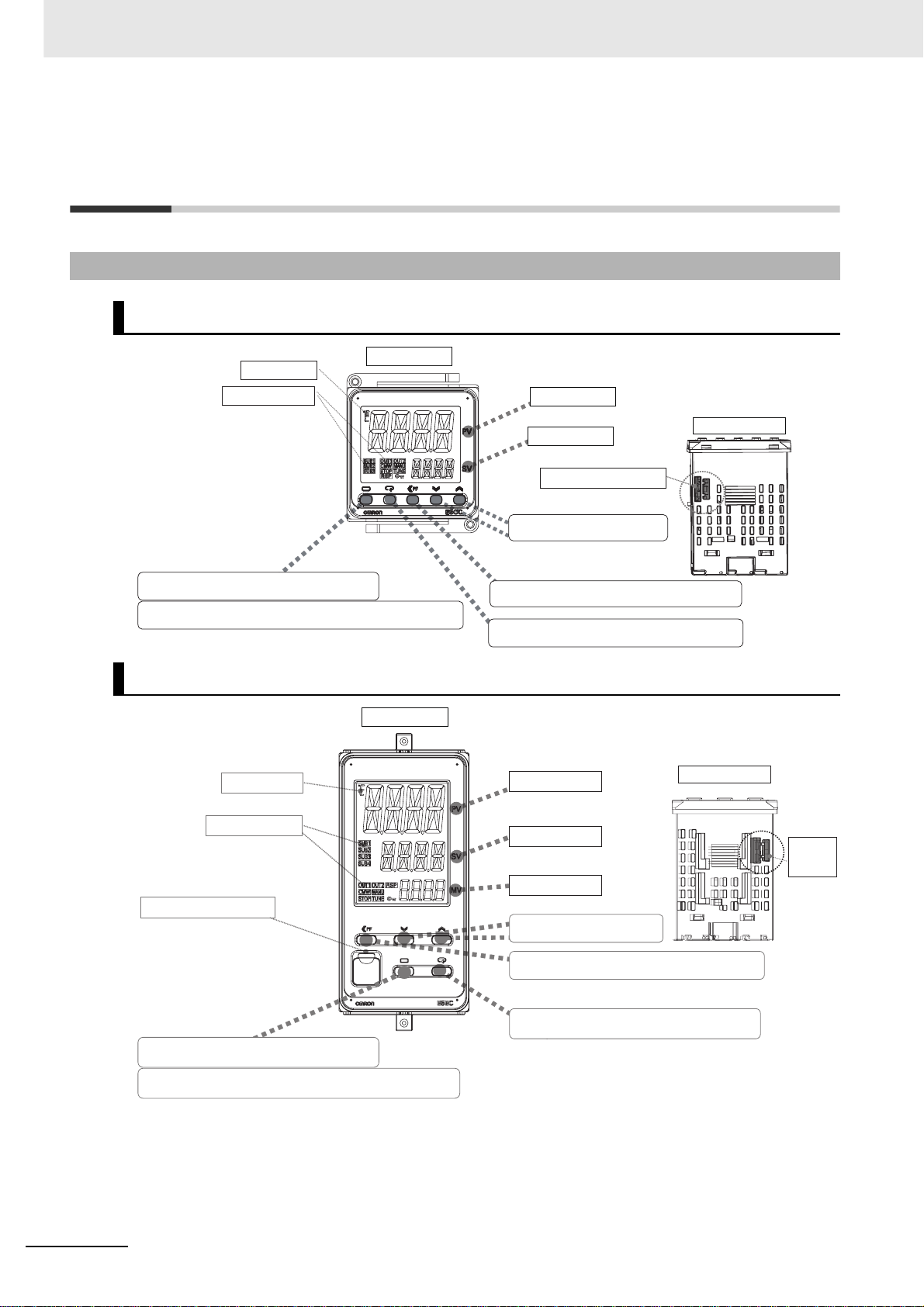

3-3-1 Part Names and Functions................................ ... ... ................................................................... 3-4

3-3-2 Entering Numeric Values............................................................................................................3-7

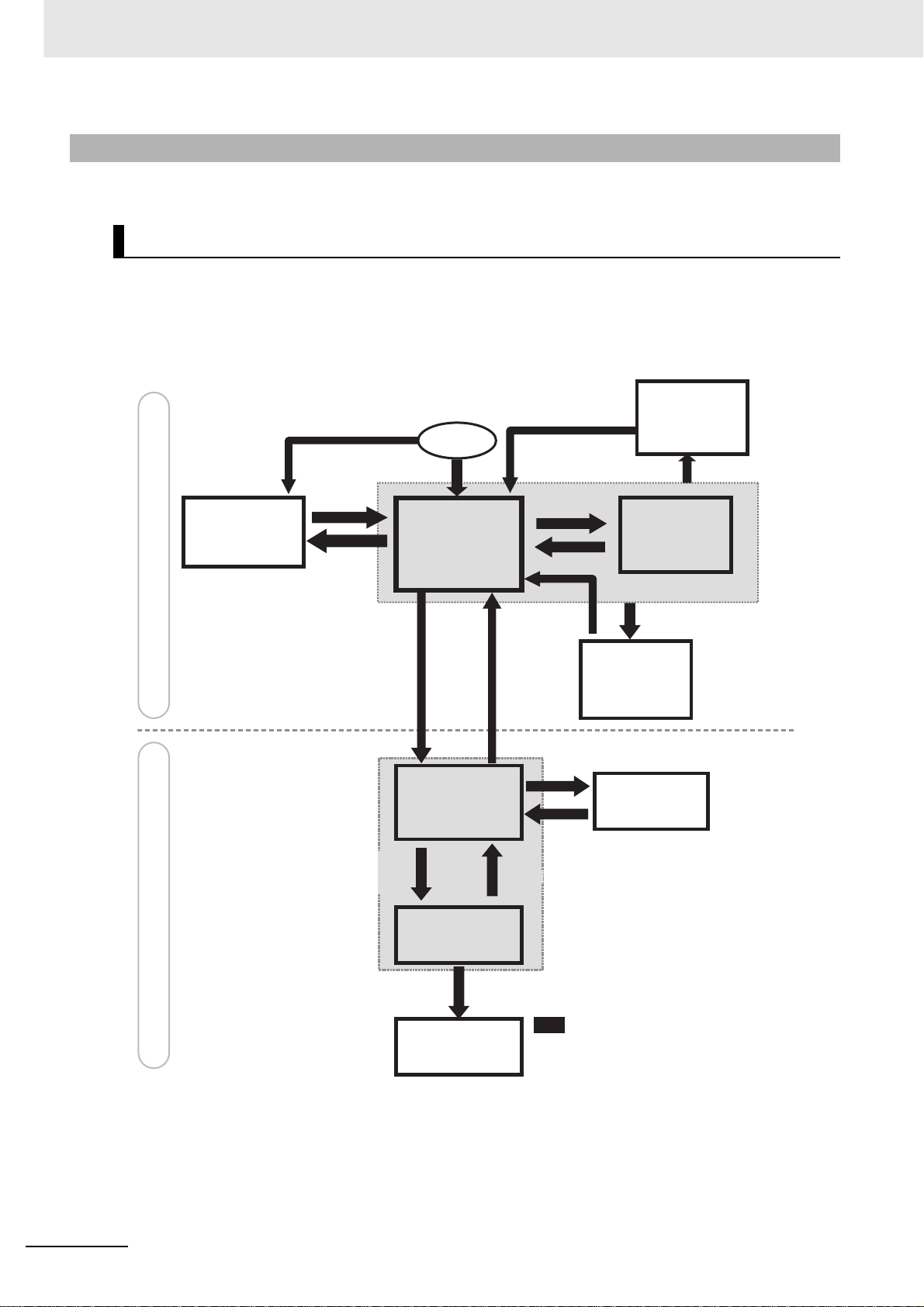

3-3-3 Setting Levels............................................................................................................................. 3-8

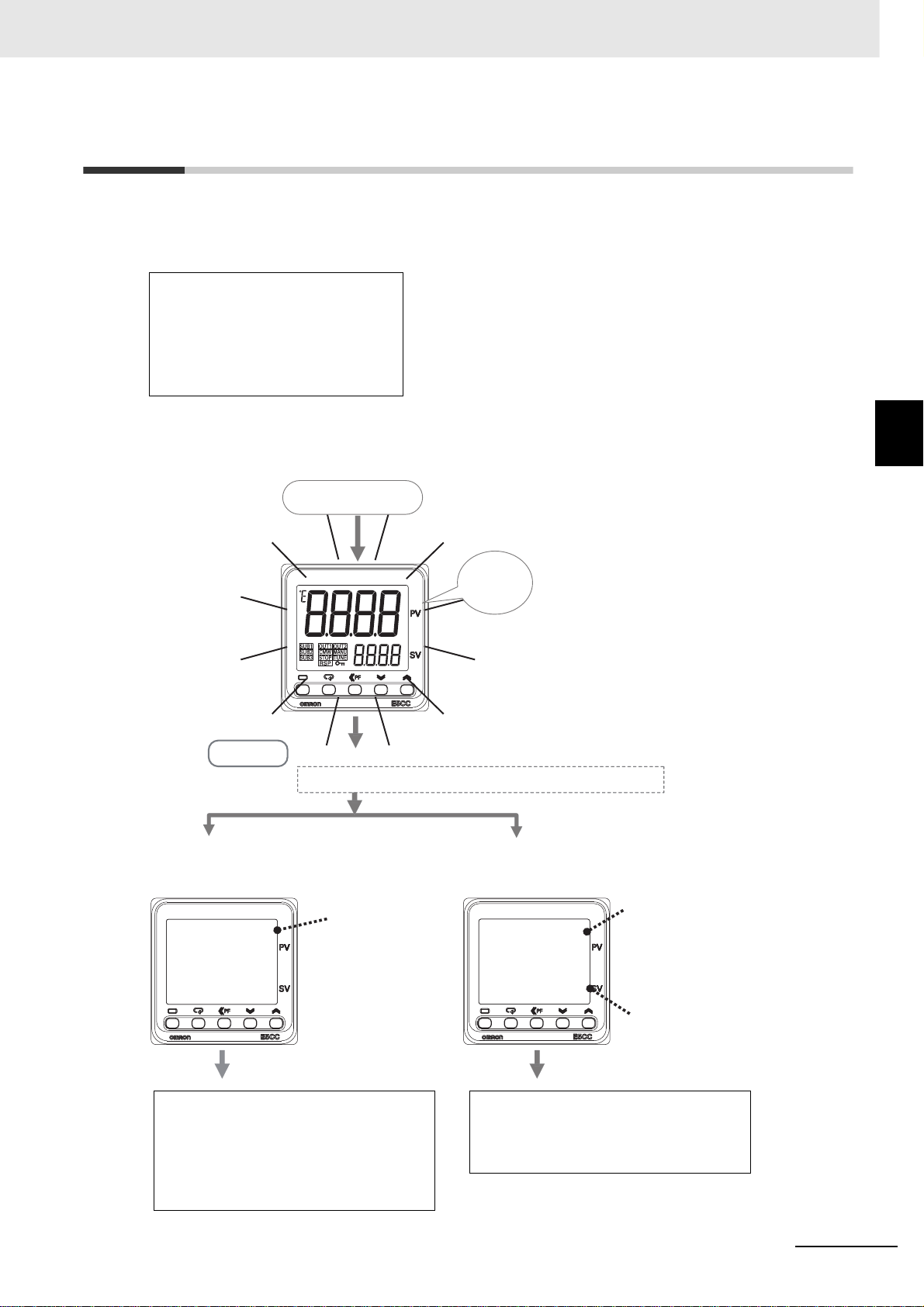

3-4 Procedures after Turning ON the Power Supply................................................................. 3-11

3-4-1 Basic Flow of Operations.......................................................................................................... 3-11

3-4-2 Basic Procedure .......................................................................................................................3-11

Section 4 Basic Operation

4-1 Moving between Setting Levels ............................................................................................. 4-3

4-1-1 Moving to the Initial Setting Level............................................................................................... 4-3

4-1-2 Moving to the Adjustment Level..................................................................................................4-4

4-1-3 Moving to the Protect Level........................................................................................................ 4-4

4-1-4 Moving to the Advanced Function Setting Level.........................................................................4-5

4-1-5 Moving to the Communications Setting Level.............................................................................4-7

4-2 Initial Setting Examples .......................................................................................................... 4-8

4-3 Setting the Input Type........................................................................................................... 4-11

4-3-1 Input Type................................................................................................................................. 4-11

4-4 Selecting the Temperature Unit............................................................................................ 4-13

4-4-1 Temperature Unit ...................................................................................................................... 4-13

4-5 Selecting PID Control or ON/OFF Control

(Not Supported for Position-proportional Models.)............................................................ 4-14

4-6 Setting Output Specifications .............................................................................................. 4-15

4-6-1 Control Periods (Not Supported for Position-proportional Models.).......................................... 4-15

4-6-2 Direct and Reverse Operation ..................................................................................................4-15

4-6-3 Assigned Output Functions (Assigning Control Outputs Is Not Supported for

Position-proportional Models.)..................................................................................................4-16

4-6-4 Auxiliary Output Opening or Closing in Alarm .......................................................................... 4-19

4-7 Setting the Set Point (SP) ..................................................................................................... 4-20

4-7-1 Changing the SP....................................................................................................................... 4-20

4-8 Using ON/OFF Control (Not Supported for Position-proportional Models.) ....................4-21

4-8-1 ON/OFF Control........................................................................................................................ 4-21

4-8-2 Settings.....................................................................................................................................4-22

4-9 Determining PID Constants (AT, ST, Manual Setup)........................................................... 4-24

4-9-1 AT (Auto-tuning)........................................................................................................................ 4-24

4-9-2 ST (Self-tuning) (Not Supported for Position-proportional Models.)......................................... 4-26

4-9-3 RT (Robust Tuning) (Used for AT or ST.) ................................................................................. 4-27

4-9-4 Manual Setup.................................................................................................. ... ....................... 4-29

4-10 Alarm Outputs........................................................................................................................ 4-31

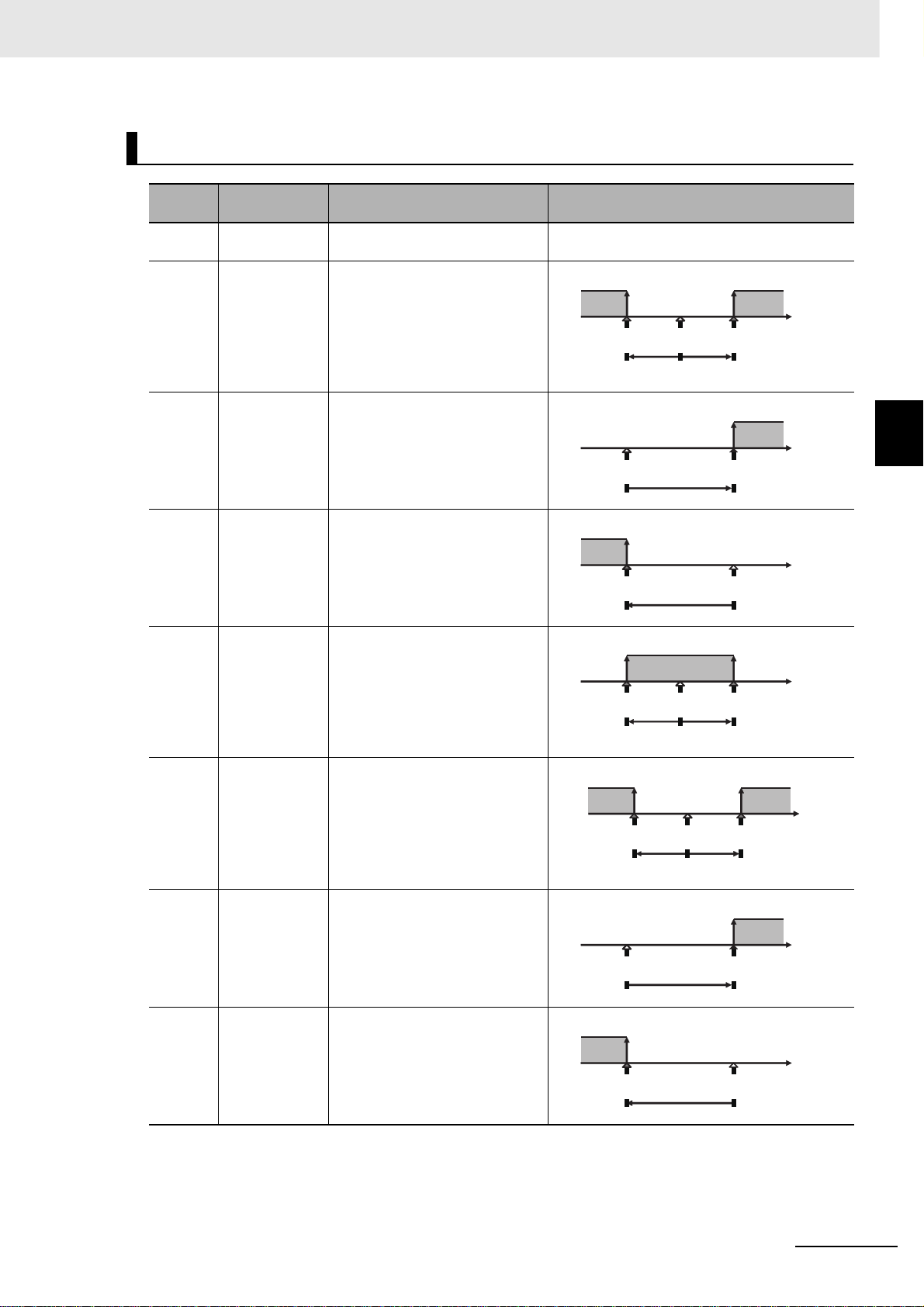

4-10-1 Alarm Types..............................................................................................................................4-31

4-10-2 Alarm Values ............................................................................................................................ 4-34

4-11 Alarm Hysteresis ................................................................................................................... 4-37

4-11-1 Standby Sequence...................................................................................................................4-37

4-11-2 Alarm Latch .............................................................................................................................. 4-38

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 24

4-12 Using Heater Burnout (HB) and Heater Short (HS) Alarms

(Not Supported for Position-proportional Models.)............................................................ 4-39

4-12-1 HB Alarm...................................................................................................................................4-39

4-12-2 HS Alarm...................................................................................................................................4-41

4-12-3 Installing Current Transformers (CT).........................................................................................4-43

4-12-4 Calculating Detection Current Values .......................................................................................4-45

4-12-5 Application Examples................................................................................................................4-45

4-13 Customizing the PV/SP Display ........................................................................................... 4-49

4-13-1 PV/SP Displa y Selections................................................................................................. ........4-49

Section 5 Advanced Operations

5-1 Shifting Input Values............................................................................................................... 5-3

5-2 Setting Scaling Upper and Lower Limits for Analog Inputs ................................................ 5-5

5-3 Executing Heating/Cooling Control (Not Supported for Position-proportional Models.).5-7

5-3-1 Heating/Cooling Control..............................................................................................................5-7

5-4 Using Event Inputs ................................................................................................................ 5-11

5-4-1 Event Input Settings......................................... ... .. ....................................................................5-11

5-4-2 How to Use the Multi-SP Function............................................................................................5-11

5-4-3 Operation Commands Other than Multi-SP ..............................................................................5-12

5-5 Setting the SP Upper and Lower Limit Values.................................................................... 5-15

5-5-1 Set Point Limiter........................................................................................................................5-15

5-5-2 Setting.......................................................................................................................................5-16

5-6 Using the SP Ramp Function to Limit the SP Change Rate.............................................. 5-17

5-6-1 SP Ramp................................................................................................................................... 5-17

5-7 Using the Key Protect Level ................................................................................................. 5-19

5-7-1 Protection..................................................................................................................................5-19

5-7-2 Entering the Password to Move to the Protect Level ................................................................5-20

5-8 Displaying Only Parameters That Have Been Changed.....................................................5-22

5-8-1 Displaying Changed Parameters....................................... .. ... ...................................................5-22

5-9 OR Output of Alarms............................................................................................................. 5-24

5-9-1 Integrated Alarm ............... ... ... ..................................................................................................5-24

5-10 Alarm Delays.......................................................................................................................... 5-26

5-10-1 Alarm Delays.............................................................................................................................5-26

5-11 Loop Burnout Alarm (Not Supported for Position-proportional Models.)........................ 5-28

5-11-1 Loop Burnout Alarm (LBA)........................................................................................................5-28

5-12 Performing Manual Control...................................................................................................5-32

5-12-1 Manual MV................................................................................................................................5-32

5-13 Using the Transfer Output .................................................................................................... 5-36

5-13-1 Transfer Output Function...........................................................................................................5-36

5-14 Using the Simple Program Function ................................................................................... 5-39

5-14-1 Simple Program Function..........................................................................................................5-39

5-14-2 Operation at the Program End..................................................................................................5-41

5-14-3 Application Example Using a Simple Program..........................................................................5-43

5-15 Output Adjustment Functions.............................................................................................. 5-44

5-15-1 Output Limits.............................................................................................................................5-44

5-15-2 MV at Stop ...............................................................................................................................5-44

5-15-3 MV at PV Error .........................................................................................................................5-45

5-16 Using the Extraction of Square Root Parameter ...............................................................5-47

5-16-1 Extraction of Square Roots.......................................................................................................5-47

5-17 Setting the Width of MV Variation .......................... ... ... ....................................... ... ... ... .... ... 5-49

5-17-1 MV Change Rate Limit..............................................................................................................5-49

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 25

5-18 Setting the PF Key................................................................................................................. 5-51

5-18-1 PF Setting (Function Key) ........................................................................................................ 5-51

5-19 Displaying PV/SV Status....................................................................................................... 5-54

5-19-1 PV and SV Status Display Functions........................................................................................5-54

5-20 Using a Remote SP............................................................. ... ... ... ... ....................................... 5-56

5-21 Controlling Valves (Can Be Used with a Position-proportional Model)............................ 5-58

5-22 Logic Operations .................................................................................................................. 5-60

5-22-1 The Logic Operation Function (CX-Thermo) ............................................................................ 5-60

5-22-2 Using Logic Operations ............................................................................................................ 5-60

Section 6 Parameters

6-1 Conventions Used in this Section.......................................................................................... 6-2

6-2 Protect Level............................................................................................................................ 6-3

6-3 Operation Level ..................................................... ... ... ... .... ...................................... ... .. .......... 6-7

6-4 Adjustment Level................................................................................................................... 6-18

6-5 Monitor/Setting Item Level ................................................................................................... 6-38

6-6 Manual Control Level ............................................................................................................ 6-39

6-7 Initial Setting Level................................................................................................................ 6-41

6-8 Advanced Function Setting Level................................. ....................................... ... ... .... ... ... 6-59

6-9 Communications Setting Level ............................................................................................ 6-91

Section 7 User Calibration

7-1 User Calibration....................................................................................................................... 7-2

7-2 Parameter Structure.................... ... ....................................... ... ... ... .... ..................................... 7-3

7-3 Thermocouple Calibration................ ... ....................................... ... .... ... ... ............................... 7-4

7-4 Resistance Thermometer Calibration.................................................................................... 7-7

7-5 Calibrating Analog Input ........................................................................................................ 7-9

7-6 Calibrating the Transfer Output............................................................................................ 7-11

7-7 Checking Indication Accuracy ............................................................................................. 7-13

Section A Appendices

A-1 Specifications ..........................................................................................................................A-2

A-1-1 Ratings........................................................................................................................................A-2

A-1-2 Characteristics............................................................................................................................A-4

A-1-3 Rating and Characteristics of Options........................................................................................A-5

A-1-4 Waterproof Packing....................................................................................................................A-5

A-1-5 Setup Tool Port Cover for Front Panel ........................................................................................A-6

A-2 Current Transformer (CT)........................................................................................................A-7

A-2-1 Specifications..............................................................................................................................A-7

A-2-2 Dimensions (Unit: mm) ...............................................................................................................A-7

A-3 USB-Serial Conversion Cable and Conversion Cable.............................................. .... ... ... ..A-8

A-3-1 E58-CIFQ2 USB-Serial Conversion Cable.................................................................................A-8

A-3-2 E58-CIFQ2-E Conversion Cable.................................................................................................A-9

A-4 Error Displays........................................................................................................................A-10

A-5 Troubleshooting.....................................................................................................................A-14

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 26

Index

A-6 Parameter Operation Lists....................................................................................................A-17

A-6-1 Operation Level........................................................ ... ..............................................................A-17

A-6-2 Adjustment Level.......................................................................................................................A-18

A-6-3 Initial Setting Level....................................................................................................................A-20

A-6-4 Manual Control Level ................................................................................................................A-23

A-6-5 Monitor/Setting Item Level....................... ... ....................................... ... .....................................A-23

A-6-6 Advanced Function Setting Level..............................................................................................A-23

A-6-7 Protect Level .................................................... ....................................... ... ...............................A-28

A-6-8 Communications Setting Level..................................................................................................A-29

A-6-9 Initialization According to Parameter Changes .........................................................................A-30

A-7 Sensor Input Setting Range, Indication Range, Control Range........................................A-33

A-8 Setting Levels Diagram............................... ... ... ... .... ... ....................................... ... ... ... ... .... ...A-34

A-9 Parameter Flow......................................................................................................................A-36

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 27

Introduction

1-1 Appearance, Features, and Functions of the E5@C . . . . . . . . . . . . . . . . . . 1-2

1-1-1 Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1-1-2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1-1-3 Main Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1-2 I/O Configuration and Model Number Legend . . . . . . . . . . . . . . . . . . . . . . . 1-5

1-2-1 I/O Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

1-2-2 Model Number Legends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

E5@C Digital Temperature Controllers User’s Manual (H174)

1 - 1

Page 28

1 Introduction

1-1 Appearance, Features, and

Functions of the E5@C

1-1-1 Appearance

• A stylish design that gives a new

look to control panels.

• Large display characters and white backlight for better visibility.

• A compact size to help downsize control panels.

• Much faster sampling and greater expandability than expected in this class of Controller.

• Even easier to use than previous models.

E5CC E5EC E5AC

1-1-2 Features

This section compares the features of the E5@C with the previous E5@N Controllers.

High-speed Control Capability

Input sampling cycle: 50 ms Control period: 0.1 s and 0.2 s have been added. Integral/differential time unit: Setting in increments of 0.1 s has been added.

I/O Expandability

• Number of event inputs: Increased from 2 to 4 for the E5CC and from 4 to 6 for the E5EC/E5AC.

• Number of auxiliary outputs: Increased from 2 to 3 for the E5CC and from 3 to 4 for the E5EC/E5AC.

• Remote SP inputs: A remote SP input that treats the external analog signal at the set point

(SP) has been added.

Universal Input Capability

Universal input: The input sensor can be selected freely from the following: Thermocouple, resis-

tance thermometer, ES1B Infrared Temperature Sensor, current, and voltage.

1 - 2

Easier Numeric Inputs with a Digit Shift Key

Digit shift: When setting the SP or other parameter s, y ou can use a Shift Key (assigned to the PF Key)

to shift the digit that is being set to aid changing the set values.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 29

1 Introduction

1-1 Appearance, Features, and

Functions of the E5@C

Setup Tool Port on Front Panel of the E5EC/E5AC

This port allows you to change or set parameters from the Setup Tool even when the Controller is installed in a panel.

1-1-3 Main Functions

For details on particular functions and how to use them, refer to Section 3 Part Names and Basic Procedures and following sections.

z Input Sensor Types

You can connect the following sensors and signals to the universal input.

Thermocouple (temperature input): K, J, T, E, L, U, N, R, S, B, W, PLII Resistance thermometer (temperature input): Pt100, JPt100 Infrared Temperature Sensor (temperature input): ES1B

Current input (analog input): 4 to 20 mA DC, 0 to 20 mA DC Voltage input (analog input): 1 to 5 VDC, 0 to 5 V DC, 0 to 10 V DC

z Control Outputs

• A control output can be a relay, voltage (for driving SSR), or current output, depending on the

model.

000

1-1-3 Main Functions

10 to 70°C, 60 to 120°C, 115 to 165°C, 140 to 260°C

z Adjusting PID Constants

• You can easily set the optimum PID constants by performing AT (auto-tuning) with the limit cycle

method or by performing ST (self-tuning) with the step response method.

• You can also add RT (robust tuning) to give priority to controlling stability.

000

z Alarms

Standard Alarms

• You can output an alarm when the deviation, process value, set point, or manipulated value

reaches a specified value.

• You can also output alarms for the PV rate of change and for loop burnouts.

• If necessary, a more comprehensive alarm function can be achieved by setting a standby

sequence, alarm hysteresis, auxiliary output close in alarm/open in alar m, alarm latch, alar m ON delay, and alarm OFF delay.

HB and HS Alarms

• With models with the optional HB and HS alarms, you can detect heater burnout and heater short

alarms based on CT inputs.

Integrated Alarm

• You can output an integrated alarm if a standard alarm, HB alarm, or HS alarm turns ON.

z Event Inputs

• With any model that supports event inputs, you can use external contact or transistor inputs to

achieve any of the following functions: Switching set points (Multi-SP No. Switch, 8 points max.), switching RUN/STOP, switching between automatic and manual operation, starting/resetting the program, inverting direct/reverse operation, switching the SP mode100% AT execute/cancel, 40%

E5@C Digital Temperature Controllers User’s Manual (H174)

1 - 3

Page 30

1 Introduction

AT execute/cancel, setting change enable/disable, communications write enable/disable, and canceling the alarm latch .

z Communications Functions

With any E5@C model that supports communications, you can use CompoWay/F, Modbus-RTU, programless, and component communications.

*1 Modbus is a registered trademark of Schneider Electric.

z Tr ansfer Output

With any model that supports a transfer output, you can output the set point, process value, manipulated variable, or other values as a 4 to 20-mA or 1 to 5-V transfer output.

z Remote SP

With any model that supports a remote SP input, you can set the set point with an analog input.

1 - 4

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 31

1 Introduction

1-2 I/O Configuration and Model

1-2 I/O Configuration and Model Number

Legend

1-2-1 I/O Configuration

Inputs

Input signals

Set point (SP)

Analog input (current/voltage)

Process value (PV) input

• Thermocouple

• Resistance thermometer

• Infrared Temperature Sensor

• Analog input (current/voltage)

Event inputs (EV1 to EV6)

• External inputs (contact or non-contact input)

Input voltage from CT

Setup Tool (CX-Thermo)

Local SP

Remote SP

Potentiometer input

Multi-SP

• Input type • Input shift

• Input filter • Moving average

• Extraction of square root • Analog scaling

• RUN/STOP switching •

• Program start

• SP mode

(remote/local

switching)

•

100% AT execute/cancel

• Setting change enable/disable

• Alarm latch cancel • Multi-SP No.

CT input

Setting and monitoring

Auto/manual selection

• Invert direct/reverse operation

• 40% AT execute/cancel

• Communications write enable/disable

SP mode

• PID or

• ON/OFF control

Automatic setting of PID constants with AT or ST

• Standard control or

• Heating/cooling control

• HB alarm

• HS alarm

E5@C

Control

• SP ramp

• Set point limiter SP

Alarms

Limits

Manipulated

• MV limit

value

• MV

(MV)

Contact status

Analog status

rate-ofchange limit

•

Standard alarms (alarms 1 to 4)

• HB alarm

• HS alarm

• Input error (S.ERR)

RSP input error

•

Integrated alarm

•

RUN status

•

Program end

•

Work bits 1 to 8

• Set point

• Set point during SP ramp

• Process value

• Manipulated value

Operation

• Direct/reverse

• Auto/manual

Heating Open

Cooling Close

Outputs

Output signals

• Linear current

• Voltage output (for driving SSR)

• Relay

• Linear current

• Voltage output (for driving SSR)

• Relay

• Linear current

• Linear voltage

Communications

• RS-485

Control output 1

Control output 2

Auxiliary outputs 1 to 4

Transfer output

• CompoWay/F

• Modbus-RTU

Number Legend

1-2-1 I/O Configuration

Power supply

A: 100 to 240 VAC or D: 24 VAC/DC

Functions can be assigned individually for each output by changing the set values for the Control Output 1 and 2 Assignments and the Auxiliary Output 1 to 4 Assignments in the parameters in the advanced function setting level.

Note: Not all models support these functions. For details, refer to 1-2-2 Model Number Legends.

E5@C Digital Temperature Controllers User’s Manual (H174)

1 - 5

Page 32

1 Introduction

1-2-2 Model Number Legends

z E5CC

E5CC

(1) (2) (3) (4) (5) (6) (7)

(1) (2) (3) (4) (5) (6) (7) Meaning

Size

Control Outputs 1 and 2

C 48 × 48 mm

R X Relay output None Q X Voltage output (for driving SSR) None

*1 C X Linear current output None

Q Q Voltage output (for driving SSR) V oltage output

C Q Linear current output Voltage output

*2*3 0 None

No. of auxiliary outputs

*3 2 2

Terminal type

Power supply voltage

A 100 to 240 VAC D 24 VAC/DC

SScrew terminals 5 Screw terminals (with cover)

Options

Input type

Control output 1 Control output 2

(for driving SSR)

M Universal input

Event

inputs

000 --- --- --- --- --001 2 --- --- 1 ---

*3 002 --- RS-485 --- 1 ---

003 --- RS-485 --- 2 (for 3-phase

004 2 RS-485 --- --- --005 4 --- --- --- --006 2 --- --- --- Provided. 007 2 --- Provided. --- ---

Communications

Remote

SP Input

HB alarm and

HS alarm

heaters)

Transfer

output

---

*1 Options with HB and HS alar ms (001 and 003) cannot b e selected if a current output is selected for the control output.

The control output cannot be used as a transfer output. *2 If no auxiliary outputs (none) is selected, 000 (none) must be selected for the options. *3 These cannot be selected if 5 (screw terminals with cover) is selected for the terminal type.

1 - 6

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 33

1 Introduction

z E5EC/AC

E5 C

- -

(1) (2) (3) (4) (5) (6) (7)

(1) (2) (3) (4) (5) (6) (7) Meaning

Size

Terminal type

Control Outputs 1 and 2

E48 × 96 mm A96 × 96 mm

*1 R X Relay output None

*1 Q X Voltage output (for driving SSR) None

*2*1 C X Linear current output None

*1 Q Q Voltage output (for driving SSR) Voltage out put (for driving SSR)

*1 Q R Voltage output (for driving SSR) Relay output

*1 R R Relay output Relay output

*2*1 C C Linear current output Linear current output *2*1 C Q Linear current output Voltage out put (for driving SSR)

*1 P R Position-proportional relay out put Position-proportional relay output

*3 2 2

Power supply voltage

No. of auxiliary outputs

A 100 to 240 VAC D 24 VAC/DC

S Screw terminals 5 Screw terminals (with cover)

Options

Input type

M Universal input

Event

inputs

000 --- --- --- --- --- Selectable Selectable Selectable 004 2 RS-485 --- --- --- --- Selectable Selectable 005 4 --- --- --- --- --- Selectable ---

*3 008 2 RS-485 --- 1 --- Selectable --- ---

009 2 RS-485 --- 2 (for

010 4 --- --- 1 --- Selectable --- --011 6 --- Provided. 1 Provided. Selectable --- ---

*3 012 4 RS-485 Provided. 1 Provided. Selectable --- ---

013 6 --- Provided. --- Provided. --- Selectable --014 4 RS-485 Provided. --- Provided. --- Selectable Selectable

Communications

Control output 1 Control output 2

Remote

SP Input

HB alarm

and HS

alarm

3-phase

heaters)

Transfer

output

--- Selectable --- ---

For RX, QX, RR, QQ, QR,

or CQ

For CX or

For PR

1-2 I/O Configuration and Model

Number Legend

1-2-2 Model Number Legends

*1 The options that can be selected depend on the type of control output. *2 The control output cannot be used as a transfer output. *3 These cannot be selected if 5 (screw terminals with cover) is selected for the terminal type.

E5@C Digital Temperature Controllers User’s Manual (H174)

1 - 7

Page 34

1 Introduction

1 - 8

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 35

Preparations

2-1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2-1-1 Dimensions (Unit: mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2-1-2 Panel Cutout (Unit: mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2-1-3 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2-2 Using the Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2-2-1 E5CC Terminal Block Wiring Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2-2-2 E5EC/E5AC Terminal Block Wiring Example . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

2-2-3 Precautions when Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

2-2-4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

2-3 Insulation Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

2-4 Using the Setup Tool Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

2-4-1 Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

2-4-2 Connection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

2-4-3 Installing the Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 1

Page 36

2 Preparations

2-1 Installation

2-1-1 Dimensions (Unit: mm)

z E5CC

48 × 48

(64)

604

44.8 × 44.8

z E5EC

(64) 4 1

110

2 - 2

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 37

z E5AC

96 × 96

4 1

(64)

2 Preparations

91 × 91

2-1 Installation

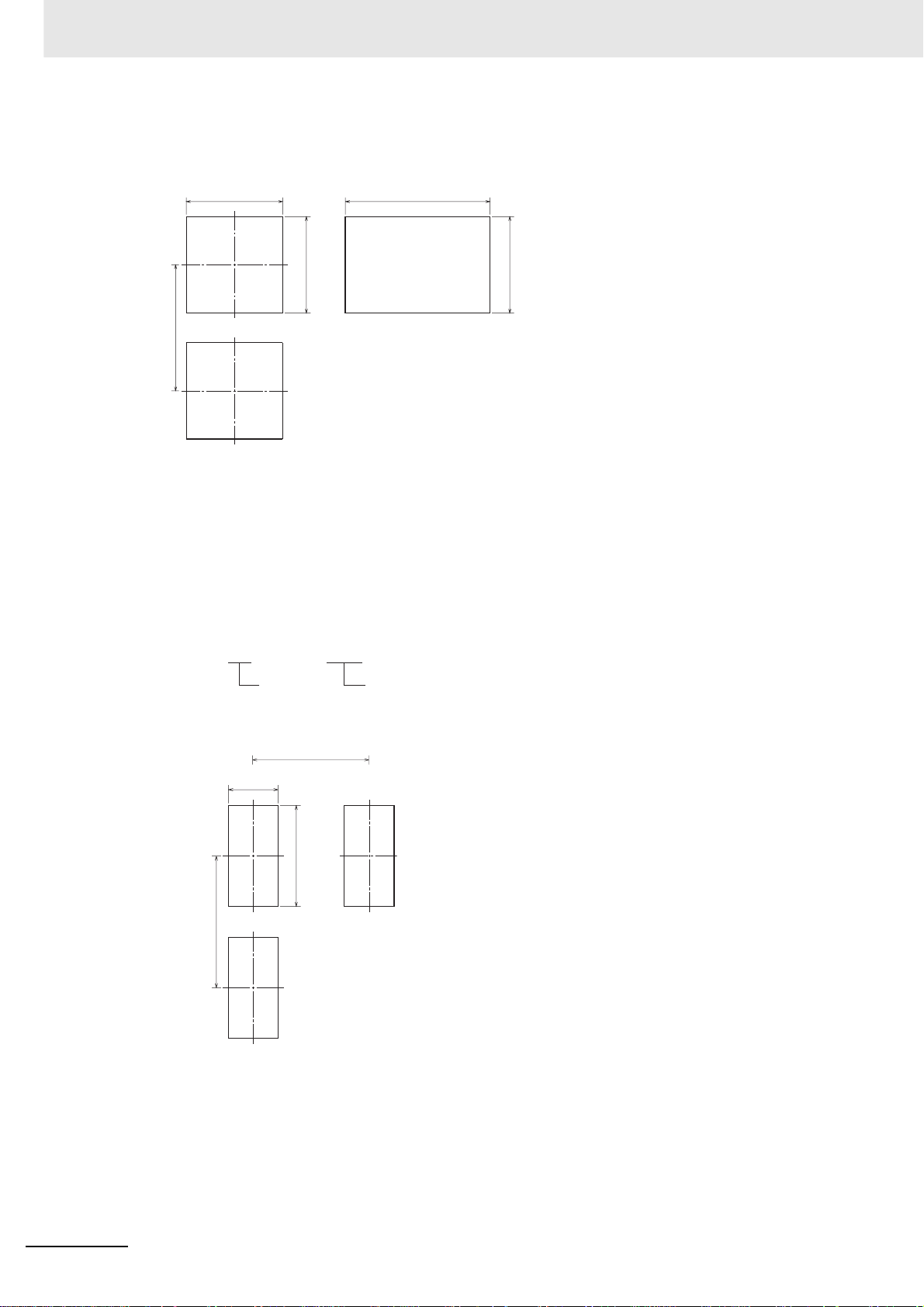

2-1-2 Panel Cutout (Unit: mm)

z E5CC

Individual Mounting

60 min.

z E5EC

+0.6

Group Mounting

(48 × number of Units − 2.5)

+1.0 0

+0.6

110

2-1-2 Panel Cutout (Unit: mm)

Individual Mounting

+0.6

+0.8

Group Mounting*

(48 × number of Units − 2.5)

120 min.

E5@C Digital Temperature Controllers User’s Manual (H174)

+1.0 0

+0.8

2 - 3

Page 38

2 Preparations

z E5AC

Individual Mounting

+0.8

Group Mounting

(96 × number of Units − 3.5)

+1.0 0

+0.8

120 min.

• Waterproofing is not possible when group mounting several Controllers.

• The recommended panel thicknes s is 1 to 5 mm for the E5CC and 1 to 8 mm for the E5EC/E5AC.

• Controllers must not be closely mounted vertically. (Observe the recommended mounting space

limits.)

• When group mounting several Controllers, ensure that the surrounding temperature does not exceed the ambient operating temperature listed in the specifications.

* For E5EC models with two control outputs (QQ, QR, CQ, RR, CC, or PR) and 011, 012, 013, or 014 options

(shown below), the ambient temperature for group mounting must be 45°C max.

E5EC-@@ @ @ @ M-@@@

QQ, QR, RR, CC, CQ, PR

011, 012, 013, 014

To mount these models at an ambient temperature of 55°C, install them at the following intervals.

60 mm min.

+0.6

+0.8

120 mm min.

2 - 4

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 39

2-1-3 Mounting

z E5CC

There are two models of Terminal Covers that you ca n use wi th th e E5C C.

E53-COV17 Terminal Cover (Sold separately.)

Adapter

2 Preparations

2-1 Installation

E53-COV23 Terminal Cover*

2-1-3 Mounting

* The T erminal Cov er is provided only with the

Waterproof packing

Panel

following models: E5CC-@@@@5M-@@@.

Mounting to the Panel

(1) For waterproof mounting, waterproof packing must be installed on the Controller.

Waterproofing is not possible when group mounting several Controllers. Waterproof

packing is not necessary when there is no need for the waterproofing function. (2) Insert the E5CC into the mounting hole in the panel. (3) Push the adapter from the terminals up to the panel, and temporarily fasten the E5CC. (4) Tighten the two fastening screws on the adapter. Alternately tighten the two screws little by

little to maintain a balance. Tighten the screws to a torque of 0.29 to 0.39 N·m.

Mounting the Terminal Cover

Slightly bend the E53-COV23 Terminal Cover to attach it to the terminal block as shown in the following diagram. The Terminal Cover cannot be attached in the opposite direction. Or, you can use the E53-COV17 Terminal Cover. Make sure that the “UP” mark is facing up, and then attach the E53-COV17 Termina l Cover to the holes on the top and bottom of the Digital Controller.

• E53-COV17 • E53-COV23

Terminal Cover (E53-COV17) (Sold separately.)

E5@C Digital Temperature Controllers User’s Manual (H174)

Adapter

Enlarged Illustration of Terminal Section

2 - 5

Page 40

2 Preparations

z E5EC/E5AC

Adapter

E53-COV24 Terminal Cover*

E53-COV24 Terminal Cover

Waterproof packing

Panel

* Th e Terminal Cover is provided only with the

following models: E5EC-@@@@5M-@@@.

Mounting to the Panel

(1) For waterproof mounting, waterproof packing must be installed on the Controller.

Waterproofing is not possible when group mounting several Controllers. Waterproof

packing is not necessary when there is no need for the waterproofing function. (2) Insert the E5EC/E5AC into the mounting hole in the panel. (3) Push the adapter from the terminals up to the panel, and temporarily fasten the

E5EC/E5AC. (4) Tighten the two fastening screws on the adapter. Alternately tighten the two screws little by

little to maintain a balance. Tighten the screws to a torque of 0.29 to 0.39 N·m.

Mounting the Terminal Cover

Slightly bend the E53-COV24 Terminal Cover to attach it to the terminal block as shown in the following diagram. The Terminal Cover cannot be attached in the opposite direction.

Slightly bend the E53-COV24 Terminal Cover in the direction shown by the arrows to attach it to the terminal block.

2 - 6

Enlarged Illustration of Terminal Section

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 41

2-2 Using the Terminals

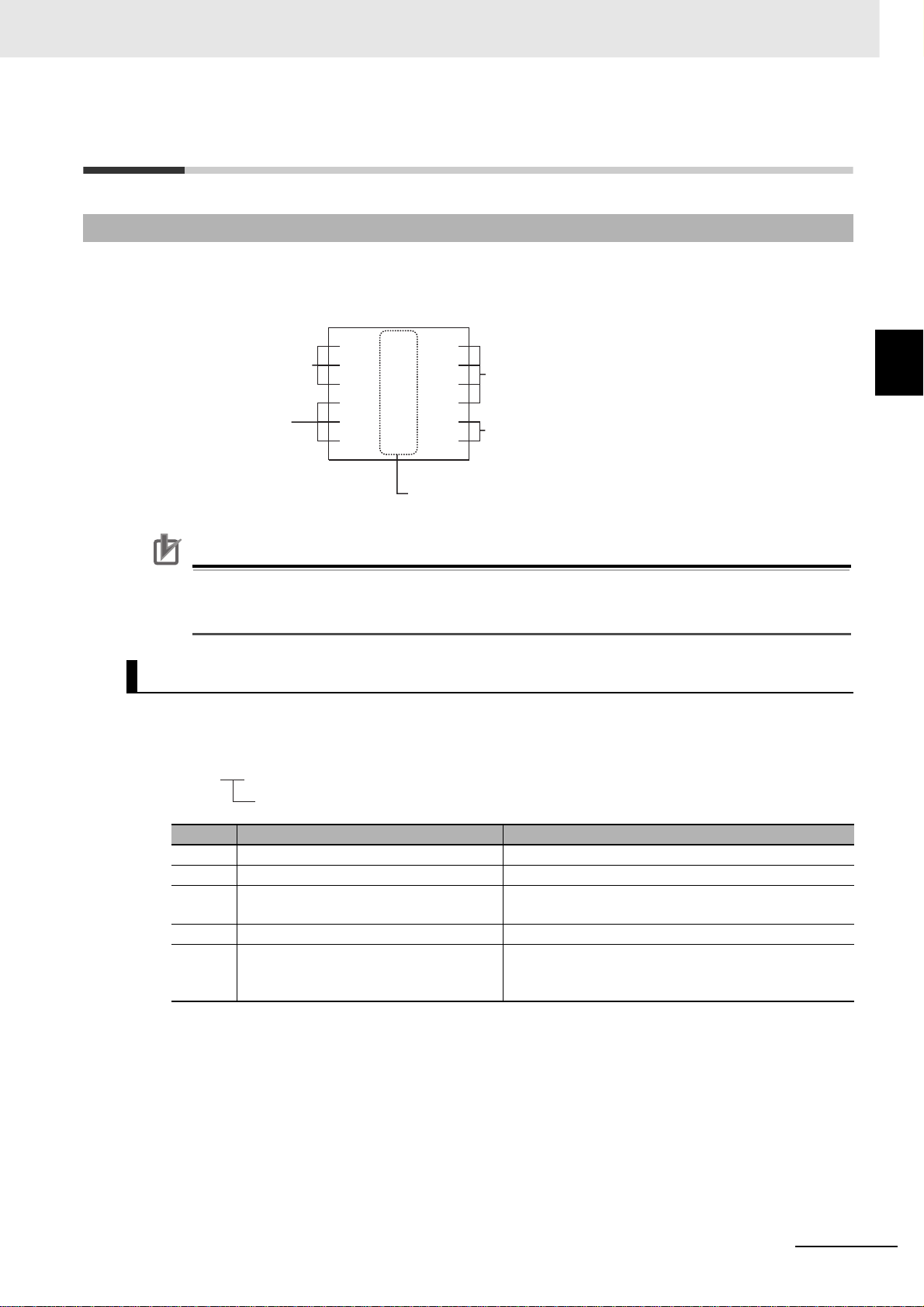

2-2-1 E5CC Terminal Block Wiring Example

z Terminal Arrangement

The terminals block of the E5CC is divided into five types of terminals: control outp uts 1 and 2, sensor input, auxiliary outputs, input power supply, and options.

Control outputs 1 and 2

Sensor input

B C D E

N O P Q

H I J

K L

Auxiliary outputs

Input power supply

2 Preparations

2-2 Using the Terminals

2-2-1 E5CC Terminal Block Wiring Example

Options

Precautions for Correct Use

When you purchase the Digital Controller, it will be set for a K thermocouple (input type = 5) by default. If a d ifferent sensor is used, an input error (s.err) will occur . Check the setting of the Input Type parameter.

Control Outputs 1 and 2

z Model Numbers

The specifications for control outputs 1 and 2 are given in the following location in the model number.

E5CC-@@ @ @ @ M-@@@

Control outputs 1 and 2

Code Output type Specification

RX 1 relay output 250 VAC, 3 A (resistive load) QX 1 voltage output (for driving SSR) 12 VDC, 21 mA CX 1 current output 4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω

max. QQ 2 voltage outputs (for driving SSRs) 12 VDC, 21 mA CQ 1 current output and 1 voltage output (for

driving SSR)

4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω

max. for current output and 12 VDC, 21 mA for voltage

output

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 7

Page 42

2 Preparations

Current output

Control output 1

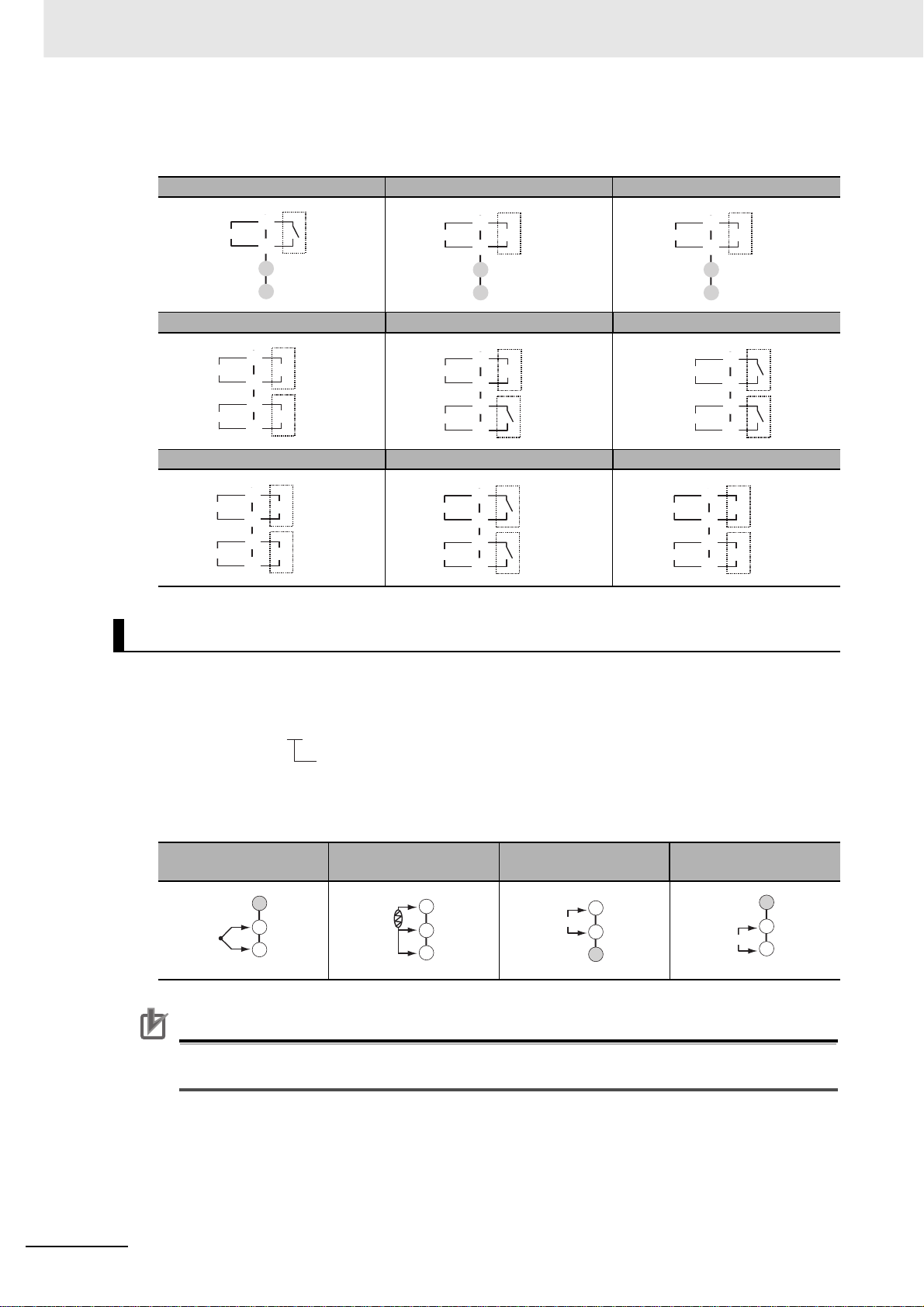

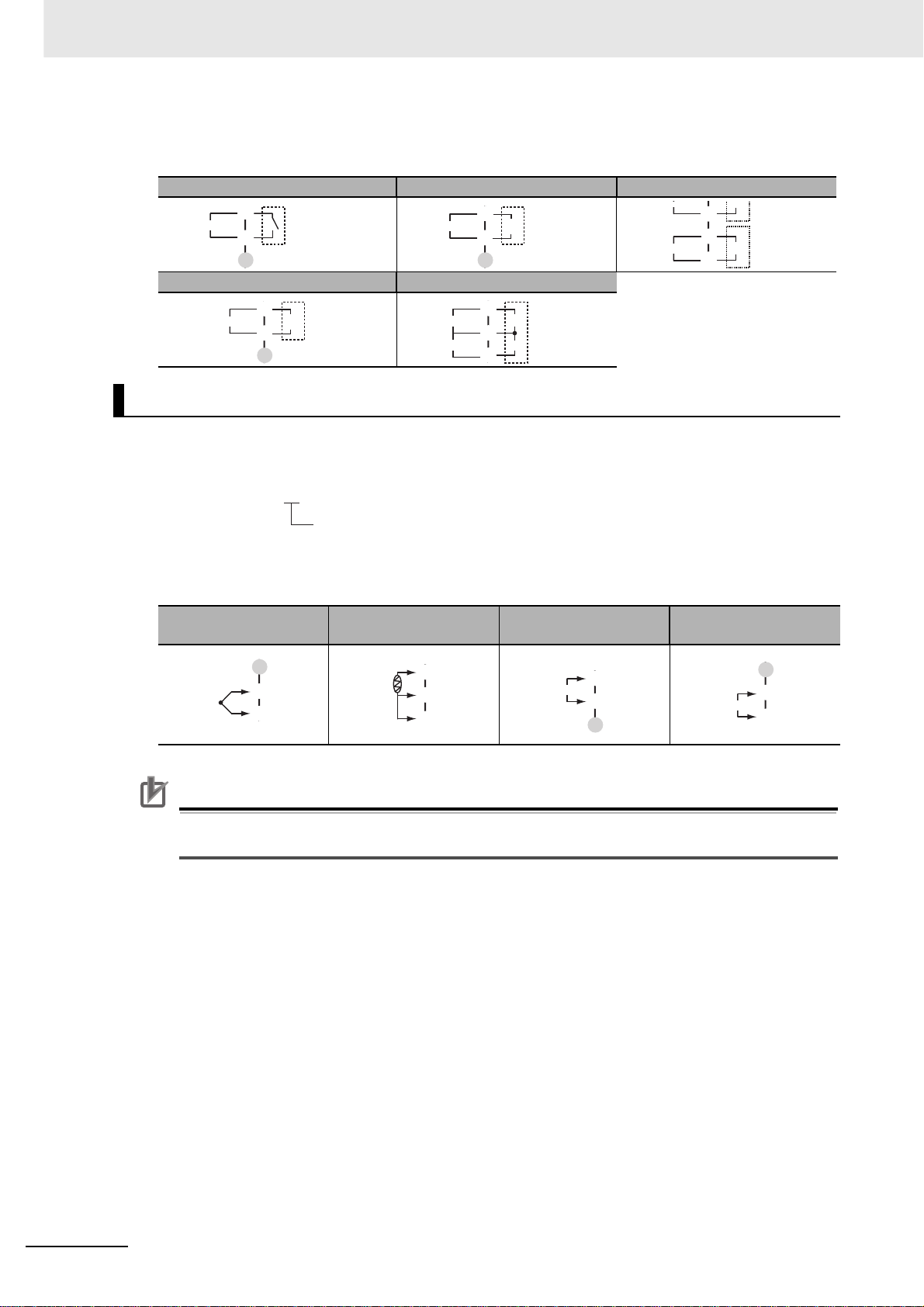

z Terminal Details

Do not connect anything to the terminals that are shaded gray.

Control output 1

RX QX CQ

A B

Relay output

Control output 1

A B C

Voltage output

−

(for driving SSR)

Control output 2

CX QQ

D E F

−

Voltage output

−

(for driving SSR)

Control output 1

A B C

Current output

−

Control output 1 Control output 2

A B C

Voltage output

(for driving SSR)

−

Voltage output

(for driving SSR)

Sensor Input

z Model Numbers

All E5CC models have universal sensor inputs, so the code in the model number is always “M.”

E5CC-@@ @ @ @ M-@@@

Sensor input

z Terminal Details

Do not connect anything to the terminals that are shaded gray.

TC (thermocouple)

−

Pt (resistance thermometer)

I (current) V (voltage)

−

2 - 8

Precautions for Correct Use

When complying with EMC standards, the line connecting the sensor must be 30 m or le ss. If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 43

2 Preparations

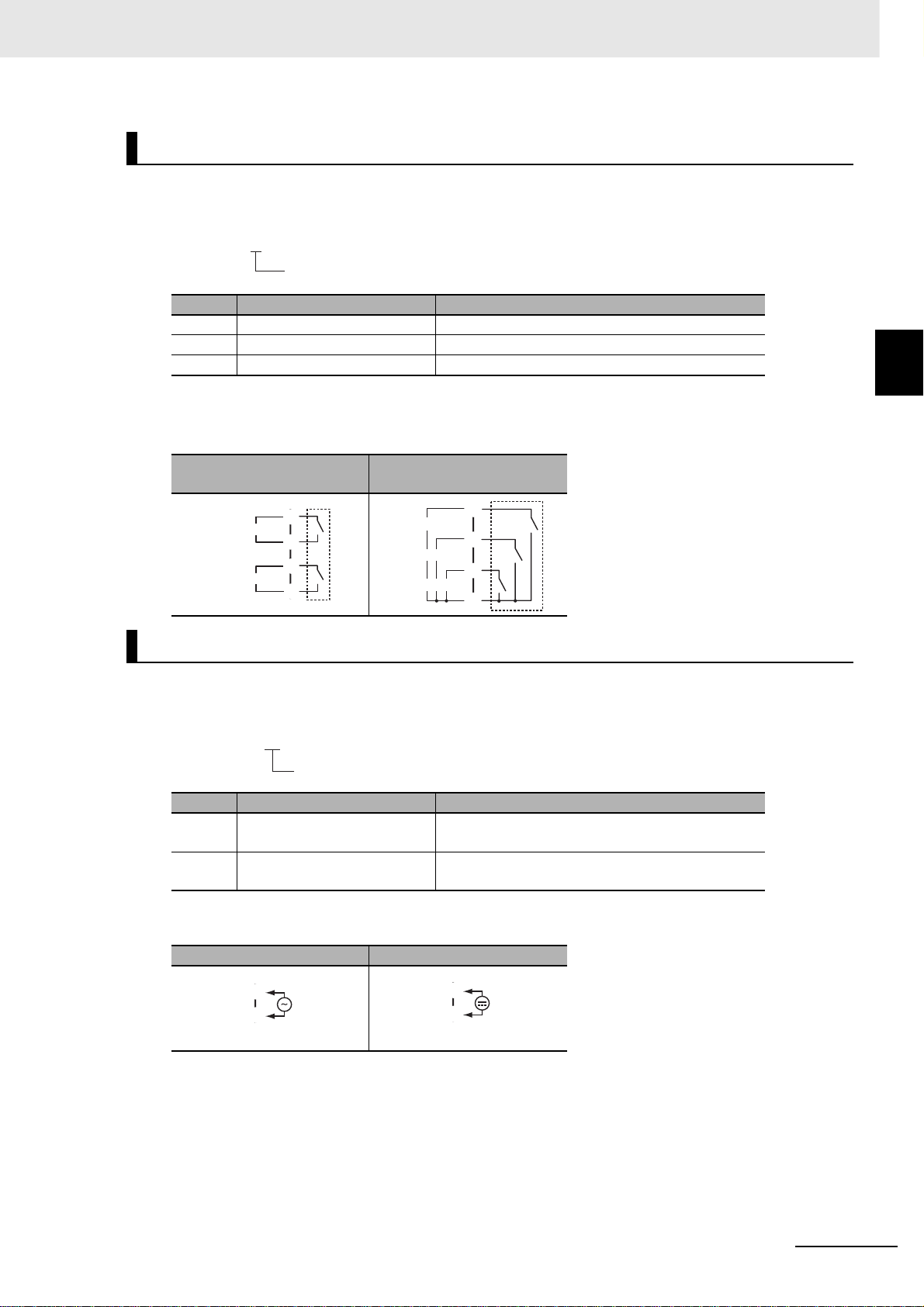

Auxiliary Outputs

z Model Numbers

The number of auxiliary outputs on the E5CC is given in the following location in the model number.

E5CC-@@ @ @ @ M-@@@

No. of auxiliary outputs

Code Auxiliary outputs Specification

0* None None 2* Model with 2 auxiliary outputs SPST-NO, 250 VAC, 3 A 3 Model with 3 auxiliary outputs SPST-NO, 250 VAC, 2 A

* These cannot be selected if 5 (screw terminals with cover) is selected for the terminal type.

z Terminal Details

2-2 Using the Terminals

2-2-1 E5CC Terminal Block Wiring Example

Model with 2 auxiliary

outputs

Auxiliary output 2

G H

Auxiliary output 1

I J

Model with 3 auxiliary

outputs

Auxiliary output 3

Auxiliary output 2

Auxiliary output 1

Input Power Supply

z Model Numbers

The input power supply specification of the E5CC is given in the following location in the model number.

E5CC-@@ @ @ @ M-@@@

Input power supply

Code Specification Power consumption

A 100 to 240 VAC, 50/60 Hz Option number 000: 5.2 VA max.

Other option numbers: 6.5 VA max.

D 24 VAC, 50/60 Hz

24 VDC (no polarity)

Option number 000: 3.1 VA max./1.6 W max. Other option numbers: 4.1 VA max./2.3 W max.

z Terminal Details

100 to 240 VAC 24 VAC/DC

K L

E5@C Digital Temperature Controllers User’s Manual (H174)

(No polarity)

2 - 9

Page 44

2 Preparations

Options

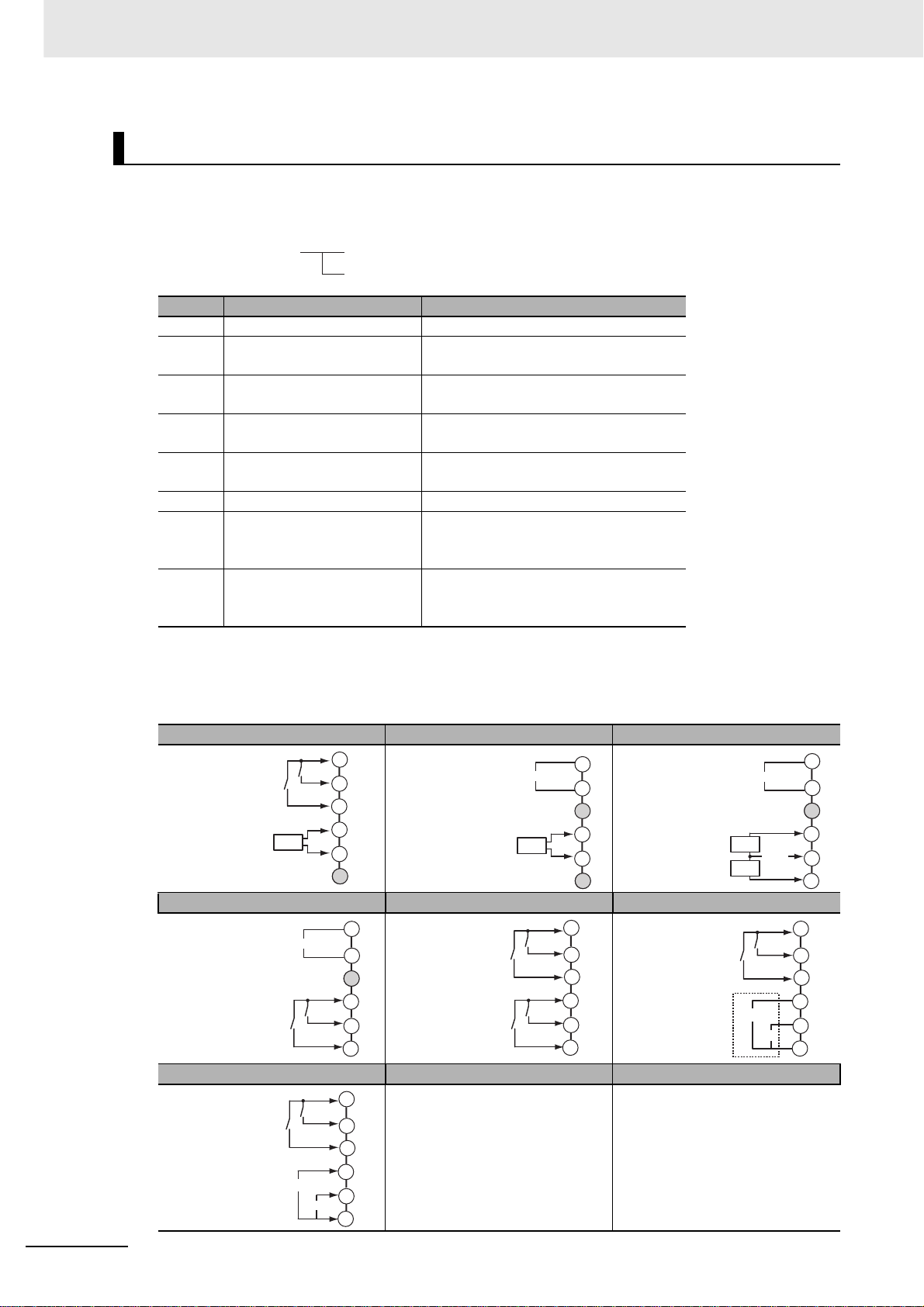

z Model Numbers

The options specification of the E5CC is given in the following location in the model number.

E5CC-@@ @ @ @ M-@@@

Code Specification Remarks

000 None 001 Event inputs 1 and 2, and

002* Communications (RS-485)

003 Communications (RS-485),

004 Communications (RS-485),

005 Event inputs 1 to 4 006 Event inputs 1 and 2, and

007 Event inputs 1 and 2, and

* Th ese cannot be selected if 5 (screw terminals with cover) is selected for the terminal type.

Options

CT1

and CT1

CT1, and CT2

and event inputs 3 and 4

transfer output

remote SP input

Transfer output: Current: 4 to 20 mA DC Voltage: 1 to 5 VDC

Remote SP input: Current: 4 to 20 or 0 to 20 mA DC Voltage: 1 to 5, 0 to 5, or 0 to 10 VDC

z Terminal Details

Do not connect anything to the terminals that are shaded gray.

001 002 003

Event inputs

004 005 006

Communications

Event inputs

007

Event inputs

Remote SP Input

EV2

CT1

RS-485

EV2

−

EV1

EV4

B(+)

A(−)

EV1

EV3

13 14 15 16 17

13 14

15 16 17 18

Communications

Event inputs

RS-485

CT1

EV1

EV2

EV3

EV4

B(+)

A(−)

16 17

13 14

16 17

Communications

Event inputs

Transfer output

RS-485

CT1

CT2

EV2

−

B(+)

13 14

A(−)

15 16

COM

17 18

13 14

EV1

15 16

2 - 10

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 45

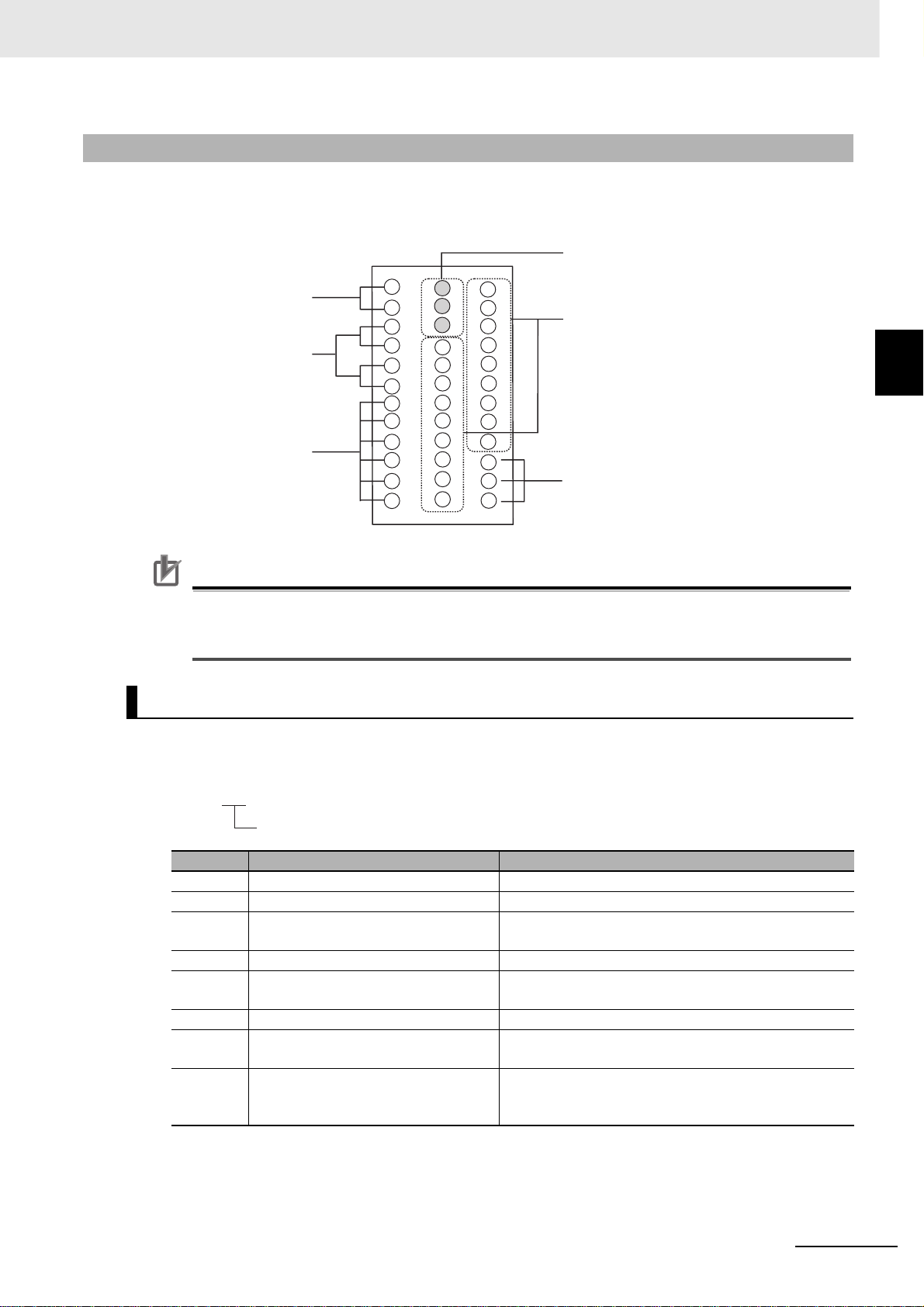

2-2-2 E5EC/E5AC Terminal Block Wiring Example

z Terminal Arrangement

The terminals block is divided into five types of terminals: control outputs 1 and 2, sensor input, auxiliary outputs, input power supply, and options.

Not used.

2 Preparations

2-2 Using the Terminals

Input Power Supply

Control outputs 1 and 2

Auxiliary Outputs

Precautions for Correct Use

• When you purchase the Digital Controller, it will be set for a K thermocouple (input type = 5). If

a different sensor is used, an input error ( s.err) will occur. Check the setting of the Input Type parameter.

Control Outputs 1 and 2

10 11 12

1 2

3 4 5

6 7 8

29 30

Options

2-2-2 E5EC/E5AC Terminal Block Wiring Example

Sensor input

z Model Numbers

The specifications for control outputs 1 and 2 are given in the following location in the model number.

E5@C-@@ @ @ @ M-@@@

Control outputs 1 and 2

Code Output type Specification

RX 1 relay output 250 VAC, 5 A (resistive load) QX 1 voltage output (for driving SSR) 12 VDC, 40 mA CX 1 current output 4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω

max. QQ 2 voltage outputs (for driving SSRs) 12 VDC, 21 mA QR 1 voltage output (for driving SSR) and

1 relay output RR or PR 2 relay outputs 250 VAC, 5 A (resistive load) CC 2 current outputs 4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω

CQ 1 current output and 1 voltage output

(for driving SSR)

12 VDC, 21 mA for voltage output 250 VAC, 5 A (resistive load) for relay output

max. 4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω

max. for current output and 12 VDC, 21 mA for voltage output

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 11

Page 46

2 Preparations

z Terminal Details

Do not connect anything to the terminals that are shaded gray.

RX QX CX

Control output 1

C D

Control output 2

Control output 1

E F

C D

Control output 2

E F

Sensor Input

C D E F

Relay output

Control output 1

E F

Voltage output

−

(for driving SSR)

Control output 1

C D E F

QQ QR RR

Voltage output

−

(for driving SSR)

Voltage output

−

(for driving SSR)

Control output 1

Control output 2

C D E F

Voltage output (for driving SSR)

−

Relay output

Control output 1

Control output 2

CC PR CQ

Current output

−

Current output

−

Open

C D E F

Relay output

Control output 1

Control output 2

C D E F

−

C D E F

−

Current output

Relay output

Current output

Voltage output (for driving SSR)

z Model Numbers

All models have universal sensor inputs, so the code in the model number is always “M.”

E5@C-@@ @ @ @ M-@@@

Sensor input

z Terminal Details

Do not connect anything to the terminals that are shaded gray.

TC (thermocouple)

−

23 24

Precautions for Correct Use

When complying with EMC standards, the line connecting the sensor must be 30 m or le ss. If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

Pt (resistance thermometer)

I (current) V (voltage)

−

23 24

2 - 12

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 47

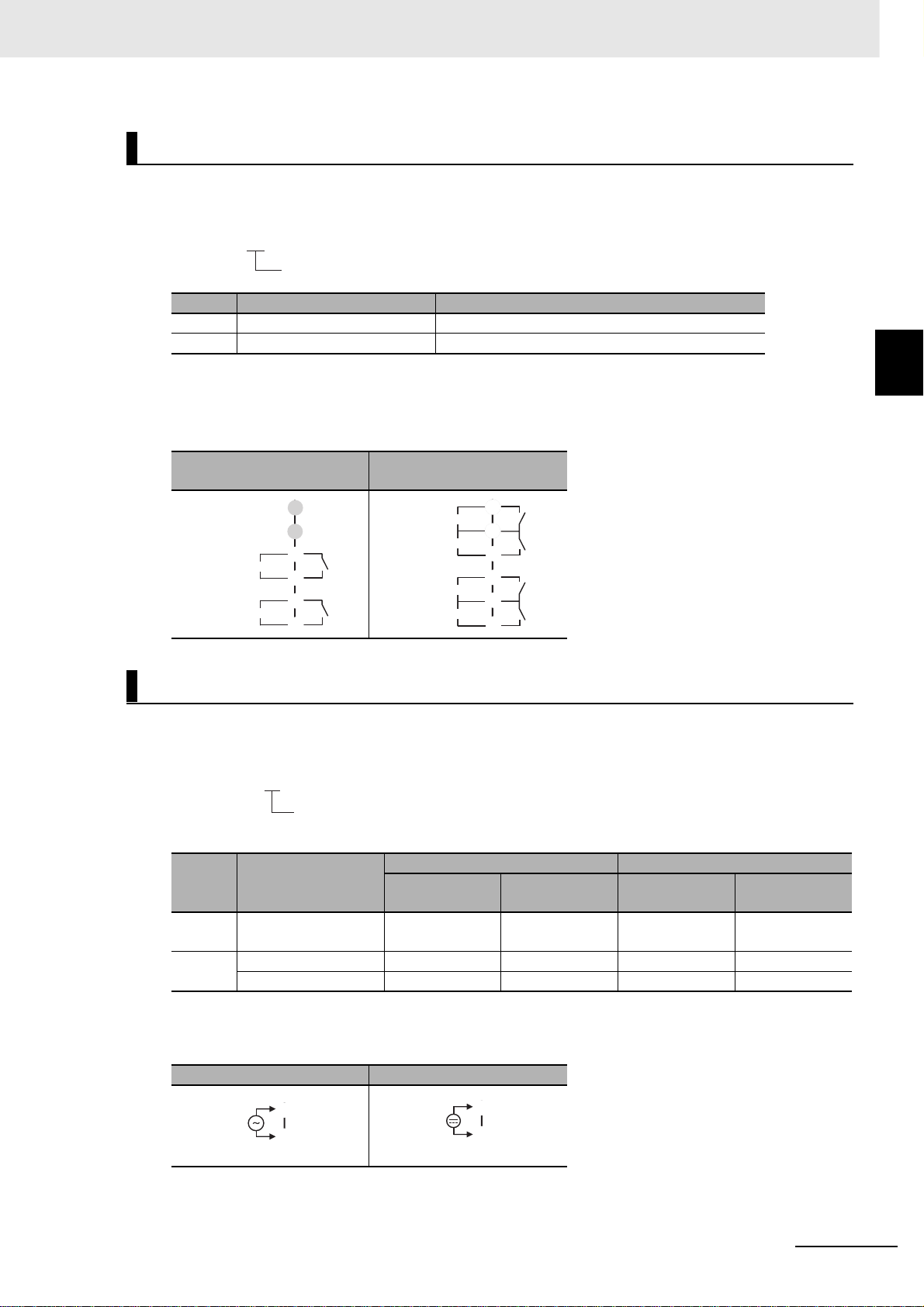

Auxiliary Outputs

z Model Numbers

The number of auxiliary outputs is given in the following location in the model number.

E5@C-@@ @ @ @ M-@@@

No. of auxiliary outputs

Code Auxiliary outputs Specification

2* Model with 2 auxiliary outputs SPST-NO, 250 VAC, 3 A 4 Model with 4 auxiliary outputs SPST-NO, 250 VAC, 2 A

* These cannot be selected if 5 (screw terminals with cover) is selected for the terminal type.

2 Preparations

2-2 Using the Terminals

z Terminal Details

Do not connect anything to the terminals that are shaded gray.

Model with 2 auxiliary

outputs

G H

Auxiliary output 2

I J

Auxiliary output 1

K L

Model with 4 auxiliary

outputs

Auxiliary output 4 Auxiliary output 3

Auxiliary output 2 Auxiliary output 1

Input Power Supply

z Model Numbers

The input power supply specification is given in the following location in the model number.

E5@C-@@ @ @ @ M-@@@

Input power supply

The codes that are given in the following table show the specification.

2-2-2 E5EC/E5AC Terminal Block Wiring Example

Code Specification

A 100 to 240 VAC

(50/60 Hz)

D 24 VAC, 50/60 Hz 4.1 VA max. 5.5 VA max. 4.2 VA max. 5.6 VA max.

24 VDC (no polarity) 2.3 W max. 3.2 W max. 2.4 W max. 3.4 W max.

z Terminal Details

Details on the input power supply terminals are shown below.

100 to 240 VAC 24 VAC/DC

A B

E5@C Digital Temperature Controllers User’s Manual (H174)

E5EC power consumption E5AC power consumption

Option number

000

6.6 VA max. 8.3 VA max. 7.0 VA max. 9.0 VA max.

Other option

numbers

Option number

000

Other option

numbers

A B

(no polarity)

2 - 13

Page 48

2 Preparations

Options

z Model Numbers

The options specification of the E5EC/E5AC is given in the following location in the model number.

E5@C-@@ @ @ @ M-@@@

Code Specification

000 None or potentiometer input (Position-proportional Models only) 004 Communications (RS-485), and event inputs 1 and 2

005 Event inputs 1 to 4 008* Communications (RS-485), event inputs 1 and 2, and CT1 009 Communications (RS-485), event inputs 1 and 2, CT1, and CT2 010 Event inputs 1 to 4, and CT1 011 Event inputs 1 to 6, CT1, transfer output, and remote SP input 012* Communications (RS-485), event inputs 1, 2, 5, and 6, CT1, transfer output, and remote

013 Event inputs 1 to 6, transfer output, and remote SP input 014 Communications (RS-485), event inputs 1, 2, 5, and 6, transfer output, and remote SP

Transfer Output

Current: 4 to 20 mA DC Voltage: 1 to 5 VDC

Remote SP Input

Current: 4 to 20 or 0 to 20 mA DC Voltage: 1 to 5, 0 to 5, or 0 to 10 VDC

Options

Potentiometer input (Position-propor tional Models only)

SP input

input Potentiometer input (Position-propor tional Models only)

2 - 14

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 49

z Terminal Details

Do not connect anything to the terminals that are shaded gray.

000 004 005 006

Event inputs

B(+)

RS-485

A(−)

EV1

EV2

O W

Event inputs

EV5

EV6

−

Event inputs

17 18 19

20 21

EV4

EV2

CT1

Event inputs

Event

inputs

30 31

32 33

34 35 36

EV3

EV1

EV4

EV2

13 14

15 16 17 18

EV3

EV1

EV4

EV2

EV3

EV1

13 14 15 16 17 18

19 20 21

13 14 15 16 17 18

19 20 21

Event inputs

Transfer output

Remote SP input

Event inputs

Transfer output

Remote SP input

Communications

EV5

EV6

−

EV6

−

Communications

Event inputs

Potentiometer input*

14 15 16 17 18

009 010 011

B(+)

A(−)

13 14

Communications

RS-485

Event inputs

EV2

CT1

CT2

EV1

COM

17 18 19

20 21

012 013 014

B(+)

A(−)

EV1

13 14

16 17 18 19

20 21

Transfer output

Remote SP input

Event inputs

Transfer output

Remote SP input

Communications

EV5

EV6

−

28 29 30 31 32 33 34 35

Event inputs

RS-485

EV2

CT1

* Can be used for a Po sition-proportional Model. These terminals are not used on other models.

2 Preparations

Event inputs

Transfer

output

30 31

Communications

EV5

32 33

34 35 36

Event

inputs

30 31

Potentiometer

input*

33 34

35 36

B(+)

RS-485

A(−)

EV2

CT1

EV3

EV4

EV1

EV2

CT1

RS-485

EV2

EV1

B(+)

A(−)

EV1

2-2 Using the Terminals

13 14

16 17 18 19

20 21

2-2-2 E5EC/E5AC Terminal Block Wiring Example

13 14

15 16 17 18

20 21

13 14

17 18

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 15

Page 50

2 Preparations

2-2-3 Precautions when Wiring

• Separate input leads and power lines in order to preven t external noise.

• Use a shielded, AWG24 to AWG18 (cross-sectional area of 0.205 to 0.823 mm

The stripping length is 6 to 8 mm.

• Use crimp terminals when wiring the terminals.

• Use the suitable wiring material and crimp tools for crimp terminals.

• Tighten the terminal screws to a torque of 0.43 to 0.58 N·m.

• Use the following types of crimp terminals for M3.0 screws.

5.8 mm max.

2-2-4 Wiring

) twisted-pair cable.

In the connection diagrams, the left side of the terminal numbers represents the inside of the Controller and the right side represents the outside.

z Power Supply

Po wer Consumption

E5CC E5EC E5AC

Input Power Supply

100 to 240 VAC, 50/60 Hz 5.2 VA

24 VAC, 50/60 Hz 3.1 VA

24 VDC (no polarity) 1.6 W

Options

No.: 000

max.

Options

No.:

Not 000

6.5 VA max.

4.1 VA max.

2.3 W max.

Options No.: 000

6.6 VA max.

4.1 VA max.

2.3 W max.

Options

No.:

Not 000

8.3 VA max.

5.5 VA max.

3.2 W max.

Options No.: 000

7.0 VA max.

4.2 VA max.

2.4 W max.

Options

No.:

Not 000

9.0 VA max.

5.6 VA max.

3.4 W max.

• These models have reinforced insulation between the input power supply, the relay outputs, and other terminals.

z Inputs

Refer to 2-2-1 E5CC Terminal Block Wiring Example or 2-2-2 E5EC/E5AC Terminal Block Wiring Example for the terminal arrangement. When extending the ther mocouple lead wires, be sure to use compensating wires that match the thermocouple type. When extending the lead wires of a resistance thermometer, be sure to use wires that have low resistance and keep the resistance of the three lead wires the same.

2 - 16

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 51

z Control Outputs 1 and 2

The following diagrams show the applicable outputs and their internal equivalent circuits.

E5CC

2 Preparations

2-2 Using the Terminals

RX (relay

output)

QX (voltage output

(for driving SSR))

−

CX (current output)

QQ (2 voltage outputs

(for driving SSRs))

−

Output type Specification

RX Relay output SPST-NO, 250 VAC, 3 A (resistive load), Electrical

durability: 100,000 operations QX Voltage outpu t (for driving SSR) PNP, 12 VDC ±20%, 21 mA (with short-circuit protection) CX Current output 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:

Approx. 10,000 QQ* 2 voltage outputs (for driving SSRs) PNP, 12 VDC ±20%, 21 mA (with short-circuit protection) CQ* Current output (control output 1) 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:

Approx. 10,000

Voltage output (for driving SSR) (control output 2)

* Control output 1 and control output 2 are not isolated.

PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)

CQ (current output and

voltage output

(for driving SSR))

−

2-2-4 Wiring

E5EC/E5AC

RX (relay output)

QQ (2 voltage outputs (for

driving SSRs))

−

QX (voltage output (for

driving SSR))

−

QR (voltage output (for driving SSR) and relay

output)

−

CX (current output) RR or PR (2 relays)

−

CQ (current output and

CC (2 current outputs)

−

voltage output

(for driving SSR))

−

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 17

Page 52

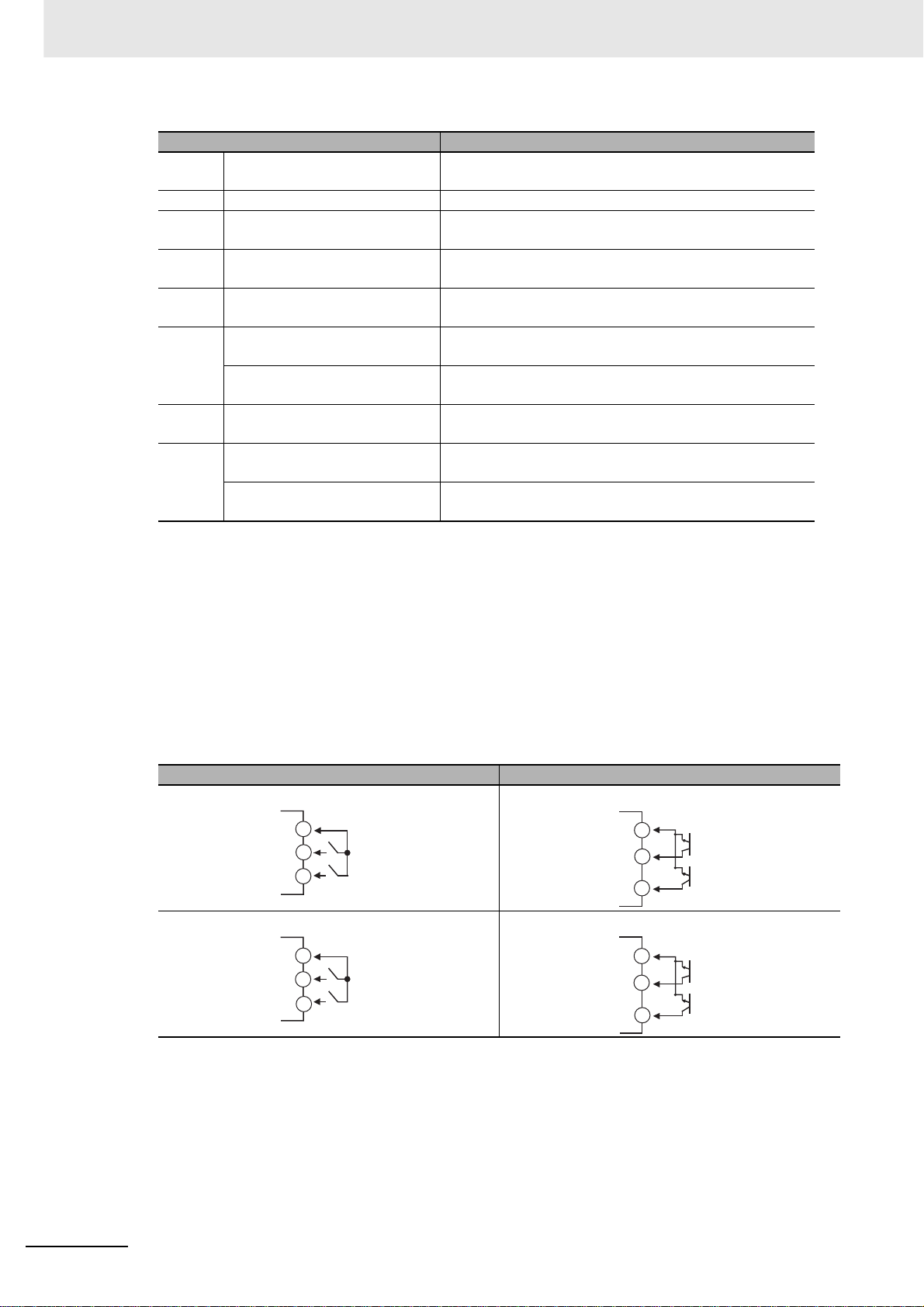

2 Preparations

Output type Specification

RX Relay output SPST-NO, 250 VAC, 5 A (resistive load), Electrical

QX Voltage output (for driving SSR) PNP, 12 VDC ±20%, 40 mA (with short-circuit protection) CX Current output 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:

RR or PR2 relay outputs SPST-NO, 250 VAC, 5 A (resistive load), Electrical

QQ* 2 voltage outputs (for driving

QR V oltage output (for driving SSRs)

CC* 2 current outputs 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:

CQ* Current output (control output 1) 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:

* Control output 1 and control output 2 are not isolated.

durability: 100,000 operations

Approx. 10,000

durability: 100,000 operations PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)

SSRs)

PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)

(control output 1) Relay output (control output 2) SPST-NO, 250 VAC, 5 A (resistive load), Electrical

durability: 100,000 operations

Approx. 10,000

Voltage output (for driving SSR)

PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)

(control output 2)

z Auxiliary Outputs 1 to 4

When heating/cooling control is used on the E5CC, auxiliary output 2 is the control output for cooling. When heating/cooling control is used on the E5EC/E5AC, auxiliary output 4 is the control output for cooling unless the Controller has only two auxiliary outputs, in which case auxiliary output 2 is the control output for cooling.

z Event Inputs

Models with an option number of 001 or 004 to 014 have event inputs.

E5CC

Contact inputs Non-contact inputs

Option number: 001, 006, or 007

Option number: 004

13 14 15

16 17 18

EV1 EV2

EV3 EV4

16 17

−

EV1

EV2

−

EV3

EV4

2 - 18

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 53

Contact inputs Non-contact inputs

Option number: 005

13 14 15

16 17

E5EC/E5AC

Contact inputs Non-contact inputs

Option number: 004, 008 or 009

EV1 EV2

EV3 EV4

13 14

15 16

2 Preparations

2-2 Using the Terminals

−

EV1

EV2

−

EV3

EV4

2-2-4 Wiring

16 17 18

Option number: 005 or 010

13 14 15 16 17 18

Option number: 011 or 013

28 29 30

EV5 EV6

Option number: 012 or 014

EV1 EV2

EV3 EV4

EV1 EV2

13 14 15 16

17 18

EV3 EV4

EV1 EV2

−

13 14

15 16

−

EV5

EV6

EV1

EV2

−

EV3

EV4

−

EV1

EV2

−

15 16

EV3

EV4

−

EV1

EV2

16 17

28 29 30

E5@C Digital Temperature Controllers User’s Manual (H174)

EV1 EV2

EV5 EV6

16 17

−

EV1

EV2

−

EV5

EV6

2 - 19

Page 54

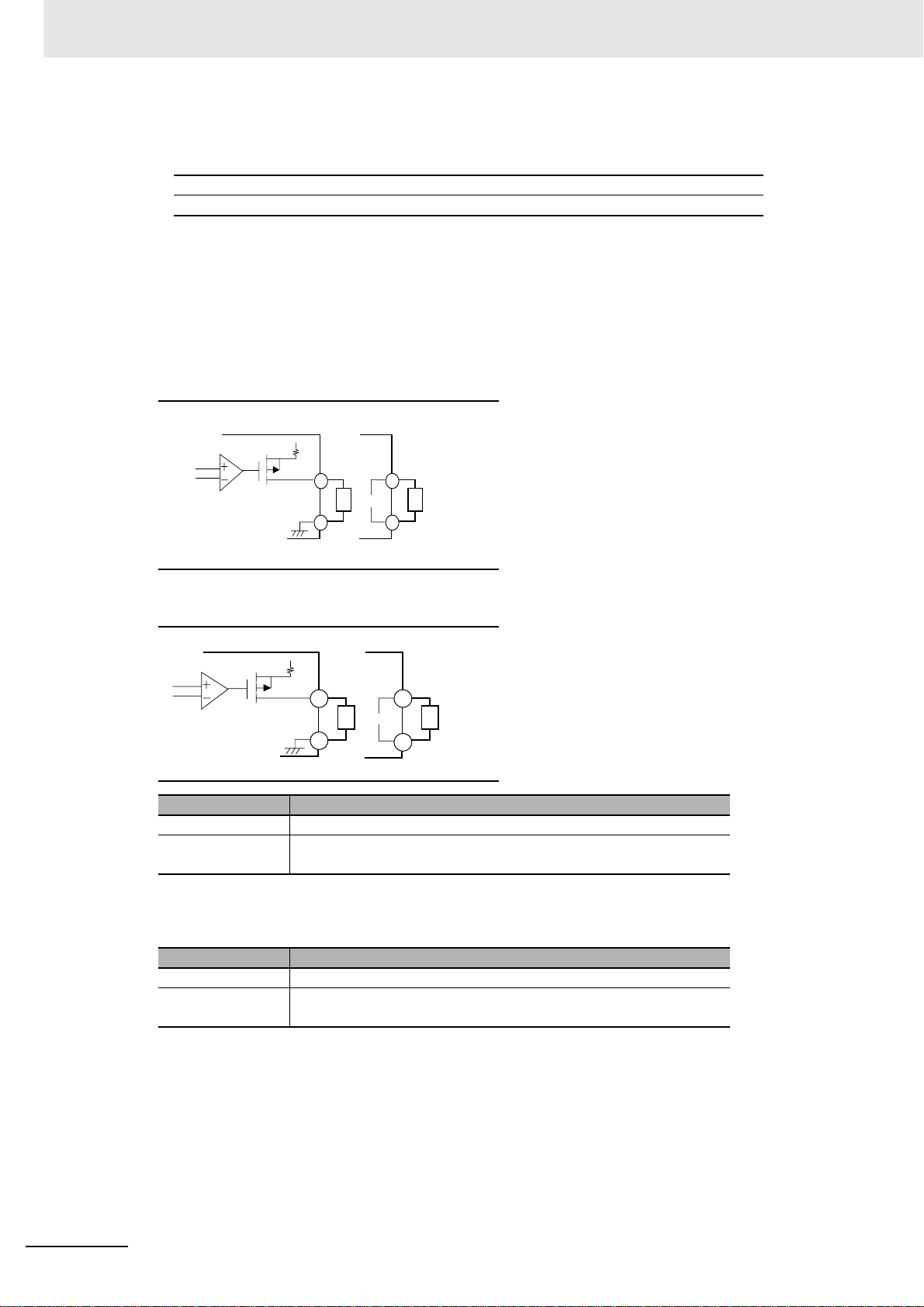

2 Preparations

• Use event inputs under the following conditions:

• The outflow current is approximately 7 mA.

Contact input ON: 1 kΩ max., OFF: 100 kΩ min. No-contact input ON: Residual voltage of 1.5 V max.; OFF: Leakage current of 0.1 mA max.

z CT Inputs

Models with an option number of 001 to 003 or 008 to 012 have one or two CT inputs.

z Tr ansfer Output

Models with an option number of 006 or 011 to 014 have a transfer output.

E5CC

Option number: 006

−

Current output Linear voltage output

−

E5EC/E5AC

Option number: 011, 012, 013, or 014

−

Current output

Output type Specification

Current output 4 to 20 mA DC, Load: 500 Ω max., Resolution: 10,000 Linear voltage

output

1 to 5 VDC, Load: 1 kΩ min., Resolution: 10,000

−

Linear voltage output

z Remote SP Input

Models with an option number of 007 or 011 to 014 have a remote SP input.

Input type Specification

Current input 4 to 20 or 0 to 20 mA DC with input impedance of 150 Ω max. Linear voltage

output

1 to 5, 0 to 5, or 0 to 10 VDC with input impedance of 1 MΩ min.

2 - 20

The remote SP input circuit is not electrically isolated from the internal circuits. Therefore, when using a grounded sensor input, do not connect the remote SP input terminals to ground. (If the remote SP input terminals are connected to ground, errors will occur in the measured temperature as a result of leakage current.)

z Potentiometer Input

You can use this input for a Position-proportional Model. The maximum opening can be measur ed to between 100 and 10KΩ.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 55

z Communications

RS-485

Models with an option number of 002, 003, 004, 008, 009, 012, or 014 support communications. Connect the communications cable between terminals 13 and 14.

Communications Unit Connection Diagram

Host computer

RS-485

−

100 Ω

A < B: [1] Mark A > B: [0] Space

Shield

E5@C (No.1)

RS-485

No.

14 13

Abbreviation

A (−) B (+)

E5@C (No.31)

RS-485

Abbreviation

No.

A (−)

B (+)

Terminator (120 Ω, 1/2 W)

2 Preparations

2-2 Using the Terminals

2-2-4 Wiring

• The RS-485 connection can be either one-to-one or one-to-N. A maximum of 32 Units (including the host computer) can be connected in one-to-N systems. The maximum total cable length is

500 m. Use a shielded, AWG24 to AWG18 (cross-sectional area of 0.205 to 0.823 mm twisted-pair cable.

Cross-sectional area of conductor AWG24: 0.205 mm AWG18: 0.823 mm

2 2

)

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 21

Page 56

2 Preparations

2-3 Insulation Block Diagrams

The insulation block diagrams are provided in this section.

z Models with 2 Auxiliary Outputs

Sensor input, CT inputs, potentiometer input, and remote SP input

Communications and event inputs

Power supply

Voltage outputs (for driving SSR), current outputs, and transfer output

: Reinforced insulation : Functional insulation

z Model with 3 Auxiliary Outputs

Sensor input, CT inputs, and remote SP input

Communications and event inputs

Power supply

Voltage outputs (for driving SSRs), current outputs, and transfer output

Auxiliary outputs 1, 2, and 3

Relay outputs Auxiliary output 1 Auxiliary output 2

Relay outputs

2 - 22

: Reinforced insulation : Functional insulation

z Models with 4 Auxiliary Outputs

Sensor input, CT inputs, potentiometer input, and remote SP input

Communications and event inputs

Power supply

Voltage outputs (for driving SSRs), current outputs, and transfer output

Auxiliary outputs 1 and 2 Auxiliary outputs 3 and 4

: Reinforced insulation : Functional insulation

Relay outputs

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 57

2 Preparations

2-4 Using the Setup Tool Port

Use the Setup Tool ports to connect the computer to the Digital Controller when using CX-Thermo version 4.4 or higher (EST2-2C-MV4 or later) or other Support Software.

The E58-CIFQ2 USB-Serial Conversion Cable models that can be used with CX-Thermo, contact your OMRON sales representative.

*1 The E58-CIFQ2-E is required to connect to the Setup Tool port on the front panel of the E5EC/E5AC.

2-4-1 Procedure

When the USB-Serial Conversion Cable is connected to the Digital Controller, the following operations are possible even if the power supply to the Digital Cont roller is not turned ON.

• Setting up the Digital Controller from a computer (Special software is required.)

• Changing settings by using key operations on the Digital Controller

• Displaying the current temperature on the Digital Controller

The control outputs, alarm outputs, transfer output, event inputs, and external communications for the Digital Controller will not operate unless the power supply to the Digital Controller is turned ON.

2-4-2 Connection Method

is required for the connection. For information on the

000

2-4 Using the Setup Tool Port

2-4-1 Procedure

Use the E58-CIFQ2 USB-Serial Conversion Cable to connect the E5@C to the computer. The USB-Serial Conversion Cab le is used to com municat e with a USB port on a computer as a virtual COM port.

E5CC

z Setup Tool Port and Connecting Cable

The location of the Setup Tool port on the E5CC and the required cable are shown below.

Setup Tool port Connecting cable

• Top panel on the Digital Controller

Setup Tool port

E58-CIFQ2 USB-Serial Conversion Cable

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 23

Page 58

2 Preparations

z Connection Procedure

Connect the serial connector on the USB-Serial Conversion Cable to the Setup Tool port on the top panel of the Digital Controller.

E5EC/E5AC

Serial connector

z Setup Tool Ports and Connecting Cables

The location of the Setup Tool port on th e E5EC/E5AC and the required cable are shown below. There are Setup Tool ports on both the top panel and front panel of the Digital Controller.

Setup Tool ports Connecting cables

• Top panel on the Digital Controller

Top-panel Setup Tool port

* This Cable is required only to connect to the front-panel Setup Tool port.

• Front panel on the Digital Controller

Front-panel Setup Tool port

E58-CIFQ2 USB-Serial Conversion Cable

E58-CIFQ2-E Conversion Cable*

z Connection Procedure

• Top-panel Port

2 - 24

Connect the serial connector to the Setup Tool port on the top panel of the Digital Controller.

Serial connector

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 59

2 Preparations

• Front-panel Port

Connect the E58-CIFQ2 USB-Serial Conversion Cabl e to the E58-CIFQ2-E Conversion Cable.

Remove the Port Cover from the front-panel Setup Tool port, and then plug in the Conversion Cable.

E58-CIFQ2 USB-Serial Conversion Cable

There is a triangle on the connecting surface.

Align the arrow ( ) on the small connector on the E58-CIFQ2 USB-Serial Conversion Cable with the triangle mark ( ) on the small connector on the E58-CIFQ2-E Conversion Cable.

E58-CIFQ2-E Conversion Cable

2-4 Using the Setup Tool Port

2-4-2 Connection Method

Port Cover

Conversion Cable

Precautions for Correct Use

• Hold the connector when inserting or disconnecting the Cable.

• When connecting a connector, always make sure that it is oriented correctly. Do not force the

connector if it does not connect smoothly. Connectors may be damaged if they are connected with excessive force.

• Do not connect cables to both the front-panel Setup Tool port and the top-panel Setup Tool port at the same time. The Digital Controller may be damaged or may malfunction.

E5@C Digital Temperature Controllers User’s Manual (H174)

2 - 25

Page 60

2 Preparations

2-4-3 Installing the Driver

1. Connect a USB connector on the computer with a Setup Tool port on the Digital Controller using the Cable or Cables.

2. Obtaining the Driver

When the CX-Thermo Support Software for the Digital Controller is installed, the driver for the USB-Serial Conversion Cable will be copied to the following folder. C:\Program Files\OMRON\Drivers\USB\E58-CIF

3. Installing the Driver

Install the driver to enable the Cable to be used with the personal computer.

• Installation

When the Cable is connected with the personal computer, the OS will detect the product as a new device. At this time, install the driver using the Installation Wizard.

Note 1: We recommend that you install the driver for each USB port on the computer at the star t. The Digital

Controller assigns a COM port number to each USB por t on the compute r. If the same USB port is used, you will be able to use the same COM port number even if you use a different Cable.

2: Installation of the driver will not be completed if the installation is canceled before it is completed. Normal

communications will not be possible unless the driver is installed completely. If the driver is not installed completely, uninstall it, and then install it correctly.

4. Setting Setup Tool Communications Conditions

Set the communications port (COM port) number to be used for the CX-Th ermo Setup Tool to the COM port number assigned to the USB-Serial Conversion Cable. Refer to the E58-CIFQ2 USB-Serial Conversion Cable Instruction Manual and Setup Manual for details on how to check the COM port assigned to the USB-Serial Conversion Cable. The communications conditions f or Setup Tool COM ports are fixed as shown in the ta bl e belo w. Set the communications conditions for the CX-Thermo Setup Tool according to the following table

Parameter Set value

Communications Unit No. 01 Communications baud rate 38.4 (kbps) Communications data length 7 (bits) Communications stop bits 2 (bits) Communications parity Even

2 - 26

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 61

Part Names and Basic Procedures

3-1 Basic Application Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3-2 Power ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3-3 Part Names, Part Functions, and Setting Levels . . . . . . . . . . . . . . . . . . . . . 3-4

3-3-1 Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3-3-2 Entering Numeric Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

3-3-3 Setting Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3-4 Procedures after Turning ON the Power Supply . . . . . . . . . . . . . . . . . . . . 3-11

3-4-1 Basic Flow of Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3-4-2 Basic Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

E5@C Digital Temperature Controllers User’s Manual (H174)

3 - 1

Page 62

3 Part Names and Basic Procedures

3-1 Basic Application Flow

The following figure shows the basic flow for using the Digital Controller.

Power ON

Set the input type and other basic settings.

• Input type

• Control method

• Alarm type Other parameters

Set the set point.

Set the alarm set values.

Refer to 3-4 Procedures after Turning ON the Power Supply.

ON/OFF Control

Set the control hysteresis.

PID Control

Set the control periods* and PID constants.

*For time-proportional operation.

Operate with the set values.

3 - 2

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 63

3-2 Power ON

Operation will start as soon as you turn ON the power supply to the E5@C. The following defa ult settings will be used when operation starts.

Standard Models

3 Part Names and Basic Procedures

• Input type 5: K thermocouple

• ON/OFF control

• Alarm: Upper-limit alarm

• Set point: 0°C

After the power comes ON, all indicators and displays will light f or appro ximately 1 second, and then the operation display will appear. The top display will show the PV and the bottom display will show the SP.

*1 The default setting for Position-proportional Models is floating

control operation.

*2 If the Controller is equipped with HB/HS alar m detection, it is set

by default to detect heater alarms.

Power ON

Everything

lights for

approx. 1 s.

3-2 Power ON

Operation Level

• Resistance Thermometer Connected or

• Temperature Sensor Not Connected

The operation display appears.

The default setting of the input type is for a K thermocouple.

s.err: An input error is displayed.

s.err

• Change the setting of the Input Type parameter to a resistance thermometer in the Initial Setting Level.

• Connect a temperature sensor.

Refer to step 2 on 3-11.

• Thermocouple Connected

The PV that is measured by the temperature sensor is displayed.

If you are not using a K thermocouple, set the Input Ty pe parameter to the correct sensor type in the Initial Setting Level. Refer to step 2 on 3-11.

K Thermocouple Connected: The correct temperature is

displayed. Other Thermocouple Connected: The correct temperature is

not displayed.

SP *The default setting is 0°C.

E5@C Digital Temperature Controllers User’s Manual (H174)

3 - 3

Page 64

3 Part Names and Basic Procedures

3-3 Part Names, Part Functions, and

Setting Levels

3-3-1 Part Names and Functions

E5CC

Front panel

Temperature unit

Operation indicators

No. 1 display

PV or specified parameter

No. 2 display

SP or specified parameter value

Top-panel Setup Tool port

Top View of E5CC

Press O Key once to go to Adjustment Level.

Press O Key for at least 3 seconds to go to Initial Setting Level.

E5EC

Front panel

Temperature unit

Operation indicators

Front-panel Setup Tool port

Press the U D Keys to set the parameter.

Press S Key to change the digit (default setting).

Press the M Key to change to another parameter.

No. 1 display

PV or specified parameter

No. 2 display

SP or specified parameter value

No. 3 display

Manipulated value or other value

Press the U D Keys to set the parameter.

Press S Key to change the digit (default setting).

Top View of E5EC

Top-panel Setup Tool port

3 - 4

Press the M Key to change to another parameter.

Press O Key once to go to Adjustment Level.

Press O Key for at least 3 seconds to go to Initial Setting Level.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 65

E5AC

3 Part Names and Basic Procedures

3-3 Part Names, Part Functions, and Setting Levels

Front Panel

Temperature unit

Operation indicators

Front-panel Setup Tool port

Press the O Key once to go to the Adjustment Level.

Press the O Key for at least 3 seconds to go to the Initial Setting Level.

No. 1 display

PV or specified parameter

No. 2 display

SP or specified parameter value

No. 3 display

Manipulated value or other value

Press the U or D Key to set the parameter.

Press the S Key to change the digit (default setting).

Press the M Key to change to another parameter.

Displays

Name Description

No. 1 display Displays the process value or a monitor/setting item. No. 2 display Displays the set point or the value of a monitor/setting item. No. 3 Display (E5EC/E5AC only)

Temperature unit Displays the temperature unit (C or F).

Displays the manipulated variable (valve opening), remaining soak time, multi-SP No., internal SP (ramp SP), or alarm value 1. (The value that is displayed is set in the PV/SP Display Selection parameter in the Advanced Function Setting Level.)

Top View of E5AC

Top-panel Setup Tool port

3-3-1 Part Names and Functions

Indicators

Operation indicators Name Description

Auxiliary outputs 1 to 4 (Only the E5EC/E5AC support auxiliary output 4.)

Control outputs 1 and 2

Communications writing

Manual This indicator is lit in Manual Mode. Stop This indicator is lit while operation is stopped. AT/ST in progress This indicator is lit during autotuning.

Each indicator lights when the function that is assigned to corresponding auxiliary output (1 to 4) is ON.

Each indicator lights when the function that is assigned to corresponding control output (1 or 2) is ON. (For a current output, the indicator is not lit only for a 0% output.) For a Position-proportional Model, OUT1 lights when the open output is ON and OUT2 lights when the close output is ON.

This indicator lights when wiring with communications is enabled.

This indicator flashes during self-tuning.

E5@C Digital Temperature Controllers User’s Manual (H174)

3 - 5

Page 66

3 Part Names and Basic Procedures

Operation indicators Name Description

Remote SP This indicator is lit while the SP Mode parameter is set to Remote

Setting change protection

Keys

Key Name Overview Description

Level Key Selects the setting

level.

The next setting level depends on how long the key is pressed.

Mode Key Changes the

Down Key and Up Key

parameter that is displayed within a setting level.

Set the value. • Hold the key to increment or decrement the value

D U

Shift Key (PF Key) Operates as a

user-defined function key.

SP Mode. This indicator flashes when there is an RSP input error in Remote SP Mode.

This indicator is lit while setting change protection is ON.

• In Operation Level

• Press once for less than 1 second to go to

Adjustment Level.

• Press for at least 3 seconds to go to Initial Setting Level.

• In Adjustment Level

• Press once for less than 1 second to go to

Operation Level.

• Press for at least 3 seconds to go to Initial Setting Level.

• In Initial Setting Level

• Press for at least 1 second to go to Operation

Level.

• Display amov (Move to Advanced Function Setting Level) and then enter −169 to go to Advanced Function Setting Level.

• Press once to go to the next parameter.

• Hold to go to the previous parameter.

quickly.

• Any changes in settings are applied at the following times:

• After 3 seconds elapse

• When the M Key is pressed

• When the level is changed with the O Key

• Press the S to select the digit to change.

You can change the PF Setting parameter to assign any of the following functions.

• Press the S Key for at least 1 second and then specify one of the following functions: RUN/STOP, auto/manual, autotuning, or canceling an alarm latch

3 - 6

The PF Key operates as a Digit Shift Key b y default.

Example: If you set the PF Setting parameter to STOP, operation will stop when you press the PF Key for at least 1 second.

• Press the PF Key once to display the Monitor/Setting Item Level. The parameter that is displayed is set in the Monitor/Setting Item parameters in the Advanced Function Setting Level.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 67

3 Part Names and Basic Procedures

3-3 Part Names, Part Functions, and Setting Levels

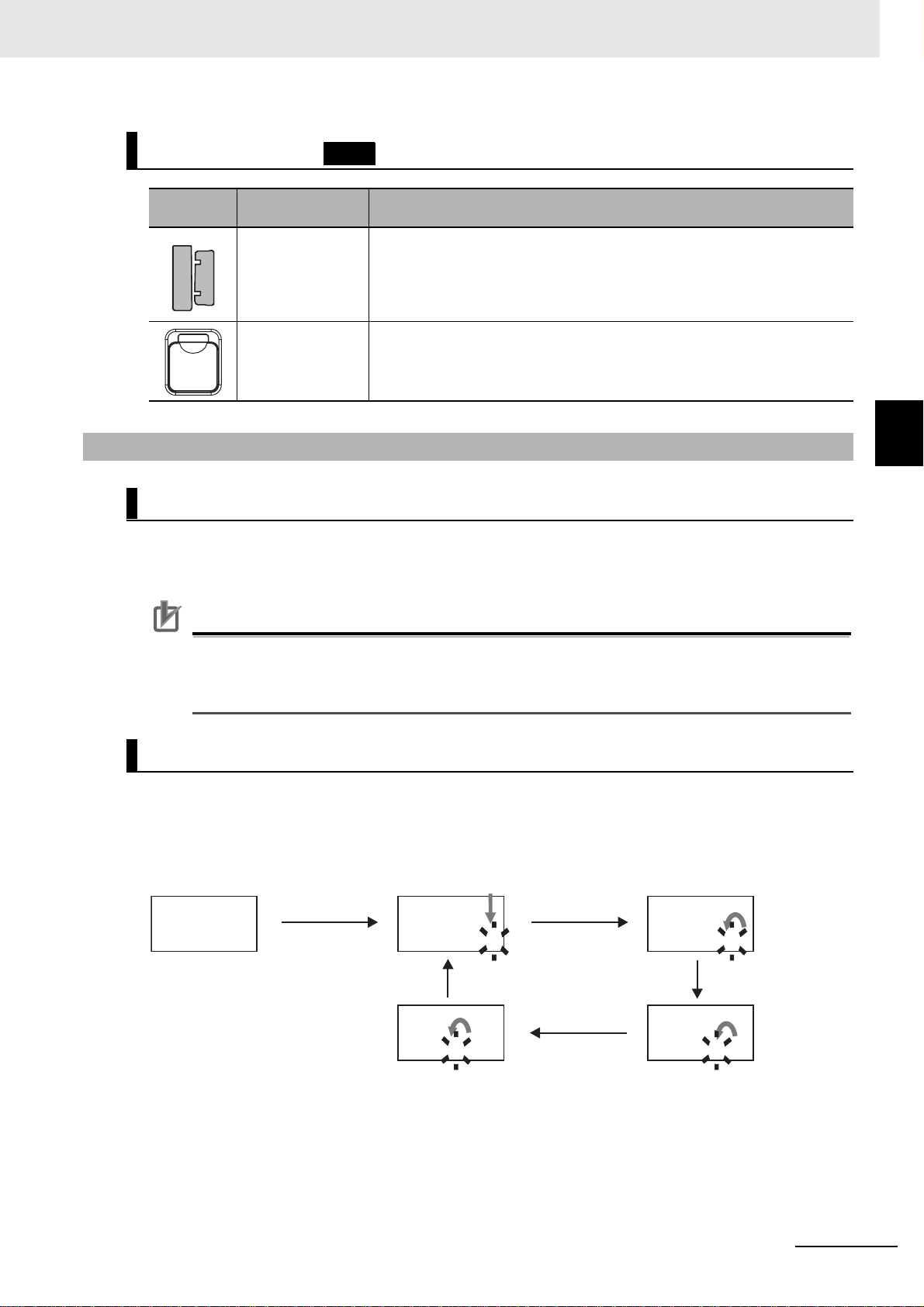

Setup Tool Ports

Setup T ool

port

Name Description

Top-panel Setup Tool port

Front-panel Setup Tool port (E5EC/E5AC only)

000

Use the E58-CIFQ2 USB-Serial Conversion Cable to connect the E5@C to the computer (i.e., the CX-Thermo Support Software).

Use the E58-CIFQ2 USB-Serial Conversion Cable and the E58-CIFQ2-E Conversion Cable to connect the E5EC/E5AC to the computer (i.e., the CX-Thermo Support Software).

3-3-2 Entering Numeric Values

Applying Changes to Numeric Values

After you change a numeric value with the U D Keys, the changes are applied 1) when 3 seconds elapses, 2) when the M Key is pressed, or 3) when the level is changed with the O Key.

3-3-2 Entering Numeric Values

Precautions for Correct Use

Always make sure that any changes to numeric values are applied for one of the three methods that are given above before you turn OFF the power supply to the E5@C. If you only change the values with the U D Keys and turn OFF the power supply before 3 seconds has elapsed, the changes will not be applied.

Moving between Digits (Digit Shift Key)

Press the Shift Key (PF Key) to select the digit to change. This is useful when entering a numeric value with many digits. Use this key to change levels: The digit to change will move as follows: 1s digit, 10s digit, 100s digit, 1000s digit, and then back to the 1s digit. Press the U + D Keys to change the value of a digit.

al-1

Press the S Key. Press the S Key.

al-1

0023

Press the S Key. Press the S Key.

al-1

0023

Press the S Key.

al-1

0023

al-1

0023

E5@C Digital Temperature Controllers User’s Manual (H174)

3 - 7

Page 68

3 Part Names and Basic Procedures

3-3-3 Setting Levels

On the E5@C, the parameters are classified into levels according to their applications. These levels are called setting levels. The setting levels consist of some basic setting levels and other setting levels.

Moving between Setting Levels

The following figure gives an overall image of the setting levels. The setting levels consist of the basic setting levels (shaded below) and the other setting levels (not shaded). The Initial Setting Level, Communications Setting Level, Advanced Function Setting Level, and Calibration Level can be used only when control is stopped. If you change to any of these levels, control will stop.

Only when Manual Mode was used just before power OFF

O Key for at least 1 s

or S Key for at least 1 s

Manual Control

Level

Used to set the MV manually.

Key for at least 3 s

while A-M is

displayed

or S Key

for at least 1 s

Operation in progress

Release protection and then enter the password (−169) for the amoV (Move to Advanced Function Setting Level) parameter.

Stopped

Level changes automatically.

Operation Level

Used for SP, alarm values, and other basic settings and monitoring.

O Key for

at least 3 s

Initial Setting Level

Used to set the input type and other basic settings.

Advanced Function

Advanced settings

Power ON

Setting Level

O + M Keys for at least 1 s

Press O Key once.

Press S Key. Press S Key.

O Key for at least 1 s

Press O Key once (models with communications only).

Adjustment Level

Used to change adjustment parameters (PID constants, control hysteresis, etc.).

Monitor/Setting

Item Level

Used to display specified monitor and setting items.

Communications

Setting Level

Communications settings

Press O Key once.

O Key for at least 1 s

Protect Level

Used to set protection for operations.

Press O + M Keys for at least 3 s.

3 - 8

Enter the password (1201) for the Move to Calibration Level parameter.

000

Calibration Level

*1 To use a key procedure to move to Manual Control Level, set the Auto/Manual Select Addition parameter to

ON and set the PF Setting parameter to a-m (Auto/Manual). *2 The No. 1 display will flash when the keys are pressed for 1 s or longer. *3 Set the PF Setting parameter to pfdp (monitor/setting items).

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 69

3 Part Names and Basic Procedures

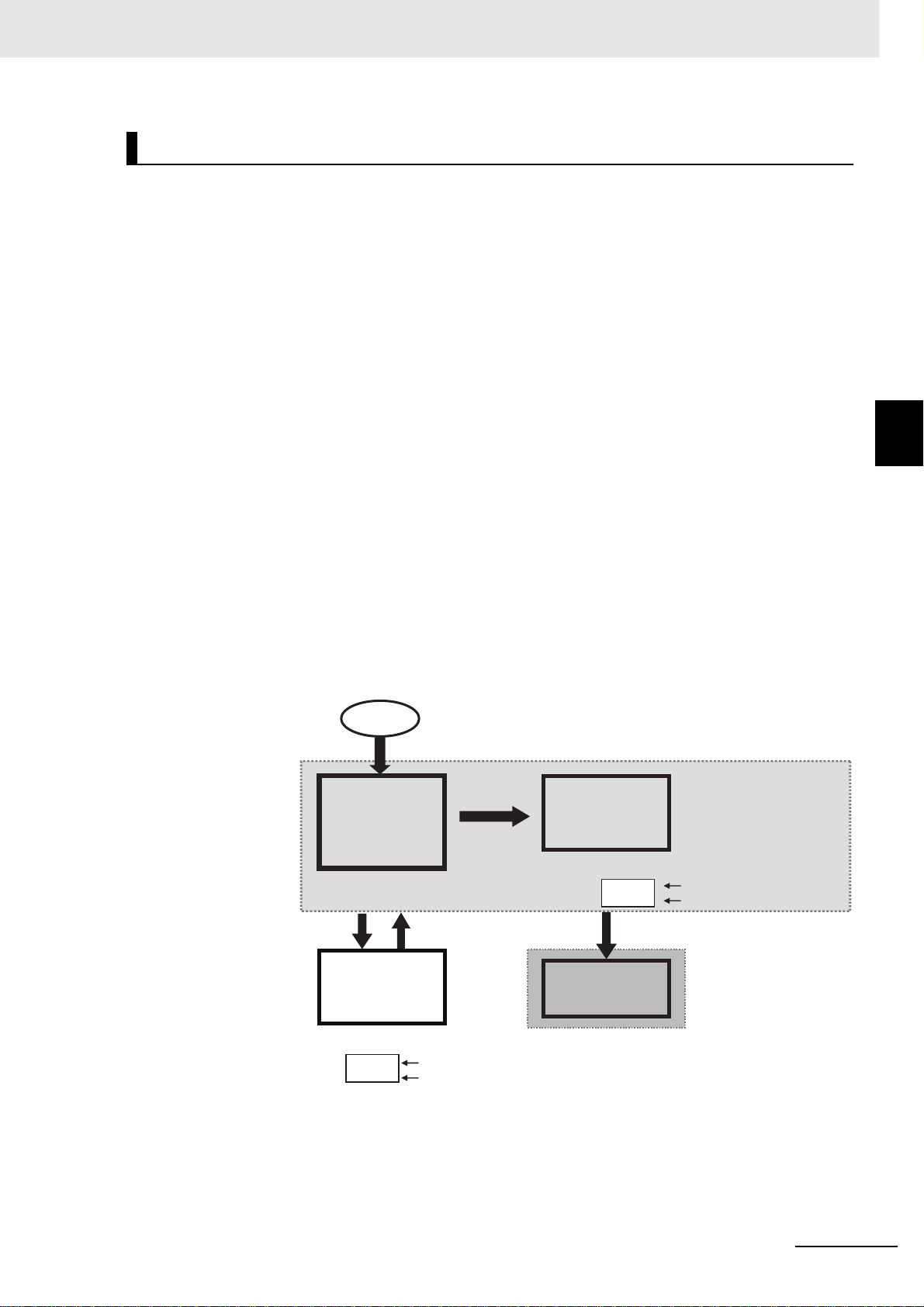

Basic Setting Levels

z Operation Level

This level is displayed automatically when the power supply is turned ON. This level is used for the SP, alarm values, and other b asic settings and monitoring. Normally, select this level for operation.

z Adjustment Level

This level is used to set the PID constants and to perform tuning, such as autotuning. In Adjustment Level, the settings of the parameters can be changed during operation. This is not possible in the Initial Setting Level or Advanced Function Setting Level.

z Initial Setting Level

This level is used for the most basic settings. It is used to set the input type and other parameters. Use it to set the input type, alarm type, and other basic settings.

3-3 Part Names, Part Functions, and Setting Levels

3-3-3 Setting Levels

z Advanced Function Setting Level

This level is used for advanced settings. Use it to assign functions to the control outputs and auxiliary outputs. You will not be able to enter the Advanced Function Setting Level with the default settings. To enter the Advanced Function Setting Level, first disable Initial Sett ing/Comm unications Prot ection and then enter the password (−169) at the amov (Move to Advanced Function Setting Level) parameter in the Initial Setting Level. Use the following procedure to move to Advanced Function Setting Level.

Power ON

Level changes automatically.

Step 4:

Step 1:

Press the simultaneously for at least 3 s.

+ M Keys

Operation Level

Used for SP, alarm values, and other basic settings and monitoring.

Protect Level

Used to set protection for operations.

Step 3: Press the

Key for at least 3 s

+ M Keys for at least 1 s.

Initial Setting Level

Used to set the input type and other basic settings.

Step 5: Enter −169 for the amov parameter.

amov

Move to Advanced Function Setting Level parameter Enter −169. Default: 0

Advanced Function

Setting Level

Advanced settings

Step 2: Change the parameter with the M Key and change the setting of the icpt parameter to 0.

icpt

Step 1: Move to Protect Level. Step 2: Display icpt (Initial Setting/Com munications Protect) and set it to 0. Step 3: Return to Operation Level. Step 4: Return to Initial Setting Level. Step 5: Display amoV (Move to Advanced Function Setting Level) and then enter −169.

E5@C Digital Temperature Controllers User’s Manual (H174)

Initial Setting/Communications Protect

Set 0. Default: 1

3 - 9

Page 70

3 Part Names and Basic Procedures

Steps 1 to 3 are necessar y only the first time. Perform only ste ps 4 and 5 to move to Advanced Function Setting Level.

Other Setting Levels

There are five other setting levels: Manual Control Level, Protect Level, Communications Setting Level, Calibration Level, and Monitor/Setting Item Level.

z Manual Control Level

This level is used to set the MV manually. With the default settings, you cannot move to the Manual Control Level.

• To use the S Key to move to the Manual Control Level, change the setting of the PF Setting parameter to a-m.

• To use the Level Key on the Auto/Manual Switch Display to move to the Manual Control Level, set the Auto/Manual Switch Display Addition parameter in the Advanced Function Setting Level to ON.

• To use an event input to move to the Manual Control Level, change the setting of the Event Input Assignment 1 to 6 parameter to manu.

z Protect Level

This level is used to restrict the operations that can be performed and the parameters that can be displayed with the front-panel keys. For example, you can prohibit changing the SP and other parameters in the Operation Level and Adjustment Level. You can move to the Protect Level from the Operation Level or the Adjustment Level. To move to the Advanced Function Setting Level, you must first cancel the protection that is set in the Protect Level.

z Communications Setting Level

This level is used to set th e comm unicati ons par ame ters . You can move to the Communications Setting Lev el from the Initial Setting Level.

z Calibration Level

This level is used to calibrate the Digital Controller. You can move to the Calibration Level from the Advanced Function Setting Level.

z Monitor/Setting Item Level

To use the S Key to display the Monitor/Setting Items, change the setting of the PF Setting parameter to pfdp. The items that will be displayed in the Monitor/Setting Item Level are set using the Monitor/Setting Item 1 to 5 parameters.

3 - 10

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 71

3 Part Names and Basic Procedures

3-4 Procedures after Turning ON the

Power Supply

3-4-1 Basic Flow of Operations

The basic flow of operations after you turn ON the power supply is shown below.

1. Turn ON the power supply.

↓

2. Set the input type.

↓

3. Set the control method.

↓

4. Set the alarm type.

↓

5. Set the set point.

↓

6. Set the alarm set values.

3-4 Procedures after Turning ON the Power Supply

3-4-1 Basic Flow of Operations

3-4-2 Basic Procedure

The basic procedure is given below.

Turn ON the power supply.

Operation Level

Set the input type.

Press the O (Level) Key for at least 3 seconds.

Initial Setting Level

s.err

in-t

s.err (input error) flashes on the display

The display flashes.

in-t (IN-T) will be displayed to show that the Initial Setting Level has been entered.

The default setting is 5 (5: K thermocouple at −200 to 1,300 °C).

if a sensor is not connected or if the connected sensor is different from input type. Connect a sensor if one is not already connected.

Initial Setting Level

Press the U (Up) and

D (Down) Keys to

change the value.

When you are finished, press the O (Level) Key for at least 1 second to return to the operation display.

E5@C Digital Temperature Controllers User’s Manual (H174)

in-t

in-t (IN-T): Indicates the Input Type parameter.

Input Type: 0 (Pt100 resistance thermometer at −200 to 850 °C) (example)

3 - 11

Page 72

3 Part Names and Basic Procedures

List of Input Types

Input type Specifications Set value Temperature range in °C Temperature ran ge in °F

Resistance thermometer

Thermocouple K

Infrared temperature sensor ES1B

Current input 4 to 20 mA 25 One of the following ranges according to the scaling:

Voltage input 1 to 5 V 27

* The default is 5.

Pt100 0 −200 to 850 −300 to 1500

JPt100 3 −199.9 to 500.0 −199.9 to 900.0

J7−100 to 850 −100 to 1500

T9−200 to 400 −300 to 700

E11−200 to 600 −300 to 1100 L12−100 to 850 −100 to 1500 U13−200 to 400 −300 to 700

N15−200 to 1300 −300 to 2300 R 16 0 to 1700 0 to 3000 S 17 0 to 1700 0 to 3000 B 18 100 to 1800 300 to 3200 W 19 0 to 2300 0 to 3200 PLII 20 0 to 1300 0 to 2300 10 to 70°C 21 0 to 90 0 to 190 60 to 120°C 22 0 to 120 0 to 240 115 to 165°C 23 0 to 165 0 to 320 140 to 260°C 24 0 to 260 0 to 500

0 to 20 mA 26

0 to 5 V 28 0 to 10 V 29

1 −199.9 to 500.0 −199.9 to 900.0 2 0.0 to 100.0 0.0 to 210.0

4 0.0 to 100.0 0.0 to 210.0 5* −200 to 1300 −300 to 2300 6 −20.0 to 500.0 0.0 to 900.0

8 −20.0 to 400.0 0.0 to 750.0

10 −199.9 to 400.0 −199.9 to 700.0

14 −199.9 to 400.0 −199.9 to 700.0

−1999 to 9999

−199.9 to 999.9

−19.99 to 99.99

−1.999 to 9.999

3 - 12

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 73

Initial Setting Level

Operation Level

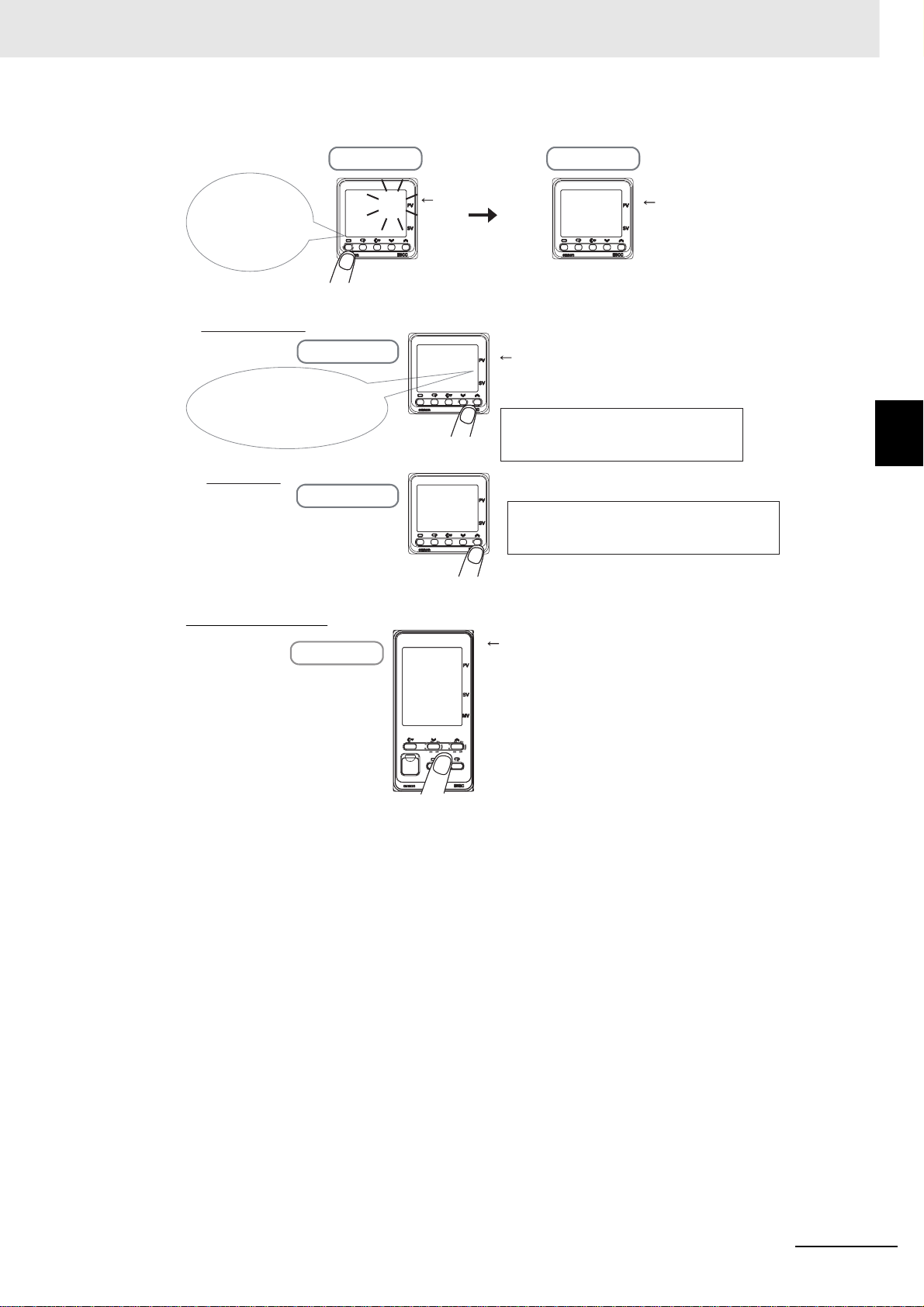

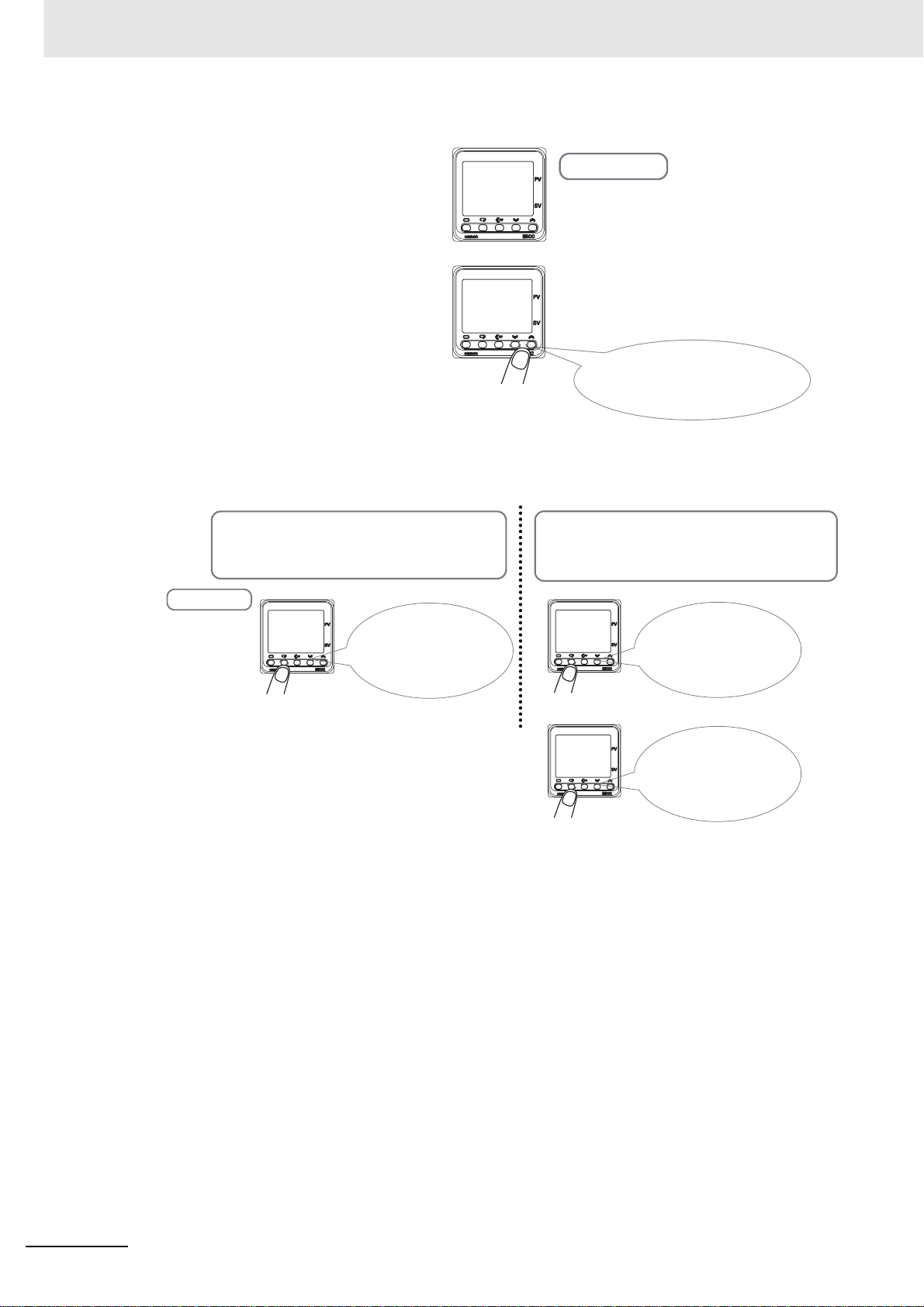

Set the control method.

3 Part Names and Basic Procedures

3-4 Procedures after Turning ON the Power Supply

Operation Level

Press the O

(Level) Key for at

least 3 seconds.

Standard Models

ON/OFF Control

Initial Setting Level

Press the M (Mode)

Key several times to

display cntl (CNTL).

PID Control

Initial Setting Level

Position-proportional Models

The display flashes.

cntl

onof

cntl

pid

Initial Setting Level

in-t

cntl (CNTL): Indicates the control method.

The default setting is onof (ONOF: ON/OFF control).

If pid (PID control) is displayed, press the D (Down) Key to change to onof (ONOF) (ON/OFF control).

cntl (CNTL): Indicates the control method.

If onof (ON/OFF control) is displayed, press the U (Up) Key to change to pid (PID) (PID control).

in-t (IN-T) will be displayed to show that the Initial Setting Level has been entered.

3-4-2 Basic Procedure

Close/Floating Control

Initial Setting Level

clfl

flot

clfl (CLFL):

or floating control.

Indicates either close

E5@C Digital Temperature Controllers User’s Manual (H174)

3 - 13

Page 74

3 Part Names and Basic Procedures

Initial Setting Level

Operation Level

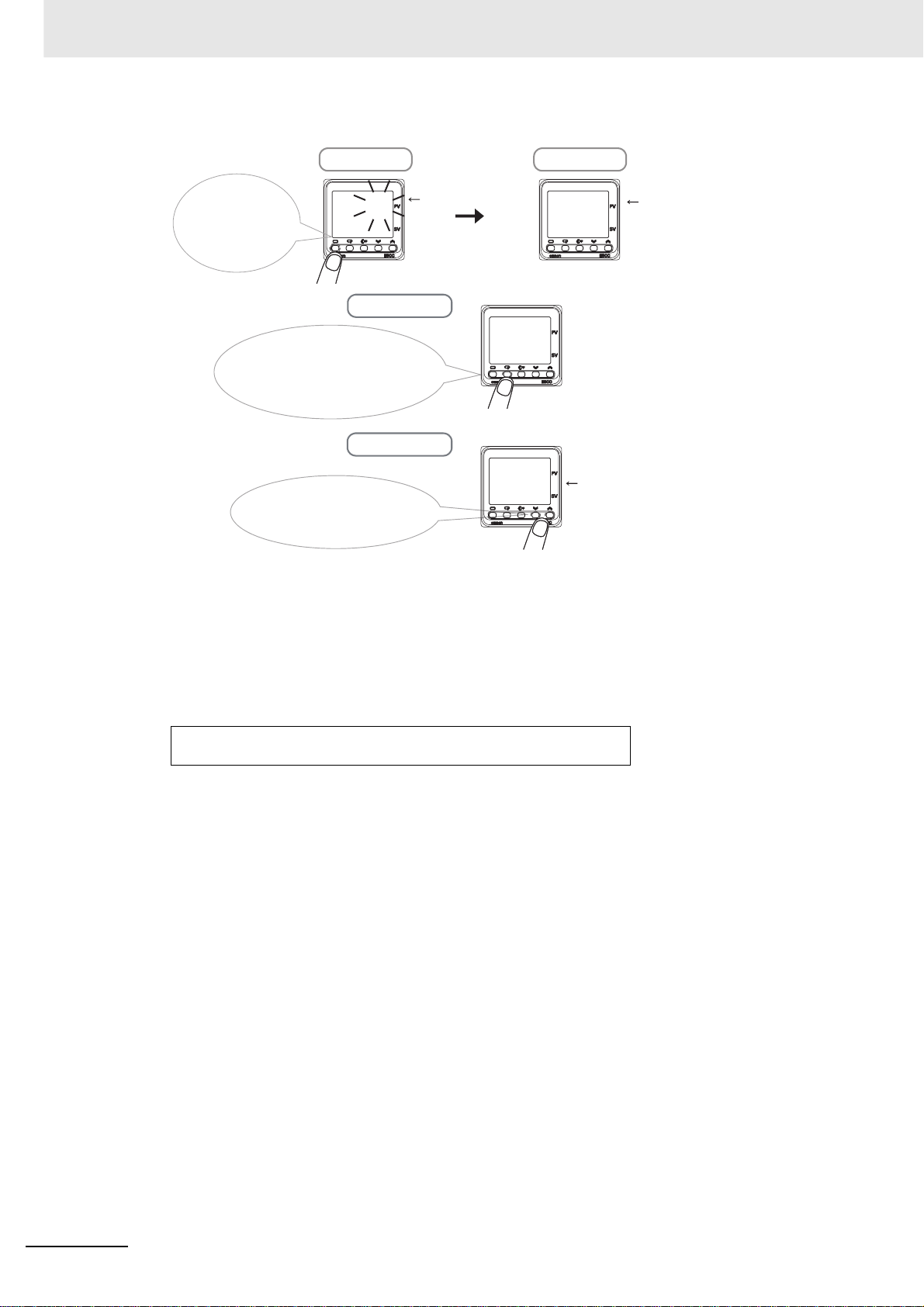

Set the alarm type.

Operation Level

Press the O

(Level) Key for at

least 3 seconds.

Initial Setting Level

The display flashes.

alt1

Press the M (Mode) Key several

times to display alt1 (ALT1).

Initial Setting Level

alt1

Press the U (Up) and D

(Down) Keys to change

the value.

* If the Controll er is equipped with HB/HS alarm de tection, the Alar m 1 Type is not displayed for the default

settings. To use alar m 1, set an output a ssignment to alar m 1. For details, refer to 4-6-3 Assigned Output Functions (Assigning Control Outputs Is Not Supported for Position-proportional Models.).

Initial Setting Level

in-t

alt1 (ALT1): Indicates the Alarm 1

Type parameter.* The default setting is 2 (2: Upper-limit alarm).

Alarm type: 7 (Lower-limit alarm with standby sequence) (example)

in-t (IN-T) will be displayed to show that the Initial Setting Level has been entered.

If required, use the M (Mode) K e y and t he U (Up) and D (Down) K e ys t o repeat t he procedure t o set alarm types for alt2 (ALT2) (Alarm 2 Type) and alt3 (ALT3) (Alarm 3 Type). (The number of alarms that is supported depends on the model of Digital Controller. Some of the alarm parameters may not be displayed.)

When you are finished, press the O (Level) Key for at least 1 second to return to the operation display.

3 - 14

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 75

Alarm Type Numbers

3 Part Names and Basic Procedures

3-4 Procedures after Turning ON the Power Supply

Alarm

type No.

Alarm type Description Operation

0 Alarm function

OFF

1 Upper- and

lower-limit alarm

2 Upper-limit

alarm

3 Lower-limit

alarm

4 Upper- and

lower-limit range alarm

5 Upper- and

lower-limit alarm with standby sequence

6 Upper-limit

alarm with standby sequence

7 Lower-limit

alarm with standby sequence

There will be no alarm outputs. ---

The alarm output is ON while the PV is equal to or higher than the upper-limit alarm point or while the PV is equal to or lower than the lower-limit alarm point.

The alarm output is ON while the PV is equal to or higher than the upper-limit alarm point.

The alarm output is ON while the PV is equal to or lower than the lower-limit alarm point.

The alarm output is ON while the PV is equal to or lower than the upper-limit alarm point or equal to or higher than the lower-limit alarm point.

This alarm provides a standby sequence. The alarm output is ON while the PV is equal to or higher than the upper-limit alarm point or while the PV is equal to or lower than the lower-limit alarm point. This alarm provides a standby sequence. The alarm output is ON while the PV is equal to or higher than the upper-limit alarm point.

This alarm provides a standby sequence. The alarm output is ON while the PV is equal to or lower than the lower-limit alarm point.

Example:

OFF Temperature

Lower-limit alarm point (e.g., 80°C)

Alarm value lower

limit (e.g., 20°C)

Example:

OFF Temperature

Set point

(e.g., 100°C)

Example:

OFF Temperature

Lower-limit alarm point

(e.g., 80°C)

Example:

OFF Temperature

Lower-limit alarm

point (e.g., 80°C)

Alarm value lower limit (e.g., 20°C)

Example:

OFF Temperature

Lower-limit alarm

point (e.g., 80°C)

Alarm value lower

limit (e.g., 20°C)

Example:

OFF Temperature

Set point

(e.g., 100°C)

Example:

OFF Temperature

Lower-limit alarm point

(e.g., 80°C)

Alarm value lower limit (e.g., 20°C)

Set point

(e.g., 100°C)

Alarm value upper limit (e.g., 20°C)

Alarm value lower limit (e.g., 20°C)

Set point

(e.g., 100°C)

Set point

(e.g., 100°C)

Alarm value upper limit (e.g., 20°C)

Upper-limit alarm point (e.g., 130°C)

Alarm value upper limit (e.g., 30°C)

Upper-limit alarm

point (e.g., 120°C)

Set point

(e.g., 100°C)

Upper-limit alarm point (e.g., 130°C)

Alarm value upper limit (e.g., 30°C)

Upper-limit alarm point (e.g., 130°C)

Alarm value upper limit (e.g., 30°C)

Upper-limit alarm

point (e.g., 120°C)

Set point

(e.g., 100°C)

3-4-2 Basic Procedure

E5@C Digital Temperature Controllers User’s Manual (H174)

3 - 15

Page 76

3 Part Names and Basic Procedures

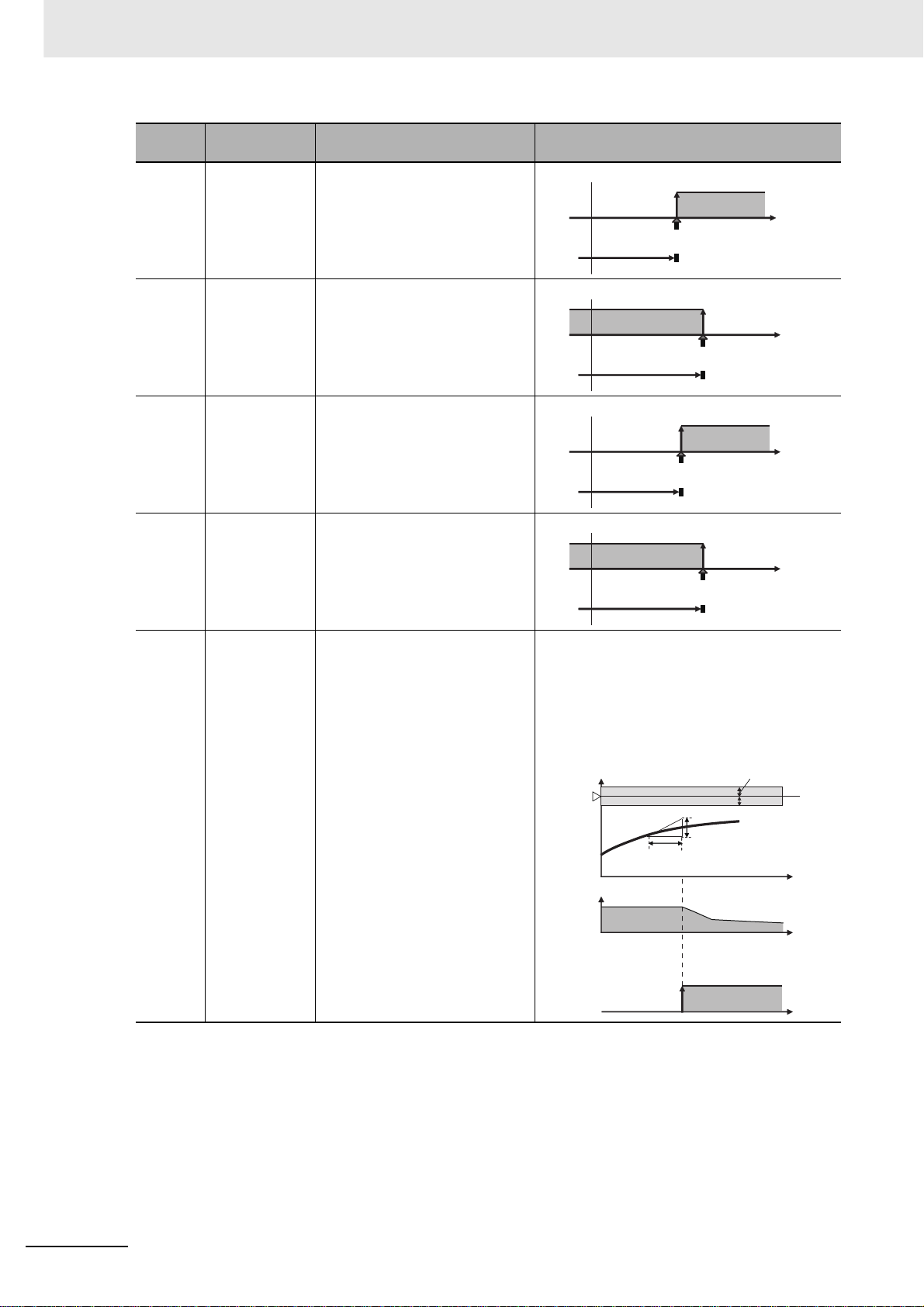

Alarm

type No.

Alarm type Description Operation

8 Absolute-value

upper-limit alarm

9 Absolute-value

lower-limit alarm

10 Absolute-value

upper-limit alarm with standby sequence

11 Absolute-value

lower-limit alarm with standby sequence

12 Loop Burnout

Alarm (LBA) (Valid only for alarm 1 on a Standard Model.)

The alarm output is ON while the PV is equal to or higher than the alarm value.

The alarm output is ON while the PV is equal to or lower than the alarm value.

This alarm provides a standby sequence. The alarm output is ON while the PV is equal to or higher than the alarm value.

This alarm provides a standby sequence. The alarm output is ON while the PV is equal to or lower than the alarm value.

The alarm output turns ON when the control loop is broken.

Example:

OFF

Example:

OFF

Example:

OFF

Example:

OFF

Upper-limit alarm

point (e.g., 100°C)

Alarm value (e.g., 100°C)

Upper-limit alarm

point (e.g., 100°C)

Alarm value (e.g., 100°C)

Lower-limit alarm point (e.g., 100°C)

Temperature

There is assumed to be a loop burnout alarm if the control deviation (SP − PV) is greater than the threshold set in the LBA Level parameter and if the PV is not reduced by at least the value set in the LBA Band parameter within a specific period of time. The LBA detection time and LBA band are set in parameters.

LBA level

LBA band

3 - 16

LBA detection time

100%

LBA Alarm Output

OFF Time

E5@C Digital Temperature Controllers User’s Manual (H174)

Time

Page 77

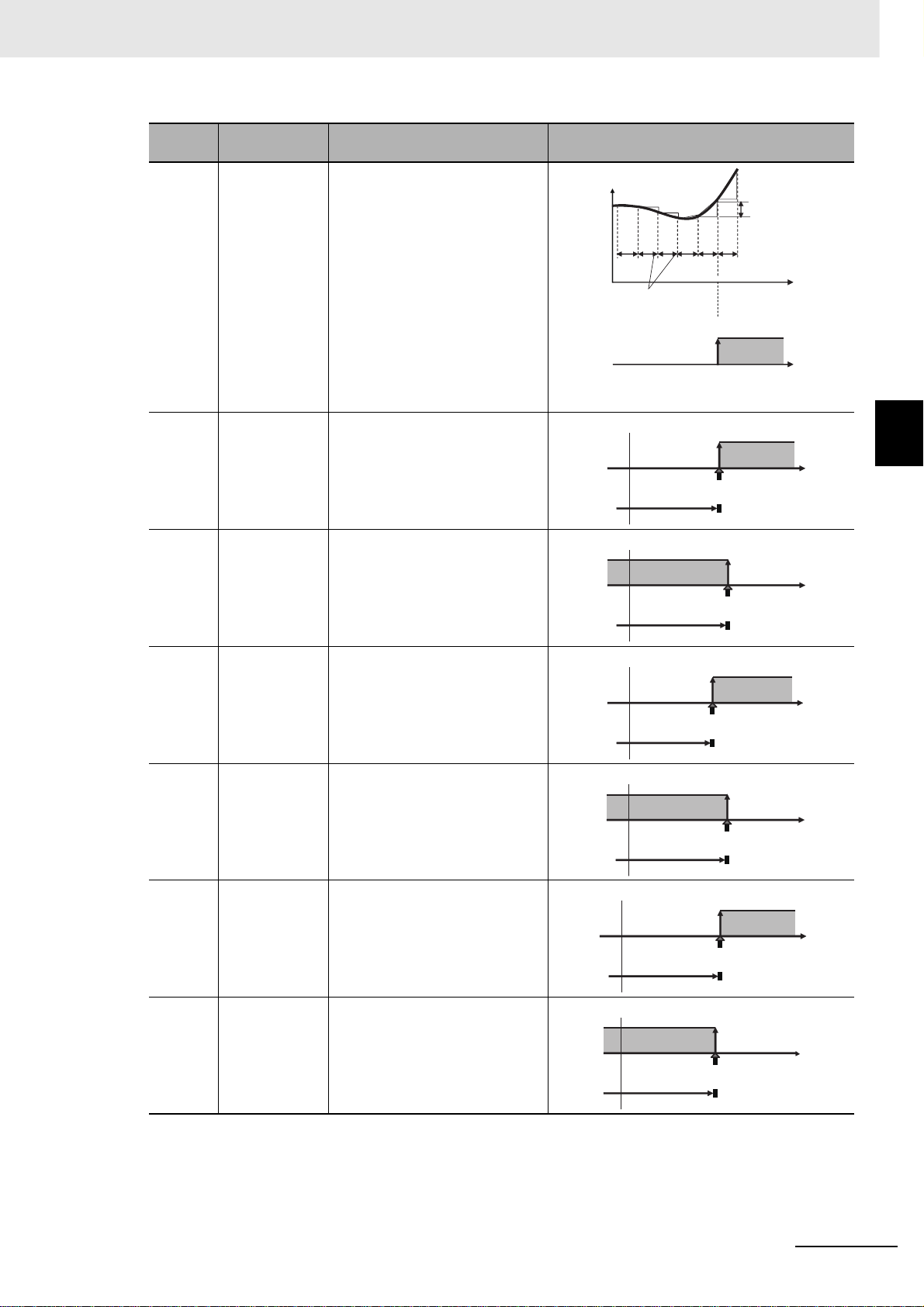

3 Part Names and Basic Procedures

3-4 Procedures after Turning ON the Power Supply

Alarm

type No.

Alarm type Description Operation

13 PV change rate

alarm

14 SP

absolute-value upper-limit alarm

15 SP

absolute-value lower-limit alarm

16 MV

absolute-value upper-limit alarm

17 MV

absolute-value lower-limit alarm

18 RSP

absolute-value upper-limit alarm

19 RSP

absolute-value lower-limit alarm

The alarm output turns ON if the change in the PV within the specified calculation period exceeds a specific width.

The alarm output is ON while the SP is equal to or higher than the alarm value.

The alarm output is ON while the SP is equal to or lower than the alarm value.

The alarm output is ON while the MV is equal to or higher than the alarm value.

The alarm output is ON while the MV is equal to or lower than the alarm value.

The alarm output is ON while the RSP is equal to or higher than the alarm value.

The alarm output is ON while the RSP is equal to or lower than the alarm value.

Change rate width

Time

PV rate of change calculation period

PV Change Rate Alarm Output

OFF Time

The PV rate of change calculation period and the alarm value are set in parameters.

Example:

OFF

Example: ON

OFF

Example for Standard Control: ON

OFF

Example for Standard Control: ON

OFF

Example:

OFF

Alarm value (e.g., 100°C)

Example: ON

OFF

Alarm value (e.g., 100°C)

Upper-limit alarm

point (e.g., 100°C)

Alarm value (e.g., 100°C)

Upper-limit alarm

point (e.g., 60%)

Alarm value (e.g., 60%)

Alarm value (e.g., 80%)

Upper-limit alarm

point (e.g., 100°C)

Lower-limit alarm

point (e.g., 100°C)

Lower-limit alarm

point (e.g., 100°C)

Lower-limit alarm

point (e.g., 80%)

RSP

3-4-2 Basic Procedure

E5@C Digital Temperature Controllers User’s Manual (H174)

3 - 17

Page 78

3 Part Names and Basic Procedures

Set the set point.

Operation Display

Hold the U (Up) or D (Down) Key to increment or decrement the value quickly.

Set the alarm set value or values.

Change the parameter that is displayed with the M (Mode) Key.

Alarm Type 2, 3, 6, 7, 8, 9,10, or 11 (Upper-limit Alarms and Lower-limit Alarms)

Operation Level

al-1

Press the M (Mode) Key several times to display al-1 (AL-1).

500

Set point: 500°C (example)

Press the U (Up) and D (Down) Keys and the S (Shift) Key to change the value.

Alarm Type 1, 4, or 5 (Upper-limit and Lower-limit Alarms or Upper-limit and Lower-limit Range Alarms)

al1h

al1l

To set the alarm value upper limit, press the M (Mode) Key several times to display al1h (AL1H).

To set the alarm value lower limit, press the M (Mode) Key several times to display al1l (AL1L).

3 - 18

This concludes the procedure to set the input type, alarm type, control method, set point, and alarm set values. For information on the settings of the ON/OFF hysteresis, PID constants, HS alarm, HS alarm, and other parameters, refer to Section 4 Basic Operation or Section 5 Advanced Operations.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 79

Basic Operation

4-1 Moving between Setting Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4-1-1 Moving to the Initial Setting Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4-1-2 Moving to the Adjustment Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4-1-3 Moving to the Protect Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4-1-4 Moving to the Advanced Function Setting Level . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4-1-5 Moving to the Communic a ti on s Set ting Level . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4-2 Initial Setting Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4-3 Setting the Input Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

4-3-1 Input Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

4-4 Selecting the Temperature Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

4-4-1 Temperature Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

4-5 Selecting PID Control or ON/OFF Control

(Not Supported for Position-proportional Models.) . . . . . . . . . . . . . . . . . 4-14

4-6 Setting Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

4-6-1 Control Periods (Not Supported for Position-proportional Models.) . . . . . . . . 4-15

4-6-2 Direct and Reverse Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

4-6-3 Assigned Output Functions (Assigning Control Outputs Is Not Supported for

Position-proportional Models.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

4-6-4 Auxiliary Output Opening or Closing in Alar m . . . . . . . . . . . . . . . . . . . . . . . . 4-19

4-7 Setting the Set Point (SP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

4-7-1 Changing the SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

4-8 Using ON/OFF Control

(Not Supported for Position-proportional Models.) . . . . . . . . . . . . . . . . . 4-21

4-8-1 ON/OFF Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

4-8-2 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

4-9 Determining PID Constants (AT, ST, Manual Setup) . . . . . . . . . . . . . . . . . 4-24

4-9-1 AT (Auto-tuning) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

4-9-2 ST (Self-tuning) (Not Supported for Position-proportional Models.) . . . . . . . . 4-26

4-9-3 RT (Robust Tuning) (Used for AT or ST.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

4-9-4 Manual Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

4-10 Alarm Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

4-10-1 Alarm Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

4-10-2 Alarm Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

4-11 Alarm Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 1

Page 80

4 Basic Operation

4-11-1 Standby Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-37

4-11-2 Alarm Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-38

4-12 Using Heater Burnout (HB) and Heater Short (HS) Alarms

(Not Supported for Position-proportional Models.) . . . . . . . . . . . . . . . . . . 4-39

4-12-1 HB Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39

4-12-2 HS Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-41

4-12-3 Installing Current Transformers (CT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-43

4-12-4 Calculating Detection Current Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-45

4-12-5 Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-45

4-13 Customizing the PV/SP Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49

4-13-1 PV/SP Display Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-49

4 - 2

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 81

4 Basic Operation

4-1 Moving between Setting Levels

The Operation Level is displayed first when the power supply to the Digital Controller is turned ON. To display the parameters, you must move to the following setting levels.

• Operation Level (Entered when the power supply is turned ON.)

• Initial Setting Level

• Adjustment Level

• Protect Level

• Advanced Function Setting Level

• Communications Setting Level

The procedures to move between the setting levels starting from the Operation Level are provided below.

4-1-1 Moving to the Initial Setting Level

4-1 Moving between Setting Levels

Moving from the Operation Level to the Initial Setting Level

Press the O Key for at least 3 seconds in the Operation Level.

The No. 1 display will flash when the key is pressed for 1 s or longer.

The display will change from the Operation Level to the Initial Setting Level.

Operation Level

Initial Setting Level

in-t

Moving from the Initial Setting Level to the Operation Level

Press the O Key for at least 1 second in the Initial Setting Level.

The display will change from the Initial Setting Level to the Operation Level.

Initial Setting Level

in-t

Operation Level

4-1-1 Moving to the Initial Setting Level

Input Type

PV/SP

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 3

Page 82

4 Basic Operation

4-1-2 Moving to the Adjustment Level

Moving from the Operation Level to the Adjustment Level

Press the O Key for less than 1 second in the Operation Level.

The display will change from the Operation Level to the Adjustment Level.

* l.adj will be di splayed only once when you move to the Adjustment

Level.

Moving from the Adjustment Level to the Operation Level

Press the O Key for less than 1 second in the Adjustment Level.

The display will change from the Adjustment Level to the Operation Level.

4-1-3 Moving to the Protect Level

Operation Level

Adjustment Level

l.adj

Adjustment Level

0.0

Process Value Input Shift

PV/SP

ins

Operation Level

000

Moving from the Operation Level to the Protect Level

Press the O and M Keys simultaneously for at least 3 seconds* in the Operation Level.

The No. 1 display will flash when the keys are pressed for 1 s or longer.

* The key pressing time can be changed in the Move to Protect Level

Time parameter in the Advanced Function Setting Level.

The display will change to the Protect Level.

Operation Level

Protect Level

Moving from the Protect Level to the Operation Level

Press the O and M Keys simultaneously for at least 1 second in the Protect Level.

The display will change from the Protect Level to the Operation Level.

Protect Level

Operation Level

oapt

Operation/ Adjustment Protect

PV/SP

4 - 4

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 83

4-1-4 Moving to the Advanced Function Setting Level

Moving to the Advanced Function Setting Level for the First Time (i.e., with the Default Settings)

To enter the Advanced Function Setting Level, you must first enter the Protect Level and change the setting of the icpt (Initial Setting/Communications Protect) parameter to 0 (enable moving to Advanced Function Setting Level) to clear the protection.

z Clearing Protection

4 Basic Operation

4-1 Moving between Setting Levels

Press the O and M Keys simultaneously for at least 3 seconds* in the Operation Level.

The No. 1 display will flash when the key is pressed for 1 s or longer.

* The key pressing time can be changed in the Move to Protect Level

Time parameter in the Advanced Function Setting Level.

The display will change to the Protect Level.

Press the M Key once at the Operation/Adjustment Protect parameter.

The display will change to the Initial Setting/Communications Protect parameter.

Press the D or U Key at the Initial Setting/Communications Protect parameter to change the set value to 0 (enable moving to Advanced Function Setting Level).

Now the amoV (Move to Advanced Function Setting Level) parameter can be displayed in the Initial Setting Level. The default is 1 (disable moving to Advanced Function Setting Level).

Press the O and M Keys simultaneously for at least 1 second in the Protect Leve l.

The display will change from the Protect Level to the Operation Level.

Operation Level

Protect Level

oapt

icpt

Protect Level

icpt

Operation Level

Operation/ Adjustment Protect

Initial Setting/ Communications Protect

: Moving to

Advanced Function Setting Level is disabled.

Initial Setting/ Communications Protect

PV/SP

4-1-4 Moving to the Advanced Function Setting Level

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 5

Page 84

4 Basic Operation

Moving to the Advanced Function Setting Level after Clearing Protection

After you have set the icpt (Initial Setting/Communicat ion s Protect ) p ar a meter to 0 (e na ble moving to Advanced Function Setting Level), select amov (Move to Advanced Function Setting Level) in the Initial Setting Level.

z Moving to the Advanced Function Setting Level

Press the O Key for at least 3 seconds in the Operation Level.

The No. 1 display will flash when the key is pressed for 1 s or longer. The display will change from the Operation Level to the Initial Setting Level.

Press the M Key several times in the Initial Setting Level to display amoV (Move to Advanced Function Setting Level).

Press the D and U Keys at the Move to Advanced Function Setting Level parameter and then enter -169.

* You can hold the U (Up) or D (Down) Key to increment or decrement

the set value quickly.

Press M Key once or wait for 2 seconds or longer without doing anything.

The display will change to the Advanced Function Setting Level.

Operation Level

Initial Setting Level

in-t

Initial Setting Level

amov

-169

Advanced Function Setting Level

init

Input Type

Move to Advanced Function Setting Level

−169: Password to move to Advanced Function Setting Level

Parameter Initialization

off

4 - 6

z Moving from the Advanced Function Setting Level to the Operation Level

Press the O Key for at least 1 second in the Advanced Function Setting Level.

The display will change from the Advanced Function Setting Level to the Initial Setting Level.

Press the O Key for at least 1 second in the Initial Setting Level.

The display will change from the Initial Setting Level to the Operation Level.

E5@C Digital Temperature Controllers User’s Manual (H174)

Advanced Function Setting Level

init

off

Initial Setting Level

Input Type

PV/SP

in-t

Operation Level

Page 85

4-1-5 Moving to the Communications Setting Level

z Moving from the Operation Level to the Communications Setting Level

4 Basic Operation

Press the O Key for at least 3 seconds in the Operation Level.

The No. 1 display will flash when the keys are pressed for 1 s or longer. The display will change from the Operation Level to the Initial Setting Level.

Press the O Key for less than 1 second in the Initial Setting Level.

The display will change from the Initial Setting Level to the Communications Setting Level.

Operation Level

Initial Setting Level

in-t

Communications Setting Level

psel

Input Type

Protocol Setting

cwf

z Moving from the Communications Setting Level to the Operation Level

Press the O Key for less than 1 second in the Communications Setting Level.

The display will change from the Communications Setting Level to the Initial Setting Level.

Press the O Key for at least 1 second in the Initial Setting Level.

The display will change from the Initial Setting Level to the Operation Level.

Communications Setting Level

psel

cwf

Initial Setting Level

Input Type

PV/SP

in-t

Operation Level

4-1 Moving between Setting Levels

4-1-5 Moving to the Communications Setting Level

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 7

Page 86

4 Basic Operation

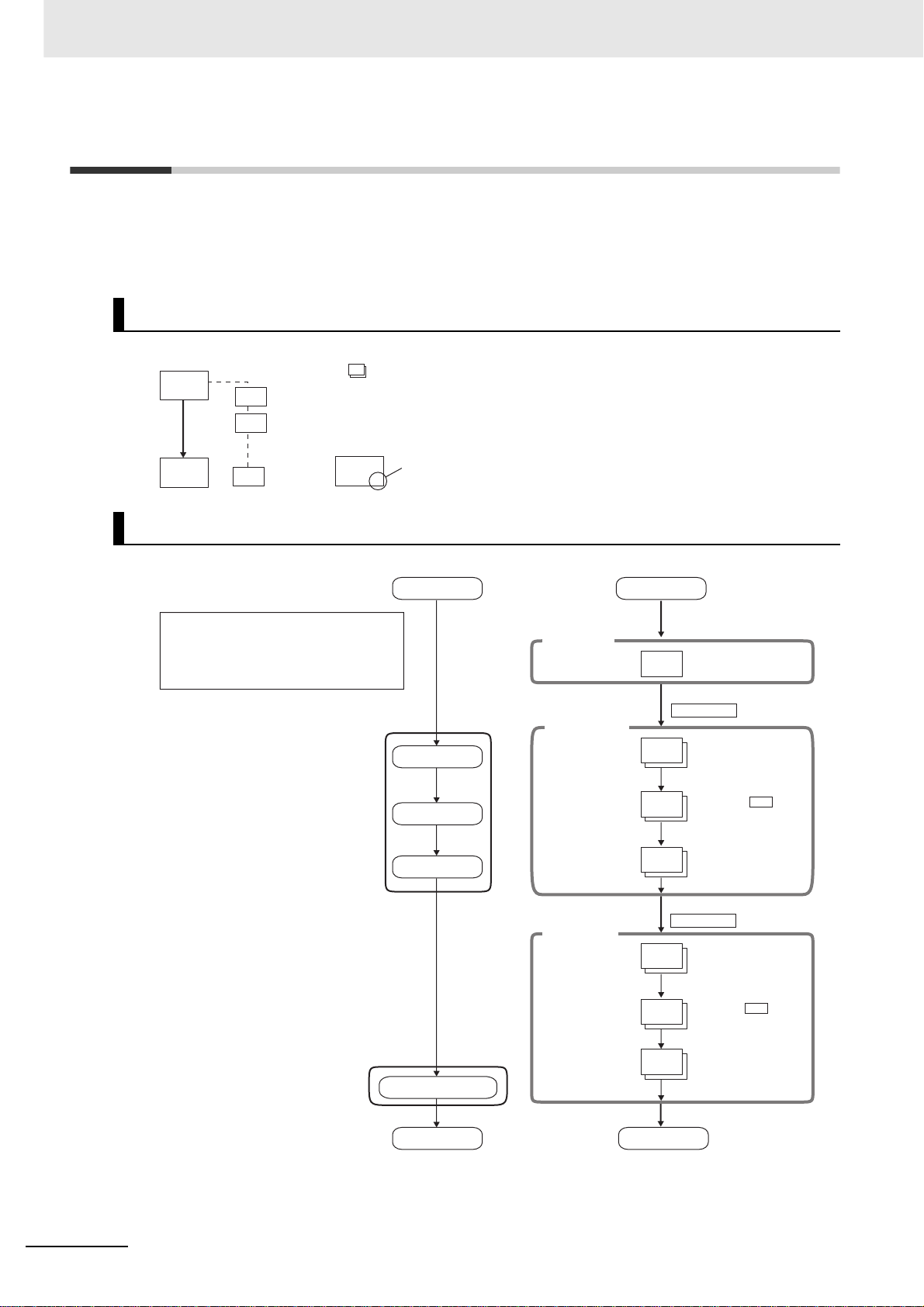

4-2 Initial Setting Examples

Initial hardware setup, including the sensor input type, alarm types, control per iods, and othe r settings, is done using parameter displays. The O and M Keys are used to s witch b etwee n para meters , and t he amount of time that you press the keys determines which parameter you move to. This section describes three typical examples.

Explanation of Examples

Changing Parameters

in-t

intl

onof

in-h

in-l

intl

onof

100

A image means that there are parameters. Continue pressing the M Key to change parameters until you reach the intended parameter.

Changing Numbers

Numeric data and selections in each screen can be changed by using the

U and D Keys.

Example 1

Input type: Control method: ON/OFF control Alarm type: 2 (upper limit) Alarm value 1: 20°C (deviation) Set point: 100°C

Setup Procedure

5 (K thermocouple, −200°C to 1,300°C)

Initial Setting Level

Operation Level

Set SP and alarm values

Power ON

Set input specifications

Set control specifications

Set alarm type

Operation Level

Initial Setting Level

Check input type.

Check that control method is ON/OFF control.

Check alarm type.

Operation Level

Use the U and D Keys to set the SP to 100°C.

Confirm that control is running.

Use the U and D Keys to set the alarm value to 20°C.

Power ON

in-t

cntl

onof

alt1

r-5

al-1

An s.err error will be displayed if the power supply is turned ON before the sensor is connected.

PV/SP

Press the O Key for at least 3 s.

Control stops.

Input Type: 5

ON/OFF control:

PID control:

Alarm 1 Type*: 2

Press the O Key for at least 1 s.

Control starts.

PV/SP:

100

Running

run

Stopped:

Alarm Value 1:

onof

pid

100

run stop

4 - 8

Start operation

Start operation.

* If the Controll er is equipped with HB/HS alarm detection , the Alarm 1 Type is not displayed for the default

settings. To use alar m 1, set an output assignment to alar m 1. For details, refer to 4-6-3 Assigned Output Functions (Assigning Control Outputs Is Not Supported for Position-proportional Models.).

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 87

Example 2

Input type: 9 (T thermocouple, −200°C to 400°C) Control method: PID control PID constants found using auto-tuning (AT). Alarm type: 2 (upper limit) Alarm value 1: 30°C Set point: 150°C

4 Basic Operation

Setup Procedure

Power ON

Initial Setting Level

Set input specifications

Set control specifications

Set alarm type

Operation Level

Set SP

Adjustment Level

AT execution

(When PID control is selected)

Operation Level

Initial Setting Level

Use the U and D Keys to select the input type.

Use the U and D Keys to select PID control.

Use the U and D Keys to set ST to OFF.

Check the control period.

Check the alarm type.

Operation Level Use the U and D

Keys to set the SP to 150°C.

Adjustment Level

Execute AT.

Power ON

An s.err error will be displayed if the power supply is turned ON before the sensor is connected.

in-t

cntl

alt1

PV/SP

Press the O Key for at least 3 s.

Control stops.

Input Type:

ON/OFF control:

pid

PID control:

To execute ST:

off

To cancel ST:

Control Period

(Heat)

(Unit: Seconds)

Alarm 1 Type*:

Press the O Key for at least 1 s.

Control starts.

PV/SP:

150

Press the O Key (for less than 1 s).

To execute 100%AT:

off

To execute 40%AT:

To cancel AT:

onof

pid

off

150

at-2

at-1

off

For PID, set pid.

It is recommended that 20 seconds be set for a relay output and 2 seconds for an SSR voltage output.

The TUNE indicator will light during autotuning.

4-2 Initial Setting Examples

Operation Level Confirm that the

set point is 150°C.

Confirm that control is running.

Operation Level

Use the U and D Keys to set the alarm value to 30°C.

Set alarm value

Start operation

* If the C ontroller is equipped with HB/HS alarm d etection, the Alar m 1 Type is not displayed for the default

settings. To use alar m 1, set an output assignment to alar m 1. For details, refer to 4-6-3 Assigned Output Functions (Assigning Control Outputs Is Not Supported for Position-proportional Models.).

E5@C Digital Temperature Controllers User’s Manual (H174)

Press the O Key (for less than 1 s).

150

r-5

run

al-1

Start operation.

PV/SP

Running Stopped

Alarm Value 1

run stop

4 - 9

Page 88

4 Basic Operation

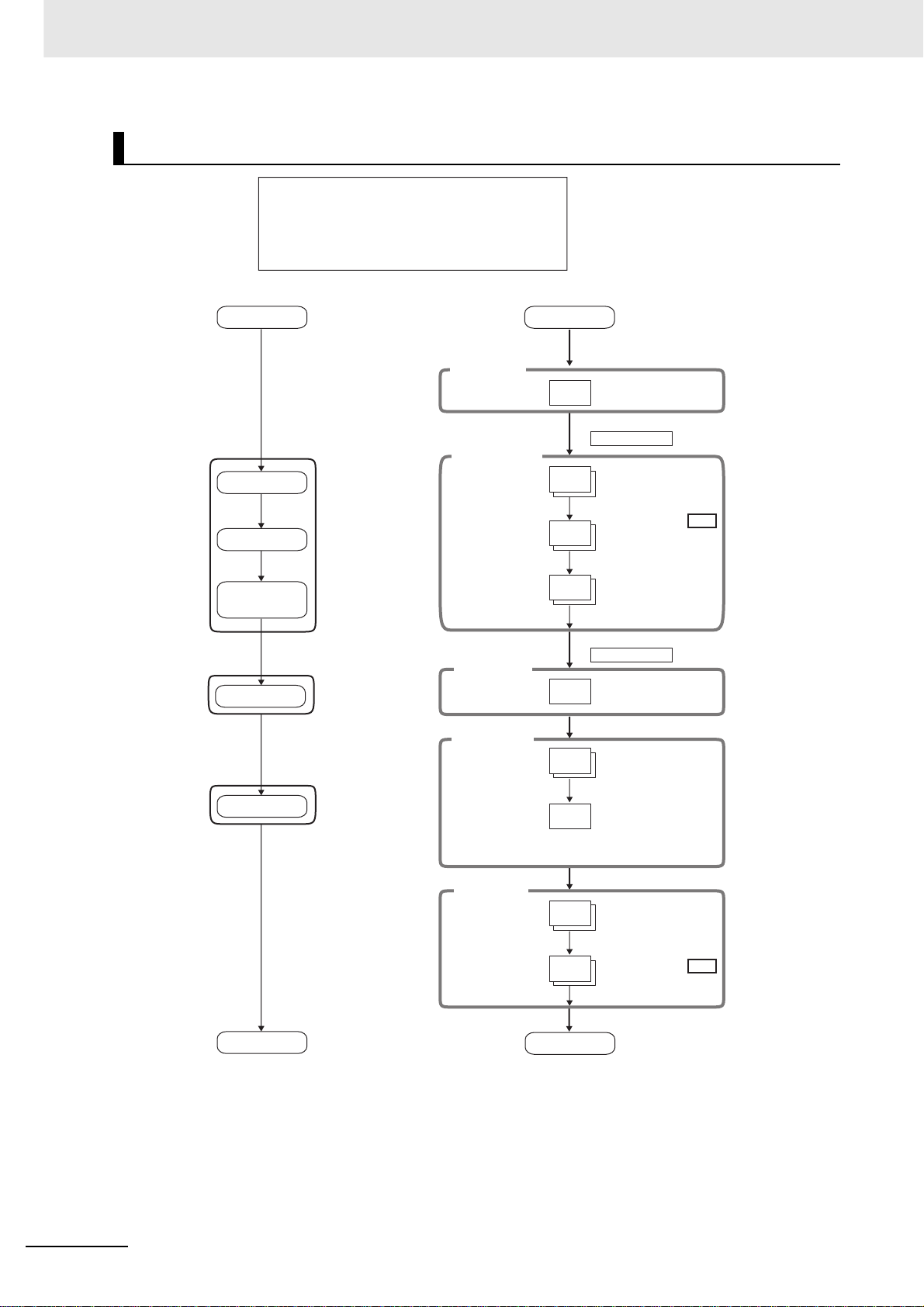

Example 3 (E5EC/E5AC Position-proportional Models Only)

Setup Procedure

Initial Setting Level

Input type: 5 (K thermocouple, −200°C to 1,300°C) Control method: Floating control SP ramp time unit: EU/min Travel time: 45 s SP ramp set value: 10 EU (°C) Set point: 250°C

Power ON

Operation Level

Initial Setting Level

Set input specifications

Set control specifications

Set travel time.

Check input type.

Check that control method is floating control.

Use the U and D Keys to set the travel time to 45 s.

Power ON

in-t

clfl

PV/SP

Press the O Key for at least 3 s.

Control stops.

Input Type:

Floating control:

flot

Close control:

mot

Travel Time:

error will be

s.err

displayed if the power supply is turned ON before the sensor is connected.

flot

clo5

Operation Level

Set SP

Adjustment Level

Set SP ramp

Start operation

Operation Level

Use the U and D Keys to set the SP to 250°C.

Adjustment Level

Use the U and D Keys to set the SP ramp set value to 10°C.

Operation Level

Confirm that control is running.

Press the O Key for at least 1 s.

PV/SP:

250

Press the O Key (for less than 1 s).

off

sprt

Press the O Key (for less than 1 s).

250

r-5

run

Start operation.

Control starts.

SP Ramp Set Value:

PV/SP:

Running: Stopped:

250

run

stop

4 - 10

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 89

4-3 Setting the Input Type

The Controller supports four input types: resistance thermometer, thermocouple, infrared temperature sensor, and analog inputs. Set the input type that matches the sensor that is used.

4-3-1 Input Type

The following example shows how to set a K thermocouple for −20.0 to

500.0°C (input type 6).

Operating Procedure

Press the O Key for at least 3 seconds to move from the Operation Level to the Initial Setting Level. The in-t (Input Type) parameter will be displayed.

4 Basic Operation

Initial Setting Level

in-t

Input Type

4-3 Setting the Input Type

Press the U or D Key to select 6 (K thermocouple at −20.0 to

500.0°C).

The default is 5 (5: K thermocouple at −200 to 1,300°C).

Additional Information

Changes that are made with key operations are applied when the O or M Key is pressed. They are also applied if you do nothing for 3 seconds or longer.

in-t

4-3-1 Input Type

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 11

Page 90

4 Basic Operation

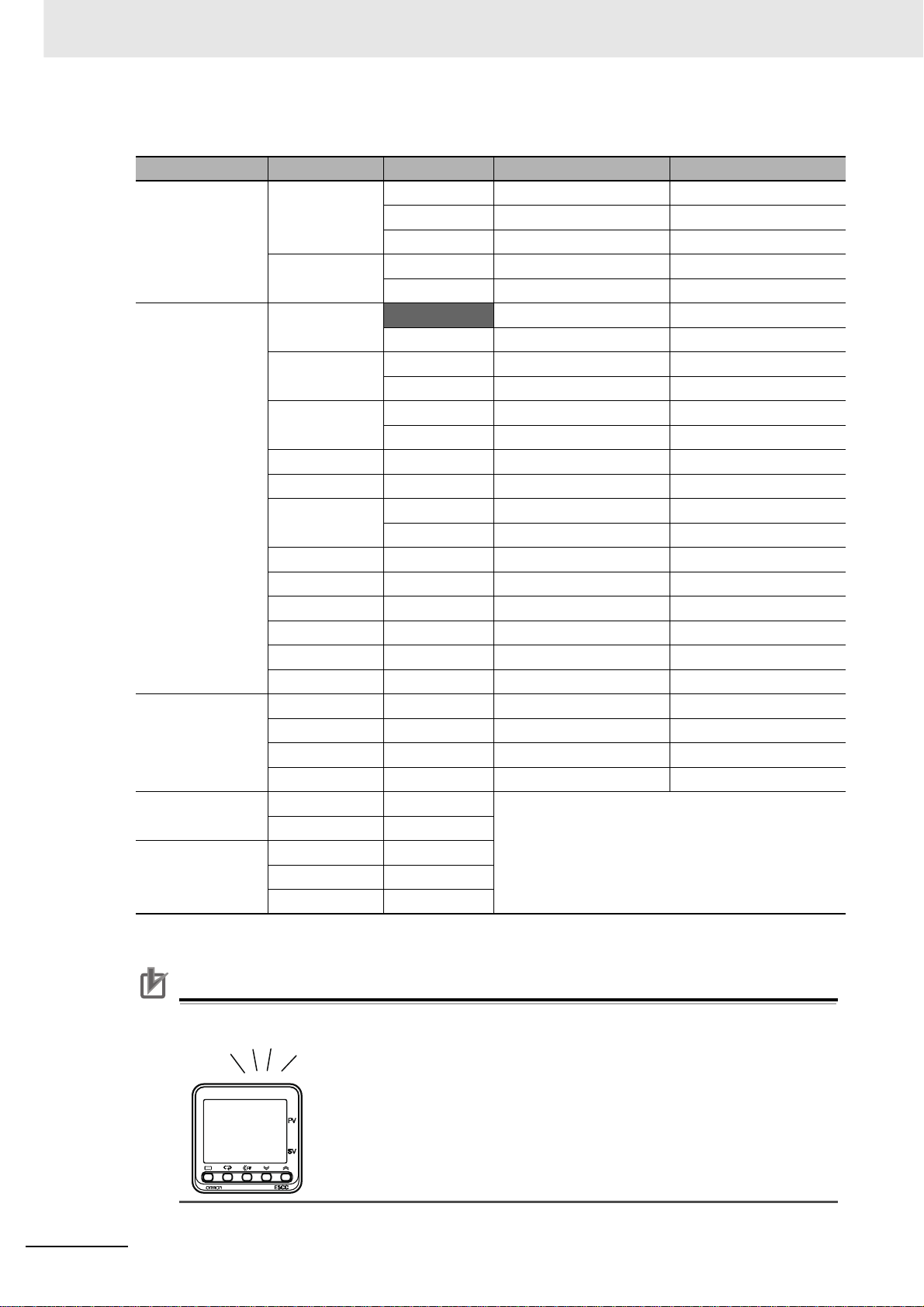

List of Input Types

Resistance

thermometer

Thermocouple

Infrared

temperature

sensor ES1B

Current output

V o ltage input

The default is 5.

Specifications Set value Temperature range in °C Temperature range in °F

Pt100 0 −200 to 850 −300 to 1500

1 −199.9 to 500.0 −199.9 to 900.0 2 0.0 to 100.0 0.0 to 210.0

JPt100 3 −199.9 to 500.0 −199.9 to 900.0

4 0.0 to 100.0 0.0 to 210.0

J7−100 to 850 −100 to 1500

T9−200 to 400 −300 to 700

E11−200 to 600 −300 to 1100 L12−100 to 850 −100 to 1500 U13−200 to 400 −300 to 700

N15−200 to 1300 −300 to 2300 R 16 0 to 1700 0 to 3000 S 17 0 to 1700 0 to 3000 B 18 100 to 1800 300 to 3200

W 19 0 to 2300 0 to 3200

PLII 20 0 to 1300 0 to 2300

10 to 70°C 21 0 to 90 0 to 190

60 to 120°C 22 0 to 120 0 to 240 115 to 165°C 23 0 to 1 65 0 to 320 140 to 260°C 24 0 to 2 60 0 to 500

4 to 20 mA 25 One of the following ranges according to the scaling: 0 to 20 mA 26

1 to 5 V 27 0 to 5 V 28

0 to 10 V 29

5 −200 to 1300 −300 to 2300 6 −20.0 to 500.0 0.0 to 900.0

8 −20.0 to 400.0 0.0 to 750.0

10 −199.9 to 400.0 −199.9 to 700.0

14 −199.9 to 400.0 −199.9 to 700.0

−1999 to 9999

−199.9 to 999.9

−19.99 to 99.99

−1.999 to 9.999

4 - 12

Precautions for Correct Use

s.err (S.ERR: input error) flashes on the display if a sensor is not connected or if the connected sensor is different from input type. Connect a sensor if one is not already connected .

s.err

0.0

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 91

4 Basic Operation

4-4 Selecting the Temperature Unit

4-4-1 Temperature Unit

• Either °C or °F can be selected as the temperature unit.

• Set the temperature unit in the Temperature Unit (d-u) parameter of the Initial Setting Level. The

default is c (°C). The following procedure selects °C.

Operating Procedure

Press the M Key several times in the Initial Setting Level to display d-u (Temperature Unit).

Initial Setting Level

d-u

Temperature Unit

4-4 Selecting the Temperature Unit

Press the U or D Key to select °C.

The default is c (°C). c: °C, f: °F

d-u

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 13

Page 92

4 Basic Operation

4-5 Selecting PID Control or ON/OFF

Control (Not Supported for Position-proportional Models.)

Two control methods are supported: 2-PID control and ON/OFF control. Switching between 2-PID control and ON/OFF control is executed by means of the PID ON/OFF parameter in the initial setting level. When this parameter is set to pid, 2-PID control is selected, and when set to onof, ON/OFF control, is selected. The default is onof.

z 2-PID Control

PID control is set by AT (auto-tuning), ST (self-tuning), or manual setting. For PID control, set the PID consta nts in th e Proportional Band (p), Integ r al Time ( i), and Derivative Time (d) parameters. For heating and cooling control, also set the Proportional Band (Cooling) (c-p), Integral Time (Cooling) (c-i), and Derivative Time (Cooling) (c-d).

z ON/OFF Control

In ON/OFF control, the control output is turned ON when the process value is lower than the current set point, and the control output is turned OFF when the process value is higher than the current se t point (reverse operation).

4 - 14

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 93

4 Basic Operation

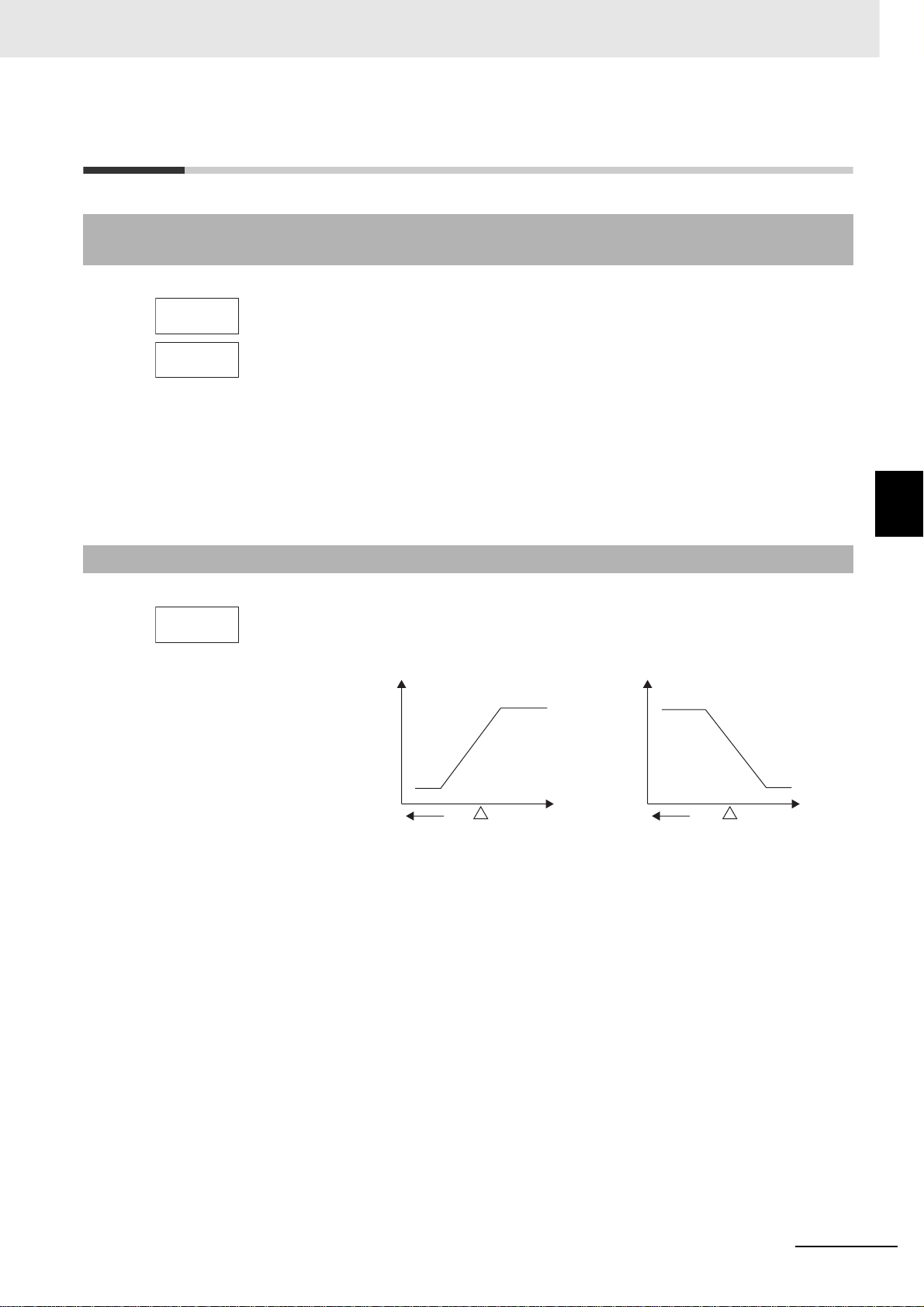

4-6 Setting Output Specifications

4-6-1 Control Periods (Not Supported for Position-proportional

Models.)

4-6 Setting Output Specifications

• Set the output periods (control periods). Though a shorter period provides

better control performance, it is recommended that the control period be set to 20 seconds or longer for a relay output to preserve the service life of the relay. After the settings have been made in the initial setup, readjust the control period, as required, by means such as trial operation.

• Set the control periods in the Control Period (Heating) and Control Period (Cooling) parameters in the Initial Setting Level. The default is 20 seconds for a relay output and 2 seconds for a voltage output (for driving SSR).

• The control periods are used only for PID control.

• The Control Period (Cooling) parameter is used only for heating/cooling

control.

• When control output is used as a current output, the Control Period parameter cannot be used.

c-cp

Control Period (Heating)

Control Period (Cooling)

4-6-2 Direct and Reverse Operation

• Direct operation increases the manipulated variable whenever the process

orev

value increases. Reverse operation decreases the manipulated variable whenever the process value increases.

Manipulated variable

100%

4-6-1 Control Periods (Not Supported for Position-proportional Models.)

Manipulated variable 100%

Low temperature

For example, when the process value (PV) is lower than the set point (SP) in a heating control system, the manipulated variable increases according to the difference between the PV and SP. Accordingly, reverse operation is used in a heating control system. Direct operation is used in a cooling control system, in which the operation is the opposite of a heating control system. The Control Output 1 Assignment is set to o (control output (heating)) for either direct or reverse operation.

• Direct/reverse operation is set in the Direct/Reverse Operation parameter in the Initial Setting Level. The default is or-r (reverse operation).

Set Value

Direct operation

High temperature

Low temperature

Set Value

Reverse operation

High temperature

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 15

Page 94

4 Basic Operation

In this example, direct/reverse operation, and control period (heating) parameters are ch ecked. Direct/reverse operation = or-r (reverse operation) Control period (heating) = 20 (seconds)

Operating Procedure

•Setting the Control Period (Heating) Parameter

Press the M Key several times in the Initial Setting Level to display cp (Control Period (Heating)).

Press the U or D Key to set the value to 20.

The default for a relay output is 20 seconds.

• Setting Direct/Reverse Operation

Press the M Key several times in the Initial Setting Level to display orev (Direct/Reverse Operation).

Initial Setting Level

Control Period

(Heating)

Initial Setting Level

orev

or-r

Direct/Reverse Operation

Press the U or D Key to select or-r (Reverse Operation).

The default is or-r (Reverse Operation).

orev

or-r

4-6-3 Assigned Output Functions (Assigning Control Outputs Is Not

Supported for Position-proportional Models.)

• Function assignments can be changed by changing the settings for control and auxiliary output

assignments.

• The default function assignments for each output are shown below.

Parameter name Display Initial status

Control Output 1 Assignment out1 Control output

(heating) Control Output 2 Assignment out2 Not assigned. Auxiliary Output 1 Assignment sub1 Alarm 1* Auxiliary Output 2 Assignment sub2 Alarm 2 Auxiliary Output 3 Assignment sub3 Alarm 3 Auxiliary Output 4 Assignment

(E5EC/E5AC only)

* If the Controller is equipped with HB/HS alarm detection, it is set by default to detect heater alarms (HA).

Therefore, the alarm 1 function is disabled and the Alarm 1 Type is not displayed. To enable alarm 1, set an output assignment to alarm 1. If the Program Pattern parameter is changed to a setting other than OFF, Auxiliary Output 1 Assignment parameter is set as the program end output.

sub4 Alarm 4

4 - 16

• Refer to page 6-79 for the functions that can be assigned to the outputs.

• Each output is automatically initialized as shown below by changing the control mode between

standard and heating/cooling.

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 95

Assigned Output Functions

Controllers with Three or Fewer Auxiliary Outputs

4 Basic Operation

Parameter name Display

Control Output 1 Assignment

Control Output 2 Assignment

Auxiliary Output 1 Assignment Auxiliary Output 2 Assignment

Auxiliary Output 3 Assignment

out1 Control output

out2 --- --- Not assigned. Control output

sub1 Alarm 1* Alarm 1* Alarm 1* Alarm 1*

sub2 Alarm 2 Control output

sub3 Alarm 3Alarm 3Alarm 3Alarm 3

Without control output 2 With control output 2

Standard Heating/cooling Standard Heating/cooling

(heating)

Control output (heating)

(cooling)

Control output (heating)

Alarm 2 Alarm 2

Control output (heating)

(cooling)

Controllers with Four Auxiliary Outputs

Parameter name Display

Control Output 1 Assignment Control Output 2 Assignment

Auxiliary Output 1 Assignment

Auxiliary Output 2 Assignment

Auxiliary Output 3 Assignment Auxiliary Output 4 Assignment

* If the Controller is equipped with HB/HS alarm detection, it is set by default to detect heater alarms (HA).

Therefore, the alarm 1 function is disabled and the Alarm 1 Ty pe is not displayed. To enable alar m 1, set an output assignment to alarm 1. If the Program Pattern parameter is changed to a setting other than OFF, Auxiliary Output 1 Assignment parameter is set as the program end output.

out1 Control output

out2 --- --- Not assigned. Control output

sub1 Alarm 1* Alarm 1* Alarm 1* Alarm 1*

sub2 Alarm 2Alarm 2Alarm 2Alarm 2

sub3 Alarm 3Alarm 3Alarm 3Alarm 3

sub4 Alarm 4 Control output

Without control output 2 With control output 2

Standard Heating/cooling Standard Heating/cooling

(heating)

Control output (heating)

(cooling)

Control output (heating)

Alarm 4 Alarm 4

Control output (heating)

(cooling)

tional Models.)

4-6 Setting Output Specifications

4-6-3 Assigned Output Functions (Assigning Control Outputs Is Not Supported for Position-propor-

z Alarms

It will be specified in this section when an alarm must be assigned, i.e., when an alarm must be set for the Control Output 1 or 2 Assignment parameters, or for the Auxiliary Output 1 to 4 Assignment parameters. For example, if alarm 1 is set for the Control Output 1 Assignment parameter, then alarm 1 has been assigned.

Assigning a work bit to either control output 1 or 2 or to auxiliary output 1 to 4 is also considered to be the same as assigning an alarm. For example, if work bit 1 is set for the Auxiliary Output 1 Assignment parameter, then alarms 1 to 4 have been assigned.

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 17

Page 96

4 Basic Operation

Assign the control outputs and auxiliary outputs.

Control output 1: Control output (heating) Control output 2: Control output (cooling) Auxiliary output 1: Alarm 1 Auxiliary output 2: Alarm 2

Operating Procedure

• Setting Heating/Cooling Control

Press the M Key several times in the Initial Setting Level to display s-hc (Standard or Heating/Cooling).

Press the U or D Key to set the parameter to h-c.

The default is stnd (standard).

Use the following procedures to check the output assignments. The output assignments are changed automatically when you change between standard and heating/cooling control. You do not have to set them.

• Setting Control Output 1

Press the M Key several times in the Advanced Function Setting Level to display out1 (Control Output 1 Assignment).

Initial Setting Level

5-hc

stnd

Standard or Heating/Cooling

5-hc

h-c

Advanced Function Setting Level

out1

Control Output 1 Assignment

Set the parameter to o (Control Output (Heating)).

The default is o (Control Output (Heating)).

• Setting Control Output 2

Press the M Key several times in the Advanced Function Setting Level to display out2 (Control Output 2 Assignment).

Set the parameter to c-o (Control Output (Cooling)).

As soon as you select h-c (Heating/Cooling) for the Standard or Heating/Cooling parameter, the setting of this parameter is automatically changed to c-o (Control Output (Cooling)).

• Setting Auxiliary Output 1

Press the M Key several times in the Advanced Function Setting Level to display sub1 ( Auxiliary Output 1 Assignment).

Press the U or D Key to set the parameter to alm1.

The default is alm1 (Alarm 1). If the Controller is equipped with HB/HS alarm detection, this parameter is set by default to ha (heater alar m) .

out1

Advanced Function Setting Level

out2

Control Output 2 Assignment

c-o

out2

c-o

Advanced Function Setting Level

sub1

alm1

Auxiliary Output 1 Assignment

sub1

alm1

4 - 18

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 97

• Setting Auxiliary Output 2

Press the M Key several times in the Advanced Function Setting Level to display sub2 (Auxiliary Output 2 Assignment).

4 Basic Operation

Advanced Function Setting Level

sub2

alm2

Auxiliary Output 2 Assignment

Press the U or D Key to set the parameter to alm2.

The default is alm2 (Alarm 2).

4-6-4 Auxiliary Output Opening or Closing in Alarm

• When "close in alarm" is set, the status of the auxiliar y output is output unchanged. When "open in

alarm" is set, the status of the auxiliary output function is reversed before being output.

• Each auxiliary output can be set independently.

• These settings are made in the Auxiliary Output 1 to 4 Open in Alarm parameters (Advanced

Function Setting Level).

• The default is n-o: Close in Alarm.

Auxiliary output

functions 1 to 4

Close in Alarm (n-o)

Open in Alarm (n-c)

• The alarm output will turn OFF (i.e., the relay contacts will open) when power is interrupted and for about two seconds after the power is turned ON regardless of the setting of the Auxiliary Output 1 to 4 Open in Alarm parameter.

ON ON Lit

OFF OFF Not lit

ON OFF Lit

OFF ON Not lit

Auxiliary output

sub2

alm2

Indicators

(SUB1 to SUB4)

4-6 Setting Output Specifications

4-6-4 Auxiliary Output Opening or Closing in Alarm

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 19

Page 98

4 Basic Operation

4-7 Setting the Set Point (SP)

Operation Level The Operation Level is displayed when the power is turned ON. For the default

setting, the No. 1 display shows the PV, the No. 2 display sho ws the SP, and the

50.0

4-7-1 Changing the SP

• The set point cannot be changed when the Operation/Adjustment Protect parameter is set to 3. For

details, refer to 5-7 Using the Key Protect Level .

• To change the set point, press the U or D Key in the PV/SP parameter (Operation Level) or for the SP/SP (character display) display in the Operation Level, and set the desired set value. The new set point is selected three seconds after you have specified the new value.

• Multi-SP is used to switch between eight set points. For details, refer to 5-4 Using Event Inputs for details.

No. 3 display (E5EC/E5AC only) shows the MV.

The contents that is set in the PV/SP Display Screen Selection parameter in the Advanced Function Setting Level are displayed. For details, refer to 4-13-1 PV/SP Display Selections.

In this example, the set point is changed from 0°C to 200°C.

Operating Procedure

Press the U or D Key in the Operation Level to set the SP to

200. The default SP is 0°C.

Additional Information

• If there are a lot of digits in a numeric value, you can use the S (Shift Key) to select the digit to

change before you change the value of the digit.

Example: Changing 1,000°C to 1,200°C

Press S Key three times.

The third digit will flash.

Press the U Key to set the value to 1200.

Operation Level

200

Operation Level

1000

Operation Level

1200

4 - 20

E5@C Digital Temperature Controllers User’s Manual (H174)

Page 99

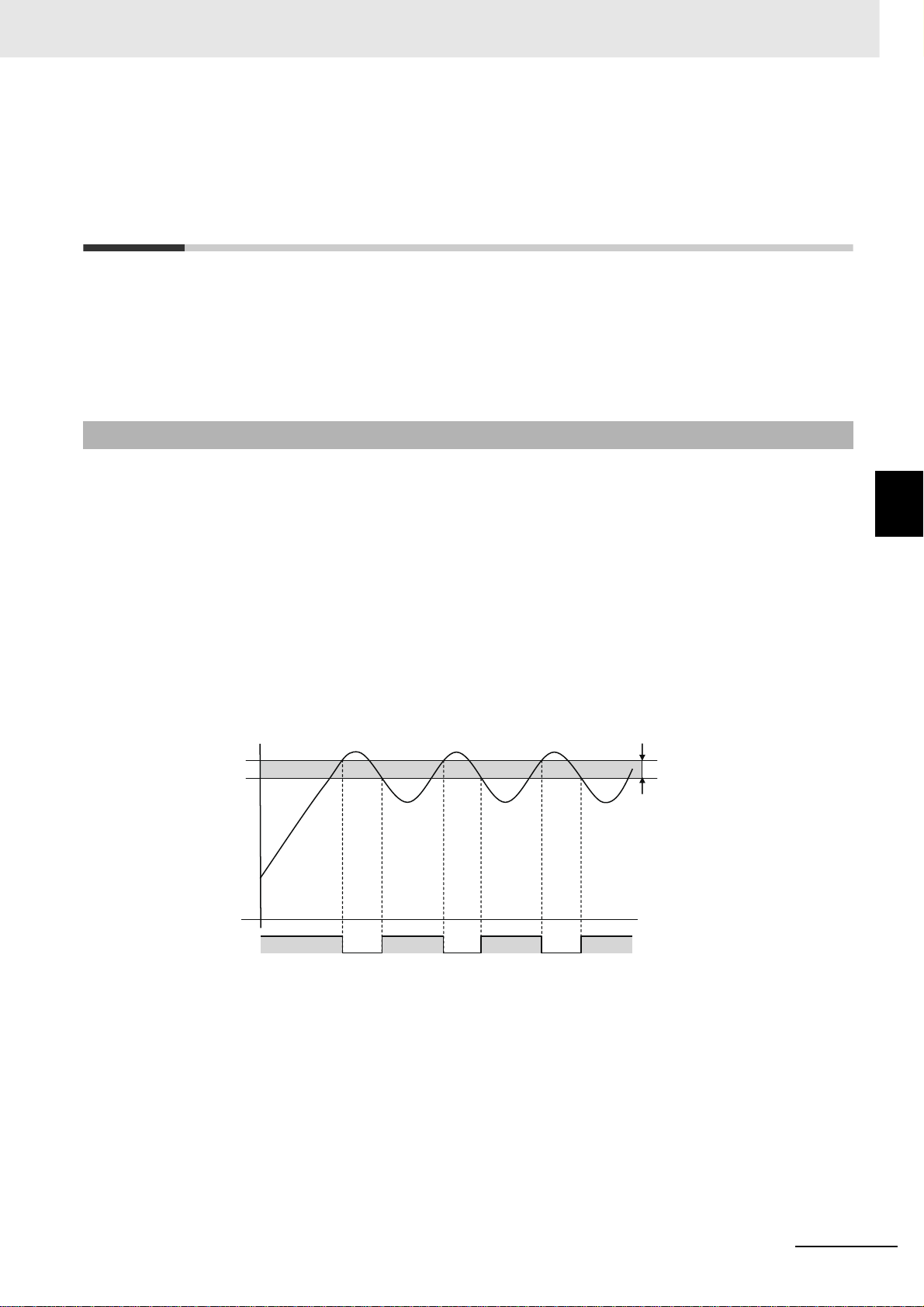

4-8 Using ON/OFF Control (Not

Supported for Position-proportional Models.)

In ON/OFF control, the control output tu rns OFF when the temperature being contro lled reaches the preset set point. When the manipulated variable turns OFF, the temperature begins to fall and the control turns ON again. This operation is repeated over a certain temperature range. At this time, how much the temperature must fall before control turns ON again is determined by the Hysteresis (Heating) parameter. Also, what direction the manipulated variable must be adjusted in response to an increase or decrease in the process value is determined by the Direct/Reverse Operation parameter.

4-8-1 ON/OFF Control

• Switching between 2-PID control and ON/OFF con trol is perf ormed using the PID ON/OFF par ameter

in the Initial Setting Level. When this parameter is set to pid, 2-PID control is selected, and when it is set to onof, ON/OFF contro l is selected. The default is onof.

4 Basic Operation

4-8 Using ON/OFF Control (Not Supported for Position-proportional

Models.)

z Hysteresis

• With ON/OFF control, hysteresis is used to stabilize operation when switching between ON and

OFF. The control output (heating) and control output (cooling) functions are set in the Hysteresis (Heating) and Hysteresis (Cooling) parameters, respectively.

• In standard control (heating or cooling control), the setting of the Hysteresis (Heating) parameter in the Adjustment Level is used as the hysteresis regardless of wh et her t he cont ro l type is he at ing control or cooling control.

Reverse operation

Heater

Temperature

OFF OFFOFF

ONON ONON

Hysteresis

Time

4-8-1 ON/OFF Control

E5@C Digital Temperature Controllers User’s Manual (H174)

4 - 21

Page 100

4 Basic Operation

Parameters

Display Parameter Application Level

s-hc Standard or

cntl PID ON/OFF Specifying control

oreV Direct/Reverse

c-db Dead Band Heating/cooling

hys Hysteresis (Heating) ON/OFF control Adjustment Level chys Hysteresis (Cooling) ON/OFF control Adjustment Level

4-8-2 Settings

To execute ON/OFF control, set the Set Point, PID ON/OFF, and Hysteresis parameters.

Setting the PID ON/OFF Parameter

Heating/Cooling

Operation

Specifying control method

method Specifying control

method

control

Initial Setting Level

Adjustment Level

Confirm that the PID ON/OFF parameter is set to onof in the Initial Setting Level.

Operating Procedure

Press the M Key several times in the Initial Setting Level to display cntl (PID ON/OFF).

The default is onof (ON/OFF control).

Setting the SP

In this example, the set point is set to 200°C. The set value (i.e., the SP) is shown at the bottom of the display.

Operating Procedure

Select PV/SP in the Operation Level.

Press the U or D Key to set the SP to 200.

The default is 0. The new set v alue can be sa ved by pressing the M Key, or it will go into effect after 3 seconds has elapsed.

Initial Setting Level

cntl

PID ON/OFF

onof

Operation Level

PV/SP

100

200

4 - 22

E5@C Digital Temperature Controllers User’s Manual (H174)

Omron E5CC, E5AC, E5EC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Read and Understand this Manual

Safety Precautions

Definition of Precautionary Information

Symbols

Precautions for Safe Use

Installation Precautions

Precautions for Operation

Preparations for Use

Versions

Revision History

Conventions Used in This Manual

Model Notation

Meanings of Abbreviations

How to Read Display Symbols

How This Manual is Organized

Related Manuals

Sections in this Manual

1-1-1 Appearance

1-1-2 Features

1-1-3 Main Functions

1-2-1 I/O Configuration

1-2-2 Model Number Legends

2-1 Installation

2-1-1 Dimensions (Unit: mm)

2-1-2 Panel Cutout (Unit: mm)

2-1-3 Mounting

2-2 Using the Terminals

2-2-1 E5CC Terminal Block Wiring Example

2-2-2 E5EC/E5AC Terminal Block Wiring Example

2-2-3 Precautions when Wiring

2-2-4 Wiring

2-3 Insulation Block Diagrams

2-4-2 Connection Method

2-4 Using the Setup Tool Port

2-4-1 Procedure

2-4-3 Installing the Driver

3-1 Basic Application Flow

3-2 Power ON

3-3-1 Part Names and Functions

3-3-2 Entering Numeric Values

3-3-3 Setting Levels

3-4 Procedures after Turning ON the Power Supply

3-4-1 Basic Flow of Operations

3-4-2 Basic Procedure

4-1 Moving between Setting Levels

4-1-1 Moving to the Initial Setting Level

4-1-2 Moving to the Adjustment Level

4-1-3 Moving to the Protect Level

4-1-4 Moving to the Advanced Function Setting Level

4-1-5 Moving to the Communications Setting Level

4-2 Initial Setting Examples

4-3 Setting the Input Type

4-3-1 Input Type

4-4-1 Temperature Unit

4-4 Selecting the Temperature Unit

4-6 Setting Output Specifications

4-6-2 Direct and Reverse Operation

4-6-1 Control Periods (Not Supported for Position-proportional Models.)

4-6-4 Auxiliary Output Opening or Closing in Alarm

4-7 Setting the Set Point (SP)

4-7-1 Changing the SP

4-8-1 ON/OFF Control

4-8-2 Settings
