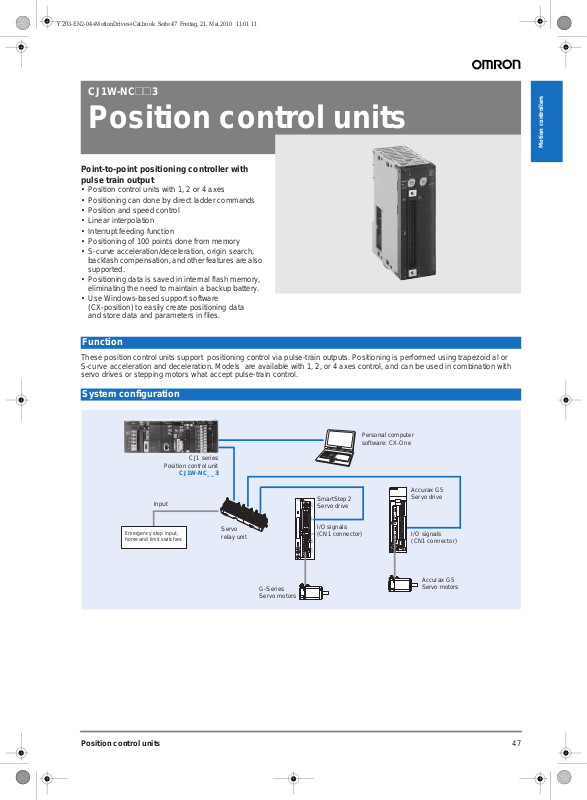

CJ1W-NC@@3
Position control units
Point-to-point positioning controller with pulse train output
•Position control units with 1, 2 or 4 axes
•Positioning can done by direct ladder commands
•Position and speed control
•Linear interpolation
•Interrupt feeding function
•Positioning of 100 points done from memory
•S-curve acceleration/deceleration, origin search, backlash compensation, and other features are also supported.
•Positioning data is saved in internal flash memory, eliminating the need to maintain a backup battery.
•Use Windows-based support software (CX-position) to easily create positioning data and store data and parameters in files.
Function
These position control units support positioning control via pulse-train outputs. Positioning is performed using trapezoid al or S-curve acceleration and deceleration. Models are available with 1, 2, or 4 axes control, and can be used in combination with servo drives or stepping motors what accept pulse-train control.
System configuration
CJ1 series
Position control unit
CJ1W-NC__3
Input
Emergency stop input, home and limit switches
Personal computer software: CX-One
|
SmartStep 2 |
|
|
Servo drive |
|
Servo |
I/O signals |
|
(CN1 connector) |
||
relay unit |
||
K |
||
|
||
|
Pos |
|
|
unit |
G-Series
Servo motors
Accurax G5
Servo drive
I/O signals (CN1 connector)
Accurax G5
Servo motors
Motion controllers
Position control units |
47 |
Specifications
Model |
CJ1W-NC113 |
CJ1W-NC213 |
CJ1W-NC413 |
|
CJ1W-NC133 |
CJ1W-NC233 |
CJ1W-NC433 |
Unit name |
Position control unit |
|
|
Classification |
Special I/O unit |
|
|
Unit numbers |
0 to 95 |
|
0 to 94 |
Control method |
Open-loop control by pulse train output |
|
|
Control output interface |
CJ1W-NC@13: Open-collector output |
|
|
|
CJ1W-NC@33: Line-driver output |
|
|
Controlled axes |
1 |
2 |
4 |
Operating modes |
Direct operation or memory operation |
|
|
Data format |
Binary (hexadecimal) |
|
|
Affect on scan time for end refresh |
0.29 to 0.41 ms max./unit |
|
|
Affect on scan time for IOWR/IORD |
0.6 to 0.7 ms max./instructions |
|
|
Startup time |
2 ms max. (refer to operation manual for conditions) |
|
|
Position data |
-1,073,741,823 to +1,073,741,823 pulses |
|
|
No. of positions |
100 per axis |
|
|
Speed data |
1 to 500 kpps (in 1 pps units) |
|
|
No. of speeds |
100 per axis |
|
|
Acceleration/deceleration times |
0 to 250 s (time to max. speed) |
|
|
Acceleration/deceleration curves |
Trapezoidal or S-curve |
|
|
Saving data in CPU |
Flash memory |
|
|
Windows-based support software |
CX-position (WS02-NCTC1-E) |
|
|
Ambient operating temperature |
0 to 55°C |
|
0 to 50°C |
External power supply |
24 VDC ±10%, 5 VDC ±5% (line driver only) |
24 VDC ±5%, 5 VDC ±5% (line driver only) |
Nomenclature
Position control unit
LED indicators
RUN - Controller in RUN
ERC - Position control unit error
ERH - PLC CPU unit error
X,Y... - An error has ocurred on axis
UNIT no. setting switch
Axes connector.
