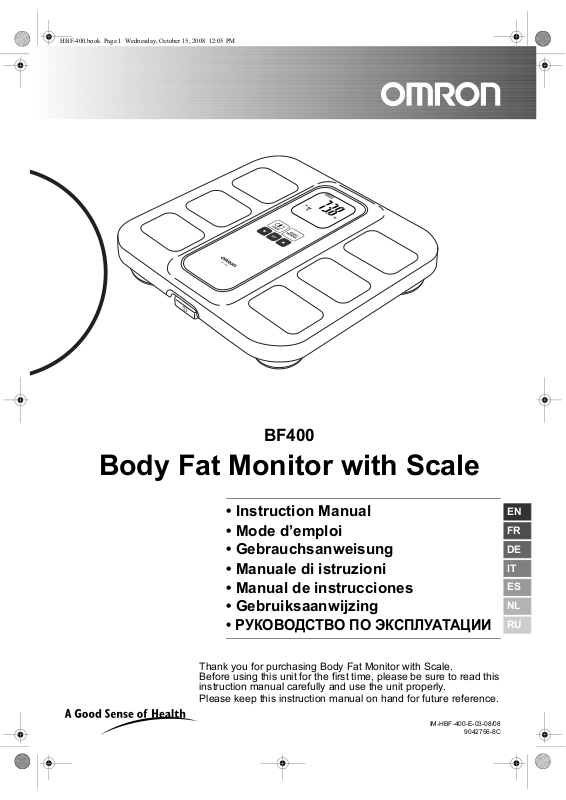

BF400

Body Fat Monitor with Scale

Instruction Manual

Mode d’emploi

Gebrauchsanweisung

Manuale di istruzioni

Manual de instrucciones

Gebruiksaanwijzing

РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

EN

FR

DE

IT

ES

NL

RU

Thank you for purchasing Body Fat Monitor with Scale.

Before using this unit for the first time, please be sure to read this instruction manual carefully and use the unit properly.

Please keep this instruction manual on hand for future reference.

IM-HBF-400-E-03-08/089042756-8C

Contents

Before Using the Unit

Features ...............................................................................................

3

Notes on Safety...................................................................................

4

1. What You Should Know When Using This Unit...........................

5

1.1

What is Body Fat Percentage? ....................................................

5

1.2

Advice for Measurement ..............................................................

6

1.3

Principles of Body Fat Percentage Measurement........................

7

2. Know Your Unit ..............................................................................

8

Operating Instructions

3.

Inserting and Replacing the Batteries........................................

10

4.

Setting and Adjusting Personal Data .........................................

11

5.

Using the Unit...............................................................................

14

5.1

Taking a Measurement...............................................................

14

5.2

How to Obtain Reliable Results .................................................

18

5.3

How to Interpret the Measured Results .....................................

19

5.4

Measuring Weight Only..............................................................

20

Care and Maintenance

6.

Error Displays...............................................................................

21

7.

Troubleshooting...........................................................................

22

8.

Maintenance and Storage............................................................

22

9.

Technical Data ..............................................................................

23

2

Features

Easy-to-UnderstandDisplay

This unit calculates and displays the body fat percentage by using the Bioelectrical Impedance (BI) method. The displayed values for body fat and BMI* (Body Mass Index) are indicated in four ranges:“–”,“0”, “+”, “++”.

BI method: Bioelectrical Impedance method (full explanation on page 7)

BMI: Body Mass Index.

This Index indicates the ratio between weight and height of a person. Common standard in the medical profession.

Formula (in metric): weight (kg) / height (m) / height (m).

Measurement is fast and simple.

After entering the data, a measurement can be started by simply pushing the power switch, selecting your personal ID number and stepping onto the measurement platform.

The calculated results are shown in an easy-to-seedisplay.

Body fat percentage and body mass index are shown simultaneously in an easy-to-seelarge digital display and a bar display that can be read at a glance.

The memory function stores up to 4 personal profiles

The memory function can store individual settings (age, gender, and height) for up to four people.

The memory function also stores the previous measurement results for each ID

A simple press of the GUEST/MEMORY button displays the measurement results from the previous measurement.

EN

3

Notes on Safety

Danger!

Never use this unit in combination with medical electronic devices such as:

(1)Medical electronic implants such as pacemakers.

(2)Electronic life support systems such as an artificial heart/lung.

(3)Portable electronic medical devices such as an electrocardiograph.

• This unit may cause the above mentioned medical electronic devices to malfunction.

Warning!

Do not step on the edge of the unit as you may fall or lose your balance.

Do not jump onto the unit, or hop up and down on the unit.

Do not drop the unit.

Do not use the unit on tiles or other surfaces that may be slippery, such as a wet floor.

Do not use this unit when your body and/or feet are wet, such as after taking a bath.

People with disabilities, or who are physically frail, should always be assisted by another person when using this unit.

Never start weight reduction or exercise therapy without the instructions of a doctor or a specialist.

If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult a doctor immediately.

Read and follow the “Important information regarding Electro Magnetic Compatibility (EMC)” in the Technical Data Section.

Save these instructions for future reference.

4

1.What You Should Know When Using This Unit

1. What You Should Know When Using This Unit

1.1 What is Body Fat Percentage?

Body fat percentage refers to the amount of body fat mass in regards to the total body weight expressed as a percentage.

This OMRON BF400 will provide your specific body fat percentage and body weight. It is also an excellent tool to estimate your body fat percentage and measure body weight on a continuous schedule.

Body fat percentage (%)

= {Body fat mass / Body weight} x 100

Fat mass

Fat-freemass

Body Bones

Weight Blood

Muscles

Water

Body fat reading is affected by the change of water content in the body.

A person’s hydration level and blood circulation may have an effect on their body fat reading. In the table below are some situations which could affect the reading.

Cause of Fluctuations

Examples of Fluctuation





Water and food intake

1 to 2 hours after breakfast, lunch or dinner







After taking a bath or shower, immediately

Changes in blood circulation

after exercising, in extreme environments

(warm or cold), during illness or extreme





fatigue





EN

5

1.What You Should Know When Using This Unit

1.2 Advice for Measurement

If the soles of your feet are dry or the temperature of your feet or the electrodes are extremely cold, it will not be possible to obtain stable measurements, which may lead to display error indication or inaccurate results.

Please pay special attention in winter because the air is dry and/or the temperature is low.

Conditions

Actions





Feet are dry.

Slightly moisten soles of your feet with a wet

towel, then measure.







When you step onto the electrodes, they feel

Allow the electrodes to warm by leaving the

unit in a warm room for approximately ten

cold.

minutes.







Your body and feet are cold due to the blood

Warm your feet by immersing in hot water or

staying in a warm room. Make sure the feet

not circulating well.

are dried properly.







Recommended times for measurement

Understanding the normal changes in your body fat percentage can help you in preventing or reducing obesity. Being aware of the times when the body fat percentages shift within your own daily schedule will assist you in obtaining an accurate trending of your body fat. It is recommended to use this unit in the same environment and daily circumstances. (See chart)

Recommended times for measurement

Daily activities

Waking up

Recommended time

Breakfast

2 hours

Recommended time

Lunch

2 hours

Recommended time

Taking a bath or eating dinner

2 hours

Recommended time

Going to bed

After waking up

Before lunch and about 2 hours or more after breakfast

In the afternoon about 2 hours or more after lunch and before taking a bath or eating dinner

Avoid measurement immediately after eating or bathing.

Before going to bed and about 2 hours or more after dinner

6

1.What You Should Know When Using This Unit

1.3 Principles of Body Fat Percentage Measurement

The OMRON BF400 estimates the body fat percentage by the Bioelectrical Impedance (BI) method.

What is the Bioelectrical Impedance method?

Muscles, blood vessels and bones are body tissues having a high water content that conduct electricity easily. Body fat is tissue that has little electric conductivity. The BF-400sends an extremely weak electrical current of 50 kHz and less than 500 µA through your body to determine the amount of fat tissue.

This weak electrical current is not felt while operating the BF400.

The Bioelectrical Impedance Method safely combines the electric resistance with the distance of the electricity conducted. Correct posture and consistent measuring conditions need to be maintained for the best results.

How to estimate the body fat percentage.

DXA (Dual Energy X-RayAbsorptiometry), has been the established method for accurate evaluation of body composition. OMRON has used research information from several hundred people using the DXA method to develop the formula by which theBF-400works. The body fat mass and body fat percentage is calculated by a formula that includes five factors: electric resistance, height, weight, age and gender.

What is the DXA method?

The DXA method uses two different frequency X-Raysand rates of absorption of the body and determines the value based on the difference between the two.

People who may get erratic results

There are certain conditions, such as with dialysis patients, when significant differences may occur between the estimated and actual body fat values.

These differences may be related to consistently changing ratios of body fluid and/or body composition.

Also refer to: “Avoid Taking Measurements Under the Following Conditions” and “Cases When the Calculated Results May Differ from Actual Body Fat Percentages” in section 5.

EN

7

2.Know Your Unit

2. Know Your Unit

Main Unit

D

C E

K

A

B C

F G

L



H I

J

A. Power Switch



K. Battery Cover



B. Heel Electrodes



L. Battery Compartment

C. Electrodes





D. Measurement Platform





E. Display





F. USER Button





G. GUEST/MEMORY Button





H.

(Down) Button





I.

SET Button





J.

(Up) Button





8

2.Know Your Unit

Display

M R

N



O

S

P

T

Q

U



V

M.Display Mode Indicator

R. Memory Indicator

:Weight

S. Age Indicator

:Body Fat Percentage

T. Height Indicator

:BMI

U. Gender Indicator

N. Measurement Results

V. Measurement Progress / Body fat

O. GUEST Indicator

percentage and BMI Classification Bar

P.Personal ID Number

Q.Battery Low Indicator

Packaging Contents

EN

W



X

Y

W.Four AA manganese batteries



X. Instruction Manual (this document)







Y. Warranty Card



9

3.Inserting and Replacing the Batteries

3. Inserting and Replacing the Batteries

1. Turn the unit over.

2. Press the tab at the top of the battery cover and lift the cover off the unit.

3. Insert the batteries as indicated.

Make sure that their polarity (+/–)is aligned with the polarity(+/–)indicated in the battery compartment.

4. Put the battery cover back in place.

Note: The unit remembers previous measurement results and personal ID information even when the batteries are replaced.

Battery life and replacement

When the battery low indicator lights, replace all four batteries with new ones.

Replace the batteries after turning off the power.

Disposal of used batteries should be carried out in accordance with the national regulations for the disposal of batteries.

Battery life

-Four AA batteries will last approximately 1 year (when measurements are made four times a day).

-Because the supplied batteries are for trial use only, they may have a shorter life.

Warning!

If battery fluid should get in your eyes, immediately rinse with plenty of clean water.

Consult a doctor immediately.

Caution!

Do not use batteries not specified for this unit. Do not insert the batteries with the polarities in the wrong direction.

Replace worn batteries with new ones immediately.

Do not dispose of batteries in fire.

If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water.

Remove the batteries from this unit when you are not going to use it for a long period of time (approximately three months or more).

Do not use batteries of a different kind together.

Do not use new and worn batteries together.

10

4.Setting and Adjusting Personal Data

4.Setting and Adjusting Personal Data

1.Push the power switch to turn on the unit.

“CAL” blinks on the display, then the display changes to 0.0 kg. Wait until 0.0 kg appears on the display.

2. Press the USER button to select a personal ID number.

The ID number changes with each press of the USER button as follows.

If no information has been entered for a personal ID number, the personal ID number and the three icons for gender, age, and height blink, as shown in the illustration.

If information has already been entered, only the personal ID number blinks.

3. Press the SET button to confirm your selection.

The default setting for the age setting appears on the display.

EN

11

4.Setting and Adjusting Personal Data

4. Set your age, gender, and height.

Age

1) Press theorbutton to adjust the age setting to the desired age.

2) Press the SET button to confirm the setting.

The age setting is set, and the gender icons blink on the display.

Gender

3) Press theorbutton to adjust the gender setting to the desired gender.

4) Press the SET button to confirm the setting.

The gender setting is set, and the default height setting blinks on the display.

Height

5) Press theorbutton to adjust the height setting to the desired height.

6) Press the SET button to confirm the setting.

After you confirm the setting for height, the unit displays the settings for all three settings then 0.0 kg appears on the display.

You can now start taking measurements. (Proceed to Step 3 in “5.1 Taking a Measurement” on page 15.)

Changing the Information for a Personal ID Number

If the personal information stored for any of the personal ID numbers (1-4)changes, the settings for that ID will need to be adjusted.

1. Repeat steps 1 to 2 in the procedure above.

12

4.Setting and Adjusting Personal Data

2.Press the SET button to confirm your selection.

3.Press the SET button.

The age setting appears on the display and the age setting blinks.

4. Adjust the information for your age, gender, and/or height.

Press the andbuttons to adjust the settings for each category and then press the SET button to confirm each setting.

Then you can now start taking measurements. (Process to Step 3 in “5.1 Taking a Measurement” on page 15.)

Delete a Personal ID Number

1.Repeat steps 1 to 2 in section “4. Setting and Adjusting Personal Data” on page 11.

2.Press the SET button to confirm your selection.

3.Press the SET button.

The age setting appears on the display and the age setting blinks.

4. Press the GUEST/MEMORY button for two seconds.

EN

“Clr” will appear in the display and the registered information is deleted from memory.

Note: The stored results for the previous measurement will also be deleted.

13

5.Using the Unit

5. Using the Unit

5.1Taking a Measurement

1.Push the power switch to turn on the unit.

“CAL” blinks on the display, then the display changes to 0.0 kg. Wait until 0.0 kg appears on the display.

2.Select Personal ID or Guest mode.

If you have a personal profile (Personal ID) registered on the unit:

1. Press the USER button until the ID number for the personal ID containing your personal profile blinks on the display.

Notes:

If an error occurred for the body fat

percentage measurement during the previous measurement, – – will be displayed for %FAT.

If you want to check

the last

measurement results, press the GUEST/MEMORY button while your personal profile blinks on the

display. The memory indicator is displayed. After you check the last measurement results (refer to p. 15), push the power switch to turn off the unit.

2.Press the SET button.

“CAL” blinks on the display, then the display changes to 0.0 kg.

Wait until 0.0 kg appears on the display.

If you do not have a personal profile registered on the unit (Guest mode):

1. Press the GUEST/MEMORY button.

The GUEST indicator appears on the display and the age setting blinks.

2.Enter the information for your age, gender and height. (Step 4 in “4. Setting and Adjusting Personal Data” on page 12)

Press the orbuttons to adjust the settings for each category and then press the SET button to confirm each setting.

After you confirm the setting for height, the unit displays the settings for all three settings then 0.0 kg appears on the display.

14



5.Using the Unit

3. Step onto the measurement platform.

Your feet

Make sure that you are bare foot and that the soles of your feet are



clean.



Make sure that your feet are correctly positioned on the electrodes



and that you are standing with your weight evenly distributed on the



platform.



Remain still and do not move until the measurement is complete.



Make sure that the heels of both feet are on the heel electrodes.

The display will show your weight and then the weight result will blink. The indicators in the measurement progress bar at the bottom of the display will gradually appear, from left to right.

After measurement completes, your weight is displayed again. At this point you may step off the measurement platform.

After three seconds have passed since your weight was displayed, the three measurement results are automatically displayed repeatedly in the following order:

WEIGHT ->%FAT->BMI->WEIGHT (again).

Refer to section 5.3 on how to interpret the %FAT and BMI results.

Note: Although the age setting can be set to between 18 and 80 years, the %FAT reading will only be displayed for ages between 20 and 79 years.

EN

Notes on Viewing Measurement Results

If you press the GUEST/MEMORY button, the previous measurement results are displayed and the memory indicator is displayed. To display the current measurement results, press the GUEST/MEMORY button again.

If you press the button while the three measurement results are being displayed

automatically, the display mode changes to show the results with each press of the button.

• If you do not press any button within five minutes of the measurement results appearing on the display, the unit will automatically turn itself off.

15

5.Using the Unit

4. Push the power switch to turn off the unit.

Avoid Taking Measurements Under the Following Conditions

If a measurement is made under the following physical conditions, the estimated body fat percentage may differ significantly from the actual one because the water content in the body is changing.

Immediately after vigorous exercise

Immediately after a bath or sauna

After drinking alcohol

After drinking a large amount of water or



after a meal (1 to 2 hours)

16

5.Using the Unit

Cases When the Calculated Results May Differ from Actual Body Fat Percentages

Calculated results for the following groups of people may vary due to consistently changing amounts of water and tissue density within their bodies.

Growing children

Elderly people and

People with a fever



post-menopausalwomen



Patients with osteoporosis

Body builders or

Patients undergoing

who have very low bone

professional athletes

dialysis

density





EN

Pregnant women

People with swelling

17

5.Using the Unit

5.2 How to Obtain Reliable Results

To help ensure reliable results, please observe the following points when taking a measurement.

Stand upright on the measurement platform with your weight evenly distributed over the electrodes. Do not stand on or near the edge of the platform.

Try to take measurements at the same time each day.

Avoid eating, drinking (especially alcohol), sport/exercise or taking a bath/sauna before measuring.

When a stable measurement value cannot be displayed, slightly moisten the soles of your feet with a damp towel and try again.

18

5.Using the Unit

5.3 How to Interpret the Measured Results

Body fat percentage

Displays the body fat mass as the percentage of body weight.

Body fat percentage classification

Displays “–”,“0”, “+”, “++”











































Gender

Age

– (Low)

0 (Normal)

+ (High)

++ (Very High)

(BMI < 18.5)

(BMI 18.5 - 24.9)

(BMI 25.0 - 29.9)

(BMI > 30.0)







20-39

< 21.0

21.0

- 32.9

33.0 - 38.9

_

39.0







>





Female

40-59

< 23.0

23.0

- 33.9

34.0 - 39.9

_

40.0





>







60-79

< 24.0

24.0

- 35.9

36.0 - 41.9

_

42.0







>







20-39

< 8.0

8.0

- 19.9

20.0 - 24.9

_

25.0







>





Male

40-59

< 11.0

11.0 - 21.9

22.0 - 27.9

_

28.0





>







60-79

< 13.0

13.0

- 24.9

25.0 - 29.9

_

30.0







>





Based on NIH/WHO guidelines for BMI

Based on Gallagher et al., American Journal of Clinical Nutrition, Vol. 72, Sept. 2000

BMI

BMI is an internationally used index to show the body condition by checking the balance between the height and the weight.

It is calculated by the following formula:

BMI in metric = weight (kg) / height (m) / height (m)

BMI classification

Displays “–”,“0”, “+”, “++”

BMI

BMI (Designation by the WHO)

BMI Classification Bar

BMI Rating

























Less than 18.5

- (Underweight)



7.0

- 10.7







10.8 - 14.5







EN







14.6

- 18.4



18.5 or more and less than 25

0 (Normal)



18.5

- 20.5







20.6 - 22.7











22.8

- 24.9





25 or more and less than 30

+ (Pre-obese)



25.0

- 26.5







26.6 - 28.2











28.3

- 29.9





30 or more

++ (Obese)



30.0

- 34.9







35.0 - 39.9











40.0

- 90.0





The above-mentionedindices refer to the values for obesity judgment proposed by the WHO, the World Health Organization.

19

5.Using the Unit

5.4Measuring Weight Only

1.Push the power switch to turn on the unit.

“CAL” blinks on the display, then the display changes to 0.0 kg. Wait until 0.0 kg appears on the display.

2. Step onto the measurement platform.

Your feet

Make sure that you are standing with your weight evenly



distributed on the platform.



Remain still and do not move until the measurement is



complete.



If you do not step onto the measurement platform within five



minutes of 0.0 kg appearing on the display, the unit will



automatically turn itself off.



3. Your weight is displayed on the display and blinks



briefly to indicate that measurement is complete.



At this point you may step off the measurement platform.



4. Push the power switch to turn off the unit.

20
