Omron BP652 User Manual

4.4 (20)

INSTRUCTION MANUAL

7 series Automatic Wrist Blood

Pressure Monitor

Model BP652

ENGLISH ESPAÑOL

TABLE OF CONTENTS



table of contents



Before using the Monitor



Introduction ..........................................................................................................

3

Safety Information ................................................................................................

4

Operating the Device ...........................................................................

4

Care and Maintenance .........................................................................

5

Operating Instructions



Before Taking a Measurement ..............................................................................

6

Know Your Unit ....................................................................................................

7

Unit Display ..........................................................................................................

8

Display Symbols ...................................................................................................

9

Irregular Heartbeat Symbol..................................................................

9

Movement Error Symbol .....................................................................

9

Battery Installation ..............................................................................................

11

Setting the Date and Time ...................................................................................

13

Setting the Advanced Positioning Sensor (Aps).................................................

15

Setting the Positioning Indicator........................................................

15

Setting for Right or Left Wrist Measurement ....................................

16

Setting the Buzzer...............................................................................

16

Resetting to the Default Setting..........................................................

17

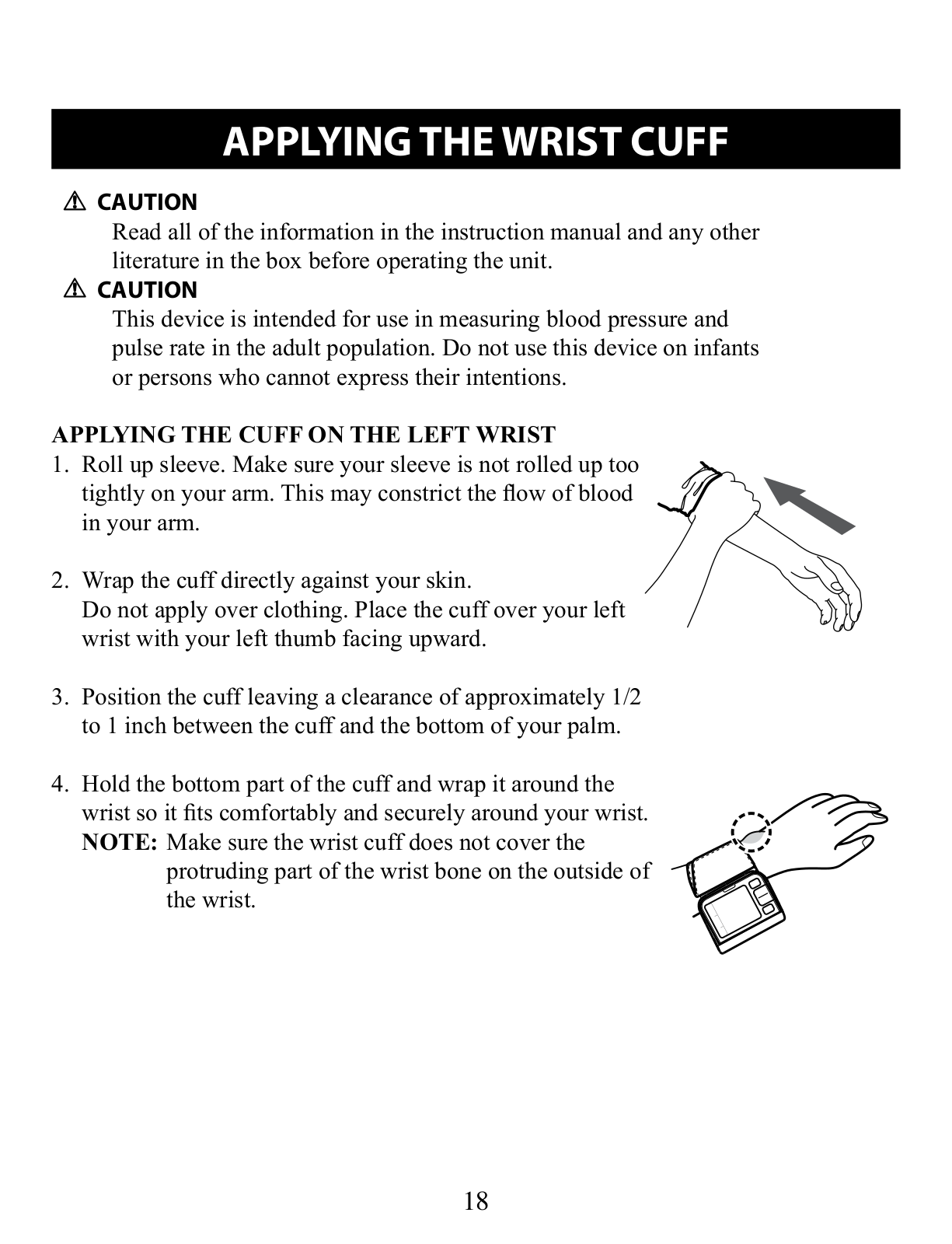

Applying the Wrist Cuff ......................................................................................

18

Applying the Cuff on the Left Wrist...................................................

18

Applying the Cuff on the Right Wrist................................................

19

Taking a Measurement ........................................................................................

20

Using the Memory Function ...............................................................................

22

Averaging Function............................................................................

22

To Display the Measurement Values .................................................

22

To Delete All Values Stored in the Memory ......................................

23

Care and Maintenance ...............................................................................................

24

Error Indicators ...................................................................................................

25

Troubleshooting Tips...........................................................................................

26

FCC Statement.....................................................................................................

27

Limited Warranty ................................................................................................

28

Specifications ......................................................................................................

29

2

Introduction

Thank you for purchasing the OMRON® BP652 IntelliSense® Automatic Wrist Blood Pressure Monitor.

Fill in for future reference.

DATE PURCHASED:__________________

SERIAL NUIMBER:___________________

Stapleyourpurchasereceipthere

Registeryourproducton-lineat www.register-omron.com

The monitor is compact and easy-to-use at home, at work, and during travel. Perfect for people who frequently monitor their own blood pressure.

Your new digital blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use.

Clinical research has proven a direct relationship between blood pressure in the wrist and blood pressure in the arm. Changes in wrist blood pressure reflect changes in arm blood pressure because the arteries in the wrist and the arm are close to each other.

Frequently measuring the blood pressure in your wrist will provide your physician with an accurate indication of changes in your blood pressure.

The BP652 comes with the following components:

Monitor • Storage Case • 2 “AAA” Alkaline Batteries

Instruction Manual printed in English and Spanish • Quick Start Guide

The BP652 IntelliSense® Automatic Wrist Blood Pressure Monitor is intended for home use.

SAVE THESE INSTRUCTIONS

3

SAFETY INFORMATION

To assure the correct use of the product, basic safety measures should always be followed including the warnings and cautions listed in this instruction manual.

SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL

WARNING

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.



Indicates a potentially hazardous situation which, if not avoided, CAUTION may result in minor or moderate injury to the user or patient or

damage to the equipment or other property.

OPERATING THE DEVICE

Contact your physician for specific information about your blood pressure.

Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider.

DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat High Blood Pressure.

The monitor is not intended to be a diagnostic device.

If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Contact a physician immediately.

If you have a condition that may compromise circulation, you may get an inaccurate reading with this device. Consult your physician before using this device.

Read all of the information in the instruction manual and any other literature in the box before operating the unit.

This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions.

Operate the device only as intended. Do not use the device for any other purpose.

Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.

4

SAFETY INFORMATION

Do not use a cellular phone near the device. It may result in an operational failure.

Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit.

Use only 1.5 V “AAA” alkaline batteries with this device. Do not use other types of batteries. This may damage the unit.

CARE AND MAINTENANCE

Do not subject the monitor to strong shocks, such as dropping the unit on the floor.

Do not submerge the device or any of the components in water.

Store the device and the components in a clean, safe location.

Changes or modification not approved by the manufacturer will void the user warranty. Do not disassemble or attempt to repair the unit or components.

5

BEFORE TAKING A MEASUREMENT

To ensure a reliable reading follow these recommendations:

1.Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement.

2.Stress raises blood pressure. Avoid taking measurements during stressful times.

3.The cuff can be applied to your left or right wrist.

4.Measurements should be taken in a quiet place.

5.Position the unit at heart level throughout the measurement.

6.Remain still and do not talk during the measurement.

7.Wait 2-3 minutes between measurements. The wait time allows the arteries to return to the condition prior to taking the blood pressure measurement. You may need to increase the wait time depending on your individual physiological characteristics.

8.Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time. Try to measure your blood pressure at the same time each day for consistency.

6

Omron BP652 User Manual

KNOW YOUR UNIT

Main Unit:

Display

Date/Time setting ( ) button

Date/Time setting ( ) button

Battery compartment

Components:

INSTRUCTION MANUAL

7 series Automatic Wrist Blood

Pressure Monitor

Model BP652

INTRODUCTION



Thank you for purchasing the OMRON BP652 IntelliSense Automatic Wrist Blood



Pressure Monitor .



Fill in for future reference.



DATE PURCHASED: __________________



SERIAL NUMBER: ____________________

2 AAAAlkaline Batteries

•Stapleyour purchase receipthere

Instruction



Manual

Wrist cuff

Memory (MEM) button START/STOP button

User ID selection switch

SET button

Quick Start

Guide

7

Systolic blood pressure Deflation symbol

Blood pressure level indicator

Buzzer symbol

Date/Time display

Heartbeat symbol (Flashes during measurement)

UNIT DISPLAY

Positioning indicator Diastolic blood pressure

Memory symbol (Displayed when viewing values stored in memory)

Average value symbol (Refer to “Using the

Memory Function” .) Irregular heartbeat symbol

Movement error symbol

(Displayed if you move

your body during the

measurement)

User ID symbol (A or B) (If GUESTis selected, A

or B will not be displayed.) Wrist symbol

Battery low symbol

Pulse display

8

DISPLAY SYMBOLS

IRREGULAR HEARTBEAT SYMBOL ()

When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol ( ) will appear on the display with the measurement values.

An irregular heartbeat rhythm is defined as a rhythm that varies by less than 25% from the average rhythm or 25% more than the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure.

If the irregular heartbeat symbol ( ) displays with your measurement results, we recommend you consult your physician. Follow the directions of your doctor.

NormalHeartbeat

Pulse

Blood pressure

IrregularHeartbeat

Short Long

Pulse

Blood pressure

MOVEMENT ERROR SYMBOL ()

The Movement Error Symbol () is displayed if you move your body during the measurement. Please remove the wrist cuff, and wait 2-3 minutes. Reapply the wrist cuff and take another measurement.

Internationally recognized guidelines for upper limit of normal home blood pressure readings are as follows:

Home Guideline for Upper Limit of Normal BP

Systolic Blood Pressure

135 mmHg





Diastolic Blood Pressure

85 mmHg





9
