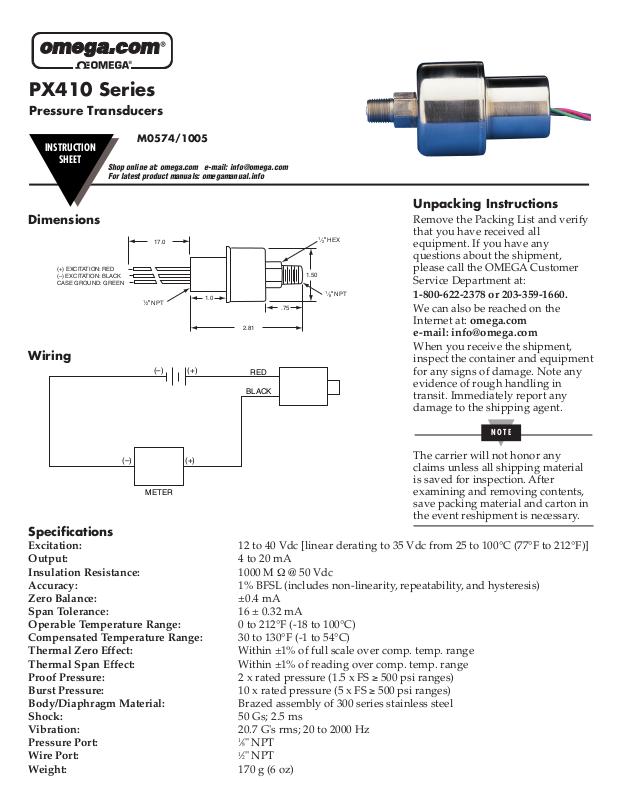

Omega Products PX410 Installation Manual

PX410 Series

Pressure Transducers

INSTRUCTION

SHEET

M0574/1005

Shop online at: omega.com e-mail: [e-mail]
For latest product manuals: omegamanual.info

(+) EXCITATION: RED
(–) EXCITATION: BLACK
CASE GROUND: GREEN

17.0

1.0

2.81

.75

1.50

1

⁄2 NPT

1

⁄8 NPT

1

⁄2 HEX

Dimensions

(–) (+)

(–) (+)

METER

RED

BLACK

Wiring

Unpacking Instructions

Remove the Packing List and verify
that you have received all
equipment. If you have any
questions about the shipment,
please call the OMEGA Customer
Service Department at:

1-800-622-2378 or 203-359-1660.

We can also be reached on the
Internet at: omega.com

e-mail: [e-mail]

When you receive the shipment,
inspect the container and equipment
for any signs of damage. Note any
evidence of rough handling in
transit. Immediately report any
damage to the shipping agent.

The carrier will not honor any
claims unless all shipping material
is saved for inspection. After
examining and removing contents,
save packing material and carton in
the event reshipment is necessary.

NOTE

Specifications

Excitation: 12 to 40 Vdc [linear derating to 35 Vdc from 25 to 100°C (77°F to 212°F)]
Output: 4 to 20 mA
Insulation Resistance: 1000 M Ω @ 50 Vdc
Accuracy: 1% BFSL (includes non-linearity, repeatability, and hysteresis)
Zero Balance: ±0.4 mA
Span Tolerance: 16 ± 0.32 mA
Operable Temperature Range: 0 to 212°F (-18 to 100°C)
Compensated Temperature Range: 30 to 130°F (-1 to 54°C)
Thermal Zero Effect: Within ±1% of full scale over comp. temp. range
Thermal Span Effect: Within ±1% of reading over comp. temp. range
Proof Pressure: 2 x rated pressure (1.5 x FS ≥ 500 psi ranges)
Burst Pressure: 10 x rated pressure (5 x FS ≥ 500 psi ranges)
Body/Diaphragm Material: Brazed assembly of 300 series stainless steel
Shock: 50 Gs; 2.5 ms
Vibration: 20.7 G's rms; 20 to 2000 Hz
Pressure Port:

1

⁄8" NPT

Wire Port:

1

⁄2" NPT

Weight: 170 g (6 oz)

WARNING!

Read Before Installation

Fluid hammer and surges can destroy
any pressure transducer and must
always be avoided. A pressure snubber
should be installed to eliminate
damaging hammer effects.

Fluid hammer occurs when a liquid
flow is suddenly stopped, as with
quick-closing solenoid valves. Surges
occur when flow is suddenly begun, as
when a pump is turned on at full power
or a valve is quickly opened.

Liquid surges are particularly
damaging to pressure transducers if the
pipe is originally empty. To avoid
damaging surges, fluid lines should
remain full (if possible), pumps should
be brought up to power slowly, and
valves should be opened slowly. To
avoid damage from both fluid hammer
and surges, a surge chamber, and a
pressure snubber should be installed on
every transducer.

Symptoms of fluid hammer and surge's
damaging effects:

a) Pressure transducer exhibits an

output at zero pressure (large zero
offset). If zero offset is less than
10% FS, user can usually re-zero
meter, install proper snubber, and
continue monitoring pressures.

b) Pressure transducer output remains

constant regardless of pressure.

c) In severe cases, there will be no output.
