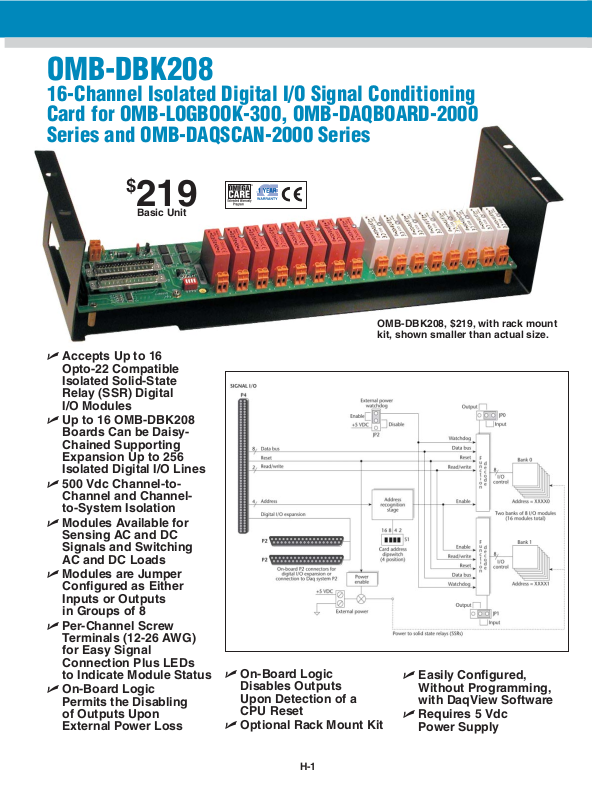

Omega Products OMB-DBK208 User Manual

H-1

⻬ Accepts Up to 16

Opto-22 Compatible
Isolated Solid-State
Relay (SSR) Digital
I/O Modules

⻬ Up to 16 OMB-DBK208

Boards Can be Daisy­Chained Supporting
Expansion Up to 256
Isolated Digital I/O Lines

⻬ 500 Vdc Channel-to-

Channel and Channel­to-System Isolation

⻬ Modules Available for

Sensing AC and DC
Signals and Switching
AC and DC Loads

⻬ Modules are Jumper

Configured as Either
Inputs or Outputs
in Groups of 8

⻬ Per-Channel Screw

Terminals (12-26 AWG)
for Easy Signal
Connection Plus LEDs
to Indicate Module Status

⻬ On-Board Logic

Permits the Disabling
of Outputs Upon
External Power Loss

⻬ Easily Configured,

Without Programming,
with DaqView Software

⻬ Requires 5 Vdc

Power Supply

OMB-DBK208

16-Channel Isolated Digital I/O Signal Conditioning
Card for OMB-LOGBOOK-300, OMB-DAQBOARD-2000
Series and OMB-DAQSCAN-2000 Series

$

219

Basic Unit

⻬ On-Board Logic

Disables Outputs
Upon Detection of a
CPU Reset

⻬ Optional Rack Mount Kit

OMB-DBK208, $219, with rack mount
kit, shown smaller than actual size.

H-2

H

The OMB-DBK208 signal
conditioning and expansion
board can be configured with up
to 16 isolated Opto-22 compatible
solid-state relay (SSR) digital I/O
modules. Two 8-channel banks can
be jumper-selected as either inputs
or outputs. Each channel features
screw terminals for the convenient
connection of field signals, as well
as LEDs to indicate channel status.

Each user-configurable signal
conditioning module offers 500 V
isolation from the system and from
other channels. A wide variety
of SSR I/O modules are available
to sense AC and DC signals and
to switch AC and DC loads.

An on-board jumper (JP2) allows
users to determine the status
of the digital outputs in the event
of the loss/recovery of external
power. When enabled, the loss of
external power disables module
outputs until the application program
writes new values to the data bus.
When disabled, the loss of power
has no effect on the state or
continued control of the outputs.
Additionally, on-board logic disables
module outputs upon detection of
a CPU reset.

For the OMB-DAQBOARD-2000
Series boards, only a single
OMB-CA-195 cable is required
to terminate to the OMB-DBK208.
For applications with digital I/O only
channel expansion requirements,
up to 16 OMB-DBK208 boards
can be daisy-chained via multiple
OMB-CA-37-x cables, providing
expansion up to 256 digital I/O
channels.

For applications with both analog
and digital I/O channel expansion
requirements, the OMB-DBK203,
OMB-DBK206 and OMB-DBK209
expansion- adaptor boards are
available. All OMB-DBK signal
conditioning and expansion boards
are scanned at 5 µs/channel.
The OMB-DBK208 ships with
panel hardware; it can also be
rack-mounted with the optional
OMB-RACK3 rack
mount kit.

Specifications

Module Capacity: 16 Opto-22

compatible solid-state-relays
Cable: OMB-CA-37-x
or OMB-CA-195

DC Input Fuse: 0.5A, reset type
Power Requirement: 5 Vdc,

regulated; 0.25 A min

Operating Temperature:

0 to 70°C (32 to 158°F)
Relative Humidity: 95%
RH non-condensing

Connectors:

P4: 100-pin connector

provides for connection to
OMB- DAQBOARD-2000
Series P4 connector via an
OMB-CA-195 cable
P2: 2 P2 (DB37) connectors
provide connection to a DAQ
system and digital expansion via
a single OMB-CA-37-x cable or

multiple OMB-CA-37-1 cables
Screw Terminals: 16 sets of
2-connector blocks for I/O signals

Isolation:

Channel-to-System: 500 V
Channel-to-Channel: 500 V

To Order

(Specify Model Number)

Model No. Price Description

OMB-DBK208 $219 16-channel isolated digital I/O signal conditioning card
OMB-RACK3 41 Rack mount kit for OMB-DBK208
ACO5-C 15 AC output SSR module, switches 3 to 280 Vac
AC15-C 15 AC input SSR module, 90 to 140 Vac input
DCO5-C 15 DC output SSR module, switches 3 to 60 Vdc input
DC15-C 15 DC input SSR module, 3.3 to 32 Vdc input
OMB-CA-195 79 100-conductor expansion cable

for OMB-DAQBOARD-2000, 0.9 m (3') long

OMB-CA-37-1 51 37-pin single option expansion cable for

OMB-DAQSCAN-2000 and OMB-LOGBOOK-300,
18 cm (7") long

AVAILABLE FOR FAST DELIVERY!

Ordering Example: OMB-DBK208, 16-channel isolated digital I/O signal conditioning card,
OMEGACARE 1 year extended warranty for OMB-DBK208 (adds 1 year to standard
1-year warranty), 8 ACO5-C AC output modules and 8 DCO5-C DC output modules,
$219 + 25 + 8(15) + 8(15) = $484.

OMB-DBK208, $219, shown
smaller than actual size
