Resource Checking for Windows
Table of contents
1 PCI DAQ card with Win 95/98................................................................. 4
2 ISA DAQ card with Win 95/98................................................................. 7
3 PCI/ISA DAQ card with Win NT ........................................................... 12
4 PCI/ISA DAQ card with Win 2000 ........................................................ 18
3
Page 4
Resource Checking for Windows
1 PCI DAQ card with Win 95/98
Follow the steps below to check for resource conflicts.
Figure 1-1. The “Start” menu
• Click the “Start” button.
• Select the “Settings” menu item.
• Select the “Control Panel” menu item.
Figure 1-2. The “Control Panel” window
Double click the “System” icon in the “Control Panel” folder.
4
Page 5
Resource Checking for Windows
Figure 1-3. The “System properties” window.
• Select the “Device Manager” page.
• Select the device “PCI-TMC12 Card” under the item “DAQCard”.
• Click button “Properties” to see detailed information.
Some PCI cards may be under the “Other Devices” item.
5
Page 6
Resource Checking for Windows

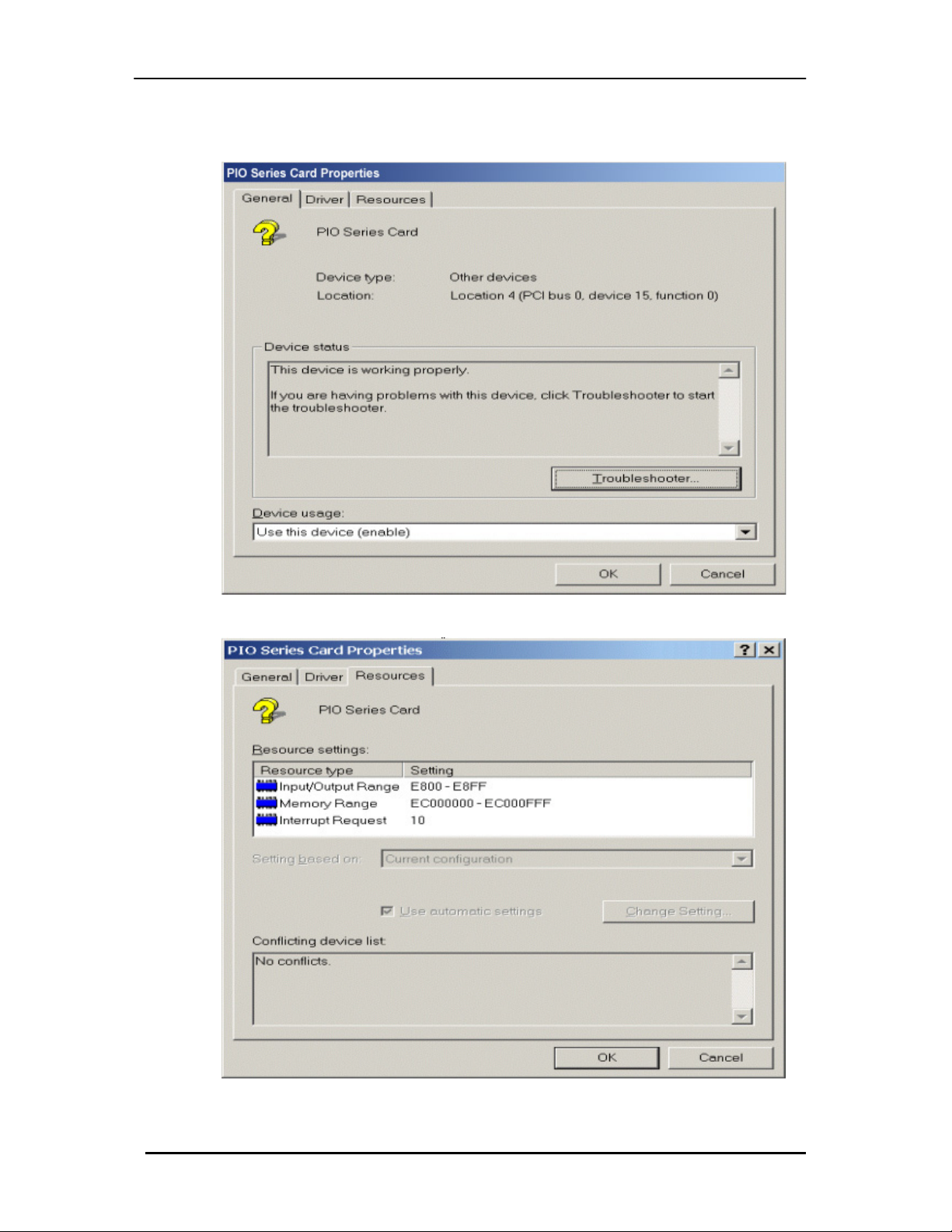

Figure 1-4. Detailed information of the PCI DAQ card.
• Select the “Resources” page.
• Please verify that this device has no conflicts with other devices.
• In the “Conflicting device list:” box, “No conflicts” should be
displayed.
If the IRQ number has conflicts with other devices, you can not use
INTERRUPT or DMA functions with the DAQ card.
If the DMA number has conflicts with other devices, you can not use
DMA functions with the DAQ card.
If the “Input/Output Range” has conflicts with other devices, the
DAQ card will not work.
The user may need to free some resource for the PCI DAQ card by
removing other devices to prevent conflict.
6
Page 7
Resource Checking for Windows
2 ISA DAQ card with Win 95/98
Follow the steps below to check if there are any resource conflicts.
Figure 2-1. The “Start” menu.
• Click the “Start” button .
• Select the “Settings” menu item.
• Select the “Control Panel” menu item.
Figure 2-2. The “Control Panel” window
Double click the “System” icon in the “Control Panel” folder.
7
Page 8
Resource Checking for Windows
Figure 2-3. “Device Manager”.
• Select the “Device Manager” page .
• Select the “Computer” item.
• Click the “Properties” button.
8
Page 9
Resource Checking for Windows
Figure 2-4. “View Resources”.
You must check if the card IRQ conflict with other devices.
The card IRQ will not be shown in the above window. You must set
the card IRQ number via the jumper on the card. The card IRQ number
should not be listed in the above window in order to prevent conflicts.
If there are no additional IRQs available for use by the DAQ card, you
may need to remove some other device to free an IRQ. Otherwise, you can
not use INTERRUPT and DMA functions of the DAQ card
9
Page 10
Resource Checking for Windows

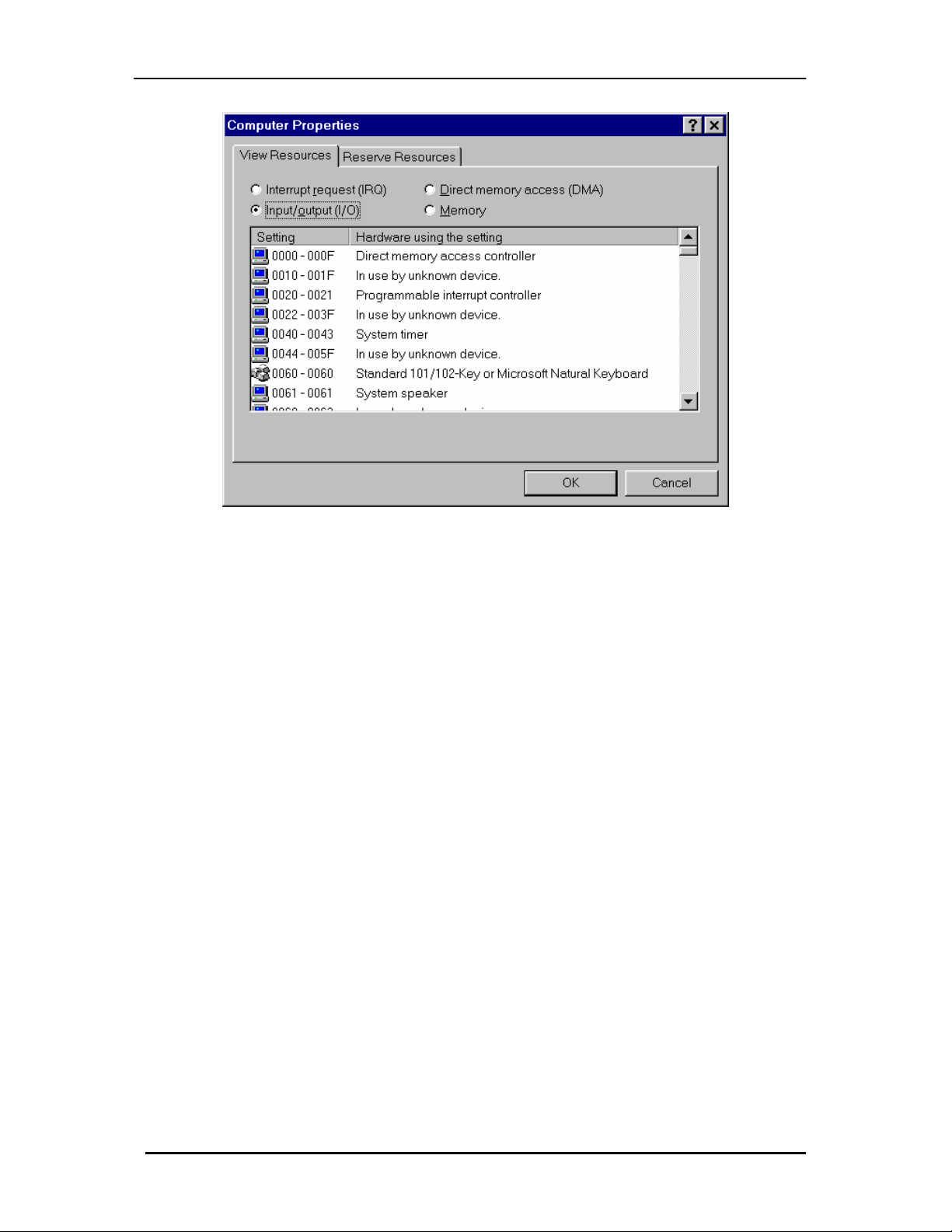

Figure 2-5. “View Resources”.
• Click the “Input/Output (I/O)” item to see the system resources.
Verify that the “Input/Output (I/O)” address of the DAQ card does not
conflict with any other device.
The “Input/Output (I/O)” address of the DAQ card will not be shown
in the above window. You must set the “Input/Output (I/O)” address of the
DAQ card by switches on the card. The “Input/Output (I/O)” address must
not be listed in the above window to prevent conflicts.
If Windows has no additional “Input/Output (I/O)” addresses
available for use by the DAQ card, you must remove some other device to
free the “Input/Output (I/O)” address.
10
Page 11
Resource Checking for Windows

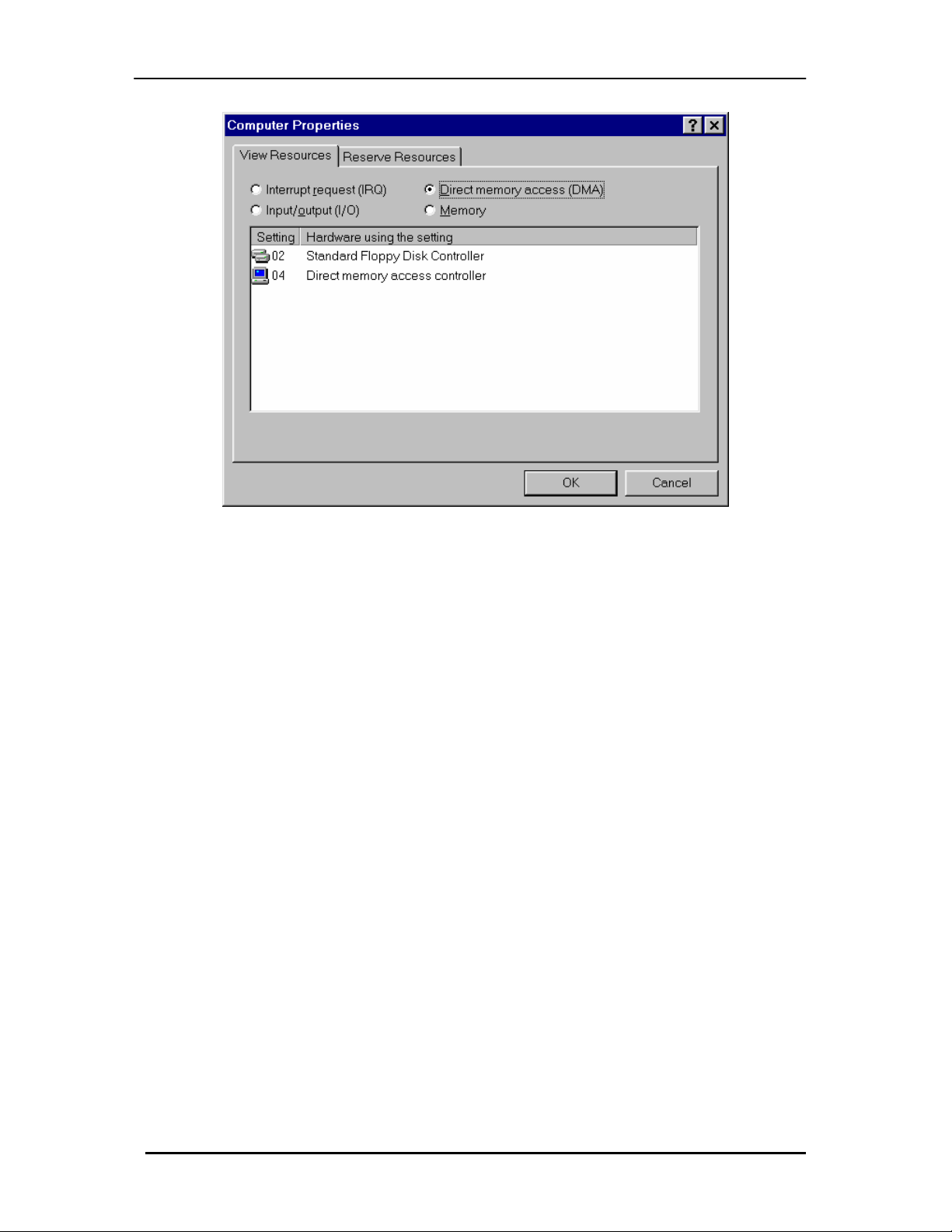

Figure 2-6. “View Resources”.
• Click the “Direct memory access (DMA)” item to see the
DMA resources.
You must verify that the DAQ card “Direct memory access
(DMA)” resource does not conflict any other devices.
The “Direct memory access (DMA)” resource for the DAQ card will
not be shown in the above window. The user must select the DAQ card’s
“Direct memory access (DMA)” channel by setting the jumper on the card.
The “Direct memory access (DMA)” channel must not listed in the above
window to prevent conflicts.
If Windows has no additional “Direct memory access (DMA)”
channels available, you may need to remove some other devices to free the
“Direct memory access (DMA)” resources. Or, the you must not use the
DMA functions of the DAQ card.
11
Page 12
Resource Checking for Windows
3 PCI/ISA DAQ card with Win NT
Please follow the steps below to check the resources in
Windows NT. If there is a conflict with the DAQ card you may need to
remove the other device to prevent the conflict.

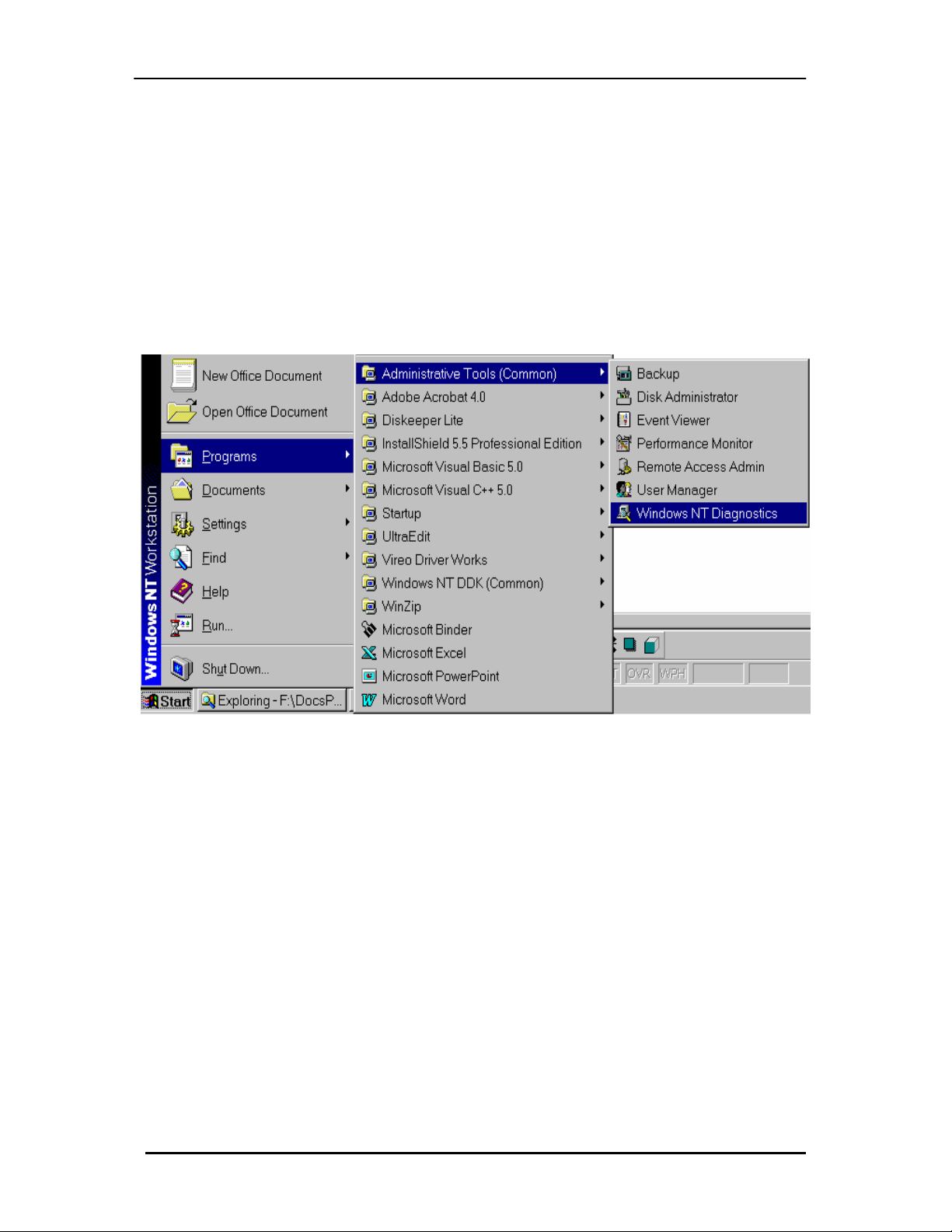

Figure 3-1. Click the “Start” button.
• Select the “Programs” menu item.
• Select the “Administrative Tools (Common)” menu item.
• Select the menu item “Windows NT Diagnostics”.
12
Page 13
Resource Checking for Windows

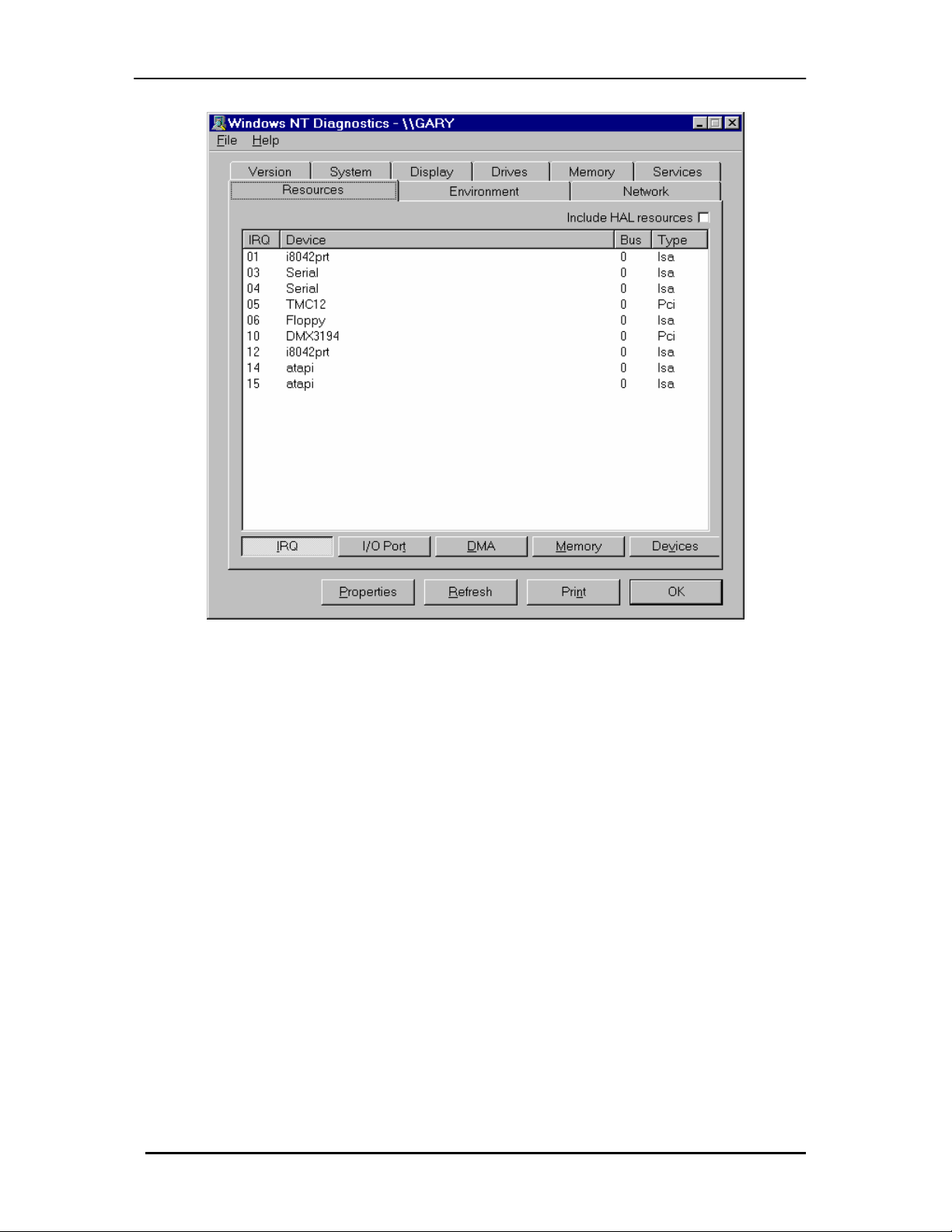

Figure 3-2. Click the “Resources” page.
You should verify that the IRQ of the DAQ card does not conflict
with any other device.
The IRQ of the ISA DAQ card will not be shown in the above
window. The user must select the IRQ number of the ISA DAQ card by
setting the jumper on the card. The IRQ number must not be listed in the
above window to prevent conflicts.
If Windows NT has no additional IRQs to be used by the DAQ card,
the user may need to unplug another device in order to free an IRQ.
Otherwise, the user must not use the INTERRUPT or DMA functions.
13
Page 14
Resource Checking for Windows

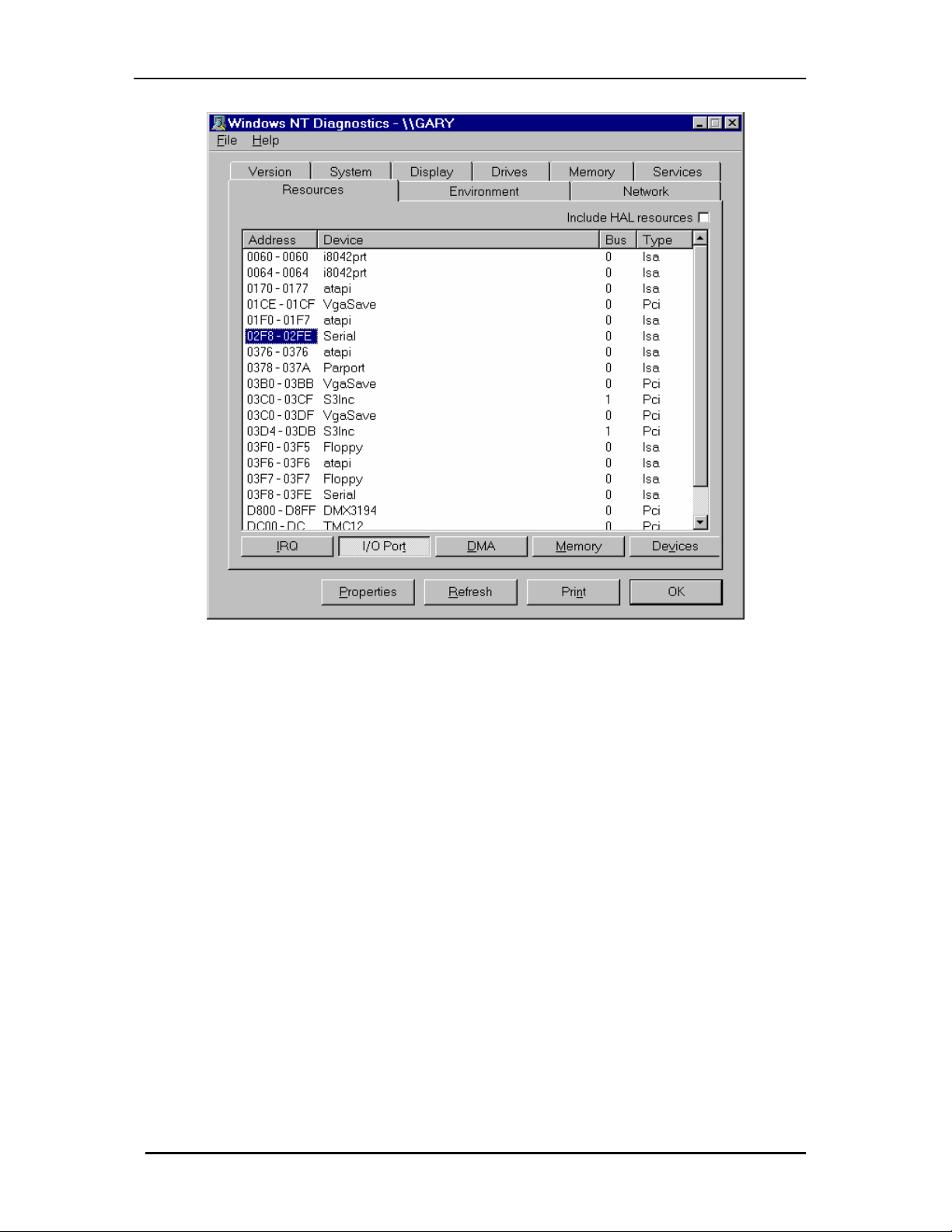

Figure 3-3. Click the“I/O Port” button.
Verify that the I/O Port address of DAQ card does not conflict with
any other device.
The I/O Port address of the ISA DAQ card will not be shown in the
above window. The user must select the I/O Port address of the ISA DAQ
card by setting the switch on the card. The I/O Port address must not be
listed in the above window to prevent conflicts.
If Windows NT has no available I/O Port addresses to be used by the
PCI/ISA DAQ card, you MUST unplug some other devices to free the I/O
Port address resources.
14
Page 15
Resource Checking for Windows

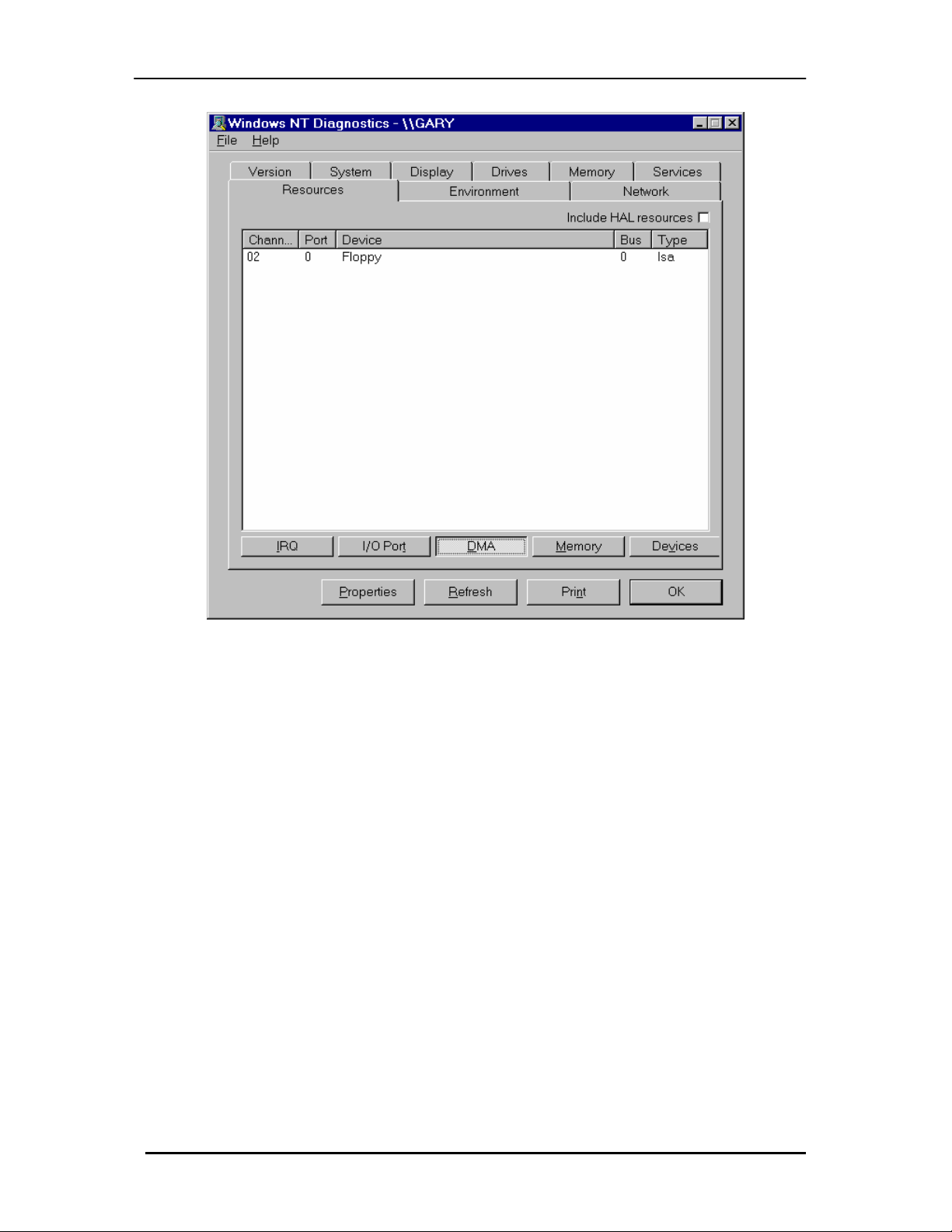

Figure 3-4. Click the “DMA” button.
Verify that the DMA resources of the PCI/ISA DAQ card does not
conflict with any other devices.
The DMA channel of the ISA DAQ card will not be shown in the
above window. The user must select the DMA channel of the ISA DAQ card
by setting the jumper on the card. Furthermore, the DMA channel must not
listed in the above window to prevent conflicts.
If Windows NT has no additional DMA channels available for use by
the DAQ card, you may need to remvove another device to free the DMA
resources. Otherwise, the you must not use theDMA functions.
15
Page 16
Resource Checking for Windows

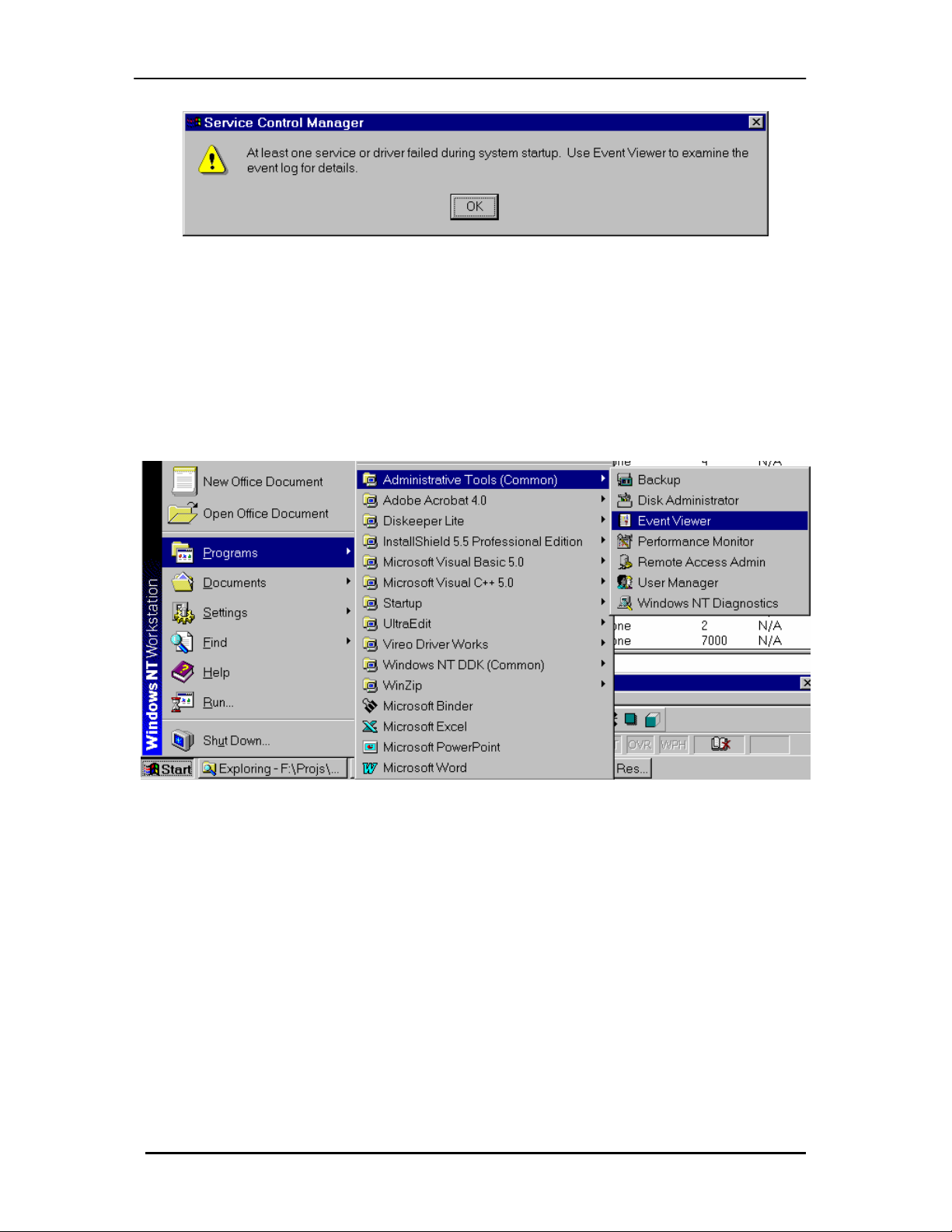

Figure 3-5. “Service Control Manager” window pops up when some services
or drivers failed.
In this case, the user should check the Windows “Event Viewer” to
determine the problem. Please follow the steps below.
Figure 3-6. Click the “Start” button.
• Select the “Programs” menu item.
• Select the “Administrative Tools (Common)” menu item.
• Select the “Event Viewer” menu item.
16
Page 17
Resource Checking for Windows

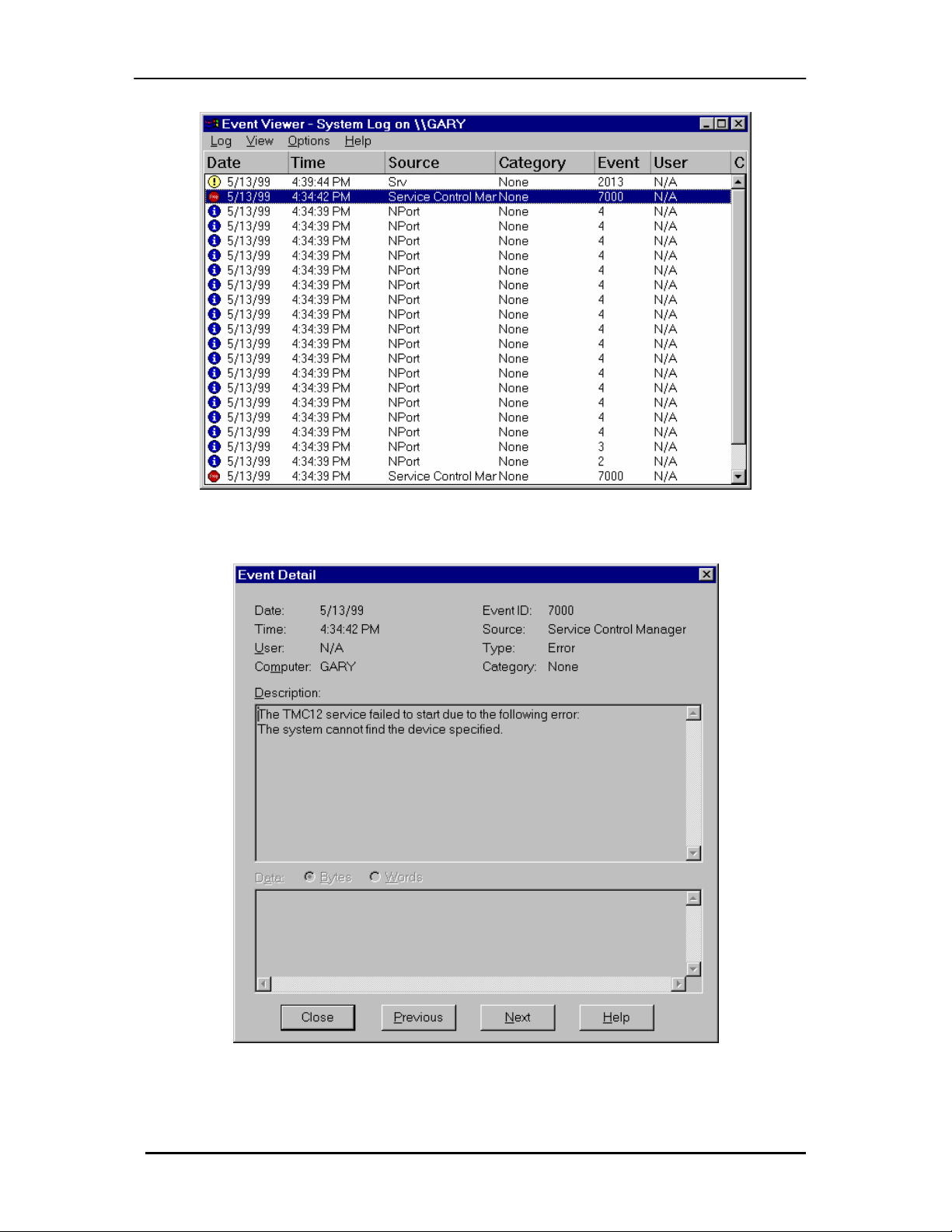

Figure 3-7. The “Event Viewer” window.
The user can double-click on the item to see detailed information.

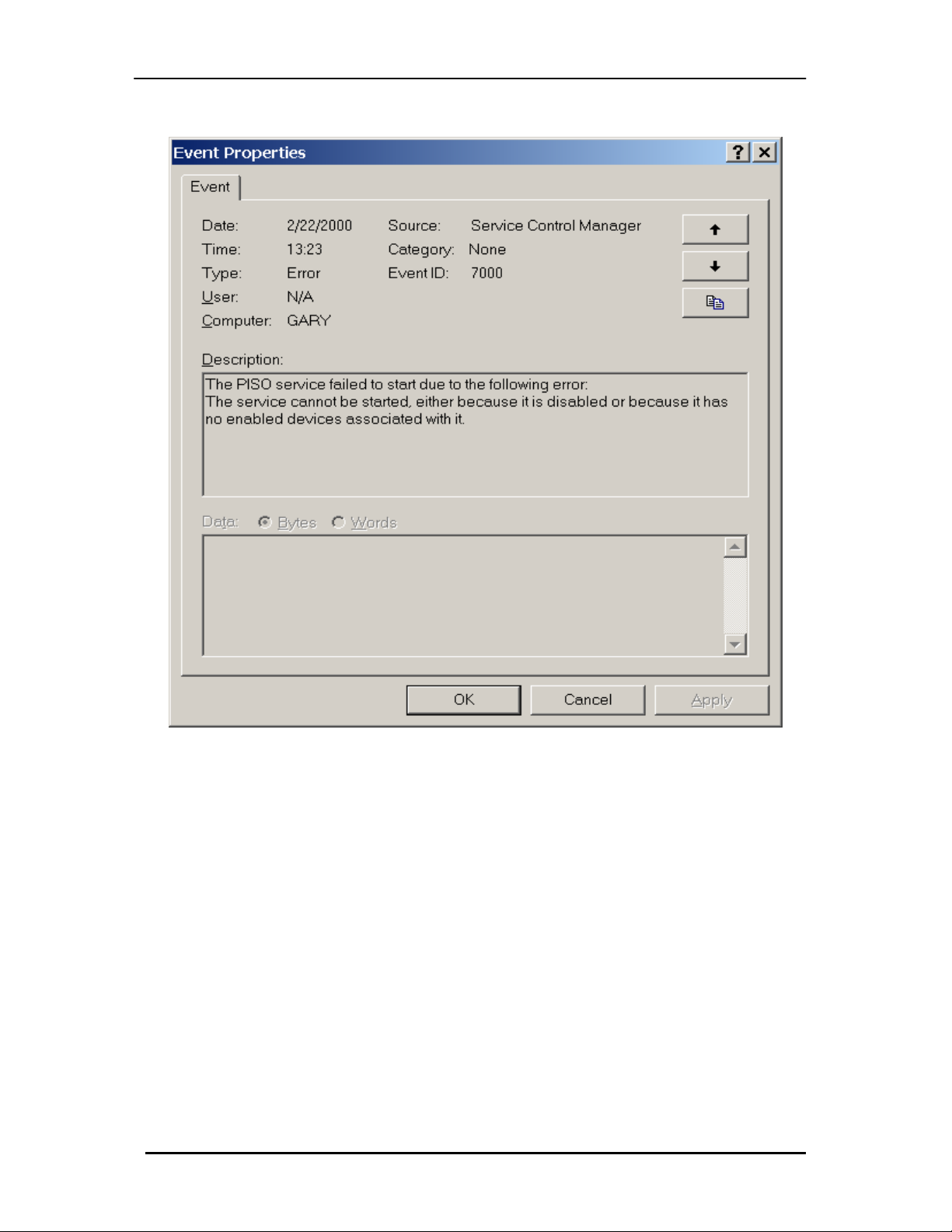

Figure 3-8. The “Event Detail”
The Description area shows a description of the event that occurred.
17
Page 18
Resource Checking for Windows
4 PCI/ISA DAQ card with Win 2000
Follow the steps below to check the resources on Windows
2000. If the DAQ card has conflicts, the user may need to free
resources by removing another device.

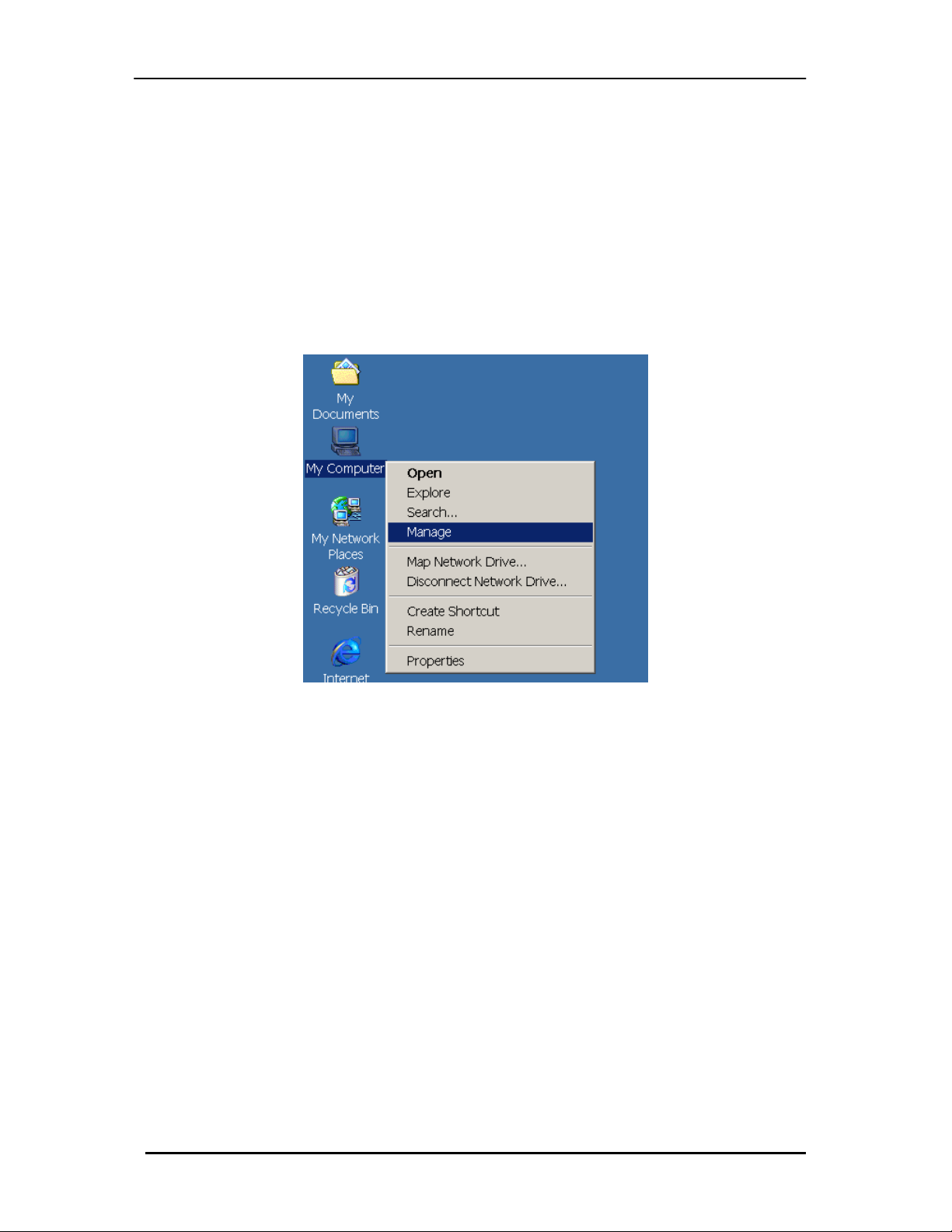

Figure 4-1. Open “Computer Management”.
• Right-Click the icon “My Computer”.
• Select the “Manage” menu item.
• “Computer Management” will popup, refer to figure 4-2.
18
Page 19
Resource Checking for Windows

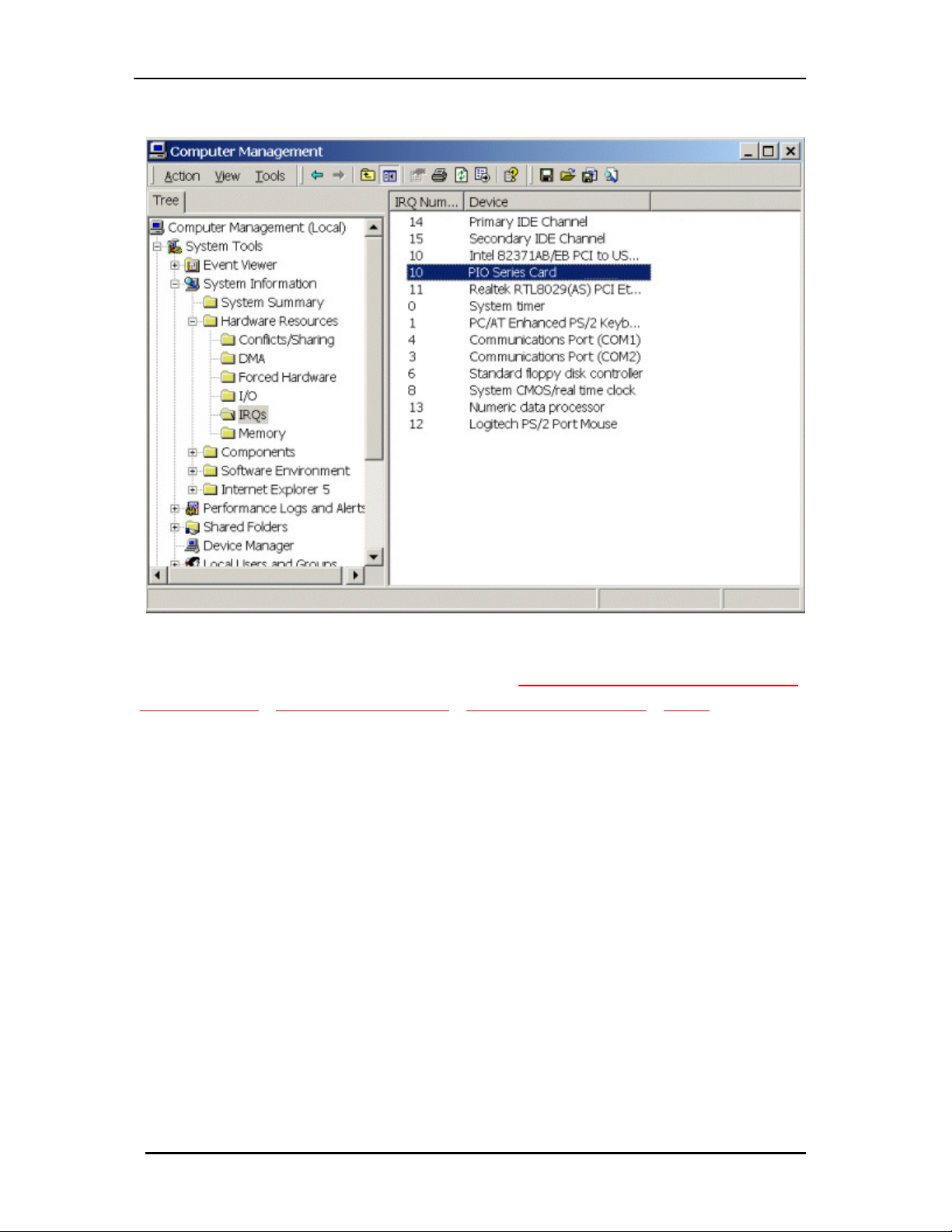

Figure 4-2. The “IRQs” resources under “Computer Management”.
Select the “IRQs” resources under “Computer Management (Local)
System Tools
/ System Information / Hardware Resources / IRQs”.
/
Verify that the IRQ of the DAQ card does not conflict with any other
device.
The IRQ of the ISA DAQ card will not be shown in the above
window. You must select the IRQ number of the ISA DAQ card by setting
the jumper on the card. Furthermore, the IRQ number must not listed in the
above window to prevent conflicts.
If Windows 2000 has no additional IRQs to be used by the PCI/ISA
DAQ card, the user may need to remove another device to free the IRQ
resources. Otherwise, the user must not use the INTERRUPT and DMA
functions.
19
Page 20
Resource Checking for Windows

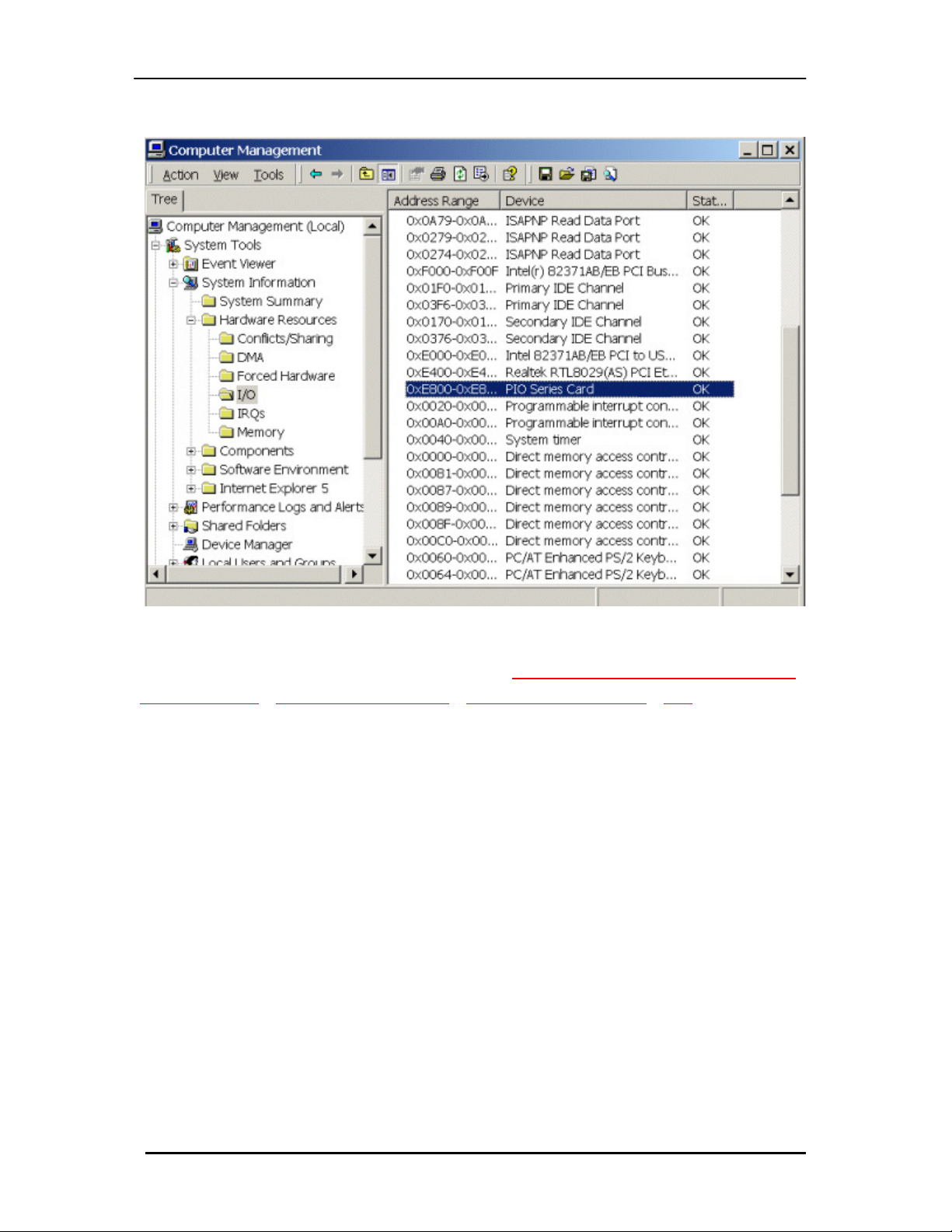

Figure 4-3. The “I/O” resources under “Computer Management”.
Select the “I/O” resources under “Computer Management (Local)
System Tools
/ System Information / Hardware Resources / I/O”.
/
Verify that the I/O Port address of the PCI/ISA DAQ does not
conflict with any other device.
The I/O Port address of the ISA DAQ card will not be shown in the
above window. The user must select the I/O Port address of the ISA DAQ
card by setting the switch on the card. Furthermore, the I/O Port address
must not listed in the above window to prevent conflicts.
If Windows 2000 has no additional I/O Port addresses available for
use by the PCI/ISA DAQ card, the user MUST remove another device to
free I/O Port addresses.
20
Page 21
Resource Checking for Windows

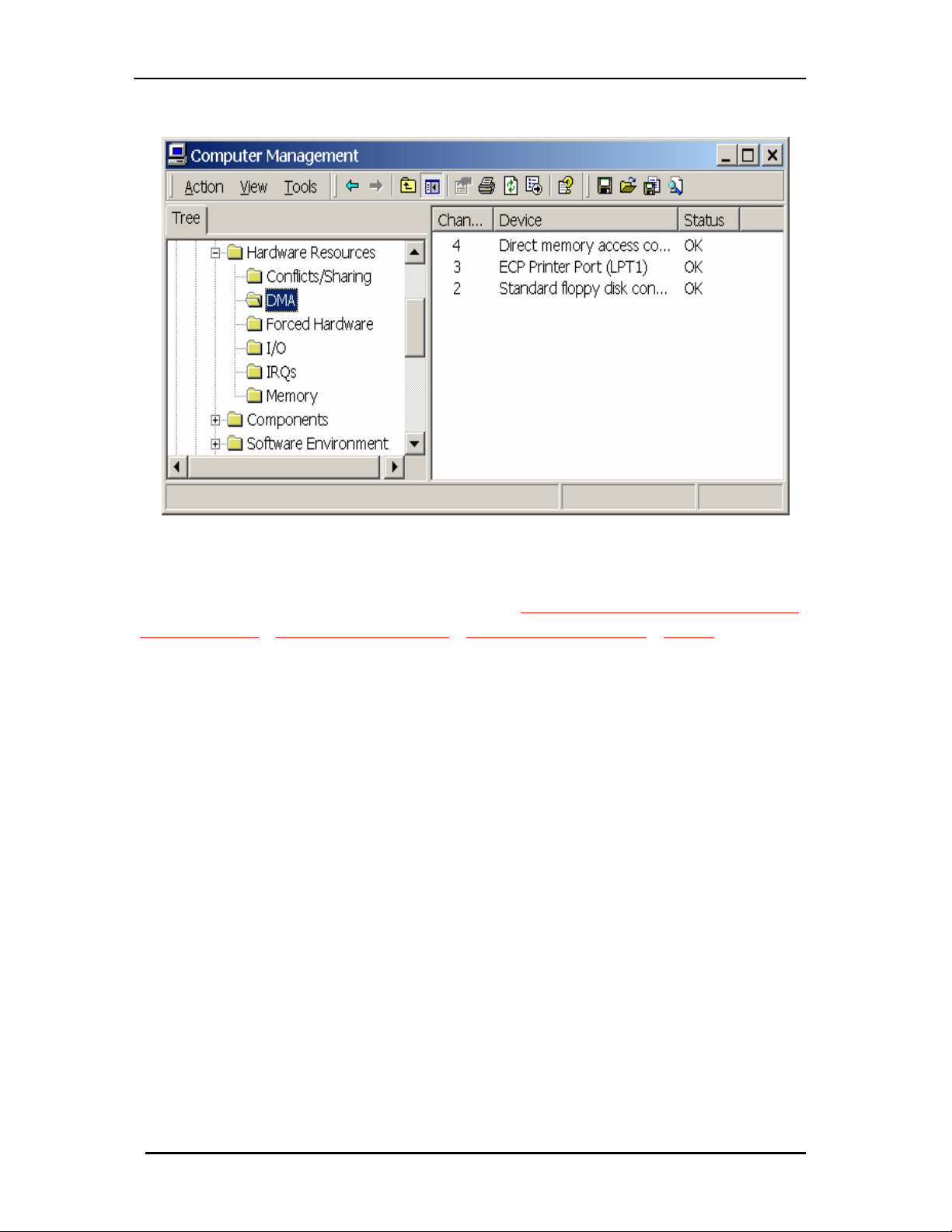

Figure 4-4. The “DMA” resources under “Computer Management”.
Select the “DMA” resources under “Computer Management (Local)
System Tools
/ System Information / Hardware Resources / DMA”.
/
Verify that the DMA channel of the PCI/ISA DAQ card does not
conflict with any other device.
The DMA channel of the ISA DAQ card will not be shown in the
above window. The user must select the DMA channel of the ISA DAQ card
by setting the jumper on the card. Furthermore, the DMA channel must not
listed in the above window to prevent conflicts.
If Windows 2000 has no additional DMA channels available for use
by the PCI/ISA DAQ card, the user may need to remove some other devices
to free DMA resources. Otherwise, the user must not use theDMA functions.
21
Page 22
Resource Checking for Windows
You may need to check the “Event Viewer” of Windows 2000 if a
service or driver fails. Please see the following figures to view detailed
information.

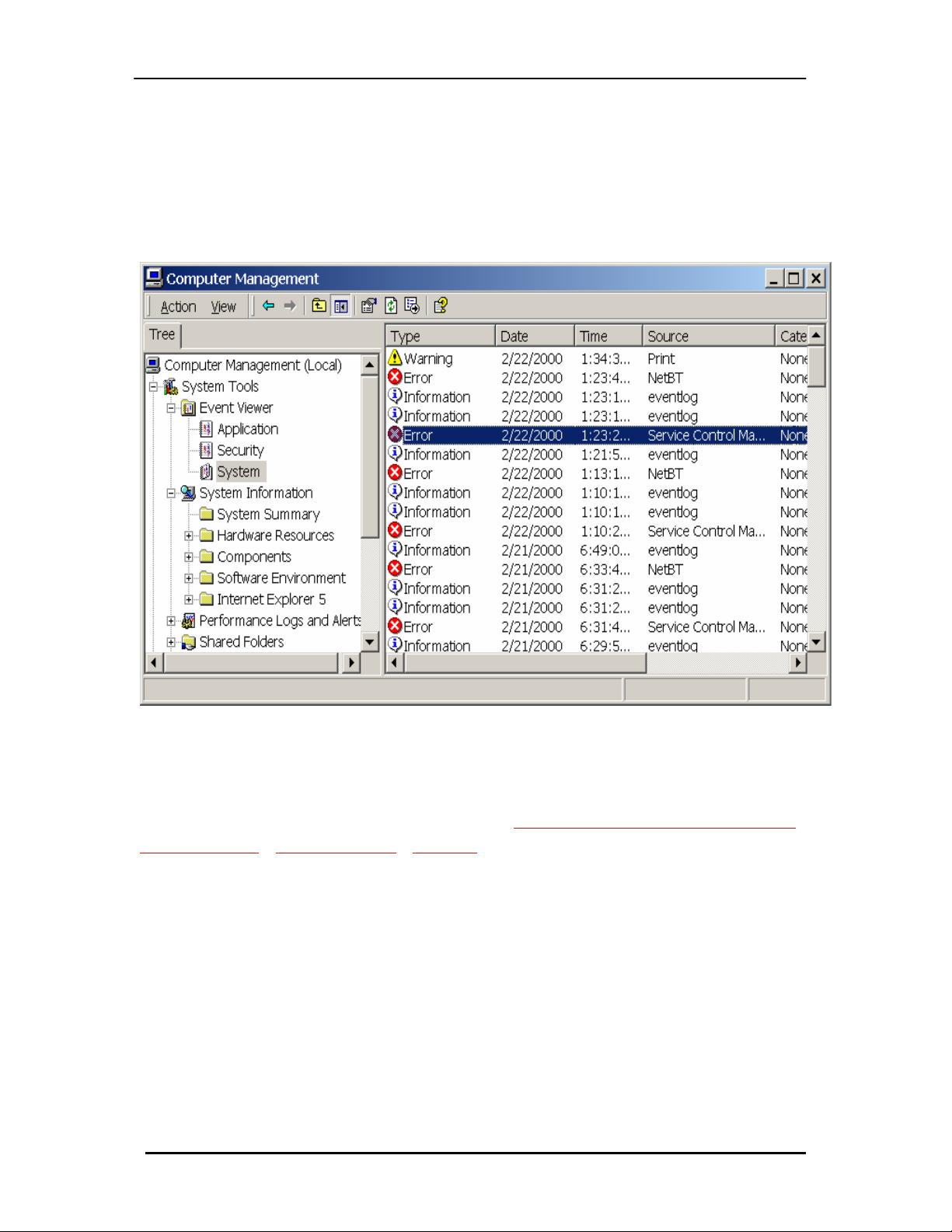

Figure 4-5. The “Event Viewer” under “Computer Management”.
Select the “Event Viewer” under “Computer Management (Local)
System Tools
/ Event Viewer / System”.
The user can double-click on the item to see detailed information.
Please refer to figure 4-6.
/
22
Page 23
Resource Checking for Windows
The Description message field provides information about the
problem.
Figure 4-6. The “Event Properties” window
23
Page 24
Resource Checking for Windows
As shown below, the device manager can also be used to view the
computer’s resources.

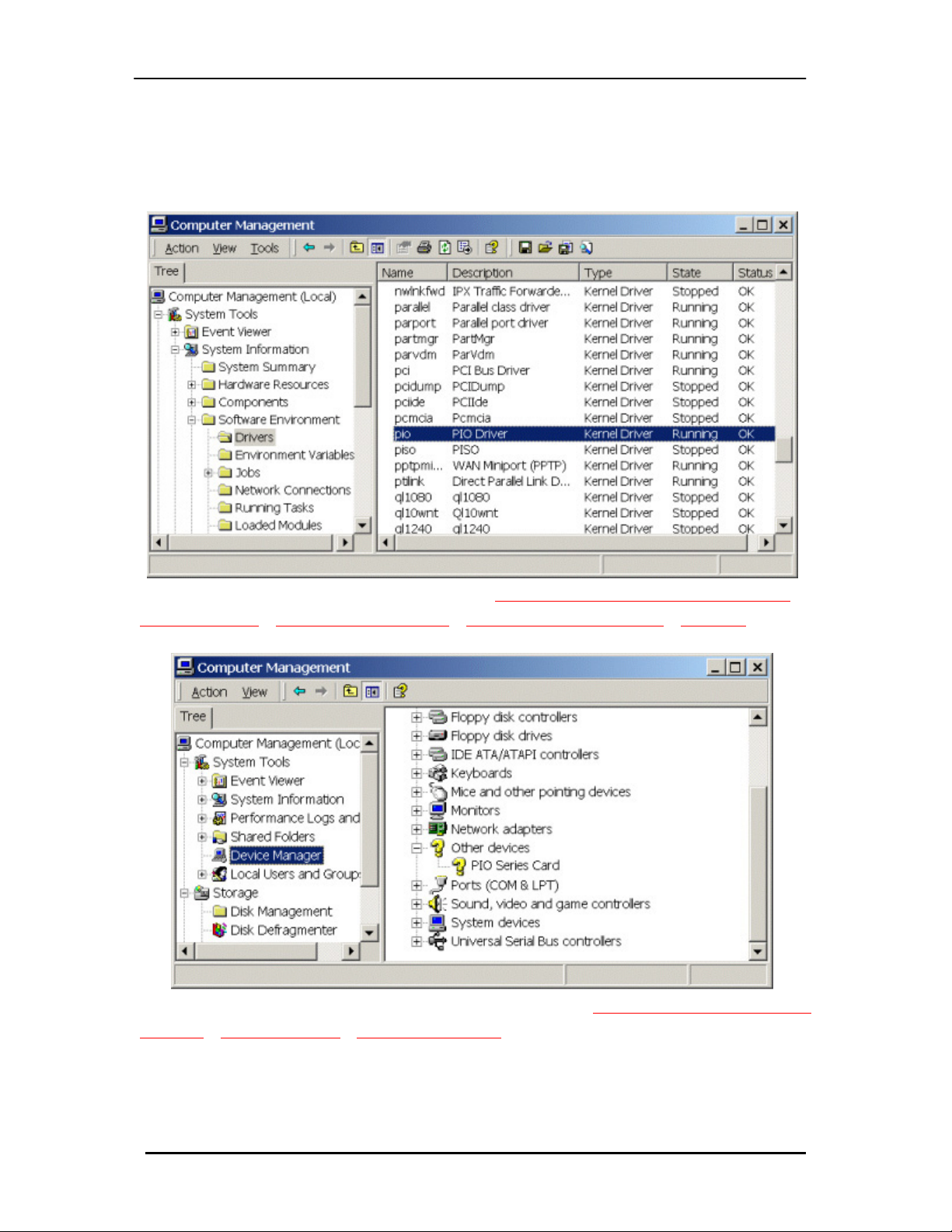

Figure 4-7. Select “Drivers” under “Computer Management (Local) /
System Tools
/ System Information / Software Environment / Drivers”.
Figure 4-8. Select “Device Manager” under “Computer Management
(Local) / System Tools / Device Manager”.
24
Page 25
Resource Checking for Windows
Double click on the item to show the detailed information.
Figure 4-9. General information.
Figure 4-10. Resources
25
Page 26
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR W
ARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
FOR NON-WARRANTY REPAIRS,
consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2002 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
Page 27
M3952/0403
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at www.omega.com
TEMPERATURE
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
Wire: Thermocouple, RTD & Thermistor
Calibrators & Ice Point References
Recorders, Controllers & Process Monitors
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
Transducers & Strain Gages
Load Cells & Pressure Gages
Displacement Transducers
Instrumentation & Accessories
FLOW/LEVEL
Rotameters, Gas Mass Flowmeters & Flow Computers
Air Velocity Indicators
Turbine/Paddlewheel Systems
Totalizers & Batch Controllers
pH/CONDUCTIVITY
pH Electrodes, Testers & Accessories
Benchtop/Laboratory Meters
Controllers, Calibrators, Simulators & Pumps
Industrial pH & Conductivity Equipment
DATA ACQUISITION
Data Acquisition & Engineering Software
Communications-Based Acquisition Systems
Plug-in Cards for Apple, IBM & Compatibles
Datalogging Systems
Recorders, Printers & Plotters
HEATERS
Heating Cable
Cartridge & Strip Heaters
Immersion & Band Heaters
Flexible Heaters
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
Metering & Control Instrumentation
Refractometers
Pumps & Tubing
Air, Soil & Water Monitors
Industrial Water & Wastewater Treatment
pH, Conductivity & Dissolved Oxygen Instruments
Loading...
