M-X
1
⁄
16
DIN COUNTERS AND
BATCH CONTROLLERS
SPECIFICATIONS
Display: 2-line by 6-digit LCD display,
positive image reflective or negative
image transmissive with red (top line)
and green (bottom line) backlighting
Main Display: 7.62 mm (0.3") high digits
Secondary Display: 5.08 mm (0.2")
high digits
Annunciators:
Value: PRS, 1, 2, and 3
Output: 01, 02, and 03
Power Requirements:
AC Power Units: 85 to 250 Vac,
50/60 Hz, 9 VA max or 11 to
14 Vdc@150 mA max
(Non PNP output models)
DC Power Units: 18 to 36 Vdc;
5.5 W max or 24 Vac (±10%);
50/60 Hz; 7 VA max
DPF940000 Series
Starts at
$
148
⻬ Compact 1⁄16 DIN Size
⻬ Bi-Directional Counting,
Up/Down Control
⻬ 2-Line, 6-Digit Display,
Reflective or Backlit LCD,
with Output Status
Indicators
⻬ Prescaler Output
Available–Pulse Signal for
Every Single or Every 10
Counts Registered on the
Display
⻬ Programmable User Inputs
and Function Keys
⻬ Programmable Access
Privileges
⻬ NEMA 4X (IP65) Sealed
Bezel
⻬ RS485 Communications
Available
Available for either standard count or
batch control, the DPF94 Series is
available in three styles: single preset
(setpoint); dual preset with dual
outputs; and 3 preset batch models.
Dual preset models are also available
with a prescaler output, a variable
width pulse that will turn off after a
programmed number of count input
pulses (1 thru 9). The prescaler
output can also be programmed to
activate on every 10 counts. Dual and
3 preset models are also available
with optional RS485 communications.
Each unit features a dual display, with
either reflective or backlit color LCD.
The main display indicates the count
value (or the batch/total value when
preset 3 or output 3 is viewed in the
secondary display). The smaller,
secondary display can be used to
view the prescaler value, preset
values, output time values or
batch/total count values.
Single Preset
Models feature a solid-state output
that operates in parallel with a relay
output.
Dual Preset
Models feature two outputs that are
activated from presets 1 or 2,
respectively. Either relays or solidstate outputs are available.
Dual Preset with Prescaler
Models are dual preset counters with
solid-state outputs. An additional
output, configured as a prescaler
output. A pulse signal is generated
each time the display value
increases. The pulse width is
variable, in that the output will turn off
after a programmed number of count
input pulses has occurred
(1 to 9). The prescaler can also be
programmed to activate on every 10
counts. Prescale models are limited
to two programmable count modes
and prescale values of
1.00000 or less.
3 Preset Batch
Models feature a secondary counter
that can be used for batch counting,
or to keep a total count. This
secondary counter can be
programmed for one of 8 operating
modes. The first two outputs are
assigned to the primary process
counter, while output 3 is assigned to
the secondary counter.
DPF940020, $174
M-X
M
SINGLE PRESET MODELS
User Inputs: Configurable as current
sinking (active low) or current sourcing
(active high) inputs via a single plug
jumper
Current Sinking: VIL = 1.5 Vdc max,
22 kΩ pull-up to 5 Vdc
Current Sourcing: VIH = 3.5 Vdc min,
VIN max = 30 Vdc; 22 kΩ pulldown
Response Time: 10 msec max Inhibit
Response Time: 250 msec max
Outputs (Output Type and Quantity,
Model Dependent):
Solid-State:
NPN Open Collector: ISNK = 100 mA
max @ VOL = 1.1 Vdc max;
VOH = 30 Vdc max
PNP Open Collector: ISRC = 100 mA
max (See note); VOH = 12 Vdc ±15%
(using internal supply); VOH = 13 to
30 Vdc (using external supply)
Relay: Form A contact, Rating = 5 A
@ 250 Vac, 30 Vdc (resistive load),
1
⁄10 HP @ 120 Vac (inductive load)
Relay Life Expectancy: 100,000
cycles min at max load rating
Programmable Timed Output: User
selectable output time resolution
0.01 Second Resolution: 0.01 to
99.99 sec, ± 0.01% + 20 msec max
(prescalers less than 2)
0.1 Second Resolution: 0.1 to
999.9 sec, ±0.01% + 100 msec
(Prescalers less than 2)
Note: For prescaler values above 2, the
timed delay output is affected by the count
speed (rate).
RS485 Serial Communications
(Optional): Up to 32 units can be
connected
Baud Rate: Programmable from 1200
to 9600 baud
Address: Programmable from 0 to 99
9.4
(0.37)
105.9
(4.17)
44.7
(1.76)
44.7 (1.76)
45
(1.772)
45
(1.772)
49.5
(1.95)
49.5
(1.95)
Dimensions: mm (in)
Peak (Start-Up Current):
AC or DC Power: 500 mA for
10 msec max
DC Out (Terminal 10): For units
which do not have PNP current
sourcing outputs, this terminal
provides a DC output for sensor
power (12 Vdc ±15%). The
maximum sensor current is 100 mA.
For units with PNP current sourcing
outputs,this terminal serves a dual
purpose depending on the
applications PNP output voltage level
and current requirements. If a higher
PNP output voltage level or
additional output sourcing current
is desired, an external DC supply
may be connected. This supply will
determine the PNP output voltage
level, and must be in the range of
13 to 30 Vdc. The maximum current
rating of 100 mA per individual
output must not be exceeded,
regardless of external supply
capacity.
Memory: Nonvolatile EEPROM retains
all programmable parameters and
count values
Sensor Power: 12 Vdc (±15%)
@ 100 mA max
Count Inputs A and B: Accepts count
pulses from a variety of sources, DIP
switch selectable
Current Sourcing: 3.9 kΩ pull-down,
VIN max = 30 Vdc
Current Sinking: 7.8 kΩ pull-up to
12 Vdc; ISNK = 1.8 mA max
Debounce: 50 Hz max
Lo Bias: VIL = 1.5 Vdc max,
VIH = 3.75 Vdc min
Hi Bias: VIL = 5.5 Vdc max,
VIH = 7.5 Vdc min
Maximum Count Rate: Model
dependent.
Note: See operator’s manual for details
Data Format: 10 bit frame, 1 start bit,
7 or 8 data bits, 1 or no parity bit, and
1 stop bit
Parity: Programmable for odd
(7 data bits), even (7 data bits),
or none (8 data bits)
Electromagnetic Compatability:
Refer to EMC Installation Guidelines
section of the manual
Environmental Conditions:
Operating Temperature: 0 to 50°C
(32 to 122°F)
Storage Temperature: -40 to 70°C
(-40 to 158°F)
Operating and Storage Humidity:
85% max relative humidity
(non-condensing) from 0 to 50°C
Altitude: Up to 2000 meters (6562')
Electrical Connections: Wire
clamping screw terminals
Construction: Black plastic case with
collar style panel latch. The panel latch
can be installed for horizontal or vertical
stacking. Black plastic textured bezel
with clear display viewing window. Unit
assembly with circuit boards can be
removed from the case without removing
the case from the panel or disconnecting
the wiring. Front panel meets NEMA 4X
(IP65) requirements for indoor use, when
properly installed. Installation Category
II, Pollution Degree 2
Weight: 170 g (6.0 oz)
To Order
(Specify Model Number)
AC Power DC Power Display
Model No. Price Model No. Price Type (LCD) Output(s)
DPF940600 $148 DPF940601 $148 Reflective Relay and NPN
DPF940610 168 DPF940611 180 Reflective Relay and PNP
DPF940620 180 DPF940621 190
Color backlit Relay and NPN
DPF940630 180 DPF940631 190
Color backlit Relay and PNP
MOST POPULAR MODELS HIGHLIGHTED!
Ordering Example: DPF940600, single preset counter with reflective LCD relay and NPN outputs, $148.
DPF940620
DPF940611

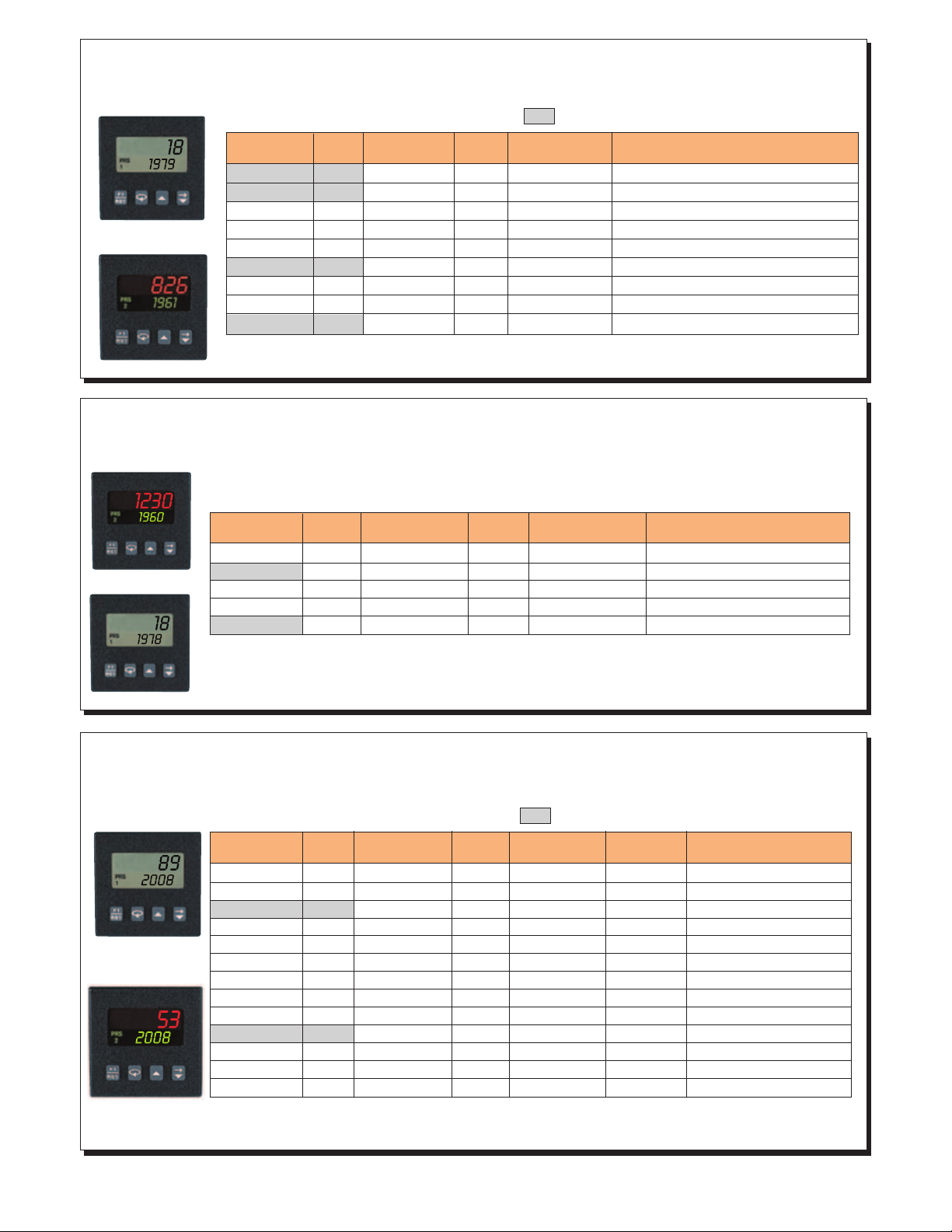

M-X
DUAL PRESET COUNTERS/
BATCH CONTROLLERS
MOST POPULAR MODELS HIGHLIGHTED!
DUAL PRESET WITH PRESCALER COUNTERS/
BATCH CONTROLLERS
THREE PRESET COUNTERS/
BATCH CONTROLLERS
MOST POPULAR MODELS HIGHLIGHTED!
AVAILABLE FOR FAST DELIVERY!
AC Power DC Power Display
Model No. Price Model No. Price Type (LCD) Output(s)
DPF940200 $184 DPF940201 $184 Reflective Dual relay
DPF940210 211 DPF940211 221 Reflective Dual NPN, RS485
DPF940220 213 DPF940221 223 Reflective Dual relay, RS485
DPF940230 193 DPF940231 204 Color backlit Dual NPN
DPF940240 193 DPF940241 204 Color backlit Dual PNP
DPF940250 195 DPF940251 206 Color backlit Dual relay
DPF940260 221 DPF940261 233 Color backlit Dual NPN, RS485
DPF940270 221 DPF940271 233 Color backlit Dual PNP, RS485
DPF940280 223 DPF940281 235 Color backlit Dual relay, RS485
AC Power DC Power Display
Model No. Price Model No. Price Type (LCD) Output(s)
DPF940400 $193 DPF940401 $204 Reflective Dual PNP
DPF940410 221 DPF940411 233 Reflective Dual NPN, RS485
DPF940420 204 DPF940421 214 Color backlit Dual NPN
DPF940430 204 DPF940431 214 Color backlit Dual PNP
DPF940440 233 DPF940441 243 Color backlit Dual NPN, RS485
Note: Prescaler output models are limited to two programmable count modes and prescaler values of 1.00000 or less.
Ordering Example: DPF940410, dual preset counter with reflective LCD, AC power, 2 NPN outputs and RS485
communications, $221.
Ordering Example: DPF940250, dual preset counter backlit LCD with 2 relay outputs, $195.
DPF940230
DPF940221
DPF940420
DPF940411
AC Power DC Power Display Other
Model No. Price Model No. Price Type (LCD) Output 1 Outputs
DPF940010 $193 DPF940011 $204 Reflective PNP Dual PNP
DPF940020 174 - - Reflective NPN Dual relay
DPF940030 195 DPF940031 185 Reflective PNP Dual relay
DPF940040 221 - - Reflective NPN Dual NPN, RS485
DPF940050 223 - - Reflective NPN Dual relay, RS485
DPF940060 223 DPF940061 235 Reflective PNP Dual relay, RS485
DPF940070 204 DPF940071 214 Color backlit NPN Dual NPN
DPF940080 204 DPF940081 214 Color backlit PNP Dual PNP
DPF940090 206 - - Color backlit NPN Dual relay
DPF940100 206 DPF940101 216 Color backlit PNP Dual relay
DPF940110 233 - - Color backlit NPN Dual NPN, RS485
DPF940120 235 - - Color backlit NPN Dual relay, RS485
DPF940130 235 DPF940131 245 Color backlit PNP Dual relay, RS485
Ordering Example: DPF940030, 3 preset batch controller with reflective LCD, PNP and dual relay outputs, $195.
DPF940080
DPF940011
One Omega Drive | Stamford, CT 06907 | 1-888-TC-OMEGA (1-888-826-6342) | info@omega.com
EPG05
www.omega.com
UNITED KINGDOM
www. omega.co.uk
Manchester, England
0800-488-488
UNITED STATES
www.omega.com
1-800-TC-OMEGA
Stamford, CT.
CANADA
www.omega.ca
Laval(Quebec)
1-800-TC-OMEGA
GERMANY
www.omega.de
Deckenpfronn, Germany
0800-8266342
Karviná, Czech Republic
FRANCE
www.omega.fr
Guyancourt, France
088-466-342
CZECH REPUBLIC
www.omegaeng.cz
596-311-899
BENELUX
www.omega.nl
Amstelveen, NL
0800-099-33-44
More than 100,000 Products Available!
Temperature
Calibrators, Connectors, General Test and Measurement
Instruments, Glass Bulb Thermometers, Handheld Instruments
for Temperature Measurement, Ice Point References,
Indicating Labels, Crayons, Cements and Lacquers, Infrared
Temperature Measurement Instruments, Recorders Relative
Humidity Measurement Instruments, RTD Probes, Elements
and Assemblies, Temperature & Process Meters, Timers and
Counters, Temperature and Process Controllers and Power
Switching Devices, Thermistor Elements, Probes and
Assemblies,Thermocouples Thermowells and Head and Well
Assemblies, Transmitters, Wire
Flow and Level
Air Velocity Indicators, Doppler Flowmeters, Level
Measurement, Magnetic Flowmeters, Mass Flowmeters,
Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel
Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area
Flowmeters, Vortex Shedding Flowmeters
pH and Conductivity
Conductivity Instrumentation, Dissolved Oxygen
Instrumentation, Environmental Instrumentation, pH
Electrodes and Instruments, Water and Soil Analysis
Instrumentation
Data Acquisition
Auto-Dialers and Alarm Monitoring Systems,
Communication Products and Converters, Data
Acquisition and Analysis Software, Data Loggers
Plug-in Cards, Signal Conditioners, USB, RS232, RS485
and Parallel Port Data Acquisition Systems, Wireless
Transmitters and Receivers
Pressure, Strain and Force
Displacement Transducers, Dynamic Measurement
Force Sensors, Instrumentation for Pressure and Strain
Measurements, Load Cells, Pressure Gauges, Pressure
Reference Section, Pressure Switches, Pressure Transducers,
Proximity Transducers, Regulators,
Strain Gages, Torque Transducers, Valves
Heaters
Band Heaters, Cartridge Heaters, Circulation Heaters,
Comfort Heaters, Controllers, Meters and Switching
Devices, Flexible Heaters, General Test and Measurement
Instruments, Heater Hook-up Wire, Heating Cable
Systems, Immersion Heaters, Process Air and Duct,
Heaters, Radiant Heaters, Strip Heaters, Tubular Heaters
click here to go to the omega.com home page
Loading...
