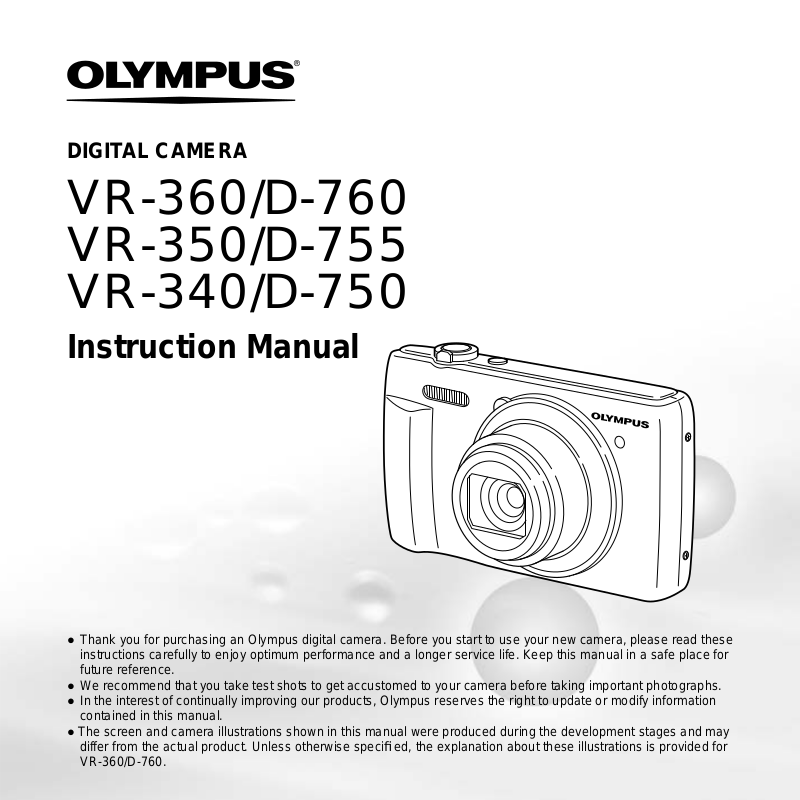

Olympus D-750, D-755, D-760, VG-340, VG-350 Instruction Manual

...

VR-360/D-760 VR-350/D-755 VR-340/D-750

DIGITAL CAMERA

VR-360/D-760 VR-350/D-755 VR-340/D-750

Instruction Manual

● Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

● We recommend that you take test shots to get accustomed to your camera before taking important photographs.

● In the interest of continually improving our products, Olympus reserves the right to update or modify information

contained in this manual.

● The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product. Unless otherwise speciﬁ ed, the explanation about these illustrations is provided for VR-360/D-760.

Checking the contents of the box

Names of Parts

Checking the contents of the box

Digital camera

Other accessories not shown: warranty card Contents may vary depending on purchase location.

Names of Parts

Strap AV cable

Camera unit

1 2

4 5

LI-50B Lithium

Ion Battery

F-2AC

USB-AC adapter

USB cable

(CB-USB7)

7 8 9

(CB-AVC5)

1 Connector cover 2 HDMI mini connector 3 Strap eyelet 4 Multi-connector 5 Battery/card compartment

cover

6 Battery/card compartment

lock

7 Flash 8 Self-timer lamp

AF illuminator

9 Lens 10 Microphone 11

Tripod socket

12 Speaker

VR-360/D-760 only

OLYMPUS

Setup

CD-ROM

1 4

Attaching the camera strap

Pull the strap tight so that it does not come loose.

1 n button 2 Shutter button 3 Monitor 4 Zoom lever 5 R button (shooting movies) 6 q button (switch between

shooting and playback)

7 Indicator lamp 8 Arrow pad

5 6 7 8

INFO button (change

information display)

 button (erase)

9 Q button (OK)

button (camera guide)

 button

10 11

Monitor

Shooting mode display

Date

ORM

0:00:340:00:34

1517181916 1114 13

F3.0F3.01/1001/100

222324

AUTOWBAUTO AUTO

AUTO

1 Shooting mode .......p. 16, 24

2 Flash ..............................p.19

Flash standby/ﬂ ash charge

....................................p. 55

3 Macro ...........................p. 30

0.00.0

4 Self-timer ......................p. 30

5 Exposure compensation

ISO

....................................p. 31

6 White balance ............... p. 31

7 ISO ............................... p. 32

8 Drive .............................p. 32

Image size

(still images)................p. 33

Recording with sound

(movies) ......................p. 36

Image size (movies) .....p. 34

Recording length

(movies) ......................p. 63

Movie recording icon ....p. 17

World time ....................p. 48

Image Stabilizer

(still images)................p. 35

Date stamp ...................p. 37

Compression

(still images)................p. 34

Number of storable pictures

(still images)................p. 16

Current memory ...........p. 61

Battery check ................p. 12

AF target mark ..............p. 17

Aperture value ..............p. 17

Shutter speed ...............p. 17

Camera shake warning

Playback mode display

2.02.0F3.0F3.01/10001/1000

100-0004

AUTOWBAUTOWB100

ISO 100

ISO

MAGICMAGIC

’12/02/26 12:30

ORM

Playback mode display

● Normal display

1 8732 45 6

1010

3D3D

Still image Movie

● Detailed display

32 45 61 87

1010

MAGICMAGIC

ISO

100

ORM

’12/02/26 12:30

12:30’12/02/26’12/02/26 12:30

AUTOWBAUTO

100-0004

4/304/30

1 Battery check ................p. 12

1110 129

2.02.0F3.0F3.01/10001/1000

00:1

2/00:3400:12/00:34

2 3D image

3 Eye-Fi transferred .........p. 42

4 Protect .......................... p. 41

5 Adding sound ...............p. 39

6 Print reservation/number of

7 Current memory ...........p. 61

8 Frame number/

9 P ............................ p. 27

10 Shutter speed ...............p. 17

11 Shooting mode .......p. 16, 24

12 ISO ...............................p. 32

13 Aperture value ..............p. 17

14 Exposure compensation

15 16

15 White balance ............... p. 31

16 File number 17 Compression

18 Date and time ...............p. 15

19 Image size ....................p. 33

20 Volume .........................p. 44

VR-360/D-760 only

....................p. 23

prints ...................p. 53/p. 52

total number of images

....................................p. 20

Elapsed time/

total shooting time

(movies) ......................p. 21

....................................p. 31

(still images)................p. 34

Frame rate

(movies) ......................p. 34

Camera Settings

Using the Direct Buttons

Camera Settings

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Arrow pad

F (up) /

INFO button (change information display) (p. 19, 22)

Zoom lever (p. 18, 22) Shutter button (p. 17)

R button (shooting movies) (p. 17) q button (switch between shooting and

playback) (p. 20)

 button (p. 9)

E button (camera guide) (p. 23)

H (left)

G (down) /

 button (erase) (p. 21)

I (right)

Q button

Operation guide

The symbols FGHI displayed for image selections and settings indicate that the arrow pad is to be used.

Y M D Time

02 26 12 30:..

2012

Operation guides displayed on the screen indicate that the  button, Q button, or zoom lever can be used.

Camera Menu 1

ResetReset Compression AF Mode Digital Zoom Image Stabilizer AF Illuminat. Icon Guide

Back

Face/iESP

Back

Y/M/D

Sel. Image Back

‘12/02/26 12:30

Sel. Image

‘12/02/26 12:30

(1)

Single Print More

Back

Normal

Off On On On

4/30

ORM

100-0004

Operation guide

4/30

Erase/Cancel

Using the Menu

Function menu

Using the Menu

Use the menu to change camera settings such as the shooting mode.

There may be menus that are unavailable depending on other related settings or the  mode (p. 26).

Function menu

Press H during shooting to display the function menu. The function menu is used to choose the shooting mode and provides access to frequently used shooting settings.

Shooting mode

Selected option

Program Auto

Shooting

To select the shooting mode

Use HI to select a shooting mode and press the Q button.

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the Q button to set the function menu.

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

Function menu

Setup menu

Press the  button during shooting or playback to display the setup menu. The setup menu provides access to a variety of camera settings, including options not listed in the function menu, display options, and the time and date.

1 Press the  button.

● The setup menu is displayed.

Camera Menu 1 Back

ResetReset

Compression AF Mode Digital Zoom Image Stabilizer AF Illuminat. Icon Guide

2 Press H to highlight the page tabs. Use FG

to select the desired page tab and press I.

Page tab

Settings Menu 2

Pixel Mapping

TV Out Power SavePower Save

World TimeWorld Time

3 Use FG to select the desired submenu 1 and

then press the Q button.

Settings Menu 2

Pixel Mapping

TV Out

Power SavePower Save

World TimeWorld Time

Back

Bright

English

’12.02.26 12:30

Back

Bright

English

’12.02.26 12:30

Off

Submenu 1

Settings Menu 2

Pixel Mapping

TV Out Power SavePower Save

World TimeWorld Time

Settings Menu 2 Back

Pixel Mapping

TV Out

Power SavePower Save

World TimeWorld Time

Normal

Face/iESP

Back

Bright

English

’12.02.2 6 12:30

Submenu 2

Off

Off On On On

Off

4 Use FG to select the desired submenu 2 and

then press the Q button.

● Once a setting is selected, the display returns to

the previous screen.

There may be additional operations.

“Menu Settings” (p. 34 to 49)

Settings Menu 2

Pixel Mapping

TV Out

Power SavePower Save

World TimeWorld Time

Back

Bright

English

’12.02.26 12:30

5 Press the  button to complete the setting.

Menu Index

Program Auto

1 Shooting mode ...........p. 16, 24

P (Program Auto)

M (iAUTO) Q (Beauty)

 (Scene Mode)

P (Magic Filter)

~ (Panorama)

2 Flash .................................p. 19

3 Macro ...............................p. 30

4 Self-timer ..........................p. 30

5 Exposure compensation ...p. 31

6 White balance ...................p. 31

7 ISO ...................................p. 32

8 Drive .................................p. 32

9 Image Size .......................p. 33

VR-360/D-760 only

VR-350/D-755 and VR-340/D-750 only

0 K (Camera Menu 1) .......p. 34

a K (Camera Menu 2) .......p. 37

b A (Movie menu) ..............p. 34

c q (Playback menu) ........p. 38

1 2

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

Reset Compression AF Mode Digital Zoom Image Stabilizer AF Illuminat. Icon Guide

Date Stamp

Frame Rate IS Movie Mode R (Movie sound recording)

Slideshow Edit Erase Print Order R (Protect) y (Rotate)

Camera Menu 1

ResetReset Compression AF Mode Digital Zoom Image Stabilizer AF Illuminat. Icon Guide

d d (Settings Menu 1) ..........p. 42

e d (Settings Menu 2) ..........p. 44

f d (Settings Menu 3) ..........p. 49

Back

Normal

Face/iESP

Off On On On

Memory Format/Format Backup Eye-Fi USB Connection q Power On Keep K Settings Sound Settings

Pixel Mapping s (Monitor)

TV Out

NTSC/PAL Power Save W (Language) X (Date/time) World Time

Beauty Settings

Preparing the Camera

To remove the card

Preparing the Camera

Inserting the battery and card

Battery/card compartment cover

Battery/card compartment lock

Battery lock knob

Write-protect switch

Insert the battery as illustrated with the C mark

toward the battery lock knob.

Damage to the battery exterior (scratches, etc.) may

produce heat or an explosion.

Insert the battery while sliding the battery lock knob in

the direction of the arrow. Insert the card straight until it clicks into place. When using the camera, be sure to close the battery/

card compartment cover.

Slide the battery lock knob in the direction of the

arrow to unlock, and then remove the battery.

Turn off the camera before opening the battery/card

compartment cover.

Always use SD/SDHC/SDXC cards or Eye-Fi card

with this camera. Do not insert other types of memory

cards. “Using the card” (p. 61) Do not touch the contact area of the card directly. This camera can be used without a card by storing

images in its internal memory.

“Number of storable pictures (still images)/Recording

length (movies) in the internal memory and cards”

(p. 62)

To remove the card

Press the card in until it clicks and comes out slightly,

then grab the card and pull it out.

Charging the battery with the included USB-AC adapter

The included F-2AC USB-AC adapter (hereafter referred

to as USB-AC adapter) differs depending on the region

where you purchased the camera. If you received a plug-

in type USB-AC adapter, plug it directly into AC outlet.

The included USB-AC adapter has been designed

Connecting the camera

Indicator lamp

When to charge the batteries

Windows

to be used for charging and playback. Do not take pictures while the AC adapter is connected to the camera.

Be sure to unplug the power plug of the USB-AC

adapter from the wall outlet when the charging is complete or the playback ends.

The battery can be charged while the camera is

connected to the computer. Charging time varies depending on the performance of a computer. (There may be cases in which it takes approx. 10 hours.)

Connecting the camera

Multi-connector

Indicator lamp

Indicator lamp On: Charging Off: Charged

The battery is not fully charged at the time of

purchase. Before use, be sure to charge the battery until the indicator lamp turns off (up to 4 hours).

If the indicator lamp does not light, the camera is not

correctly connected or the battery, camera, or USBAC adapter may not be functioning as expected.

When to charge the batteries

Charge the battery when the error message shown below appears.

AC outlet

USB connector (supplied)

Flashes in red

Battery Empty

Setting up using the supplied CD

Installation of [ib] computer software using the

supplied CD is available on Windows computers only.

Windows

Insert the supplied CD in a CD-ROM drive.

Windows XP

● A “Setup” dialog will be displayed.

Windows Vista/Windows 7

● An Autorun dialog will be displayed. Click

“OLYMPUS Setup” to display the “Setup” dialog.

If the “Setup” dialog is not displayed, select “My

Computer” (Windows XP) or “Computer” (Windows Vista/Windows 7) from the start menu. Double-click the CD-ROM (OLYMPUS Setup) icon to open the “OLYMPUS Setup” window and then double-click “Launcher.exe”.

If a “User Account Control” dialog is displayed, click

“Yes” or “Continue”.

●

Click the “Registration” button and follow the onscreen instructions.

To register the camera, it must be connected to the

computer. “Connecting the camera” (p. 12)

If nothing is displayed on the camera screen even

after connecting the camera to the computer, the battery may be exhausted. Leave the camera connected to the computer until the battery has charged, then disconnect and reconnect the camera.

Install OLYMPUS Viewer 2 and [ib] computer

software.

● Check the system requirements before beginning

installation.

● Click the “OLYMPUS Viewer 2” or “OLYMPUS ib”

button and follow the on-screen instructions to install the software.

OLYMPUS Viewer 2

Operating System

Processor Pentium 4 1.3 GHz or better RAM Free Hard

Drive Space Monitor

Settings

[ib]

Operating System

Processor

RAM

Free Hard Drive Space

Monitor Settings

Graphics

* See online help for information on using the software.

Install the camera manual.

Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7

1 GB or more (2 GB or more recommended)

1 GB or more 1024 × 768 pixels or more

Minimum 65,536 colors (16,770,000 colors recommended)

Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7

Pentium 4 1.3 GHz or better (Pentium D 3.0 GHz or better required for movies)

512 MB or more (1 GB or more recommended) (1 GB or more required for movies — 2 GB or more recommended)

1 GB or more 1024 × 768 pixels or more

Minimum 65,536 colors (16,770,000 colors recommended)

A minimum of 64 MB video RAM with DirectX 9 or later.

Click the “Camera Instruction Manual” button and

●

follow the on-screen instructions.

Macintosh

Insert the supplied CD in a CD-ROM drive.

●

Double-click the CD (OLYMPUS Setup) icon on the desktop.

● Double-click the “Setup” icon to display the “Setup”

dialog.

Install OLYMPUS Viewer 2.

●

Check the system requirements before beginning installation.

● Click the “OLYMPUS Viewer 2” button and follow

the on-screen instructions to install the software.

You can register via “Registration” in OLYMPUS

Viewer 2 “Help”.

OLYMPUS Viewer 2

Operating System

Processor Intel Core Solo/Duo 1.5 GHz or better RAM Free Hard

Drive Space Monitor

Settings

* Other languages can be selected from the language

combo box. For information on using the software, see online help.

Mac OS X v10.4.11–v10.6

1 GB or more (2 GB or more recommended)

1 GB or more 1024 × 768 pixels or more

Minimum 32,000 colors (16,770,000 colors recommended)

Copy the camera manual.

Click the “Camera Instruction Manual” button to

●

open the folder containing the camera manuals.

Copy the manual for your language to the

computer.

Language, date, time, and time zone

You can choose the language for the menus and messages displayed in the monitor. Also, the date and time set here are saved to image ﬁ le names, date prints, and other data.

Press the n button to turn on the

camera. Then, use FGHI to select your language and press the A button.

The menus can be used to change the selected

language. [W] (Language) (p. 48)

Use FG to select the year for [Y] on the date

and time setting screen.

Press I to save the setting for [Y].

Y M D Time

-- --

Y M D Time

-- --

Back

:..2012

Y/M/D

Back

:..2012

Y/M/D

As in Steps 2 and 3, use FGHI to set

[M] (month), [D] (day), [Time] (hours and

minutes), and [Y/M/D] (date order), and then

press the A button.

For a more accurate setting, press the Q button

when the time signal hits 00 seconds while setting the

minutes. The menus can be used to change the selected date

and time. [X] (Date/time) (p. 48)

Use HI to select your home time zone and

press the Q button.

●

Use FG to turn daylight saving time ([Summer])

on or off.

The menus can be used to change the selected time

zone. [World Time] (p. 48)

’12.02 . 26 12:30

Seoul Tokyo

Back

Summer

Shooting, Viewing, and Erasing

Shooting with the optimum aperture value and shutter speed [Program Auto]

In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed.

The default settings of the function are highlighted in

Press the n button to turn on the

camera.

Number of storable still pictures (p. 62)

If the [Program Auto] indicator is not displayed, press

H to display the function menu and then set the shooting mode to P. “Using the Menu” (p. 8)

[Program Auto] indicator

ORM

Monitor (standby mode screen)

0:00:340:00:34

Current shooting mode display

Program Auto

Press the n button again to turn off the camera.

Hold the camera and compose the shot.

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

When holding the camera, take care not to cover the

ﬂ ash and the microphone with your ﬁ ngers, etc.

Monitor

Horizontal grip

Vertical grip

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

Press the shutter button halfway down to

To view images during shooting

focus on the subject.

When the camera focuses on the subject, the

●

exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.

● The camera was unable to focus if the AF target

mark ﬂ ashes red. Try focusing again.

Press halfway

“Focusing” (p. 57)

To take the picture, gently press the shutter

button all the way down while being careful not to shake the camera.

Press fully

To view images during shooting

Pressing the q button enables playback of images. To return to shooting, either press the q button or press the shutter button halfway down.

AF target mark

F3.0F3.01/4001/400

Shutter speed Aperture value

Image review screen

Shooting movies

Press the R button to start recording.

Lights up red when recording

Sound will also be recorded. The shooting mode selected for still photography

applies to movies (some shooting modes have no

effect).

Press the R button again to end recording.

RECREC

Current length

0:00:340:00:34

RECREC

0:00

0:000:00

Continuous recording length

0:00:340:00:34

Using the zoom

To take larger images [Digital Zoom]

Turning the zoom lever adjusts the shooting range.

W side T side

[Off] selected for [Digital Zoom]:

Image size Zoom bar

16M

Optical zoom range

Zoom bar

5.05.0

PP PP

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

ORM

0:00:340:00:34

ORM

Model No. Optical zoom Digital zoom

VR-360/D-760 VR-350/D-755 VR-340/D-750

To take larger images [Digital Zoom]

The type and amount of zoom can be identiﬁ ed from

the appearance of the zoom bar. The display differs depending on the options selected for [Digital Zoom] (p. 36) and [Image Size] (p. 33).

12.5 × 4 × 10 × 4 × 10 × 4 ×

12.512.5

0:00:340:00:34

Other

Image zoomed and cropped.

[On] selected for [Digital Zoom]:

Image size Zoom bar

0.00.0

AUTOWBAUTO

ISO

AUTO

16M

Other

If an image size is less than the full resolution after

reaching the maximum optical zoom, the camera will automatically resize and crop the image to the selected image size and enter the digital zoom range if [Digital Zoom] is [On].

Photographs taken with the zoom bar displayed in

red may appear “grainy.”

Image zoomed and

cropped.

Digital zoom range

Using the ﬂ ash

The ﬂ ash functions can be selected to best match the shooting conditions.

Select the ﬂ ash option in the shooting

function menu.

Flash Auto

Use HI to select the setting option, and

press the Q button to set.

Option Description

Flash Auto

Redeye

Fill In Flash Off The ﬂ ash does not ﬁ re.

The ﬂ ash ﬁ res automatically in low- light or backlight conditions.

Pre-ﬂ ashes are emitted to reduce the occurrence of red eye in your photos.

The ﬂ ash ﬁ res regardless of the available light.

Changing the shooting information display

The display of the screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display.

Press F (INFO).

●

The displayed shooting information changes in the order shown below each time the button is

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

pressed. “Shooting mode display” (p. 4)

Normal

Detailed

ORM

0:00:340:00:34

0.00.0

WB AUTOWBAUTO ISO

ISO

No information

AUTO

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

Viewing images

To play sound recordings

To play back movies

Press the q button.

Number of frames/Total number of images

To play sound recordings

To play sound recorded with an image, select the image and press the Q button. A  icon appears on images with which sound has been recorded.

[R] (still images) (p. 39)

4/30

Playback image

Pictures taken using Q mode are displayed as a

group. Turn the zoom lever to the T side to play back the image in the group.

Use HI to select an image.

Displays

previous image

Hold I to fast forward and hold H to reverse. The display size of the images can be changed.

“Index view and close-up view” (p. 22)

Displays next image

12:30’12/02/26’12/02/26 12:30

Press FG to adjust volume.

To play back movies

Select a movie, and press the Q button.

During audio playback

Movie PlayMovie Play

Movie

’12/02/26 12:30’12/02/26 12:30

4/30

Operations during movie playback

Operations during pausing playback

To stop movie playback

Operations during movie playback

Elapsed time/

Total shooting time

Pausing and

resuming playback

Fast forward

Rewind

Adjusting the

volume

Operations during pausing playback

Press the Q button to pause playback. To resume playback during pause, fast forward, or rewind, press the Q button.

Press I to fast forward. Press I again to increase the fast forward speed.

Press H to rewind. The rewinding speed increases each time H is pressed.

Use FG to adjust the volume.

00:12/00:3400:12/00:34

During playback

00:14/00:3400:14/00:34

During pause

Cueing

Advancing and

rewinding one

frame at a time

Resuming

playback

To stop movie playback

Press the  button.

Press F to display the ﬁ rst frame and press G to display the last frame.

Press I or H to advance or rewind one frame at a time. Hold I or H pressed for continuous advance or rewind.

Press the Q button to resume playback.

Erasing images during playback (Single image erase)

Display the image you want to erase and

press G ().

Erase Back

Cancel

Press FG to select [Erase], and press the

Q button.

For erasing multiple images at the same time, see

“Erasing images [Erase]” (p. 40).

If a group frame is erased, all images in that group

are erased collectively. If the group includes images you want to keep, expand the group and protect them respectively.

Erase

4/304/30

Index view and close-up view

To select an image in index view

To scroll an image in close-up view

Index view enables quick selection of a desired image. Close-up view (up to 10× magniﬁ cation) allows checking of image details.

Turn the zoom lever.

Single-image view Close-up view

4/30

Changing the image information display

Shooting information settings displayed on the screen can be changed.

Press F (INFO).

●

The displayed image information changes in the order shown below each time the button is pressed.

Normal

1010

3D3D

’12/02/26’12/02/26 12:3012:30

4/30

No information

12:30’12/02/26’12/02/26 12:30

’12/02/26’12/02/26 12:30

Index view

’12/02/26 12:30

To select an image in index view

Use FGHI to select an image, and press the Q button to display the selected image in single-image view.

To scroll an image in close-up view

Use FGHI to move the viewing area.

Detailed

12:30

3D3D

1010

MAGICMAGIC

ISO

AUTOWBAUTO

100

ORM

’12/02/26 12:30

100-0004

4/30

2.02.0F3.0F3.01/10001/1000

Playing back 3D images (VR-360/D-760)

3D images shot with this camera can be played back on 3D-compatible devices connected to this camera using an HDMI cable (sold separately).

“Shooting 3D images (W mode)” (p. 27) When playing back 3D images, read the warnings in

the instruction manual for the 3D-compatible devices carefully.

Connect the 3D-compatible device and

camera using the HDMI cable.

For the connection and setting method, see “Using an

HDMI cable” (p. 46).

Use FG to select [3D Show] and then press

the Q button.

Use HI to select the 3D image to play back

and then press the Q button.

To start a slideshow, press the  button.

To stop the slideshow, press the  or Q button.

3D images are composed of JPEG ﬁ les and MPO

ﬁ les. If any ﬁ les are deleted on a computer, playback of 3D images may not be possible.

SetSlideshow

Using the camera guide

Use the camera guide to look up camera operations.

Press the E button in the standby mode

screen or the playback screen.

Search by

Search by purpose

purpose

Search by situation

Search by keyword

Submenu 2 Application

Search by purpose

Search for a solution

Search by situation

Search by keyword

Learn about the

camera

History

Use FGHI to select the desired item.

●

Follow the on-screen instructions to search the desired contents.

Functions or operating methods can be searched.

A solution can be searched when having problems during operation.

Search from shooting/playback scene.

Search by the camera keyword. Information is shown about

recommended functions and basic operating methods for the camera.

Searches can be performed from the search history.

Exit

Search for a solution

Learn about the camera

History

To change the shooting mode

Using Shooting Modes

To change the shooting mode

The shooting mode (P, M, Q, , P,

~) can be changed by using the function menu. “Using the Menu” (p. 8)

The default settings of the function are highlighted in

Shooting with automatic settings (M mode)

The camera will automatically select the optimal shooting mode for the scene. The shooting condition is decided by the camera and most settings cannot be changed.

Set the shooting mode to M.

In some cases, the camera may not select the

desired shooting mode.

When the camera cannot identify which is the optimal

mode, [Program Auto] will be selected.

The icon changes depending on the scene that the camera automatically selects.

ORM

0:00:340:00:34

Shooting with Beauty Fix effects (

mode)

Depending on the picture, the editing may not be

effective.

Set the shooting mode to Q.

Press G to go to the submenu.

Recommended

Beauty

MENUMENU

Use HI to select the retouching setting, and

press the Q button to set.

ORM

● [Set 1], [Set 2] or [Set 3] retouches the image

according to the Beauty Settings. [Beauty Settings] (p. 49)

Point the camera toward the subject. Check

the frame appearing around the face detected by the camera,and then press the shutter button to take the picture.

The unedited image and edited image are both

saved.

If the image cannot be retouched, only the unedited

image is saved.

The [Image Size] of the retouched image is ﬁ xed at

[n].

0:00:340:00:34

Retouching setting

To save the image, select [OK] on the review

screen and press the Q button. To retouch the image additionally, select [Beauty Fix].

● Beauty Fix

1 Select a retouching item, and press the

Eye Color Back

2 Press the Q button on the review screen.

● Settings for Beauty Fix can be registered.

Off

Beauty Fix

Q button.

Using the best mode for the shooting

To take pictures of a moving subject like a pet ([

Pet])

scene ( mode)

Set the shooting mode to .

Press G to go to the submenu.

Use HI to select the best shooting mode for

the scene, and press the Q button.

Scene Mode

Portrait

ORM

Icon indicating current  mode

0:00:340:00:34

MENUMENU

In  mode, the optimum shooting settings are

pre-programmed for speciﬁ c shooting scenes. For this reason, some settings cannot be changed in some modes.

Option Application

B Portrait/F Landscape/ G Night Scene C Sport/N Indoor/W Candle R Self Portrait/S Sunset X Fireworks d Documents/K Beach & Snow/

 Pet/W 3D Photo

When the subject is dark, noise reduction is

automatically activated. This approximately doubles the shooting time during which no other pictures can be taken.

VR-360/D-760 and VR-350/D-755 only

To take pictures of a moving subject like a pet ([

1 Use HI to select [ Pet], and press the Q button

to set.

2 Hold the camera to align the AF target mark on the

subject and press the Q button.

/M Night+Portrait/

Pet])

● When the camera recognizes the subject, the

AF target mark automatically tracks the subject movement to focus on it continuously. “To focus on a moving subject continuously (AF Tracking)” (p. 35).

/V Cuisine/

The camera takes a picture using the optimum settings for the scene conditions.

To shoot 3D images (

mode)

(VR-360/D-760, VR-350/D-755)

To shoot 3D images (W (VR-360/D-760, VR-350/D-755)

1 Use HI to select [Auto] or [Manual] and then press

the Q button to set.

mode)

Submenu 1 Description

The user only composes the

Auto

Manual

Depending on the subject or the situation (if the

distance between the camera and subject is too short), the image may not look 3D.

The 3D viewing angle varies depending on the

subject, etc.

To exit 3D shooting mode without saving an image,

press the  button.

shots so that the target marks and pointers overlap, and the camera automatically releases the shutter.

After shooting the ﬁ rst frame, move the camera to overlap the subject with the image in the screen. Then manually release the shutter.

The [Image Size] (p. 33) is ﬁ xed to [0]. The zoom ratio is ﬁ xed. The focus, exposure and the white balance are ﬁ xed

when the ﬁ rst image is taken. The ﬂ ash is ﬁ xed to [$Flash Off]. Images shot in 3D mode cannot be displayed in 3D

on this camera’s screen. (VR-360/D-760 only)

Shooting with special effects (P mode)

Add an artistic effect to your photo by selecting the desired magic ﬁ lter.

Set the shooting mode to P.

Press G to go to the submenu.

Magic Filter

Pop Art

0.00.0

AUTOWBAUTO

MENUMENU

2 3

0.00.0

AUTOWBAUTO

MENUMENU

Use HI to select the desired effect and then

press the Q button to set.

ORM

Icon indicating current P mode

0:00:340:00:34

Shooting mode Option

1 Pop Art 2 Pin Hole 3 Fish Eye

Magic Filter

Two images are saved, an unmodiﬁ ed image and an

image to which the effect has been applied.

VR-360/D-760 and VR-350/D-755 only

In P mode, the optimum shooting settings are

pre-programmed for each effect. For this reason, some settings cannot be changed in some modes.

4 Drawing 5 Soft Focus 6 Punk 7 Sparkle 8 Watercolor 9 Reﬂ ection

Creating panoramic images (~ mode)

Take pictures that can be joined to form a panorama using the supplied software.

The focus, exposure, zoom position (p. 18), and white

balance (p. 31) are locked at the ﬁ rst frame.

The ﬂ ash (p. 19) is ﬁ xed to $ (Flash Off) mode.

0.00.0

AUTOWBAUTO

Set the shooting mode to ~, and press the

Q button.

Panorama

Use FGHI to select the pan direction.

0.00.0

AUTOWBAUTO

MENUMENU

Press the shutter button to take the ﬁ rst

frame, and then compose the second shot.

Before ﬁ rst shot

Set

After ﬁ rst shot

1 212

Exit

● After the ﬁ rst shot, the area shown in the white

frame reappears on the side of the display opposite the pan direction. Frame subsequent photographs so that they overlap with the image on the monitor.

Repeat Step 3 until the number of desired

frames is taken, and then press the

 button when ﬁ nished.

Panorama shooting is possible for up to 10 frames. For information on creating panoramas, see the

online help for the supplied software.

To cancel the self-timer after it starts

Using Shooting Functions

“Using the Menu” (p. 8) The default settings of the function are highlighted in

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

Select the macro option in the shooting

function menu.

Off

Use HI to select the setting option, and

press the Q button to set.

Option Description

Off Macro mode is deactivated.

Macro

Super Macro

When the zoom is at the widest (W) position.

When the zoom is at the most telephoto (T) position.

The zoom is automatically ﬁ xed.

The ﬂ ash (p. 19) and zoom (p. 18) cannot be set during

super macro shooting.

This enables shooting as close as 20 cm/7.9 in. the subject.

This enables shooting as close as

1 cm/0.3 in. to the subject.

(90 cm/35.4 in.*2) to

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a short delay.

Select the self-timer option in the shooting

function menu.

Off

0.00.0

AUTOWBAUTO

ISO

Use HI to select the setting option, and

AUTO

MENUMENU

press the Q button to set.

Option Description

Y Off

Y 12 sec

Y 2 sec

To cancel the self-timer after it starts

Press the  button.

The self-timer is deactivated. The self-timer lamp turns on for

approx. 10 seconds, then blinks for approx. 2 seconds, and then the picture is taken.

The self-timer lamp blinks for approx. 2 seconds, and then the picture is taken.

1212

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

Adjusting the brightness

Using the one touch white balance

(Exposure compensation)

The standard brightness (appropriate exposure) set by the camera based on the shooting mode (M, Q, and  excluded) can be adjusted brighter or darker to obtain a desired shot.

Select the exposure compensation option in

the shooting function menu.

Exposure Comp.

Use HI to select the desired brightness,

and press the Q button.

± 0.0

11 2222 11

AUTOWBAUTO

AUTO

MENUMENU

Adjusting to a natural color scheme (White balance)

For more natural coloring, choose a white balance option suited to the scene.

Select the white balance option in the

shooting function menu.

WB WB Auto

AUTOWBAUTO

ISO

AUTO

MENUMENU

Use HI to select the setting option, and

press the Q button to set.

Option Description

WB Auto

Sunny

Cloudy

Incandescent

WB ISO

ISO

Fluorescent



One Touch 1



One Touch 2

Using the one touch white balance

1 Select the white balance option in the function menu. 2 Use HI to select [] or [], and face the camera

toward white paper.

3 Press the  button.

0.00.0

The camera automatically adjusts the white balance according to the shooting scene.

For shooting outdoors under a clear sky.

For shooting outdoors under a cloudy sky.

For shooting under tungsten lighting.

For shooting under white ﬂ uorescent lighting (ofﬁ ces, etc.).

For setting the subtle shades of color that cannot be adjusted by Auto, Sunny, Cloudy, Incandescent, or Fluorescent.

● Set the paper to ﬁ ll the entire screen, and

make sure that there is no shadow area.

● Setting the zoom to telephoto (T) is

recommended.

● Perform this procedure under the light where

the pictures are actually taken.

● The camera releases the shutter and the white

balance is registered.

● The registered white balance is stored in

the camera. The data will not be cleared by turning off the power.



● When the [

has already been registered is selected in Step 2, new white balance will be registered.

] or [] whose white balance

When the white area is not large enough or when the

color is too bright, too dark, or loud, the white balance cannot be registered. Return to Step 2. Or, set the other white balance.

Selecting the ISO sensitivity

Select the ISO setting option in the shooting

function menu.

ISO Auto

ISOISO

1600

1/400 F3.0

Use HI to select the setting option, and

press the Q button to set.

Option Description

ISO Auto

High ISO Auto

Value

The camera automatically adjusts the sensitivity according to the shooting scene.

The camera uses a higher sensitivity compared to [ISO Auto] to minimize blur caused by a moving subject or by camera shake.

The ISO sensitivity is ﬁ xed to the selected value.

In the ISO setting, although smaller values result in

less sensitivity, sharp images can be taken under fully lit conditions. Larger values result in higher sensitivity, and images can be taken at fast shutter speeds even under low light conditions. However, high sensitivity introduces noise into the resulting picture, which may give it a grainy appearance.

Sequential shooting (Drive)

Pictures are taken sequentially while the shutter button is held down.

Select the drive option in the shooting

function menu.

0.00.0

AUTOWBAUTO

ISO

ISOISO

HIGH

100

AUTO

MENUMENU

Option Description

Single

Sequential

High-

Speed1 High-

Speed2

The shooting speed varies depending on the settings for [Image Size/Compression] (p. 33/p. 34).

Single

One frame is shot each time the shutter button is pressed.

Take sequential shots using the focus, brightness (exposure) and white balance set in the ﬁ rst frame.

The camera takes sequential shots at a faster speed than in [j].

The camera takes sequential shots at a faster speed than in [c].

0.00.0

AUTOWBAUTO

ISO

AUTO

MENUMENU

When set to [j], the ﬂ ash (p. 19) cannot be set to

[Redeye]. In addition, when set to [c] or [d], the

ﬂ ash is ﬁ xed to [Flash Off]. When set to [c] or [d], [Image Size] is limited to

[3] or lower, and the ISO sensitivity is ﬁ xed to [ISO

Auto]. Vertical lines may appear on the still image shot with

[d] when the camera is pointed at an extremely

bright subject under a clear sky and so on.

Selecting the image size for still images (Image Size)

Select the image size option in the shooting

function menu.

16M

16:9S

Use HI to select the desired image size,

and press the Q button.

Option Description

16M (4608×3456)

8M (3264×2448)

5M (2560×1920)

3M (2048×1536)

2M (1600×1200)

1M (1280×960)

VGA (640×480)

16:9L (4608×2592)

0.00.0

AUTOWBAUTO

ISO

AUTO

16:9S (1920×1080)

5M8

MENUMENU

VR-360/D-760 only

Suitable for printing pictures at A3 (11×17 in.).

Suitable for printing pictures up to A3 (11×17 in.).

Suitable for printing pictures at A4 (8.5×11 in.).

Suitable for printing pictures up to A4 (8.5×11 in.).

Suitable for printing pictures at A5 (5×7 in.).

Suitable for printing pictures at postcard size.

Suitable for viewing pictures on a TV or using pictures on emails and web sites.

Suitable for playing pictures on a

widescreen TV and for printing on A3 or 11”×17”.

Suitable for playing pictures on a widescreen TV and for printing on A5 or 5”×7”.

Menus for Shooting Functions

Restoring the shooting functions to the default settings [Reset]

Selecting the compression for still images [Compression]

Selecting the image quality for movies [Image Size/Frame Rate]

Menus for Shooting Functions

The default settings of the function are highlighted in . For information on using the menus, see “Using the Menu” (p. 8).

Restoring the shooting functions to the default settings [Reset]

K (Camera Menu 1)  Reset

Submenu 2 Application

Yes

No The current settings will not be changed.

Selecting the compression for still images [Compression]

K (Camera Menu 1)  Compression

Submenu 2 Application

Fine Shooting at high quality.

Normal Shooting at normal quality.

“Number of storable pictures (still images)/Recording

length (movies) in the internal memory and cards” (p. 62)

Restores the following menu functions to the default settings.

• Shooting mode (p. 24)

• Flash (p. 19)

• Macro (p. 30)

• Self-timer (p. 30)

• Exposure compensation (p. 31)

• White balance (p. 31)

• ISO (p. 32)

• Drive (p. 32)

Selecting the image quality for movies [Image Size/Frame Rate]

(Movie menu)  Image Size/Frame Rate

Submenu 1 Submenu 2 Application

Image Size

Frame Rate

frames per second

“Number of storable pictures (still images)/Recording

length (movies) in the internal memory and cards” (p. 63)

• Image size (still images) (p. 33)

• Menu functions in z (Shooting menu)/A (Movie menu) (p. 34 to 37)

720P (1280×720)/ VGA (640×480)/ QVGA (320×240)

30fps*1/

15fps

Select the image quality based on the image size and frame rate. Higher frame rates provide smoother movie images.

Reducing the blur caused by thecamera shake when shooting [Image Stabilizer] (still images)/ [IS Movie Mode] (movies)

Selecting the focusing area [AF Mode]

To focus on a moving subject continuously (AF Tracking)

Reducing the blur caused by thecamera shake when shooting [Image Stabilizer] (still images)/ [IS Movie Mode] (movies)

(Camera Menu 1)  Image Stabilizer

(still images)/

(Movie menu)  IS Movie Mode (movies)

Submenu 2 Application

Off

On The image stabilizer is activated.

The camera’s default settings are [Image Stabilizer]

(still images) to [On] and [IS Movie Mode] (movies) to [Off].

There may be a noise coming from inside the camera

when the shutter button is pressed with [Image Stabilizer] (still images) set to [On].

Images may not be stabilized if camera shake is too

severe.

When the shutter speed is extremely slow, such as

when taking pictures at night, [Image Stabilizer] (still images) may not be as effective.

When shooting while the [IS Movie Mode] (movies)

is set to [On], the image will be enlarged somewhat before saving.

The image stabilizer is deactivated. This is recommended for shooting when the camera is ﬁ xed in place on a tripod or other stable surface.

Selecting the focusing area [AF Mode]

K (Camera Menu 1)  AF Mode

Submenu 2 Application

Face/iESP

Spot

AF Tracking

For some subjects, the frame may not appear or may

take some time to appear.

If the frame blinks in red, the camera is unable to focus.

Try again to press the shutter button halfway.

To focus on a moving subject continuously (AF Tracking)

1 Hold the camera to align the AF target mark on the

subject and press the Q button.

2 When the camera recognizes the subject, the AF

target mark automatically tracks the subject movement to focus on it continuously.

3 To cancel the tracking, press the Q button.

Depending on the subjects or the shooting conditions,

the camera may be unable to lock the focus or fail to track the subject movement.

When the camera fails to track the subject movement,

the AF target mark changes to red.

The camera focuses automatically. (If a face is detected, it is shown by a white frame button is pressed halfway and the camera is able to focus, the frame color is changed to green camera is able to focus. If no face is detected, the camera chooses a subject in the frame and focuses automatically.)

The camera focuses on the subject located within the AF target mark.

The camera tracks the subject movement automatically to focus on it continuously.

; when the shutter

if the

Shooting at higher magniﬁ cations than optical zoom [Digital Zoom]

Recording sound when shooting movies [

Using the AF illuminator to focus on a shadowed subject [AF Illuminat.]

Shooting at higher magniﬁ cations than optical zoom [Digital Zoom]

K (Camera Menu 1)  Digital Zoom

Submenu 2 Application

Off Disable digital zoom. On Enable digital zoom.

[Digital Zoom] is not available when [% Super

Macro] (p. 30) is selected.

The option selected for [Digital Zoom] affects the

appearance of the zoom bar. “To take larger images [Digital Zoom]” (p. 18)

Recording sound when shooting movies [RR]]

A (Movie menu)  R

Submenu 2 Application

Off No sound is recorded. On Sound is recorded.

Using the AF illuminator to focus on a shadowed subject [AF Illuminat.]

K (Camera Menu 1)  AF Illuminat.

Submenu 2 Application

Off The AF illuminator is not used.

When the shutter button is pressed halfway down, the AF illuminator turns on to aid focusing.

AF illuminator

Displaying icon guides [Icon Guide]

Imprinting the date of recording [Date Stamp]

Displaying icon guides [Icon Guide]

K (Camera Menu 1)  Icon Guide

Submenu 2 Application

Off No icon guide is displayed.

The explanation of the selected icon will be displayed when a shooting mode or shooting function menu icon is selected (position the cursor on the icon for a while to display the explanation).

Program Auto

Icon guide

Imprinting the date of recording [Date Stamp]

Functions can be changed manually.

K (Camera Menu 2)  Date Stamp

Submenu 2 Application

Off Do not imprint the date. On

[Date Stamp] is not available if the clock has not been

set. “Language, date, time, and time zone” (p. 15) The date stamp can not be deleted. [Date Stamp] is not available in ~ or 3D mode or

during sequential shooting.

Stamp new photographs with the date of recording.

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

MENUMENU

Menus for Playback, Editing, and Printing Functions

Playing back pictures automatically [Slideshow]

To start a slideshow

Single-frame advance/rewind

To stop the slideshow

Changing the image size [

Cropping images [

Menus for Playback, Editing, and Printing Functions

The default settings of the function are highlighted in .

Playing back pictures automatically [Slideshow]

q (Playback menu)  Slideshow

To start a slideshow

Submenu 2 Submenu 3 Application

BGM Off/On

Type

Start ―

1 Select the desired [BGM] and [Type]. 2 Select [Start] and press the Q button.

Single-frame advance/rewind

During a slideshow, press I to skip ahead one frame or press H to go back one frame.

To stop the slideshow

Press the Q button or the  button.

Normal/Fader/ Zoom

Selects the background music options.

Selects the type of transition effect used between slides.

Starts the slideshow.

Changing the image size [QQ]]

q (Playback menu)  Edit  Q

Submenu 2 Application

7 640 × 480



320 × 240

1 Use HI to select an image. 2 Use FG to select the size, and press the Q button.

Cropping images [PP]]

This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.

q (Playback menu)  Edit  P

1 Use HI to select an image, and press the Q button. 2 Use the zoom lever to choose the crop size and

FGHI to move the crop position.

Back

3 Press the Q button.

● The edited image will be saved as a separate image.

Adding sound to still images [

Retouching faces on still images [Beauty Fix]

Beauty Fix

Brightening areas that are dark due to backlight, insufﬁ cient light or other reasons [Lighting Fix]

Adding sound to still images [RR]]

q (Playback menu)  Edit  R

1 Use HI to select an image. 2 Aim the microphone toward the sound source.

Microphone

3 Press the Q button.

● Recording starts.

● The camera adds (records) sound for approx.

4 seconds while playing back the image.

Retouching faces on still images [Beauty Fix]

q (Playback menu)  Edit  Beauty Fix

Depending on the picture, the editing may not be

effective.

1 Use HI to select an image, and press the Q button. 2 Use FG to select a retouching item, and press the

Q button.

3 Select [OK] or [Beauty Fix] on the review screen, and

press the Q button to save or retouch the image additionally.

● The retouched image is saved as a separate image.

Beauty Fix

The [Image Size] of the retouched image is ﬁ xed at

[n].

Beauty Fix

1 Select a retouching item, and press the Q button.

Eye Color Back

Off

2 Press the Q button on the review screen.

Brightening areas that are dark due to backlight, insufﬁ cient light or other reasons [Lighting Fix]

q (Playback menu)  Edit  Lighting Fix

Depending on the picture, the editing may not be

effective.

The retouching process may lower the image

resolution.

1 Use HI to select an image, and press the A button.

● The edited image is saved as a separate image.

Retouching red eyes in ﬂ ash shooting [Redeye Fix]

Erasing images [Erase]

To erase all images [All Erase]

To individually select and erase images [Sel. Image]

Retouching red eyes in ﬂ ash shooting [Redeye Fix]

q (Playback menu)  Edit  Redeye Fix

Depending on the picture, the editing may not be

effective.

The retouching process may lower the image

resolution.

1 Use HI to select an image, and press the A button.

● The edited image is saved as a separate image.

Erasing images [Erase]

q (Playback menu)  Erase

Submenu 1 Application

All Erase

Sel. Image Erase Deletes the image displayed.

When erasing pictures in a internal memory, do not

insert the card into the camera.

To erase all images [All Erase]

1 Use FG to select [All Erase], and press the

Q button.

2 Use FG to select [Yes], and press the Q button.

All images in the internal memory or card will be erased.

Images are individually selected and erased.

To individually select and erase images [Sel. Image]

1 Use FG to select [Sel. Image], and press the

Q button.

2 Use HI to select the image to be erased, and press

the Q button to add a R mark to the image.

● Turn the zoom lever to the W end to display an index

view. Images can be quickly selected using the

FGHI

buttons. Turn to the T end to return to the

single frame display.

(1)

Sel. Image

R mark

Erase/Cancel

3 Repeat Step 2 to select the images to be erased,

and then press the  button to erase the selected images.

4 Use FG to select [Yes], and press the Q button.

● The images with a R mark are erased.

4/30

Saving print settings to the image data [Print Order]

Protecting images [

Rotating images [

Saving print settings to the image data [Print Order]

q (Playback menu)  Print Order

“Print Reservations (DPOF)” (p. 53)

Protecting images [RR]]

q (Playback menu)  R

Protected images cannot be erased by [Erase] (p. 21,

40), [Sel. Image], or [All Erase] (p. 40), but all images are

erased by [Memory Format]/[Format] (p. 42).

1 Use HI to select an image. 2 Press the Q button.

● Press the Q button again to cancel the settings.

3 If necessary, repeat Steps 1 and 2 to protect other

images, and press the  button.

Rotating images [yy]]

q (Playback menu)  y

1 Use HI to select an image. 2 Press the Q button to rotate the image. 3 If necessary, repeat Steps 1 and 2 to make settings

for other images, and press the  button. The new picture orientations will be saved even after

the power is turned off.

Menus for Other Camera Settings

Erasing data completely [Memory Format]/[Format]

Copying images in the internal memory to the card [Backup]

Using an Eye-Fi card [Eye-Fi]

Menus for Other Camera Settings

The default settings of the function are highlighted in .

Erasing data completely [Memory Format]/[Format]

d (Settings Menu 1)  Memory Format/Format

Before formatting, check that no important data is left

in the internal memory or card.

Cards must be formatted with this camera before

ﬁ rst use or after being used with other cameras or computers.

Submenu 2 Application

Yes

No Cancels formatting.

Be sure to remove the card before formatting the internal memory.

Copying images in the internal memory to the card [Backup]

Completely erases the image data in the internal memory (including protected images).

or card

Using an Eye-Fi card [Eye-Fi]

d (Settings Menu 1)  Eye-Fi

Submenu 2 Application

All Automatically sends all the image.

Sel. Image Off Disable Eye-Fi communication.

When using an Eye-Fi card, read the Eye-Fi card

instruction manual carefully, and comply with the instructions.

Use the Eye-Fi card in compliance with the laws and

regulations of the country where the camera is used.

In locations such as on an airplane, where the Eye-Fi

communication is prohibited, remove the Eye-Fi card from the camera, or set [Eye-ﬁ ] to [Off].

This camera does not support the Eye-Fi card’s

Endless mode.

d (Settings Menu 1)  Backup

Submenu 2 Application

Yes

No Cancels the backup.

Backs up image data in the internal memory to the card.

Automatically sends the selected images.

Selecting a method for connecting the camera to other devices [USB Connection]

System requirements

Turning on the camera with the button [

Power On]

Saving the mode when the camera is turned off [Keep

Settings]

Selecting a method for connecting the camera to other devices [USB Connection]

d (Settings Menu 1)  USB Connection

Submenu 2 Application

Auto

Storage

MTP

System requirements

Windows Macintosh Mac OS X v10.3 or later

Even if a computer has USB ports, proper operation

is not guaranteed in the following cases.

When the camera is connected to another device, the settings selection screen is displayed.

Select when transferring images to a computer or when using the supplied software with the camera connected to a computer.

Select when transferring images to a computer running Windows Vista or Windows 7 without using the supplied software.

Select when connecting to a PictBridge-compatible printer.

Windows XP (Service Pack 1 or later) / Windows Vista / Windows 7

● computers with USB ports installed using an

expansion card, etc.

● computers without a factory-installed OS and

home-built computers

Turning on the camera with the qq button [qq

Power On]

d (Settings Menu 1)  q Power On

Submenu 2 Application

Yes

Saving the mode when the camera is turned off [Keep

The camera is not turned on. To turn on the camera, press the n button.

Press and hold the q button to turn the camera on in the playback mode.

Settings]

d (Settings Menu 1)  Keep K Settings

Submenu 2 Application

Yes

The shooting mode is saved when the camera is turned off and is reactivated the next time the camera is turned on.

The shooting mode is set to P mode when the camera is turned on.

Selecting the camera sound and its volume [Sound Settings]

Adjusting the CCD and the image processing function [Pixel Mapping]

To adjust the CCD and the image processing function

Adjusting the brightness of the monitor [[ss]

Selecting the camera sound and its volume [Sound Settings]

d (Settings Menu 1)  Sound Settings

Submenu 2 Submenu 3 Application

Sound Type

Volume

q Volume

1/2/3

OFF (No Sound) or 5 levels of volume

Choose the sound made by camera controls.

Choose the volume of the sound made by camera controls.

Adjusts the image playback volume.

Adjusting the CCD and the image processing function [Pixel Mapping]

d (Settings Menu 2)  Pixel Mapping

This function has already been adjusted at factory

shipping, and no adjustment is needed right after purchase. Approximately once a year is recommended.

For best results, wait at least one minute after taking

or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the CCD and the image processing function

Press the Q button when [Start] (Submenu 2) is displayed.

● The camera checks and adjusts the CCD and the

image processing function at the same time.

Adjusting the brightness of the monitor

]

d (Settings Menu 2)  s

Submenu 2 Application

Bright/Normal

Selects the monitor brightness depending on the surrounding brightness.

Viewing images on a TV [TV Out] (VR-360/D-760)

Viewing images on a TV

Viewing images on a TV [TV Out] (VR-360/D-760)

d (Settings Menu 2)  TV Out

Submenu 2 Submenu 3 Application

NTSC/PAL

HDMI Out

HDMI Control

Camera factory defaults vary with the country or region of sale.

Viewing images on a TV

Using an AV cable

1 Match the camera video signal format ([NTSC]/[PAL]) to that used by the TV. 2 Connect the camera to the TV.

NTSC

PAL

480p/576p/720p/1080i Choose an HDMI output format. Off On Playback operations are performed using the TV remote control.

Choose when connecting the camera to TVs in countries or regions where NTSC is used (e.g., North America, Taiwan, Korea, and Japan).

Choose when connecting the camera to TVs in countries or regions where PAL is used (e.g., Europe and China).

Playback operations are performed using camera controls.

Multi-connector

AV cable (supplied)

Connect to the TV video input jack (yellow) and audio input jack (white).

Using an HDMI cable

Using a remote control

1 Match the camera digital signal format ([480p/576p]/[720p]/[1080i]) to that used by the TV. 2 Connect the camera to the TV. 3 Turn the TV on and select the HDMI input to which the camera is connected. 4 Turn the camera on and use FGHI to view images.

Different countries and regions use different video signal standards. Before connecting the camera, choose a video

signal standard that matches that used by the TV.

Do not connect the HDMI cable when the camera is connected to a computer or other device using the USB cable.

Connector cover

HDMI cable

HDMI mini connector

See the instruction manual provided with your TV for more information. When the camera and TV are connected by both an AV cable and an HDMI cable, the HDMI cable will take priority. Images and other information may be cropped for display on the TV.

Using a remote control

1 Select [On] for [HDMI Control] and turn the camera off. 2 Connect the camera to the TV using an HDMI cable. “Using an HDMI cable” (p. 46) 3 First turn on the TV, and then turn on the camera.

● Follow the on-screen guide displayed by the TV to operate the camera.

With some TVs, operations cannot be performed with the TV remote control even though the operation guide is

displayed on the screen.

If operations cannot be performed with the TV remote control, set [HDMI Control] to [Off] and use the controls on the

camera.

Connect to the HDMI connector on the TV.

Selecting a video signal system to match your TV [NTSC/PAL] (VR-350/D-755, VR-340/D-750)

To play back camera images on a TV

Selecting a video signal system to match your TV [NTSC/PAL] (VR-350/D-755, VR-340/D-750)

d (Settings Menu 2)  NTSC/PAL

Submenu 2 Application

NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on. PAL Connecting the camera to a TV in European countries, China, and so on.

The factory default settings differ according to the region where the camera is sold.

To play back camera images on a TV

1 Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]). 2 Connect the TV and camera.

Multi-connector

Connect to the TV video input jack (yellow) and audio input jack (white).

AV cable

(supplied)

3 Turn on the TV, and change “INPUT” to “VIDEO (an input jack connected to the camera).” 4 Press the q button, and use HI to select the image for playback.

The TV video signal system varies depending on the countries and regions. Before viewing camera images on your

TV, select the video output according to your TV’s video signal type. For details on changing the input source of the TV, refer to the TV’s instruction manual. Depending on the TV’s settings, the displayed images and information may become cropped.

Saving battery power between shots [Power Save]

To resume standby mode

Changing the display language [

Setting the date and time [

Switching between home and travel destination time zones [World Time]

Saving battery power between shots [Power Save]

d (Settings Menu 2)  Power Save

Submenu 2 Application

Off Cancels [Power Save].

To resume standby mode

Press any button.

Switching between home and travel destination time zones [World Time]

When the camera is not being used for approx. 10 seconds, the monitor automatically turns off to save battery power.

Changing the display language [WW]]

d (Settings Menu 2)  W

Submenu 2 Application

Languages

1 Use FGHI to select your language and press the

Q button.

Setting the date and time [XX]]

The language for the menus and error messages displayed on the monitor is selected.

d (Settings Menu 2)  X

“Language, date, time, and time zone” (p. 15)

d (Settings Menu 2)  World Time

You will not be able to select a time zone using [World Time] if the camera clock has not ﬁ rst been set using [X].

Submenu 2 Submenu 3 Application

Home/Alternate

*1, 2

In areas where daylight saving time is in effect, use FG to turn daylight saving time ([Summer]) on.

When you select a time zone, the camera automatically calculates the time difference between the selected zone and

the home time zone (x) to display the time in the travel destination time zone (z).

— Select the home time zone (x). —

The time in the home time zone (the time zone selected for x in submenu 2).

The time in the travel destination time zone (the time selected for z in submenu 2).

Select the travel destination time zone (z).

Registering the settings for Beauty Fix [Beauty Settings]

d (Settings Menu 3)  Beauty Settings

Depending on the picture, the editing may not be

effective.

1 Use FG to select a retouching setting, and press the

Q button.

2 Press the shutter button to take a portrait picture.

Take a portrait picture.

The image is not saved.

3 Select a retouching item, and press the Q button.

Eye Color Back

Off

4 Press the Q button on the review screen to save the

image.

● Registration is complete.

Printing

To exit printing

Printing

Direct printing (PictBridge*1)

By connecting the camera to a PictBridge-compatible printer, you can print images directly without using a computer.

To ﬁ nd out if your printer supports PictBridge, refer to the printer’s instruction manual.

PictBridge is a standard for connecting digital cameras

and printers of different makers and printing out pictures directly.

The printing modes, paper sizes, and other

parameters that can be set with the camera vary depending on the printer that is used. For details, refer to the printer’s instruction manual.

For details on the available paper types, loading

paper, and installing ink cassettes, refer to the printer’s instruction manual.

Printing images at the printer’s standard settings [Easy Print]

In the setup menu, set [USB Connection] (p. 43) to

[Print].

Display the image to be printed on the

monitor.

“Viewing images” (p. 20)

Turn on the printer, and then connect the

printer and camera.

Y button

Multi-connector

USB cable (supplied)

Easy Print Back

Easy Print Start

Custom Print

Press I to start printing.

To print another image, use HI to select an

image, and press the Q button.

To exit printing

After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

Changing the printer’s settings for printing [Custom Print]

Follow Steps 1 and 2 for [Easy Print] (p. 50),

and press the Q button.

Use FG to select the print mode, and press

the Q button.

Submenu 2 Application

All Print

Multi Print

All Index

Print Order

[Print Order] is available only when print reservations

have been made. “Print Reservations (DPOF)” (p. 53)

Use FG to select [Size] (Submenu 3), and

press I.

If the [Printpaper] screen is not displayed, the [Size],

[Borderless], and [Pics/Sheet] are set to the printer’s

standard.

This prints the image selected in Step 5.

This prints all images stored in the internal memory or card.

This prints one image in a multiple layout format.

This prints an index of all images stored in the internal memory or card.

This prints images based on the print

reservation data on the card.

Printpaper

Size Borderless

Standard Standard

Back

Use FG to select the [Borderless] or [Pics/

Sheet] settings, and press the Q button.

Submenu 4 Application

Off/On

(The number of images per sheet varies depending on the printer.)

The available settings for [Borderless] vary depending on the printer.

If [Standard] is selected in Steps 3 and 4, the image

is printed at the printer’s standard settings.

Use HI to select an image.

Press F to make a print reservation for the

current image. Press G to make the detailed printer settings for the current image.

The image is printed with a border around it ([Off]). The image is printed to ﬁ ll the entire paper ([On]).

The number of images per sheet ([Pics/Sheet]) is selectable only when [Multi Print] is selected in Step 2.

To make the detailed printer settings

To crop an image [

To cancel printing

To make the detailed printer settings

1 Use FGHI to select the setting, and press the

Q button.

Submenu 5 Submenu 6 Application

<×

Date

File Name

To crop an image [PP]]

1 Use the zoom lever to select the size of the cropping

0 to 10

With/Without

(Proceeds to the setting screen.)

frame, use FGHI to move the frame, and then press the Q button.

This selects the number of prints.

Selecting [With] prints the images with the date. Selecting [Without] prints the images without the date.

Selecting [With] prints the ﬁ le name on the image. Selecting [Without] does not print any ﬁ le name on the image.

This selects a portion of the image for printing.

Press the Q button.

Print Back

Cancel

Use FG to select [Print], and press the

Q button.

Printing starts.

●

● When [Option Set] is selected in [All Print] mode,

[Print Info] screen is displayed.

● When printing is ﬁ nished, the [Print Mode Select]

screen is displayed.

Print Mode Select Back

PrintPrint

All Print

Multi Print

All Index

Print Order

Cropping frame

Back

2 Use FG to select [OK], and press the Q button.

If necessary, repeat Steps 5 and 6 to select

the image to be printed, make the detailed settings, and set [Single Print].

To cancel printing

1 When [Do Not Remove USB Cable] is displayed, press

the  button, use FG to select [Cancel], and then press the Q button.

Press the  button.

When the message [Remove USB Cable] is

displayed, disconnect the USB cable from the camera and printer.

Print Reservations (DPOF *1)

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

DPOF is a standard for storing automatic printout

information from digital cameras.

Print reservations can be set only for the images

stored on the card. Insert a card with recorded

images before making print reservations. DPOF reservations set by another DPOF device

cannot be changed by this camera. Make changes

using the original device. Making new DPOF

reservations with this camera will erase the

reservations made by the other device. DPOF print reservations can be made for up to 999

images per card.

Single-frame print reservations [<]

Display the setup menu.

“Using the Menu” (p. 8)

From the playback menu q, select [Print

Order] and then press the Q button.

Use FG to select [<], and press the

Q button.

Print Order

Use HI to select the image for print

reservation. Use FG to select the quantity. Press the Q button.

Use FG to select the [X] (date print)

screen option, and press the Q button.

Submenu 2 Application

No This prints the image only. Date

Time

Use FG to select [Set], and press the

Q button.

This prints the image with the shooting date.

This prints the image with the shooting time.

‘12/02/26 12:30

Back

4/30

100-0004

ORM

Reserving one print each of all images on the card [U]

Resetting the print reservation data for selected images

Follow Steps 1 and 2 in [<] (p. 53).

Use FG to select [U], and press the Q

button.

Follow Steps 5 and 6 in [<].

Resetting all print reservation data

Follow Steps 1 and 2 in [<] (p. 53).

Use FG to select either [<] or [U], and

press the Q button.

Use FG to select [Reset], and press the

Q button.

Follow Steps 1 and 2 in [<] (p. 53).

Use FG to select [<], and press the

Q button.

Use FG to select [Keep] and press the

Q button.

Use HI to select the image with the print

reservation you want to cancel. Use FG to set the print quantity to “0”.

If necessary, repeat Step 4, and then press

the Q button when ﬁ nished.

Use FG to select the [X] (date print)

screen option, and press the Q button.

●

The settings are applied to the remaining images with the print reservation data.

Use FG to select [Set], and press the

Q button.

Usage Tips

Battery

Card/Internal memory

Shutter button

Monitor

Date and time function

Miscellaneous

Usage Tips

If the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to ﬁ x the problem(s).

Troubleshooting

Battery

“The camera does not work even when batteries are installed”.

● Insert recharged batteries in the correct direction.

“Inserting the battery and card” (p. 11), “Charging the battery with the included USB-AC adapter” (p. 11)

● Battery performance may have been reduced

temporarily due to low temperature. Take the batteries out of the camera, and warm them by putting them in your pocket for a while.

Card/Internal memory

“An error message is displayed”.

“Error message” (p. 56)

Shutter button

“No picture is taken when the shutter button is pressed”.

● Cancel sleep mode.

To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation for 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom lever or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for another 12 minutes, it automatically turns off. Press the n button to turn the camera on.

● Press the q button to switch to the shooting

mode.

● Wait until #(ﬂ ash charge) stops blinking before

taking pictures.

Monitor

“Difﬁ cult to see”.

● Condensation may have occurred. Turn off the

power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

“Vertical lines appear on the monitor”.

● This condition may occur when the camera is

pointed at an extremely bright subject under a clear sky and so on. The lines may appear on the recorded movie.

“The light is caught in the picture”.

● Shooting with ﬂ ash in dark situations results in an

image with many ﬂ ash reﬂ ections on dust in the air.

Date and time function

“Date and time settings return to the default setting”.

● If the batteries are removed and left out of the

camera for about a day settings return to the default setting, and must be reset.

The time until the date and time settings return to

the default setting varies depending on how long the batteries have been loaded.

“Language, date, time, and time zone” (p. 15)

Miscellaneous

“The camera makes a noise when taking pictures”.

● The camera may activate the lens and make a

noise even if no operation is performed. This is because the camera automatically performs actions of auto focus as far as it is ready to shoot.

, the date and time

Error message

When one of the messages below is displayed on the

monitor, check the corrective action.

Error message Corrective action

Card problem

Card Error

Write Protect

Memory Full

Card Full

Card Setup Back

Memory Setup Back

No Picture

Picture Error

Power Off

Format

Power OffPower Off

Memory Format

Insert a new card.

Card problem

The card write-protect switch is set to the “LOCK” side. Release the switch.

Internal memory problem

• Insert a card.

• Erase unwanted images.

Card problem

• Replace the card.

• Erase unwanted images.

Card problem

Use FG to select [Format], and press the Q button. Next, use FG to select [Yes], and press the

Q button.

Internal memory problem

Use FG to select [Memory Format], and press the Q button. Next, use FG to select [Yes], and press the Q button.

Internal memory/Card problem

Take pictures before viewing them.

Problem with selected image

Use photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image ﬁ le is corrupted.

Error message Corrective action

Problem with selected image

The Image Cannot

Be Edited

Battery Empty

No Connection

No Paper

No Ink

Jammed

Settings

Changed

Print Error

Cannot Print

Before erasing important images, download them to a

computer.

All data will be erased.

This is displayed, for instance, when the printer’s paper

tray has been removed. Do not operate the printer while making the print settings on the camera.

This camera may be unable to print images taken by

other cameras.

Use photo retouch software, etc. to edit the image on a computer.

Battery problem

Charge the battery.

Connection problem

Connect the camera and computer or printer correctly.

Printer problem

Load paper into the printer.

Printer problem

Reﬁ ll the ink in the printer.

Printer problem

Remove the jammed paper.

Printer problem

Return to the status where the

printer can be used.

Printer problem

Turn off the camera and printer, check the printer for any problems, and then turn the power on again.

Problem with selected image

Use a computer to print.

Shooting tips

When you are unsure of how to take a picture that you envision, refer to the information below.

Object with no vertical lines

Focusing

“Focusing on the subject”

● Taking a picture of a subject not in the center

of the monitor

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 17)

● Set [AF Mode] (p. 35) to [Face/iESP]

● Taking a picture in [AF Tracking] mode (p. 35)

The camera tracks the subject movement automatically to focus on it continuously.

● Taking a picture of a shadowy subject

Using the AF illuminator makes focusing easier. [AF Illuminat.] (p. 36)

● Taking a picture of subjects where autofocus

is difﬁ cult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast

When extremely bright objects

appear in the center of the monitor

It is also effective to compose the shot by holding the

camera vertically to focus, and then returning to the horizontal position to take the picture.

When objects are at different

The subject is not in the center of

distances

Fast-moving object

the frame

Camera shake

“Taking pictures without camera shake”

● Taking pictures using [Image Stabilizer] (p. 35)

● Select C (Sport) in  mode (p. 26)

The C (Sport) mode uses a fast shutter speed

and can reduce the blur incurred by a moving

subject.

● Taking pictures at a high ISO sensitivity

If a high ISO sensitivity is selected, pictures can

be taken at a high shutter speed even at locations

where a ﬂ ash cannot be used.

“Selecting the ISO sensitivity” (p. 32)

Exposure (brightness)

“Taking pictures with the right brightness”

● Taking pictures using [Fill In] (p. 19) ﬂ ash

A subject against backlight is brightened.

● Taking pictures using exposure compensation

(p. 31)

Adjust the brightness while viewing the screen for

taking the picture. Normally, taking pictures of white

subjects (such as snow) results in images that are

darker than the actual subject. Use the exposure

compensation to adjust in the positive (+) direction

to express whites as they appear. When taking

pictures of black subjects, on the other hand, it is

effective to adjust in the negative (-) direction.

Color hue

“Taking pictures with colors at the same shade as they appear”

● T aking pictures by selecting white balance (p. 31)

Best results in most environments can normally be obtained with the [WB Auto] setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artiﬁ cial light settings, and so on.)

Image quality

“Taking sharper pictures”

● Taking pictures with the optical zoom

Avoid using digital zoom (p. 18) to take pictures.

● Taking pictures at a low ISO sensitivity

If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy. The resulting image is grainier than with low ISO sensitivity as well.

“Selecting the ISO sensitivity” (p. 32)

Batteries

“Making batteries last longer”

● Set [Power Save] (p. 48) to [On]

Playback/Editing tips

Playback

“Playing images in the internal memory and card”

● Remove the card when playing pictures in the

internal memory

“To remove the card” (p. 11)

Editing

“Erasing the sound recorded to a still image”

● Record over the sound with silence when

playing back the image

“Adding sound to still images [R]” (p. 39)

Appendix

Camera care

Exterior

• Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well.

Monitor

• Wipe gently with a soft cloth.

Lens

• Blow dust off the lens with a commercial blower, then wipe gently with a lens cleaner.

Do not use strong solvents such as benzene or

alcohol, or chemically treated cloth.

Mold may form on the lens surface if the lens is left

dirty.

Battery/USB-AC adapter

• Wipe gently with a soft, dry cloth.

Storage

• When storing the camera for extended periods, remove the battery, USB-AC adapter and card, and keep in a cool, dry place that is well ventilated.

• Periodically insert the battery and test the camera functions.

Avoid leaving the camera in places where chemical

products are handled since this may result in corrosion.

Using a separately sold USB-AC adapter

The USB-AC adapter F-3AC (sold separately) can be used with this camera. Do not use any USB-AC adapter other than the dedicated one. When using F-3AC, be sure to use the USB cable included with this camera. Do not use any other USB-AC adapter with this camera.

Shooting is not available when using the F-3AC.

Using a separately sold charger

A charger (UC-50: sold separately) can be used to charge the battery.

Using your charger and USB-AC adapter abroad

• The charger and USB-AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger and USB-AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent.

• Do not use travel voltage converters as they could damage your charger and USB-AC adapter.

Using the card

Cards compatible with this camera

SD/SDHC/SDXC card write-protect switch

Checking the image saving location

Readout/recording process of the card

Cards compatible with this camera

SD/SDHC/SDXC/Eye-Fi card (commercially available) (for compatibility card details, visit the Olympus website.)

• The Eye-Fi card may become hot during use.

• When using an Eye-Fi card, the battery may run out faster.

• When using an Eye-Fi card, the camera may function more slowly.

SD/SDHC/SDXC card write-protect switch

The SD/SDHC/SDXC card body has a write-protect switch. If you set the switch to the “LOCK” side, you will not be able to write to the card, delete data or format. Return the switch to enable writing.

LOCK

Checking the image saving location

The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Current memory indicator

v: Internal memory is being used w: Card is being used

Even if [Memory Format]/[Format], [Erase], [Sel.

Image], or [All Erase] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data.

Readout/recording process of the card

During shooting, the current memory indicator lights up in red while the camera is writing data. Never open the battery/card compartment cover or unplug the USB cable. This can not only damage the image data but also render the internal memory or card unusable.

Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards

Still images

Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards

The ﬁ gures for the number of storable still pictures and recording length are approximate. The actual capacity varies

with shooting conditions and the card used.

Still images

Image Size Compression

 4608×3456

4 3264×2448

n 2560×1920

3 2048×1536

2 1600×1200

1 1280×960

7 640×480

K 4608x2592

0 1920×1080

VR-360/D-760 only

Number of storable still pictures

Internal memory SD/SDHC/SDXC card (4 GB)

3 438 7 867

7 867 15 1,700 12 1,394 24 2,697 20 2,216 39 4,432 32 3,650 65 7,299 50 5,640

101 11,280 202 20,677 371 41,341

5 590 10 1,181 30 3,354 60 6,531

Movies

Increasing the number of pictures that can be taken

Movies

Image Size Frame Rate



1280×720

8 640×480

9 320×240

The maximum ﬁ le size of a single movie is 2 GB, regardless of the capacity of the card.

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card. [Erase] (p. 21, 40), [Sel. Image] (p. 40), [All Erase] (p. 40), [Memory Format]/[Format] (p. 42)

30fps 10 sec. 10 sec. 18 min. 53 sec. 19 min. 22 sec. 15fps 19 sec. 20 sec. 36 min. 52 sec. 38 min. 44 sec. 30fps 18 sec. 18 sec. 33 min. 40 sec. 35 min. 13 sec. 15fps 34 sec. 37 sec. 64 min. 30 sec. 70 min. 26 sec. 30fps 47 sec. 53 sec. 87 min. 21 sec. 98 min. 37 sec. 15fps 1 min. 24 sec. 1 min. 46 sec. 156 min. 48 sec. 197 min. 14 sec.

Internal memory SD/SDHC/SDXC card (4 GB)

With sound Without sound With sound Without sound

Recording length

SAFETY PRECAUTIONS

General Precautions

Handling the Camera

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS

SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the

DANGER If the product is used without observing

WARNING If the product is used without observing

CAUTION If the product is used without observing

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all

operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet

before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the

product, use only accessories recommended by Olympus.

documentation provided with the product.

the information given under this symbol, serious injury or death may result.

the information given under this symbol, injury or death may result.

the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

Water and Moisture — For precautions on products with

weatherproof designs, read the weatherprooﬁ ng sections.

Location — To avoid damage to the product, mount the product

securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power

source described on the product label.

Lightning — If a lightning storm occurs while using a USB-AC

adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a

metal object into the product.

Heat — Never use or store this product near any heat source

such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo ampliﬁ ers.

Handling the Camera

WARNING

• Do not use the camera near ﬂ ammable or explosive gases.

• Do not use the ﬂ ash and LED (including AF illuminator) on

people (infants, small children, etc.) at close range.

•You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the ﬂ ash too close to the subject’s eyes could cause a momentary loss of vision.

• Keep young children and infants away from the camera.

•Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

•Becoming entangled in the camera strap, causing strangulation.

•Accidentally swallowing the battery, cards or other small parts.

•Accidentally ﬁ ring the ﬂ ash into their own eyes or those of another child.

•Accidentally being injured by the moving parts of the camera.

•Do not look at the sun or strong lights with the camera.

•Do not use or store the camera in dusty or humid places.

•Do not cover the ﬂ ash with a hand while ﬁ ring.

•Use SD/SDHC/SDXC memory cards or Eye-Fi cards only. Never use other types of cards.

If you accidently insert another type of card into the camera, contact an authorized distributor or service center. Do not try to remove the card by force.

•If you ﬁ nd that the USB-AC adapter is extremely hot or notice any unusual odors, noise, or smoke around it, unplug the power plug from wall outlet immediately and stop using it. Then, contact an authorized distributor or service center.

CAUTION

Battery Handling Precautions

• Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

•Never remove the batteries with bare hands, which may cause a ﬁ re or burn your hands.

•Never hold or operate the camera with wet hands.

•Do not leave the camera in places where it may be subject to extremely high temperatures.

•Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch ﬁ re. Do not use the charger or USB-AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in ﬁ re.

•Handle the camera with care to avoid getting a lowtemperature burn.

•When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

•When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

•In places subject to extremely cold temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

•Be careful with the strap.

•Be careful with the strap when you carry the camera. It could easily catch on stray objects and cause serious damage.

•To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage:

• Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidiﬁ ers.

•In sandy or dusty environments.

•Near ﬂ ammable items or explosives.

• In wet places, such as bathrooms or in the rain. When using products with weatherproof designs, read their manuals as well.

•In places prone to strong vibrations.

• Never drop the camera or subject it to severe shocks or vibrations.

•When attaching the camera to or removing it from a tripod, rotate the tripod screw, not the camera.

•Before transporting the camera, remove a tripod and all other non-OLYMPUS accessories.

•Do not touch electric contacts on cameras.

•Do not leave the camera pointed directly at the sun. This may cause lens or shutter curtain damage, color failure, ghosting on the image pickup device, or may possibly cause ﬁ res.

•Do not push or pull severely on the lens.

•Before storing the camera for a long period, remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally.

•The camera may malfunction if it is used in a location where it is subject to a magnetic/electromagnetic ﬁ eld, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large screen unit, TV/radio tower, or transmission towers. In such cases, turn the camera off and on again before further operation.

•Always observe the operating environment restrictions described in the camera’s manual.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

•The camera uses a lithium ion battery speciﬁ ed by Olympus. Charge the battery with the speciﬁ ed USB-AC adapter or charger. Do not use any other USB-AC adapters or chargers.

•Never heat or incinerate batteries.

•Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

•Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

•To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.

•If battery ﬂ uid gets into your eyes, ﬂ ush your eyes immediately with clear, cold running water and seek medical attention immediately.

•Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

•If you cannot remove the battery from the camera, contact an authorized distributor or service center. Do not try to remove the battery by force. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

WARNING

USB-AC adapter

Use Only Dedicated Rechargeable Battery, Battery Charger and USB-AC adapter

Monitor

•Keep batteries dry at all times.

•To prevent batteries from leaking, overheating, or causing a ﬁ re or explosion, use only batteries recommended for use with this product.

•Insert the battery carefully as described in the operating instructions.

•If rechargeable batteries have not been recharged within the speciﬁ ed time, stop charging them and do not use them.

•Do not use a battery if it is cracked or broken.

•If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.

•If a battery leaks ﬂ uid onto your clothing or skin, remove the clothing and ﬂ ush the affected area with clean, running cold water immediately. If the ﬂ uid burns your skin, seek medical attention immediately.

• Never subject batteries to strong shocks or continuous vibration.

CAUTION

•Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.

• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.

•Always unload the battery from the camera before storing the camera for a long period.

• This camera uses one Olympus lithium ion battery (LI-50B). No other type of batteries can be used. There is a risk of explosion if the battery is replaced with the incorrect battery type.

•Power consumption by the camera varies depending on which functions are used.

•During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.

•The zoom is used repeatedly.

•The shutter button is pressed halfway repeatedly in shooting mode, activating the auto focus.

•A picture is displayed on the screen for an extended period of time.

•The camera is connected to a printer.

•Using an exhausted battery may cause the camera to turn off without displaying the battery level warning.

•The Olympus lithium ion battery is designed to be used only for the Olympus digital camera. Do not use the battery to other devices.

• If the battery’s terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use.

•Always charge a battery when using it for the ﬁ rst time, or if it has not been used for a long period.

•When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature.

•Before going on a long trip, and especially before traveling abroad, purchase extra batteries. A recommended battery may be difﬁ cult to obtain while traveling.

•When storing the battery for a long period, select a cool location for storage.

•Please recycle batteries to help save our planet’s resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

USB-AC adapter

•The included USB-AC adapter F-2AC is designed to be used only with this camera. Other cameras cannot be charged with this USB-AC adapter.

•Do not connect the included USB-AC adapter F-2AC to equipment other than this camera.

•For plug-in type USB-AC adapter: The included USB-AC adapter F-2AC is intended to be correctly orientated in a vertical or ﬂ oor mount position.

Use Only Dedicated Rechargeable Battery, Battery Charger and USB-AC adapter

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery, battery charger and USB-AC adapter with this camera. Using a non-genuine rechargeable battery, battery charger and/or USB-AC adapter may result in ﬁ re or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery, battery charger and/or USB-AC adapter that are not genuine Olympus accessories.

Monitor

•Do not push the monitor forcibly; otherwise the image may become vague, resulting in a playback mode failure or damage to the monitor.

•A strip of light may appear on the top/bottom of the monitor, but this is not a malfunction.

•When a subject is viewed diagonally in the camera, the

Legal and Other Notices

Disclaimer of Warranty

Warning

FCC Notice

edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode.

•In places subject to low temperatures, the monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea to occasionally place it in a warm place. The monitor exhibiting poor performance due to low temperatures will recover in normal temperatures.

•The monitor of this product is manufactured with high-quality accuracy, however, there may be a stuck or dead pixel on the monitor. These pixels do not have any inﬂ uence on the image to be saved. Because of the characteristics, the unevenness of the color or brightness may also be found depending on the angle, but this is due to the structure of the monitor. This is not a malfunction.

Legal and Other Notices

•Olympus makes no representations or warranties regarding any damages, or beneﬁ t expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product.

•Olympus makes no representations or warranties regarding any damages or any beneﬁ t expected by using this unit lawfully which are caused by erasing picture data.

Disclaimer of Warranty

•Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or ﬁ tness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business proﬁ ts, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages or of the implied warranty, so the above limitations may not apply to you. Olympus reserves all rights to this manual.

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

FCC Notice

•Radio and Television Interference

•Changes or modiﬁ cations not expressly approved by the manufacturer may void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

•This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

•However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Adjust or relocate the receiving antenna.

•Increase the distance between the camera and receiver.

•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•Consult your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC).

Any unauthorized changes or modiﬁ cations to this equipment would void the user’s authority to operate it.

For customers in North and South America

For customers in USA

Declaration of Conformity Model Number: VR-360/D-760 VR-350/D-755 VR-340/D-750 Trade Name: OLYMPUS Responsible Party:

Address: 3500 Corporate Parkway, P.O. Box 610, Telephone Number: 484-896-5000

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including

interference that may cause undesired operation.

For customers in CANADA

This Class B digital apparatus complies with Canadian ICES-

003.

Center Valley, PA 18034-0610, U.S.A.

OLYMPUS WORLDWIDE LIMITED WARRANTY IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a “Product” and collectively the “Products”) will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase. If any Product proves to be defective within the one-year warranty period, the customer must return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See “WHAT TO DO WHEN SERVICE IS NEEDED”). Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty. Repair, replacement, or adjustment of defective Products shall be Olympus’s sole obligation and the customer’s sole remedy hereunder. The customer is liable and shall pay for shipment of the Products to the Olympus Service Center. Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance. Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus’s quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY

Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are: (a) products and accessories not manufactured by Olympus

and/or not bearing the “OLYMPUS” brand label (the warranty coverage for products and accessories of other manufacturers, which may be distributed by Olympus, is the responsibility of the manufacturers of such products and accessories in accordance with the terms and duration of such manufacturers’ warranties);

(b) any Product which has been disassembled, repaired,

tampered with, altered, changed, or modiﬁ ed by persons other than Olympus’s own authorized service personnel unless repair by others is made with the written consent of Olympus;

tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, battery leakage, use of non“OLYMPUS” brand accessories, consumables, or supplies, or use of the Products in combination with non-compatible

devices; (d) software programs; (e) supplies and consumables (including but not limited to

lamps, ink, paper, ﬁ lm, prints, negatives, cables and

batteries); and/or (f) Products which do not contain a validly placed and recorded

Olympus serial number, unless they are a model on which

Olympus does not place and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES, CONDITIONS, AND WARRANTIES CONCERNING THE PRODUCTS, WHETHER DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY, DESIGN, OPERATION, OR CONDITON OF THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING TO THE INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY RIGHT USED OR INCLUDED THEREIN. IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY. SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTIES AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY. THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STA TE T O STATE. THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including

For customers in Europe

but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conﬂ ict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized ofﬁ cer of Olympus. This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter hereof. This limited warranty is exclusively for the beneﬁ t of the original customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any ﬁ lm from the Product prior to sending the Product to Olympus for service.

N NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample padding material to prevent damage in transit and either deliver it to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers. When returning Products for service, your package should include the following:

1 Sales receipt showing date and place of purchase. 2 Copy of this limited warranty bearing the Product serial

number corresponding to the serial number on the Product (unless it is a model on which Olympus does not

place and record serial numbers).

3 A detailed description of the problem. 4 Sample prints, negatives, digital prints (or ﬁ les on disk) if

available and related to the problem. When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See “WORLDWIDE WARRANTY” for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries. Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Provisions of warranty

1 If this product proves to be defective, although it has been

used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during the applicable national warranty period and has been purchased from an authorized Olympus distributor within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com this product will be repaired, or at Olympus’s option replaced, free of charge. To claim under this warranty the customer must take the product before the end of the applicable national warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Europa Holding GmbH as stipulated on the website: http:// www.olympus.com. During the one year period of the World Wide Guarantee the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2 The customer shall transport the product to the dealer or

Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

Provisions of Guarantee

1 “OLYMPUS IMAGING CORP., Shinjuku Monolith, 2-3-1

Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service station before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if the Guarantee Certiﬁ cate and proof of purchase are presented at the Olympus repair service station. Please note that this Guarantee is in addition to and does not affect the customer’s legal warranty rights under the applicable national legislation governing the sale of consumer goods mentioned above.

2 This Guarantee does not cover the following and the

customer will be required to pay repair charge, even for defects occurring within the Guarantee period referred to above. a. Any defect that occurs due to mishandling (such as an

operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)

b. Any defect that occurs due to repair, modiﬁ cation, cleaning,

etc. performed by anyone other than Olympus or an Olympus authorized service station.

c. Any defect or damage that occurs due to transport, a fall,

shock, etc. after purchase of the product.

d. Any defect or damage that occurs due to ﬁ re, earthquake,

ﬂ ood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.

e. Any defect that occurs due to careless or improper

storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper

maintenance, etc. f. Any defect that occurs due to exhausted batteries, etc. g. Any defect that occurs due to sand, mud, etc. entering the

inside of the product casing. h. When the Guarantee Certiﬁ cate is not returned with the

product. i. When any alterations whatsoever are made to the

Guarantee Certiﬁ cate regarding the year, month and date

of purchase, the customer’s name, the dealer’s name, and

the serial number. j. When proof of purchase is not presented with this

Guarantee Certiﬁ cate.

3 This Guarantee applies to the product only; the Guarantee

does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.

4 Olympus’s sole liability under this Guarantee shall be limited

to repairing or replacing the product. Any liability under the Guarantee for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, ﬁ lms, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unaffected by this.

Notes regarding Guarantee maintenance

1 This Guarantee will only be valid if the Guarantee Certiﬁ cate

is duly completed by Olympus or an authorized dealer or other documents contain sufﬁ cient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer’s name, the date of purchase and product type) is attached to this Guarantee Certiﬁ cate. Olympus reserves the right to refuse free-of-charge service if neither Guarantee Certiﬁ cate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.

2 Since this Guarantee Certiﬁ cate will not be re-issued, keep it

in a safe place.

* Please refer to the list on the web site: http://www.olympus.

com for the authorized international Olympus service network.

For customers in Asia

Provisions of warranty

1 lf this product proves to be defective, although it has been

used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during a period of up to one year from the date of purchase this product will be repaired, or at Olympus’s option replaced, free of charge. To claim under warranty the customer must take the product and this Warranty certiﬁ cate before the end of the one year warranty period to the dealer where the product was purchased or any Olympus authorized service station listed in the instructions and request the necessary repairs.

2 The customer shall transport the product to the dealer or

Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

3 This warranty does not cover the following and the customer

will be required to pay repair charge, even for defects occurring within the one year period referred to above. a. Any defect that occurs due to mishandling (such as an

operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)

b. Any defect that occurs due to repair, modiﬁ cation, cleaning,

etc. performed by anyone other than Olympus or an Olympus authorized service station.

c. Any defect or damage that occurs due to transport, a fall,

shock, etc. after purchase of the product.

d. Any defect or damage that occurs due to ﬁ re, earthquake,

ﬂ ood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.

e. Any defect that occurs due to careless or improper

storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper

maintenance, etc. f. Any defect that occurs due to exhausted batteries, etc. g. Any defect that occurs due to sand, mud, etc. entering the

inside of the product casing. h. When this Warranty Certiﬁ cate is not returned with the

product. i. When any alterations whatsoever are made to the

Warranty Certiﬁ cate regarding the year, month and date of

purchase, the customer’s name, the dealer’s name, and

the serial number. j. When proof of purchase is not presented with this

Warranty Certiﬁ cate.

4 This Warranty applies to the product only; the Warranty does

not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.

5 Olympus’ sole liability under this warranty shall be limited to

repairing or replacing the product and any liability for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect in the product, and in particular any loss or damage caused to any ﬁ lm or lenses or other equipment or accessories used with the product or for any loss resulting from delay in repair, is excluded.

Notes;

1 This Warranty is in addition to and does not affect the

customer’s statutory right.

2 lf you have any queries regarding this Warranty, call any

of the Olympus authorized service stations listed in the instructions.

Notes regarding warranty maintenance

1 This Warranty will only be valid if the Warranty Certiﬁ cate is

duly completed by Olympus or the dealer. Make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed.

2 Since this Warranty Certiﬁ cate will not be re-issued, keep it in

a safe place.

3 Any request for repair by a customer in same country where

the product was purchased shall be subject to the terms of the warranty issued by the Olympus distributor in that country. Where the local Olympus distributor does not issue a separate warranty or where the customer is not in the country where the product was purchased the terms of this worldwide warranty shall apply.

4 Where applicable, this Warranty is valid worldwide. The

Olympus authorized service stations listed in this Warranty will gladly honor it.

* Please refer to the appended list for the authorized

international Olympus service network.

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content if these written materials or software, and in no event shall be liable for any implied warranty of merchantability or ﬁ tness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business proﬁ ts, business interruption and loss of business information) arising from the use of inability to use these written materials or software. Some states do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you.

Trademarks

•IBM is a registered trademark of International Business Machines Corporation.

•Microsoft and Windows are registered trademarks of Microsoft Corporation.

•Macintosh is a trademark of Apple Inc.

•The SDHC/SDXC logo is a trademark.

•Eye-Fi is a registered trademark of Eye-Fi, Inc.

•All other company and product names are registered trademarks and/or trademarks of their respective owners.

•The standards for camera ﬁ le systems referred to in this manual are the “Design rule for Camera File system/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

The software in this camera may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you. Those terms and other third party software notices, if any, may be found in the software notice PDF ﬁ le stored within the accompanying CD-ROM or at http://www.olympus.co.jp/en/support/imsg/digicamera/download/notice/ notice.cfm

SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying) Recording system

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system

Applicable standards : Exif 2.3, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge 3D still image : MP-format compliant Anaglyph – Sound with still pictures : Wave format

Movie : AVI Motion JPEG Memory : Internal memory, SD/SDHC/SDXC/Eye-Fi card No. of effective pixels : 16,000,000 pixels Image pickup device : 1/2.3” CCD (primary color ﬁ lter) Lens : Olympus lens 4.2 to 52.5

35 mm format equivalent : Equivalent to 24 – 300

Photometric system : Digital ESP metering system Shutter speed : 4 to 1/2000 sec. Shooting range :

Monitor : 3.0” TFT color LCD display, 460,800 dots Connector : Multi-connector (USB

Automatic calendar system : 2000 up to 2099 Operating environment

Temperature :

Humidity : 30 % to 90 % (operation)/10 % to 90 % (storage)

VR-360/D-760 VR-350/D-755 VR-340/D-750

(DCF))

mm, f3.0 to 5.9

0.6 m (2.0 ft.) to

0.2 m (0.7 ft.) to

0.01 m (0.03 ft.) to

connector, A/V OUT jack), HDMI mini connector (type C)

0 °C to 40 °C (32 °F to 104 °F) (operation)/-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Olympus lens 4.2 to 42.0 mm, f3.0 to 5.7

Equivalent to 24 – 240 mm

(W), 1.0 m (3.3 ft.) to (T) (normal) (W), 0.9 m (3.0 ft.) to (T) (macro mode)

(super macro mode)

Multi-connector (USB connector, A/V OUT jack)

Power supply : One Olympus lithium ion battery (LI-50B)

Lithium ion battery (LI-50B)

USB-AC adapter (F-2AC)

Dimensions : 104.3 mm (W) × 60.2 mm (H) × 28.3 mm (D)

Weight : 172 g (6.0 oz) (including

Lithium ion battery (LI-50B)

Product type : Lithium ion rechargeable battery Model No. : LI-50BA/LI-50BB Standard voltage : DC 3.7 V Standard capacity : 925 mAh Battery life : Approx. 300 full charges (varies on usage) Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)

USB-AC adapter (F-2AC)

Model No. : F-2AC-2B/F-2AC-1C/F-2AC-3C/F-2AC-4C/F-2AC-5C/F-2AC-1D/

Power requirements : AC 100 to 240 V (50/60 Hz) Output : F-2AC-2B: DC 5 V, 500 mA

Operating environment

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/

Design and speciﬁ cations subject to change without notice.

HDMI, the HDMI Logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

VR-360/D-760 VR-350/D-755 VR-340/D-750

(4.1 × 2.3 × 1.1 in.) (excluding protrusions)

battery and card)

F-2AC-3D/F-2AC-4D/F-2AC-5D/F-2AC-6D

F-2AC-1C/F-2AC-3C/F-2AC-4C/F-2AC-5C/F-2AC-1D/F-2AC-3D/F-2AC-4D/ F-2AC-5D/F-2AC-6D: DC 5 V, 550 mA

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

170 g (5.9 oz) (including battery and card)

VM174801

Olympus D-750, D-755, D-760, VG-340, VG-350 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Names of Parts

Camera Settings

Preparing the Camera

Shooting, Viewing, and Erasing

Using Shooting Modes

Using Shooting Functions

Menus for Shooting Functions

Menus for Playback, Editing, and Printing Functions

Menus for Other Camera Settings

Printing

Usage Tips

Appendix
