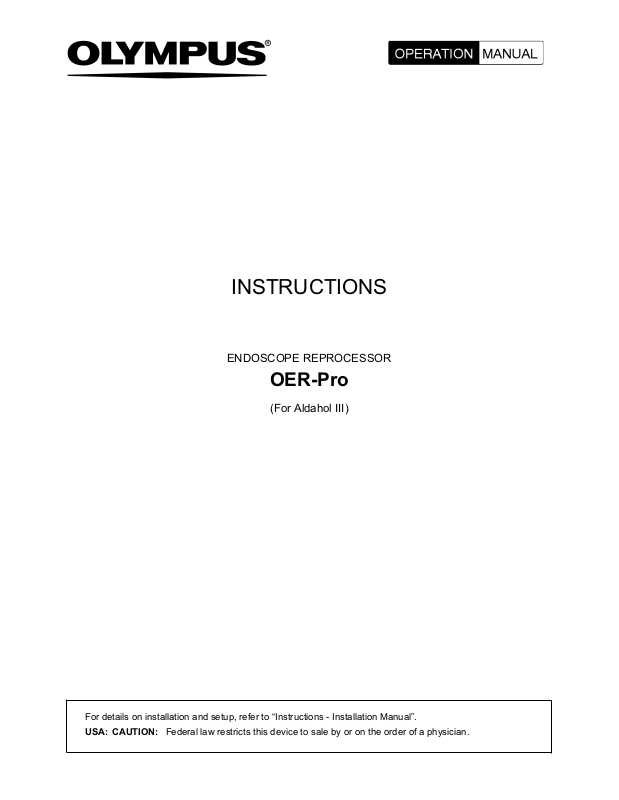

Page 1
INSTRUCTIONS
ENDOSCOPE REPROCESSOR
OER-Pro
(For Aldahol III)
For details on installation and setup, refer to “Instructions - Installation Manual”.
USA: CAUTION: Federal law restricts this device to sale by or on the order of a physician.
Page 2
Page 3
Contents
Contents
Labels and Symbols ..................................................................... 1
Important Information — Please Read Before Use.................... 7
Intended use ............................................................................................. 7
Instruction manuals ................................................................................... 7
User qualifications..................................................................................... 8
Ensuring the safety of reprocessing personnel ......................................... 8
Equipment compatibility ............................................................................ 10
Care and storage ...................................................................................... 10
Maintenance and administration ............................................................... 10
Repair and modification ............................................................................ 10
Disposal of waste fluids............................................................................. 11
Disposal of this equipment ........................................................................ 11
Signal words.............................................................................................. 11
Dangers, warnings, and cautions.............................................................. 12
Terms used in these manuals ................................................................... 14

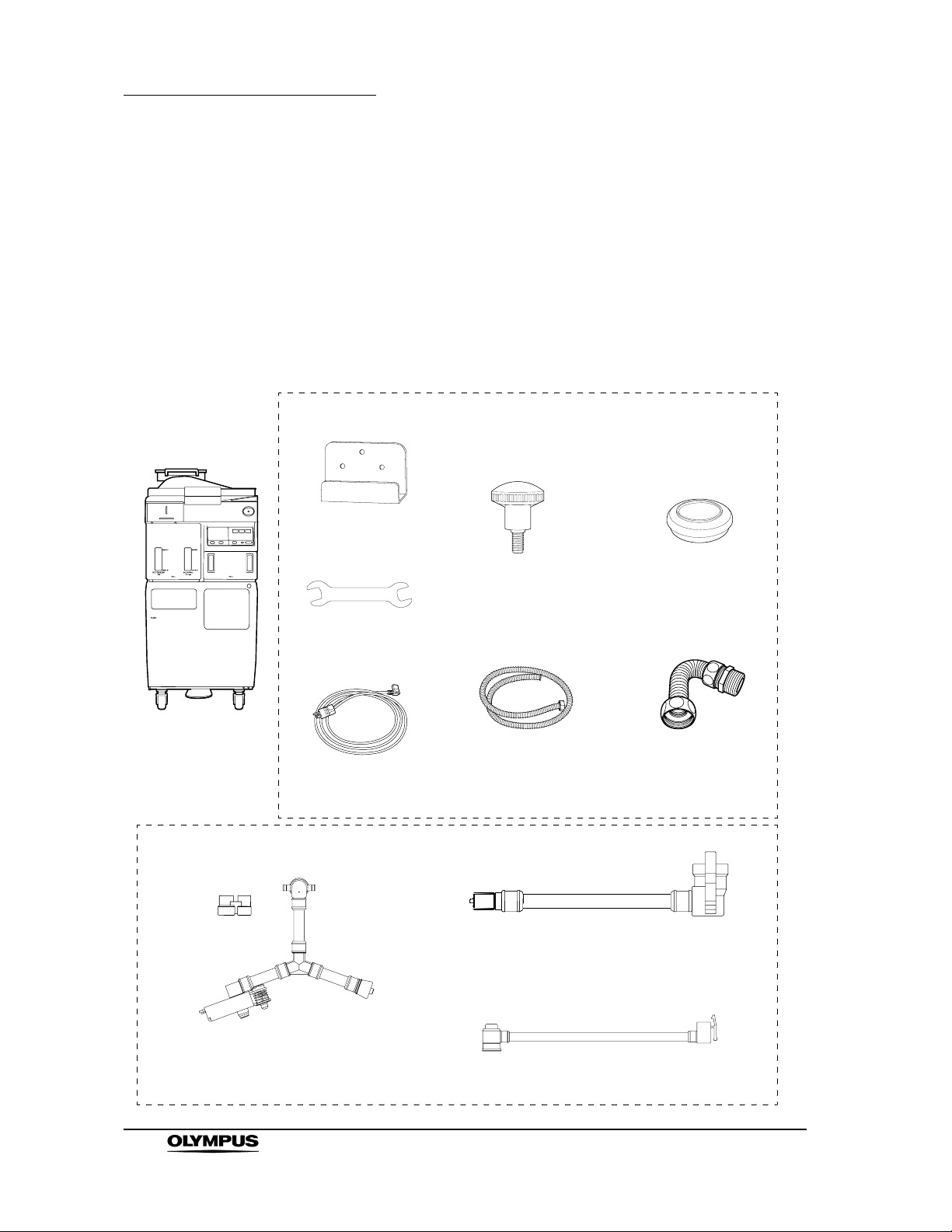

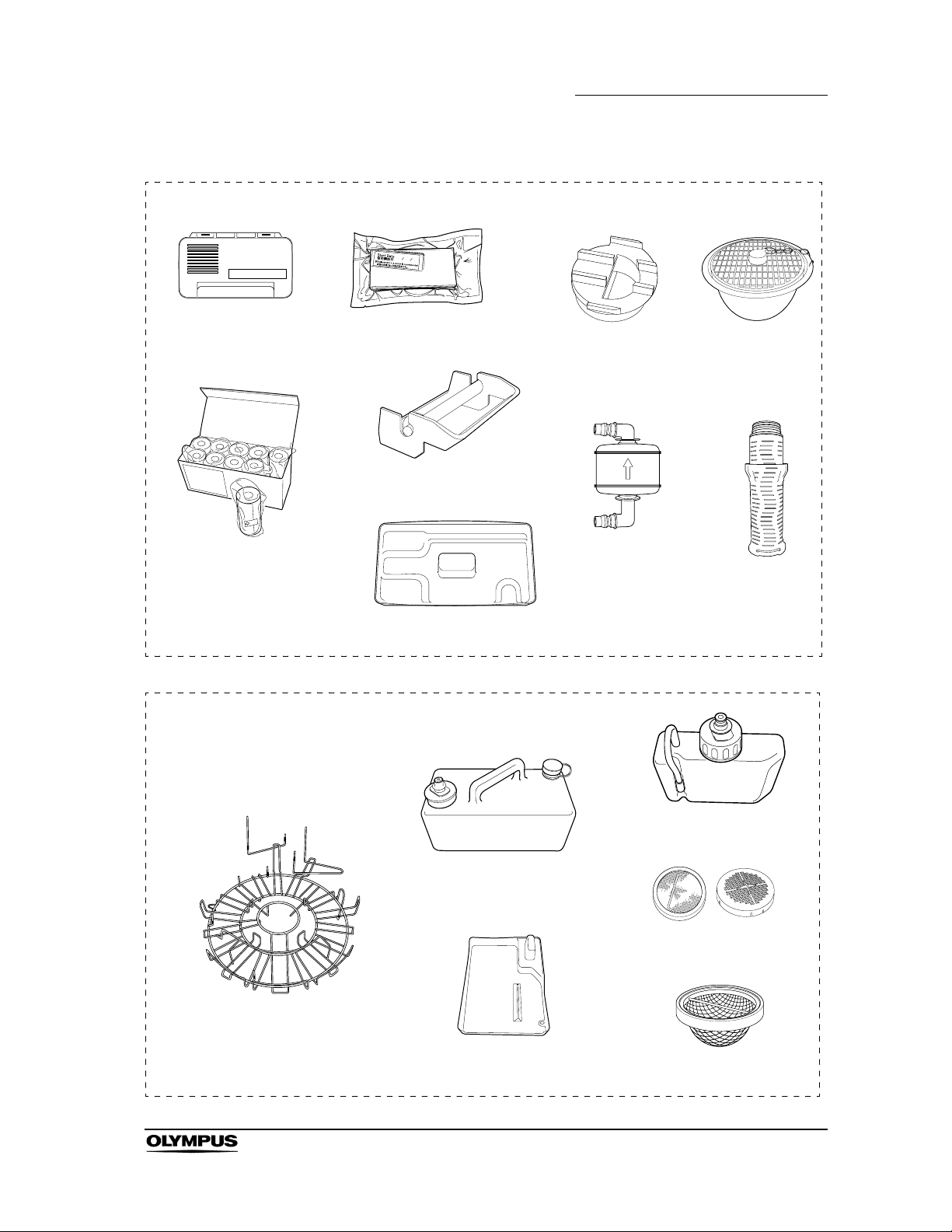

Chapter 1 Checking the Package Contents............................ 16
Chapter 2 Nomenclature and Functions ................................. 20

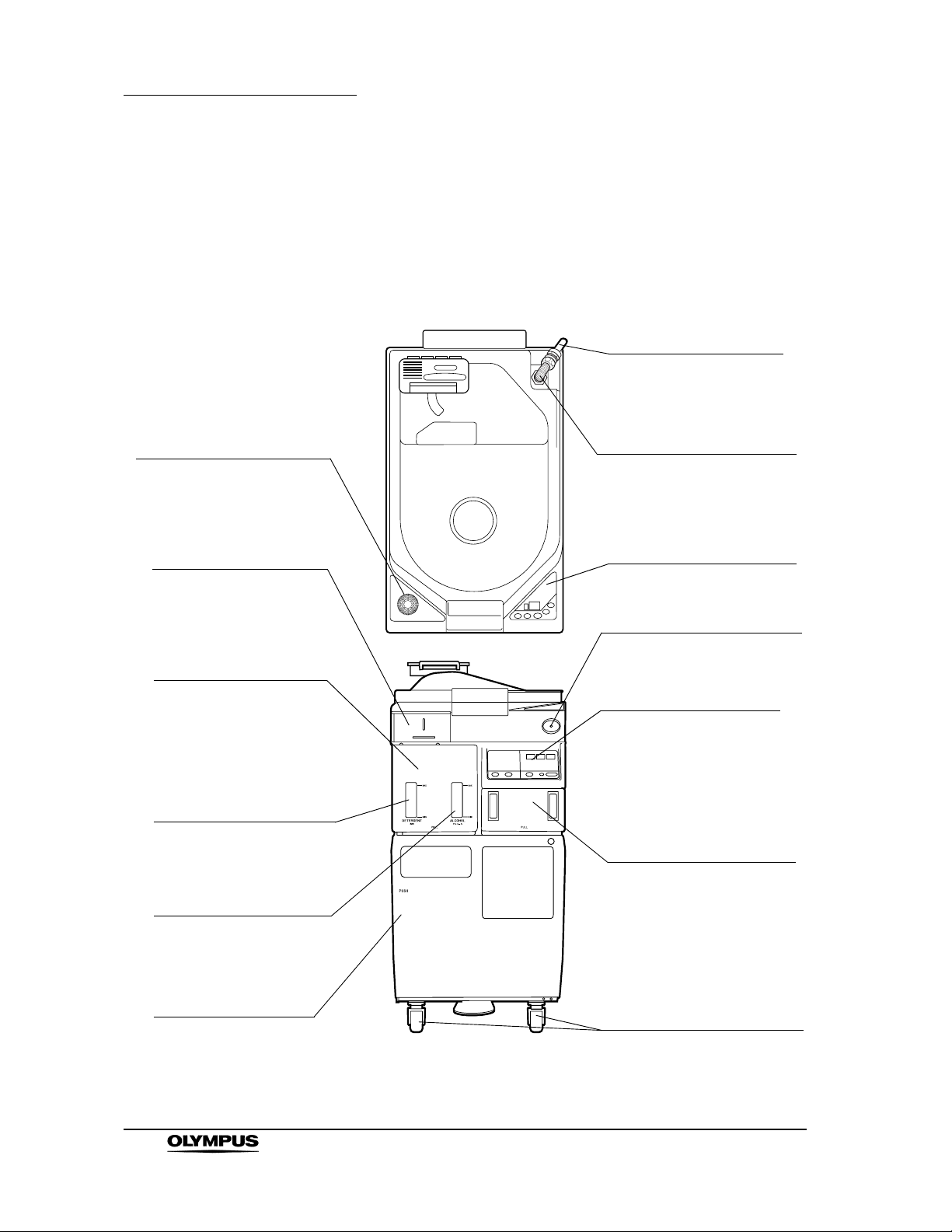

2.1 Front and top panel ......................................................................... 20
2.2 Rear panel ...................................................................................... 22
2.3 Side panel ....................................................................................... 22
2.4 Cleaning tub .................................................................................... 23
2.5 Control panels ................................................................................. 24

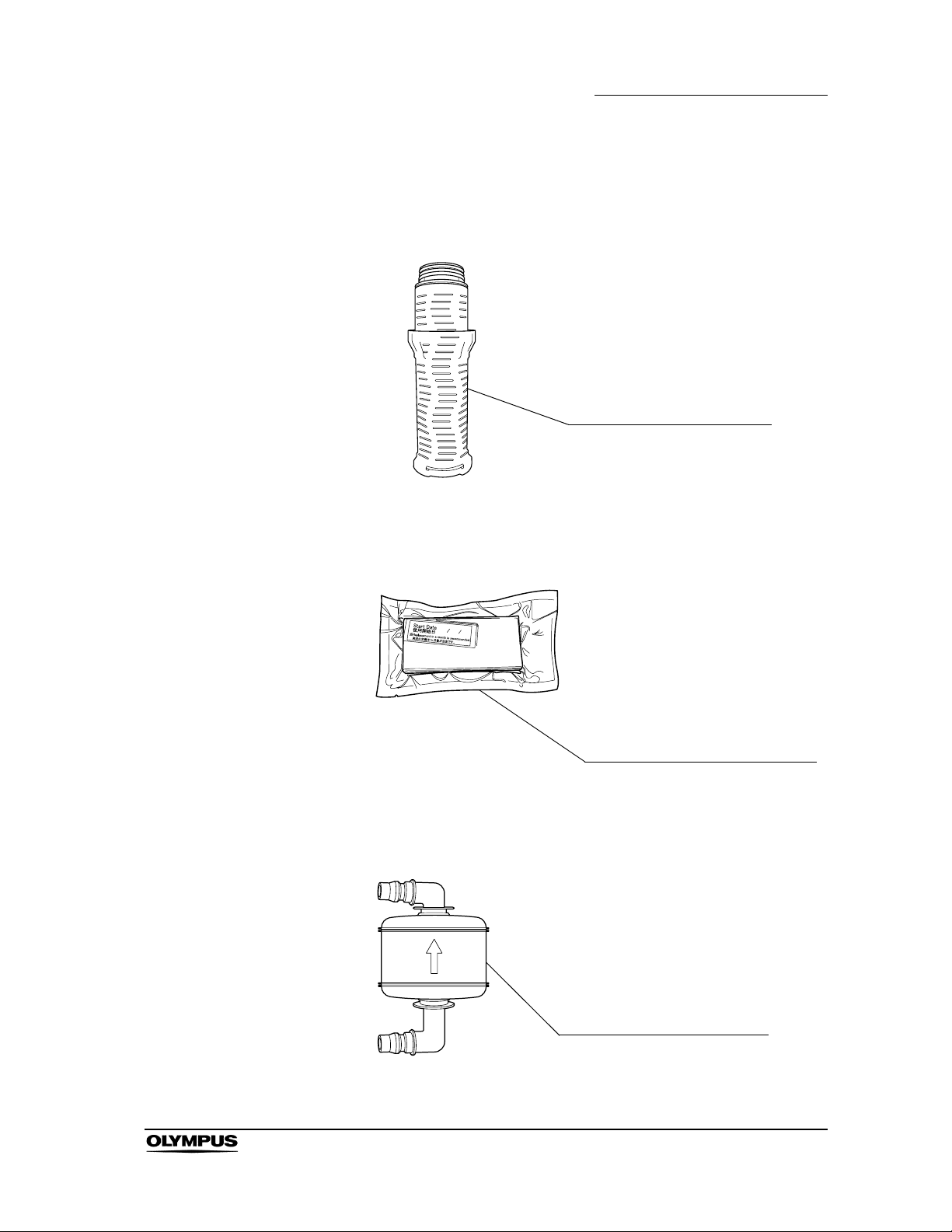

2.6 Consumable accessories (Optional) ............................................... 29
Chapter 3 Inspection Before Use............................................. 32
3.1 Inspecting for water leakage from the water supply piping
and within the equipment ................................................................ 34
3.2 Inspecting the equipment’s connectors........................................... 35
3.3 Inspecting the connecting tubes and leak test air tube ................... 36

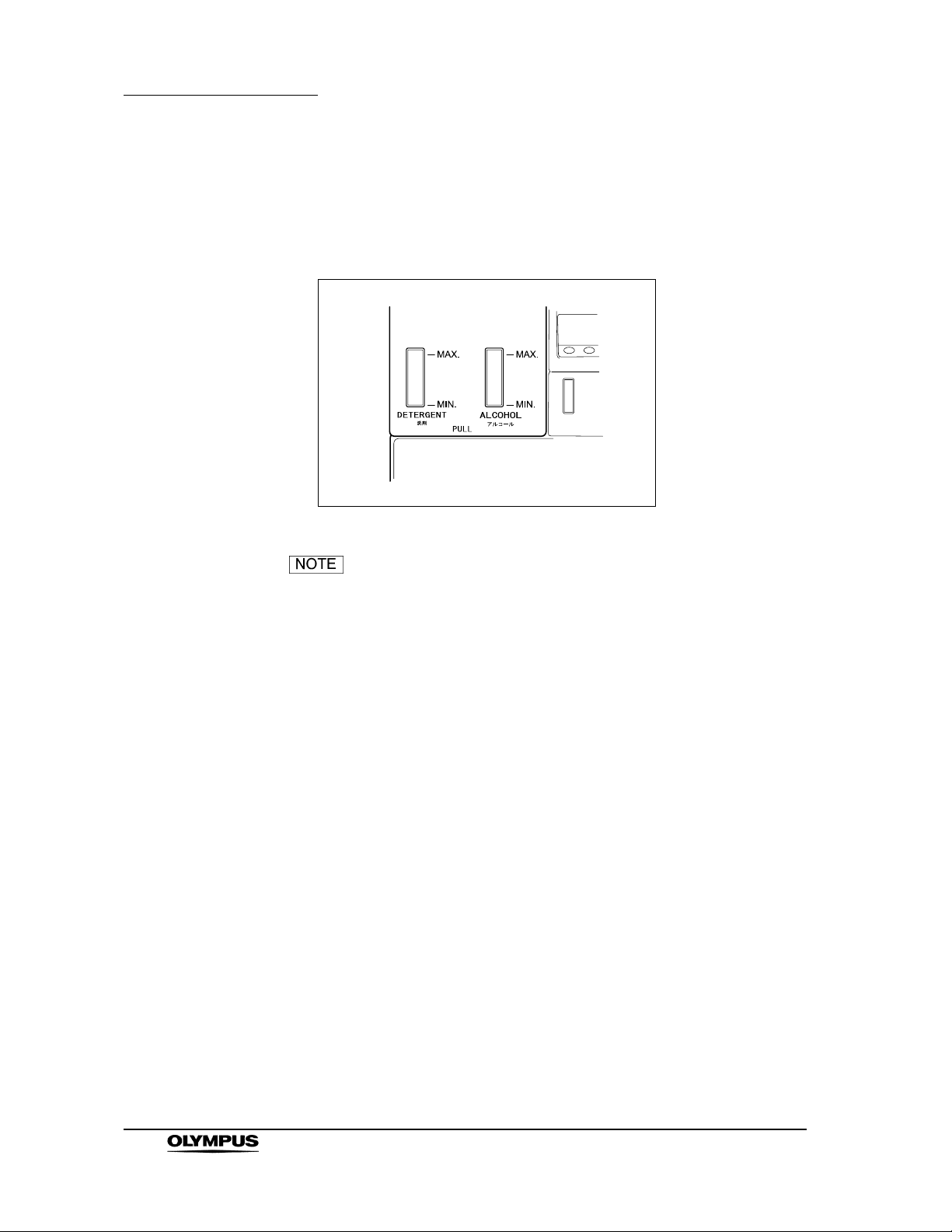

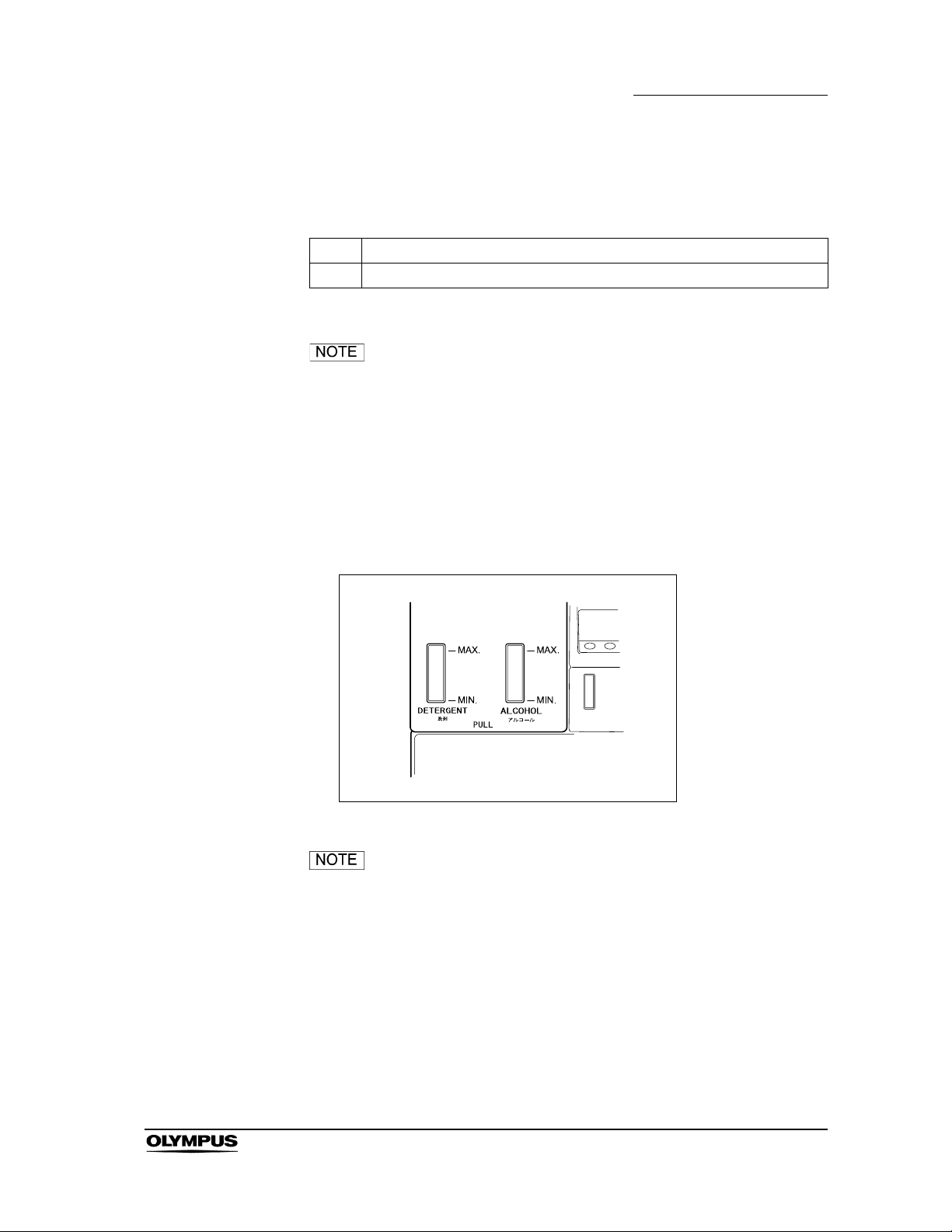

3.4 Inspecting the remaining quantity of detergent, and replenishment 37
3.5 Inspecting the remaining quantity of alcohol, and replenishment ... 43
3.6 Inspecting the mesh filters .............................................................. 48
3.7 Inspecting for disinfectant solution odor.......................................... 49
3.8 Inspecting the disinfectant solution’s concentration level ............... 50
3.9 Inspecting the printer paper roll ...................................................... 53
i
Page 4
Contents
Chapter 4 Basic Endoscope Reprocessing Operations ........ 54
4.1 Power activation and opening the faucet ........................................ 57
4.2 Inspection before use...................................................................... 60
4.3 Endoscope precleaning .................................................................. 60
4.4 Recognition of the Scope ID ........................................................... 61
4.5 User ID detection ............................................................................ 64
4.6 Endoscope setup ............................................................................ 66
4.7 Leak test ......................................................................................... 72
4.8 Connecting tube installation ............................................................ 78
4.9 Reprocessing .................................................................................. 80
4.10 Alcohol flushing ............................................................................... 87
4.11 Removing the endoscopes ............................................................. 94
4.12 Printing of the reprocessing results................................................. 95
Chapter 5 End-of-Day Checks .................................................. 109
5.1 Turning the power OFF, closing the faucet and cleaning
the outer surface ............................................................................. 110
5.2 Cleaning the mesh filters................................................................. 111
5.3 Removal or storage of alcohol ........................................................ 113
5.4 Cleaning the fluid level sensor ........................................................ 116
Chapter 6 Other Functions ....................................................... 119
6.1 Confirming the disinfectant solution temperature ............................ 119
6.2 Heating the disinfectant solution ..................................................... 120
6.3 Setting the reprocessing programs ................................................. 122
6.4 Setting the disinfectant solution counter ......................................... 126
6.5 Display of the total number of times the disinfectant solution was
supplied........................................................................................... 131
6.6 Display the total operation count of the equipment ......................... 131
6.7 Air purge ......................................................................................... 132
6.8 Rinsing ............................................................................................ 133
6.9 Emergency stop and automatic processing after stopping ............. 134
ii
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 5
Contents
Chapter 7 Routine Maintenance .............................................. 136
7.1 Replacing the gas filter (MAJ-822).................................................. 138
7.2 Replacing the water filter (MAJ-824)............................................... 142
7.3 Disinfecting the water supply piping................................................ 152
7.4 Microbiological surveillance ............................................................ 160
7.5 Replacing the air filter (MAJ-823) ................................................... 165
7.6 Cleaning the float switch ................................................................. 168
7.7 Checking the lid and lid packing ..................................................... 170
7.8 Cleaning the detergent/alcohol drawer ........................................... 171
7.9 Cleaning the detergent tank ............................................................ 172
7.10 Cleaning the accessories and accessory holders........................... 173
7.11 Cleaning the alcohol tank................................................................ 175
7.12 Replacing the disinfectant solution ................................................. 176
7.13 Cleaning the mesh filter in the water supply adapter connector ..... 193
7.14 Replacing the fuse .......................................................................... 195
7.15 Disinfecting the detergent/alcohol pipe ........................................... 196
7.16 Preparing the reprocessor for long-term storage ............................ 204
7.17 Installing the printer paper roll......................................................... 211
7.18 Care and maintenance after long-term storage .............................. 217
Chapter 8 Troubleshooting and Repair................................... 218
8.1 Troubleshooting guide .................................................................... 218
8.2 Returning the endoscope reprocessor for repair ............................ 227
Appendix ....................................................................................... 228
System chart ............................................................................................. 228
Shipping environment ............................................................................... 230
Operating environment.............................................................................. 230
Specifications ............................................................................................ 230
EMC information ....................................................................................... 233
iii
Page 6
Contents
iv
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 7
Labels and Symbols
The meaning(s) of the symbol(s) shown on the package with the components,
the back cover of this instruction manual and/or this equipment are as follows:
Refer to instructions.
Caution, hot surface
Endoscope reprocessor
Labels and Symbols
Manufacturer
Authorized representative in the European Community
1
Page 8
Labels and Symbols

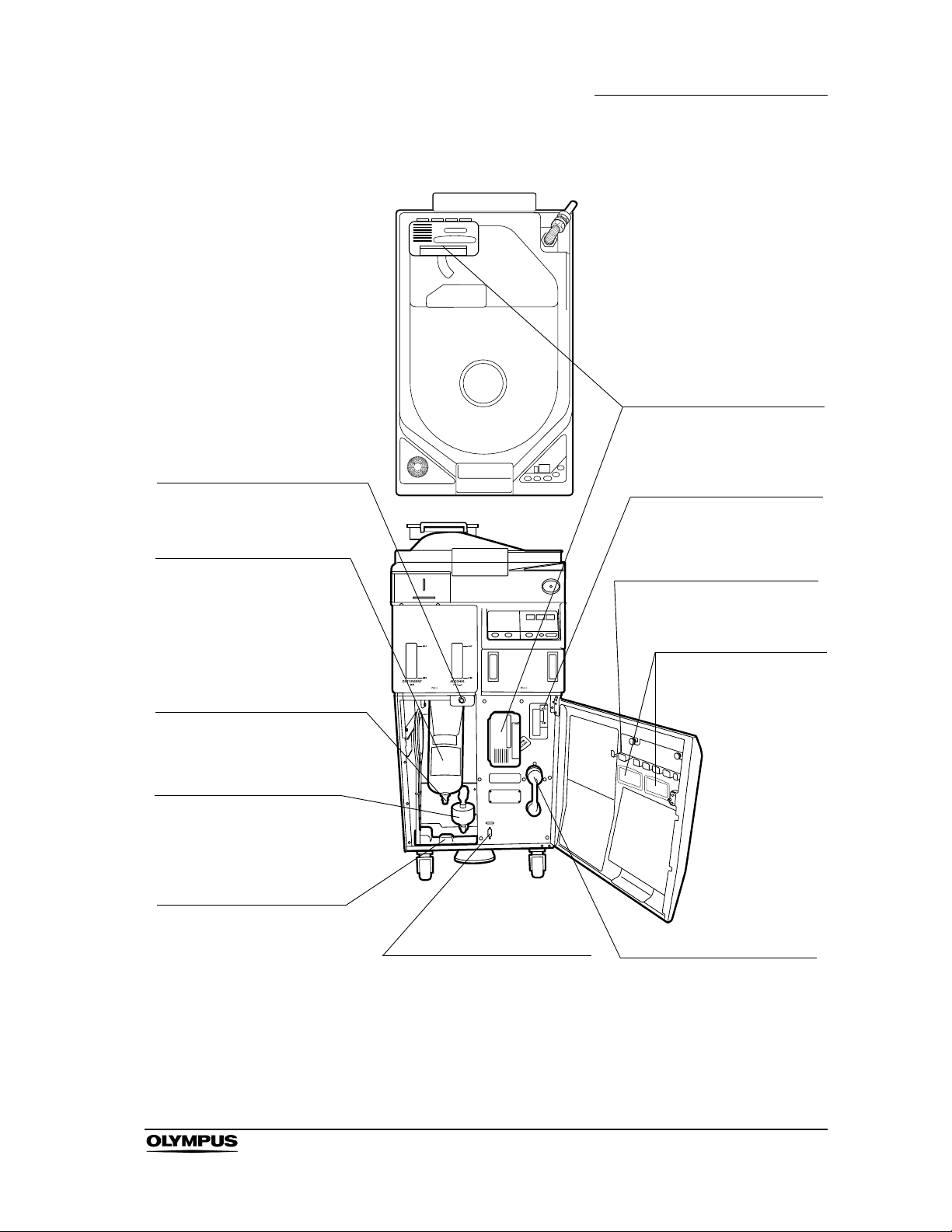

Safety-related labels and symbols are attached to the equipment at the locations
shown below. If labels or symbols are missing illegible, contact Olympus.

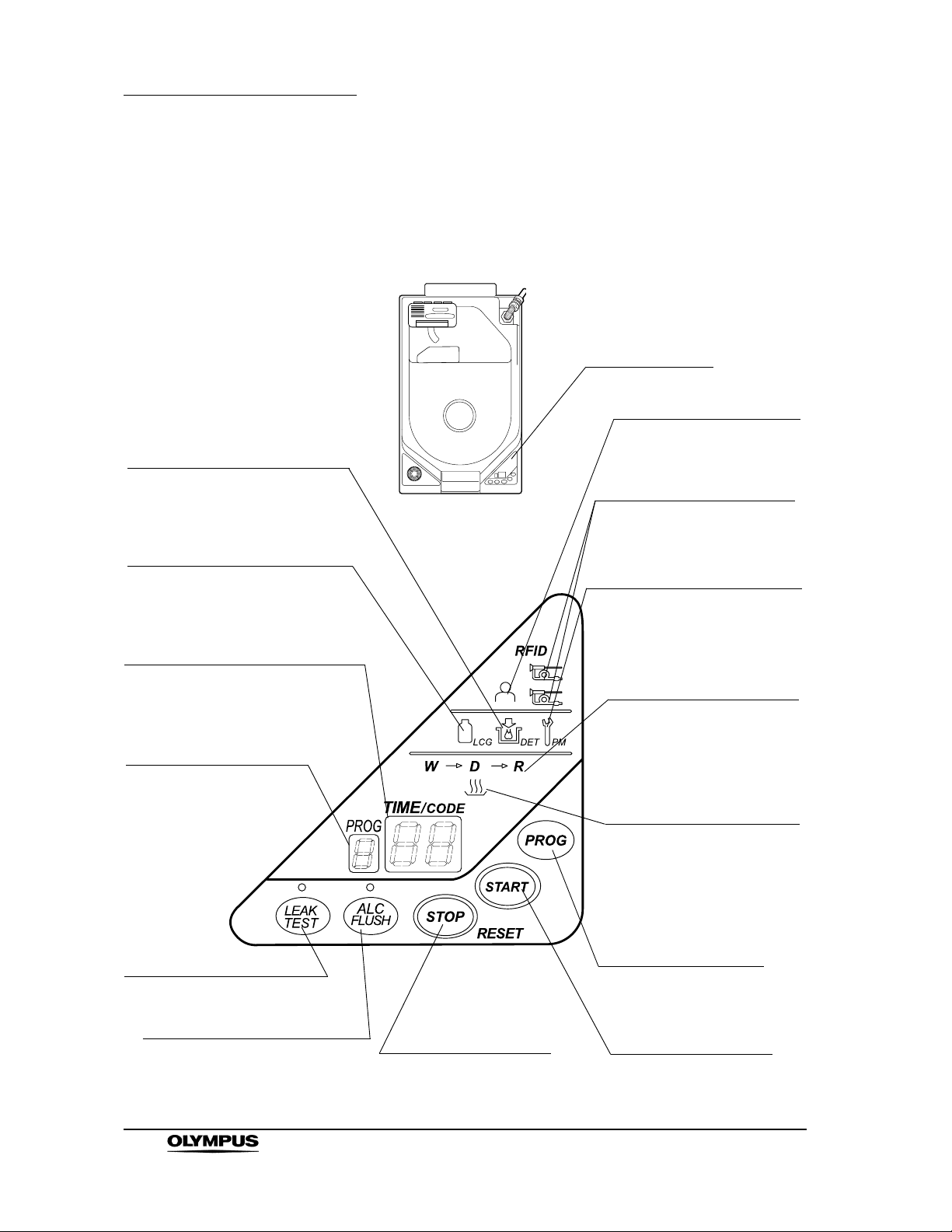

Front panel
RFID marking
2
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 9
Labels and Symbols
Rotation direction indicator label
Indicates the rotation directions for locking and releasing each gas filter case.
Top panel
3
Page 10
Labels and Symbols

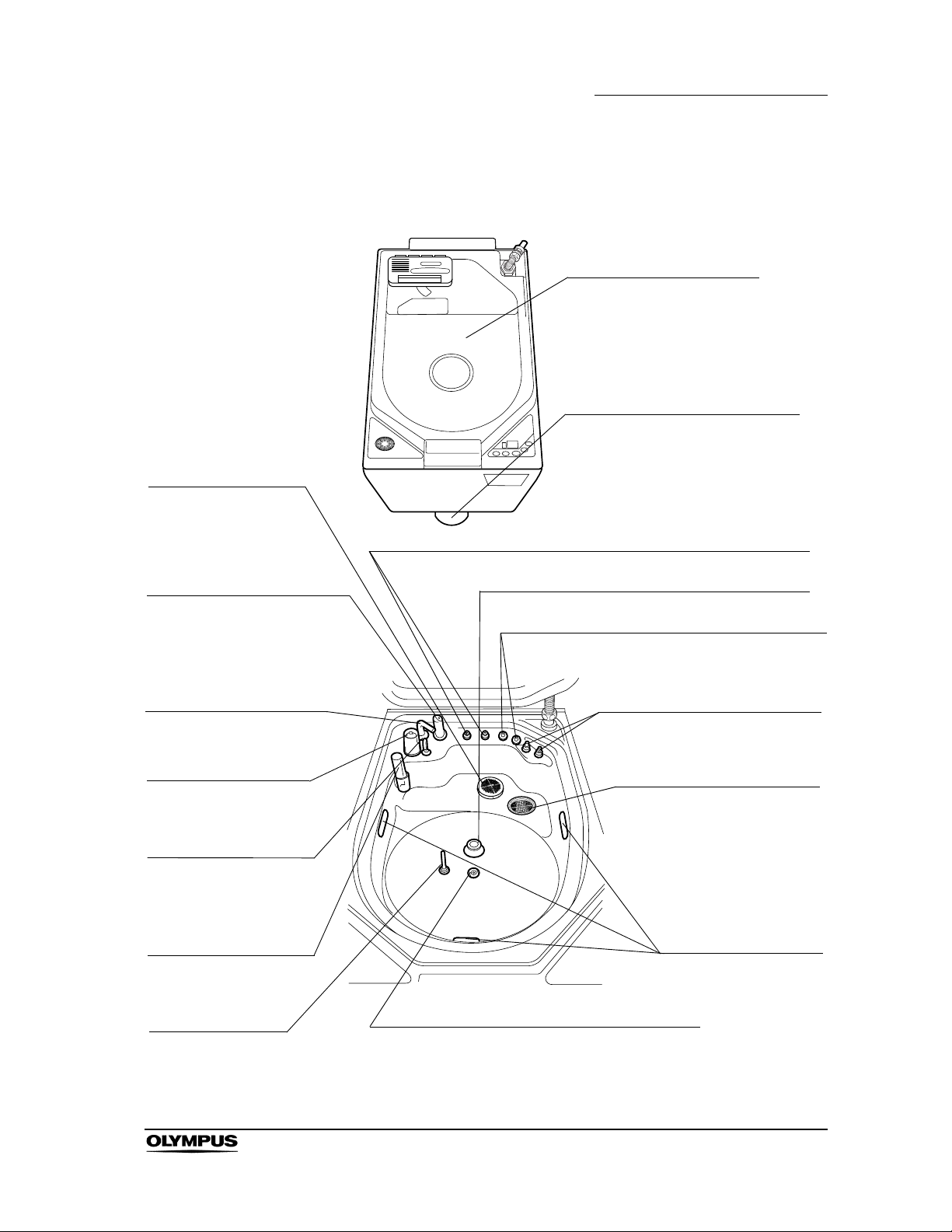

Inner side
4
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 11
Rotation direction indicator label
Indicates the rotation direction for locking and releasing each gas filter case.
Labels and Symbols
Rating plate
Shows the product model, power rating, and serial number.
Error code table
Lists error codes, possible causes, and remedial actions for details, see Section 8.1, “Troubleshooting guide” on page 218 in the “Instructions-Operation Manual”.
5
Page 12
Labels and Symbols
CSA/UL MARKING

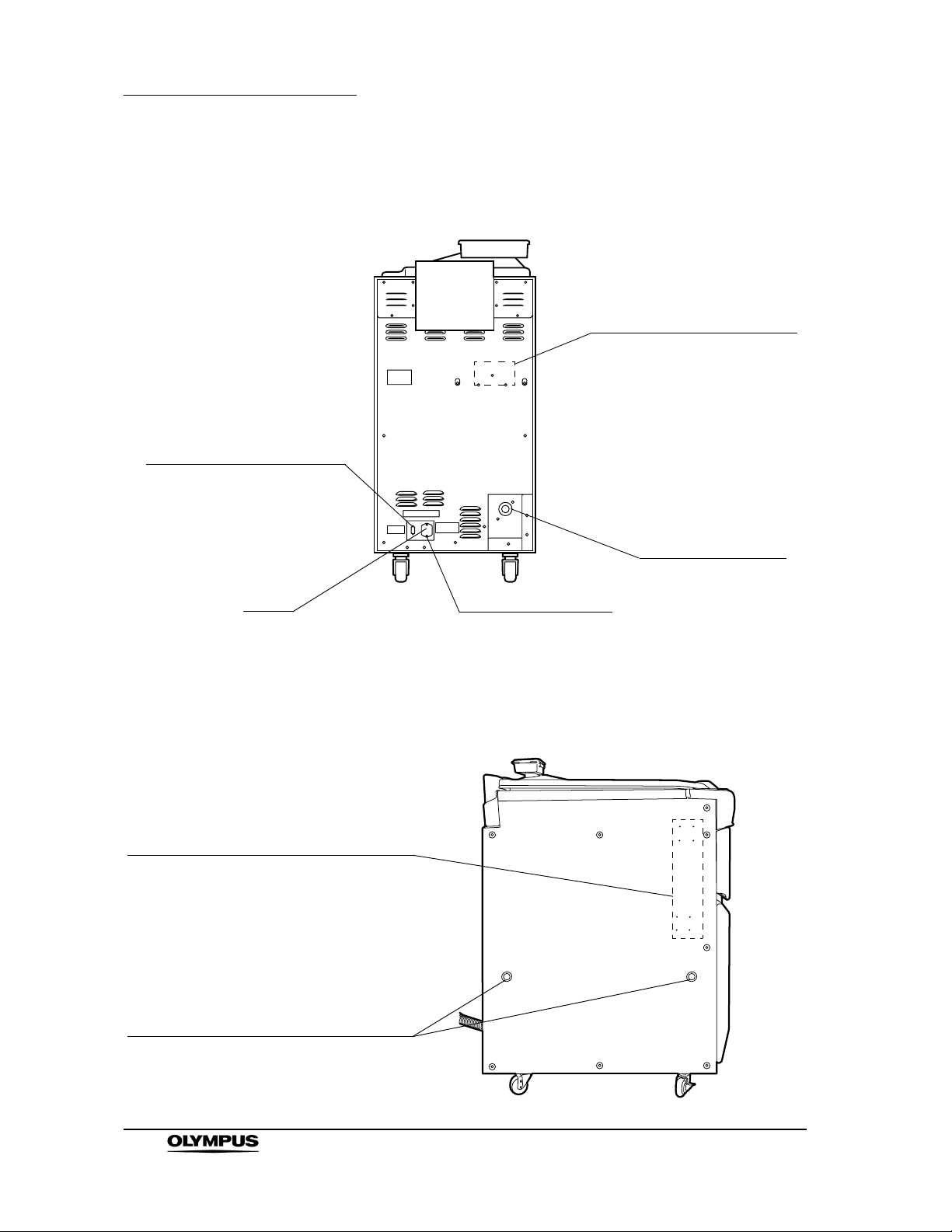

Rear panel
Option terminal
Used for connecting ancillary equipment (for service engineer use only).
6
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 13
Important Information — Please Read Before Use
Important Information — Please Read Before Use
Intended use
This subject device has been designed to wash and disinfect flexible
endoscopes and their accessories utilizing an alkali detergent and an
FDA-approved liquid chemical germicide for semi critical medical devices. Both the detergent and the LCG are exclusively used for this subject.
Instruction manuals
The instructions for this equipment are divided into two volumes: “Instructions-Installation Manual” and “Instructions-Operation Manual”. Each
manual contains essential information for using this equipment safely and
effectively (“Instructions-Installation Manual” describes how to install the equipment and “Instructions-Operation Manual” describes how to inspect and
use the equipment. These manuals will be referred to as “the instruction
manuals”.). Before using this reprocessor, be sure to review these manuals thoroughly, as well as the manuals of any other equipment that will be used
during reprocessing. Always, use this equipment as instructed. It might cause
unexpected danger if you don't follow the installation and operation manual. The descriptions in these manuals assume that all endoscopes are reprocessed
using the Olympus-designated detergent (EndoRapid 980 ml pack) and
disinfectant solution (Aldahol III). Keep these and all related instruction manuals and documents in a safe,
accessible location.
If you have any questions or comments about any information in these manuals, please contact Olympus.
7
Page 14
Important Information — Please Read Before Use
User qualifications
The operator of this equipment must be sufficiently trained in reprocessing of
endoscopes. Medical literature reports cases of infections due to inappropriate
cleaning, disinfection, and /or sterilization. Thoroughly review and understand the following items before use:
Cleaning, disinfection, and sterilization procedures
described in the instruction manuals for the endoscope
and ancillary equipment.
Professional health and safety standards.
Applicable guidelines on cleaning, disinfection, and
sterilization of endoscopy equipment.
Structure and handling of endoscopic equipment.
Personal protective equipment requirements to minimize
exposure to chemicals and infectious materials.
These manuals do not explain or discuss the detailed cleaning, disinfection, and sterilization procedures. For more details, please consult your facility's
procedures, professional guidelines, and regulatory requirements for
reprocessing endoscopes.
Ensuring the safety of reprocessing personnel
• Before handling the high-level disinfectant solution (Aldahol III), carefully read the instructions for use and the material safety data sheet.
• During reprocessing, wear appropriate personal protective equipment to
prevent contact with or inhalation of infectious substances or
disinfectant. Personal protective equipment includes eye wear, face mask, moisture-resistant clothing, and chemical-resistant gloves that fit
properly and are long enough so that your skin is not exposed. All
personal protective equipment should be inspected before use and replaced periodically before it is damaged.
8
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 15
Important Information — Please Read Before Use
• When using the disinfectant solution and alcohol, Olympus recommends
the use of gas filters and running this equipment in well-ventilated areas.
Wear a facemask, gloves, and protective clothes to
minimize aspiration and skin contact.
Wear goggles for eye protection.
Refer to the following association's guidelines related to ventilation:
SGNA (Society of Gastroenterology Nurses and Associates)
ASGE (American Society of Gastroenterological Endoscopy)
APIC (Association for Professionals of Infection Control and
Epidemiology)
AORN (Association of Preoperative Registered Nurses)
ASTM (American Society for Testing and Materials)
OSHA (Occupational Safety and Health Administration)
ACGIH (American Conference of Governmental Industrial
Hygienists)
NIOSH (National Institute for Occupational Safety and Health)
AIA (American Institute of Architects)
Do not handle the equipment if the operator shows any allergic
symptoms even while wearing protective gear.
• Before handling the detergent or disinfectant, read the material safety
data sheets and learn what measures to take in the event of exposure.
• Operators who exhibit symptoms of an allergic reaction or sensitivity to
the reprocessing chemicals should not operate this equipment.
• This equipment can be set up to use the RFID function. Please be
aware that the radio waves emitted from the equipment may cause
medical devices such as pacemakers to malfunction.
9
Page 16
Important Information — Please Read Before Use
Equipment compatibility
Use this equipment in combination with ancillary equipment listed in “System
chart” in Appendix. Using incompatible equipment may result in patient or
operator injury and equipment damage and/or malfunction.
Care and storage
After use, reprocess and store this equipment referring to the instructions in Chapter 5, “End-of-Day Checks” in this manual. Inappropriate care and storage
could present an infection control risk and/or cause equipment damage or
malfunction.
Maintenance and administration
• Endoscopes or ancillary devices that have been used many times or for
a long time are more likely to fail. In addition to checks before use, the person in charge of maintenance and administration of the medical
equipment at the hospital should periodically check all of the items
described in this manual. If any irregularity is observed, do not use the equipment and inspect it as described in 8.1, “Troubleshooting guide” on
page 218. If the irregularity is still present, the equipment must be
repaired prior to next use.
• If the lamp of the PERIODICAL MAINTENANCE indicator described in Section 2.5, “Control panels” on page 24 blinks, contact Olympus.
Repair and modification
Do not disassemble, modify or attempt to repair this equipment and its
accessories. Doing so could result in operator or patient injury and/or equipment
damage or malfunction. Some problems that appear to be malfunctions may be corrected by referring to Chapter 8, “Troubleshooting and Repair”. If the problem
cannot be resolved using the information in Chapter 8, “Troubleshooting and
Repair”, contact Olympus.
10
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 17
Disposal of waste fluids
The waste fluids of this equipment should be treated as directed in the Aldahol III
instruction manuals and follow all applicable national and local guidelines.
Disposal of this equipment
When disposing of this equipment and accessories, follow all applicable
national, state, and local regulations and guidelines.
Signal words
The following signal words are used throughout these manuals:
Important Information — Please Read Before Use
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices or potential
equipment damage.
Indicates additional helpful information.
11
Page 18
Important Information — Please Read Before Use
Dangers, warnings, and cautions
Follow the dangers, warnings, and cautions given below when handling this
equipment. This information is supplemented by the dangers and warnings given
in each chapter.
• Do not insert an EndoTherapy accessory or other object
through an opening including the air vent of the equipment.
Also, do not allow any liquid (including water or disinfectant solution) to flow into an opening. Contact with an electrical
part inside the equipment could cause an electric shock or
equipment failure.

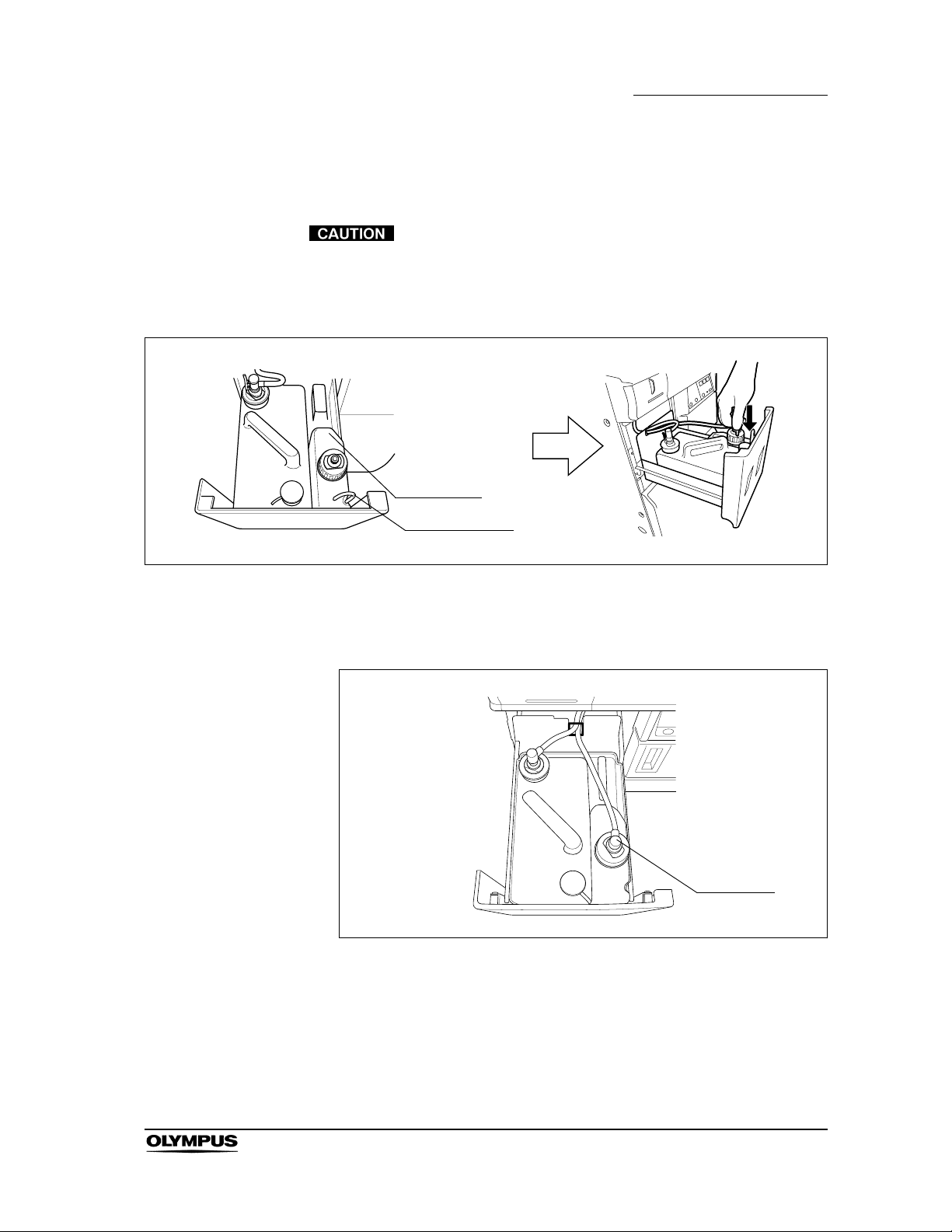

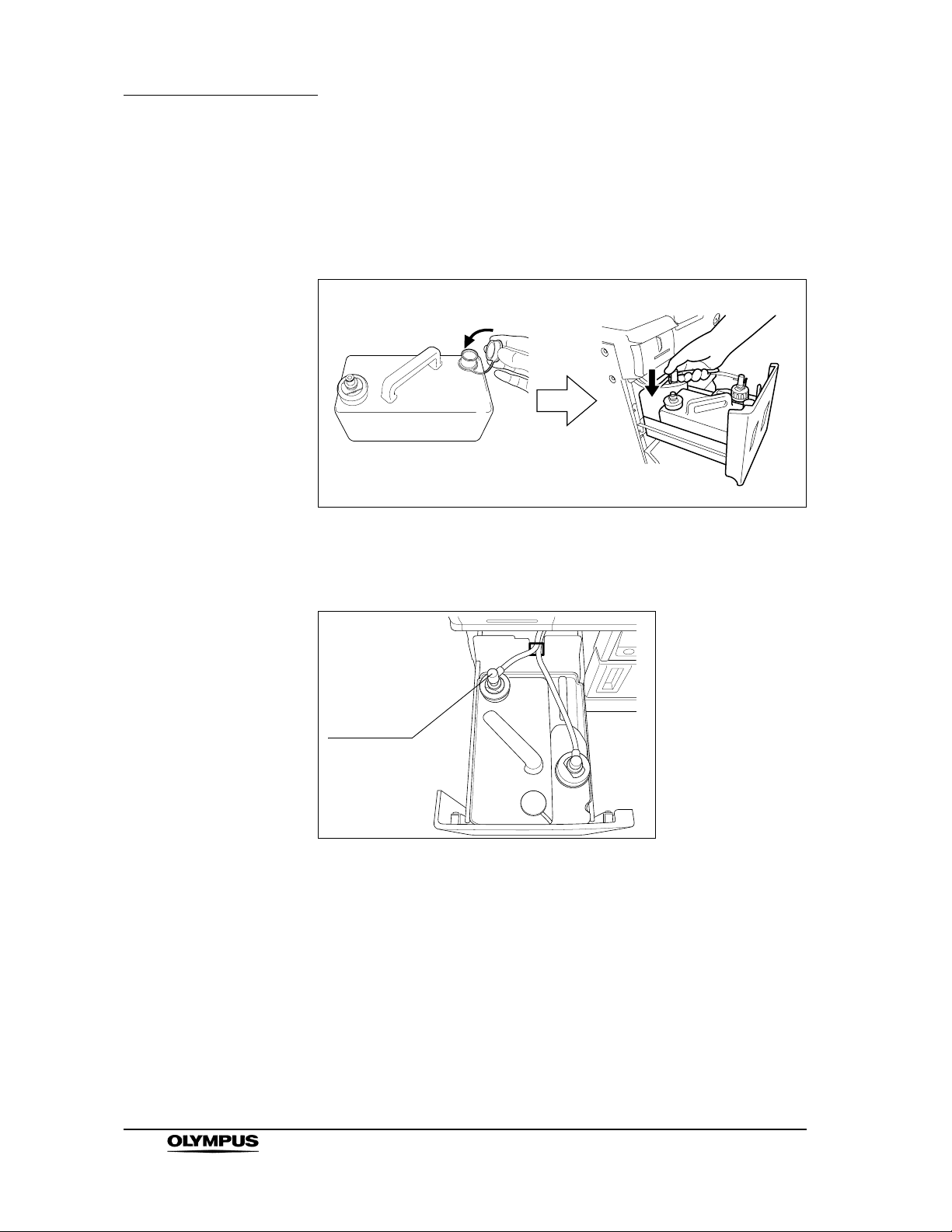

• Always remove the tank from the detergent/alcohol drawer
before putting detergent or alcohol in the tank. If detergent or alcohol is spilled on the detergent/alcohol drawer, it could get
inside the equipment and contact an electrical part inside,
causing an electric shock or fire hazard.
• Do not install this equipment in any place where any of the following are present.
High oxygen concentration
Oxidizing substance such as Nitrous Oxide (N
Flammable anesthetic gas
This equipment is not explosion-proof and may explode or cause fire under these conditions.
Always use the power cord provided with this equipment.
Otherwise, equipment failure or power cord burnout may result. Also, remember that the provided power cord is for
use only with this equipment and should not be used with any
other equipment.
• Do not press any of the switches on the main or subcontrol panel of this equipment with a pointed or hard object.
Otherwise, the switch may be damaged.
• Be sure to turn off the faucet and the power switch of the
equipment at the end of the day. Otherwise, water supply hose might slip off the connection when not in use (e.g.,
nighttime or holidays) because of the unexpected change in
water pressure.
O)
2
12
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 19
Important Information — Please Read Before Use
• To avoid malfunctions, do not use this equipment in a dusty
environment.
• To avoid electromagnetic interference from other equipment,
do not install any other electrical devices in close proximity to
this equipment (aside from ancillary devices used with this equipment).
• This equipment provides a radio communication function by
RFID and emits RF (Radio Frequency) energy to perform the
said intended functions. Therefore, it may cause electromagnetic interference in nearby electronic equipment,
and is labeled with the following symbol. If electromagnetic
interference occurs, mitigation measures may be necessary, such as moving the electronic equipment away, reorienting or
relocating this instrument, or shielding the location. An
electromagnetic interference with other devices may shorten the communications distance of the designated ID tag and
cause signals to become unreadable. Try to take mitigation
measures such as keeping the affecting device away from
this equipment.
13
Page 20
Important Information — Please Read Before Use
Terms used in these manuals
Cleaning fluid
Refers to the water treated by the water filter for use by this equipment in
reprocessing. When cleaning fluid is used in the detergent cleaning process, detergent is added to it.
Detergent
Olympus-designated alkaline detergent (EndoRapid).
Disinfectant solution
Olympus-designated disinfectant solution (Aldahol III).
Alcohol
70% ethyl alcohol or isopropyl alcohol.
Process
Generic term for any operation, including cleaning and disinfection, that is performed automatically by this equipment.
Cleaning process
A series of operations programmed into the equipment that enable it to
perform ultrasonic cleaning and detergent cleaning of an endoscope.
Disinfection process
A series of operations programmed into the equipment that enable it to
perform disinfection of an endoscope.
Leak test
A test to confirm that an endoscope is waterproof.
Air purge
In this operation, air is fed into an endoscope channel to blow out any internal moisture. This operation is usually performed automatically during a
process, but it can also be activated independently. Air purge is also used to
drain cleaning fluid or disinfectant solution from inside the equipment when the operation has stopped due to an error code, etc.
14
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 21
Important Information — Please Read Before Use
Reprocessing programs
A series of operations for ultrasonic cleaning, detergent cleaning,
disinfection, and rinsing of the outer surface and channels of endoscopes that run in a specified sequence and for a specified time. Reprocessing
programs [1] to [3] can be selected by the user. Program [1] consists of a
preset series of processes confirmed as effective at our factory. Programs [2] and [3] can be set up by the user.
Alcohol flushing
To dry the channel after reprocessing, alcohol is passed through the
endoscope channel and then air is fed through. This operation can be
performed as the last step after completion of the reprocessing program or as an independent operation.
Disinfectant solution heating
A process for heating disinfectant solution until it reaches the appropriate temperature. When this process is included in a reprocessing program, it is
performed automatically during the program. It can also be performed as an
independent operation.
Test strip
Device used to test if the concentration of disinfectant solution is effective for disinfection. Meets the minimum recommended concentration (MRC)
specified by the disinfectant manufacturer.
Error code
A code consisting of [E] and a two-digit number. This code is displayed on
the main control panel if there is a problem with the equipment. When an error code is displayed, check the error code list to find out what corrective
measures to take.
Automatic Processing
When the equipment is stopped by the operator or due to an error, it
identifies its status and executes the optimum operation automatically. For example, if the device stops in the middle of disinfection process, it
terminates the disinfection process and removes the disinfectant solution.
15
Page 22
Chapter 1 Checking the Package Contents
Chapter 1 Checking the Package
Contents
Check that the package contains all the items listed below. Inspect each item for damage. If the device is damaged, a component is missing, or there is any
question regarding items, do not use the device and contact Olympus
immediately.
Accessories for use in installation
Buckling guard (GT143100)
Buckling guard retaining screws (u3) (GC783700)
Grommet (u4) (GC784100)
Wrench (GC748400)
ENDOSCOPE REPROCESSOR OER-Pro
Accessories for use in reprocessing
Gas cap
1 Not used with OER-Pro.
1
Connecting tubes (u 2) (MAJ-1500)
Power cord (DW662000)
Drain hose (GJ853400)
Connecting tubes (u 2) (MAJ-1501)
Leak test air tubes (u 2) (MAJ-821)
Water supply adapter (GN513000)
16
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 23
Accessories to be attached to the equipment
Chapter 1 Checking the Package Contents
Gas filter cases (u 2) (GJ460700)
printer paper roll (MAJ-1497)
Accessories pre-attached to the equipment
Gas filters (u 2) (MAJ-822)
Paper roll axle (MAJ-1498)
Water tray (GC601400)
Adapter (GC949900)
Air filter (MAJ-823)
Washing case (MAJ-827)
Water filter (MAJ-824)
Detergent tank (GJ457500)
Retaining rack (GL830600)
Detergent/alcohol inner tray (GT115400)
Alcohol tank (GN042300)
Circulation port mesh filters (GC574000, GC693900)
Drain port mesh filter (GC220100)
17
Page 24
Chapter 1 Checking the Package Contents
Accessories for use in maintenance
Syringe (GT173600)
Water filter wrench (GC601300)
Connector jig (GN312400)
Tub e (GC651300)
Filter tubes (u 2) (GJ460500)
Drain connector (GL366300)
Spare fuses (u 2) (DB181500)
Disinfectant collection hose (GJ668000)
Sampling tube (GN513100)
Disinfectant removal tube (GJ460200)
Water supply piping disinfection hose (GL860800)
18
Card holders (u 2) (GT271000)
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Scope ID master card (GT210400)
User ID master card (GT210300)
Page 25
Manuals
Chapter 1 Checking the Package Contents
Instructions-Installation Manual
OER-Pro Quick Reference Guide OER-Pro Operation Guide
Instructions-Operation Manual (this manual)
DVD
List Of Compatible Endoscopes/Connecting Tubes <OER-Pro>
Endoscope Reprocessor Information Card
19
Page 26
Chapter 2 Nomenclature and Functions
Chapter 2 Nomenclature and Functions
2.1 Front and top panel
Water supply adapter
Supplies municipal water for use in cleaning.
Water supply adapter
ID reader section
Reads the user ID and scope ID.
connector
Connect the water supply adapter here. A mesh filter is built in.
Printer
Prints information such as the scope ID of the reprocessed scope and the reprocessing time.

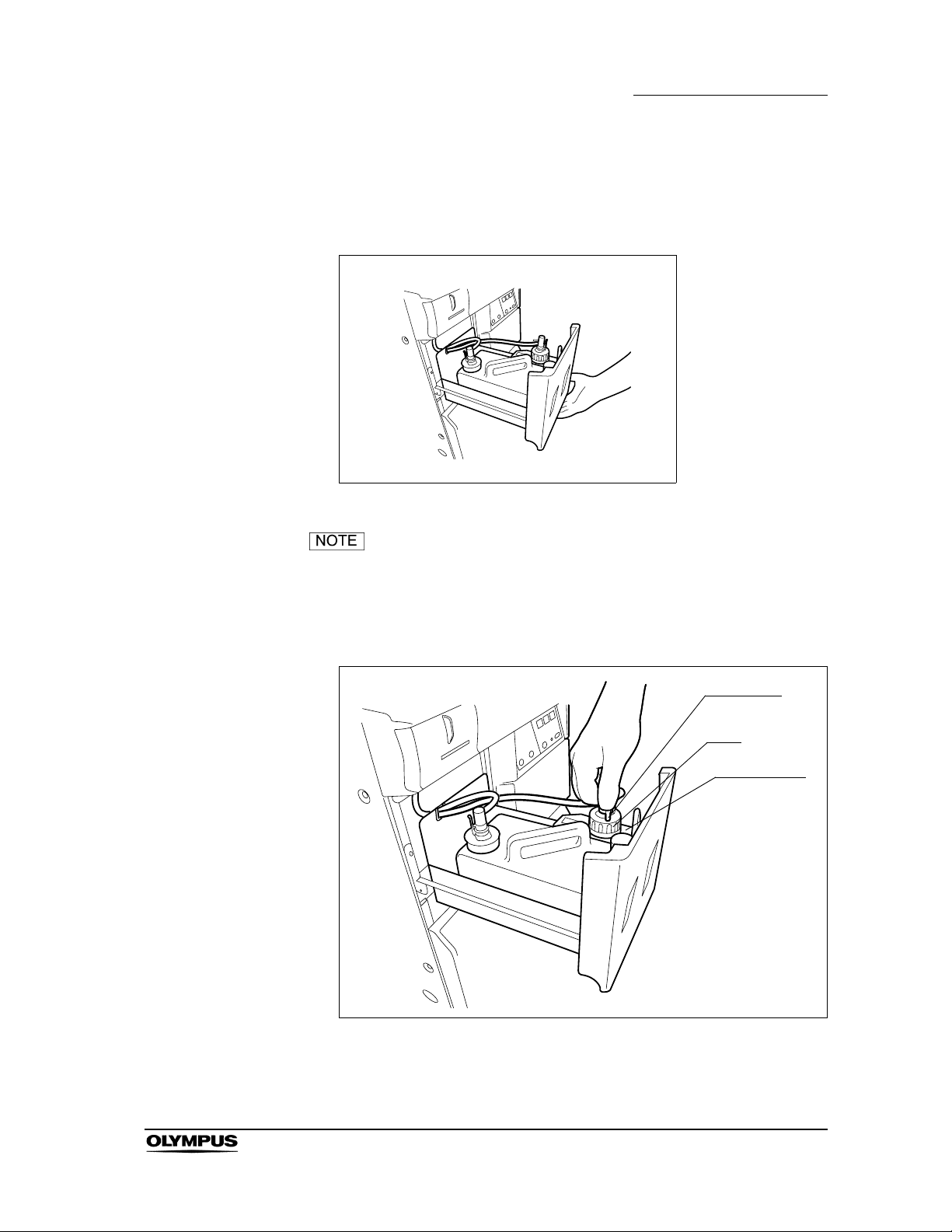

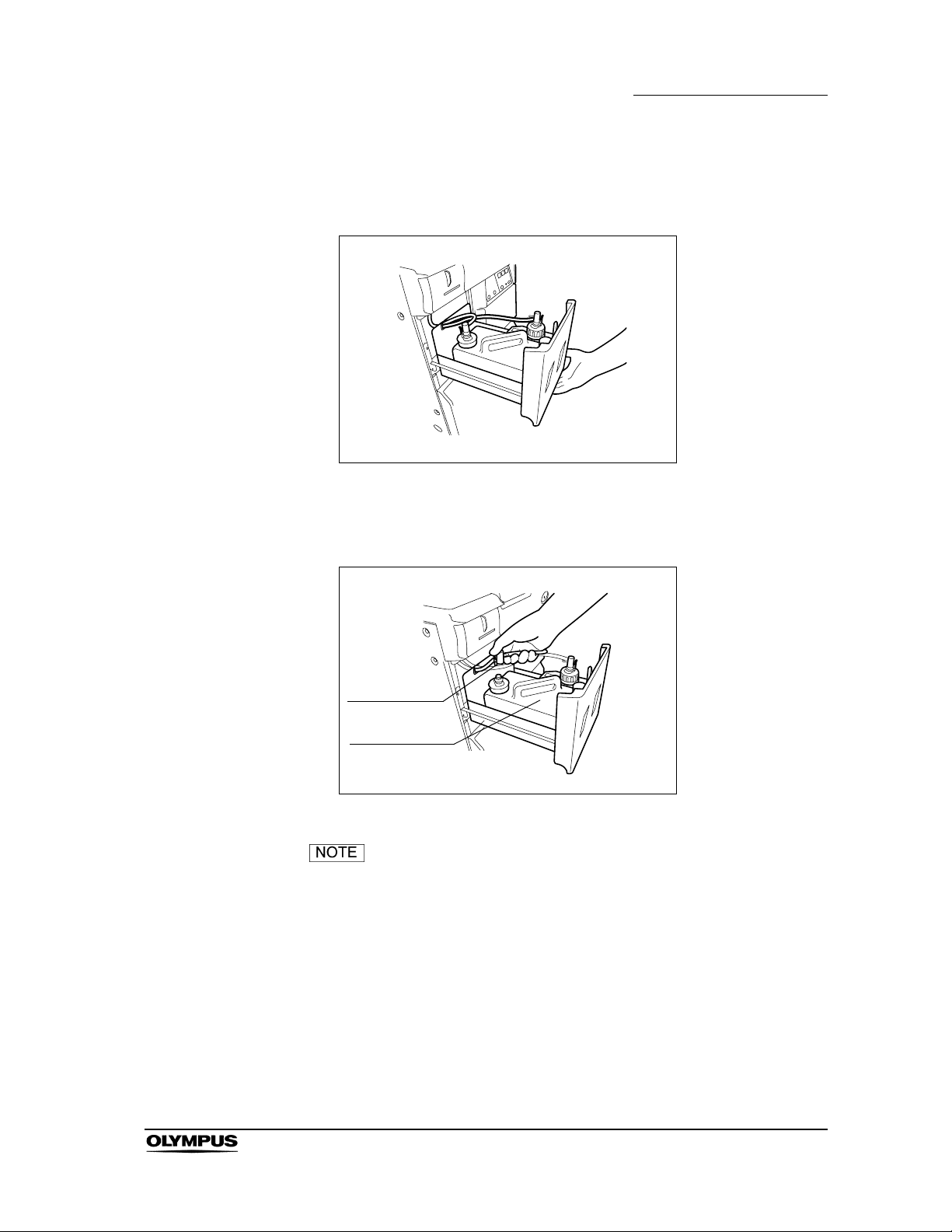

Detergent/alcohol drawer
Accommodates the specially designed tanks of detergent for cleaning and alcohol for alcohol flushing.
Detergent indicator
Indicates the amount of residual detergent.
Alcohol indicator
Indicates the amount of residual alcohol.

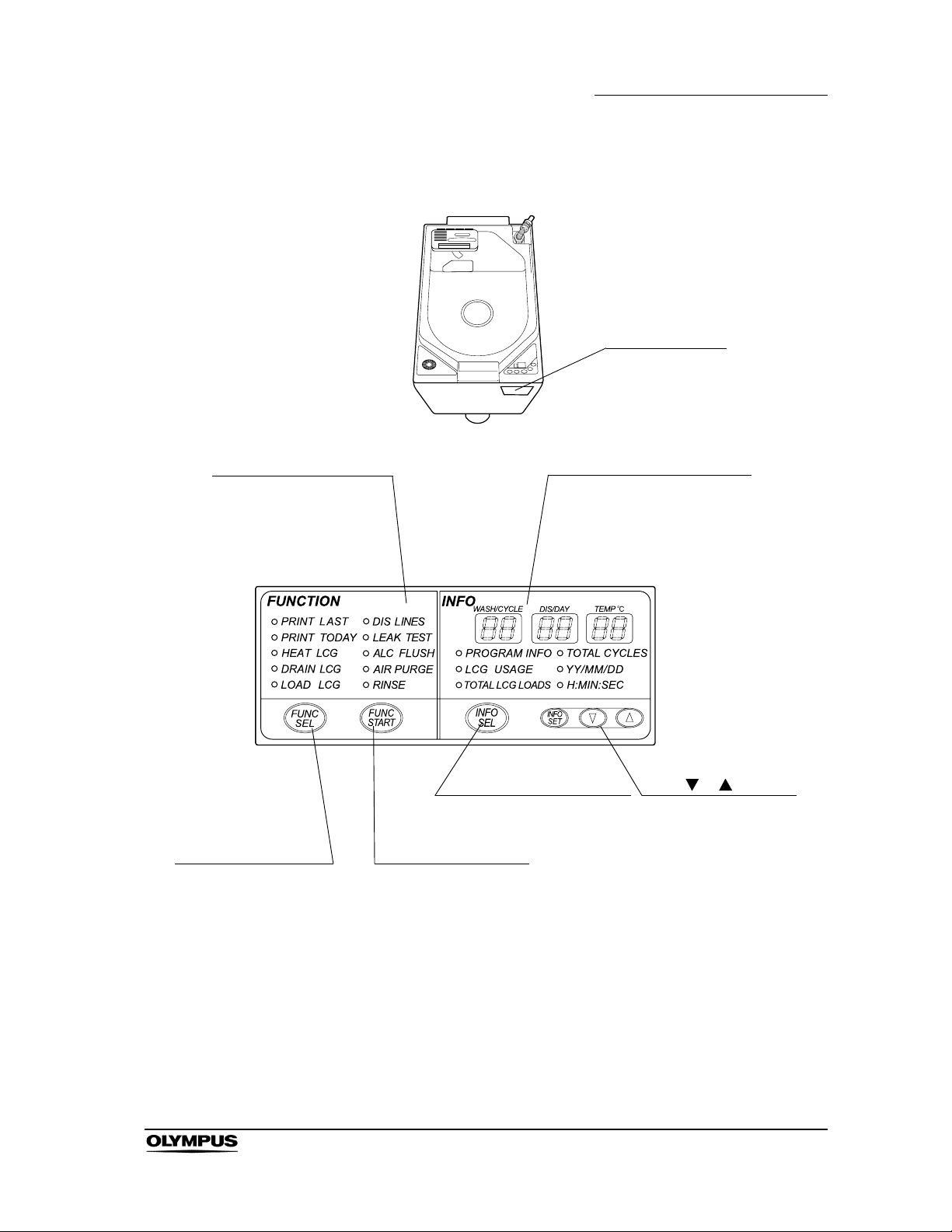

Main control panel
Used mainly to start or stop the reprocessing processes.
Power switch
Press to switch the power ON/OFF. The green light is lit when the equipment is ON.
Subcontrol panel
Used for various setups and operations.
Disinfectant bottle drawer
Accommodates disinfectant cassette bottles. This drawer cannot be opened when using Aldahol III. Contact Olympus for information.
Front door
Push the area marked “PUSH” to open.
20
Casters
The two front casters have lock mechanisms. The caster heights can be adjusted to level the equipment.
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 27
Connector above water filter housing
For use in draining water and air from the water filter housing.
Water filter (housing)
Accommodates the water filter inside. The water filter is used to remove microorganisms and fine particles in the water.
Connector below water filter housing
For use in draining water from the water filter housing.
Chapter 2 Nomenclature and Functions
Gas filters (cases)
Accommodates the gas filters for removing the odor and vapor of the disinfectant solution.
Disinfectant indicator
Used to check the amount of remaining disinfectant solution.
Accessory holder
Used to store the connecting tubes, etc.
Card holders
Hold the scope ID master card and user ID master card.
Air filter
Filters the supply air.
Water tray
Collects water during maintenance such as the water filter replacement.
Maintenance terminal
Used for connecting ancillary equipment (for service engineer use only).
Disinfectant removal port
Used to check the disinfectant manufacturer's recommended concentration or drain the disinfectant solution (Remove the rubber cap and attach the drain connector the disinfectant removal tube).
21
Page 28
Chapter 2 Nomenclature and Functions
2.2 Rear panel
Option terminal
Used for connecting ancillary equipment (for service engineer use only).
Buckling guard attaching holes
Screw holes used to attach the buckling guard.
Fuses
2.3 Side panel
Connector hanger attaching holes (Provided on both left and right side panels)
Used to attach the optional connector hanger (MAJ-865).
Drain hose connector
Power cord receptacle
Grommet attaching holes (Provided on both left and right side panels)
Used to attach the grommets.
22
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 29
2.4 Cleaning tub
Circulation port
Aspirates the cleaning fluid or disinfectant solution for circulation during cleaning or disinfection.
Water supply/circulation nozzle
Supplies water for cleaning and washing. Also supplies the cleaning fluid or disinfectant solution aspirated through the circulation port for circulation.
Chapter 2 Nomenclature and Functions
Lid
Step the foot pedal to open the cover.
Foot pedal
Press to open the lid. It is locked during the reprocessing process.
Air/water/instrument channel connector (Gray)
Connect a connecting tube that is connected to the endoscope here.
Water supply piping disinfection connector
Connect the water supply piping disinfection hose here.
Auxiliary water/forceps elevator connector (Yellow)
Connect a connecting tube that is connected to the endoscope here.
Disinfectant solution nozzle
Supplies disinfectant solution to the cleaning tub.
Float switch
Detects abnormal fluid levels in the cleaning tub.
Detergent nozzle
Supplies detergent to the cleaning tub.
Fluid level sensor
Detects the fluid level in the cleaning tub to control it.
Temperature sensor
For use in detergent heating.
Leak test connector (Black)
Connect the leak test air tube that is connected to the endoscope.
Drain port
Drains liquid from the cleaning tub and supplies disinfectant solution.
Water level scales (u 3)
Markings for confirming that the equipment is level.
Washing case mount
Attach the Washing case that is used to hold the endoscope accessories including valves for reprocessing.
23
Page 30
Chapter 2 Nomenclature and Functions
2.5 Control panels
Main control panel
Add detergent indicator
The lamp blinks when the detergent tank becomes empty. The error code [E95] is also displayed.
Main control panel
User ID recognition indicator
The lamp lights when the user ID is recognized.
Scope ID recognition indicators
The lamp lights when the scope ID is recognized.
Disinfectant replacement indicator
The lamp blinks when the number of times or days of disinfectant usage reaches the set value.
TIME/CODE display
Displays the remaining time and execution time of the process, etc. An error code is displayed in case of an error.
Program No. display
Displays the program number being selected. “E” is displayed in case of an error.
LEAK TEST button
Press the button to add the leak test process.
ALC FLUSH button
Press this button to add the alcohol flushing process. This function cannot be added once the reprocessing process has started.
STOP/RESET button
Press this button to stop a process or clear an error code.
Periodical maintenance indicator
This lamp blinks when it is time for regularly scheduled maintenance. When the lamp blinks, contact Olympus.
Process step indicators
The lamps included in the program being selected light up. Each lamp blinks when its corresponding process is being executed.
Disinfectant solution heating indicator
This lamp lights when the disinfectant solution heating operation is set for the program being selected. The lamp blinks during the disinfection process and goes out after completion.
PROG button
Press this button to select a reprocessing program.
START button
Press this button to start the program.
24
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 31
Subcontrol panel
Chapter 2 Nomenclature and Functions
Subcontrol panel
FUNCTION
The lamp corresponding to the selected function lights. For details, see “FUNCTION” on page 26.
FUNC SEL button
Press this button to select a function.
INFO SEL button
Press this button to select the information to be displayed.
FUNC START button
Press this button to start the selected function.
INFO
The lamp corresponding to the selected information lights and the details are displayed. For details, see “INFO” on page 27.
Set “ ”/“ ” buttons
Press these buttons to set the program details, date, and time.
25
Page 32
Chapter 2 Nomenclature and Functions
PRINT LAST
PRINT TODAY
PRINT ALL
HEAT LCG
FUNCTION
Prints information about the previous reprocessing operation, such as the
scope ID and cleaning time. For details, see Section 4.12, “Printing of the
reprocessing results” on page 95.
Prints details on all reprocessing operations carried out during the day, including scope IDs and cleaning time. For details, see Section 4.12,
“Printing of the reprocessing results” on page 95.
Prints details on up to the last 60 reprocessing operations, including scope
IDs and cleaning time. For details, see Section 4.12, “Printing of the
reprocessing results” on page 95.
Heats the disinfectant solution before starting the disinfection process. For details, see Section 6.2, “Heating the disinfectant solution” on page 120.
DRAIN LCG
Drains the disinfectant solution from the disinfectant solution tank. For
details, see Section 7.12, “Replacing the disinfectant solution” on page 176.
LOAD LCG
Supplies the disinfectant solution from the cleaning tub. For details, see
Section 7.12, “Replacing the disinfectant solution” on page 176.
DIS LINES
Disinfects the water supply piping as well as the inside of the equipment. For details, see Section 7.3, “Disinfecting the water supply piping” on
page 152.
LEAK TEST
Performs a leak test on the endoscope. For details, see Section 4.7, “Leak
test” on page 72.
26
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 33
Chapter 2 Nomenclature and Functions
ALC FLUSH
Performs alcohol flushing of the endoscope channel. For details, see
Section 4.10, “Alcohol flushing” on page 87.
AIR PURGE
Feeds air into the equipment and endoscope channels to drain residual water. For details, see Section 6.7, “Air purge” on page 132.
RINSE
Rinses the inside of the equipment and endoscope. For details, see Section
6.8, “Rinsing” on page 133.
INFO
WASH/CYCLE display
Pressing the information select button changes the information displayed on the subcontrol panel as shown in Table 2.1.
DIS/DAY display
Pressing the information select button changes the information displayed on
the subcontrol panel as shown in Table 2.1.
TEMP qC display
Pressing the information select button changes the information displayed on
the subcontrol panel as shown in Table 2.1.
PROGRAM INFO
LCG USAGE Cycles Days – –
TOTAL LCG
LOADS
TOTAL CYCLES 6-digit display
YY/MM/DD Year Month Day
H:MIN:SEC Hour Minute Second
WASH/CYCLE
display
Cleaning time Disinfection time
DIS/DAY display TEMP qC display
6-digit display
Temperature
1
1 Any temperature equal to or higher than 20qC (68qF) is displayed as
“20qC” (68qF). “[- -]” is displayed there is not enough disinfectant solution
in the disinfectant tank to measure the temperature.
Table 2.1
27
Page 34
Chapter 2 Nomenclature and Functions
PROGRAM INFO
Displays the actual measured values for cleaning time, disinfection time,
and temperature.
LCG USAGE
Displays the number of times or days the disinfectant solution has been used.
TOTAL LCG LOADS
Displays the total number of times that disinfectant solution has been loaded
(6 digits).
TOTAL CYCLES
Displays the total number of times that the equipment was used (6 digits).
YY/MM/DD
Displays the year, month, and day.
H:MIN:SEC
Displays the hour (24 hour system), minute, and second.
28
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 35
Chapter 2 Nomenclature and Functions
2.6 Consumable accessories (Optional)
Water filter (MAJ-824)
Filters microorganisms and fine particles in the water.
Gas filters (MAJ-822)
Incorporated in the gas filter cases to remove the odor of disinfectant solution.
Air filter (MAJ-823)
Filters microorganisms and fine particles in the air fed into the equipment.
29
Page 36
Chapter 2 Nomenclature and Functions

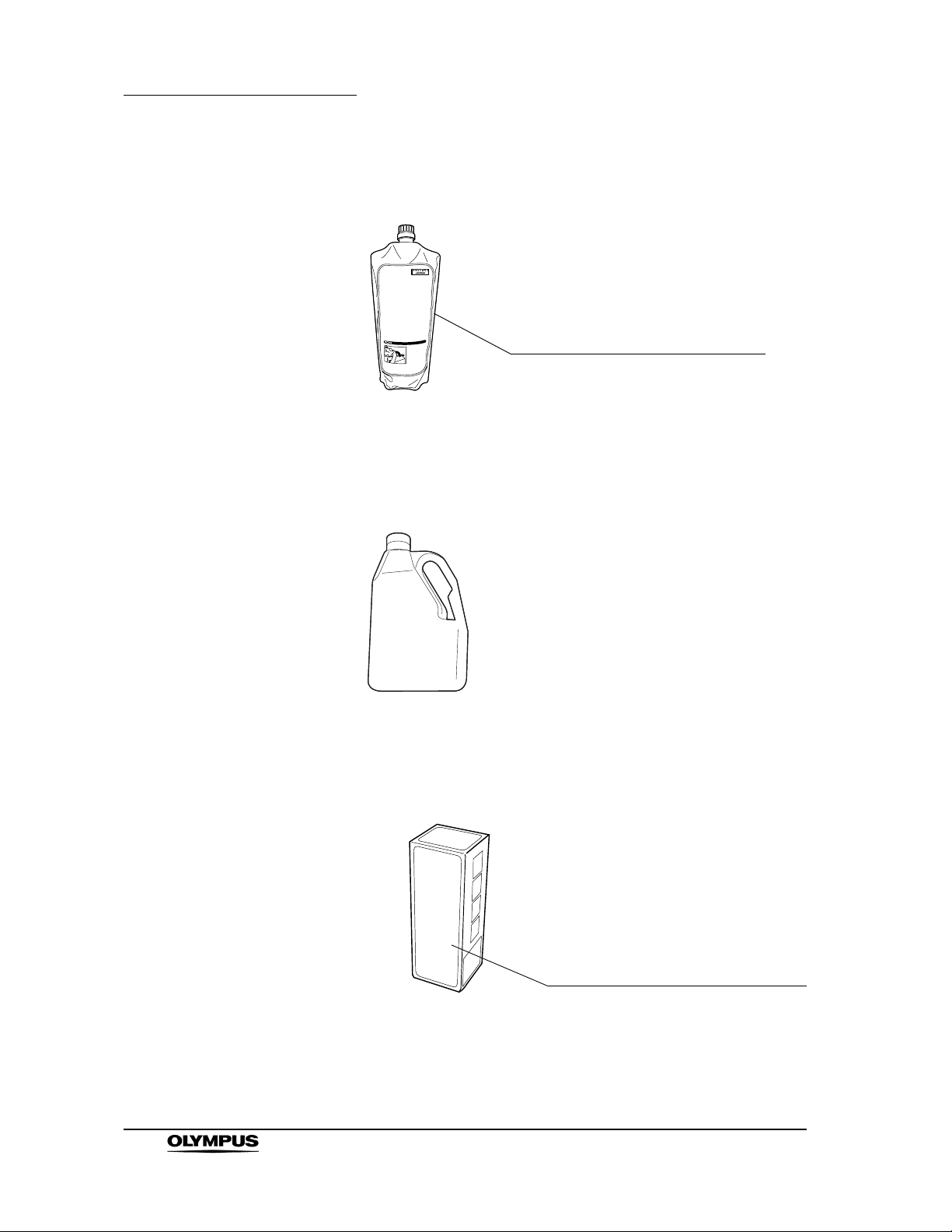

EndoRapid 980 ml pack (Olympus-designated detergent)
The OER-Pro exclusive alkaline detergent. Available as a 980 mL pack.

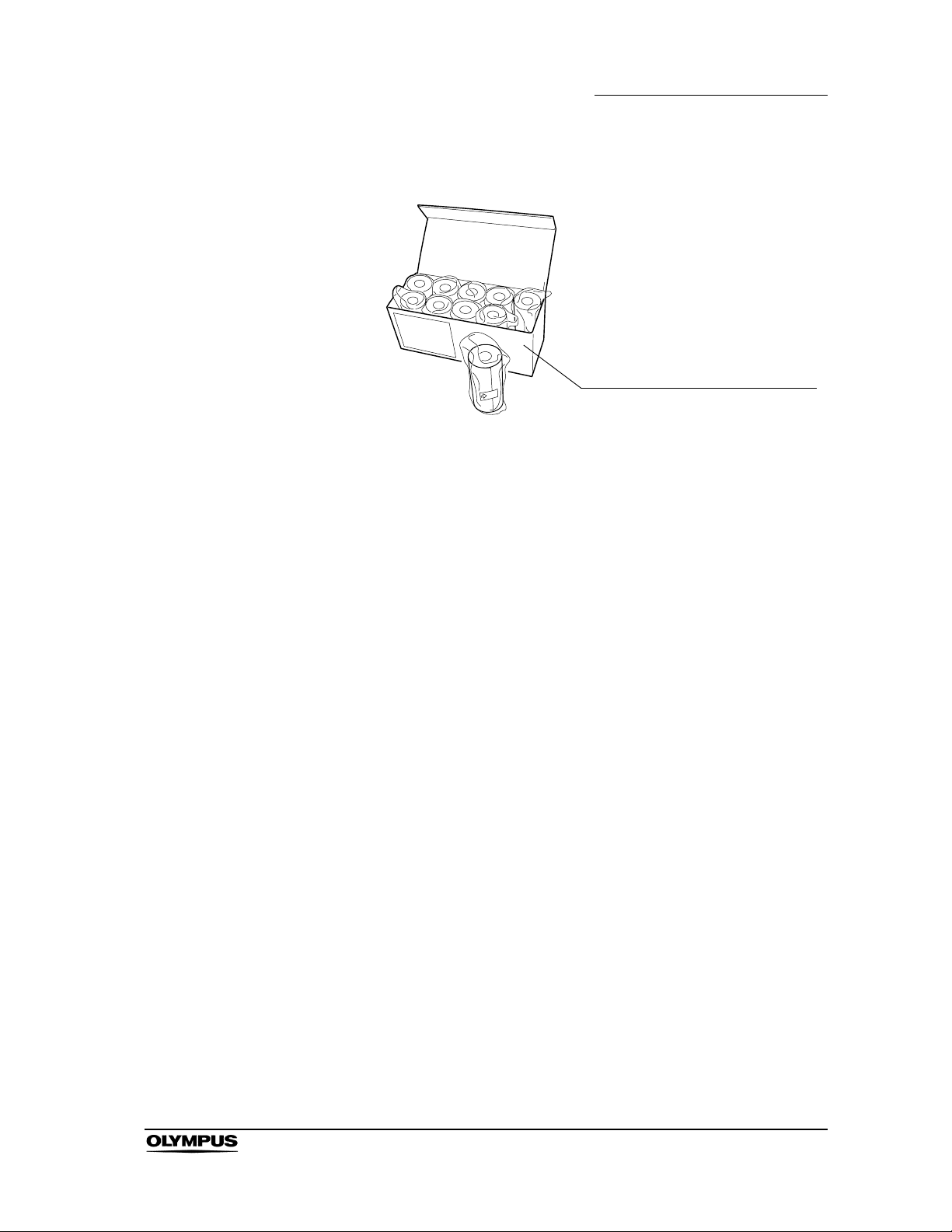

Aldahol III (Olympus-designated disinfectant solution)
30
Test strip
Test paper for use in checking the effective concentration of the Aldahol III High-level Disinfectant.
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 37
Chapter 2 Nomenclature and Functions
Printer paper roll (MAJ-1497)
Exclusive print sheet for the OER-Pro
31
Page 38
Chapter 3 Inspection Before Use
Chapter 3 Inspection Before Use
To ensure that this equipment operates safely and reliably, inspect and clean all
parts before use. Also, check all consumables and replace or replenish as necessary.
Check Inspection items before the first use of the day
3.1 Inspecting for water leakage from the water supply piping and within the
equipment
3.2 Inspecting the equipment’s connectors
3.3 Inspecting the connecting tubes and leak test air tube
3.4 Inspecting the remaining quantity of detergent, and replenishment
3.5 Inspecting the remaining quantity of alcohol, and replenishment
3.6 Inspecting the mesh filters
3.7 Inspecting for disinfectant solution odor
Table 3.1
Check Inspection items before each reprocessing
3.8 Inspecting the disinfectant solution’s concentration level
3.9 Inspecting the printer paper roll
Table 3.2
32
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 39
Chapter 3 Inspection Before Use
• When using the disinfectant solution and alcohol, Olympus
recommends the use of gas filters and running this
equipment in well-ventilated areas.
Wear a facemask, gloves, and protective clothes to
minimize aspiration and skin contact.
Wear goggles for eye protection.
Refer to the following association's guidelines related to ventilation:
SGNA (Society of Gastroenterology Nurses and
Associates)
ASGE (American Society of Gastroenterological
Endoscopy)
APIC (Association for Professionals of Infection
Control and Epidemiology)
AORN (Association of Preoperative Registered
Nurses)
ASTM (American Society for Testing and Materials)
OSHA (Occupational Safety and Health
Administration)
ACGIH (American Conference of Governmental
Industrial Hygienists)
NIOSH (National Institute for Occupational Safety
and Health)
AIA (American Institute of Architects)
Do not handle the equipment if the operator shows any
allergic symptoms even while wearing protective gear.
• Be sure to perform all inspections and replenish
consumables as described in this chapter. Otherwise, the
equipment may not work properly.
• If any irregularity is observed during the inspections, do not
use the equipment and contact Olympus. Using the equipment when an irregularity has been detected may
impair operation of the equipment and could cause leakage,
electric shock, burns, and/or fire.
• During inspection, always wear appropriate personal
protective equipment, such as eye wear, face mask,
moisture-resistant clothing, and chemical-resistant gloves
that fit properly and are long enough so that your skin is not exposed. All personal protective equipment should be
inspected before use and replaced periodically before it is
damaged.
33
Page 40
Chapter 3 Inspection Before Use
3.1 Inspecting for water leakage from the water supply piping and within the equipment
Confirm that water or fluid does not leak from the water supply piping, inside the equipment, Drain hose connector, etc.
Do not continue using the equipment if it is leaking water.
Doing so may result in an electric shock or malfunction.
If water or fluid leaks from inside the equipment, close the faucet, set the power switch to OFF, unplug the power cord,
and contact Olympus.
1. Slowly open the water supply faucet.
2. Confirm that water is not leaking from the connections on the water supply
devices to the equipment: the faucet, the water supply hose, and the water supply adapter.
3. Confirm that water or fluid is not leaking from inside the equipment.
If water leaks from the connections on the water supply devices to the equipment: the faucet, the water supply hose, and the water supply adapter
1. Close the faucet.
2. Check the installation of the water supply devices by referring to Section
4.2, “Connection of the water supply adapter” in “Instructions-Installation Manual”.
If water leaks from the water filter housing
1. Close the faucet.
2. Check the installation of the water filter housing by referring to Section 3.9,
“Installation of water filter (MAJ-824)” in “Instructions-Installation Manual”.
If water or fluid leaks from inside the equipment
1. Close the faucet.
34
2. Set the power switch of the equipment to OFF.
3. Unplug the power cord from the power outlet.
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 41
Chapter 3 Inspection Before Use
If water leaks from the Drain hose connector
1. Close the faucet.
2. Check the drain hose installation by referring to Section 4.3, “Connection of
drain hose” in “Instructions-Installation Manual”.
3.2 Inspecting the equipment’s connectors
Check the following for each connector.
The connector should be connected firmly.
The O-rings should be free of abnormalities such as
cracks, tears, or dents.
If any irregularity is found, do not use the equipment and contact Olympus.
Check Connectors in the cleaning tub
Air/water/instrument channel connectors
Auxiliary water/forceps elevator connectors
Leak test connector
Water supply piping disinfecting connector
Table 3.3
Check Other connectors
Connector above water filter housing
Connector below water filter housing
Disinfectant removal port
Tube connector on detergent tank
Tube connector on alcohol tank
Table 3.4
Do not use the equipment if any connector seems to be damaged or defective. Using the equipment when an
irregularity has been detected may interfere with
reprocessing. Furthermore, fluid leakage may damage peripheral devices or facilities near the equipment.
Connect each connector firmly by pushing until the connector
clicks into place. After connection, pull the connector gently to confirm that it cannot be disconnected easily.
35
Page 42
Chapter 3 Inspection Before Use

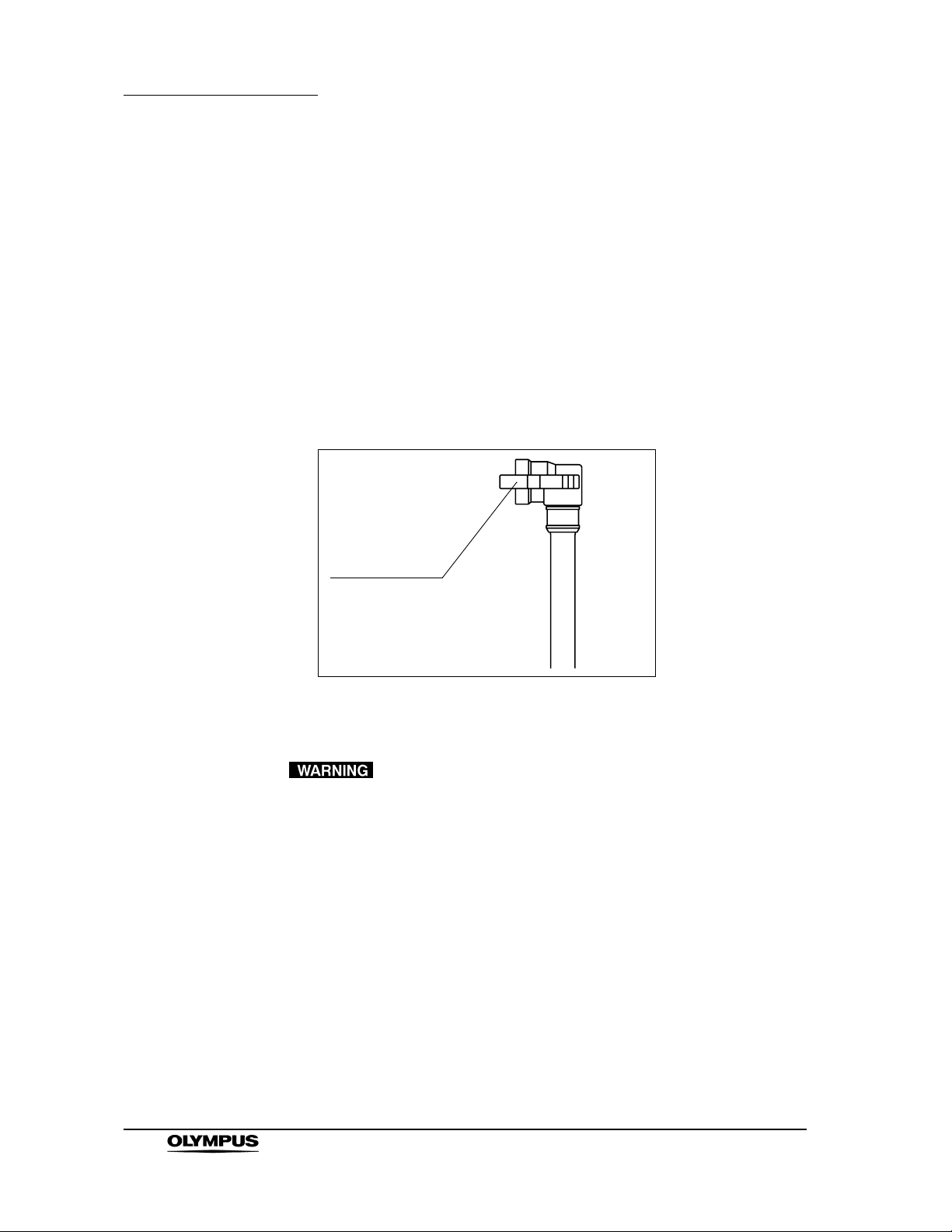

3.3 Inspecting the connecting tubes and leak test air tube
Before using the equipment, always check that there is no abnormality regarding the following points on the cleaning tubes and leak test air tube.
All tubes should be free of cracks, breaks, fissures,
scratches, or stains.
There should be no cracks in the lock levers of connecting
tube connectors.
The tube should not be easy to disconnect once
connected.
Lock lever
Figure 3.1
If a tube has any irregularities, do not use it and replace with a new one.
Do not use the connecting tubes or leak test air tubes if they
have any irregularities. Doing so could prevent effective
reprocessing or damage the endoscope.
36
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 43
Chapter 3 Inspection Before Use
3.4 Inspecting the remaining quantity of detergent, and replenishment
Check Required items
EndoRapid 980 ml pack (Olympus-designated detergent)
Table 3.5
Contact Olympus to obtain EndoRapid 980 ml packs
(Olympus-designated detergent).
Inspection of the amount of detergent
Check the DETERGENT indicator on the detergent/alcohol drawer of the device
to confirm that detergent is present. Add detergent as described in “Addition of
detergent” before the level reaches “MIN.” or if the Add Detergent indicator lights
up.
Figure 3.2
• The detergent tank can hold about 2 L of detergent (which
can be used for about 30 reprocessing operations).
• If the reprocessing process is initiated without detergent, the
error code [E95] is displayed and the reprocessing is stopped. The Add Detergent indicator on the main panel
blinks.
37
Page 44
Chapter 3 Inspection Before Use
Addition of detergent
• Before handling the detergent, read the precautions and
instructions for use carefully, get fully accustomed to the content, and use the detergent as instructed. Make sure that
you fully understand what measures need to be taken if you
get any detergent on your skin.
• Always use the EndoRapid 980 ml pack (Olympus-designated detergent). If a nondesignated
detergent is used, the endoscope may not be properly
cleaned or the predetermined sterilization effect may not be
achieved.
• When handling the detergent, always wear appropriate
personal protective equipment, such as eye wear, face mask,
moisture-resistant clothing, and chemical-resistant gloves that fit properly and are long enough so that your skin is not
exposed. All personal protective equipment should be
inspected before use and replaced periodically before it is damaged.
• To prevent the detergent from leaking, do not tilt the
detergent tank when there is detergent inside.
• If the reprocessing process is initiated without detergent, the error code [E95] is displayed and the reprocessing is
stopped. The Add Detergent indicator on the main panel
blinks.
• Contact Olympus to obtain EndoRapid 980 ml packs (Olympus-designated detergent).
• The detergent tank can hold about 2 L (67 ounces) of
detergent (which can be used for about 30 reprocessing
operations).
38
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 45
Chapter 3 Inspection Before Use
1. Hold the section marked “PULL” of the detergent/alcohol drawer and pull it
out.
Figure 3.3
2. Push the lock lever on the connector of the tube connected to the detergent
tank to detach the tube.
Lock lever
Detergent tank
Figure 3.4
If a few drops of detergent drip from the connector, wipe it with a piece of clean gauze or similar cloth.
3. Remove the detergent tank and place it in a sink or other tub.
39
Page 46
Chapter 3 Inspection Before Use

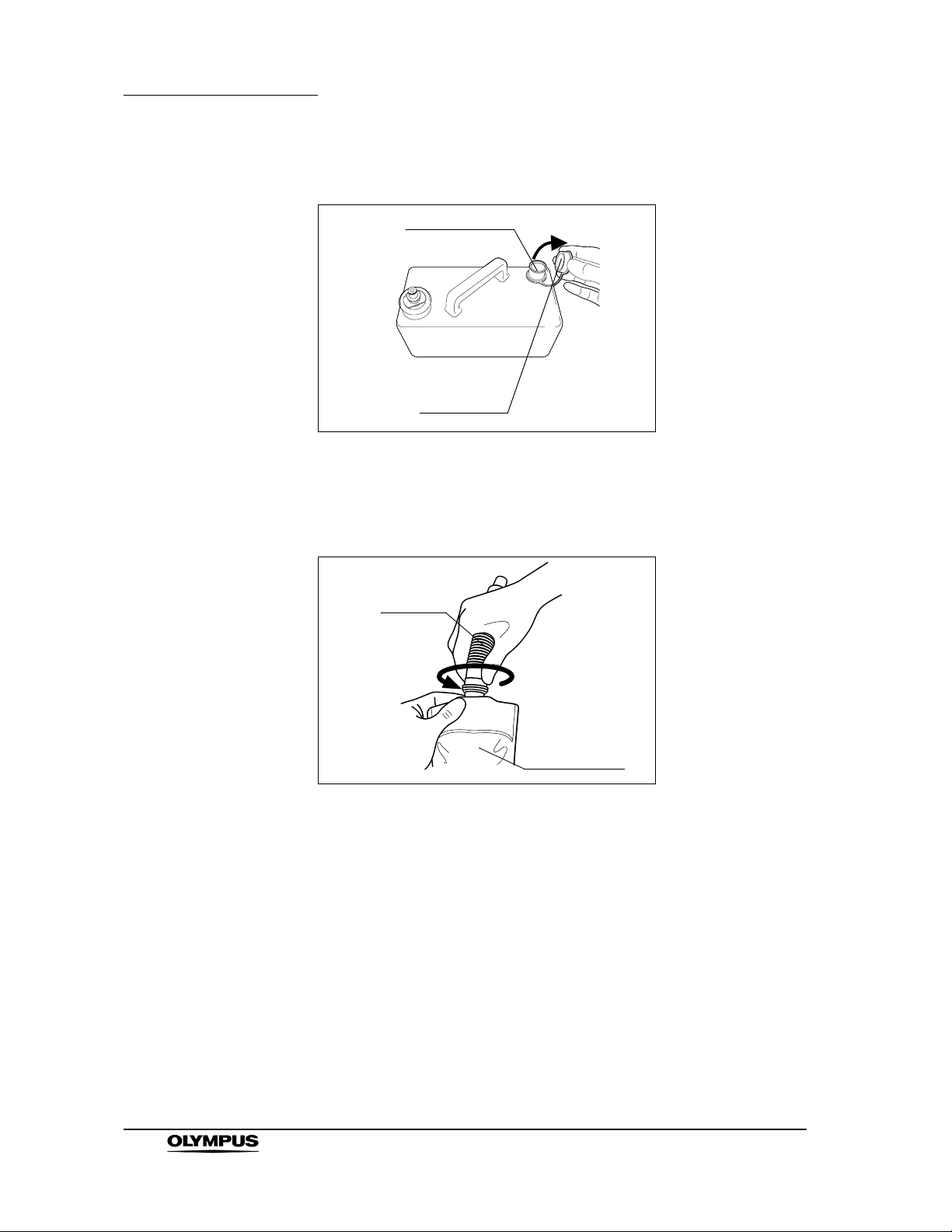

4. Remove the rubber cap from the detergent inlet of the detergent tank.
5. Remove the cap from the EndoRapid 980 ml pack (Olympus-designated
Detergent inlet
Rubber cap
Figure 3.5
detergent) and attach the provided nozzle to it by turning the nozzle all the
way in the direction shown in Figure 3.6.
Figure 3.6
Nozzle
Detergent pack
40
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 47
Chapter 3 Inspection Before Use

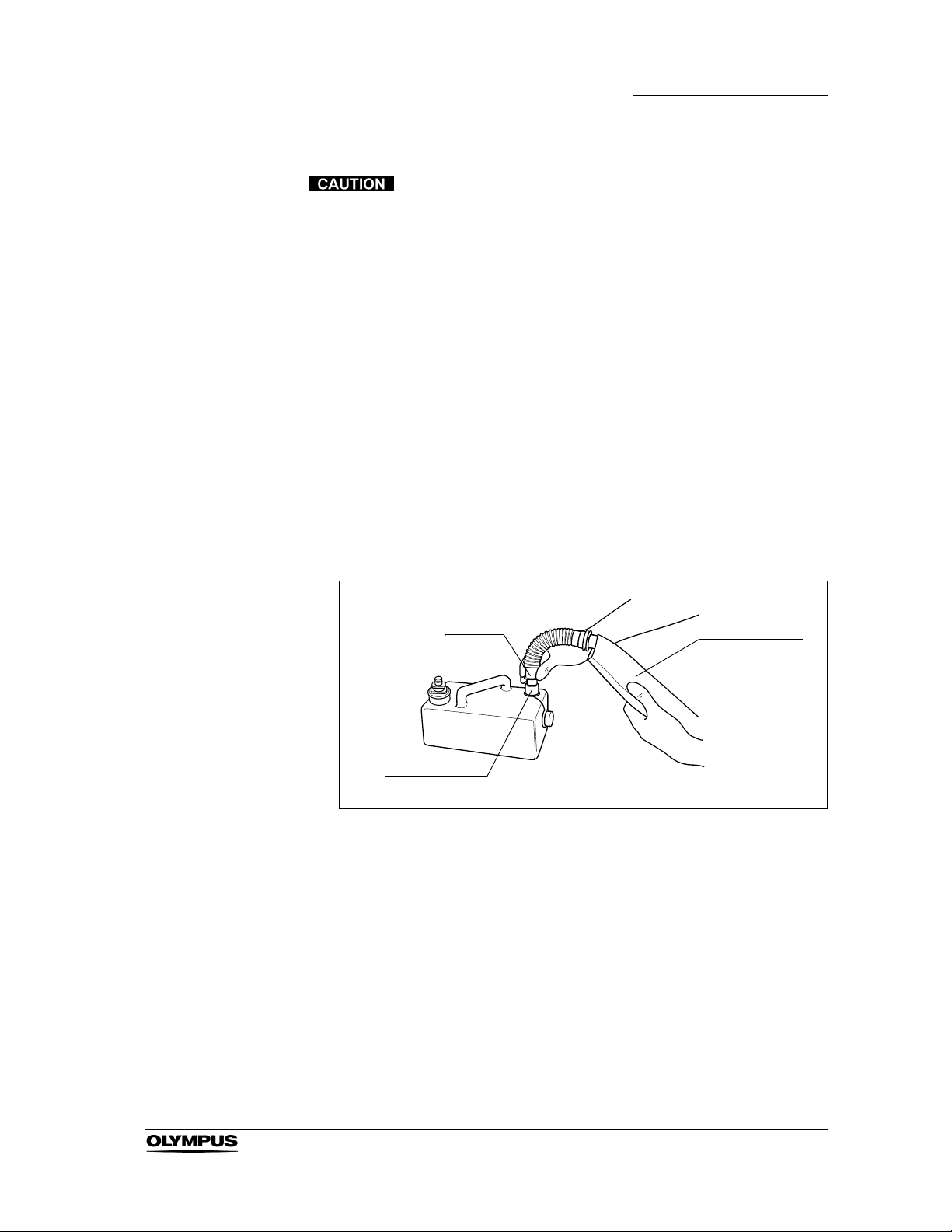

• Do not add detergent when the tank is on the
detergent/alcohol drawer. If detergent is spilled on the tray,
this equipment may be damaged.
• Do not push the center of the detergent pack with too much
force while adding detergent. Otherwise, the detergent may spill out of the tank.
• Do not tilt the detergent tank while there is still detergent
inside. Otherwise, the detergent may spill.
• Make sure that the nozzle provided with the detergent pack is
connected firmly to the pack. Otherwise, the nozzle may get
disconnected from the pack and detergent may leak as a result.
6. Insert the end of the nozzle into the detergent inlet and add detergent. If any
detergent spills out of the detergent tank, wash the outside of the tank, while
taking care not to allow water to get in the tank. Wipe the tank dry with a
clean cloth.
Detergent inlet
Figure 3.7
Nozzle
Detergent pack
41
Page 48
Chapter 3 Inspection Before Use
7. Attach the rubber cap to the detergent inlet of the detergent tank and ensure
8. Place the detergent tank on the equipment’s detergent/alcohol drawer and
that detergent is not leaking from the detergent tank.
connect the connector.
Figure 3.8
9. Turn the connector to correct the tube orientation as shown below. Confirm
that the tube is not bent.
Connector
Figure 3.9
10. Close the detergent/alcohol drawer.
42
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 49
Chapter 3 Inspection Before Use
3.5 Inspecting the remaining quantity of alcohol, and replenishment
Check how much alcohol is in the alcohol tank and add more as required.
Check Required items
70% ethyl alcohol or isopropyl alcohol
Table 3.6
• The alcohol used with the equipment should be 70% ethyl alcohol or isopropyl alcohol. Using any other kind of alcohol
may result in malfunction of the equipment or the endoscope,
difficulty drying the endoscope, or a hazard due to toxic vapor emitted from the alcohol.
• Alcohol is flammable and should be handled with extra care.
At the end of work, be sure to drain the alcohol from the tank
or to remove the tank from the equipment and store it at a safe distance from the equipment. For more information on
draining the alcohol or removing the alcohol tank, refer to
Section 5.3, “Removal or storage of alcohol” on page 113 Leaving alcohol in the tank could pose a fire hazard.
• Remove the alcohol in the alcohol tank and replace it with
new alcohol at least once a week. Otherwise, the alcohol in
the alcohol tank may degrade.
• Before handling the alcohol, carefully read the precautions for use carefully, get fully accustomed to the content, and use
the alcohol as instructed.
43
Page 50
Chapter 3 Inspection Before Use
Inspection of the amount of alcohol
Check the ALCOHOL indicator on the detergent/alcohol drawer of the equipment
to confirm that alcohol is present. If the amount of alcohol has decreased, add alcohol as described in “Addition of alcohol” before the level reaches “MIN.”.
Figure 3.10
If alcohol flushing is executed when no alcohol is present, the
equipment will stop and display an error code [E93].
44
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 51
Addition of alcohol
1.
Hold the section on the detergent/alcohol drawer marked “PULL” and pull it
out.
Figure 3.11
Chapter 3 Inspection Before Use
If the alcohol runs out, the equipment will stop and display an error code [E93].
2. Push the lock lever on the connector of the tube connected to the cap on the
alcohol tank to detach the tube.
Lock lever
Cap
Alcohol tank
Figure 3.12
3. Remove the alcohol tank and put it in a sink or other tub.
45
Page 52
Chapter 3 Inspection Before Use

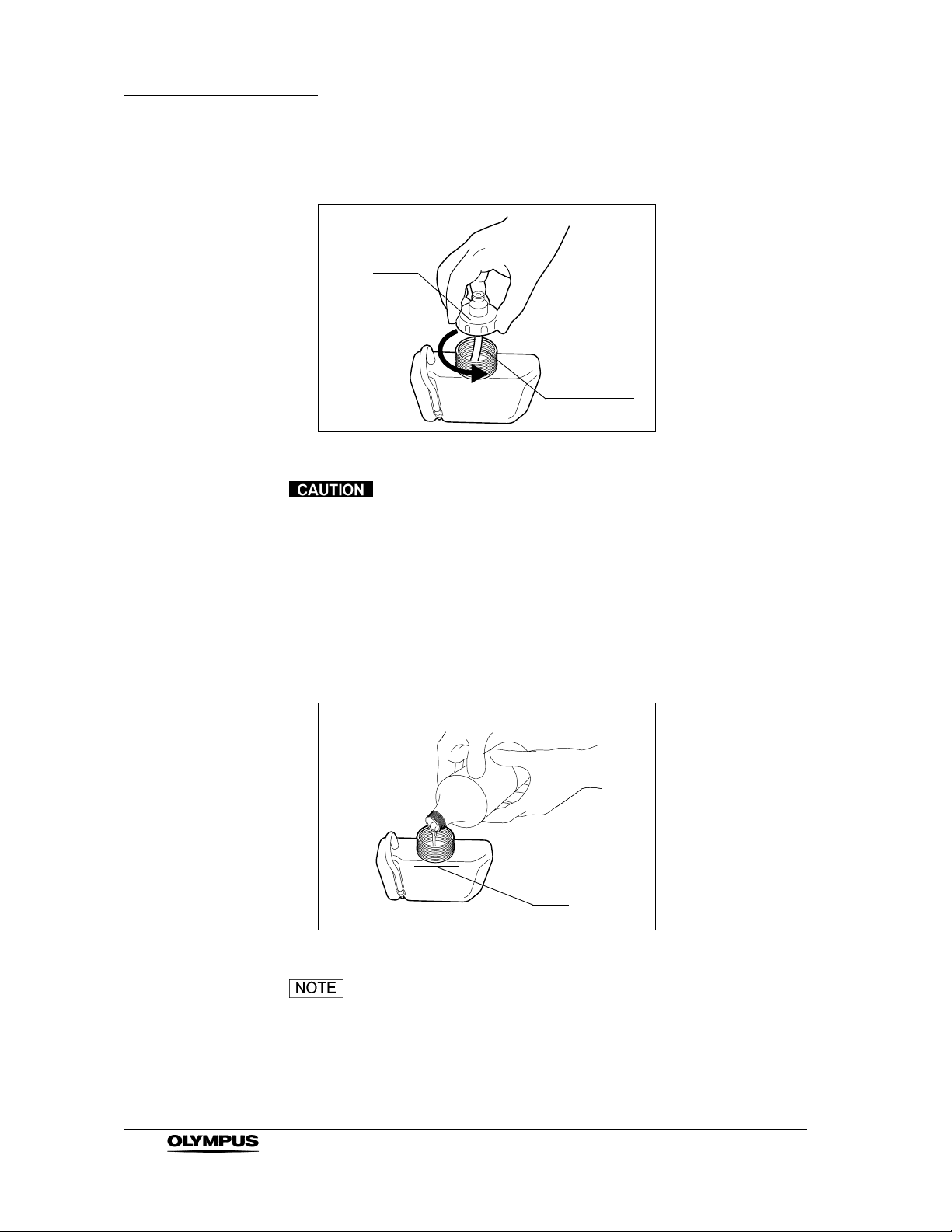

4. Turn the cap on the alcohol inlet in the direction shown to remove the cap.
Cap
Alcohol inlet
Figure 3.13
• Do not add alcohol while the tank is on the detergent/alcohol
drawer. If alcohol is spilled on the tray, it could damage the
equipment.
• Do not tilt the alcohol tank while there is still alcohol inside. Otherwise, the alcohol may spill.
5. Pour alcohol until it is level with the line inside the alcohol tank. Be careful
not to spill any. If any alcohol spills from the tank, wipe it off with a clean
cloth. After adding the alcohol, replace the cap on the alcohol tank.
Line
Figure 3.14
The amount of alcohol required to fill the tank up to the level of the line is about 500 mL (approximately 16 ounces,
enough for about 10 alcohol flushes).
46
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 53
Chapter 3 Inspection Before Use
6. Place the alcohol tank in the detergent/alcohol drawer so that the ventilation
tube of the alcohol tank sits on the front of the tray.
Placing the alcohol tank so that the ventilation tube sits on
the deeper side of the tray could damage the alcohol tank.
7. Connect the tube that was originally connected to the cap.
Alcohol tank
Ventilation tube
Figure 3.15
8. Turn the connector to correct the tube orientation as shown below. Confirm
that the tube is not bent.
Connector
Figure 3.16
9. Close the detergent/alcohol drawer.
47
Page 54
Chapter 3 Inspection Before Use
3.6 Inspecting the mesh filters
Make sure that the circulation port mesh filters (two types) and the drain port
mesh filter are not clogged.
A clogged mesh filter not only prevents the equipment from functioning properly, but may also cause the endoscopes to
malfunction or prevent effective reprocessing.
• If the mesh filters have been removed, be sure to put them
back in their original positions before using the equipment. If you forget to attach the mesh filters, the pump may
malfunction and/or foreign objects may enter the endoscope
channels including the nozzle and clog them.
• When cleaning the mesh filters, take care not to leave brush hair or cotton swab fiber in the meshes. Otherwise, their
filtering effectiveness may be reduced.
• If a mesh filter is dropped or subjected to an impact, make
sure that the mesh shape is not deformed. Otherwise, the filtering effect may degrade.
• Two-type mesh filters are installed on the outer and inner
sides of the circulation port. Be sure to remove, inspect, and
clean both of them.
1. Step the foot pedal to open the lid.
2. Remove the mesh filters from the cleaning tub.
Drain port mesh filter
Circulation port mesh filters
48

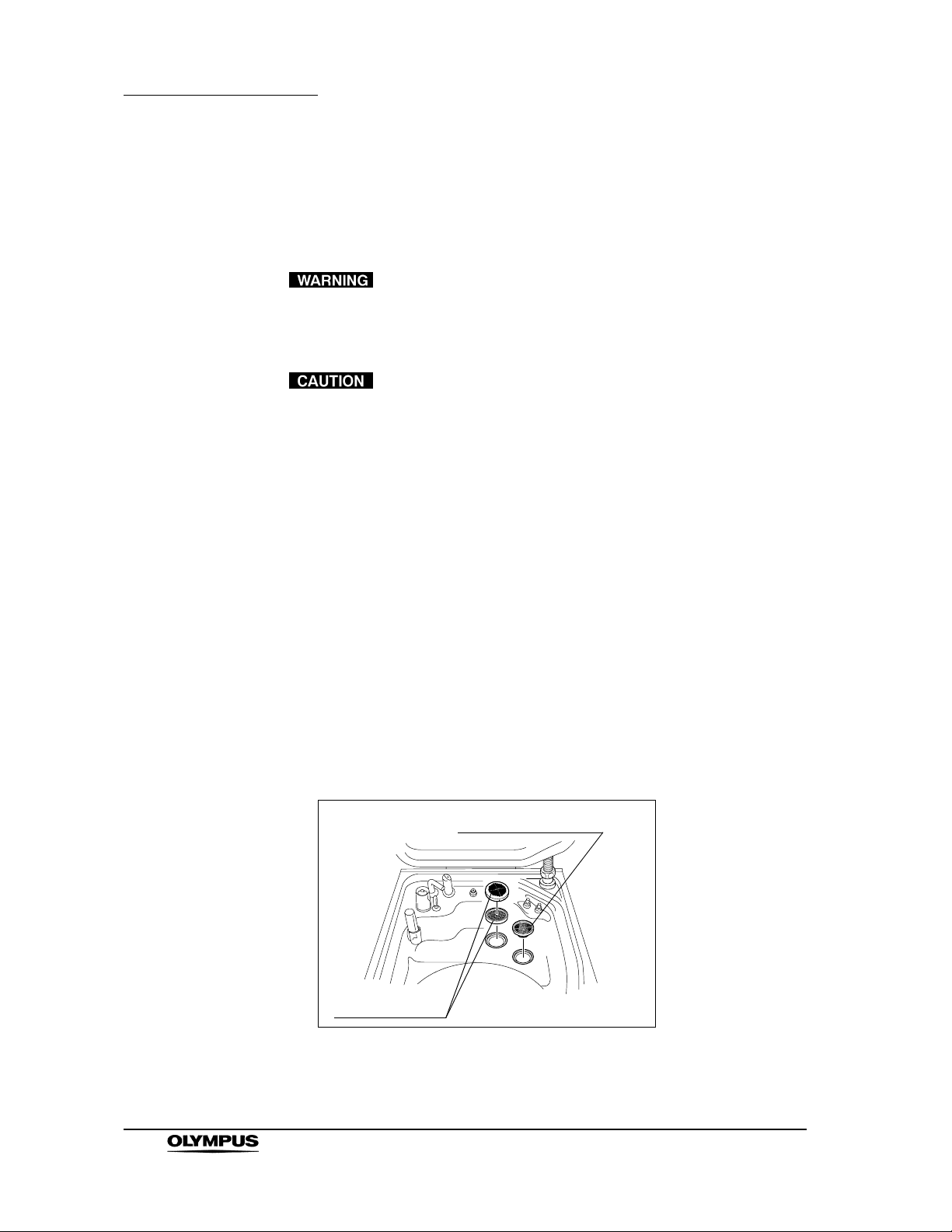

Figure 3.17
3. Check that the mesh filters are not clogged by a foreign object.
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 55
Chapter 3 Inspection Before Use
4. If any foreign object is found to be clogging the filter, clean the mesh filter in
running water using a brush or cotton swab.

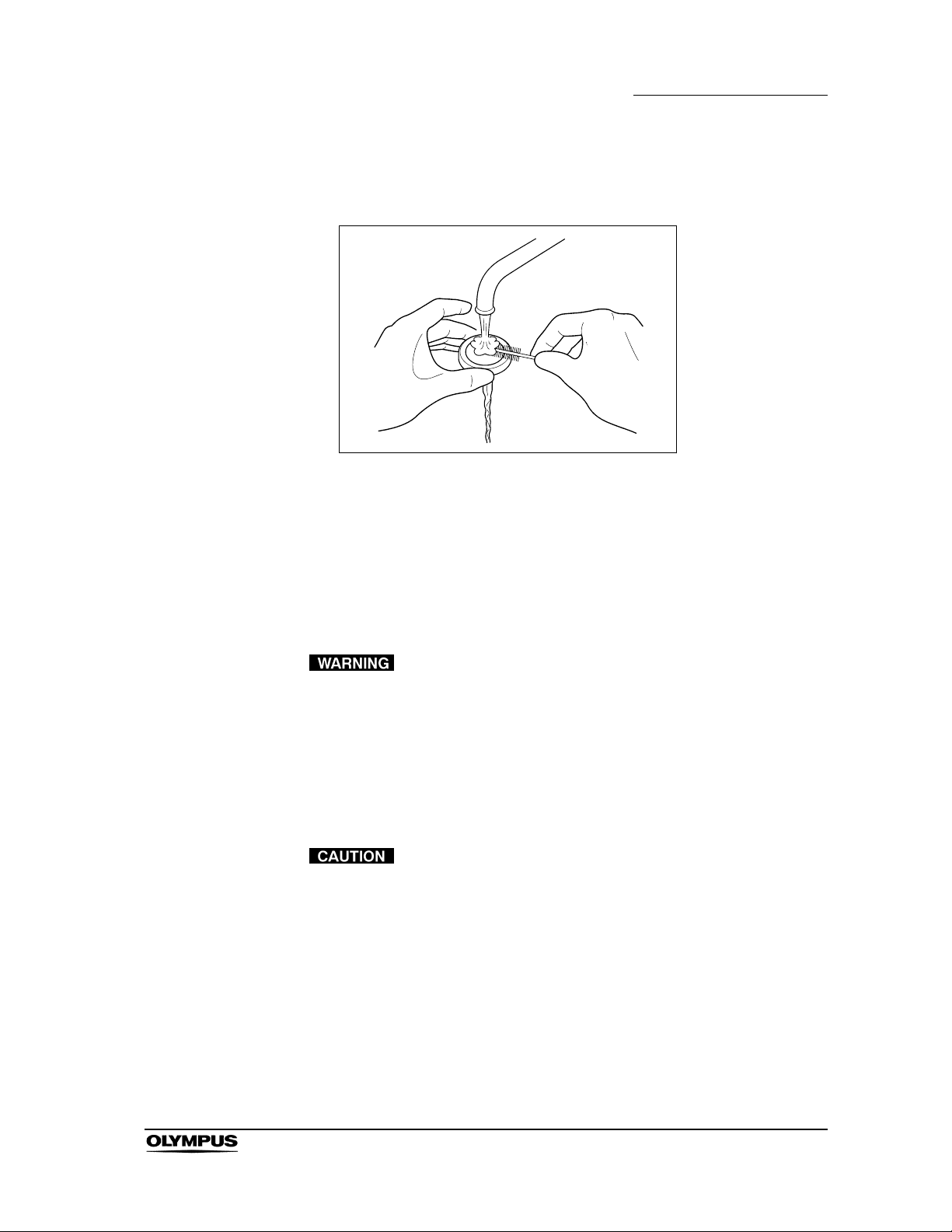

Figure 3.18
5. Attach the mesh filters in their original positions.
3.7 Inspecting for disinfectant solution odor
Check that the disinfectant solution is not producing an abnormal odor.
Before handling the disinfectant solution, carefully read the
precautions attached to the Aldahol III bottle and use as
instructed.
1. Activate the room’s ventilation system.
2. Check that there is no abnormal disinfectant solution odor coming from the
equipment or its surroundings.
If the odor increases after replacement of the gas filters, contact Olympus.
49
Page 56
Chapter 3 Inspection Before Use
3.8 Inspecting the disinfectant solution’s concentration level
Check the concentration of the disinfectant solution before reprocessing an endoscope, always check that the concentration of disinfectant solution is
effective using the test strip. Be sure to replace the disinfectant solution before
the disinfecting effect is lost.
Check Required items
Test strip (For Aldahol III)
Drain connector (should be dry)
Cup-shape container with a capacity of about 200 ml, such as a beaker
(should be dry)
Clean cloth
Table 3.7
• The expiration of the disinfectant solution varies depending on many factors including the drain condition, the
temperature of the environment where the equipment is
installed. Routinely check the concentration of the disinfectant solution with the test strip before performing
endoscope disinfection. If this check is not applied,
disinfection may be insufficient. Also, be sure to replace the disinfectant solution before it becomes ineffective.
• The container used in the following check, such as a beaker,
and the drain connector should be completely dry. Residual
moisture will affect the results.
• Before handling the disinfectant solution, read the attached document for the disinfectant solution carefully, get fully
accustomed to the content, and use the solution as
instructed. Be sure to fully understand what to do if the disinfectant solution comes in contact with your skin.
50
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Page 57
Chapter 3 Inspection Before Use
• When handling the disinfectant solution, wear appropriate
personal protective equipment. To avoid adverse physical effects, be careful not to touch the disinfectant solution
directly or to inhale too much vapor. If any disinfectant
solution gets in your eyes, immediately rinse with a large amount of fresh water and then consult a medical specialist.
Personal protective equipment includes eye wear, face mask,
moisture-resistant clothing, and chemical-resistant gloves that fit properly and are long enough so that your skin is not
exposed. All personal protective equipment should be
inspected before use and replaced periodically before it is damaged.
• Do not block the disinfectant removal port with a finger or
other objects when the rubber cap is not attached.
Otherwise, the disinfectant solution may flow out.
• To prevent peripheral devices and facilities near the
equipment from being damaged by leaked disinfectant solution, do not remove the rubber cap from the disinfectant
removal port except when connecting the drain connector to
the disinfectant removal port.
• If disinfectant solution leaks out of the disinfectant removal
port when the rubber cap has been removed, immediately
reattach the rubber cap and follow the procedure in Section
8.1, “Troubleshooting guide” on page 218. If leaking does not stop, contact Olympus.
To obtain test strip, contact Olympus.
1. Push [PUSH] on the front door to open the front door and remove the rubber
cap from the disinfectant removal port.
disinfectant removal port
Rubber cap

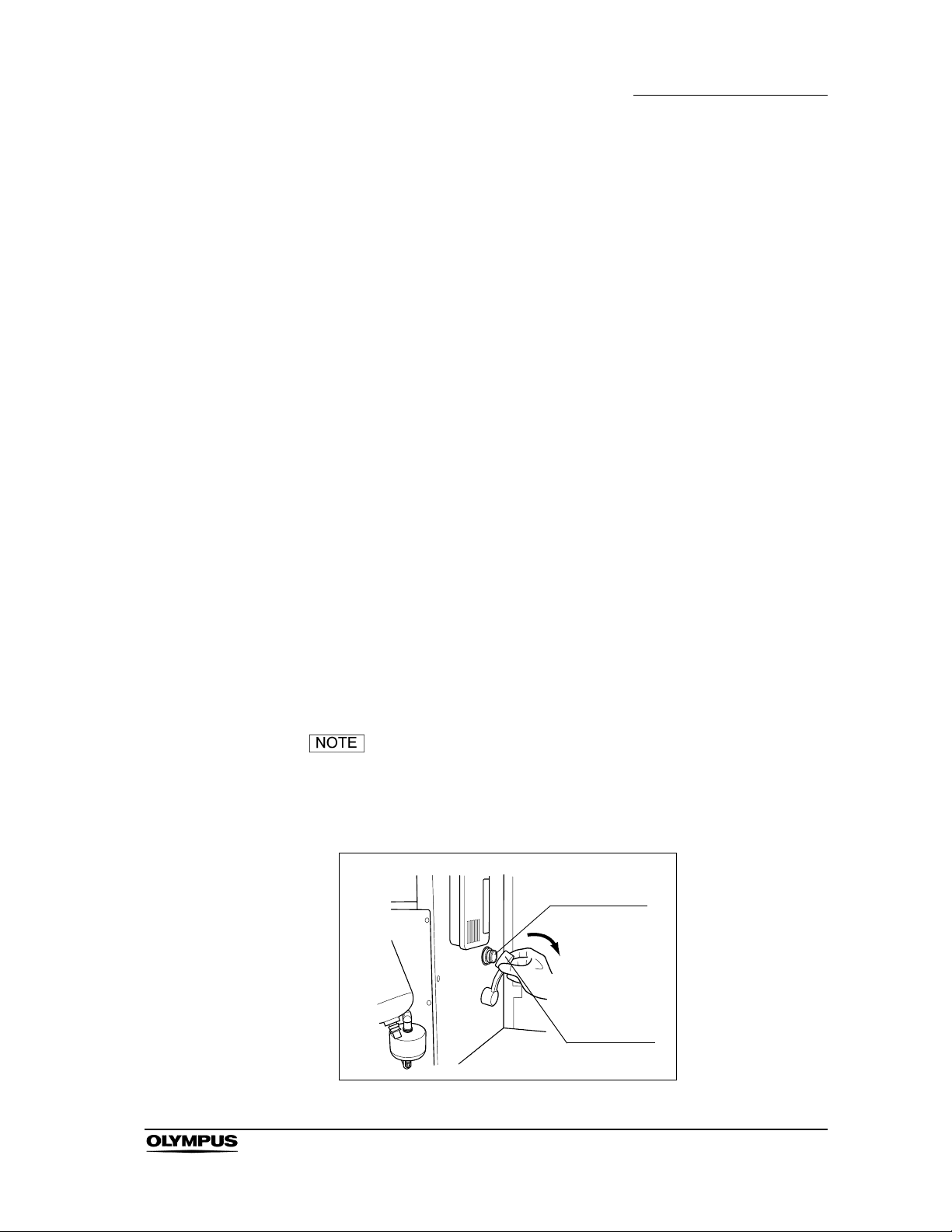

Figure 3.19
51
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
