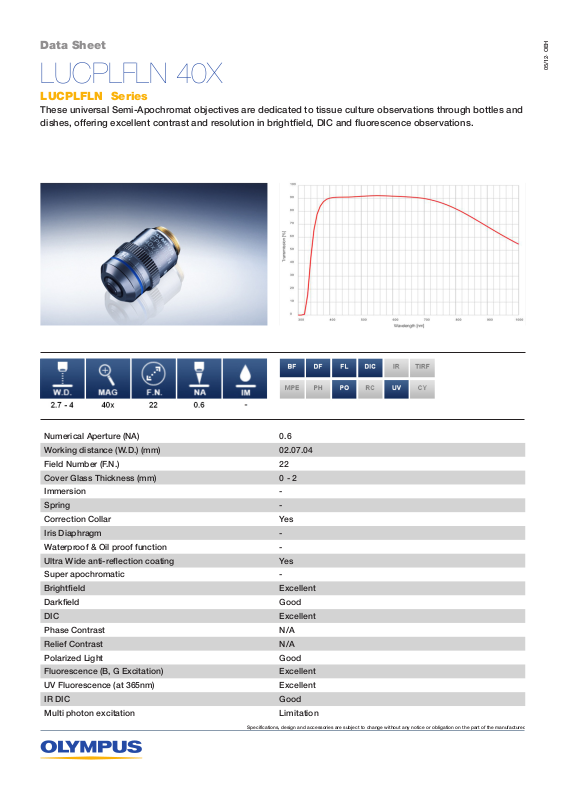

Olympus LUCPLFLN 40X Data sheet [EN]

Data Sheet

LUCPLFLN 40X

LUCPLFLN Series

These universal Semi-Apochromat objectives are dedicated to tissue culture observations through bottles and
dishes, offering excellent contrast and resolution in brighteld, DIC and uorescence observations.

No image available!

Please contact your local Olympus sales
representative for this transmission curve.

05/12· OEH

Numerical Aperture (NA) 0.6

Working distance (W.D.) (mm) 02.07.04

Field Number (F.N.) 22

Cover Glass Thickness (mm) 0 - 2

Immersion -

Spring -

Correction Collar Yes

Iris Diaphragm -

Waterproof & Oil proof function -

Ultra Wide anti-reection coating Yes

Super apochromatic -

Brighteld Excellent

Darkeld Good

DIC Excellent

Phase Contrast N/A

Relief Contrast N/A

Polarized Light Good

Fluorescence (B, G Excitation) Excellent

UV Fluorescence (at 365nm) Excellent

IR DIC Good

Multi photon excitation Limitation

Specifications, design and accessories are subject to change without any notice or obligation on the part of the manufacturer.

Data Sheet

LUCPLFLN 40X

LUCPLFLN Series

05/12· OEH

Specifications, design and accessories are subject to change without any notice or obligation on the part of the manufacturer.
