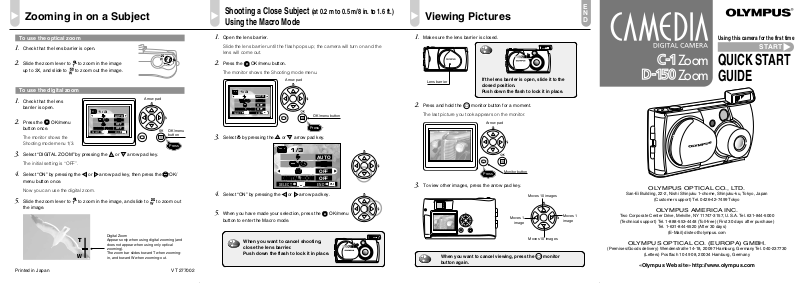

Olympus CAMEDIA d-150 zoom QUICK START GUIDE
DIGITAL ZOOM
Zooming in on a Subject
C-1
D-150
C-1
D-150
Shooting a Close Subject (at 0.2 m to 0.5 m/8 in. to 1.6 ft.)
Using the Macro Mode
Viewing Pictures
E
N
D
To use the optical zoom
1. Check that the lens barrier is open.
2. Slide the zoom lever to to zoom in the image
up to 3X, and slide to to zoom out the image.
To use the digital zoom
1. Check that the lens
barrier is open.
2. Press the OK/menu
button once.
The monitor shows the
Shooting mode menu 1/3.
1/3
DIGITAL ZOOM
SELECT
AUTO
OFF
OFF
END
OK
Arrow pad
3. Select “DIGITAL ZOOM” by pressing the or arrow pad key.
The initial setting is “OFF”.
4. Select “ON” by pressing the or arrow pad key, then press the OK/
menu button once.
Now you can use the digital zoom.
5. Slide the zoom lever to to zoom in the image, and slide to to zoom out
the image.
Digital Zoom
Appears only when using digital zooming (and
does not appear when using only optical
zooming).
The zoom bar slides toward T when zoomingin, and toward W when zooming-out.
Printed in Japan
T
W
OK/menu
button
Press
VT277002
1. Open the lens barrier.
Slide the lens barrier until the flash pops up; the camera will turn on and the
lens will come out.
2. Press the OK/menu button.
The monitor shows the Shooting mode menu.
1/3
AUTO
OFF
DIGITAL ZOOM
SELECT
OFF
OK
END
Arrow pad
OK/menu button
Press
3. Select by pressing the or arrow pad key.
1/3
DIGITAL ZOOM
SELECT
AUTO
OFF
OFF
END
OK
4. Select “ON” by pressing the or arrow pad key.
5. When you have made your selection, press the OK/menu
button to enter the Macro mode.
When you want to cancel shooting,
close the lens barrier.
Push down the flash to lock it in place.
1. Make sure the lens barrier is closed.
Lens barrier
If the lens barrier is open, slide it to the
closed position.
Push down the flash to lock it in place.
2. Press and hold the monitor button for a moment.
The last picture you took appears on the monitor.
Arrow pad
Press
Monitor button
3. To view other images, press the arrow pad key.
Moves 1
When you want to cancel viewing, press the monitor
button again.
Moves 10 images
Moves 10 images
Moves 1
Using this camera for the first time
START
Zoom
Zoom
San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan
Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. 631-844-5000
(Technical support) Tel. 1-888-553-4448 (Toll-free) (First 30 days after purchase)
(Premises/Goods delivery) Wendenstraße 14-18, 20097 Hamburg, Germany Tel. 040-237730
OLYMPUS OPTICAL CO. (EUROPA) GMBH.
OLYMPUS OPTICAL CO., LTD.
(Customer support) Tel. 0426-42-7499 Tokyo
OLYMPUS AMERICA INC.
Tel. 1-631-844-5520 (After 30 days)
(E-Mail) distec@olympus.com
(Letters) Postfach 10 49 08, 20034 Hamburg, Germany
«Olympus Web site» http://www.olympus.com
QUICK START
GUIDE
Checking the Package Contents Shooting Pictures
1/3
AUTO
OFF
OFF
DIGITAL ZOOMDIGITAL ZOOM
END
OK
SELECT
Loading the Battery and Card
(SmartMedia)
Using the Flash
First make sure that all the provided accessories listed below are
included in the package. If anything is missing or damaged, contact
your local Olympus representative immediately.
Camera CD-ROM CR-V3 lithium
USB cableVideo cable
SmartMedia (8 MB) Write-protect seals for
Static-free case
for SmartMedia
battery pack
SmartMedia
Instructions
Labels for SmartMedia
(2 pieces)
Basic Manual/Warranty/Registration
Card (North America only)/Authorized
Distributors List/Sefety Precautions/
Battery Handling/Quick Start Guide
(this publication)
SmartMedia (4 pieces)
Attaching the Provided Strap
Strap
1. Make sure the lens barrier is
closed.
Card
cover
Lens barrier
Battery compartment cover
2. Slide the battery compartment
cover in the
direction of the
arrow q,
and lift the
cover in the
direction of
the arrow w.
3. Insert the battery in the direction
shown in the
figure.
4. Close the battery compartment
cover in the direction
of the arrow q,
and press the
cover in the
direction of
the arrow w
until it clicks.
If the lens barrier is open, slide it to the
closed position.
Push down the flash to lock it in place.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
5. Open the card cover.
6. Insert the card as far as it will go in
the direction shown in the figure.
The insertion
direction is
indicated on
the seal inside
the card cover.
Insert the card completely
until a slight click is heard
and the card is locked in
place.
7. Close the card
cover until it
clicks.
1. Open the lens barrier.
Slide the lens barrier until the flash pops up; the camera will turn on and the
lens will come out.
Lens barrier
2. Hold the camera, and look through the
viewfinder.
3. Press the shutter button halfway (half-press) to make sure the green lamp on
the right of the viewfinder lights.
When lights: The subject is in focus. You can shoot.
When blinking: The subject is out of focus. Hold the camera again, and
half-press the shutter button.
Viewfinder
Green lamp
4. Press the shutter button all the way
(full-press) to take the picture.
The shutter is released and the
picture is taken.
Once the picture has been taken, it
is displayed on the monitor for a
short time.
The flash fires automatically in low
light situations (when AUTO is set).
Monitor
1. Open the lens barrier.
Slide the lens barrier until the flash pops up; the camera will turn on and the
lens will come out.
2. Press the OK/menu button.
The monitor shows the Shooting mode menu.
Displayed menu
1/3
AUTO
OFF
DIGITAL ZOOM
SELECT
OFF
OK
END
Monitor
Arrow pad
Press
OK/menu
button
3. Select by pressing the or arrow pad key.
The default setting is Auto-Flash.
4. Each time you press the or arrow pad key, the flash mode changes:
Auto-Flash ➔
Night Scene ➔ Flash Off. Select one of these modes.
Note: For the function and effect of each flash mode, refer to Page
57 of the camera’s Reference Manual.
Red-Eye Reduction Flash ➔ Fill-In Flash ➔
1/3
AUTO
Display
changes as
key is pressed.
5. When you have made your selection, press the OK/menu button.
The desired flash mode is set.
