Oki Pro8432WT User's Manual Setup

Pro8432WT
- 1 -

About the Product Warranty

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.
While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.
All rights are reserved by Oki Electric Industry Co., Ltd. You must not copy, transfer, translate, etc. the content herein without authorization. You must obtain written permission from Oki Electric Industry Co., Ltd. before doing any of the above.
© 2017 Oki Electric Industry Co., Ltd.
OKI is a registered trademark of Oki Electric Industry Co., Ltd.
Energy Star is a trademark of the United States Environmental Protection Agency.
Microsoft, Windows, Windows Server and Windows Vista are registered trademarks of Microsoft Corporation.
Apple, Mac, OS X and macOS are registered trademarks of Apple Inc.
Other product names and brand names are registered trademarks or trademarks of their proprietors.
This product complies with the requirements of the Council Directives 2014/30/EU (EMC), 2014/35/ EU (LVD), 2014/53/EU (RED), 2009/125/EC (ErP) and 2011/65/EU(RoHS), as amended where applicable, on the approximation of the laws of the member states relating to Electromagnetic Compatibility, Low Voltage, Radio & Telecommunications Terminal Equipment, Energy related Products and Restriction on the use of certain Hazardous Substances in electrical and electronic equipment.
The following cables were used to evaluate this product for EMC directive 2014/30/EU compliance, and
congurations other than this may affect that compliance.
cable type
Power 1.8
USB 5.0
LAN 15.0
length
(meters)
core shield
- 2 -
Emergency rst aid
c
o
m
/
Take care with toner powder:
If swallowed, give small amounts of cold water and seek medical attention. DO NOT attempt to induce vomiting.
If inhaled, move the person to an open area for fresh air. Seek medical attention.
If it gets into the eyes, ush with large amounts of water for at least 15 minutes
keeping eyelids open. Seek medical attention.
Spillages should be treated with cold water and soap to help reduce risk of staining skin or clothing.

Environmental information

w
w
w
.
i
k
o
.
p
r
i
n
t
i
n
g
/
- 3 -

For Your Safety

WARNING
CAUTION
WARNING
CAUTION
Read the User’s Manual for your safety before using the product.
Cautions related to safety
A warning provides additional information which, if ignored, may result in a risk of personal injury.
A caution provides additional information which, if ignored, may result in equipment malfunction or damage.
General cautions
Do not touch the safety switch inside the printer. Doing so may cause electric shock when high voltage occurs. In addition, the rotating gears may result in injury.
Unplug the power cord and contact a customer service center if a liquid such as water enters in the internal parts of the printer. Failure to do so may lead to
a re.
Unplug the power cord and contact a customer service center if the printer is dropped or the cover is damaged. Failure to do so may cause
electric shock and/or re,
leading to injuries.
Do not insert materials in a vent hole. Doing so may cause electric
shock and/or re leading to
personal injuries. Do not throw toner cartridges
and image drum cartridges
into re. Doing so may cause
dust explosion leading to burns.
Do not use highly ammable
sprays near the printer. Doing
so may cause re as parts of
the printer are hot.
Unplug the power cord and remove foreign materials such as paper clips if they fall inside the printer. Failure to do so may cause electric
shock and/or re, leading to
injuries. Unplug the power cord
periodically to clean plug blades and base section between the blades. If the power plug remains inserted for a long time, the base section will get dusty, and the plug may short
circuit, which may cause re.
Do not put a cup with liquids such as water on the printer. Doing so may cause electric
shock and/or re leading to
personal injuries. Do not use a power cord, a
cable, or a ground wire other than those that are indicated in User's Manual.
Doing so may cause re.
Unplug the power cord and contact a customer service center if the cover is unusually hot, smoking, giving off an unusual odor, or making strange noises. Failure to do so may lead to
a re.
Do not operate and/or disassemble the printer other than as directed in User’s Manual. Doing so may cause
electric shock and/or re,
leading to injuries.
Do not clean spilled toner with a vacuum cleaner. If cleaning spilled toner with a vacuum cleaner, it may
catch re due to the sparks
from electric contact.
Toner spilled on the oor
should be wiped off with wet cloth.
Do not touch the fuser and other parts when opening the cover of the printer. Doing so may cause burns.
The operation of using UPS (uninterruptible power source) or inverters is not guaranteed. Do not use uninterruptible power source or inverters.
Doing so may cause re.
Do not come closer to the paper’s exit area when the power is turned on, while printing. Doing so may result in personal injury.
Do not touch a damaged liquid-crystal display. If liquid (liquid crystal) leaked from the liquid-
crystal display gets into the eyes or mouth, ush
with large amount of water. Follow the direction from a doctor if necessary.
- 4 -

Manual Composition

WARNING
The following manuals are included with this product.
● Quick Guide
This notes brief descriptions of how to install this printer.
● User’s Manual (Setup) ---- This document
Basic operations are described to aid understanding of this printer. The initial setup descriptions including printer placement and the network initial setting are noted along with troubleshooting and maintenance procedures.

About This Manual

Terms in this document
The following terms are used in this manual.
Note
● Indicates important information on operations. Make sure to read sections with this mark.
Memo
● Indicates additional information on operations. You should read sections with this mark.
Reference
● Indicates where to look when you want to know more detailed or related information.
● A warning provides additional information which, if ignored, may result in a risk of personal injury.
CAUTION
● A caution provides additional information which, if ignored, may result in equipment malfunction or
damage.
Symbols in this document
The following symbols are used in this manual.
Symbols Description
[ ] ● Indicates menu names on the display screen.
● Indicates menu, window, and dialog names on the computer.
" "
< > button/key Indicates a hardware button on the operator panel or a key on the keyboard of the
> Indicates how to get to the item you want in the menu of this printer or the computer.
Your Printer
● Indicates messages and input text on the display screen.
● Indicates le names on the computer.
● Indicates reference titles.
computer.
Indicates a printer you want to use or select.
- 5 -
Notation used in this manual
The following notations may be used in this manual.
● PostScript3 Emulation PSE, POSTSCRIPT3 Emulation, POSTSCRIPT3 EMULATION
● Microsoft® Windows® 10 64-bit Edition operating system Windows 10 (64bit version) *
● Microsoft® Windows® 8.1 64-bit Edition operating system Windows 8.1 (64bit version) *
● Microsoft® Windows® 8 64-bit Edition operating system Windows 8 (64bit version) *
● Microsoft® Windows® 7 64-bit Edition operating system Windows 7 (64bit version) *
● Microsoft® Windows Vista® 64-bit Edition operating system Windows Vista (64bit version) *
● Microsoft® Windows Server® 2016 64-bit Edition operating system Windows Server 2016 *
● Microsoft® Windows Server® 2012 R2 64-bit Edition operating system Windows Server 2012 *
● Microsoft® Windows Server® 2012 64-bit Edition operating system Windows Server 2012 *
● Microsoft® Windows Server® 2008 R2 64-bit Edition operating system Windows Server 2008 *
● Microsoft® Windows Server® 2008 64-bit Edition operating system Windows Server 2008 (64bit version) *
● Microsoft® Windows® 10 operating system Windows 10 *
● Microsoft® Windows® 8.1 operating system Windows 8.1 *
● Microsoft® Windows® 8 operating system Windows 8 *
● Microsoft® Windows® 7 operating system Windows 7 *
● Microsoft® Windows Vista® operating system Windows Vista *
● Microsoft® Windows Server® 2008 operating system Windows Server 2008 *
● Generic name for Windows 10, Windows 8.1, Windows 8, Windows Server 2016, Windows Server 2012,
Windows 7, Windows Vista, and Windows Server 2008 Windows
* If there is no special description, 64bit version is included in Windows 10, Windows 8.1, Windows 8, Windows 7,
Windows Vista, and Windows Server 2008. (64bit version and Windows Server 2008 R2 is included in Windows Server 2008, Windows Server 2012 R2 is included in Windows Server 2012.)
If there is no special description, Windows 7 is used as Windows, OS X 10.11 is used as OS X, and Pro8432WT is used as the printer for examples in this document.
Depending on your OS, model or version, the description on this document may be different.
The diffusion of dust, ozone, styrene, benzene, TVOC, and ultrane particles conforms to the Eco Mark 155, “Printer” substance emission certication criteria. (Toner was tested by performing black and
white and color printing with OKI genuine toner cartridges according to the appendix S-M of the Blue Angel RAL UZ-171:2012 test method.)
- 6 -
Contents
About the Product Warranty .....................................................................2
Emergency rst aid
Environmental information
For Your Safety
Manual Composition
About This Manual
.................................................................................3
.......................................................................3
.......................................................................................4
................................................................................5
...................................................................................5
1. Setup ................................................................................. 10
Checking Products ................................................................................. 11
Checking Package Contents ...................................................................................... 11
Operator Panel .....................................................................................12
How to Use the Numeric Keypad ............................................................................... 12
How to Use the Function Key
Names of Components
Available Options
............................................................................................. 13
.................................................................................................... 15
Checking the Placement Environment ......................................................16
Placement Environment ........................................................................................... 16
.................................................................................... 13
Placement Space
.................................................................................................... 16
Preparing Your Printer ............................................................................ 17
Unpacking ............................................................................................................. 17
Installing Consumables
Loading Paper
Turning On/Off the Power
Installing Options
Test Printing from the Printer
........................................................................................................ 19
............................................................................................ 17
......................................................................................... 21
.................................................................................................... 23
.................................................................................... 29
Connecting to a Computer ...................................................................... 30
Network Connection ................................................................................................ 31
USB Connection
When Adding Options
...................................................................................................... 41
.............................................................................................. 44
- 7 -
Contents
2. Printing Basic Operation .................................................... 45
Supported Paper ...................................................................................45
How to Print from the Tray
How to Print from the MP Tray
Printing in Custom Sizes
Paper Output
........................................................................................ 55
Convenient Print Functions
Canceling Printing
................................................................................. 57
Setting the Time that Elapses Before Entering the Power Save Mode
Setting the Time that Elapses Before Entering the Deep Sleep Mode
Constraints When in Deep Sleep Mode ....................................................................... 60
..................................................................... 48
................................................................ 49
........................................................................ 52
..................................................................... 56
............ 58
............ 59
Settings for Turning Power Off Automatically (Auto Power Off) .................... 62
Setting the Auto Power Off ....................................................................................... 62
Setting the Time that Elapses Before Entering the Auto Power Off Mode
......................... 63
Setting the Buzzer ................................................................................64
3. Troubleshooting ................................................................. 65
When an Error Message Appears on the Display Screen
(When the ATTENTION Indicator Lights Up/Blinks) ..................................... 65
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
....................................... 66
When the Message for Replacement of Consumables or Maintenance Unit Appears
When the Message for Paper Replacement or Paper Size Error Appears
Other Error Messages
When You Cannot Print from the MP Tray
Other Issues
Unable to Print from a Computer ............................................................................... 83
Unable to Install a Printer Driver Successfully
OS-Specic Constraints
Image Quality Issues
Feeding Issues
Machine Issues
........................................................................................ 74
........ 77
............................................................................ 78
.................................................. 82
........................................................................................ 83
............................................................. 85
.......................................................................................... 86
.............................................................................................. 87
....................................................................................................... 90
....................................................................................................... 91
- 8 -
Contents
4. Maintenance ...................................................................... 93
Replacing Consumables and Maintenance Units .........................................93
Replacing Toner Cartridges ....................................................................................... 94
Replacing the Image Drum
Replacing the Belt Unit
Replacing the Fuser Unit
....................................................................................... 98
...........................................................................................101
.........................................................................................104
Cleaning ............................................................................................ 106
Cleaning the Surface of the Printer ...........................................................................106
Cleaning Paper Feed Rollers.....................................................................................106
Cleaning LED Heads
...............................................................................................108
Moving or Transporting Your Printer ....................................................... 110
Before Machine Disposal
...................................................................... 112
5. Appendix ......................................................................... 113
Menu List of the Operator Panel ............................................................ 113
Checking the Printer’s Status with the Display Screen .................................................113
Menu List of the Operator Panel
Specications ..................................................................................... 119
...............................................................................114
Index .................................................................................... 125
Contact Us
............................................................................. 126
- 9 -

1. Setup

1
How to set up is explained in this chapter.
1. Setup
 Setup Flow
1. Checking Products
● Checking package contents
● Checking names of the operator panel and how to
operate
● Checking names of product parts
● Checking options
2. Checking the Placement Environment
● Checking the placement environment
● Checking placement location
3. Preparing a Printer
● Unpacking
● Removing cushioning materials
● Installing consumables
● Loading paper
● Turning on/off the power
● Installing options
● Test printing from the printer
4. Connecting to a Computer
Connecting through network Connecting through USB
For Windows
Specifying an IP address on the operator panel
For OS X
Connecting through Bonjour
Connecting a cable
Installing a printer driver on a computer
Adding printers on a computer
Test printing from a computer
For Windows For OS X
Adding printers on a computer
- 10 -

Checking Products

CAUTION
Checking Products
This section gives an overview of the printer.

Checking Package Contents

Check that you have everything shown below.
It may cause injury!
● At least two people are needed to lift the printer
safely because it weighs about 37 Kg.
Reference
● For details on how to open the package, refer to
“Unpacking” P.17.
● Printer
1
1. Setup
● Software DVD-ROM
● AC cord
Note
● An Ethernet cable and USB cable are not supplied with
your printer. Procure them separately.
● Packaging and cushioning material are needed if
transporting the printer. Do not throw them away.
● Four image drums (cyan, yellow, magenta,
white)
Note
● The image drums are installed in the machine before
shipment.
● Four starter toner cartridges (cyan, yellow,
magenta, white)
● Quick Guide
- 11 -

Operator Panel

1
Operator Panel
This section explains the names and functions of components on the operator panel and how to enter text.
1. Setup
1
12
8
7
13
5
6
2
9
11
4
5
10
3
No. Name Function
1 Display screen Displays operating instructions and the status of the printer. 2 <ON LINE> button Switches between on line and off line modes. 3 <CANCEL> button Cancels the current print immediately. 4 <ENTER> button
5 <SCROLL> button Selects the menu or scrolls the screen. 6 <BACK> button Returns to the previous screen. 7 <HELP> button Displays the help screen. To close, press the <HELP> button, <BACK>
8 <POWER SAVE> button
9 Numeric Keypad ● Enters numbers.
10 <Fn> key Displays the equipment setting menu screen with a shortcut function. 11 <CLEAR> key Executes the following actions according to the entered items when pressed
12 <READY> indicator Lights up green in on line mode and turns off in off line mode. 13 <ATTENTION> indicator Lights up or blinks orange when an error occurs in the device.
● Displays the menu screen.
● Conrms the highlighted item.
button, or <CANCEL> button.
● Enters or exits the power saving mode.
● Exits the deep sleep mode.
Lights up green in the power save mode and blinks green in the deep sleep mode.
● Enters alphabetical characters and symbols.
A password can be entered only with numeric keypad.
or held down.
● Minimizes a setting value.
● Enters zero for a setting value.
● Deletes a character.
● Cancels a selected item.
Returns to the previous settings. Not available when entering an IP address.

How to Use the Numeric Keypad

Use to enter numbers and characters.
Each time a numeric key is pressed, entered numbers or characters are changed cyclically in the following order:
<1>: 1 <2>: 2 <3>: 3 <4>: 4 <5>: 5 <6>: 6 <7>: 7
a b c A B C 2 d e f D E F 3 g h i G H I 4 j k l J K L 5 m n o M N O 6 p q r s P Q R S 7
- 12 -
<8>: 8 <9>: 9
t u v T U V 8 w x y z W X Y Z 9
<0>: 0 The functions of <
> and <C> keys are the
followings:
>: Function key (Available only when the
<
standby screen is displayed.)
<C>: Deletes a character when entering a
password.
To enter “abc” for example, press <2>
<2> <2> <ENTER> button <2>
<2> <ENTER> button <2>
<2> <2> <2> <ENTER> button.
Operator Panel

How to Use the Function Key

Press numeric keys after pressing the <Fn> key when the message “Ready To Print” appears on the display screen. The function menu corresponding to the number entered is displayed.
1 Press the <Fn> key.
2 Press the numeric keys (0-9) to display
the desired function item and press the <ENTER> button.
Function No. Function menu
101 Network 103 Error Log 200 Power Save Time 201 Sleep Time 202 Auto Power Off Time 210 Error Report 220 Print Position Adjust (MPTray) 221 Print Position Adjust (Tray 1) 231 Paper Color Setting 233 Trans. Color Setting 234 SMR Setting 235 BG Setting 236 Drum Cleaning 237 Hex Dump 300 Adjust Density 301 Adjust Registration 302 Print Color Tuning Pattern 310 Cyan Density 311 Magenta Density 312 Yellow Density 313 White Density
1
1. Setup
3 The setting screen of the selected
function is displayed. Check or change the settings.
Function Menu List
Function No. Function menu
1 Shared Print 2 Private Print 10 Paper Size (Tray 1) 11 X Dimension (Tray 1) 12 Y Dimension (Tray 1) 13 Media Type (Tray 1) 14 Media Weight (Tray 1) 80 Paper Feed 90 Paper Size (MP Tray) 91 X Dimension (MP Tray) 92 Y Dimension (MP Tray) 93 Media Type (MP Tray) 94 Media Weight (MP Tray) 95 Tray Usage (MP Tray) 100 Conguration

Names of Components

5
3
4
6
7
No. Name
1 Front cover 2 Front cover open lever 3 Operator panel 4 Power switch 5 Output tray 6 Multipurpose tray 7 Tray 1 8 Air vents
1
2
8
8
- 13 -
Operator Panel
1
1. Setup
13 12
11
10
No. Name
9 Output tray open button 10 Toner cartridge
Image drum (C: cyan)
11 Toner cartridge
Image drum (Y: yellow)
12 Toner cartridge
Image drum (M: magenta)
13 Toner cartridge
Image drum (W: white) 14 Fuser unit 15 LED head (four heads)
14
9
18
15
19
21
20
No. Name
18 Rear output tray 19 AC power socket 20 Interface part 21 Access cover
● Interface part
23
24
25
16
No. Name
16 Multipurpose tray 17 Paper set cover 26 Wireless LAN module cover
17
26
No. Name
23 Accessory connector 24 USB interface connection 25 Network interface connection
- 14 -
Operator Panel

Available Options

The following options are available for your printer:
● Additional RAM (256 MB or 512 MB)
● 16 GB SD memory card kit
● Wireless LAN module
Reference
● For details on how to install the options, refer to
“Installing Options” P.23.
1
1. Setup
- 15 -

Checking the Placement Environment

WARNING
1
1. Setup
Checking the Placement Environment

Placement Environment

Your printer must be placed in the following environment:
Temperature: 10 - 32°C
20%
Humidity:
Maximum wet bulb temperature:
Recommended environment:
Note
● Be careful of condensation. It may cause a malfunction.
● If placing your printer in a location where the humidity of
the surrounding air is less than 30% RH, use a humidier
or antistatic mat.
- 80% RH
(relative humidity)
25°C
17 - 27°C, 50 - 70 % RH

Placement Space

Place your printer on a at surface that is wide
enough that the printer’s feet securely on the surface.
Allow for enough room around your printer as shown in the images below.
● Top view
20 cm
100 cm60 cm
● Do not install near high temperature or the re.
● Please do not install in a place from which a
chemical reaction is started (laboratory etc.).
● Do not install near the inammable solution, such
as alcohol and thinner.
● Do not install in the place which the small child's
hand reaches.
● Do not install in an unstable place (the shaky
stand, leaning place, etc.).
● Do not install in a place many humidity, dusty and
the place where direct rays hit.
● Do not install in the environment of briny air and
corrosive gas.
● Do not install in a place with much vibration.
● Do not install in a place where the ventilation hole
of the printer is closed.
CAUTION
● Do not place directly on a rug or carpet with long
strands.
● Do not install in a closed room with poor
ventilation and circulation.
● If you use the printer in a small room for a long
time, please make sure that you ventilate the room.
● Install away from strong magnetic elds and
sources of noise.
● Install away from monitors or TVs.
20 cm
● Side view
70 cm
- 16 -

Preparing Your Printer

N
Preparing Your Printer
This section explains how to unpack your printer and how to turn it on and off.

Unpacking

CAUTIO
● At least two people are needed to lift the printer
safely because it weighs about 37 Kg.
Note
Be sure to use the consumables or maintenance units provided with this printer at rst. Otherwise, the life of the
consumables or maintenance units may not be displayed correctly, or you may not be able to use them later.
● The image drum (the green tube) is very delicate. Handle it carefully.
● Do not expose the image drum to direct sunlight or very bright interior light (approximately more than 1500 lux). Even under the normal interior light, do not leave it for more than 5 minutes.
● Packaging and cushioning material are needed if transporting the printer. Do not throw them away.
It may cause injury!

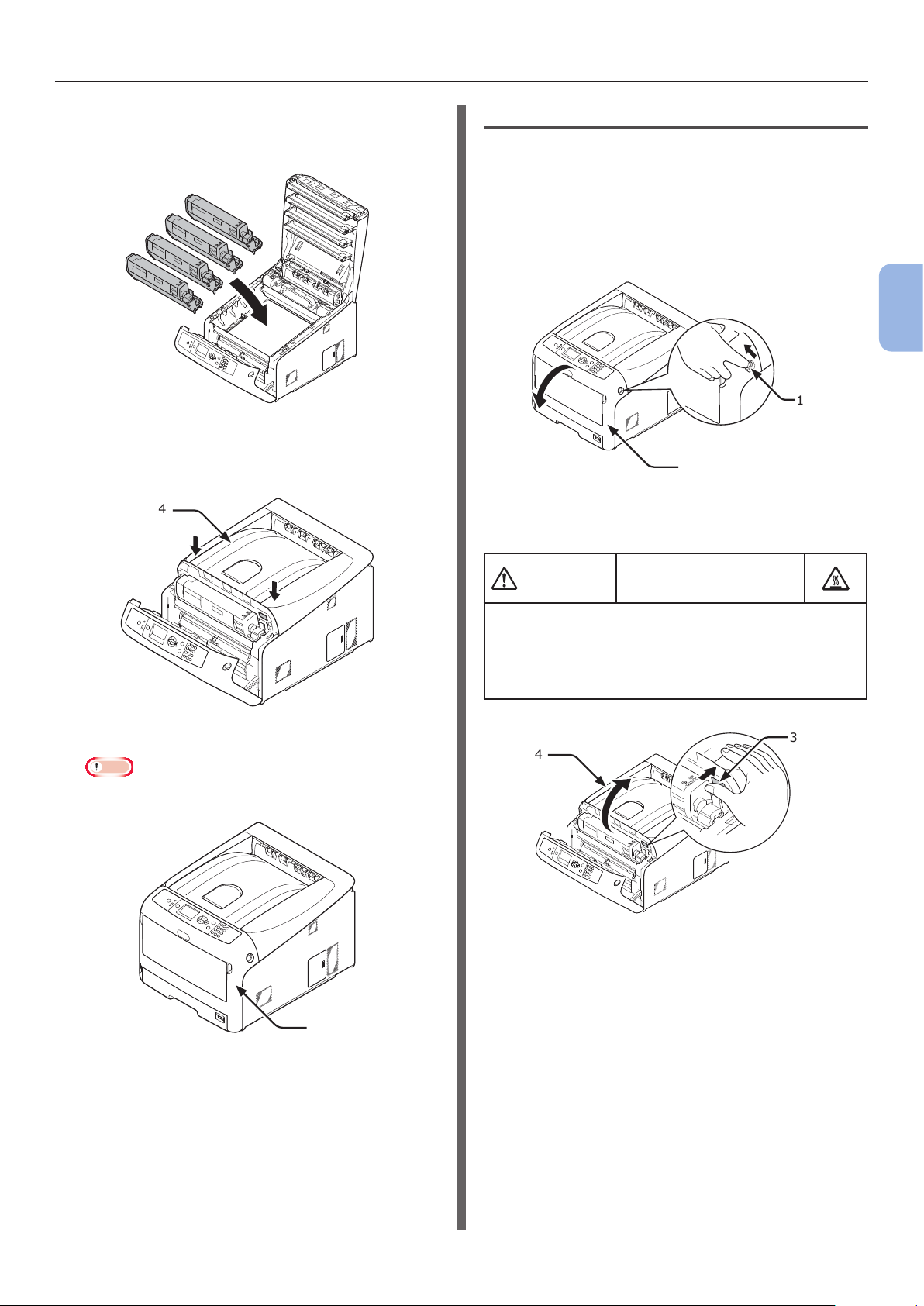

Installing Consumables

1 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (1) to open the front cover (2) forward.
Note
● Open the front cover gently. If opening rapidly, an MP
tray may open.
1
1. Setup
1
1 Remove your printer from the box and
remove all cushioning materials and the plastic bag from your printer.
2 Remove the two strips of protective tape
(1) at the back of your printer.
1
2
2 Press the output tray open button (3)
and open the output tray (4).
3
4
3 Take out all four image drums from the
printer.
- 17 -
Preparing Your Printer
4 Remove the protective sheets and toner
1
1. Setup
covers from four image drums.
x4 (C / Y / M / W)
5 Conrm that the image drum and the
toner cartridge are of the same color, and then attach the toner cartridge to the image drum.
- 18 -
Preparing Your Printer
6 Put all four image drums back into a
printer.
7 Close the output tray (4) by pushing the
both sides of the cover rmly.
4

Loading Paper

Reference
● Please refer to “Supported Paper” P.45 for information
on how to load paper into the printer.
1 Pull out the paper tray (1).
1
2 Set the paper size dial (2) to match the
loading paper size.
Set the dial to [A4 ] when loading the A4 size paper with a landscape orientation.
1
1. Setup
8 Close the front cover (2).
Note
● The front cover cannot be closed securely if the
output tray is not closed.
● When the error message that the top or front cover
is open does not disappear from the operator panel’s display screen, make sure they are closed securely.
2
2
- 19 -
Preparing Your Printer
3 Slide the paper guide (3) and paper
1
1. Setup
stopper (4) to the size of paper to be loaded.
3
Note
● When loading the A6 size paper, move the paper
stopper (4) forward and remove it once, then install it on the metal part.
5 Load paper with the print side face down
and press it from above.
Note
● Do not load paper exceeding the [ ] mark (5) of the
paper guide.
5
4
4
6 Secure the loaded paper with the paper
guide.
7 Check if a size of loaded paper matches
the setting of paper size dial.
4 Flex paper back and forth, and then fan
it. Straighten the edges of the paper stack on a level surface.
8 Return the paper tray to the printer.
Memo
● If loading a paper that you cannot select the
size with a paper size dial options, set the dial to [Other], and then set a paper size on the operator panel.
- 20 -
Preparing Your Printer
G

Turning On/Off the Power

Power Supply Conditions
The power supply must meet the following conditions:
Voltage: 110 - 127 VAC (Range 99 - 140 VAC)
220 - 240 VAC (Range 198 - 264 VAC)
Frequency: 50/60 Hz ± 2%
Note
● If the power supply is unstable, use a voltage regulator.
● The maximum power consumption of this printer is
1400 W. Ensure that the power supply is sufcient to
operate this printer.
● We do not guarantee operation where an uninterruptible power system (UPS) or inverter is used. Do not use an uninterruptible power system (UPS) or inverter.
There is a risk of getting
WARNIN
● Be sure to turn off the power supply switch when
attaching or removing the AC cable and earth wire.
● Be sure to connect an earth wire to the grounding
terminal of exclusive use.
● Please do not connect with the ground of a water pipe,
a gas pipe, and a telephone wire, and a lightning rod by any means.
● Make sure to connect with the ground terminal before
connecting the power cord to the power supply plug.
● Be sure to plug in and unplug the AC cable while holding
on to the power supply plug.
● Insert the AC cable plug completely into the wall socket
securely.
● Do not touch the power cord, or printer, if your hands
are wet.
● Install a power cord in the place which is not stepped
on, and do not place a thing on a power cord.
● Do not use the cord tied in a bundle.
● Please do not use the damaged power cord.
● Do not use multi-outlet adapters.
● Do not connect this printer and other electric products
to the same wall socket. If it connects simultaneously with an air conditioner, copier, shredder, etc. Especially, a printer may incorrect-operate by the electric noise. When you connect with the same wall socket
unavoidably, please use a commercial noise lter or a
commercial noise cut transformer.
● Use the attached power cord and insert it directory with
the ground terminal. Do not use the power cord for other product for the printer.
● Do not use an extension cord. When you use it
unavoidably, use the thing more than rated 15 A.
● Use of an extended code may not operate a printer
normally by AC voltage descent.
● During printing, do not shut off a power supply or do not
pull out a power supply plug.
● When you use it neither for consecutive holidays nor a
travel for a long time, pull out a power cord.
● Do not use attached power cord to the other products.
an electric shock and/or
causing re.
Turning On the Power
1 Plug the AC cord (1) into the AC power
socket of your printer.
1
2 Plug the AC cord into the electric socket.
3 Hold down the power switch (2) for
about 1 second to turn on the power.
2
The Power switch LED indicator lights up when the printer turns on.
The message “Ready To Print” is displayed in the operator panel once printer is ready.
1
1. Setup
- 21 -
Preparing Your Printer
Turning Off the Power
1
1 Hold down the power switch (1) for
1. Setup
about a second.
The message “Shutting down Please wait. Printer will turn off automatically” appears in the operator panel, and the power switch indicator blinks every 1 second. Then the printer turns off automatically and the power switch indicator goes out.
Note
● It may take about 5 minutes to turn off the power.
Wait until it turns off.
● Holding down the power switch for more than 5
seconds turns off printer forcibly. Only perform this procedure when a problem occurs. For printer problems, refer to “Other Issues” P.83.
1
Power Save Mode and Deep Sleep Mode
Two-phase power conservation enables you to save on power consumed by the printer.
 Power Save Mode
When your printer is not used for a certain period of time, it automatically enters the power save mode to reduce the power consumption.
You can enter the power save mode manually by pressing the <POWER SAVE> button on the operator panel.
The <POWER SAVE> button lights up green while in this mode.
Memo
● By factory default, the time interval before entering the
power save mode is set to 1 minute. For how to change the time that elapses before the printer enters the power save mode, refer to “Setting the Time that Elapses Before
Entering the Power Save Mode” P.58.
 When the Printer is Not Used for a
Long Time
When the printer is not used for a long time due to consecutive holidays or when on vacation, or when changing or attaching parts in repair or maintenance, unplug the AC cord.
Memo
● The printer will not be functionally impaired even if left unplugged for a long time (more than 4 weeks).
 Deep Sleep Mode
Your printer goes from the power save mode to the deep sleep mode after a set period of time.
The <POWER SAVE> button blinks while in the deep sleep mode.
Note
● The printer does not enter the deep sleep mode if an error
occurs.
Memo
● By factory default, the time interval before entering the
deep sleep mode is set to 15 minutes. For how to change the time that elapses before the printer enters the deep sleep mode, refer to “Setting the Time that Elapses Before
Entering the Deep Sleep Mode” P.59.
Reference
● For more detailed information on deep sleep mode, please
refer to the User’s Manual (Advanced).
- 22 -
Preparing Your Printer
 Restoring a Printer from the
Power Saving Mode
To restore the printer from the power save mode or the deep sleep mode, press the <POWER SAVE> button on the operator panel.
Memo
● When the printer receives a print job from a computer or other devices, it is restored automatically.
Auto Power Off Function
When a certain period of time elapses after printing, this printer will turn off automatically.
Memo
● The factory default setting for time that elapses before the printer power turns off automatically is 4 hours.
● For how to change the time that elapses before the printer power turns off automatically, refer to “Settings for
Turning Power Off Automatically (Auto Power Off)” P.62.
Note
● In the factory default setting, the auto power off mode is disabled during network connection. To enable the auto power off mode during network connection, refer to
“Settings for Turning Power Off Automatically (Auto Power Off)” P.62.

Installing Options

This section explains how to install options on your printer. The following options are available:
● Additional RAM (256 MB or 512 MB)
● 16 GB SD memory card kit
● Wireless LAN module
Note
● Be sure to turn off your printer and unplug the AC cord
and Ethernet or USB cable before installing options. Installing options while your printer is turned on may damage your printer and options.
Memo
● After installing options, set the option settings with a
printer driver. Refer to “When Adding Options” P.44.
Installing Additional RAM
Install additional RAM to increase the memory capacity of your printer in cases such as if
memory overow or the collate print errors occur.
Your printer supports 256 MB and 512 MB RAM.
1
1. Setup
Note
● Use only genuine OKI products. The performance cannot
be guaranteed when using other products.
● The static electricity may damage parts. Discharge the
static electricity from your body by touching grounded metallic parts, etc., before work.
Memo
● For banner printing, installing additional memory is
recommended.
1 Turn off your printer, and then unplug
the AC cord and Ethernet or USB cable.
Reference
● “Turning Off the Power” P.22
2 Open the access cover (1) on the right
side of a printer.
- 23 -
1
Preparing Your Printer
3 Slide the metal plate (2) upward to
1
1. Setup
remove.
Note
● If the SD memory card socket is attached, remove
the SD memory card.
(1) Put your nger in the recess of the
metal plate (2), and slide it upward.
(2) Pinch the lower part of the metal
plate (2), and pull it forward.
5 Insert the additional RAM (4) into the
slot and x it by pushing it toward the
printer.
Note
● Be sure to check a direction of an additional RAM.
The additional RAM has small dents on its connector,
which are tted with a connector of a slot.
2
4
6 Install the metal plate (2).
(1) First, insert the upper part of the
metal plate (2) in the printer, then install the metal plate.
2
4 Make sure the LED (3) indicated by the
arrow turns off. If it is lit, wait until it turns off.
3
2
(2) While holding the lower part of the
metal plate (2), slide the metal plate downward and secure it.
2
- 24 -
Note
● Attach the SD memory card socket before installing
the metal plate if the SD memory card socket was attached to the printer.
Preparing Your Printer
7 Close the access cover (1).
1
8 Plug the AC cord and Ethernet or USB
cable into your printer, and then turn on the power switch.
9 Press the scroll button or on the
operator panel.
10 Press the scroll button to select
[Conguration] and press the <ENTER> button.
12 Press the scroll button several times to
select [RAM] and press the <ENTER> button.
13 Check that the value of [RAM] has
increased.
RAM
- For memory expanded to 256 MB, it is [512 MB]; for memory expanded to 512 MB, it is [768 MB].
Note
● If the value of [RAM] has not increased, turn off
your printer and unplug the AC cord and Ethernet or USB cable, and then reinstall the additional RAM.
14 Press the <ON LINE> button.
1
1. Setup
11 Press the scroll button several times
to select [System] and press the <ENTER> button.
- 25 -
Preparing Your Printer
Installing the 16-GB SD Memory
1
Card Kit
For storing print data, install the SD memory
1. Setup card kit.
SD memory card
SD memory socket
Memo
● The SD memory socket is attached to the SD memory
card.
Note
● Use only genuine OKI products. The performance cannot
be guaranteed when using other products.
● The static electricity may cause damage to the parts.
Discharge the static electricity in your body by touching grounded metallic parts, etc. before work.
● You can not use the SD memory card with the protection
switch for accidental overwriting locked. Make sure to release the lock.
3 Remove the metal plate (2) by sliding it
upward.
(1) Put your nger in the recess of the
metal plate (2), and slide it upward.
2
(2) Pinch the lower part of the metal
plate (2), and pull it forward.
2
1 Turn off your printer, and then unplug
the AC cord and Ethernet or USB cable.
Reference
● “Turning Off the Power” P.22
2 Open the access cover (1).
1
4 Make sure the LED (3) indicated by the
arrow turns off. If it is lit, wait until it turns off.
3
- 26 -
Preparing Your Printer
5 Install the SD memory card (4) into the
SD memory card socket (5).
4
5
6 Install the SD memory socket to the
printer with the screw (6) and tab (7) for the SD memory card socket and attach the connector (8).
(2) While holding the lower part of the
metal plate (2), slide the metal plate downward and secure it.
2
8 Close the access cover (1).
1
1. Setup
6
7 Install the metal plate (2).
(1) First, insert the upper part of the
metal plate (2) in the printer, then install the metal plate.
8
1
9 Plug the AC cord and Ethernet or USB
7
cable into your printer, and then turn on the power switch.
10 Press the scroll button or on the
operator panel.
2
11 Press the scroll button to select
[Conguration] and press the <ENTER> button.
- 27 -
Preparing Your Printer
12 Press the scroll button several times
1
1. Setup
to select [System] and press the <ENTER> button.
13 Press the scroll button several times
to select [SD Card] and press the <ENTER> button.
Installing the Wireless LAN module
1 Turn off your printer, and then unplug
the AC cord.
2 Open the Wireless LAN module cover (1)
on the right side of a printer.
(1)
3 Pull out the connector, and plug it into
the Wireless LAN module.
14 Check that the value of [SD Card] is
[16 GB].
SD Card
15GB[F52]
Note
● [15 GB] may be displayed in [SD Card]. This is not
an error.
● If the value of [SD Card] has not increased, turn off
your printer and unplug the AC cord and Ethernet or USB cable, and then reinstall the SD memory card.
1/1
15 Press the <ON LINE> button.
- 28 -
Preparing Your Printer
4 Install the Wireless LAN module.

Test Printing from the Printer

Check that you can print with the printer. Check the detailed settings and status of your printer by printing the contents of the settings
(Conguration).
Note
● When a printer is in the power saving mode, press the
<POWER SAVE> button to restore from the mode.
1 Press the <Fn> key on the operator
panel.
2 Enter “100” using the numeric keypad
and press the <ENTER> button.
1
1. Setup
5 Close the Wireless LAN module cover.
6 Plug the AC cord.
7 Turn on your printer while pressing the
<ENTER> button.
8 Press the <ENTER> button.
9 Enter the administrator password.
The factory default password is “999999”.
10 Press the scroll button to select
[Wireless Module] and press the <ENTER> button.
3 Press the <ENTER> button as
[Execute] is selected.
Configuration 1/1
Execute
4 After nishing a print of printer settings,
a setup for printing from a printer completes.
Reference
● You can also print reports and lists for each function.
Refer to the User’s Manual (Advanced).
11 Press the scroll button to select [Enable]
and press the <ENTER> button.
12 Press the <ON LINE> button.
- 29 -

Connecting to a Computer

1
1. Setup
Connecting to a Computer
This section explains how to connect your printer to a computer and install a printer driver software using the provided “Software DVD-ROM”.
Prepare a computer with a DVD drive.
 Connection Method
You can select either of the following connection methods:
● “Network Connection” P.31
● “USB Connection” P.41
 Product Requirements
Your printer supports the following operating systems:
● Windows 10/Windows 10 (64bit Version)
● Windows 8.1/Windows 8.1 (64bit Version)
● Windows 8/Windows 8 (64bit Version)
● Windows 7/Windows 7 (64bit Version)
● Windows Vista/Windows Vista (64bit Version)
● Windows Server 2016
● Windows Server 2012 R2
● Windows Server 2012
● Windows Server 2008 R2
● Windows Server 2008/Windows Server 2008 (x64 Version)
● OS X 10.8.5 to macOS Sierra
Depending on the printer driver version or the version of Windows or OS X, the description may be different.
- 30 -
Connecting to a Computer

Network Connection

Perform the following procedure to connect your printer to a computer via network.
Connecting an Ethernet Cable
Be sure to connect your printer to a network with an Ethernet cable before driver installation.
1 Prepare an Ethernet cable (1) and a hub
(2).
Prepare an Ethernet cable (category 5, twisted pair, straight) and a hub separately.
1
2
2 Turn off your printer and computer.
Reference
● “Turning Off the Power” P.22
Connecting in Wireless LAN (Infrastructure Mode) (Optional)
Note
● In a wireless LAN environment, the machine enters sleep
mode, but does not enter deep sleep mode.
● Do not place any devices (especially microwave
ovens or digital cordless telephones) that emit weak electromagnetic waves near the machine.
● Install the machine near a wireless LAN access point or
wireless device with no obstacles between them (the distance should be within 30 m).
● Wireless connections may be difcult if there is any metal,
aluminum framed windows, or reinforced concrete walls between the machine and the wireless LAN access point.
● Wireless LAN connections may have slower transmission
speeds, depending on the environment, than wired LAN or USB connections. We recommend using a wired LAN or a USB connection to print large amounts of data, such as photographs.
1
1. Setup
3 Plug one end of the Ethernet cable into
the network interface connection (3) on the back of the printer.
4 Plug the other end of the Ethernet cable
into the hub (2).
2
3
 To choose a valid default gateway
1 Press the scroll button several times
to select [Admin Setup] and press the <ENTER> button.
2 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press the <ENTER> button after each character you input.
3 Press the scroll button several times
to select [Network Setup] and press the <ENTER> button.
4 Press the scroll button several times
to select [Enabling Default Gateway] and press the <ENTER> button.
- 31 -
5 Press the scroll button to select
[Wireless(Infrastructure)].
6 Press the <ENTER> button.
Connecting to a Computer
 Connecting Using WPS
If the wireless LAN access point supports WPS,
1
the connection to the wireless LAN can be made easily by using the easy setup button (WPS
1. Setup button).
Follow the procedure below for the setup.
1 Conrm the position of the easy setup
button and when to press the button by referring to the user manual of the wireless LAN access point.
2 Conrm that the wireless LAN access
point has been activated and is functioning normally.
3 Turn on the printer.
4 Press the scroll button several times
to select [Wireless(Infrastructure) Setting], and then press the <ENTER>
button.
5 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press the <ENTER> button after each character you
input.
6 Press the scroll button several times
to select [Automatic setup (WPS)], and then press the <ENTER> button.
7 Select [WPS-PBC], and then press the
<ENTER> button.
8 Select [Yes], and then press the
<ENTER> button.
 Connecting by Selecting a
Wireless LAN Access Point from the Control Panel
If the wireless LAN access point does not support WPS, you can connect by selecting the wireless LAN access point you want to use from those the machine has detected. To do this, an encryption key is required.
1 Conrm and write down the SSID and
encryption key by referring to the user manual of the wireless LAN access point.
Memo
● The SSID is also called the network name, ESSID, or
ESS-ID.
● The encryption key is also called the network key,
security key, password, or pre-shared key.
2 Conrm that the wireless LAN access
point has been activated and is functioning normally.
3 Turn on the printer.
4 Press the scroll button several times
to select [Wireless(Infrastructure) Setting], and then press the <ENTER>
button.
5 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press the <ENTER> button after each character you input.
6 Press the scroll button several times to
select [Wireless Network Selection], and then press the <ENTER> button.
9 The Printer starts searching for wireless
LAN access points. During 2 minutes, press the easy setup button for the wireless LAN access point for a few seconds.
Once Connection successful is displayed, it indicates that the wireless LAN setup has completed.
If Connection failed is displayed, repeat the procedure from step 4.
If an antenna appears on the upper right corner of the operator panel, it indicates that the connection is successful.
7 The printer starts searching for wireless
LAN access points. Please wait.
8 A list of available wireless LAN access
point SSIDs are displayed. Press or , select a wireless LAN access point, and press the <ENTER> button.
Note
● If only [Manual Setup] is displayed or the desired
wireless LAN network SSID is not displayed, follow the procedure in “Connecting by Manual Setup from Control Panel” to do the settings.
- 32 -
Connecting to a Computer
9 A screen opens in which to input the
encryption key appropriate to the encryption procedure for the selected wireless LAN access point; input the encryption key.
Memo
● The encryption key differs depending on the wireless
LAN access point and security.
If [WPA Pre-shared Key] is displayed
Item Explanation
Encryption method
Encryption key Enter the pre-shared key.
* Congure from the machine’s web page.
If [WEP Key] is displayed
Item Explanation
Encryption method
Encryption key Input the WEP key.
Other settings
Item Explanation
Encryption method
Encryption key Input is not necessary.
WPA/WPA2-PSK
WEP
Disable
 Connecting by Manual Setup from
Control Panel
Congure the wireless LAN access point
information (SSID, encryption method, and encryption key) manually, and connect to the wireless LAN.
1 Check and write down the SSID, the
encryption method and the encryption key by referring to the user manual of the wireless LAN access point.
Note
When the encryption method is WPA-EAP or WPA2- EAP, congure from the printer’s web page.
Memo
● The SSID is also called the network name, ESSID, or ESS-ID.
● The encryption key is also called the network key, security key, password, or pre-shared key.
2 Conrm that the wireless LAN access
point has been activated and is functioning normally.
3 Turn on the printer.
4 Press the scroll button several times
to select [Wireless(Infrastructure) Setting], and then press the <ENTER>
button.
1
1. Setup
10 The SSID selected in step 7 and the
encryption method in step 8 are displayed
as security in of the conrmation screen.
If the SSID is the same as the one set up in step 1, select [ENTER]:Execute and press the <ENTER> button.
Once Connection successful is displayed, it indicates that the wireless LAN setup has completed.
If Connection failed is displayed, repeat the procedure from step 4.
If an antenna appears on the upper right corner of the operator panel, it indicates that the connection is successful.
5 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press the <ENTER> button after each character you input.
6 Press the scroll button several times to
select [Wireless Network Selection], and then press the <ENTER> button.
7 The printer starts searching for wireless
LAN access points. Please wait.
8 A list of available wireless LAN access
point SSIDs are displayed. Press or , select [Manual Setup] at the end of the list, and press the <ENTER> button.
9 Input the SSID recorded in step 1, and
press the <ENTER> button.
Note
● It is case sensitive. Please enter it correctly.
- 33 -
Connecting to a Computer
10 Select the encryption method conrmed
1
1. Setup
in step 1, and press the <ENTER>
button.
Memo
● The encryption key differs depending on the wireless
LAN access point and security.
11 Input the encryption key recorded in
step 1, and press the <ENTER> button.
12 Press the <ENTER> button.
Once Connection successful is displayed, it indicates that the wireless LAN setup has completed.
If Connection failed is displayed, repeat the procedure from step 4.
If an antenna appears on the upper right corner of the operator panel, it indicates that the connection is successful.
Installing a Printer Driver (for Windows)
To complete the network connection with a Windows computer, rst set IP addresses for the printer, and then install a printer driver on the computer.
If there is no DHCP server or BOOTP server on
the network, you need to manually congure the
IP address on the computer or printer.
If your network administrator or internet service
provider species an unique IP address for the
computer and your printer, you need to set the IP addresses manually.
Note
● You need to complete the network setting of the computer
before this procedure.
● To complete this procedure, you must be logged in as an
administrator.
● When setting an IP address manually, ask the network
administrator or your internet service provider which IP address to use. If the IP address is set wrong, the network may go down or Internet access may be disabled.
Memo
● If conguring a small network consisting of only your
printer and a computer, set IP addresses as shown below (according to RFC1918).
For the computer
IP address : 192.168.0.1 - 254
Subnet mask : 255.255.255.0
Default gateway : not used
DNS server : not used
For the printer
IP address Set : Manual
IP address:
Subnet Mask : 255.255.255.0
Default Gateway : 0.0.0.0
Network Scale : Small
● To set [Network Scale], press the scroll button or
and then select [Admin Setup] > [Network Setup] > [Network Scale].
192.168.0.1 - 254 (select a different value from that of the computer)
- 34 -
Connecting to a Computer
First, Set the IP address of the printer.
1 Turn on the printer.
2 Press the button on the operator panel.
3 Press the scroll button to select [Admin
Setup], and press the <ENTER> button.
7 Press the to select [IP Address Set],
and press the <ENTER> button.
8 If setting the IP address manually, press
the scroll button and select [Manual], and press the <ENTER> button.
After entering all settings, press the <BACK> button.
Proceed to the step 9.
1
1. Setup
4 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press the <ENTER> button after each character you input.
5 Press the <ENTER> button.
If obtaining the IP address automatically, check that [Auto] is selected, and press the <ENTER> button.
After entering all settings, press the <BACK> button.
Proceed to the step 15.
9 Press the scroll button to select
[IPv4 Address], and press the <ENTER> button.
6 Check that [Network Setup] is selected
and press the <ENTER> button.
- 35 -
Connecting to a Computer
10 Enter the IP address using the numeric
1
1. Setup
(0-9) keys, and press the <ENTER> button.
To move to the next box, press the <ENTER> button.
After entering all settings, press the <BACK> button.
11 Press the scroll button to select
[Subnet Mask], and press the <ENTER> button.
14 Enter the default gateway address and
press the <ENTER> button.
To move to the next box, press the <ENTER> button.
After entering all settings, press the <BACK> button.
Gateway Address
192 . 168. 0. 254
15 When the setup menu screen is
displayed, press the <ON LINE> button to complete the network settings.
12 Enter the subnet mask in the same
manner of IP address.
To move to the next box, press the <ENTER> button.
After entering all settings, press the <BACK> button.
13 Press the scroll button to select
[Gateway Address], and press the <ENTER> button.
- 36 -
Connecting to a Computer
Next, install the printer driver on the
computer.
1 Insert the included “Software DVD-ROM”
into a computer.
2 When [AutoPlay] is displayed, click
[Run Setup.exe].
Memo
● If the [User Account Control] dialog box is
displayed, click [Yes].
7 Click [Install Optional Software].
1
1. Setup
Installation starts.
Memo
● The following software is installed.
- PS Printer Driver (Including Network Extension)
● Install other software from Custom Install
8 Make sure that the software is
successfully installed, and then click [Printing Test].
9 Click [Complete].
3 Select a language from the drop-down
list.
4 Read the license agreement, and then
click [Accept].
5 Select [Network (Wired/Wireless)]
in accordance to the connection method of the machine and computer, and then click [Next].
6 Select the model name of the machine,
and then click [Next].
10 Click [Next].
- 37 -
Connecting to a Computer
11 Click [Exit].
1
1. Setup
Installing a Printer Driver (For OS X)
To complete the network connection with a Mac operating system, install a printer driver on the computer and set your printer as a network printer.
Note
● Disable the anti-virus software before starting this
procedure.
 Install the OS X PS Printer Driver.
When the installation is complete, print a test page in step 14.
8 Click [+].
9 Click [Default].
10 Select the machine where [Kind]
is [Bonjour], and then select [Oki Pro8432WT PS] from the [Use].
Connection Priner Name Kind
Network OKI-Pro8432WT-(last 6 digits
of MAC address)
Memo
● To change the name, enter a new name into [Name:].
Bonjour
1 Make sure that the machine and a
computer are connected and the machine is turned on.
2 Insert the “Software DVD-ROM” into a
computer.
3 Double-click the [OKI] icon on the
desktop.
4 [Drivers] > Double-click [Installer for
OSX].
5 Enter the administrator password, and
then click [OK].
Follow the on-screen instructions to complete the installation.
6 Select [System Preferences] from the
Apple menu.
7 Click [Printers & Scanners].
11 Click [Add].
12 When [Installable options] is
displayed, click [Continue].
- 38 -
Connecting to a Computer
13 Make sure that the machine is added
to [Printers] and [Pro8432WT PS] is displayed for [Kind].
Note
● If [Pro8432WT PS] is not displayed for [Kind]
correctly, click [-], delete the machine from [Printers], and then newly perform steps 8 to 12.
14 Click [Open Print Queue...].
15 Select [Print Test Page] from the
[Printer] menu.
Connecting in Wireless LAN (AP Mode) (Optional)
The wireless LAN (AP mode) connects directly to a wireless terminal (computer, tablet, smartphone, etc.) without using a wireless LAN access point.
Note
● You cannot enable wireless LAN (infrastructure) and
wireless LAN (AP mode) at the same time.
● If you enable wireless LAN (AP mode), the machine enters
sleep mode, but does not enter deep sleep mode.
● Do not place any devices (especially microwave
ovens or digital cordless telephones) that emit weak electromagnetic waves near the machine.
● Wireless connections may be difcult if there is any
metal, aluminum framed windows, or reinforced concrete walls between the machine and the wireless terminal (computer, tablet, smartphone, etc.).
● Wireless LAN connections may have slower transmission
speeds than wired LAN or USB connections, depending on the environment. We recommend using a wired LAN or a USB connection.
 Preparing to use the wireless LAN
(AP mode)
The machine becomes a simple wireless access point, and wireless terminals (computer, tablet, smartphone, etc.) can connect directly to it.
1
1. Setup
Before you start, conrm that the wireless
device you are using supports the following environment.
Item Value
Standard IEEE 802.11 b/g/n Security WPA2-PSK (AES)
- 39 -
Connecting to a Computer
 Automatic Setup (Push Button)
If the wireless terminal (computer, tablet,
1
smartphone, etc.) supports WPS-PBC (push button), then you can use the WPS button to
1. Setup connect via wireless (AP mode).
Follow the procedure below to connect.
1 Conrm the position of the WPS
button in the user’s manual provided with
the
wireless terminal (computer, tablet,
smartphone, etc.)
2 Turn on the printer.
3 Press the scroll button several times to
select [Wireless(AP Mode) Setting], and then press the <ENTER> button.
4 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press the <ENTER> button after each character you input.
 Manual connections
If the wireless terminal (computer, tablet, smartphone, etc.) does not support WPS-PBC (push button), then you can input the machine’s SSID and password into the wireless terminal (computer, tablet, smartphone, etc.) to connect.
Follow the procedure below to connect.
1 Turn on the printer.
2 Press the scroll button several times to
select [Wireless(AP Mode) Setting], and then press the <ENTER> button.
3 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press the <ENTER> button after each character you input.
5 Select [Enable], and then press the
<ENTER> button.
6 Press the scroll button to select
[Automatic Setup (Push Button)], and then press the <ENTER> button.
7 Select [Yes], and then press the
<ENTER> button.
8 Start WPS-PBC (push button) on the
wireless terminal (computer, tablet, smartphone, etc.).
4 Select [Enable], and then press the
<ENTER> button.
5 Press the scroll button several times
to select [Manual Setup], and then press the <ENTER> button.
6 Conrm the [SSID] and [Password]
that are displayed on the printer.
7 Input the printer’s [SSID] and
[Password] that were conrmed in step7 for the wireless terminal (computer, tablet, smartphone, etc.).
- 40 -
Connecting to a Computer

USB Connection

Perform the following procedure to connect your printer to a computer via USB.
Connecting a USB Cable
1 Prepare a USB cable (1).
A USB cable is not supplied with your printer. Prepare a USB 2.0 cable separately.
1
Memo
● Use a USB 2.0 Hi-Speed cable for a USB 2.0 Hi-
Speed connection.
2 Turn off your printer and the computer.
Reference
● “Turning Off the Power” P.22
Installing a Printer Driver (For Windows)
Note
● You must be logged in as an administrator to complete
this procedure.
1 Insert the included “Software DVD-ROM”
into a computer.
2 When [AutoPlay] is displayed, click
[Run Setup.exe].
1
1. Setup
3 Plug one end of the USB cable into the
USB interface connector (2) on the back of the printer.
4 Plug the other end of the USB cable into
the computer’s USB interface connector.
2
Note
● Do not plug the USB cable into the network interface
connection. Doing so may cause a malfunction.
Memo
● If the [User Account Control] dialog box is
displayed, click [Yes].
3
Select a language from the drop-down list.
4 Read the license agreement, and then
click [Accept].
5 Select [USB] in accordance to the
connection method of the machine and computer, and then click [Next].
6 Select the model name of the machine,
and then click [Next].
- 41 -
Connecting to a Computer
7 Click [Install Optional Software].
1
1. Setup
Installation starts.
Memo
● The following software is installed.
- PS Printer Driver
● Install other software from Custom Install.
8 Make sure that the software is
successfully installed, and then click [Printing Test].
9 Click [Complete].
11 Click [Exit].
Installing a Printer Driver (For OS X)
Note
● Disable the anti-virus software before starting this
procedure.
10 Click [Next].
 Install the OS X PS Printer Driver.
When the installation is complete, print a test page in step 14.
1 Make sure that the machine and a
computer are connected and the machine is turned on.
2 Insert the “Software DVD-ROM” into a
computer.
3 Double-click the [OKI] icon on the
desktop.
4 [Drivers] > Double-click [Installer for
OSX].
5 Enter the administrator password, and
then click [OK].
Follow the on-screen instructions to complete the installation.
6 Select [System Preferences] from the
Apple menu.
Note
● The following screen may appear when [Next] is clicked.
● If it appears, click [Yes].
7 Click [Printers & Scanners].
- 42 -
Connecting to a Computer
8 Click [+].
9 Click [Default].
10 Select the machine where [Kind]
is [USB], and then select [Oki Pro8432WT PS] from the [Use].
Connection Priner Name Kind
USB OKI DATA CORP Pro8432WT USB
Memo
● To change the name, enter a new name into
[Name:].
13 Make sure that the machine is added
to [Printers] and [Pro8432WT PS] is displayed for [Kind].
Note
● If [Pro8432WT PS] is not displayed for [Kind]
correctly, click [-], delete the machine from [Printers], and then newly perform steps 8 to 12.
14 Click [Open Print Queue...].
15 Select [Print Test Page] from the
[Printer] menu.
1
1. Setup
11 Click [Add].
12 When [Installable options] is
displayed, click [Continue].
- 43 -
Connecting to a Computer

When Adding Options

1
If options such as SD memory card kit has been
1. Setup
installed, use following procedures to change printer driver settings.
 For Windows PS Printer Driver
1 Click [Start] > [Devices and Printers].
2 Right-click the [Pro8432WT] icon
and then select [Printer Properties]. (If you have installed multiple printer drivers, select [Printer Properties] > [Pro8432WT PS].)
3 Select the [Device Settings] tab.
4 If using a network connection, select
[Get installed options automatically] under [Installable Options], and then click [Setup]. If using a USB connection, change the setting according to the added options of [Installable Options].
4 Select the [Options] tab.
5 Change the setting according to the
added options.
5 Click [OK].
 For OS X PS Printer Driver
1 Select [System Preferences] from the
Apple menu.
2 Click [Printers & Scanners].
3 Select the name of your printer and then
click [Options & Supplies].
- 44 -

2. Printing Basic Operation

This chapter describes how to print documents from a computer.

Supported Paper

Supported Paper Types
For high-quality printing, be sure to use paper types that satisfy requirements such as those for
material quality, weight, and surface nish. Please use digital photo print paper.
If not using recommended paper, please check the print quality and the movement of the paper
sufciently beforehand to make sure that there are no problems. Your printer supports the following
types of paper.
Paper Type Paper Size mm (inch) Paper Weight
Plain paper A3 297 x 420 64 to 256 g/m
A4 210 x 297 A5 148 x 210 A6 105 x 148 B4 257 x 364 B5 182 x 257 B6 128 x 182 B6 Half 64 x 182 Tabloid (11 x 17) Letter 215.9 x 279.4
(8.5 x 11)
Legal 13" 215.9 x 330.2
(8.5 x 13)
Legal 13.5" 215.9 x 342.9
(8.5 x 13.5)
Legal 14" 215.9 x 355.6
(8.5 x 14)
Executive 184.2 x 266.7
(7.25 x 10.5)
Statement (5.5 x 8.5)
8.5"SQ (8.5 x 8.5) Folio 210 x 330.2 8K (260 x 368 mm) 260 x 368 8K (270 x 390 mm) 270 x 390 8K (273 x 394 mm) 273 x 394 16K (184 x 260 mm) 184 x 260 16K (195 x 270 mm) 195 x 270 16K (197 x 273 mm) 197 x 273 Custom Size Width:
64 - 297 Length: 90 - 431
Index card Index card 76.2 x 127
(3 x 5)
Photo Photo (4 x 6 inch) (4 x 6)
Photo (5 x 7 inch) (5 x 7)
Note
● If the paper size is set at A6, A5, or
with a paper width narrower than 148 mm (A5 width), the printing will be slower.
64 to 256 g/m
2
2
2
2. Printing Basic Operation
- 45 -
Supported Paper
Use paper that meets the following conditions*1:
● Paper that meets the conditions for plain paper.
● An ink used for a part printing is heat resistant (230°C).
Note
● When specifying a printing area, please take into account the differences of printing position as followings:
2
2. Printing Basic Operation
Print start position: ±2 mm, Paper skew: ±1 mm/100 mm, Image stretch: ±1 mm/100 mm (when paper weight is 80g/m2)
● This printer cannot print on an ink.
Use paper that meets the following conditions*2:
● A pigment or an ink used to color paper is heat resistant (230°C).
● Paper that has same characteristics with light paper and used for an electronic photo printer.
Paper Recommendations
Your printer will handle a variety of print media,
including a range of paper weights and sizes.
This section provides general advice on choice of media, and explains how to use each type.
The best performance will be obtained when
2
using standard 75 - 90 g/m
paper designed for
use in copiers and laser printers.
Use of heavily embossed or very rough textured paper is not recommended.
Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.
CAUTION
● Envelopes should be free from twist, curl or
other deformations. They should also be of the
rectangular ap type, with glue that remains
intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable.
● Labels should also be of the type recommended
for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process.
Storing Paper
Store paper under the following conditions to maintain quality.
● Inside a cabinet or other dry and dark place
● On a at surface
● Temperature: 20°C
● Humidity: 50% RH (relative humidity)
Do not store in the following locations.
● Directly on the oor
● In direct sunlight
● Near the inside of an exterior wall
● On an uneven surface
● Where static electricity may be generated
● In places that are excessively hot or where
temperature rapidly changes
● Near a copier, air conditioner, heater, or duct
Note
● Do not unwrap the paper until you are ready to use the
paper.
● Do not leave paper unwrapped for a long period. Doing
so may result in paper handling and print quality issues.
● Depending on a media you use, usage conditions and a
storing conditions, a decrease in paper quality or curling of the paper may occur.
- 46 -
Supported Paper
Paper Loaded on the Tray
Your printer has two built-in trays (tray 1 and the MP tray). Refer to the list below to check the
supported paper and capacities of each tray.
Tray Supported paper size Paper capacity Paper weight
Tray1 ● A3
● A4
● A5
● A6
● B4
● B5
● B6
● Tabloid
● Letter
● Legal 13”
● Legal 13.5”
● Legal 14”
● Executive
● Statement
● 8.5”SQ
● Folio
● 8K (260 x 368 mm)
● 8K (270 x 390 mm)
● 8K (273 x 394 mm)
● 16K (184 x 260 mm)
● 16K (195 x 270 mm)
● 16K (197 x 273 mm)
● Custom Size
MP Tray
● A3
● A4
● A5
● A6
● B4
● B5
● B6
● B6 Half
● Tabloid
● Letter
● Legal 13”
● Legal 13.5”
● Legal 14”
● Executive
● Statement
● 8.5”SQ
● Folio
● 8K (260 x 368 mm)
● 8K (270 x 390 mm)
● 8K (273 x 394 mm)
● 16K (184 x 260 mm)
● 16K (195 x 270 mm)
● 16K (197 x 273 mm)
● Index Card
● Photo (4 x 6 inch)
● Photo (5 x 7 inch)
● Custom Size
300 sheets (when paper weight is 80 g/m
● 100 sheets
(when paper weight is 80 g/m
2
)
(64 to 82 g/m
2
)
● Medium Light
● Light
(83 to 90 g/m
2
)
● Medium
(91 to 105 g/m
2
)
● Heavy
(106 to 128 g/m
2
)
● Ultra Heavy1
(129 to 188 g/m
2
)
● Ultra Heavy2
(189 to 220 g/m
2
)
● Light
2
(64 to 82 g/m
)
2
)
● Medium Light
(83 to 90 g/m
2
)
● Medium
(91 to 105 g/m
2
)
● Heavy
(106 to 128 g/m
2
)
● Ultra Heavy1
(129 to 188 g/m
2
)
● Ultra Heavy2
(189 to 220 g/m
2
)
● Ultra Heavy3
(221 to 256 g/m
2
)
2
2. Printing Basic Operation
- 47 -

How to Print from the Tray

How to Print from the Tray
The following procedure explains how to load paper in tray 1.
Memo
● This procedure explains to load paper in tray 1.
2
1 Pull out the paper tray (1).
2. Printing Basic Operation
1
2 Set the paper size dial (2) to match the
size of the paper to be loaded.
Set the dial to [A4 ] when loading A4 size paper in horizontal orientation.
Note
● When loading A6 size paper, move the paper stopper
(4) forward and remove it once, then install it on the metal part.
4
4 Flex paper back and forth, and then fan
it. Straighten the edges of the paper stack on a level surface.
2
3 Slide the paper guide (3) and paper
stopper (4) to the size of paper to be loaded.
5 Load paper with the print side face down
and press it from above.
Note
● Do not load paper exceeding the [ ] mark (5) of the
paper guide.
5
6 Secure the loaded paper with the paper
guide.
7 Check if a size of loaded paper matches
the setting of paper size dial.
8 Return the paper tray to the printer.
Memo
4
3
● If loading a paper that you cannot select the
size with a paper size dial options, set the dial to [Other], and then set a paper size on the operator panel.
9 Open a le you want to print, and print it.
- 48 -

How to Print from the MP Tray

How to Print from the MP Tray
This procedure explains how to load paper in the MP tray.
Note
● Do not load paper of different sizes, types or weights at the same time.
● When adding paper, remove the paper on the MP tray and straighten the edges of both stacks of paper, and then load them
again.
● Do not put anything other than paper for printing in the MP tray.
2
2. Printing Basic Operation
1 Open the MP tray (1) forward by
inserting your ngers into the front
recesses (2).
2
2
1
2 Pull out the paper support (3) by holding
the center part of it.
3
3 Unfold the sub support (4).
4 Open the paper set cover (5).
5
5 Adjust the manual feeding paper guide
(6) to the width of paper to be loaded.
6
6 Insert the paper with the print side face
up.
Note
● Do not load paper exceeding the [ ] mark (7) of the
paper guide.
7
4
- 49 -
How to Print from the MP Tray
Note
● The paper may be wrinkled or curled after printing.
● Use paper stored in proper temperature and humidity
conditions. Do not use paper that is curled or waved because of humidity.
● Do not print on the back side of paper on which other
2
2. Printing Basic Operation
printer has printed.
● Curling of a postcard or an envelope may cause the ink
absorbing problem. Use paper that is not curled. Correct a paper Curling within 2 mm.
7 Close the paper set cover (5).
5
If always printing on same size or type paper
from the MP tray, register the paper on the
operator panel. If printing once, proceed to the step 18.
10 When [Paper Size] is displayed, select
the size of the loaded paper and then press the <ENTER> button.
Reference
● If [Custom] is selected for [Paper Size], you need
to register the custom size. For how to register the custom size, refer to “Printing in Custom Sizes”
P.52.
11 Press the <BACK> button until
[MPTray Cong] is displayed.
Note
● When a printer is in the power saving mode, press
the <POWER SAVE> button to restore from the mode.
● Make sure that the message “Ready To Print” is
displayed in the operator panel. If the message is not displayed, press the <ON LINE> button.
8 Press the <Fn> key.
9 Enter “90” using the numeric keypad
and then press the <ENTER> button.
12 Press the scroll button to select
[Media Type] and then press the <ENTER> button.
13 Press the scroll button to select the
type of the loaded paper and then press the <ENTER> button.
- 50 -
How to Print from the MP Tray
14 Press the <BACK> button to display the
[MPTray Cong].
15 Press the scroll button to select
[Media Weight] and then press the <ENTER> button.
16 Press the scroll button to select the
weight of the loaded paper and then press the <ENTER> button.
For Windows PS Printer Driver
1 From the [File] menu, select [Print].
2 Click [Preferences] or [Properties].
3 Select the [Paper/Quality] tab.
4 Select [Multi-Purpose Tray] from
[Paper Source].
5 Click [Advanced].
6 Click [Paper Size] and select a paper
size from the drop-down list.
7 Click [OK].
8 Start printing.
For OS X PS Printer Driver
1 From the [File] menu, select [Print].
2 Select the paper size from [Paper Size].
2
2. Printing Basic Operation
17 Press the <ON LINE> button to exit the
menu mode.
18 Open the le you want to print, and print
it by following the procedures below.
3 Select [Paper Feed] from the panel
menu.
4 Select [All pages From] and then select
[Multi-Purpose Tray].
5 Start printing.
Memo
● If setting details are not displayed in the print dialog
box for OS X, click [Show Details] at the bottom of the dialog box.
- 51 -

Printing in Custom Sizes

Printing in Custom Sizes
To load custom size paper, you need to register the width and length of the paper before printing. The range of the sizes you can set differs according to the paper tray.
2
2. Printing Basic Operation
Tray Available size range
Tray1 Width:
105 to 297 mm (4.1 to 11.7 inches) Length: 148, 182 to 431 mm (5.8, 7.2 to 17.0 inches)
MP tray Width:
64 to 297 mm (2.5 to 11.7 inches) Length: 90 to 431 mm (3.5 to 17.0 inches)
Note
● [Custom] is displayed only when [Paper Size] is set to
[Custom].
1 Press the scroll button or on the
operator panel.
4 Press the scroll button several times
to select [Tray Cong] of the paper tray in which you loaded paper and then press the <ENTER> button.
5 Check that [Paper Size] is selected and
press the <ENTER> button.
2 Press the scroll button several times
to select [Menus] and press the <ENTER> button.
3 Check that [Tray Conguration]
is selected and press the <ENTER> button.
6 Press the scroll button several times
to select [Custom] and then press the <ENTER> button.
7 Press the <BACK> button.
- 52 -
Printing in Custom Sizes
8 Press the scroll button to select
[X Dimension] and then press the <ENTER> button.
9 Enter the paper width value using the
numeric keypad and then press the <ENTER> button.
13 Press the <ON LINE> button to exit the
menu mode.
14 Specify a custom in the following
procedures.
For Windows PS Printer Driver
1 Click [Start] and select [Devices and
Printers].
2 Right-click the
select the type of driver you want to specify from [Printing preferences].
Your Printer
icon and
2
2. Printing Basic Operation
10 Press the <BACK> button.
11 Press the scroll button to select
[Y Dimension] and then press the <ENTER> button.
12 Enter the paper length value using the
numeric keypad and then press the <ENTER> button.
3 On the [Layout] tab, click [Advanced].
4 Click [Paper Size] and select
[PostScript Custom Page Size] from the drop-down list.
5 Enter the dimensions in the [Width] and
[Height] boxes, and press [OK].
Note
● [Offsets Relative to Paper Feed Direction] is not
available.
6 Press [OK] until the [Printing
preferences] dialog box is closed.
7 Open the le you want to print from the
application.
8 Select [PostScript Custom Page Size]
for a paper size and start printing on the printer driver.
- 53 -
Printing in Custom Sizes
For OS X PS Printer Driver
Note
● In the OS X printer driver, paper size out of the available
range can be set, however, image is not correctly printed. set paper size within available range.
2
1 Open the le you want to print.
2. Printing Basic Operation
2 From the [File] menu, select [Page
Setup].
3 Select [Manage Custom Sizes] from
[Paper Size]
4 Click [+] to add an item to the list of
custom paper sizes.
5 Double-click [Untitled] and enter a
name for the custom paper size.
6 Enter the dimensions in the [Width] and
[Height] boxes.
7 Click [OK].
For OS X PS Printer Driver
1 From the [File] menu, select [Print].
2 Select the paper size from [Paper Size].
3 Select [Paper Feed] from the panel
menu.
4 Select [All pages From] and then select
[Multi-Purpose Tray].
5 Start printing.
Memo
● If setting details are not displayed in the print dialog
box for OS X, click [Show Details] at the bottom of the dialog box.
8 Click [OK].
9 From the [File] menu, select [Print].
10 Congure other settings if necessary and
then start printing.
Open the le you want to print, and print
it in the following procedures.
For Windows PS Printer Driver
1 From the [File] menu, select [Print].
2 Click [Preferences] or [Properties].
3 Select the [Paper/Quality] tab.
4 Select [Multipurpose Tray] from
[Paper Source].
5 Click [Advanced].
6 Click [Paper Size] and select a paper
size from the drop-down list.
7 Click [OK].
8 Start printing.
- 54 -

Paper Output

Paper Output
Your printer outputs to the output tray or rear output tray. Paper types that can be outputted to each
stacker are as follows.
Output
Stacker
Output Tray
Rear Output Tray
Note
● Do not open or close the rear output tray while printing as
it may result in a paper jam.
Supported paper type
● Plain paper
● Recycled
paper
● Plain paper
● Recycled
paper
● Index card
Paper output
capacity
● 200 sheets (when
paper weight is less than 80 g/m
● 100 sheets (when
paper weight is less than 80 g/m
● 10 sheets (Ultra
Heavy paper and envelopes)
2
)
2
)
 Using the Output Tray
Paper is delivered with the print side face down, stacked in the order printed.
Note
● Check that the rear output tray (1) on the rear side of the
printer is closed. If the rear output tray is open, paper is always outputted to the rear output tray.
 Using the Rear Output Tray
Paper is delivered with the print side face up, stacked opposite the order printed.
1 Pull the rear output tray (1) on the rear
side of the printer and open it outward.
1
2 Unfold the paper support (2).
2
2. Printing Basic Operation
1
Memo
● Open the paper supporter (2) so that the printed papers
do not fall down from the output tray.
2
2
3 Open the sub support (3).
3
- 55 -

Convenient Print Functions

12
34
Convenient Print Functions
The following convenient print functions are available. For details, refer to the User’s Manual
(Advanced).
2
2. Printing Basic Operation
 Printing on Custom Size Paper
You can register customized paper sizes to the
printer driver so you can print on nonstandard paper such as banners.
● Printing on custom size paper
A3
A4
 Changing the Page Layout
You can change the page layout to multiple print.
●Multipie print
 Scaling to Pages
You can print data formatted for one size page
onto a different size page without modifying the print data.
 Changing Print Quality
(Resolution)
You can change the print quality to suit your
needs.
Memo
There are many convenient print functions in addition to those above. Refer to the User’s Manual (Advanced).
- 56 -
Canceling Printing
Press the <CANCEL> button on the operator panel to cancel print jobs being currently printed or preparing for a print.
When you press the <CANCEL> button is pressed, the following message appears.

Canceling Printing

2
2. Printing Basic Operation
To cancel printing, select [Yes] and then press
the <ENTER> button.
To proceed to printing, select [No]
press the <ENTER> button.
If a printer is not operated for about 3 minutes while this message appears, the message will go out and printing proceeds.
and then
- 57 -

Setting the Time that Elapses Before Entering the Power Save Mode

Setting the Time that Elapses Before Entering the
Power Save Mode
Note
● When a printer is in the power saving mode, press the <POWER SAVE> button to restore from the mode.
2
● Check if the message “Ready To Print” appears. If the message is not displayed, press the <ON LINE> button.
2. Printing Basic Operation
1 Press the <Fn> key on the operator
panel.
2 Enter “200” using the numeric keypad
and then press the <ENTER> button.
3 Press the scroll button or to specify
the time and then press the <ENTER> button.
Memo
● The power save time can be selected from the followings:
- [1 minute]
- [2 minutes]
- [3 minutes]
- [4 minutes]
- [5 minutes]
- [10 minutes]
- [15 minutes]
- [30 minutes]
- [60 minutes]
4 Press the <ON LINE> button.
- 58 -

Setting the Time that Elapses Before Entering the Deep Sleep Mode

Setting the Time that Elapses Before Entering the
Deep Sleep Mode
Note
● When a printer is in the deep sleep mode, press the <POWER SAVE> button to restore from the mode.
● Check if the message “Ready To Print” appears. If the message is not displayed, press the <ON LINE> button.
2
1 Press the <Fn> key on the operator
panel.
2 Enter “201” using the numeric keypad
and then press the <ENTER> button.
3 Press the or to specify the time and
then press the <ENTER> button.
Memo
● The sleep time can be selected from the followings:
- [1 minute]
- [2 minutes]
- [3 minutes]
- [4 minutes]
- [5 minutes]
- [10 minutes]
- [15 minutes]
- [30 minutes]
- [60 minutes]
2. Printing Basic Operation
4 Press the <ON LINE> button.
- 59 -
Setting the Time that Elapses Before Entering the Deep Sleep Mode

Constraints When in Deep Sleep Mode

This section explains constraints when in the deep sleep mode.
The printer may not enter the deep sleep mode if an error is displayed.
2
Printer Driver Utility Constraints
When the printer goes into the deep sleep mode, the following constraints apply to the printer driver
2. Printing Basic Operation and utility functions.
When the printer goes into the deep sleep mode, press the <POWER SAVE> button on the control panel and check that the screen displays the message
If the message Ready To Print” is displayed, the following constraints do not apply.
OS Software Name
Windows Driver Installer If there is a connection with the
Constraints When in the
Deep Sleep Mode
network, you cannot automatically get printer option information when installing a driver.
Ready To Print”.
Method of resolving
other than to press the
<POWER SAVE>
button
-
- 60 -
Setting the Time that Elapses Before Entering the Deep Sleep Mode
Network Function Constraints
In the deep sleep mode, the following constraints apply to network functions.
 Does Not Enter the Deep Sleep
Mode
In the following cases, a printer will not enter the deep sleep mode.
● IPSec is enabled.
● A TCP connection is established.
E.g.: A connection is established with Telnet or F T P.
When the transition time to enter Deep Sleep mode from Power Save mode elapses and the connection is disconnected, the machine enters Deep Sleep mode.
● E-mail reception is enabled.
● Wireless LAN is enabled.
● LLTD is enabled.
 Protocols with the Client
Functions Do Not Work
In the deep sleep mode, the following protocols with client functions will not work.
● E-mail alerts
● SNMP Trap
● WINS
● SNTP
*1 Time that passes in the deep sleep mode is not included in the
interval for periodic notication by e-mail alert.
*2 Time that passes in the deep sleep mode is not included in the
intervals between WINS updates. Regular WINS updates are not carried out in the deep sleep mode, so the names registered on the WINS server may be deleted.
*3 Time that passes in the deep sleep mode is not included in the
interval between update for NTP servers.
*2
*3
*1
2
2. Printing Basic Operation
● HUB Link Status is 1000BASE-T.
● IPv6 Global Address is assigned.
 Cannot Print
In the deep sleep mode, you cannot print with the following protocols.
● NBT
 Cannot Search/Cannot Specify
Settings
In the deep sleep mode, you cannot search or specify settings with the following functions or protocols.
● NBT
● PnP-X
● UPnP
*
● MIB
* You can reference through some supported MIB in the deep sleep
mode (Get command).
- 61 -

Settings for Turning Power Off Automatically (Auto Power Off)

Settings for Turning Power Off Automatically
(Auto Power Off)
Note
● In the factory default, a printer does not enter the auto power off mode while connecting to the network.
2

Setting the Auto Power Off

2. Printing Basic Operation
To enable the auto power off mode while connecting to the network perform the following procedure.
1 Press the scroll button or on the
operator panel.
2 Press the scroll button several times
to select [Admin Setup], and press the <ENTER> button.
5 Press the scroll button several times
to select [Power Setup], and press the <ENTER> button.
6 Press the scroll button several times
to select [Auto Power Off], and press the <ENTER> button.
3 Enter the administrator password, using
the numeric (0-9) keys.
The factory default password is “999999”. Press
the <ENTER> button whenever inputting one character.
4 Press the <ENTER> button.
7 Press the scroll button or to select
[Enable], and press the <ENTER> button.
8 Press the <ON LINE> button to exit the
menu mode.
- 62 -
Settings for Turning Power Off Automatically (Auto Power Off)

Setting the Time that Elapses Before Entering the Auto Power Off Mode

Note
● When a printer is in the power saving mode, press the
<POWER SAVE> button to restore from the mode.
● Check if the message “Ready To Print” appears. If the
message is not displayed, press the <ON LINE> button.
1 Press the <Fn> key on the operator
panel.
2 Enter “202” using the numeric keypad
and then press the <ENTER> button.
Memo
● The auto power off time can be selected from the
followings:
- [1 hour]
- [2 hours]
- [3 hours]
- [4 hours]
- [8 hours]
- [12 hours]
- [18 hours]
- [24 hours]
2
2. Printing Basic Operation
3 Press the scroll button or to specify
the time and then press the <ENTER> button.
4 Press the <ON LINE> button.
- 63 -

Setting the Buzzer

Setting the Buzzer
You can set the buzzer volume when a paper jam occurs.
1 Press the scroll button or on the
2
2. Printing Basic Operation
operator panel.
2 Press the scroll button several times
to select [Admin Setup], and press the <ENTER> button.
3 Enter the administrator password using
the numeric (0-9) keys, and press the <ENTER> button.
The factory default password is “999999”. Press
the <ENTER> button whenever inputting one character.
5 Press the scroll button several times
to select [Buzzer Setup], and press the <ENTER> button.
6 Press the scroll button several times
to select [Paper Jam Error Buzzer Volume], and press the <ENTER>
button.
7 Press the scroll button several times
to select a volume level, and press the <ENTER> button.
4 Press the <ENTER> button.
8 Press the <ON LINE> button to exit the
menu mode.
- 64 -

3. Troubleshooting

This chapter provides solutions to the problems you may encounter while operating your printer.
Memo
● Meanings of symbols in error messages:
- “%COLOR%” indicates Cyan (C), Magenta (M), Yellow (Y) or White (W).
- “%TRAY%” indicates tray 1 or the MP tray.
- “%COVER%” indicates a front cover or output tray.
- “%CODE%” indicates a code number displayed in 1 to 3 digits. A code number changes according to an error.
- “%MEDIA_SIZE%” indicates paper size.
- “%MEDIA_TYPE%” indicates a paper type.
● When the message “Please see Help for details” appears on the display screen, you can check an error code and remedy
error by pressing the <HELP> button on the operator panel.
When an Error Message Appears on the Display
Screen (When the ATTENTION Indicator Lights Up/Blinks)
When a printer problem occurs, an error message appears on the display screen and the <ATTENTION> indicator on the operator panel lights up or blinks. Check the error message and deal with the problem according to the relevant procedure.
3
3. Troubleshooting
When
Please see Help for details appears on the display screen, press the <HELP> button to display a
remedy.
<HELP> button
<ATTENTION> indicator
××××
Please see HELP for details.
When “Please see Help for details” appears on the display screen,
press the <HELP> button to display a remedy. Help is not available
when this message is not displayed.
Message on the display screen
Display Screen when the <HELP> button is pressed
Error Code
××××
××××
Remedy
Scroll display upward
Scroll display downward
- 65 -

When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed

When Paper Jams Occurs/When an Error
Message does not Disappear Even After Jammed Paper is Removed
When paper is jammed inside a printer or when an error message does not disappear even after jammed paper is removed, an error message appears on the display screen.
Press the <HELP> button to display a remedy. Remove jammed paper according to the remedy displayed or the relevant procedure described in the following list.
3
<HELP> button
3. Troubleshooting
<ATTENTION> indicator
××××
××××
Please see HELP for details.
Press the <HELP> button to display a remedy.
Message on the display screen (rst line)
Message on the display screen (second line)
Display Screen when the <HELP> button is pressed
Error Code
××××
Scroll display upward
Scroll display downward
Message displayed
Status Message on the Display Screen
after the <HELP> button is pressed
Error Code
Paper jams 1st Line Open Cassette 391, 392, 393, 394 page 72
2nd Line Paper Jam 3rd Line %TRAY% 1st Line Open Cover 380 page 67 2nd Line Paper Jam 3rd Line Front Cover 1st Line Open Cover 390 page 71 2nd Line Paper Jam 3rd Line Front Cover 1st Line Open Cover 381 page 68 2nd Line Paper Jam 3rd Line Output Tray
Paper jams 1st Line Open Cover 382, 383 page 69
2nd Line Paper Jam 3rd Line Output Tray 1st Line Check Paper 401 page 67 2nd Line Paper Multi Feed 3rd Line %TRAY%
Reference
Page
- 66 -
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
Status Message on the Display Screen
A message does not disappear.
Message displayed
after the <HELP> button is pressed
Error Code
1st Line Open Cassette 631, 632, 633, 634 page 72 2nd Line Paper Remain 3rd Line %TRAY% 1st Line Open Cover 637 page 71 2nd Line Paper Remain 3rd Line Front Cover 1st Line Open Cover 638 page 68 2nd Line Paper Remain 3rd Line Output Tray 1st Line Open Cover 639, 640 page 69 2nd Line Paper Remain 3rd Line Output Tray
Reference
Page
3
3. Troubleshooting
Error Code 380, 401, 637
A paper jam has occurred around the front cover.
1 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (1) to open the front cover (2) forward.
1
2
2 Remove the jammed paper gently in the
direction of the arrow if you can see an edge of jammed paper.
3 Close the front cover (2).
2
Task is complete.
- 67 -
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
Error Code 381, 638
A paper jam has occurred under an image drum.
1 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (1) to open the front cover (2) forward.
3
3. Troubleshooting
2
2 Press the output tray open button (3)
and open the output tray (4).
4 Cover the removed image drums with
paper so that the image drums are not exposed to light.
1
5 Pull out the jammed paper gently to the
rear of the printer (the direction of the arrow) if an edge of jammed paper can be seen.
CAUTION
● The fuser unit is extremely hot. Do not touch
it.
4
Possible to get
burned.
3
3 Remove all four image drums and place
them on a at surface.
Pull out the jammed paper gently while lifting the release levers (5) on the fuser unit if an edge of jammed paper cannot be seen.
If an edge of jammed paper still remains inside the unit, pull out the jammed paper gently to the rear of the printer.
- 68 -
5
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
N
6 Return all four image drums into the
printer carefully.
7 Close the output tray (4) by pushing the
both sides of the cover rmly.
4
Error Code 382, 383, 639, 640
A paper jam has occurred around the fuser unit.
1 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (1) to open the front cover (2) forward.
3
3. Troubleshooting
1
2
2 Press the output tray open button (3)
and open the output tray (4).
8 Close the front cover (2).
Note
● The front cover cannot be closed if the output tray is
not closed securely.
CAUTIO
● Since the fuser unit gets hot, carry out the
operation carefully, and when lifting it up you must hold it by the handle. Do not try to hold it whilst it is hot. Wait until it has cooled down and then carry out the operation.
4
Possible to get
burned.
3
Task is complete.
2
- 69 -
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
3 Remove all four image drums and place
them on a at surface.
3
3. Troubleshooting
4 Cover the removed image drums with
paper so that the image drums are not exposed to light.
6 Lift the left lock lever (5) of the fuser
unit forward.
5
7 Hold the fuser unit handle (6) and lift
the fuser unit out of the printer.
6
5 Remove the jammed paper remaining
inside of the unit.
8 Lift the release levers (7) on the fuser
unit, and pull out the jammed paper forward gently.
7
- 70 -
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
9 Hold the fuser unit handle (6) and place
the fuser unit into the printer.
6
10 Push the left lock lever (5) of the fuser
unit backward.
5
12 Close the output tray (4) by pushing the
both sides of the cover rmly.
4
3
3. Troubleshooting
13 Close the front cover (2).
Note
● Cannot close the front cover securely if the output
tray is not closed.
11 Return all four image drums into the
printer carefully.
2
Task is complete.
Error Code 390, 637
A paper jam has occurred while feeding paper from a paper tray.
1 If there is any paper on the MP tray, lift
the paper set cover (1) and take it out.
1
- 71 -
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
2 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (2) to open the front cover (3) forward.
3
3. Troubleshooting
3
3 Remove the jammed paper gently by
pulling the edge of paper.
5 If loading paper on MP tray, lift the
paper set cover (1) and set the paper with the print side face up.
2
1
6 Lower the paper set cover (1).
Remove the paper from the back gently if the edge of paper cannot be seen.
4 Close the front cover (3).
1
Task is complete.
Error Code 391, 392, 393, 394, 631, 632, 633, 634
A paper jam has occurred while feeding paper from a paper tray.
Note
● If paper jams occur frequently, clean the paper feed
rollers. For details, refer to “Cleaning Paper Feed Rollers”
P.106.
This procedure uses Tray 1 as an example.
3
- 72 -
When Paper Jams Occurs/When an Error Message does not Disappear Even After Jammed Paper is Removed
1 Gently pull out from the printer the tray
(1) for which an error is indicated.
1
2 Remove the jammed paper.
4 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (2) to open the front cover (3) forward.
2
3
5 Close the front cover (3).
3
3. Troubleshooting
3 Return the tray (1) to the printer.
1
3
Task is complete.
Memo
● Open and close the front cover after removing the
jammed paper otherwise the error indication do not go out.
- 73 -

When the Message for Replacement of Consumables or Maintenance Unit Appears

When the Message for Replacement of
Consumables or Maintenance Unit Appears
When the time to replace consumables or maintenance unit is close and replacement must be done, the message “…Low”, “ …Near Life”, “…Empty”, “ …Life”, “ Install…”, “ Replace…”, “Change…” appears on the display screen and the <ATTENTION> indicator on the operator panel lights up or blinks.
Check the message and replace consumables and maintenance unit.
<HELP> button
3
3. Troubleshooting
××××
××××
××××
××××
Please see HELP for details.
Message on the display screen (rst line)
Message on the display screen (second line)
Message on the display screen (third line)
Message on the display screen (fourth line)
<ATTENTION> indicator
Press the <HELP> button to display a remedy.
Display Screen when the <HELP> button is pressed
Scroll display upwards
Scroll display downwards
××××
××××
Error Code
- 74 -
When the Message for Replacement of Consumables or Maintenance Unit Appears
Memo
● “xxx” described on the list below changes according to the printer status.
Message displayed
Status Message on the Display Screen
after the <HELP> button is pressed
Reference Page or
Remedy
Error Code
Toner Cartridge 1st Line xxx - Prepare a new toner
2nd Line %COLOR% Toner Low
1st Line xxx - page 94 2nd Line %COLOR% Toner Empty 1st Line Install Toner 410, 411, 413 page 96 2nd Line %COLOR% 412 page 94
Image Drums 1st Line xxx - Prepare new image drums,
2nd Line %COLOR% Image Drum Near
Life
1st Line xxx - page 98 2nd Line %COLOR% Image Drum Life 1st Line xxx - page 98 2nd Line %COLOR% Image Drum Life,
%nnn% Pages Left 1st Line Install New Image Drum 350, 351, 352, 353 page 98 2nd Line Image Drum Life 3rd Line %COLOR%
1st Line Install New Image Drum 560, 561, 562, 563 page 98 2nd Line Image Drum Life 3rd Line %COLOR% 1st Line Install New Image Drum 564, 565, 566, 567 page 98 2nd Line Image Drum Life 3rd Line %COLOR% 4th Line To Exceed the Life, Press
Online Button
1st Line Install New Image Drum 680, 681, 682, 683 page 98 2nd Line Printing disabled due to low
threshold of Image Drum life. 3rd Line %COLOR%
cartridge, and replace the old toner cartridge with new one after a message for replacement of consumables or maintenance unit appears.
and replace the old image drums with new ones after a message for replacement of consumables or maintenance unit appears.
The number of pages you can print is displayed in “nnn”.
If a toner remains, you can continue to print by opening or closing the front cover. However, replace the image drum soon. Otherwise, it may cause a decrease in a printing quality.
Pressing the <ONLINE> button can resume printing without guarantee of print results. Please replace it as soon as possible.
3
3. Troubleshooting
- 75 -
When the Message for Replacement of Consumables or Maintenance Unit Appears
Message displayed
Status Message on the Display Screen
after the <HELP> button is pressed
Reference Page or
Remedy
Error Code
Fuser Unit 1st Line xxx - Prepare a fuser unit, and
2nd Line Fuser Unit Near Life
1st Line xxx - page 104
3
3. Troubleshooting
Belt Unit 1st Line xxx - Prepare a belt unit, and
2nd Line Change Fuser Unit 1st Line Install New Fuser Unit 354 page 104 2nd Line Fuser Unit Life
2nd Line Belt Unit Near Life
1st Line xxx - page 101 2nd Line Change Belt Unit 1st Line Install New Belt Unit 355 page 101 2nd Line Belt Unit Life
replace the old fuser unit with new one after a message for replacement of consumables or maintenance unit appears.
You can continue to print by opening or closing the front cover for a while. However replace the fuser unit soon. Otherwise, it may cause a printer error or paper jam.
replace the old belt unit with new one after a message for replacement of consumables or maintenance unit appears.
You can continue to print by opening or closing the front cover for a while. However replace the belt unit soon. Otherwise, it may cause a printer error.
- 76 -

When the Message for Paper Replacement or Paper Size Error Appears

When the Message for Paper Replacement or
Paper Size Error Appears
When the media type or media size loaded in a tray does not match the settings specied in the printer
driver, the message “Change Paper...” or “Check Paper...” appears on the display screen and the <ATTENTION> indicator blinks.
Check the message and deal with the problem. Check the paper size and the settings, refer to “How to
Print from the Tray” P.48 or “How to Print from the MP Tray” P.49.
<HELP> button
Message on the display screen (rst line)
Message on the display screen (second line)
Message on the display screen (third line)
Message on the display screen (fourth line)
<ATTENTION> indicator
××××
××××
××××
××××
Please see HELP for details.
Press the <HELP> button to display a remedy.
Display Screen when the <HELP> button is pressed
Scroll display upward
Scroll display downward
××××
××××
Error Code
Message
displayed after
Status Message on the Display Screen
the <HELP>
button is
pressed
Error Code
Change Paper 1st Line Change Paper in %TRAY% 661, 662, 663, 664
2nd Line %MEDIA_SIZE% 3rd Line %MEDIA_TYPE% 4th Line Press ONLINE Button 1st Line Change Paper in MPTray 660 2nd Line %MEDIA_SIZE% 3rd Line %MEDIA_TYPE% 4th Line Press ONLINE Button
Paper Size does not match print data. 1st Line Change Paper in %TRAY% 461, 462, 463, 464
2nd Line %MEDIA_SIZE% 3rd Line %MEDIA_TYPE% 4th Line Press ONLINE Button 1st Line Change Paper in MPTray 460 2nd Line %MEDIA_SIZE% 3rd Line %MEDIA_TYPE% 4th Line Press ONLINE Button
Paper Size Error 1st Line Check Paper 400
2nd Line Paper Size Error 3rd Line %TRAY%
3
3. Troubleshooting
- 77 -

Other Error Messages

Other Error Messages
This section explains the causes and remedies for an error message and the function of the <ATTENTION> indicator. An error message appears on the display screen of the operator panel.
To display an error code, press the <HELP> button on the operator panel.
Error Messages
Error
code
3
420 Press ONLINE button for Restoration
3. Troubleshooting
310 311
320 348
610 611 612 613
544 545 546 547
540 541 542 543
430 440
356 Install New Belt Unit
Memory Overow
%COVER% Open.
Please see HELP for details Check Fuser Unit
Please see HELP for details Check Data
Message Data Write Error<%CODE%> Toner Not Installed
%COLOR%
Please see HELP for details
Check Toner Cartridge Improper Lock Lever Position %COLOR%
Please see HELP for details
Toner Sensor Error %COLOR%
Please see HELP for details
Install Paper Cassette %TRAY%
Please see HELP for details
Belt Unit Life
Message
<ATTENTION>
indicator
Blinks The memory overowed.
Reduce the data amount. If that does not work, reduce the size of the print data.
Blinks The cover is open.
Close the cover. 310 : Output tray 311 : Front cover
Blinks The fuser unit is not correctly installed.
Install the fuser unit correctly in a printer.
Lights up Writing of message data to be uploaded to a
printer has been failed.
Blinks The toner cartridge of the indicated color
is not installed correctly. Install the toner cartridge correctly. 610 : Yellow (Y) 611 : Magenta (M) 612 : Cyan (C) 613 : White (W)
Blinks The toner cartridge of the indicated color is
not locked properly. Turn the blue lever on the right side of the cartridge backwards until it stops. 544 : Yellow (Y) 545 : Magenta (M) 546 : Cyan (C) 547 : White (W)
Blinks Something is wrong with the toner sensor of
the indicated color or the image drum is not installed correctly. Install the toner cartridge or image drum of the indicated color correctly. 540 : Yellow (Y) 541 : Magenta (M) 542 : Cyan (C) 543 : White (W)
Blinks A paper cassette is not in the indicated tray.
Insert the paper cassette into the indicated tray. If the cassette is already inserted in the printer, pull out the cassette and set it again to correctly locate it. 430, 440 : Tray1
Blinks The belt unit is at the end of its life.
Replace it with a new belt unit.
Cause/Remedy
Please see HELP for details File System is Full Lights up The le system is full.
- 78 -
Other Error Messages
Error
code
File System is Write Protected Lights up The le system to which you tried to write is
330 Check Belt Unit
Please see HELP for details Erased Data Full Lights up Secret le to be erased are full.
491 Install Paper
%TRAY% %MEDIA_SIZE%
Please see HELP for details File Erasing Lights up Erasing a secret le. Error Postscript Goes off A postscript error has occurred.
490 Install Paper
MPTray %MEDIA_SIZE% Press ONLINE Button Please see HELP for details
694 695 696 697
340 341 342 343
Image Drum Not Installed %COLOR%
Please see HELP for details
Check Image Drum %COLOR%
Please see HELP for details
Wait a Moment Rebooting <n>
%COLOR% Toner Sensor Error Lights up Something is wrong with the toner sensor of
%COLOR% Toner Not Installed Lights up The toner cartridge of the indicated color
%TRAY% Empty Lights up The indicated tray is empty.
Unsupported USB Device Detected
Please detach it Install Paper
MPTray %MEDIA_SIZE% Press ONLINE Button
%COLOR% Waste Toner Full.Replace Toner. Lights up Waste toner is full. Replace with a new toner
Collate Fail:Too Many Pages
Press ONLINE Button File System Operation failed<nnn>
Press ONLINE Button
Message
<ATTENTION>
indicator
write-protected.
Blinks The belt unit is not properly installed.
Reinstall it properly.
Blinks The indicated tray is empty.
Load the indicated size paper. 491 : Tray1
Blinks Paper in the MP tray is empty.
Load the indicated size paper.
Blinks The image drum of the indicated color is not
installed correctly. Install the image drum correctly. 694 : Yellow (Y) 695 : Magenta (M) 696 : Cyan (C) 697 : White (W)
Blinks The image drum of the indicated color is not
installed correctly. Install the image drum correctly. 340 : Yellow (Y) 341 : Magenta (M) 342 : Cyan (C) 343 : White (W)
Lights up The printer is restarting.
Please wait.
the indicated color or the image drum is not installed correctly. Install the toner cartridge or image drum of the indicated color correctly.
is not installed correctly. Install the toner cartridge correctly.
Load the paper.
Goes off A USB device unsupported by a printer is
connected. Remove the device.
Goes off Load the paper of the size indicated in the
MP tray, and then press the <ON LINE> button.
cartridge of the indicated color.
Goes off A collate print error has occurred.
Reduce the data amount. If that does not work, reduce the size of the print data.
Lights up An error of le system for a printer has
occurred.
Cause/Remedy
3
3. Troubleshooting
- 79 -
Other Error Messages
Error
code
Power Off and Wait for a while 126:Condensing Error
USB Hub Unsupported
Please detach it
nnn* Service Call
nnn: Error
3
nnn* Power Off/On
nnn:Error
3. Troubleshooting
PDL Error Occurred Varies Indicating that it has been occured an
Expired saved les have been deleted
Press ONLINE Button Decode error occurred
Press ONLINE Button
Can not read the le
Press ONLINE Button
Color toner empty. Job cancelled
Press ONLINE Button E-mail receiving has been cancelled
Press ONLINE Button
Invalid Data
Press ONLINE Button
Job Type restricted Job rejected
Press ONLINE Button Please change SD Memory Card Lights up Indicates that machine requests a user to
415 417
Replace Toner %COLOR% Waste Toner Full
Please see HELP for details
Message
<ATTENTION>
indicator
Blinks A condensation has occurred inside a printer.
Turn the printer off and turn on again after a while.
Goes off A USB hub unsupported by a printer is
connected. Remove the hub.
Blinks A fatal error has occurred inside the device.
Write down the error code and contact your dealer.
Blinks A fatal error has occurred in a printer.
Turn the power off/on. Contact your dealer if the same error occurs again.
internal processing error into the PDL emulation. It's a clearable warning. User should press ENTER button for clearing the warning.
Lights up Indicates that an applicable job has been
automatically deleted as the retention period for Private Job Print has expired.
Varies Indicates that an error has occurred during
analysis of image data input from an external source. This appears when an error has occurred during analysis of TIFF or JPEG data in USBMemoryPrint, DirectPrint, E-mailPrint mode.
Varies Indicates that the USB memory is
disconnected while PrintFromUSBMemory
is running. Reading of the image le is
cancelled.
Varies Noties the user that the color toner is
empty and that the received color data job is cancelled.
Lights up Indicates that Email receiving has been
canceled. It has the following possibilities.
- The format of email that has received is illegal or not supported.
- The attached le is illegal or not
supported.
- The attached le that has received is too large, for example, le size exceeds 8MB.
- Network connection has disconnected.
Varies
Varies A job of a JobLimitation setting violation is
Blinks Indicates that a waste toner box represented
Invalid data was received. Press the On-line switch and eliminate the warning. Displayed when unsupported PDL command is received or a spool command is received without SD Card.
received, and when discarding the job, it's indicated.
exchange old SD card device for new one because the SD card device is life.
by %COLOR% has become full and needs to be replaced. Error 415 : Magenta Error 417 : White
Cause/Remedy
- 80 -
Other Error Messages
Error
code
480 Remove Paper
Output Tray
Please see HELP for details
519 Press ONLINE Button for Restoration
Receiving Data Timeout
Please see HELP for details IPv4 Address is conicted
Change IPv4 Address Getting target IP failed. Please check DHCP
settings. Wait a Moment
Network Initializing Wait a Moment
Network Conguration writing
709 Caution, unknown Consumable detected
Go to User Manual “Trouble Shooting” to restore operation
Message
<ATTENTION>
indicator
Blinks The printed paper is overlled on the paper
stacker of the printer unit. Error 480 : Output Tray
Blinks When receiving data by Port9100, LPR, FTP,
IPP, WSD, or Email, a timeout occurred in stream.
Varies IPv4 address is conicted.
Varies Indicates that DHCP server is not found out.
Varies This appears when the NIC initialization is
occurred, as the setting was changed.
Blinks This appears during the NIC conguration
data is storing into the ash memory, as the
setting was changed.
Blinks You can use any consumables in your
product, but you must accept the risks of using non-genuine consumables. If the use of non-genuine consumables causes damage to the product or results in your product
not functioning to its full specication, then
such damage or effect on the product is not covered by warranty. To accept these risks and to restore function;
1. Turn off your product
2. Press and hold the <CANCEL> button and turn your product on
After start up, release the <
3. button
Note
This operation will be recorded for future reference.
Cause/Remedy
CANCEL
3
3. Troubleshooting
>
- 81 -

When You Cannot Print from the MP Tray

When You Cannot Print from the MP Tray
If you print from the MP tray without moving down the paper set cover, the message “Install Paper MPTray” appears on the display screen.
Check the message and deal with the problem. Refer to ”How to Print from the MP Tray” P.49.
3
3. Troubleshooting
Paper set cover
- 82 -

Other Issues

Other Issues
This section explains the issues you may encounter while operating your printer and how to solve them.

Unable to Print from a Computer

Memo
● If the following information does not solve the issue, contact your dealer.
● For issues caused by an application, contact the manufacturer of the application.
General Causes
 Common to Windows and OS X
Cause Remedy Reference
The printer is turned off. Turn on the printer. page 21 An Ethernet or USB cable is unplugged. Check that the cable is plugged into the printer and
computer properly. Something is wrong with a cable. Replace it with a new cable. ­The printer is off line. Press the <ON LINE> button. -
An error message is displayed on the display screen of the operator panel.
The interface setting is disabled. Check the setting of the interface being used from the
Something is wrong with the print function.
“Error Messages” or press the <HELP> button on the
operator panel.
operator panel.
Check if you can print the contents of the settings. page 29
-
page 78
Advanced
3
3. Troubleshooting
 For Windows
Cause Remedy Reference
The printer is not set as the default printer.
The output port for the printer driver is incorrect.
A print job from another interface is in progress.
Invalid Data” is displayed on the display screen and printing cannot be done.
Set the printer as the default printer. -
Select the output port to which the Ethernet or USB
cable is connected.
Wait until the print job is done. -
Press the scroll button
[System Adjust] > [Timeout InJob], and then select
a longer time. The default setting is 40 seconds.
or and select [Menus] >
-
-
- 83 -
Other Issues
Network Connection Problems
 Common to Windows and OS X
Cause Remedy Reference
Using a crossover cable. Use a straight cable. ­The printer is turned on before a cable
was connected. The hub and the printer are incompatible
or have some problem.
3
Connect cables before turning on the printer. page 31
Press the scroll button or and select [Admin Setup] (Enter the administrator password.) > [Network Setup] > [HUB Link Setting], and then select [10Base-T Half].
3. Troubleshooting
 For Windows
Cause Remedy Reference
IP address is incorrect. ● Check that the same IP address is set for the printer
and the printer's port setting on the computer.
● If using LPR Utility, check the IP address setting in
LPR Utility.
-
-
USB Connection Problems
 Common to Windows and OS X
Cause Remedy Reference
Unsupported USB cable is being used. Use a USB 2.0 cable. ­A USB hub is being used. Connect the printer directly to the computer. page 41 Printer driver is not installed correctly. Reinstall printer driver. page 41,
page 42
 For Windows
Cause Remedy Reference
The printer is off line. Right-click the Pro8432WT PS icon, and then select
[See what's printing]. In the dialog box, select the [Printer] menu and then remove the check from [Use Printer Ofine].
A switch, buffer, extension cable or USB hub is being used.
A driver for a different printer that uses a USB connection has been installed.
Connect the printer directly to the computer. page 41
Delete the other printer driver from the computer. -
-
- 84 -

Unable to Install a Printer Driver Successfully

Memo
● If the following information does not solve the issue, contact your dealer.
● For issues caused by an application, contact the manufacturer of the application.
USB Connection Problems
Other Issues
 For Windows
Cause Remedy Reference
An icon of the printer is not created on the [Devices and Printers] folder.
Only the rst printer driver is installed
even if multiple printer drivers are selected to install.
The “Unable to install printer driver” error message is displayed.
The printer driver is not installed correctly. Reinstall the printer driver correctly.
Follow the procedure below to install the second and subsequent printer drivers:
1. Insert the “Software DVD-ROM” into a computer.
2.
When [AutoPlay] is displayed, click [Run Setup.exe].
Memo
● If the [User Account Control] dialog box is displayed,
click [Yes].
3. Select a language from the drop-down list.
4. Read the license agreement, and then click [Accept].
5. Read Environmental advice for Users and click [Next].
6. Select [Network (Wired/Wireless)] or [USB] corresponding to your connection environment, and then click [Next]. If the [Windows Security Alert] dialog box is displayed, click [Allow access].
7. Select the model name of this machine, and then click [Next].
8. Click [Custom Install].
9. Click [Separate Install].
10. Click a driver to install.
Installation starts. Use Plug-and-Play. Follow the procedure below.
1. Ensure that the printer and computer is turned off.
2. Connect a USB cable.
3. Turn on the printer.
4. Turn on the computer.
5. When the Found New Hardware Wizard is displayed, follow the on-screen instructions to complete the setup.
page 41
-
-
3
3. Troubleshooting
- 85 -
Other Issues
OS-Specic Constraints
Constraints with Windows
Item Symptom Cause/Remedy
Printer drivers [Help] is not displayed. The [Help] function is not supported on PS printer drivers.
3
PS Gamma Adjuster
3. Troubleshooting
The [User Account Control] dialog appears.
The [User Account Control] dialog appears.
The [Program Capability Assistant] dialog appears.
When you launch an installer or utility, the [User Account Control] dialog may appear. Click [Yes] or [Continue] to run the installer or utility as an administrator. If you click [No], the installer or utility does not start.
When you launch an installer or utility, the [User Account Control] dialog may appear. Click [Yes] or [Continue] to run the installer or utility as an administrator. If you click [No], the installer or utility does not start.
If the [Program Capability Assistant] dialog appears after an installation (including if you stop an installation before it is completed), make sure to click [This program installed correctly].
- 86 -

Image Quality Issues

Memo
● If the following information does not solve your issues, contact your dealer.
Symptom Point to check Remedy Reference
Vertical lines appear.
Paper feed direction
Printed images are fading vertically.
Paper feed direction
Printed images are light.
Printed images are partially faded. Spots and lines appear.
The toner is low. Replace the toner cartridge. page 94 The image drum is damaged. Replace the image drum. page 98 Foreign materials may be present
on the image drum.
The light-shielding lm of the
image drum is dirty. The image drum is not installed
properly. The LED heads are dirty. Wipe the LED heads with soft
The toner is low. Replace the toner cartridge. page 94 The paper is unsuitable. Use supported paper. page 45
The toner save is enabled. Change the toner save settings. ­The toner cartridge is not installed
properly. The toner is low. Replace the toner cartridge. page 94 The paper is moist. Use paper stored in proper
The paper is unsuitable. Use supported paper. page 45 The paper is unsuitable.
The settings of media type and weight are incorrect.
The paper is recycled. The media weight setting is unsuitable.
The paper is too moist or dry. Use paper stored in proper
[Paper Color Setting] is
improperly congured.
[Trans. Color Setting] is
improperly congured.
Replace the image drum. page 98
Wipe the lm with a soft tissue
paper. Install the image drum properly. page 98
tissue paper.
Install the toner cartridge properly. page 94
temperature and humidity conditions.
Press the scroll button and select [Menus] > [Tray Conguration] > the paper tray
conguration you are using, and
then select the proper values for [Media Type] and [Media Weight]. Or, select a larger value for [Media Weight].
Press the scroll button and select [Menus] > [Tray Conguration] > the paper tray you are using, and then select a larger value for [Media Weight].
temperature and humidity conditions.
Press the scroll button select [Menus] > [Print Adjust], and then change the value of [Paper Color Setting].
Press the scroll button select [Menus] > [Print Adjust], and then change the value of [Trans. Color Setting].
or
or
or ,
or ,
Other Issues
-
page 108
page 45
page 45
page 45
page 45
-
-
3
3. Troubleshooting
- 87 -
Other Issues
Symptom Point to check Remedy Reference
Horizontal lines and spots appear periodically.
Paper feed direction
3
3. Troubleshooting
White area of paper is lightly stained.
If the interval of lines or spots is about 94 mm (4 inches), the image drum (the green tube) is damaged or dirty.
If the interval of lines or spots is about 40 mm (2 inches), foreign materials may be present on the image drum.
If the interval of lines or spots is about 143 mm, there is damage to the fuser unit.
The image drum has been exposed to light.
The paper feed path is dirty. Print a few test copies. ­The paper contains static
electricity.
The paper is too thick. Use thinner paper. ­The toner is low. Replace the toner cartridge. page 94
Lightly wipe the image drum with soft tissue paper. Replace the image drum if it is damaged.
Open and close the output tray, and print again.
Change the fuser unit. page 104
Place the image drum back into the printer and leave it for a few hours. If that does not solve the problem, replace the image drum.
Use paper stored in proper temperature and humidity conditions.
page 98
-
page 98
page 45
Periphery of letters is smudged.
The entire paper area is lightly stained when printing on envelopes or coated paper.
Toner comes off when it is rubbed.
The LED heads are dirty. Wipe the LED heads with soft
tissue paper. The paper is unsuitable. Use recommended paper. ­The paper is moist. Replace it with new paper. page 45
The toner may be sticking to the whole area of the envelope or coated paper.
The settings of media type and weight are incorrect.
The paper is recycled. The media weight setting is unsuitable.
This is not a malfunction of the
printer.
Coated paper is not recommended.
Press the scroll button or
and select [Menus] > [Tray
Conguration] > the paper
tray conguration you are using,
and then select the proper
values for [Media Type] and
[Media Weight]. Or, select a
heavier weight in [Media Weight].
Press the scroll button
and select [Menus] > [Tray
Conguration] > the paper tray
conguration you are using, and
then select a heavier weight for
[Media Weight].
or
page 108
-
page 45
page 45
- 88 -
Symptom Point to check Remedy Reference
?
Glossiness is not uniform.
Color of the printed image is not what you expect.
Solid printing of CMY 100% is too light.
The settings of media type and weight are incorrect.
The toner is low. Replace the toner cartridge. page 94 The color adjustment has been
modied.
The color balance is out of adjustment.
Color registration is out of alignment.
[CMY100% Density] is set to [Disable].
Press the scroll button or
and select [Menus] > [Tray
Conguration] > the paper
tray conguration you are using,
and then select the proper
values for [Media Type] and
[Media Weight]. Or, select a
heavier weight in [Media Weight].
Do color matching from the printer
driver.
Press the scroll button
select [Calibration], and then
[Adjust Density].
Open and close the output tray.
Or, press the scroll button
and select [Calibration], and then
[Adjust Registration].
Press the scroll button or and
select [Admin Setup] > [Color
Setup] > [CMY100% Density],
and then select [Enable].
or and
or
Other Issues
page 45
Advanced
3
Advanced
3. Troubleshooting
Advanced
-
Dots appear.
Smears is printed.
The background of a printed page is dark or dirty.
Nothing is printed.
The paper is unsuitable. Use supported paper. page 45 When the interval of the dots
is about 94 mm (4 inches), the image drum (the green tube) is damaged or dirty.
The paper is moist. Replace it with new paper. page 45 The paper is unsuitable. Use supported paper. page 45
The printer may be malfunctioning. Contact your dealer. Back cover
Two or more sheets of paper are fed simultaneously.
The printer may be malfunctioning. Contact your dealer. -
Lightly wipe the image drum with a
soft tissue paper.
Replace the image drum when it is
damaged.
Fan the paper well and load it
again.
page 98
page 48,
page 49
Patches appear.
The paper is moist. Replace it with new paper. page 45 The paper is unsuitable. Use supported paper. page 45
- 89 -
Other Issues

Feeding Issues

Memo
● If the following information does not solve the issue, contact your dealer.
Symptom Point to check Remedy Reference
● The paper often
jams.
● Multiple sheets
3
are fed at once.
● The paper is fed
at an angle.
3. Troubleshooting
Paper does not feed into the printer.
The printer does not start processing even though you have removed the jammed paper.
The paper gets folded or wrinkled.
The printer is tilted. Place the printer on a at surface. page 16 The paper is too light or too heavy. Use the appropriate paper for the
The paper is moist or has a static charge.
The paper is wrinkled, folded or curled.
Something is already printed on the back side of the paper.
The edges of the paper are not kept even.
There is only one sheet of paper in the tray.
You have added more paper with paper already loaded in the tray.
The paper is loaded at an angle. For tray 1, adjust the paper width
Envelopes are not correctly loaded. Load envelopes correctly. page 49 Paper, envelopes or labels of weight
between 177 and 220 g/m in tray 1.
The setting of [Source] in the printer driver is not correctly
specied. You have specied manual feeding
on the printer driver.
- Open and close the output tray. -
The paper is moist or has a static charge.
The paper is light. Press the scroll button
2
is loaded
page 45
printer. Use paper stored in proper
temperature and humidity conditions.
Use appropriate paper for the printer. Fix the curled paper.
With tray 1, you cannot use paper that has been printed. Load it on the MP tray for printing.
Fan the paper and even up the edges.
Load several sheets of paper. page 48,
Remove the already loaded paper, stack it onto the new paper, even up the edges and load the paper with the old paper on top.
guide and stopper to the paper. For the MP tray, adjust the paper width guide to the paper.
Load the paper, envelopes or labels of weight between 177 and 220 g/m2 on the MP tray, and use the face up stacker.
Check the paper tray and select the correct tray in [Source] in the printer driver.
In the printer driver, clear the [Use MP tray as manual feed] check box on [Paper feed options].
Use paper stored in proper temperature and humidity conditions.
or and
then select [Menus] > [Tray
Conguration] > [%TRAY% Cong] > [Media Weight].
Then, specify a lighter weight.
page 45
page 45
page 49
page 48,
page 49
page 49
page 48,
page 49
page 48,
page 49
page 45,
page 49
-
Advanced
page 45
page 45
- 90 -
Symptom Point to check Remedy Reference
The paper twists around the rollers in the fuser unit.
The settings of media weight and type are incorrect.
The paper is light. Use heavier paper. ­There is an image or text on the
leading edge of the paper.
Press the scroll button or and then select [Menus] > [Tray
Conguration] > [%TRAY% Cong] > [Media Type]/[Media
Weight]. Then, specify the appropriate values. Or, specify a heavier weight in [Media Weight].
Add a margin on the leading edge of the paper.
page 45

Machine Issues

Symptom Point to check Remedy Reference
You turned on the printer, but nothing displays on the screen.
The printer does not operate.
The printer does not start printing.
The display screen is blank.
Print data is not transmitted to the printer.
The AC cord is unplugged. Turn off the printer and then plug in
the AC cord rmly.
The power is out. Check if the power is being supplied
to the electric outlet.
The AC cord is not rmly plugged in. Plug in the AC cord rmly. ­The printer is turned off. Turn on the printer. page 21 The printer turned off automatically
by the auto power off function. Printer does not answer. Hold down the power switch for more
An error is displayed on the panel. Check the error code and follow the
The Ethernet or USB cable is unplugged.
Something is wrong with the Ethernet or USB cable.
The printer does not support your Ethernet or USB cable.
Something may be wrong with the printing function.
The interface is disabled. Press the scroll button
The printer driver of the printer is not selected.
The specied port of the printer
driver is wrong. The printer is in the deep sleep
mode.
The Ethernet or USB cable is broken. Connect a new cable. ­The time-out period set on the
computer has passed.
Disable the auto power off function. page 62
than 5 seconds to turn off the printer forcibly.
page 78
on-screen instructions. Plug in the Ethernet or USB cable
rmly.
Use another Ethernet or USB cable. -
● Use a USB 2.0 compatible cable.
● Use an Ethernet 10BASE-T/
100BASE-TX/1000BASE-TX
compatible cable.
Press the scroll button select [Print Information] > [Conguration] and then print the contents of the settings to check the printing function.
select [Admin Setup] > [Network Setup] and enable the interface you are using.
Set the printer driver of the printer as the default printer.
Specify the port the Ethernet or USB cable is connected to.
Check if the <POWER SAVE> button lights up and press the <POWER SAVE> button to activate the printer.
Set a longer time-out period. -
or and
or and
page 31,
page 41
page 29
page 22
Other Issues
-
3
3. Troubleshooting
-
-
-
-
-
-
-
- 91 -
Other Issues
Symptom Point to check Remedy Reference
There is an abnormal sound.
There is a buzzing sound.
It takes a while to start printing.
3
3. Troubleshooting
A print job has stopped in the middle of the printing process.
Memory is
insufcient.
It takes a long time
to nish printing.
The printer driver is not correctly displayed on OS X.
Paper is curled. Thin paper is used. Set an appropriate paper weight or
Paper is wet on the edge.
The LED indicator in the power switch is blinking at high speed per about
0.3 seconds.
The printer is tilted. Place the printer on a at surface. ­There is a piece of paper or foreign
object inside the printer. The output tray is open. Close the output tray. ­The printer is printing on the heavy
or thin paper when the temperature inside is high.
The printer may be cleaning the image drum.
The printer is adjusting the temperature of the fuser unit.
The printer is processing data from another interface.
As a result of processing print jobs continuously for a long time, the inside the printer has become hot. The printer is cooling off.
As a result of processing print jobs continuously for a long time, the temperature in the printer inside has become too high. The printer is cooling off.
When the print processing is overloaded by printing with the WSD port, a computer may stop sending.
A printer is short on memory because print data is too large.
The processing speed of the computer may be slowing down the print job.
You have selected [ProQ/High Quality] on the [Job Options] tab of the printer driver.
The print data is complex. Make the data simpler. ­Paper is narrow (less than 230 mm). Change the mode. Advanced The printer driver may not be
operating correctly.
Wet paper is used. Select [Moisture Control]. Advanced
The printer may be malfunctioning.
Check the inside of the printer and remove any objects.
This is not a malfunction. You can proceed with the operation.
Wait for a while. -
Wait for a while. -
Wait until the process nishes. -
Wait for a while. When the fuser unit becomes cooler, printing restarts automatically.
Wait for a while. When the printer becomes cooler, printing restarts automatically.
Retry to send data on a computer. If the error is not resolved, use other network port.
Reduce print data with a printer driver.
Use a computer with faster processing speed.
Select [Fine / Detail (600x1200)] or [Normal (600x600)] on the [Job Options] tab of the printer driver.
Uninstall the printer driver and install it again.
select [High Humid Mode].
Unplug the AC cord immediately.
-
-
-
-
-
Advanced
-
-
Advanced
Advanced
-
- 92 -

4. Maintenance

WARNING
This chapter explains how to replace consumables and maintenance units, clean the printer, and move or transport the printer.

Replacing Consumables and Maintenance Units

This section explains how to replace consumable items.
Do not throw the toner or
toner cartridge into the re.
Doing so may cause toner splashes leading to burns.
There are high temperature parts in the device. Do not touch the periphery
of the label "Caution High Temperature", which may
cause burns.
If the toner powder sticks to
your skin like your hands, wash with soap.
When handling a paper jam, or replacing the toner cartridge, make sure not to get your cloth and hands dirty. When toner powder stains on your cloth, wash
with cold water. If you wash
with hot water, the toner may be soaked into the
cloth; it may be difcult to
clean.
Do not keep the toner cartridge in places close to
the re. It may catch the re, which cause re and
burns.
CAUTION
Keep the toner cartridge out
of reach of young children. If
young children swallow toner
powder, follow the doctor's
direction immediately.
If the toner gets into the eyes, ush with plenty of
water immediately. Follow
the doctor's direction if
necessary. Do not disassemble the toner
cartridge. Toner powder may
y upward, and you may
inhale the toner powder or may get your cloth and hands dirty.
Do not vacuum spilled toner
powder. If vacuuming, it may
cause ignition due to the
sparks from electric contacts. Toners spillage on the oor should be wiped off by wet
clothes.
If toner powder is inhaled, gargle with large amounts of
water and move the person
to the open area for fresh air. Follow the doctor's direction if necessary.
If you swallow toner powder, take large amounts of water
to weaken the toner. Follow
the doctor's direction if
necessary. Keep a used toner cartridge
in a bag so that the toner
powder can not y upward.
4
4. Maintenance
Note
● Use only genuine OKI consumable items to ensure optimum quality.
● Service for problems due to use of consumable items other than genuine OKI consumables will incur fees even in the warranty
period or the maintenance contract period.
- 93 -
Replacing Consumables and Maintenance Units

Replacing Toner Cartridges

Note
● Toner powder may spill if you remove a toner cartridge before the toner runs out.
Life Span of Toner Cartridge
When the “%COLOR% Toner Low” message
(“%COLOR%” indicates C (cyan), M (magenta), Y (yellow) or W (white)) appears on the display
screen, prepare a replacement toner cartridge. You can keep printing several hundred pages until the next message appears.
The number of pages that can make prints
4
depends on the usage.
When the “%COLOR% Toner Empty” appears
4. Maintenance and printing is stopped, replace the toner
cartridge.
Note
● The actual life of the toner cartridge differs depending on
the usage.
Procedure for Replacement (for C (cyan) Toner Cartridge)
Memo
● When replacing the W, M, Y toner cartridges, refer to
“Procedure for Replacement (for W (white), M (magenta), Y (yellow) Toner Cartridges)” P.96.
1 Prepare a new [C] toner cartridge.
2 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (1) to open the front cover (2) forward.
1
Note
● Have a new print cartridge ready, as the print quality declines after more than one year following breaking the
seal.
● If you replace the toner cartridge/image drum while it is
being used, the amount of toner used will not be counted
normally.
● By opening and closing the output tray after the message Color toner empty.” is displayed, you are able to print
approximately 100 copies of A4 size ISO test patterns (approximately 20 pages, ve times). However further printing operations will not be possible after that. Please replace the toner cartridge as failure to do so may
damage the image drum.
2
3 Turn the blue lever (3) of the toner
cartridge.
3
- 94 -
Replacing Consumables and Maintenance Units
WARNING
4 Lift the toner cartridge (4) from the right
side, and remove it from the printer.
Possible to get
burned.
Do not throw a used toner cartridge in the re. They may explode, and the toner inside may y off and cause getting burned.
Note
● When toner powder adheres to the paper feeding area inside the printer, wipe it off with a wet cloth
that has been well wrung.
4
7 Insert a new toner cartridge (6) by
aligning its left side indentation (7) with the protrusion (8) on the image drum so the toner cartridge and image drum [C] color label align. Then x the right side rmly into place.
Note
● Do not insert a toner cartridge without removing the
tape.
6
8
7
8 Turn the blue lever (3) of the toner
cartridge backward until its top aligns on the mark.
4
4. Maintenance
5 Leaving the replacement toner cartridge
in its bag, gently shake it up and down and side to side, and then unpack it.
6 Remove the tape (5) from the toner
cartridge.
5
3
9 Close the front cover (2).
Note
● The front cover cannot be closed if the output tray is
not closed securely.
2
- 95 -
Replacing Consumables and Maintenance Units
N
10 Please recycle toner cartridges.
Memo
● If you must dispose of a toner cartridge, put it in a plastic bag or similar container and dispose of it in
accordance with your municipality’s ordinances or guidelines.
4
4. Maintenance
Procedure for Replacement (for W (white), M (magenta), Y (yellow) Toner Cartridges)
Memo
● When replacing the C toner cartridge, refer to “Procedure
for Replacement (for C (cyan) Toner Cartridge)” P.94.
1 Prepare new toner cartridges.
2 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (1) to open the front cover (2) forward.
1
2
3 Press the output tray open button (3)
and open the output tray (4).
CAUTIO
● The fuser unit is extremely hot. Do not touch
it.
4
Possible to get
burned.
3
- 96 -
Replacing Consumables and Maintenance Units
WARNING
4 Identify an empty toner cartridge by its
label color (5).
5
5 Slide the right blue lever (6) of the toner
cartridge while pressing the top of the
cartridge to unlock.
7 Unpack the replacement toner cartridge,
and gently shake it up and down and side to side.
8 Remove the tape (8) from the toner
cartridge.
4
4. Maintenance
8
6
6 Lift the toner cartridge (7) from right
side, and remove it from the printer.
Possible to get
burned.
Do not throw a used toner cartridge in the re. They may explode, and the toner inside may y off and cause getting burned.
7
9 Insert a new toner cartridge (9) by
aligning its left side indentation (10) with the protrusion (11) on the image
drum so the toner cartridge and image
drum color labels align. Then x the right side rmly into place.
Note
● Do not insert a toner cartridge without removing the
tape.
9
11
10
- 97 -
Replacing Consumables and Maintenance Units
10 Turn the blue lever (6) of the toner
cartridge backward until its top aligns on the
mark.
6
4
11 Close the output tray (4) by pushing the
4. Maintenance
both sides of the cover rmly.
4

Replacing the Image Drum

Life Span of Image Drum
When the “%COLOR% Image Drum Near Life” message appears on the display screen,
prepare a replacement image drum.
If you continue printing, the message
%COLOR% Image Drum Life” will be displayed and printing will stop.
A guideline for replacing the image drum is every 30,000 pages (YMC), every 9,000 pages (W) or so for A4 sized paper (with single-sided printing). However, this number of pages is for common printing conditions (3 pages at a time). Printing one page at a time reduces the drum life by about half.
The actual number of printed pages may be
halved again relative to the above guideline, depending on the printing conditions.
If you continue to print more than the above, the printer will force the printing to stop.
12 Close the front cover (2).
2
Note
● The front cover cannot be closed if the output tray is
not closed securely.
13 Please recycle toner cartridges.
Memo
● If you must dispose of a toner cartridge, put it in a plastic bag or similar container and dispose of it in
accordance with your municipality’s ordinances or guidelines.
Note
● The actual number of pages you can print with the image
drum depends on how you use it. The above guideline
may be reduced by more than half, depending on the conditions of printing.
Though opening and closing the output tray may extend the life of a image drum for a while, it is recommended to replace it soon after the “Install New image drum” is
displayed.
● The print quality may deteriorate after the toner cartridge
has been unpacked for a year. Replace it with a new one.
● Press the scroll button or and select [Admin Setup] > [Panel Setup] > [Near Life Status], if this is set to [Disable], then the “%COLOR% Image Drum Near
Life” message does not appear.
Procedure for Replacement
Note
● If you use a new image drum with the toner cartridges currently in use, the remaining amount indication of the
toner cartridges will not display correctly. The messages “%COLOR% Image Drum Near Life” or
%COLOR% Image Drum Life
soon after replacement.
● The image drum (the green tube) is very delicate. Handle it carefully.
Do not expose the image drum to direct sunlight or very bright interior light (approximately more than 1500 lux). Even under the normal interior light, do not leave it for
more than 5 minutes.
● In order for the printer to exhibit its full performance,
please use genuine OKI consumables.
● Service for problems due to use of consumable items other than genuine OKI consumables will incur fees
even in the warranty period or the maintenance contract
period. (Use of consumable items other than genuine OKI
consumables does not always cause problems, but please
exhibit caution when using those.)
may also be displayed
- 98 -
Replacing Consumables and Maintenance Units
WARNING
● There is one toner cartridge for each color on the image
drum.
1 Prepare a new image drum.
2 Insert your nger into the recess on
the right side of the printer and pull the front cover open lever (1) to open the front cover (2) forward.
1
2
3 Press the output tray open button (3)
and open the output tray (4).
5 Remove the image drum (6) from the
printer in the direction of the arrow and place the image drum on a at surface.
6
4
4. Maintenance
6 Turn the right blue lever (7) of the toner
cartridge forward while pressing the top of the toner cartridge to unlock.
CAUTION
● The fuser unit is extremely hot. Do not touch
it.
4
Possible to get
burned.
3
4 Identify an empty toner cartridge by its
label color (5).
5
7
7 Lift the toner cartridge (8) from the
right side, and remove it from the image
drum.
Possible to get
burned.
Do not throw a used image drum and toner cartridge in the re. They may explode, and the toner inside may y off and cause getting
burned.
8
- 99 -
Replacing Consumables and Maintenance Units
8 Remove the protective sheets.
Place a new image drum (9) on a at surface.
9 Remove the toner cover (10).
4
4. Maintenance
11 Turn the blue lever (7) of the toner
cartridge backward until its top aligns on the
9
mark.
7
12 Check a label color of a new image drum
(9) and place the drum into a printer.
10
9
10 Insert the toner cartridge (8) taken
out in step 7 to the image drum (9) by aligning its left side indentation (11) with the protrusion (12) on the image drum, and then x the right side rmly
into place.
8
12
11
9
13 Close the output tray (4) by pushing the
both sides of the cover rmly.
4
- 100 -
Loading...
