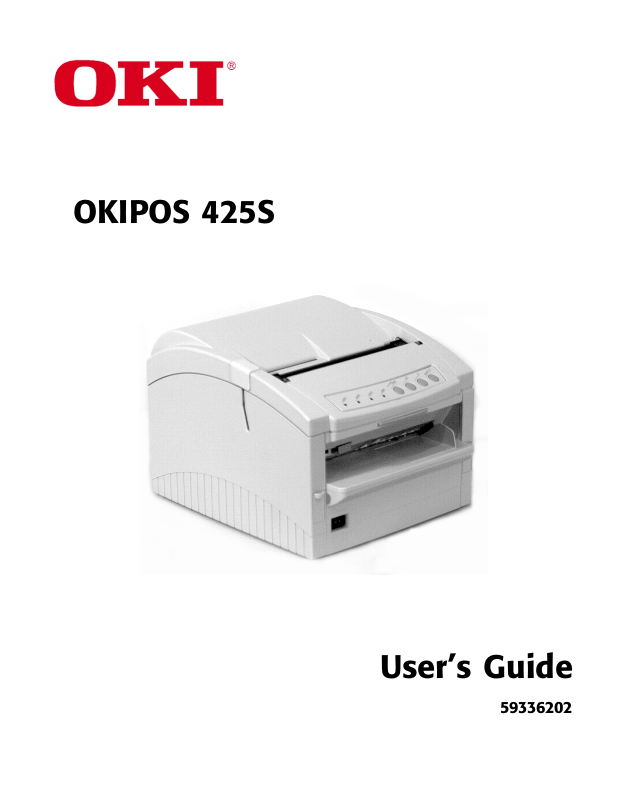

OKIPOS 425S



User’s Guide

59336202

Document Title and Part Number

OKIPOS 425S User’s Guide P/N 59336202, Revision 1.1

Disclaimer

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from the web site: http://www.okiprintingsolutions.com.

OKIPOS 425S

Contents

1. Setting Up the Printer....................................................................................................................................... 6

1.1. Select a Location ...................................................................................................................................................................6

1.2 Where to install your printer ................................................................................................................................................. 6

1.3 Unpacking .............................................................................................................................................................................7

Getting Started ...........................................................................................................................................................................7

1.4 Installing the Printer ..............................................................................................................................................................8

Getting to Know the OKIPOS 425S ...........................................................................................................................................8

1.4.1 Remove the Shipping Restraints ..................................................................................................................................... 9

1.4.2 Setting the Interface Board Assembly............................................................................................................................10

1.4.2.1 Setting the DIP Switches (RS-232C) ........................................................................................................................ 10

1.4.2.2 Installing the Interface Board Assembly ..................................................................................................................11

1.4.3 Connecting the Computer ............................................................................................................................................. 12

1.4.4 Connecting the Cash Drawer .........................................................................................................................................12

1.4.5 Connecting the Customer Display................................................................................................................................. 12

1.4.6 Connecting the Power ....................................................................................................................................................12

1.4.7 Installing the Ribbon Cartridge .....................................................................................................................................13

1.5 Installing the Paper ..............................................................................................................................................................16

1.5.1 Roll paper .......................................................................................................................................................................17

1.5.1.1 Adjusting the Roll Paper Guide................................................................................................................................17

1.5.1.2 Loading the Roll Paper............................................................................................................................................. 19

1.5.1.3 Adjusting the Roll Paper Near End Sensing Position ..............................................................................................21

1.5.2 Cut-Sheet Paper (Slip) ....................................................................................................................................................22

1.5.2.1 Loading the Cut-Sheet Paper (Slip)........................................................................................................................... 22

1.5.3 Cut-Sheet Paper (Validation/Stub).................................................................................................................................23

1.5.3.1 Loading the Cut-Sheet Paper (Validation/Stub) ...................................................................................................... 23

1.5.4 Sprocket Paper (Tractor)................................................................................................................................................26

1.5.4.1 Loading the Sprocket Paper (Tractor) ....................................................................................................................... 26

2. Using the Printer ............................................................................................................................................. 30

2.1 Operation Panel Functions ..................................................................................................................................................30

2.1.1 Switching Functions ......................................................................................................................................................31

2.1.2 LED Function .................................................................................................................................................................32

2.2 Local Functions ...................................................................................................................................................................33

2.2.1 Types ..............................................................................................................................................................................33

2.2.2 Starting ...........................................................................................................................................................................34

2.3 Menu Function (Receipt) ....................................................................................................................................................35

2.3.1 OEM — Standard Model ............................................................................................................................................... 35

2.3.2 OKI — Standard Model ................................................................................................................................................. 36

2.3.3 How to Operate............................................................................................................................................................... 37

2.4 Hex Dump Function (Receipt) ............................................................................................................................................38

2.4.1 Print Format ....................................................................................................................................................................38

2.4.2 How to Print ................................................................................................................................................................... 38

2.5 Using the MICR Reader (Option) .......................................................................................................................................39

2.6 MICR Read Test (Receipt) .................................................................................................................................................. 41

2.7 Rewinder Winding Evaluation Continuous Print Test (Receipt) .......................................................................................43

3. Maintenance ..................................................................................................................................................... 44

3.1 Replacing the Ribbon Cartridge ......................................................................................................................................... 44

3.2 Replacing the Roll Paper .................................................................................................................................................... 47

3.3 Clearing Paper Jams ............................................................................................................................................................49

4. Troubleshooting and Repair.......................................................................................................................... 53

4.1 Alarm Indication for a Failure .............................................................................................................................................53

4.1.1 Details of Alarm Indications ..........................................................................................................................................54

4.1.2 LED Indication............................................................................................................................................................... 55

User’s Guide: English 3

5. Specifications ................................................................................................................................................... 56

5.1 Introduction .........................................................................................................................................................................56

5.1.1 Scope of Application......................................................................................................................................................56

5.1.2 Characteristics ................................................................................................................................................................56

5.1.3 Configuration .................................................................................................................................................................58

5.2 General Specifications......................................................................................................................................................... 59

5.2.1 Power Requirements ......................................................................................................................................................59

5.2.2 Environmental Conditions............................................................................................................................................. 59

5.2.3 Agency Approvals ..........................................................................................................................................................59

5.3 Communication Interface Specifications ............................................................................................................................60

5.3.1 Parallel Interface (OKI/OEM Standard Type) ................................................................................................................ 60

5.3.2 RS-232C Interface (OKI Standard Type)........................................................................................................................61

5.3.3 Cash Drawer connector (OKI Standard Type) ................................................................................................................62

5.3.4 Customer Display connector (OKI Standard RS-232C Interface Type) ........................................................................63

5.4 Physical Characteristics ......................................................................................................................................................64

5.4.1 Printhead ........................................................................................................................................................................64

5.4.2 Printer .............................................................................................................................................................................64

5.5 Logical Characteristics ........................................................................................................................................................65

5.5.1 Print Direction ................................................................................................................................................................65

5.5.2 Selectable Character Pitches ..........................................................................................................................................65

5.5.3 Maximum Number of Characters per line ......................................................................................................................65

5.5.4 Font Size/Cell Size.........................................................................................................................................................66

5.5.5 Line Feed Pitches ...........................................................................................................................................................66

5.6 Printer Performance ............................................................................................................................................................. 66

5.6.1 Print Speed .....................................................................................................................................................................66

5.6.2 Line Feed Speed .............................................................................................................................................................66

5.7 Media Specifications ...........................................................................................................................................................67

5.7.1 Cut-Sheet Paper (Slip/Validation) ................................................................................................................................. 67

5.7.2 Cut-Sheet Paper (Counterfoil/Stub) ...............................................................................................................................67

5.7.3 Roll Paper .......................................................................................................................................................................67

5.7.4 Sprocket Paper (Tractor) ................................................................................................................................................68

5.7.5 Appendix: Media Specifications ..................................................................................................................................69

5.7.5.1. Cut-Sheet Paper (Slip/Validation) ...........................................................................................................................69

5.7.5.2. Roll paper ................................................................................................................................................................ 76

5.7.5.3. Sprocket Paper (Tractor) ..........................................................................................................................................78

5.7.5.4. MICR (only with MICR Type) ................................................................................................................................87

5.8 Paper Feed Specifications ...................................................................................................................................................88

5.8.1 Paper feed methods/Paths ..............................................................................................................................................88

5.8.2 Paper Positioning Restrictions.......................................................................................................................................88

5.8.3 Paper Tear-off .................................................................................................................................................................88

5.8.4 Paper End Detection ......................................................................................................................................................88

5.9 MICR Specifications (Only with MICR type) ....................................................................................................................89

5.9.1 Available Fonts ...............................................................................................................................................................89

5.9.2 Scanning Speed............................................................................................................................................................... 89

5.9.3 Recognition Rating ........................................................................................................................................................89

5.9.4 Reliability ....................................................................................................................................................................... 89

5.9.5 Readable Area .................................................................................................................................................................89

5.9.6 Media Specifications ......................................................................................................................................................89

5.9.7 Other Relevant Standards ...............................................................................................................................................89

5.10 Ribbon Specifications .......................................................................................................................................................90

5.11 Reliability .........................................................................................................................................................................90

OKIPOS 425S

6. Command Description .................................................................................................................................... 91

6.1 Control Code List ................................................................................................................................................................91

6.1.1 OEM — Standard Model ............................................................................................................................................... 91

6.1.1.1 Function Code ..........................................................................................................................................................91

6.1.1.2 ESC Sequence ...........................................................................................................................................................92

6.1.1.3 GS sequence ..............................................................................................................................................................93

6.1.1.4 US Sequence .............................................................................................................................................................93

6.1.2 OKI Standard Model ...................................................................................................................................................... 94

6.1.2.1 Function Code ..........................................................................................................................................................94

6.1.2.2 ESC Sequence ...........................................................................................................................................................95

6.1.2.3 FS Sequence ..............................................................................................................................................................97

6.1.2.4 GS Sequence .............................................................................................................................................................97

6.2 Character Set........................................................................................................................................................................98

6.2.1 Code table (OEM — Standard Type) .............................................................................................................................98

6.2.1.1 USA ...........................................................................................................................................................................98

6.2.1.2 Canada-French ..........................................................................................................................................................99

6.2.1.3 Multilingual .......................................................................................................................................................... 100

6.2.1.4 Portugal.................................................................................................................................................................. 101

6.2.1.5 Norway ................................................................................................................................................................... 102

6.2.1.6 BRASCII ................................................................................................................................................................ 103

6.2.1.7 Abicomp................................................................................................................................................................. 104

6.2.1.8 Multilingual 858 ................................................................................................................................................... 105

6.2.1.9 ISO 8859/15 ........................................................................................................................................................... 106

6.2.1.10 International character set table ......................................................................................................................... 107

6.2.2 Code table (OKI — Standard Type) ............................................................................................................................ 108

6.2.2.1 USA ........................................................................................................................................................................ 108

6.2.2.2 Canada-French ....................................................................................................................................................... 109

6.2.2.3 Multilingual .......................................................................................................................................................... 110

6.2.2.4 Portugal.................................................................................................................................................................. 111

6.2.2.5 Norway ................................................................................................................................................................... 112

6.2.2.6 BRASCII ................................................................................................................................................................ 113

6.2.2.7 Abicomp................................................................................................................................................................. 114

6.2.2.8 Multilingual 858 .................................................................................................................................................. 115

6.2.2.9 ISO 8859/15 ........................................................................................................................................................... 116

6.2.2.10 International character set table .......................................................................................................................... 117

7. Using the Unitool Printer Driver ................................................................................................................ 118

7.1 Setting Slip Paper in the Paper Tray................................................................................................................................. 118

7.1.1 Using Registered Paper Icons ..................................................................................................................................... 119

7.1.2 Using Custom Size ...................................................................................................................................................... 122

7.1.2.1 Using Paper Size that is less than 187.96 mm (7.4") in Width .............................................................................. 122

7.1.2.2 Using Paper Size that is 187.96 mm (7.4") or more and less than 215.9 mm (8.5") in width ................................ 127

7.2 About the Validation Printing Area .................................................................................................................................. 128

7.3 Setting Tractor Paper in the Tractor Unit ......................................................................................................................... 131

7.4 Orientation........................................................................................................................................................................ 131

7.5 Special functions of the Windows 95/98 Version Printer Driver...................................................................................... 132

User’s Guide: English 5

1. Setting Up the Printer

1.1. Select a Location

· Firm, level surface capable of supporting approximately 7kg (15.4 lbs).

· Clearance to open cover

· At least 100mm (4 inches) additional clearance on both sides for adequate ventilation

· Nearby power source

· Room temperature: 5° to 40° C (41° to 104° F)

· Relative humidity: 20 to 80%

· Away from direct sunlight

· Do not place the printer near a heater.

· Do not place it in a location with abrupt temperature changes.

· Do not let condensation develop on the printer.

· Do not place it in a dirty location.

· Do not place it near a device with abrupt consumption power fluctuations.

· Do not place it near a device producing any noise.

· Do not place it near an object discharging static electricity (i.e., on a carpet).

· Do not place it near a location where it is subjected to any impacts or vibrations.

· Do not place it near a strong magnetic field or source of corrosive gas.

1.2 Where to install your printer

Install your printer on as flat and stable a desk as possible. Also, make sure that the following installation space is reserved for services such as operation, daily check and replacement of supplies to maintain the performance of your printer.

F-002.eps, F-003.eps and F-004.eps

1 Approximately 100mm 2 50mm or less 3 750mm 4 600mm or more

OKIPOS 425S

1.3 Unpacking

Getting Started

Check the contents: 1 Printer 2 Ribbon Cartridge If anything is missing or damaged, contact your dealer immediately.

o425_02.jpg and o425_07.jpg

User’s Guide: English 7

1.4 Installing the Printer

Getting to Know the OKIPOS 425S


1 Printer Cover 2 Control Panel 3 Paper Guide 4 Cover Open Bar 5 ON/OFF Switch

OKIPOS 425S

1.4.1 Remove the Shipping Restraints

Important! Save the shipping restraints and packing materials in case you ever need to ship the printer.

1. Remove the five pieces of shipping tape.


2. Press the Cover open bar and open the printer cover.

o425_03.jpg and o425_04.jpg

3. Remove the two printhead shipping restraints and red rubber, and detach the two pieces of tape.


1 Printer Cover 2 Shipping Restraint 3 Control Panel 4 Red Rubber

User’s Guide: English 9

1.4.2 Setting the Interface Board Assembly

1.4.2.1 Setting the DIP Switches (RS-232C)

A25001.doc

Switch Setting

DIP SW Function

1 Selects the data bit length 7 bits 8 bits 2 Selects between the presence and

absence of parity bits. 3 Selects the parity Even Parity Odd parity 4 Selects the protocol XON / XOFF Ready / Busy

D I P

5 –

S W

8 Selects the customer display Connect Disconnect 1 Selects the #6 pin reset signal Enable Disable

2 Selects the #25 pin reset signal Enable Disable

3 Selects the display of received

4 Selects the mode of circuit test Select Deselect

5 Selects the hard reset signal Enable Disable

6 Selects the software reset signal Enable Disable

7N/A - 8N/A - -

Selects the signaling speed

data errors

ON OFF

Present Absent

5 6 7 Signaling Speed (BPS) OFF OFF OFF 1200 OFF OFF ON 2400 OFF ON OFF 4800 OFF ON ON 9600 ON OFF OFF 19200 ON OFF ON Reserved ON ON OFF Reserved ON ON ON Reserved

Ignore (error conversion is not performed)

Convert to receive error characters

* There are three types of errors: the parity error, the framing error, and the overrun error.


DIPSW1 DIPSW2

10 11 10 11

1 2 3 4 5 6 7 8

10 = OFF; 11 = ON

OKIPOS 425S

1.4.2.2 Installing the Interface Board Assembly

(1) Insert the Interface Board Assembly in the direction of the arrow.


(2) Secure the Interface Board Assembly with 2 screws.


User’s Guide: English 11

1.4.3 Connecting the Computer

This printer supports either Parallel Interface or RS232C when the interface board is installed in the printer. To install the interface board, refer to Section 1.4.2.2.

1. Check to be sure that the printer’s power is OFF.

2. Connect the interface cable to the connector shown below. A) Parallel Interface B) Serial Interface

o425_24.jpg and o425_82.jpg

3. Secure the connector by its latches or screws.

1.4.4 Connecting the Cash Drawer

1. Check to be sure that the printer’s power is OFF.

2. Insert the cable connector from the Cash Drawer to the area indicated by DM above until you hear a clicking sound.

1.4.5 Connecting the Customer Display

With the RS232C interface option board installed, Customer Display can be supported.

1. Check to be sure that the printer’s power is OFF.

2. Insert the cable connector from the Customer Display into the area indicated by C Dis above until you hear a clicking sound.

1.4.6 Connecting the Power

1. Attach the power cord to the back of the printer.


2. Plug the opposite end into a suitable grounded outlet.

OKIPOS 425S

1.4.7 Installing the Ribbon Cartridge

1. Make sure the printer is turned OFF.

2. Press the Cover open bar and open the printer cover.

o425_03.jpg and o425_04.jpg

3. Center the printhead.


User’s Guide: English 13

4. Unpack the ribbon cartridge.

Important! Do NOT remove the ribbon shield from the ribbon!


1 Ribbon Shield 2 Take-up Knob 3 Grip Points

5. Install the new ribbon cartridge.

1) Hold the ribbon cartridge as shown below.


2) Fit the grooves in the flat end of the cartridge over the posts on the ribbon plate.

OKIPOS 425S

3) Lower the front of the cartridge over the printhead until it snaps into place.


4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack.


User’s Guide: English 15

1.5 Installing the Paper

A25002.doc

Paper Specifications

Maximum thickness: 0.3 mm (0.012 inches)

Media Type Width Length Weight Number

Cut-Sheet Paper (Sip/ Validation) Note 1

Cut-Sheet paper (counterfoil/ stub)

Roll paper Note 2

Sprocket Paper (Tractor) Note 3

Single part (slip)

Single part (validation)

Multi part carbon lined or pressure sensitive (slip)

Single part only

Multi part pressure sensitive

Single part

Multi part carbon lined or pressure sensitive

Multi part interleaf

105 to 215.9mm (4.13” to 8.5”)

70mm or more (2.76” or more )

69.5mm/76.2m m + 0.5mm (2.73”/3” + 0.02”)

76.2 to

215.9mm (3” to 8.5”)

76.2 to

215.9mm (3” to 8.5”)

76.2 to

215.9mm (3” to 8.5”)

70 to 297mm (2.76” to 11.7”)

40mm or more (1.57” or more)

- 52 to 81g/m

76.2 to 355.6mm (3” to 14”)

52 to 105 g/m (14 to 28lb)

65 to 81 g/m (17 to 21lb)

34 to 40 g/m (9 to 11lb)

65 to 81 g/m (17 to 21lb)

(14 to 21lb)

52 to 81 g/m (14 to 21lb)

34 to 40 g/m (9 to 11lb)

38 to 45 g/m (10 to 12lb)

of copies

- 0.065 to 0.13

- 0.08 to

Original plus 4 copies

- 0.08 to 0.1

Original plus 1 copy

- 0.065 to

Original plus 3 copies

Original plus 2 copies

Thickness Diameter

mm (0.0026” to

0.005”)

0.1mm (0.0031” to

0.0039”)

0.3mm max. (0.012” max) -

mm (0.0031” to

0.0039”)

0.18mm max. (0.007” max.)

0.1mm (0.0026” to

0.0039”)

0.27mm max. (0.0l” max)

0.27mm max. (0.01” max)

101.6mm max. (4” max)

Note 1: All part must be glued at the top. Multipart is slip only.

Note 2: The standard paper weight is 57g/m2 (15lb) for the first sheet and 45 g/m2 (12lb) for the second sheet of multipart

paper.

Note 3: Multiple part paper should be fastened by spot-pasting or crimpling on both sides and should be free of wrinkles.

OKIPOS 425S

1.5.1 Roll paper

1.5.1.1 Adjusting the Roll Paper Guide

1. Adjust paper guide A (1) to the paper width. Paper width: 2.75 inches (69.5 mm) or 3.00 inches (76.2 mm)

1) When the printer is shipped, the paper width is set for wide roll paper (3 inch or 76.2 mm width)


2) To use narrow roll paper (2.73 inch or 69.5 mm width), hold up the roll paper guide and move it to the left to insert

into the hole (1) at the lower frame.


3) The figure below shows the proper guide position for narrow roll paper (2.73 inch or 69.5mm width). (To return the guide to the position for wide roll paper, reverse step 2).


User’s Guide: English 17

2. Adjust paper guide B to the paper width.

1) Pull out the set paper in arrow direction (a) and push it in the arrow direction (b) until it stops or until it touches the inside of the Guide-Rear edge (1).

2) Keeping the paper in position, turn the adjusting screw counter-clockwise to release the paper guide B (2) and adjust it to fit the roll paper edge. After paper width adjustment, turn the screw (3) clockwise to fasten the paper guide B.


OKIPOS 425S

1.5.1.2 Loading the Roll Paper

Use roll paper that matches the specifications.

Note: The printer must be turned on before installing the roll paper.

1. Fold the paper so it is exactly straight and even (1), and will not tear off jaggedly (2).

OP425_01b.eps

2. Turn on the printer and open the printer cover. Remove the rewinder.

3. Insert the roll paper as shown below.


4. Insert the tip of the paper into the paper inlet as far as it will go, and feed the roll paper until the paper comes out from the top of the printer.


User’s Guide: English 19

5. When using the rewinder, follow the steps and the illustration below.

1) Turn the flange into the arrow direction and remove it.


2) Insert the tip of roll paper into the groove of the rewinder as shown in the detail figure. Then, turn the rewinder into the arrow direction to wind the roll paper around it 2 or 3 times.

o425_94.jpg and o425_95.jpg

3) Insert the flange into the rewinder (to the arrow direction 1) until it stops, then turn it into the arrow direction 2 to


lock.

4) Mount the rewinder on the printer.

Note: When using narrow roll paper (2.73 inch or 69.5 mm width), turn over the flange as the arrow (e) and then

mount it following the above procedures 3) and 4).

Note: The flange can be demounted in the reverse procedures to its mounting.

Note: This printer can use two kinds of roll paper. Their widths are 69.5mm+0.5mm and 76.2mm+0.5mm.

Roll papers other than the above are outside the guarantee, and we recommend these papers not be used. If you use unrecommended roll papers and have problems, we will not guarantee either the printer or the performance. Even roll papers outside the above defined range can be used by inserting the Spacer that comes with the printer, if the space between the Flange and the Roll paper is 1mm. You must test thoroughly before you decide to use it, to make sure that there is no problem.

6. Close the printer cover.

OKIPOS 425S

1.5.1.3 Adjusting the Roll Paper Near End Sensing Position

The paper near end detector detects when the paper is almost gone by measuring the diameter of the Roll paper. If you want to change the amount of paper remaining when the printer stops printing, follow the steps below to adjust the

paper near end detector.

Note: If the inner diameter of the Roll paper core is more than 26mm (1.02 inch), the Roll paper near end detector may

not work properly.

1. Open the printer cover and remove the rewinder. 2 Determine the point on the Roll paper at which you want the near end detector to be triggered. Then measure the distance

A shown in the illustration.

OP425_02.eps

Note: There may be some difference between the measured distance A and the actual sensing position.

3. Find the corresponding adjustment position number from the table below. Distance A Adjustment position number 4 mm (0.16") #1 6 mm (0.24") #2 8 mm (0.32") #3 11 mm (0.43") #4 19 mm (0.75") #5 26 mm (1.02") #6

Note: Above values are applicable when the inside diameter at the core of the Roll paper is 10 mm.

4. Loosen the detector screw with a coin or screwdriver.

5. Set the detector scale to the position you determined from the table by moving the detector screw up or down. The

numbers #1, #2, #3... are not marked on the detector scale.

o425_12.jpg and o425_97.jpg

6. Secure the detector screw; then replace the rewinder and close the printer cover.

User’s Guide: English 21

1.5.2 Cut-Sheet Paper (Slip)

1.5.2.1 Loading the Cut-Sheet Paper (Slip)

Use the paper that matches the specifications.

Note: The printer must be turned on before loading the paper.

1. Turn on the printer.

2. Insert the paper as shown below, while butting the right edge of the paper against the paper guide.

Note: When using a MICR-version machine, align the marks “䊱” and “䊲” as shown below and set the paper

along the paper guide.


3. Printer feed the paper until the top of form of the paper is reached.

Note: If cut sheet paper is set askew, remove the paper following the procedure below and reset it:

1. Pull the lever (1) (marked “PULL”).

2. Pull out the paper in the direction of the arrow.

3. Reset the paper.


OKIPOS 425S

1.5.3 Cut-Sheet Paper (Validation/Stub)

1.5.3.1 Loading the Cut-Sheet Paper (Validation/Stub)

Use the paper that matches the specifications.

Note: The printer must be turned on before loading the paper.

1. Turn on the printer.

2. With the right edge of the paper positioned at the “䊲” mark on the Cover Top, insert the paper.


Note: To feed paper along the long edge, remove the Piece (1) on the left side of the printer cover and set the paper.


User’s Guide: English 23

How to remove the Piece

1. Press the Cover Open Bar and open the Printer Cover.

CAUTION: Printhead may be very hot.

o425_03.jpg and o425_04.jpg

2. Unlock the latch (1) of the Piece Cover B (2) and remove the Piece Cover B.


3. Remove Piece Cover A.


OKIPOS 425S

4. Close Printer Cover.

* Paper has been set for long-edge printing.


* Store the removed Piece in a safe place so that you will not lose it.

User’s Guide: English 25

1.5.4 Sprocket Paper (Tractor)

1.5.4.1 Loading the Sprocket Paper (Tractor)

Use the paper that matches the specifications.

Note: The printer must be turned off before inserting the tractor.

1. Turn off the printer. Move the Paper Guide all the way to the right. Pull the hooks (1) on the tractor cover (2) in the arrow direction and remove the tractor cover.


2. Insert the tractor as shown below, and lock the tractor lock lever (1).


OKIPOS 425S

3. Set the tractor lever (1) in the direction of the arrow.


4. Turn on the printer.

5. Pull up on the lock levers (1) and open the tractor covers (2), then move the right tractor over to fit the width of the paper. Center the support (3) between the tractors.


6. Place the first two holes in the paper over the tractor pins (4) on either side and close the tractor covers.


User’s Guide: English 27

7. Move the left tractor to align the edge of the paper with the appropriate reference mark (!), and push back the right lock lever (2).


8. Fine-tune the position of the right tractor to center the holes in the paper on the pins, and push back the left lock lever (1).


OKIPOS 425S

9. Printer feeds the paper into the printer when your computer sends data.

10. Preparation

1) Position the printer at the front edge of the support (this promotes the unrestricted flow of paper into the printer), then place a stack of Sprocket (Tractor) Paper below the printer.

2) The standard height of desks on which the printer is installed should be 75cm. Paper should be loaded in parallel with the paper running path wherever possible. The deviation to right and left should be 5cm or less.

3) The ejected paper should be folded squarely on the floor to enable smooth paper conveyance. Inappropriate paper setting may deteriorate print quality.

F-002.eps and F-003b.eps

1 50mm or less 2 750mm 3 600mm or more

User’s Guide: English 29

2. Using the Printer

2.1 Operation Panel Functions

Note OEM Fiscal Type:

The operation panel is under the control of the fiscal control PCB. Consequently, the fiscal control PCB should be removed before self tests. Alternatively, disconnecting the cable from the main control PCB is acceptable.

Operation Panel Specification


1 POWER LED Green 2 LED1 Red 3 LED2 Orange 4 LED3 Orange

LED4 Green

5 SW2 6 SW3 7 SW1 8 SW4

456123 7

Operation Panel

OKIPOS 425S

2.1.1 Switching Functions

A25046.doc

No. Switch Function in Modes other than Tractor Function in Tractor Mode

1SW2

(FF/LOD,PAK)

2SW3

(CUT)

3SW1

(LF)

4SW4

(Receipt LF)

* The above switch operations in principle correspond to special commands for switch control.

In Receipt Mode: Feeds Receipt paper for the specified length (10/6”) In Slip Mode: Ejects a fed slip paper In Validation Mode: Disabled *Printing will not be started. In Receipt/Slip/Validation Modes: Disabled

In Receipt Mode: Feed a line of Receipt paper In slip mode: Feed a line of a fed Slip paper In Validation mode: Disabled *Printing will not be started.

Feeds a line of Receipt paper *Enabled regardless of media mode and media state.

Without paper: Automatic loading With paper: Automatic parking

At cutting position: Reverse – feed to the printing position At printing position: Feed to the cutting position Without paper: Disabled With a single push: One line feed of Sprocket paper With a continuous push: Page feed *A line is fed immediately after a switch push, and a page after a 500ms continuous push. *Printing will not be started

User’s Guide: English 31

2.1.2 LED Function

A25004.doc

No. LED ON OFF Blinking

1 POWER Green Powered On Powered off 2 LED 1

(ERROR)

3 LED2

(Status)

4 LED3/

LED4 (Mode)

When “Cover Open Alarm” is set to No in Menu, Cover Open Alarm is disabled (printing does not stop).

Red Recoverable Alarms

*Slip Feed/Eject Alarm *Auto Loading Alarm *Auto Parking Alarm *Media Mismatch Alarm (1) *Media Mismatch Alarm (2) *Cover Open Alarm (Only OKI standard type)

Orange Paper is not fed

(In sheet-insertion wait state)

Orange In Slip Mode In

Green In Receipt Mode

Normal state *Unrecoverable Alarms

(blinking pattern indicates alarm type) *See the table in section 4.1 *SP Thermal alarm (LED2 blinks concurrently) *LF Thermal Alarm

Paper has been fed (in print ready state) In Tractor Mode

*In sheet-extraction wait state *SP Thermal Alarm (LED1 blinks concurrently)

Validation mode *Quick blinking

In MICR Mode *Slow blinking

* Media Does Not Match Alarm (1) is detected by monitoring the option tractor lever. Media Does Not Match Alarm (2) is detected by the Validation sensor monitoring (media manually inserted into the validation opening).

OKIPOS 425S

2.2 Local Functions

Note OEM Fiscal Type :

This section describes local maintenance capabilities under the control of the printer block.

The fiscal control PCB should be removed before the functions are performed.

2.2.1 Types

Local Functions

Local test

All letters & rolling ASCII continuous printing test (Receipt) All letters & rolling ASCII continuous printing test (Slip/Sprocket) Sample data continuous printing test (Validation) MICR read test (Receipt) (only with MICR Type)

Rewinder winding-performance evaluation continuous printing test (Receipt) Menu function (Receipt) Hexadecimal dump (Receipt) Platen maintenance mode

User’s Guide: English 33

2.2.2 Starting

No. Local Functions SW2 SW3 SW1 SW4

A25047.doc

1 All letters & rolling ASCII continuous printing

test (Receipt)

2 All letters & rolling ASCII continuous printing

test (Slip/Sprocket) 3 Sample data continuous printing test (Validation) X O X X 4 Menu function (Receipt) O X O X 5 Hexadecimal dump (Receipt) X O O X 6 MICR read test (Receipt) (Only with MICR type) O O X X 7 Platen maintenance mode O O O X 8 Rewinder winding-performance evaluation

continuous printing test (Receipt)

Notes:

1. To make the above modes are active, turn on the printer while pressing the switches marked with a circle and releasing those with a cross.

2. No.2: Sprocket paper printing test is performed when the lever is on the Tractor side, and Slip paper printing test when the lever is not on the Tractor side.

3. No. 3, 6 and 8: if the lever is on the Tractor side, the printer starts up for normal printing with the function disabled.

No. 1, 4, 5, and 7: the printer starts up with the function enabled regardless of the lever position.

4. No. 1: printing width is as set in the Width of Roll Paper menu.

XXOX

OXXX

XOOO

5. No.1, 2 and 8: printing is suspended by pressing SW1. Pressing SW1 again restarts printing.

6. No. 1-3, 6 and 8: printing is suspended by opening the cover. Close the cover to restart printing.

7. During any local function, lever operation causes media mismatch alarm (1). When the lever is returned to the original position, the alarm is released to restart test printing.

OKIPOS 425S

2.3 Menu Function (Receipt)

Overview

The menu function is the local function that sets each mode to control the printer and adjust it. This mode has the following items, saved in the E2P-ROM. This information is printed only when the menu mode is activated at Power On, and the information can be overwritten from the operator panel.

Menu Print is printed in Receipt Mode. The menu determines the initialization state of each mode.

2.3.1 OEM — Standard Model

No. Item Function Sets

1 Auto Cutter Unit Selects Auto Cutter Unit

2 MICR Unit Selects MICR Unit Installed/Not

3 Print Registration Adjusts the print position if it

4 Top Adjust Adjusts Top of Form position

5 Cut Adjust Adjusts Cut Position when cutting

6 Width of Roll Paper Selects the paper width of Roll

O = default value

A25006.doc

Installed/Not Installed

Installed

shifts in Forward printing and Reverse printing

when Slip/Sprocket are used

Sprocket paper

paper. (Changes the print area)

Yes O No Yes (CMC-7) Yes (E-13B) O No

0.25mm Right

0.20mm Right

0.15mm Right

0.10mm Right

0.05mm Right O 0

0.05mm Left

0.10mm Left

0.15mm Left

0.20mm Left

0.25mm Left

-1.75mm ~+1.75mm *Can be set in the 0.35mm unit *Default value: 0 mm

-1.75mm ~+1.75mm *Can be set in the 0.35mm unit *Default value: 0 mm O 76.2mm

69.5mm

Note For No. 3, 4, and 5, adjust to the proper values at factory shipment.

User’s Guide: English 35

2.3.2 OKI — Standard Model

No. Item Function Sets

A25007.doc

1 Auto Cutter Unit Selects Auto Cutter Unit Installed/Not Installed Yes

2 MICR Unit Selects MICR Unit Installed/Not Installed Yes(CMC-7)

3 Print Registration Adjusts the print position if it shifts in Forward

4 Top Adjust Adjusts Top Of Form position when

5 Cut Adjust Adjusts Cut Position when cutting sprocket

6Auto LF

(Auto line feed)

7 Receive Buffer

Size

8 Print Mode Selects font O Utility

9 Off-line Busy

Control

10 Cover Open Alarm Selects enable/disable of print stop in Cover

11 Width of Roll

Paper

12 Zero Character Selects a zero font Slashed

13 Page Length Selects the paper length of Sprocket paper 88.9mm

14 Paper End Signal Selects the paper sensor that enables Paper End

O = default value

printing and Reverse printing

Slip/Sprocket are used.

paper.

Selects auto line feed. (Selects auto line feed by CR Code) Selects Receive Buffer Size 2K

Selects conditions of BUSY O Yes (Off-line or

Open Selects the paper width of Roll paper (Changes the print area)

Signal.

•

RNE: Receipt/Journal Near End Sensor

•

RE: Receipt/Journal End Sensor

O No

Yes(E-13B) O No

0.25mm Right

0.20mm Right

0.15mm Right

0.10mm Right

0.05mm Right 0

0.05mm Left

0.10mm Left

0.15mm Left

0.20mm Left

0.25mm Left

-1.75mm ~ +1.75mm *Can be set in the

0.35mm unit *Default value: 0 mm

-1.75mm ~ +1.75mm *Can be set in the

0.35mm unit *Default value: 0 mm Yes O No

O 16K

HSD

receive buffer-full) O No (Receive bufferfull) O Yes No O 76.2mm

69.5mm

O Unslashed

139.7mm

215.9mm O 279.4mm

304.8mm O Yes (RNE or RE) Yes (RE) No

Note 1) In this model, an auto cutter unit cannot be installed.

Note 2) I/F control information (baud rate, etc.) and customer display connection/disconnection of serial model are set by

DIP-SW on the I/F board.

Note 3) MICR Unit selection has the following two types for MICR Read test (Refer to Section 2.6): “Yes (CMC-7),” and

“Yes (E-13B).” Normally, either selection is recognized as an actual installation status of MICR Unit, and MICR type is selected by designation of the command.

Note 4) For No. 3, 4, and 5, adjust to the proper values at factory shipment.

OKIPOS 425S

2.3.3 How to Operate

Start

To start the Menu Mode, turn the printer on while holding down SW2 + SW1. When the printer’s initialization ends correctly, the printer prints the title “Menu Print” and all the menu items and set values. Then, the printer line-feeds until the print result goes beyond the Manual Cutter position, prints the item/set value immediately after “Menu Print,” then waits for a switch to be pressed.

Operation

The switch functions during the menu mode are as follows:

A25008.doc

Switch Function

Advances the set values of the Menu Item, one at a time. From the last set SW2 SW3 Ends Menu Mode.

SW1 Advances the Menu Items, one at a time.

SW4 Feeds the receipt, by one line

value, returns to the first set value.

Registers the set values in EEPROM, then prints the end message “Menu

End” and returns to the same initialized state as at power on.

From the last Menu Item, returns to the first Menu Item.

User’s Guide: English 37

2.4 Hex Dump Function (Receipt)

This function converts received data, as it is, to character codes, and prints it in the Receipt mode. The printed contents are as follows: Upon receiving one byte, the printer divides it into three characters, High-nibble, Low-nibble and a space. Regarding these as 1 block, the printer prints 8 blocks in one line, then, prints the same data in the character format.

Upon entering the HEX dump mode, the printer prints “Hex Data Dump”. (Title printing)

2.4.1 Print Format

OP425_03c.eps

Hex Data Dump

0000 XX XX XX XX XX XX XX XX : ........

0008 XX XX XX XX XX XX XX XX : ........

. . . .

FFF8 XX XX XX XX XX XX XX XX : ........

0000 XX XX XX XX XX XX XX XX : ........

. . . .

Hex dataLine No. ASCII data

2.4.2 How to Print

1 If it does not receive data after 150ms have passed since receiving last data, the printer starts printing (CR) if it has some

data. (If there is not enough data to form 8 blocks, spaces will be used.) If it subsequently receives data, the printer prints from a position next to the position at which the printing started.

2 If it receives the I-PRIME signal (Parallel model)/Reset signal (Serial model), the printer starts printing if it has some data,

then feeds one line. Then, the printer is initialized. (If it does not have any data, the printer feeds one line and then is initialized.) After the initialization, the printer starts up in dump mode again and prints. The line number is reset, however, and counting begins from “0000”.

* When I-PRIME signal (Parallel model)/Reset signal (Serial model) is hard reset (setting by Short Plug with Parallel I/F

board and by DIP SW with Serial I/F board), it immediately starts initialization and does not continue hex dump. 3 One line-feed is added for every 16 lines. 4 The count begins from “0000” when the line number exceeds “FFF8.”

OKIPOS 425S

2.5 Using the MICR Reader (Option)

If your printer has the factory installed optional MICR (Magnetic Ink Character Recognition) reader that enables the printer to read and process MICR characters on personal checks, read this section.

Note 1: If Cut-sheet Paper or Sprocket Paper has been loaded, eject it before you use the MICR feature. This does not apply

to the Roll Paper.

Note 2: When the Tractor (Option) (1) has been installed, remove or park the Sprocket Paper, then switch the Lever to the

Cut Sheet side (1) from the Sprocket side (3)


Note 3: When using a MICR-version machine, align the marks “䊱” and “䊲” as shown and set the paper along the paper

guide (1).

Note 4: Use a flat Check Sheet. If you use Check Sheets that are dog-eared, have wrinkles, or are wavy, they are more likely

to cause a paper jam, scan failure, or damage to the MICR Head.


User’s Guide: English 39

How to use the MICR Reader

1. Send the command “FS a 0 n” from the host computer. Then the printer shifts to the MICR Mode and waits for the Check

Sheet to be inserted. LED3 blinks slowly in orange (repeats 1 sec ON, 1 sec OFF).

2. Insert the Check Sheet with its magnetic ink print surface up and the magnetic ink print area to the right side of the

direction of insertion, butting it against the right side of the printer. The printer feeds the Check Sheet and reads at the same time.

3. To print on the Check Sheet, send the command “FS a 1” which feeds the Check Sheet to the print start position, then send

the print command.

4. To eject the Check Sheet, send the command “FS a 2.”

5. To have the Check Sheet read results sent again, send the command “FS b.”

OKIPOS 425S

2.6 MICR Read Test (Receipt)

This function performs MICR read and prints that result on the receipt paper. Effective only when the MICR unit is installed and “MICR Unit = Yes(CMC-7)” or “MICR Unit = Yes(E-13B)” is set in the

menu. (1) How to start

Turn the power on while holding down SW2 + SW3.

(2) How to exit

Turn the power off.

(3) Contents of the test

(a) When this mode is started, the printer enters Wait for MICR Insertion state. (b) Insert MICR card and perform MICR read. (c) The printer prints MICR read results on the Receipt paper, and enters Wait for MICR Insertion state.

(b) and (c) above are repeated.

User’s Guide: English 41

(4) Contents printed

When Read is OK:

(a) Prints “Read OK.” (b) Prints the MICR read results in HEX dump.

(“XX XX ...... XX” + ASCII: 1 line contains 8 byte information)

When Read is NG:

(a) Prints “Read NG.” (b) Prints the MICR read results (Return Code (1 byte) and read data) in HEX dump.

(“XX XX ...... XX” + ASCII: 1 line contains 8 byte information)

• Regarding MICR Read result, Return Code (1 byte) and Read Data are printed. When the Return Code is 30H (“No errors”), it is assumed as “Read OK.” Otherwise, it is assumed as “Read NG.”

• Return codes are shown below:

Return code Status

30H (0) No errors. 33H (3) Error: Read/Decode error. 34H (4) Error: No magnetic ink detected. 36H (6) Error: Document jam or document is too long.

• When character set is CMC-7, the below codes are returned.

A25010a.doc and OP425_01.tif

A: dash symbol B: amount symbol C: transit symbol D: On-Us symbol E: comma symbol

A25010.doc

Character Code Character Code Character Code Character Code 131H232H333H434H 535H636H737H838H 9 39H 0 30H (space) 20H A 41H B42HC43HD44HE45H

• When character set is E-13B, the below codes are returned.

A25011a.doc and OP425_02.tif

A: dash symbol B: amount symbol C: transit symbol D: On-Us symbol

A25011.doc

Character Code Character Code Character Code Character Code 131H232H333H434H 535H636H737H838H 9 39H 0 30H (space) 20H - A 41H B 42H C 43H D 44H

Note In both cases of CMC-7 and E-13B, special character codes are different from those sent to host by a check paper

read command.

OKIPOS 425S

2.7 Rewinder Winding Evaluation Continuous Print Test (Receipt)

This function performs print/platen switch continuous test to evaluate the rewinder winding performance. (1) How to start

Turn the power on while holding down SW3 + SW1 + SW4.

(2) How to exit

Turn the power off.

• During test printing, if you press SW1, printing suspends. If you press SW1 again, printing resumes.

(3) Contents printed

(a) Prints “HHH”+ Space + “HHH” (UTL characters) (b) Print Sheet Mode switching (Receipt ® Slip ® Receipt)

User’s Guide: English 43

3. Maintenance

3.1 Replacing the Ribbon Cartridge

When printing becomes light, replace the Ribbon Cartridge, following the procedure shown below:

1. Make sure the printer is turned OFF.

2. Press the Cover open bar and open the printer cover.

o425_03.jpg and o425_04.jpg

3. Center the printhead.


OKIPOS 425S

4. Swing the front of the cartridge up off the printhead, then lift the cartridge out and discard it.

Caution! The printhead may be HOT!


5. Unpack the ribbon cartridge.

Important! Do NOT remove the ribbon shield (1) from the ribbon!


1 Ribbon Shield 2 Take-up Knob 3 Grip Points

6. Install the new ribbon cartridge.

1) Hold the ribbon cartridge as shown below.


2) Fit the grooves in the flat end of the cartridge over the posts on the ribbon plate.

User’s Guide: English 45

3) Lower the front of the cartridge over the printhead until it snaps into place.

o425_06.jpg and o425_09.jpg

4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack.


OKIPOS 425S

3.2 Replacing the Roll Paper

When the Roll is used up, load a new one, following the procedure shown below.

1. Press Form Feed switch (1) and eject all the Receipt Paper (2).


2. Press the Cover Open Bar and open the Printer Cover.

* Caution! The printhead may be HOT!

o425_03.jpg and o425_04.jpg

User’s Guide: English 47

3. Remove the paper roll on the rewinder, following the procedure below. (1) Remove the rewinder (1) from the printer (2).


(2) Rotate the flange (2) in the direction shown below and remove it from the rewinder (1).

Note 1: Rotation direction of the flange varies depending on the width of the Roll Paper.

Arrow 3: Wide Roll Paper (Width: 76.2 mm)

Arrow 4: Narrow Roll Paper (Width: 69.5 mm)

Note 2: When a spacer is installed, remove the spacer along with the flange.


(3) Pull the Roll Paper (1) out from the rewinder (2). When it is tight, rotate the rewinder in the direction below, and pull

out the paper.


4. Load new paper roll. For loading Roll Paper, refer to Section 1.5.1.2.

OKIPOS 425S

3.3 Clearing Paper Jams

When Roll Paper gets jammed, remove the paper, following the procedure shown below:

1. Press Cover Open Bar and open the printer cover.

* Print head may be very hot. Exercise caution.

o425_03.jpg and o425_04.jpg

2. Remove the rewinder and cut the Roll Paper (1) at the location (2) shown below.


User’s Guide: English 49

3. Press the two levers (1) on either side at the same time as shown, lift the plate assembly and gently pull out the jammed paper in the direction of the arrow.

Note: Be careful not to leave small pieces of paper.

o425_103.jpg and o425_104.jpg

4. Load a new paper roll. For the procedure to load Roll Paper, refer to Section 1.5.2.

Note: Before loading Roll Paper, press down on the two levers (1) to close the plate assembly securely.


OKIPOS 425S

Cut-Sheet Paper

When cut-sheet paper gets jammed, remove the paper, following the procedure shown below:

1. Press the Cover Open Bar and open the printer cover

* Print head may be hot. Exercise caution.

o425_03.jpg and o425_04.jpg

2. Slowly pull out the paper upward or toward you while pulling the lever (1) [marked “PULL”] toward you.

Note: Be careful not to leave small pieces of paper behind.


User’s Guide: English 51

Sprocket Paper

When sprocket paper gets jammed, remove the paper, following the procedure shown below.

1. Open the Tractor Cover (1) and cut the sprocket paper at the perforation (2).


2. Press the Cover Open Bar and open the printer cover

o425_03.jpg and o425_04.jpg

3. Slowly pull out the paper upward or toward you while pulling the lever (1) [marked “PULL”] toward you.

Note: Be careful not to leave small pieces of paper behind.


OKIPOS 425S

4. Troubleshooting and Repair

4.1 Alarm Indication for a Failure

When a failure occurs, the printer indicates its contents with LED1 lamp on the operation panel, which blinks in different ways depending on the failure type.

Note: OEM Fiscal Type:

The alarm indication works only when the Fiscal Control PCB is not mounted.


1 POWER LED Green 2 LED1 Red 3 LED2 Orange 4 LED3 Orange

LED4 Green

5 SW2 6 SW3 7 SW1 8 SW4

456123 7

Operation Panel

User’s Guide: English 53

4.1.1 Details of Alarm Indications

Table411.doc

No. of times LED 1 blinks 1 Program ROM Alarm 2 EEPROM Alarm 3 Internal RAM Alarm 4 External RAM Alarm 5 Homing Alarm 6 Spacing Alarm

8 Platen Switching Alarm Is the media jammed?

9 Head A/D Error 10 WDT (F/T Control) 11 NMI (F/W Control) 12 BRK (F/W Control) 13 MICR Unit Error (only

14 Interface PCB Error (only

Malfunction contents What you should do

Contact the store where you bought the printer or the Maintenance Service Center

Is the media jammed? → If it is, remove the jammed paper. Is the ribbon snagged? → Replace the ribbon. If the above do not apply to your case, contact the store where you bought the printer or the Maintenance Service Center

→ If it is, remove the jammed paper. If this is not the case, contact the store where you bought the printer or Maintenance Service Center

Contact the store where you bought the printer or Maintenance Service Center

Although the MICR Option is not installed in your

with MICR type)

OKI standard type)

printer, is the No. 2 MICR Unit setting in the Menu “Yes?” (On how to check the Menu Settings, refer to Section 2.3, “Menu Function.” → If it is, change it to “No.” If this is not the case, contact the store where you bought the printer or Maintenance Service Center Is I/F board (option) installed correctly? → If not, install it correctly. Isn’t I/F board (option) defective? → If it is, replace the I/F board. If the above do not apply to your case, contact the store where you bought the printer or Maintenance Service Center

OP425_04.eps

1 One Cycle

OKIPOS 425s

4.1.2 LED Indication

Table412.doc

No. LED ON BLINK 1 LED 1

(ERROR)

2 LED 2

(STATUS)

Red [Recoverable Alarms]

Slip Load Alarm → Slip paper was not loaded correctly. Remove it and reload it. Slip Exit Alarm → Slip paper did not exit correctly. Remove the Slip paper. Auto Loading Alarm → Sprocket paper was not loaded correctly. Set it at the correct position of the Tractor and do the loading operation again. Auto Parking Alarm → Sprocket paper did not eject correctly. Do the parking operation again. If the paper does not move through the Tractor Gear turns, remove it manually. Media Mismatch Alarm → Media different from the one the printer is trying to print on has been set. Change the print mode or set the correct media. Cover Open Alarm → Close the printer cover.

Orange Media has not been loaded (Waiting for loading)

state. → Load the media.

Fatal Alarm (see Section 4.1.1) SP Thermal Alarm (blinks simultaneously with LED2) → The print head area has become hot. As soon as the temperature goes down, the printer recovers automatically. LF Thermal Alarm → The LF Motor has become hot. As soon as the temperature goes down, the printer recovers automatically.

Waiting for Media to be removed.

Remove the media.

→

SP Thermal Alarm (blinks simultaneously with LED1) → The print head area has become hot. As soon as the temperature goes down, the printer recovers automatically.


User’s Guide: English 55

5. Specifications

5.1 Introduction

5.1.1 Scope of Application

This specification applies to OKIPOS 425S/425S/425SF, a 9-pin type serial dot impact printer. This device is a desk-top serial dot impact printer, used exclusively as the output device for POS (Point-of-sales) system.

• OKIPOS 425S: OKI Single Standard Version

• 425S: OEM Single Standard Version

• 425SF: OEM Single Fiscal Version

5.1.2 Characteristics

Printhead with 9 pins mounted Direct access control panel Printhead Life: 200 million characters (Ave.) - Utility Print Quality Print speed: 387 cps (19.3 ips): HSD (High-Speed Draft)

317 cps (19.3 ips): Utility

Paper feed: Rear: Roll Paper

Top: Counterfoil / Validation

Front: Cut-Sheet Paper/Sprocket Paper (Tractor) Paper handling: Auto Loading Paper copies: Cut-Sheet Paper: Total 5 pages (original 1 + 4 copies)

Sprocket Paper (Tractor): Total 4 pages (original 1 + 3 copies) Emulation: OEM Fiscal Type: OKI Epson Emulation + New Defined

Command to support OEM fiscal command OEM Standard Type: OKI Epson Emulation OKI Standard Type: OKI Epson Emulation (ESC/POS similar)

Interface: IEEE-1284 bidirectional parallel or RS-232C Interface Line Feed Increments: OEM Fiscal/OEM Standard Type: 1/6", n/216" (0 < n < 255)

OKI Standard Type: 1/6", n/144" (0 < n < 255)

Agency approved by UL, CSA, CE and FCC Variations: OEM Fiscal Version

OEM Fiscal + MICR Version OEM Standard Version OEM Standard + MICR Version OKI Standard Version OKI Standard + MICR Version (MICR: Magnetic-Ink-Character-Recognition)

OKIPOS 425S

Options

1 Front Tractor: User Option


2 Parallel Interface: Dealer Option (OKI/OEM Standard Type)


3 RS-232C Interface: Dealer Option (OKI Standard Type)


Note Only one interface option can be installed.

User’s Guide: English 57

5.1.3 Configuration

Standard Printer Configuration

1 Printer Cover 2 Control Panel 3 Paper Guide 4 Cover Open Bar 5 ON/OFF Switch


OKIPOS 425S

5.2 General Specifications

5.2.1 Power Requirements

1 Input power

Single-phase AC Voltage: Universal 120VAC+15% – 230VAC+15% Frequency: 50/60Hz +2%

2 Power consumption (without Fiscal Control PCB)

Local Test : Max. 40W (Local Printing) Idle: Max. 15W

5.2.2 Environmental Conditions

1 Ambient temperature and relative humidity

Operating Non-operating Unit Temperature 41 to 104 32 to 109.4 °F

(5 to 40) (0 to 43) (°C)

Relative 20 to 80 10 to 90 %RH Humidity

Avoid condensation at all times.

5.2.3 Agency Approvals

UL: UL 1950 CSA: CSA C22.2 N0.950 CE: EN 50081-1: 1992 (EN55022 class B)

EN 50082-1: 1992 EN 60950

FCC: class A

User’s Guide: English 59

5.3 Communication Interface Specifications

5.3.1 Parallel Interface (OKI/OEM Standard Type)

1 Interface Spec (Between centronics connector and host PC)

Parallel interface signal part (IEEE-1284 parallel equivalent) Centronics Connector Pin Assignment signal

A25012.doc

Pin No. Signal Name Direction Function 1 nStrobe From host PC Data Strobe 2-9 DATA bit 1~8 From host PC Data from host PC 10 nAck To host PC Receive completion 11 Busy To host PC Data receiving impossible

OEM Standard Type: Error12 PError To host PC

OKI Standard Type: Paper End 13 Select To host PC Online 14 nAutoFd From host PC 1284 mode move request 15 NC - Not connected 16,1930, 33 17 FG - Frame ground 18,35 +5V To host PC +5VDC power supply (Max 400mA) 31 nInit From host PC Initialization 32 nFault To host PC Error

36 nSelectln From host PC 1284 mode move request

GND - Signal ground

OEM Standard Type: Not used34 DK_STATUS To host PC

OKI Standard Type: Cash Drawer status signal

Note: Pin arrangement

OP425_05.eps

118

1936

OKIPOS 425S

5.3.2 RS-232C Interface (OKI Standard Type)

1 Interface signals

A25013.doc

Pin No. Signal Code Signal Function 1 Protective ground PG - Frame ground 2 Transmitted Data TD From printer Data from printer 3 Received Data RD To printer Data to printer 4 Request to Send RTS From printer Indicates printer cannot receive

data in printer and Customer

Display Busy/Ready protocol 6 (Note 2) 7 Signal Ground SG - Signal ground 20 Data Terminal Ready DTR From Printer Indicates printer cannot receive

5,8 to 10,11, 12 to 19, 21 to 24 25 (Note 2)

Data Set Ready DSR To printer Indicates that data can be sent

data in printer Busy/Ready

protocol

- - - Unused

Initial INIT To Printer Requests printer reset

Note 1 Connector pin arrangement

OP425_06.eps

(View from the cable side)

Note 2 The enabled or disabled state of the initial state request signals assigned to pins 6 and 25 is selectable with the DIP

SW1-1 and DIP SW1-2.

User’s Guide: English 61

5.3.3 Cash Drawer connector (OKI Standard Type)

1 Cash Drawer Connector Signals

A25014.doc

Pin No. Signal Name Direction Function 1 FG - Frame ground 2 CASHDV1 To Cash Drawer Cash Drawer drive 1 3 CASHST-N From Cash Drawer Cash Drawer status signal 4 +24V To Cash Drawer +24VDC power supply 5 CASHDV2 To Cash Drawer Cash Drawer drive 2 6 EL - Signal ground

Note: Pin arrangement

OP425_07.eps

1 2 3 4 5 6

OKIPOS 425S

5.3.4 Customer Display connector (OKI Standard RS-232C Interface Type)

1 Customer Display Connector Signals

A25015.doc

Pin No. Signal Name Direction Function 1 FG - Frame ground 2 NC - Not Connected 3 TD To Customer Display Data to Customer Display 4 DTR To Customer Display +12VDC Power supply 5 DSR From Customer Display Indicates that data can be sent 6 EL - Signal ground 7 +24V To Customer Display +24VDC power supply 8 EP - Power ground

Note Pin arrangement

OP425_08.eps

1 2 3 4 5 6 7 8

User’s Guide: English 63

5.4 Physical Characteristics

5.4.1 Printhead

Print method: Impact dot matrix Number of dot wires: 9 wires Dot wire diameter: 0.34 mm (0.013")

5.4.2 Printer

1 Outside dimensions (without Tractor)

265 mm (10.43") (W) x 218 mm (8.58") (H) x 337 mm (13.27") (D)

OP425_09b.eps

265mm (10.43inch)

2 Outside dimensions (with Tractor)

265 mm (10.43") (W) x 218 mm (8.58") (H) x 422 mm (16.61") (D)

OKIPOS 425S

218mm (8.58inch)

25.5mm (1inch) 337mm (13.27inch)

5.5 Logical Characteristics

5.5.1 Print Direction

Bidirectional, unidirectional printing Short-line-seeking printing

5.5.2 Selectable Character Pitches

Character width

A25016.doc

Selected font HSD Utility HSD (*1) Utility (*1)

20 CPI

Regular size

Double wide size

(*) OEM Type: Cut Sheet or Sprocket Paper (Tractor) mode only

Character pitch

A25017.doc

Number of dots per inch (DPI) 180 240 (*1)

Max. print dot rows

(*1) OEM Type: Cut Sheet or Sprocket paper (tractor) mode only. (*2) Apply narrow size roll paper

0.05 inch

1.27 mm 10 CPI

0.1 inch

2.54 mm

Roll paper 504 (456 *2) 672 (608 *2) Cut sheet Paper/Validation 1134 1512 (*1) Sprocket paper (Tractor) 1134 1512 (*1)

16.4 CPI

0.061 inch

1.55 mm

8.2 CPI

0.122 inch

3.10 mm

26.7 CPI

0.037 inch

0.95 mm

13.3 CPI

0.075 inch

1.91 mm

Normal Size Condensed size

21.8 CPI

0.046 inch

1.17 mm

10.9 CPI

0.092 inch

2.33mm

ContentsItem

5.5.3 Maximum Number of Characters per line

A25018.doc

Selected font HSD Utility HSD (*1) Utility (*1) Regular size 20 CPI 16.4 CPI 26.7 CPI 21.8 CPI Roll paper 56 (50 *2) 45(41 *2) 74 (67*2) 61 (55 *2) Cut Sheet/Validation Sprocket paper (Tractor) Double wide size 10 CPI 8.2 CPI 13.3 CPI 10.9 CPI Roll paper 28 (25 *2) 22 (20 *2) 37 (33 *2) 30 (27 *2) Cut Sheet/Validation Sprocket paper (tractor) (*1) OEM Type: Select Cut Sheet or Sprocket paper (Tractor) mode only. (*2) Apply narrow size roll paper.

126 103 168 137

63 51 84 68

User’s Guide: English 65

5.5.4 Font Size/Cell Size

A25019.doc

Font type Font size (H x V) Cell size (H x V) CPI HSD 7 x 7 dots 9 x 9 dots 20 (26.7 *1) Utility 9 x 7 dots 11 x 9 dots 16.4 (21.8 *1) (*1) OEM Type is Select Cut Sheet or Sprocket paper (Tractor) mode only. Apply narrow size roll paper.

5.5.5 Line Feed Pitches

6 LPI [4.23 mm (0.167")] OEM Type: A variable line feed pitch of n/216 inch (integer n: 0 < n < 255) can also be specified. OKI Standard Type: A variable line feed pitch of n/144 inch (integer n: 0

< n < 255) can also be specified.

5.6 Printer Performance

5.6.1 Print Speed

1 Regular size

A25020.doc

Selected Font HSD Utility Size 20 CPI 16.4 CPI Print Speed 387 CPS 317 CPS

2 Double wide size

A25021.doc

Selected Font HSD Utility Size 10 CPI 8.2 CPI Print Speed 194 CPS 159 CPS

5.6.2 Line Feed Speed

Feed rate is 114.3 mm (4.5") per second.

OKIPOS 425S

5.7 Media Specifications

5.7.1 Cut-Sheet Paper (Slip/Validation)

Paper Width: 105 to 215.9 mm (4.13" to 8.5") Paper Length: 70 to 297 mm (2.76" to 11.7") Single part (Slip)

Weight: 52 to 105 g/m2 (14 to 28 lb) Thickness: 0.065 to 0.13 mm (0.0026" to 0.005")

Single part (Validation)

Weight: 65 to 81g/m Thickness: 0.08 to 0.1 mm (0.0031" to 0.0039")

Multipart-carbon lined or pressure sensitive

Weight: 34 to 40g/m2 (9 to 11 lb) Number of copies: Original plus 4 copies Thickness: 0.3 mm max. (0.012" max)

Note: All part must be glued at the top. Multipart is slip only.

5.7.2 Cut-Sheet Paper (Counterfoil/Stub)

Paper Width: 70 mm (2.76") or more Paper Length: 40 mm (1.57") or more Weight: 65 to 81g/m2 (17 to 21 lb) Thickness: 0.08 to 0.1 mm (0.0031" to 0.0039")

(17 to 21 lb)

Single paper only.

5.7.3 Roll Paper

Paper Width: 69.5 mm / 76.2 mm (2.73" / 3") +0.5 mm (0.02") Diameter: 101.6 mm max. (4" max.) Multipart-pressure sensitive

Weight: 52 to 81g/m2 (14 to 21 lb) Number of copies: Original plus 1 copy Thickness: 0.18 mm max. (0.007"")

Note: The standard paper weight is 57g/m2 (15 lb) for the first sheet and 45 g/m2 (12 lb) for the second sheet of multi-part

paper.

User’s Guide: English 67

5.7.4 Sprocket Paper (Tractor)

Paper Width: 76.2 to 215.9 mm (3" to 8.5") Paper Length: 76.2 to 355.6 mm (3" to 14") Single part

Weight: 52 to 81g/m2 (14 to 21 lb) Thickness: 0.065 to 0.1 mm (0.0026" to 0.0039")

Multipart-carbon lined or pressure sensitive

Weight: 34 to 40g/m2 (9 to 11 lb) Number of copies: Original plus 3 copies Thickness: 0.27 mm max. (0.01" max)

Multipart-interleaf

Weight: 38 to 45g/m2 (10 to 12 lb) [Carbon: 34g/m2 (9 lb)] Number of copies: Original plus 2 copies Thickness: 0.27 mm max. (0.01" max)

Multiple-part paper should be fastened by spot-pasting or crimpling on both side and should be free of wrinkles.

OKIPOS 425S

5.7.5 Appendix: Media Specifications

5.7.5.1. Cut-Sheet Paper (Slip/Validation)

5.7.5.1.1. Paper Size and Printing Area

1 Single-part Paper

OP425_10.eps

1 Base line 2 First character position 3 Paper inserting direction 4 Against the perpendicular to the Base line 5 Printing area 6 + 0.2mm or less

Standard media are in A5 and B5 sizes.

A25022.doc

Symbol Designation Standard Value W Paper width 105~215.9mm (4.13~8.5 inch) L Paper length 70~297mm (2.76~11.7 inch) A Top margin 6.35mm (1/4 inch) B Bottom margin 19.6mm (0.77 inch) C Left margin 2.54mm (0.1 inch) or more D Right margin This distance may be adjusted from 2.54 to 27.94 mm (0.1~1.1 inch)

by moving the paper guide. D=2.54 mm may be set only for a sheet whose W=190.5mm (7.5 inch) or shorter.

E Printing area width Max 160.02mm (6.3 inch)

Note 1 The height-width ratio must be 1: 2/3 – 2.

Note 2 Use a flat sheet free of curls, bends (especially those on its edges), cambers, wrinkles, etc. If a paper is not flat, it

may be contaminated with ink due to contact with the ribbon.

User’s Guide: English 69

2 Counterfoil and Stub

OP425_11.eps

1 Printing area 2 Stub 3 Inserting direction

A25023.doc

Symbol Designation Standard Value W Paper width 70mm (2.76 inch) or more L Paper length 40mm (1.57 inch) or more A Print starting position 18mm (0.7 inch) or less B Left margin 2.54mm (0.1 inch) or more C Right margin 2.54mm (0.1 inch) D Printing area width Max 160.02mm (6.3 inch)

Note 1 To feed paper, insert a paper from the top side of the device and keep holding it until printing ends.

Note 2 Use a flat sheet free curls, bends (especially those on its edges), cambers, wrinkles, etc. If a sheet is not flat, it may

be contaminated with ink due to ink ribbon contact.

Note 3 Before printing on a stub, fold the other sheets backward to make the stub available for print as shown in the fig.

below.

OP425_12.eps

1 Fold backward 2 Stub

OKIPOS 425S

3 Multi-part Paper

The standard multi-part paper is the one whose top edge is pasted.

OP425_13.eps

1 Pasted securely (1mm) 5 Paper inserting direction 2 Base line 6 Printing area 3 First character position 7 Against the perpendicular to the Base line 4 Printing surface 8 + 0.2mm or less

Standard media are in A5 and B5 sizes.

A25024.doc

Symbol Designation Standard Value W Paper width 105~215.9mm (4.13~8.5 inch) L Paper Length 70~297mm (2.76~11.7 inch) A Top margin 6.35mm (1/4 inch) B Bottom margin 19.6mm (0.77 inch) C Left margin 2.54mm (0.1 inch) or more D Right margin This distance may be adjusted from 2.54 to 27.94mm (0.1~1.1 inch)

by moving the paper guide. D=2.54 mm can set only for a sheet whose W=190.5mm (7.5 inch) or shorter

E Printing area width Max 160.02mm (6.3 inch)

Note 1 The height-width ratio must be 1 : 2/3 – 2.

Note 2 Use a flat sheet free of curls, bends (especially those on its edges), cambers, wrinkles, etc. If a sheet is not flat, it may

be contaminated with ink due to ink ribbon contact.

Note 3 Wide paper with the left or right edge pasted should be printed carefully, since it may twist during feeding.

Note 4 Only a multi-part slip can be used for printing. (Insert it from the front side of the printer.)

User’s Guide: English 71

5.7.5.1.2 Paper Quality

The paper in the following quality may be used.

A25025.doc

Type Paper Quality Single-part paper and Stub High quality paper Multi-part paper Pressure-sensitive paper, Carbon-lined paper

1 Paper smoothness must be 90 ~ 7 sec. for Beek and 75 ~ 300 sec. for Sheffield. 2 If you use paper other than that specified, test it to verify that it prints without problems.

5.7.5.1.3 Paper Weight and Maximum Duplicating Quantity

The weight of paper usable for printing and max. duplicating quantity are shown in the table below.

A25026.doc

Type Paper Quality Weight Max.

Copies

(original + 4 copies)

Singlepart paper

High quality paper

Stub High quality

paper Multi-part Paper

Pressure-

sensitive paper,

Carbon-lined

52~105 g/m 65~81 g/m 65~81 g/m

34~40 g/m

(14~28 lb) ← Slip

(17~21 lb) ← Validation

(17~21 lb) - -

(9~11 lb) 5 copies

Total Paper Thickness

0.30mm or less

paper

5.7.5.1.4 Fixing Method of Multi-part Paper Joint

1 The multi-part paper joint shall be fixed with 1mm line-pasting on the edge which is first fed into the printer. 2 The joint must be glued securely and pressed without fail to prevent any part from lifting. 3 Paste shall not overflow the paper edge. 4 Any distinct wrinkle must not be observed in the pasting area.

OP425_14.eps

1 Pasted firmly (Width: 1mm) 2 Paper inserting direction

OKIPOS 425S

5.7.5.1.5 Binding Holes

Do not use a paper with punched holes. It may invalidate your warranty. If you choose to use punched paper, be sure to test it thoroughly. Follow these guidelines: 1 Do not print within 5 mm of the hole center. 2 Make sure that paper dust is not left on the paper. 3 If a hole passes over the paper sensor, a false paper end signal may result. 4 Make sure that the edges of holes are even with the paper surface. If they stick up, the printhead may not move smoothly. 5 The positions of holes should be as illustrated in the figure below.

OP425_15.eps

1 10 or more 2 Paper inserting direction 3 o 6 or less 4 o 10 (shaded area) Do not print. 5 Unit: mm

User’s Guide: English 73

5.7.5.1.6 Perforated Lines

Do not use paper with perforations. It may invalidate your warranty. If you choose to use perforated paper, be sure to test it thoroughly. Follow these guidelines:

1 The specification of a perforated line corresponds to that of a perforated line on Sprocket Paper. 2 Do not print within the shaded area adjoining the perforations. 3 An example of a perforated sheet is shown in the figure below.

op425_16.eps

1 Uncrossed 2 Vertical perforated line 3 Horizontal perforated line 4 Uncut 4 places 5 Unit: mm The shaded area indicates the region where printing is prohibited.

OKIPOS 425S

5.7.5.1.7 Provisions on Fold, Bend and Curl on Cut-sheet Paper

Paper is apt to sustain bends, cambers or curls resulting from manual handling, carrying, stacking, storing conditions, etc. Therefore, before printing, check and adjust paper in accordance with the provisions below to eliminate paper feed problems.

Do not use paper that does not meet the specifications outlined here: it may cause paper feed problems. Problems caused by using non-specified paper are not covered under warranty.

1) Fold (a) Do not use a sheet which is folded across its width (A). Even if such paper is smoothed, its strength is still uneven. (b) For paper with a folded corner (B), if the fold height after adjustment is 2 mm or less, it may be used for printing.

OP425_17.eps

1 15mm or more 2 Adjusted to make the height 2mm or less

2) Bend and Curl (a) If a sheet has a curl height of 2 mm or less (A), it may be used for manual feed printing. (b) If a sheet has a bending height of 2 mm or more within 15 mm from the bending line (B), do not use it for printing.

OP425_18.eps

1 Circular arc 2 2mm or less 3 Adjusted to make the height 2mm or less 4 15mm or more

User’s Guide: English 75

5.7.5.2. Roll paper

5.7.5.2.1 Paper size and Printing area

Multi-part Paper

OP425_19b.eps

1 First character position 2 Cutting position (for manual cutting) 3 Printing area

A25048.doc

Symbol Designation Standard Value W Roll paper width 69.5/76.2 mm (2.73/3 inch) +0.5mm (0.02 inch)

φA φB

C Left margin 2.54 mm (0.1 inch) or less D Right margin 2.54 mm (0.1 inch) or more E Printing area width Max 64.35/71.12mm (2.53/2.8 inch) F Top margin 41.69 mm (1.64 inch) or more

OKIPOS 425S

Roll paper outside diameter Core inside diameter 10mm (0.4 inch) or more

φ101.6mm (4 inch) or less

5.7.5.2.2 Paper Quality

Paper of the following quality may be used.

A25028.doc

Type Paper Quality Single-part paper High quality paper

1 Paper smoothness must be 90 ~ 7 sec. for Beek and 75 ~ 300 sec. for Sheffield. 2 If you use paper other than that specified here, test it to verify that it prints without problems.

5.7.5.2.3 Paper Weight

The weight of paper usable for printing .

A25029.doc

Type Paper Quality Weight Max. Copies Total Paper

Thickness Multi-part paper

Note 1 The standard paper weight must be 57g/m2 (15 lb) for the top sheet and 45 g/m2 (12 lb) for the bottom sheet of

multi-part paper.

Pressuresensitive paper

52~81g/m2 (14~21 lb) 2 copies

(original + 1 copy)

0.18mm or less

User’s Guide: English 77

5.7.5.3. Sprocket Paper (Tractor)

5.7.5.3.1 Paper size and Printing area

OP425_20.eps

1 Printing area 2 Printable area 3 First character position 4 Paper inserting direction 5 Unit: mm 6 Maximum 160.02 The specification for the printable area differs from that for the printing area.

A25030.doc

OKIPOS 425S

Symbol Designation Standard Value W Paper width 76.2~215.9mm (3~8.5 inch) L Paper length 76.2~355.6mm (3~14 inch)

The length must be the one obtained via

multiplying 25.4mm (1 inch) by an integer A Heading position 10.31mm (0.41 inch) B Top margin (on the 1st page) 25.4mm (1 inch) C Bottom margin, recommended 19.05mm (3/4 inch) D Bottom margin, printable 6.35mm (1.4 inch) E Top margin, recommended 25.4mm (1 inch) F Top margin, printable 10.31mm (0.41 inch) G Bottom margin, recommended 198mm (7.8 inch) H Bottom margin, printable 19.6mm (0.77 inch) I Unprintable left margin 11.43mm (9/20 inch) J Unprintable right margin Paper width is 203.2mm (8 inch) or less:

11.43~21.59mm (9/20~0.85 inch)

Paper width is 215.9mm (8.5 inch):

20.39~21.59mm (0.8~0.85 inch)

Note 1 Though you can print within the light shaded area (printable area), feeding may be less accurate.

Note 2 The print quality on the last page is not warrantied.

Note 3 Printing out of the designated printing area may result in poor printing quality or malfunction of the unit. Set the

printing format cautiously.

Note 4 The horizontal perforated line should be placed in the middle of the sprocket hole interval. A horizontal perforated

line close to a sprocket hole may let the paper slip off the holes, resulting in a paper jam.

Note 5 Auto parking function of Sprocket paper can operate up to 14".

User’s Guide: English 79

5.7.5.3.2 Paper Quality

Paper of the following quality may be used.

A25031.doc

Type Paper Quality Single-part paper High quality paper Multi-part paper Pressure-sensitive paper, Carbon-lined paper or Interleaved paper

(1)

Note 1 Interleaved paper is a multi-part paper with carbons inserted between copies.

1 Paper smoothness must be 90 ~ 7 sec. for Beek and 75 ~ 300 sec. for Sheffield. 2 If you use paper other than that specified here, test it to verify that it prints without problems.

5.7.5.3.3 Paper Weight and Maximum Duplicating Quantity

The weight of paper usable for printing and max. duplicating quantity are shown in the table below.

A25032.doc

Type Paper Quality Weight Max Copies Total Paper

Thickness Single-part paper Multi-part paper

High quality paper 52~81 g/m2 (14~21 lb) - -

Pressure-sensitive paper, Carbonlined paper Interleaved paper

34~40 g/m

(1)

38~45 g/m2 (10~12 lb) Carbon 34 g/m

(9~11lb) 4 copies (original

+ 3 copies)

(9lb)

3 copies (original + 2 copies)

0.27mmm or less

Note 1 The thickness of carbon paper used for Interleaved paper must be 0.03 mm or less.

OKIPOS 425S

5.7.5.3.4 Fixing Method of Multi-part Paper Joint

The joint fixing method for a multi-part paper shall be spot-pasting, line-pasting or crimping. Spot pasting is the proper precaution against position deviation made when piling sheet tiers.

Crimping may cause position deviation of approx 3 mm. Metal staples must not be used. 1 Spot Pasting

a Spot pasting must be conducted on both right/left sides. Paper which is pasted on only one side is not accepted. b Equal amount paste shall be applied to the fixing points, whose size shall be f3 ~f5 mm.

Press the pasting points to prevent lifting.

Be careful not to generate distinct wrinkles. c See the fig. below for the pasting positions. d Apply spot pasting in zigzag alternately for each sheet.

OP425_21.eps

1 Pasting spot 2 50.8mm (2 inch)

2 Line Pasting

a Paste shall be applied evenly to the fixing line, whose width shall be 1 – 2 mm.

Press the pasting line to prevent lifting.

Be careful not to generate distinct wrinkles. b Do not let paste leak out paper edges.

OP425_22.eps

A Pasting line B 1st C 2nd D 3rd

E 4th F 1~2mm

User’s Guide: English 81

3 Crimping

a Crimp paper on both right/left sides. b Apply crimping from the front surface, making no protrusion on the surface. c All the sheets must be engaged securely with each other at the crimp position free of lifting. d Use a double-type crimp and apply crimping in the direction to produce the crimped mark horizontal to the paper

right/left edges.

e Press paper after crimping to eliminate lifting.

OP425_23.eps

1 50.8 interval 2 Paper inserting direction 3 Horizontal perforated line 4 2 or more 5 Approx. 1 6 Press paper to prevent lifting 7 Form/Position of Crimping 8 Quadruple crimping 9 Enlarged Figure of Crimped Mark 10 Unit: mm

OKIPOS 425S

5.7.5.3.5 Rising in Horizontal Perforated Line

Protrusions in a horizontal perforated line may result in poor print quality, unstable paper feeding or frequent paper jam. Therefore, the rising height must be kept within 1mm.

OP425_24.eps

1 Horizontal perforated line 2 Within 1mm

5.7.5.3.6 Position Deviation of Sprocket Holes

Deviation of the sprocket hole positions may be caused when each copy or tier is piled to produce multi-part paper. Use multi-part paper whose sprocket deviation is 0.4 mm or less.

OP425_25.eps

Sectional View of Sprocket Holes

1 Sprocket hole 2 Deviation 0.4mm or less

User’s Guide: English 83

5.7.5.3.7 Binding Holes

Do not use a paper with punched holes. It may invalidate your warranty. If you choose to use punched paper, be sure to test it thoroughly. Follow these guidelines:

1 Do not print within 5 mm of the hole center. 2 Make sure that paper dust is not left on the paper. 3 If a hole passes over the paper sensor, a false paper end signal may result. 4 Make sure that the edges of holes are even with the paper surface. If they stick up, the printhead may not move

smoothly.

5 The positions of holes should be as illustrated in the figure below.

OP425_26.eps

1 10 or more 2 o 10 (shaded area) Do not print. 3 Binding hole 4 Unit: mm

OKIPOS 425S

5.7.5.3.8 Corner Cut

Do not use paper with corner cuts. It may invalidate your warranty. If you choose to use corner cut paper, be sure to test it thoroughly. Follow these guidelines:

1 Do not print within the shaded area adjoining a corner cut. 2 Make sure that paper dust is not left on the paper. 3 The perforation of the vertical/horizontal perforated line must not intersect with the corner cut to prevent the paper

from peeling off. (The crossing position of the corner cut outline and the perforated line should be uncut.)

The carriage may be clogged with peeled-off paper. 4 If a corner cut passes over the paper sensor, a false Paper End signal may result. 5 The positions of corner cuts should be as given in the fig. below.

OP425_27.eps

1 Uncut part of the perforated line 2 Corner cut 3 No printing within the shaded area 4 Unit: mm

User’s Guide: English 85

5.7.5.3.9 Wrinkle, Pleat and Swell

Use paper, which has been folded zigzag on horizontal perforated lines, free of wrinkles and pleats. Newly unpacked paper often has wrinkles or pleats on the first and last pages. Please eliminate pages having wrinkles and

pleats before printing. Do not utilize paper whose folding position inflates as illustrated in the fig below, because it may cause malfunction in paper

feed.

OP425_28.eps and OP425_29.eps

1 Wrinkle 2 Pleat 3 Rounded ends

OKIPOS 425S

5.7.5.4. MICR (only with MICR Type)

5.7.5.4.1 Paper Size and Scanning Area

OP425_30.eps

1 Paper inserting direction 2 Scanning Area

A25033.doc

Symbol Designation Standard Value W Paper width 76~78mm (2.99~3.07 inch) L Paper length 174~176mm (6.85~6.93 inch) A - 4.8mm (0.19 inch) B Scanning area 6.4mm (0.25 inch) C - 4.8mm (0.19 inch) D - 6.35mm (1/4 inch) or more E - 50mm (1.97 inch) or more

5.7.5.4.2 Paper Weight

The weight of paper usable for Scanning

A25034.doc

Type Weight Paper Thickness Single-part paper only 79~87 g/m2 (21~23 lb) 0.1~0.11mm

User’s Guide: English 87

5.8 Paper Feed Specifications

5.8.1 Paper feed methods/Paths

a Friction feed For Cut-sheet paper b Friction feed For Roll paper c Push tractor feed (Front path) For Sprocket paper (Tractor)

5.8.2 Paper Positioning Restrictions

OP425_31.eps

1 Cut-sheet paper (slip) 2 Roll paper 3 Sprocket paper (Tractor) 4 Printing position on the first line 5 Printing position on the last line 6 Cut-sheet paper (Counterfoil, Stub)

5.8.3 Paper Tear-off

Roll paper

The paper can be torn off 41.69mm (1.64 inch) above the first printed line. A sharp serrated edge is provided on the top cover for paper tear-off.

Sprocket paper (Tractor)

The paper can be torn off 35.96mm (1.42 inch) above the first printed line. A sharp serrated edge is provided on the access cover for paper tear-off.

5.8.4 Paper End Detection

1 With cut-sheet paper feed, the paper end is detected when the remaining paper length is about 19.6mm (0.77 inch) from

the last printed line.

2 With roll paper feed, the paper end is detected when the remaining paper length is about 87.83mm (3.46 inch) from the last

printed line.

3 With Sprocket paper (Tractor) feed, the paper end is detected when the remaining paper length is about 19.6mm (0.77

inch) from the last printed line.

4 Upon detecting the paper end, the printer stops printing and sends a paper end signal to the interface.

OKIPOS 425S

5.9 MICR Specifications (Only with MICR type)

5.9.1 Available Fonts

E-13B and CMC7 (can be selected command)

5.9.2 Scanning Speed

9.2 inches / sec

5.9.3 Recognition Rating

95% or more at 25°C Rating = ([total checks - number misread or not identified] / total checks) x 100 Check paper tested is OKI recognized check paper

5.9.4 Reliability

Life: 240,000 passes Passes: reading and printing on U.S. personal check 152mm long

5.9.5 Readable Area

Conforms to the APPENDIX B MEDIA SPECIFICATIONS 4

5.9.6 Media Specifications

Conforms to the APPENDIX B MEDIA SPECIFICATIONS 4

5.9.7 Other Relevant Standards

The above specifications given in sections 5.9.4 and 5.9.5 take precedence over the standards shown below. 1 ANSI X9.13 American National Standard Specification for Placement and Location of MICR Printing - May 1990 2 ANSI X9 / TG-2 ANSI Technical Guideline: Understanding and Designing Checks, Guideline for the standardization of

check writing, check design and data element location - 1990

3 ANSI X9.27 American National Standard Specification for Print Specification for Magnetic Ink Character Recognition

(MICR) - August 1988

4 ISO 2033-1983 Information Processing - Coding of Machine Readable Characters (MICR & OCR) 5 ISO 1004-1997 Information Processing - Magnetic Ink Character Recognition - Print Specifications

User’s Guide: English 89

5.10 Ribbon Specifications

Genuine Oki Data cartridge ribbon Ink color: Black Ribbon life: Approximately 3 million characters (when 1 character = 14 dots)

5.11 Reliability

1 MTBF (mean time between failures)

10,000 hours of power-on time at 25% duty cycle. Page density: 35%

2 Printhead life

200 million characters (average) in Utility Print Quality mode.

3 Printer life

5 years of power-on time at 10 hours/day, 365 days/year.

4 MTTR (mean time to repair)

15 minutes, major sub-assembly level.

OKIPOS 425S

6. Command Description

6.1 Control Code List

6.1.1 OEM — Standard Model

6.1.1.1 Function Code

1 List of Function Codes

A25037.doc

No. HEX DEC CODE Remarks Print Start 1 0A 10 LF Print/line feed O 2 0C 12 FF Cut Sheet paper eject or sprocket paper form feed O 3 0D 13 CR Print/carriage return O 4 0F 15 SI To set condense X 5 12 18 DC2 To reset condense X 6 18 24 CAN Print data cancel X 7 1B 27 ESC ESC sequence start 8 1D 29 GS GS sequence start 91E 30 RS Journal Tab X 10 1F 31 US US sequence start -

* Print Start Column O : Command that invokes print start X : Command that does not invoke print start ^ : Command that sometimes invokes print start This applies hereafter.

User’s Guide: English 91

6.1.1.2 ESC Sequence

1 Command recognition

A code subsequent to an ESC code is handled as a 7-bit code. (MSB=0) An ESC code that is followed by a functional code (except ESC CR) is handled as a single functional code. If the ESC codes follow each other, they are treated as one ESC code. Example: ESC ESC 2 is treated as ESC 2.

2 ESC sequence list

A25038.doc

No. HEX Command Sequence Functions Print

Start 1 1B OD ESC CR n To enable/disable auto line feed X 2 1B OF ESC SI To set Condense X 3 1B 10 44 ESC DLE D

Pno Pa1 Pb1… Pan Pbn

4 1B 20 ESC SP n To set the amount of space to the right side

5 1B 24 ESC $ n1 n2 To designate the absolute position 6 1B 25 35 ESC % 5

7 1B 2A ESC* m n1 n2 data To designate bit image mode 8 1B 2D ESC - n To designate/clear underline X

9 1B 32 ESC 2 10 1B 33 ESC 3 n 11 1B 3C ESC < To designate one line uni-directional print X

12 1B 40 ESC @ To initialize the printer X 13 1B 43 ESC C n To set the page length of sprocket paper X 14 1B 45 ESC E n To set/reset emphasize print X 15 1B 47 ESC G n To set/reset double strike print X 16 1B 4E ESC N n To set sprocket paper perforation skip X 17 1B 4F ESC O To reset sprocket paper perforation skip X 18 1B 52 ESC R n To select international character set X 19 1B 57 ESC W n To set/reset double width print X 20 1B 63 30 ESC c 0 n To select sheet subject to printing X 21 1B 63 31 ESC c 1 n To select sheet subject to setting X 22 1B 63 34 ESC c 4 n To select print stop sensor X 23 1B 64 ESC d n To feed paper by n lines O 24 1B 66 ESC f t1 t2 To set cut sheet paper wait time X 25 1B 69 ESC i Full cut X 26 1B 6D ESC m To cut partially (leaving uncut at 1 point) X 27 1B 74 ESC t n To select character code table X 28 1B 77 ESC w n To set/reset double height print X 29 1B 78 ESC x n To select print font X 30 1B 7A ESC z n To set/reset Receipt+Journal same data print X

To set up menu items O

of a character

To feed paper by n/144″

To set 1/6″ line feed To set n/216″ line feed

OKIPOS 425S

6.1.1.3 GS sequence

1 Command recognition

GS codes in combination are handled the same way that ESC codes are handled.

2 GS Sequence table

A25039.doc

No. HEX Command Sequence Functions Print Start 1 1D 45 GS E n To select print speed and printhead current

flow time.

2 1D 76 GS v n To select Validation inserting position X

6.1.1.4 US Sequence

A25038a.doc

No. HEX Command Sequence Functions Print Start 0 1F 0E US 0EH n High Priority (special) command X 1 1F 0E 00 US 0EH 00H Eject or form feed X 2 1F 0E 01 US 0EH 01H Line feed X 3 1F 0E 02 US 0EH 02H Full cut X 4 1F 0E 03 US 0EH 03H To cut partially. (Uncut at 1 point) X 5 1F 0E 05 US 0EH 05H Auto load (Sprocket) X 6 1F 0E 06 US 0EH 06H Auto park (Sprocket) X 7 1F 0E 07 US 0EH 07H To feed to the cut position (Sprocket) X 8 1F 0E 08 US 0EH 08H To feed to the print position (Sprocket) X 9 1F 0E 09 US 0EH 09H Receipt LF X 10 1F 0E 0B US 0EH 0BH Journal LF X 11 1F 0E 10 US 0EH 10H n Slip LF X 12 1F 0E 11 US 0EH 11H n1 n2 n3 n4 LED control X 13 1F 0E 14 US 0EH 14H n Receipt Paper Removal Receiver Feed X 14 1F 0E 15 US 0EH 15H n Journal Paper Removal Receiver Feed X

User’s Guide: English 93

6.1.2 OKI Standard Model

6.1.2.1 Function Code

1 List of Function Codes

A25040.doc

No. HEX DEC CODE Remarks Print Start

1 0A 10 LF Print/line feed O 2 0C 12 FF Eject Cut Sheet paper or form-feed sprocket paper O 3 0D 13 CR Print/carriage return O 4 0F 15 SI Condense Designate X 5 12 18 DC2 Condense Clear X 6 18 24 CAN Cancel print data X 7 10 16 DLE Start DLE sequence

8 1B 27 ESC Start ESC sequence

9 1C 28 FS Start FS sequence 10 1D 29 GS Start GS sequence 11 1E 30 RS Journal Tab X

* Print Start Column O : Command that invokes print start X : Command that does not invoke print start ^ : Command that sometimes invokes print start This applies hereafter.

   

DLE Sequence

1 Command recognition

A code that follows a DLE code is treated as a 7-bit code. (MSB=0) For the parameters, which vary among the commands, see each command’s functions. If a function code follows a DLE code, it is is treated as a stand-alone function code. If DLE codes follow each other, they are treated as one DLE code. Example: DLE DLE EOT n is treated as command DLE EOT n.

2 DLE sequences

A25040b.doc

No. HEX Command Sequence Functions Print Start

1 10 04 DLE EOT n Real-time status sending X

2 10 04 08 DLE EOT BS n Real-time MICR status sending X

3 10 05 DLE ENQ n Real-time request to Printer X

OKIPOS 425S

6.1.2.2 ESC Sequence

1 Command recognition

ESC codes in combination are handled the same way that DLE codes are handled.

2 ESC sequence list

A25041.doc and A25041b.doc in series

No. HEX Command

Sequence 1 1B OF ESC SI Condense Designate X 2 1B 10 44 ESC DLE D

Pno Pa1 Pb1…Pan

Pbn 3 1B 10 61 ESC DLE a Pno n Enables/disables auto status send X 4 1B 10 63 ESC DLE c Pno 0nSelects print sheet X

5 1B 10 63 ESC DLE c Pno 1nSelects set sheet X

6 1B 10 6C ESC DLE I Pno n1n2Sets Left Margin X

7 1B 10 72 ESC DLE r Pno n Real-time status sending X 8 1B 10 76 ESC DLE v Pno n Selects Validation insert position X 9 1B 20 ESC SP n Sets character right-side space X 10 1B 21 ESC ! n Designates Print Mode all at once X 11 1B 24 ESC $ n1 n2 Designates absolute position

12 1B 25 35 ESC % 5 n 13 1B 25 39 ESC % 9 n 14 1B 2A ESC * m n1 n2

data 15 1B 2D ESC - n Designates/clears Underline X 16 1B 30 ESC 0

17 1B 31 ESC 1 18 1B 32 ESC 2 19 1B 33 ESC 3 n 20 1B 34 ESC 4 Sets Italic Mode X

21 1B 35 ESC 5 Resets Italic Mode X 22 1B 3C ESC < Designates one-line uni-directional print X 23 1B 3D ESC = n Selects peripheral device X 24 1B 40 ESC @ Initializes printer X 25 1B 41 ESC A n

26 1B 43 ESC C n Sets page length for Sprocket paper X 27 1B 45 ESC E n Designates/cancels Emphasize print X 28 1B 47 ESC G n Designates/cancels Double Strike print X 29 1B 4A ESC J n

30 1B 4E ESC N n Sets Sprocket paper perforation skip X 31 1B 4F ESC O Resets Sprocket paper perforation skip X 32 1B 52 ESC R n Selects international character set X 33 1B 55 ESC U n Designates/cancels uni-directional print X 34 1B 57 ESC w n Designates/cancels double width print X 35 1B 5C ESC \ n1 n2 Designates relative position

36 1B 5E ESC ^ m n1 n2 Designates 9-pin Bit Image Mode X 37 1B 61 ESC a n Aligns positions X 38 1B 63 30 ESC c 0 n Selects print sheet X 39 1B 63 31 ESC c 1 n Selects set sheet X 40 1B 63 32 ESC c 3 n Selects paper sensor that enables the paper

41 1B 63 34 ESC c 4 n Selects print stop sensor X 42 1B 63 35 ESC c 5 n Enables/disables panel switch X 43 1B 64 ESC d n Feeds paper for n lines O 44 1B 66 ESC f t1 t2 Sets Cut paper wait time X 45 1B 69 ESC i Full cut X

Functions Print

Sets up menu items O

Feeds paper in increments of n/144″ Sets n/144″ line feed Designates Bit Image Mode

Sets 1/8″ line feed Sets 7/72″ line feed Sets 1/6″ line feed Sets n/144″ line feed

Sets n/72″ line feed pitch

Feeds paper in increments of n/144″

end signal; valid only with Parallel I/F

Start

O X

X X X X

User’s Guide: English 95

46 1B 6D ESC m Partial cut (keeping one point uncut) X 47 1B 70 ESC p m t1 t2 Generates designated pulse (Open Cash

Drawer) 48 1B 74 ESC t n Selects character code table X 49 1B 75 ESC u n Sends peripheral device status X 50 1B 76 ESC v Sends paper sensor status X 51 1B 77 ESC w n Sets/resets Double Height print X 52 1B 7A ESC z n Designates/cancels Receipt+Journal same

data print 53 1B 10 41 ESC DLE A Pno

N1…N8

54 1B 10 42 ESC DLE B Pno Pm

DATA

* The ESC DLE sequence other than No. 2~8, 53, 54 will be ignored by the sequence.

The data that follows “Pno” will be ignored by as many bytes as set by Pno.

Selects and sets the barcode type and size X

Prints barcode data

OKIPOS 425S

6.1.2.3 FS Sequence

1 Command recognition

FS codes in combination are handled the same way that DLE codes are handled.

2 FS Sequence table

A25042.doc

No. HEX Command Sequence Functions Print

1 1C 61 30 FS a 0 n Reads Check paper X 2 1C 61 31 FS a 1 Loads Check paper to the print start position X 3 1C 61 32 FS a 2 Ejects Check paper X 4 1C 62 FS b Requests for resending a result of reading

Check paper

6.1.2.4 GS Sequence

1 Command recognition

GS codes are handled the same way that DLE codes are handled.

2 GS Sequence table

A25043.doc

No. HEX Command Sequence Functions Print

1 1D 05 GS ENQ Sends a status of the printer status real-time X 2 1D 45 GS E n Selects print speed and printhead current

flow time 3 1D 49 GS I n Sends a printer ID X 4 1D 61 GS a n Enables/disables auto status send X 5 1D 72 GS r n Sends a status X

Start

User’s Guide: English 97

6.2 Character Set

6.2.1 Code table (OEM — Standard Type)

The character code tables follow.

6.2.1.1 USA

OP425_03.tif

1 0xH and 1xH are Control Code areas. 2 If a code received is other than a control code in 0xH and 1xH, it is ignored. 3 The above table assumes international character set is set to “American.” 4 The blank space (20H, 7FH, FFH) indicates a space code.

OKIPOS 425S

6.2.1.2 Canada-French

OP425_04.tif

User’s Guide: English 99

6.2.1.3 Multilingual

OP425_05.tif

100

OKIPOS 425S

Oki POS 452S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Setting Up the Printer

1.1. Select a Location

1.2 Where to install your printer
