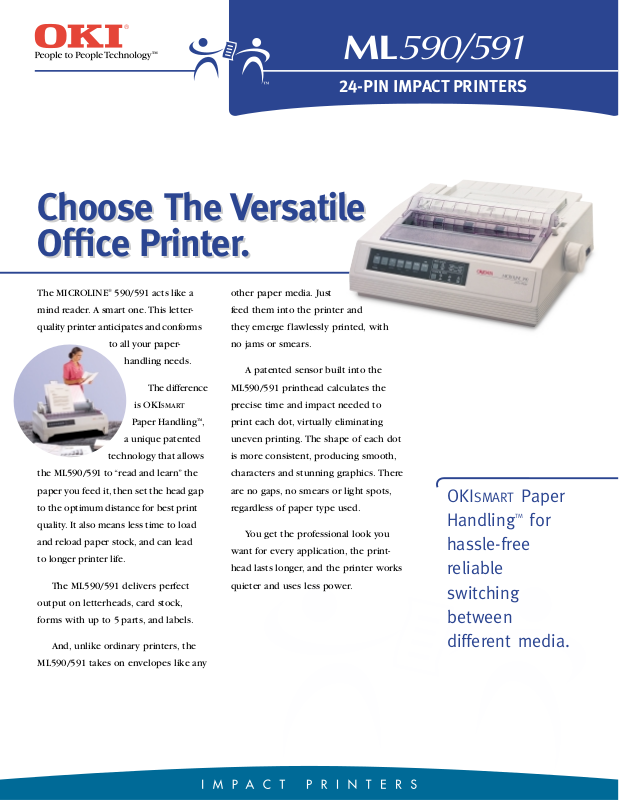

The MICROLINE®590/591 acts like a

mind reader. A smart one. This letter-

quality printer anticipates and conforms

to all your paper-

handling needs.

The difference

is OKISMART

Paper HandlingTM,

a unique patented

technology that allows

the ML590/591 to “read and learn” the

paper you feed it, then set the head gap

to the optimum distance for best print

quality. It also means less time to load

and reload paper stock, and can lead

to longer printer life.

The ML590/591 delivers perfect

output on letterheads, card stock,

forms with up to 5 parts, and labels.

And, unlike ordinary printers, the

ML590/591 takes on envelopes like any

other paper media. Just

feed them into the printer and

they emerge flawlessly printed, with

no jams or smears.

A patented sensor built into the

ML590/591 printhead calculates the

precise time and impact needed to

print each dot, virtually eliminating

uneven printing. The shape of each dot

is more consistent, producing smooth,

characters and stunning graphics. There

are no gaps, no smears or light spots,

regardless of paper type used.

You get the professional look you

want for every application, the print-

head lasts longer, and the printer works

quieter and uses less power.

Choose The Versatile O÷ce Printer.

ML590/591

24-PIN IMPACT PRINTERS

Choose The Versatile O÷ce Printer.

OKISMART Paper Handling

for hassle-free reliable switching between different media.

The ML590/591 offers seven resident typefaces including Courier, SwissTMand Roman, each scalable from 8 to 64 points in single-point increments. It also has a resident PostNetTMBar Code for mailing envelopes, along with seven other bar codes.

The ML590/591 has accessories to impact on your productivity. For example, the Bottom Feed Push Tractor Kit provides a straight-through, jamfree paper path for thick forms, letting you take full advantage of the printer’s short tear-off form capabilities.

The printer has a Cut Sheet Feeder for unsupervised printing of letterheads and envelopes. Its

Pull Tractor handles all your demanding printing applications. And it comes with an acoustic

cover for even quieter

operation.

All this and a talent with color, too: an optional,

user-installable Color Kit for the

ML590/591 coupled

with your color soft-

ware package lets you

work in a rainbow of

colors, adding impact to graphics, charts, transparencies and text presentations.

The ML590/591: a combination

of superior output, unique technology and product-enhancing versatility. To handle your office needs, it’s one “smart” impact printer.

Flexibility To Get The Job Done.

ML590/591

24-PIN IMPACT PRINTERS

Technology, Speed and Print Characteristics

Printhead: 24-Pin SIDM Graphics Resolution: 360 x 360 DPI maximum Print Speed and Character Matrix:

Mode LQ Utility High Speed Draft

Speed (in 12 cpi) 120 360 450 (15 cpi only) Matrix (H x V) 29 x 18 9 x 17 7 x 17

Feed Rate: 5.0 ips

Emulation, Interface and Memory

Co-resident: Epson®ESC/P2 & IBM®XL 24E Standard Interface: Centronics

Parallel

Optional Interface: 19.2K, RS-232C Serial Standard Memory: 128K Receive Buffer: 64K

Fonts/Characters

Code Pages: Standard ASCII; Epson Character Set I & II;

IBM Character Set I and II; Foreign character substitution; International character sets; Code page 850, 860, 863, 865, Bar Code

Fonts: Courier, Letter Gothic, Prestige, Orator, Roman, Swiss

Bar Codes: Code 39, UPC A & E, EAN 8 & 13, 2 of 5,

Code 128, PostNet

Paper Handling

Paper Input: Continuous forms, Cut sheet, Card stock, Envelopes Number of Copies: 5-part forms Thickness: .014" (0.36 mm) Rear Feed; .017" (0.44 mm)

Bottom Feed

Paper Feeding: Top, rear and bottom; Standard Rear Push Tractor Tear Capabilities: Zero tear, Metal tear bar (optional with Bottom

Feed Tractor kit)

Options: Top-Mount Pull Tractor, Bottom Push Tractor,

Cut Sheet Feeder, Roll Paper Stand

Warranty and Reliability

Limited Warranty: Two year parts and labor MTBF: 8,000 hours (25% duty cycle, 35% page density) Printhead Life: 200,000,000 characters avg. in 10 cpi

utility mode @ normal, 25% duty, 35% page density

Environmental

Size (WxDxH):

ML590 – 16.9" x 14.9" x 6.5" (43 cm x 37.8 cm x 16.5 cm); ML591 – 23" x 14.9" x 6.5" (58.4 cm x 37.8 cm x 16.5 cm)

Net Weight: ML590 – 16.5 lb. (7 kg); ML591 – 19.8 lb. (9 kg) Acoustic Noise: 53 dBA (LQ mode) 50 dBA (Quiet mode)

Ordering Information (Part Number)

Printer:

ML590 @ 120V 62409201 ML590 @ 220/240V 62409202 ML591 @ 120V 62409301 ML591 @ 220/240V 62409302

Accessories:

Bottom Feed push tractor (ML590) 70022901 Bottom Feed push tractor (ML591) 70023101 Pull tractor kit (ML590) 70023001 Pull tractor kit (ML591) 70023201 Cut Sheet Feeder (ML590) 70022501 Cut Sheet Feeder (ML591) 70022701 Super-speed 19.2K RS-232C serial I/F 70012801 OkiLAN

10 Base-T Ethernet External Print Server 70034401 Roll Paper Stand (ML590 only) 70023301

Ribbon:

Black Cartridge 52106001 Color Cartridge 52106002 Color Kit 52106003

Electric Industry Co., Ltd. MICROLINE, Tank-Tough, OkiLAN Reg. T.M., People to People Technology and design, OKI

SMART Paper Handling T.M., Oki Electric

Industry Co., Ltd. 7-Day/24-Hour logo T.M., Oki America, Inc. Epson Reg. T.M., Seiko Epson Corp. IBM Reg. T.M., International Business Machines Corp. Swiss T.M., Bitstream, Inc. Centronics Reg. T.M., Centronics Data Computer Corp. Microsoft, Windows, Reg. T.M., Microsoft Corp. Novell, YES Tested & Approved Reg. T.M., Novell Corp. PostNet T.M., USPS. Energy Star Reg. T.M., U.S. EPA.

Printed in the USA. MS8778/0399

Rugged OKI printhead provides twice the life of the competition.

Samarium cobalt magnets and cemented carbide pins for solid black print.

The printhead “reads & learns,” adjusts automatically for any paper style.

Proprietary LSIs adjust pin impact force for even printing at faster speeds.
