C824/C834/C844/ES8434
User’s Manual
Table of contents
1 Before starting .............................................................................................. 4
For Your Safety ..............................................................................................................................5
About This Manual .........................................................................................................................7
About Descriptions .......................................................................................................................................7
Preface ..........................................................................................................................................9
Trademarks ..................................................................................................................................10
License ........................................................................................................................................ 11
2 Setup ........................................................................................................... 12
Setup Flow ...................................................................................................................................13
Checking the Placement Environment .........................................................................................14
Checking Package Contents .......................................................................................................16
Names of Components ................................................................................................................17
How to Use of the Operator Panel ...............................................................................................18
How to Use the Numeric Keypad ...............................................................................................................19
How to Use the Fn Key ............................................................................................................................... 19
Function Menu List .....................................................................................................................................20
Preparing Your Printer .................................................................................................................21
Unpacking ................................................................................................................................................... 21
Installing Consumables ..............................................................................................................................22
Loading Paper ............................................................................................................................................24
About the Power Supply ..............................................................................................................27
Power Supply Conditions ...........................................................................................................................27
Connecting the Power Code .......................................................................................................................28
Turning On the Power .................................................................................................................................29
Turning Off the Power .................................................................................................................................29
What You Should Do If You Do Not Use This Machine for an Extended Period of Time ............................30
Test Printing from the Printer .......................................................................................................31
Changing the Administrator Password ........................................................................................32
3 Connecting to a Computer ........................................................................ 33
Connection Method and Flow ......................................................................................................34
Product Requirements .................................................................................................................35
Types of Drivers ...........................................................................................................................36
Connecting to a Wireless LAN .....................................................................................................37
Connecting to an Access Point (Infrastructure) .......................................................................................... 37
Connecting to the Machine Directly (AP Mode) ..........................................................................................41
Connecting a USB Cable ............................................................................................................ 42
Connecting a LAN Cable ............................................................................................................ 43
Installing a Printer Driver to a Computer ..................................................................................... 46
For Windows .............................................................................................................................................. 46
For Mac ...................................................................................................................................................... 49
Selecting a connecting method between different segments ...................................................... 50
4 Print ..............................................................................................................51
Supported Paper ......................................................................................................................... 52
Paper Loaded on the Tray .......................................................................................................... 54
How to Print from the Tray .......................................................................................................... 56
How to Print from the MP Tray .................................................................................................... 59
Paper Output .............................................................................................................................. 64
Canceling Printing ....................................................................................................................... 66
5 Energy Saving Function .............................................................................67
About Energy Saving .................................................................................................................. 68
Setting the Time Before Entering the Power Save Mode ........................................................... 69
Setting the Time Before Entering the Sleep Mode ...................................................................... 70
Automatically Turning the Machine Off (Auto Power Off) ........................................................... 71
Setting the Time Before Entering the Auto Power Off Mode ...................................................... 72
6 Troubleshooting ..........................................................................................73
When an Error Message Appears on the Display Screen (When the ATTENTION Indicator Lights
Up/Blinks) ................................................................................................................................... 74
Error Messages .......................................................................................................................... 75
When Paper Jams Occur ............................................................................................................ 83
Error Code "370", "371", "373" ................................................................................................................... 83
Error Code "372" ........................................................................................................................................ 84
Error Code "380", "401", "637" ................................................................................................................... 86
Error Code "381", "638" ............................................................................................................................. 87
Error Code "382", "383", "385", "639", "640" .............................................................................................. 90
Error Code "390", "637" ............................................................................................................................. 94
Error Code "391", "392", "393", "394", "632", "633", "634" ......................................................................... 95
Other Issues ............................................................................................................................... 97
Unable to Print from a Computer ............................................................................................................... 97
Unable to Install a Printer Driver Successfully ......................................................................................... 100
Image Quality Issues ............................................................................................................................... 101
Vertical White Lines Appear ..................................................................................................................... 102
Printed Images are Fading Vertically ....................................................................................................... 103
- 2 -
Printed Images are Light ..........................................................................................................................103
White Spots and Lines Appear .................................................................................................................104
Dew Condensation Appears on Printed Paper .........................................................................................104
Vertical Lines Appear ................................................................................................................................105
Horizontal Lines and Spots Appear Periodically .......................................................................................105
White Area on Paper is Lightly Stained ....................................................................................................106
The Periphery of Characters is Smudged ................................................................................................106
The Entire Paper Area is Lightly Stained When Printing on Envelopes or Coated Paper ........................107
Toner Comes Off When Printed Paper is Rubbed ....................................................................................107
Uneven Gloss ...........................................................................................................................................108
Black or White Dots Appear ..................................................................................................................... 108
Dirt is Printed ............................................................................................................................................109
The Entire Page is Printed Black ..............................................................................................................109
Nothing is Printed ..................................................................................................................................... 110
White Patches Appear .............................................................................................................................. 110
Color of the printed image is not what you expect .................................................................................... 111
Feeding Issues ......................................................................................................................................... 111
Problems on the Machine ......................................................................................................................... 113
7 Maintenance ..............................................................................................116
Replacing Consumables ............................................................................................................117
Cautions When Replacing ........................................................................................................................ 117
Replacing the Toner Cartridge .................................................................................................................. 118
For K (black) Toner Cartridge Only ........................................................................................................... 119
For C (cyan), M (magenta), Y (yellow) Toner Cartridge ............................................................................121
Replacing the Image Drum .......................................................................................................................124
Replacing the Image Drum Only ..............................................................................................................125
Replacing the Image Drum and Toner Cartridge at the Same Time .........................................................128
Replacing Maintenance Units ....................................................................................................132
Replacing the Belt Unit ............................................................................................................................. 132
Replacing the Fuser Unit ..........................................................................................................................136
Cleaning .....................................................................................................................................140
Cleaning the Surface of the Machine .......................................................................................................140
Cleaning the LED Head ............................................................................................................................141
Cleaning the Light-shielding Film .............................................................................................................142
Cleaning the Paper Feed Rollers (Tray 1/Tray 2/Tray 3/Tray 4/Tray 5) .................................................... 144
Cleaning the Paper Feed Rollers (MP Tray) .............................................................................................145
Cleaning the Resist Roller ........................................................................................................................147
Moving This Machine .................................................................................................................148
Transporting This Machine ........................................................................................................149
Before the printer disposal .........................................................................................................152
Deleting a Printer Driver ............................................................................................................153
Updating the Software .............................................................................................................. 154
Updating the Firmware ............................................................................................................. 156
8 Appendix ...................................................................................................158
How to open printer folder ........................................................................................................ 159
Menu List of the Operator Panel ............................................................................................... 160
Options ..................................................................................................................................... 161
Installing the Duplex Unit (C824n, C834nw Only) .................................................................................... 162
Installing the Wireless LAN module (C824, ES8434 Only) ...................................................................... 163
Installing the Caster Base ........................................................................................................................ 165
Installing the Additional Tray Unit(s) ........................................................................................................ 169
When Adding Options .............................................................................................................................. 173
Specifications ............................................................................................................................ 176
General Specifications ............................................................................................................................. 176
Printing Specifications .............................................................................................................................. 177
Network Specifications ............................................................................................................................. 178
Wireless LAN Specifications .................................................................................................................... 178
Printer Dimensions ................................................................................................................................... 179
- 3 -
1
Before starting
For Your Safety
About This Manual
Preface
Trademarks
License
For Your Safety
1. Before starting
• Cautions Related to Safety
Indicates additional information which, if ignored or not followed, may result in
personal injury or death.
Indicates additional information which, if ignored, may result in personal injury.
• General Cautions
Do not touch the safety switch inside this machine. High voltage may
occur, resulting in electric shock. Also, a gear may rotate, resulting in
injury.
Do not use a highly combustible spray near this machine. Some parts
inside the machine become very hot, possibly resulting in fire.
If the cover becomes extremely hot, the machine emits smoke or odor, or
you hear a strange sound, unplug the power plug from the outlet, and
contact your dealer.
Fire may result.
If liquid such as water gets inside the machine, unplug the power plug from
the outlet, and contact your dealer.
Fire may result.
If you drop a clip or other foreign objects into the machine, unplug the
power plug from the outlet, and take the foreign objects out.
Electric shock, fire, or injury may result.
If the machine is dropped or the cover is damaged, unplug the power plug
from the outlet, and contact your dealer.
Electric shock, fire, or injury may result.
Unplug the power plug regularly, and clean the bases of and in between
the plug blades.
If the power plug is left plugged into the outlet for an extended period of
time, dust adheres on the bases of the plug blades, and a short may occur,
possibly resulting in fire.
Do not vacuum spilled toner with an electric vacuum cleaner. Vacuuming
spilled toner with an electric vacuum cleaner may result in ignition due to
sparks from electric contacts or other reasons.
If toner spills on the floor or other places, wipe the toner gently with a
damp rag or other cloth while using care not to scatter the toner.
Do not insert any object into a vent hole.
Electric shock, fire, or injury may result.
Do not place a cup filled with water or other objects on the machine.
Electric shock or fire may result.
Do not let pet urine or other liquid get inside this machine, or allow this
machine to get wet. Electric shock or fire may result.
When the machine cover is opened, do not touch the fuser unit. Burns may
result.
Do not throw the toner cartridge or image drum into a fire. The toner may
ignite, resulting in burns.
Do not perform any operation or disassembly other than instructed in the
user manual.
Electric shock, fire, or injury may result.
Do not connect the power cord, cables, or the ground wire in any way
other than instructed in the user manual.
Fire may result.
- 5 -
Operation using an UPS (uninterruptible power supply) or inverter is not
guaranteed. Do not use an uninterruptible power supply or inverter.
Fire may result.
Do not go near the paper output part when you turn the power on or when
printing is in progress. Injury may result.
Do not touch a broken liquid crystal display. Injury may result. If you get
liquid (liquid crystal) spilled from the liquid crystal display into your eyes or
mouth, immediately rinse with a large amount of water. Seek medical
advice if necessary.
Do not disassemble the image drum or toner cartridge, or force them
open. You may inhale the scattered toner, or the toner may land on your
hands or clothes, making them dirty.
1. Before starting
NOTE!
This product is not intended for use in the immediate visual field on the display work place. To
avoid disturbing reflections on the display work place, this product shall not be placed in the
immediate field of vision.
- 6 -
1. Before starting
About This Manual
Various information about this manual is provided here. Read these sections before using
this manual.
• Disclaimer
Every effort has been made to ensure that the information in this document is complete,
accurate, and up-to-date. The manufacturer assumes no responsibility for the result of
errors beyond its control. The manufacturer also cannot guarantee that changes in software
and equipment made by other manufacturers and referred to in this manual will not affect
the applicability of the information in it. Mention of software products manufactured by other
companies does not necessarily constitute endorsement by the manufacturer.
While all reasonable efforts have been made to make this document as accurate and helpful
as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or
completeness of the information contained herein.
• Copyright of the manual
All rights reserved by Oki Data Corporation. No part of this document may be reproduced in
any form or by any means without prior written permission from Oki Data Corporation.
© 2018 Oki Data Corporation
• Manual Composition
The following manual is included in this product.
• User's Manual (PDF) ------ Stored in the DVD-ROM which comes with the machine.
• Advanced Manual (PDF) ------ Download this manual from the Oki Data web site and refer
to it.
• Online Manual ------ Can be browsed on the Oki Data web site.
About Descriptions
Unless otherwise specified, this manual uses screenshots of the following screens.
• For Windows: Windows 10
• For Mac : mac OS High Sierra 10.13
This manual sometimes uses the following notation.
• [OKI Printer] may be written as the model name.
• A printer driver icon in each Windows version is referred to as "Printer folder" in this
manual.
• Generic name for Windows 10, Windows Server 2012, etc. Windows
Depending on your OS, model or version, the description on this document may be different.
About Marks
This manual uses the following marks.
Symbol Meaning
Indicates the cautions and restrictions for operating this machine correctly. Be sure to read to
ensure that you can operate the machine correctly.
Indicates information that is useful for using this machine. It is recommended to read.
Indicates a reference topic. Read when you need more information.
• About Descriptions
About Symbols
This section describes symbols and their meaning in this manual.
Symbol Meaning
« » Indicates a button/ key on the operator panel of the machine.
- 7 -
Symbol Meaning
[ ] Indicates a menu name, item name, option, or other items that are displayed on
the display screen on the operator panel.
Indicates a menu, window, or dialog name that is displayed on the screen on a
computer.
" " Indicates a message on the display screen or entered text.
Indicates a file name on a computer.
Indicates the topic title of a link destination.
< > Indicates a key on the computer keyboard.
> Indicates how to display the required menu of the machine or computer.
About Illustrations
The illustrations of C844 are used in this manual as examples.
Illustrations of the display screen on the operator panel used in this manual are with the
factory default settings.
• The descriptions in this manual may vary depending on your model.
1. Before starting
- 8 -
Preface
• EMERGENCY FIRST AID
Take care with toner powder:
If swallowed, give small amounts of cold water and seek medical attention. DO
NOT attempt to induce vomiting.
If inhaled, move the person to an open area for fresh air. Seek medical attention.
If it gets into the eyes, flush with large amounts of water for at least 15 minutes
keeping eyelids open. Seek medical attention.
Spillages should be treated with cold water and soap to help reduce risk of staining
skin or clothing.
• ENVIRONMENTAL INFORMATION
1. Before starting
- 9 -
1. Before starting
Trademarks
OKI is a registered trademark of Oki Electric Industry Co., Ltd.
ENERGY STAR
Microsoft, Windows, Windows Server, Windows Vista and Internet Explorer are registered
trademarks of Microsoft Corporation.
Apple, Macintosh, Mac and Mac OS are the registered trademarks of Apple Inc.
iPad, iPhone, iPod, iPod touch and Safari are trademarks registered to Apple Inc. in the
United States and other countries.
AirPrint and the AirPrint logo are trademarks of Apple Inc.
Google, Google Docs, Android, and Gmail are trademarks of Google Inc.
Google Cloud Print is a trademark of Google Inc.
Adobe, Illustrator, Photoshop, PostScript and Reader are trademarks or trademarks of
Adobe Systems Incorporated in the United States and other countries.
®
is a trademark of the United States Environmental Protection Agency.
CABLE TYPE LENGTH
(METER)
Power 1.8
USB 5.0
LAN 10.0
CORE SHIELD
The simplified EU declaration of conformity
Hereby, Oki Data Corporation declares that the radio equipment type“DNUB-O1, 4666411A”
are in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://www.oki.com/eu/printing/support/declaration-of-conformity
Other product names and brand names are registered trademarks or trademarks of their
proprietors.
As an ENERGY STAR® Program Participant, the manufacturer has determined that this product meets the
ENERGY STAR
Target countries of the ENERGY STAR
It is not applicable to other countries.
This product complies with the requirements of the Council Directives 2014/30/EU (EMC), 2014/35/EU
(LVD), 2014/53/EU (RED), 2009/125/EC (ErP) and 2011/65/EU(RoHS), as amended where applicable, on
the approximation of the laws of the member states relating to Electromagnetic Compatibility, Low Voltage,
Radio & Telecommunications Terminal Equipment, Energy related Products and Restriction on the use of
certain Hazardous Substances in electrical and electronic equipment.
®
guidelines for energy efficiency.
®
program are the United States, Canada and Japan.
The following cables were used to evaluate this product for EMC directive 2014/30/EU
compliance, and configurations other than this may affect that compliance.
- 10 -
1. Before starting
License
This product contains software developed by the Heimdal Project.
Copyright (c) 1995 - 2008 Kungliga Tekniska Högskolan
(Royal Institute of Technology, Stockholm, Sweden).
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
1 Redistributions of source code must retain the above copyright notice, this list
of conditions and the following disclaimer.
2 Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the following disclaimer in the documentation and/or
other materials provided with the distribution.
3 Neither the name of the Institute nor the names of its contributors may be used
to endorse or promote products derived from this software without specific
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE INSTITUTE AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE INSTITUTE OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (c) 2009-2012 Eric Haszlakiewicz
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated
documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit
persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NON INFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT
OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
Copyright (c) 2004, 2005 Metaparadigm Pte Ltd
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated
documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit
persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NON INFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT
OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
• Open Source License Disclosure
The following open source software is included to use Google Cloud Print. The
descriptions about the open source license are as follows.
json-c
- 11 -
2
Setup
Setup Flow
Checking the Placement Environment
Checking Package Contents
Names of Components
How to Use of the Operator Panel
Preparing Your Printer
About the Power Supply
Test Printing from the Printer
Changing the Administrator Password
Setup Flow
How to set up is explained in this chapter.
1. Checking Products
• Checking package contents
• Checking names of product parts
- Printer
- Operator panel
• Available Options
2. Checking the placement environment
• Placement Environment
• Placement Space
3. Preparing Your Printer
• Unpacking
• Installing Consumables
• Loading Paper
• Turning On/Off the Power
• Test Printing from the Printer
2. Setup
4.Connecting to a Computer
- 13 -
Checking the Placement Environment
• Installation Environment
Install the machine in the following environment.
Ambient temperature: 10°C to 32°C
Ambient humidity: 20% to 80% RH (relative humidity)
Maximum wet bulb temperature: 25°C
• Use care to prevent condensation. It may cause a malfunction.
• If installing your machine where the ambient humidity is 30% RH or below, use a humidifier or antistatic mat.
• Depending on the installation environment, the operation noise may be louder. If the noise bothers you, we suggest
you to install the machine in the place away from you or in another room.
•
Do not install the machine in a location subject to high temperatures or in a location
near fire.
•
Do not install the machine in a location where chemical reactions may occur (such as
a laboratory).
•
Do not install the machine near alcohol, thinners, or other flammable solvents.
•
Do not install the machine in a location within the reach of small children.
•
Do not install the machine in an unstable location (such as on an unsteady stand or
slanted location).
•
Do not install the machine in a location with high level of humidity or dust, or in a
location where the machine is exposed to direct sunlight.
•
Do not install the machine in an environment where it is exposed to salty air, NOx,
SOx or corrosive gas.
•
Do not install the machine in a location where it is exposed to a high level of vibration.
•
Do not install the machine in a location where its vent hole is blocked.
•
Do not install this machine directly on a thick rug or carpet.
•
Do not install this machine in a closed room or other locations with bad circulation and
ventilation.
•
If you use this machine in a small room continuously for an extended period of time,
make sure to ventilate the room.
•
Install this machine away from a source that emits strong magnetic fields or noise.
•
Install this machine away from a monitor or television.
•
Moving the machine requires that two people stand in front and back of the machine
respectively, hold the handles at the bottom of the machine, and move it.
• Installation Space
Install the machine on a flat surface that is wide enough to accommodate the legs of the
machine.
Allow for enough room around the machine as shown in the following figures.
•Top view
2. Setup
- 14 -
• Side view
2. Setup
- 15 -
Checking Package Contents
Check that you have everything shown below.
2. Setup
• The starter toner cartridge is not installed in the ES model. Install the toner cartridge that is included in this machine.
Refer to "
Replacing the Image Drum".
Injury may result.
Lift this machine by 2 persons, because it weighs approximately 40 kg.
For instructions on how to unpack, see "Unpacking".
• Be sure to use the supplied consumables first. If other consumables are used first, the life may not be shown correctly
or supplied consumables may not be applied.
•Printer
• Four image drums (black, cyan, magenta and yellow)
• Four starter toner cartridges (black, cyan, magenta and yellow)
• The starter toner cartridges are installed in the image drums, which are installed in the machine before shipment.
• Do not remove a starter toner cartridge from an image drum.
• Software DVD-ROM
• Power cord
• LAN cables or USB cables are not included in the package. Prepare the cable that suits your connection environment
separately.
• Packaging and cushioning materials are used when transporting the machine. Do not dispose packaging materials
as they may be used in the future.
- 16 -
Names of Components
This section explains the names and functions of components of the printer.
No. Name Functions
1 Front cover Front cover of the printer. Pull the front cover open lever to open
the cover.
2 Front cover open lever Lever to unlock when opening the front cover.
3 Operator panel This is the panel to operate the printer.
Display screen operation buttons, numeric keys, function keys,
and attention indicator lamp are on the panel.
4 Power switch Turns the machine on and off.
5 Output tray (Top Cover) Printouts are stocked here. After opening the front cover, press
the open button inside the printer to pop up.
6 Multipurpose tray (MP Tray) Various sizes of paper can be loaded.
7 Tray 1 Load paper.
8 Air vents Outlet/inlet for air.
Please be careful not to block the opening when placing the
printer.
9 Wireless LAN module cover Cover for installation part of the wireless LAN module.
10 Paper supporter Supports paper.
11 Paper set cover Holds paper loaded on the Multipurpose tray.
2. Setup
No. Name Functions
12 Open button Press this button to unlock when opening the output tray (Top
Cover).
13 Toner cartridge, Image drum (K: black) A toner cartridge contains toner (powdery ink) for printing.
14 Toner cartridge, Image drum (Y: yellow)
15 Toner cartridge, Image drum (M:
magenta)
16 Toner cartridge, Image drum (C: cyan)
17 Toner cartridge lock lever Fasten a toner cartridge to an image drum.
18 Fuser unit Add heat and pressure to toner transcribed on paper to bond it.
19 LED head (four heads) Expose image drum to light to copy letters and images.
20 Rear output tray Outlet when paper is output with the printed side up.
21 AC power socket Insert the supplied power code.
22 Duplex unit *
23 Interface part Connectors for connecting to a computer can be found.
24 Accessory connector Port to insert a USB memory.
25 USB interface connection Insert a USB cable when connecting a computer to the printer
26 Network interface connection Insert a LAN cable when connecting a computer to the printer
*1 C824n, C834nw: Option
1
Image drum electrifies paper and transcribes toner using static
electricity. A drum is combined with a drum cartridge.
Toner cartridges and image drums are consumables.
Component for duplex printing.
with a USB cable.
via a network.
- 17 -
2. Setup
How to Use of the Operator Panel
This section explains the names and functions of components on the operator panel.
No. Name Function
1 Display screen Displays operating instructions and the status of the printer.
2 «ON LINE» button Switches between online and offline modes.
3 «CANCEL» button Cancels the current print immediately.
4 «ENTER» button Confirms the highlighted item.
5 Scroll button or Selects the menu or scrolls the screen.
6 «BACK» button Returns to the previous screen.
7 «HELP» button Displays the help screen. To close, press the «HELP» button,
8 «POWER SAVE» button • Enters or exits the power saving mode.
«BACK» button, or «CANCEL» button.
• Exits the sleep mode.
No. Name Function
11 «CLEAR» key Executes the following actions according to the entered items
12 «READY» indicator Lights up green in online mode and turns off in offline mode.
13 «ATTENTION» indicator Lights up or blinks orange when an error occurs in the device.
14 NFC mark Bring the device closer to this mark when using the NFC
when pressed or held down.
• Minimizes a setting value.
• Enters zero for a setting value.
• Deletes a character.
• Cancels the selected item.
Returns to the previous settings. Not available when entering an
IP address.
function.
For details on the NFC function, refer to "Using from a Mobile
Device (Advanced Manual)".
• How to Use the Numeric Keypad
• How to Use the Fn Key
• Function Menu List
Lights up green in the power save mode and blinks green in the
sleep mode.
9 Numeric Keypad • Enters numbers.
10 «Fn» key Displays the equipment setting menu screen with a shortcut
• Enters alphabetical characters and symbols.
A password can be entered only with a numeric keypad.
function.
- 18 -
2. Setup
How to Use the Numeric Keypad
Use to enter numbers and characters. Press the key consecutively to switch between
numbers and characters. Press the key until the desired character is displayed, and then
press the «ENTER» button.
Available characters and how to switch types of characters are shown below.
Alphabetic characters do not appear on the menu which accepts only numbers.
«1» 1
«2» 2 a b c A B C 2
«3» 3 d e f D E F 3
«4» 4 g h i G H I 4
«5» 5 j k l J K L 5
«6» 6 m n o M N O 6
«7» 7 p q r s P Q R S 7
«8» 8 t u v T U V 8
«9» 9 w x y z W X Y Z 9
«0» 0 ( space ) 0
« » @ . _ - ( space ) + ! ” $ % & ’ ( ) ” / : ; < = > ?
[ ] ^ # ` { | } ~
For example,
To enter “abc”,

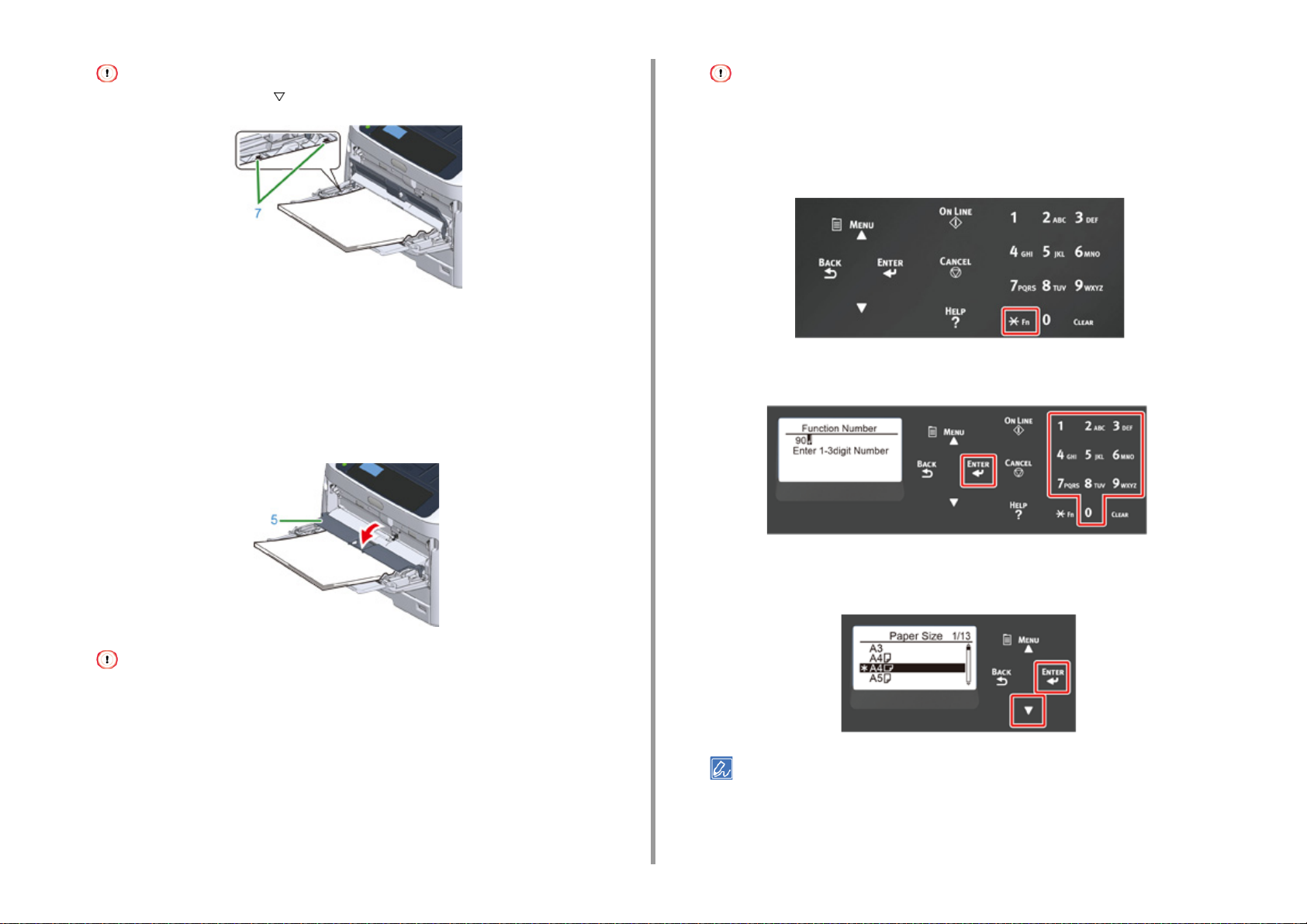

How to Use the Fn Key
Press numeric keys after pressing the «Fn» key when the message “Ready To Print” appears
on the display screen. The function menu corresponding to the number entered is displayed.
Press the «Fn» key.
1
Press the numeric keys (0-9) to display the desired function item and press the
2
«ENTER» button.
Press «2» «2» «ENTER», «2» «2» «2» «ENTER», «2» «2» «2» «2» «ENTER».
The functions of «Fn» and «CLEAR» keys are the followings:
«Fn» key
Shortcut button when displaying the device setting menu. By pressing numeric keys after
pressing the « » key, the « » key functions as «Fn» key. (Only available while the stand-by
screen is displayed.)
«CLEAR» key
Deletes a character when entering a password.
- 19 -
The setting screen of the selected function is displayed. Check or change the
3
settings.
2. Setup
Function Menu List
Function No. Function menu
1 Shared Print
2 Private Print
10 Paper Size (Tray 1)
11 X Dimension (Tray 1)
12 Y Dimension (Tray 1)
13 Media Type (Tray 1)
14 Media Weight (Tray 1)
20 Paper Size (Tray 2)
21 X Dimension (Tray 2)
22 Y Dimension (Tray 2)
23 Media Type (Tray 2)
24 Media Weight (Tray 2)
30 Paper Size (Tray 3)
31 X Dimension (Tray 3)
32 Y Dimension (Tray 3)
33 Media Type (Tray 3)
34 Media Weight (Tray 3)
40 Paper Size (Tray 4)
41 X Dimension (Tray 4)
42 Y Dimension (Tray 4)
43 Media Type (Tray 4)
44 Media Weight (Tray 4)
50 Paper Size (Tray 5)
51 X Dimension (Tray 5)
52 Y Dimension (Tray 5)
53 Media Type (Tray 5)
54 Media Weight (Tray 5)
80 Paper Feed
90 Paper Size (MP Tray)
91 X Dimension (MP Tray)
92 Y Dimension (MP Tray)
93 Media Type (MP Tray)
94 Media Weight (MP Tray)
95 Tray Usage (MP Tray)
100 Print Information (Configuration)
101 Print Information (Network)
Function No. Function menu
102 Print Information (Usage Report)
103 Print Information (Error Log)
200 Power Save Time
201 Sleep Time
202 Auto Power Off Time
210 Error Report
220 Print Position Adjust (MPTray)
221 Print Position Adjust (Tray 1)
222 Print Position Adjust (Tray 2)
223 Print Position Adjust (Tray 3)
224 Print Position Adjust (Tray 4)
225 Print Position Adjust (Tray 5)
230 Paper Black Setting
231 Paper Color Setting
232 Trans. Black Setting
233 Trans. Color Setting
234 SMR Setting
235 BG Setting
236 Drum Cleaning
237 Hex Dump
300 Adjust Density
301 Adjust Registration
302 Print Color Tuning Pattern
310 Cyan Density
311 Magenta Density
312 Yellow Density
313 Black Density
• An error results when the option item selected is not currently installed.
• For menus with no number assigned, see ”Menu List of the Operator Panel”.
- 20 -
2. Setup
Preparing Your Printer
This section explains how to unpack your printer and a set of consumables and paper.
• Unpacking
• Installing Consumables
• Loading Paper
Unpacking
Injury may result.
Lift this machine by 2 persons, because it weighs approximately 40 kg.
• Be sure to use the consumables or maintenance units provided with this printer at first. Otherwise, the life of the
consumables or maintenance units may not be displayed correctly, or you may not be able to use them later.
• Use extra care when handling the image drum (the green cylinder), because it is fragile.
• Do not expose the image drum to direct sunlight or strong light (approximately 1,500 lux or more). Even under room
lighting, do not leave the image drum for 5 minutes or more.
• Packaging and cushioning materials are required for transporting the machine. Do not dispose of it, and keep it for
future use.
Remove the machine from the box, and then remove all cushioning materials
1
and the plastic bag from the machine.
Remove the two strips of protective tape (Blue) at the back of your printer.
2
Lift the machine, and then place it where it is to be installed.
3
• If you use optional additional tray units, see "Options" in "Appendix".
- 21 -
Installing Consumables
Insert your finger into the recess on the right side of the printer and pull the
1
front cover open lever (1) to open the front cover (2) forward.
• Open the front cover gently. If opening rapidly, an MP tray may open.
Press the open button (3) and open the output tray (4).
2
Take the image drum "K: Black" set forward with the toner cartridge attached
4
and put it on the surface prepared in step 3.
• Image drums are not locked on the printer. It can be removed by lifting it up.
• The starter toner cartridges are shipped with the image drums attached. Please do not remove starter toner
cartridges from the image drums.
2. Setup
Prepare flat surface covered with sheets of newspaper, etc. to remove
3
protective sheets from the image drums set in the printer.
- 22 -

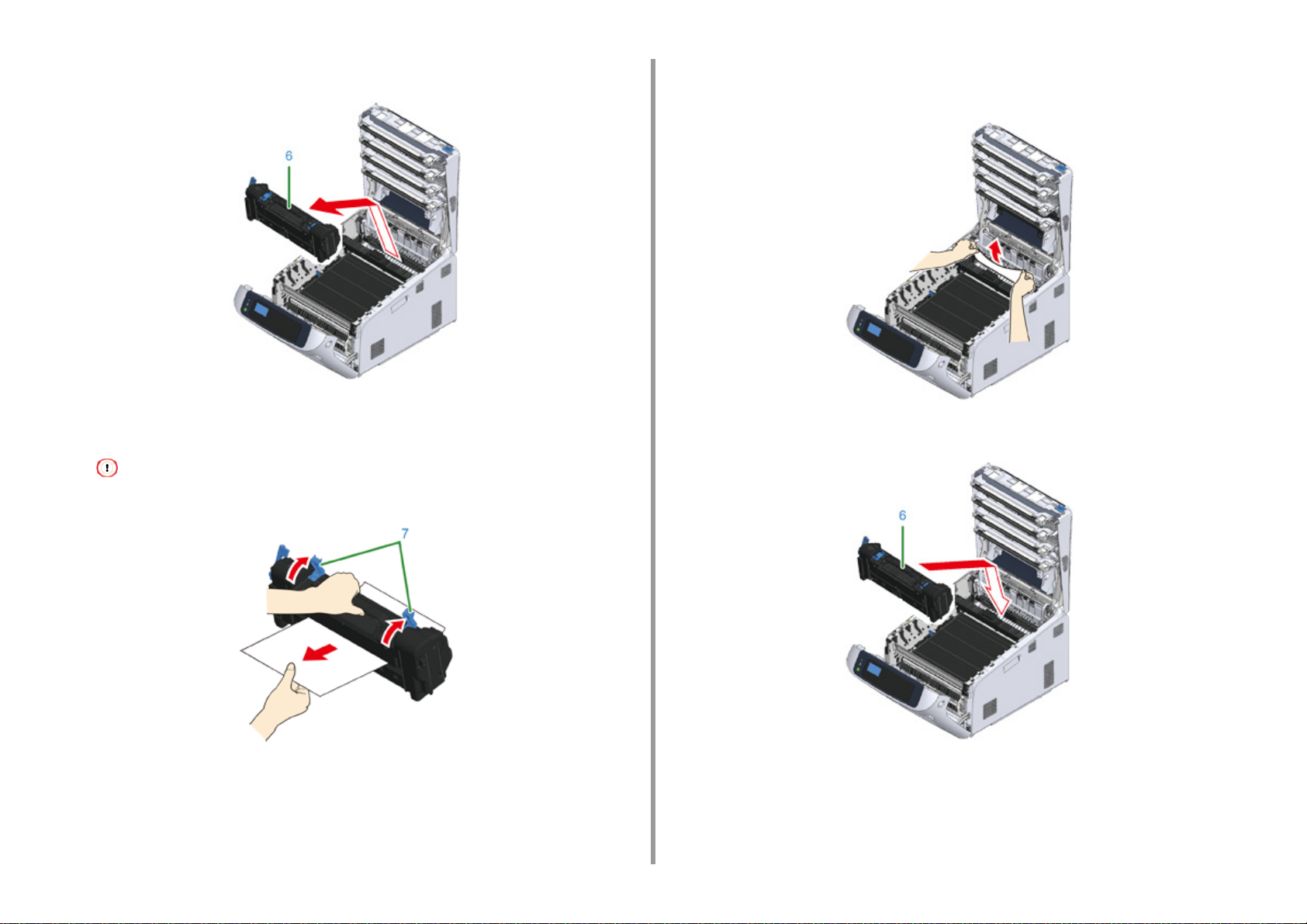

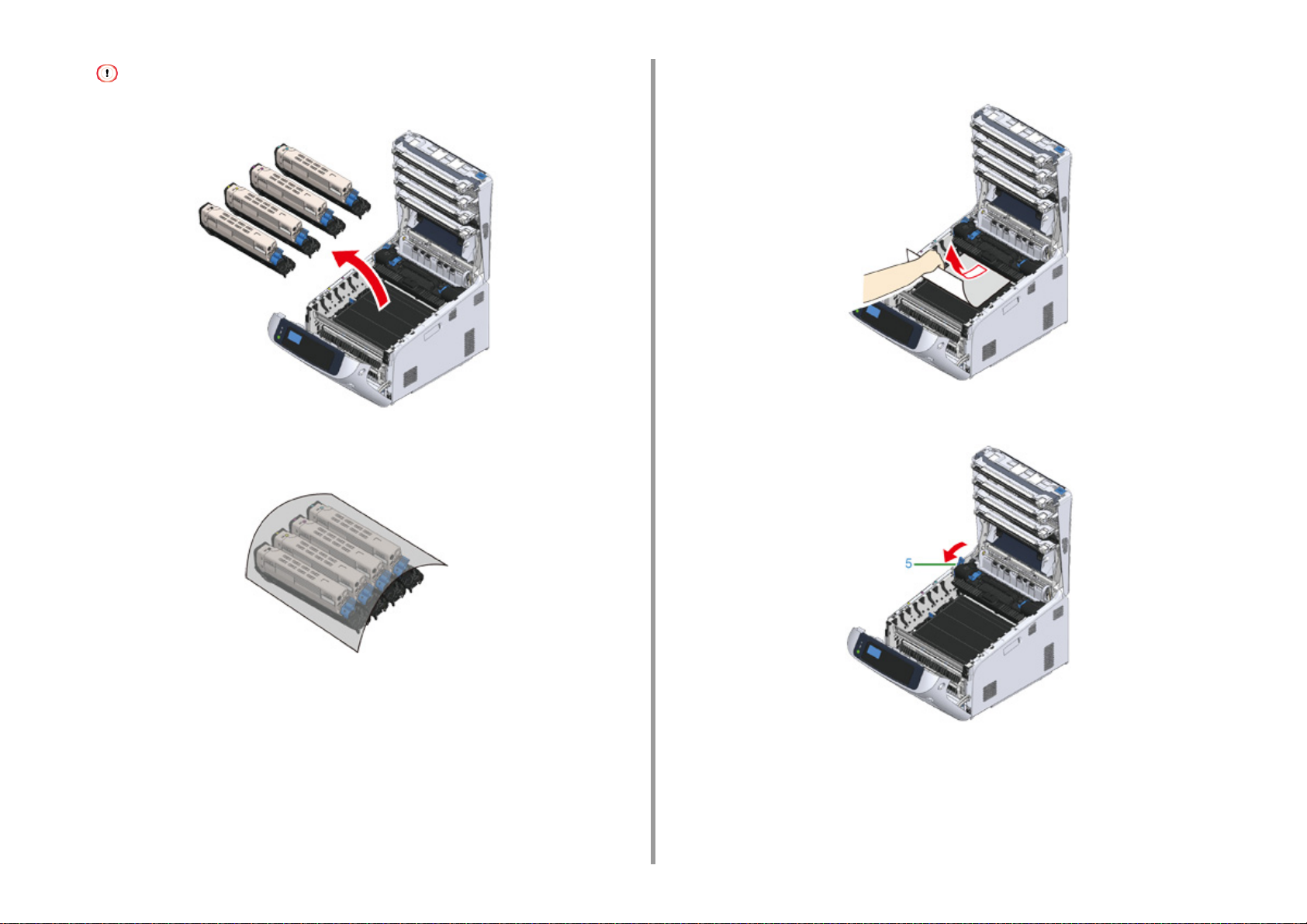

Remove the protective sheet (5) from the image drum.
5
(1) Remove a tape (6) stuck on a protective sheet (5) and open it.
2. Setup
(2) Draw the protective sheet (5) in the direction of the arrow. Do not turn the
toner cartridge lock lever (7) (blue).
Put the image drum with the protective sheet removed into the printer unit and
6
turn the toner cartridge lock lever (7) (blue) in the direction of the arrow until it
lines up with the .
You will hear a click when it is locked in place.
Repeat from step 4 to step 6 to pull out all the image drum and remove all the
7
protective sheet in the order of "Y: Yellow", "M: Magenta", and "C: Cyan". And
put them back to the printer, then turn the toner cartridge lock lever.
Close the output tray (4) by pushing the center of the cover firmly.
8
• Closing the cover without turning the toner cartridge lock lever (blue) may cause a malfunction. Make sure to
turn the cartridge lock lever until it lines up with the in the far end.
- 23 -
Close the front cover (2).
9
• The front cover cannot be closed securely if the output tray is not closed.
• When the error message that the top or front cover is open does not disappear from the operator panel’s
display screen, make sure they are closed securely.
Loading Paper
For details on available paper, see "Supported Paper".
Pull out the paper cassette (1).
1
Set the paper size dial (2) to match the loading paper size.
2
Set the dial to [A4 ] when loading the A4 size paper with a landscape orientation.
2. Setup
- 24 -
• If the size of paper cannot be found in items of the dial, set "Other".
2. Setup
• If you draw the cassette with the printer power on, the paper size, paper type, and paper thickness of the tray
are sometimes displayed on the panel.
If you change paper, change the settings to the appropriate values. You can change the setting to hide the
screen. To hide the tray paper size message, select [Admin Setup] > [Panel Setup] > [Paper setup when paper
exchange] and set it to [Off].
• Make sure to match the size of paper and that on the paper size dial. Otherwise, paper size error occurs and
printing cannot be done.
• For size of paper which can be loaded either horizontal or vertical such as A4, please be careful of the direction.
Slide the paper guide (3) and paper stopper (4) to the size of paper to be
3
loaded.
Fan a stack of paper well, and then align the edges of the paper.
4
• Do not load paper above the " " mark (5) on the paper guide.
Secure the loaded paper with the paper guide.
6
Check if a size of loaded paper matches the setting of paper size dial.
7
• If the size of paper and that on the paper size dial do not match, paper size error occurs and printing cannot
be done.
Return the paper cassette to the printer.
8
Load paper with the print side face down.
5
- 25 -
If paper that cannot be selected from the sizes on the paper size dial (the dial
9
setting: [Other]) is loaded, set paper size to [Custom] on the operator panel
and enter the width and length of paper.
See "Printing on Custom Size Paper (Advanced Manual)".
• If the size of paper whose size can be found on the dial such as A3 and A4, set [Cassette Size]. [Cassette Size]
is set by factory default and you do not need to change for normal use.
2. Setup
- 26 -
2. Setup
About the Power Supply
This section explains condition of the power supply and how to turn on/off the printer.
• Power Supply Conditions
• Connecting the Power Code
• Turning On the Power
• Turning Off the Power
• What You Should Do If You Do Not Use This Machine for an Extended Period of Time
Power Supply Conditions
The power supply must meet the following conditions.
Voltage: 110 to 127V AC (Range 99 to 140V AC) / 220 to 240V AC (Range 198 to 264V AC)
Frequency: 50/60 Hz ± 2%
• If the power supply is unstable, use a voltage regulator.
• The maximum power consumption of the machine is 1118 W. Check that the power supply is sufficient.
• The operation that uses an uninterruptible power supply (UPS) or inverter is not guaranteed. Do not use an
uninterruptible power supply (UPS) or inverter.
- 27 -
Fire or electric shock may result.
•
Be sure to turn this machine off before connecting and disconnecting the power cord
and the ground wire.
•
Be sure to connect the ground wire to the designated ground terminal.
If this machine cannot be grounded, contact your dealer.
•
Be sure not to connect the ground wire to the ground of a water pipe, gas pipe or
telephone line, or to a lightning rod.
•
Be sure to connect the ground wire before connecting the power cord to the outlet.
Also, be sure to unplug the power cord from the outlet before disconnecting the
ground wire.
•
Be sure to plug or unplug the power cord by holding its power plug.
•
Securely plug the power cord into the outlet.
•
Do not plug or unplug the power cord with wet hands.
•
Install the power cord in a location where users cannot step on it, and do not place
any object on the power cord.
•
Do not bundle or tie the power cord.
•
Do not use a damaged power cord.
•
Do not overload the outlet.
•
Do not connect the power cords of this machine and other electric products to the
same outlet. If the power cord of this machine is connected to the same outlet as
other electric products, especially an air conditioning machine, copier, or shredder,
this machine may malfunction due to electrical noise. If you have to connect the
power cord of this machine to the same outlet as other products, use a commercially
available noise filter or noise cut transformer.
•
Use the power cord included in this machine, and plug the cord directly into the outlet.
Do not use the power cords of other products for this machine.
•
Do not use an extension cord. If you have to use an extension cord, use a cord rated
15A or higher.
•
Use of an extension cord may result in this machine malfunctioning due to AC voltage
drop.
•
Do not turn this machine off or unplug the power cord during printing.
•
If you do not use this machine for an extended period of time due to holidays, trips, or
other reasons, unplug the power cord.
•
Do not use the power cord included in this machine for other products.
Connecting the Power Code
Plug the power cord into the power connector.
1
Plug the power cord into the outlet.
2
2. Setup
- 28 -
Turning On the Power Turning Off the Power
2. Setup
Hold down the power switch for about 1 second to turn on the power.
1
The Power switch LED indicator lights up when the printer turns on.
The message “Ready To Print” is displayed in the operator panel once printer is ready.
Hold down the power switch for about a second.
1
The message “Shutting down. Please wait. Printer will turn off automatically” appears in
the operator panel, and the power switch indicator blinks every 1 second.
Then the printer turns off automatically and the power switch indicator goes out.
• It may take about 5 minutes to turn off the power. Wait until it turns off.
• Holding down the power switch for more than 5 seconds turns off printer forcibly. Only perform this procedure
when a problem occurs. For printer problems, refer to “
Problems on the Machine”.
- 29 -
What You Should Do If You Do Not Use This Machine for an Extended Period of Time
If you do not use this machine for an extended period of time due to holidays, trips, or other
reasons, unplug the power cord from the outlet.
• This machine does not have functional failures if the power cord is unplugged for an extended period of time (four
weeks or more).
2. Setup
- 30 -
2. Setup
Test Printing from the Printer
Check that you can print with the printer. Check the detailed settings and status of your
printer by printing the contents of the settings (Configuration).
• If you purchased optional equipment such as the additional tray unit, check the printer after mounting the optional
equipment. For details on attaching optional equipment, see "
• When a printer is in the power saving mode, press the «POWER SAVE» button to restore from the mode.
Press the «Fn» key on the operator panel.
1
Enter «1», «0», «0» using the numeric keypad, check [100] is displayed on the
2
display screen, and press the «ENTER» button.
Options".
Press the «ENTER» button as [Execute] is selected.
3
After finishing a print of printer settings, a setup for printing from a printer completes.
• You can also print reports and lists for each function. Refer to "Checking the Current Settings (Advanced
Manual)".
• When optional equipment is mounted
After mounting an optional equipment, check the printer settings in the same
manner and check if the mounted optional equipment is properly displayed on the
printing result.
- 31 -
Changing the Administrator Password
It is recommended to change the administrator password to protect your security. Set the
administrator password using from 6 to 12 alphanumeric characters. Be careful not to forget
the set password.
Press the scroll button several times to select [Admin Setup] and press the
1
«ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
2
«ENTER» button.
The factory default password is "123456".
Press «1»→«2»→«3»→«4»→«5»→«6»→«ENTER» in that order. The password is
displayed as "******".
Press the scroll button several times to select [Change Password] and
3
press the «ENTER» button.
Enter a new administrator password and press the «ENTER» button.
4
Enter the new administrator password again and press the «ENTER» button.
5
2. Setup
- 32 -
3
Connecting to a Computer
Connection Method and Flow
Product Requirements
Types of Drivers
Connecting to a Wireless LAN
Connecting a USB Cable
Connecting a LAN Cable
Installing a Printer Driver to a Computer
Selecting a connecting method between different segments
This section describes how to connect the printer to a computer and install the printer driver on the supplied DVD-ROM.
When using the software DVD-ROM, prepare a computer with DVD drive.
• Depending on your OS, model or version, the description on this document may be different.
• When a DVD drive is not mounted on your computer, download the printer driver or utility from the Oki Data Web site.
Connection Method and Flow
This section describes the flow to connect the printer to a computer.
3. Connecting to a Computer
- 34 -
Product Requirements
Your printer supports the following operating systems:
• Windows 10/Windows 10 (64bit Version)
• Windows 8.1/Windows 8.1 (64bit Version)
• Windows 8/Windows 8 (64bit Version)
• Windows 7/Windows 7 (64bit Version)
• Windows Server 2019
• Windows Server 2016
• Windows Server 2012 R2
• Windows Server 2012
• Windows Server 2008 R2
• Windows Server 2008/Windows Server 2008 (64bit Version)
3. Connecting to a Computer
• macOS 10.14 - 10.12 / Mac OS X 10.11 - 10.10
Depending on your OS or version, the description on this document may be different.
Check details on the latest driver on the Oki Data Web site.
- 35 -
Types of Drivers
The types of the drivers that can be installed are as follows. If you do not know what driver to
choose, choose the PCL printer driver.
• PCL Printer Driver
You can use it in C824/C834/C844/ES8434.
The PCL printer driver is suitable for printing of business documents.
• PS Printer Driver
You can use it in C834/C844/ES8434.
The PS printer driver is suitable for printing of documents including PostScript
fonts and EPS data.
3. Connecting to a Computer
- 36 -
3. Connecting to a Computer
Connecting to a Wireless LAN
This section describes how to connect the printer and a computer using wireless LAN. For
C824 and ES8434, the optional wireless LAN module is required to use wireless connection.
Installing the Wireless LAN module (C824, ES8434 Only)
• Wireless(Infrastructure) and Wireless(AP Mode) cannot be enabled at the same time.
• Do not place any electric products that emit weak radio waves (such as microwaves or digital cordless telephones)
close to the machine.
• The communication speed of a wireless LAN connection may be slower than that of a wired LAN or USB connection
depending on the environment. If you want to print big data such as a photo, it is recommended to print with a wired
LAN or USB connection.
• This printer can use a wired LAN and wireless LAN simultaneously. If the wired LAN and wireless LAN are connected
to the same subnet, communications may become unstable.
• Connecting to an Access Point (Infrastructure)
• Connecting to the Machine Directly (AP Mode)
Connecting to an Access Point (Infrastructure)
• Install this machine in a place with a good view of the wireless access point. (We suggest that the distance between
the machine and the wireless device be 30 m or less.)
• If there is metal, aluminum sash, or a reinforced concrete wall between the machine and wireless LAN access points,
connections may be harder to be established.
• Outdoor use of IEEE802.11a (W52/W53) is prohibited by the Radio Law. Use IEEE802.11a (W52/W53) only indoors.
• [Wireless(Infrastructure)] and [Wireless(AP Mode)] cannot be enabled at the same time.
• If you connect using 2.4 GHz, use channels 1 to 11. Channels 12 and 13 are not available. If you connect using 5
GHz, use channels 36 to 48, 52 to 64, 100 to 140, or 149 to 165.
Enabling Wireless LAN (Infrastructure)
Turn on the printer.
1
Press the scroll button several times to select [Wireless(Infrastructure)
2
Setting], and press the «ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and press the
3
«ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
As [Wireless(Infrastructure)] is [Disable], press the scroll button to select
4
[Enable].
Press the «ENTER» button.
5
Connecting to an Access Point
There are three connecting methods as follows. Connecting with WPS is the easiest way and
used for normal use.
Connecting with WPS
Connecting by Selecting a Wireless LAN Access Point from the Operator Panel
Connecting by Manual Setup from Operator Panel
- 37 -
When connecting to a wireless LAN with WPA/WPA3-EAP, refer to the “Setting IEEE802.1X
(Wireless LAN) (Advanced Manual)”.
Connecting with WPS
If the wireless LAN access point supports WPS, you can easily connect to the wireless LAN
with the easy setup button (WPS button).
Check the position of the WPS button by referring to the instruction manual
1
that is included in a wireless LAN access point or other document.
Check that the wireless LAN access point starts and is operating properly.
2
Turn on the machine.
3
Press the scroll button several times to select [Wireless(Infrastructure)
4
Setting] and press the «ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
5
the «ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
The "It is not possible to use the Wireless(AP Mode) at the same time." message is
displayed for approximately five seconds.
Press the scroll button to select [Enable] and then press the «ENTER»
6
button.
Press the scroll button several times to select [Automatic setup(WPS)] and
7
press the «ENTER» button.
3. Connecting to a Computer
• [Running pushbutton method...] is displayed for approximately two minutes. While this message is displayed,
press the push button of the wireless LAN access point.
• You cannot operate the panel when WPS is in progress.
When [WPS connection successful.] is displayed, it indicates that the wireless
11
LAN setup has completed.
Go to the procedure to "Installing a Printer Driver to a Computer".
• If [Connection failed. Timeout] is displayed, repeat the procedure from step 6.
• [Overlap] is displayed when multiple WPS push buttons are pressed almost at the same time at two or more
wireless LAN access points and connection is not established. Wait for a while, and then try again.
If the antenna mark is displayed at the top right of the display screen, the connection is
established correctly.
If WPS method does not work, go to "
from the Operator Panel
Connecting by Selecting a Wireless LAN Access Point from the Operator Panel
If the wireless LAN access point does not support WPS, you can specify a wireless LAN
access point you want to use from the wireless LAN access points that the machine detects
to establish a connection. In such a case, you must enter an encryption key.
Check the SSID and encryption key by referring to the instruction manual that
1
is included in a wireless LAN access point or other documents, and write the
information down.
".
Connecting by Selecting a Wireless LAN Access Point
Select [WPS-PBC], and press the «ENTER» button.
8
When [Pushbutton method] is displayed, select [Yes] and press the «ENTER»
9
button.
The machine starts searching for wireless LAN access points. The "Running
pushbutton method..." message is displayed on the screen.
Press for a few seconds the WPS button on the wireless LAN access point
10
while the message is displayed.
- 38 -
• WPA-EAP and WPA2-EAP cannot be set on the operator panel. Set these in the Web site for the printer.
Open the Web Page of This Machine (Advanced Manual)
• An SSID is also called a network name, ESSID or ESS-ID.
• An encryption key is also called a network key, security key, password or Pre-shared Key.
Check that the wireless LAN access point starts and is operating properly.
2
3. Connecting to a Computer
Turn on the machine.
3
Press the scroll button several times to select [Wireless(Infrastructure)
4
Setting] and press the «ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
5
the «ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
The "It is not possible to use the Wireless(AP Mode) at the same time." message is
displayed for approximately five seconds.
Press the scroll button to select [Enable] and then press the «ENTER»
6
button.
Press the scroll button several times to select [Wireless Network Selection]
7
and press the «ENTER» button.
The machine starts searching for wireless LAN access points. Wait for a while.
A list of available wireless LAN access point SSIDs are displayed. Press the
8
scroll button or , select a wireless LAN access point to connect, and
then press the «ENTER» button.
• If only [Manual Setup] is displayed, or the SSID of the wireless LAN access point you want to use is not
included in the list, set by following the procedure in "
The encryption key entry screen that is suitable for the encryption method of the selected wireless LAN access
point is displayed.
Connecting by Manual Setup from Operator Panel".
Item Description
Encryption method WEP
Encryption key Enter the WEP key.
•
If neither of the above two cases is applied
Item Description
Encryption method Disable
Encryption key No entry is required.
If the displayed SSID is the same as the SSID that you checked in step 1,
10
press the «ENTER» button.
When "Connection successful." is displayed, select [Close], and then press
11
the «ENTER» button.
Go to the procedure to "Installing a Printer Driver to a Computer".
If "Connection failed." is displayed, repeat the procedure from step 4.
If the antenna mark is displayed at the top right of the display screen, the connection is
established correctly.
If WPS method does not work, go to "
Connecting by Manual Setup from Operator Panel".
Connecting by Manual Setup from Operator Panel
Set the wireless LAN access point information (the SSID, encryption method and encryption
key) manually to connect to the wireless LAN.
Enter the encryption key, and then press the «ENTER» button.
9
• The encryption key varies depending on the wireless LAN access point or security.
•
If the [WPA Pre-shared Key] is displayed
Item Description
Encryption method WPA/WPA2-PSK
Encryption key Enter the Pre-shared Key.
•
If the [WEP Key] is displayed
- 39 -
Check the SSID, encryption key, and encryption method by referring to the
1
instruction manual that is included in a wireless LAN access point or other
documents, and write the information down.
• WPA-EAP and WPA2-EAP cannot be set on the operator panel. Set these in the Web site for the printer.
Open the Web Page of This Machine (Advanced Manual)
• An SSID is also called a network name, ESSID, or ESS-ID.
• An encryption key is also called a network key, security key, password, or Pre-shared Key.
3. Connecting to a Computer
Check that the wireless LAN access point starts and is operating properly.
2
Turn on the machine.
3
Press the scroll button several times to select [Wireless(Infrastructure)
4
Setting] and press the «ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
5
the «ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
The "It is not possible to use the Wireless(AP Mode) at the same time." message is
displayed for approximately five seconds.
Press the scroll button to select [Enable] and then press the «ENTER»
6
button.
Press the scroll button several times to select [Wireless Network Selection]
7
and press the «ENTER» button.
The machine starts searching for wireless LAN access points. Wait for a while.
A list of available wireless LAN access point SSIDs are displayed. Press the
8
scroll button or , select [Manual Setup] at the end of the list, and then
press the «ENTER» button.
If the displayed value is the same as the value that you checked in step 1,
12
press the «ENTER» button.
• It takes approximately 30 seconds for the machine to detect the wireless LAN access point.
When the screen indicates that connection is established, select [Close] and press the
«ENTER» button.
Go to the procedure to "
If the screen indicates that connection failed, press [Close] and go back to step 7.
If the antenna mark is displayed at the top right of the display screen, the connection is
established correctly.
Installing a Printer Driver to a Computer".
Enter the SSID you checked in step 1, and then press the «ENTER» button.
9
• The SSID is case sensitive. Enter the SSID correctly.
Select the encryption method you checked in step 1, and then press the
10
«ENTER» button.
• The encryption key varies depending on the wireless LAN access point or security.
The procedure depends on the encryption method you selected in step 9.
11
If you selected [WPA/WPA2-PSK], select [TKIP/AES], and then press the «ENTER»
button. Enter the Pre-shared Key afterward and select [Next].
If you selected [WPA2-PSK], select [AES], and then press the «ENTER» button. Enter
the Pre-shared Key afterward and select [Next].
If you selected [WEP], enter the WEP Key, and press [Next].
- 40 -
Connecting to the Machine Directly (AP Mode)
Wireless LAN (AP mode) directly connects wireless devices (computers, tablets,
smartphones, etc.) to the machine without using a wireless LAN access point.
3. Connecting to a Computer
Start the WPS-PBC (push button) operation on your wireless device to
8
connect to the machine.
When [Connection successful] is displayed, the setup of the wireless LAN is
completed.
If [Connection failed] is displayed, follow the steps in "Manual Setup" to try again.
• If there is metal, aluminum sash, or a reinforced concrete wall between the machine and wireless devices,
connections may be harder to be established.
• Up to four devices can be connected to the machine via the wireless LAN (AP mode). The fifth device will be rejected.
• You cannot enable wireless LAN (infrastructure) and wireless LAN (AP mode) at the same time.
Automatic Connection (Push-button)
If your wireless devices support WPS-PBC (push button), you can connect to the wireless
LAN (AP mode) with the WPS button.
Confirm the position of the WPS button on your wireless device by the manual
1
attached to the device.
Turn on the machine.
2
• If the "Do you want to Set-up wireless?" message appears, select [No (Do not show next time)].
Press the scroll button several times to select [Wireless(AP Mode) Setting]
3
and press the «ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
4
the «ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
Press the scroll button to select [Enable] and then press the «ENTER»
5
button.
If connection failed, go to "Manual Setup".
Manual Setup
If your wireless devices do not support WPS-PBC (push button), you can enter [SSID] and
[Password] of the machine in your wireless devices to connect to the wireless LAN.
Turn on the machine.
1
Press the scroll button several times to select [Wireless(AP Mode) Setting]
2
and press the «ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
3
the «ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
Press the scroll button to select [Enable] and then press the «ENTER»
4
button.
Press the scroll button several times to select [Manual Setup] and press
5
the «ENTER» button.
Check the [SSID] and [Password] of the machine.
6
Input the machine’s [SSID] and [Password] that were confirmed in step 6 for
7
your wireless device.
Press the scroll button to select [Automatic Setup (PushButton)] and press
6
the «ENTER» button.
Select [Yes], and then press the «ENTER» button.
7
- 41 -

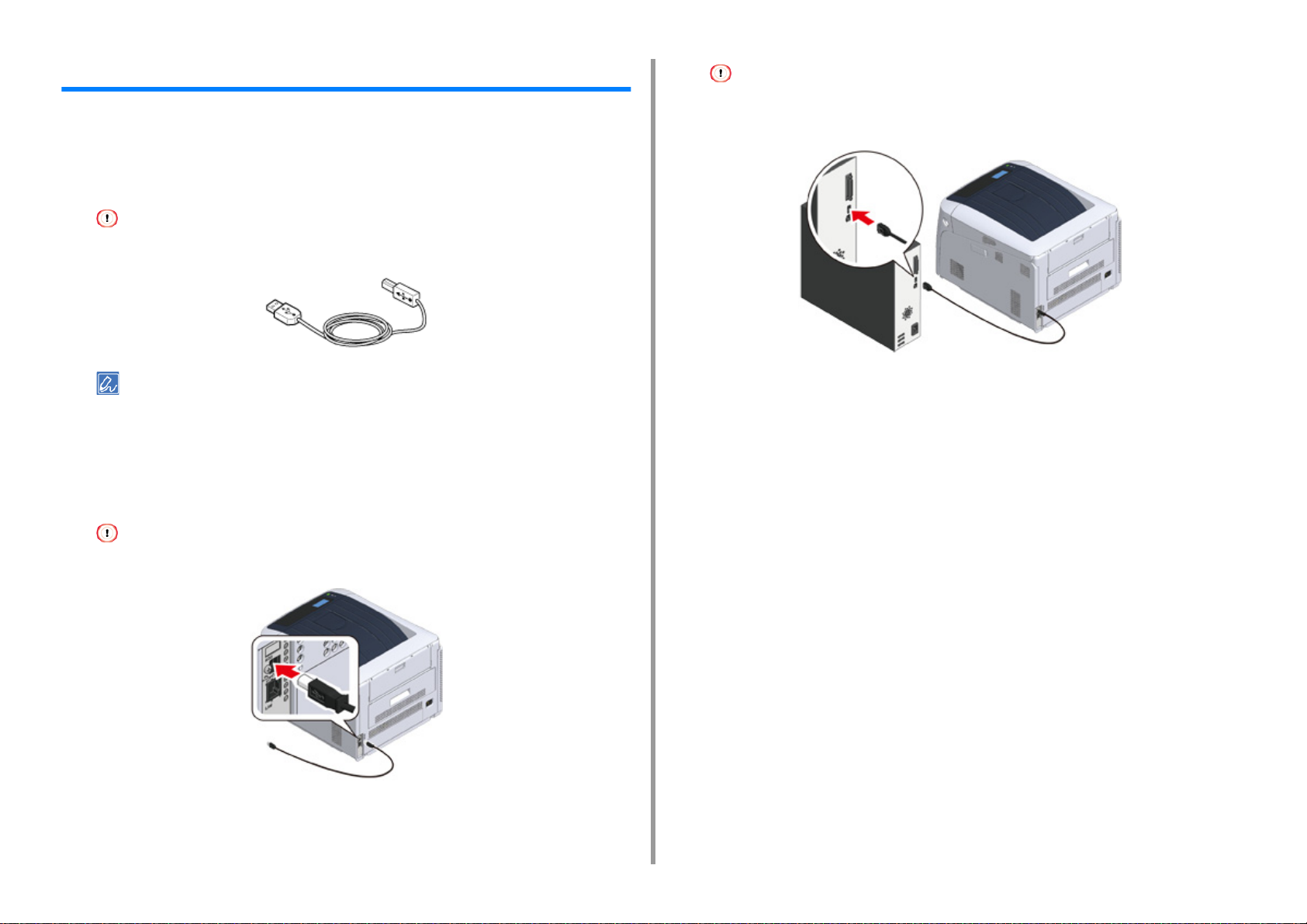

Connecting a USB Cable
Connect the printer to a computer using a USB cable.
Prepare a USB cable.
1
A USB cable is not supplied. A USB2.0 cable is required.
• USB3.0 is not supported.
• If you want to connect in USB 2.0 Hi-Speed mode, use a Hi-Speed USB 2.0 USB cable.
Turn off the machine.
2
Insert one end of the USB cable into the USB interface connector on the
3
machine.
3. Connecting to a Computer
• For Windows, do not insert the other end of the USB cable into the computer until the instruction is displayed
on the screen when the driver installation is in progress.
Go to the procedure to "Installing a Printer Driver to a Computer".
• Do not insert the USB cable into the network interface connector. It may cause a malfunction.
Insert one end of the USB cable into the USB interface connector on the
4
machine.
- 42 -
3. Connecting to a Computer
Connecting a LAN Cable
Connect the printer to a computer using wired LAN network.
Before installing the printer driver, connect the printer to a network using a LAN cable.
Prepare a LAN cable (1) and hub (2).
1
A LAN cable is not supplied. A LAN cable (category 5e or higher, twist pair, strait) is
required.
Turn off the machine.
2
Insert one end of the LAN cable (1) into the network interface connector.
3
Insert the other end of the LAN (1) cable into the hub (2).
4
Next, set the Network information such as IP addresses of the printer.
Turn on the printer.
5
Press the scroll button several times to select [Admin Setup], and press
6
the «ENTER» button.
- 43 -
3. Connecting to a Computer
Enter the administrator password, using the numeric (0-9) keys and press the
7
«ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
Check that [Network Setup] is selected, press the «ENTER» button.
8
Press the scroll button several times to select [IP Address Set], and press
9
the «ENTER» button.
If setting the IP address manually, press the scroll button and select [Manual], and
press the «ENTER» button. Proceed to the step 10.
If obtaining the IP address automatically, check that [Auto] is selected, and press the
«ENTER» button. Proceed to the step 16.
Press the «BACK» button until [Network Setup] is displayed. Press the scroll
10
button several times to select [IPv4 Address], and press the «ENTER»
button.
Enter the IP address using the numeric (0-9) keys, and press the «ENTER»
11
button.
In the same way, enter the next 3 digits. To move to the next box, press the «ENTER»
button.
All input was completed, then press the «BACK» button.
- 44 -
3. Connecting to a Computer

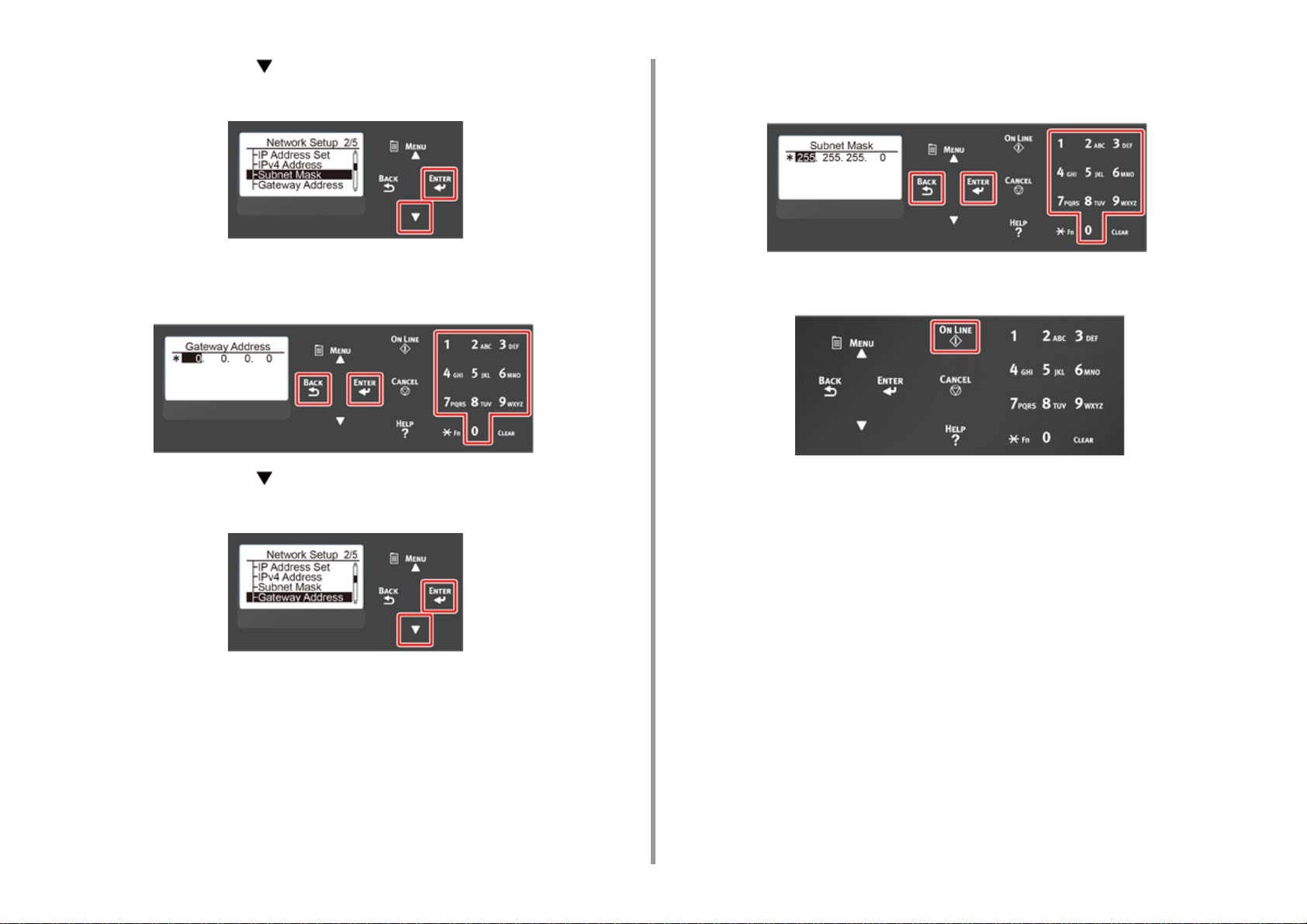

Press the scroll button to select [Subnet Mask], and press the «ENTER»
12
button.
Enter the subnet mask in the same manner of IP address. All input was
13
completed, then press the «BACK» button.
Press the scroll button to select [Gateway Address], and press the
14
«ENTER» button.
Enter the Gateway Address in the same manner of IP address. All input was
15
completed, then press the «BACK» button.
Press the «ON LINE» button to complete the network settings.
16
Go to the procedure to "Installing a Printer Driver to a Computer".
- 45 -
3. Connecting to a Computer

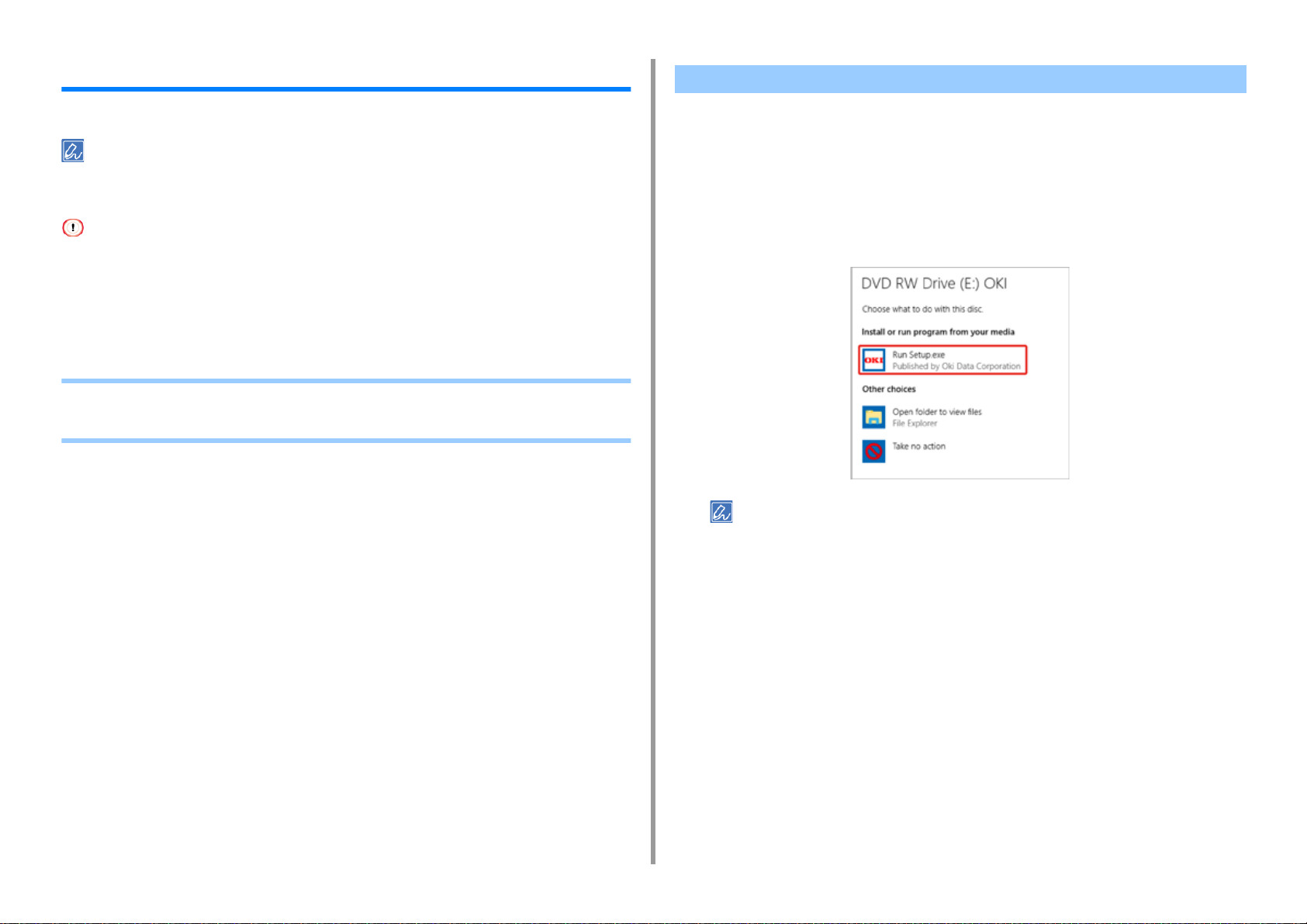

Installing a Printer Driver to a Computer
Install the printer driver from the "Software DVD-ROM" to the computer.
• If your computer is not equipped with DVD-ROM drive or when updating the printer driver, download the printer
driver from the "Oki Data website" to install.
• Check the status of this machine before installing.
- This machine is turned on.
- For network connection, this machine is connected to the network via a LAN cable and required information such
as IP address is already set.
• Depending on your OS, model or version, the description on this document may be different.
• For Windows
• For Mac
For Windows
Check that the printer is connected to a computer and turned on.
1
Insert the included "Software DVD-ROM" into a computer.
2
When installing the printer driver downloaded from the Oki Data Web site, double-click
the downloaded file.
When [Auto Play] is displayed, click [Run Setup.exe].
3
- 46 -

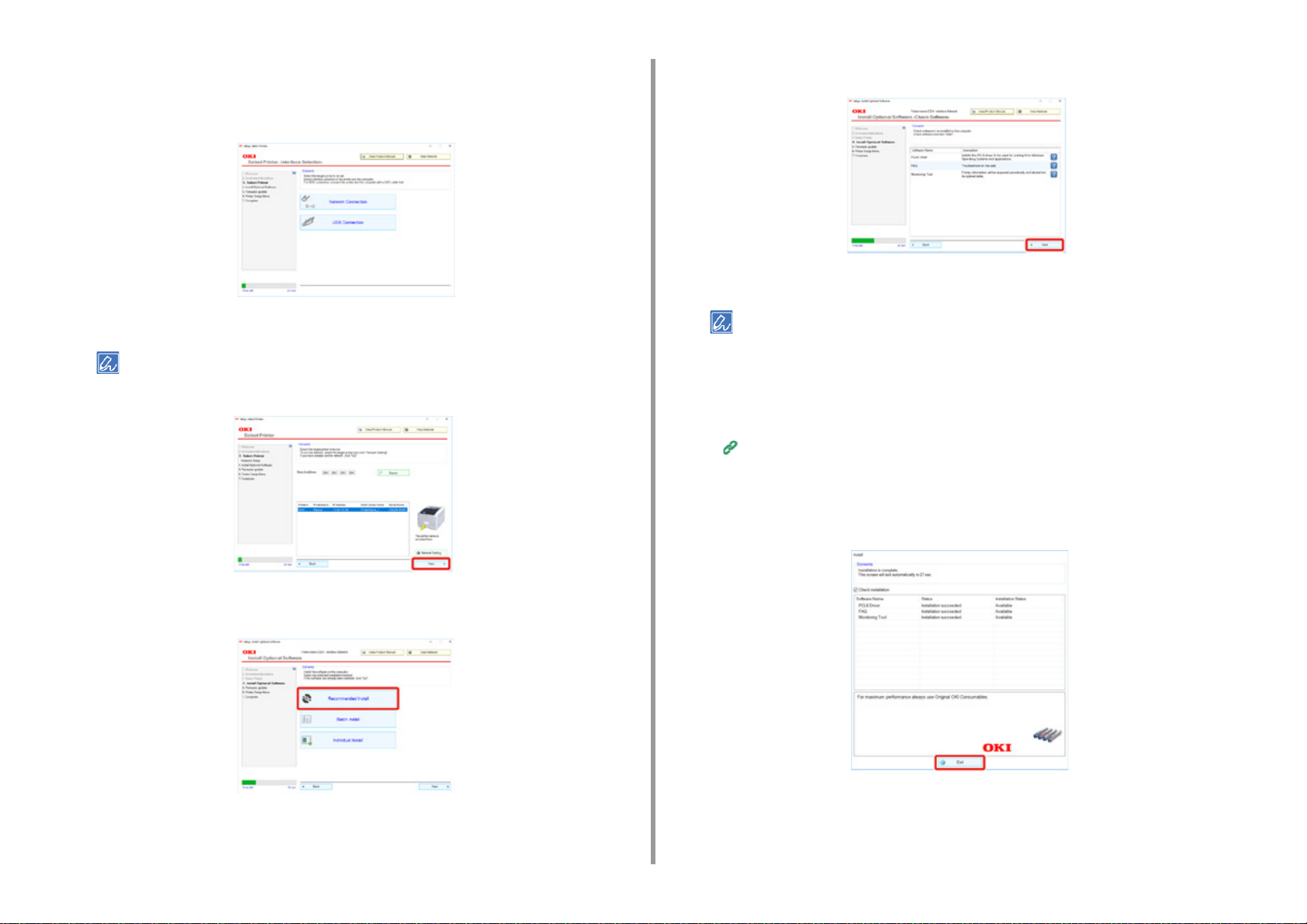

• If the [User Account Control] dialog is displayed, click [Yes].
Select a language from the drop-down list.
4
Read the license agreement, and then click [Accept].
5
Read [Environment advice], and then click [Next].
6
3. Connecting to a Computer
Select [Network connection] or [USB connection] in accordance to the
7
connection method of the machine and computer.
If the [Windows Security Alert] dialog is displayed, click [Allow access].
Select the model name of the machine, and then click [Next].
8
• If the printer is not displayed, select [IP Address], enter the address assigned to the printer, and click [Next].
Check the software and click [Start].
Installation starts.
• The following software is installed.
- PCL6 Printer Driver (Including Network Extension and Color Swatch Utility)
-FAQ
- Monitoring Tool
• Install other software from Custom Install.
Installing Software (Advanced Manual)
Make sure that the software is successfully installed.
10
Click [Exit].
11
Click [Recommended Install].
9
The [Firmware update] screen is displayed.
- 47 -

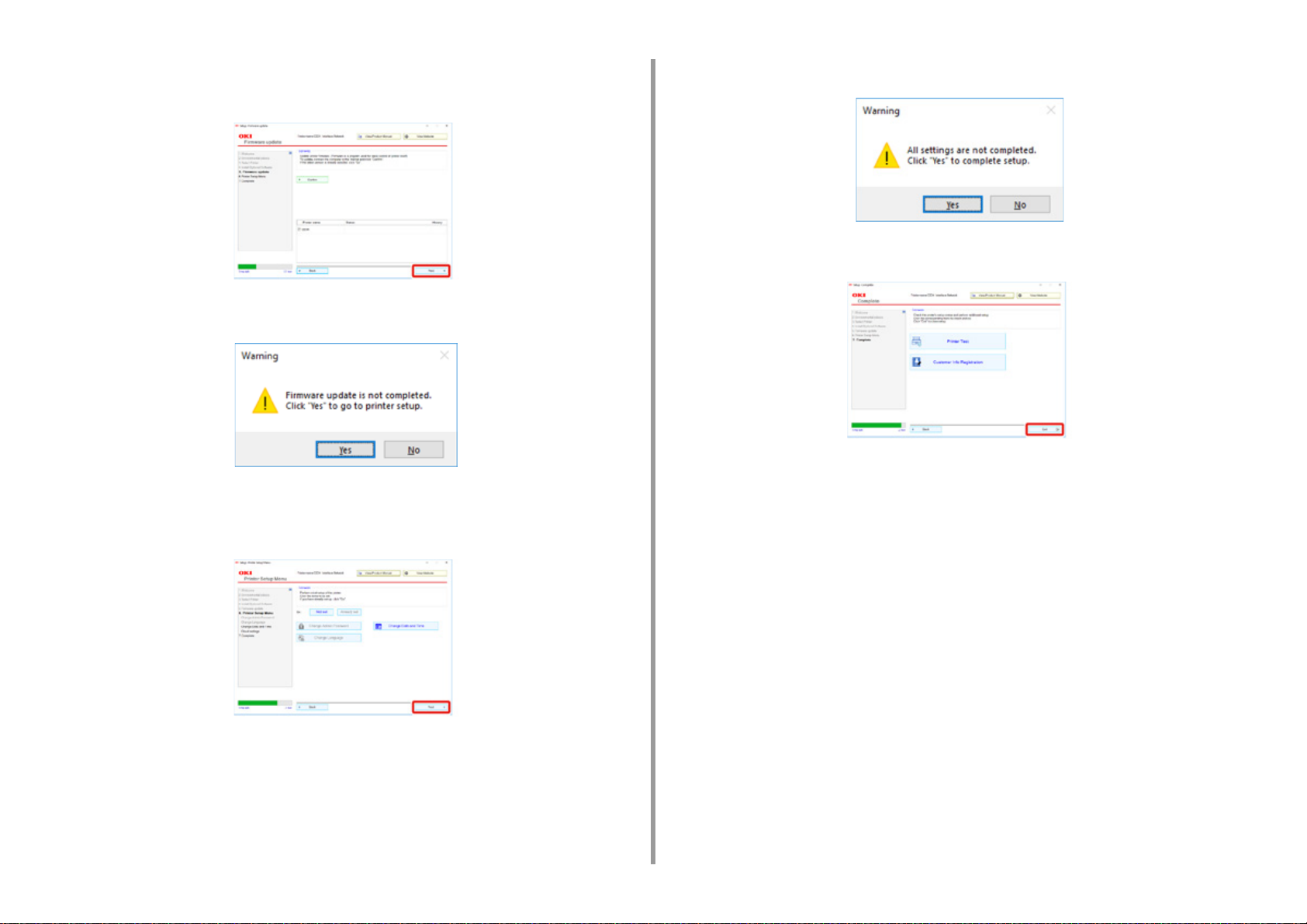

3. Connecting to a Computer
If you do not need to update, click [Next].
12
Click [Confirm] if you need to update or you are not sure if updating is required.
If the following screen is displayed, click [Yes].
When the updating process is complete, click [Go].
If the following dialog is displayed, click [Yes].
Click [Exit].
14
13
Click [Next].
- 48 -

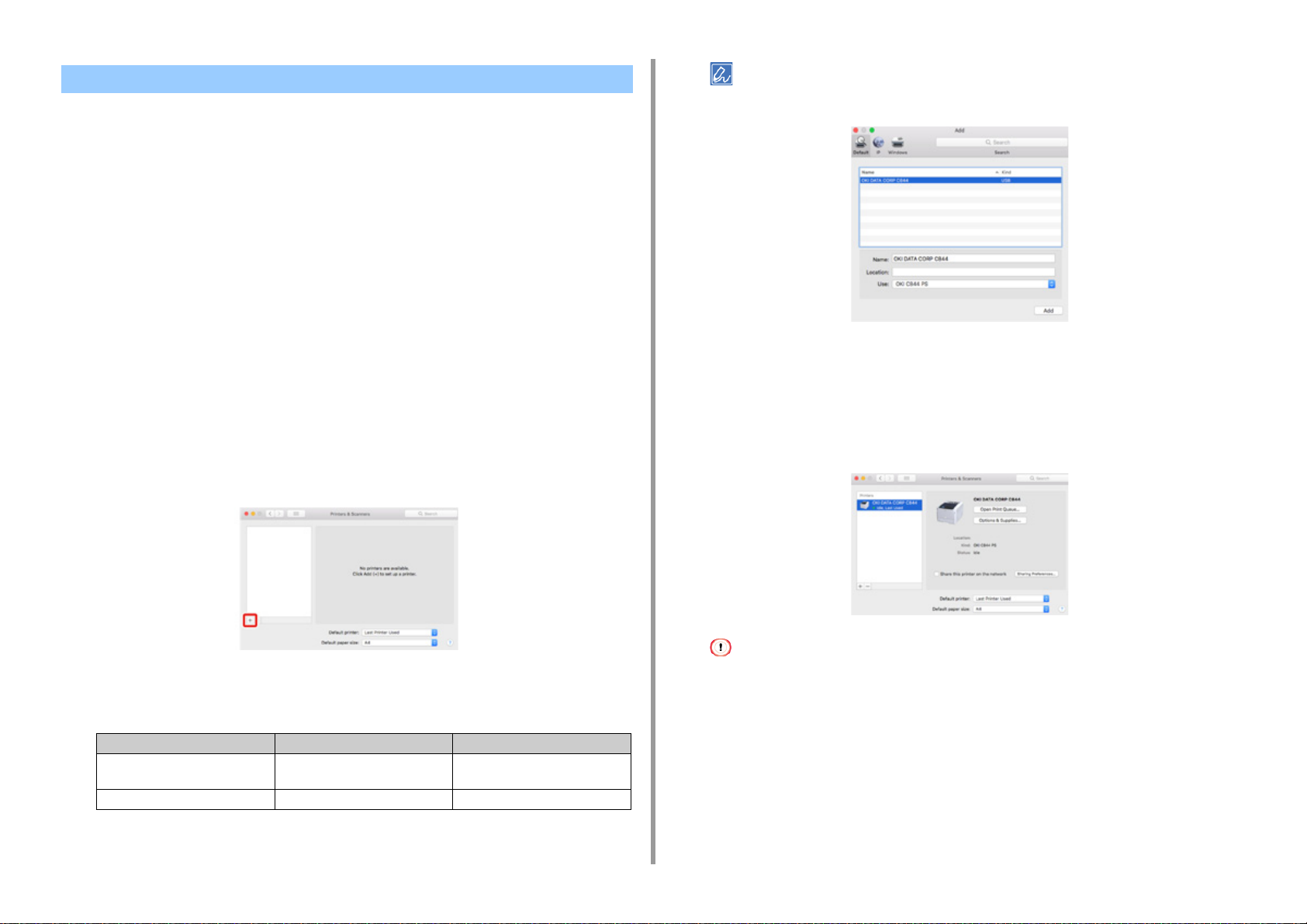

For Mac
This section describes how to install the PS printer driver.
Make sure that the machine and a computer are connected and the machine
1
is turned on.
Insert the "Software DVD-ROM" into a computer.
2
Double-click the [OKI] icon on the desktop.
3
[Drivers] > [PS] > Double-click [Installer for OSX].
4
Enter the administrator password, and then click [OK].
5
Follow the on-screen instructions to complete the installation.
Select [System Preferences] from the Apple menu.
6
Click [Printers & Scanners].
7
Click [+].
8
Select [Add Printer or Scanner...] when the menu is displayed.
3. Connecting to a Computer
• To change the name, enter a new name into [Name].
Click [Add].
11
If the confirmation screen for optional equipment appears, click [OK].
12
Make sure that the machine is added to [Printers] and [OKI C844 PS] is
13
displayed for [Kind].
Click [Default].
9
Select the machine, and then select [OKI C844 PS] in [Use].
10
Types of Names Displayed in the Connection Methods List
Network OKI-C844 (last 6 digits of MAC
USB OKI DATA CORP C844 USB
address)
Bonjour
- 49 -
• If [OKI C844 PS] is not displayed for [Kind] correctly, click [-], delete the machine from [Printers], and then
newly perform steps 8 to 12.
Click [Open Print Queue...].
14
Select [Print Test Page] from the [Printer] menu.
15
When a test page is printed, installing the driver is complete.
Selecting a connecting method between different segments
The printer can use wired LAN and wireless LAN simultaneously, to connect a device out of
the segment, enable the default gateway of the connection method first.
[Enabling Default Gateway] is [Wired] by factory default. When connecting between different
segments using wired LAN, the following steps are not required. Change the settings only
when connecting between different segments using wireless LAN.
Press the scroll button several times to select [Admin Setup] and press the
1
«ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
2
the «ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
Check that [Network Setup] is selected, and then press the «ENTER» button.
3
Check that [Enabling Default Gateway] is selected, and then press the
4
«ENTER» button.
3. Connecting to a Computer
Press the scroll button to select [Wireless(Infrastructure)] and press the
5
«ENTER» button.
- 50 -
4
Supported Paper
Paper Loaded on the Tray
How to Print from the Tray
How to Print from the MP Tray
Paper Output
Canceling Printing
This chapter describes how to print documents from a computer.
4. Print
Supported Paper
This chapter describes various information about paper that can be loaded in a paper tray of
this machine.
• Supported Paper Types
For high-quality printing, be sure to use paper types that satisfy requirements such
as those for material quality, weight, and surface finish. Please use digital photo
print paper.
If not using recommended paper, please check the print quality and the movement
of the paper sufficiently beforehand to make sure that there are no problems. Your
printer supports the following types of paper.
Paper Type Paper Size mm (inch) Paper Weight
Plain paper A3 297 x 420 A4/ Letter size or more:
A4 210 x 297
A5 148 x 210
A6 105 x 148
B4 257 x 364
B5 182 x 257
B6 128 x 182
B6 Half 64 x 182
B7 91 x 128
B8 64 x 91
Letter 215.9 x 279.4 (8.5 x 11)
Legal 13” 215.9 x 330.2 (8.5 x 13)
Legal 13.5” 215.9 x 342.9 (8.5 x 13.5)
Legal 14” 215.9 x 355.6 (8.5 x 14)
Executive 184.2 x 266.7 (7.25 x 10.5)
Tabloid (11 x 17)
Statement (5.5 x 8.5)
8.5" SQ (8.5 x 8.5)
Folio (210 x 330 mm) 210 x 330
8K (260 x 368 mm) 260 x 368
8K (270 x 390 mm) 270 x 390
8K (273 x 394 mm) 273 x 394
16K (184 x 260 mm) 184 x 260
16K (195 x 270 mm) 195 x 270
16K (197 x 273 mm) 197 x 273
Banner (210 x 900 mm) 210 x 900
Banner (215 x 900 mm) 215 x 900
Banner (215 x 1200mm) 215 x 1200
Banner (297 x 900 mm) 297 x 900
Banner (297 x 1200 mm) 297 x 1200
4x6 inch (4x6)
5x7 inch (5x7)
Custom Size Width: 55 to 297
Length: 90 to 1320.8
Envelope Com-10 104.8 x 241.3 (4.125 x 9.5) Envelopes should be 85 g/
DL 110 x 220 (4.33 x 8.66)
C5 162 x 229 (6.4 x 9)
C4 229 x 324 (9 x 12.76)
64 to 256 g/m
Under A4/ Letter size:
64 to 256 g/m
For duplex printing:
64 to 220 g/m
• If the paper size is set at
A6, A5, or with a paper
width narrower than
216 mm, the printing will
be slower.
64 to 256 g/m
2
(24lb) paper, and flap
m
parts of envelopes should
be folded.
2
2
2
2
- 52 -
4. Print
Paper Type Paper Size mm (inch) Paper Weight
Index card Index card 76.2 x 127 (3 x 5)
Label A4 210 x 297 0.1 to 0.2 mm
Letter 215.9 x 279.4 (8.5 x 11)
Partly-printing paper Subject to plain paper*1 64 to 256 g/m
Color paper Subject to plain paper*2 64 to 256 g/m
2
2
*1 Use paper that meets the following conditions:
- Paper that meets the conditions for plain paper.
- An ink used for a part printing is heat resistant (230°C).
• When specifying a printing area, please take into account the differences of printing position as followings:
Print start position: ±2 mm, Paper skew: ±1 mm/100 mm, Image stretch: ±1 mm/100 mm (when paper ream weight
is 70 kg)
• This printer cannot print on an ink.
*2 Use paper that meets the following conditions:
- A pigment or an ink used to color paper is heat resistant (230°C).
- Paper that has same characteristics with light paper.
- Paper used for an electronic photo printer.
•Labels
Labels must be of the type recommended for use in copiers and laser printers, in which the
base carrier page is entirely covered by labels. Other types of label stocks may damage the
machine due to the labels peeling off during the printing process.
• Paper storage
Store paper under the following conditions to maintain quality.
• Inside a cabinet or other dry and dark place
• On a flat surface
• Temperature: 20°C
• Humidity: 50% RH (relative humidity)
Do not store paper in the places as shown below:
• Directly on the floor
• Where paper is exposed to direct sunlight
• Near the inside of an exterior wall
• On an uneven surface
• Where static electricity may be generated
• Where temperature excessively rises high and temperature rapidly changes
• Near this machine, an air conditioner, a heater, or duct
• Paper Recommendations
The machine supports a variety of print media, including a range of paper weights
and sizes. This section describes how to choose and use media. To obtain the best
performance, use 75 to 90 g/m
2
plain paper that is designed for use in copiers and
laser printers. Use of heavily embossed or very rough textured paper is not
recommended. Pre-printed stationery can be used, but the ink must not offset
when exposed to the high fuser temperatures used in the printing process.
• Envelopes
Envelopes must be free from twists, curls or other deformations. The envelopes must also
be of the rectangular flap type, with glue that remains intact when subjected to hot roll
pressure fusing in the machine. Window envelopes are not suitable.
• Do not unwrap paper until just before you use.
• Do not leave paper unwrapped for a long period. Doing so may result in printing problems.
• Depending on the print media, environment, storage conditions, the print quality may deteriorate or printout may get
curled.
- 53 -
4. Print
Paper Loaded on the Tray
Available paper sizes and types, and tray capacity are as follows.
• Tray 1
Available paper size Tray capacity Paper weight
A3
A4
A5
A6 (lengthwise direction)*
1
B4
B5
B6 (lengthwise direction)*
1
Tabloid
Letter
Legal13
Legal13.5
Legal14
Executive (lengthwise direction)
Statement (lengthwise direction)*
8.5" SQ
Folio
8K (270 x 390 mm)
8K (273 x 394 mm)
8K (260 x 368 mm)
16K (184 x 260 mm)
16K (195 x 270 mm)
16K (197 x 273 mm)
Custom size
*2
300 sheets
(if paper weight is 80 g/m
1
2
)
Ultra Light
Light
(64 to 82 g/m
Medium Light
(83 to 90 g/m
Medium
(91 to 105 g/m
Heavy
(106 to 128 g/m
Ultra Heavy1
(129 to 188 g/m
Ultra Heavy2
(189 to 220 g/m
• Tray 2/3/4/5 (Optional)
Available paper size Tray capacity Paper weight
A3
A4
A5 (lengthwise direction)
B4
B5
Tabloid
2
)
2
)
2
)
2
)
2
)
2
)
Letter
Legal13
Legal13.5
Legal14
Executive (lengthwise direction)
8.5" SQ
Folio
8K (270 x 390 mm)
8K (273 x 394 mm)
8K (260 x 368 mm)
16K (184 x 260 mm)
16K (195 x 270 mm)
16K (197 x 273 mm)
Custom size
*1
*1 Width: 148 to 297 mm (5.8 to 11.7 inches), Length: 182 to 431.8 mm (7.2 to 17 inches)
530 sheets
(if paper weight is 80 g/m
2
)
Ultra Light
Light
(64 to 82 g/m
Medium Light
(83 to 90 g/m
Medium
(91 to 105 g/m
Heavy
(106 to 128 g/m
Ultra Heavy1
(129 to 176 g/m
2
)
2
)
2
)
2
)
2
)
*1 Paper cannot be used for duplex printing.
*2 Width: 105 to 297 mm (4.1 to 11.7 inches), Length: 148 to 431.8 mm (5.8 to 17 inches)
- 54 -
•MP Tray
Available paper size Tray capacity Paper weight
A3
A4
A5
A6 (lengthwise direction)*
B4
B5
B6
B6 Half (lengthwise direction)*
1
B7*
B8 (lengthwise direction)*
Tabloid
Letter
Legal13
Legal13.5
Legal14
Executive
Statement
8.5" SQ
Folio
8K (270 x 390 mm)
8K (273 x 394 mm)
8K (260 x 368 mm)
16K (184 x 260 mm)
16K (195 x 270 mm)
16K (197 x 273 mm)
Index Card
4x6 inch
5x7 inch
Custom size
Com-9 Envelope
Com-10 Envelope
Monarch Envelope
DL Envelope
C5 Envelope
*1
*1
*1
*1
*2
*1
*1
*1
*1
*1
4. Print
100 sheets
(if paper weight is 80 g/m
1
1
10 sheets (envelopes)
1
2
)
Ultra Light
Light
(64 to 82 g/m
Medium Light
(83 to 90 g/m
Medium
(91 to 105 g/m
Heavy
(106 to 128 g/m
Ultra Heavy1
(129 to 188 g/m
Ultra Heavy2
(189 to 220 g/m
Ultra Heavy3
(221 to 256 g/m
2
)
2
)
2
)
2
)
2
)
2
)
2
)
*1 Paper cannot be used for duplex printing.
*2 Width: 55 to 297 mm (2.2 to 11.7 inches), Length: 90 to 1,321 mm (3.5 to 52 inches)
- 55 -
How to Print from the Tray
This section explains how to load paper in tray and print from tray.
Regarding media flexibility, please refer to "
This procedure explains to load paper in tray 1. The same procedure is applied to tray 2/3/4/
5 (optional).
Pull out the paper cassette (1).
1
Supported Paper", "Paper Loaded on the Tray".
• Make sure to match the size of paper and that on the paper size dial. Otherwise, paper size error occurs and
printing cannot be done.
• For size of paper which can be loaded either horizontal or vertical such as A4, please be careful of the direction.
• The paper size, paper type, and paper thickness of the tray are sometimes displayed on the panel. You can
change the setting to hide the screen. To hide this screen, select [Admin Setup] > [Panel Setup] > [Paper setup
when paper exchange] and set it to [Off].
Pinch the blue parts of the paper guide (3) and paper stopper (4) and slide
3
them according to the size of paper you set.
Fan a stack of paper well, and then align the edges of the paper.
4
4. Print
Set the paper size dial (2) to match the size of the paper to be loaded.
2
Set the dial to [A4 ] when loading A4 size paper in horizontal orientation.
• If the size of paper cannot be found in items of the dial, set "Other".
- 56 -
Load paper with the print side face down.
5
• Do not load paper above the " " mark (5) on the paper guide.
Secure the loaded paper with the paper guide.
6
Check if a size of loaded paper matches the setting of paper size dial.
7
• If the size of paper and that on the paper size dial do not match, paper size error occurs and printing cannot
be done.
If the size of paper whose size can be found on the dial such as A3 and A4, set
[Cassette Size]. The factory default is [Cassette Size] and you do not need to change
usually.
Open a file you want to print, and print it in the following procedure
• For Windows PCL Printer Driver
Select [Print] from the [File] menu.
1
Click [Preferences] (or [property]).
2
4. Print
Return the paper cassette to the printer.
8
If using media that you cannot select the size with a paper size dial options,
9
set the dial to [Other], and then set [Custom Size] on the operator panel and
enter the width and length of paper.
See "Printing on Custom Size Paper (Advanced Manual)".
- 57 -
On the [Setup] tab, select a paper size from [Size].
3
Select [Tray 1] from [Source].
4
Click [OK].
5
Click [Print] on the [Print] Screen.
6
4. Print
• For Windows PS Printer Driver (C834/C844/ES8434)
Select [Print] from the [File] menu.
1
Click [Preferences] (or [property]).
2
Select the [Paper/Quality] tab.
3
Select [Tray 1] from [Paper Source]
4
Click [Advanced].
5
Click [Paper Size] and select a paper size from the drop-down list.
6
Click [OK].
7
Click [Print] on the [Print] Screen.
8
Start printing.
6
• Mac PCL Printer Driver (C824 Only)
From the [File] menu, select [Page Setup].
1
Select a paper size from [Paper Size] and then click [OK].
2
From the [File] menu, select [Print].
3
Select [Setup] from the panel menu.
4
Select [Tray 1] from [Paper Source].
5
Start printing.
6
• Mac PS Printer Driver (C834/C844/ES8434)
From the [File] menu, select [Page Setup].
1
Select a paper size from [Paper Size] and then click [OK].
2
From the [File] menu, select [Print].
3
Select [Paper Feed] from the panel menu.
4
Select [All pages From] and then select [Tray 1].
5
- 58 -
4. Print
How to Print from the MP Tray
This section explains how to load paper in the MP Tray and print from the MP Tray.
Regarding media flexibility, please refer to "
• Do not load paper of different sizes, types or weights at the same time.
• When adding paper, remove the paper on the MP tray and straighten the edges of both stacks of paper, and then
load them again.
• Do not put anything other than paper for printing in the MP tray.
• Do not leave paper in the MP tray for a long time. Dust and dirt will adhere to the paper and cause print quality to
deteriorate.
Open the MP tray (1) forward by inserting your fingers into the front recesses
1
(2).
Supported Paper", "Paper Loaded on the Tray".
Unfold the sub support (4).
3
Open the paper set cover (5).
4
Adjust the manual feeding paper guide (6) to the width of paper to be loaded.
5
Pull out the paper supporter (3) by holding the center part of it.
2
- 59 -
Insert the paper with the print side face up.
6
4. Print
• Do not load paper exceeding the [ ] mark (7) of the paper guide.
• Use paper stored in proper temperature and humidity conditions. Do not use paper that is curled or waved
because of humidity.
• Do not print on the back side of paper on which other printer has printed.
• The paper size, paper type, and paper thickness of the MP tray are sometimes displayed on the panel. You
can change the setting to hide the screen. To hide this screen, select [Admin Setup] > [Panel Setup] > [Paper
setup when paper exchange] and set it to [Off].
Close the paper set cover (5).
7
• When a printer is in the power saving mode, press «POWER SAVE» button to restore from the mode.
• Make sure that the message "Ready To Print" is displayed in the operator panel. If the message is not
displayed, press the «ON LINE» button.
Press the «Fn» key.
8
Enter «9» «0» using the numeric keypad and then press the «ENTER» button.
9
• Paper is not fed if the paper set cover is open.
If always printing on same size or type paper from the MP tray, register the paper on
the operator panel.
If printing once, proceed to the "Open the file to print, and print it by following the
procedure below".
- 60 -
When [Paper Size] is displayed, select the size of the loaded paper and then
10
press the «ENTER» button.
• If [Custom] is selected for [Paper Size], you need to register the custom size. For how to register the custom
size, refer to "Printing on Custom Size Paper (Advanced Manual)".
• When using envelopes, refer to "Printing on Envelopes (Advanced Manual)".
4. Print

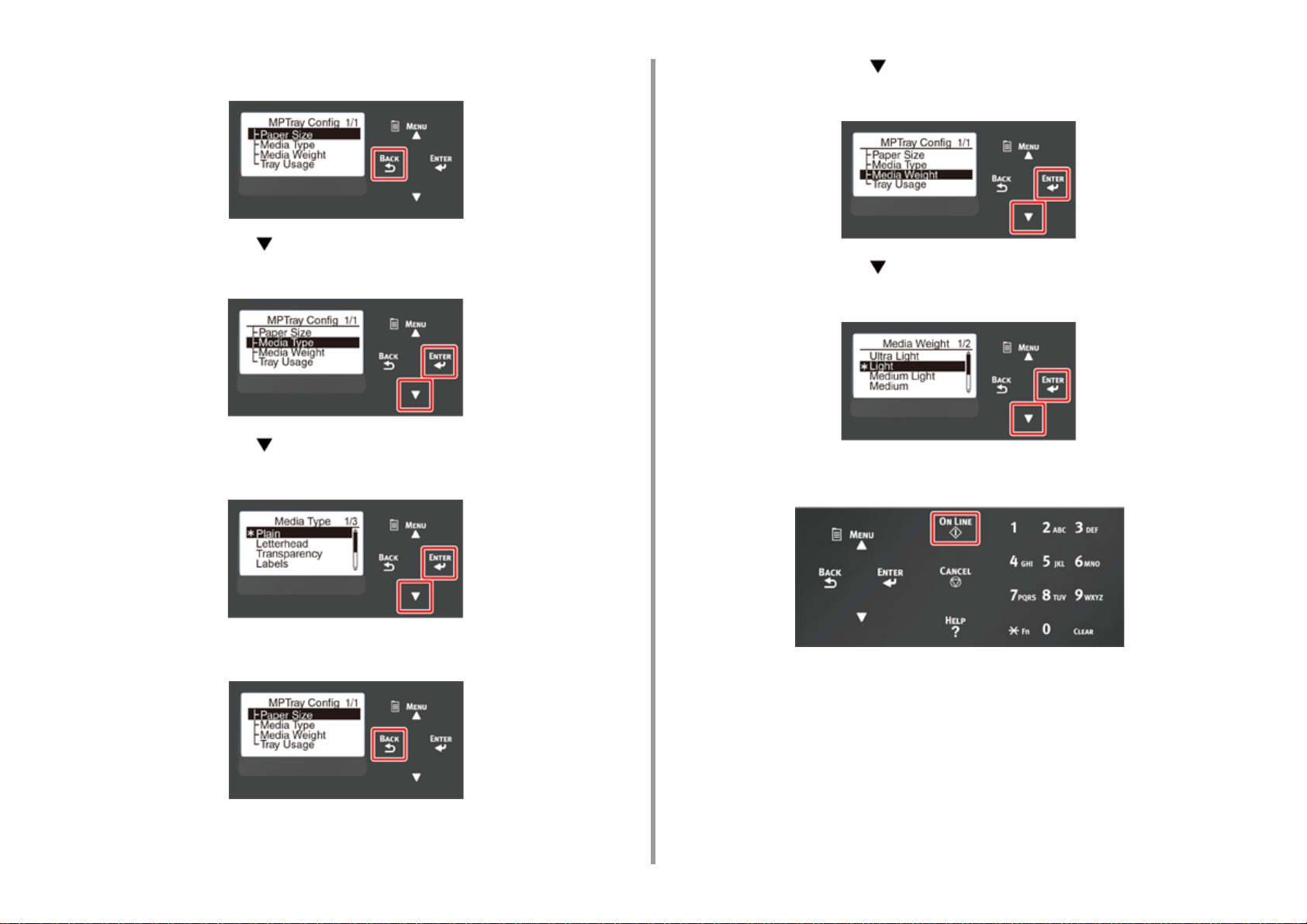

Press the «BACK» button until [MPTray Config] is displayed.
11
Press the scroll button to select [Media Type] and then press the
12
«ENTER» button.
Press the scroll button to select the type of the loaded paper and then
13
press the «ENTER» button.
Press the scroll button to select [Media Weight] and then press the
15
«ENTER» button.
Press the scroll button to select the weight of the loaded paper and then
16
press the «ENTER» button.
Press the «ON LINE» button to exit the menu mode.
17
Press the «BACK» button until [MPTray Config] is displayed.
14
Open the file to print, and print it by following the procedure below
• For Windows PCL Printer Driver
Select [Print] from the [File] menu.
1
- 61 -
4. Print
Click [Preferences] (or [property]).
2
On the [Setup] tab, select a paper size from [Size].
3
Select [Multipurpose Tray] from [Source].
4
• Printing one by one:
Click [Paper feed option] on the [Setup] tab, and check the [Use MP tray as manual feed].
Click [Preferences] (or [property]).
2
Select the [Paper/Quality] tab.
3
Select [Multi-Purpose Tray] from [Paper Source].
4
Click [Advanced].
5
Click [Paper Size] and select a paper size from the drop-down list.
6
• To print one by one, select [Printer Features] > [Multipurpose tray is handled as manual feed] and then select
[Yes].
• To print consecutively, uncheck [Use MP tray as manual feed].
This option is unchecked by default.
Click [OK].
5
Click [Print] on the [Print] Screen.
6
• For Windows PS Printer Driver (C834/C844/ES8434)
Select [Print] from the [File] menu.
1
- 62 -
• To print consecutively, select [No] for [Multipurpose tray is handled as manual feed].
This item is selected by default.
Click [OK].
7
Click [Print] on the [Print] Screen.
8
• Mac PS Printer Driver (C834/C844/ES8434)
From the [File] menu, select [Page Setup].
1
Select a paper size from [Paper Size] and then click [OK].
2
From the [File] menu, select [Print].
3
Select [Paper Feed] from the panel menu.
4
Select [All pages From] and then select [Multi-Purpose Tray].
5
Start printing.
6
• Mac PCL Printer Driver (C824 Only)
From the [File] menu, select [Page Setup].
1
Select a paper size from [Paper Size] and then click [OK].
2
From the [File] menu, select [Print].
3
Select [Setup] from the panel menu.
4
Select [Multi-Purpose Tray] from [Paper Source].
5
Start printing.
6
4. Print
- 63 -

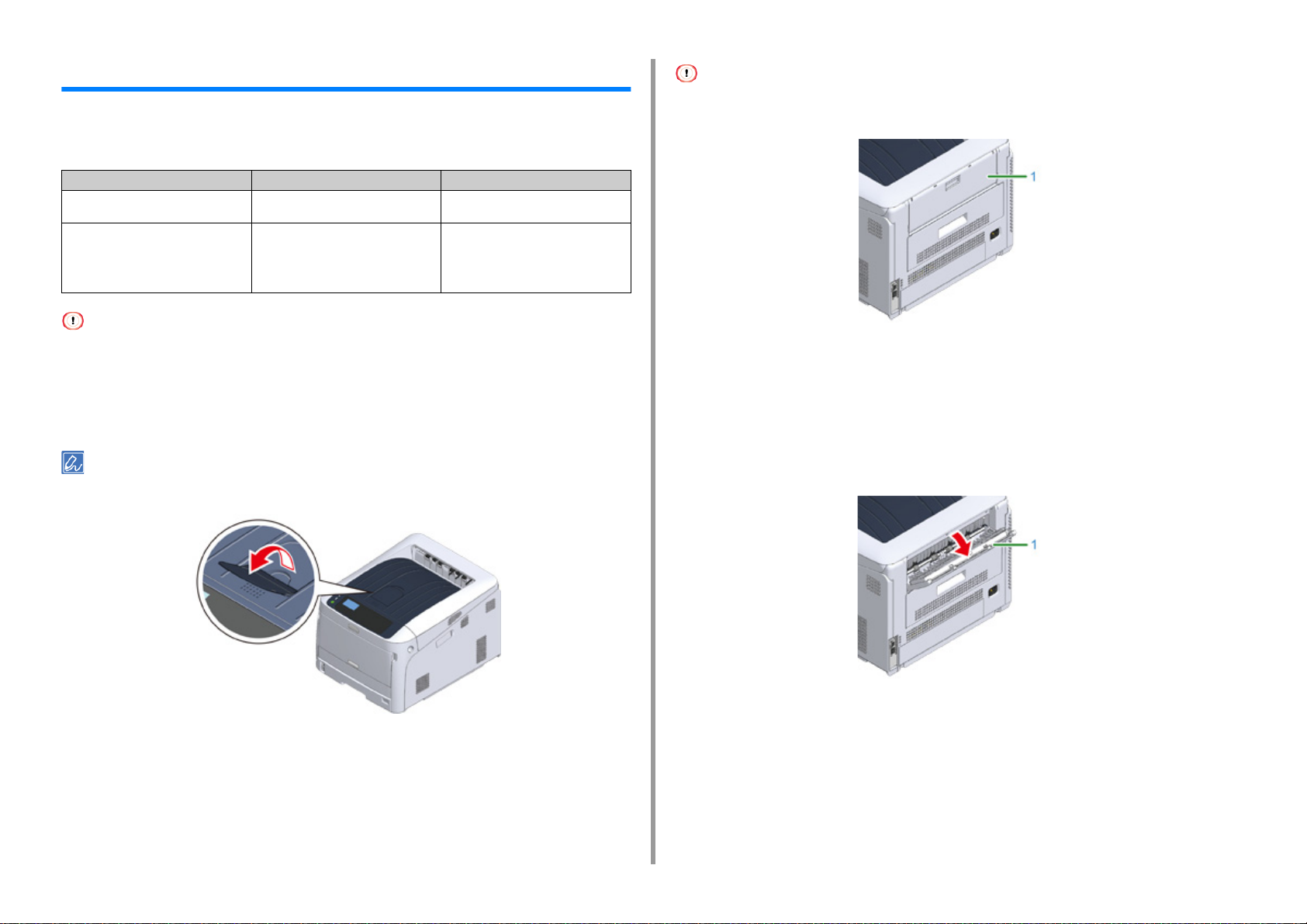

Paper Output
The machine outputs paper to the Output tray or Rear output tray.
Available paper for output trays.
Output tray Supported paper type Capacity
Output tray • Plain paper
Rear output tray • Plain paper
• Recycled paper
• Recycled paper
• Envelope
• 3x5inch, 4x6inch, 5x7inch
• Label
250 sheets (80 g/m2)
• 100 sheets (80 g/m
• 10 sheets (thick paper and
envelopes)
4. Print
• Check that the rear output tray (1) on the rear side of the machine is closed. While the rear output tray is open, paper
is always output to the rear output tray.
2
)
• Do not open or close the Rear output tray during printing. Paper jams may result.
• Using the Output Tray
Paper is output with the printed side down and piled in chronological order.
They are not available for envelopes, labels, or long paper.
• Open the paper support so that outputs do not slip down from the output tray.
• Using the Rear Output Tray
Use rear output tray when printing on envelopes, labels, or long paper.
Paper is output with the printed side up and piled in reverse chronological order.
Plain paper is also available for this output tray.
Open the rear output tray (1) on the rear side of the machine.
1
- 64 -
Unfold the paper support.
2
Open the sub support.
3
4. Print
- 65 -
4. Print

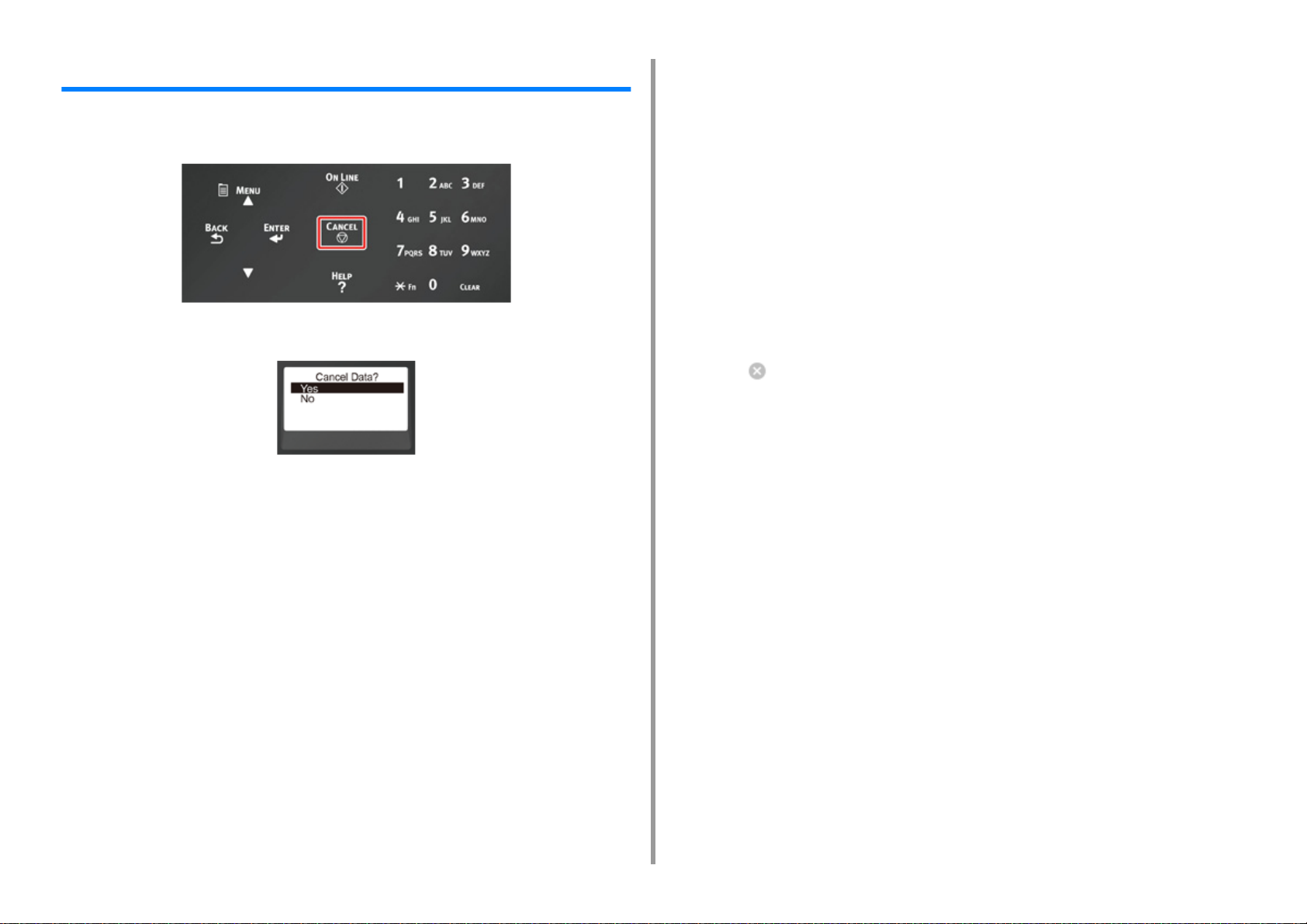

Canceling Printing
To cancel data currently being printed or ready to print, press the «CANCEL» button on the
operator panel.
Press «CANCEL» button to display the screen below.
To cancel printing, select "Yes", then press the «ENTER» button.
To continue printing, select "No", and then press the «ENTER» button.
Check the display on the operator panel of the machine.
5
When "Processing ..." or "Data present." is displayed, cancel printing on the operator
panel of the machine.
•For Mac
Select [System Preferences] from the Apple menu.
1
Click [Printers & Scanners].
2
Click the printer icon.
3
Click [Open Print Queue...].
4
Select the file name you want to cancel printing.
5
Click .
6
Check the display on the operator panel of the machine.
7
When "Processing ..." or "Data present." is displayed, cancel printing on the operator
panel of the machine.
If no operation is made for three minutes, the screen disappears and printing resumes.
Cancelling Printing from a Computer
If you send a large amount of data from a computer by accident, you can cancel printing on
the computer.
• For Windows
Open the "Printer folder".
1
Right-click the printer icon, and then select [See what's printing].
2
Select the file name you want to cancel printing.
3
Press the <Delete> key on the keyboard.
4
- 66 -
5
Energy Saving Function
About Energy Saving
Setting the Time Before Entering the Power Save Mode
Setting the Time Before Entering the Sleep Mode
Automatically Turning the Machine Off (Auto Power Off)
Setting the Time Before Entering the Auto Power Off Mode
This section describes the energy-saving function of the printer.
Two power save modes called Power Save Mode and Sleep Mode help you save energy consumption of the printer.
In addition, the printer has the auto-power off function which automatically turns off when the printer is left for a certain period of time.
5. Energy Saving Function
About Energy Saving
This section describes each energy saving function.
This printer has three energy saving functions: Power Save Mode, Sleep Mode and Auto
Power OFF Mode.
• Power Save Mode
If you do not use the printer for a certain period of time, the printer automatically
enters the Power Save mode, saving power consumption.
Or press the «POWER SAVE» button to enter the Power Save Mode manually.
When the printer is in the Power Save Mode, the «POWER SAVE» button lights in
green.
• The time that elapses before entering the Power Save Mode is one minute by factory default. How to change the
time that elapses before entering the Power Save Mode, see ”
Mode
”.
Setting the Time Before Entering the Power Save
• Restore from the Sleep Mode or the Power Save Mode
Press the «POWER SAVE» button to recover from Power Save Mode or Sleep
Mode.
• The machine also recovers from Power Save mode, when some data is received from a computer or another
device.
• Auto Power Off Mode
The machine equipped with the Auto Power Off function which automatically turns
off the power if the machine is left unoperated for a certain period of time. To use
the printer, turn the power on.
• The period of time before the printer automatically turns off is four hours.
• To change the period of time before the printer turns off, see ”
Mode
”.
• In the factory default, a printer does not enter the auto power off mode while connecting to the network. To enable
the Auto Power Off Mode while connecting to the network, refer to the ”
Power Off)
”.
Setting the Time Before Entering the Auto Power Off
Automatically Turning the Machine Off (Auto
• Sleep Mode
The printer moves from the Power Save Mode to the Sleep Mode when the printer
is left for the time set from the Power Save Mode status. In the Sleep Mode, the
printer status and power consumption are almost the same as when the power is
off.
When the printer is in the Sleep Mode, the «POWER SAVE» button blinks.
• If an error has occurred, the printer does not enter Sleep mode.
• The time that elapses before entering the Sleep Mode is 15 minutes by factory default. How to change the time that
elapses before entering the Sleep Mode, see ”
Setting the Time Before Entering the Sleep Mode”.
- 68 -
Setting the Time Before Entering the Power Save Mode
• When a printer is in the power saving mode, press the «POWER SAVE» button to restore from the mode.
• Check if the message “Ready To Print” appears. If the message is not displayed, press the «ON LINE» button.
Press the «Fn» key on the operator panel.
1
Enter «2» «0» «0» using the numeric keypad and then press the «ENTER»
2
button.
5. Energy Saving Function
• Available values are as follows. The factory default setting is 1 minute.
1 minute, 2 minutes, 3 minutes, 4 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes
(For C824, [60 minutes] is not available.)
Press the «ON LINE» button.
4
Press the scroll button or to specify the time and then press the
3
«ENTER» button.
- 69 -
Setting the Time Before Entering the Sleep Mode
• When a printer is in the power saving mode, press the «POWER SAVE» button to restore from the mode.
• Check if the message “Ready To Print” appears. If the message is not displayed, press the «ON LINE» button.
Press the «Fn» key on the operator panel.
1
• Available values are as follows. The factory default setting is 15 minutes.
1 minute, 2 minutes, 3 minutes, 4 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes
(For C824, [60 minutes] is not available.)
Press the «ON LINE» button.
4
Restrictions in Sleep Mode
5. Energy Saving Function
Enter «2» «0» «1» using the numeric keypad and then press the «ENTER»
2
button.
Press the scroll button or to specify the time and then press the
3
«ENTER» button.
The machine does not enter Sleep mode in the following case.
• When an error occurs on the machine
• Access Control in the Access Control settings is enabled and Local IC Card or LDAP IC
Card in the Authentication Method is enabled.
• When [Admin Setup] > [Panel Setup] > [Paper setup when paper exchange] is set to "On",
and the printer is left with the paper confirmation message displayed.
- 70 -
5. Energy Saving Function
Automatically Turning the Machine Off (Auto Power Off)
The machine is equipped with the Auto Power Off function which automatically turns the
power off if the machine is left unoperated for a certain period of time.
There are three options for the Auto Power Off setting and [Auto Config] is set by factory
default.
• [Auto Config]: The machine automatically turns off after being left unoperated for a certain
period of time unless the machine is in the following conditions.
- A LAN cable is connected to the network interface connector.
- Wireless LAN is enabled.
• [Enable]: If you do not use the machine for a certain period of time, the machine
automatically turns off.
• [Disable]: Disables the Auto Power Off function. The machine does not automatically turn
off.
• The machine does not automatically turn off in the following case.
- In the factory default, the machine does not enter the auto power off mode while connecting to the network (wired/
Wireless).
- When an error has occurred
Press the scroll button or button to select value you want to set and
5
press the «ENTER» button.
Make sure that [*] is displayed on the left of the set time.
6
Press the «BACK» button to display the [Ready To Print] screen.
7
Follow the steps below to change the Auto Power Off setting.
Press the scroll button several times to select [Admin Setup] and press the
1
«ENTER» button.
Enter the administrator password using the numeric (0-9) keys, and then press
2
the «ENTER» button.
The factory default administrator password is "123456". If the administrator password is
changed, enter the updated password.
Press the scroll button several times to select [Power Setup] and press the
3
«ENTER» button.
Press the button several times to select [Auto Power Off] and press the
4
«ENTER» button.
- 71 -
Setting the Time Before Entering the Auto Power Off Mode
• When a printer is in the power saving mode, press the «POWER SAVE» button to restore from the mode.
• Check if the message “Ready To Print” appears. If the message is not displayed, press the «ON LINE» button.
Press the «Fn» key on the operator panel.
1
Enter «2» «0» «2» using the numeric keypad and then press the «ENTER»
2
button.
• Available values are as follows. The factory default setting is 4 hours.
1 hour, 2 hours, 3 hours, 4 hours, 8 hours, 12 hours, 18 hours, 24 hours
Press the «ON LINE» button.
4
5. Energy Saving Function
Press the scroll button or to specify the time and then press the
3
«ENTER» button.
- 72 -
6
Troubleshooting
When an Error Message Appears on the Display Screen (When the ATTENTION Indicator Lights Up/Blinks)
Error Messages
When Paper Jams Occur
Other Issues
This chapter provides solutions to the problems you may encounter while operating your machine.
Meanings of symbols in error messages are as follows.
• %COLOR% : Either of Cyan (C), Magenta (M), Yellow (Y) or Black (K).
• %TRAY% : Either of Tray1, Tray2, Tray3, Tray4, Tray5 or MP Tray.
• %COVER% : Either of front cover or top cover (output tray).
• %CODE% : A code number displayed in 1 to 3 digits. A code number changes according to an error.
• %MEDIA_SIZE% : Paper size.
• %MEDIA_TYPE% : Paper type.
• %NUM% : Number of all jammed areas.
When the message “Please see Help for details” appears on the display screen, you can check an error code and remedy error by pressing the
«HELP» button on the operator panel.
When an Error Message Appears on the Display Screen
6. Troubleshooting
(When the ATTENTION Indicator Lights Up/Blinks)
When a printer problem occurs, an error message appears on the display screen and the
«ATTENTION» indicator on the operator panel lights up or blinks.
Check the error message and deal with the problem according to the relevant procedure.
When “Please see Help for details” appears on the display screen, press the «HELP» button
to display a remedy. (If you press the «HELP» button when the message is not displayed, the
display screen does not show a remedy.)
• If a search keyword is displayed, open the app on your smartphone or visit the "Oki Data website" and enter the
keyword under [ENTER FAQ KEYWORD OR PHRASE] in [FAQ] to search the solution.
• If a search keyword is displayed with the NFC function enabled, bring the NFC device to the NFC mark on the
operator panel. The solution is displayed on the device. For details, refer to "Using from a Mobile Device (Advanced
Manual)".
Display Screen when the «HELP» button is pressed
1 Error Code
2 Measures method
3 Scroll display upward
4 Scroll display downward
1 «ATTENTION» indicator
2 Message on the display screen
3 «HELP» button
- 74 -
6. Troubleshooting
Error Messages
Please see the explanation of the message and handle the problem.
At "XXX", a different message is displayed depending on the printer status.
If [Please see HELP for details] is displayed on the bottom line of the display screen, press
the «HELP» button to display the error code and solution.
Message Error
code
Detected an abnormality of
internal database.
The data must be deleted.
After pressing [Enter], the
data will be deleted, and
then reboot.
PU Flash Error - Goes off Turn off the machine, and then back on.
Data Present - - Data remains unprinted.
Changing Language
Please wait
Language Change Failed
Error num: %CODE%
XXX
%COLOR% Toner Low.
Search keyword: P10081
XXX
%COLOR% Waste Toner
Full. Replace Toner.
Search keyword: P40028
XXX
%COLOR% Toner Sensor
Error.
%COLOR% Non
Recommended Toner.
Search keyword: P40947
- - Database in the machine has been broken.
- Blinks Display language is being changed.
- Blinks Switching display languages failed.
- Lights up The toner indicated on the screen is low. Have a new toner
- Lights up Waste toner is full. Replace with a new toner cartridge of the
- Lights up An optimum toner cartridge is not installed.
Indicato
r
Cause/Solution
Press «ENTER» button.
If the same error occurs, contact your dealer.
To manually print, press «ON LINE» button.
To delete the data without printing, press «CANCEL» button.
Wait for a while.
Press the power button to turn off the machine, and then back
on.
cartridge ready.
And replace the old image drums with new ones after a
message for replacement of image drum appears.
indicated color.
The printer can be used for a while when the front cover is
opened and closed. However, replace with a new toner cartridge
quickly as the image drum might become damaged.
Use a toner cartridge that matches your machine.
The print quality is not guaranteed.
Message Error
XXX
Toner Sensor Error.
Search keyword: P40959
XXX
Error Postscript
XXX
PDL Error Occurred
XXX
%COLOR% Image Drum
Near Life.
Search keyword: P10076
XXX
Fuser Unit Near Life.
Search keyword: P10979
XXX
Belt Unit Near Life.
Search keyword: P10978
XXX
Non Recommended Fuser
Unit Detected.
Search keyword: P40439
XXX
Change Fuser Unit.
Search keyword: P40971
XXX
Non Recommended Belt
Unit Detected.
Search keyword: P40444
XXX
Change Belt Unit.
Search keyword: P40970
XXX
%COLOR% Toner Empty.
Search keyword: P40028
XXX
%COLOR% Toner Not
Installed.
Search keyword: P40902
code
540, 541,
542, 543
- - A postscript error has occurred.
- - PDL error has occurred.
- Lights up Prepare new image drums.
- Lights up Prepare a new fuser unit.
- Lights up Prepare a new belt unit.
- Lights up An optimum fuser unit is not installed.
- Lights up The fuser unit reaches its lifetime.
- Lights up An optimum belt unit is not installed.
- Lights up The belt unit reaches its lifetime.
- Lights up The toner indicated on the screen is empty. Replace the empty
- Lights up The toner cartridge of the indicated color is not installed
r
Lights up Something is wrong with the toner sensor of the indicated color
or the image drum is not installed correctly.
Install the toner cartridge or image drum of the indicated color
correctly.
If the error occurred in Yellow (Y) or Magenta (M), make sure
that the blue knob on the belt unit is turned sideway.
If the same error occurs, contact your dealer.
540: Yellow, 541: Magenta (red), 542: Cyan (blue), 543: Black
The job has been dismissed.
To erase the message, press «ENTER» button.
And replace the old image drums with new ones after a
message for replacement of image drum appears.
And replace the old fuser unit with new ones after a message for
replacement of fuser unit appears.
And replace the old belt unit with new ones after a message for
replacement of belt unit appears.
Use a fuser unit that matches your machine.
The print quality is not guaranteed.
Replace the fuser unit with a new one.
Use a belt unit that matches your machine.
The print quality is not guaranteed.
Replace the belt unit with a new one.
toner cartridge with a new one.
correctly.
Install the toner cartridge correctly.
Indicato
Cause/Solution
- 75 -
6. Troubleshooting
Message Error
code
XXX
%COLOR% Non
Recommended Image Drum
Detected.
Search keyword: P40485
XXX
%COLOR% Image Drum
Life.
Search keyword: P40936
XXX
%COLOR% Image Drum
Life, %PAGES% Pages Left.
Search keyword: P40936
XXX
%COLOR% Image Drum
Life, Print Quality Not
Guaranteed.
Search keyword: P40936
XXX
%TRAY% Empty
XXX
File System is Full
XXX
File System is Write
Protected
XXX
File Erasing
Deleting data - Lights up This machine ran out of color toner. Color print data is being
XXX
Deleting data
XXX
Erased Data Full
XXX
Wait Timeout is Disabled
XXX
Job Log Buffer Full(Delete
old logs)
- Lights up An optimum image drum is not installed.
- Lights up The image drum indicated on the screen reaches its lifetime.
- Lights up The image drum indicated on the screen reaches its lifetime.
- Lights up The image drum indicated on the screen reaches its lifetime.
- Lights up No paper is loaded in the indicated tray.
- Lights up Memory in the file system is full.
- Lights up The file you are trying to write is write-protected.
- Lights up Stored document files are being deleted.
- Lights up Deleting data stored in private printing.
- Lights up Files supposed to be deleted are full. Erase the files.
- Lights up Wait Timeout is disabled.
- - Old job logs were deleted, because job log buffer was full.
Indicato
r
Cause/Solution
Use a image drum that matches your machine.
The print quality is not guaranteed.
Replace the image drum with a new one.
The number of pages you can print is displayed in "%PAGES%".
Replace the image drum with a new one.
The print quality is not guaranteed.
Load paper.
Other trays are available.
Delete unnecessary files.
Contact the printer administrator.
Wait for a while.
deleted.
Wait for a while.
Wait for a while.
Message Error
XXX
NFC Unit Error. NFC
function is not available.
Press ONLINE Button
XXX
USB Hub Unsupported
Please detach it
XXX
Unsupported USB Device
Detected
Please detach it
XXX
Incompatible USB device
connected
Please detach it
XXX
No communication with the
SNTP server.
XXX
Getting target IP failed.
Please check DHCP
settings.
XXX
Collate Fail:Too Many
Pages
Press ONLINE Button
XXX
Failed to read or write the
usage management
information of Print Quantity
Press ONLINE Button
XXX
Duplex Print Failed
Press ONLINE Button
XXX
Color Restricted. Mono
Printed
Press ONLINE Button
XXX
Color Restricted. Job
Rejected
Press ONLINE Button
code
- - There is something wrong in the NFC unit.
- - A USB hub is connected. Remove the USB hub.
- - An unsupported USB device is connected.
- - An unsupported USB device is connected.
- - Obtaining current time from the SNTP server failed.
- - The DHCP server cannot be detected.
- - A collate print error has occurred.
- Lights up The usage management information could not be read.
- Lights up For the paper setting that a duplex printing is not possible, it was
- Lights up A color print job was converted to a mono print job due to an
- Lights up A color print job was deleted due to an unauthorized user.
r
Functions related to the NFC are not available.
Turn off the machine, and then back on.
If the same error occurs, contact your dealer. To hide this
message, select [Admin Setup] > [Others Setup] > [NFC Setup],
and then select [Disable].
This machine does not support USB hub.
Remove the USB device.
Remove the USB device.
Check the server or network connection.
Check the network connection.
Reduce the data amount. If that does not work, reduce the size
of the print data.
To erase the message, press «ONLINE» button.
Press «ONLINE» button.
printed in simplex.
Check the size and thickness of paper.
unauthorized user. Contact your administrator for color printing.
To erase the message, press «ONLINE» button.
Contact your administrator for color printing.
To erase the message, press «ONLINE» button.
Indicato
Cause/Solution
- 76 -
6. Troubleshooting
Message Error
XXX
Print Restricted. Job
Rejected
Press ONLINE Button
XXX
Log Buffer is Full. Job
Rejected
Press ONLINE Button
XXX
Expired saved files have
been deleted
Press ONLINE Button
XXX
E-mail receiving has been
cancelled
Press ONLINE Button
XXX
File System Operation failed
<nnn>
Press ONLINE Button
XXX
Invalid Print Data Received
Press ONLINE Button
XXX
Job Log Database Error
Contact the device
administrator
Press ONLINE Button
XXX
IPv4 Address is conflicted
Change IPv4 Address
XXX
Error PDF
Press ONLINE Button
XXX
Invalid Password
Press ONLINE Button
XXX
PDF Cache Write Error
Press ONLINE Button
code
- Lights up A print job was deleted due to an unauthorized user. Contact
- Lights up Print data is deleted because the accounting log buffer is full.
- Lights up Private printing files whose storage period expired were
- Lights up Indicates that Email receiving has been canceled.
- Lights up An error has occurred in the file system.
- - Invalid data received.
- - A data base access error has occurred while writing or reading
- - The IP address assigned to this machine is duplicated with that
- - The PDF file is damaged.
- - Notifies that the entered password does not match the password
- - Notifies that writing a PDF file to the cache has failed.
r
your administrator for printing.
To erase the message, press «ONLINE» button.
Contact a printer administrator and remove the log buffer.
automatically deleted.
To erase the message, press «ONLINE» button.
It has the following possibilities.
• The format of email that has received is illegal or not
supported.
• The attached file is illegal or not supported.
• The attached file that has received is too large.
• Network connection has disconnected.
To erase the message, press «ONLINE» button.
If you performed private printing, the data was deleted because
it was incomplete. Print again.
To erase the message, press «ONLINE» button.
the job log.
Turning off and on the machine may resolve the problem.
To erase the message, press «ONLINE» button.
of another device.
Check the IP addresses, and then assign another IP address.
Check the file.
To erase the message, press «ONLINE» button.
set to encrypted PDF.
The file will not be printed unless the passwords match.
To erase the message, press «ONLINE» button.
Indicato
Cause/Solution
Message Error
XXX
Decode error occurred
Press ONLINE Button
XXX
Can not read the file
Press ONLINE Button
XXX
Color toner empty. Job
cancelled
Press ONLINE Button
XXX
Job Type restricted
Job rejected
Press ONLINE Button
Install Paper
MPTray
%MEDIA_SIZE%
Press ONLINE Button
Change Paper in %TRAY%
%MEDIA_SIZE%
%MEDIA_TYPE%
Press ONLINE Button
Please see HELP for details
Change Paper in MPTray
%MEDIA_SIZE%
%MEDIA_TYPE%
Press ONLINE Button
Please see HELP for details
Change Paper in %TRAY%
%MEDIA_SIZE%
%MEDIA_TYPE%
Press ONLINE Button
Please see HELP for details
Install Paper
MPTray
%MEDIA_SIZE%
Press ONLINE Button
Please see HELP for details
code
- - Indicates that an error has occurred during analysis of image
- - The USB Memory was removed while printing from USB
- - The print data was cancelled because color toner is empty.
- - A job of a JobLimitation setting violation is received, and when
- Goes off Manual Printing from the MP tray is specified.
661, 662,
663, 664,
665
660 Blinks Paper loaded on the MP tray does not match selected paper
461, 462,
463, 464,
465
460 Blinks Paper loaded on the MP tray does not match selected paper
r
data input from an external source.
This appears when an error has occurred during analysis of
TIFF or JPEG data in USBMemoryPrint, DirectPrint, E-mailPrint
mode.
To erase the message, press «ONLINE» button.
Memory. Do not remove USB Memory while printing is in
progress.
To erase the message, press «ONLINE» button.
To erase the message, press «ONLINE» button.
discarding the job, it's indicated.
To print this job, contact the printer administrator.
Load the paper of the size indicated in the MP tray, and then
press the «ONLINE» button.
Blinks Paper loaded on the indicated tray does not match selected
paper size. Check the paper settings on the application and on
the tray, and match the settings.
661: Tray 1, 662: Tray 2, 663: Tray 3, 664: Tray 4, 665: Tray 5
size. Check the paper settings on the application and on the MP
tray, and match the settings.
Blinks Paper loaded on the indicated tray does not match selected
paper size. Check the paper settings on the application and on
the tray, and match the settings.
For paper which can be set both horizontally and vertically,
check the direction of paper.
461: Tray 1, 462: Tray 2, 463: Tray 3, 464: Tray 4, 465: Tray 5
size. Check the paper settings on the application and on the MP
tray, and match the settings.
For paper which can be set both horizontally and vertically,
check the direction of paper.
Indicato
Cause/Solution
- 77 -
6. Troubleshooting
Message Error
Summary Account balance
is 0.
%USERNAME%
%ACCOUNTNAME%
Increase the balance and
press [Enter]
Press [Cancel] to cancel.
Remove Paper
Output Tray
Please see HELP for details
Press ONLINE Button for
Restoration
Memory Overflow
Please see HELP for details
Insufficient memory.
If using multiple functions,
finish the function being
used before attempting
another.
If the problem does not
improve, reduce the
resolution.
Press ONLINE Button
Wireless startup failed
Press ONLINE Button
Please see HELP for details
This wireless firmware
version does not operate on
this device
Press ONLINE Button
Please see HELP for details
Wireless settings are
incomplete
Press ONLINE Button
Please see HELP for details
Not connected to wireless
access point
Press ONLINE Button
Please see HELP for details
Wait a Moment
Message Data Processing
Wait a Moment
Message Data Writing
code
- Blinks The number of print jobs excesses the limit.
480 Blinks Paper in the output tray is full.
420 Blinks Data is too complicated.
- Blinks Memory is full.
517 - Turn off the machine, check that the wireless LAN module is
504 - The version of the firmware does not match this machine.
505 - Wrong values are set or items remain unset in the wireless LAN
506 - No wireless LAN access points are found.
- - Updating messages displayed on the operator panel.
- - Updating messages displayed on the operator panel.
r
No more print jobs are authorized.
Contact the printer administrator.
Remove the handout.
Memory full error has occurred during processing.
Reduce the volume of the print data.
If the same error is displayed again, contact your dealer.
Print after the ongoing operation is over.
If the error persists, lower the image quality on the printer driver.
correctly installed, and then reboot the machine. If the error
persists, contact your dealer.
Contact your dealer.
settings.
Check the wireless settings.
If the error persists, initialize the network settings, and set up the
wireless LAN settings again.
Make sure that the access point is turned on.
Disconnect and re-connect to wireless LAN.
Please wait.
Please wait.
Indicato
Cause/Solution
Message Error
Power Off/On
Message Data Received OK
Check Data
Message Data Write
Error<%CODE%>
Press ONLINE Button for
Restoration
Receiving Data Timeout
Please see HELP for details
Firmware Update Error
Please try again
If network doesn't work,
please try firmware update
over USB
Install Paper
%TRAY%
%MEDIA_SIZE%
Please see HELP for details
Install Paper
MPTray
%MEDIA_SIZE%
Please see HELP for details
Install Paper Cassette
%TRAY%
Please see HELP for details
Replace Toner
%COLOR% Waste Toner
Full
Please see HELP for details
Install Toner
%COLOR%
Please see HELP for details
code
- - Updating messages displayed on the operator panel is
- - Writing of message data to be uploaded to a printer has been
519 Blinks When receiving data by Port9100, LPR, FTP, IPP, WSD, or
- - Updating the firmware failed.
491, 492,
493, 494,
495
490 Blinks MP tray is empty.
430, 431,
432, 433,
434, 440,
441, 442,
443
415, 416 Blinks Waste toner of the toner cartridge is full. Opening and closing
410, 411,
412, 413
r
completed.
Turn the power of the printer off and on again.
failed.
Check if the message data to be updated matches the printer.
Email, a timeout occurred in stream.
Update again.
Blinks No paper is loaded in the indicated tray. Load paper of the
displayed size.
491: Tray 1, 492: Tray 2, 493: Tray 3, 494: Tray 4, 495: Tray 5
Set paper.
If paper is set, paper set cover is not set. Lower the paper set
cover.
Blinks A paper cassette is not in the indicated tray.
Insert the paper cassette into the indicated tray.
If the cassette is already inserted in the printer, pull out the
cassette and set it again to correctly locate it.
430, 440: Tray 1
431, 441: Tray 2
432, 442: Tray 3
433, 443: Tray 4
434: Tray 5
the front cover can resume printing for a while, but it may
damage the image drum. Replace the toner cartridge with a new
one as soon as possible.
415: Magenta (red), 416: Cyan (blue)
Blinks The indicated cartridge ran out of toner.
Opening and closing the front cover can resume printing for a
while, but it may damage the image drum. Replace the toner
cartridge with a new one as soon as possible.
410: Yellow, 411: Magenta (red), 412: Cyan (blue), 413: Black
Indicato
Cause/Solution
- 78 -
6. Troubleshooting
Message Error
Non Recommended Toner
%COLOR%
Please see HELP for details
Toner Not Installed
%COLOR%
Please see HELP for details
Non Recommended Image
Drum
%COLOR%
Please see HELP for details
Image Drum Not Installed
%COLOR%
Please see HELP for details
Caution: Non-Genuine
Consumable detected
Check user's manual
"Trouble Shooting" to
restore machine operation
code
549, 550,
551, 552,
553, 554,
555, 556,
557, 614,
615, 616,
617, 620,
621, 622,
623
610, 611,
612, 613
684, 685,
686, 687,
690, 691,
692, 693,
700, 701,
702, 703,
704, 705,
706, 707
694, 695,
696, 697
709 Blinks This error means that a non-OKI Original consumable has been
r
Blinks The indicated toner cartridge is not optimum.
We recommend using an optimum toner cartridge.
550, 554, 614, 620: Yellow
551, 555, 615, 621: Magenta (red)
552, 556, 616, 622: Cyan (blue)
549, 553, 557, 617, 623: Black
Blinks The supplied starter toner cartridges are installed in the
consumable image drums.
Install the consumable toner cartridges in the consumable
image drums.
610: Yellow, 611: Magenta (red), 612: Cyan (blue), 613: Black
Blinks The indicated image drum is not optimum.
We recommend using an optimum Image Drum.
684, 690, 700, 704: Yellow
685, 691, 701, 705: Magenta (red)
686, 692, 702, 706: Cyan (blue)
687, 693, 703, 707: Black
Blinks The indicated image drum is not installed.
Install the image drum.
694: Yellow, 695: Magenta (red), 696: Cyan (blue), 697: Black
installed in the machine.
The warranty is applicable when the product is used with its
designated OKI Original consumables. Use caution when
choosing other consumables. The entire risk as to the quality
and performance of the product due to the use of non-OKI
Original consumables is with you. Should the product prove
defective due to non-OKI Original consumables, you assume
the cost of all necessary servicing, repair or correction, as our
warranty may not cover these defects.
To accept these risks and to restore function:
1) Turn off your printer.
2) Turn the machine on. Press the «CANCEL» button when
[PLEASE WAIT] is displayed.
3) Release the «CANCEL» button when [Ready To Print] is
displayed.
Note: This operation will be recorded for future reference.
Indicato
Cause/Solution
Message Error
Paper jam occurred
Paper remained in %NUM%
place(s)
Remove the paper
Press Help for details
Toner Sensor Error
%COLOR%
Please see HELP for details
Check Paper
Paper Multi Feed
%TRAY%
Please see HELP for details
Check Paper
Paper Size Error
%TRAY%
Please see HELP for details
code
632, 633,
634, 635
637 Blinks Paper has jammed around the front cover. Open the front cover
638 Blinks Paper has jammed under the image drum.
639, 640 Blinks A paper jam has occurred and paper remains near the fuser
641, 642 Blinks A paper jam has occurred and paper remains near the duplex
540, 541,
542, 543
401 Blinks The indicated tray fed multiple sheets of paper at a time.
400 Blinks Paper size error has occurred in the indicated tray. Make sure
r
Blinks A paper jam has occurred and paper remains in the paper input
area.
Remove the jammed paper.
632: Tray2, 633: Tray3, 634: Tray4, 635: Tray5
and remove the jammed paper.
Remove the jammed paper.
unit.
Remove the jammed paper.
639, 640: Fuser unit
unit.
Remove the jammed paper.
641: Duplex unit, Backside of the duplex unit
642: Duplex unit, Middle part of the duplex unit
Blinks The toner cartridge of the indicated color is not locked properly.
Check to make sure the blue lever (toner cartridge lock lever) of
the toner cartridge is turned until it lines up with the in the far
end.
If the error occurred in Cyan and the toner cartridge lock lever is
turned until it is lined up with the in the far end, check if the 2
blue knobs on the belt unit are properly locked.
540: Yellow, 541: Magenta (red), 542: Cyan (blue), 543: Black
Remove the cassette from the tray, and then load paper again.
After loading, open and close the front cover to release the error.
that the size made by paper loaded in the tray matches the
setting made by the paper size dial in the paper cassette. Load
paper according to the paper size and direction set for the paper
size dial.
If the setting made by the paper size dial is wrong, cancel
printing first, set the paper size dial, and then print again.
Make sure that the cassette does not feed multiple sheets of
paper at a time after starting printing. If it happens, remove
paper, and then load paper correctly.
Open and close the front cover to release the error.
Indicato
Cause/Solution
- 79 -
6. Troubleshooting
Message Error
Paper jam occurred
Paper remained in %NUM%
place(s)
Remove the paper
Press Help for details
Install Duplex Unit
Please see HELP for details
Install New Image Drum
Image Drum Life
%COLOR%
Please see HELP for details
Install New Image Drum
Image Drum Life
%COLOR%
Please see HELP for details
code
390 Blinks A paper jam has occurred in the paper feed path from the MP
391, 392,
393, 394,
395
380 Blinks A paper jam has occurred around the front cover.
381 Blinks Paper has jammed under the image drum.
382, 383,
385
370, 371,
373
372 Blinks A paper jam has occurred in the paper feeding path from the
360 Blinks The duplex unit is not properly installed. Install the duplex unit.
350, 351,
352, 353
560, 561,
562, 563
r
tray.
Remove the jammed paper.
Blinks A paper jam has occurred in the paper feed path from the
indicated tray.
Remove the jammed paper.
If paper is not jammed, feeding paper may fail.
Reduce the number of sheets of paper loaded on the paper
cassette. Make sure that the paper stoppers are set in the right
position.
391: Tray 1, 392: Tray 2, 393: Tray 3, 394: Tray 4, 395: Tray 5
Open the front cover and remove the jammed paper.
If jammed paper is invisible, close the front cover. If the error
persists, paper jams may occur in the duplex unit.
Remove the jammed paper.
Blinks A paper jam has occurred around the fuser unit.
Remove the jammed paper.
382: The back of the machine, around the output bin
383: The back of the machine, around the duplex unit
385: Inside of the machine, around the fuser unit
Blinks A paper jam has occurred around the duplex unit.
Pull out the duplex unit and remove the jammed paper.
For the Error code 373, make sure that paper does not remain
inside the printer after pulling out the duplex unit.
duplex unit.
Open the front cover and remove the jammed paper.
If paper is invisible, pull out the duplex unit from the back side of
the machine and check if paper jams inside of the duplex unit or
machine.
Blinks The image drum indicated on the screen reaches its lifetime.
Replace the image drum with a new one.
Opening and closing the front cover can resume printing for a
while. Replace with a new one as soon as possible, however.
350: Yellow, 351: Magenta (red), 352: Cyan (blue), 353: Black
Blinks The image drum indicated on the screen reaches its lifetime.
Replace the image drum with a new one.
560: Yellow, 561: Magenta (red), 562: Cyan (blue), 563: Black
Indicato
Cause/Solution
Message Error
Install New Image Drum
Image Drum Life
%COLOR%
To Exceed the Life, Press
Online Button
Please see HELP for details
Install New Image Drum
Printing disabled due to low
threshold of Image Drum
life.
%COLOR%
Please see HELP for details
Install New Fuser Unit
Fuser Unit Life
Please see HELP for details
Install New Belt Unit
Belt Unit Life
Please see HELP for details
Check Fuser Unit
Please see HELP for details
Install New Belt Unit
Belt Unit Life
Please see HELP for details
Check Toner Cartridge
Improper Lock Lever
Position
%COLOR%
Please see HELP for details
Check Image Drum
%COLOR%
Please see HELP for details
Check Fuser Unit
Please see HELP for details
Non Recommended Fuser
Unit
Please see HELP for details
code
564, 565,
566, 567
680, 681,
682, 683
354 Blinks The fuser unit reaches its lifetime.
355 Blinks The belt unit reaches its lifetime.
348 Blinks The fuser unit is not properly installed. Remove and re-install the
356 Blinks Waste toner of the belt unit is full. Replace the belt unit with a
544, 545,
546, 547
340, 341,
342, 343
320 Blinks The fuser unit is not properly installed. Remove and re-install the
698-01,
698-02,
698-03,
698-04,
698-06
r
Blinks The image drum indicated on the screen reaches its lifetime.
Replace the image drum with a new one.
Pressing «ONLINE» button can resume printing for a while.
Replace with a new one as soon as possible for maintaining the
print quality.
564: Yellow, 565: Magenta (red), 566: Cyan (blue), 567: Black
Blinks Printing has stopped because the image drum indicated on the
screen reached its lifetime. Replace with a new image drum to
print.
680: Yellow, 681: Magenta (red), 682: Cyan (blue), 683: Black
Replace the fuser unit with a new one.
Opening and closing the front cover can resume printing for a
while. Replace with a new one as soon as possible for
maintaining the print quality.
Replace the belt unit with a new one.
Opening and closing the cover can resume printing for a while.
Replace with a new one as soon as possible for maintaining the
print quality.
fuser unit. If the error persists after re-installing, replace the
fuser unit with a new one.
new one. Opening and closing the front cover can resume
printing. Printing stops after 500 sheets are printed.
Blinks A color toner cartridge indicated on the screen is not installed.
Make sure to turn the toner cartridge lock lever (blue) on the
right side of the cartridge until it lines up with the in the far
end. If the lever is in the correct position, check that the white
protective tape has been removed.
544: Yellow, 545: Magenta (red), 546: Cyan (blue), 547: Black
Blinks The indicated image drum is not installed correctly.
Remove and re-install the image drum.
340: Yellow, 341: Magenta (red), 342: Cyan (blue), 343: Black
fuser unit.
Blinks Check the model number of the fuser unit mentioned in the
User's manual. Use a fuser unit that matches your machine.
Indicato
Cause/Solution
- 80 -
6. Troubleshooting
Message Error
Fuser Unit Not Installed
Please see HELP for details
Check Belt Unit
Please see HELP for details
Non Recommended Belt
Unit
Please see HELP for details
Belt Unit Not Installed
Please see HELP for details
%COVER% Open.
Please see HELP for details
Wait a Moment
Rebooting <n>
Power Off and Wait for a
while
126:Condensing Error
code
699 Blinks The fuser unit is not properly installed. Remove and reinstall the
330 Blinks The belt unit is not properly installed. Remove and re-install the
688-01,
688-02,
688-03,
688-04
689 Blinks The belt unit is not properly installed. Remove and reinstall the
310, 311 Blinks Indicated cover is open. Close the cover.
- Lights up Rebooting the printer.
Fatal 126 Blinks A condensation has occurred inside a printer.
r
fuser unit.
belt unit.
Blinks Check the model number of the belt unit mentioned in the User's
manual. Use a belt unit that matches your machine.
belt unit.
310: Output tray (Top cover), 311: Front cover
Wait for a while.
Turn the printer off and turn on again after a while.
Indicato
Cause/Solution
Message Error
Power Off/On
nnn:Error
code
131, 132,
133, 134
136-02,
136-03,
136-04,
980
166-03 Blinks The inside of the printer is hot. Remove any objects blocking the
166-04 Blinks The inside of the printer is at a low temperature. Raise the room
181 Blinks This is a duplex unit error. Turn the power off, and re-install the
231-05,
231-06,
231-07,
231-08,
231-23
260, 261,
262, 263,
264, 265,
266, 267,
268, 269,
270, 271,
272, 273,
274
904 Blinks The belt unit is at a low temperature. Raise the room
nnn* Blinks An error occurred inside the printer.
r
Blinks The LED head cannot be detected.
131: Yellow (Y)
132: Magenta (M)
133: Cyan (C)
134: Black (K)
Blinks An error has occurred in or around the fuser unit.
Turn off the printer and turn on again after a while.
If the error persists after rebooting, contact your dealer and tell
them the number in the error message and how the machine
works.
ventilation holes on the printer, and restart the printer. If the
same error is displayed again, contact your dealer.
temperature, then restart the printer. If the same error is
displayed again, contact your dealer.
duplex unit. If the same error is displayed again, contact your
dealer.
Blinks Reading the consumables information failed.
If the following number is displayed, replace the corresponding
consumable.
231-05 to 231-08: Toner cartridge / Image drum
231-23: Fuser unit/ Belt unit
Turn off the printer and turn on again after a while.
If the error persists after rebooting, contact your dealer and tell
them the number in the error message and how the machine
works.
Blinks An error has occurred in or around the fuser unit.
Check that size and thickness of paper in the tray is correctly.
Turn off the printer and turn on again after a while.
If the error persists after rebooting, contact your dealer and tell
them the number in the error message and how the machine
works.
temperature, then restart the printer. If the same error is
displayed again, contact your dealer.
Turn off the machine, and then back on.
If the same error occurs, contact your dealer.
"*" is a 3-digit error code. The number that is displayed changes
according to the error content.
Indicato
Cause/Solution
- 81 -
6. Troubleshooting
Message Error
Power Off/On
nnn:Fatal Error
PC:nnnnnnnn
LR:nnnnnnnn
FR:nnnnnnnn
code
Fatal,
002~011,
F0C, F0D,
FFE, FFF
Indicato
Cause/Solution
r
Blinks A fatal error occurred on the printer.
Contact your dealer and tell them the number in the error
message and how the machine works.
The error code is displayed within the range 0x001 to 0xfff.
- 82 -
6. Troubleshooting
When Paper Jams Occur
This section describes how to handle when a paper jam occurs.
Check the error code on the operator panel and see the corresponding section.
• Error Code "370", "371", "373"
• Error Code "372"
• Error Code "380", "401", "637"
• Error Code "381", "638"
• Error Code "382", "383", "385", "639", "640"
• Error Code "390", "637"
• Error Code "391", "392", "393", "394", "632", "633", "634"
Error Code "370", "371", "373"
A paper jam has occurred around the duplex unit.
Take out the duplex unit (1) by pulling it upward while holding the center
1
recess on the back of the machine.
Check for jammed paper inside the machine. If jammed paper remains,
2
remove it.
- 83 -
• If paper is invisible, check the innermost part of the printer.
• If the paper removed from the printer is shredded or torn, remove all paper fragments from inside the unit so
that none are left inside.
Check for jammed paper in the duplex unit. If jammed paper remains, pull it
3
out gently. Check the back side of the duplex unit and remove jammed paper
gently if it remains.
Open the upper duplex unit cover (2) and check for jammed paper. If jammed
4
paper remains, pull it out gently and close the cover.
Replace the duplex unit (1) into the machine.
5
6. Troubleshooting
Error Code "372"
A paper jam has occurred around the front cover.
Insert your finger into the recess on the right side of the machine and pull the
1
front cover open lever (1) to open the front cover (2) forward.
Remove the jammed paper gently in the direction of the arrow if an edge of
2
jammed paper can be seen, and then go to step 8. If you cannot find jammed
paper, go to step 3.
Task is complete.
- 84 -
6. Troubleshooting
Take out the duplex unit (3) by pulling it obliquely upward while holding the
3
center recess on the back of the machine.
Check for jammed paper inside the machine. If jammed paper remains,
4
remove it.
Open the upper duplex unit cover (4) and check for jammed paper. If jammed
6
paper remains, remove it, and close the cover.
Replace the duplex unit (3) to the machine.
7
Close the front cover (2).
8
• If paper is invisible, check the innermost part of the printer.
Check if paper remains in the duplex unit. If jammed paper remains, pull it out
5
gently. Check the back side of the duplex unit and remove jammed paper
gently if it remains.
Task is complete.
- 85 -
Error Code "380", "401", "637"
A paper jam has occurred around the front cover.
When the error code 401 is displayed, paper may have automatically ejected. In this case,
open and close the front cover to clear the error.
Insert your finger into the recess on the right side of the machine and pull the
1
front cover open lever (1) to open the front cover (2) forward.
Close the front cover (2).
3
Task is complete.
6. Troubleshooting
Remove the jammed paper gently in the direction of the arrow if an edge of
2
jammed paper can be seen.
• If jammed paper is invisible, close the front cover.
If the error persists, paper jams may occur in the duplex unit. Refer to "
paper.
Error Code "372"" to remove the jammed
- 86 -
Error Code "381", "638"
Press the open button (3) and open the output tray (4).
2
6. Troubleshooting
A paper jam has occurred near the image drum.
Remove the jammed paper by following the procedure below.
Insert your finger into the recess on the right side of the machine and pull the
1
front cover open lever (1) to open the front cover (2) forward.
Burns may result.
The fuser unit is extremely hot. Do not touch it.
Remove all four image drums and place them on a flat surface.
3
- 87 -
• Use extra care when handling the image drum (the green cylinder), because it is fragile.
6. Troubleshooting
Pull out the jammed paper gently to the rear of the machine (the direction of
5
the arrow) if an edge of jammed paper can be seen.
Cover the removed image drums with paper so that the image drums are not
4
exposed to light.
Pull out the jammed paper gently while lifting the release levers (5) on the fuser unit if
an edge of jammed paper cannot be seen.
If an edge of jammed paper still remains inside the unit, pull out the jammed paper
gently to the rear of the machine.
Return all four image drums into the machine carefully.
6
- 88 -
6. Troubleshooting
• Use extra care when handling the image drum (the green cylinder), because it is fragile.
Close the output tray (4) by pushing the center of the cover firmly.
7
• The front cover cannot be closed if the output tray is not closed securely.
Task is complete.
Close the front cover (2).
8
- 89 -
Error Code "382", "383", "385", "639", "640"
Press the open button (3) and open the output tray (4).
2
6. Troubleshooting
A paper jam has occurred near the fuser unit.
Remove the jammed paper by following the procedure below.
Insert your finger into the recess on the right side of the machine and pull the
1
front cover open lever (1) to open the front cover (2) forward.
Burns may result.
The fuser unit is extremely hot. Do not touch it.
Remove all four image drums and place them on a flat surface.
3
- 90 -
• Use extra care when handling the image drum (the green cylinder), because it is fragile.
Cover the removed image drums with paper so that the image drums are not
4
exposed to light.
Remove the jammed paper remaining inside of the unit.
5
Lift the left lock lever (5) of the fuser unit forward.
6
6. Troubleshooting
- 91 -
6. Troubleshooting
Hold the fuser unit handle (6) and lift the fuser unit out of the machine.
7
Lift the release levers (7) on the fuser unit, and pull out the jammed paper
8
forward gently.
• If paper is pulled out towards the rear, this may result in soiled prints.
If jammed paper remains in the machine, hold the both sides of the paper to
9
remove it gently.
Hold the fuser unit handle (6) and place the fuser unit into the machine.
10
- 92 -
6. Troubleshooting
Push the left lock lever (5) of the fuser unit backward.
11
Return all four image drums into the machine carefully.
12
• Use extra care when handling the image drum (the green cylinder), because it is fragile.
Close the output tray (4) by pushing the center of the cover firmly.
13
Close the front cover (2).
14
Cannot close the front cover securely if the output tray is not closed.
- 93 -
Task is complete.
Error Code "390", "637"
A paper jam has occurred while feeding paper from a tray.
Remove the jammed paper by following the procedure below.
If there is any paper on the MP tray, lift the paper set cover (1) and take it out.
1
Insert your finger into the recess on the right side of the machine and pull the
2
front cover open lever (2) to open the front cover (3) forward.
6. Troubleshooting
Remove the jammed paper gently by pulling the edge of paper.
3
• Do not use force when pulling out paper. This might damage the printer.
• If a paper jam has not occurred, then the paper has failed to feed. Please reduce the amount of paper set in
the tray.
- 94 -
Remove the paper from the back gently if the edge of paper cannot be seen.
Close the front cover (3).
4
If loading paper on MP tray, lift the paper set cover (1) and set the paper with
5
the print side face up.
6. Troubleshooting

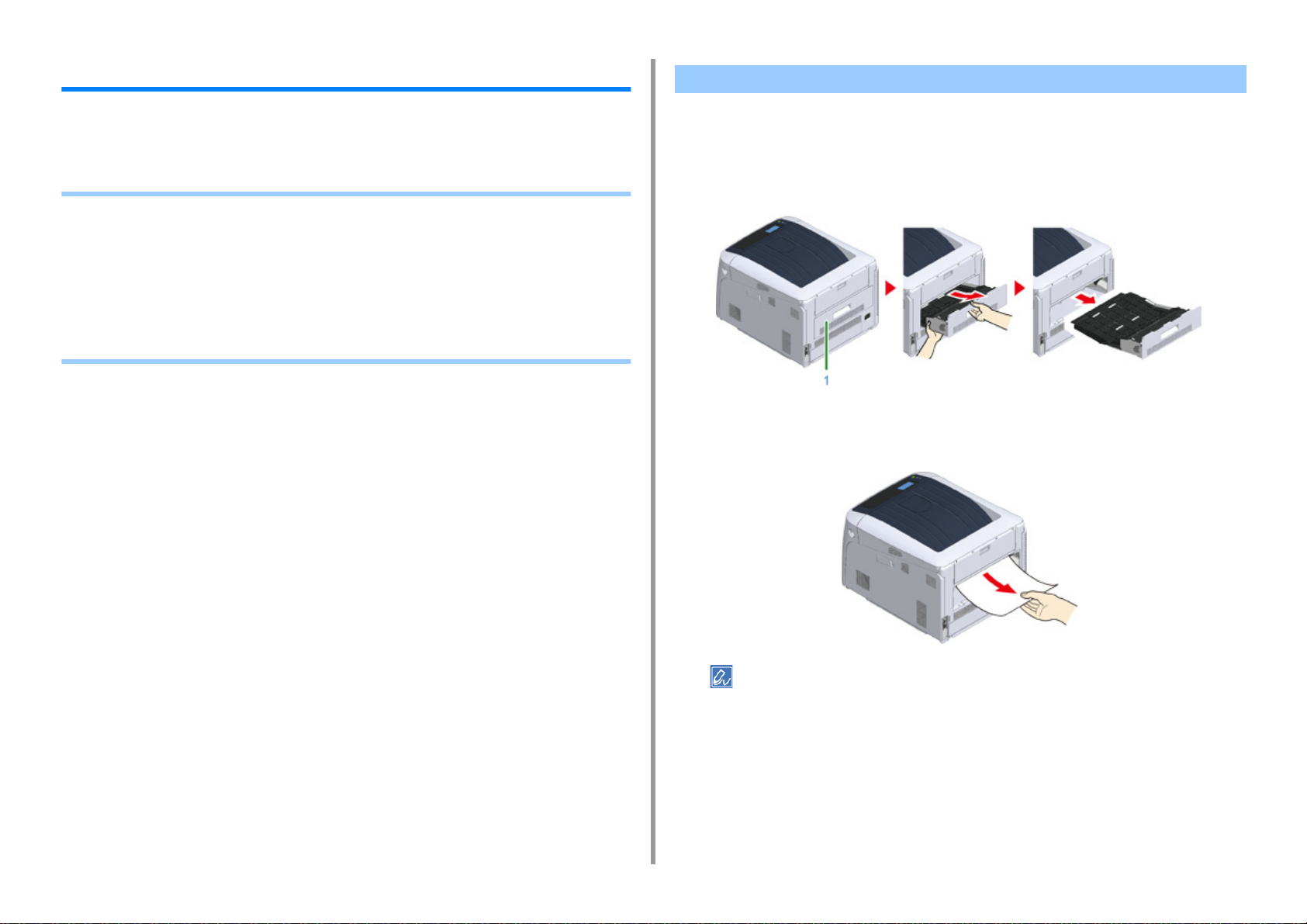

Error Code "391", "392", "393", "394", "632", "633", "634"
A paper jam has occurred while feeding paper from a tray.
• If paper jams occur frequently, clean the paper feed rollers. For details, refer to "Cleaning".
This procedure uses Tray 1 as an example.
Gently pull out from the machine the paper cassette (1) for which an error is
1
indicated.
Lower the paper set cover (1).
6
Task is complete.
- 95 -
Remove the jammed paper.
2
• If paper is not jammed, feeding paper may fail. Reduce the number of sheets of paper loaded on the paper
cassette. Make sure that the paper stoppers are set in the right position.
6. Troubleshooting
Push the paper cassette (1) back into the machine.
3
Open and close the front cover to clear the error.
Insert your finger into the recess on the right side of the machine and pull the
4
front cover open lever (2) to open the front cover (3) forward.
Close the front cover (3).
5
Task is complete.
- 96 -
6. Troubleshooting
Other Issues
This section explains the issues you may encounter while operating your printer and how to
solve them. See the corresponding items for Monitoring Tool, Mobile Print, AirPrint, Google
Cloud Print, and troubles related to the NFC.
Monitoring Tool (Advanced Manual)
Mobile Device Problems (Advanced Manual)
• Unable to Print from a Computer
• Unable to Install a Printer Driver Successfully
• Image Quality Issues
• Vertical White Lines Appear
• Printed Images are Fading Vertically
• Printed Images are Light
• White Spots and Lines Appear
• Dew Condensation Appears on Printed Paper
• Vertical Lines Appear
• Horizontal Lines and Spots Appear Periodically
• White Area on Paper is Lightly Stained
• The Periphery of Characters is Smudged
• The Entire Paper Area is Lightly Stained When Printing on Envelopes or Coated Paper
• Toner Comes Off When Printed Paper is Rubbed
• Uneven Gloss
• Black or White Dots Appear
• Dirt is Printed
• The Entire Page is Printed Black
• Nothing is Printed
• White Patches Appear
• Color of the printed image is not what you expect
• Feeding Issues
• Problems on the Machine
Unable to Print from a Computer
• Check the following explanations, smartphone app and "FAQ" in the Oki Data Web site.
• If you cannot solve a problem with the following solutions, contact your dealer.
• For problems caused by an application, contact the manufacturer of the application.
General Causes
• Common to Windows and Mac
Cause Solution Reference
The machine is in Sleep mode. Press the «POWER SAVE» button to
enter standby status.
The machine is turned off. Turn on the machine.
A LAN cable or USB cable is
unplugged.
There may be a problem with a
cable.
The machine is offline. Press the «ONLINE» button on the
An error message is displayed on the
display screen.
The interface setting is disabled. Check the interface setting on the
There is a problem with the print
function.
Check that the cable is plugged into
the machine and computer properly.
Replace the cable with a new cable. -
operator panel.
Check the error messages displayed
on the display screen.
display screen to make sure that there
is a consistency with the machine's
settings and the network connection
environment.
Check if the menu map can be
printed.
• For Windows
Cause Solution Reference
The machine is not set as the default
printer.
The output port of the printer driver is
incorrect.
Set the machine as the default printer.
Right-click the printer icon to open
"Printer folder", and then select [Set
as Default Printer].
For Windows 10 users, uncheck "Let
Windows manage my default printer".
Select the output port for connecting
the machine.
Energy Saving Function
Turning On the Power
Connecting to a Computer
-
Error Messages
Connecting to a Computer
Connecting to a Wireless LAN
Test Printing from the Printer
-
-
- 97 -
6. Troubleshooting
Cause Solution Reference
The machine is processing data from
another interface.
[Receiving data timeout] or [Invalid
Data] is displayed on the operator
panel and the machine does not
print.
Wait until printing is complete. -
Press the scroll button or on
the operator panel to select [Menus] >
[System Adjust] > [Timeout Injob] and
set a longer period of time. The
factory default setting is 40 seconds.
If the job is not printed with "Received
invalid data" displayed, the selected
emulation language may not match
this machine (model). Make sure that
the printer driver you use supports this
model of the machine.
Network Connection Problems
• Common to Windows and Mac
Cause Solution Reference
Using a cross cable. Use a straight cable. -
The machine was turned on before a
cable was connected.
There is a problem with the
compatibility with the hub.
The network connection setting is
incorrect.
• For Windows
Cause Solution Reference
The IP address is incorrect. • Check that the same IP address is
All pages are not printed. If you are using the WSD port, change
Connect cables before turning the
machine on.
Press the scroll button on the
operator panel to select [Admin Setup]
> [Network Setup] > [HUB Link
Setting], and then change the setting.
To connect to a wired network, set
[Wired] for [Network Setup] to
[Enable].
set for the machine and the
machine's port setting on the
computer.
• Check that the IP address is not
duplicated by another device.
• Check that the correct IP address,
subnet mask, and gateway address
are set.
• If using OKI LPR Utility, check the IP
address setting with OKI LPR Utility.
it to the standard TCP/IP port.
-
Connecting a LAN Cable
-
Connecting a LAN Cable
Test Printing from the Printer
OKI LPR Utility (Advanced
Manual)
-
Wireless LAN is Not available (Infrastructure)
At Print Network Information and Wireless(Infrastructure) Information, check the following
explanation while checking the items numbered (1) to (6) in the figure below.
To print Network Information, select [Functions] > [Print Information] > [Network].
• Unable to connect to an access point ( indicates the status other than
"Connected".)
Cause Solution Reference
[Wireless(Infrastructure)] indicates
"Disable".
* Refer to as shown above.
[SSID] is incorrect. Or it is blank.
* Refer to as shown above.
[Security] is incorrect.
* Refer to as shown above.
The encryption key is incorrect. Check whether to correspond with the
The desired wireless LAN access
point is set to Channel 12 or 13.
Select [Enable] for
[Wireless(Infrustructure)].
* You cannot enable wireless LAN
(infrastructure) and wireless LAN (AP
mode) at the same time.
Check whether the SSID of the
desired wireless LAN access point is
correct.
If it is blank, the SSID is not set.
Check whether to correspond with the
security (ciphering method) of the
desired wireless LAN access point.
encryption key of the desired wireless
LAN access point.
The printer does not support Channel
12 and 13.
Change the channel setting of the
wireless LAN access point.
Connecting to an Access Point
(Infrastructure)
Connecting to an Access Point
(Infrastructure)
Connecting to an Access Point
(Infrastructure)
Connecting to an Access Point
(Infrastructure)
-
- 98 -
6. Troubleshooting
• Network communication is Not stable
Cause Solution Reference
RSSI is low.
* Refer to as shown above.
The frequency band you are using is
congested.
* Refer to as shown above.
The received signal strength is weak.
Install this machine in a place with a
good view of the wireless access
point. (We suggest that the distance
between the machine and the wireless
device be 30 m or less.)
Do not place any electric appliances
that emit weak radio waves (such as
microwaves or digital cordless
telephones) close to the machine.
If there is metal, aluminum sash, or a
reinforced concrete wall between the
machine and wireless access points,
connections may be harder to be
established.
When [Band] is 2.4 GHz and the
wireless LAN access point supports 5
GHz, change to the 5 GHz SSID.
When [Band] is 5 GHz, change the
wireless LAN access point to be
connected to 2.4 GHz SSID.
-
Connecting to an Access Point
(Infrastructure)
• Able to connect to an access point but network communication is Not
available
Cause Solution Reference
The IP address is the same segment
as the wired network.
[Enabling Default Gateway] is set to
[Wired].
The printer can use the wired LAN
and wireless LAN simultaneously.
However, if a wired LAN and wireless
LAN are connected to the same
subnet, the communication may be
unstable.
To communicate with a device out of
the segment using the wireless LAN,
press the scroll buttonon on the
operator panel, select [Admin Setup]
> [Network Setup] > [Enabling Default
Gateway], and then select
[Wireless(Infrastructure)].
In that case, the printer cannot
communicate with a device out of the
segment using the wired LAN.
* To check the [Enabling Default
Gateway] status, select [General
Information] > [Enabling Default
Gateway].
-
Selecting a connecting method
between different segments
Wireless LAN is Not available (AP Mode)
At Print Network Information and Wireless(AP Mode) Information, check the following
explanation while checking the items numbered (1) to (6) in the figure below.
To print Network Information, select [Functions] > [Print Information] > [Network].
• Devices cannot be connected
Cause Solution Reference
[Wireless(AP Mode)] indicates
"Disable".
* Refer to as shown above.
[SSID] is incorrect.
* Refer to as shown above.
[Security] is incorrect.
* Refer to as shown above.
The encryption key is incorrect. Check whether the encryption key of
[Number Of Connected] indicates 4.
* Refer to as shown above.
Select [Enable] for [Wireless(AP
Mode)].
* You cannot enable wireless LAN
(infrastructure) and wireless LAN (AP
mode) at the same time.
Check whether the SSID of the
desired wireless device corresponds
with the SSID of the printer.
Check whether the Security of the
desired wireless device corresponds
with the Security of the printer.
the desired wireless device
corresponds with the encryption key
of the printer.
* To check the encryption key, select
[Wireless(AP Mode) Setting] >
[Manual Setup].
Up to four devices can be connected
to the machine via the wireless LAN
(AP mode). The fifth device will be
rejected. Disconnect at least one
device and try again.
Connecting to the Machine
Directly (AP Mode)
Connecting to the Machine
Directly (AP Mode)
Connecting to the Machine
Directly (AP Mode)
Connecting to the Machine
Directly (AP Mode)
Connecting to the Machine
Directly (AP Mode)
- 99 -
6. Troubleshooting
USB Connection Problems
• Common to Windows and Mac
Cause Solution Reference
An unsupported USB cable is used. Use a USB 2.0 cable. USB 3.0 is not
supported.
A USB hub is used. When using a USB cable, directly
A printer driver is not installed
correctly.
• For Windows
Cause Solution Reference
The machine is offline. Right-click the printer icon to open
A switch, buffer, extension cable, or
USB hub is used.
Another printer driver that works
when connected via a USB interface
is installed.
connect the machine to the computer.
USB hub is not supported.
Reinstall the printer driver.
"Printer folder", and then select [See
print jobs].
In the dialog, select the [Printer] menu
and then clear the check of [Use
Printer Offline].
When using a USB cable, directly
connect the machine to the computer.
USB hub is not supported.
Remove the other printer driver from
the computer.
-
Connecting a USB Cable
Installing a Printer Driver to a
Computer
-
Connecting a USB Cable
-
Unable to Install a Printer Driver Successfully
• Check the following explanations, smartphone app and "FAQ" in the Oki Data Web site.
• If you cannot solve a problem with the following solutions, contact your dealer.
• For problems caused by an application, contact the manufacturer of the application.
• USB Connection Problems
Symptom Cause/solution Reference
An icon for the machine is not
created on the "Printer folder".
The "Unable to install printer driver"
error message is displayed.
The printer driver is not installed
correctly.
Reinstall the printer driver correctly.
Use Plug-and-Play. Follow the
procedure below:
1. Check that the machine and
computer are turned off.
2. Connect a USB cable.
3. Turn the machine on.
4. Turn the computer on.
5. When the [Found New Hardware
Wizard] is displayed, follow the onscreen instructions to complete the
setup.
Installing a Printer Driver to a
Computer
-
- 100 -
Loading...
