Oki C801 DATASHEET

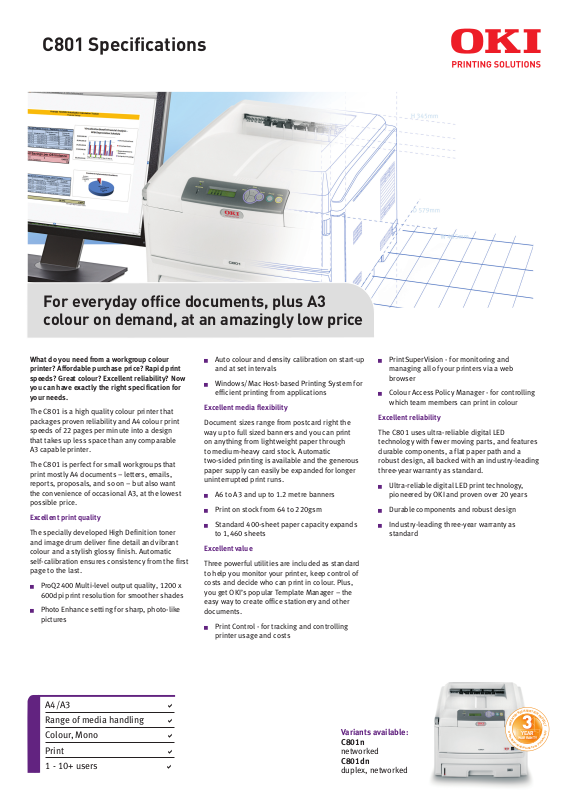

C801 Specifications
W
H
E
N
Y
O
U
R
E
G
I
S
T
E
R
Y
O
U
R
P
R
O
D
U
C
T
w
w
w
.
o
k
i
p
r
i
n
t
i
n
g
s
o
l
u
t
i
o
n
s
.
c
o
.
u
k
/
w
a
r
r
a
n
t
y
YEAR
WARRANTY
H 345mm
D 579mm
For everyday office documents, plus A3 colour on demand, at an amazingly low price
What do you need from a workgroup colour printer? Affordable purchase price? Rapid print speeds? Great colour? Excellent reliability? Now you can have exactly the right specification for your needs.
The C801 is a high quality colour printer that packages proven reliability and A4 colour print speeds of 22 pages per minute into a design that takes up less space than any comparable A3 capable printer.
The C801 is perfect for small workgroups that
print mostly A4 documents – letters, emails, reports, proposals, and so on – but also want
the convenience of occasional A3, at the lowest possible price.
Excellent print quality
The specially developed High Definition toner and image drum deliver fine detail and vibrant colour and a stylish glossy finish. Automatic self-calibration ensures consistency from the first page to the last.
g ProQ2400 Multi-level output quality, 1200 x
600dpi print resolution for smoother shades
g Photo Enhance setting for sharp, photo-like
pictures
g Auto colour and density calibration on start-up
and at set intervals
g Windows/Mac Host-based Printing System for
efficient printing from applications
Excellent media flexibility
Document sizes range from postcard right the way up to full sized banners and you can print on anything from lightweight paper through to medium-heavy card stock. Automatic two-sided printing is available and the generous paper supply can easily be expanded for longer uninterrupted print runs.
g A6 to A3 and up to 1.2 metre banners
g Print on stock from 64 to 220gsm
g Standard 400-sheet paper capacity expands
to 1,460 sheets
Excellent value
Three powerful utilities are included as standard to help you monitor your printer, keep control of costs and decide who can print in colour. Plus,
you get OKI’s popular Template Manager – the
easy way to create office stationery and other documents.
g Print Control - for tracking and controlling
printer usage and costs
W 485mm
g PrintSuperVision - for monitoring and
managing all of your printers via a web browser
g Colour Access Policy Manager - for controlling
which team members can print in colour
Excellent reliability
The C801 uses ultra-reliable digital LED technology with fewer moving parts, and features durable components, a flat paper path and a robust design, all backed with an industry-leading three-year warranty as standard.
g Ultra-reliable digital LED print technology,
pioneered by OKI and proven over 20 years
g Durable components and robust design
g Industry-leading three-year warranty as
standard
A4/A3 a
Range of media handling a
Colour, Mono a
Print a
1 - 10+ users a
Variants available:
C801n
networked C801dn duplex, networked
W
H
E
N
Y
O
U
R
E
G
I
S
T
E
R
Y
O
U
R
P
R
O
D
U
C
T
w
w
w
.
o
k
i
p
r
i
n
t
i
n
g
s
o
l
u
t
i
o
n
s
.
c
o
.
u
k
/
w
a
r
r
a
n
t
y
YEAR
WARRANTY
C801 - Colour and Mono Printers
Printer
Print speed
Time to rst print
Warm up time
Processor speed
A4: 22ppm colour, 32ppm mono; A3: 12ppm colour, 17ppm mono
11.5 seconds colour, 9.5 seconds mono Up to 90 seconds from power on and up to 75 seconds from
power save PowerPC405 200MHz
Interface and Software
Connectivity
Printer languages
OS Compatibility
Utility Suite
Hi-Speed USB, 10/100-TX Ethernet Windows/Mac Host Based Printing System Windows 2000 / XP Home / XP Professional / XP Professional
x64 / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit &
1
64-bit) / Server 2008 R2 (32-bit) / Vista (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit); Mac OS X 10.3.9 to 10.6.3
Color Correct, OKI LPR2, PrintSuperVision.net2, PrintSuperVision Multiplatform2, Swatch Utility, Template Manager2, Web Driver
1
Installer2, Print Control Server2, Print Control Client, Print Control Report Tool2, Color Access Policy Manager
2
Print Quality
Resolution
Enhancements
ProQ2400 Multi-level technology, 1200 x 600dpi Auto Colour Balance, Photo Enhance via Driver
Paper Handling
Paper capacity
Tray 1: 300 sheets of 80gsm; Multi-purpose tray: 100 sheets of 80gsm
Paper capacity optional trays Tray 2: 530 sheets of 80gsm; Tray 3: 530 sheets of 80gsm
Maximum paper capacity
Paper sizes
Paper weight
1,460 sheets of 80gsm
Tray 1: A3, A4, A5, A6, B4, B5; Tray 2/3: A3, A4, A5, B4, B5; Multi-purpose tray: A3, A4, A5, B4, B5, A6; 9 Envelopes (DL, C4,
C5, Com-10); Labels (Avery 7162, 7664, 7666), Custom size (up to 1200mm length including banner); Duplex: A3, A4, A5, B4, B5; Custom size: Width 148.5-297mm Length 182-431.80mm
Tray 1: 64 to 120gsm; Tray 2/3: 64 to 176gsm; Multi-purpose tray: 64 to 220gsm; Duplex: 64 to 105gsm
Duplex Standard: C801dn; Optional: C801n
Paper output
250 sheets face down, 100 sheets face up, 80gsm
General Features
Memory
Standard RAM: 128MB; Maximum RAM: 128MB
Operating temperature/ humidity: 10°C to 32°C (17°C to
Environment
27°C recommended) / 20% to 80% RH (50% to 70% RH recommended)
Storage temperature/humidity: -10°C to 43°C, 10% to 90% RH
Power supply
Single phase 220 to 240VAC, frequency 50/60Hz +/- 2%
Power consumption Typical: 570W; Max: 1350W; Idle: 200W; Power Save: <15W
Noise level
Operating: 54dB(A) or less; Standby: 37dB(A) or less; Power save: Background level
Dimensions (HxWxD) C801n: 345 x 485 x 579mm; C801dn: 345 x 485 x 634mm
Weight3C801n: 36kg approx; C801dn: 40kg approx
Duty cycle
Warranty
Maximum: 75,000 pages/month; Recommended: 1,500 to 5,000 pages/month
3 years extended warranty upon registration within 30 days of purchase
Product order numbers C801n: 01288801; C801dn: 01288901
Accessories (Order Numbers)
43226003 (Standard on C801dn)
Duplex
Cabinet
44016213 44016213 44153703
2nd Paper Tray
3rd Paper Tray
Consumables (Order Numbers)
Toner cartridges*
(7,000 pages)
Toner cartridges*
(7,300 pages)
Image drum**
(20,000 pages)
Transfer Belt
(80,000 pages)
Fuser Unit
(100,000 pages)
*Toner: Number of A4 pages yield compliant with ISO/ISC 19798. Printer shipped with 2,300 pages yield. **Drum: Average number of A4 pages printed in simplex from tray 1.
Black: 44643004
Cyan: 44643003; Magenta: 44643002; Yellow: 4464001
Cyan: 44064011; Magenta: 44064010; Yellow: 44064009; Black: 44064012
43449705
43529405
1
Check local OKI Printing Solutions website for latest driver releases and OS compatibility; 2Windows only; 3Including all consumables
Consumables Information: For the protection of your printer, and in order to ensure that you benet from its full functionality, this model has been designed to operate only with genuine OKI Printing Solutions toner cartridges. These can be identied by the OKI trademark. Any other toner cartridge may not operate at all, even if it is described as “compatible”, and if it does work, your printer’s performance and print quality may
be degraded.
Simply Unique - 3 Year Warranty
Our devices are manufactured to the highest standards of quality and technology, which has been confirmed by independent tests. We are so convinced of the high quality of our products that we are offering you an extension of the
standard warranty period to 3 years – for free! Simply register your product within 30 days of purchase to be eligible for our
unique all inclusive offer. Fully covered by OKI! For further information please visit www.okiprintingsolutions.co.uk/warranty
Without registration, the standard pan-European 1 year warranty applies.
Oki Europe Ltd.
Blays House, Wick Road Egham, TW20 0HJ United Kingdom T +44(0) 20 8219 2190 F +44(0) 20 8219 2199
www.okiprintingsolutions.com
© 2010 Oki Europe Ltd. Oki Printing Soluti ons is the trading name of Oki Europe Ltd. Version 1.1 06/2010.
Specication subject to change without notice. All trademarks acknowledged.
