Ohsung Electronics URCMX850 Users Manual

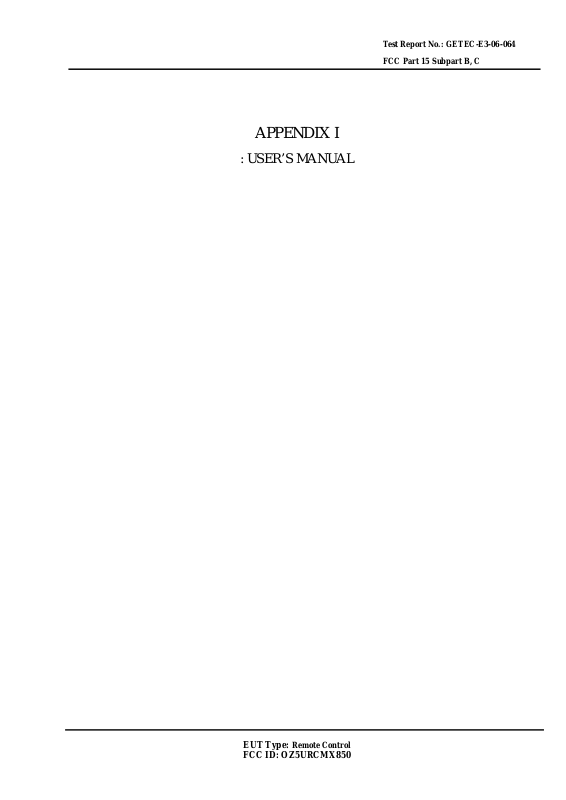

Test Report No.: GETEC-E3-06-064
FCC Part 15 Subpart B, C

APPENDIX I

: USER’S MANUAL

EUT Type: Remote Control
FCC ID: OZ5URCMX850

OPERATING

YOUR SYSTEM

WITH

AEROS

MX-850

This remote control was
Custom Programmed for you by:

For questions about your Custom
Programming call:

Custom Programming of a complex
home theater and/or a multi-room sys­tem is one of the most challenging
tasks within an audio/video installa­tion. It involves an intimate knowledge
of how the components interact and
exact details on the proper sequences
of control.

Only a professional custom installation
company has the requisite experience
and training to quickly and effectively
customize a remote control for true
automated operation.

Congratulations on your choice!

OPERATING YOUR SYSTEM WITH THE AEROS
© 2004 Universal Remote Control, Inc. All
rights reserved.

The information in this manual is copyright protected.
No part of this manual may be copied or reproduced in
any form without prior written consent from Universal
Remote Control, Inc. UNIVERSAL REMOTE CON­TROL, INC. SHALL NOT BE LIABLE FOR OPERA­TIONAL, TECHNICAL OR EDITORIAL ERRORS/OMIS­SIONS MADE IN THIS MANUAL. The information in
this manual may be subject to change without prior
notice. Home Theater Master is a registered trademark
of Universal Remote Control, Inc. Entertainment Made
Simple is a trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or
registered trademarks of their respective companies or
organizations.

500 Mamaroneck Avenue,

Harrison, NY 10528

Phone: [phone]

Fax: [phone]

Table of Contents

No More Pointing 1

Finding the MAIN Menu 2

Turn On the System 3

Using the MAIN Menu 4

Select a New ACTIVITY 4

Select a DEVICE Only 5

Controlling the Volume 6

Operating Any Device 6

Using FAV - Favorites 8

Backlighting 10

Changing CONTRAST 10

Batteries 11

Cleaning the Screen 11

Warranty 12

Specifications 12

1

No More Pointing!

The combination of the Aeros with it’s
companion MRF-250 base station will
enable you to place your audio/video
components out of sight behind closed
doors and/or in another room of your
house. The Aeros sends radio signals
to the MRF-250 through walls and
closed doors (50-100’ away, indoors or
outdoors). The MRF-250 converts your
commands to the infrared signals that

control your A/V components.

1. The Aeros remote con­trol sends radio waves in
every direction, so you
don’t have to point the
remote anymore!

The Aeros

2. Self-adhesive “Flashers”
affixed to the front panels of
components relay com­mands to components out
of “line-of-sight” with the
MRF-250.

The MRF-250

3. The built-in Front Blaster sends com­mands to components in the same cabi­net space as the MRF-250.

2

Finding the MAIN Menu

The MAIN Button always takes you to
the MAIN Menu which may be named
for the room the Aeros controls.

The PAGE button switches between
two MAIN Menu pages IF you have
more than ten remote controls.
When the top title bar says MAIN or
the name of a Room, you are on the
MAIN Menu.

The lower title bar displays PAGE 1 or
PAGE 2 as you switch. Each of the
remote controls the Aeros replaces are
represented by a button next to the
corresponding screen label.
