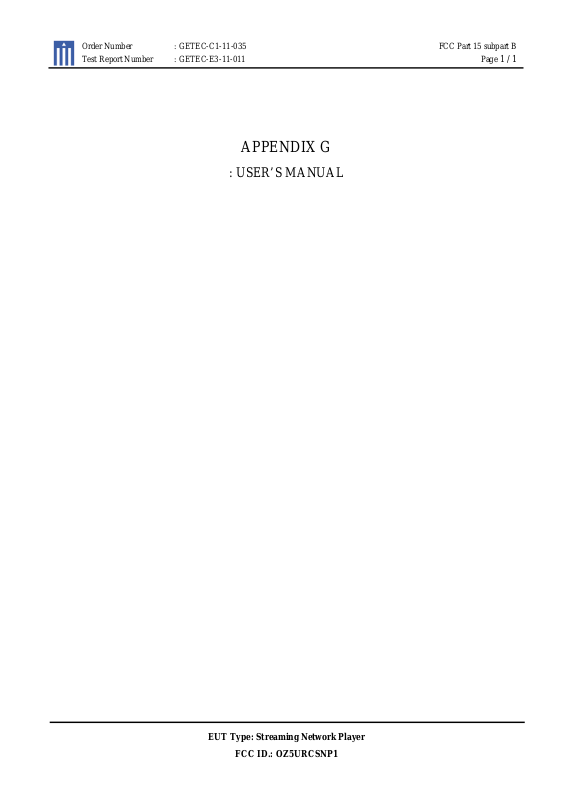

APPENDIX G
: USER’S MANUAL
EUT Type: Streaming Network Player
FCC ID.: OZ5URCSNP1
Page 2
SNP-1 Owner's Manual
Page 3
SNP-1 Owner’s Manual ©2010 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual
may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
URC - Control the Experience is a registered trademark of Universal Remote
Control, Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
Page 4
Congratulations! 2
Features and Benefits 3
Parts Guide 3
Front Panel Description 4
System Features 5
Rear Panel Description 6
Specifications 8
USA Limited Warranty Statement 9
Federal Communication Commission
Interference Statement 11
TABLE O
F CONTENTS
Page 1
Page 5
Page 2
SNP-1 STREAMING
NETWORK PLAYER
Congratulations!
You’ve purchased the finest streaming Network player available
today. The SNP-1 is a native to the Network, CD quality digital
music streaming player which can be control with URC remotes
and keypads.
The SNP-1 streams a single source locally to a AV receiver or
television as well as over the Network to a DMS distribution
amplifier system. This makes your system scalable, and easy
to add additional rooms at any time in the future. All you need
is a DMS amplifier connected to the Network to listen to internet
music sources.
The SNP-1 is designed for professional installation only. Your
installer will help you select the right user interface for every
room of your installation. You’ll have a choice of Total Control
in-wall keypads and remote controls.
If you have questions, call your installer:
Company:
Installer Name:
Contact #:
Email address:
The customer service center is also available for any questions
you may have. Contact us at:
1-914-835-4484
or email us at:
Page 6
Page 3
SNP-1 STREAMING NETWORK PLAYER
Features and Benefits
• Pandora, Rhapsody, Sirius/XM, internet radio and other
services onboard.
• Streaming output via 44kHz streams to Total Control
amplifiers.
• IR input extends compatibility of any URC remote or
base station.
• Can be programmed off premises via the Internet and
MRX-10.
• Plays all music on Network PCs, Macs, or Network hard drives.
• Full Two-Way communication on all Total Control remotes
via MRX-10 (orhigher) Network system controller.
• Analog outputs for compatibility with other brand systems.
• Easy rack-mounting via optional RMK-1 rack-mounting kit.
Parts Guide
The SNP-1 Streaming Network Player includes:
1 - SNP-1 Streaming Network Player 1 - AC Power Adapter
1 - Power Cord 1 - Ethernet Cable
1 - Installation Manual
Page 7
Page 4
SNP-1 STREAMING NETWORK PLAYER
Front Panel Description
Power and LAN LEDs
LEDs indicate that the SNP-1 is connected to power
and connected to the local area Network.
Reset Button
The front panel reset button offers a quick way to
reconnect the SNP-1 to the local area Network.
Page 8
Page 5
SNP-1 STREAMING
NETWORK PLAYER
System Features
Pristine Audio Quality
Unlike other streaming Network players, the SNP-1 streams all
music uncompressed at pure CD quality levels. You enjoy all
the detail of your original source.
Internet music stream
Listen to internet music sources such as Pandora, Rhapsody
and Sirius to your local zone or over the Network. Also view
the current music’s artist, album and song title.
Reliability
The SNP-1 is engineered first and foremost for reliability. It
offers extensive internal protection against failure and is manufactured in our ISO 9000 certified factory with the utmost
attention to quality control at every stage of manufacturing,
from parts procurement to final assembly.
Page 9
Page 6
SNP-1 STREAMING NETWORK PLAYER
Rear Panel Description
12V DC 3.5 Amp Power Supply
The power socket enables either UL/CSA approved 110V
power cords or CE approved 220V power cables to be used
with the power supply. The power supply automatically
switches when connected to either 110V or 240V.
Network Connection
A 10/100 LAN connection ensures that the SNP-1 sends a
Network stream to the DMS amplifiers.
IR In for 1-Way RF Remotes and Base Stations
When connected to a URC RF base station, a one-way URC
remote control can be programmed to control a zone.
Page 10
Page 7
SNP-1 STREAMING
NETWORK PLAYER

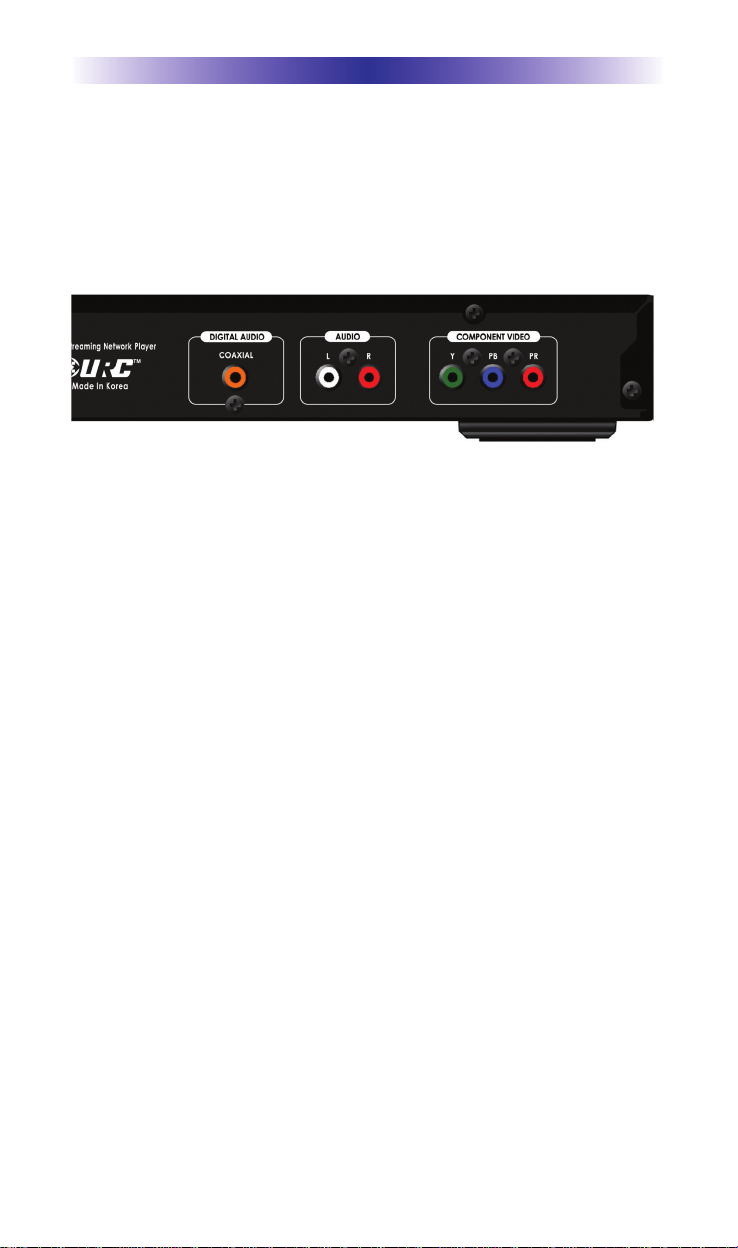

System Features
Digital Audio Output
Listen to internet music sources such as Sirius, Pandora and
Rhapsody via a local AVR receiver.
Analog Audio Output
Connect to a AVR receiver to listen to music sources locally.
Component Video Output
View the music source’s artists, album and song title via the
on screen television interface.
Page 11
Page 8
SPECIFICATIONS
Specifications
Mood Lamp (White): 4 Station Dimming (Off . Min . Mid . Max)
Power LED (Blue): Power Status
Network LED (Blue): Network Status
Reset Button: System Reset
Power: 12V/3.5A (Do Not USE 48V for MFSPOE-8)
Ethernet: One 10/100 RJ45 port (Indicator 2 LED)
Control: One IR Emitter Input (For RF 1way System)
Coaxial: One SPDIF(Coaxial) Out
Audio: One Audio Line Out
Component: One Component Video Out
Page 12
Page 9
USA WARRANTY
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition, is warranted against defects in materials or workmanship as
follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-
uct against defects in material or workmanship for a period of one
(1) year and as set forth below. Universal Remote Control will, at its
sole option, repair the product using new or comparable rebuilt
parts, or exchange the product for a comparable new or rebuilt
product. In the event of a defect, these are your exclusive remeies.
This Limited Warranty covers only the hardware components packaged with the Product. It does not cover technical assistance for
hardware or software usage and it does not cover any software
products whether or not contained in the Product; any such software is provided "AS IS" unless expressly provided for in any
enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight
prepaid, in its original packaging or packaging affording adequate
protection to Universal Remote Control at the address provided in
the Owner's Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have
been programmed into your unit. It is likely that such data, software, or other materials will be lost during service and Universal
Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract or
other verifiable Proof of Purchase is required. For product support
and other important information visit Universal Remote Control's
website: http://www
.UniversalRemote.com or call the Customer
Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modification of or to any part of the Universal Remote Control product.
This Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes
products sold by unauthorized resellers.
Page 13
Page 10
USA WARRANTY
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON
THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE
CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR
DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVERSAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE
FOR STATEMENTS MADE BY OTHERS CONCERNING THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON
THIS PRODUCT. Some states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you. This Limited
Warranty gives you specific legal rights and you may have other
rights which vary from state to state or jurisdiction to jurisdiction.
REV020708
Page 14
Page 11
NOTE
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
