Ohsung Electronics URCMSC400 Users Manual

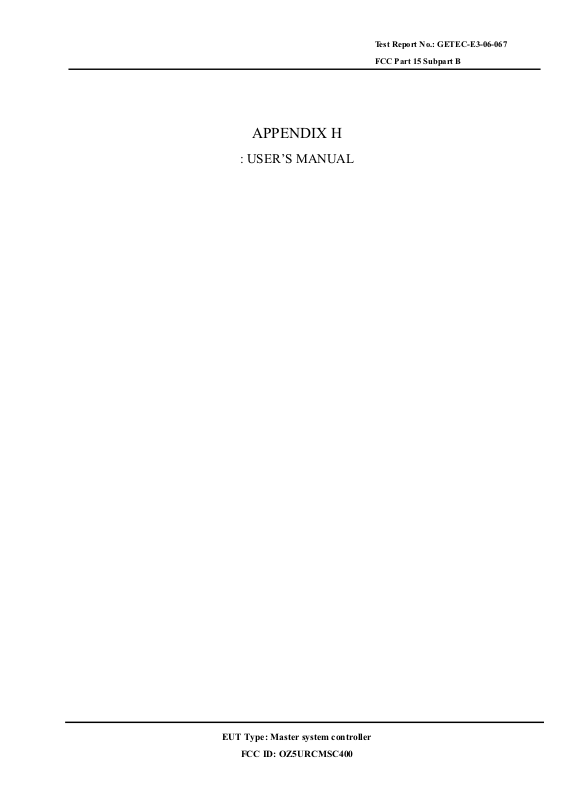

APPENDIX H

: USER’S MANUAL

Test Report No.: GETEC-E3-06-067

FCC Part 15 Subpart B

EUT Type: Master system controller

FCC ID: OZ5URCMSC400

MSC-4 00 System

Narrow Band RF Remotes Trigger
Automation of RS-232,IR and Relay
Controlled Components and Systems

MSC-400 Master System Controller

High performance audio video systems can include IR (infrared controlled
devices such as Satellite and Cable set top boxes,DVD players etc.),

RS-232 (serial controlled devices such as projectors,surround sound

receivers and media servers),and Relay and Voltage controlled

devices (such as lights,drapes,curtains and blinds).The MSC-400

Master System Controller is designed to seamlessly automate all

of these types of devices.Installation of the MSC-400 insures that

any future purchase can be successfully integrated regardless

of its control method.

Variety of User Interfaces

In the MSC-400 System,there are four compatible remote

controls which can be programmed to interface with the

Master System Controller;the MX-3000,MX-950,TX-

1000 and the MX-900.All have unique options for cus-

tomization to any client’s tastes and needs, up to a unique

graphical style for every room and every user.

The Combination - Ultimate

Reliability,Flexibility and Power

In a system equipped with an MSC-400,the remote control in
the hands of the user has a very easy task compared to lesser

systems.Instead of sending multi-step macros (each step vulner-

able to a mistake in pointing or other accidental interference),the

remote sends an instantaneous digital RF (Radio Frequency) command
to the MSC-400.This RF command is constructed with a unique error
correction algorithm for incredible RF range and reliability.Once the RF
“trigger”command is received by the MSC-400,sophisticated sensors,
control ports,vast memory and machine intelligence go to work.

COMPL ETE

COMPL ETE

CO NTR O L
