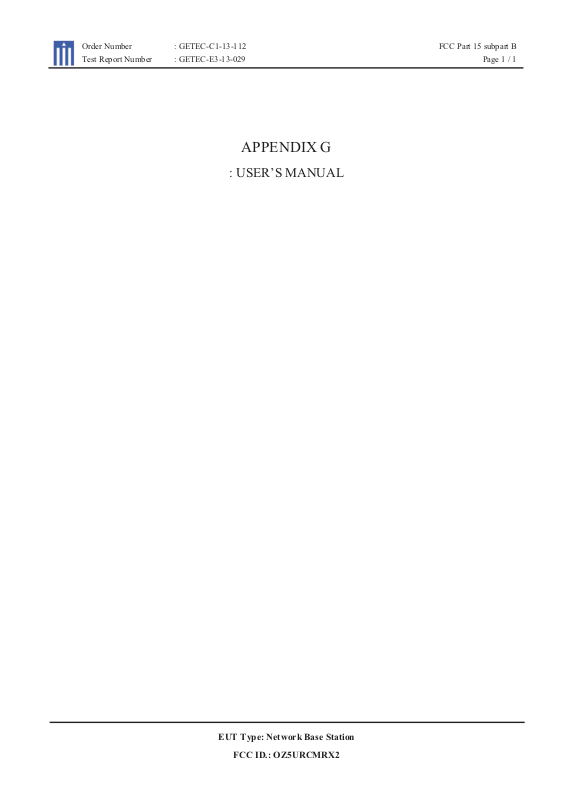

APPENDIX G

: USER’S MANUAL

EUT Type: Network Base Station

FCC ID.: OZ5URCMRX2

MRX-2 Owner’s Manual

Network Base Station

MRX-2 Owner’s Manual ©2013 Universal Remote Control, Inc.

The information in this manual is copyright protected. No part of
this manual may be copied or reproduced in any form without prior
written consent from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE
FOR OPERATIONAL, TECHNICAL OR EDITORIAL
ERRORS/OMISSIONS MADE IN THIS MANUAL.

The information in this manual may be subject to change without
prior notice.

Complete Control is a registered trademark of Universal Remote
Control, Inc.

All other brand or product names are trademarks or registered
trademarks of their respective companies or organizations.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: [phone] Fax: [phone]

TABLE OF CONTENTS

Introduction 1

Features and Benefits 2

Parts Guide 3

Front and Rear Panel Descriptions 4

Network Installation 6

Specifications 7

USA Limited Warranty Statement 8

Federal Communication Commission Interference Statement 10

Declaration of Conformity 11

MRX-2 NETWORK BASE STATION

Introduction

The MRX-2 Network Base Station allows for control of your
components by sending infrared and serial commands to your system.
This base station can be used with either a Total Control or a
Complete Control system.

When used in a Total Control System:

Expand zones throughout the home or commercial space by
installing multiple MRX-2’s.

Control equipment such as shades and TV lifts using the base
stations sensors, relays and RS-232 ports.

Control URC RF Lighting using the optional RFTX-1 transmitter.

When used in a Complete Control System:

The MRX-2 is required to use the CC Control App for iOS devices,
like the iPad and iPhone.

Extend control to other rooms by installing multiple MRX-2’s
throughout the home or commercial space.

The MRX-2 offers traditional IR only control from compatible
URC MX series remotes via an optional RFX-250.

Page 1

MRX-2 NETWORK BASE STATION

Features and Benefits

When used in a Total Control System:

Expand Control: Add an MRX-2 to a Total Control system to
expand control to other rooms/areas in the home or office.
Components located out of reach from the MRX Advanced
Network System Controller may be controlled via IR, RS-232 or
Relays by using an MRX-2 to expand the scope of a Total
Control system.

Lighting Control: By connecting an optional RFTX-1 RF
Transmitter, take control of your URC lighting (within range).
Control a specific light, a whole room or even the entire home
from any remote control or iOS device.

When used in a Complete Control System:

Enables iOS Control: The addition of an MRX-2 base station to
a control system, allows for control via URC’s CC Control iOS
app for iPads, iPhones and iPod touch. Each iDevice requires
programming by a qualified custom install professional.

Note: Requires the purchase of CC Control Setup code (one
code per system).

No Aiming: Using a base station results in flawless control of
your components without having to aim the remote! The signal
travels to the base station via RF or Wi-Fi and is then converted
back to infrared before being sent to the device being
controlled; perfect for hidden components.

Note: An optional RFX-250 Antenna is required for use with
URC remote controls.

Page 2
