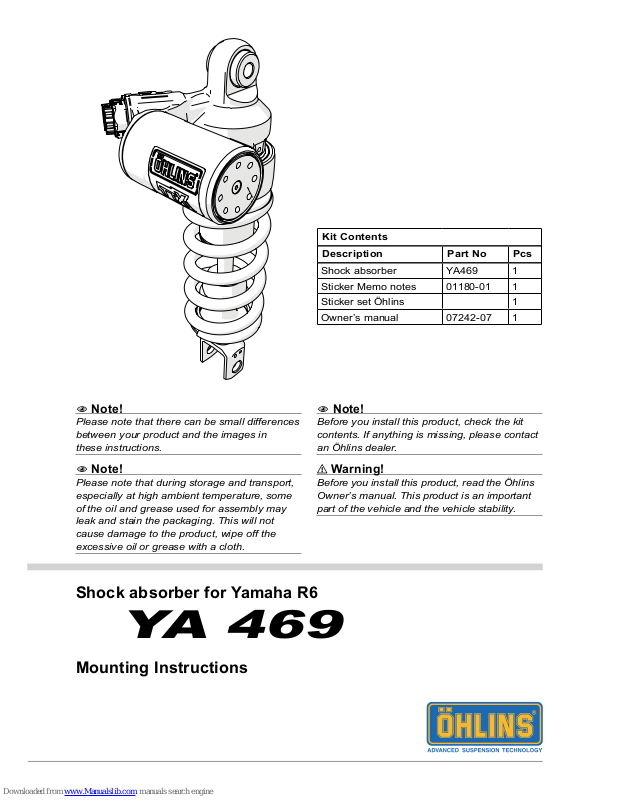

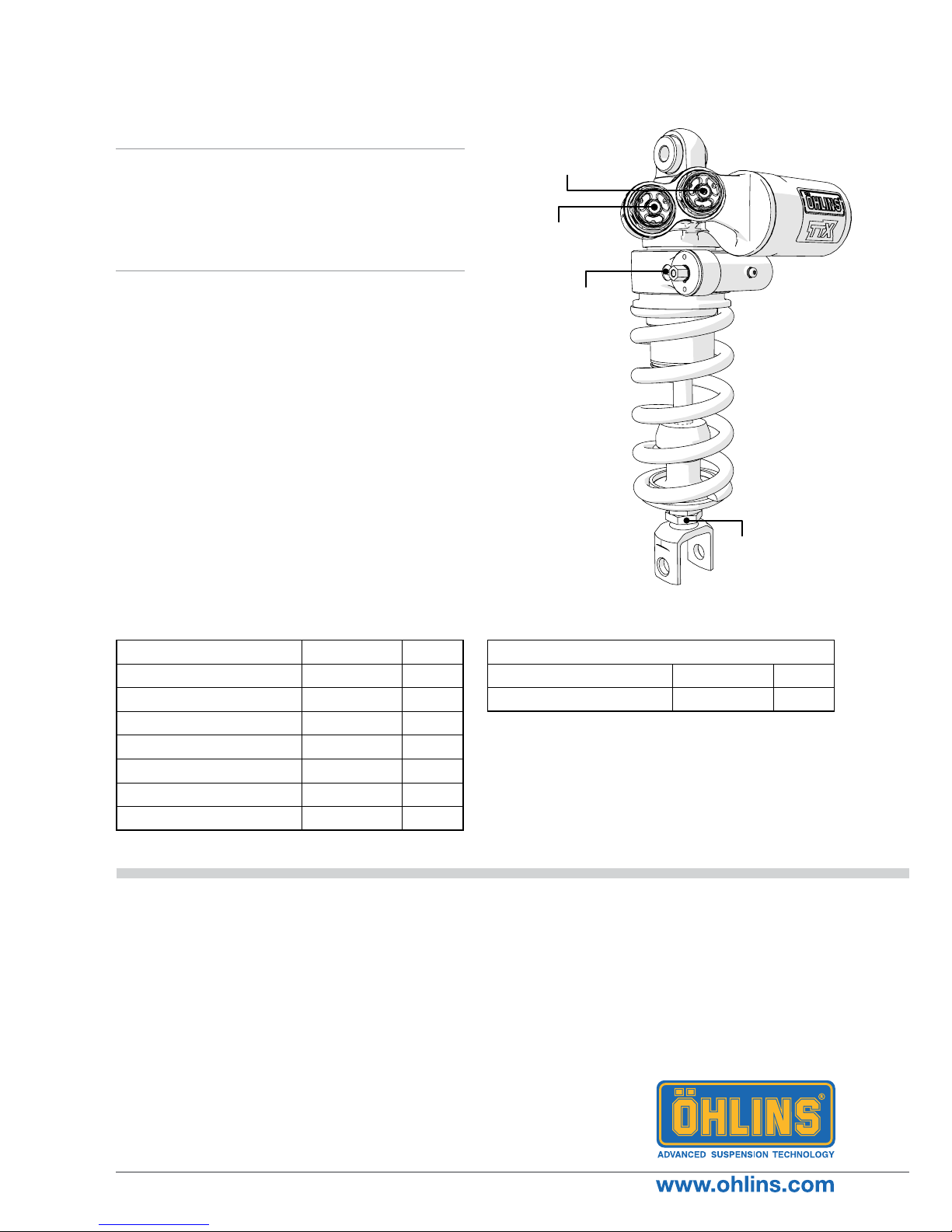

Ohlins YA 469 Mounting Instructions
Shock absorber for Yamaha R6
YA 469
Mounting Instructions
Note!1
Please note that there can be small differences
between your product and the images in
these instructions.
Note!1
Please note that during storage and transport,
especially at high ambient temperature, some
of the oil and grease used for assembly may
leak and stain the packaging. This will not
cause damage to the product, wipe off the
excessive oil or grease with a cloth.
Note!1
Before you install this product, check the kit
contents. If anything is missing, please contact
an Öhlins dealer.
Warning!⚠
Before you install this product, read the Öhlins
Owner’s manual. This product is an important
part of the vehicle and the vehicle stability.
Kit Contents
Description Part No Pcs
Shock absorber YA469 1
Sticker Memo notes 01180-01 1
Sticker set Öhlins 1
Owner’s manual 07242-07 1
2
1

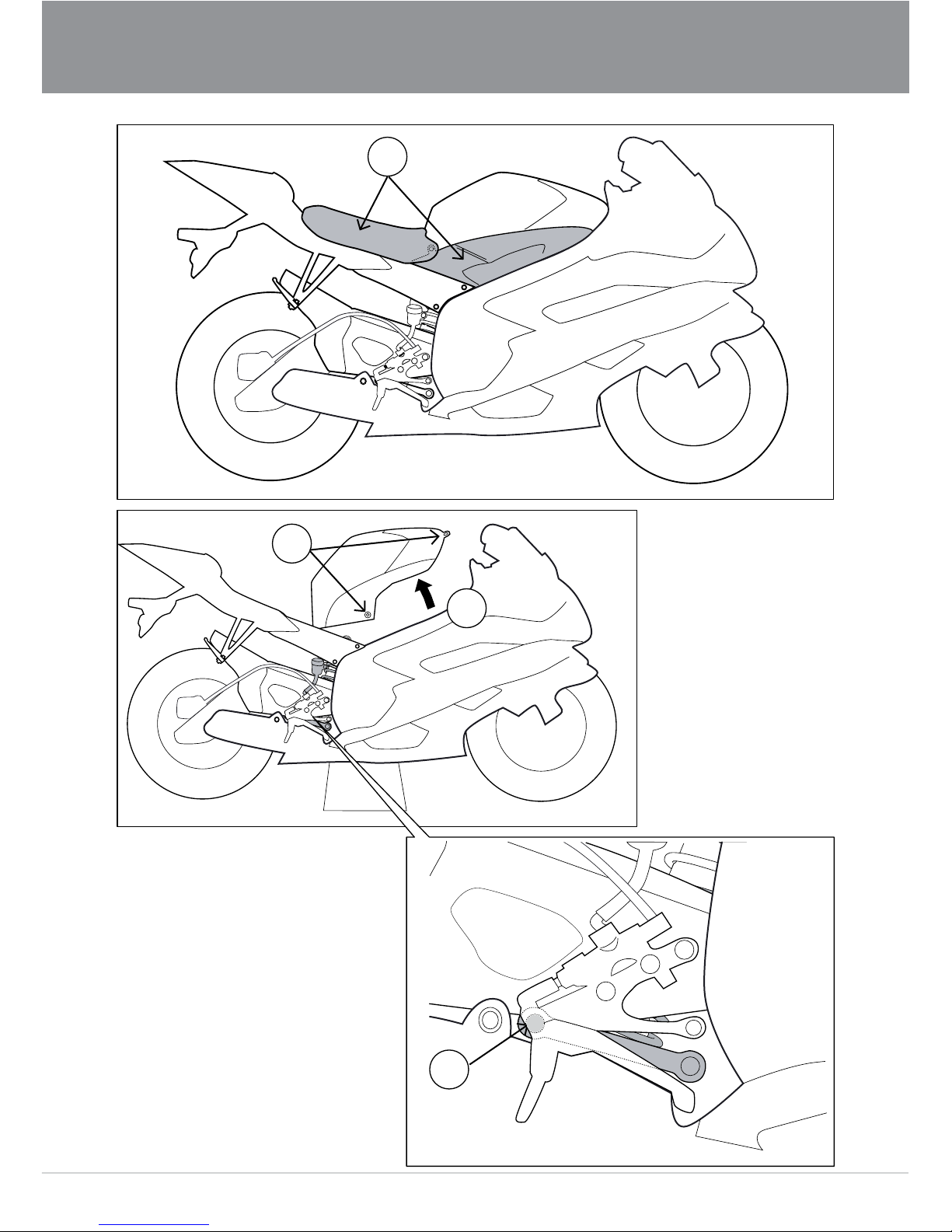

Put the motorcycle on a work stand so that the
rear wheel barely touches the ground.
2
Remove the seat and the tank side panel.
3
Remove the screws on the tank, one in the
front and one on each side.
4
Pivot the tank and loosen the upper attachment
nut of the original shock absorber.
5
Remove the screw that attaches the pull rods
to the swing arm. Remove the lower shock
absorber attachment.
6
Remove the upper attachment of the original
shock absorber. Remove the original shock
absorber.
7
Remove the original spacer between the upper
shock attachment and the frame.
MOUNTING INSTRUCTIONS
Warning!⚠
We strongly recommend to let an Öhlins dealer
install this product.
Warning!⚠
If you work with a lifted vehicle, make sure that it
is safely supported to prevent it from tipping over.
Note!1
When you work with this product, see the
vehicle service manual for vehicle specic
procedures and important data.
Note!1
Before you install this product clean the vehicle.
8
Use the original screws and install the Öhlins
shock absorber in the same position as the
original shock absorber.
9
Install the tank, side cover and the seat. Install
all removed parts in the same positions as they
were before removal.
Note!1
Lower the vehicle so that the suspension
is slightly compressed before you tighten
the screws.
Caution!✋
Make sure that you tighten all screws to the
correct torque and that nothing fouls or restricts
movement of the shock absorber/front fork/
steering damper when the suspension is fully
compressed or extended.
