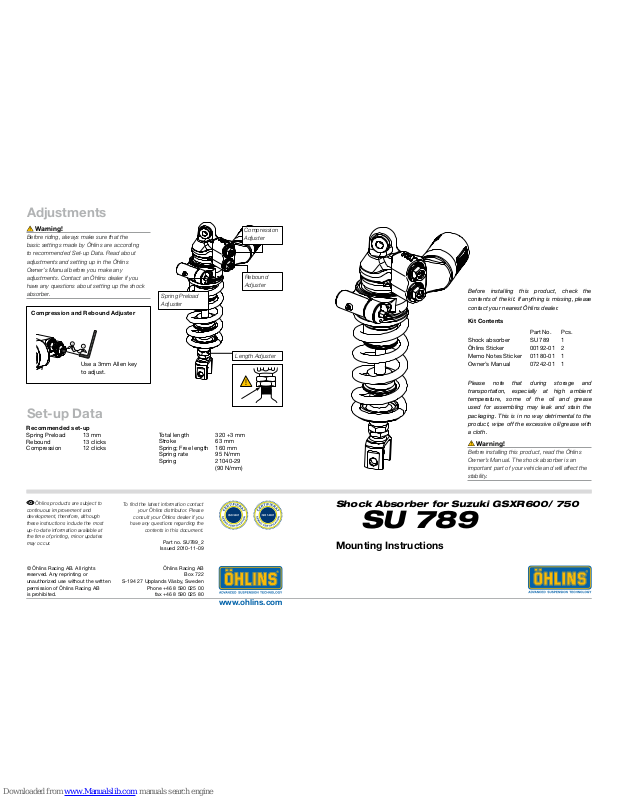

Shock Absorber for Suzuki GSXR600/ 750
SU 789
Mounting Instructions
Part No. Pcs.
Shock absorber SU 789 1
Öhlins Sticker 00192-01 2
Memo Notes Sticker 01180-01 1
Owner’s Manual 07242-01 1
Before installing this product, check the
contents of the kit. If anything is missing, please
contact your nearest Öhlins dealer.
Kit Contents
Recommended set-up
Spring Preload 13 mm
Rebound 13 clicks
Compression 12 clicks
Set-up Data
Adjustments
Please note that during storage and
transportation, especially at high ambient
temperature, some of the oil and grease
used for assembling may leak and stain the
packaging. This is in no way detrimental to the
product, wipe off the excessive oil/grease with
a cloth.
Part no. SU789_2
Issued 2010-11-09
Spring Preload
Adjuster
Warning!
Before installing this product, read the Öhlins
Owner’s Manual. The shock absorber is an
important part of your vehicle and will affect the
stability.
Warning!
Before riding, always make sure that the
basic settings made by Öhlins are according
to recommended Set-up Data. Read about
adjustments and setting up in the Öhlins
Owner’s Manual before you make any
adjustments. Contact an Öhlins dealer if you
have any questions about setting up the shock
absorber.
Rebound
Adjuster
Length Adjuster
Compression
Adjuster
Compression an d Rebound Ad juster
!
Total length 320 +3 mm
Stroke 63 mm
Spring; Free length 160 mm
Spring rate 95 N/mm
Spring 21040-29
(90 N/mm)
+
-
Use a 3mm Allen key
to adjust.
1 2
How to Install How to Install
Warning!
It is advisable to have an Öhlins dealer install the
shock absorber.
When installing, consult your Vehicle Service
Manual.
Warning!
Make sure the vehicle is securely supported so
that it will not tip.
1
Put the motorcycle on a workstand so that
the rear wheel barely touches the ground.
2
Remove the silencer.
3
Remove the upper screw of the original shock
absorber.
Caution!
The brake hose must not be stretched. It can
be damaged. Support the swing arm once the
lower screw of the shock absorber is removed.
4
Remove the lower and the upper screw of the
link arm and the lower screw of the original
shock absorber.
5
Remove the original shock absorber by lifting
it above the rear wheel.
Note!
Recommendation! Before installing the Öhlins
shock absorber clean the vehicle thoroughly.
6
Loosen the screw holding the brake uid
reservoir (on the inside of the right frame
beam). Press the brake uid reservoir as far
towards the front as possible, then tighten the
screw.
7
Install the Öhlins shock absorber in the same
way as the original unit. Use the original
screws.
Note!
Make sure that there is clearance between the
shock absorber reservoir and the brake fluid
reservoir.
Note!
Lower the motorcycle so that the shock
absorber is sligthly compressed, before
tightening the screws.
Remove
View from the left
8
Reinstall the silencer. Make sure that all
removed parts are installed in the same way
as they were before the installation.
Warning!
Make sure that all screws are tightened to the
correct torque and that nothing fouls or restricts
movement of the shock absorber when the
suspension is fully compressed or extended.
Remove
1
2
4
