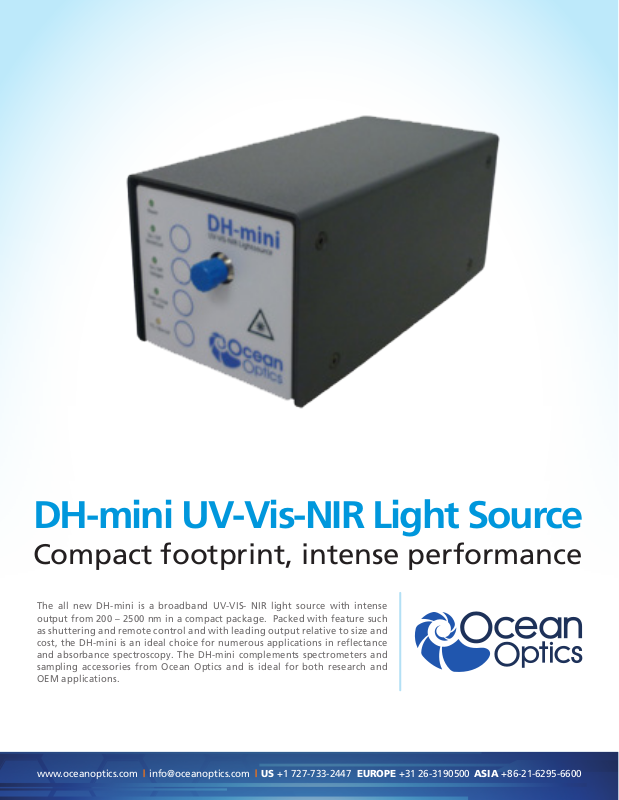

DH-mini UV-Vis-NIR Light Source

Compact footprint, intense performance

The all new DH-mini is a broadband UV-VIS- NIR light source with intense
output from 200 – 2500 nm in a compact package. Packed with feature such
as shuttering and remote control and with leading output relative to size and
cost, the DH-mini is an ideal choice for numerous applications in reflectance
and absorbance spectroscopy. The DH-mini complements spectrometers and
sampling accessories from Ocean Optics and is ideal for both research and
OEM applications.

www.oceanoptics.com | [e-mail] | US [phone] EUROPE [phone] ASIA [phone]

At a Glance

Optical

Spectral Output: 200-2500 nm

Stability: <0.2% (standard deviation
for k=1)

Drift: <0.1%/hour

Warm-up time: 15-30 minutes,
dependent on ambient conditions.

Bulb lifetime (average/guaranteed*):
2000 hours/1000 hours

High Intensity Deuterium Halogen Source

Despite its compact size the DH-mini produces strong output across the UV-Visible and
near-IR from 200-2500 nm. The DH-mini enables applications that are otherwise
challenging for compact light sources, such as fiber probe-based reflection measure­ments where throughput is a challenge. Absorption and transmission measurements
with opaque or optically dense samples also benefit from the high intensity of the
DH-mini.

Output connector: SMA905

Power consumption: 12W

Size: 75 mm x 82 mm x 175 mm

Weight: 0.5 kg

Features:

TTL remote control

Auto-shuttering

Individual bulb control

Variable intensity halogen bulb

Some spectrometer spectra using a DH-mini to measure something

Ultimate Ease of Use

The DH-mini is packed with features that make it easy to use. The tungsten and deuteri­um source bulbs can be turned on and off individually, limiting stray light in challenging
measurements. An internal shutter can be opened and closed using simple buttons with
LED indicators on the front panel. For automated processes or remote measurements, a
TTL signal also can be used to control all functions.

A Small Broadband Source, Ideal for Integration

The DH-mini has been designed with OEM integration in mind. Not only does it provide
high power from a small footprint, it also makes integration a breeze with full remote
control of all functions via a 15 pin TTL connector. Galvanic isolation of the TTL pulse
provides reliable performance in complicated environments like an electrically noisy
production floor.
