Overview

This PDF documentation covers version 7.3. To view the documentation of previous versions please refer to the PDF files available in the Downloads section of our website:

http://www.objectiflune.com/OL/Download/DownloadCenter.

Icons used in this guide

Some icons are used throughout this guide in order to catch your attention to certain particular information.

Notes: This icon shows you something that complements the information around it. Understanding notes is not critical but may be helpful when using PlanetPress Workflow Tools.

Warnings: This icon shows information that may be critical when using PlanetPress Workflow Tools. It is important to pay attention to these warnings.

Technical: This icon shows technical information that may require some technical knowledge to understand.

Getting Started

This chapter describes how to install the PlanetPress Suite Workflow Tools and how to set up your working environment.

Environment Considerations

This page is intended to provide technical information about the environment in which PlanetPress Workflow is intended to run.

Terminal Services

PlanetPress Suite does not support Terminal Services environment as possible under Windows 2000, 2003 and 2008. This is to say, if Terminal Services is installed on the server where PlanetPress Suite is located, unexpected behaviors may occur and will not be supported by our company. Furthermore, using PlanetPress Suite in a Terminal Service environment is probably an infringementof our End-User License Agreement.

Terminal Services may also be referred to as Terminal Server or Remote Administration Mode (Windows Server 2003 and

2008).

Single-User Remote Desktop Protocol (RDP)(where only one person can use RDPat a time) is supported for PlanetPress Suite version 6.2 and higher, however it is only supported in Windows XP or Windows 2003. While later versions of Windows may not cause issues when accessing PlanetPress Suite through RDP, these combinations are no longer tested and may not be functional.

VMWare/ESX

PlanetPress Suite supports VMWare Workstation, VMWare Server, VMWare Player and VMWare ESX infrastructure environments as software installed on the Guest operating system. However, note that only PlanetPress version 7.1.3 and higher support VMotion under ESX. Also note that copying (duplicating) your VMWare Guest Machine and using it simultaneously constitutes an infringement of our End-User License Agreement.

Furthermore, if your backup solution includes the use of virtual machine snapshots, please keep in mind that if a snapshot is taken during a time when PlanetPress Workflow Tool is processing a job, this job may process again if the snapshot is restored. It is thus recommended that you take your snapshots outside of processing hours, whenever that may be.

Note that while VMWare ESX, Workstation, Server and Player (from VMWare, Inc.) are supported, other virtual environments (such as Microsoft Virtual PC, Parallels, Xen and others) are not supported at this time.

32-Bit or 64-Bit?

PlanetPress Suite version 7.1.3 and higher support 64-Bit operating system. However, our application remains 32-bits in this environment, which means that for all intents and purposes there is no difference between those two environments as far as PlanetPress Suite is concerned.

Antivirus Considerations

PlanetPress Suite Workflow Tools generates a very large amount of temporary data on your hard disk, especially when manipulating or creating PDF files. This can sometimes cause issues when any other software is trying to access the temporary files at the same time as PlanetPress Workflow and its components are trying to read, write, create or delete those files.

Getting Started

In this respect, any antivirus software installed on the machine should ignore the following folders in it's live scans as well as daily "deep" or "complete" scans:

l On Windows 2000/2003/XP:

l C:\Documents and Settings\All Users\Application Data\Objectif Lune\PlanetPress Suite 7\ l C:\Documents and Settings\planetpress\Local Settings\Temp\ (where planetpress is the user under which

Watch is configured)

l On Windows Vista/7/2008:

l C:\ProgramData\Objectif Lune\PlanetPress Suite 7\ l C:\Users\planetpress\AppData\Local\Temp\ (where planetpress is the user under which Watch is configured)

l On all systems:

l C:\Windows\Temp\

Note: C:\Windows\Temp\ is used by multiple software which may cause risks on your computer. However, PlanetPress Workflow may use this folder as temporary storage, especially in the case of creating PDF files. We do not recommend disabling scan on this folder, unless you notice performance issues when generating PDFs, and then only as a test.

Backup Considerations

For similar reasons, it is important to know that backup software can also access files while copying them to a remote backup location, so you should make sure that no PlanetPress Workflow process is working during your backups.

Microsoft Office Compatibility

The Microsoft Office 2010 line of products has not been certified for use with PlanetPress Suite. Some of its products may not be compatible with the connectors included in the Suite.

Network Considerations

While PlanetPress Suite Workflow Tools is typically installed on a server machine that is only accessed by one single user such as an ITperson, multiple users logging on to that machine is a possibility (except with terminal servers, see "Environment Con-

siderations" (page 15)). Because each user may have different local and network rights, it may be important to consider the

implications in regards to the PlanetPress Suite Workflow Tools. To change the service logon information, see "PlanetPress

Suite Workflow Tools Service Logon" (page 18).

Local and Network Rights

Programs, such as PlanetPress Suite Workflow Tools and all its services, must identify themselves in order to be granted permission to perform operations on the computer on which they run as well as on other computers accessible via a network connection. On a given workstation, you can configure your PlanetPress Suite Workflow Tools to use either the local system account or any specific user account. When you do this, you grant the PlanetPress Suite Workflow Tools and all its services the same rights associated with the selected account (except for PlanetPress Messenger Service which always runs on the Local System account).

When you are running the PlanetPress Suite Workflow Tools Configuration program on a workstation, if it is associated with an account that is different from your account, the following icon is displayed in the lower right corner of the PlanetPress Suite Workflow Tools Configuration program: . The icon reminds you that the logon information is different for the PlanetPress Suite services, and that some network resources may not be accessibly by PlanetPress Suite when running a live configuration.

Getting Started

Account Requirements

PlanetPress Suite Workflow Tools and its services require administrator rights to run on any given computer and must therefore be associated with an account that has such rights.

We recommend creating a network or domain account specifically for the PlanetPress Suite services (typically called "planetpress"or "ppress"), which has administrator credentials on the machine where it is installed, and is given proper rights for any network resources your configuration may request.

Mapped Drives

Mapped drives (for example, drive X: leading to \\server\public\)are always user-specific and are created at logon. This means that mapped drives are typically not available by the PlanetPress Suite services when running a live configuration. Furthermore, while the mapped drives are not shared, they are still limited to one map per computer, meaning if one user maps the X: drive, a different user (or a service)will not be able to map it again.

This creates a limitation in the PlanetPress Suite Workflow Tools:if you create a mapped drive as a user, you will not have access to this mapped drive while running as a service unless you log off, and then have PlanetPress Workflow Tools map the drive using a Run Script action inside a Startup Process.

We strongly recommended that instead of using mapped drives, you use full UNCpaths for your network drives. PlanetPress Suite Worfklow Tools can automatically convert mapped paths to UNCpaths. For more information, please see "Network User

Options" (page 70).

Network Ports used by each service

The port configuration for each PlanetPress Suite Workflow Tools component is described in the following table. The port number assignments comply with Internet standards. If the PlanetPress Suite Workflow Tools component is not active, the port is not used.

Component Protocol Local Port Remote Port Email Input (POP3 mode) TCP Default Email Input (Outlook mode) TCP see Remote Port See Microsoft Knowledge Base article 278339

Folder Capture TCP/UDP Default

LPD Input TCP 515 (listening port) N/A FTP Input TCP Default Telnet Input TCP Default FTP Output TCP Default Email Output (SMTP mode) TCP Default

Email Output (Outlook mode) TCP

Send to Folder Windows Queue Output

TCP Default

See Email Input (Outlook mode)

LPR Output TCP Default or 721 to 731 PlanetPress Database

TCP or

Unknown

110

Standard Windows file and printer sharing ports2:

l UDP 137, 138; TCP 139 (NetBIOS over

TCP/IP (NetBT))

l UDP 445; TCP 445 (SMB over TCP/IP)

21 9100 (configurable) 21 25

See Email Input (Outlook mode)

Standard Windows file and printer sharing ports2:

l 137, 138 and/or 139 (NetBIOS over TCP/IP

(NetBT))

l 445 (SMB Over TCP/IP)

515 Unknown

Getting Started

Component Protocol Local Port Remote Port

UDP

SNMP Condition UDP Default

161

1. Value is greater than 1024 and is assigned by Windows XP. This is the default.

2. Windows NT 4.0 uses NetBIOS over TCP/IP for file and printer sharing, while Windows 2000, Windows XP, and Windows Server 2003 may be configured to use NetBIOS over TCP/IP or SMB over TCP/IP. The operating system may use additional ports. Refer to the Windows documentation for further information.

3. If the “No source port range restriction” option is checked (recommended), see footnote a. If the option is unchecked, the local port will be chosen from a range going from 721 to 731.

4. Contact your DBMS vendor to determine which ports are used by the ODBC driver for accessing a network database.

Activate Your Printers

The Activate a Printer dialog lists the existing activated printers on the system and lets you add new activations.

Printer activations are normally given to you by the activations department electronically, including a file that will automatically add all your printers in this dialog.

The printer list displays the following information

l License Number:Reference number of the activation, linked to your customer account. l Magic Number:The magic number generated by the printer. If the magic number is incorrect, your jobs will output

with a watermark on that printer.

l Activation Code:The activation code generated by your license number and magic number. If the activationcode is

incorrect, your jobs will output with a watermark on that printer.

l Printer Name (Optional):Name and/or model of the printer. l Comments (Optional):Comments about the printer.

The following buttons are available in this dialog:

l Add:Brings up the Printer Activation dialog. This dialog lets you enter the information for the printer (see previous sec-

tion), then click OKto save the new activation.

l Delete:Removes the currently selected activation from the list. l Web Activation:Click to access the online activation manager on our website. l OK:Save changes and exit. l Cancel:Exit without saving changes.

You can also double-click on any existing activation to edit it.

PlanetPress Suite Workflow Tools Service Logon

To be able to run and to have access to local files as well as to files available on other computers in your network, PlanetPress Suite applications and services must identify themselves using a local or network account.

The first time you start the PlanetPress Suite Workflow Tools Configuration program, the application automatically asks you to choose an account (see procedure below).

You can also manually start this procedure from the PlanetPress SuiteWorkflow Tools by following this procedure:

Getting Started

1. Click on the Tools tab in the PlanetPress Suite Workflow Tools Ribbon, then click Configure Services.

2. Set the PlanetPress Suite applications permissions as required:

l Local System account: Select to run all the PlanetPress Suite Services (including PlanetPress Suite Workflow

Tools, PlanetPress Fax, and PlanetPress Image) under the Local System account. The Local System account is distinct from the Administrator account. It requires no username or password, and its privileges may exceed those of the user currently logged in. Running under this accountrather than a user account prevents problems thatmay arise if the user lacks a permission the service requires. If a configuration relies on any resources mapped to a particular user, such as mapped network drives or shared printers, they are unavailable. It is recommended that you create a configuration for a particular user. Clear Local System account to run all the PlanetPress Suite Services under the account you specify. Use the options that become available when you clear Local System account to enter the account information—you must enter a valid user name and password to use Microsoft Outlook as your email client for Email input and Send email output tasks.

l Display network domains and usernames: Select to have PlanetPress Suite Workflow Tools Con-

figuration search for existing domains and display the domains it find in the Domain box, and the usernames in those domains in the Username box. Although this is useful if you do not know the domain name and username of the account you want to specify, it can also be very time-consuming if there are many domains.

l Domain: Select the domain in which the user account resides, or enter the name of the domain manually. l Username: Enter the name of the user account. l Password: Enter the password for the user account you specified in the Username box. l Confirm password: Enter the password you entered in the Password box. l Services start automatically: Select to start the required PlanetPress Suite Workflow Tools automatically.

3. Click OK.. PlanetPress Suite Workflow Tools applies the user account information to all the services (PlanetPress Suite Workflow Tools, PlanetPress Fax, PlanetPress Image, LPD input, Serial input, Telnet input, FTP output, LPR output), thatrun on this computer (with the exception of PlanetPress Suite Messenger, which always runs under the Local System account).

The PlanetPress Suite Workflow Tools Configuration program does not test usernames and passwords, but merely associates them with the services that require them. If you enter a bad username or password, these services will be denied access to the selected account.

The account you choose will be used by PlanetPress Suite Workflow Tools and all its services, as well as by PlanetPress Fax and PlanetPress Image (only PlanetPress Suite Messenger is not affected, since it always uses the Local System account). If you install PlanetPress Fax or PlanetPress Image on the same computer after performing this procedure, you will have to perform it once again, so as to choose the same account for all the installed applications.

Understanding PlanetPress Suite Workflow Tools

PlanetPress Suite Workflow Tools are input driven applications designed to outputdata in a variety of ways through diverse means to various applications and devices. PlanetPress Suite Workflow Tools can be used as simple go betweens, passing along inputdata to outputdevices, but it can also perform various types of data processing.

This chapter explains how you can combine the various PlanetPress Workflow Tools services to set up versatile automated processes to print jobs as well as generate other types of output.

The Nature of PlanetPress Suite Workflow Tools

The PlanetPress Suite Workflow Tools act as sorts of dispatchers. On the one hand, they retrieves data and controls plugins thatretrieve data from watched locations, and on the other hand they send data and controls plugins that send data to various devices, for printing or to generate documents that can then be emailed or faxed. PlanetPress Suite Workflow Tools can also perform a variety of operations on the data using its action plugins.

In fact, the PlanetPress Suite Workflow Tools plugin based architecture enables almost limitless customization. You can create or purchase compatible plugins, drop them in any of the PlanetPress Suite Workflow Tools plugin folder and use them to perform other operations. You can even find free unsupported plugins on the Objectif Lune Web site.

PlanetPress Suite Workflow Tools are service applications, or if you will, applications that continuously run on a given computer and that perform actions automatically. Those actions are defined in a PlanetPress Suite Workflow Tools configuration. To create and manage PlanetPress Suite Workflow Tools configurations, you use one of three possible applications called PlanetPress Watch Configuration, PlanetPress Office Configuration and PlanetPress Production Configuration. A given computer can only run one PlanetPress Suite configuration at a time. The PlanetPress Suite Service Console may be used to monitor the services running on a given computer.

The Three Flavors of the PlanetPress Suite Workflow Tools

The term Workflow Tools is a general name that includes all three flavors of the tools:

l PlanetPress Watch l PlanetPress Office l PlanetPress Production

To view an explanation of the Workflow Tools and their different flavors, please see the following PDFdocument:

http://www.objectiflune.com/OL/lib/en-CA/Documents/Brochure/OL-PPS-DSWORKFLOW.pdf

Throughout this document, unless we are referring to a specific version of the Workflow Tools, we will always use the term Workflow Tools.

Terms and Definitions

The following terms and definitions will be used throughout this help file. We invite you to getfamiliar with them to simplify the understanding of the documentation.

Understanding PlanetPress Suite Workflow Tools

l PlanetPress Suite Workflow Configuration (or "Configuration"):The Configuration is a physical file opened by

the PlanetPress Suite Workflow Tools and it contains all of the elements (tasks, processes, documents and printer queues)that drive your workflow.

l Process:A single workflow within the Configuration. Aprocess begins with a single input task, contains one or more

tasks and/or branches, and terminates with one or more output tasks.

l Task:A single block in a process (also known as a plugin). Tasks can be used for input, outputor manipulation. Some

tasks gather data, others output data in different locations.

l Trunk:The main "branch"of a process. If a process does not have any branch or condition, that process contains one

initial input and one output on a single trunk.

l Branch:A branch in a process means your workflow will stop, follow the branch up until its output, and then return to

the main trunk to continue processing. Each additional branch in your process means you will need an additional output task also.

l Condition:Acondition is a type of branch where the workflow will only go one way - either in the branch, or in the

main trunk. If a condition is true, the branch is followed. If the condition is false, the main trunk is followed.

l Job Info:Alocal variable that is called by its numbered id, from 0 to 9. There are only 10 job infos. Job infos are nor-

mally used to communicate information from the PlanetPress Suite Workflow Tools to a PlanetPress Design document, either in printer outputs or connectors such as Image or Fax.

l Variables:A variable is a name that refers to specific information thatis kept in the computer memory. Avariable can

be modified via programming or certain tasks, and are generally accessible anywhere in your process (except certain locations).

l Job:The processing of one or more job files, through one or more processes. l Job File:The physical file that is generated (or obtained)through a process' input task. The job file can be of multiple

formats including plain text, CSV, databases, XMLand PDFs.

l Sample File/Sample Data:Aphysical file that contains the data used to create your process, including examples of

any data that you need to rely on (such as texts for conditions, or data for variables). The sample file should be limited in size to speed up processing time while designing your process.

l Emulation:Afilter used to read the job file that is used in your process. Emulation lets you read different types of files

ranging from text-only line printer data to more complex PDFand XMLfiles, as well as database files.

About Configurations

PlanetPress Suite Workflow Tools configuration files are defined as a set of processes, subprocesses, variables, documents and printer queues, that work together within the PlanetPress Suite Workflow Tools Service.

PlanetPress Suite Workflow Tools cannot work without a valid configuration and a PlanetPress Suite Workflow Tools session running on a given computer can only use one configuration at a time. Once you have created a configuration, you must “send” it to the PlanetPress Suite Workflow Tools Service. When you do this, your PlanetPress Suite Workflow Tool forgets its previous configuration and starts executing the tasks included in the new configuration.

A PlanetPress Suite configuration must be composed of at least one process, but it may include as many as 512.

For a configuration created in PlanetPress Suite Workflow Tool Configuration to actually be executed by PlanetPress Suite Workflow Tool, it must be sent to its PlanetPress Suite service.

See the following pages for information on different parts of the PlanetPress Suite Workflow Tools Configuration:

l For information about Processes, see "About Processes" (page 23). l For information about Subprocesses, see "About Subprocesses" (page 23). l For information about Global Variables, see "Working With Variables" (page 95).

Understanding PlanetPress Suite Workflow Tools

About Processes

Aprocess is a single workflow within the configuration. Aprocess begins with a single input task, contains one or more tasks and/or branches, and terminates with one or more output tasks. In its simplest form, a process can simply retrieve data from a given folder and save it in a differentfolder. In most cases, though, processes are more elaborate and configurations, which may include many processes, can be extremely complex.

The available processes in your PlanetPress Suite Workflow Tools Configuration are listed in the "The Configuration Com-

ponents Pane" (page 38). Processes in a configuration will always run concurrently. You can schedule processes to run only at

certain times or intervals (see "Access Process Properties" (page 39)).

There are three types of processes available to you:

l A Normal process will run as soon as an input file is available through its input task or, if it is scheduled not to run at

thattime, will start processing as soon as the schedule permits it.

l Startup processes are processes that run only once before every other process in a given configuration. They can

be used to perform operations thatneed to be completed once before the configuration can actually be run, such as to map network drives. You may only have one single startup process in your configuration.

l Subprocesses are processes which can be called by any other process from any action task. They can be used to per-

form and reuse redundant operations that may need to be executed numerous times. For more information on subprocesses, see "About Subprocesses" (page 23).

Regular and startup processes can be set to be Active (process runs normally)or Inactive (process will not run at all). An inactive process will display in the Configuration components as red and strike-through. Inactive processes can be useful for designing new processes in a live configuration, since the process does not execute there is no danger is submitting it to the PlanetPress Suite Workflow Tools Service.

About Subprocesses

Subprocesses are special processes that can be called by any other process. These act exactly as subroutines in pro-

gramming languages, allowing users to reuse existing processes by sharing them to the whole configuration file. They can thus be used to perform redundant operations that may need to be executed numerous times; for instance, archiving a copy of a zipped file received as the input job file, then decompressing it before sending the unzipped version of it back to the calling process .

Whenever a PlanetPress Suite process calls a subprocess, the main process (the caller) will wait for the called subprocess to finish its execution before carrying on with its own. This means the subprocess feature is synchronous with the main process. This also means the calling process actually appends the subprocess to its own workflow.

About Tasks

A task is a plug-in or a block that is used to build PlanetPress Suite Workflow Tools processes. Tasks can do multiple things depending on the type of task and where they are placed. You can add as many tasks as you like to your processes and order them in any way you can.

There are different types of tasks:

Understanding PlanetPress Suite Workflow Tools

l Input Task:Will either capture data from a specific location, or wait for input from a service or other computer to

start processing.

l Action Task:Will manipulate the data in any number of ways. An action task is any task that is not an input or output

task or a branch or condition.

l Output Task:Will output data to a specific location or send to a differentservice or computer.

Some tasks have a multi purpose and can be used as either an input, action or output task or any combination. These multi purpose tasks are indicated as such in the task description and can be found in the most relevant section of the available tasks.

For more information on the tasks available to you in the PlanetPress Suite Workflow Tools, see the following pages:

l "Input Tasks" (page 105) l "Action Tasks" (page 121) l "Process Logic Tasks" (page 153) l "Metadata Tasks" (page 195) l "Output Tasks" (page 203) l "About PlanetPress Fax" (page 169) l "About PlanetPress Image" (page 173)

About Branches and Conditions

While some processes can simply start with an input task, manipulate the data witha few action tasks and finish withan output task, in some cases you may want to have more control over the flow of your process. For example, you may want multiple outputs, such as printing to multiple printers as well as generating a PDFand emailing it. To do this, you will need branches. You may also want to detect certain criteria in your data and act differently depending on that data, such as sending a fax only when a fax number is found, or printing to a different printer depending on who send you a print job. To do this, Conditions are used.

Branches

A branch is effectively a doubling of your job file. As your job file goes down the process, when it encounters a branch it will go in that branch, process all tasks up to the output, and return to the main trunk to continue processes. You can have branches within branches, and all branches must have an output. For more information on branches, see "Branch" (page 153).

A branch is represented as a crossing .

Conditions

Acondition will either execute the branch it creates or the main trunk, but never both. As your job file goes down the process, when it encounters a condition it will verify whether that condition results in a "true"or "false"value. If the result is true, it goes in the branch, processes all tasks up to the output, and the process finishes. If the result is false, it goes down the main trunk and continues processing until the process finishes. For more information on conditions, see Conditions.

A conditional branch (or condition) is shown as a crossing with a red diamond over it

About Data

Data is what drives your business, and our software. We define data as anything that is obtained through an Input Task and used within the process itself. Once the data is obtained, it becomes the job file that is passed from one task to another and

Understanding PlanetPress Suite Workflow Tools

generally used to generate output.

Data can be manipulated using the tasks in the process, used as comparison for conditions and loops, complemented with data from other sources, and used to generate your output. It originates from many different sources (as many as the Input Tasks support), parts of it can be stored in variables, and is always accessible by the task that currently handles it.

Data is referred to using Data Selections either from the PlanetPress Suite Workflow Tools or a PlanetPress Design Document thatis being merged with the data (for example in a printed output).

For more information about Data, please see the chapter "Data in PlanetPress Suite Workflow Tools" (page 97).

Null characters present in the data may not be displayed properly when using the PlanetPress Suite Workflow Tools Configuration program, and that they may also be printed differently by different printers. To ensure consistency, you should consider filtering out such characters.

About Data Selections

A data selection could be compared to an address. It indicates a location within a data file using coordinates. The PlanetPress Suite Workflow Tools Configuration program includes a tool called the Data Selector that helps you make data selections. The Data Selector does two things:

l It uses the current emulation (either the emulation chosen when the sample data file was selected, or the one chosen in

the last Change Emulation action task appearing above the current task) to format the data.

l It displays the formatted data to let you make selections easily using the mouse pointer.

The Data Selector is essentially the same as the one used in PlanetPress Design.

AboutData Emulation

Emulations are like filters that can be used to read the data. When you create a document in PlanetPress Design, you choose a sample data file and specify the emulation to use for the chosen data. The emulation setting you choose will typically always be associated with that document. If you choose a CSV (comma separated values) file and specify the corresponding emulation, for instance, commas encountered in the data will typically be considered as value separators.

Within the PlanetPress Suite Workflow Tools, the same emulation tools as PlanetPress Design are available throughout your process, using the Data Selector. One notable exception however is that User-Defined Emulation is not available because it uses PlanetPress Talk code, which is not available within the PlanetPress Suite Workflow Tools Configuration Program.

The emulation that is used in your process can change during the process, and can be different than the one used in any PlanetPress Design document used in your process. PlanetPress Design documents use their own emulations, as defined in the document itself from PlanetPress Design.

Emulations in the PlanetPress Workflow Tools:

l Line Printer l ASCII l CSV l Channel Skip l Database

Understanding PlanetPress Suite Workflow Tools

l XML l PDF

PDFEmulation, also called Document Input, is only available in PlanetPress Production and PlanetPress Office. If used in PlanetPress Watch, it will cause a watermark to appear in any output.

For more information about each emulation and how to use them, please consult the PlanetPress Design User Guide.

About Related Programs and Services

Services are programs that run in the background and automatically perform tasks that often do not require any user interaction. With the exception of PlanetPress Suite Workflow Tools Configuration, all the programs used by PlanetPress Suite Workflow Tools are run as service applications. PlanetPress Suite Workflow Tools can thus use them as required without the need for any user interaction.

Although you can manually start and stop any service running on your computer, most of the basic services used by the system are started and stopped automatically. In the case of PlanetPress Suite Workflow Tools and their related services, you typically use a command included in your PlanetPress Suite Workflow Tools Configuration program to start and stop most services. Opening and closing your PlanetPress Suite Workflow Tools Configuration program has no effect on these services.

Available Input Services

Input services are used to pull in data files. The input services used by PlanetPress Suite Workflow Tools are:

l LPD (Line Printer Daemon) Input service: Inputs data sent from an LPR client. The LPD/LPR printing protocol

is a common way to send print jobs that, in turn, use the TCP/IP protocol to communicate through the network.

l PrintShop Mail Web Capture service: Monitors printrequests from a PrintShop Web server. l Serial Input service: Monitors a single serial port for incoming data. Note that all Serial input tasks use the same

serial port (set in the user options of the PlanetPress Suite Workflow Tools Configuration program).

l Telnet Input service: Monitors multiple telnet ports for incoming data. Note that each Telnet input task has its own

telnet port number (set in each task).

l HTTP/SOAP Server service: Monitors web pages and web sites as well as SOAP servers.

Available Output Services

Output services are used to output jobs. The output services used by PlanetPress Suite Workflow Tools are:

l FTP Output service: Places output jobs on a server via the FTP protocol. l LPR (Line Printer Requester) Output service: Sends jobs to an LPD server or LPD compatible printers. The

LPD/LPR printing protocol is a common way to send print jobs that, in turn, use the TCP/IP protocol to communicate through the network.

l PlanetPress Image: Outputs jobs as PDF files or in a variety of image formats. You can also use PlanetPress Image

to archive and/or email the files it creates. You can use PlanetPress Search to search the PDF files PlanetPress Image creates. You can install multiple instances of the PlanetPress Image service on your network, and have PlanetPress Suite Workflow Tools send jobs to one or more of these instances. Each instance of PlanetPress Image can generate PDFs or images and dispatch them from the host on which it runs. See "About PlanetPress Image" (page 173).

l PlanetPress Fax: Outputs jobs as faxes. You use PlanetPress Fax as an interface to WinFax PRO or Windows Fax, to

send faxes you create from documents. You can install multiple instances of the PlanetPress Fax service on your network, and have PlanetPress Suite Workflow Tools send jobs to one or more of these instances. Each instance of Plan-

Understanding PlanetPress Suite Workflow Tools

etPress Fax can generate faxes and dispatch them from the host on which it runs, using a local faxing program, such as WinFax PRO, Captaris RightFax or Windows Fax. See "About PlanetPress Fax" (page 169).

l PrintShop Mail:Used to generate documents using PrintShop Mail databases and documents. Communicate with it

through the PrintShop Mail and PrintShop Mail 7 Connector Tasks. See "PrintShop Mail" (page 181).

l Laserfiche:Used as a repository for electronic documents. Communicate with it through the Laserfiche Repository

Output Task. See "Laserfiche Repository Output" (page 162).

l PlanetPress Capture:Used to generate and process files using Anoto patterns. Communicate with it through the

PlanetPress Capture tasks such as the Anoto Ink Processor and the Anoto Pattern plugins.

Services must use an account to be granted the permission to use the system’s resources and objects. This information is included in the service's configuration and most services use the Local System Account, which is granted access to all the system’s resources. All input and output services used by PlanetPress Suite Workflow Tools run under the same account. For more information on services and system permissions, refer to Windows documentation. For more information on how to configure the account used by the services, see "PlanetPress Suite Workflow Tools Service Logon" (page 18).

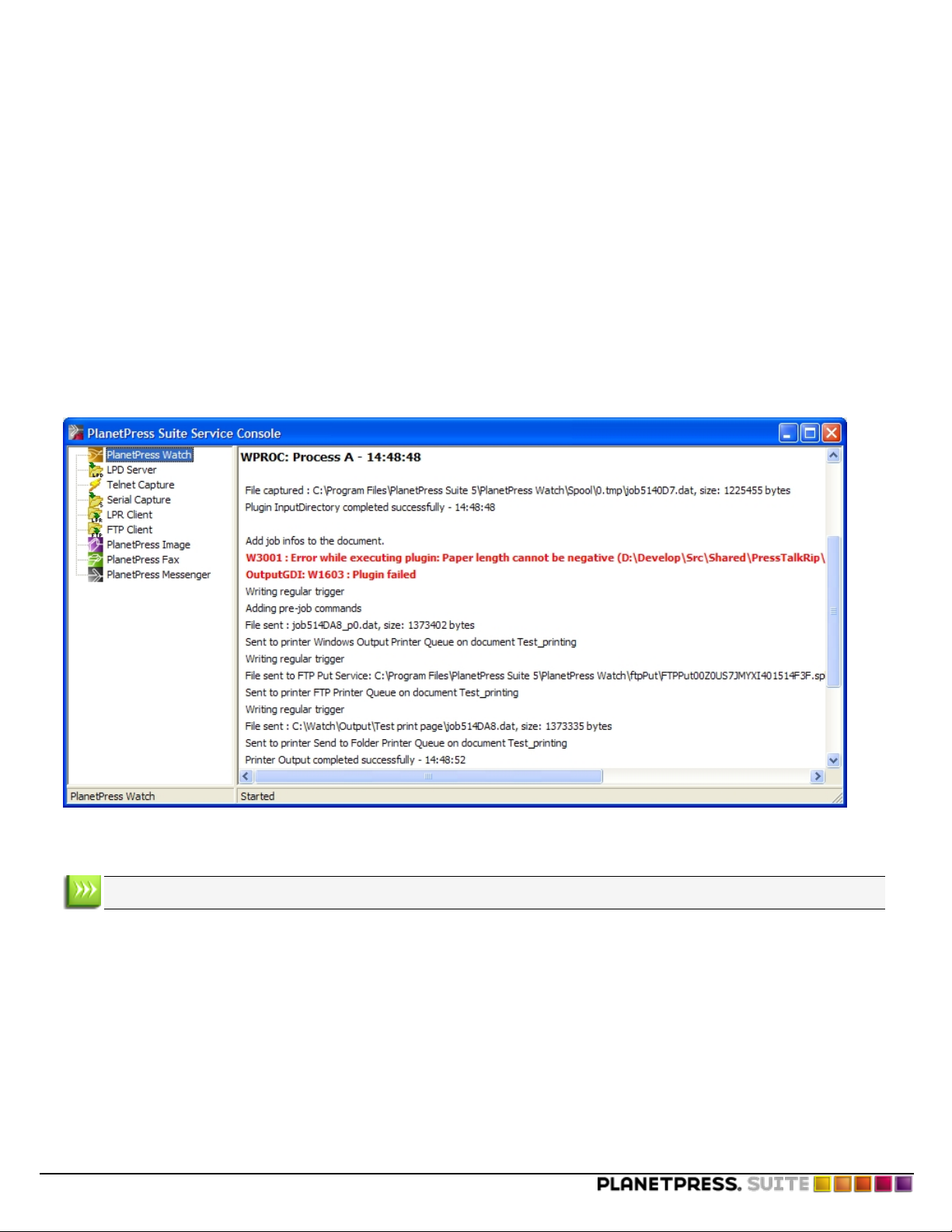

The PlanetPress Suite Service Console, included in the PlanetPress Suite Workflow Tools Configuration program, can be used to monitor, start and stop PlanetPress Suite Workflow Tools services (see "About Processes" (page 23), "Users and Con-

figurations" (page n) and "The PlanetPress Suite Service Console" (page 93)).

About Documents

A Document is a file sent to the PlanetPress Workflow Tools by PlanetPress Design and is used to produce an output when merged with data. ADocument can be an invoice, a report, a receipt or anything else, but by itself it is empty and without any variable data.

Document are typically selected in Output Tasks, but can also appear in other tasks that produce formatted data such as the Digital Action task and the Add Document task.

Documents contain static data such as logos, addresses and graphic formatting, as well as placeholders for data. Documents can also contain conditions and programming logic. For more information about PlanetPress Design documents, please see the

PlanetPress Design User Guide.

About Printing

To print a document using the PlanetPress Suite Workflow Tools, you can either use the Print using a Windows Driver output task, or use a combination of a printer queue and a Printer Queue output task. These tasks are created and defined using Plan- etPress Suite Workflow Tool Configurationprogram.

The following types of printer outputs are available in the PlanetPress Suite Workflow Tools Configuration program:

l Local printing:

l Windows output queues let you send jobs to a local printer. See "Windows Output Printer Queue Properties"

(page 214).

l Send to Folder output queues let you save jobs to a local or network folder from which they can be picked up

and printed. See "Send to Folder Printer Queue Properties" (page 216).

l Remote printing:

l FTP output queues let you upload jobs to an FTP site from whichthey can be picked up and printed. See "FTP

Output Printer Queue Properties" (page 215).

Understanding PlanetPress Suite Workflow Tools

l LPR output queues let you send print jobs to remote printers via TCP/IP using the LPR/LPD protocol. See "LPR

Output Printer Queue Properties" (page 214).

l Windows Driver Printing:

l The Print using a Windows Driver output task lets you send a job to any printer installed on the com-

puter, using its own drivers. In this particular case, the printer does not need to be a PostScript printer. See

"Print Using a Windows Driver" (page 204).

PlanetPress Suite Workflow Tools provides you with three main printing scenarios:

1. Send output data to be printed as is: PlanetPress Suite Workflow Tools sends a file containing only the data to the selected queue.

2. Send output data to be merged with a document on the printer: PlanetPress Suite Workflow Tools sends one of two things:

l A file that contains only the data to the selected printer queue. The document with which the data must be

merged must be present on the printer’s hard disk, otherwise printing will fail.

l A file that contains the data and the document to the selected printer queue. Since the data and the document

with which it must be merged are both sent to the printer, printing should never fail.

l In both cases, the document+data merging process takes place inside the printer.

3. Send output data already merged with a document:PlanetPress Suite Workflow Tools sends a file that contains the document already merged with the data to the selected printer queue. The document+data merging process therefore never takes place inside the printer.

In PlanetPress Suite Workflow Tools Configuration, you may associate a single Printer Queue output task with multiple Printer Queues. If you do so, you have the option of using load balancing or not (see "Load Balancing" (page

219)).

The PlanetPress Suite Workflow Tools Configuration Program

This chapter centers on the PlanetPress Suite Workflow Tools Configuration program, which you use to create and edit your configurations.

The basic user interface elements are as follows:

1. The PlanetPress Suite Button. See "The PlanetPress Suite Button" (page 30).

2. The Quick Access Toolbar. See "The Quick Access Toolbar" (page 35).

3. The Ribbon Tabs. See "The PlanetPress Suite Ribbon" (page 36).

4. A Group within the Ribbon

5. The Process area. See "The Process Area" (page 52).

6. A specific link (aka a "component", "button"or "link").

7. The Dockable panels including "The Plug-in Bar" (page 58), "The Object Inspector Pane" (page 59) and "The Debug

Information Pane" (page 60).

8. The Configuration Components Pane. See "The Configuration Components Pane" (page 38).

9. The Messages area Pane. See "The Message Area Pane" (page 61).

10. The status bar. This displays your current software version and status of the PlanetPress Service.

The PlanetPress Suite Workflow Tools Configuration Program

You can customize the appearance of the PlanetPress Workflow Tools Configuration programs to your needs. See "Cus-

tomizing the Program Window" (page 61).

Start the PlanetPress Suite Workflow Tools Configuration Program

This procedure explains how to start the PlanetPress Suite Workflow Tools Configuration program, which is different from starting PlanetPress Suite Workflow Tools service itself (see "Start and Stop the PlanetPress Suite Workflow Tools Service"

(page 37)).

To start the PlanetPress Suite Workflow Tools Configuration program:

l In the Windows Start menu, choose Programs | PlanetPress Suite N | PlanetPress Watch/Of-

fice/Production N Configuration. (Where N represents the current PlanetPress Suite installation version

number.) The PlanetPress Suite Workflow Tools Configuration Program window appears and the default configuration (ppwatch.cfg) is opened. If this is the first time you open your PlanetPress Suite Workflow Tools Configuration after installation, the PlanetPress Suite Services configuration dialog box appears, where you enter the username and corresponding password under which your configuration’s services run.

The PlanetPress Suite Button

The PlanetPress Suite Button replaces the File menu from previous versions, and provides access to the File menu options. The color of the button itself can show you at a glance what flavor of the PlanetPress Suite Workflow Tools is currently installed or activated:Light Orange for Watch, Yellow for Office, Dark Orange for Production.

The available menu options of the PlanetPress Suite Button are:

l New:Closes the PlanetPress Suite Workflow Tools Configuration that is currently opened and creates a new Plan-

etPress Suite Workflow Tools Configuration, with a single example process and no printer queues. See "Create a New

Configuration" (page 31).

l Open: Displays the dialog to open an existing PlanetPress Suite Workflow Tools Configuration. l Save: Saves the current PlanetPress Suite Workflow Tools Configuration under the same name. If the file is new and

has not been saved, or if the configuration is the on loaded directly from the service, the Save As dialog is displayed instead. See "Save your Configuration" (page 32).

l Save As: Saves the current PlanetPress Suite Workflow Tools Configuration under a new name. It does not overwrite

any existing configuration file, unless an existing file is selected and overwritten manually by the user.

l Import:

l Configuration Components:Displays the PlanetPress Suite Workflow Tools Configuration Import dialog, let-

ting you import processes and other components from other existing configurations. See "Import Processes

from Another Configuration File" (page 33).

l PlanetPress Document:Displays the dialog to import a PlanetPressDesign document to be added to the list

in the components area.

l PrintShop Mail Document:Displays the dialog to import a PrintShop Mail document to be added to the list in

the components area.

l Send Configuration: Sends the current PlanetPress Suite Workflow Tools Configuration to the PlanetPress Suite

Workflow Tools service. See "Send your Configuration" (page 32).

The PlanetPress Suite Workflow Tools Configuration Program

l Close: Closes the PlanetPress Suite Workflow Tools Configuration that is currently opened and creates a new Plan-

etPress Suite Workflow Tools Configuration, with a single example process and no printer queues. Closing the current configuration file is the same as creating a new one.

l Recent Documents: Displays a list of the 9 most recently opened PlanetPress Suite Workflow Tools Configurations.

Click on any of them to open it.

l Select Language: Click to display the language selection dialog, which changes the PlanetPress Suite Workflow

Tools Configuration Program's interface language. See "Change the Interface Language" (page 34).

l Preferences: Displays the User Preferences dialog. See "Preferences" (page 66). l Exit: Closes the PlanetPress Suite Workflow Tools Configuration Program. See "Exit the PlanetPress Suite Workflow

Tools Configuration Program" (page 35).

When using the New, Open, Close, Recent Documents and Exit menu options, if your current configuration file has not been saved after modifications, a dialog will open asking if you want to save, not save, or cancel the action and return to the current configuration.

Create a New Configuration

When you start the PlanetPress Suite Workflow Tools Configuration program, it always opens the default configuration file (ppwatch.cfg). If you create a new configuration, the PlanetPress Suite Workflow Tools Configuration program automatically creates a process that includes an unknown input and output task. You can then edit and save your new configuration.

To create a new configuration, chooseNew from the PlanetPress Suite Button.

If the default configuration file (ppwatch.cfg) is currently opened, and if it includes unsaved modifications, the PlanetPress Suite Workflow Tools Configuration program asks you whether to send the configuration to the PlanetPress Suite Workflow Tools service before creating the new configuration. Select the Always send without prompting for confirmation option to automatically send the edited version of the configuration.

If a file different from the default configuration file is currently opened, and if it includes unsaved modifications, the PlanetPress Suite Workflow Tools Configuration program asks you whether to save the configuration before creating the new configuration. Select the Always save without prompting for confirmation option to automatically save any unsaved work.

Open a PlanetPress Suite Configuration File

While the PlanetPress Workflow Tool Configuration program always loads the default and current configuration (ppwatch.cfg), you may sometimes need to open a Workflow Tool configuration file ([file name].pw7) thatis not the current one, for example to load a previous backup or a configuration file saved from another computer. This procedure will show you how.

1. From the PlanetPress Suite Button, chooseOpen.

The Open dialog box appears.

2. Navigate to the configuration file you want to open, select it and click Open.

If the default configuration file (ppwatch.cfg) is currently opened, and if it includes unsaved modifications, the PlanetPress Suite Workflow Tools Configuration program asks you whether to send the configuration to the PlanetPress Suite Workflow Tools service before opening the selected configuration. Selectthe Always send without prompting for confirmation option to automatically send the edited version of the configuration before opening any other configuration (see "Saving and

Sending a Configuration" (page 32)).

You can also open a configuration file from a previous version of PlanetPress Workflow Tool by changing the File

The PlanetPress Suite Workflow Tools Configuration Program

Type selector to the desired version (for example, .pw6 for PlanetPress Watch/Server configurations from Version 6)

Saving and Sending a Configuration

The PlanetPress Suite Workflow Tools are service applications which, once started, constantly run in the background to perform the tasks included in their current configuration file. The PlanetPress Suite Workflow Tools Configuration program, on the other hand, lets you create, edit and save configuration files.

As you are working on your configuration, you can save that configuration file as a file on your local hard drive with the pw7 extension (see "Save your Configuration" (page 32)).

Saving a configuration file never replaces the current PlanetPress Suite Workflow Tools Service configuration file. To do this, you must use the Send Configuration command (see "Send your Configuration" (page 32)).

Save your Configuration

Files created and edited using the PlanetPress Suite Workflow Tools Configuration program can be saved as PlanetPress Suite configuration files ([file name].pw7) anywhere on your computer or even a network location. Saving a configuration file never replaces the current PlanetPress Suite Workflow Tools Service configuration file. To do this, you must use the Send

Configuration command (see "Send your Configuration" (page 32)).

To save the current configuration:

l From the PlanetPress Suite Button, choose Save. l If you were editing the current PlanetPress Suite Workflow Tools Service configuration file or if you were editing a new

configuration file, you are prompted with the Save As dialog instead.

To save the current configuration under a new name:

l From the PlanetPress Suite Button, choose Save As. l Browse to the location where you wanted to save the file, enter the new name of the configuration in the File name box

and click Save.

Send your Configuration

The PlanetPress Suite Workflow Tools Configuration saves entire configurations in the form of a single file. Like any other file, configuration files may be saved and reopened, as well as rename as desired. Simply saving a configuration has no effect on the configuration actually used by the PlanetPress Suite Workflow Tools when it is started. To change any currently active configuration, you must use the Send Configuration command.

When you use the Send command, the PlanetPress Suite Workflow Tools Configuration program uses the currently opened configuration (Any_name.pw7) to overwrite PlanetPress Suite Workflow Tools service's current configuration (ppwatch.cfg).

If the PlanetPress Suite Workflow Tools service is running when you send a new configuration, it stops and restarts automatically with the new configuration. If the service is stopped, it will not start automatically.

To send a PlanetPress Suite Workflow Tools Configuration to the local server:

1. Open the configuration you want to use as PlanetPress Suite’s new configuration.

2. Editthe configuration, if required.

3. When the configuration is ready to be used, from the PlanetPress Suite Button, choose Send Configuration, then Send Local.

To send a PlanetPress Suite Workflow Tools Configuration to a remote server:

The PlanetPress Suite Workflow Tools Configuration Program

1. Open the configuration you want to use as PlanetPress Suite’s new configuration.

2. Editthe configuration, if required.

3. When the configuration is ready to be used, from the PlanetPress Suite Button, choose Send Configuration, then Send Remote. Alist of available PlanetPress Workflow servers on the local network appears.

4. Put a checkmark next to each server where the configuration should be sent.

5. Click OK.

If a server is greyed out, this may mean you do not have access to send a configuration remotely to it. For more information, please see "Access Manager" (page 87).

Note that if PlanetPress Suite Workflow Tools service is paused when you send a new configuration, it will not stop and restart. Since PlanetPress Suite Workflow Tools service reads its configuration file when it starts up, when you resume processing, PlanetPress Suite Workflow Tools service will continue using the old configuration.

Import Processes from Another Configuration File

You can import individual processes or groups of processes from a PlanetPress Suite configuration file without having to import the contents of the entire configuration file. PlanetPress Suite Configuration imports everything necessary to run the processes, including configured tasks and configuration components.

To import components from another configuration file:

1. From the PlanetPress Suite Button, choose Import | Configuration Components. The Import dialog appears.

2. Navigate to the PlanetPress Workflow Tool configuration file containing the processes or groups of processes you want to import.

3. Select the file, then click Open. The Import Configuration dialog appears displaying all the processes and/or process groups, as well as the Subprocesses, Global Variables, PlanetPress Design documents and Printer Queues in the selected configuration file.

4. In the list, select the components you want to import. The PlanetPress Suite Workflow Tools Configuration program lets you open and import any of the following:

l Complete PlanetPress Watch 4 to 6 configurations, as well as PlanetPress Suite Workflow Tools 7 configurations. l Specific processes from Version 6 and 7 configurations, including their local variables. l Specific subprocesses from any PlanetPress Suite 7 Workflow Tools configurations. l Specific global variables from PlanetPress Suite 7 Workflow Tools configurations. l Specific PlanetPress or PrintShop Mail documents. l Specific Printer Queues.

5. Click OK to start the import. PlanetPress Suite Workflow Tools Configuration imports the selected objects and automatically renames duplicate items in the imported configuration. If the current and imported configurations both include a startup process, the one in the imported configuration will become a standard process.

Important considerations

l When importing a PlanetPress Suite Workflow Tools configuration file, your PlanetPress Design and PrintShop Mail doc-

ument are not physically imported as they are not part of the configuration file itself. In order for the documents to be available, you will need to send each document from PlanetPress Design and PrintShop Mail (see their respective documentation for details).

l If you import a PlanetPress Suite Workflow Tools configuration that contains a PlanetPress Image or PlanetPress Fax

output task, you must update the task’s properties and refresh the host name. Otherwise, when PlanetPress Suite Workflow Tools will attempt to output the file, an error will be generated.

The PlanetPress Suite Workflow Tools Configuration Program

Import Documents

This procedure describes how to import variable content documents created in PlanetPress Design. Importing documents can be useful when transferring configurations between PlanetPress Suite Workflow Tools installations.

To import documents into PlanetPress Suite Workflow Tools:

1. Choose File | Import Documents. The Import PlanetPress Design Document dialog box appears.

2. In the File type box, select the desired file type.

3. Navigate to the document you wantto import, select it and click Open.

The document is imported and displayed in the Configuration Components Pane. This physically installs the documents to the

Documents folder relative to the install folder of PlanetPress Suite Workflow Tools.

Import PrintShop Mail Documents

This procedure describes how to import variable content documents created in PrintShop Mail. Importing documents can be useful when transferring configurations between PlanetPress Suite Workflow Tools installations.

To import documents into PlanetPress Suite Workflow Tools:

1. Click the PlanetPress Suite Button. The Import PrintShop Mail Documentdialog box appears.

2. Choose Import, then PrintShop Mail Documents.

3. Navigate to the document you wantto import, select it and click Open. The document is imported and displayed in the Configuration Components Pane. This physically installs the documents to the Documents folder relative to the install folder of PlanetPress Suite Workflow Tools.

Change the Interface Language

PlanetPress Suite Workflow Tools can be used in multiple languages, and the list of available languages grows as we translate the software. The first time you use PlanetPress Suite Workflow Tools, it starts in the language used for the installation. You may change this setting as often as you like, but you need to restart the application every time you do so.

To change the language used by the PlanetPress Suite Workflow Tools Configuration program:

1. Click the PlanetPress Suite Button, then click Select Language. The Select Language dialog box appears. This box lists all the languages that can be used by PlanetPress Suite Workflow Tools as well as the "Use System Default Locale"checkbox,.

2. Select the desired language and option.

3. Click OK.

Use System Default Locale: Select to mirror your language settings, as defined in the Regional and Language Options of the Windows Control Panel. This option is typically used to enter and process information in non-European languages. It is only enabled when English is selected as the program language.

If you plan to enter and process information in non-European languages, you should know that PlanetPress Suite uses codepages when storing and retrieving information (a codepage is a mapping used to convert back and forth the letters and numbers used by humans to the numeric characters used by computers). By default, codepage 1252 is used for Latin languages (good for Afrikaans, Basque, Catalan, Danish, Dutch, English, Faroese, Finnish, French, Galician, German, Icelandic, Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili and Swedish) and

The PlanetPress Suite Workflow Tools Configuration Program

codepage 932 is used for Japanese.

Exit the PlanetPress Suite Workflow Tools Configuration Program

Once you are done using PlanetPress Suite Workflow Tools, you can close the configuration program. It is important to note thatclosing the PlanetPress Suite Workflow Tools Configuration Program does not stop any of the PlanetPress Suite Workflow Tools services or stop processing.

You may exit the PlanetPress Suite Workflow Tools Configuration Program in any of the following ways:

l From the PlanetPress Suite Button, choose Exit. l Click the Xat the top-right corner of the PlanetPress Suite Workflow Tools Configuration Program l Press ALT+F4 on your keyboard. l Right-click on the PlanetPress Suite Workflow Tools Configuration Program button in your task bar, and select Close.

If the default configuration file (ppwatch.cfg) is currently opened, and if it includes unsaved modifications, the PlanetPress Suite Workflow Tools Configuration program asks you whether to send the configuration to the PlanetPress Suite Workflow Tools service before exiting. Select the Always send without prompting for confirmation option to automatically send the edited version of the configuration before exiting.

If the default configuration does not include any active process, the PlanetPress Suite Workflow Tools Configuration program asks you whether to continue.

When the PlanetPress Suite Workflow Tools Configuration program sends a configuration, the PlanetPress Suite Workflow Tools service is stopped and restarted, if it is currently running, and the new configuration starts being applied immediately.

Always save without prompting for confirmation option to automatically save any unsaved work before exiting.

The Quick Access Toolbar

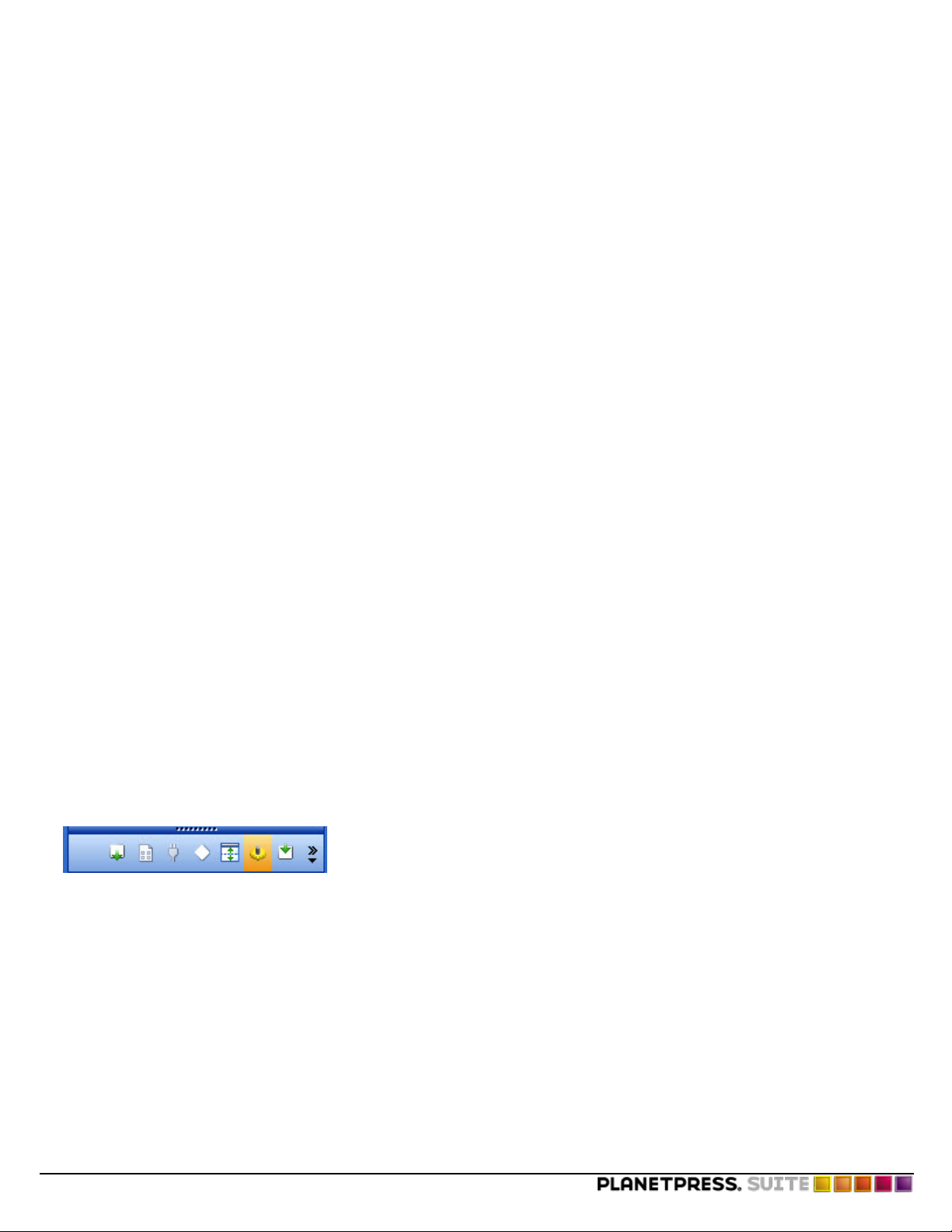

The PlanetPress Suite Workflow Tools Quick Access Toolbar is displayed, by default, on the rightside of the PlanetPress Suite Button and provides one-click shortcuts to commonly used functions and features. You can add as many buttons as you want to the Quick Access Toolbar and remove them at will.

To add a new button to the Quick Access Toolbar:

1. Locate the button you want to add in one of the tabs of the Ribbon

2. Right-Click on the button

3. Select Add to Quick Access toolbar.

To remove a button from the Quick Access Toolbar:

1. Locate the button you want to remove in the Quick Access Toolbar.

2. Right-click on the button

3. Select Remove From Quick Access toolbar.

To move the Quick Access Toolbar below or above the Ribbon:

1. Right-click on the Quick Access Toolbar, or click on the downwards arrow at the rightmost end of the Quick Access Toolbar.

The PlanetPress Suite Workflow Tools Configuration Program

2. Click on Show Quick Access Toolbar Below the Ribbon or Show Quick Access Toolbar Above the Rib- bon, depending on where you want it.

The Quick Access Toolbar buttons cannot be moved or re-ordered. If you wish to re-order them, you will need to remove all the buttons and re-add them in the desired order.

The PlanetPress Suite Ribbon

The PlanetPress Watch/Office/Production Ribbon replaces the main menu and toolbars of previous versions, and centralizes commands, organizing them into a set of Tabs, each Tab containing Groups of Controls. Each tab on the Ribbon displays the commands that are most relevant to a given feature set. For instance, the Objects tab in PlanetPress Design is used to draw any of the supported objects.The built-in Ribbon and Quick Access Toolbar contain commands that are frequently used and convenient to keep close at hand. You can minimize the Ribbon, and choose the position of the Quick Access Toolbar, as well as the commands it displays.

You can minimize the Ribbon by right-clicking on it and selecting Minimize the Ribbon.

You can also customize the Ribbon's color scheme in the Preferences window.

PlanetPress Suite Workflow Tools Configuration program Ribbon has five tabs: the Home tab, the View tab, the Debug tab, the Tools tab and the Help tab. Each one of these tabs contains a series of groups, each group holding a number of controls.

l The Home tab includes the Clipboard, Processes, Variables, Documents and Printer Queues groups.

l The Clipboard group contains the typical Windows-based editing controls: Cut, Copy, Paste, Select All,

Delete.

l The Processes group contains workflow controls, allowing to insert new processes of any type as well as con-

trols to converts, activate or branches processes.

l The Variables group contains two controls to insert either a Global variables available throughout the entire

configuration, or Local variables available to the current process only.

l The Documents group contains the document controls, used to insert, refresh, update or delete documents

and document instances.

l The Printer Queues group contains controls to set up printer queues of any type, as well as replace any exist-

ing queues.

l The View tab includes the Arrange, Navigate and Show/Hide groups.

l The Arrange group contains the Group/Ungroup and Sort by Name and Order controls, allowing to reor-

der objects in the Configuration Components Pane. It also includes the Undo/Redo controls, as well as a Rename control, to modify a given component's name.

l The Navigate group contains a Processes control to select any existing process of the currently loaded con-

figuration, as well as a Highlight control to mark a given node, a Zoom Out for a quick overview of the cur- rently selected process, and Go to Child/Go to Parent to move around a given process logical nodes (branches or conditions).

l The Show/Hide group contains four controls to display or hide any of the four panes; the Configuration

Components Pane, the Object Inspector pane, the Message Window pane, the Debug Info pane and the Plug-in bar.

l The Debug tab includes the Data, Debug and Debug Messages groups.

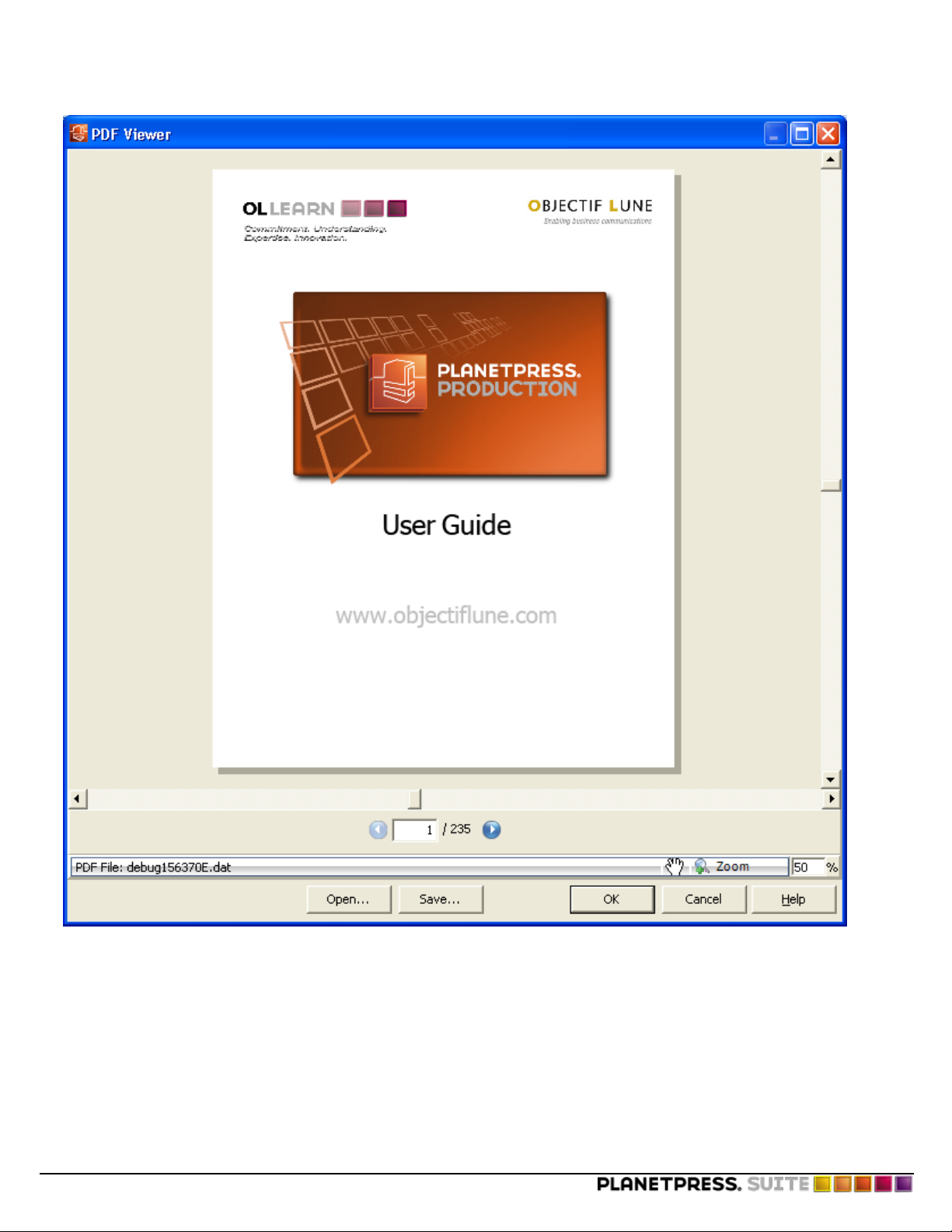

l The Data group allows to associate a sample data file to the currently selected process, as well as update or

replace it, and display it in its text/PDF or Hexadecimal format.

The PlanetPress Suite Workflow Tools Configuration Program

l The Debug group contains the debugger's controls, allowing to execute a process step by step, skipping over

or ignoring certain tasks, as well as setting up breakpoints and resetting variables values. This group also includes the Send Configuration button, necessary to push the current configuration to the PlanetPress Suite Workflow Tools service.

l The Debug Messages group contains two controls to either Clear or Save the contents of the Messages

pane.

l The Tools tab includes the Managers, Services and Test Page groups.

l The Managers group contains:

l The Install PostScript Font control allows to install a PostScript font into your PlanetPress Suite instal-

lation.

l The Virtual Drive Manager control loads the PlanetPress Suite Virtual Drive. l The Access Manager control loads the Access Manager, allowing to grant/remove permissions to

hosts.

l The Check for updates control, used to update the current PlanetPress Suite version. l The Launch Upgrade Wizard control, used when migrating from a previous PlanetPress Suite ver-

sion.

l The Services group contains:

l The Services Status control allows to start, pause and stop the PlanetPress Suite Workflow Tools serv-

ice.

l The Configure Services control loads the PlanetPress Suite Services dialog to configure the user

account PlanetPress Suite should use.

l The Service Console control loads PlanetPress Suite Service Console, allowing to monitor real-time

information on the configuration execution.

l The Test Page group contains:

l The PS Test Page control allows to print a Status Page for the selected Printer Queue. Note that if no

printer queue is selected in the Configuration Components pane, the control is disabled.

l The Text Test Page control allows to print a raw text test page for the selected Printer Queue. Note

thatif no printer queue is selected in the Configuration Components pane, the control is disabled.

l The Help tab includes the Help and Activation groups.

l The Help group contains the User Guide, the Reference Guide and the About controls, used to access

online documentation and version informations.

l The Activation group contains the Software Activation and the Printer Activation controls, used to

enter activation codes for either the software or a given device.

Start and Stop the PlanetPress Suite Workflow Tools Service

As with most Windows services, PlanetPress Suite Workflow Tools can be started and stopped automatically when a Windows session is opened and closed. The other option is to start, stop or pause the PlanetPress Suite Workflow Tools manually using the PlanetPress Suite Workflow Tools Configuration program.

The current PlanetPress Suite Workflow Tools status is always displayed in the lower-right corner of the PlanetPress Suite Workflow Tools Configuration program window.

To start PlanetPress Suite Workflow Tools services via the PlanetPress Suite Workflow Tools Configuration program:

l Click Tools in the PlanetPress Suite Ribbon. l Click Start Service in the Services Status group.

A progress bar is displayed while your PlanetPress Suite Workflow Tools is being started.

To stop your PlanetPress Suite Workflow Tools services via the PlanetPress Suite Workflow Tools Configuration program:

The PlanetPress Suite Workflow Tools Configuration Program

l Click Tools in the PlanetPress Suite Ribbon. l Click Stop Service in the Services Status group.

When you stop or pause PlanetPress Suite Workflow Tools, it immediately stops bringing new files into its processes, but it keeps on performing tasks until all the files which are currently under process have been completely processed.

To pause your PlanetPress Suite Workflow Tools service via the PlanetPress Suite Workflow Tools Configuration program:

l Click Tools in the PlanetPress Suite Ribbon. l Click Pause in the Services Status group.

The PlanetPress Suite Workflow Tools service temporarily stops performing jobs. Note that if you send a new configuration when PlanetPress Suite Workflow Tools is paused, it will continue using the old configuration when you resume processing until you stop and restart it.

To resume your PlanetPress Suite Workflow Tools service after pausing it:

l Click Tools in the PlanetPress Suite Ribbon. l Click Resume in the Services Status group.

The PlanetPress Workflow Tool service starts performing jobs again.

The Configuration Components Pane

The Configuration Components Pane displays processes, subprocesses, variables, documents and printer queues. It also lets you add any of these components using the right-click menu.

Components Area Sections

l Processes:Displays a list of processes in your configuration. Right-click on a process to access a drop-down menu

thatoffers these choices:

l Insert Process:Inserts a new process with a default inputand output task. l Insert Startup Process:Inserts a new process as a Startup Process. This option is only available if there is

no existing startup process in your configuration.

l Insert Local Variable:Inserts a new local variable. l Cut, Copy, Paste:Controls the clipboard. l Delete: Deletes the process from the configuration. l Rename: Renames the process. l Active: Triggers whether the process is active (runs in service mode)or inactive (does not run in service

mode). Inactive processes never trigger their input task or any other tasks.

l Startup: Triggers whether the process is a startup process (runs before any other process). This option is only

available if there is no existing startup process in your configuration.

l Group, Ungroup: Triggers grouping functionality. l Properties...: Displays the process' properties, for scheduling and error handling.

l Subprocesses: Displays a list of subprocesses in your configuration. Right-click on a subprocess to access a drop-

down menu that offers these choices:

l Insert Subprocess:Inserts a new process with a default input and output task. l Insert Local Variable: Inserts a new local variable. l Cut, Copy, Paste:Controls the clipboard. l Delete: Deletes the subprocess from the configuration. l Rename: Renames the subprocess. l Group, Ungroup: Triggers grouping functionality. l Properties...: Displays the process' properties for error handling.

The PlanetPress Suite Workflow Tools Configuration Program

l Global Variables:Displays a list of variables that are shared between all your processes. Right-click on a Global Var-

iable to access a drop-down menu that offers these choices:

l Insert Global Variable:Creates a new global variable l Cut, Copy, Paste:Controls the clipboard. l Delete: Deletes the global variable from the configuration. l Rename: Renames the global variable. l Reset: Resets the global variable to its default value. Useful if one of your process is modifying the global var-

iable's value and you want to return it to its original default value.

l Group, Ungroup: Triggers grouping functionality. l Properties...:Displays the properties, which lets you set a default value for the global variable.

l Documents: Displays a list of PlanetPress Design and PrintShop Mail Design document that have been imported into

PlanetPress Suite Workflow Tools. Right-click on a document to access a drop-down menu that offers these choices:

l Insert Resident Document:Inserts a new Resident Document, which is a placeholder for a PlanetPress

Design document that resides exclusively on the printer.

l Cut, Copy, Paste:Controls the clipboard. l Delete: Deletes the document from the configuration, as well as the Workflow Tools Working Folders. l Refresh:Regenerates a PostScript Cache from the original document's PTKfile. l Group, Ungroup: Triggers grouping functionality. l Properties...:Displays the properties, which lets you see the form information and select its default printing

behaviors.

l Printer Queues:Displays a list of printer queues in your configuration. Right-Click on a printer queue to access a

drop-down menu that offers these choices:

l Insert Printer Queue: Creates a new printer queue in your configuration. l Replace Printer Queue By:Replaces the currently selected printer queue with a new one. l Cut, Copy, Paste:Controls the clipboard. l Delete: Deletes the printer queue from the configuration. l Rename: Renames the printer queue. l Group, Ungroup: Triggers grouping functionality. l PSTest Page: Prints a test page in PostScript format. Useful for validating whether the printer supports Post-

Script.

l Text Test Page:Prints a text-only test page on the printer. l Properties...:Displays the printer queue properties.

Deleting a component that is currently used by a process will cause this process to stop working and trigger an error, until the task that causes the error is removed, or changed to point to another existing component.

Access Process Properties

To have access to the properties of a process or subprocess:

l Right-Click on the Process in the Configuration Components Area. l Select Properties.

You can also double-click on the process to show its options.

Subprocesses do not have the "General Tab" which is only used for scheduling, but they do have the Information Tab.

PlanetPress Suite Workflow Tools Process Options properties are as follows:

The PlanetPress Suite Workflow Tools Configuration Program

General tab

l Active: Select to make the process active. Clear to prevent this process from running when you send the configuration

to PlanetPress Suite Workflow Tools.

l Startup process: Select to make this process a startup process. l Self-Replicating Process:Check this if you want the process to replicate itself in the background when multiple

input files are received simultaneously. When this is checked, the input task polls its source once, determines the number of files to process, then replicates itself up to the maximum allowed and treats the files simultaneously. The initial process runs again once it has completed itself and replicates again as necessary, until all files have been processed.

l Max percentage of threading (%):Determines how many processes you may have running at the same time.

This is a percentage of the maximum number of threads specified in the "Messenger User Options" (page 76). For example if the maximum number of thread is 10 and you specify 50%here, a maximum of 5 replications will occur (the original process +4 copies).

l As soon as possible: Select to have the process run continuously. Clear to enable the Time Grid to fine-tune the

schedule of the process.

l Day(s) to keep backup: Indicate the number of days to keep backups of jobs processed by input tasks. Note that

backups will only be kept for those input tasks that have the Keep backup file option selected and that they are required to resubmit input files.

l Polling interval: Enter the frequency (in seconds)at which the process should verify if there are new jobs to proc-

ess. The polling interval also applies to scheduled tasks that only run on certain times. For example, if your process polls every 30 seconds on a task that's only scheduled to run one hour per week, it will capture the input 120 times during that period. Note thatthe polling interval is ignored when multiple files are present in the input and will be used only when there are no longer any files to process.

l Month: Select the month of the year when the process should be run or select All months to have the process run all

year long. This option is disabled when "As soon as possible"is checked.

l Week of month / by date: Select the desired option for the time grid. Note that any selection you make in this box

will be interpreted based on the selection made in the Month box. If you chose All months in the Month box and Last in the Week of month / by date box, then the process will run on the last week of every month. If you chose January in the Month box and First in the Week of month / by date box, then the process will run only on the first week of January.

l Select Date to display dates on the grid’s top ruler. l Select any of the other options to display days on the top ruler. l Select All weeks to have the process run every week. l Select First, Second, Third or Fourth to have the process run on the first, second, third or fourth week. l Select Last to have the process run only on the last week.

l Time division: Select the duration of each daily segment in the time grid. If you select 00:15, each segment will rep-

resent only 15 minutes and each day will be made up of 96 blocks (4 blocks per hour times 24 hours). If you select 24:00, each segment will represent an entire day.

l Poll once per activity period: Select to perform this process’ initial input task no more than once for each set of

contiguous blocks (blocks that are on the top of one another). Choosing this option overrides the polling interval option. By default since the Time Grid blocks are divided by hours, this option will make your polling happen once every hour.

The Time Grid

The PlanetPress Suite Workflow Tools Process Options dialog box includes a time grid that lets you set exactly when you want a process to run. The grid is composed of blocks that represent time periods on a given day. To activate the Time Grid, the "As soon as possible"option must be unchecked.

In the Time Grid, a blue block will indicate that the process is active within that time block. While blocks mean the process will not be active.

The PlanetPress Suite Workflow Tools Configuration Program

l Click on any block to select/deselect it. l Click and drag from one block to another to toggle all blocks between the two. l Shift-click on any block to toggle all blocks from the top-left corner of the grid to the block you click. l To select all of the time segments for a given day or date, click the day or date on the top grid ruler. To deselect all of

the time segments for a given day or date, CTRL+click the day or date on the top grid ruler.

l To select all the days or dates for a given time segment, click the time segment on the left grid ruler. To deselect all the

days or dates for a given time segment, CTRL+click the time segment on the left grid ruler.

l To select the entire grid, use the Select All button located below the grid. To deselect the entire grid, use the Clear

All button located below the grid.

"Toggle" means turn on when it's off and vice-versa, when selecting multiple blocks in one command. This means if you select a certain number of blocks in the Time Grid and then use the shift+click or drag method, blocks that are on will turn off.

The PlanetPress Suite Workflow Tools Configuration Program

Changes made to the system time can have adverse effects on the processes managed by PlanetPress Suite Workflow Tools. When changing from daylight saving time to standard time, for example, if PlanetPress Suite Workflow Tools starts a given process at 2:00AM, and if the system time is then taken back to 1:00AM, the application will start a new instance of the same process when the system time reaches 2:00AM for a second time. So, when you manually change the system time, be aware that it may have an effect on PlanetPress Suite Workflow Tools and its processes. And for those cases when you know the system time will change automatically, you may consider creating special schedules.

Information Tab

The Information tab lets you enter information that is not critical to your process but may help others (or yourself in the future)to understand what the process does. It offers two boxes:

l Description: Aone-line box to give a title or short description to your process. l Comments:A multi-line box to give more detailed information, for example the file format expected, explanation of

the system in general.

Add a PlanetPress Suite Process

You can create a new process in a two different ways:

l In the Ribbon, go to the Home tab and click the Process button in the Processes group. l In the Configuration Components Pane, right-click on any process or the Processes folder and select Insert

Process.

Regardless of the method, a new process is created with a default name (Process1, Process2, etc), Input Task and Output Task. The defaults are configurable in the "Default Configuration User Options" (page 68) screen.

The same methods can be used to create a new Startup process:

To add a PlanetPress Suite startup process:

l In the Ribbon, go to the Home tab and click the Startup Process button in the Processes group. l In the Configuration Components Pane, right-click on any process or the Processes folder and select Insert

Startup Process.

You can only have one Startup Process in any given configuration and cannot add more.

Considerations:

l While your configuration is limited to a maximum of 512 processes, any given process can have as many tasks as nec-

essary.

l A given process may include outputtasks thatgenerate files used by input tasks from other processes. l When you send a configuration to your PlanetPress Suite Workflow Tool service, all its active processes are applied. l Each process’ schedule determines when its initial input task can be performed. l Other tasks included in the process are performed regardless of schedule, granted that the previous task was per-

formed.

Manipulate Local Variables

For information about Global Variables see Global Variables.

The PlanetPress Suite Workflow Tools Configuration Program

Local Variables are set at the level of the Process and are not shared with any other process or instance of that process. Local variables can be used anywhere thataccepts variables by using it's namee, surrounded by curly brackets and preceded by a percent sign (for example:%{myLocalVariable}).

When the process ends, the local variable forgets whatever value was given to it by the process and goes back to its default value. Local variables are generally used to keep information that is useful for the process itself but not to any other process or instance of the process. For example, you could store the current order IDfor the process, a name or an email. You can have as many local variables as you want in any given process.

To add a local variable, you can use one of two methods:

l Select the process where you want to add the variable. l Click on the Home tab of the PlanetPress Suite Ribbon, then click Local Variable in the Variables group. l Right-click on the process in the Configuration Components area, then click on Insert Local Variable.

Shared tasks

These procedures can be used on both local and global variables.

To delete a variable

l Right-click on the variable name in the Configuration Components Area and click Delete.

To rename a variable:

l Right-click on the variable name in the Configuration Components Area. l Click Rename l Type in the new name of the variable, then press Enter on your keyboard.

While renaming a variable will correctly rename all references to it in task properties or wherever else it is used in a task, it will not change the references in any script within a Run Script task. Deleting a variable, on the other hand, does not delete any reference to it. In both the case where a script refers to a variable and it is renamed, or in the case of deleting a variable, any task or script that refers to it will cease to function and will generate an error.

You can set the value of a variable within your process in two ways:

l Use the Set Job Info and Variable action task. See "Set Job Infos and Variables" (page 138). l You can use Scripts. See the chapter "Using Scripts" (page 229).

Variables may be used as variable properties in variable property boxes (see "Variable Properties" (page 209)).

Activate or Deactivate a Process

All processes are Active by default, but you may make any PlanetPress Suite process Inactive as required. Because making a process active or inactive is a change in the configuration, to make the change effective you will have to send the edited configuration to your PlanetPress Suite Workflow Tools service (see "Send your Configuration" (page 32)).

To activate or deactivate a process:

l Right-click the process in question in the Configuration Components Pane l Click Active to disable or enable the process. l Send your configuration.

If you try to send a configuration that contains only inactive processes, the PlanetPress Suite Workflow Tools Configuration program will ask you to confirm the operation (this can be changed in the Notification User Options).

The PlanetPress Suite Workflow Tools Configuration Program

Convert a Branch to a Subprocess

To allow for maximum flexibility and backward compatibility with the subprocess feature, the Convert to subprocess option lets users transform existing processes easily. This option is available whenever a Branch task is selected; right-clicking on itwill display the contextual menu, which holds the Convert to subprocess option.

Selecting this option automatically creates a new subprocess, takes the branch and all of its children tasks and inserts it in the new subprocess, including the branch task itself. In the main process, the branch is removed and replaced with a GoSub action task referring to the newly created subprocess.

Note: The Branch tasks options Backup job file, Backup job information and Backup emulation, are also auto- matically passed to the Subprocess, which means that, if the subprocess needs to use a different emulation than the calling process, a Change Emulation task is required.

If any task converted into a subprocess was previously using local variables, these variables must be removed or transferred to global variables or job information to be usable in the newly created subprocess.

Manipulate Global Variables

For information about Local Variables see Local Variables.

Global Variables are set at the level of the Configuration file and are shared between all processes and tasks. Global variables can be used anywhere that accepts variables by using it's name preceded by "global."and surrounded by curly brackets (for example:%{global.myGlobalVariable}).

Global variables are generally used to keep information that applies to multiple locations but need to be changed easily. For example, a lot of uses use them to set a server's IP, a printer name, or folder location that is used by multiple processes. This is useful when moving the configuration file to another installation of the Workflow Tools where this information is different, or to quickly modify specific information if something changes on the server. You can have as many global variable as you want in any given configuration.

To add a global variable from the Configuration Components Pane:

1. Right-Click on Global Variables

2. Click Insert, then Insert Global Variable. The new variable will appear as GlobalVar or GlobalVarX (the name is automatically incremented).

To add a global variable from the Ribbon:

1. Click on the Home tab of the PlanetPress Suite Ribbon

2. Click Global Variable in the Variables group. The new variable will appear as GlobalVar or GlobalVarX (the name is automatically incremented).

To set the value of a global variable from the Configuration Components Pane:

1. Double-click on the global variable in the Configuration Components Pane.

(Right-clicking then clicking Properties also works)

2. Enter the new value for your global variable

3. Click OK to save the new value.

Shared tasks

These procedures can be used on both local and global variables.

To delete a variable

The PlanetPress Suite Workflow Tools Configuration Program

l Right-click on the variable name in the Configuration Components Area and click Delete.

To rename a variable:

l Right-click on the variable name in the Configuration Components Area. l Click Rename l Type in the new name of the variable, then press Enter on your keyboard.

You can set the value of a variable within your process in two ways:

l Use the Set Job Info and Variable action task. See "Set Job Infos and Variables" (page 138). l You can use Scripts. See the chapter "Using Scripts" (page 229).

Variables may be used as variable properties in variable property boxes (see "Variable Properties" (page 209)).

View Document Properties

The PlanetPress Suite Workflow Tools Configuration programs let you view a number of the properties associated with the PlanetPress Design documents you use, but most of those properties are set in PlanetPress Design and cannot be edited using the PlanetPress Suite Workflow Tools Configuration program.

The Document name of printer-resident documents can be changed using the PlanetPress Suite Workflow Tools Configuration program simply because it is initially set using that program.

The properties available via the Printer Settings tab define how documents are printed. They are also set using the PlanetPress Suite Workflow Tools Configuration program and are retained when documents are assigned to printer queues. They can be edited by selecting documents within the Documents category, which changes the document’s default printer settings, or within the Printer Queues category, which changes the document properties on the selected queue .

To view the properties of a document, do one of the following:

l Click any document to display its properties in the Object Inspector. l Double-click any document to display its properties in the PlanetPress Design Document Options

dialog box.

Document Properties Options

Identification Tab

The information here is read-only and gives you information on the document.

l Document: The file name of the document, as entered in PlanetPress Design. This is the name of the file saved in

PlanetPress Design, or the name you give it when you add a printer-resident document in your PlanetPress Suite Workflow Tools Configuration. It may have a PTK extension (if it has been sent to PlanetPress Workflow from PlanetPress Design), or a PS extension (if it is printer-resident).

l Version: The version of the PlanetPress Suite Workflow Tools in which the documentwas originally created. Printer-

resident documents are identified as such.

l Document name: The name of the document as entered in PlanetPress Design. You can enter a name for printer-

resident document here; the name does not have to match the name given it in PlanetPress Design. Since this property is used in the trigger to identify the document when the PlanetPress Suite Workflow Tools sends a job to be merged on a printer, the document name must exactly match the name of the document installed on the printer.

The PlanetPress Suite Workflow Tools Configuration Program

l Description: The description of the document as entered in PlanetPress Design. l Last modified:The date and time the document was last uploaded to PlanetPress Workflow Tools.

Printer Settings Tab

l Trigger Type:Select whether you want a normal trigger configuration to be used, or a custom trigger that you man-

ually enter.

l Custom Trigger Box (appears only when Custom Trigger is selected in Trigger type):Lets you enter the exact

trigger you want to use. This trigger must absolutely be in standard postscript language.

l Run mode group

l Printer centric: Select to send the document along with the trigger and data to the component that generates

fax documents.

l Optimized PostScript Stream: Select to merge the selected document withthe data received by this task

before sending it to the component that generates fax documents. Some PlanetPress Design features, such as the Time and Date PlanetPress Talk functions, require that this option be selected.

l Document location group (enabled only when using Printer-Centric mode)

l PlanetPress Suite Workflow-based:Select if the PlanetPress Design document is in the PlanetPress Suite

Workflow Tools. This option should be selected if your document is updated often and you are sending it to the Workflow Tools instead of the printer directly.

l On printer hard disk:Select if the PlanetPress Design document is on the printer's hard drive. l In printer flash memory:Select if the PlanetPress Design document is on the printer's flash memory. l RAM:Select if the PlanetPress Design document is on the printer's RAM (Random AccessMemory).

l Document Update group (enabled only when using printer-centric mode and the document is on the printer)

l Automatically update:PlanetPress Workflow Tools will send a new version of the document to the printer

automatically if the document has been changed since it was last used. If unchecked, you will have to manually update the document on the printer from the Update Instances button or by sending the document to the printer from PlanetPress Design.

l Confirm Update:Check if you want a confirmation page to be printed stating the document has been

updated, whenit happens. This options is disabled if Automatically update is not selected.

l Update Instances:Clicking this button brings up a dialog box that lets you manually update any document on

any printer.

l Printer-Specific folder:This option lets you enter a manual location where the documents should reside in the

printer's memory. This option is only available if the document is Printer Centric, and the Document location is either On printer hard disk or In printer flash memory.

Use Data and Metadata Files Attached to Documents

This feature was introduced in PlanetPress Suite 7.3.

Data Files

When sending a PlanetPress Design Document from PlanetPress Design to PlanetPress Workflow, all data files used in the document are automatically sent to PlanetPress Workflow along with the Design Document. These data files appear under the Design Document in the Documents section of the Configuration Components.

To set an attached data file as a sample data file in a process:

1. Make sure the Documents section is visible by clicking the button if it appears.

2. Expand the document (name.ptk) by clicking the button.

3. Right-click on the data file, then click Set as sample data file.

To view an attached data file:

The PlanetPress Suite Workflow Tools Configuration Program

1. Make sure the Documents section is visible by clicking the button if it appears.

2. Expand the document (name.ptk) by clicking the button.

3. Double-click on the data file to open the data selector.

Double-clicking on the data file does the same thing as right-clicking on it an then selecting Set as sample data

file. Clicking Cancel instead of Ok after viewing will prevent this action from being taken.

To save an attached data file to disk:

1. Make sure the Documents section is visible by clicking the button if it appears.

2. Expand the document (name.ptk) by clicking the button.

3. Right-click on the data file, then click Save sample data file.

Metadata

When a Design Document uses Metadata, it can also be attached with the document. One Metadata file is generated for each data file attached to the Design Document. Metadata does not appear in the Configuration Components but it follows the data file and can be viewed from the Metadata tab whenever the data file is viewed through the Data Selector.

Use Attached Document Preview

When sending a PlanetPress Design Document from PlanetPress Design to PlanetPress Workflow, a PDFPreview of the job's output is automatically sent to PlanetPress Workflow along with the Design Document. This preview appears under the Design Document in the Documents section of the Configuration Components.

The PDFcontains the result of a preview with the active data file (for all data pages) run as an Optimized PostScript Stream.

To view the Document Preview:

1. Make sure the Documents section is visible by clicking the button if it appears.

2. Expand the document (name.ptk) by clicking the button.

The Document Preview has the same name as the document but with a PDFextension.

3. Right-click on the Document Preview, then click Open in PDFViewer.

To save the Document Preview to disk:

1. Make sure the Documents section is visible by clicking the button if it appears.

2. Expand the document (name.ptk) by clicking the button.

The Document Preview has the same name as the document but with a PDFextension.

3. Right-click on the Document Preview, then click Save PDFFile.

Add Resident Documents in the Configuration Components Pane

By default, the Documents group displayed in Configuration Components Pane of the PlanetPress Suite Workflow Tools Configuration program includes all those documents that are available on your local PlanetPress Suite Workflow Tools server. Those documents that are not available on your localPlanetPress Suite Workflow Tools server, but that are either available on printers or on other PlanetPress Suite Workflow Tools servers must added to the list, otherwise you will not be able to use them in your PlanetPress Suite Workflow Tools configuration.

To add a resident document in the Configuration Components Pane:

1. In the PlanetPress Suite Workflow Tools Configuration Components Pane, click the Documents icon and choose Insert | Resident Document. The Add Resident Document dialog box is displayed.

The PlanetPress Suite Workflow Tools Configuration Program

2. Enter the document’s name. Note that the name you enter must exactly match the actual document name or PlanetPress Suite Workflow Tools will not be able to use it on the printer or remotePlanetPress Suite Workflow Tools server.

3. Click OK.

Associate Documents and PlanetPress Watch Printer Queues

One of the basic information stored in a PlanetPress Suite Workflow Tools printer queue is the list documents associated with the printer queue. Also stored in the printer queue are the properties of each document associated with the queue.

To assign documents to PlanetPress Suite Workflow Tools printer queues:

1. In the Documents group of the Configuration Components Pane, select either a single document or a group of documents.

2. Drag the selected documents over a PlanetPress Suite Workflow Tools printer queue. The selected document or the group of documents is associated with the printer queue. Each document keeps its default properties.

To break the association between a document and a given printer queue:

l Select the document as displayed under the printer queue in question and press Delete.

To break the association between a document and multiple printer queues:

1. Select the documentas displayed under one of the printer queues in question and from the right-click menu choose Delete Instances. The Delete Document Instances dialog box appears.

2. In the Printer Queue list, select all those printer queues for which you want the printer queue—document association to be broken.

3. Click OK.

To modify the settings of a document assigned to a printer queue:

The settings available in this window are the same as the Printer Settings dialog of a document properties in the Documents list of the Configuration Components Area, but they are specifically for this document on this printer queue. See "View Document

Properties" (page 45) for more details.

l Double-click on the document located within a printer queue.

The Document Properties dialog appears.

Using the Clipboard and Drag & Drop

Moving configuration components in the Configuration Components Pane is very easy and can either be done with the mouse (drag & drop), the Ribbon menus (clipboard buttons)or the keyboard (clipboard keyboard shortcuts).

If you simply wish to change the order in which objects appear in a category or group of the Configuration Components, refer to "Reorder Objects in the Configuration Components Pane" (page 50).

As you drag a configuration component, your mouse cursor will change to indicate the action you are performing, as well as whether the location where the cursor is can accept the configurationcomponent you are dragging. If you try to drag a configuration component in a location that is not accepted, the cursor changes to a "prohibited"icon. If you are moving a configuration component to a valid location, the mouse cursor displays the normal cursor along with a small dotted box. If you are copying a configuration component to a valid location, the mouse cursor displays the normal cursor along with a small dotted box and a plus (+)sign.

The PlanetPress Suite Workflow Tools Configuration Program

The PlanetPress Suite Workflow Tools Mouse Cursors

Normal Mouse Pointer Move Mouse Pointer Copy Mouse Pointer Prohibited Mouse Pointer

Moving Configuration Components

Moving components using Drag & Drop:

l Click on the component and hold the mouse button. l Move the componentto the location where you want to drop it. l Let go of the mouse button.

Moving components using the clipboard buttons:

l Click on the component you want to move. l Go to the Home tab of the Ribbon. l Click on Cut in the Clipboard group. l Click on the new location where you want the component. l Click on Paste in the Clipboard group.

Moving components using the mouse contextual menu:

l Right-click on the component you want to move. l Click on Cut in the contextual menu. l Right-click on the new location where you want the component. l Click on Cut in the contextual menu.

Moving components using the keyboard shortcuts:

l Click on the component you want to move. l Do CTRL+X(cut)on your keyboard. l Click on the new location where you want the component. l Do CTRL+V(paste)on your keyboard.

Copying components.

You can make a copy of any component in the Configuration Components Pane, with the only exception being Documents (of which you can only have one copy). Copying components is done using the same methods as moving them, with the following differences:

l To move components using the clipboard buttons and contextual menu, replace "Cut"by "Copy". Otherwise the meth-

ods are the same.

l To move components using the keyboard shortcuts, replace "CTRL+X"by "CTRL+C". Otherwise the method is the

same.

Moving and Copying Details:

l When moving configuration components, a horizontal line appears where the component will be dropped if the location

is valid. At the end of this line will be small "dents". If thesedents are on top of the line, the component will be placed at the same level (group)as the component before it. If the dents are at the bottom, the component will be placed at the same level (group)as the component after it.

l If you move an object in the Configuration Components Pane on top of a group, the group name turns maroon (in the

default color scheme)to indicate the object will be moved in the group after all the existing objects currently in that group.

The PlanetPress Suite Workflow Tools Configuration Program

l Moving a configuration component does not change the order in which the components are used. However they can

affect your process if, for example, you move a local variable from one process to another and the local variable is still used in the first process.

l You can also copy multiple components by selecting more than one then using the methods described above. However,

you can only select multiple components from within the same folder. You cannot, for example, select a Subprocess along with a Process and move them together. Also, you cannot select multiple components if they are not in the same group or if one is in a group and the other is not.

l You can also copy and move groups that have been created in the Configuration Components Pane. l Dropping documents onto printer queues does not move the documents, but rather assigns them to these queues (see

"PlanetPress Suite Workflow Tools Printer Queues" (page 213)).

Rename Objects in the Configuration Components Pane

You can rename processes, groups, and printer queues in the Configuration Components Pane. PlanetPress Design Documents (ptk/ptz files) are different and cannot be renamed or modified using the PlanetPress Suite Workflow Tools. You can, on the other hand, change the name of printer-resident documents.

Note that names cannot begin with a number. They can only contain the following ASCII characters: underscore, upper and lower case letters of the alphabet, all digits 0 through 9. If you enter an invalid name, you will be prompted to correct it (unless if the corresponding option has been turned off).

To rename a process, printer queue or group in the Configuration Components Pane:

1. In the Configuration Components Pane, right-click the name of an object or group and choose Rename from the popup menu.

The name of the object or group is highlighted and ready to be edited.

2. Type the new name over the existing name and press ENTER. PlanetPress Suite Workflow Tools Configuration renames the object or group.

To rename a resident document:

1. In the Documents section of the Configuration Components Pane, double-click a printer-resident document.

The PlanetPress Design Document Options dialog box is opened.

2. In the Document name box, enter the new document name and click OK. PlanetPress Suite Workflow Tools rename the resident document.

Reorder Objects in the Configuration Components Pane

There are multiple ways you can reorder objects in the Configuration Components Pane. Commands available from the rightclick menu let you reorder selected objects, as well as alphabetically reorder objects listed directly under a category or appearing within a group. You can also use the clipboard controls and drag &drop methods described in "Using the Clipboard and

Drag & Drop" (page 48) to copy and move objects and tasks.

To reorder selected objects in the Configuration Components Pane:

1. Click an object or group.

2. In the PlanetPress Suite Ribbon, go to the View tab then click Order in the Arrange group, then select one of the following:

l Up One Level to move the item one level up in the hierarchy. If the item is already the top object in the cat-

egory, or within a group, this command has no effect.

The PlanetPress Suite Workflow Tools Configuration Program

l Down One Level to move the item one level down in the hierarchy. If the item is already the bottom object in

the category, or within a group, this command has no effect.

l To Top Level to move the item to the top level in the hierarchy. This moves the item to the top of the category

or to the top of the group. If the item is already the top object in the category, or within a group, this command has no effect.

l To Bottom Level to move the item to the bottom level in the hierarchy.

To alphabetically reorder objects in the Configuration Components Pane:

l Click the either a category (Processes, Global Variables, Documents, or Printer Queues) or a group l In the PlanetPress Suite Ribbon, go to the View tab. l In the Arrange group, select Sort by Name.

Grouping Configuration Components

Groups help you organize processes, documents, and printer queues. For example, you may create the Invoices, Checks and Reports groups in the Processes section and associate individual processes with each one of these groups.

You group items only within their own category. Thus you can only group processes with other processes, documents with other documents, and printer queues with other printer queues. In the documents category, you can only group documents with others of the same version and type. For example, you can only group documents from PlanetPress Design (files with a PTK extension) withother PTK files, not with printer-residentdocuments.

You can also use groups to quickly assign multiple documents to multiple printer queues. By dragging a group of documents to a printer queue, you assign all the documents in the group to that queue.

To add a group in the Configuration Components Pane:

l In the Configuration Components Pane, click a category and choose View | Arrange | Group.

A new group is added at the end of the category.

To add objects to an existing group:

l Drag-and-drop the objects onto the group.

The objects are added as the last objects in the group.

To remove objects from a group:

l Drag-and-drop the objects out of the group.

The objects are removed from the group. If the group becomes empty, you are prompted to confirm the deletion of the group.

To add selected objects to a new group:

1. Select multiple objects that are not part of a group

2. Press CTRL+G. A new group is added and the selected items are moved to that new group.

To ungroup selected objects:

1. Select objects in a group.

2. Press CTRL+U.

Expand and Collapse Categories and Groups in the Configuration Components Pane

You can expand and collapse the Processes, Global Variables, Documents and Printers Queues categories, and groups, in the Configuration Components Pane.

The PlanetPress Suite Workflow Tools Configuration Program

To expand or collapse categories or groups in the Configuration Components Pane:

l Click the expand/collapse button to the left of the item.

Delete Objects and Groups from the Configuration Components Pane

Delete objects and groups from the Configuration Components Pane.

To delete a process, document, or printer queue:

l Click a process, document, or printer queue, then press DELETE.

In the case of processes and printer queues, the object is deleted. If there is only one process in the configuration, you cannot delete it; there must be at least one process in the configuration. If you delete the last configured process, a process with two unknown tasks remains.

In the case of documents, you are first prompted to confirm the deletion. You can turn off this prompt in the Notification Messages User Options.

To delete a group of processes, documents, or printer queues:

l Click a process group, documents group, or printer queue group, then press DELETE.

In the case of process groups and printer queue groups, the group and all its members are deleted. In the case of documents, you are first prompted to confirm the deletion of each member of the group. You can turn off this prompt in the Notification Messages User Options.

The Process Area

The Process area, which is always available and visible, holds all the tasks, branches, conditions and comments that make up the selected process. The Process area is built like an invisible grid divided by rows (horizontal)and columns (vertical). When adding a new Action Task, a new row is added. When adding a Branch or Condition, a new column appears (unless there is already a column at that level).

The first task of any process, also called the initial input task, always appears in the first box in the upper left corner. When you create a new process, this first task is always followed by the default output task in the following box.

Zoom In or Out within Process Area

You can do a zoom out in the PlanetPress Suite Process area to see more tasks at the same time. In zoom out mode, you can perform the exact same functions as in normal view mode.

To zoom in or out on the PlanetPress Suite Process Area:

l Click on the View tab of the Ribbon. l Click on Zoom Out in the Navigate group to zoom out, and Zoom In to zoom in.

Adding Tasks

You can add as many tasks as you want to your process by using the Plug-in Bar in the PlanetPress Suite Workflow Tools program.

To insert a task:

The PlanetPress Suite Workflow Tools Configuration Program

1. Open the Plug-in Bar by clicking onits tab. If you can't see the Plug-in Bar tab, click on the View tab in the Ribbon and make sure the Plug-in Bar is highlighted in the Show/Hide section.

2. Locate the task you want to add to your process. You can navigate between the different task categories by clicking the icons at the bottom of the Plug-in Bar.

3. Using your mouse, click and drag the task in your process at the place you want to insert it.

4. Depending on where you place your mouse, you may see that you can replace or insert existing tasks, or not place it at thatlocation at all.

5. When you drop the task in the desired location, a dialog box containing the available task properties is displayed.

6. Set the task properties as required and click OK to close the dialog box.

There are a few things to keep in mind when dropping tasks:

l You can insert input tasks anywhere in the process except in output task locations. l When you add an output task, a new branch leading to that new task is added above the selected task or branch,

except when replacing an existing output task.

l Dropping a task on top of another one replaces it. l Dropping a task between two tasks will insert it at that location. l You cannot add a task above the initial input task of a process, since new tasks are always added above a selected task

or branch.

Adding Branches

The PlanetPress Suite Workflow Tools Configuration program offers two different commands when it comes to adding new branches to a process:

You can add a new branch, by dragging and dropping a branch, from the Process Logic category of the Plug-in Bar, into your process. Branches can be added using the Adding Tasks method.

You can add a new branch that contains all of the tasks below the point where you insert the branch. To do this, right-click on

the first task that you want to include in the branch, and select Branch From Here... . An unknown task will be created as an

output below the branch.

Edit a Task

To edit a task, you simply need to access and change its properties. You may even do it while your process is in Debug mode (see "About the Debug Mode" (page n)).

To edit a task:

1. In the PlanetPress Suite Workflow Tools Process area, double-click the task icon.

A dialog box containing the available task properties is displayed.

2. Editthe task properties as required. Click specific tabs to see all the properties associated with the task.

3. Click OK to close the dialog box and save the new properties.

Replacing Tasks, Conditions or Branches

You can replace existing tasks either by dropping a new task on it, or by pasting another task over it.

To replace an existing task with a new task, see Adding Tasks

To replace an existing task with another existing task or its properties, see Cutting, Copying and Pasting Tasks and Branches

You cannot replace a task by a branch or a condition. Trying to paste or drop a branchor condition over a task will

The PlanetPress Suite Workflow Tools Configuration Program

insert it before the task instead. The contrary is also true, you cannot replace a branch or condition with a task.

When you replace a task, you lose all the properties you set in this task.

Remove Tasks or Branches

To remove any task or branch (except input and output tasks), use one of the following methods

l Click on the task or branch you want to delete, go to the Home tab of the PlanetPress Suite Workflow Tools Ribbon and

click on the Delete button in the Clipboard group.

l Click on the task or branch you want to delete, and press the Delete (or "Del")key on your keyboard. l Right-click on the task or branch you wantto delete, and select Delete from the menu.

When you remove a branch, all the tasks located in that branch are also deleted. When you delete a task, only thattask is deleted.

You cannot use the Delete option to remove an input or output task, but you can right-click on them and click Cut instead. This replaces the task with an unknown task(see UnknownTasks)

To delete the path below a branch crossing (instead of the path to the right of the branch):

l Press Shift+CTRL+Delete. l From the right-click menu, choose Edit | Delete| Delete Below the Branch.

Task Properties Dialog

Any task you add to your PlanetPress Suite Workflow Tools process must be configured using its properties dialog box. Each task's Properties Dialog will give you the options to configure that specific, individual task. Properties of one task do not directly affect the properties of another task, however there are some software preferences that may affect tasks in one way or another (see "Preferences" (page 66))

l Each task has its own set of tabs available, though some tabs are common to most tasks. l Most tasks have the "General"tab which lets you configure the main task properties for that specific task. l All tasks except for the InputErrorBin, Run Script, Open XLSTand Comment tasks have an "On Error" tab that lets you

manage errors generated by the task.

l All initial Input tasks have the "Other"tab which lists job infos and lets you back up the job file.

The "On Error"tab that is common to almost all tasks contain the following options

l Send to Process: Check this option to send the job file to an error management process. l Error Process drop-down:Enabled only when the Send to Process option is checked. Lists any process of which the

initial input task is the Input Error Bin task.

l Action Group:This group is disabled in the initial input tasks and defaults to Stop Process. In all other tasks where

the On Error tab is present, the following options are available:

l Ignore:The task is ignored as if it did not exist, and the job file is passed on to the next task in the process. l Stop Branch:If the task is in a branch of the process, the branch is stopped and the job file is returned to the

process after the branch. The branch will not produce any output.

l Stop Process:The process is stopped and no more processing is done. No further output is produced.

l Log Message:Check this option to enable logging a custom error message in the PlanetPress Suite Workflow Tools'

log file.

The PlanetPress Suite Workflow Tools Configuration Program

l Message:Enabled only when the Log Message option is checked. Enter a message that will be logged in the Plan-

etPress Suite Workflow Tools' log file. You can use any variables available in PlanetPress Workflow to customize the message.

l ID:Select the error IDyou want to attribute to the error log. l Reset to defaults:Resets all options in this tab to their default values.

The error management system(the "on error"tab and the "error bin input"task), however, are only triggered when there is an error within the task functionality - that is, a plugin error. These kinds of errors are triggers if the plugin cannot communicate with a service, another task, if the plugin crashes, etc.

Cutting, Copying and Pasting Tasks and Branches

Using cut and paste, and copy and paste, you can move as well as duplicate tasks and branches within a given process as well as between different processes.

To cut and paste tasks or branches:

1. In the PlanetPress Suite Workflow Tools Process area, select the task or branch you want to cut and paste.

2. From the Home tab in the Ribbon, choose Cut (or Right-Click and select Cut from the drop-down menu).

3. To paste the task or branch to a different process, select that process.

4. Select the task or branch crossing above which you want the task or branch to be pasted.

5. From the Home tab in the Ribbon, choose Paste (or Right-Click and select Paste from the drop-down menu).

To copy and paste tasks or branches:

1. In the PlanetPress Suite Workflow Tools Process area, select the task or branch you want to copy and paste.

2. From the Home tab in the Ribbon, choose Copy (or Right-Click and select Copy from the drop-down menu).

3. To paste the task or branch to a different process, select that process.

4. Select the task or branch crossing above which you want the task or branch to be pasted.

5. From the Home tab in the Ribbon, choose Paste (or Right-Click and select Paste from the drop-down menu).

There are a few things to keep in mind when pasting tasks:

l When you cut a task or branch, it disappears from the Process Area but is kept in your clipboard until it is pasted some-

where else.

l You can cut or copy a task or branch from one process and paste it in another process or subprocess. l When you cut an input or output task, it is replaced with an unknown task, that you will need to replace with another

task for the process to be functional.

l If you cut one task or branch, then cut another one, the first one is lost and replaced by the second. Remember how-

ever that you can always undo the command to retrieve it (see Undo a Command).

l Tasks and branches will always appear on top (in other words, before)the task or branch where you paste it. The only

exceptions are input and output tasks which can only be pasted on top of unknown tasks.

Instead of pasting the actual task or branch, you can simply paste the properties of the task or branch.

To copy and paste Properties of a task or branch:

1. Copy or Cut a task or branch of which you want to have the properties.

2. Select the task or branch where you want to paste the properties

3. From the Home tab in the Ribbon, choose Paste Properties (or Right-Click and select Paste Properties from the drop-down menu).

You can only paste the properties of an input task on the initial input task of your process. Similarly you can only paste the properties of an output task on another output task.Also, you cannot paste the properties of a task on a branch

The PlanetPress Suite Workflow Tools Configuration Program

and vice-versa.

Lastly, you can paste only the properties of the On Errortab of any task or branch on another one.

To copy and paste the On Error properties of a task or branch:

1. Copy or cut a task or branch from which you want the On Error properties.

2. Select the task or branch where you want to paste the On Error properties.

3. From the Home tab in the Ribbon, choose Paste On Error (or Right-Click and select Paste On Error from the dropdown menu).

Moving a Task or Branch Using Drag-and-Drop

When you want to move a given task or branch, the simplest way is to use drag-and-drop. Using the mouse, you can drag and drop tasks and branches only within a given process. To move tasks and branches between different processes, see Cutting,

Copying and Pasting Tasks and Branches.

When you move a task or branch using drag and drop, it typically moves from its original locationto a position immediately preceding the target onto which you dropped it. But if you drop an input task over an unknown input task, the moved task will replace the unknown task. The same will happen if you drag an output task over an unknown output task. Note that it is impossible to drag-and-drop any task over a configured initial input or output task.

To move a task or branch using drag and drop:

1. In the PlanetPress Suite Workflow Tools Process area, click the icon of the task or branch you want to move.

2. While holding down the mouse button, drag the icon task or branch over another task or branch.

3. Release the mouse button to drop the dragged item. The dropped task or branch is moved above the item over which it was dropped.

To duplicate a task or branch, the same method applies but with a slight difference:

1. In the PlanetPress Suite Workflow Tools Process area, click the icon of the task or branch you want to duplicate.

2. While holding down the mouse button, press and hold down the CTRLkey and drag the icon task or branch over another task or branch.

3. Release the mouse button to drop the dragged item and release the CTRLkey. The dropped task or branch is copied above the item over which it was dropped.

When you move a branch, all its tasks are also moved. When you move a conditional branch, all the tasks appearing on the True side of the condition are also moved.

You cannot drag a task or branch over an initial input task. Any input task that is dragged and dropped over an unknown initial input task will replace it. The same is true of an output task that is dragged and dropped over an unknown output task.

Ignoring Tasks and Branches

PlanetPress Suite Workflow Tools lets you ignore individual tasks, branches or conditions.

l When a task is disabled, it is not executed when the process is run in debug mode (see About the Debug Mode) or by

the PlanetPress Suite Workflow Tool Service.

l When a branch is disabled, the whole branch including the tasks inside that branch are ignored and not executed. In the

case of conditional branches, this means that the tasks appearing on the True side are not executed.

A task, branch or condition that was previously disabled out can be re-enabled at any time.

The PlanetPress Suite Workflow Tools Configuration Program

To disable or enable a task or branch:

1. In the PlanetPress Suite Workflow Tools Process area, click the icon of a task or branch.

2. From the Debug tab in the Ribbon, click Ignore.

If the task or branch was enabled, it is now disabled, and vice versa.

Resize Rows and Columns of the Process Area

Resize the rows and columns of the PlanetPress Suite Workflow Tools Process area in which tasks are located to better visualize the organization of your process.

To resize rows and columns of the PlanetPress Suite Workflow Tools Process area:

l In the PlanetPress Suite Workflow Tools Process area, place your cursor over the separator line dividing each section

of row or column rulers.

l When the cursor changes appearance, click and drag up or down to resize rows, or left or right to resize columns.

A dashed line appears as you drag indicating the new separation. The row or column, with all its tasks, moves accordingly.

Selecting Documents in Tasks

The properties dialog box of some action and output tasks let you select documents. Depending onwhere the document selection list appears you will have access to all the documents or only the documents installed on a printer queue.

In most cases, you have three options:

l You can choose not to use any document (only in certain cases). This means no document is merged with the data and

the job file is sent as is.

l You can choose a specific document from the list of installed documents. The document is merged with the data to gen-

erate output.

l You can choose a variable document (see below)

Variable Document Name

The Variable Document feature is used to dynamically determine which document is merged with the data in your output. The document name can come from any of the variable properties (see "Variable Properties" (page 209)). Note that if the data con- tains an extension, it will be replaced by .ptk.

To use a variable document:

l Click on the %o entry in the document list l Type the variable properties or use the right-click menu to insert the correct variable properties. l Click OKon the dialog.

At runtime, if PlanetPress Workflow Tools cannot find the document name generated by those variables, the task will fail.

Highlight a Task or Branch

The Highlight command lets you toggle the background color of selected tasks and branches. Note that the highlight color may be changed via the PlanetPress Suite Workflow Tools Configuration preferences.

To highlight a Process Area square:

l Use the mouse pointer to select a given square. l In the PlanetPress Suite Button, click the View tab. l Select Highlight from the Navigate group.

The PlanetPress Suite Workflow Tools Configuration Program

To remove the highlight, repeat the procedure.

Undo a Command

The undo command lets you undo most commands performed with the PlanetPress Suite Workflow Tools Configuration program.

To undo a command:

l From the Quick Access Toolbar, choose Undo.

Redo a Command

The Redo command can be used to redo commands that were just undone using the Undo command. For example, if you used the Undo command three times in a row and immediately thereafter decided to redo those commands, you could use the Redo command three times in a row to redo those commands. Note that all commands in PlanetPress Suite Workflow Tools Configuration can be redone.

To redo a command:

l From the Quick Access Toolbar, choose Redo.

The Plug-in Bar

The PlanetPress Suite Workflow Tools offer a constantly increasing number of plugins, while always allowing third party plugins to be installed and set up to be used by the PlanetPress Suite Workflow Tools. The PlanetPress Suite Plug-in Bar lists the available plugin in any of the PlanetPress Suite Workflow Tools, and is divided into categories, which users can customize at will.

A"Plug-In"is normally something that is added to a software and, while most of the PlanetPress Plug-ins are installed by default, some may be added so the term is correct. However, because the plug-ins are always expected to execute some sort of task, they are always referred to, in this documentation, as "tasks", except in the specific case of importing a new plug-in or customizing the Plug-in bar.

The Object Inspector Pane

The Object Inspector displays the properties of the object selected in the Configuration Components Pane (not the Process Area, however). You can editsome of these properties directly from the Object Inspector, simply by clicking on the property.

To edit properties of processes, documents, and printers in the Object Inspector:

l In the Configuration Components Pane, select a process, a document (either a document in the Documents category or

a document assigned to a printer queue) or a printer queue.

The selected object’s properties appear in the Object Inspector.

l In the Object Inspector, click an editable property. l Depending on the values that can be entered for the selected property, edit the value by typing a one or by selecting a

new one from the drop-down list.

If you select multiple objects in the Configuration Components window, some properties that are shared between those objects can be changed in the Object Inspector. Changing a property changes it for all the selected objects.

The Object Inspector also displays information about the Job File while it is being processed in Debug mode. Seeing how files change as they travel down a process can provide valuable debugging information. You can even change some of the job information from the Object Inspector (such as Job Infos)while in debugging.

When you select a group (folder), no information is displayed in the Object Inspector, because what is really selected is the group heading and not the items included in the group.

The PlanetPress Suite Workflow Tools Configuration Program

Toggle the Run on Desktop Property

Since PlanetPress Suite Workflow Tools configurations are typically meant to run without user interaction, all of their processes are set to run in the background by default. In some cases, such as when a dialog box must appear or user input is required, you may make any process run on your desktop instead of as a service.

Generally this will happen only when calling a third-party software using the Run External Program plugin, but is also valid if using a Script that generates a dialog that someone must click or interact with.

The term "Desktop"is defined as the desktop of the user logged on to the computer where the PlanetPress Suite Workflow Tools is installed. These dialogs cannot be displayed on any other computer.

To toggle a process’ Run on Desktop property:

1. Select an active process in the Configuration Components Pane.

2. In the Object Inspector Pane, change the Run on desktop property from False to True, or vice versa.

The Debug Information Pane

The Debug Information Pane displays the current values of variables and other information useful in debugging processes (see "Debugging and Error Handling" (page 223)).

The Debug Information Pane is divided in 4 sections:

l Job Information: Displays the Job Info variables, as well as the job's filename, size, last edit date and presence of

metadata(see "Job Info Variables" (page 95))

l Local Variables:Displays all the variables local to this process (see "Manipulate Local Variables" (page 42)). l Global Variables: Displays all the variables global to this configuration (see "Manipulate Local Variables" (page 42)). l Evaluate Expression:Lets you enter a custom expression and displays its value at runtime.

You can use the Evaluate Expression section to see the result of any combination of variable properties (see "Variable Prop-

erties" (page 209)). To add a new expression, simply right-click in the window and select Add Expression.

Click in the box on the left to edit the expression and add any variable properties or static text you want, and click outside of the box to save it. Once saved, the Value column displays the expression's result.

The contextual (right-click)menu displays the following items when at least one expression is present:

l Copy Value (only when right-clicking an existing expression):Places the resulting value of the expression in your clip-

board.

l Revalue all: Refreshes the value of all the expressions. l Add Expression:Creates a new expression. l Delete Expression (only when right-clicking an existing expression):Remove the selected expression. l Clear Expression List: Removes all expressions.

Deleting an expression or clearing the expression list cannot be undone!

The PlanetPress Suite Workflow Tools Configuration Program

The Message Area Pane

The Messages area is used in Debug mode to indicate the status of your PlanetPress Suite process as the sample data file is processed and used to generate output. When your PlanetPress Suite Workflow Tools runs in Debug mode, the Messages area displays useful processing and error information.

Messages are displayed in different colors (debug levels)in the Message area.

l Messages in Red are critical and are normally critical errors in the plugin. l Messages in Orange are warnings. l Messages in Gray are job info and variable changes. l Messages in Black are debug information and processing information.

There are various actions you can execute in the Message area. Here they are:

l Click any line to select it. l While a line is selected, press Delete on your keyboard or right-click on the line and select Delete to delete the line. l While a line is selected, press CTRL+Xon your keyboard or right-click on the line and select Cut to place the line in

the clipboard.

l Press CTRL+C on your keyboard or right-click on the line and select Copy to place a copy of the line in the clipboard. l Press CTRL+A on your keyboard or right-click on any line and select Select All to select all the lines in the Message

Area.

l Right-click anywhere in the Message Area and select Clear Messages to clear the contents of the Message Area. l Right-click anywhere in the Message Area and select Save to File to display a dialog box that lets you save a copy of

the MessageArea content to a text file.

The Message Area will only display information while running in Debug mode. It does not display information from other running services, and will not display the log of any process running in a live configuration (submitted to the PlanetPress Suite Workflow Tools Service).

To learn more about debugging a process, refer to "Debugging and Error Handling" (page 223).

Customizing the Program Window

You can combine and attach the Configuration Components Pane, Messages area and Object Inspector into a single secondary window that can be docked to and undocked from the main PlanetPress Suite Workflow Tools Configuration program window.

Combining and attaching areas can facilitate the management of your screen real estate. It lets you reposition multiple areas in a single operation.

Note that since the Process area must remain in the main PlanetPress Suite Workflow Tools Configuaration Program window, it cannot be combined and attached in this fashion.

Dock and Undock Areas of the Program Window

The Configuration Components Pane, the Object Inspector, and the Messages area can be displayed in windows that are attached to the Program window (docked position) or that float above it (undocked position). You dock a window when you attach it to the Program window, and you undock it when you detach it from the Program window.

The PlanetPress Suite Workflow Tools Configuration Program

The Configuration Components Pane, the Object Inspector and the Messages area can each be displayed inside its own window, whether docked or undocked, but they can also be displayed attached or combined inside the same window.

l When separate areas are displayed simultaneously, they appear in different sections of the Program window. l When attached areas are displayed simultaneously, they appear side-by-side or above one another inside sub-win-

dows.

l When combined areas are displayed simultaneously, they overlap one another inside the same window. Tabs let you

switch from one area to the other.

To undock an area of the Program window:

l Do one of the following:

l Click either a title bar (separate or attached areas) or a tab (combined areas) displaying the name of the Con-

figuration Components Pane, the Object Inspector or the Messages area and move the mouse pointer so as to drag the area away from its docked position. As you drag, a rectangle is displayed to show the landing position. Release the mouse button when the rectangle is in a floating position (not attached to the Program window).

l Double-click either a title bar (separate or attached areas) or a tab (combined areas) displaying the name of the

Configuration Components Pane, the Object Inspector or the Messages area. The area will jump from a docked to an undocked position and vice-versa.

To dock an area of the Program window:

l Do one of the following:

l Click either a title bar (separate or attached areas) or a tab (combined areas) displaying the name of the Con-

figuration Components Pane, the Object Inspector or the Messages area and move the mouse pointer so as to drag the area away from its current undocked position. As you drag, a rectangle is displayed to show the landing position. Release the mouse button when the rectangle is in a docked position (attached to the Program window).

l Double-click either a title bar (separate or attached areas) or a tab (combined areas) displaying the name of the

Configuration Components Pane, the Object Inspector or the Messages area. The area will jump from an undocked to a docked position and vice-versa.

Show or Hide Areas of the Program Window

You can choose to hide or display any of the customizable areas in the PlanetPress Workflow Tools program. Hidden areas will still contain the same information but will not be visible.

To show or hide a Program window area:

l In the PlanetPress Suite Ribbon, click the Viewtab. l From the Show/Hide group, click on any area name to hide or display it.

A"highlighted"(orange)button means the area is displayed somewhere on your screen(s). Adim (blue)button means the area is hidden.

The Process Area is always visible and cannot be hidden.

Combine and Attach Areas

The Configuration Components Pane, the Object Inspector, and the Messages area can be attached or combined to one another and share the same space. However they are displayed, you can always drag, dock, or undock any area as desired. You can also switch among areas when they are combined, as well as maximize or minimize areas when they are attached. For more information, refer to "Customizing the Program Window" (page 61).

The PlanetPress Suite Workflow Tools Configuration Program

The following procedures will show a number of things you can do to change the way information is displayed by the PlanetPress Suite Workflow Tools Configuration program.

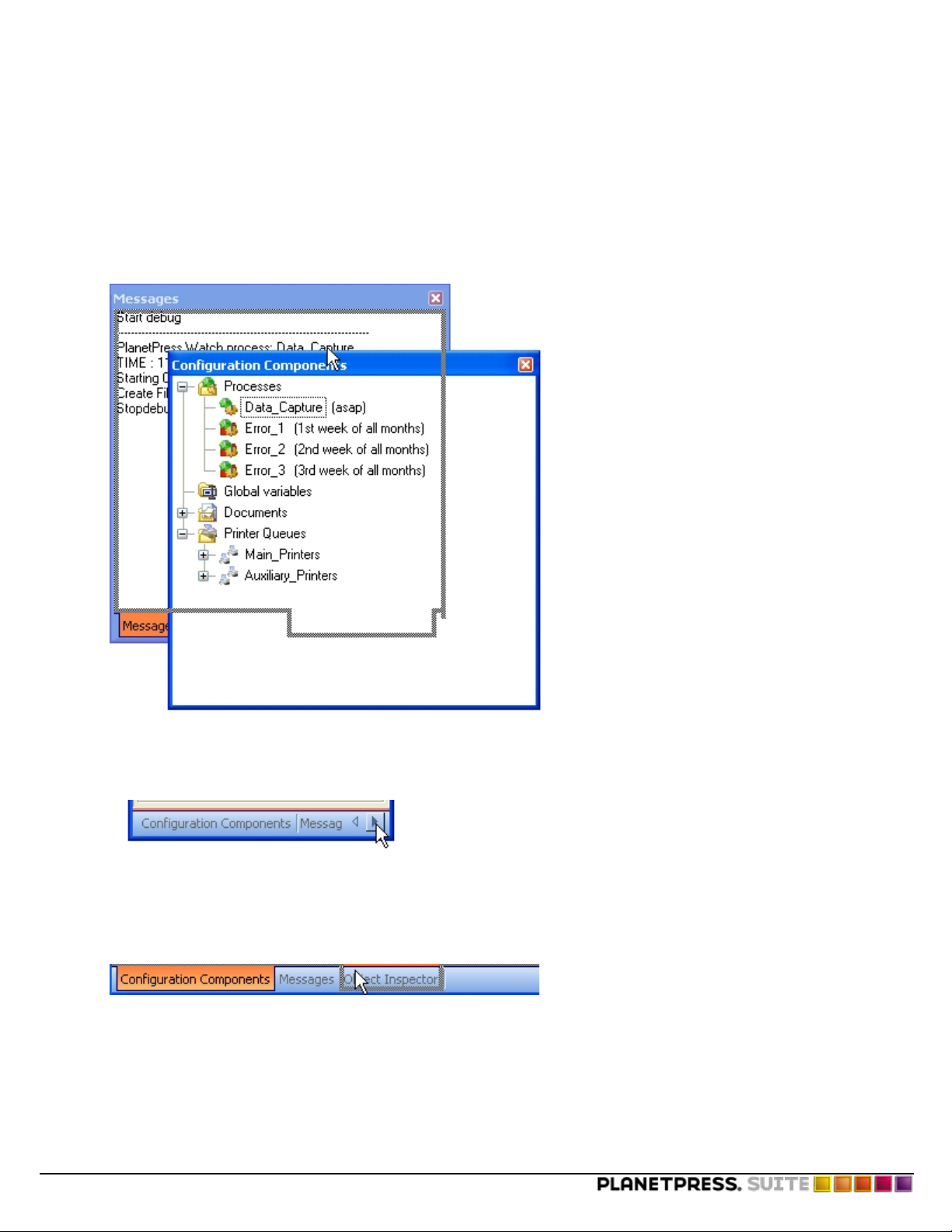

To combine areas:

l Click either a title bar (separate or attached areas) or a tab (combined areas) displaying the name of the Configuration

Components Pane, the Object Inspector or the Messages area and move the mouse pointer. As you drag, a rectangle is displayed to show the landing position. Drag the rectangle directly over another area and release the mouse button when the shape of a tab appears at the bottom of the rectangle.

To switch between combined area:

l At the bottom of the combined area, click the tab of the area you want to bring to the top. If all the tabs are not dis-

played, use the left and right arrows to navigate between them.

The left and right arrows lets you show hidden tabs.

To reorder tabs in a combined area:

l At the bottom of the combined area, click the tab of the area you want to move, drag it to the left or right and drop it at

the desired position.

Dragging a combined area to new position.

To take an area out of a combined area:

l Do one of the following:

l Click the tab displaying the name of the area you want to take out and move the mouse pointer so as to drag the

area away from the combined area. As you drag, a rectangle is displayed to show the landing position. Release the mouse button when the rectangle is away from the combined area.

The PlanetPress Suite Workflow Tools Configuration Program

l Double-click the tab of the area you want to take out of the combined area. The area will jump outside of the

combined area.

To attach areas:

Click either a title bar (separate areas) or a tab (combined areas) displaying the name of the Configuration Components

1. Pane, the Object Inspector or the Messages area and move the mouse pointer.

As you drag, a rectangle is displayed to show the landing position.

Drag around to the edges of another area and release the mouse button when the rectangle appears to the left or right, or

above or below the other area. The rectangle should not display a tab at its bottom, otherwise the areas will not be attached but rather combined.

Note that you can attach an area to a group of combined areas, as well as change combined areas into attached areas. When attaching previously combined areas, you may find it easier to do it in two steps: begin by taking the area out of the combined area and then try attaching it.

3. Resize each part of the new group as desired.

Attaching an area to a group of combined areas. The rectangle showing the landing position is not tabbed and the area will therefore be moved next to the combined area.

To maximize or restore attached areas:

l Do one of the following:

l To maximize a vertically attached area, click the upward pointing arrow on its title bar. l To restore a vertically attached area, click the downward pointing arrow on its title bar. l To maximize a horizontally attached area, click the left pointing arrow on its title bar. l To restore a horizontally attached area, click the right pointing arrow on its title bar.

The PlanetPress Suite Workflow Tools Configuration Program

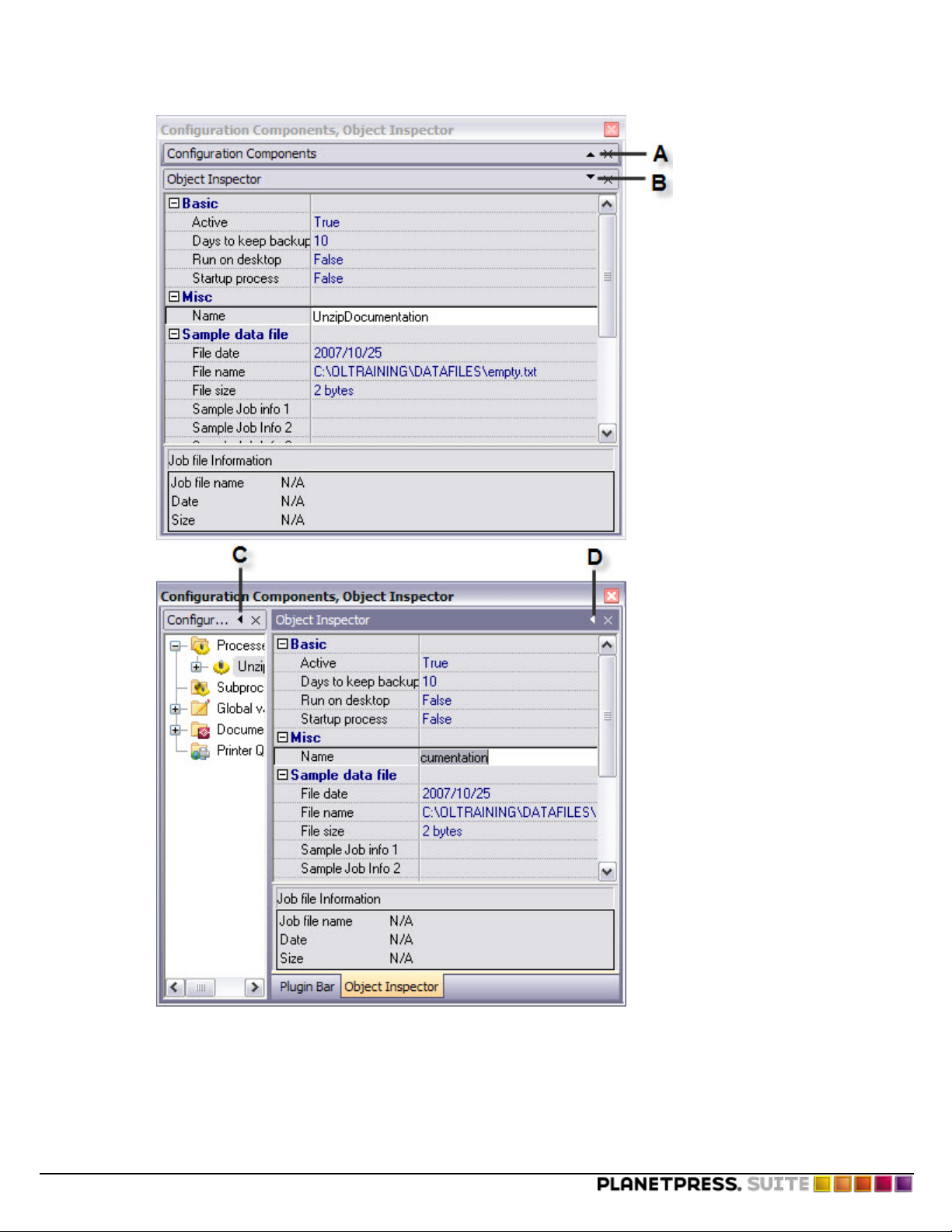

A) Click to maximize this area. B) Click to restore this currently maximized area. C) Click to maximize this area. D) Click to restore this currently maximized area.

To take an attached area out of a group:

The PlanetPress Suite Workflow Tools Configuration Program

l Do one of the following:

l Click the title bar displaying the name of the attached area you want to take out and move the mouse pointer so

as to drag the area away from the group. As you drag, a rectangle is displayed to show the landing position. Release the mouse button when the rectangle is away from the group.

l Double-click the title bar of the area you want to take out. The area will jump outside of the group.

Resize the Program Window Areas

You can adjust the layout of the Program window by resizing one of the Program window areas.

This also applies to resizing a combined area (see "Combine and Attach Areas" (page 62)).

To resize a Program window area:

l Move the pointer to the edge of an area you want to resize to display the resize pointer, then click and drag to resize the

area.

Preferences

The PlanetPress Suite Workflow Tools Configuration program lets you configure a variety of options, from how the application itself looks or behaves, to plugin specific options.

Most of the PlanetPress Suite Workflow Tools preferences are located in the PlanetPress Suite Workflow Preferences window, accessible through the Preferences button in the PlanetPress Suite Button. Those preferences are:

l Appearance:

l "General User Options" (page 67) l "Object Inspector User Options" (page 67) l "Configuration Components Pane User Options" (page 68)

l Behavior:

l "Default Configuration User Options" (page 68) l "Notification Messages Preferences" (page 68) l "Sample Data User Options" (page 70) l "Network User Options" (page 70)

l Plug-in:

l "Logging User Options" (page 76) l "Messenger User Options" (page 76) l "HTTP Server Input User Options" (page 77) l "LPD Input Preferences" (page 78) l "Serial Input Service User Options" (page 78) l "Telnet Input User Options" (page 79) l "PlanetPress Fax User Options" (page 79) l "FTP Output Service User Options" (page 81) l "PlanetPress Image User Options" (page 81) l "LPR Output User Options" (page 83) l "PrintShop Web Connect Service User Options" (page 84)

Unless otherwise noted, preferences are saved automatically and applied immediately.

Other Preferences and Settings:

The PlanetPress Suite Workflow Tools Configuration Program

l The PlanetPress Suite Services dialog lets you select the account that the PlanetPress Suite Workflow Tools Service

uses to communicate on the server and the network. See "PlanetPress Suite Workflow Tools Service Logon" (page 18).

l You can change the appearance of the RunScript and XSLTEditor through the "Editor Options" (page 84) dialog.

General User Options

The available general user options are as follows:

Ribbon Color Scheme Group

l Blue:Sets the general interface color scheme to a blue color. l Silver:Sets the general interface color scheme to a silver (gray)color. l Black:Sets the general interface color scheme to a black (coal)color.

Colors group

l Variable properties: Select a color for the labels identifying variable property boxes. l Debug: Select the color applied to the PlanetPress Suite Workflow Tools Process area background when in Debug

mode.

l Highlighted tasks and branches: Select the background color for highlighted tasks and branches in the Process

Area’s invisible grid.

l Disabled tasks and branches: Select the background color for disabled tasks and branches in the Process Area’s

invisible grid.

Inactive process

l Color: Select the color to use to identify inactive processes in the Configuration Components Pane. l Bold: Select to use a bolded font to display inactive processes. l Underline: Select to use an underlined font to display inactive processes. l Italic: Select to use an italic font to display inactive processes. l Strikethrough: Select to use a strikethrough font to display inactive processes.

Object Inspector User Options

The available Object Inspector user options are as follows:

Colors group

l This window lets you set the color of individual Object Inspector elements. To change the color of a given element,

select it in the list box above and then choose a color from the drop-down list below.

Option group (right)

l Vertical line 3D: Select to display the vertical line between property names and their values using a 3-dimensional

effect.

l Use groups: Select to organize the display of properties into groups. Clear the selection to display properties in alpha-

betical order. When the Object Inspector displays properties in groups, it displays an expand/collapse button to the left of the name of the group for expanding or collapsing the group.

l Sunken active property: Select to use a recessed effect to display the currently selected property. l Border active property: Select to display a border around the currently selected property. l Show lines: Select to display lines between elements. l Line style: Select a style for the lines. l Reset to default: Click to reset all the Object Inspector options to their default values.

The PlanetPress Suite Workflow Tools Configuration Program

Configuration Components Pane User Options

The available Configuration Components Pane user options are as follows:

Colors group

l This window lets you set the color of individual Configuration Components Pane elements. To change the color of a

given element, select it in the list box above and then choose a color from the drop-down list below.

Options Group (Right)

l Line Style: Select the style (dotted or solid)of the line that connects the different objects in the Configuration Com-

ponents Pane.

l Selection rectangle:Select whether your selection rectangle (used to select multiple objects by dragging a rec-

tangle around multiple objects)will be displayed as a dotted line rectangle, or a blended rectangle (normally a blue rectangle with darker blue border).

l Button Style: Select whether to show the expansion links as either an arrow (points right for a closed tree, down for

an open tree)or a square (shows a minus symbol for an open tree, plus symbol for a closed tree).

l Show Tree Lines:Check to choose whether or not to display the lines that connect the different objects in the Con-

figuration Components Pane.

l Show Grid Lines:Check to choose whether or not to display grid lines between each object in the Configuration Com-

ponents Pane.

l Hot track:Check to choose whether or not to display the object in the Configuration Components Pane under the

mouse cursor as being underlined.

l Reset To Defaults:Click to reset all the Configuration Components Pane user options to their default values.

Default Configuration User Options

The available Default Configuration user options are as follows:

Use default configuration group

l Use default configuration:Check to use default input and output tasks when you create a new process. If this

group is not selected, each new process you will add will begin and end with unknown tasks.

l Default input task: Select an input task to use as the default input task when you add a new process. Click the Con-

figure button located to the right of this box to set the properties of the selected input task.

l Default output task: Select an output task to use as the default output task when you add a new process. Click the

Configure button located to the right of this box to set the properties of the selected output task.

l Enable Undo/Redo functionality: Select this option to enable or disable the Undo functionality. Disabling the

Undo/Redo functionality frees up a lot of memory and may thus speed up your system.

l Auto Save every: Select to enable the Auto Save functionality. The auto save delay is set in the box below (in min-

utes).

Notification Messages Preferences

Notification Messages preferences control the display of certain PlanetPress Suite Workflow Tools messages.

The available Notification Messages preferences are as follows:

l User mismatch: Select to have PlanetPress Suite Workflow Tools Configuration display a promptwhen a different

user opens PlanetPress Suite Workflow Tools Configuration.

l Task deletion: Select to prompt for confirmation when deleting a task.

The PlanetPress Suite Workflow Tools Configuration Program

l Document deletion: Select to have PlanetPress Suite Workflow Tools Configuration prompt for confirmation when

deleting a document.

l Group of documents deletion: Select to have PlanetPress Suite Workflow Tools Configuration promptfor con-

firmation when deleting a group of documents from the Configuration Components Pane.

l Empty group deletion: Select to have PlanetPress Suite Workflow Tools Configuration prompt for confirmation to

delete a group when you remove the last of its member objects. If you clear this option, groups are automatically deleted when their last members are removed.

l Invalid name: Select to have PlanetPress Suite Workflow Tools Configuration warn you when you try to rename an

object in the Configuration Components incorrectly. Names can include letters, numbers, and underscores; the first character of a name cannot be a number.

l Printer queues document group update: Select to have PlanetPress Suite Workflow Tools Configuration prompt

you when adding a document to a group under the Documents category in the Configuration Components Pane. You are only prompted if the group of documents is assigned to one or more printer queues. PlanetPress Suite Workflow Tools Configuration can add the new document to all assigned groups under the Printer Queues category automatically.

l Configuration send with wrong user: Select to have PlanetPress Suite Workflow Tools Configuration prompt for

confirmation when you are sending a configuration while logged onto the computer as a user other than the one associated with the PlanetPress Suite Workflow Tools service.

l Configuration save: Select to have PlanetPress Suite Workflow Tools Configuration prompt you to save the current

configuration when exiting PlanetPress Suite Workflow Tools Configuration or before opening another configuration file.

l Configuration send: Select to have PlanetPress Suite Workflow Tools Configuration prompt you to send the current

configuration to run in the PlanetPress Suite Workflow Tools service when exiting PlanetPress Suite Workflow Tools Configuration or before opening another configuration file.

l Nothing to configure: Select to have PlanetPress Suite Workflow Tools Configuration notify you when you try to set

properties for a task that does not have any properties. For example, the Error Bin input has no properties because it only inputs jobs sent to it through On Error properties of tasks in other processes. When you attempt to edit its properties, it displays the "nothing to configure" message when this option is selected.

l No registry: Select to have PlanetPress Suite Workflow Tools Configuration notify you if it cannot find an install loca-

tion in the registry. In such cases, the path of the currently running PlanetPress Suite Workflow Tools Configuration executable is used as the install path.

l PlanetPress Watch 3 documents and job commands transfer: Select to have PlanetPress Suite Workflow

Tools Configuration display a prompt when you import a configuration from PlanetPress Watch Configuration 3.x that allows you to transfer documents and job commands.

l Plugin not found: Select to have PlanetPress Suite Workflow Tools Configuration display a prompt when you import

a configuration, and one or more of the plugins used in the configuration are not found on the computer running PlanetPress Suite Workflow Tools Configuration.

l Prompt on configuration overwrite: Select to have your PlanetPress Suite Workflow Tools prompt for con-

firmation when a configuration is about to overwrite a file with the same name.

l Prompt on no active process to send: Select to have your PlanetPress Suite Workflow Tools prompt for con-

firmation when attempting to send a configuration although no processes are active.

l Prompt on overwrite of a document: Select to have your PlanetPress Suite Workflow Tools prompt for con-

firmation when a document that is being imported using File | Import Document is about to overwrite an existing document.

l Prompt on Document overwrite when your PlanetPress Suite Workflow Tools is running: Select to

have your PlanetPress Suite Workflow Tools prompt for confirmation when a document that is being imported using File | Import Document is about to overwrite an existing document. The only difference between this option and the previous option is thatthis option will warn the user that the document about to be overwritten may currently be used by PlanetPress Suite Workflow Tools.

The PlanetPress Suite Workflow Tools Configuration Program

l Prompt on Importing a non-PlanetPress Document: Select to have your PlanetPress Suite Workflow Tools

prompt for confirmation when a document that is not a valid PlanetPress document is about to be imported. This may occur if a non-PlanetPress document will inadvertently have a PP4 or PSI file extension.

l Prompt on Resetting Document Attributes: Select to have your PlanetPress Suite Workflow Tools prompt for

confirmation when importing a hidden or read-only document using the File | Import document command. By confirming the import, you allow your PlanetPress Suite Workflow Tools to reset the document’s attributes to ’Visible’ and ’Read and Write’.

Sample Data User Options

Sample Data user options control the way the Data Selector displays the sample data file.

The available sample data user options are as follows:

l Select Font: Click to access the Font dialog box to select the font in which the Data Selector displays the sample data

file.

l Default text editor: Contains the complete path and name of the executable file of the application used as the

default text editor. For Windows Notepad, only the executable name (Notepad.exe) is required.

l Browse button:Click the browse button to navigate to your executable instead of typing the path and executable

name, then click OK.

Network User Options

Network user options let you Configure NetWare® Login user options, so that the PlanetPress Suite Workflow Tools can access your Novell® NetWare network. The following procedure also lets you choose the Universal Naming Convention (UNC), which removes inconsistencies when accessing paths on Novell and other networks.

The available network user options are as follows:

NetWare Login group

l NetWare Login: Check to enable the user options PlanetPress Suite Workflow Tools requires to access NetWare

resources. When you select this option, you must enter values in the Username, Password, and Tree boxes below to properly log in to NetWare (the other properties are optional).

l Username: Enter your NetWare username. This is the user the PlanetPress Suite Workflow Tools service uses to log

in to NetWare at runtime. The service accesses resources as configured for this user.

l Password: Enter the NetWare password corresponding to the user you entered in the Username text box.

l Tree: Enter the Netware Directory Services (NDS) tree where the user resides. This is the user you entered in

the Username text box. Click Trees to navigate to the desired tree. You must enter a value for the Tree text box.

l Context: Enter the context on the NDS tree where the user you enter in the Username text box resides. l Server: Enter the server where the NDS tree you entered in the Tree text box resides. You do not have to spec-

ify a server if there is only a single configured server on your network. Click Servers to navigate to the desired server on which the NDS tree containing the user resides.

Expand folder paths in UNC (Universal Naming Convention) format: Select to expand all paths used in the configuration to UNC. This converts map drives such as “f:\, to absolute paths referenced from a server in the format “\\servername\shared-resource-pathname”. When you select this option, the next time you configure a task after editing properties and clicking OK in its properties dialog box, entered paths are expanded to UNC format.

You can leave the Context box empty if there is a single root context on your NDS tree, if you can perform a contextfree login, or if you enter a server name in the Server box. PlanetPress Suite Workflow Tools and PlanetPress Image

The PlanetPress Suite Workflow Tools Configuration Program

use the same security context when connected to a NetWare server and they each use one connection. Also note that using erroneous Tree or Context information may cause PlanetPress Suite Workflow Tools and its services to crash.

PlanetPress Capture User Options

PlanetPress Capture User Options lets you change the PlanetPress Capture options relative to your Workflow server. This is where you set up your server and database and is also where you manage pens, documents and licenses.

The available PlanetPress Capture user options are:

l Mode: Choose between Server and Client mode. Client and Server mode are used for multi-server architectures. l Port: Select the port used to connect two servers together. The default value is 5864. l Document and Pattern Database group

l Status:Displays the status of the database. l Use ODBCDatabase:Check to ignore the default location for the Microsoft Access database (MDB) and use

an ODBCconnection to your own database location instead.

l ODBCSettings: Click to open the "PlanetPress Capture ODBC Settings" (page 72) dialog. l Test Connection:Click to verify the connection to the ODBCDatabase. l Reset Database:Click to reset the database to its original status. l Manage Documents...:Click to open the "PlanetPress Capture Document Manager" (page 71).

l Pen Database group

l Register pens on first use:Check if you want any new pen that sends a PGC to be added to the pen data-

base. Newly registered pens will not have any Pattern Sequence or owner information.

l Manage Pens...:Click to open the "PlanetPress Capture Pen Management Tool" (page 73) dialog. l License Manager...: Click to open the "PlanetPress Capture License Management" (page 74) dialog.

PlanetPress Capture Document Manager

The PlanetPress Capture Document Manager dialog is used to manage all the documents present in the PlanetPress Capture database that are currently open.

This window has the following options and controls:

l Documents lookup group

l Filter by:Select what information you want to look for in the documents database.

l Document Title:Search in document title as specified in the Capture Field Generator task. l Production date (YYYY-DD-MM):Search using the date at which the document was generated

using the Capture Field Generator task.

l Pen user (by description):Search using the description field in the Pen Database. l Pen user (by serial number):Search using the pen's serial number in the Pen Database. l Pattern Sequence:Search using the Pattern Sequence in the Document Database. l Template Name:The name of the document, corresponding to the name entered in the PlanetPress

Design document properties.

l PatternID:Search using the pattern's identification number. This can be printed on each document

next to the Anoto Statement (see PlanetPress Design User Guide).

l Operator:Select how to do the comparison

l Equal:The mask and database information are exactly the same. l Not equal:The mask and database information are different. l Less than:If the mask and database information are both numbers, the mask will be a smaller

number.

l Greater than:If the mask and database information are both numbers, the mask will be a larger

number.

l Less than or equal to:If the mask and database information are both numbers, the mask will either

be smaller or equal to the database information.

l Greater than or equal to:If the mask and database information are both numbers, the mask will

either be larger or equal to the database information.

l Contains:The mask is contained within the database information, at any location within the infor-

mation.

l Does not contain:The mask is not contained within the database information. l Mask:Enter the text or number to compare with the database information. l Search:Click to start the search.

l Manage documents group

l Select all:Click to select all the documents in the list. l Select none:Click to deselect all of the documents in the list. l View documents:Click to view all the documents along with any ink already present on them. "PDF Viewer"

(page 1).

l Close documents:Click to close the document and release the pattern it uses.

This will prevent the document to be further updated, may cause errors when docking any pen that signed the printed version of the document. This cannot be undone.

The PlanetPress Suite Workflow Tools Configuration Program

PlanetPress Capture ODBC Settings

This dialog is used to set up the connection to a PlanetPress Capture Database through an ODBCconnection.

To access this dialog, see "PlanetPress Capture User Options" (page 71).

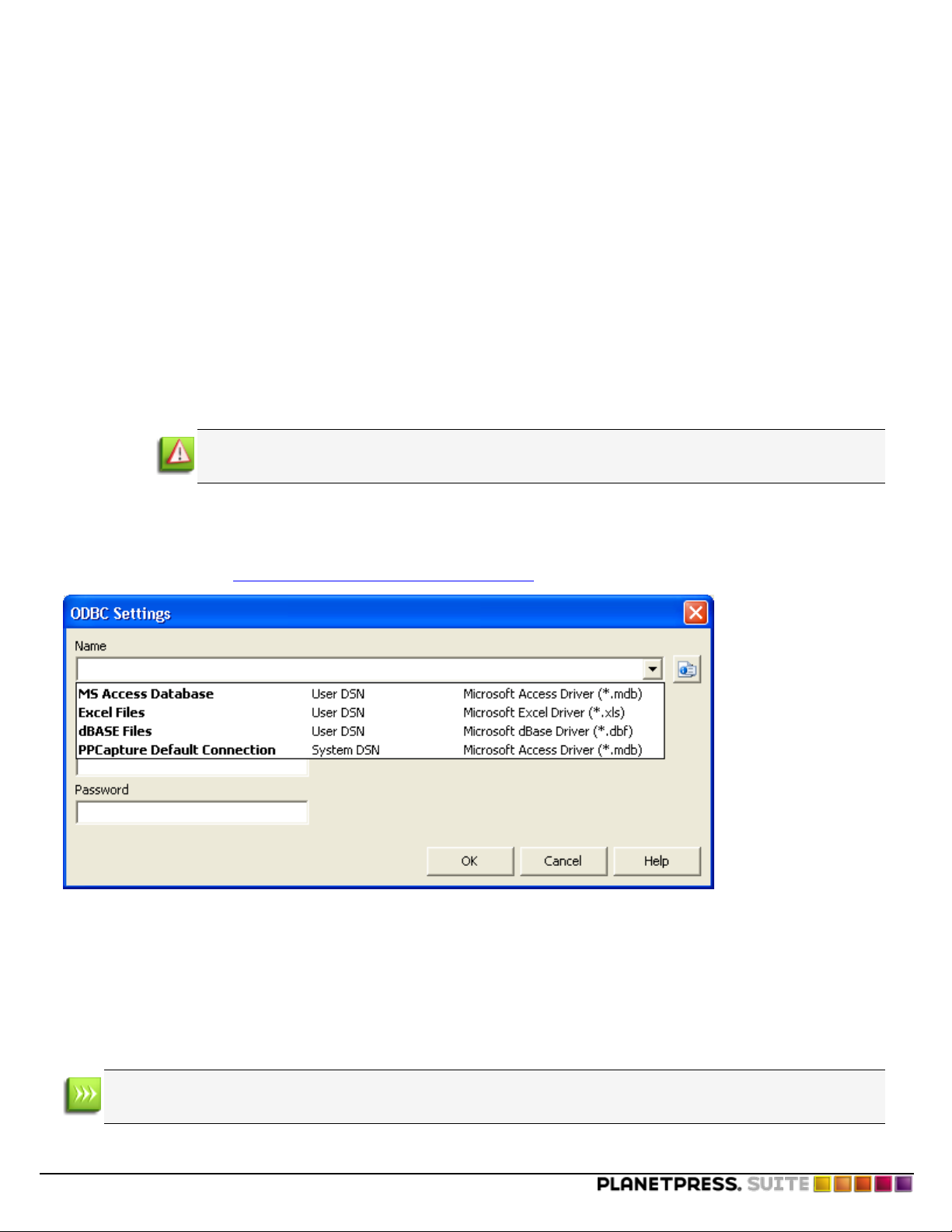

The ODBCSettings dialog

The following settings are available:

l Name:Click to displays and choose from a drop-down of each DSN(Data Source Name)available on the system. l Type:Click to display a drop-down of supported database types. This must correspond to the database type of the

DSNchosen in the previous option.

l Username:If the database is secured with a username and password, enter the username here. l Password:If the database is secured with a username and password, enter the password here.

In order for the database connection to be functional, you must ensure that the database Type correspond exactly to the one used by the DSN, and is part of the supported database types.

The PlanetPress Suite Workflow Tools Configuration Program

Database Considerations (ODBC)

On 64-bit operating systems, the ODBCData Sources created by the Data Source (ODBC)icon in the Administrative Tools will not appear here, as PlanetPress Suite is 32-bit and cannot access the 64-bit data sources. In order to create an ODBCconnection visible by PlanetPress, you will need to access the 32-bit version of the ODBCmanager, available in C:\Windows\SysWOW64\odbcad32.exe .

The following considerations should be kept in mind while working withODBCDatabases in PlanetPress Suite.

l Microsoft Access

l Database file (mdb)must be local to the PlanetPress Workflow computer. It cannot be located on a network

drive or another server.

l Total database size is limited to 4GBof data. l Total size of a single table is 2GB. l May be unstable in large implementations.

l MySQL

l Database can be in any location, but performance will depend on the speed of the connection between Plan-

etPress and the MySQLserver.

l MySQL's performance has been slower than SQLServer and SQLServer Express during our tests. l By default, MySQLis configured not to allow any SQLrequest larger than 16 megs. l In the event where 2 requests are made simultaneously on the same record, MySQLwill queue one of the

requests and execute it once the first one is done. In extremely rare cases this may cause a timeout on very large requests.

l MSSQL(Microsoft SQLServer)

l Database can be in any location, but performance will depend on the speed of the connection between Plan-

etPress Production and the SQLserver.

l In the event where 2 requests are made simultaneously on the same record, SQLServer will drop the most com-

plex request. Resubmitting the PGCfor processing should resolve this issue. This, however, should happen only rarely.

l When configuring the ODBCconnection, your must use the Microsoft version of the driver, and not the Native

SQLversion of the driver. This is due to a technical limitation of the native driver that interferes with the Plan-

etPress Suite database requests.

PlanetPress Capture Pen Management Tool

The Pen Management Tool screen is used to manage the pens that are registered in the PlanetPress Capture Database. The number of Anoto Digital Pens you may register on this screen depends on the licenses available within your PlanetPress Capture License.

This window has the following options and controls:

l Top Toolbar:

l Read PGCFile:Click to display a file open dialog. Browse to an existing PGCfile, and open it. PlanetPress Cap-

ture will read the serial number from the PGCfile and register the pen.

l Print Pen Activation File:Click to print a page containing a special pattern. Any pen that writes on this pat-

tern and is then docked will be registered in the database.

l Save Pen Data into Database:Once all your pens are entered in this window, click to save the list of pens

in the database.

l Pen Data List: Displays a list of registered pens and those pens you just added.

l Pen ID:The serial number of pen, as written on the Anoto Digital Pen.You can double-click this area to edit the

Pen ID if necessary.

The PlanetPress Suite Workflow Tools Configuration Program

l Pattern Sequence:The pattern sequence the pen is assigned to. You can double-click this area and edit the

pattern sequence as required.

l UserID:The name of the user assigned to this pen. You can double-click this area to edit the user ID. This can

also be custom information.

l Bottom Toolbar:

Button:Click to add a new line in the Pen Data List, then edit the information onthis new line.

Button:Place a checkmark on the line of any pen you wish to remove from the database, then click this but-

ton.

l Search in column Pen ID: Enter a search term for a Pen ID, then click the Search button. The Pen Data List

will highlight any pen containing your search term.

To register a new pen manually

Click on the icon

2. Enter the Pen ID (located on the pen after the word "Serial:")

3. If necessary, enter an optional pattern sequence and User ID(identifier of who will use the pen).

To register a pen using the registration pattern

1. Click on the Print pen activation file button in the top toolbar of this dialog.

2. Use the Windows Print dialog to print to the desired printer.

3. Write or make a line on the printed pattern.

4. Dock the pen in its cradle.

5. Click on the Read PGCFile button in the top toolbar of this dialog.

6. If necessary, enter an optional pattern sequence and User ID for each pen.

Multiple pens can be registered at once simply by writing on the registration pattern and then docking each pen before clicking the Read PGCfile button.

If the pen that is being registered already exists in the pen database, the "Replace User ID (Description) dialog appears, with the following options:

l Pen ID:Displays the Pen ID (serial number)to identify the pen l Old desc.:Displays the content of the User ID field for the pen as it is now. l New desc.:Type the new description to identify the pen l Replace:Click to save the modification to the description l No Change:Click to save the registration without modifying the description. l Modify:Click to enable edits in the Old desc. field. The current information can then be modified. After modifications,

click Apply to save the changes and exit the dialog.

l Cancel:Click to cancel any modifications to the pen registration.

PlanetPress Capture License Management

The PlanetPress Capture License Management window is used to manage the pen pack available in the installation of PlanetPress Capture. Each Pen Pack contains a limited number of pens that can be registered in the Capture Database. When the number of pens have been reached, new pens can no longer be registered.

If no pen pack is available, PlanetPress Capture functions in Demo Mode. In Demo mode, only one (1)pen can be registered in the pen management window. Also, the "Capture Fields Generator" (page 189) will be unable to produce more than 8 doc- uments with a pattern instead of the full 10,000.

To add a pen pack, PlanetPress Workflow Tools must be activated using a PlanetPress Production licence. if PlanetPress Production is in trial mode, no pen pack can be added because the Pen Pack uses the serial number.

This window has the following options and controls:

The PlanetPress Suite Workflow Tools Configuration Program

l PlanetPress Capture Pen Licenses group

l Import License...:Click to open the Import License dialog. Browse to a PPLIC(PlanetPress License) file on

your computer and open it to import the license. The PPLICoverwrites your current license, however it may contain more than one Pen Pack (your previous one and one you just purchased)and will display them individually.

l License List: Displays the licenses that have been added to this system.

l Pen License:The identification of the Pen Pack.

l Quantity Of Pens:The number of pens that can be registered with this pack.

l PlanetPress Production group

l Server Type: The type of server installed, normally PlanetPress Production Server. l Total pens:The total number of available pens on this server, each Pen Pack being added together.

PDF Text Extraction Tolerance Factors

When extracting text from a PDF(for example, through a data selection), a lot more happens in the background than what can be seen on the surface. Reading a PDFfile for text will generally return text fragments, separated by a certain amount of space. Sometimes the text will be shifted up or down, spacing will be different, etc. In some cases, every letter is considered to be a different fragment.

Text formatting features such as kerning, bold, exponential, etc, may cause these fragments to be considered as separate even if, to the naked eye, they obviously belong together.

The PDFText Extraction Tolerance Factors is used to modify the behavior of data selections made from PDFdata files from within PlanetPress Workflow. Each factor available in this window will determine if two fragments of text in the PDFshould be part of the same data selection or not.

The default values are generally correct for the greatest majority of PDF data files. Only change these values if you understand what they are for.

Delta Width

Defines the tolerance for the distance between two text fragments, either positive (space between fragments)or negative (kerning text where letters overlap). When this value is at 0, the two fragments will need to be exactly one beside the other with no space or overlap between them.

When this value is at 1, a very large space or overlap will be accepted. This may case "false positives" and separate words and text blocks may be considered as a single word if the value is too high.

Accepted values range from 0 to 1. The default value is 0.3, recommended values are between 0.05 and 0.30.

Delta Height

Defines the tolerance for the height and position difference between two target fragments. The higher the number, the more difference between the fragment's height(the tallest font character's height)will be accepted and the more vertical distance between fragments are accepted. Exponents, for example, are higher and lower.

When this value is 0, no vertical shift is accepted between two fragments. When the value is 1, the second text fragment can be shifted by as much as the height of the first fragment.

Accepted values range from 0 to 1. The default value is 0.15, recommended values are between 0.00 and 0.50.

The PlanetPress Suite Workflow Tools Configuration Program

Font Delta Height

Defines the tolerance for the difference in average height of fonts in the two target fragments. The higher the number, the more difference in average font heights will be accepted. The average font height is bigger in text written in uppercase than text written in lowercase.

At 0, the font size must be exactly the same between two fragments. At 1, a greater variance in font size is accepted.

Accepted values range from 0 to 1. The default value is 0.65, recommended values are between 0.60 and 1.00.

Gap

Defines how spaces between two fragments are processed. If the space between two fragments is too small, the text extraction will sometimes eliminate that space and count the two fragments as a single word. To resolve this, the Gap setting canbe changed. The lower this value, the higher the chance of a space being added between two characters. A value too low may add spaces where they do not belong.

Accepted values range from 0 to 0.5. The default value is 0.3, recommended values are between 0.25 and 0.40.

Logging User Options

Logging user options control the level of detail added to the PlanetPress Suite Workflow Tools log file. Since log files cover 24 hours of operation, choosing to log every task performed by PlanetPress Suite Workflow Tools may result in the creation of excessively large files.

Changing the logging options also affects the logs displayed in the PlanetPress Suite Service Console .

The available Logging user options are as follows:

l Log level group

l Startup and shutdown: Select to only track when the PlanetPress Suite Workflow Tools service is started

and stopped.

l Task success and failure: Select to only track when tasks in the processes running in a PlanetPress Suite

Workflow Tools configuration succeed and fail.

l Task success and failure with details: Select to track when the tasks in processes running in PlanetPress

Suite Workflow Tools succeed and fail, with details. Details can include why tasks fail and how successful tasks are executed.

l All events with details: Select to log everything thathappens in PlanetPress Suite Workflow Tools. This

includes when it starts and stops, the success and failure of tasks, and details on the success and failure of tasks.

l Delete log files after: Select how many days log files are kept before being deleted.

Messenger User Options

Apart from enabling communication between the various parts of PlanetPress Suite, the PlanetPress Suite Messenger also manages local instances of the PlanetPress Suite Alambic.

The available Messenger user options are as follows:

l PlanetPress Alambic options group

l Let me set up how many instances to run: Select this option if you want to limit the number of instances

of the Alambic thatPlanetPress Suite Workflow Tools can run. Then enter the number of instances, a value ranging from 1 to 32, in the box below. When this option is not selected, PlanetPress Suite Workflow Tools starts a minimum of three instances and a maximum of eight, based on the number of CPUs available on the server.

The PlanetPress Suite Workflow Tools Configuration Program

Note that this also affects self-replicating processes, which will not be able to replicate beyond the number of available threads.

l Close inactive instances after: If you want the PlanetPress Suite Messenger to close inactive instances of

the Alambic after a given number of minutes, enter a value in this box. Enter a value of ”0” if you do not want the PlanetPress Suite Messenger to terminate idle instances of the Alambic.

l Logging options group

l Delete log files after: Enter the number of days after which to delete the PlanetPress Suite Messenger serv-

ice logs. Each log covers a 24-hour period and is kept in the Log folder, which is located in the PlanetPress Suite installation folder.

l Verbose log: Select this optionif you want the log to contain a maximum amount of information.

HTTP Server Input User Options

HTTP server input user options control the server protocol aspects of the PlanetPress Suite Workflow Tools HTTP Server input tasks. This is where you enable and configure secure communication for the HTTP Server.

The available HTTP Server user options are as follows:

l Protocol options group l Port: Select the TCP port to use. The default port is 8080, the official HTTP alternate port, so as not to interfere with

the standard HTTP port (80). To block any regular HTTPtraffic (for example if only using HTTPSconnections) the port can be set to 0.

l Time out: Set the timeout period in seconds. The default value is 120 seconds. l Verbose log: Select to enable to keep a verbose log. Note that a communication log is generated whether or not this

option is selected. If you use a secure connection, the log will containextra information.

l Enable server for SSLrequests:Check this option to enable secure data exchange over the Web. This enables the

boxes below and lets you specify your secure communication settings.

l Root certificate: Enter the name of your root certificate file (including its complete absolute path). In many

cases, the root certificate and certificate will be one and the same.

l Certificate: Enter the name of your root certificate file (including its complete absolute path). l Key: Enter the name of your key file (including its complete absolute path). l Password: If your key file uses a password, enter it in this box. l Encryption protocol: Choose your cryptographic protocol (SSLor TSL).

l Disable SOAPServer:Check to disable all SOAPServer functionality.

SSL is used to accept secured, encrypted requests from web clients and requires a certificate delivered by an approved authority. SSLcan also be called HTTPS, though that is a misnomer. For more information on SSLand how to purchase a certificate, please see Q10694 on SSL.com.

HTTPServer Input 2 User Options

The HTTPServer Input 2 user options are used to enable serving static HTTPresources, as part of an HTTPServer workflow. These resources are referred to within the HTMLresponse file and do not pass through a process to get served so the process is very quick. Static resources are especially useful for additional formatting of HTMLfiles such as JS(Javascript) scripts, CSSfiles and images, since they are not dynamic and generally shared between multiple dynamic files.

The available HTTP Server 2 user options are as follows:

l Serve HTTPresource:Check to activate static resource serving.

l Resource action name: Enter a name that will be simulated as a folder in your HTTPstructure. For exam-

ple, if you enter images in this box, you would refer to any files in this folder as href="images/file.ext" .

The PlanetPress Suite Workflow Tools Configuration Program

l Resource folder:Type it the path of the folder where your resources are located, or click the Browse button

and choose the folder in the browse dialog.

Subfolders are accepted in the structre, so if your resource folder contains a folder called faces, you could refer to a file in this folder as href="images/faces/johnsmith.jpg".

LPD Input Preferences

LPD input preferences control certain functions of the PlanetPress Suite Workflow Tools LPD Server service, which in turn has an impact on LDP input tasks performed by PlanetPress Suite Workflow Tools on a given computer. The LPD Server service receives jobs using TCP/IP from LPD servers.

For information on the properties set in individual LDP input tasks, refer to “LPD Input Task Properties”.

The available LPD input preferences are as follows:

l Protocol options group

l Log all Winsock and network messages: Select to have PlanetPress Suite Workflow Tools keep a log of

all Winsock and other network messages that occur through the LPD service. These are messages related to jobs being sent from other systems through LPR, and being received by PlanetPress Suite Workflow Tools via LPD. Since these messages can accumulate, you have the option of notlogging them. Log files are kept in the Log folder, which is located in the PlanetPress Suite installation folder. They are named lpddate.log, where date is the current date in the yyyymmdd numerical format. Note that changing this option also affects the log displayed in the PlanetPress Suite Service Console.

l No source port range restriction: Select to remove any restrictions on the port of the LPR client computer

thatPlanetPress Suite Workflow Tools accepts data files from. Clear to have PlanetPress Suite Workflow Tools only accept data files sent from ports ranging between 721 and 731 on the LPR client computer.

l Strict RFC 1179 control file: Select to disable control file extensions the LPD service implements for some

flavors of UNIX and LPR. This enforces the basic Line Printer Daemon protocol.

l Enable BSD compatibility mode: Select to have the LPD service emulate a BSD UNIX server. Although RFC

1179 is supposed to describe the BSD LPD/LPR protocol, and the LPD input in PlanetPress Suite Workflow Tools is RFC1179-compliant, there are some incompatibilities between the RFC and the BSD implementation. This option compensates for some of these incompatibilities. If you are not sure about the source of your output, clear this option.

l LDP settings group

l Timeout (sec): Set the time in seconds the PlanetPress Suite process waits for the transfer of bytes in the data

file before ending the transfer of this file. The default value for the Time-out property is 7200 seconds (2 hours). On a time-out, partially received data files are not passed to the rest of the process; the LPD input resets and is ready to receive further data files. Log messages include the time-out duration.

Serial Input Service User Options

Serial input user options control certain functions of the PlanetPress Suite Workflow Tools Serial Capture service, which in turn has a direct impacton all Serial input tasks performed by PlanetPress Suite Workflow Tools on a given computer.

The available Serial input user options are as follows:

l Serial settings group

l Serial port: Select the port of the computer where the Serial input is connected to (COM1 through COM8). l Baud rate: Select the baud rate of the Serial input. The baud rate is the number of bits transferred per second.

The transferred bits include the start bit, the data bits, the parity bit (if defined), and the stop bits.

The PlanetPress Suite Workflow Tools Configuration Program

l Data bits: Select the number of data bits defining the incoming data file on this serial port. The data bits trans-

ferred through a serial port represent the data content. This excludes the start, parity, and stop bits: these are bits defining the beginning and end of each unit of transferred data, as well as error detection provided by the parity bit. The majority of serial ports use between five and eight data bits. Binary data is typically transmitted as eight bits. Text-based data is transmitted as seven bits or eight bits. If the data is based on the ASCII character set, a minimum of seven bits is required. If an eighth bit is used, it must have a value of 0. If the data is based on the extended ASCII character set, eight bits must be used.

l Parity: Select the type of parity used for error detection. The parity transfers through the serial connection as a

single bit. It is used to verify that each set of data bits transfers correctly. It is then stripped away before the data file passes through the rest of the PlanetPress Suite Workflow Tools process. Select None to ignore all par- ity bits; no error detection occurs.

l Stop bits: Since most serial ports operate asynchronously, the transmitted byte must be identified by start and

stop bits. The start bit indicates when the data byte is aboutto begin and the stop bit(s) indicates when the data byte was transferred. The start bit is always 0 to mark the beginning of the byte, but the stop bit can be a single 1, or two bits each with a value of 1.

l Time-out: Set the time in seconds the PlanetPress Suite Workflow Tools process waits for the transfer of bytes

in the data file before ending the transfer of this file. On a time-out, partially received data files are not passed to the rest of the process; the Serial input resets, ready to receive further data files.

l Job delimiters: Enter the strings thattell PlanetPress Suite Workflow Tools the data file being retrieved through the

Serial input is complete. Each line in the Job delimiters text box is a different delimiter. You can enter as many delimiters as you want, one per line. The three default delimiters that appear are three of the most commonly recognized end of a file delimiters.

l Log (verbose): Select to keep a log of errors and other information related to the Serial input. Since these messages

can accumulate, you have the option of not logging them.

Telnet Input User Options

The Telnet input user option controls the log of the PlanetPress Suite Workflow Tools Telnet Capture service. Since PlanetPress Suite Workflow Tools lets you monitor multiple Telnet inputs simultaneously, the port setting for all Telnet input tasks cannot be set in the user options.

The available Telnet input user options are as follows:

Protocol options group

l Log all Winsock and network messages (very verbose): Select to have PlanetPress Suite Workflow Tools

keep a log of all Winsock and other network messages that occur from the Telnet input. These messages are related to files sent from other systems using a telnetconnection. Since these messages can accumulate, you have the option of not logging them.

l Use Job Delimiters:Check this option if your Telnet input is a single stream that can contain multiple jobs. The box

lets you enter one or more possible delimiters (separated by a line return), either a direct string(such as %%EOJOB)or an ascii character (\001). For a list of ascii characters, see http://www.asciitable.com/.

PlanetPress Fax User Options

PlanetPress Fax user options control certain functions of the PlanetPress Fax service, which in turn has a direct impact on all PlanetPress Fax output tasks performed on a given computer. Bear in mind that PlanetPress Fax output tasks included in a given PlanetPress Watch configuration can be performed by a PlanetPress Fax installation running on a different computer, typically one that runs only PlanetPress Fax and the faxing application that actually sends the fax. When you change the user options on a given computer, only that computer is affected. So you should consider changing the PlanetPress Fax user options on the computer that actually performs the PlanetPress Fax output tasks.

The PlanetPress Suite Workflow Tools Configuration Program

The changes you make to the PlanetPress Fax user options are stored in the PlanetPress Fax configuration file. They will be applied when PlanetPress Fax is started.

The available PlanetPress Fax user options are as follows:

l Delete log after: Enter the number of days after which to delete the PlanetPress Fax service log. Each log covers a

24-hour period and is kept in the Log folder, which is located in the PlanetPress Suite installation folder (on the computer that actually performs the PlanetPress Fax output tasks).

l Fax service: Select the faxing program to which PlanetPress Fax sends its documents for faxing. Each faxing program

has its own options and changing this option also changes the options below to reflect the following:

WinFax Pro option

l Dialing format: Select how you want PlanetPress Fax to read the fax number in the data selection and send it to Win-

Fax PRO. The dialing format you select here must be identical to the one you set in WinFax PRO; a discrepancy between the two may result in WinFax PRO dialing incorrect fax numbers. Select Default to have PlanetPress Fax set the dial prefix, long distance prefix, area code, and fax number according to the content of the data selection, and send the result to WinFax PRO. WinFaxPRO sets the dial prefix, long distance, prefix, and area code, and fax number to the ones it receives from PlanetPress Fax. If any of the values it receives from PlanetPress Fax are empty, it uses its own default values. For example, if the data selection did not contain a dialing prefix, WinFax PRO uses its default dialing prefix. Select Dial as entered to limit PlanetPress Fax to removing any spaces or parentheses that appear in the data selection, and sending the result to WinFax PRO. WinFax PRO dials the result exactly as it receives it from PlanetPress Fax.

Note that WinFax Pro scales fax pages with the following minimum settings:

l Raster width: 1728 dpi l Raster height: 2158 dpi l Raster resolution: 196 dpi

Windows Fax options

l Report Failures: Select to have PlanetPress Fax generate a report whenever the maximum number of retries for a

single fax is exceeded. The error generated by the Windows Fax Service is also logged in the report. Note that when

PlanetPress Fax is unable to send a fax because an empty fax number is used as the only recipient for a document, a failure will not be reported but an error will be logged.

l Report Success: Select to have PlanetPress Fax generate a report whenever one of the faxes in the PlanetPress Fax

Job reaches its destination successfully or at least as far as the Windows Fax service is concerned.

l Report Folder: Enter or select the location of the report file. PlanetPress Fax generates report file names auto-

matically with the filename extension PFX. The report file is copied to the specified Report folder only after all fax transmissions in a PlanetPress Fax job are completed or have exceeded the maximum number of retries. This folder can then be used as an input for a PlanetPress Watch process for monitoring the status of PlanetPress Fax jobs. The postscript (PS) file for the job is also copied with the report file and can be printed, sent by e-mail, or archived as specified by the PlanetPress Watch process.

l Expand folder paths in UNC (Universal Naming Conventions) format: Select to have PlanetPress Fax use

complete network server path names (\\servername\sharename\path\filename). This naming convention works well with Windows operating systems, Novell NetWare, and other operating systems when using a local naming system (such as the DOS naming system in Windows) would result in “File not found” error messages.

l Dialing options: Click to set the appropriate options as required. Since these options are specific to the faxing pro-

gram, refer to the faxing program’s documentation for more information.

Captaris RightFax options

l RightFax Printer: Select a RightFax printer. A RightFax printer is a fax driver that makes it possible to send faxes

automatically. This printer will output faxes without prompting the user for fax addressing information. For more

The PlanetPress Suite Workflow Tools Configuration Program

information, refer to Captaris RightFax documentation.

l Activation: Click to enter activation codes for the PlanetPress Image service installed on the same computer as Plan-

etPress Watch. If you have already activated the PlanetPress Image service from its Control Panel applet, this is reflected when you open the activation dialog box by clicking this button.

l Check for updates: Click to access the Objectif Lune website to search for updates to PlanetPress Image. You are

guided through the updating process with the PlanetPress Suite Update Service wizard.

l About: Click to display an Aboutdialog box for PlanetPress Fax. This dialog box contains information such as the ver-

sion number, whether the software is activated or the number of days remaining in the trial.

l Select Language: Click to select a different interface language for the PlanetPress Fax Configuration applet. Note

thatthis button is not displayed if you edit the PlanetPress Fax options directly (not via PlanetPress Watch Configuration program).

FTP Output Service User Options

FTP output user options control certain functions of the FTP Client service, which in turn has a direct impact on all FTP output tasks performed by PlanetPress Suite Workflow Tools on a given computer.

The available FTP output user options are as follows:

l Protocol options group

l Log all Winsock and network messages: Select to have PlanetPress Suite Workflow Tools keep a log of

all Winsock and other network messages that occur through the FTP output. These messages are related to jobs sent from PlanetPress Suite Workflow Tools to a server via an FTP output, which in turn uses the FTP output service. Log files are kept in the Log folder, which is located in the PlanetPress Suite installation folder. They are named ftpdate.log, where date is the current date in yyyymmdd numerical format. Note that changing this option also affects the log displayed in the PlanetPress Suite Service Console.

l Interval: Select the interval (in seconds) at which the FTP service is to dispatch jobs from the ftpPut folder to

the FTP sites.

l Back up job on error: Select to move the job file to a local folder ftpPut\error if an error occurs while send-

ing a job via the FTP output. This folder is relative to your install folder.

l FTP Port: Select the port number that you want PlanetPress Suite Workflow Tools to use for all FTP output

tasks. The recommended port is 21 (the default setting).

PlanetPress Image User Options

PlanetPress Image user options control certain functions of the PlanetPress Image service, which in turn has a direct impact on all PlanetPress Image output tasks performed on a given computer. These include error and logging options, PlanetPress Search database options, as well as networking and email options.

Bear in mind that PlanetPress Image output tasks included in a given PlanetPress Suite Workflow Tools configuration can be performed by a PlanetPress Image installation running on a different computer, typically one that runs only PlanetPress Image. When you change the user options on a given computer, only that computer is affected. So you should consider changing the PlanetPress Image user options on the computer that actually performs the PlanetPress Image output tasks.

The changes you make to the PlanetPress Image user options are stored in the PlanetPress Image configuration file (ppim- age.cfg). They will be applied when PlanetPress Image is started.

The available PlanetPress Image user options are separated in four different sections:

PlanetPress Image 1 or logging tab

l Administrator’s address(es): Enter one or more system administrator email addresses to which error and other

messages related to the creation of PDFs/images by PlanetPress Image are sent. Separate multiple email addresses

The PlanetPress Suite Workflow Tools Configuration Program

with semi-colons (;).

l Send to the administrator group

l Daily log: Select to send an email to the administrator every day at midnight (according to the local system

clock) reporting the daily activity of PlanetPress Image. The log is sent to all addresses you enter in the Administrator’s address(es) text box.

l Error Log: Select to send an email that includes the current error log to the administrator when an error

occurs. The error log is sent to all addresses you enter in the Administrator’s address(es) text box.

l Error file: When enabled, sends an e-mail with an attachment of the offending file when an error occurs in the

PlanetPress Image output task. Additionally, a backup of the job is created in the Error folder, which is located in the PlanetPress Suite installation folder.

l Name or address not resolved: Select to send an email to the administrator when a name or address in the doc-

ument selected to be used in PlanetPress Image cannotbe resolved.

l Delete log after: Enter the number of days to wait before deleting the log of the generated PlanetPress Image out-

put. Each log file covers a single 24-hour period and is kept in the Log folder, which is located in the PlanetPress Suite installation folder. This log may be on the local computer running PlanetPress Suite Workflow Tools or on another computer on your network.

l Activation: Click to enter activation codes for the PlanetPress Image service installed on the same computer as Plan-

etPress Suite Workflow Tools. If you have already activated the PlanetPress Image service from its Control Panel applet, this is reflected when you open the activation dialog box by clicking this button.

l Check for updates: Click to access the Objectif Lune website to search for updates to PlanetPress Image. You are

guided through the updating process with the PlanetPress Suite Update Service wizard.

l About: Click to display an Aboutdialog box for PlanetPress Image. This dialog box contains information such as the

version number, whether the software is activated or the number of days remaining in the trial.

l Select Language: Click to select a different interface language for the PlanetPress Image Configuration applet. Note

thatthis button is not displayed if you edit the PlanetPress Image options directly (not via PlanetPress Suite Workflow Tools Configuration program).

PlanetPress Image 2 or database tab

Add PDF to PlanetPress Search database group:Select to populate a PlanetPress Search database using the doc-

uments created by PlanetPress Image and to activate the related options. Refer to the PlanetPress Search User Guide for more information on this PlanetPress Suite software.

l Database type: Select the type of the database in which you want to create a table (Access, or SQL Server). l Connection time-out: Enter the time, in seconds, that the connection to the database is maintained while no action

is taking place before the connection is severed.

l Database directory: Enter the path of the directory in which the Access database is located, or use the Browse but-

ton to navigate to, and select, the directory. This option is available only when you select Access database in the Database type box.

l Data source name: Enter the name of the computer on which the database runs. This option is available only when

you select SQL Server database or Oracle database in the Database type box.

l Use default database: Select to use the default database associated with your user profile on that SQL Server or

Oracle database. Clear to enter the name of the database in the box that appears.

l Use Windows NT Integrated security: Select to use your Windows user name and password to log onto the SQL

database.

l User ID: Enter the user id required to access the database to which you are adding new PDI files from the generated

PDF files. If you are using an SQL database, enter the login name you chose when you configured the SQL database (refer to the “Using PlanetPress Search with an SQL Server Database” section of the PlanetPress Search User Guide).

l Password: Enter the password required to access the database. l Test Connection: Click to verify that PlanetPress Image can connect to the specified database.

The PlanetPress Suite Workflow Tools Configuration Program

l Enforce global table creation: Select this option, as it ensures that all database users are granted access to the

database. This option is available only when you select SQL database in the Database type box.

PlanetPress Image 3 or network tab

The options in this section are identical to the ones in the "Network User Options" (page 70) section. However, they determine how PlanetPress Image will interact with your Novell NetWare system, not the PlanetPress Suite Workflow Tools Service.

PlanetPress Image 4 or login tab

l Use Microsoft Outlook: Select to use Microsoft Outlook on the host computer running PlanetPress Image to send

the error messages to the administrators. The host computer must be running Outlook, and PlanetPress Suite Workflow Tools must have access to Outlook. Outgoing emails appear in the outbox of Outlook, and is sent whenever Outlook is set to send email.

l Use SMTP mail group:Check to activate this group’s options and to use Simple Mail Transfer Protocol (SMTP) to

send the error messages to the administrators. Note that if you select this option, you will be required to enter information in the Name, Email address and Outgoing mail (SMTP) boxes.

l Name: Enter the name of the user sending the error messages to the administrators. l Organization: Enter the name of the organization of the user sending the error messages to the admin-

istrators.

l Email address: Enter the email address of the user sending the error messages to the administrators. l Reply address: Enter the reply address that recipients use to reply to the error messages. l Outgoing mail (SMTP): Enter the IP address of the server that PlanetPress Suite Workflow Tools uses to

send the emails via SMTP.

l Server requires authentication: Select if the outgoing server used to send the emails via SMTP requires

authentication. Note that if you select this option, you will be required to enter information in the Account name and Password boxes below.

l Account name: Enter the account name of the user on the server to be able to send emails via SMTP.

You must select Server requires authentication to enable this field.

l Password: Enter the password corresponding to the Account name of the user on the server to be able

to send email via SMTP. You must select Server requires authentication to enable this field.

LPR Output User Options

LPR output user options control certain functions of the LPR Client service, which in turn has a direct impact on all LPR output tasks performed by PlanetPress Suite Workflow Tools on a given computer.

The available LPR output user options are as follows:

l Protocol options group

l Log all Winsock and network messages: Select to have PlanetPress Suite Workflow Tools keep a log of

all Winsock and other network messages that occur through the LPR output. These messages are related to jobs being sent from PlanetPress Suite Workflow Tools to an LPD or LPD-compatible printer. Logs are kept in a Log folder relative to your install folder. They are named lprdate.log, where date is the current date in yyyymmdd numerical format. Note that changing this option also affects the log displayed in the PlanetPress Suite Service Console.

l Print banner pages between jobs: Select to print banner pages between each job processed and output

from the LPR output. The banner page includes details of the job being printed, including the job file name and the user name on the host computer running the LPR output client.

l No source port range restriction: Select to remove any restrictions on the port PlanetPress Suite Work-

flow Tools uses to send the job file via the LPR/LPD protocol. Clear to restrict the port used to send the job to one in the range between 721 and 731.

l Print up to: Select the maximum number of files that can be simultaneously sent to print by the LPR output

service.

l Error handling group

l Max. retry period: Select the maximum time period, in hours, within which PlanetPress Suite Workflow Tools

attempts to dispatch the job using the LPR output before giving up. Note that entering a maximum retry period of 0 hours disables retries altogether.

l Retry interval: Select the interval, in seconds, at which time PlanetPress Suite Workflow Tools attempts to dis-

patch the job using the LPR output. This takes place only within the Max. retry period, after which the attempt ends.

l Keep a backup when error occurs: Select to move the job file to a local folder relative to your install folder

called pplpr\error in the case of an error.

l LPR settings group

l Time-out: Set the time in seconds the PlanetPress Suite Workflow Tools process waits when it sends jobs

using the LPR protocol. The default value for the Time-out property is 7200 seconds (2 hours). On a time-out, partially sent data files are not passed to the rest of the process; the LPR output resets and is ready to send further data files. Log messages include the time-out duration.

l Polling interval (seconds): Select the period of time—the default is 4 seconds—for which PlanetPress Suite

Workflow Tools is to wait when it finishes dispatching jobs to the LPR printer queues before polling the LPR output folder again.

The PlanetPress Suite Workflow Tools Configuration Program

PrintShop Web Connect Service User Options

PrintShop Web Connect service preferences control the credentials to log into the PrintShop Web server.

The available preferences are as follows:

l Username: Enter the username of a valid PrintShop Web user, mostly operators. l Password: Enter the password associated with the username on the PrintShop Web server.

It is also mandatory to send your configuration to your PlanetPress Suite Workflow Tools service since the PrintShop Web credentials are included in the *.cfg file (See "Send your Configuration" (page 32)), which is updated every time the configuration is sentto the service via the Send configuration button.

Editor Options

The Script Editor is used to edit scripts used in Run Script and the XSLT Editor is used to edit scripts used in Open XSLT action tasks. Most of the options listed below are valid for both editors. Those options which are only valid for a specific editor are identified as such.

The available Script Editor and XSLT Editor options are as follows:

l Editor

l Auto indent mode: Select to automatically position the insertion pointer under the first non-blank character

of the preceding line when you press ENTER.

l Insert mode: Select to use Insert mode and clear to use Overwrite mode. In Insert mode, when you enter

text, existing text shifts to accommodate it. In Overwrite mode, text you enter overwrites existing text. You can also press INSERT to toggle between the two modes.

l Use tab character: Select to use the tab character instead of spaces to represent tabs in the program file.

Clear to use spaces to represent tabs. You must clear the Smart tab option to use this option.

The PlanetPress Suite Workflow Tools Configuration Program

l Smart tab: Select to use smart tabs. A smart tab advances with reference to the preceding line. It advances to

align with the first non-blank character it encounters on the preceding line, from its current position forward. You must clear the Use tab character option to use Smart tabs.

l Optimal fill: Select to optimize the indent of every auto-indented line by minimizing the number of space

and/or tab characters it uses. You must select both Auto indent mode and Use tab character to use this option.

l Backspace unindents: Select to move the insertion pointer to the previous indentation level when you press

BACKSPACE. This is useful when you enter a block of code such as a for loop; you enter the for statement, advance one indentation level to enter the body of the for loop, then press BACKSPACE to enter the end for statement. You must select Auto indent mode to use this option.

l Cursor through tabs: Select to move one by one through the spaces of tabs using the left or right arrow

keys. Clear to have the arrow keys treat the tab as a single character. You must select Use tab character to use this option.

l Group undo: Select to set the undo feature of the Editor to undo the last group of editing commands entered.

An editing command is defined as a mouse click, a press on ENTER, or a press on any other key. A group of editing commands is a sequence of a single type of editing command. Clear to set the undo feature to undo only the last command entered.

l Cursor beyond EOF: Select to make it possible to position the pointer beyond the end of the program file.

Clear to prevent this. If you clear Insert mode and select Cursor beyond EOF, you can only overwrite the existing lines of the program; you cannot add lines to it.

l Cursor beyond EOL: Select to make it possible to position the pointer beyond the end of the line. Clear to pre-

vent this.

l Keep trailing blanks: Select to preserve any blank spaces occurring at the end of a line. Clear to remove

those blank spaces.

l Persistent blocks: Select to have any text you enter immediately after selecting a block of code appended to

thatblock of code as part of the selection. When you select this option, you can also use the arrow keys to move within the code without affecting the selected code. You must select the Enable selection option to use the Persistent blocks option.

l Overwrite blocks: Select to have any text you enter immediately after selecting a block of code replace that

block of code. You must clear Persistent blocks and select Enable selection for this option to have an effect.

l Enable selection: Select to permit the creation of selections in the Code area. If selected, you can create a

selectionby clicking and dragging the pointer over a portion of code, or by double-clicking to highlight the word or line under the pointer (the Double click line option determines whether a word or line highlights). You can cut, copy, paste, and print selections. If you also select Enable dragging, you can drag selections to reposition them in the code.

l Enable dragging: Select to permit dragging and dropping a selection to reposition it in the program. This

option works only if you also select Enable selection.

l Enable search highlight: Select to highlight the search term match found in the code whenyou perform a

search. Clear to prevent the highlighting. In both cases, the pointer appears after the last character of the search term match.

l Double click line: Select to highlight the complete line of code when you double-click that line. Clear to high-

lightonly the word under the pointer.

l Find text at cursor: Use to set the behavior of the Find dialog box. Select to automatically copy the word

under the pointer into the Text to find box when you open the Find dialog box. Clear to prevent the copy. If no previous search terms appear in the Text to find drop-down list, the Editor performs the copy regardless of whether this option is selected or cleared.

l Block indent: Enter the number of spaces to jump for each block indent. The default is 2 and the maximum is

16. The Block indent typically should agree with the tab stops in the Tab stops option. Perform a block indent by selecting a region of code and pressing CTRL+SHIFT+I (to indent the code to the right) or CTRL+SHIFT+U (to move the code to the left).

l Tab stops: Use to set the number of spaces to advance when you enter a tab character or to set a series of tab

l Display

l Display options group

l Margin and gutter group

l Color

l Mapping: Select a mapping for the content of the script in the script editor—the mapping is used as well when

l Element list box: Select a script element in the Element list box, then edit the background and foreground

l Foreground: Select the color thatthe element highlighted in the Element list box is displayed with in the Script

l Background: Select the background color that the element highlighted in the Elementlist box is displayed with

The PlanetPress Suite Workflow Tools Configuration Program

stops. Enter a single integer to set the number of spaces to advance with each tab. Enter a sequence of two or more integers, each separated by a space, to specify tab stops. The sequence must be in ascending order. Tab stops are measured in number of space characters. For example, a value of 20 places the tab stop at the 20th space character. You can also use the drop-down list to select a previously entered value.

l Editor font: Use to select the font the Editor uses to display the program code. Select the Use mono-

space fonts only option to restrict the fonts available to fixed width fonts. A preview of the selected font, at the selected Size, appears in the Sample box.

l Size: Use to select the font size the Editor uses to display the program code. A preview of the selected

font, at the selected size, appears in the Sample box.

l Use monospace fonts only: Select to display only fixed width fonts in the Editor font drop-down list.

Every character in a fixed width font occupies the same amount of space.

l Sample: Displays a preview of the font selected in the Editor font option, at the size selected in the Size

option.

l Right margin: Select to display a vertical gray bar as a right margin indicator. Use the Right margin

position drop-down list to set the position of this indicator. This indicator is an on-screen visual reference only. It does not print, and does not enforce word wrap on lines that exceed the number of characters set for it. It can be useful to indicate the right margin of the printed page, making it easy to determine whether a line of code extends beyond the printable area of the page.

l Right margin position: Enter the position of the rightmargin indicator, in number of characters, rel-

ative to the left margin. For example, if you enter 80, the distance from the left margin to the right margin indicator is 80 characters. Use the drop-down list to selecta previously-entered margin position.

l Gutter: Select to have the Editor display a gutter between the Commands and Code areas. Use the

Gutter width option to set the width of the gutter. Select the Line numbers on gutter option to display line numbers in this area.

l Gutter width: Enter the width, in pixels, of the gutter. Use the drop-down list to select a previously-

entered gutter width.

l Line numbers on page: Select to display code line numbers at the left edge of the Code area. If you

clear both this and the Line numbers on gutter option, no line numbers appear alongside the lines of code.

l Line numbers on gutter: Select to display code line numbers in the gutter between the Commands

and Code areas. Selecting this option has effect only if you selected the Gutter option. If you clear both this and the Line numbers on gutter option, no line numbers appear alongside the lines of code.

the scriptappears in the text box of the Run Script actions properties dialog. Each mapping (Default, Classic, Ocean, Twilight) includes pre-set color values and attributes for each script element as listed in the Elements list box. After selecting a mapping, you can edit individual elements to change their pre-sets by selecting them in the Element list box and editing their values.

color with which it is displayed, and/or its formatting attributes. Each element recognized for each scripting language, for example, a URL in a JavaScript script, is displayed with the properties you set.

Editor.

in the Script Editor. The color is used to highlight the element as if it was selected with the cursor.

The PlanetPress Suite Workflow Tools Configuration Program

l Attributes group

l Bold: Select to bold the element highlighted in the Element list box when it is displayed in the Script

Editor.

l Italic: Select to italicize the element highlighted in the Element list box when it is displayed in the Script

Editor.

l Underline: Select to underline the element highlighted in the Element list box when it is displayed in the

Script Editor.

Other Dialogs

These dialogs are either accessible from the preferences or from different parts of PlanetPress Suite.

Advanced SQL Statement dialog

The AdvancedSQLStatement dialog is available by clicking the Edit SQLbutton from the Database Action Task. You can enter a custom SQLquery in this dialog, using the language supported by the database you select in the Database Action Task.

The dialog is separated in two parts:

l The leftpart displays the available tables in your database. Click the Show Tables button to display them. l The right part displays a default SQLstatement which you can modify at your leisure. l The bottom part displays the following options:

l Alternate syntax (not recommended): l Client side cursor: l Expect record set: l Test SQLbutton:Verify the SQLstatement's validity.

Access Manager

Use the Access Manager to control access to those services running on your computer.

The PlanetPress Suite Workflow Tools Configuration Program

To open the Access Manager

l Open PlanetPress Design or PlanetPress Workflow Configuration Tool. l In the Ribbon, go in Tools | Managers | Access Manager.

The Access Manager dialog box is displayed. It lists all IPand IPranges that have PlanetPress Design, PlanetPress Suite Workflow Tools, PlanetPress Fax or PlanetPress Image installed in the same network.

To add a new entry in the list

l Open the Access Manager l Make sure you are in the Messenger tab. l In the IPaddress box, enter the IPaddress of the remote machine.

Click on the button.

The format of the IP address must be one of the following:

l 127.0.0.1: The local computer. Typically this IP should have all the accesses checked. l 255.255.255.255: Everyone on the same subnet. This is equivalent to hard-coding the current subnet, such as

192.168.1.255 or 10.0.0.255.

l 192.168.0.42 : A single IP address. This can be any valid address on the same subnet. l 10.0.255.255:Any IPin the 10.0.X.X range.

The following considerations are to be understood when using the Access Manager to configure IPlimitations:

l Each permission type (column)is evaluated from top to bottom (column per column)in the order they are visible in the

Access Manager window. This means that wide ranges should always be at the top to increase performance. For example, if you accept HTTPconnections from any IP, the first entry should be 255.255.255.255 with the Allow checkmark in

The PlanetPress Suite Workflow Tools Configuration Program

the HTTPInput box. PlanetPress does notcontinue processing after it has found an "Allow" checkmark. There is no concept of "Deny", meaning if any "Allow"permission is given, there is no way to later remove it for certain IPs or IPranges.

l Messenger communications (between different part of the PlanetPress Suite)was limited to within the same Class

Csubnet. This means that PlanetPress Workflow on 192.168.1.23 cannot send a job to a PlanetPress Image on

192.168.100.54. This limitation has been removed in PlanetPress Suite 7.3

l HTTP, FTPand SOAPcommunication is notlimited to the local subnet on any version where these plugins appear.

To modify permissions

Permissions are given simply by adding and removing options in the permission grid. Access to the services installed on this computer is granted or denied by checking the corresponding boxes next to the listed IP ranges. For each IPrange, the following information is displayed:

l Host name: The name of those computers on which PlanetPress Suite software are currently installed or which have

been manually added.

l IP address: The IPaddress or IPaddress range to give permission to. l Permissions

l HTTP Input:Grants access to send HTTP Requests to this server. l LPD Input: Grants access to send LPD Queue jobs to this server. l Send Job: Grants access to the selected computer or server to send jobs to PlanetPress Fax and PlanetPress

Image installed on this server.

l Send Document: Grants access to the remote computer to send new or updated PlanetPress Design Doc-

uments to this server.

l Send Config:Grants access to the remote computer to overwrite the configuration on the local PlanetPress

Workflow service

In order for the changes made here to be effective, you will need to restart the PlanetPress Messenger service. This can be done via the PlanetPress Suite Service Console.

SOAPAccess

The SOAPtab of the Access Manager controls access from SOAP clients to local processes and SOAPprocesses. Each username entered in this dialog can have access to one or more processes.

The PlanetPress Suite Workflow Tools Configuration Program

To add a new SOAPuser

Click on the button.

l Enter the following information in the Username section for the new entry that was created:

l Username:An alphanumerical username for the user. l Password:A password to protect the user. Note that the password will always revert to ********(8

stars)when clicking outside of this box - that is normal and is meant to protect the length of the password as much as its contents.

l Administrator:Choose the permission type

l User:Can access none, some, or all of the processes, selected individually in the Permissions section.

l Admin: Has access to all processes and features. When this option is selected, the Permission section is

greyed out an all options are selected in it.

l Disabled:Has access to nothing. The result is the same as not having this user defined at all, but has

the advantage that a disabled user can be reactivated with a simple click.

l Define the permissions for the user (see below). l Click OKto save the changes.

To define or change the permissions for a SOAP User

The Permissions section of the SOAPtab displays all of the processes that are available in the live configuration (the one that the PlanetPress service uses). To change or define the permissions:

l In the top Username section, click on the username of which to modify permissions. l Place a checkmark in each process that the user should have access to. l Check Monitoring(read) to give permission to the GetProcessList and GetProcessTaskList actions for SOAP. l Monitoring(write) is currently not implemented. l Click OKto save the changes.

The PlanetPress Suite Workflow Tools Configuration Program

In order for the changes made here to be effective, you will need to restart the PlanetPress Messenger service. This can be done via the PlanetPress Suite Service Console.

PDF Viewer

The PDFViewer, introduced in PlanetPress Workflow Tools 7.3 in some areas and expanded for use throughout the configuration tool, displays any PDFused in the configuration or process. Because this PDFviewer is integrated with the suite, it is not necessary to have any third-party tools such as Adobe Acrobat installed on the operating system.

The PDFViewer is not currently standalone and cannot be used to display PDFs outside of PlanetPress Workflow.

The PlanetPress Suite Workflow Tools Configuration Program

The PDFViewer

To open the PDFViewer:In the Documents section of theConfiguration Components pane, expand a document present in the list. Then, right-click on the document's Preview, and click Open in PDFViewer.

The top area of the PDFViewer displays the PDF, while the bottom area contains a few controls:

l Open: Click to browse for a PDFto open in the PDFViewer. Note that this will not change the data file used in the proc-

ess.

l Save:Click to browse for a location and name to save the currently active PDFin the viewer. l Right Arrow:Click to view the next page of the PDF. l Left Arrow: Click to view the previous page of the PDF.

The PlanetPress Suite Workflow Tools Configuration Program

l Page Selection:Type a page number and hit Enter on your keyboard to jump to that page. l Zoom: Click to view a drop-down list of pre-set zoom percentage, or automatic zoom fit options. Or, type in a zoom

percentage and hig Enter on your keyboard to set the zoom level. Note that you can also use CTRL+ScrollWheel (on your mouse)to zoom in and out, SHIFT+ScrollWheel to scroll left and right, and ScrollWheel to scroll up and down.

The PlanetPress Suite Service Console

The PlanetPress Suite Services Console lets you view the logging information generated by PlanetPress Suite Workflow Tools as well as the services used by PlanetPress Suite Workflow Tools. When the number of displayed messages reaches 2000, the first 1000 are removed from the display (this has no effect on the actual log files).

To open the PlanetPress Suite Service Console via the PlanetPress Suite Workflow Tools Configuration program:

l Choose Tools | Service Console.

A) The PlanetPress Suite Workflow Tools services monitored by the PlanetPress Suite Service Console. B) The runtime information provided by the console.

The log window only displays the 1000 most recent lines. Older lines are hidden as new ones appear to replace them.

To view the log messages generated by a service:

l Click the service in question in Services pane, on the left hand side.

A line appears to separate each log, and information from the newly selected service is displayed.

To clear the Messages area of the PlanetPress Suite Service Console:

l Click in the Messages area of the Service Console, and from the right-click menu choose Clear.

To save the information from the Messages area of the PlanetPress Suite Service Console:

1. Click in the Messages area of the Service Console, and from the right-click menu choose Save to file. The Save As dialog box appears.

The PlanetPress Suite Workflow Tools Configuration Program

2. Navigate to a location, enter a file name, then click OK. The complete content of the Messages area is saved.

Add or Delete Document Instances

Update Document Instance to Printers dialog

The Update Document dialog lets you update your PlanetPress Design documents on your printers where those documents are used in Printer-Centric mode. It displays the following information in the list of installed printer documents:

l Printer Queue:Displays in which printer queue the document is present l Printer Group:If available, displays in which printer group the document is located. l Document:Displays the name of the document l Location:Displays the location (printer or workflow)of the document

Select any document in the list (use CTRL+Click or SHIFT+Click to select multiple document or use the Select All button) and click OK to update these documents.

To add any document to this list, you need to assign them to a printer queue. See "Associate Documents and PlanetPress

Watch Printer Queues" (page 48).

Virtual Drive Manager

When you use the Send images to printer action in a given process, you have the option of, at the same time, sending the images to the virtual drive (a local storage folder used by PlanetPress Suite applications) of any computer included in your network. You need to do this, for instance, if you plan to run documents that contain dynamic images on those computers (using the Optimized PostScript Stream option). You can then use the Virtual Drive Manager to see the images that were down- loaded to your computer as well as to delete them from your virtual drive.

To add images to the virtual drive, use either of the following methods:

l Send a single resource file to the printer:see "Download to Printer" (page 129). l Send one or more images to the printer:see "Send Images to Printer" (page 136). l Use PlanetPress Design:see the PlanetPress Design User Guide.

To delete images from your virtual drive:

1. In the PlanetPress Suite Ribbon, Go to the Tools tab, then click on Virtual Drive Manager.

The Virtual Drive Manager dialog box is displayed. It lists all the images currently stored in your computer’s virtual drive.

2. Select the images you want to delete.

3. Press the Delete key.

Working With Variables

A Variable is basically a keyword that points to specific location in your computer's memory. This location contains data that you decide to place in it, by assigning that data to the variable name. This chapter will help you learn about these variables and how you can use them.

Types of Variables

There are 3 types of variables that can be used in the PlanetPress Suite Workflow Tools:

l Global Variables are available by all processes and tasks within the configuration, and any modification made to

them affects all tasks and configurations. For more information see "Manipulate Global Variables" (page 44).

l Local Variables are specific to an instance of a process. That is to say, when a process changes the information in a

local variable, it changes it only for that process and only for that specific instance of the process. For more information see "Manipulate Local Variables" (page 42).

l Job Infos are also specific to an instance of a process, however their use is different. Just after an initial or secondary

input task, Job Infos contain information about the job file itself. Job Infos are also, by default, accessible by PlanetPress Design documents used throughout your process. They are generally used to gather information from the input task, or transfer information to your PlanetPress Design document.

All the variables in the PlanetPress Suite Workflow Tools are considered strings, even if the information itself can be a number. There are no other types of variables (such as arrays, floating point numerical values or boolean) in PlanetPress Suite Workflow Tools.

Job Info Variables

Job Infos have two main uses. First, they contain information on any job file that comes outof the initial input task or any secondary input tasks. The number of job infos as well as their definition can be seen in the Other tab of any input task. Secondly, they are transmitted, unless otherwise configured, directly to any PlanetPress Design document used within your process and can be directly accessed by that document, so they can be used to transfer complementary information to your document that is not contained within your data file.

You can also access global and local variables from your document using the ExpandString()function in the PlanetPress Talk language. For more information, please see the PlanetPress Design User Guide and the PlanetPress Talk

Reference Guide.

There are only 9 Job Infos available numbered from 1 to 9. They can be accessed directly anywhere that accepts variable properties by using the number of the variable preceded by a percent sign (For example, %2 or %9).

You can set the value of a job info withinyour process in two ways:

l Use the Set Job Info and Variable action task. See "Set Job Infos and Variables" (page 138). l You can use Scripts. See the chapter "Using Scripts" (page 229).

Considerations on Job Infos:

l While the initial job infos are created by the inputtask, they can be overwritten by the Set Job Info and Variables Action

Task, by a Script, or by any secondary inputtask in the process. Whenever you use a job info in your process, make

Working With Variables

sure it contains the value that you want, and not one that has been overwritten by another task.

l Job infos sent to the document are global to that document, meaning the values do not change between data files. This

means that if your data file contains multiple data pages for different clients, your job infos cannot be used to send information to the document.

l Job infos are in limited quantity and are slowly being deprecated when transferring data to your document. You should

probably consider using Metadata, or Local Variables.

Standard Variables

Standard Variables, also known as "system variables", are variables that are created and managed directly by PlanetPress Suite Workflow Tools. Those variables are read-only and cannot be modified. They provide information about the job, process, and the PlanetPress Suite Workflow Tools environment.

Available Standard Variables

Variable Name Example value when interpreted

%F Job File Path and Name C:\Program Files\PlanetPress Suite 7\PlanetPress Watch\Spool\job1D80328.dat

%z Job File Size in bytes. 34134 %o Original File Name invoice_june2nd.txt

%y Current Year 2010 %m Current Month (numeric) 06 %M Current Month (text) June %L Current Month (short text) JUN %d CurrentDay (numeric) 16 %D Current Day (text) Monday %l Current Day (short text) MON %h Current Hour 18 %n Current Minute 03 %s Current Second 41

%t Current Temporary Folder

%e Current Metadata Filename job00ZAIZ2C4FXON16CE6C566.dat.meta

%w Current process name. My Process

Content of your job file in its original format.

Job File Name including the file extension.

Original File Name Without Extension

Unique 13-char string (will be different every time it is used)

Current Metadata Path and Filename

n/a

job1D80328.dat

invoice_june2nd

0ZIS4CW8U47VI00

C:\Documents and Settings\All Users\Application Data\Objectif Lune\PlanetPress Suite 7\PlanetPress Watch\Spool\6.tmp\

C:\Documents and Settings\All Users\Application Data\Objectif Lune\PlanetPress Suite 7\PlanetPress Watch\Spool\5.tmp\job00ZAIZ2C4FXON16CE6C566.dat.meta

Data in PlanetPress Suite Workflow Tools

PlanetPress Suite Workflow Tools is a versatile tool that can capture various types of data files and dispatch this data to various PlanetPress Design documents. To fully understand PlanetPress Suite Workflow Tools and how it treats data, you must understand how it is integrated into PlanetPress Design.

This section covers issues relating to the sample data used to create your PlanetPress Suite Workflow Tools configuration and to the actual data thatPlanetPress Suite Workflow Tools will send to PlanetPress Design documents. It is an important section which you should fully understand before you start creating your configuration. Also included in this section are procedures thatlet you make data selections as well as get data from the sample data file.

Since many of the concepts and explanations included in this chapter are closely related to concepts and explanations found in the PlanetPress Design User Guide, we suggest that you review this document, especially the Selecting an Emulation sec- tion.

Choosing a Sample Data File

In order to create your PlanetPress Workflow Tools Process, the sample data you are going to use has to correspond precisely to the job files that will be treated by that process, at least in terms of structure.

The sample data file should have a relatively small number of pages (generally less than a hundred)in order to be processed quickly, while your actual data may be much larger and take more time to process. The sample data file should also contain at least one of every exception you may want to detect, or data used for a specific condition. For example if you wanted to filter out any data for clients in Canada, you would want to use a data file that has at least one user from Canada, to test whether your condition removes it.

To choose a sample data file:

1. Click the Debug tab in the PlanetPress Suite Ribbon.

2. Click on Select in the Data group.

3. Use the Data Selector to choose your sample data file and emulation options.

4. Click OK on the Data Selector.

PlanetPress Workflow Tools also keeps the last 9 used data files in memory, which you can reopen to use in the same process, or a different one.

To reopen a sample data file used previously:

1. Click the Debug tab in the PlanetPress Suite Ribbon.

2. Click on Reopen Data File in the Data group.

3. Click on one of the data files in the list.

4. Use the Data Selector to change the emulation options if necessary.

5. Click OK on the Data Selector.

Using the Data Selector

The Data Selector in PlanetPress Workflow Tools is the same as in PlanetPress Design, please refer to the PlanetPress Design

User Guide for information on how to use the Data Selector.

Data in PlanetPress Suite Workflow Tools

The only difference between both Data Selectors is that PlanetPress Workflow Tools does not directly support userdefined emulation, as it does not support the PlanetPress Talk language.

In the PlanetPress Suite Workflow Tools, you can add data as well as variables to your variables properties using the contextual (right-click)menu. See "Variable Properties" (page 209).

Using the File Viewer

The File Viewer is like a Data Selector without any data related options, such as emulation settings. It is displayed when doing a data selection from the Generic Splitter Task (see "Generic Splitter" (page 146)) with the Use Emulation option unchecked. The only data formatting codes to which the File Viewer responds are line breaks.

For more information on the selecting data, see "Using the Data Selector" (page 97).

Choosing a Database Type Sample Data File

The procedure for selecting a sample data file that is in fact a database is the same as doing so in PlanetPress Design. For more information, please see the relevant page in the PlanetPress Design User Guide.

You can also use the PlanetPress Database Action Task to get data form a database, and output in multiple different formats such as CSV. See "PlanetPress Database" (page 132).

Using the Metadata Data Selector

The Metadata Data Selector in PlanetPress Workflow Tools is the same as in PlanetPress Design, please refer to the Plan-

etPress Design User Guide for information on how to use the Data Selector.

Data Selections in PlanetPress Workflow Tools

A data selection is simply a reference to a given location within the job file or metadata file, using the current emulation. Data selections are always evaluated at runtime so they are always dynamic and depend on the job file thatis currently being processed. When you make a data selection, the PlanetPress Suite Workflow Tools Configuration program converts it to text form, using coordinates to reference the selected location.

There are three types of data selections you can use in the PlanetPress Workflow Tools. The available type of data selection depends on which emulation you are using and whether or not you have created Metadata.

You can add data selections to variable properties of your tasks either automatically using the data selector (see "Using the

Data Selector" (page 97)) or manually by typing in the data selection.

It is strongly recommended to use the automatic method, as it returns precisely the same selections but is generally more reliable

Data in PlanetPress Suite Workflow Tools

Text-Based Data Selections

These selections are used for text data files such as Line Printer, ASCIIand Channel Skip emulations. The selection refers to a rectangular selection thatmay contain multiple lines, rows, columns on a given page.

Syntax

@(page number, from line, to line, from column, to column, case option, trim option)

Here is a breakdown of the syntax (all options are mandatory):

l @():Always surrounds a data selection. l Page Number:The data page number from which you want the data selection to grab the data. If you want to get

data from each page individually, this has to be done after a splitter.

l From Line:The starting line of the data selection. l To Line:the last line of the data selection. l From Column:the leftmost character position of the data selection. l To Column:the rightmost character position of the data selection. l Case Options:This can be one of three options:

l KeepCase:Keeps the current uppercase and lowercase letters as they are. l UpperCase:Converts all letters to their uppercase equivalent. l LowerCase:Converts all letters to their lowercase equivalent.

l Trim Option:Can either be "Trim"if you want to trim empty spaces before and after the data selection or "NoTrim"if

you want to retain the extra spaces.

Alternate Syntax

@(line number, from column, to column)

The alternate "quick"syntax lets you grab data from a single line from the first data page in the file. Here is a breakdown of the syntax (all options are mandatory):

l @():Always surrounds a data selection. l Line Number: The line from which to get the data. l From Column: the leftmost character positionof the data selection. l To Column: the rightmost character position of the data selection.

Database Data Selections

These selections are used for database-driven data files such as Database and CSVemulations. The selection refers to a specific field on any given data page.

Syntax

field(record set number, child number, field name, treatment of character case, treatment of empty trailing cells)

Here is a breakdown of the syntax (all options are mandatory):

l field():Always surrounds database field selections. l Record Set Number: The data page (or "record") of the data selection. l Child Number:Line Number in the record (if there are multiple lines returned for one single record). l Field Name: The name of the field you want to retrieve.

Data in PlanetPress Suite Workflow Tools

l Case Option: This can be one of three options:

l Trim Option:Can either be "Trim"if you want to trim empty spaces before and after the data selection or "NoTrim"if

you want to retain the extra spaces.

PDF Data Selections

These selections are used for PDF data files. The selection refers to a specific area of any given page of the PDF by using precise region coordinates (in inches).

Syntax

region(page, left, top, right, bottom, case option, trim option)

Here is a breakdown of the syntax (all options are mandatory):

l region():Always surrounds PDFdata selections. l Page:The page of the PDFfrom which to retreive the data. l Left:Exact horizontal position (in inches)that defines the left of the selection region. l Top:Exact vertical position (in inches)that defines the top of the selection region. l Right:Exact horizontal position (in inches)that defines the right of the selection region. l Bottom:Exact vertical position (in inches)that defines the bottom of the selection region. l Case Option: This can be one of three options:

l Trim Option:Can either be "Trim"if you want to trim empty spaces before and after the data selection or "NoTrim"if

you want to retain the extra spaces.

Metadata Selections

These selections are used with any type of file, as long as a metadata file was created by a previous task.

Syntax

GetMeta(Field Name [, Option Flags, Metadata Path])

Here is a breakdown of the syntax:

l GetMeta():Always surrounds metadata selections. l Field/Attribute Name:specifies the name of the field (or attribute, if the GetAttribute option flag is set) to retrieve. l Option Flag (optional):Sets the options for the selection (see table below) l Metadata Path (optional):Defines the precise path where the Metadata Field is located.

Option Flags

Name Value Behavior

GetAttribute 1 Search for the name argument in the attribute collection instead of the default field collection.

NoCascade 2

FailIfNotFound 4

SelectedNodesOnly 8 Returns values from the selected nodes only.

Search only the level specified by the path argument (defaults to Page level when path argument is empty), instead of default behavior, going from the Page level to the Job level.

Raise an error and crash the job is the specified name is not found instead of returning an empty string.

Objectif Lune PlanetPress Production - 7.3 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright Information

Table of Content

Overview

Icons used in this guide

Other Documentation

Getting Started

Environment Considerations

Terminal Services

VMWare/ESX

32-Bit or 64-Bit?

Antivirus Considerations

Backup Considerations

Microsoft Office Compatibility

Network Considerations

Local and Network Rights

Account Requirements

Mapped Drives

Network Ports used by each service

Activate Your Printers

PlanetPress Suite Workflow Tools Service Logon

Understanding PlanetPress Suite Workflow Tools

The Nature of PlanetPress Suite Workflow Tools

The Three Flavors of the PlanetPress Suite Workflow Tools

Terms and Definitions

About Configurations

About Processes

About Subprocesses

About Tasks

About Branches and Conditions

About Data

About Data Selections

Emulations in the PlanetPress Workflow Tools:

About Related Programs and Services

Available Input Services

Available Output Services

About Documents

About Printing

The PlanetPress Suite Workflow Tools Configuration Program

Start the PlanetPress Suite Workflow Tools Configuration Program

The PlanetPress Suite Button

Create a New Configuration

Open a PlanetPress Suite Configuration File

Saving and Sending a Configuration

Save your Configuration

Send your Configuration

Import Processes from Another Configuration File

Import Documents

Import PrintShop Mail Documents

Change the Interface Language

Exit the PlanetPress Suite Workflow Tools Configuration Program

The Quick Access Toolbar

The PlanetPress Suite Ribbon

Start and Stop the PlanetPress Suite Workflow Tools Service

The Configuration Components Pane

Access Process Properties

Add a PlanetPress Suite Process

Manipulate Local Variables

Activate or Deactivate a Process

Convert a Branch to a Subprocess

Manipulate Global Variables

View Document Properties

Use Data and Metadata Files Attached to Documents

Use Attached Document Preview

Add Resident Documents in the Configuration Components Pane

Associate Documents and PlanetPress Watch Printer Queues

Using the Clipboard and Drag & Drop

Rename Objects in the Configuration Components Pane

Reorder Objects in the Configuration Components Pane

Grouping Configuration Components

Expand and Collapse Categories and Groups in the Configuration Components Pane

Delete Objects and Groups from the Configuration Components Pane

The Process Area

Zoom In or Out within Process Area

Adding Tasks

Adding Branches

Edit a Task
