Oakton EcoTestr CTS, EcoTestr pH2+ Data Sheet
CATALOG
...setting the standard again and again

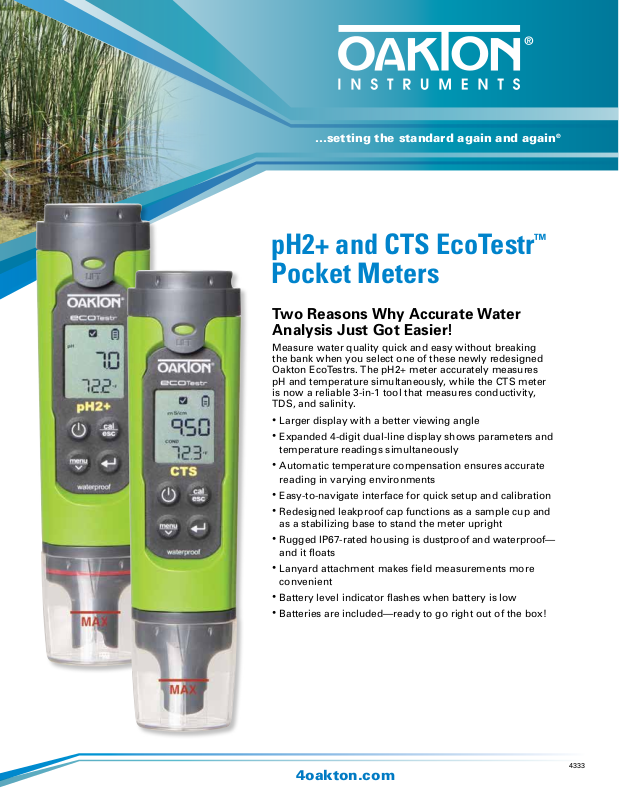

pH2+ and CTS EcoTestr™
Pocket Meters
Two Reasons Why Accurate Water
Analysis Just Got Easier!
Measure water quality quick and easy without breaking
the bank when you select one of these newly redesigned
Oakton EcoTestrs. The pH2+ meter accurately measures
pH and temperature simultaneously, while the CTS meter
is now a reliable 3-in-1 tool that measures conductivity,
TDS, and salinity.
• Larger display with a better viewing angle
•
Expanded 4-digit dual-line display shows parameters and
temperature readings simultaneously
•
Automatic temperature compensation ensures accurate
reading in varying environments
•
Easy-to-navigate interface for quick setup and calibration
•
Redesigned leakproof cap functions as a sample cup and
as a stabilizing base to stand the meter upright
•
Rugged IP67-rated housing is dustproof and waterproof—
and it floats
•
Lanyard attachment makes field measurements more
convenient
•
Battery level indicator flashes when battery is low
•
Batteries are included—ready to go right out of the box!
®
4oakton.com
4333
EcoTestr pH2+ Specifications
Model EcoTestr pH2+
Catalog number WD-35423-01
Range
Resolution
Accuracy
Temperature compensation
Calibration
Buffer recognition
Power
pH 0.0 to 14.0 pH
Temperature 32.0 to 122.0°F (0.0 to 50.0°C)
pH 0.1 pH
Temperature 0.1°F (0.1°C)
pH ±0.1 pH
Temperature ±0.9°F (0.5°C) + 1 LSD
Automatic
Up to 3 points
USA, NIST
Four A76 1.5 V miniature alkaline batteries (included)
Applications
Large LCD
– Agriculture
– Aquaculture &
Aquariums
– Cooling
Towers
– Environmental
Monitoring
– Food & Beverage
– Hydroponics
– Manufacturing
– Education
EcoTestr CTS Specifications
Model EcoTestr CTS
Catalog number WD-35462-11
Range
Resolution
Accuracy
Temperature compensation
Calibration
Power
Conductivity 0.00 to 20.00 mS/cm
TDS 0.00 to 20.00 ppt (with TDS factor 1.0)
Salinity 0.0 to 10.0 ppt
Temperature 32.0 to 122.0°F (0.0 to 50.0°C)
Conductivity 10 MµS, 0.1 mS
TDS 10 ppm, 0.1 ppt
Salinity 0.1 ppt
Temperature 0.1°F (0.1°C)
Conductivity ±2% full-scale ±1 LSD
TDS ±2% full-scale ±1 LSD
Salinity ±2% full-scale ±1 LSD
Temperature ±0.9°F (0.5°C) + 1 LSD
Automatic
Single point
Four A76 1.5 V miniature alkaline batteries (included)
Applications
– Pools & Spas
– Printing
– Water
Treatment
Use cap as sample cup
and stabilizing base
– Agriculture
– Aquaculture
& Aquariums
– Cooling
Towers
– Education
4oakton.com
– Electroplating
– Environmental
Monitoring
– Food & Beverage
– Hydroponics
– Manufacturing
– Photo
Development
– Pools & Spas
– Printing
– Water &
Wastewater
Treatment
