User Guide (English)

Introduction

Box Contents

PT01 Scratch Software Download Card

USB Cable User Guide

Power Adapter Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information,
etc.) and product registration, visit numark.com.

For additional product support, visit numark.com/support.

Setup

Items not listed under Introduction > Box Contents are sold separately.

Headphones

Computer

Powered
Monitors

PT01 Scratch can be powered by 6 D-cell batteries.
Insert them into the battery compartment with their
positive (+) poles toward the handle (shown here).

Alternatively, use the included power adapter to
connect the power input to a power outlet.

Power

Tablet

3

Features

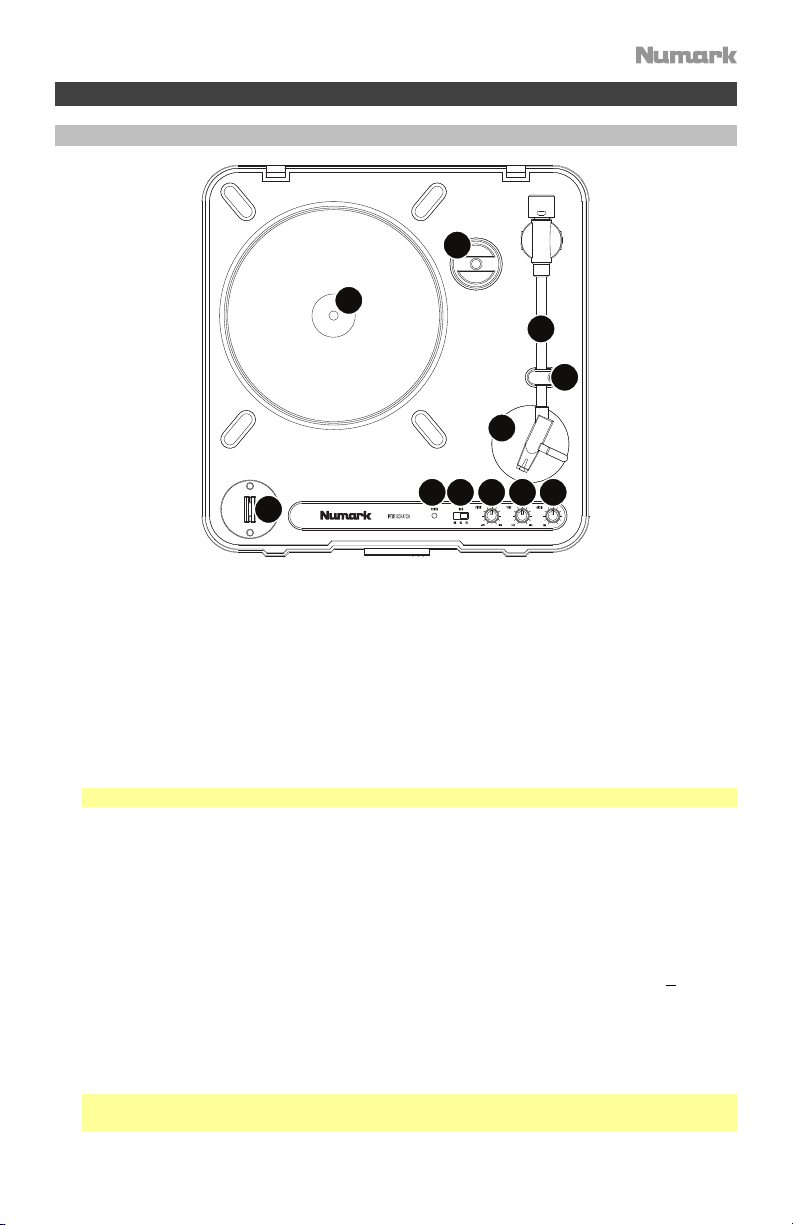

Top Panel

6

2

3

4

10

1

5

7

8

9

11

1. Power LED: This LED remains lit while the unit is powered on. To avoid wasting battery
power, make sure the power is off when storing or transporting the unit.

2. Platter: Place your record on the platter.

3. Tonearm: This is a ready-to-use pre-balanced tonearm and cartridge. The cartridge is
user-replaceable.

To play a record, unclip the tonearm clip, gently move the tonearm over your record on
the platter, and lower the tonearm onto the record. The platter starts spinning once the
tonearm is lifted over the record.

Important: Remove the plastic cover from the cartridge before using it.

4. Tonearm Clip: Use this clip to secure the tonearm when storing and transporting the unit.

5. RPM Selector: Use this switch to select the speed of the platter: 33⅓, 45, or 78 RPM.
Please select the appropriate setting for the record you are playing; if the music comes out
at an unusual pitch, this may indicate that the wrong RPM setting is selected.

6. 45 RPM Adapter: Use this adapter when playing 45 RPM records.

7. Pitch: Turn this knob to adjust the pitch of the music +10%. In the center position, the
pitch is 0%.

8. Tone: Turn this knob to adjust the low and high frequency audio levels.

9. Audio: Turn this knob to adjust the volume of the speaker, headphone outputs, and line

outs.

Note: Make sure the Audio knob is set to Off when connecting any alternate audio output

devices.

4

10. Speaker: This speaker outputs audio signal from the record and stereo input.

11. Scratch Switch: Move this crossfader-style switch to mute or unmute the volume of the
speaker, headphones outputs, and line outs. This emulates the DJ technique of
“cutting” from one deck (turntable) to another.

Note: To adjust the angle of the Scratch switch, use a #5 screwdriver (screws have a 3.0
mm diameter) to remove the screws on either side of the switch, gently lift the circular
plate upward, turn it to the desired angle, and reinsert the screws securely.

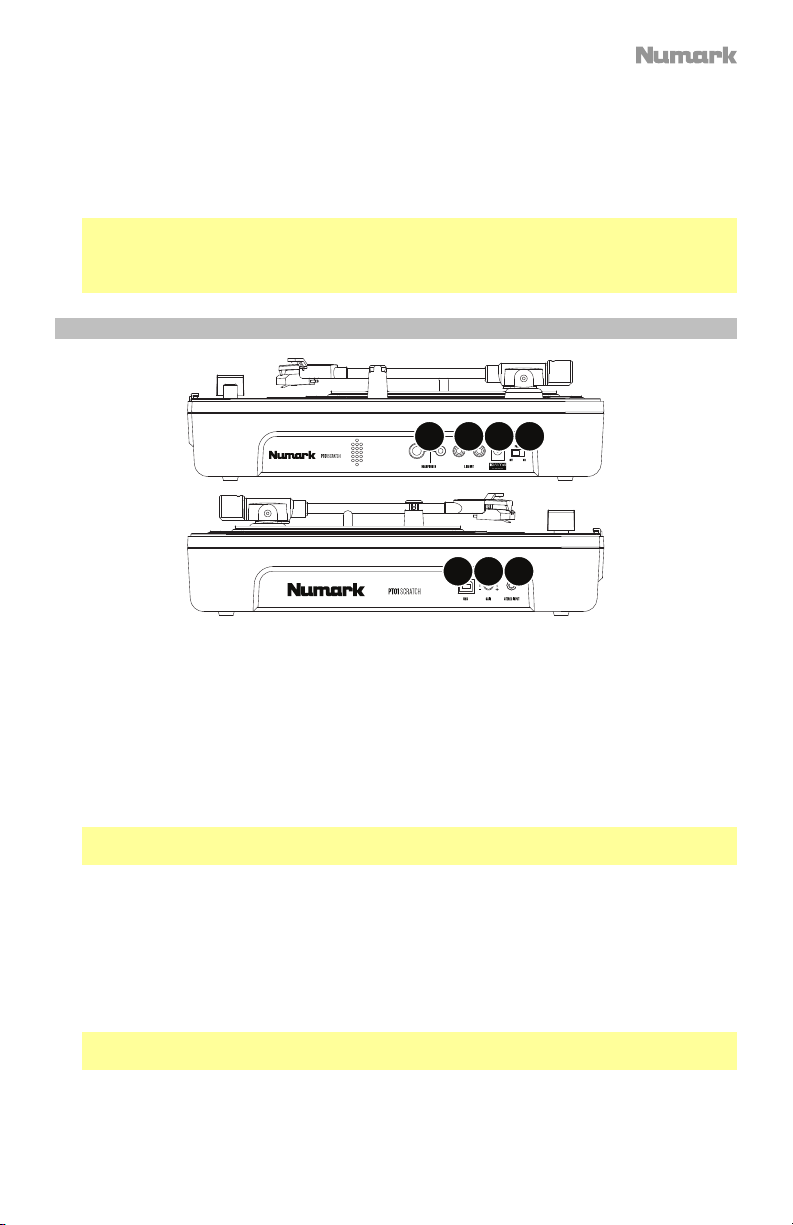

Side Panels

2

1

34

567

1. Power Input: Use the included power adapter to connect this input to a power outlet, and
then power on the unit. Alternatively, insert 6 D-cell batteries (not included) into the battery
compartment on the underside of the turntable.

2. Power Switch: Use this switch to turn power on and off.

3. Line Outs (RCA): Connect these line-level outputs to the inputs of an external audio
device (mixer, PA system, powered speaker, etc.). Use the Audio knob to control the level
of the output signal.

4. Headphone Outputs (1/4”, 1/8” / 6.35 mm, 3.5 mm): Connect stereo headphones to
either of these audio outputs.

Important: To avoid hearing damage, set the Audio knob to the Off position before
connecting headphones to either of these outputs.

5. Gain: Turn this knob to adjust the gain level of the stereo input. If the audio signal is too
quiet or too loud, use this knob to adjust the gain.

6. Stereo Input (1/8” / 3.5 mm): Connect this input to an additional audio device (computer,
smartphone, tablet, etc.). Use the Gain knob and your audio device’s volume control to set
the level of the input signal. While using this input, make sure that your line outs are
connected to an external audio device and that the cables are not in contact with metal.

Note: The stereo input signal is sent to the line outs, not to your computer (through the
USB port).

7. USB Port: Use the included USB cable to connect this USB port to your computer. Please
note that the turntable cannot be powered through the USB connection. The signal from
the stereo input is not sent over this connection.

5

Guía del usuario (Español)

Introducción

Contenido de la caja

PT01 Scratch Tarjeta de descarga de software

Cable USB Guía del usuario

Adaptador de alimentación Manual sobre la seguridad y garantía

Soporte

Para obtener la información más completa acerca de este product (los requisitos del sistema,
compatibilidad, etc) y registro del producto, visite numark.com.

Para soporte adicional del producto, visite numark.com/support.

Instalación

Los elementos que no se enumeran en Introducción > Contenido de la caja se venden por separado.

Auriculares

Computadora

Monitores

activos

PT01 Scratch funciona con 6 pilas tipo D. Insértelas en
el compartimiento para pilas con sus polos positivos (+)
hacia la manija (como se muestra aquí).

Como alternativa, utilice el adaptador de corriente
incluido para conectar la entrada de corriente a una
toma de corriente.

6

Alimentación

Tableta
