User Guide (English)

Introduction

Box Contents

Power Cable USB Cable Software Download Card Quickstart Guide Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit numark.com/nvii.

For additional product support, visit numark.com/support.

Quick Start

1. Install the Drivers and Software

Windows users only: Install the drivers before installing the software. Drivers (Windows users only): Download and install the latest drivers from numark.com/nvii.

(You will be asked to connect the NVII to your computer during installation.)

Software: Download and install the latest version of Serato DJ from serato.com.

2. Connect and Start DJing!

Follow this sequence of steps whenever you use NV

1. Make sure all devices are off and all faders and gain knobs are set to "zero."

2. Connect input sources (microphones, CD players, etc.) to the NV

3. Connect output devices (power amplifiers, sub-mixer, recorders, etc.) to the NV

4. Plug all devices into power sources, and turn on devices in proper order:

• When starting a session, turn on (1) input sources, (2) NV

• When ending a session, turn off (1) output devices, (2) NV

5. Connect the NV headphones.

6. Open Serato DJ and go! For more information on how to use Serato DJ with NV

serato.com/dj/support and select Numark NV.

II to your computer with the USB cable (included) and to your

II:

II.

II, (3) output devices.

II, (3) input sources.

II, visit

Features

Top Panel

151617 19 18

55 5 5

47 47

29 30 31 32 33

10 11

54 54 54

10 11

1213 13

10 11

General Controls

1. Shift: Press and hold this button to access secondary functions (in red lettering) of other controls on NV

2. Touch Mode: Press this button to toggle through the Touch Modes, which let you access the touch-capacitive functions of NV and the EQ Knobs (Channel Treble, Channel Mid, and Channel Bass). These functions are momentary, not "latching."

3. Deck: Selects which Layer in the software is controlled by that hardware Deck. Deck A can control Layer 1 or 3; Deck B can control Layer 2 or 4.

II.

II's FX 1 Knob, FX 2 Knob, and FX 3 Knob

Mixer Controls

4. Gain Trim: Adjusts the pre-fader, pre-EQ audio level of the corresponding channel in the software.

5. LED Meters: Monitors the audio levels of the corresponding channel.

6. Channel Treble: Adjusts the high (treble) frequencies. When Touch Mode is activated, touching this knob will mute the corresponding channel's high frequencies (an "EQ kill").

7. Channel Mid: Adjusts the mid-range frequencies. When Touch Mode is activated, touching this knob will mute the corresponding channel's mid-range frequencies (an "EQ kill").

8. Channel Bass: Adjusts the low (bass) frequencies. When Touch Mode is activated, touching this knob will mute the corresponding channel's low frequencies (an "EQ kill").

9. Channel Fader: Adjusts the audio level on the corresponding channel in the software.

10. PFL: Press this button to send this channel's pre-fader signal to the Cue Channel for monitoring. When engaged, the button will be lit. By pressing one PFL button at a time, you will cue that channel alone (and deactivate PFL monitoring for the other channels). To cue to multiple channels simultaneously, press the PFL buttons for those channels at the same time.

11. Crossfader Assign: Routes the audio playing on the corresponding channel to either side of the crossfader (A or B), or bypasses the crossfader and sends the audio directly to the Program Mix (center, Off).

12. Crossfader Slope: Adjusts the slope of the crossfader curve. Set the switch to the left for a smooth fade (mixing) or to the right for a sharp cut (scratching).

13. Fader Start: Enables or disables "fader start" on the corresponding side of the crossfader. When fader start is enabled on one side, moving the crossfader toward that side will cause the Deck to start playing.

14. Crossfader: Blends audio between the channels assigned to the left and right side of the crossfader.

15. Master Volume: Adjusts the output volume of the Program Mix and Mic Input.

16. Booth Volume: Adjusts the output volume of the Booth Output mix.

17. Mic/Aux On/Off: When set to Mic, the Mic Input is active, and its audio signal is routed directly to the Program Mix. When set to Off, the Mic Input and Aux Input are disabled. When set to Aux, the Aux Input is active, and its audio signal is routed directly to the Program Mix.

18. Mic/Aux Gain: Adjusts the gain of the Mic Input and Aux Input.

19. Mic Tone: Adjusts the brightness or darkness of the microphone input signal.

Playback Controls

20. Platter: Controls the playhead in the software.

21. Play / Pause: This button pauses or resumes playback.

Press and hold Shift and then press this button to "stutter-play" the track from the last set Cue Point.

22. Cue: When the Deck is paused, you can set a Temporary Cue Point by moving the platter to place the playhead at the desired location and then pressing the Cue Button.

During playback, you can press the Cue Button to return the track to this Temporary Cue Point. (If you did not set a Temporary Cue Point, then it will return to the beginning of the track.)

If the Deck is paused, you can press and hold the Cue Button to play the track from the Temporary Cue Point. Releasing the Cue Button will return the track to the Temporary Cue Point and pause it. To continue playback without returning to the Temporary Cue Point, press and hold the Cue Button, then press and hold the Play Button, and then release both buttons.

Press and hold Shift and then press this button to return to the beginning of the track.

23. Sync: Press this button to automatically match the corresponding Deck's tempo with the opposite Deck's tempo and phase. Press and hold Shift and press this button to deactivate Sync.

24. Bleep / Reverse: Reverses audio playback of the track on the corresponding deck.

Bleep: The playback of the track will be reversed. Press this button again to resume normal playback from where it would have been if you had never engaged the Bleep function (i.e., as if the track had been playing forward the whole time).

Reverse: The playback of the track will be reversed. Press and hold Shift and press this button again to resume normal playback from wherever the playhead stops.

25. Scratch: Press this button to activate or deactivate Scratch Mode. In this mode, you can touch the center part of the platter will scratch like a turntable when you spin it. If Scratch Mode is off, the center part of the platter will pitch-bend when you spin it.

26. Slip Mode: Press this button to enable or disable Slip Mode. In Slip Mode, you can jump to Hot Cue Points, trigger Loop Rolls, or use the platters, while the track's timeline continues. In other words, when you stop the action, the track will resume normal playback from where it would have been if you had never done anything (i.e., as if the track had been playing forward the whole time).

Pad Mode Controls

27. Pads: These pads have different functions on each Deck depending on the current Pad Mode. They are velocity-sensitive (in certain modes only), durable, and easy to play. In this section, when referring to specific pads, it will refer to the numbers as shown here.

Pad 1

Pad 2

Pad 3

Pad 4

Pad 5

Pad 6

Pad 7

Pad 8

28. Parameter < / > : Use these buttons for various functions in each Pad Mode. Press and hold Shift and use these buttons to access secondary parameters.

29. Cues: This Pad Mode button switches the pads between two modes: Hot Cue Mode and Hot Cue Auto-Loop Mode. When the button is unlit, the first press will always select Hot Cue Mode.

• Hot Cue Mode: Each pad assigns a Hot Cue Point or returns the track to that Hot

Cue Point. When a pad is unlit, you can assign a Hot Cue Point by pressing it at the desired point in your track. Once it is assigned, the pad will light. Press and hold Shift and then press a pad to delete its assigned Hot Cue Point.

• Hot Cue Auto-Loop Mode: Each pad assigns a Hot Cue Point or returns the track

to that Hot Cue Point, but in both cases, it also creates an Auto-Loop at that point. The Auto-Loop's length is set in the software, but you can decrease or increase it with the Parameter < or Parameter > button.

Hot Cue 1

Hot Cue 5

Hot Cue 2

Hot Cue 6

Hot Cue 3

Hot Cue 7

Hot Cue 4

Hot Cue 8

Important: If you have purchased the Serato Flip Expansion Pack, the Parameter < and Parameter > buttons have additional functions in Hot Cue Mode and Hot Cue Auto-Loop

Mode that let you create and control Flips. See Flip Controls to learn more.

30. Auto / Roll: This Pad Mode button puts the pads in two modes: Auto-Loop Mode and Loop Roll Mode. When the button is unlit, the first press will always select Auto-Loop Mode.

Note: The pad layouts here match the software's default Auto-Loop time division layout. If you shift the range of time divisions displayed in the software, the pad layout will change to match it.

• Auto-Loop Mode: Each pad triggers or releases an Auto-Loop of a different length. Press and hold Shift and then press the Parameter < or Parameter > button to shift the Auto-Loop backward or forward.

• Loop Roll Mode: Each pad triggers a momentary Loop Roll. Press the Parameter < or Parameter > button to change the Loop Roll's time division.

1/8-beat

1/4-beat

1/2-beat

1-beat

2-beat

4-beat

8-beat

16-beat

31. Loop: This Pad Mode button switches the pads between two banks of saved loops and

loop controls. When the button is unlit, the first press will always select the first bank.

• Saved Loop Mode: Pads 1-4 (the top row) return the track to one of your saved loops. You create and save a loop using Pads 5-8 (the bottom row). The pad layouts for the two banks are identical.

o To create a loop, press Pad 5 to set the Loop In Point, and then press Pad 6

to set the Loop Out Point and trigger the loop.

o To save a loop, while a loop is active, press any one of Pads 1-4 (the top row)

that does not have a loop assigned to it. You can do this regardless of how the loop was created (Saved Loop Mode, Auto-Loop Mode, Loop Roll Mode, etc.).

o To trigger a saved loop, press any one of Pads 1-4 (the top row) that has a

loop saved to it. Press Pad 7 to activate or deactivate the loop. Press Pad 8 to return the track to the last triggered loop and reactivate it ("reloop").

o To delete a saved loop, press and hold Shift and then press the

corresponding pad (of Pads 1-4).

o To halve or double the length of a loop, press the Parameter < or

Parameter > button.

o To shift a loop backward or forward, press and hold Shift and then press the

Parameter < or Parameter > button.

Loop 1

Loop 2

Loop 3

Loop 4

Set Loop In

Set Loop Out

Loop On/Off

Reloop

32. Sampler: This Pad Mode button switches the pads between two modes: Sample Player

Mode and Sample Velocity Trigger Mode. When the button is unlit, the first press will always select Sample Player Mode.

• Sample Player Mode: Pads 1-6 each trigger a sample, which you can assign in the software (the volume level is also set in the software). Unlit pads have no sample assigned to them. To stop playback of a sample, press and hold Shift and then press the corresponding pad (of Pads 1-3 or Pads 4-6).

• Sample Velocity Trigger Mode: The pads behave identically to the pads in Sample Player Mode, except they are velocity-sensitive, so triggered samples will play back at a volume level proportional to how heavily you pressed the pads. This mode can give your performance more of a "human feel."

Sample 1

Sample 4

Sample 2

Sample 5

Sample 3

Sample 6

Play Mode

Player

Repeat

33. Slicer: This Pad Mode button switches the pads between two modes: Slicer Mode and

Slicer Loop Mode. When the button is unlit, the first press will always select Slicer Mode. Important: Your track must have a set Beat Grid for Slicer Mode or Slicer Loop Mode to

work.

• Slicer Mode: The eight pads represent eight sequential beats—"Slices"—in the Beat Grid. The currently playing Slice is represented by the currently lit pad; the light will "move through the pads" as it progresses through each eight-Slice phrase. Press a pad to play that Slice—hold it down if you want to keep looping it. When you release the pad, the track will resume normal playback from where it would have been if you had never pressed it (i.e., as if the track had been playing forward the whole time).

Press the Parameter < or Parameter > button to decrease or increase the Slice quantization. Press and hold Shift and then press the Parameter < or Parameter > button to decrease or increase the Slice Domain size.

• Slicer Loop Mode: The pads behave identically to the pads in Slicer Mode, except the eight-Slice phrase will loop rather than moving forward continuously through the track.

Slice 1

Slice 2

Slice 3

Slice 4

Slice 5

Slice 6

Slice 7

Slice 8

Flip Controls

If you have purchased the Serato Flip Expansion Pack, you can create and control your Flips using these commands:

• In Hot Cue Mode or Hot Cue Auto-Loop Mode (press Cues to enter either mode):

o To record-arm or -disarm Flip recording, press the Parameter < button. o To activate or deactivate Flip looping, press and hold Shift and then press the

Parameter < button.

o To immediately start playing the last-played (or currently playing) Flip, press the

Parameter > button. If you do this while recording a Flip, the recording will stop and

that Flip will start playing.

o To activate or deactivate the current Flip, press and hold Shift and then press the

Parameter > button. If the playhead is not yet in the region of the Flip, the Flip will

start playing once the playhead reaches it.

• In Flip Mode (press and hold Shift and press Cues to enter this mode): o In this mode: unlit pads have no Flip assigned to them; solidly lit pads have a Flip

assigned but are not playing; flashing pads have a Flip assigned and are currently playing.

o To assign a Flip to a pad, press and hold Pad 8 and press Pad 1, 2, 3, 5, 6 or 7. o To play an assigned Flip, press Pad 1, 2, 3, 5, 6 or 7 (if it has a Flip assigned to it). o To immediately stop playback of a Flip, press and hold

corresponding pad.

o To automatically "snap" the length of a Flip so it aligns with the Beatgrid (Loop

Snap), press and hold Pad 4 and then press a pad with a Flip assigned to it. Important: Your track must have a set Beatgrid for the Loop Snap function to work.

Flip 1

Flip 2

Flip 3

Shift and then press the

Loop Snap

Flip 4

Flip 5

Flip 6

Assign Flip

Navigation Controls

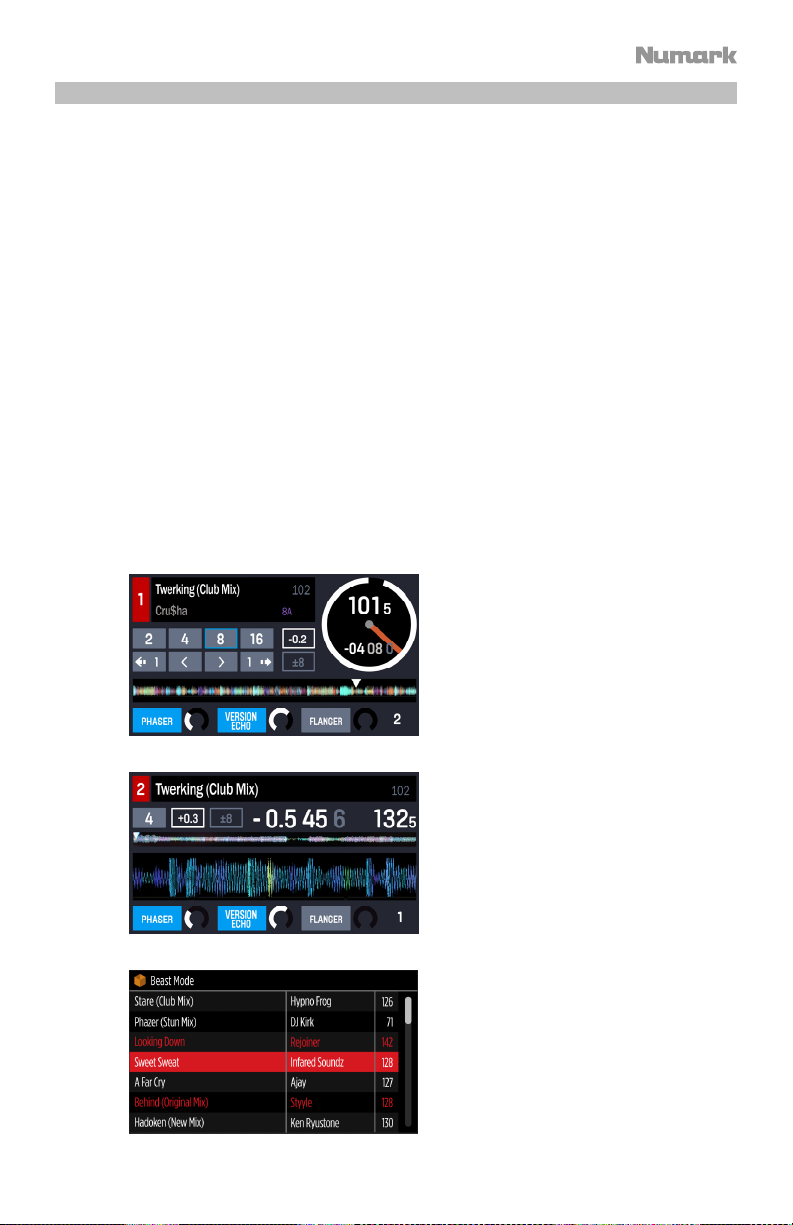

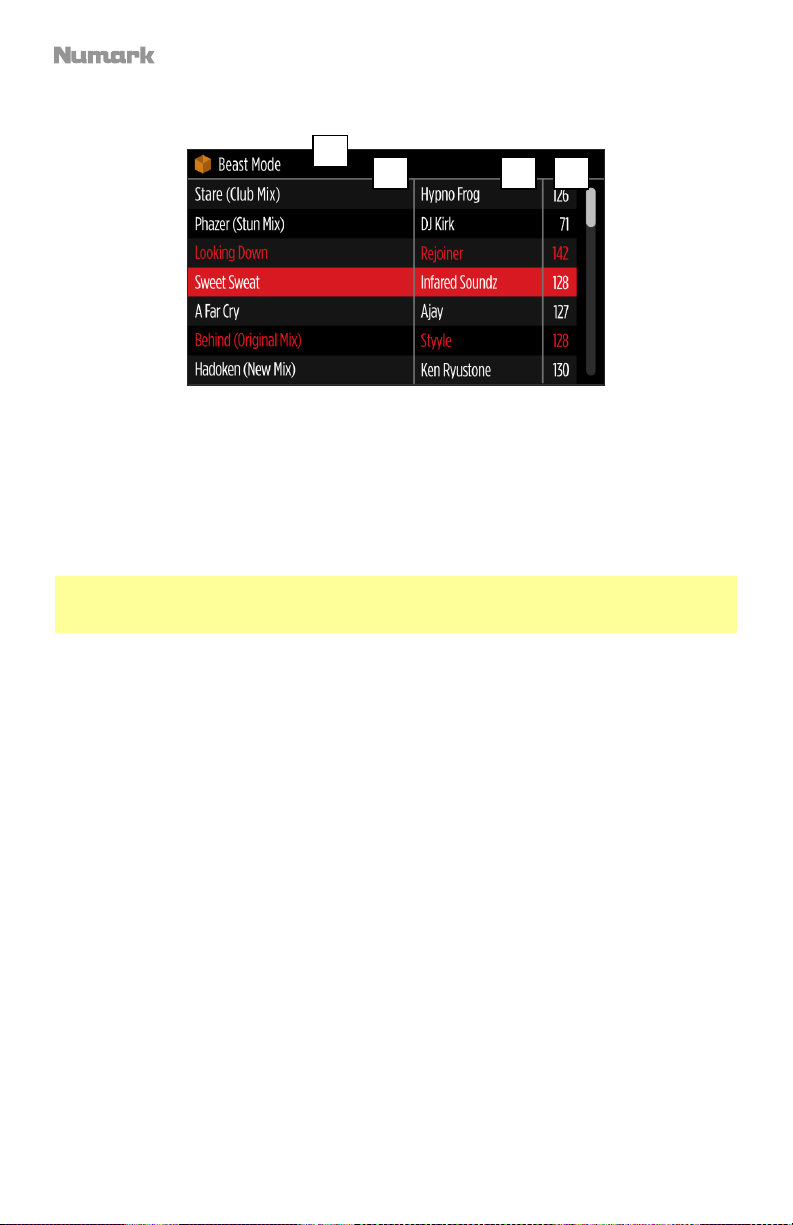

34. Display: Use this screen to view menus, options, parameters, and settings.

35. Panel / +Song: Press this to toggle through the Recording, Effects, and Sampler panels.

Press and hold Shift and then press this button to sort the Library by Song.

36. Back / +Artist: Press this button to move the selector backward in the software panels.

Press and hold Shift and then press this button to sort the Library by Artist.

37. Sel. / Load: Use this knob to scroll through lists of tracks, Crates, etc. in the software.

You can also press it to Load a track to the selected Deck.

38. FWD / +Album: Press this button to move the selector forward in the software panels.

Press and hold Shift and then press this button to sort the Library by Album.

39. L. Prep / Prep: Press this button to add a selected track to the list of tracks in the

Prepare Area in the software.

Press and hold Shift and then press this button to move the selector to the Prepare Panel in the software.

40. Quant / +BPM: Press this button to enable or disable Quantize. When enabled, setting

and triggering cues and loops will snap to the Beatgrid.

Press and hold Shift and then press this button to sort the Library by BPM.

41. Beat Jump / +BPM: Press this button to enable or disable Beat Jump mode for the Pads. When Beat Jump is enabled, the bottom 4 pads in Auto-Loop and Loop Roll modes will function as Beat Jump controls:

Press and hold Shift and then press this button to sort the Library by BPM.

42. S. View / +Key: Press this button to toggle through the available software display modes.

Press and hold Shift and then press this button to sort the Library by Key.

43. D. View / Column: Press this button to toggle through the available NV

Press and hold Shift and then press this button to display Key, BPM, or Time in the Library.

Beat Jump

Back

Decrease

Beat

Increase

Beat

Beat Jump

Forward

II display modes.

Pitch Controls

44. Range / Keylock: Press this to adjust the range of the Pitch Fader to ±8%, ±16%, and ±50%.

Press and hold Shift and then press this button to activate or deactivate Keylock: the key of the song will lock to whatever position the pitch fader is at when Keylock is activated. This feature allows you to change the speed of the song without changing the key.

45. Takeover LEDs: When you select the other Deck with the Deck Select switch, the position of the NV software. Slowly move the Pitch Fader in the direction indicated by the Takeover LED arrow until it turns off. At this point, the Pitch Fader matches the Pitch setting in the software and can control it again.

46. Pitch Fader: Controls the track's playback speed. An LED next to the fader will light up when set at 0%.

47. Pitch Bend ( + / – ): Press or hold down either of these buttons to temporarily adjust the track's playback speed. When released, the track playback will return to the speed designated by the Pitch Fader.

48. Beatkeeper: This meter is an aid for matching the tempo of both decks. When the white center LED is lit, the BPMs are matched. Otherwise, the meter will tend towards the faster deck. The further from center, the greater the difference between the two BPMs.

II's Pitch Fader may not match the Pitch setting for that Deck in the

Effects Controls

49. FX 1, FX 2, FX 3: These buttons have different functions on each Deck depending on the current FX Mode: Single-FX Mode or Multi-FX Mode.

• Single-FX Mode: FX 1 activates or deactivates the effect; FX 2 activates or

deactivates the first effect parameter (if applicable); FX 3 activates or deactivates the second effect parameter (if applicable). Press and hold Shift and press FX 1 to select the desired effect. Alternatively, press and hold Shift and then turn the FX Knob under the effect name to move quickly through the list.

• Multi-FX Mode: The buttons activate or deactivate the first, second, and third

effects in the effects chain, respectively. Press and hold Shift and press one of the buttons to select the effect for that point in the effects chain. Alternatively, press and hold Shift and then turn the FX Knob under the effect name to move quickly through the list.

50. FX 1 Knob, FX 2 Knob, FX 3 Knob: These knobs have different functions on each Deck depending on the current FX Mode: Single-FX Mode or Multi-FX Mode

• Single-FX Mode: the FX 1 Knob controls the "wet-dry" balance of the effect; the FX

2 Knob controls the first effect parameter; the FX 3 Knob controls the second effect

parameter. When Touch Mode is activated, touch the FX 1 Knob to activate its effect, and release the knob to deactivate it.

• Multi-FX Mode: The knobs control the "wet-dry" balance of the first, second, and

third effects in the effects chain, respectively. When Touch Mode is activated, touch a knob to activate its effect, and release the knob to deactivate it.

51. Beat / Mode: Tap this button repeatedly at the desired tempo to set the rate of the effects' low-frequency oscillators (LFOs). Press and hold this button to reset Beat Multiplier to the Deck's BPM. Press and hold Shift and then press this button to switch between Single-FX Mode and Multi-FX Mode.

52. Beat Knob: Turn this knob to set the Time Division for the selected effects.

53. FX Assign: Use these buttons to apply Effect A and/or B to the corresponding channel. You can apply Effect A and/or B to the entire Program Mix by using the FX Send buttons below the channels and/or the Program Mix.)

54. Channel Filter: Turn this knob to adjust the filter on the corresponding channel. The type of filter it adjusts will depend on the Filter Mode button.

55. Filter Mode: Press this button to toggle through the Filter Modes, which affect the Channel Filter knobs: Off, Filter-Roll Mode, or Filter-FX Mode.

• Off: When this button is off, the Channel Filter knob will apply and adjust a low-

• Filter-Roll Mode: Press this button once to activate Filter-Roll Mode (the button will

• Filter-FX Mode: Press and hold Shift and then press this button to activate Filter-FX

Master Volume knob. (Each effect can be applied to any or all of the four

pass filter to the corresponding channel when turned counter-clockwise or a highpass filter when turned clockwise.

light solid red). The Channel Filter knob will apply and adjust a low-pass filter to the corresponding channel when turned counter-clockwise or a high-pass filter when turned clockwise. In addition, it will apply a Loop Roll to the filter and will decrease in length as the knob moves further away from the center position. Press this button once to deactivate Filter-Roll Mode.

Mode (the button will flash red). The Channel Filter knob will apply and adjust a low-pass filter to the corresponding channel when turned counter-clockwise or a high-pass filter when turned clockwise. In addition, it will adjust Parameter 1 of the effects applied to that channel as the knob moves further away from the center position. Press this button once to deactivate Filter-FX Mode.

Display

II's full-color displays provide real-time feedback of the software with different views of

NV each deck. The three available views are Performance View 1, Performance View 2, and

Library View.

To move to the next view, press the D. View button.

To enter Library View immediately, turn the Sel. / Load knob.

To return to your previous view from Library View, do one of the following:

• Turn the Sel. / Load knob to select a track, and then press it to load the track to the

deck. You will then see the track loaded onto that deck in the previous view.

• Use the D. View button.

Each view shows the current settings of various controls, which you can adjust as described in the following sections. Click one below to jump to that section.

Performance View 1

Performance View 2

Library View

Performance View 1

This view contains information about the current track, effects, hot cues, and loops.

1. Deck: This is the currently selected Layer in the software controlled by that hardware deck. Press the Deck button to switch between the Layers. Deck A controls Layer 1 or 3; Deck B controls Layer 2 or 4.

2. Track Name: This is the title of the currently loaded track. See Library View to learn how to select tracks.

3. Artist Name: This is the artist of the currently loaded track. See Library View to learn how to select tracks.

4. Track BPM: This is the tempo (in beats per minute or BPM) of the currently loaded track with a 0% pitch adjustment. To see the BPM at which it is currently playing, see Deck

BPM below.

5. Track Key: This is the key of the currently loaded track. This is the track's key with a 0% pitch adjustment. Tracks must be analyzed to show this information.

6. Deck BPM: This is the current BPM at which the currently loaded track is playing. To adjust this value, move the deck's Pitch Fader. This number is not affected by temporary pitch bends (using the Pitch Bend -/+ buttons or the platter).

7. Remaining Time: This is how much time is left of the currently loaded track. The ring around the virtual platter is a visual representation of this value (the complete circle being the entire track).

8. Pitch Range: This is the current range of the deck's Pitch Fader. Press Range / Keylock on that deck to adjust the range of its Pitch Fader to +8%, +16%, or +50%.

9. Pitch Adjustment: This is the current setting of the Pitch Fader. To adjust this setting, move the deck's Pitch Fader.

10. Track Overview: This is the currently loaded track's waveform, which is color-coded according to the frequency of each area: red indicates low (bass) frequencies, green indicated mid-range frequencies, and blue indicates high (treble) frequencies.

In the waveform, hot cue points are represented by triangles at the bottom of the waveform, and loop regions are represented by shaded-blue sections.

1 2

13 12 13 12 13

11. Auto-Loop / Beat-Jump Buttons: These eight buttons correspond to the deck's eight pads while in Auto-Loop Mode. In that mode, press one of the pads to trigger an autoloop of the corresponding length. See Top Panel > Pad Mode Controls > Auto / Roll to learn more.

When Beat Jump is activated, the bottom four pads are used for Beat Jump controls. See

Top Panel > Navigation Controls > Beat Jump to learn more.

12. Effect Name: In Multi-FX Mode, the view will show three effects with one parameter knob each.

In Single-FX Mode, the view will show one effect name with three parameter knobs.

To switch between Single-FX Mode and Multi-FX Mode, press and hold Shift and press the Beat button.

To move to the next effect (in either mode), press and hold Shift and then press the FX

Button under the effect name. Alternatively, press and hold Shift and then turn the FX Knob under the effect name to move quickly through the list.

13. Effect Parameter: In Multi-FX Mode, the view will show three effects with one parameter knob each, which corresponds to the main parameter of that effect. To adjust each effect, turn the FX Knob below it.

In Single-FX Mode, the view will show one effect name with three parameter knobs. To adjust each parameter, turn the FX Knob below it.

To switch between Single-FX Mode and Multi-FX Mode, press and hold Shift and press the Beat button.

14. Effect Beats Multiplier: This number determines the timing or rate of the effects, based on the BPM.

Performance View 2

1 2

This view provides an alternative display of information about the current track, effects, hot cues, and loops.

2. Track Name: This is the title the currently loaded track, which will scroll by. See Library

View to learn how to select tracks.

3. Track Key: This is the key of the currently loaded track. This is the track's key with a 0% pitch adjustment. Tracks must be analyzed to show this information.

4. Track BPM: This is the tempo (in beats per minute or BPM) of the currently loaded track with a 0% pitch adjustment. To see the BPM at which it is currently playing, see Deck

BPM below.

5. Deck BPM: This is the current BPM at which the currently loaded track is playing. To adjust this value, move the deck's Pitch Fader. This number is not affected by temporary pitch bends (using the Pitch Bend -/+ buttons or the platter).

6. Remaining Time: This is how much time is left of the currently loaded track.

7. Pitch Range: This is the current range of the deck's Pitch Fader. Press Range / Keylock on that deck to adjust the range of its Pitch Fader to +8%, +16%, or +50%.

8. Pitch Adjustment: This is the current setting of the Pitch Fader. To adjust this setting, move the deck's Pitch Fader.

9. Track Overview: This is the currently loaded track's waveform, which is color-coded according to the frequency of each area: red indicates low (bass) frequencies, green indicated mid-range frequencies, and blue indicates high (treble) frequencies.

In the waveform, hot cue points are represented by triangles at the bottom of the waveform, and loop regions are represented by shaded-blue sections.

10. Main Waveform: This is the currently playing segment of the track's waveform, which will scroll by as the audio playhead moves through the track. The waveform is color-coded according to the frequency of each area: red indicates low (bass) frequencies, green indicated mid-range frequencies, and blue indicates high (treble) frequencies.

In the waveform, hot cue points are represented by triangles at the top and bottom of the waveform, and loop regions are represented by shaded-blue sections.

11. Auto-Loop Button: This button is the deck's current auto-loop length. In Auto-Loop Mode, press one of the pads to trigger an auto-loop of a specific length, which will be shown here. See Top Panel > Pad Mode Controls > Auto / Roll to learn more.
