CDX

WWW.DJBOOTH.NET

PROFESSIONAL CD PLAYER

Quick Start Owner’s Manual

BOX CONTENTS

• CD Player

• Platter Assembly

• Wrench

• Power Cable

• Audio Cable

• Fader Start Cable

Manual Rápido Del Comienzo (ESPAŃOL)

CONTENIDO DE LA CAJA

• Lector De CD

• Montaje del plato

• Llave

• Cable De La Corriente Alterna

• Cable Audio

• Cable Del Fader Start

Schnellbedienungsanleitung (DEUTSCH)

INHALT DER VERPACKUNG

• CD Player

• Plattenteller-Bausatz

• Schraubenschlüssel

• Stromanschlusskabel

• Audiokabel

• Fader - Startkabel

Manuel d’utilisation du propriétaire

(FRANÇAIS)

Contenu de la boîte

• Lecteur de CD

• Assemblage du plateau

• Clef

• Cable d’alimentation

• Cable audio

• Cable start potentiomètre

Manuale rapido di utilizzazione (ITALIANO)

CONTENUTO DELLA SCATOLA

• CD Player

• Complesso del piatto

• Chiave

• Cavo Di Alimentazione

• Cavo Audio

• Cavo D’inizio Per Il Potenziometro

CD PLAYER QUICK SETUP (ENGLISH)

1. Make sure all items listed on the front of
this guide were in the box.

2. READ SAFETY INSTRUCTION BOOKLET
BEFORE USING THE PRODUCT.

3. Assemble unit following the Quick
Assembly Instructions.

4. Study this setup diagram.

5. Place the unit in an appropriate position for
operation.

6. Make sure all devices are turned off and all
faders and gain knobs are set to “zero”

7. Connect all stereo input sources as
indicated in the diagram, your microphone,
and headphones

8. Connect the stereo outputs to power
amplifier(s), tape decks, and/or other audio
sources.

9. Plug all devices into AC power.

10. Switch everything on in the following order.

• audio sources (i.e. turntables or CD
players)

• mixer

• last, any amplifiers or output devices

11. When turning off, always reverse this
operation by,

• turning off amplifiers

• mixer

• last, any audio sources

12. Go to http://www.numark.com for product
registration.

More information about this product may be

found at http://www.numark.com

1. Power Switch - turns on and off the machine. The unit should always be shut down with this button
first before any external power is removed. Typically, it is recommended that the CD player is powered
on before amplifiers and off after amplifiers to avoid an audio spike to be sent through your equipment.

2. Slot Load CDRW Drive – designed to play commercially available CD and properly burned CDR and
CDRW discs. Insert the CDs you wish to play here.

3. Eject Button - used to eject CDs from the player. The CD will only eject when it is not playing.

4. Track/Menu Select Knob

Track – Rotate to select tracks. Pressing while rotating selects tracks +10
Menu Select – Press “Menu” then rotate to move through menu options. Pressing selects options.

5. High Torque Direct Drive Platter - utilizes a 5.0 kgf-cm motor to turn the vinyl record. The platter
should not be held in position for sustained periods.

6. Vinyl Record – controls the playback of the music, including scratching, pitch bend and cueing.

7. Play/Pause Button – starts and stops playback and the platter. Pressing toggles between play and
pause of the platter. Each time Play is pressed after Pause, a new Cue Point is set.

8. Brake Adjust – changes the amount of time it takes for the platter to stop when the Pause button is
pressed. As the wheel is moved righ t the braking time increases. For fast braking move the wheel all
the way left.

9. Startup Adjust - changes the amount of time it takes for the platter to start when the Play button is
activated. As the wheel is moved right the startup time decreases. For fast startup move the wheel all
the way left.

10. Cue Button- returns and pauses the music at the last set Cue Point. The Cue Point is the last place in
which the unit was paused and then Play or Stutter was pressed. Pressing a second time allows for
temporary play of this point. You can easily edit the cue point by turning the wheel while paused. As you
rotate the wheel the music will s ound. By stopping the wheel and pressing Play, a new point is set.

11. Stutter Button – starts the music from either the first set Cue Point or the last point of pause. If you
start from the last pause point while the unit is paused, a new Cue Point is set. Pressing this button
while the unit is in Play restarts the unit from the last Cue Point, creating a “stutter” effect. This also
works from “RELOOP”

12. Position Marker – used as a visual reference of platter position. You can move the position by rotating
the wheel and putting the marker in the des ired location then press “Cue” or “Stutter”.

13. Target Lamp – lights up the platter surface and create a visual reference.

14. Motor – deactivates the platter motor to avoid accidental wheel contact affecting performance during
play. In this mode play is controlled by the “Cue”, “Stutter”, and “Play/Pause” buttons. The “Jog
Wheel” is used for pitch control when effects are not active.

15. 33/45 RPM speed - changes the rotation speed of the platter and the music. The default mode is 33
RPM, so when 45 RPM is selected the speed and pitch increase 45%. The mode ca n be set to default at
45 RPM through the menu options. Then, 45 RPM becomes normal play speed.

16. Reverse/Bleep Button
Reverse – changes the direction of the platter and the music until it is released. This action can be

adjusted to be instant or controlled by the platter action through the program menu options.
Bleep – temporarily reverses the music from buffer while the unit continues forward motion. When the

toggle is released the unit resumes play from the point where play would have occurred otherwise.

17. Scratch Mode Button– toggles between the way the music reac ts to movement by the record.

Scratch – allows the vinyl to act just like a typical record on turntable.
Scratch + FWD - allows the vinyl to act just like a typical record on turntable but only plays forward

actions. Hold “Scratch” for 1 second to get in the FWD mode.

Scratch + CUE – moves the music to the last set Cue Po int every time the wheel is grabbed for sc ratch.
Scratch + CUE + FWD – moves the music to the last set Cue Point every time the wheel is grabbed for

scratch. Hold “Scratch+CUE” for 1 second to get in the FWD mode.

18. Pitch Button - adjusts the amount of control the Pitch Slider has on the overall speed of music and
platter. Pressing the button will cycle through pitch ranges of 6, 12, 25, and 100%. Pressing and
holding 2 seconds will deactivate and activate pitch.

19. Pitch Slider - controls the overall speed of the music and platter. At pitch settings of -80% to -100%,
the platter will deactivate and the music will be controlled by the slider. By moving the slider toward
“+” the speed of the music speeds up. By moving toward “-” the speed slows down. At 100% pitch
range, the music can be compl etely stopped or played at 2 times the original speed.

To match the speeds of two units, you can either monitor the music of both units by ear, or use the
automatic BPM readout and adjust the speed to match. When the tempo of the music of the CD you wish
to match is slow compared to the tempo of the other music, move the slider to the (+) end and match
the BPM. When faster, move the pitch slider to the (-) end. By making this adjustment the speeds will
be matched, though the beats may not yet be aligned.

20. Key Lock – holds the music at the current key. If the pitch slider is moved, the speed will change, but
the key will remain the same. By putting the pitch at 100% you can actually slow the music to a
complete stop while playing the last heard tones of the music. This works very well on vocals and can be
a very cool effect. If the unit has Key Lock active after the track has been changed and before Play is
hit, the unit will lock to the 0% key. If “Key” is deactivated during Pause, the unit will reset to match the
current pitch position. If “Key” is deactivated during Play, the key will remain at the new position until
the track is changed.

To change the key of the music press and hold “Key Lock” while moving the “Track/Menu Select Knob”.
The key can increase to 1 octave above normal, or up to 2 octaves above normal when the Slide effect is
used. The key can decrease up to 5 octaves below normal. The display will limit to 19 half steps above
or below the normal key.

21. Jog Wheel - is used for searching, adjusting the parameters of effects, trim, and key. When the motor is
off, this wheel is used to control pitch.

22. Search - changes the mode of the “Jog Wheel” search mode. Search will remain active while the wheel
is being moved and for 8 seconds after. Mov ing the wheel clockwise rapidly moves forward through the
music. Counterclockwise moves backwards through the music. Search will automatically turn off after 8
seconds of non-use.

23. The Beatkeeper™ - utilizes the latest patented Beatkeeper™ technology. The Beatkeeper™
automatically tracks beats based upon a combination of frequencies and rhythm patterns in the music.
It shows BPM in the display and outputs 4-count (a.k.a. one measure) information about the music in a
marching bar graph.

The Bar Graph: Most dance music and rock is set up in 4 beat increments called meas ures. Many of the

features within the unit use this information for incredible results. It’s important to understand the
basics of how the Beatkeeper™ works to effectively take advantage of other advanced features in
the unit. The bottom LED is for the 1st beat or “Down Beat”. Typically, most music starts on the
downbeat so the unit sets the first beat to where the music begins. Occasionally this may not be
correct or you may wish to reset it. To reset the downbeat simply tap the “TAP” button at the new
downbeat location as the music is playing or while in Pause.

TAP: This button is used for resetting the downbeat and also re-calibrating the BPM. The Beatkeeper™

is considered by many to be the most accurate automatic beat counter on the market today,
however, it occasionally may have trouble determining the correct BPM. This can happen when the
music contains complex rhythms, or if it starts without a beat at all. If you know the BPM showing
in the display is incorrect, or if the beat LEDs are not flashing with the beat, you have 2 options to
reset the Beatkeeper™.

1. Press the Tap button on the downbeat and hold for a second. This will tell the unit to re­calculate and display the next BPM it finds.

2. If holding the “TAP” button doesn’t work, you can manually hit the “TAP” button on the beat
and the display will indicate the new BPM. The BPM will be based upon the average of yo ur
last 8 taps. The Beatkeeper™ will then know which beats in the music it should be using to
determine the correct BPM and it will track them through the song.

Occasionally, the unit will be tracking the wrong beat but have the correct BPM. To reset the
downbeat, simply hit the “TAP” button once on the downbeat.

24. LCD Display- indicates all the functions as they are occurring with the CD.

25. Display/Back
Display - switches the Time Modes on the display between Elapsed Playing Time, Remaining Time on the

track and Remaining Time on the entire CD.
Back - allows you to step back when using the menu options.

26. Store/Recall
Store - will store all Cue Points for the CD when this button his held for 1 second (one Cue Set can be

stored per CD)
Recall - will recall all Cue Points for the CD.

27. Menu – is used for setting track order and various special commands. Follow the directions on the
display while using select knob to implement the desired changes. These changes will be stored and
retained on unit power off.

 Program – Allows you to play back a sequence of tracks on a CD. Follow the onscreen directions

after entering this mode.

 Relay – By turning this on, the unit will automatically start Playing when another unit attached via

a 1/8” relay cable stops playing. In Single Mode, this would be at the end of each track. In
Continuous Mode this would be after a complete CD has played.

 Interlock – This synchronizes the beats of two units. The units need to be interconnected by MIDI

cables plugged into the IN and OUT of each unit respectively. Activating this will cause the second
unit to align itself to the first unit. The first unit can also be a drum machine or other MIDI Device.

 33/45 – This sets the default normal speed of the platter t o either 33RPM or 45RPM depending

upon your desired use. When set to Default, the music will be normal at 0% no matter the platter
speed. If the 33/44 button is toggled, then the speed of the music and platter will change
accordingly for effect.

 Buffer - This gives an option for eliminating the dead space at the end of tracks. The unit already

automatically removes dead space at the beginning of tracks. End-of-track dead space elimination
is useful if you are playing a CD continuously and want to eliminate all the gaps between songs.

 Utility –

 Reverse Mode – Allows the Reverse function activate instantly, or to be delayed based upon the

28. Single- toggles the unit to play back just one track at a time (Single) or play continuously through all
tracks and then start over repeating the CD infinitely (Continuous).

o Sleep Mode - The unit will automatic al ly enter sleep mode after 15 minutes of

inactivity. In this mode, playback will still start instantly from buffer, however, the
laser will be off to extend its life. If this feature is undesirable, then it can be turned
off.

o Remote Type (Fader, On/On, On/Off) – allows you to set the unit to

remotely start via a fader-start mixer or switch. Fader - allows you
to use an industry-standard fader-start mixer by attaching an 1/8”
fader-start cable between the unit and your mixer. Typically, if you
move the crossfader toward the active channel, the attached CD player will play. When
it is moved awa,y the unit will Cue or Pause, depending upon the CD player setting.
Some mixers allow the input channel also to start the player. On/On - allows you to use
a momentary-type switch to start the unit. On/Off – allows you to use a locking switch
to start and stop the unit. This will work with some older style fader-start mixers as
well.

o Digital out (audio/CDG)
o Calibration – allows you to recalibrate your pitch slider, vinyl encoders, and effect

wheel by following the on-screen instructions.

o Version – shows all software versions in the unit.
o Reset – allows you to reset the machine options to the factory defaults.
o Auto CD Insert – sets the unit to automatically bring the CD into the unit after a

predefined period. This can be turned off if not desired.

actual platter motion.

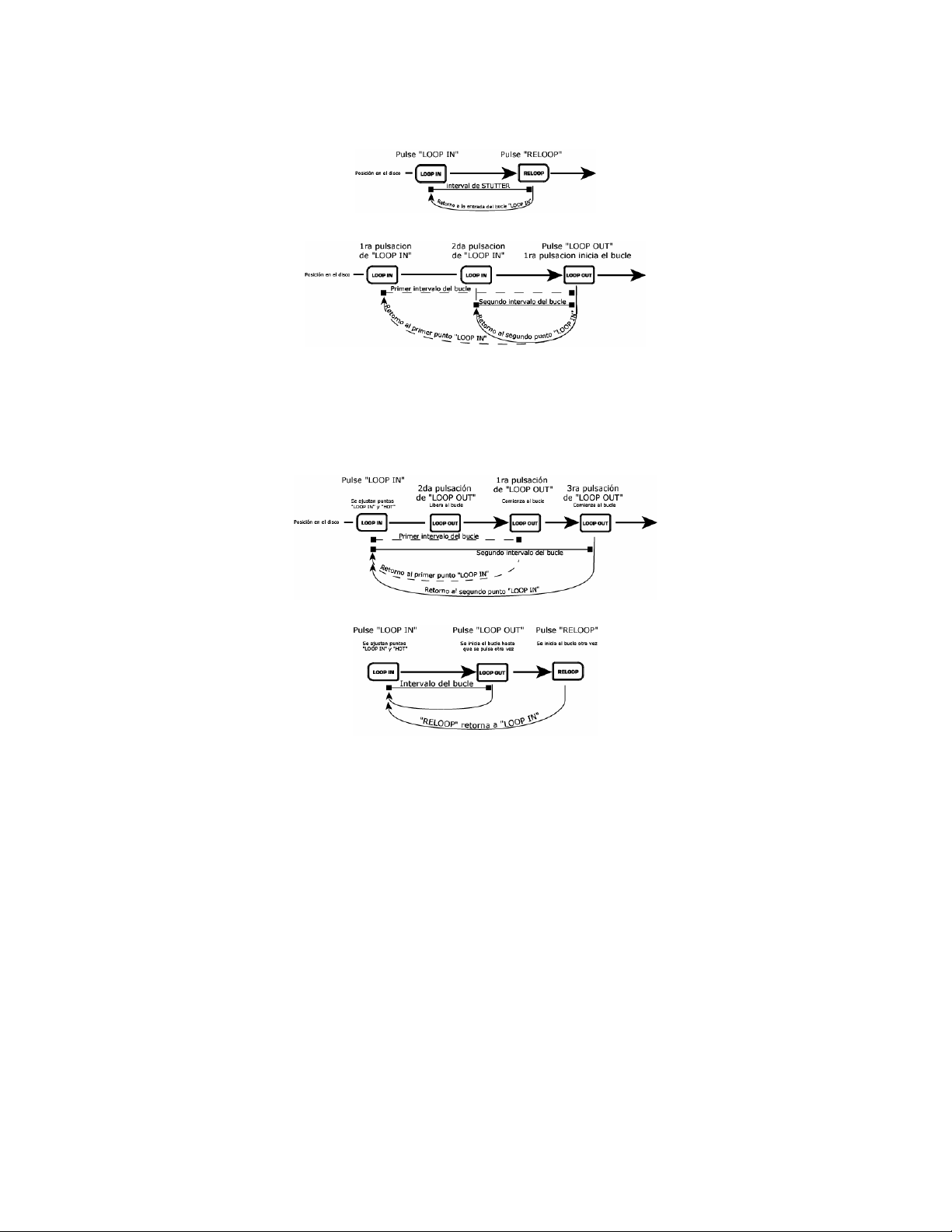

29. Loop In- is the point where you wish the loop to start. A loop is any area of a CD that you choose to
repeat seamlessly. The initial “CUE” or “PLAY” point of the CD is by default the “Loop In” point. If you
wish to set a new loop-in point, just press “Loop In” while the CD is playing when it reaches the desired
point. The “Loop In” button will light indicating a new loop is set. The “Reloop/Stutter” button will also
illuminate indicating a point has been set and is accessible for “Stutter”. The unit will always remember
a point until you set a new point or put in a new CD. The new point will be accessible until you remove
the CD from the unit. If you change tracks and you previously set a “Loop In” on another track, pressing
“Reloop” will jump to that point.

If you wish to change the loop-in point, just press “Loop In” again.

30. Loop Out - sets the end point of the loop. The first time you press “Loop Out” while a CD is in play
mode, the “Loop Out” button will turn on and flash while the song automatically returns to the “Loop In”
point with no breaks and continues to play. When the song reaches the “Loop Out” point again, it jumps
to the “Loop In” point and continues to repeat this action. You will notice the “Loop In” button will also
be flashing during loop action. To release, or end the loop, press “Loop Out” a second time and play will
continue forward when the song passes the previously set “Loop Out” point. The “Loop Out” button will
be lit solid indicating that the loop is now in memory for “Reloop” purposes. The “Loop Out” point will be
erased if “Loop In” is pressed or a new “Cue” point is set after the “Loop Out” point. This is important
because without this point, “Reloop” will not be possible.

31. Reloop/Stutter- repeats play “stutters” from the “Loop In” point. If a loop has been set, it plays and
repeats a previously set loop, until it is released by “Loop Out”.

32. Smart Loop – makes the Beatkeeper and loop buttons work together to create loops synchronized to
the beat. First, properly align the Beatkeeper™ to the beat. After this has been done, all loop points
and stuttering will be synchronized perfectly to the beat of the music.

33. Trim – allows the loop-in and loop-out points to be adjusted. To adjust a point, press “Trim” followed by
the button of the point you wish to adjust (LOOP IN, LOOP OUT, RELOOP), then rotate the “jog wheel”.

 When used with “Rel oop” the unit will shift the entire loop by moving both the loop-in and loop-out

points at the same time.

 When used with “Smart Loop”, the unit will adjust all points in 1-beat increments.

34. Shift (-,+) – adjusts the loop length by half length or double length increments. During “Smart Loop”
this will be limited to a minimum of 1 beat.

35. Length LEDS – Shows the length of the loop based upon “the Beatkeeper” setting. The middle LED is 4
beats.

Effect Buttons 36-40 are used to activate the desired Effect. Holding an Effect button puts the Effect into a

Hold or Alternate Effect mode. Once an effect is active, rotate the jog wheel to get the desired effect
sound. The parameter value will show in the display. You can preset a desired value by holding the
button and rotating the wheel.

36. Sonar – creates a metallic hollow effect to the audio. Pressing and holding this button will keep the
sound from automatically returning to normal when movement stops. Tapping the button will turn the
effect on and off at the desired setting.

37. Slide - smoothly changes the key of the music. In the key display you will see the key change as the
wheel is moved. Pressing and holding this button will keep the sound from automatically returning to
normal when movement stops. Tapping the button will turn the effect on and off at the desired setting.

38. Echo - adds echo to the music also based upon the
Beatkeeper™. The start parameter is no echo “0”. If you
move the wheel to the right the numbers will go 1-64, 1-32,
1-16, 1-8, 1-4, 1-2, and 1-1 indicat ing the amount of echo
added to the unit. If you move the wheel to the left you will
create negative or preceding echo. This essentially plays the
music before you get to it. At 1-1 the music will echo 1 full
measure or 4 beats of music. If you turn off the effect then
back on again it remembers the last set parameter. (Note: a

preceding echo requires the uni t to play from buffer memory.
If the buffer becomes unavailable the effect will stop until buffer is regained.)

A.D. (hold the Echo button to activate)- stands for “Auto Decimation”. It reduces the bit rate of the
music, creating increasing distortion. To activate this effect, hold the “Echo” button for 2 seconds.

39. Filter – is an isolation (bandpass) filter that lets you play only a specific frequency of the music.
Rotation of the wheel moves the filter frequency. If you turn off the effect, then on again, it remembers
the last set parameter.

KILL (hold the Filter button to activate)- This elimination (bandstop) filter lets you play all but a
specified frequency. To activate, hold “Filter” for 2 seconds. Rotation of the wheel moves the filter
frequency. If you turn off the effect, then on again, it remembers the last set parameter value.

40. Chop – breaks up the music by turning the volu me on and off based upon the BPM of the Beatkeeper™.
This effect works best when the Beatkeeper™ is properly aligned. First activation of this effect plays
1/8th note or half of every beat. The BPM display will indicate “1-8”, which means one measure (4
beats) of music has been broken into 8 parts. Rotation of the
wheel to the left decreases the parts to 1-4, 1-2, and 1-1. At
1-1 the music plays for 4 beats th en is silent. Rotating to the
right breaks up the music into 1-16, 1-32, 1-64, then smaller
increments, creating another interest ing effect. When the
effect is first activated, the music will play the section then
turn off for a section. This is important because you can
reverse the sections that are on and off by activating the
effect in the other section. If you deactivate the effect, then
turn it on again, it remembers the last set parameter value.

Pan (hold the Chop button to activate)- alternates playing right and left audio based upon the BPM of the
Beatkeeper™. This effect works best when the
Beatkeeper™ is properly aligned. To activate, hold “Chop”
for 2 seconds. First activation of the effect alternates on
1/8th notes or half of every beat. The BPM display will
indicate an “1-8”, which means one measure (4 beats) of
music has been broken into 8 pa rts. Rotation of the wheel
to the left decreases the parts to 1- 4, 1-2, and 1-1.
Rotating to the right makes faster changes of 1-16, 1-32,
1-64, then smaller increments, creating another interesting
effect. If you deactivate the effect then turn it on again, it
remembers the last set parameter value.

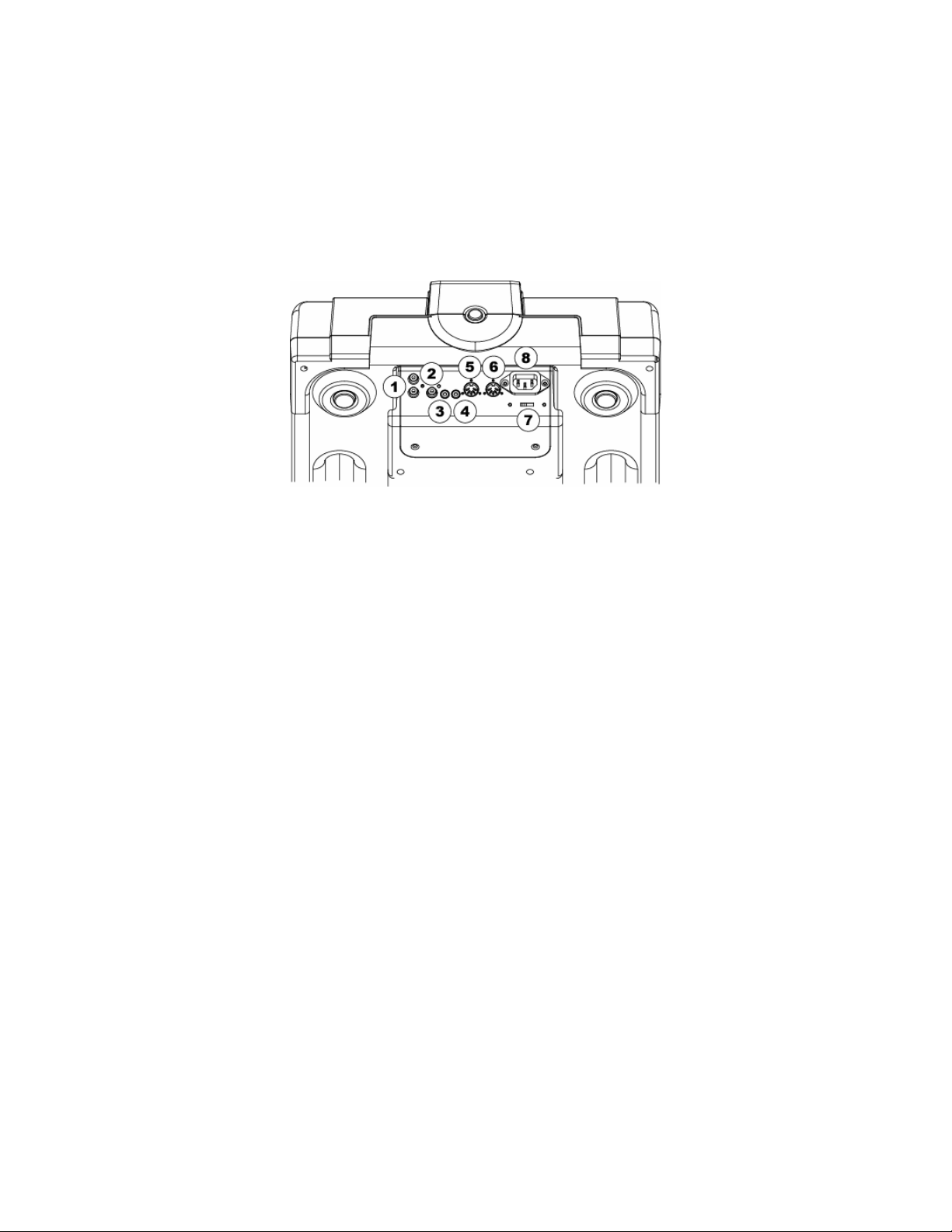

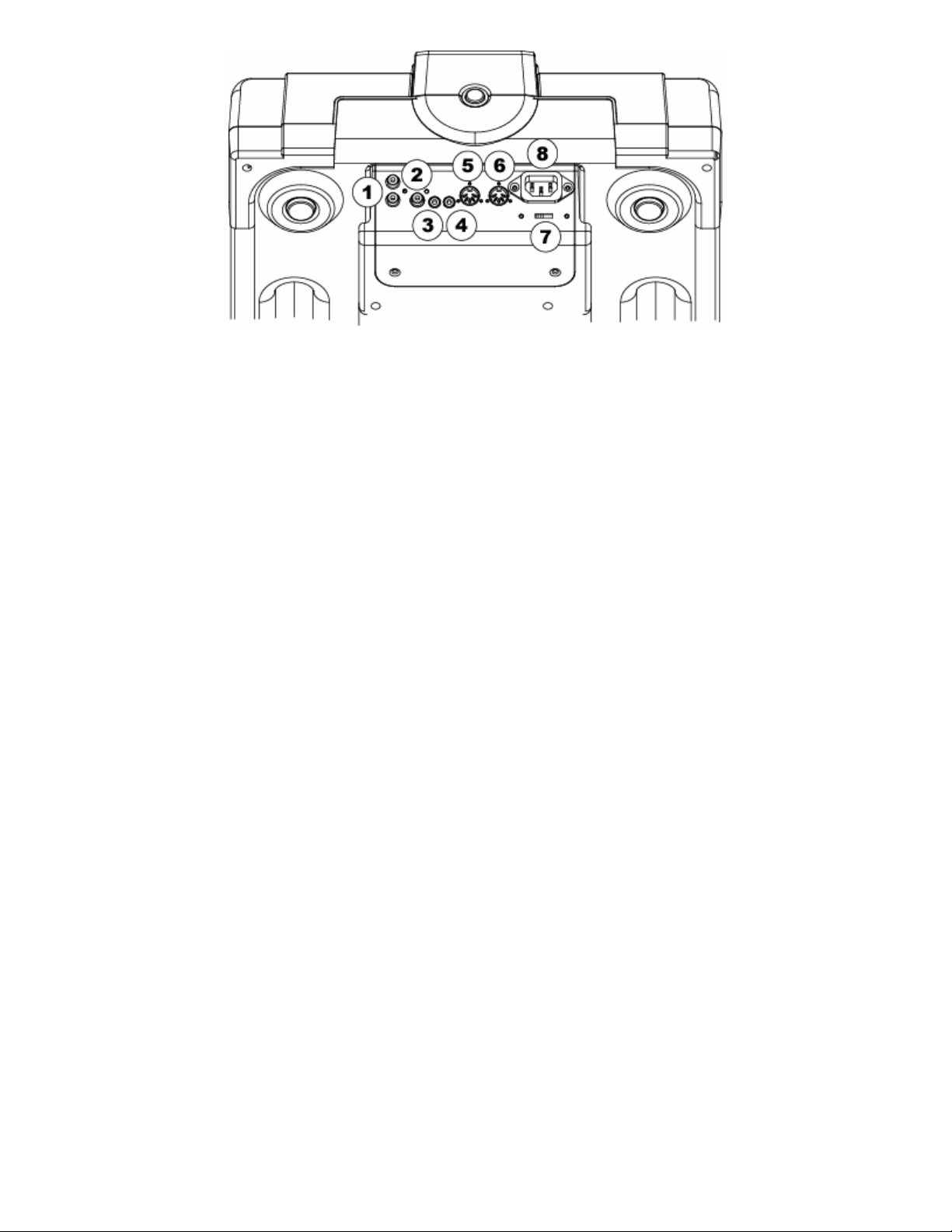

1. RCA Audio Connectors - Connect your CD player to your mixer from this line level output.

2. Digital Output - The format is Type 2, Form 1, also known as S/PDIF (Sony/Phillips Digital Interface
Format). To active Digital Output Mode, use the Program Menu. This allows digital audio information to
be sent.

3. Relay Connector- If you wish to use the relay function, plug in your 3.5mm stereo control cables into
here and then into your other CD player. The cable must have a stereo-style plug for the units to work
properly

4. Remote Start Connector – Use this connector to plug into your fader-start compatible mixer or remote
switch. This function is always active.

a. To use this connector for fader-start, connect the supplied fader-start cable to a fader-start

compatible mixer. Every time you move the crossfader on the mixer to the side that the unit is on,
it will start playing. When you move the fader away from that side, the unit will stop. Moving the
fader back will start playback again.

b. Foot switches can also be attached to this jack for creative mixing techniques and can be found in

most music shops. Connector plugs are often ¼”, so a 1/8” adapter will be needed for connection.
There are also two types of footswitches that will work with this connector. The first is a typical,
on/off pushbutton switch and is generally used for switching channels on guitar amps. The second
type is a momentary footswitch, which is usually used for keyboard sustain pedals.

5. MIDI IN Connector – This port is for receiving MIDI (Musical Instrument Digital Interface) signals from
other MIDI devices such as CD players, keyboards, or drum machines.

6. MIDI OUT Connector – The port is for sending MIDI signals to other MIDI devices.

7. Voltage Selector - Set this switch to the voltage for your location.

8. IEC Power Plug Connector - Plug your supplied power cord in here.

INSTALACIÓN RÁPIDA DEL REPRODUCTOR DE CD (ESPAÑOL)

1. Asegúrese de que todos los artículos

incluidos al inicio de este manual
están incluidos en la caja.

2. LEA LAS INSTRUCCIONES DEL

FOLLETO DE SEGURIDAD ANTES
DE UTILIZAR EL PRODUCTO.

3. Ensamble la unidad usando las

Instrucciones de ensamblaje
rápido.

4. Estudie este diagrama de instalación.

5. Coloque la unidad en una posición

adecuada para su funcionamiento.

6. Asegúrese de que todos los

dispositivos están apagados y de que
todos los faders y potenciómetros de
ganancia están en posición «cero».

7. Conecte todas las fuentes de entrada

al estéreo como se indica en el
diagrama, su micrófono y auriculares.

8. Conecte las salidas del estéreo a los

amplificadores de potencia, bandejas
de cinta magnética y/o otras fuentes
de audio.

9. Enchufe todos los dispositivos al
suministro de corriente alterna.

10. Encienda todo en el siguiente orden:

• fuentes de audio (p.ej.

giradiscos o reproductores de
CD)

• mezclador

• por último, cualquier

amplificador o dispositivo de

11. Al apagar, realice siempre esta

12. Visite http://www.numark.com para

Puede encontrar más información sobre

salida

operación en sentido inverso:

• apague los amplificadores

• el mezclador

• por último, cualquier fuente de

audio

registrar el producto.

este producto al visitar

http://www.numark.com

1. Interruptor de alimentación - enciende y apaga la máquina. La unidad debería ser siempre apagada
con este interruptor primero antes de retirar cualquier fuente de alimentación externa. Típicamente,
recomendamos que el reproductor de CD sea encendido antes que los amplificadores y apagado después
de estos para evitar enviar un fuerte impulso de audio a través del equipo.

2. Unidad CDRW con Slot Load – diseñada para reproducir CD comerciales y discos CDR y CDRW
quemados correctamente. Inserte los CDs que desea reproducir.

3. Botón de expulsión– se usa para expulsar los CDs del reproductor. El CD se expulsará solo cuando no
se esté reproduciendo.

4. Botón de selección de pista/menú

Pista – Gírelo para seleccionar pistas. Presionándolo mientras lo gira selecciona pistas + 10
Selección de menú – Presione “Menu” y gírelo para ver las diferentes opciones del menú. Presiónelo

para seleccionar una opción.

5. Plato de transmisión directa de torque ultra alto – usa un motor de 5,0 kgf-cm para girar el disco
de vinilo. El plato no debe ser mantenido en una posición por períodos prolongados.

6. Disco de vinilo – controla la reproducción de la música, incluyendo rayado (scratching), pitch bend y
apuntador (cueing).

7. Botón Play/Pause – comienza y detiene la reproducción y el plat o. Presionándolo alterna entre la
reproducción y la pausa del plato. Cada vez que se presiona Play después de Pause, se ajusta un nuevo

punto cue.

8. Ajustar freno – cambia el tiempo que demora el plato para detenerse cuando se presiona el botón
Pause. Al girar la rueda hacia la derecha, el tiempo de frenado aumenta. Para frenar rápidamente, gire

la rueda totalmente hacia la izquierda.

9. Ajustar arranque – cambia el tiempo que demora el plato para arrancar cuando se presiona el botón
Pause. Al girar la rueda hacia la derecha, el tiempo de arranque aumenta. Para arrancar rápidamente,

gire la rueda totalmente hacia la izquierda.

10. Botón Cue - vuelve a reproducir y para la música en el último punto de referencia determinado. El
punto Cue es el último lugar en que fue detenida la unidad y se presionó Play o Stutter. Presionándolo
una segunda vez, permite que este punto sea reproducido temporariamente. Puede modificar el punto
cue fácilmente girando la rueda durante la pausa. Al girar la rueda, se escuchará la música. Al parar la

rueda y presionar Play, se ajusta un nuevo punto.

11. Botón Stutter “tartamudeo”– inicia la música ya sea desde el primer punto cue o el último punto de
pausa ajustado. Si comienza desde el último punto de parada mientras la unidad esté en pausa, se
ajustará un nuevo punto de partida. Presionando este botón mientras la unidad está reproduciendo,
rearrancará la unidad desde el último punto cue ajustado, creando un efecto de “tartamudeo” (Stutter).

Esto funciona también con “RELOOP”.

12. Marcador de posición – se usa como referencia visual de la posición del plato. Puede mover la posición
girando la rueda y colocando el marcador en el lugar que desea, y pulsando luego “Cue” o “Stutt er”.

13. Lámpara Target – ilumina la superficie del plato y crea una referencia visual.

14. Motor – desactiva el motor del plato para evitar que el contacto accidental con la rueda afecte el
rendimiento durante la reproducción. En este modo, la reproducción es controlada por los botones
“Cue”, “Stutter”, y “Play/Pause”. La “Jog Wheel” (rueda de avance lento) se usa para el control del pitch
cuando los efectos no están activos.

15. Velocidad 33/45 RPM – cambia la velocidad de giro del plato y de la música. El modo predeterminado
es de 33 RPM, entonces cuando hay 45 RPM s eleccionados la velocidad y el pitch aumen tan un 45%. El
modo puede ser predeterminado a los 45 RPM u sando las opciones del menú. De esta forma, se hace que
los 45 RPM sea la velocidad normal de reproducción.

16. Botón de reverso/Bleep
Reverso – cambia el sentido del plato y de la música hasta que se suelte. Esta acción se puede ajustar
para que sea instantánea o controlada por la acción del plato a través de las opciones de menú del

programa.

Bleep – invierte temporariamente la música del buffer mientras la unidad continúa en movimiento hacia
delante. Cuando se suelta el interruptor de palanca, la unidad continúa reproduciendo desde el punto

donde la reproducción se hubiera producido de todas maneras.

17. Botón de modo de rayado (Scratch)– alterna la manera en que la música reacciona al movimiento del

disco.

Rayado (Scratch) – permite que el vinilo actúe como un disco típico sobre un giradiscos.
Scratch + FWD – permite que el vinilo actúe como un disco típico sobre un giradiscos pero sólo

reproduce acciones hacia delante. Mantenga “Scratch” presionado por 1 segundo para entrar en el modo

FWD.

Scratch + CUE – mueve la música al último punto cue ajustado cada vez que la rueda se toma para un
scratch.
Scratch + CUE + FWD – mueve la música al último punto cue ajustado cada vez que la rueda se toma

para un scratch. Mantenga “Scratch+CUE” presionado por 1 segund o para entrar en el modo FWD.

18. Botón Pitch - ajusta la magnitud del control que tiene el deslizador del pitch sobre la velocidad total de
la música y el plato. Presionando el botón visualizará a través de los rangos de pitch de 6, 12, 25, y

100%. Presionándolo y manteniéndolo presionado por 2 segundos desactiva y activa el pitch.

19. Deslizador del Pitch – controla la velocidad total de la música y del plato. Para ajustes del pitch de –
80% al –100%, el plato se desactiva y la música es controlada por el deslizador. Moviendo el deslizador
hacia “+” la velocidad de la música aumenta. Moviéndolo hacia “-“, la velocidad disminuye. Al rango de

100%, la música puede ser parada completamente o reproducida a 2 veces la velocidad original.

Para hacer coincidir las velocidades de dos unidades, puede monitorear la música de ambas unidades de
oído, o usar el lector automático de BPM y ajustar la velocidad para que coincidan. Cuando el tempo de
la música del CD que desea igualar sea lento comparado con el de la otra música, desplace el deslizador
hacia el lado (+) y haga coincidir los BPM. Cuando sea más rápido, desplace el deslizador del pitch hacia
(-). Al realizar este ajuste, las velocidades se igualarán aunque los beats podrían no estar aún alineados.

20. Key Lock – mantiene la música en el tono actu al. Si se mueve el deslizador, la veloci dad cambia, pero
el tono será el mismo. Colocando el pitch al 100%, puede disminuir la velocidad de la música hasta que
se pare mientras reproduce los últimos tonos que se escuchen de la música. Este efecto funciona muy
bien con voces y puede ser un efecto muy agradable. Si la unidad tiene el K ey Lock activo después
cambiar el tema y antes de presionar Play, la unidad se mantendrá en el tono de 0%. Si Key se
desactiva durante la pausa, la unidad se reajustará para coincidir con la posición actual del pitch. Si Key
se desactiva durante la reproducción, el tono permanecerá en la nueva posición hasta que se cambie el

tema.

Para cambiar el tono de la música presione y mantenga presionado “Key Lock” mientras gira la rueda de
avance lento (Botón de selección de pista/menú). El tono puede aumentar a 1 octava sobre lo normal, o
hasta 2 octavas sobre lo normal cuando se use el efecto de deslizamiento. El tono puede disminuir hasta
5 octavas bajo lo normal. La presentación en pantalla está limitada a 19 medios pasos sobre o debajo del
tono normal.

21. Rueda jog – se usa para buscar, ajustando los parámetros de los efectos, trim y tono. Cuando el motor

está apagado, esta rueda se usa para controlar el pitch.

22. Search (búsqueda) – cambia el modo del modo de búsqueda de la rueda de avance lento jog. La
búsqueda permanecerá activa mientras se mueva la rueda y por 8 segundos después. Moviendo la rueda
en el sentido de las agujas del reloj hacer que la música avance rápidamente. En sentido contrario,
hace que la música retroceda. La búsqueda se desactivará automáticamente después de que no se use

por 8 segundos.

23. El Beatkeeper™ - usa lo último en la tecnología patentada Beatkeeper™. El Beatkeeper™ busca los
beats automáticamente con base en una combinación de frecuencias y patrones de ritmo de la música.
Muestra BPM en el display y da 4 números (una medida) de información sobre la música en un diagrama

de barras.

Diagrama de barras: La mayoría de la música dance y rock se ajusta en incrementos de 4 beats

llamados medidas. Muchas de las funciones la unidad usan esta información para dar resultados
increíbles. Es importante entender los básicos de cómo funciona el Beatkeeper™ para aprovechar
efectivamente otras funciones avanzadas de la unidad. El LED inferior es para el primer beat o
“Down Beat”. Típicamente, la mayoría de la música comienza en el downbeat, de modo que la
unidad ajusta el primer beat adonde comienza la música. Ocasionalmente, esto puede no ser
correcto o puede desear cambiarla. Para reajustar el downbeat, simplemente presione el botón

“TAP” en el nuevo lugar de downbeat mientras se reproduce la música o está en pausa.

TAP: Este botón se usa para reajustar el downbeat y también para volver a calibrar los BPM. El

Beatkeeper™ es considerado por mucha gente como el contador de beats automático más preciso
del mercado de hoy, pero sin embargo puede tener ocasionalmente problemas para determinar los
BPM correctos. Esto puede ocurrir cuando la música contiene ritmos complejos, o si comienza sin
ningún beat. Si sabe que los BPM visualizados en el display son incorrectos, o si los LEDs para
beats no destellan con el ritmo, tiene 2 opciones para reajustar el Beatkeeper™.

1. Presionar el botón Tap en el downbeat y mantenerlo presionado por un segundo. Esto le

indicará a la unidad que vuelva a calcular y visualizar el próximo BPM que encuentre.

2. Si manteniendo el botón ‘TAP” presionado no funciona, puede presionar el botón “TAP”
manualmente al mismo tiempo del beat y el display indicará el nuevo BPM. Los BPM se
basarán en el promedio de sus últimos 8 taps. El Beatkeeper™ sabrá entonces cuáles beats
de la música debe usar para determinar los BPM correctos y los encontrará en la canción.

Ocasionalmente, la unidad seguirá el beat incorrecto pero tendrá los BPM correctos. Para
reajustar el downbeat, simplemente presione el botón ”TAP” una vez en el downbeat.
