Numark CDN34, CDN34S User Manual

Download

Professional Disc Jockey Products

CDN34 - PROFESSIONAL DUAL CD PLAYER

with

Buffer Memory

USER’S MANUAL

11 Helmsman Avenue, North Kingstown, RI 02852 http://www.numark.com

CDN-34

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE ANY COVER. NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL ONLY.

The lightning flash with arrowhead symbol within the

equilateral triangle is intended to alert the user to the presence

of un-insulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within the equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying this appliance.

CAUTION

FOR USA & CANADIAN MODELS ONLY

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS

(POLARIZED) PLUG WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN

BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

SAFETY INSTRUCTIONS

6. Heat - Avoid placing this product to close to any high heat sources such as radiators.

7. Power Sources - This product should be connected to a power supply only of the type described in these operating instructions, or as marked on the unit.

8. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked upon or pinched by items placed on or against them. When removing the cord from a power outlet be sure to remove it by holding the plug attachment and not by pulling on the cord.

9. Object and Liquid Entry - Take care that objects do not fall into and that liquids are not spilled into the inside of the unit.

1. Read Instructions - All the safety and operating instructions should be read before this product is connected and used.

2. Retain Instructions - The safety and operating instructions should be kept for future reference.

10. Damage Requiring Service - This product

3. Heed Warnings - All warnings on this product and in these operating instructions should be followed.

should be serviced only by qualified personnel. If you have any questions about service please contact Numark at the number(s) shown on the

4. Follow Instructions - All operating and other

back cover of this manual.

instructions should be followed.

5. Water and Moisture - This product should be kept away from direct contact with liquids.

11. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means built into the Unit is not defeated.

- The Leader in DJ Technology

CDN-34

12. Internal/External Voltage Selectors - Internal or external voltage selector switches, if any, should only be reset and re-equipped with a proper plug for alternative voltage by a qualified service technician. Do not attempt to alter this yourself.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Electrical equipment should NEVER be kept or stored in damp environments.

DANGER INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCK FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION: This product utilizes a laser. Use of controls or adjustments other than those specified herein may result in hazardous radiation exposure.

SERVICE INSTRUCTIONS

1. Disconnect power cord before servicing

2. Replace critical components only with factory parts or recommended equivalents

3. For AC line powered units - Before returning repaired unit to user, use an ohmmeter to measure from both AC plug blades to all exposed metallic parts. The resistance should be no more than 100,000ohms.

NOTICE CONCERNING FCC REGULATIONS

This equipment generates and uses radio frequency energy and may cause interference to radio and television reception if you do not operate it in strict accordance with the procedures detailed in this OPERATING MANUAL. This unit complies with Class B computing device rules in accordance with the specifications in Sub-part J or Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. There is no guarantee, however, that interference will not occur in a particular installation. If the unit does cause interference to any radio or television reception, try to reduce it by one or more of the following means:

a) Turn the other unit and/or its antennae b) Move this unit c) Move this unit and the other unit(s) further apart d) Plug this unit into a different AC outlet so that it is on a different circuit from the other equipment.

This note is in accordance with Section 15.838 of the FCC Rules.

This unit does not exceed the Class B limits for radio noise emission from digital apparatus set out in the radio interference regulations of the Canadian

Department of Communications.

DOUBLE INSULATED - When servicing use only identical replacement parts

For 220 volt use in USA, use NEMA style 220 volt plug. For other countries use proper plug for local outlet.

LINE VOLTAGE SELECTION

1. The desired voltage may be set with the VOLTAGE SELECTOR switch on the rear panel of the main unit, using a screw driver.

2. Do not twist the VOLTAGE SELECTOR switch with excessive force as this may cause damage.

3. If the VOLTAGE SELECTOR switch does not move smoothly contact a qualified serviceman.

Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information for your records. Please return the warranty card enclosed to register your CD player with us.

MODEL: CDN-34 PURCHASED FROM:_________________________ SERIAL NUMBER:__________________ DATE OF PURCHASE:________________________

- The Leader in DJ Technology

115V

230V

CDN-34

CONGRATULATIONS...

You have just purchased the worlds first dual-transport CD player with 12 seconds of antishock memory designed specifically for the professional DJ. This unit has been designed to provide total ease in CD mixing with ultimate creativity. Please take a few moments to

familiarize yourself with the unique features of the CDN-34 by reading the following information before attempting to operate the unit.

Once again, congratulations and thank you for making the CDN-34 your choice in professional CD players.

FEATURES:

• 12 Seconds Anti-Shock Memory (6 sec. per side)

• True Buffer Instant Start

• Seamless Looping (Entire CD) with Edit Function

• Enormous Backlit Display with total CD Remain Time

• Instant Stutter Start with Settable Stutter Points

• Interactive Pitch Wheel adjustment

• Infinite Full CD Continuous Play

• 3 speed scanning forward and reverse

• Cue wheel 75 frame part search

• Auto-Dead Space Elimination with Auto Cue

• +10 Tracks Skip Search

• 30 tracks Programmable Play

• Pitch display

• Beat Counter

• Digital Output

- The Leader in DJ Technology

TABLE OF CONTENTS

Safety and Registration 2 Introduction 4

Set-up Instructions & Connections 7 Description of the Features

Features of the Unit 8 Features of the Display 10

Operation

CDN-34

Play, Pause and Cue Operations 11 Setting Loops 12 Editing Loops 14 Stuttering 16 Description of Anti-Shock 17 Matching the Beats Per Minute 18 Beat Matching Using Pitch Bend 19

Example of Mixing with the CDN-34 21 Before Switching off the Power 22

Troubleshooting Guide 22 Information and Specifications 23

Warranty 24

- The Leader in DJ Technology

CDN-34

CHECK TO BE SURE

THE FOLLOWING ITEMS ARE IN THIS BOX:

1) DUAL-TRANSPORT PLAYER UNIT

1) REMOTE CONTROL UNIT

1) OWNERS MANUAL (THIS BOOKLET)

2) RCA CONNECTING CABLES

2) CONTROL CABLES

1) IEC POWER CORD

- The Leader in DJ Technology

CONNECTIONS

inputs of your mixer.

connector on the main unit to the Unit 1 connector on the remote control unit. Repeat for Unit 2.

cables are supplied with the main unit. Be sure to use the remote control connection cables which have been supplied. Use of another cable type might cause damage.

DIGITAL OUTPUT

IEC CONNECTOR

VOLTAGE SELECTOR

Typical connection with a mixer is illustrated right. Please use it for reference.

CDN-34

POWER ATTACHMENT: Your CD player is equipped an IEC style power connector. Please first select the proper voltage for your location. Next, plug in you supplied power cable into the rear of the unit then plug into the appropriate power outlet

DIGITAL OUTPUTS: This CD player is specially equipped with digital outputs. The format is type 2, form 1, also known as S/PDIF (Sony/Phillips Digital Interface Format). In order to use the digital output you must be sure not to vary the pitch in any way. To ensure this, press the pitch button to deactivate the variable pitch slider and don’t use the pitch bend buttons or pitch wheel. If you adjust the pitch, other devices will not read the digital output properly.

MOUNTING YOUR CD PLAYER

•Mount the units in your console or rack with 19” EIA rails

•The transport should be mounted not to exceed an angle of 15 degrees.

•Your CD player is equipped with ANTI-SHOCK memory. Even though though the buffer can recover from most situations it can still be affected by excess vibration so mount the units in a secure environment if possible.

- The Leader in DJ Technology

CDN-34

DESCRIPTION CDN-34 FEATURES

1. PROGRAM - Depress this button and the unit will stop and

program will be indicated on the display. Select each track to be programmed and press the PROGRAM button between selections. You can program up to 30 tracks. Press PLAY to start the program. To exit and erase program hold the program button down for more than 2 seconds while the unit is stopped, open the disc tray, or turn off the power.

2. CONT/SING - Will cause just a single track to play or all tracks in order. Continuous play mode will cause the entire CD to repeat once the final track is ended.

3. LCD DISPLAY - Indicates all the functions, as they are occurring, with the CD.

4. TIME (Time Button) - The TIME button switches the time display between elapsed playing time, remaining time on the track, and total CD time remaining.

5. OPEN/CLOSE (Disc Tray Open/Close) - Press to load or eject the disc. Each press will open or close the disc tray on the transport. NOTE: The tray will not open unless the disc has been paused.

6. TRACK (Track Buttons) - These buttons are used to select the track to be played.

7. Track 10 Button - This button is for quickly advancing to higher tracks on a CD.

8. PITCH (Pitch Button) - This button activates the Pitch Slider (14).

9. PITCH BEND (Pitch Bend Button) - When each of the two CD players are playing a CD, the pitch bend function allows the positioning of the bass beats to be matched after the pitch of each disc is matched. Either player can “catch up” or “fall back” to match the other player. The pitch will automatically rise while the (+) button is pressed (allowing “catch up”) and return to the original pitch when the button is released. The pitch will automatically drop while the (-) button is pressed (allowing “fall back”) and return to the original pitch when the button is released. By changing the pitch of one disc relative to the other, beats can be matched for mixing. These buttons can effect the pitch of the CD by up to +/-16%.

10. SEARCH WHEEL (OUTER RING) - This wheel has 3 forward and 3 reverse speed positions for searching through songs. The more you turn the wheel in either direction the faster you search through the music.

11. PITCH/CUE JOG WHEEL (INNER RING) - This jog wheel serves 2 functions depending on the mode you are working in. a. The jog wheel will act as a slow frame search control when the CD is not playing but either paused or set to a cue point. To set a new frame cue point, spin the wheel then press play when you have determined the proper position. Press CUE to return to the “CUE POINT”. b. The jog wheel will temporarily bend the pitch of the music up to +/-16% if the song is already playing by rotating the wheel clockwise to speed up or counterclockwise to slow down. The amount of pitch change is determined by the speed of rotation.

- The Leader in DJ Technology

CDN-34

230V

12.CUE - Pressing the “CUE” button returns the CD to the last set “CUE” point and pauses it. The “CUE” point is either the position at which “PLAY” was last actually started or the “LOOP IN” point if one was previously set. Pressing the “CUE” button a second time allows the music to be played from the “CUE” position until it is released. Repeatedly pressing the “CUE” button allows the CD to be played from the same position any number of times. The CUE LED will light up from the time the CUE button is pressed until the CD has reset to the position at which play was started. Steady lighting of this LED indicates the ready condition.

13.START/PAUSE (Play/Pause Button) - Each press of the Play/Pause Button causes the operation to change from play to pause or from pause to play.

14.PITCH SLIDER - The pitch can be changed up to +/-12% by pressing the “PITCH” button so the PITCH LED is lit, then moving the sliding fader. The pitch will not be changed if the PITCH LED is off.

15. COUNTER BUTTON - Tap this button with the beat of the music to determine the current Beats Per Minute (BPM).

16. BPM BUTTON - Switches the mode of the display between showing the BPM and the percentage change in pitch.

17. LOOP IN BUTTON - Used for setting a start loop point and new cue points during play

17. LOOP OUT BUTTON - Used for setting the end loop point and releasing the loop action

18. RELOOP/STUTTER BUTTON- Depending on mode this button is used for either repeating a previously set loop or seamlessly stuttering on a the last set cue point.

TRANSPORT FEATURES

19. DISC TRAY - Place your CD in here.

20. OPEN/CLOSE (Disc Tray Open/Close) - Press to

load or eject the disc. Each press will open or close the disc tray on the transport. NOTE: Tray will not open unless the disc has been paused.

21. POWER BUTTON - Turn on and turn off the machine from this button. The unit should always be shut down with this button first before any external power is removed.

22. RCA AUDIO JACKS - Connect your CD player to your mixer from this line level output.

23. VOLTAGE SELECTOR - Set this switch to the voltage for your location.

24. IEC POWER CONNECTOR - Plug your supplied power cord into here then plug unit into a power outlet.

25. CONTROL CONNECTOR - Plug your control cables for each unit into here and the back of the remote unit.

26. DIGITAL OUTPUTS - The format is type 2, form 1, also known as S/PDIF (Sony/Phillips Digital Interface Format).

In order to use the digital output you must be sure not to vary the pitch in any way. To en

this, press the pitch button to deactivate the variable pitch slider and don’t use the pitch bend buttons or pitch wheel. If you adjust the pitch, other devices will not read the digital output properly. Also do not use the stuttering or loop buttons during digital output otherwise external units may not receive the signal properly.

sure

115V

- The Leader in DJ Technology

CDN-34

LCD DISPLAY FEATURES

1. PLAY - active while the unit is actually playing a CD.

2. PAUSE - active when the unit is paused.

3. CUE - flashing when the unit is setting a cue point. Lit

continuously when the unit is paused at a cue point.

4. PROGRAM - used for pre-programming the track order to automatically be played by the unit. This is a great function if you need to leave the CD player alone.

5. TIME MODE - This function is controlled by

the TIME BUTTON (4)

(Elapsed) is for showing time as it is taking place. (Remain) first time shows how much time is left on a

particular track.

(Remain) second time shows full time remaining on CD.

6. SINGLE - shows when the unit is set to play just one

track at a time. When this is not lit, the CD will play continuously through all tracks.This function is controlled by the SING/CONT BUTTON (2).

7. PITCH - is lit when the display is showing.

8. TIME BAR - shows either time remaining or elapsed depending on the setting of the TIME BUTTON (4).

9. PITCH/BPM - shows either the percentage change in pitch

or the BPM of the song depending on the mode selected with the BPM BUTTON (16).

10. TRACK - shows the track that the unit is playing.

11. MINUTES - shows the minutes elapsed or remaining

depending on mode setting.

12. SECONDS - shows the seconds elapsed or remaining depending on mode setting.

13. FRAMES - the CD player breaks down a second into 75 frames for accurate cueing. This shows the frames elapsed or remaining depending on mode setting.

14. LOOP - shows when the CD is repeating a particular area with the music on the CD.

15. RELOOP - shows when the CD has had a loop set previously and can go back to it to loop again.

- The Leader in DJ Technology

CDN-34

STARTING PLAY OPTIONS

Play can be started any 1 of 3 ways

1. Pressing the “PLAY/PAUSE” button

2. Pressing the “STUTTER” button as explained in the STUTTER SECTION

3. When the cue button is pressed a second time, it will temporarily play a section and will stop it when the button is released. (to check a cue point)

SETTING OR EDITING A CUE/START POINT

The purpose of a cue point is to set a defined position in the music at which you would like to start playing the song. There are 4 methods by which a cue point can be set.

1. When a track is initially selected, a cue point is automatically set after the elimination of dead space. By alternately pressing the “PLAY/PAUSE” button and the “CUE” button, the disc may be returned and played from the cue point any number of times. This function is called “back cue”.

Note: You can also preview a “CUE POINT” by holding down the “CUE” button a second time. This will play the track from the cue point until you release it.

2. The search and/or jog wheel is used to set a different start point, also referred to as editing. When the inner search dial is turned while the unit is paused, a new cue point can be located. The CD player will repeatedly play small parts of the CD as you move it to the desired position. By pressing “PLAY/PAUSE” then “CUE” you can confirm this new cue point is desirable.

3. Pressing the “PLAY/PAUSE” button starts the disc. Pressing the “PLAY/PAUSE” button when the disc is playing then pressing it again sets a new cue point. You can edit this point with the jog wheel after you have paused as described in the previous method. Pressing the “CUE” button the first time instead of the “PLAY/PAUSE” button again will reset the disc to the previous cued position.

4. The “LOOP IN” button is depressed during play for any reason as explained in LOOPING and STUTTERING.

- The Leader in DJ Technology

CDN-34

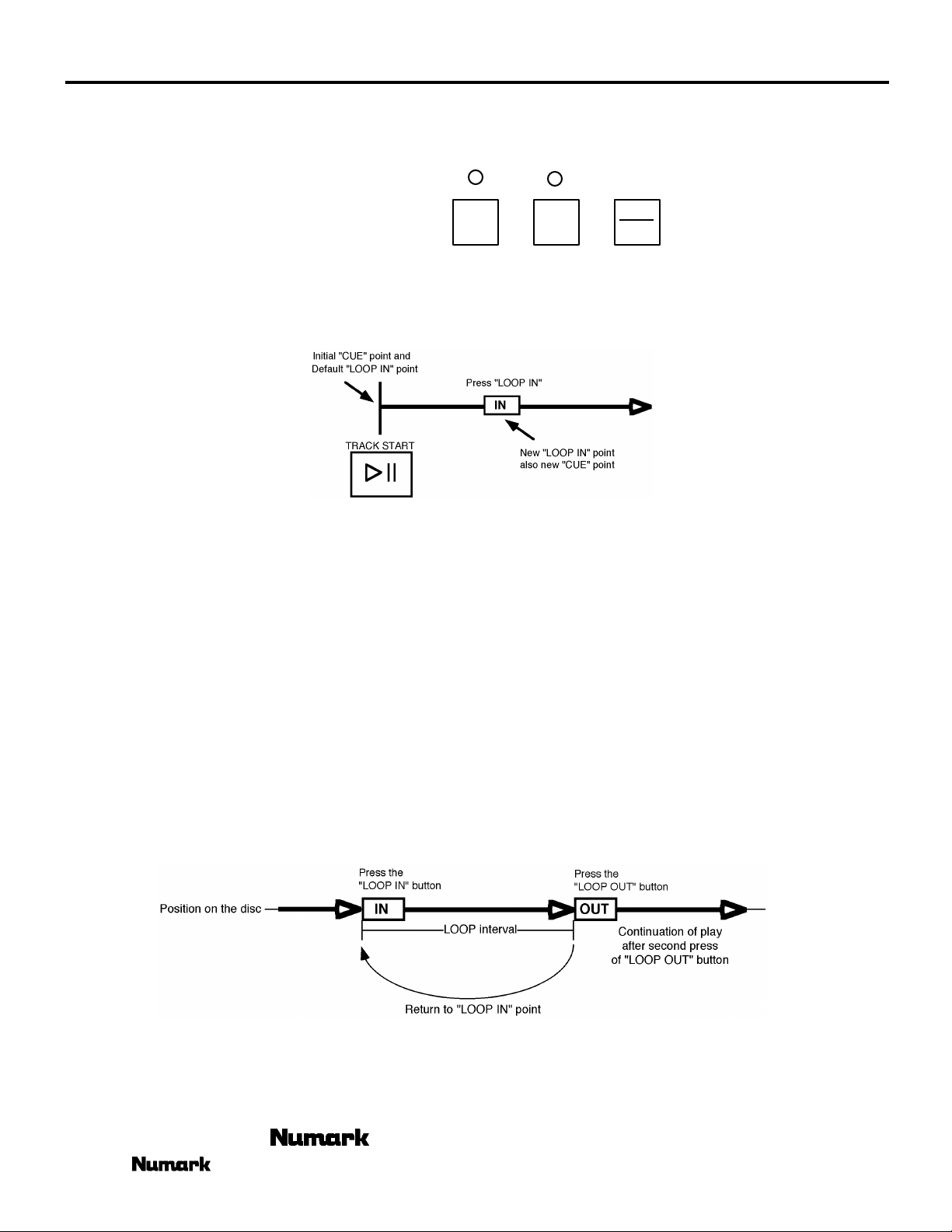

USING THE LOOPING FEATURES

These feature are for seamlessly looping certain areas of the CD. no breaks.

There are 3 buttons associated with the loop feature.

LOOP IN

The “LOOP IN” is where you wish for the loop to actually start. You will notice the “LOOP IN” LED will be lit every time you put in a new cd and select a new track. This means that the initial “CUE” point of the CD is also the default “LOOP IN” point. If you wish to set a new “LOOP IN” point, just press the “LOOP IN” button while the CD is playing when it reaches the desired point. By default this also becomes the new “CUE” point.

NOTE: The CD Player will always remember a new set point as the “LOOP IN” point until you actually set a new “LOOP IN” point , erase the loop, or put in a new CD. If you set a “LOOP IN” point and then do a track search prior to the point position, setting a new auto-cue point, the LOOP IN LED will turn off. This indicates that the CD player has stored a “LOOP IN” point but the point is not accessible until the CD players plays through the “LOOP IN” point. The ”CUE” button will return you to the start position until you play through the “LOOP IN” point. Then it will return to “LOOP IN”

A loop is any area of a CD that you choose to repeat with

LOOP

OUT

RELOOP

STUTTER

LOOP OUT

The “LOOP OUT” determines the end point for a loop. The first time you press this button while a CD is in play mode, the “LOOP OUT” LED will turn on and flash while the song automatically returns to the “LOOP IN” point with no breaks and continues to play. When the song reaches the “LOOP OUT” point again it returns to the “LOOP IN” point and continues to repeat this action. You will notice the “LOOP IN” LED will also be flashing during loop action. To release or end the LOOP press the “LOOP OUT” button a second time and play will continue forward when the song passes the previously set “LOOP OUT” point. The “LOOP OUT” and “LOOP IN” LEDs will also be lit solid indicating that these “LOOP” points are now in memory for “RELOOP” purposes.

Note: The “LOOP OUT” point will be erased if “LOOP IN” is pressed or a new “CUE” point is set after the “LOOP OUT” point. This is important because without this point “RELOOP” will not be possible.

- The Leader in DJ Technology

CDN-34

MOVING LOOP POINTS

The “LOOP IN” point can be moved while a loop is playing just by pressing the “LOOP IN” button at the new desired point. The next time “LOOP OUT” is reached the CD will return to this new “LOOP IN” point. If you should accidentally set a new “LOOP IN” point at the same place as your “LOOP OUT” point the “LOOP OUT” point will be erased and play will continue.

Note: If for any reason you should press pause then play to restart a track in between these loop points, setting a new cue point, this will also set a new “LOOP IN” point.

The “LOOP OUT” point can also be moved while a loop is playing just by first pressing this button to release the old “LOOP OUT” point and pressing it again at the new desired point.

RELOOP

The “RELOOP/STUTTER” button performs 2 different functions depending on your state of play. The Reloop function is possible only if “LOOP” points have been previously set and the CD is playing beyond the “LOOP OUT” point.

The “RELOOP” button automatically causes a loop to be played again until it is released with the “LOOP OUT” button. The LEDs will flash during the loop and then become solid following the loop.

The second function of this button is described in the section called “STUTTERING FUN”

- The Leader in DJ Technology

CDN-34

PRE-PROGRAMMING AND EDITING A LOOP

You can pre-program your loop and also edit it.

LOOP IN PRE-PROGRAM

To pre-program your “LOOP IN” point either play your song or search for the desired “LOOP IN” point using the search and jog wheels. When you get to the desired point press “LOOP IN”. If you wish to edit this point turn the jog wheel until you find the desired point. When you press play the CD will begin play from the new “LOOP IN” point. This also is the temporary new “CUE” point. If you then hit play to listen to the point and cue to go back you can continue to edit with the jog wheel.

LOOP OUT PRE-PROGRAM

To pre-program your “LOOP OUT” point play your song until you get to the desired “LOOP OUT” point and press “LOOP OUT”. To rapidly advance over a long distance you can use the search wheel with no center cue- jog. DO NOT USE THE TRACK BUTTONS**. If the CD player is presently in play mode, the song will return to the “LOOP IN” point and continue playing the LOOP.

If you wish to precisely set the “LOOP OUT” point while searching;

a. press “PAUSE” once only before you reach the desired point, if you are currently in play b. turn the jog wheel until you find the desired point c. hit “LOOP OUT”

REVIEW YOUR LOOP

To review, press “RELOOP” only and the CD will begin playing the LOOP from the “LOOP IN” point so you may listen to the entire LOOP. DO NOT PRESS PLAY OR YOU WILL SET A NEW “CUE” AND “LOOP IN” POINT AND ERASE THE “LOOP OUT” POINT! If you wish to advance quickly through a long loop use the search wheel only.

If you wish to edit this point again;

a. press “LOOP OUT” to release the loop b. repeat the above steps

To review your loop while the CD is already playing press “CUE”. This returns the CD to the “LOOP IN” point, then press play.

** Pressing the track buttons puts the CD player into an auto-cue mode. Multiple tracks are often found for single songs on remix service CDs. The track select mode automatically sets new cue points and would set a new “LOOP IN” point if set after the original “LOOP IN” point.

- The Leader in DJ Technology

PLAYING YOUR LOOP

To return to the beginning of the song and play after you are happy with the loop:

a. Press “PAUSE” to stop the play action of the CD or “CUE” to return to the “LOOP IN” point b. Track backwards until you reach the beginning of the song. (Remix CD’s often contain multiple track

numbers for the same song.)

c. Auto-cue to the beginning of the track will then occur. Once this occurs your cue button will return you

to this point until you pass over the “LOOP IN” point. Then “LOOP IN” will be the new “CUE” point. d. The “LOOP OUT” LED will be flashing indicating a preset loop is ahead and will be played when reached e. When the “LOOP IN” point is reached both “LOOP IN” and “LOOP OUT” LEDs should flash f. The LOOP should occur as preset by you until you release it with the “LOOP OUT” button g. Both “LOOP IN” and “LOOP OUT” LEDs should then go solid again indicating the possibility of

RELOOP

NOTE: If you should decide that you do not want to automatically play a preset loop after you start a song, just press “LOOP OUT” anytime before you actually reach the “LOOP OUT” point and the “LOOP OUT” LED will remain solid. (You can press it again before the “LOOP IN” point if you change you mind.) The “LOOP IN” LED will come on solid when this point is reached indicating the possibility of RELOOP. This will allow you to use the selection for reloop purposes. However, until you pass the “LOOP OUT” point the “RELOOP/STUTTER” button only acts as a STUTTER function as explained in STUTTERING FFFUN.

CDN-34

If you turned off your “LOOP OUT” while practicing your loop remember to turn it on again before reaching the “LOOP IN” point.

ERASING YOUR LOOP

To erase a preset loop either;

a. Open and close the door b. Press the program button twice c. Select a track, a new “CUE” point, or new “LOOP IN” point beyond the “LOOP OUT” point d. Press “LOOP IN” prior to the old point to set a new loop

DESCRIPTION OF LED DISPLAYS

1) LOOP IN on /LOOP OUT off : This

means that there is a LOOP IN point available for looping and stuttering, but no LOOP OUT point is set yet.

2) LOOP IN flashing /LOOP OUT

flashing: This indicates that the CD player is

actively looping from LOOP IN to LOOP OUT.

3) LOOP IN on /LOOP OUT on : This indicates that the LOOP IN and LOOP OUT points are set and a RELOOP will return to the LOOP IN to play the loop.

4) LOOP IN off /LOOP OUT off : This indicates that a) there is a LOOP IN point stored into memory, but this

looping function and this STUTTER point are disabled until the music plays through the point.

b) there is no LOOP OUT point set yet.

5) LOOP IN off /LOOP OUT on : A future loop has been stored into memory. This loop will be inactive until either LOOP OUT is presses prior to the CD playing through the LOOP IN point or RELOOP is pressed after the LOOP IN point.

6) LOOP IN off /LOOP OUT flashing : An active loop is stored into memory and will automatically play after the music plays through the LOOP IN point.

- The Leader in DJ Technology

CDN-34

DESCRIPTION OF STUTTERING FFFFUN........

This function allows music to be replayed from the last set cue point seamlessly.

Carefully read all of the following conditions to fully understand this button’s operation. Don’t forget

this button serves two functions depending upon the CD player’s state of play.

1. If the CD is paused either at the beginning of a track or at some other “CUE” point the “STUTTER/RELOOP” can start play of the song and actually seamlessly restart every time the button is pressed.

2. If the song is already playing and no additional cue or loop in points have been set then the CD will return to the place where you originally started playing and seamlessly start playing again. If this was on a beat this would be a quick way to seamlessly extend a mix.

3. If another “CUE” or “LOOP IN” point has been set, but you have not reached this point yet, the song will return to the start position and seamlessly restart playing.

4. If a “LOOP IN” point but no “LOOP OUT” point has been set and you have passed this point, then the song will return to the “LOOP IN” point and start playing. The reason for this is that every time you set a “LOOP IN” point you are also resetting the “CUE” point.

5. If a “LOOP IN” point and “LOOP OUT” point have been set and the CD is in the middle of playing a loop then the “STUTTER/RELOOP” button will create a stutter back to the “LOOP IN” point and continue the set loop until the “LOOP OUT” button is pressed to release the loop.

Again it is important to remember that “STUTTER” and “RELOOP” are the same button.

6. If a “LOOP IN” point and “LOOP OUT” point have been set and the CD is finished playing a loop then the “STUTTER/RELOOP” will return to the “LOOP IN” and continue to RELOOP until the “LOOP OUT” is pressed.

7. If a new ”LOOP IN” point is set after the last “LOOP OUT” point then this can be a new “STUTTER” point.

Simply put, you can Stutter on either your initial cue point or a set “LOOP IN” point, whichever is immediately prior to your current play position.

(PRACTICE ALL OF THIS BEFORE SHOWING YOUR SKILLS TO THE AUDIENCE !)

- The Leader in DJ Technology

DESCRIPTION OF ANTI-SHOCK BUFFER MEMORY

This CD Player is equipped with a total of 24 Seconds of RAM Buffer memory. 12 Seconds of this is used for the Anti-Shock Buffer and the other 12 are used for various other seamless loop, stutter, and instant start functions. Anti-shock is to allows the unit to be bumped around hard for 6 seconds per side and not stop. When the CD is first placed in

CDN-34

the tray and a track is selected, the CD player quickly reads the beginning of the track and stores it into a buffer memory, the same way a computer stores information in RAM. This initial operation takes about 5 seconds. As you play the track, the CD Player continues to read ahead of the music and stores this information in the buffer. If the unit is bumped the CD Player will continue to play from this buffer until the unit recovers and can start filling the buffer again. The buffer should be long enough to allow recovery from most situations, however, continual shocks can erase the buffer memory. If the unit should ever run out of buffer and still be receiving shocks, then the last 2 seconds will repeat until continuation can occur. The music never stops.

NOTE: The CD player can not store buffer information during the setting of a cue point with the jog wheel. If you start a CD without giving it an opportunity to load buffer it will still start instantly and load buffer

slowly. It will recover 1 second of buffer for every 6 seconds of music played at 0% pitch.

- The Leader in DJ Technology

CDN-34

MATCHING THE BEATS PER MINUTE (BPM)

Match the tempo by monitoring the music of both PLAYER 1 and PLAYER 2 by ear and adjusting the pitch. With the CDN-34 you also have the option of using the BPM display as explained below. When the tempo of the music of the selected CD player is slow compared to the tempo of the other player, move the slider to the ( + ) side and match the tempo. When faster, move the pitch slider to the ( - ) side. The following description is for the case of matching the pitch of PLAYER 2 to the pitch of the music being played on PLAYER 1.

Press PLAY/PAUSE to start PLAYER 1

PLAYER 1 is playing

When PLAYER 2 is slow compared to

PLAYER 1

speed up PLAYER 2

Press PLAY/PAUSE to start PLAYER 2

Both CD players are playing discs.

Listen to PLAYER 2 in your headphones and look at the BPM display information

When PLAYER 2 is fast

compared to PLAYER 1

slow down PLAYER 2

USING THE BPM DISPLAY FEATURE

Press the BPM button to select the BPM feature

on the display on the side of the

CD player that you wish to set.

Tap the Counter button to the beat of the music.

- The Leader in DJ Technology

You will see the BPM number appear in the display.

The more times you tap the more accurate your number

will be. When you adjust the pitch slider the display

number will change by an equal percentage .

CDN-34

BEAT MATCHING USING PITCH BEND

Beat matching is necessary when the BPM’s are the same of both songs, however, the drum beats are not hitting at the same time.

This is a description of the procedure for matching the beat of PLAYER 1 and PLAYER 2 using the PITCH BEND button. (This procedure can be done on either PLAYER).

After matching the BPM’s adjust the pitch temporarily as follows:

When PLAYER 2 is ahead press the --

or rotate the jog wheel counter clockwise

The pitch changes automatically while the + or -- button is being pressed or the jog wheel is rotated. The faster you rotate the wheel the more you change. Releasing the button or wheel results in a return to the original pitch. (So the

BPM’s are once again the same.)

When PLAYER 2 is behind press the +

or rotate the jog wheel clockwise

- The Leader in DJ Technology

CDN-34

- The Leader in DJ Technology

CDN-34

EXAMPLE OF MIXING USING BOTH PLAYERS OF THE CDN34

While playing a disc on PLAYER 1 load a disc into PLAYER 2 and select your next track, match its pitch to the track playing on PLAYER 1 and when you are ready use the crossfader on your mixer to fade from PLAYER 1 to PLAYER 2.

Load a disc in PLAYER 1 and select the track and press PLAY.

Load a disc in PLAYER 2 and select the track then play.

Set and edit a start cue point on PLAYER 2

PLAYER 1

Load a disc and press the OPEN/CLOSE button.

PLAYER 2

Load a disc and press the OPEN/CLOSE button.

PLAYER 2

Press the Pause button of PLAYER 2.

PLAYER 1

Select the track to be played.

PLAYER 2

Select the track to be played.

PLAYER 2

Rapidly search for a cue point using the outer wheel

PLAYER 1

Press the PLAY button

PLAYER 2

Press the PLAY button

PLAYER 2

Slowly set the right point using

the inner wheel

Check you new cue point

Do a MIX!

PLAYER 2

Listen with the monitor and press the play button.

PLAYER 2

With a matching downbeat from Player 1 press the play button.

PLAYER 2

Press the cue button then play to be sure of the set cue point.

PLAYER 2

If you are beat mixing turn on your Pitch adjust and follow the directions for beat matching.

PLAYER 2

Set the player to the Cue point

by pressing Cue

MIXER

When you are happy with you

mix adjust you mixer accordingly.

- The Leader in DJ Technology

CDN-34

BEFORE SWITCHING OFF THE POWER:

When you have finished using the CD player, be sure that the disc tray is closed with the “OPEN/CLOSE” button before

switching off the power .

DO NOT switch off the power when

the disc holder is open.

THIS CD PLAYER IS EQUIPPED WITH AUTO LOCKING LASER HEADS TO PROTECT ALIGNMENT DURING

TRANSPORTATION. IN ORDER FOR THIS FEATURE TO FUNCTION PROPERLY, POWER MUST BE TURNED

OFF ON THE CD PLAYER ITSELF BEFORE CURRENT IS REMOVED FROM THE UNIT.

(Example: AN EXTERNAL POWER SUPPLY SHOULD NOT BE TURNED BEFORE THE CD PLAYER)

Switch off the power after the

disc holder has been closed

with the “OPEN/CLOSE” button

Troubleshooting Guide

Symptom Possible Cause Corrective Action

The power fails to switch on when the POWER switch is set to on

Disc play does not start The disc is loaded upside down

No sound Improper output cable connections

Poor power plug connection at unit or the AC outlet

The disc is too dirty

Improper amplifier operation

Insert the power plug firmly into unit and the AC outlet

Reload the disc with the label side up Clean the disc

Connect the output cables correctly

Check amplifier setup Sound skips The disc is dirty Clean the disc Programmed disc play will not function The CD player is in normal disk play

mode

Hum Loose cable connections Firmly connect all audio plugs

- The Leader in DJ Technology

Hold down the Program button for 3

seconds then program the tracks

CDN-34

132mm

60mm

482mm

264mm

88.8mm

SPECIFICATIONS

Quantization 16-bit linear/channel,

3 beam laser Oversampling rate 8 times Frequency response 20Hz-20KHz Channel separation 86dB T.H.D. + NOISE 0.006% S/N ratio (IHF-A) 94dB Output level 2.0Vrms Instant start .015 sec Short access time (Play next track) less than 1.7sec Long access time (Track 1 ->Track 20) less than 3sec Pitch control range +/-12% Pitch bend +/-16% Digital Output type 2, form 1, S/PDIF

(Sony/Phillips Digital Interface Format)

UNIT DIMENSIONS

Control Unit Transport Unit

GENERAL

Dimensions:

Main Unit 482 (W) x 88.8 (H) x 264 (D) mm (without feet) 19 (W) x 3.5 (H) x 10 3/8 (D) inches

Control Unit: 482 (W) x 132 (H) x 74 (D) mm (without feet) 19 (W) x 5 1/4 (H) x 2 7/8 (D) inches

Weight: Player Unit: 5 Kgs, 11 lbs

Control Unit: 2 Kgs, 4.4 lbs

Power Supply: 115/230V AC, 50/60Hz Power Consumption: 25W

482mm

74mm

- The Leader in DJ Technology

LIMITED PRODUCT WARRANTY

1. What is covered and for how long? NUMARK INDUSTRIES LCC ("NUMARK") warrants to the original purchaser that NUMARK'S DJ mixers and amplifiers are free from defects in material and workmanship under normal use and service for the period commencing upon the date of

purchase from an authorized NUMARK dealer and continuing for the following period of time after that date for (2) Years. The warranty is extended to (3) Years with the completion of the warranty card provided that the warranty card is completed and returned within (30) days from

the date of purchase. All other NUMARK products are warranteed for (1) Year including but not limited to CD players, turntables, preamplifiers, beatkeepers, equalizers,

microphones, headphones, and all other accesories.

2. What is not covered? This Limited Warranty is conditioned upon proper use of the product by the purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical or electrical stress,

modification of any part of the product, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) all plastic surfaces and other externally exposed parts that are scratched or damaged due to normal use; (d) defects or damage from improper testing,

operation, maintenance, installation, adjustment, or service of the mixers; (e) crossfaders.

3. What are NUMARK'S obligations? During the applicable warranty period, NUMARK will repair or replace, at NUMARK'S sole discretion, without charge to the purchaser, any defective component part of the mixer. To obtain service under this Limited Warranty, purchaser must first

contact NUMARK and obtain a return authorization number ("RA#"). Purchaser must then return the mixer to NUMARK in an adequate container for shipping, accompanied by purchaser's sales receipt or comparable proof of sale showing the date of purchase, the serial number of the product,

and the seller's name and address. To obtain an RA# and assistance on where to return the mixer, contact NUMARK customer service at 401-295-

9000. Upon receipt, NUMARK will repair or replace the defective products. NUMARK may, at NUMARK'S sole discretion, use rebuilt, reconditioned, or new parts or components when repairing any product or replace a product with a rebuilt, reconditioned or new product.

Repaired mixers will be warranted for a period equal to the remainder of the original Limited Warranty on the original mixer or for (90) days, whichever is longer. All replaced parts, components, boards and equipment become the property of NUMARK. If NUMARK determines that any

mixer is not covered by this Limited Warranty, purchaser must pay all parts, shipping, and labor charges for the repair or return of such mixer.

4. What are the limits on NUMARK'S liabilities? THE WARRANTIES GIVEN IN THIS LIMITED WARRANTY, TOGETHER WITH ANY IMPLIED WARRANTIES COVERING NUMARK MIXERS, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, NUMARK SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR

DAMAGES, LOSS OF PROFITS, DAMAGES TO PURCHASER'S PROPERTY, OR INJURY TO PURCHASER OR OTHERS ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE ANY NUMARK MIXER, BREACH OF WARRANTY, OR NEGLIGENCE, INCLUDING BUT NOT LIMITED TO

NUMARK'S OWN NEGLIGENCE, EVEN IF NUMARK OR ITS AGENT HAS BEEN ADVISED OF SUCH DAMAGES, OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. THIS LIMITED WARRANTY IS THE COMPLETE WARRANTY FOR NUMARK'S

MIXERS, AND IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS

LIMITED WARRANTY IS ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILTY SHALL NOT AFFECT THE ENFORCEABILITY OF THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS

AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS. This Limited Warranty allocates risk of product failure between purchaser and NUMARK, and NUMARK'S product pricing reflects this allocation of

risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of NUMARK are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on NUMARK. Accordingly, additional statements

such as dealer advertising or presentation, whether oral or written, do not constitute warranties by NUMARK and should not be relied upon.

5. How does state law apply to this warranty? SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT

APPLY TO PURCHASER. This Limited Warranty gives you specific legal rights. You may also have other rights, which vary from one jurisdiction to another.

RETURN INFORMATION

1. A Return Authorization number must be obtained from Numark through the address or phone numbers below.

2. A copy of the original sales receipt must also be included for the equipment to be repaired under warranty.

3. The faulty equipment must be packed in its original packaging.

4. One additional outer layer of packaging must be included to ensure product safety. Failure to do so may inadequately protect the equipment in transit and, therefore, jeopardize the customer’s warranty.

5. Numark will not accept COD shipments and no call tags will be issued for merchandise return.

6. Numark will not return repaired merchandise to customers by priority service, unless by written request at the customer’s cost. Requests must be submited in writing with merchandise returned.

7. The defective Numark equipment should be sent, FREIGHT PREPAID with Return Authorization number clearly printed on the outer packaging and original sales receipt enclosed to:

INDUSTRIES

Attention: Service Department

11 Helmsman Avenue

North Kingstown, RI 02852 USA

Phone: +1 (401) 295-9000

Fax: +1 (401) 295-5200

E-mail: numark@numark.com

Numark CDN34, CDN34S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
