Professional Disc Jockey Products

CDN-20S

PROFESSIONAL DUAL CD PLAYER

OPERATING MANUAL

CDN-20S

Safety Information and Product Registration

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE ANY COVER. NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL ONLY.

The lightning flash with arrowhead symbol within the

equilateral triangle is intended to alert the user to the

presence of un-insulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying this appliance.

CAUTION

FOR USA & CANADIAN MODELS ONLY

TO PREVENT ELECTRIC SHOCK DO NOT USE

THIS (POLARIZED) PLUG WITH AN EXTENSION

CORD, RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions should be read before this product is connected and used.

2. Retain Instructions - The safety and operating instructions should be kept for future reference.

3. Heed Warnings - All warnings on this product and in these operating instructions should be followed.

4. Follow Instructions - All operating and other instructions should be followed.

5. Water and Moisture - This product should be kept away from direct contact with liquids.

6. Heat - Avoid placing this product to close to any high heat sources such as radiators.

7. Ventilation - The appliance should be situated so that it’s location or position does not interfere with it’s proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation opening; or, placed in a builtinstallation, such as bookcase or cabinet that may impede the flow of air through the ventilation openings.

8. Power Sources - This product should be connected to a power supply only of the type described in these operating instructions, or as marked on the unit.

9. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked upon or pinched by items placed on or against them. When removing the cord from a power outlet be sure to remove it by holding the plug attachment and not by pulling on the cord.

10. Object and Liquid Entry - Take care that objects do not fall into and that liquids are not spilled into the inside of the mixer.

11. Cleaning – The appliance should be cleaned only as recommended by the manufacturer.

12. Non-use Periods – The power cord of the appliance should be unplugged from the outlet when left unused for long periods of time.

13. Damage Requiring Service - Only qualified personnel should service this product. If you have any questions about service please contact Numark at the number(s) shown on the back cover of this manual.

14. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means built into the CD player is not defeated.

15. Internal/External Voltage Selectors - Internal or external voltage selector switches, if any, should only be reset and re-equipped with a proper plug for alternative voltage by a qualified service technician. Do not attempt to alter this yourself.

- The Leader in DJ Technology

WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture. Electrical equipment should NEVER be kept or stored in damp environments.

DANGER: INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION: This product utilizes a laser. Use of controls or adjustments other than those specified herein may result in hazardous radiation exposure.

SERVICE INSTRUCTIONS

• Disconnect power cord before servicing

• Replace critical components only

with factory parts or recommended equivalents

• For AC line powered units - Before

returning repaired unit to user, use an ohmmeter to measure from both AC plug blades to all exposed metallic parts. The resistance should be no more than 100,000ohms.

CDN-20S

NOTICE CONCERNING FCC REGULATIONS

This equipment generates and uses radio frequency energy and may cause interference to radio and television reception if you do not operate it in strict accordance with the procedures detailed in this OPERATING MANUAL. This unit complies with Class B computing device rules in accordance with the specifications in Sub-part J or Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. There is no guarantee, however, that interference will not occur in a particular installation. If the unit does cause interference to any radio or television reception, try to reduce it by one or more of the following means:

a) Reposition the other unit and/or its antennae b) Move this unit c) Move this unit and the other unit(s) further apart d) Plug this unit into a different AC outlet so that it is on a different circuit from the other equipment.

This note is in accordance with Section 15.838 of the FCC Rules.

This unit does not exceed the Class B limits for radio noise emission from digital apparatus set out in the radio interference regulations of the Canadian Department of Communications.

DOUBLE INSULATED - When servicing use only identical replacement parts

For 220-volt use in USA, use NEMA style 220-volt plug. For other countries use proper plug for local outlet.

LINE VOLTAGE SELECTION

1) The desired voltage may be set with the VOLTAGE SELECTOR switch on the rear panel of the main unit, using a screw driver.

2) Do not twist the VOLTAGE SELECTOR switch with excessive force as this may cause damage.

3) If the VOLTAGE SELECTOR switch does not move smoothly contact a qualified serviceman.

Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information and your original purchase receipt for your records. Please return the enclosed warranty card to register your CD player with us.

MODEL: __________________________ PURCHASED FROM:_________________________ SERIAL NUMBER:___________________ DATE OF PURCHASE:________________________

115V

230V

- The Leader in DJ Technology

CDN-20S

PROFESSIONAL DUAL-TRANSPORT

CD PLAYER WITH REMOTE CONTROLLER

CONGRATULATIONS...

You have just purchased a dual CD player designed specifically for the professional DJ. This

unit has been designed to provide CD mixing with the same ease and creativity that you have enjoyed with records. Please take a few moments to familiarize yourself with the CDN-20S by reading the following information before attempting to operate the unit.

Once again, congratulations and thank you for making the CDN-20S your choice in

professional CD players.

FEATURES:

• Rubber Play and Cue Buttons

• Relay - Fader Start

• Digital Output

• Accurate Frame search

• Auto dead-space elimination

• +10 tracks skip search

• 20 tracks program play

• ± 12% Pitch adjust with display

• True Continuous Play

• Time Bar Display

• CDR and 8cm single CD compatible

• Loop Button

TABLE OF CONTENTS

Safety and Registration 2 Introduction 4 Set-up Instructions & Connections 5 Description of the Features

Remote Control Unit 6 Display 7 Transport 7

Basic Operation

Play/Pause Cue, and Loop Operations 8 Matching the Tempo 9 Beat Matching Using Pitch Bend 9

Example of Mixing 10 Before Switching off the Power 11 Troubleshooting Guide 11 Specifications 11 Warranty 12

- The Leader in DJ Technology

CDN-20S

CONNECTIONS

Typical connection with a mixer is illustrated right.

1. Connect the output connection cords from the CD Player to the line inputs of your mixer.

2. Connect the remote control connection cable from the Unit A connector on the main unit to the Unit A connector on the remote control unit. Repeat for Unit B.

3. The output connection cords and the remote control connection cables are supplied with the main unit. Be sure to use the remote control connection cables, which have been supplied. Use of another cable type might cause damage.

4. For fader start connect fader start cables to both side of your CD player to a similarly equipped DJ mixer, as in the top drawing.

MOUNTING YOUR CD PLAYER

1. Mount the units in your console or rack with 19” EIA rails

2. The transport should be mounted not to exceed an angle of 15 degrees.

3. Your CD player can be affected by excess vibration so mount the units in a secure environment if possible.

CHECK TO BE SURE

THE FOLLOWING ITEMS ARE IN THIS BOX:

1) DUAL-TRANSPORT PLAYER UNIT

1) REMOTE CONTROL UNIT

1) OWNERS MANUAL (THIS BOOKLET)

2) RCA CONNECTING CABLES

2) CONTROL CABLES

- The Leader in DJ Technology

CDN-20S

DESCRIPTION CDN-20SREMOTE FEATURES

1. PROGRAM - Depress this button and the unit will stop and the program indicator will light. Select each track to be programmed and press the PROGRAM button between selections. You can program up to 20 tracks. Press PLAY to start the program. To exit and erase program hold the program button down for more than 2 seconds while the unit is stopped, open the disc tray, or turn off the power.

2. CONT/SING - Will cause just a single track to play or all tracks in order by pressing once or twice.

3. LCD DISPLAY - Indicates all the functions, as they are occurring, with the CD. These functions are explained in the next section.

4. TIME (Time Button) - The TIME button switches the time display between elapsed playing time and remaining time on the track.

5. OPEN/CLOSE (Disc Tray Open/Close) - Press to load or eject the disc. Each press will open or close the disc tray on the transport. NOTE: Tray will not open unless the disc has been paused.

6. TRACK (Track Buttons) - These buttons are used to select the track to be played.

7. Track 10 Button - This button is for quickly advancing to higher tracks on a CD.

8. PITCH (Pitch Button) - This button activates the Pitch Slider (14).

9. PITCH BEND (Pitch Bend Button) - When each of the two CD players is playing a CD, the pitch bend function allows the positioning of the bass beats to be matched after the pitch of each disc is matched. Either player can “catch up” or “fall back” to match the other player. The pitch will automatically rise while the + button is pressed (allowing “catch up”) and return to the original pitch when the button is released. The pitch will automatically drop while the button is pressed (allowing “fall back”) and return to

the original pitch when the button is released. By changing the pitch of one disc with respect to the other in this way the beats can be matched.

10. SEARCH – Depress and hold the right button and the

CD will rapidly advance forward through the music. The longer you hold it the faster it searches. The left button searches backward through music already played. When the CD is paused the cue point can be adjusted by tapping either button.

11. LOOP - Used for repeating sections in the music. This is not a seamless function.

12. CUE - Pressing the CUE button during play provides a return to the position at which play was started. If PAUSE is used before CUE, that will become the cue point. Alternately pressing the PLAY button and the CUE button allows the CD to be played from the same position any number of times. The CUE LED will light up from the time the CUE button is pressed until the CD has reset to the position at which play was started. Steady lighting of this LED indicates the ready condition.

13. START/PAUSE (Play/Pause Button) - Each press of the Play/Pause Button causes the operation to change from play to pause or from pause to play.

14. PITCH SLIDER - The pitch can be changed up to +/12% by pressing the PITCH button so the PITCH LED is lit, then moving the sliding fader. The pitch will not be changed if the PITCH LED is off.

15. RELAY/FADER START – By pressing this button the player will alternate playing from side to side or can be activated by a mixer containing the fader start feature. In continuous mode the relay feature will have the player complete playing the full CD then switch to the other side. In single mode the player will alternate after each track. If fader start cables are attached to a fader start mixer, then, the actions of the mixer can control to CD player. Instructions for this should be found in the mixer manual. Both functions are active simultaneously.

- The Leader in DJ Technology

LCD DISPLAY FEATURES

CDN-20S

TRANSPORT FEATURES

1. PLAY - Active while the unit is actually playing a CD.

2. PAUSE - Active when the unit is paused.

3. CUE - Flashing when the unit is setting a cue point. Lit continuously when the unit is paused at a cue point.

4. PROGRAM – On when a sequence of songs is preprogrammed into the unit.

5. TIME MODE - (Elapsed) is for showing time as it is taking place. (Remain) shows how much time is left on a

particular track. This function is controlled by the TIME BUTTON (4).

6. SINGLE - Shows when the unit is set to play just one track at a time. When this is not lit the CD will play continuously through all tracks. This function is controlled by the SING/CONT BUTTON (2).

7. PITCH - Is lit when the PITCH BUTTON is active.

8. TIME BAR - Shows either time remaining or elapsed depending on the setting of the TIME BUTTON (4).

9. PITCH - Shows the percentage change in pitch.

10. TRACK - Shows the track that the unit is playing with.

11. MINUTES - Shows the minutes elapsed or remaining depending on mode setting.

12. SECONDS - Shows the seconds elapsed or remaining depending on mode setting.

13. FRAMES - The CD Player breaks down a second into 75 frames for accurate cueing. This shows the frames elapsed or remaining depending on mode setting.

15. DISC TRAY- Place your CD in here.

16. OPEN/CLOSE (Disc Tray Open/Close) - Press to load or eject the disc. Each press will open or close the disc tray on the transport. NOTE: Tray will not open unless the disc has been paused.

17. POWER BUTTON - Turn on and turn off the machine from this button. The unit should always be shut down with this button first before any external power is removed.

18. RCA AUDIO JACKS - Connect your CD player to your mixer from this line level output.

19. VOLTAGE SELECTOR - Set this switch to the voltage for your location.

20. POWER CORD - Plug your unit into a power outlet.

21. CONTROL CONNECTOR - Plug your control cables for each unit into here and the back of the remote unit.

22. DIGITAL OUTPUTS - The format is type 2, form 1, also known as S/PDIF (Sony/Phillips Digital Interface Format). In order to use the digital output you can not use variable pitch slider and the pitch bend buttons or loop. If you were able to adjust the pitch,

other devices will not read the digital output properly because the sampling rate changes.

- The Leader in DJ Technology

CDN-20S

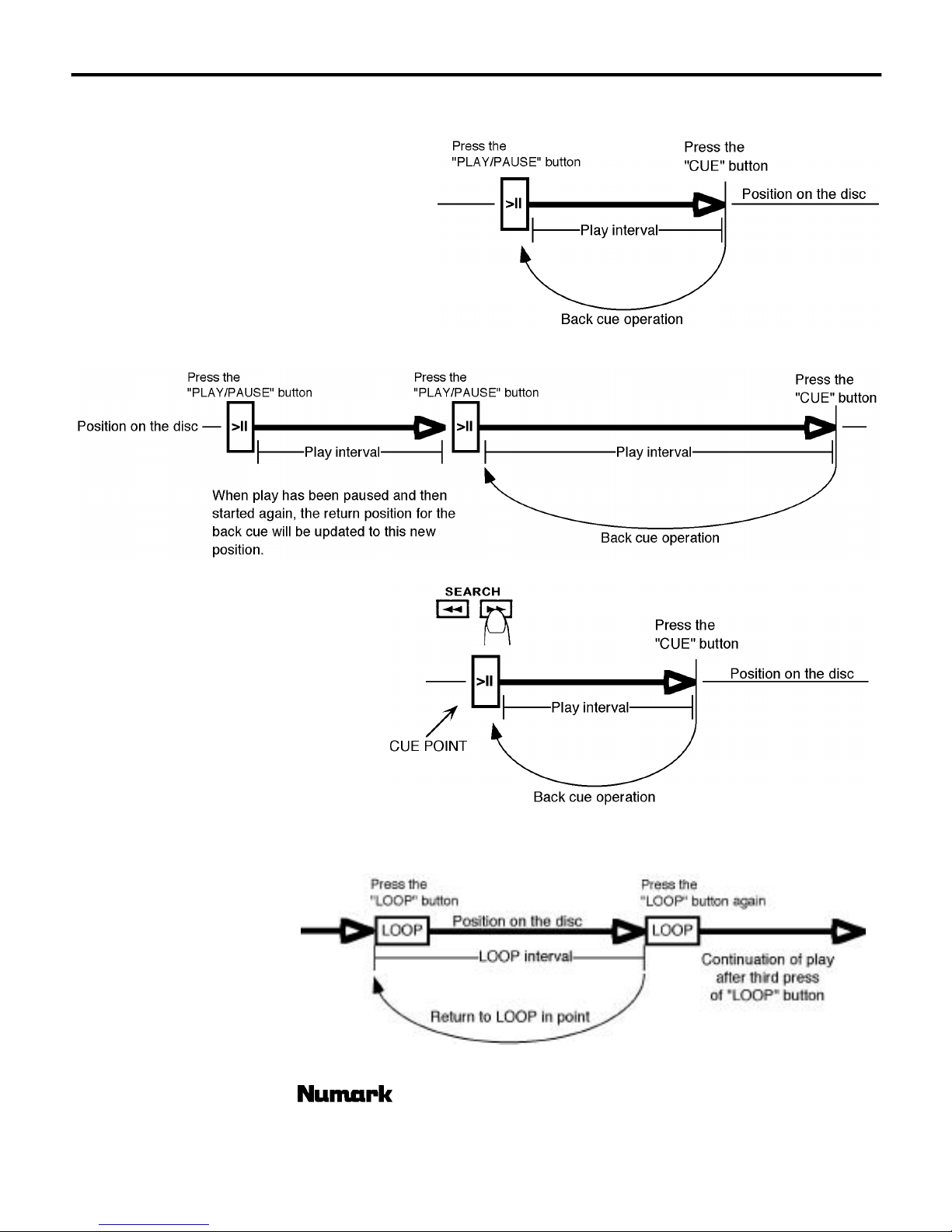

DESCRIPTION OF THE PLAY/PAUSE, CUE, AND LOOP OPERATIONS

PLAY and CUE

Pressing the “PLAY/PAUSE” button starts the disc. Pressing the “CUE” button will reset the disc to the last place where the disc was started. This is called the cue point. By alternately pressing the “PLAY/PAUSE” button and the “CUE” button, the disc may be returned and played from the cue point any number of times. This function is called back cue.

PLAY, PAUSE and CUE

EDITING CUE POINT

When the search button is tapped while a cue point is set, a new cue point can be located. The CD player will repeatedly play small parts of the CD as you move it to the desired position. By pressing “PLAY/PAUSE” then “CUE” you can confirm that this new cue point is desirable

USING THE LOOP

This function is repeating certain areas of the CD. Such as vocal stabs or for allowing the beginning of a song repeat itself so you may leave the DJ console and interact directly with your crowd. To set a loop start point just press the “LOOP” button while the CD is playing when it reaches the desired start point. To start looping press the “LOOP” button again when the desired loop end point is reached. Looping is not seamless on this unit. When it reaches the end point again it returns to the start point and continues to repeat this action. When the “LOOP” button is pressed again the CD will continue on when it gets to the end point.

- The Leader in DJ Technology

CDN-20S

MATCHING THE BEATS PER MINUTE (BPM)

Match the tempo by monitoring the music of both PLAYER A and PLAYER B by ear and adjusting the pitch. When the tempo of the music of the selected CD player is slow compared to the tempo of the other player, move the slider to the (+) side and match the tempo. When faster, move the pitch slider to the (-) side. The following description is for the case of matching the pitch of PLAYER B to the pitch of the music being played on PLAYER A.

Press PLAY/PAUSE to start PLAYER A

PLAYER A is playing

Listen to PLAYER B in your headphones

When PLAYER B is slow

compared to PLAYER A

speed up PLAYER B

Press PLAY/PAUSE to start PLAYER B

Both CD players are playing discs.

When PLAYER B is fast compared to PLAYER A

slow down PLAYER B

BEAT MATCHING USING PITCH BEND

If you find the BPM’s (Beats Per Minute or Tempos) are the same, however, the drum beats are not matched you will need to temporarily change the pitch. This description is for the case of matching the beat of PLAYER B to the beat of the music being played on PLAYER A. (This procedure can be done on either PLAYER).

After matching the BPM’s adjust the pitch temporarily as follows:

When PLAYER B is ahead press the When PLAYER B is behind press the

The pitch changes automatically while the or button is being. The more you press the button the more you change. Releasing the button results in a return to the original pitch. (So the BPM’s are once again the same.)

RELAY-FADER PLAY

To relay tracks:

Press the RELAY-FADER START button while CDs are in both sides of the unit. Put both sides in SINGLE play mode while learning this function. Press play on PLAYER A of the unit. When that PLAYER A has finished play it will send a signal to PLAYER B to start play. You will see PLAYER B start play and PLAYER A pause and cue to the beginning of the next track. When PLAYER B has completed play PLAYER A will start.

For fader start:

Follow the directions for connecting your fader start mixer. Active the RELAY-FADER button. Following the directions in your fader start mixer manual.

Note: In relay mode the play command is sent at the end of specified play. If the unit is in SINGLE mode the play command will start at the end of the track. If the unit is in CONTINUOUS mode the play command will be sent at the end of the full CD. Two CDs will play continuously, alternating from side to side. This feature will also work in program mode; however, if the sides are also in SINGLE mode the same number of tracks programmed should be the same. Play will stop at the end of the last track.

- The Leader in DJ Technology

CDN-20S

EXAMPLE OF MIXING USING BOTH PLAYERS OF YOUR CD PLAYER

While playing a disc on PLAYER A load a disc into PLAYER B and select your next track, match its pitch to the track playing on PLAYER A and when you are ready use the crossfader on your mixer to fade from PLAYER A to PLAYER B.

Load a disc in PLAYER A

and select the track and

press PLAY.

Load a disc in PLAYER B

and select the track then

play.

Set and edit a start cue

point on PLAYER B

PLAYER A

Load a disc and press the

OPEN/CLOSE button.

PLAYER B

Load a disc and press the

OPEN/CLOSE button.

PLAYER B

Press the Pause button of

PLAYER B.

PLAYER A

Select the track to be

played.

PLAYER B

Select the track to be

played.

PLAYER B

Rapidly search for a cue

point using the outer wheel

PLAYER A

Press the PLAY button

PLAYER B

Press the PLAY button

PLAYER B

Slowly set the right point

using the inner wheel

Check you new cue point

Do a MIX!

PLAYER B

Listen with the monitor and

press the play button.

PLAYER B

With a matching downbeat

from PLAYER A press the

play button.

PLAYER B

Press the cue button then

play to be sure of the set

cue point.

PLAYER B

If you are beat mixing turn

on your Pitch adjust and

follow the directions for

beat matching.

PLAYER B

Set the player to the Cue

point by pressing Cue

MIXER

When you are happy with

you mix adjust you mixer

accordingly.

- The Leader in DJ Technology

CDN-20S

BEFORE SWITCHING OFF THE POWER:

When you have finished using the CD player, be sure that the disc tray is closed with the “OPEN/CLOSE” button before switching off the power.

DO NOT switch off the power when

the disc holder is open.

Switch off the power after the

disc holder has been closed

with the “OPEN/CLOSE” button

TROUBLESHOOTING:

Symptom Possible Cause Corrective Action

The power fails to switch on when the POWER switch is set to on

Disc play does not start The disc is loaded upside down

No sound Improper output cable connections

Sound skips The CD player is subject to vibrations or

Programmed disc play will not function

Hum Loose cable connections Firmly connect all audio plugs

Poor power plug connection at the AC outlet or IEC Power cord loose from rear of unit

The disc is too dirty

Improper amplifier operation

physical shock The disc is too dirty The CD player is in normal disk play mode Hold down the Program button for 3 seconds

Insert the power plug firmly into the AC outlet and make sure connection is good in unit rear

Reload the disc with the label side up Clean the disc

Connect the output cables correctly Check amplifier setup Change the installation location

Clean the disc

then program the tracks

SPECIFICATIONS

TECHNICAL:

Quantization 16-bit linear/channel, 3 beam laser Oversampling rate 8 times Frequency response 20Hz-20KHz Channel separation 86dB T.H.D. + NOISE 0.01% S/N ratio (IHF-A) 94dB Output level 2.0Vrms Short access time (Play next track) less than 1.7sec Long access time (Track 1 ->Track 20) less than 3sec Start Time less than 0.3 sec Pitch control range +/-12% Pitch bend +/-16% Digital Output type 2, form 1, S/PDIF

(Sony/Phillips Digital Interface Format)

- The Leader in DJ Technology

GENERAL: Environmental:

Operating Temperature 5-35 deg. C Humidity 25 to 85% RH (non-condensing) Storage Temperature -20 to 60 deg. C

Dimensions:

Main Unit: 482(W) x 88.8(H) x 264(D) mm (without feet)

19(W) x 3 1/2(H) x 10 3/8(D) inches (without feet)

Control Unit: 482(W) x 88.8(H) x 74(D) mm (without feet)

19(W) x 3 1/2(H) x 2 7/8(D) inches (without feet)

Weight: Player Unit: 5 Kgs., 11 lbs.

Control Unit: 2 Kgs., 4.4 lbs.

Power Supply: 115/230V AC, 50/60Hz Power Consumption: 25W

Professional Disc Jockey Products

LIMITED PRODUCT WARRANTY

1. What is covered and for how long? NUMARK INDUSTRIES LCC ("NUMARK") warrants to the original purchaser that NUMARK'S DJ mixers and amplifiers are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase from an authorized NUMARK dealer and continuing for the following period of time after that date for (2) Years. The warranty is extended to (3) Years with the completion of the warranty card provided that the warranty card is completed and returned within (30) days from the date of purchase. All other NUMARK products are warranted for (1) Year including but not limited to CD players, turntables, preamplifiers, beatkeepers, equalizers, microphones, headphones, and all other accessories.

2. What is not covered? This Limited Warranty is conditioned upon proper use of the product by the purchaser.

This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical or electrical stress, modification of any part of the product, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) all plastic surfaces and other externally exposed parts that are scratched or damaged due to normal use; (d) defects or damage from improper testing, operation,

3. What are NUMARK'S obligations? During the applicable warranty period, NUMARK will repair or replace, at NUMARK'S sole discretion, without charge to the

4. What are the limits on NUMARK'S liabilities? THE WARRANTIES GIVEN IN THIS LIMITED WARRANTY, TOGETHER WITH ANY IMPLIED WARRANTIES

5. How does state law apply to this warranty? SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL

6. This Limited Warranty gives you specific legal rights. You may also have other rights, which vary from one jurisdiction to another.

maintenance, installation, adjustment, or service of the mixers; (e) crossfaders.

purchaser, any defective component part of the mixer. To obtain service under this Limited Warranty, purchaser must first contact NUMARK and obtain a return authorization number ("RA#"). Purchaser must then return the mixer to NUMARK in an adequate container for shipping, accompanied by purchaser's sales receipt or comparable proof of sale showing the date of purchase, the serial number of the product, and the seller's name and address. To obtain an RA# and assistance on where to return the mixer, contact NUMARK customer service at 401-295 9000. Upon receipt, NUMARK will repair or replace the defective products. NUMARK may, at NUMARK'S sole discretion, use rebuilt, reconditioned, or new parts or components when repairing any product or replace a product with a rebuilt, reconditioned or new product. Repaired mixers will be warranted for a period equal to the remainder of the original Limited Warranty on the original mixer or for (90) days, whichever is longer. All replaced parts, components, boards and equipment become the property of NUMARK. If NUMARK determines that any mixer is not covered by this Limited Warranty, purchaser must pay all parts, shipping, and labor charges for the repair or return of such mixer.

COVERING NUMARK MIXERS, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, NUMARK SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, LOSS OF PROFITS, DAMAGES TO PURCHASER'S PROPERTY, OR INJURY TO PURCHASER OR OTHERS ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE ANY NUMARK MIXER, BREACH OF WARRANTY, OR NEGLIGENCE, INCLUDING BUT NOT LIMITED TO NUMARK'S OWN NEGLIGENCE, EVEN IF NUMARK OR ITS AGENT HAS BEEN ADVISED OF SUCH DAMAGES, OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. THIS LIMITED WARRANTY IS THE COMPLETE WARRANTY FOR NUMARK'S MIXERS, AND IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILTY SHALL NOT AFFECT THE ENFORCEABILITY OF THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS. This Limited Warranty allocates risk of product failure between purchaser and NUMARK, and NUMARK'S product pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of NUMARK are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on NUMARK. Accordingly, additional statements such as dealer advertising or presentation, whether oral or written, do not constitute warranties by NUMARK and should not be relied upon.

DAMAGES OR HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO PURCHASER.

RETURN INFORMATION

1. A Return Authorization number must be obtained from Numark through the address or phone numbers below.

2. A copy of the original sales receipt must also be included for the equipment to be repaired under warranty.

3. The faulty equipment must be packed in its original packaging.

4. One additional outer layer of packaging must be included to ensure product safety. Failure to do so may inadequately protect the equipment in transit

and, therefore, jeopardize the customer’s warranty.

5. Numark will not accept COD shipments and no call tags will be issued for merchandise return.

6. Numark will not return repaired merchandise to customers by priority service, unless by written request at the customer’s cost. Requests must be

submitted in writing with merchandise returned.

7. The defective Numark equipment should be sent, FREIGHT PREPAID with Return Authorization number clearly printed on the outer packaging and

original sales receipt enclosed to:

INDUSTRIES Attention: Service Department 11 Helmsman Avenue North Kingstown, RI 02852 USA

Phone: +1 (401) 295-9000 Fax:: +1 (401) 295-5200 Web: www.numark.com

Numark CDN-20S Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
