Quick Start Guide
BSG8ew and BSG12aw/ew/tw 1.0
Business Services Gateway
Document Status:Standard
Document Number:NN47928-105
Document Version: 0
Da
te: July 2008
1.03
Page 2
Copyright © 2008 Nortel Networks, All Rights Reserved
All rights reserved.
The information in this document is subject to change without notice. The statements, configurations, technical data, and
recommendations in this document are believed to be accurate and reliable, but are presented without express or implied
warranty. Users must take full responsibility for their applications of any products specified in this document. The
information in this document is proprietary to Nortel Networks.
Trademarks
Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
All other trademarks and registered trademarks are the property of their respective owners.
Page 3
Quick Start Wizard
Use this guide to complete the basic configuration of the Business Services Gateway
(BSG) and to enable remote access configuration.
You will need the following information from your ISP or network administrator to
complete the Wizard:
3
Login
Value
information
IP address of
default:192.168.1.1
the device
Username default:nnadmin
Password default:PlsChgMe!
WAN
BSGew BSGtw BSGaw
Interface Interface type DSL Name
Encapsulation
mode
Ethernet Interface DSL
Connection
Type
PPPoE Framing ESF
SF
VPI/VCI
Authentication
Required
ISP (PPPoE) Name Clock source Loop Timing
Local Timing
User Name
Password
User name Time slot
Password Authentication
Host name
MAC Cloning Enable
Disable
MAC Address
IP Address
Assignment
Manual
Dynamic
WAN IP
address
Subnet Mask
required
User name
Password
Quick Start Guide
Page 4
4
Gateway IP
Address
Primary DNS
Secondary
DNS
LAN
LAN IP address
LAN subnet
mask
DHCP Setup Server
DHCP Server
configuration
Country Code
Wifi Security
selection
Security Key
SIP host
domain
Do not change
Do not change
Relay
None
IP Pool Starting Address
IP Pool End Address
Open System
WPA-PSK
WPA2-PSK
WEP select key size- 64, 128, 152
Wireless
SIP Phone connection
SIP central
server
Maximum
Simultaneous
calls per WAN
link
NN47928-105
WAN port
number of permitted calls
Page 5
Remote Access
Enable remote
access
Telnet
SSH
Procedure
1 Ensure that the BSG is powered up and connected to the Internet.
2 Connect a PC to the LAN port of the BSG.
3 Open a web browser.
4 In the address bar of the browser, enter the LAN IP address of BSG and press Enter.
5
Remote Access
Quick Start Guide
Page 6
6

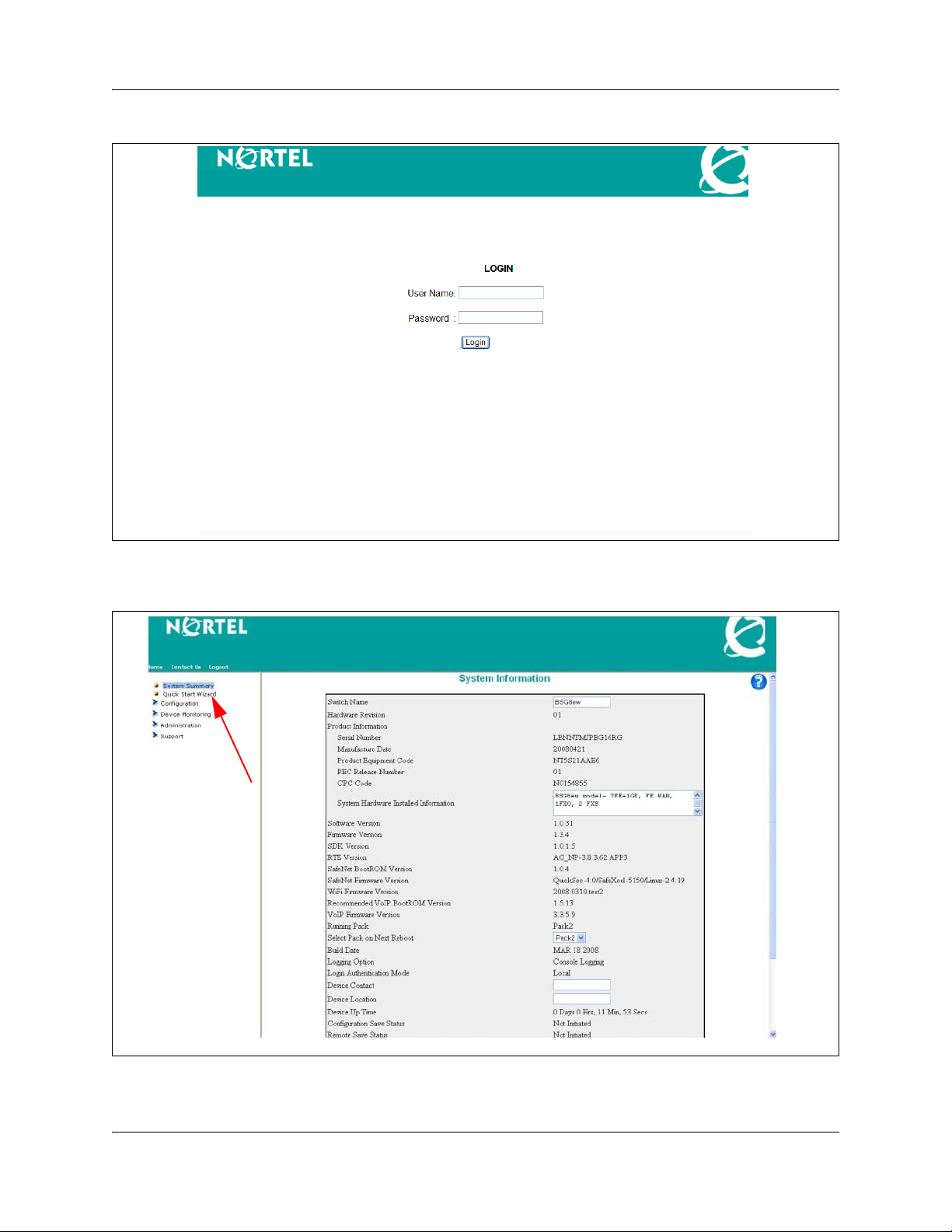

5 The BSG login page appears.
6 Enter the user name and password and click the login button to access the device.
The system information panel appears.
NN47928-105
Page 7
7 In the navigation panel on the left, click on the Quick Start Wizard option.
The Quick Start Wizard opens.
8 Click on the arrow in the middle of the page to continue.
The Setting Up Your WAN configuration panel appears. The fields on your panel will be
different depending on which model of BSG you are configuring. Select the appropriate model
below:
• BSGtw (page 8)
• BSGew (page 9)
• BSGaw (page 10)
7
Quick Start Guide
Page 8
8
BSGtw
NN47928-105
a Select the interface from the drop down list.
b Select the Framing.
c Select the Clock Source.
d Enter the Time Slot.
e Select whether Authentication is Required.
f If authentication is required enter the username and password.
g Once you have finished entering the information click on the Apply button at the
bottom of the panel.
h Click Next.
The Setting Up Your LAN configuration panel appears.
Page 9
BSGew
9
a Select the interface from the drop down list.
b Select the Encapsulation mode.
PPPoE Ethernet
1. Enter ISP name 1. Select whether to enable or disable the MAC
Cloning.
2. Enter the user name 2. If MAC cloning is enabled enter the MAC
3. Enter the password 3. Select whether IP address assignment is
4. Enter the Host Name. 4. If the IP address assignment is manual enter
address.
manual or dynamic
the:
- WAN IP address
- Subnet Mask
- Gateway IP Address
- Primary DNS
- Secondary DNS
c Once you have finished entering the information click on the Apply button at the
bottom of the panel.
d Click Next.
The Setting Up Your LAN configuration panel appears.
Quick Start Guide
Page 10
10
BSGaw
a Select the DSL Name.
b Select the DSL Connection Type.
c Enter the VPI/VCI.
d Select whether Authentication is Required.
e Enter the username.
f Enter the password.
g Once you have finished entering the information click on the Apply button at the
bottom of the panel.
h Click Next.
The Setting Up Your LAN configuration panel appears.
9 Enter all of the parameters identified by your administrator at the beginning of this guide.
10 Once you have finished entering the information click on Apply to save the configuration.
NN47928-105
Page 11
11
11 Click the Next button at the bottom of the panel to advance to the next panel.
The Setting up your Wireless configuration panel appears.
12 Select the Country Code.
13 Refer to the information at the beginning of this guide for the correct security settings to enter.
14 Click on Apply to save the configuration.
15 Click the Next button at the bottom of the panel to advance to the next panel.
The Setting up Your SIP Phone Connection configuration panel appears.
16 Enter the SIP Host Domain.
17 Enter the SIP Central Server address.
18 Enter the maximum number of Simultaneous Calls permitted across the selected WAN
interface.
19 Click on the Apply button to save the configuration.
20 Click on the Next button at the bottom of the panel.
Quick Start Guide
Page 12
12
21 You have successfully completed the BSG Quick Start Wizard.
22 Verify all of the information that you have entered is correct. If the information is correct, click
Continue to save the information. If you want to make changes to the information, click on the
Change button at the bottom of the page and you will run through the Wizard again.
NN47928-105
