Using the BayStack
Ethernet Fiber Media
Adapters

Bay Networks, Inc. Corporate Headquarters
4401 Great America Parkway

Santa Clara, CA 95054

8 Federal Street
Billerica, MA 01821

March 1996

*893-862-B*

© 1996 by Bay Networks, Inc. All rights reserved.

Trademarks

Bay Networks, BayStack, and Bay Networks Press are trademarks of Bay
Networks, Inc. Other brand and product names are registered trademarks or
trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability,
Bay Networks, Inc. reserves the right to make changes to the products described in
this document without notice. Bay Networks, Inc. does not assume any liability that
may occur due to the use or application of the product(s) or circuit layout(s)
described herein.

Related Publications

For more information about the installation and use of BayStack™ hubs and optional
equipment, refer to the following publications:

•

Using the BayStack 10BASE-T Hubs

893-839-B)

•

Using the BayStack Ethernet Network Management Modules

(Bay Networks part number 893-841-A)

Ordering Bay Networks Publications

To purchase additional copies of this document or other Bay Networks publications,
order by part number from Bay Networks Press™ at the following numbers. You may
also request a free catalog of Bay Networks Press product publications.

• Phone: [phone]

• FAX: U.S./Canada: 1-800-582-8000, International: 1-916-939-1010

(Bay Networks™ part number

Introduction

This guide describes the Bay Networks 10BASE-FL (fiber link)
and single-mode fiber media adapters for the BayStack
10BASE-T Hubs, and provides instructions for installing,
connecting, and configuring the adapters in the hub.

Each BayStack fiber media adapter provides one nonredundant
single- or multimode fiber port for flexible backbone
connectivity to your BayStack 10BASE-T Hub. Both adapters
employ 10BASE-FL signaling technology.

The BayStack 10BASE-T Hub provides two Media Adapter
LEDs to indicate the status of the hub media adapter ports A and
B. For more information about interpreting media adapter LEDs,
refer to Chapter 1, “Quick Reference Information,” in

BayStack 10BASE-T Hubs

.

This guide contains the following sections:

• BayStack 10BASE-FL Media Adapter

• BayStack Single Mode Fiber Media Adapter

• Fiber Optic Cable Length Limitations

• Installing a Media Adapter in a BayStack Hub
For more information about how the media adapter operates in

the hub, refer to

Using the BayStack 10BASE-T Hubs

Networks Part number 893-839-B).

Using the

(Bay

893-862-B 1

BayStack 10BASE-FL Media Adapter

The BayStack 10BASE-FL Media Adapter is a modular
10BASE-FL fiber link port. It is designed to be installed in either
media adapter slot of a BayStack 10BASE-T Hub.

The port is compatible with the IEEE 802.3 10BASE-FL
specification for Ethernet running over 62.5/125 µm or 50/125

µ

m multimode fiber optic cable.

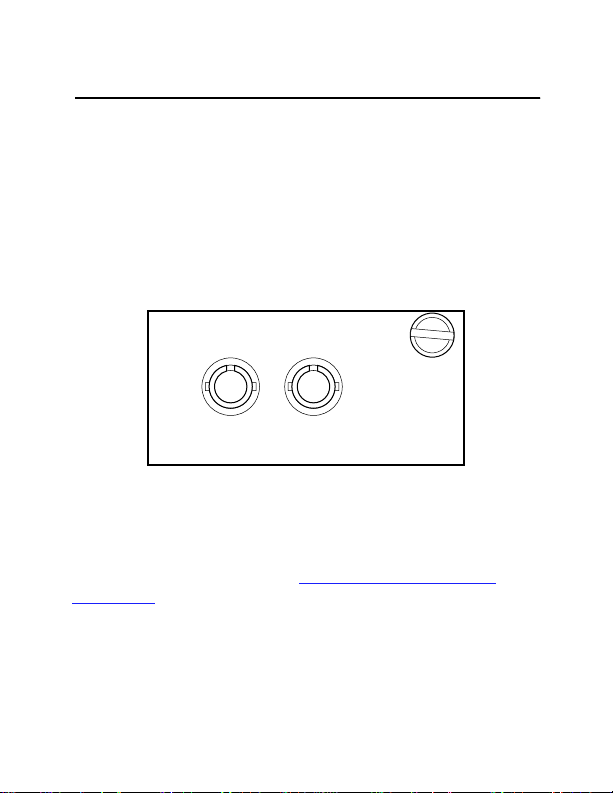

TX

RX

10BASE-FL

5956

Connection is made to the port using two straight-tip (ST)
connectors (Tx and Rx).

For more information about multimode fiber optic cable
connection and limitations, see “

Limitations” later in this guide.

2 893-862-B

Fiber Optic Cable Length
