NordicTrack 4500 R User Manual

ORDERING REPLACEMENT PARTS

www.iconeurope.com

Visit our website at

To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:

ICON Health & Fitness, Ltd. Customer Service Department Unit 4, Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK

Tel:

08457 089 009

Class HC Fitness Product

Model No. NETL98131 Serial No.

Find the serial number in the location shown below. Write the serial number in the space above for reference.

USER’S MANUAL

Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125

To help us assist you, please be prepared to give the following information:

• The MODEL NUMBER OF THE PRODUCT (NETL98131)

• The NAME OF THE PRODUCT (NordicTrack

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 34 and 35 and the EXPLODED DRAWING attached in the centre of this manual)

4500 R treadmill)

Serial Number Decal

QUESTIONS?

As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call:

08457 089 009

Or write: ICON Health & Fitness, Ltd. Unit 4 Revie Road Industrial Estate Revie Road, Beeston Leeds, LS11 8JG UK

Part No. 209429 R0504A

Printed in USA

2004 ICON IP, Inc.

email: csuk@iconeurope.com

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this man ual for future reference.

Key No. Qty. Description Key No. Qty. Description

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING is attached in the centre of this manual.

101 2 Front Wheel Bushing 102 2 Front Wheel 103 2 Front Wheel Spacer 104 4 Handrail Bolt 105 2 Fan 106 107 1 Latch Pin 108 1 Pin Clip 109 1 Latch Pin Collar 110 1 Latch Knob Spring 111 1 Latch Knob Sleeve 112 1 Latch Knob Spacer 113 1 Latch Knob 114* 1 Latch Assembly 115 1 Left Cup Holder 116 1 Right Cup Holder 117 1 Right Fan Housing 118 2 Upright Endcap (Round) 119 2 Wire Harness 120 2 Upright Hood Mount (Side) 121 4 8” Cable Tie 122 1 iFIT.com Audio Cable 123 1 Jack 124 1 Releaseable Tie 125 1 Catch 126 1 Idler Arm Bushing 127 2 Leveling Foot

4 Handrail Bushing

128 1 Power Board 129 1 Filter 130 2 Motor Bushing 131 2 Roller Adj. Washer 132 1 Chest Pulse Strap 133 134 1 Isolator Plate 135 1 Ferrite Box 136 4 Base Pad Screw 137 3 Hood Screw (Rear) 138 2 Frame Pivot Nut 139 1 Transformer 140 1 Ground Screw 141 1 Ground Nut Washer 142 2 Motor Spacer

# 1 12” Green Wire, 2 Ring # 1 8” Green Wire, F/Ring # 1 6” Green Wire, 2 Ring # 1 4” Green Wire, F/Ring # 1 8” Blue Wire, 2F # 1 4” Blue Wire, 2F # 1 4” Black Wire, 2F # 1 8” White Wire, 2F # 1 User’s Manual

* Includes all parts shown in the box # These parts are not illustrated

1 Chest Pulse Sensor

NordicTrack is a registered trademark of ICON IP, Inc.

2 35

PART LIST—Model No. NETL98131 R0504A

To locate the parts listed below, see the EXPLODED DRAWING attached in the centre of this manual.

Key No. Qty. Description Key No. Qty. Description

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

1 1 Allen Wrench 2 2 Rear Wheel Bolt 3 1 Rear Endcap (Left) 4 2 Roller Star Washer 5 2 Rear Roller Adj. Bolt 6 2 Rear Wheel 7 4 U-nut 8 8 Endcap Bolt

9 1 Roller Guard (Left) 10 1 Roller Guard (Right) 11 1 Rear Endcap (Right) 12 8 Endcap Nut 13 8 Endcap Washer 14 1 Rear Roller 15 1 Warning Decal 16 1 Splitter 17 1 Pulse Receiver 18 2 Belt Guide 19 1 Choke 20 2 Frame Pivot Bolt 21 2 Frame Pivot Washer 22 1 Left Foot Rail 23 1 Walking Belt 24 1 Walking Platform 25 1 Right Foot Rail 26 1 Front Endcap (Left) 27 1 Ground Wire 28 4 Support Bracket Screw 29 1 Support Bracket 30 1 Front Roller/Pulley 31 1 Magnet 32 1 Motor Belt 33 1 Motor 34 2 Frame Pivot Bushing 35 2 Frame Pivot Spacer 36 37 1 Reed Switch

38* 1 Idler Assembly

39 40 1 Electronics Bracket 41 42 43 4 Tension Washer 44 45 46 1 Idler Arm 47 1 Idler Spring 48 49 50 1 Incline Motor

1 Reed Switch Clip

1 8

2 1

9 5

Idler Pulley Bolt

Idler Pulley Lift Motor Nut/Idler Nut

Incline Motor Bolt (Top) Idler Arm Bearing

Hood Mount Screw Hood Mount

51 1 Incline Motor Bolt (Bottom) 52 1 Incline Motor Bracket 53 1 Front Roller Adj. Bolt 54 1 Front Roller Nut 55 2 Motor Bolt 56 1 Pulse Wire 57 1 Lift Leg 58 1 Left Fan Housing 59 2 Large Cage Nut 60 2 Plastic Stand-off 61 1 Front Endcap (Right) 62 1 Motor Hood 63 2 Hood Clip 64 1 Controller 65 1 Controller Bracket 66 1 Motor Controller Wire 67 2 Euro Power Cord 68 1 Reciptical 69 1 Circuit Breaker 70 1 12” Audio Wire 71 1 Audio Wire Nut 72 1 On/Off Switch 73 2 Static Decal 74 1 Belly Pan 75 4 Tie Holder 76 1 Belly Pan Bracket 77 2 Support Bracket Screw 78 1 Filter Wire 79 1 Console Ground Wire 80 1 Console Base 81 1 Console 82 1 Book Holder 83 1 Handrail 84 2 Handrail Endcap 85 1 Hand Grip Pulse 86 87 26 Console Screw 88 4 2” Console Screw 89 90 1 Base Plate Bumper 91 92 93 9 Base Screw 94 95 96 3 Cage Nut 97 2 Upright Endcap 98 99

100 2 Front Wheel Bolt

21 Screw

1 3

1 4

1 1

Console Back

Base Plate Base Plate Screw

Wire Track Base Pad

Key/Clip Upright

It is the responsibility of the owner to ensure

1. that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described in this manual.

3. Place the treadmill on a level surface, with at least 2.5 m (8 ft.) of clearance behind it and

0.5 m (2 ft.) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should not be used by persons weighing more than 135 kg (300 lbs.).

8. Never allow more than one person on the treadmill at a time.

9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

10. When connecting the power cord (see page 9), plug the power cord into an earthed circuit. No other appliance should be on the same circuit. When replacing the fuse, an ASTA approved BS1362 type should be fitted to the fuse carrier. A 13 amp fuse should be used.

11. If an extension cord is needed, use only a 3conductor, 1mm longer than 1.5 m (5 ft.).

12. Keep the power cord away from heated surfaces.

(14-gauge) cord that is no

Never move the walking belt whilst the power

13. is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)

14. Never start the treadmill whilst you are standing on the walking belt. Always hold the handrails whilst using the treadmill.

15. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

16. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

17. Never leave the treadmill unattended whilst it is running. Always remove the key, unplug the power cord and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the on/off switch.)

18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

FOLD

ASSEMBLY on page 6, and HOW AND MOVE THE TREADMILL on page 26.) You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.

Do not change the incline of the treadmill by

19. placing objects under the treadmill.

20. When folding or moving the treadmill, make sure that the storage latch is fully closed.

21. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.

When using iFIT.com CDs and videos, you

22. can manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.

23. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.

DANGER: Always unplug the power

26. cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorised service representative. Servicing other than the procedures in this manual should be performed by an authorised service representative only.

NOTES

24. Inspect and properly tighten all parts of the treadmill regularly.

25. Never insert or drop any object into any opening.

27. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decal shown at the right has been placed on your treadmill. If the decal is missing or illegible, please call our Customer Service Department to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown. Note: The decal is not shown at actual size.

4 33

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NordicTrack 4500 R treadmill. The 4500 R treadmill offers an impressive array of features to make your home workouts more enjoyable and effective. not exercising, the unique 4500 R can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before using the treadmill. If you have questions after read-

ing this manual, please call our Customer Service

And when you’re

Department at please note the product model number and serial number before calling. The model number of the treadmill is NETL98131. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

Before reading further, please familiarise yourself with the parts that are labeled in the drawing below.

08457 089 009. To help us assist you,

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Book Holder

Fan

Handrail

Latch Knob

LEFT SIDE

Walking Belt

Foot Rail

Water Bottle Holder*

Console

Pulse Sensor

Key/Clip

RIGHT SIDE

On/Off Switch

Circuit Breaker

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

Rear Roller Adjustment Bolts

Flexible Walking Platform

*No water bottle is included.

532

ASSEMBLY

CONDITIONING GUIDELINES

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own flat-bladed screwdriver , wire cutters , and adjustable wrench .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the treadmill or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt or foot pads, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

WARNING: Do not plug in the power

cord until the treadmill is completely assembled.

Slide the treadmill out of the box. Insert the three Cage

1. Nuts (96) into the three indicated holes in the treadmill.

To insert each Cage Nut (96), first hook one side of the Cage Nut into the hole and then use a flat-bladed screwdriver to press the other side into the hole, as shown.

2. With the help of a second person, carefully raise both Uprights (99) to a vertical position. Press the Latch Knob Sleeve (111) into the left Upright and hold the Latch Knob Spacer (112) against the left Upright.

Remove the Latch Knob (113) from the Latch Pin (107). Make sure that the Latch Pin Collar (109) and the Latch Pin Spring (110) are on the Latch Pin. (Note: If there are two Latch Pin Collars, place one on each side of the Spring.) Insert the Latch Pin into the Latch Knob Sleeve (111) and the Left Upright (99).

Tighten the Latch Knob (113) onto the Latch Pin (107).

3. With the help of a second person, raise the Walking

Platform (24) to the storage position and make sure that the latch pin is engaged as described on page 26.

Position the Base Plate (91) on the treadmill as shown. Attach the Base Plate with the three Base Plate Screws (92). Note: It may be helpful if a second person tips the treadmill slightly as you tighten the Screws.

treadmill

If the Leveling Feet (127) under the Uprights (99) until the rocking motion is eliminated. Carefully lower the Walking Platform (24) to the floor as described on page 27.

rocks slightly, turn one or both of the

127

113

112

111

110

107

109

127

WARNING: Before beginning this

or any exercise program, consult your physician. This is especially important for individu als over the age of 35 or individuals with preexisting health problems.

The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “training zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the pulse sensor on the console.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible

carbohydrate calories for en-

ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the tread mill until your heart rate is near the lowest number in your training zone.

For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.

Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex ercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.

PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com

CDs and videos are played

SOLUTION:

PROBLEM: The heart rate monitor does not function properly

a. With the key in the console, press one of the Incline buttons. Whilst the incline is changing, re-

move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

4. Have a second person hold the Handrails (83) near the Uprights (99). Connect the Upright Wire Harness (119) to the wires extending from the Console Base (80) (see the inset drawing).

easily and snap into place. If they do not, turn one connector and try again. Then, insert the connectors

and the Upright Wire Harness into the hole in the right Upright.

The connectors should slide together

119

SOLUTION: a. If the heart rate monitor does not function properly, see CHEST PULSE SENSOR TROUBLE-

SHOOTING on page 8.

b. If the heart rate monitor still does not function properly, the battery

should be changed. To replace the battery, locate the battery cover on the back of the sensor unit. Insert a coin into the slot in the cover and turn the cover counterclockwise to the “open” position. Remove the cover.

Remove the old battery from the sensor unit. Insert a new CR 2032 battery, making sure that the writing is on top. In addition, make sure that the rubber gasket is in place in the sensor unit. Replace the battery cover and turn it to the closed position.

Battery Cover

Battery

Cover

Battery

Rubber Gasket

Set the Handrails (83) on the Uprights (99), being careful not to pinch the wires.

5. Insert two Handrail Bolts (104) with Handrail Bushings (106) into the right Upright (99) and the right Handrail (83). Be careful not to pinch the wires. Make sure that the Handrail Bushings are flush against the right Upright, with the thick sides facing the centre of the treadmill, as shown in the inset drawing. Next, lift the right Handrail (83) slightly and align the Bolts with the holes in the Handrail. Thread the Bolts into the Handrail. Do not tighten the Bolts yet.

Attach the left Handrail (not shown) in the same way. Then, tighten all four Handrail Bolts (104).

6. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 29). To protect the

floor or carpet from damage, place a mat under the treadmill.

106

Thick

Side

104

30 7

HOW TO USE THE CHEST PULSE SENSOR

HOW TO PUT ON THE

The chest pulse sensor consists of two components: the chest strap and the sensor unit (see the drawing below). Insert the tab on one end of the chest strap into one end of the sensor unit, as shown in the inset drawing. Press the end of the sensor unit under the buckle on the chest strap. The tab should be flush with the front of the sensor unit.

Tabs

Sensor Unit

Next, wrap the chest pulse sensor around your chest and attach the other end of the chest strap to the sensor unit. Adjust the length of the chest strap, if necessary. The chest pulse sensor should be under your clothes, tight against your skin, and as high under the pectoral mus cles or breasts as is comfortable. Make sure that the logo on the sensor unit is facing forward and is rightside-up.

Pull the sensor unit away from your body a few inches and locate the two electrode areas on the inner side (the electrode areas are covered by shallow ridges). Using saline solution such as saliva or contact lens solution, wet both electrode areas. Return the sensor unit to a position against your chest.

CHEST PULSE SENSOR

• Thoroughly dry the chest pulse sensor after each use. The chest pulse sensor is activated when the electrode areas are wetted and the heart rate monitor is put on; the chest pulse sensor shuts off when it is removed and the electrode areas are dried. If the chest pulse sensor is not dried after

CHEST PULSE SENSOR

Chest Strap

Tab

Sensor

Unit

CARE AND MAINTENANCE

Buckle

each use, it may remain activated longer than nec essary, draining the battery prematurely.

• Store the chest pulse sensor in a warm, dry place. Do not store the chest pulse sensor in a plastic bag or other container that may trap moisture.

• Do not expose the chest pulse sensor to direct sunlight for extended periods of time; do not expose it to temperatures above 50° Celsius (122° Fahrenheit) or below -10° Celsius (14° Fahrenheit).

• Do not excessively bend or stretch the sensor unit when using or storing the chest pulse sensor.

• Clean the sensor unit using a damp cloth—never use alcohol, abrasives, or chemicals. The chest strap may be hand washed and air dried.

CHEST PULSE SENSOR TROUBLESHOOTING

The instructions on the following pages explain how the chest pulse sensor is used with the console. If the chest pulse sensor does not function properly, try the steps below.

• Make sure that you are wearing the chest pulse sensor as described at the left. Note: If the chest pulse sensor does not function when positioned as described, move it slightly lower or higher on your chest.

• Use saline solution such as saliva or contact lens solution to wet the two electrode areas on the sensor unit. If heart rate readings do not appear until you begin perspiring, re-wet the electrode areas.

• As you walk or run on the treadmill, position yourself near the centre of the walking belt.

console to display heart rate readings, the user must be within arm’s length of the console.

• The chest pulse sensor is designed to work with people who have normal heart rhythms. Heart rate reading problems may be caused by medical conditions such as premature ventricular contractions (pvcs), tachycardia bursts, and arrhythmia.

The operation of the chest pulse sensor can be

• affected by magnetic interference caused by high power lines or other sources. If it is suspected that this is a problem, try relocating the treadmill.

The CR2032 battery may need to be replaced (see

• page 30).

For the

PROBLEM: The walking belt slows when walked on

If an extension cord is needed, use only a 3-conductor, 1mm

SOLUTION:

PROBLEM: The walking belt is off-centre or slips when walked on

SOLUTION:

PROBLEM:

SOLUTION: a.

than 1.5 m (5 ft.).

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 8–10 cm (3–4 in.) off the walking platform. Be careful to keep the walking belt centred. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, call our Customer Service Department.

a. If the walking belt is off-centre, first remove the key and

UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise

1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centred.

b. If the walking belt slips when walked on, first remove the

key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 8–10 cm (3–4 in.) off the walking platform. Be careful to keep the walking belt centred. Plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

The treadmill rocks during use

treadmill

If the both of the Leveling Feet (127) under the Upright (99) until the the rocking motion is eliminated. Note: If necessary, tip the treadmill forward and use a phillips screwdriver to turn the Leveling Feet.

rocks slightly during use, turn one or

(14-gauge) cord that is no longer

8–10 cm

Rear Roller Adjustment Bolts

127

298

TROUBLESHOOTING

OPERATION AND ADJUSTMENT

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See page 8.) If an ex-

tension cord is needed, use only a 3-conductor, 1 mm m (5 ft.). Important: The treadmill is not compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.

d. Check the on/off switch located on the treadmill near

the power cord. The switch must be in the on position.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the

circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

(14-gauge) cord that is no longer than 1.5

Tripped

Position

Reset

THE PERFORMANT LUBETMWALKING BELT

Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunction or break

down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a power cord having an equipment-earthing conductor and an earthing plug. Important: If the power cord is damaged, it must

be replaced with a manufacturer-recommended power cord.

Two power cords are included. Select the one that will fit your outlet. Refer to drawing 1. Plug the indicated end of the power cord into the socket on the treadmill. Next, lift the tab on the ferrite box and clamp the ferrite box around the power cord. Fasten the included plastic tie just behind the ferrite box and cut off the excess plastic tie. The plastic tie will prevent the ferrite box from sliding along the power cord.

See drawing 2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances. Important: The treadmill is not compatible with

GFCI-equipped outlets.

Socket on treadmill

Ferrite Box

Plastic Tie

Tab

Outlet

c. Remove the key from the console. Reinsert the key fully into the console.

d. Make sure that the on/off switch is in the on position.

e. If the treadmill still will not run, please call our Customer Service Department.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE

POWER CORD.Remove the indicated Screws (48)

from the Hood (62). Carefully rotate and lift the Hood.

Locate the Reed Switch (37) and the Magnet (31) on the left side of the Pulley (30). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed Switch is about 3mm (1/8 in.). If necessary, loosen

the Screw (86) and move the Reed Switch slightly. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading.

3 mm

Top

View

DANGER: Improper connection of the equipment-earthing conductor can result in an in

creased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

28 9

HOW TO LOWER THE TREADMILL FOR USE

Program

Display

Main

Display

Pulse

Sensor

Note: If there is a thin sheet of clear plastic on the face of the console, remove it.

Key

Clip

Pulse

Sensor

1. Hold the upper end of the treadmill with your right hand as shown. Pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin on the latch knob. Slowly release the latch knob.

2. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.

the floor. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.

Do not drop the treadmill frame to

Latch Knob

Platform

FEATURES OF THE CONSOLE

The advanced console offers a selection of features designed to help you get the most from your exercise.

When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sensor or the chest pulse sensor.

Eleven preset workout programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effective workout.

In addition, the console offers two heart rate programs that automatically adjust the speed and incline of the treadmill to keep your heart rate near a target level whilst you exercise.

You can even create custom workout programs and store them in memory for future use.

The console also features iFIT.com interactive technology. Having iFIT.com interactive technology is like having a personal trainer in your home. Using a stereo audio cable (included), you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video pro grams (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the treadmill as a personal trainer coaches you through every step of your workout. Highenergy music provides added motivation. To pur-

chase iFIT.com CDs and videocassettes, visit our Web site at www.iconeurope.com.

With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and access programs directly from the internet. Explore

www.iFIT.com for more information.

10 27

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown at the right.

jury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.

to the vertical position.

2. Move your right hand to the position shown and hold the treadmill firmly. Pull the latch knob to the left and hold it. Raise the treadmill until the platform passes the pin on the latch knob. Release the latch knob. Make sure that

the platform is resting against the pin as shown.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 30° C (85° F).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor age position as described above.

plate is resting against the pin on the latch knob.

1. Hold the handrails as shown and place one foot against a wheel.

2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location.

Never move the treadmill without tipping it back reduce the risk of injury, use extreme caution whilst moving the treadmill. treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.

CAUTION: To decrease the possibility of in-

Raise the treadmill about halfway

Make sure that the catch

. To

Do not attempt to move the

Latch Knob

Platform

Base

Front Wheels

CAUTION: Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing below) whilst operating the treadmill.

• Adjust the speed in small increments to avoid sudden jumps in speed.

• The pulse sensors are not medical devices. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

• If you have heart problems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise hart rate.

• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.

GETTING STARTED

Attach the clip to the waistband of your clothes.

Stand on the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Next, insert the key into the console. Test the clip by carefully taking a few

steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.

Then, remove the key from the console.

Plug in the power cord.

Clip

See HOW TO PLUG IN THE POWER CORD on page 9.

Make sure the on/off switch is in the on posi-

tion.

Locate the on/off switch on the treadmill near the power cord. the on/off switch is in the on position.

Insert the key fully into the console.

Make sure

Position

Stand on the foot rails of the treadmill. Attach the clip securely to the waistband of your clothes.

Next, insert the key into the console. After a moment, the program display and the main display will light. Note: When the key is inserted, the treadmill incline system may automatically calibrate itself—the treadmill will rise to the highest incline level and then return to the lowest incline level. During calibration, the left side of the main display will show two dashes (– –) and the segment time indicator will flash.

Enter your weight.

Although you can use the console without entering your weight, the console will count your calorie expenditure more accurately if you enter your weight. To enter your weight, press either of the Age/Weight Set buttons. The words “ENTER WEIGHT” and the current weight setting will appear in the main display. Press the Age/Weight Set buttons again to enter your weight. The buttons can be held down to enter your weight quickly. Your weight will then be saved in memory.

To use the manual mode of the console, follow the steps beginning on page 12. To use a preset program, see page 14. To create and use a custom program, see pages 16 and 17. To use a heart rate program, see page 18. To use an iFIT.com CD or video pro-

gram, see page 22. To use an iFIT.com rectly from our Web site

, see page 24.

program di

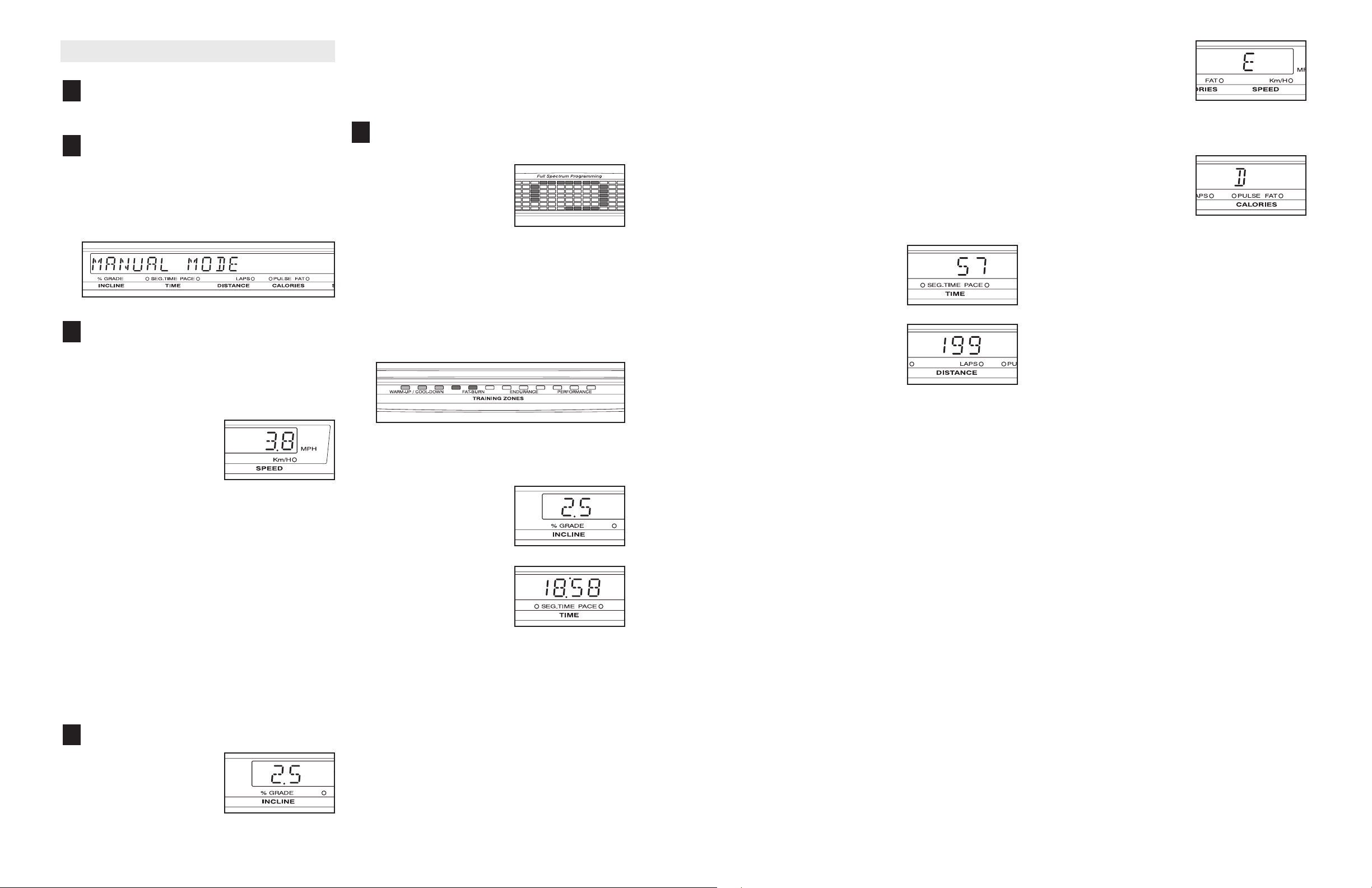

HOW TO USE THE MANUAL MODE

Insert the key fully into the console.

See GETTING STARTED on page 11.

Select the manual mode.

When the key is inserted, the manual mode will automatically be selected. If a program has been selected, press the Select Goal button repeatedly until the words “MANUAL MODE” appear in the main display.

Press the Start button or the Speed + button to

start the walking belt.

A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking. As you exercise, change the speed of the walking belt as desired by pressing the Speed + and – buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed setting quickly, press the 1-step Speed buttons. The speed range is 0.5 mph to 12 mph. pressed, it may take a moment for the treadmill to reach the selected speed setting.

To stop the walking belt, press the Stop button. The time will begin to flash in the main display. To restart the walking belt, press the Start button or the Speed + button.

Note: The first time the treadmill is used, inspect the alignment of the walking belt, and align the walking belt if necessary (see page 29).

Change the incline of the treadmill as desired.

Note: After

the buttons are

To change the incline of the treadmill, press the

Incline Each time a button is

and

buttons.

pressed, the incline will change by 0.5%. To change the incline quickly, press the 1-step Incline buttons. The incline range is 0% to 12%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.

Follow your progress with the LED track, the

Training Zone display, and the main display.

The LED track—When

the manual mode or the iFIT.com mode is selected, the program display will show an LED track representing 1/4 mile. As you exercise, the indicators around the track will light, one at a time, until you have walked or run 1/4 mile. A new lap will then begin.

The Training Zone display—As you exercise, the Training Zone display will show the approximate intensity level of your exercise. As you increase the intensity, additional indicators will light.

The Main Display—The main display will show the following information:

Incline—The left side of the main display shows the incline level of the treadmill.

Time/Pace—When the manual mode or the iFIT.com mode is selected, the next section of the main display will show the elapsed time and your current pace (pace is measured in utes per mile). The display will change from one number to the other every few seconds; the Pace indicator will light when your pace is shown. a program is selected, the display will show the time remaining in the program, your current pace, and the time remaining in the current segment of the program.

min

Whe

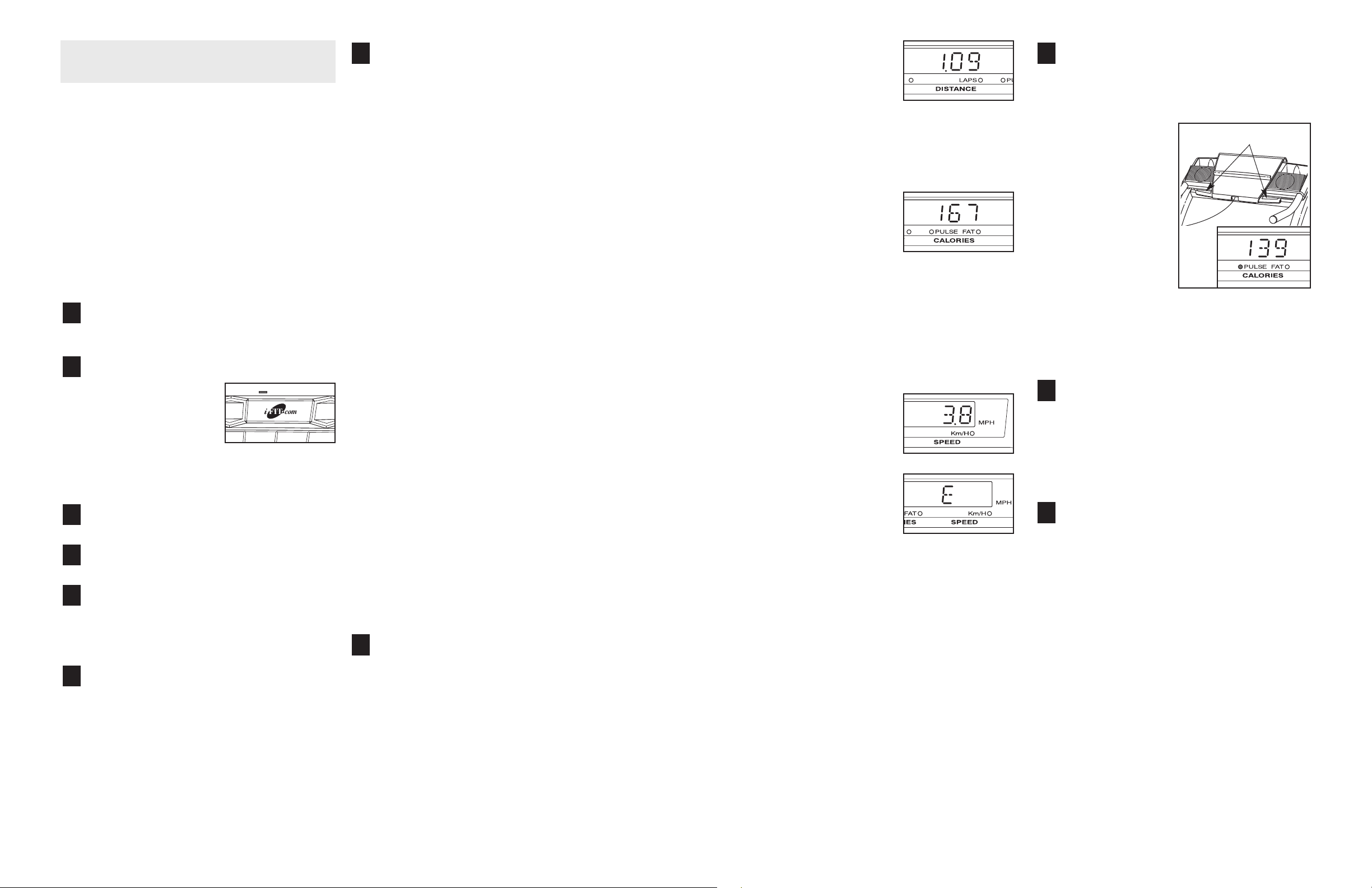

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour. In addition, the information mode allows you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop button whilst inserting the key into the console. When the information mode is selected, the main display will show the following information:

The left side of the main display will show the total number of hours that the treadmill has been used.

The centre of the main display will show the total number of miles that the walking belt has moved.

An “E” for English miles or an “M” for metric kilometers will appear on the right side of the main display. Press the Speed + button to change the unit of measurement.

IMPORTANT: Make sure that there is not a letter “D” in the main display. If

a “D” appears in the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence, although the buttons on the console will not operate. If a “D” appears in the display when the infor-

mation mode is selected, press the Speed – button so that it disappears.

To exit the information mode, remove the key from the console.

HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE

Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.

To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 21. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements is found on our Web site.

Follow the steps below to use a program from our Web site.

Insert the key fully into the console.

See GETTING STARTED on page 11.

Select the iFIT.com mode.

When the key is inserted, the manual mode will be selected. To use a program from our Web site, press the iFIT.com button. The indicator above the button will light and the words “IFIT MODE” will appear in the main display.

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go

to our Web site at www.iFIT.com.

Follow the desired links on our Web site to se-

lect a program.

Read and follow the on-line instructions for using a program.

Follow the on-line instructions to start the pro-

gram.

When you start the program, an on-screen countdown will begin.

Return to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.

When the on-screen countdown ends, the program will begin and the walking belt will begin to move. Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. CAUTION: Always listen for the

“chirp” and be prepared for speed and/or incline changes.

If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is

heard, the speed and/or incline will change to the next settings of the program.

To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the main display. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard, the

speed and incline will change to the next settings of the program.

When the program is completed, the walking belt will stop and the time will begin to flash in the time display. Note: To use another program, press the Stop button and go to step 5.

Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time display is not flashing. In addi tion, make sure that the audio cable is prop erly connected, that it is fully plugged in, and that it is not wrapped around a power cord.

When the program has ended, remove the key.

See step 7 on page 15.

Distance/Laps—The centre section of the main display shows the distance that you have walked number of 1/4-mile laps you have completed. The display will change from one number to the other every few seconds; the Laps indicator will light when the number of laps is shown.

Calories/Pulse— When you are not using the handgrip pulse sensor, the next section of the main display will show the approximate numbers of calories and fat calories you have burned (see FAT BURNING on page

31). The display will change from one number to the other every few seconds; the Fat indicator will light when the number of fat calories is shown. When you are using the handgrip pulse sensor, the display will show your heart rate (see step 6 at the right).

Speed—The right side of the main display shows the speed of the walking belt.

Note: When the Km/H indicator below the Speed display is lit, the console will display speed and distance in kilometres; when the indicator is not lit, the console will display speed

and distance in miles. To change the unit of mea surement, first hold down the Stop button whilst in serting the key into the console. An “E” for English miles or an “M” for metric kilometres will appear in the Speed display. Press the Speed + button to change the unit of measurement. When the desired unit of measurement is selected, remove the key and then reinsert it.

instructions in this manual refer to miles.

To reset the main display, press the Stop button, remove the key, and then reinsert the key.

and the

Note: For simplicity, all

Measure your heart rate if desired.

To measure your heart rate, use the chest pulse sensor (see page 9) or the handgrip pulse sensor (follow the instructions below).

Stand on the foot rails and place

your hands on the metal contacts on the handrail. Your palms must be resting on the upper contacts, and your fingers must be touching the lower contacts—avoid mov- ing your hands. When your pulse is detected, the Pulse indicator will light and then your heart rate will be shown in the main display.

For the most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

Turn on the fans if desired.

Metal Contacts

To turn on the fans at low speed, press the Fans button. To turn on the fans at high speed, press the Fans button a second time. To turn off the fans, press the Fans buttons a third time. Note: Any time that the walking belt is stopped for a few minutes, the fans will automatically turn off.

When you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest level.

The incline must be at the lowest level when the treadmill is raised to the storage position or the treadmill will be damaged. Next, remove the

key from the console and put it in a secure place.

Note: If the displays and indicators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 25 and turn off the demo mode.

When you are finished using the treadmill the on/off switch near the power cord to the off position and unplug the power cord.

move

24 13

HOW TO USE PRESET PROGRAMS

Insert the key fully into the console.

See GETTING STARTED on page 11.

Select the desired preset program.

The console offers eleven preset programs— programs that focus on weight loss, five programs designed for aerobic exercise, and three programs for high-performance conditioning.

When the key is inserted, the manual mode will be selected. To select one of the preset programs, first press the Select Goal button repeatedly until the words “WEIGHT LOSS,” “AEROBIC,” or “PERFORMANCE” appear in the main display.

Next, press the Select Course button repeatedly to select one of the weight loss, aerobic, or performance programs. For example, if the words “WEIGHT LOSS” appear in the main display, you can select the 20-minute Pyramid, 35-minute Pyramid, or 20-minute Fat Burn program.

Three seconds after a preset program is selected, the name of the selected program, the maximum speed setting for the program, the maximum incline setting for the program, and the total program time will begin to scroll across the main display.

The program display will show the speed settings of the program you have selected. Note: If you have selected a program with more than twelve seg ments, the display will show only the first twelve speed settings.

three

Press the Start button or the Speed + button to

start the program.

A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings of the program. and begin walking.

Each program is divided into several time segments of different lengths. (The main display shows both the time remaining in the program and the time remaining in the current segment of the program.) One speed setting and one incline setting are programmed for each segment. (The same speed setting and/or incline setting may be programmed for consecutive segments.) The speed setting for the first

egment is shown

s in the flashing Current Segment column of the program display. (The incline settings are not shown in the program display.) The speed settings for the next several segments are shown in the columns to the right.

When only three seconds remain in the first segment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. In addition, if the speed and/or incline of the treadmill is about to change, the speed setting and/or incline setting will flash in the main display to alert you. When the first segment is completed, one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment. Note: If all of the indicators in the Current Segment column are lit after the speed settings have moved to the left, the speed settings will move downward so that only the high est indicators appear in the program display. some of the indicators in the Current Segment column are not lit when the speed settings move to the left again, the speed settings will move back up.

The program will continue in this way until the speed setting for the last Current Segment column and no time remains in the program. The walking belt will then slow to a stop.

all speed settings will move

Hold the handrails

Current Segment

segment

is shown in the

If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However,

heard, the speed and/or incline will change the next settings of the CD or video program.

When the next “chirp” is heard, the speed and incline will change to the next settings of the CD or video program

When the CD or video program is completed, the walking belt will stop and the time will begin to flash in the main display. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 22.

when the next “chirp” is

• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the console may not detect the program signals.

• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.

If you are using your portable CD player and

• the CD skips, set the CD player on the floor or another flat surface instead of on the console.

Follow your progress with the displays.

See step 5 on page 12.

Measure your heart rate if desired.

See step 6 on page 13.

Turn on the fans if desired.

Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:

• Make sure that the iFIT.com indicator is lit and that the time is not flashing in the main display. If the time is flashing, press the Start button or the Speed + button on the console.

See step 7 on page 13.

When the program is completed, remove the

key.

See step 7 on page 15.

14 23

HOW TO CONNECT YOUR VCR

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT

. IN

RF OUT

OUT

CH 3

AUDIO OUT

RIGHT

LEFT

VIDEO

AUDIO

ANT. IN

RF OUT

OUT

CH 34

VIDEO AUDIO

ANT. IN

RF OUT

OUT

CH 34

Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 21.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.

Audio

Adapter

Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.

HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS

To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD

20.

Note: To purchase iFIT.com CDs and videocas-

PLAYER, VCR, OR COMPUTER on page

settes, visit our Web site at www.iconeurope.com.

Follow the steps below to use an iFIT.com CD or video program.

Insert the key fully into the console.

See GETTING STARTED on page 11.

Select the iFIT.com mode.

When the key is inserted, the manual mode will be selected. To use an iFIT.com CD or video program, press the iFIT.com button. The indicator above the button will light and the words “IFIT MODE” will appear in the main display.

Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.

Press the PLAY button on your CD player or

VCR.

If the speed or incline setting is too high or too low during the program, you can manually override the setting by pressing the Speed or Incline but

tons on the console. Every few times one of the Speed buttons is pressed, an additional

indicator will light or darken in the Current Segment column. (If any of the columns to the right of the Current Segment column have the same number of lit indicators as the Current Segment column, an additional indicator may light or darken in those columns as well.) Note: If you manually adjust the speed setting so that all of the indicators in the Current Segment column are lit, the speed settings in the program display will not move downward as described above. Note: If you manually override

the speed or incline setting, when the next segment begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the program temporarily, press the Stop button. The time will begin to

flash in the main display. To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph. When the next segment begins, the treadmill will automatically adjust to the speed and incline settings for the next segment. To end the program, press the Stop button, remove the key, and then reinsert the key.

Follow your progress with the displays.

See step 5 on page 12.

Measure your heart rate if desired.

See step 6 on page 13.

Turn on the fans if desired.

See step 7 on page 13.

When the program has ended, remove the key.

Step onto the foot rails and make sure that the incline of the treadmill is at the lowest level. Next,

remove the key from the console and put it in a secure place. Note: If the displays and indicators

on the console remain lit after the key is re moved, the console is in the “demo” mode. See page 25 and turn off the demo mode.

When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.

Audio Cable

Wire removed from

AUDIO OUT jack

RCA

Y-adapter

Adapter

A moment after the button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the time is flashing in the main display, press the Start button or the Speed + button on the console. The treadmill will not respond to a CD or video program whilst the time is flashing.

During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be prepared for speed

and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.

1522

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

PHONES

LINE OUT

HOW TO CREATE CUSTOM PROGRAMS

Insert the key fully into the console.

See GETTING STARTED on page 11.

Select one of the custom programs.

When the key is inserted, the manual mode will be selected. To select a custom program, first press the Select Goal button repeatedly until the words “CUSTOM PROGRAM” appear in the main display.

Next, press the Select Course button repeatedly to select the Learn 1 or Learn 2 program.

Three seconds after a custom program is selected, the name of the selected program, the total program time, and the words “PRESS START YOUR WORKOUT WILL BE RECORDED AUTOMATICALLY” will begin to scroll across the main display.

Note: If the custom program has not yet been defined, one to three columns of indicators will be lit in the program display. If more than three columns of indicators are lit, see HOW TO USE CUSTOM PROGRAMS on page 17.

Press the Start button or the Speed + button

and program the desired speed and incline settings.

See the program display. Each custom program is divided into one-minute segments. One speed setting and one incline setting can be pro

grammed for each segment. The speed setting for the first segment will be shown in the flashing Current

Current Segment

Segment column of the program display. (The incline settings are not shown in the program display.) To program a speed setting and an incline setting for the first segment, simply adjust the speed and incline of the treadmill as desired by pressing the Speed and Incline buttons. Every few times one of the Speed buttons is pressed, an additional indicator will light or darken in the Current Segment column.

When the first segment of the program is completed, the current speed setting and the current incline setting will be stored in memory.

The three

columns of indicators will then move one column to the left, and the speed setting for the second

segment will be shown in the flashing Current Segment column. Program a speed setting and an incline setting for the second segment as described above.

Continue programming speed and incline settings for as many segments as desired; custom programs can have up to forty segments. When you are finished with your workout, press the Stop button twice. The speed and incline settings that you have programmed and the number of segments that you have programmed will then be saved in memory.

When the program has ended, remove the key.

See step 7 on page 15.

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the adaptor. Plug the adaptor into the LINE OUT jack on your stereo.

Audio

Adaptor

Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the adaptor. Plug the adaptor into an RCA Y-adaptor (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adaptor. Plug the Y-adaptor into the LINE OUT jack on your stereo.

RCA

Audio Cable

Y-adaptor

Adaptor

HOW TO CONNECT YOUR COMPUTER

Note:

If your computer has a 3.5 mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.

Audio Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the splitter. Plug the splitter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the splitter.

Audio

Splitter

Cable

Headphones/Speakers

A moment after the button is pressed, the walking belt will begin to move. Hold the handrails and begin walking.

Wire removed from

LINE OUT jack

16 21

LINE OUT

PHONES

LINE OUT

PHONES

AUDIO OUT

RIGHT

LEFT

LINE OUT

AUDIO OUT

RIGHT

LEFT

PHONES

LINE OUT

AUDIO OUT

RIGHT

LEFT

LINE OUT

PHONES

LINE OUT

PHONES

HOW TO CONNECT THE

TREADMILL TO YOUR

CD PLAYER, VCR, OR COMPUTER

To use iFIT.com CDs, the treadmill must be connected

to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 20 and 21 for connecting instructions. To use iFIT.com video- cassettes, the treadmill must be connected to your VCR. See page 22 for connecting instructions. To use iFIT.com programs directly from our Web site, the treadmill must be connected to your home computer. See page 21 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the

Head-

phones

Audio Cable

PHONES jack. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the splitter. Plug the splitter into the PHONES jack on your CD player. Plug your headphones into the other side of the splitter.

Splitter

Audio Cable

Headphones

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a

3.5 mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the adaptor. Plug the adaptor into an AUDIO OUT jack on your stereo.

Audio

Adaptor

Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.

Audio Cable

C. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the splitter. Plug the splitter into the PHONES jack on your stereo. Plug your headphones into the other side of the splitter.

Audio

Splitter

Cable

Headphones

HOW TO USE CUSTOM PROGRAMS

Insert the key fully into the console.

See GETTING STARTED on page 11.

Select one of the custom programs.

When the key is inserted, the manual mode will be selected. To select a custom program, first press the Select Goal button repeatedly until the words “CUSTOM PROGRAM” appear in the main display. Next, press the Select Course button repeatedly to select the Learn 1 or Learn 2 program.

Three seconds after a custom program is selected, the name of the selected program and the total program time will begin to scroll across the main display.

The program display will show the first speed settings of the program you have selected (see the drawing below).

indicators are lit in the program display, see HOW TO CREATE A CUSTOM PROGRAM on page 16.

Press the Start button or the Speed + button to

start the program.

A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings that you programmed previously. Hold the handrails and begin walking.

Each program is divided into several one-minute segments. (The main display shows both the time remaining in the program and the time remaining in the current segment of the program.) One speed setting and one incline setting are programmed for each segment. The speed setting for the first segment is shown in the flashing Current Segment column of the program display. (The incline settings are not shown in the program display.) The speed settings for the next several

segment

the right.

Note: If only three columns of

Current Segment

s will be shown in the columns to

When only three seconds remain in the first segment of the program, both the Current Segment column and the column to the right will flash, a se ries of tones will sound, the speed setting and the incline setting will flash in the main display, and all

speed settings will move one column to the left.

The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the second speed and incline settings that you programmed previously.

The program will continue until the speed setting for the last segment is shown in the Current Segment column and no time remains in the program. The walking belt will then slow to a stop.

If desired, you can redefine the program whilst using it. To change the speed or incline setting during the current segment, simply press the Speed or Incline buttons. When the current segment is completed, the new setting will be saved in mem-

To increase the length of the program, first

ory. wait until the program is completed. Then, press the Start button, and program speed and incline settings for as many additional segments as desired. When you have added as many segments as desired, press the Stop button twice. To decrease the length of the program, press the Stop button twice at any time before the program is completed.

To stop the program temporarily, press the Stop button. The time will begin to flash in the main display. To restart the program, press the Start button or the Speed + button. To end the program, press the Stop button, remove the key, and then reinsert the key.

Follow your progress with the displays.

See step 5 on page 12.

When the program has ended, remove the key.

See step 7 on page 15.

1720

HOW TO USE HEART RATE PROGRAMS

Heart rate programs and incline of the treadmill to keep your heart rate near a target level whilst you exercise. Note: You must

wear the chest pulse sensor (see page 8) to use the heart rate programs.

automatically adjust the speed

CAUTION: If you have heart prob-

lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise heart rate.

Follow the steps below to use a heart rate program.

Put on the chest pulse sensor.

See page 8.

Insert the key fully into the console.

See GETTING STARTED on page 11.

Select a heart rate program.

When the key is inserted, the manual mode will be selected. To select a heart rate program, first press the Select Goal button repeatedly until the words “HEART RATE” appear in the main display.

During heart rate programs, the program display will show a graphic that represents your heart rate. Each time a heartbeat is detected, an additional peak will appear.

Enter your age and a maximum speed setting.

Three seconds after a heart rate program is selected, the words “ENTER AGE” and the current age setting will appear in the main display. You must enter your age to use a heart rate program. If you have already entered your age, press the Start button (pressing the button will not start the program at this time). If you have not entered your age, press the Age/Weight Set buttons to enter your age. The buttons can be held down to enter your age quickly. Then, press the Start button. Once you have entered your age, it will be saved in memory.

After you have entered your age, the words “ENTER MAX SPEED” and the maximum speed setting of the program will appear in the main display. If desired, press the Speed buttons or the 1-step Speed buttons to change the maximum speed setting.

Press the Start button or the Speed + button to

start the program.

A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings of the program. and begin walking.

Each heart rate program is divided into several time segments of different lengths. (The main display shows both the time remaining in the program and the time remaining in the current segment of the program.) One target heart rate setting is programmed for each segment.

During each segment, the console will regularly compare your heart rate to the current target heart rate setting. If your heart rate is too far below or above the target heart rate setting, the speed of the treadmill will automatically increase or de crease to bring your heart rate closer to the target heart rate setting. If the speed reaches the maximum speed setting of the program (see step 4 on page 18) and your heart rate is still too far below the current target heart rate setting, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate setting.

During the last three seconds of each segment, a series of tones will sound and the speed setting and/or the incline setting will flash in the main display.

The program will continue until no time remains in the program. The walking belt will then slow to a stop.

Hold the handrails

If the speed or incline setting is too high or too low during the program, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to the current target heart rate setting, the speed and/or incline of the treadmill may automatically change to bring your heart rate closer to the target heart rate setting.

If your pulse is not detected during the program, the letters “PLS” will flash in the main display and the speed and incline of the treadmill may automatically decrease until your pulse is detected. If this occurs, see page 8.

To stop the program at any time, press the Stop button. Heart rate programs should not be stopped temporarily and then restarted. To use a heart rate program again, reselect the program and start it at

the beginning.

Follow your progress with the displays.

See step 5 on page 12.

Turn on the fans if desired.

See step 7 on page 13.

When the program has ended, remove the key.

See step 7 on page 15.

Next, press the Select Course button until the words “PULSE DRIVEN 1” or “PULSE DRIVEN 2” appear.

18 19

124

121

136

122

123

119

100

102

103

101

127

118

106

104

106

104

140

141

119

103

102

100

101

105

117

137

116

115

133

132

113

111

110

107

108

109

112

114*

EXPLODED DRAWING—Model No. NETL98131 R0504A

126

38*

120

138

135

142

130

137

129

139

134

128

125

128

131

128

131

EXPLODED DRAWING—Model No. NETL98131 R0504A

To identify the parts shown on this exploded drawing, see the PART LIST on pages 34 and 35 of the USER’S MANUAL.
