Thank you for purchasing NetComm’s
HSPA Wi-Fi Router with Voice

Preface

The purpose of this manual is to provide you detailed information on the installation, operation and application
of your HSPA 7.2Mbps Wi-Fi Router with Voice.

Important Notice and Safety Precaution

• Before servicing or disassembling this equipment, always disconnect all power or telephone lines from the
device.

• Use an appropriate power supply, preferably the supplied power adapter, with an output of DC 12V 1.5A

• Do not operate the device near flammable gas or fumes. Turn off the device when you are near a
petrol station, fuel depot or chemical plant/depot. Operation of such equipment in potentially explosive
atmospheres can represent a safety hazard.

• The device and antenna shall be used only with a minimum of 20 cm from human body.

• The operation of this device may affect medical electronic devices, such as hearing aids and
peacemakers.

2 – 3G10WV HSPA Wi-Fi Router with Voice

Table of Contents

Thank you for purchasing NetComm’s HSPA Wi-Fi Router with Voice .................................................... 2

Preface ...........................................................................................................................................................2

Important Notice and Safety Precaution ............................................................................................................2

1 – Introduction ......................................................................................................................................6

1.1 Features ..................................................................................................................................................7

1.2 Package Contents ....................................................................................................................................7

1.3 LED Indicators .........................................................................................................................................8

1.4 Rear Panel ..............................................................................................................................................9

2 – Quick Setup .................................................................................................................................... 11

2.1 Setup Procedure ....................................................................................................................................11

3 – Web user Interface ......................................................................................................................... 13

3.1 Default Settings .....................................................................................................................................13

3.2 Transmission Control Protocol/Internet Protocol (TCP/IP) Settings ..............................................................14

3.3 Login Procedure ....................................................................................................................................15

3.4 Web User Interface Homepage ................................................................................................................16

4 – 3G Settings ..................................................................................................................................... 19

4.1 3G Service Setup ...................................................................................................................................19

4.1.1 Profile Setup ..............................................................................................................................20

4.2 PIN Configuration ...................................................................................................................................21

4.2.1 PIN Code Protection ...................................................................................................................21

4.2.2 PIN Code Change .......................................................................................................................23

5 – Wireless .......................................................................................................................................... 25

5.1 Setup ....................................................................................................................................................26

5.2 Security .................................................................................................................................................27

5.3 Configuration .........................................................................................................................................29

5.4 Media Access Control (MAC) Filter ..........................................................................................................32

5.5 Wireless Bridge .....................................................................................................................................33

5.6 Station Info ............................................................................................................................................34

6 – Management .................................................................................................................................. 36

6.1 Device Settings ......................................................................................................................................36

6.1.1 Backup Settings .........................................................................................................................36

6.1.2 Update Settings .........................................................................................................................37

6.1.3 Restore Default ..........................................................................................................................37

6.1.4 Update Firmware........................................................................................................................38

6.2 Configure SNMP agent on 3G10WV ........................................................................................................39

3G10WV HSPA Wi-Fi Router with Voice – 3

6.3 Simple Network Time Protocol (SNTP) .....................................................................................................40

6.4 Access Control ......................................................................................................................................41

6.4.1 Services ....................................................................................................................................41

6.4.2 IP Addresses ..............................................................................................................................42

6.4.3 Passwords .................................................................................................................................43

6.5 Save and Reboot ....................................................................................................................................43

7 – Advanced setup .............................................................................................................................. 45

7.1 Local-Area Network (LAN) ......................................................................................................................46

7.2 Network Address Translation (NAT) ..........................................................................................................48

7.2.1 Port Forwarding .........................................................................................................................48

7.2.2 Port Triggering ...........................................................................................................................50

7.2.3 Demilitarized Zone (DMZ) Host ....................................................................................................51

7.3 Security .................................................................................................................................................52

7.3.1 IP Filtering .................................................................................................................................52

7.3.2 Parental Control .........................................................................................................................54

7.4 Routing .................................................................................................................................................55

7.4.1 Default Gateway .........................................................................................................................55

7.4.2 Static Route ...............................................................................................................................56

7.4.3 Dynamic Route ..........................................................................................................................57

7.5 Domain Name System (DNS) ..................................................................................................................57

7.5.1 Domain Name System (DNS) Server ............................................................................................57

7.5.2 Dynamic Domain Name System (Dynamic DNS) ...........................................................................58

8 – Voice ............................................................................................................................................... 60

Configuring your 3G10WV for placing Voice Calls ............................................................................................60

9 – Status .............................................................................................................................................62

9.1 Diagnostics ...........................................................................................................................................63

9.2 System Log ...........................................................................................................................................64

9.3 3G Status ..............................................................................................................................................66

9.4 Statistics ...............................................................................................................................................69

9.4.1 LAN Statistics ............................................................................................................................69

9.4.2 3G Statistics ..............................................................................................................................70

9.5 Route ....................................................................................................................................................71

9.6 Address Resolution Protocol (ARP) ..........................................................................................................72

9.7 Dynamic Host Configuration Protocol (DHCP) ...........................................................................................72

9.7 PING .....................................................................................................................................................73

Appendix A: Command Line Interface (CLI) Commands Via Telnet ....................................................... 75

4 – 3G10WV HSPA Wi-Fi Router with Voice

Introduction

Introduction

With the increasing popularity of the 3G standard worldwide, this HSPA 7.2Mbps Wi-Fi Router with Voice
provides you with triple-band coverage through expanding cellular networks throughout the world.

By following the simple step-by-step instructions found on the Connection Manager USB key, you can share
your connection with multiple wireless and wired devices using the 3G network.

Integrating a Sierra Wireless HSPA module, this Router downloads turbo speeds of up to 7.2Mbps.

This Router also provides state-of-the-art security features such as Wi-Fi Protected Access (WPA) data
encryption, Firewall and Virtual Private Networks (VPN) pass through.

6 – 3G10WV HSPA Wi-Fi Router with Voice

1.1 Features

• This HSPA Wi-Fi Router with Voice allows you to share your 3G connection with multiple wireless or wired
devices

• Provides you with worldwide coverage through triple-band HSUPA/HSDPA/UMTS (850 / 1900 /
2100MHz), quad-band EDGE/GSM (850 / 900 / 1800 / 1900 MHz)

• Embedded multi-mode HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM module

• 1 x RJ11 port for voice calling over the 3G network via a connected standard Analogue Telephone (not
included).

• Integrated 802.11g/54Mbps AP (backward compatible with 802.11b)

• Wi-Fi Protected Access (WPA)/ Wi-Fi Protected Access 2 (WPA2) and 802.1x wireless encryption

• Static route/ Routing Information Protocol (RIP)/RIP v2 routing functions

• Media Access Control (MAC) address and IP filtering

• Network Address Translation (NAT)/ Port Address Translation (PAT)

• Supports Universal Plug and Play (UPnP) and Internet Group Management Protocol (IGMP) snooping

• Supports Virtual Private Network (VPN) Pass-Through

• Dynamic Host Configuration Protocol (DHCP) Server/Relay/Client

• Domain Name System (DNS) Proxy and Dynamic Domain Name System (DDNS)

• Web-based Management

• Command Line Interface (CLI) command interface via Telnet

• Configuration backup and restoration

• Remote configuration

• Router and 3G module firmware upgrade

• Supports half-bridging mode

• Supports Simple Network Management Protocol (SNMP)

1.2 Package Contents

Your package contains the following:

• 3G10WV - HSPA 7.2Mbps Wi-Fi Router with Voice with Voice

• Printed Quick Start Guide

• User Guide - On CD

• Ethernet Cable

• 2 x 3G Antenna

• Power Supply

3G10WV HSPA Wi-Fi Router with Voice – 7

1.3 LED Indicators

The background colour of the bezel must be printed WHITE INK

All type and graphics print WHITE INK onto background colour of CMYK C100/M56/Y0/K16

Lights and product keyline are for positioning purposes only – do not output

3G10WV – FRONT BEZEL GRAPHICS

Power

LAN 1LAN 2

Internet

3G

2G

Lo

w

Med

High

Wi-Fi

Signal Strength

3G10WV

HSPA Wi-Fi Router with Voice

Phone

The front panel LED indicators are shown in this illustration and followed by detailed explanations in the
table below.

LED Color Mode Description

POWER

Phone

LAN 1~4

Wi-Fi

Internet

3G

2G

Low

Med

High

NOTE: The six LEDs on the right side of the front panel display (Internet, 3G, 2G, Low, Med, High) will cycle on and off if PIN code protection is

8 – 3G10WV HSPA Wi-Fi Router with Voice

Green On Power on

Off Power off

Green On Phone line active

Off Phone line inactive or not connected

Green On

Powered device connected to the associated port (includes devices with wake-on-LAN
capability where a slight voltage is supplied to an Ethernet connection)

Off No activity, modem powered off, no cable or no powered device connected to the

associated port

Blink LAN activity present (traffic in either direction)

Green On The wireless module is ready.

Off The wireless module is not installed.

Blink Data being transmitted or received over Wi-Fi.

Green Blink Data is transmitted through Internet connection

Off No connection to the internet or router powered off

On Internet connection established

Green On Internet connection established.

Blink Connecting with UMTS cellular station

Off

No connection with UMTS cellular station, no activity or router powered off.

Green On Internet connection established.

Blink Connecting to an EDGE, GPRS or GSM cellular station

Off

No connection with EDGE, GPRS or GSM cellular station, no activity or router powered off.

Green On Low signal strength

Off No activity, router powered off or on other signal strength

Green On Medium signal strength

Off No activity, router powered off or on other signal strength

Green On High signal strength

Off No activity, router powered off or on other signal strength

activated. In this case, you should consult section 4.2.1 PIN Code Protection (page 21) for further instructions.

1.4 Rear Panel

1 2 3 4 5 6 87

The rear panel contains the ports for data and power connections.

(1) Main 3G Antenna (removable, SMA connection)
(2) Power jack for DC power input (12VDC / 1.5A)/Power button
(3) USIM card slot
(4) Aux 3G Antenna (removable, SMA connection)
(5) Reset button
(6) Phone port
(8) 2 RJ-45 Ethernet LAN ports
(9) 2dBi wireless Antenna (fixed)

3G10WV HSPA Wi-Fi Router with Voice – 9

Quick Setup

Quick Setup

2.1 Setup Procedure

These steps explain how to quickly setup your 3G router:
1: Attach the two 3G antennas provided to the ports marked Main and AUX on the back of the router. The

antennas should be screwed in a clockwise direction.

2: Insert your SIM card (until you hear a click) into the USIM slot at the back of the Router.
3: Connect the yellow networking cable to one of the yellow ports found at the back of the Router.
4: Connect the other end of the yellow networking cable to the port on your computer.

5. If required, connect a standard Analogue Telephone to the port labeled “Phone” using an RJ-11 Cable (not
included)

6: Connect the power adapter to the Power socket on the back of the Router.
7: Plug the power adapter into the wall socket and press the power button into the ON position (in).
8: Configure the router through the Web User Interface (WUI).

NOTE: Chapters 3 through 8 explain how to setup and use the WUI

9: Save the router configuration and reboot (see section 6.4).

3G10WV HSPA Wi-Fi Router with Voice – 11

Web User Interface

Web User Interface

This section describes how to access the device via the web user interface using a web browser such as
Microsoft Internet Explorer (version 5.0 or later).

3.1 Default Settings

The following are the default settings for the device.

• Local (LAN) access (username: admin, password: admin)

• Remote (WAN) access (username: support, password: support)

• User access (username: user, password: user)

• LAN IP address: 192.168.1.1

• WAN IP address: none

• Remote WAN access: disabled

• NAT and firewall: enabled

• Dynamic Host Configuration Protocol (DHCP) server on LAN interface: enabled

Technical Note:

During power on, the device initializes all settings to default values. It will then read the configuration profile from the permanent
storage section of flash memory. The default attributes are overwritten when identical attributes with different values are configured.
The configuration profile in permanent storage can be created via the web user interface or telnet user interface, or other management
protocols. The factory default configuration can be restored either by pushing the reset button for more than five seconds until the power
indicates LED blinking or by clicking the Restore Default Configuration option in the Restore DefaultSettings screen.

3G10WV HSPA Wi-Fi Router with Voice – 13

3.2 TCP/IP Settings

DHCP Mode

When your Router powers up, the Dynamic Host Configuration Protocol (DHCP) server (on the device) will
start automatically. To set your PC for DHCP mode, check the Internet Protocol properties of your Local Area
Connection. You can set your PC to DHCP mode by selecting Obtain an IP address automatically in the dialog
box shown below.

STATIC IP Mode

To configure your Router manually, your PC must have a static IP address within the Router’s subnet. The
following steps show how to configure your PC IP address using subnet 192.168.1.x. The following assumes
you are running Windows XP.

1: From the Network Connections window, open Local Area Connection (You may also access this screen by

double-clicking the Local Area Connection icon on your taskbar). Click the Properties button.

2: Select Internet Protocol (TCP/IP) and click the Properties button. The screen should now display as below.

Change the IP address to the domain of
the default router and DNS server to the router’s IP address.

NOTE: The IP address of the router is 192.168.1.1 (default), so the PC must be set with a different IP. In the case below, the PC’s IP

address is set as 192.168.1.2

192.168.1.x

(1<x<254) with subnet mask of 255.255.255.0. Set

3: Click OK to submit the settings.

14 – 3G10WV HSPA Wi-Fi Router with Voice

3.3 Login Procedure

To login to the web interface, follow the steps below:

NOTE: The default settings can be found in 3.1 Default Settings.

1: Open a web browser and enter the default IP address for the Router in the Web address field. In this case

http://192.168.1.1.

NOTE: For local administration (i.e. LAN access), the PC running the browser must be attached to the Ethernet, and not necessarily to the

device. For remote access, use the WAN IP address shown on the WUI Homepage screen and login with remote username and
password.

2: A dialog box will appear, as illutstrated below. Enter the default username and password, as defined in

section 3.1 Default Settings.

Click OK to continue.

NOTE: The login password can be changed later (see 7.3.3 Passwords)

3: After successfully logging in for the first time, you will reach this screen.

3G10WV HSPA Wi-Fi Router with Voice – 15

3.4 Web User Interface Homepage

The web user interface (WUI) is divided into two window panels, the main menu (on the top) and the display
screen (on the bottom). The main menu has the following options: Basic, 3G Settings, Wireless, Management,
Advanced, Voice and Status.

Selecting one of these options will open a submenu with more options. Basic is discussed below while
subsequent chapters introduce the other main menu selections.

NOTE: The menu options available within the web user interface are based upon the device configuration and user privileges (i.e. local or

remote).

BASIC / HOME

The Basic / Home screen is the WUI homepage and the first selection on the main menu. It provides
information regarding the firmware, 3G, and IP configuration.

16 – 3G10WV HSPA Wi-Fi Router with Voice

The following table provides further details.

Fields Description

Software version

Hardware version

Bootloader version

Wireless driver
version

Network

Link

Mode

Signal strength

SIM info

LAN IP Address

WAN IP Address

Default Gateway

Primary DNS Server

Secondary DNS
server

Date/Time

The software version of the device.

The Hardware version of the device

The bootloader version of the device.

The wireless driver version of the wireless module.

The name of or other reference to the mobile network operator.

Shows the connection status of the current 3G connection.

The radio access technique currently used to enable internet access. It can be HSUPA,
HSDPA, UMTS, EDGE, GPRS or Disconnected.

The mobile network (UMTS or GSM) signal quality available at the device location. This signal
quality affects the performance of the unit. If two or more bars are green, the connection is
usually acceptable.

Shows the SIM card status on the device.

Shows the IP address for LAN interface.

Shows the IP address for WAN interface.

Shows the IP address of the default gateway for the WAN interface.

Shows the IP address of the primary DNS server.

Shows the IP address of the secondary DNS server.

The time according to the device’s internal clock

3G10WV HSPA Wi-Fi Router with Voice – 17

3G Settings

3G Settings

This menu includes 3G service Setup and PIN Configuration.

NOTE: Sections 9.3 and 9.4.2 also provide information about the 3G service.

4.1 3G Service Setup

Select your 3G service settings according to predefined or custom profiles. Setup instructions are provided in
the following sections for your assistance.

3G10WV HSPA Wi-Fi Router with Voice – 19

4.1.1 Profile Setup

Your Service Provider will provide the information required to complete the first time setup instructions below.
This includes profile, username and password. Only complete those steps for which you have information and
skip the others.

1. If your SIM card is not inserted into the gateway, please turn the gateway off. Then insert the SIM and turn
the gateway on.

2. Type the APN in the APN field. Authentication Method should be provided by your Internet service provider;

or just leave it to AUTO if not acquired. If you have not received the username and password, leave these
fields empty.

3. Select IP compression and Data compression to be ON or Off. By default they are set to off.

4. Click the Save button to save the new settings.

5. Press the Connect button to reboot the router and to connect to Internet. After reboot, the Device Info for
3G network box in the WUI Basic screen should indicate an active connection, as shown below. The 3G and
Internet LEDs on the front panel of the Router should also be blinking.

.

If the LEDs are off, then either your profile settings are incorrect, the SIM card is not working or the service
network is unavailable. In either case, contact Technical Support for further instructions.

NOTE: If the LEDs light in an on/off pattern moving from left to right this indicates that your SIM is PIN Locked, please lee PIN Lock Off on

page 21 for instruction on how to fix this

20 – 3G10WV HSPA Wi-Fi Router with Voice

4.2 PIN Configuration

This screen allows for changes to the 3G SIM card PIN code protection settings.

NOTE: If you have entered the incorrect PIN 3 times, your SIM card will be locked for your security. Please call your 3G Provider for

assistance.

4.2.1 PIN Code Protection

PIN code protection prevents the use of a SIM card by unauthorized persons. To use the 3G internet service
with this router however, the PIN code protection must be disabled. If the SIM card inserted into the Router is
locked with a PIN code, the web user interface will display the following screen after login.

PIN Lock Off

If you wish to connect to the Internet using a PIN locked SIM card, you must first turn PIN code protection Off.
Select PIN lock Off, enter the PIN Code twice. Please keep in mind you only have 3 attempts before your SIM
card is locked. The remaining attempts’ number shows how many attempts left. Contact Telstra if you require
assistance. You can select Remember PIN Code to ON so you don’t need to input the PIN code every time
when the router turns on. Afterwards, click Apply. The following dialog box should now appear.

3G10WV HSPA Wi-Fi Router with Voice – 21

PIN Lock On

After you are finished using your SIM card for Internet service, you may wish to lock it again. In this case, first
go to the 3G Settings - PIN Configuration screen, as shown below. Select PIN lock ON, enter the PIN code
twice. You can select Remember PIN code to Yes so you don’t need to input the PIN code every time when the
router turns on. Then click Save.

After you do so, the following dialog box should appear.

You can now return your SIM card to your cellular phone or other mobile device.

22 – 3G10WV HSPA Wi-Fi Router with Voice

4.2.2 PIN Code Change

If you wish to change your PIN code for greater security, enable the PIN Code protection. Go to the previous
section and follow the procedure listed under PIN Lock On.

After locking the SIM card, select PIN Code Change and enter your Old and New PIN codes in the fields
provided. Keep in mind you only have 3 attempts before your SIM card is locked. The remaining attempts’
number shows how many attempts left. Contact Telstra if you require assistance. Afterwards, click Apply to
activate the change.

NOTE: If you forget to change the PIN Code without first turning on PIN lock protection, you will see this dialog box as a helpful reminder.

NOTE: If your PIN Code change request was successful the following dialog box will display.

3G10WV HSPA Wi-Fi Router with Voice – 23

Wireless

Wireless

The Wireless submenu provides access to Wireless Local Area Network (LAN) configuration settings
including:

• Wireless network name

• Channel restrictions (based on country)

• Security

• Access point or bridging behaviour

• Station information

3G10WV HSPA Wi-Fi Router with Voice – 25

5.1 Setup

This screen allows you to configure basic features of the wireless LAN interface. You can enable or disable
the wireless LAN interface, hide the network from active scans, set the wireless network name (also known as
SSID) and restrict the channel set based on country requirements. The Wireless Guest Network function adds
extra networking security when connecting to remote hosts.

Option Description

Enable Wireless

A checkbox that enables (default) or disables the wireless LAN interface. When selected,
the Web UI displays Hide Access point, SSID, BSSID and Country settings.

Hide Access Point

Select Hide Access Point to protect the access point from detection by wireless active
scans. To check AP status in Windows XP, open Network Connections from the start Menu
and select View Available Network Connections.
listed there. To connect a client to a hidden access point, the station must add the access
point manually to its wireless configuration.

SSID
[1-32 characters]

Sets the wireless network name. SSID stands for Service Set Identifier. All stations must be
configured with the correct SSID to access the WLAN. If the SSID does not match, that user
will not be granted access.

BSSID

The BSSID is a 48bit identity used to identify a particular BSS (Basic Service Set) within
an area. In Infrastructure BSS networks, the BSSID is the MAC (Media Access Control)
address of the AP (Access Point) and in Independent BSS or ad hoc networks, the BSSID is
generated randomly.

Country

A drop-down menu that permits worldwide and specific national settings. Each country
listed below enforces specific regulations limiting channel range:

• USA = worldwide

• Australia = 1-11

• Japan = 14

• Jordan = 10-13

• Israel = 1-13

Wireless Guest
Network

26 – 3G10WV HSPA Wi-Fi Router with Voice

The Guest SSID (Virtual Access Point) can be enabled by selecting the Enable Wireless Guest
Network checkbox. Rename the Wireless Guest Network as you wish.

NOTE: Remote wireless hosts cannot scan Guest SSIDs.

If the access point is hidden, it will not be

5.2 Security

This Router includes a number of security options that provides you with a secure connection to a 3G network.

State-of-the art security includes:

• WEP / WPA / WPA2 data encryption

• SPI Firewall

• VPN Pass-Through

• MAC address IP filtering

• Authentication protocols – PAP / CHAP

You can authenticate or encrypt your service on the Wired Equivalent Privacy (WEP) algorithm, which provides
protection against unauthorized access such as eavesdropping.

The following screen appears when Security is selected. The Security page allows you to configure security
features of your Router’s wireless LAN interface. You can set the network authentication method, select data
encryption, specify whether a network key is required to authenticate to this wireless network and specify the
encryption strength.

Click Save/Apply to configure the wireless security options.

3G10WV HSPA Wi-Fi Router with Voice – 27

Select SSID

Network
Authentication

Your Service Set Identifier (SSID), sets your Wireless Network Name. You can connect multiple
devices including Laptops, Desktop PCs and PDAs to your Wireless Router. To get additional
devices connected, scan for a network, and locate the SSID shown on your Wireless Security
Card. If the SSID does not match, access is denied.

This option is used for authentication to the wireless network. Each authentication type has
its own settings as illustrated below. For example, selecting 802.1X authentication will reveal
the RADIUS Server IP address, Port and Key fields.

WEP Encryption will also be enabled.

The settings for WPA authentication are shown below.

WEP Encryption

This option indicates whether data sent over the network is encrypted. The same network
key is used for data encryption and network authentication. Whilst four network keys can be
defined, only one can be used at any one time.

Use the network key found in the drop down list.

Encryption
Strength

This drop-down list box will display when WEP Encryption is enabled.
The key strength is proportional to the number of binary bits comprising the key.
This means that keys with a greater number of bits have a greater degree of security and

are considerably more difficult to crack. Encryption strength can be set to either 64-bit or
128-bit. A 64-bit key is equivalent to 5 ASCII characters or 10 hexadecimal numbers. A
128-bit key contains 13 ASCII characters or 26 hexadecimal numbers. FYI: Each key contains
a 24-bit header (an initiation vector) which enables parallel decoding of multiple streams of
encrypted data.

28 – 3G10WV HSPA Wi-Fi Router with Voice

5.3 Configuration

The following screen appears when you select Configuration. This screen allows you to control the following
advanced features of the Wireless Local Area Network (WLAN) interface:

• Select the channel which you wish to operate from

• Force the transmission rate to a particular speed

• Set the fragmentation threshold

• Set the RTS threshold

• Set the wake-up interval for clients in power-save mode

• Set the beacon interval for the access point

• Set Xpress mode

• Program short or long preambles

Click Save/Apply to set the advanced wireless configuration.

3G10WV HSPA Wi-Fi Router with Voice – 29

Option Description

AP Isolation

Band

Channel

Auto Channel Timer
(min)

54g Rate

Multicast Rate

Basic Rate

Fragmentation
Threshold

RTS Threshold

DTIM Interval

Beacon Interval

Xpress™
Technology

Select On or Off. By enabling this feature, wireless clients associated with the Access
Point can be linked.

The new amendment allows IEEE 802.11g units to fall back to speeds of 11 Mbps, so IEEE

802.11b and IEEE 802.11g devices can coexist in the same network. The two standards
apply to the 2.4 GHz frequency band. IEEE 802.11g creates data-rate parity at 2.4 GHz
with the IEEE 802.11a standard, which has a 54 Mbps rate at 5 GHz. (IEEE 802.11a has
other differences compared to IEEE 802.11b or g, such as offering more channels.)

Allows selection of a specific channel (1-14) or Auto mode.

The Auto Channel times the length it takes to scan in minutes.

In Auto (default) mode, your Router uses the maximum data rate and lowers the data
rate dependent on the signal strength. The appropriate setting is dependent on signal
strength. Other rates are discrete values between 1 to 54 Mbps.

Setting for multicast packet transmission rate. (1-54 Mbps)

Sets basic transmission rate.

A threshold (in bytes) determines whether packets will be fragmented and at what size.
Packets that exceed the fragmentation threshold of an 802.11 WLAN will be split into
smaller units suitable for the circuit size. Packets smaller than the specified fragmentation
threshold value however are not fragmented.

Values between 256 and 2346 can be entered but should remain at a default setting of

2346. Setting the Fragmentation Threshold too low may result in poor performance.

Request To Send (RTS) specifies the packet size that exceeds the specified RTS threshold,
which then triggers the RTS/CTS mechanism. Smaller packets are sent without using
RTS/CTS. The default setting of 2347 (max length) will disables the RTS Threshold.

Delivery Traffic Indication Message (DTIM) is also known as Beacon Rate. The entry range
is a value between 1 and 65535. A DTIM is a countdown variable that informs clients
of the next window for listening to broadcast and multicast messages. When the AP
has buffered broadcast or multicast messages for associated clients, it sends the next
DTIM with a DTIM Interval value. AP Clients hear the beacons and awaken to receive the
broadcast and multicast messages. The default is 1.

The amount of time between beacon transmissions in is milliseconds. The default is
100 ms and the acceptable range is 1 – 65535. The beacon transmissions identify the
presence of an access point. By default, network devices passively scan all RF channels
listening for beacons coming from access points. Before a station enters power save
mode, the station needs the beacon interval to know when to wake up to receive the
beacon.

Broadcom’s Xpress™ Technology is compliant with draft specifications of two planned
wireless industry standards. It has been designed to improve wireless network efficiency.
Default is disabled.

30 – 3G10WV HSPA Wi-Fi Router with Voice

Option Description

54g Mode

54g Protection

Preamble Type

Transmit Power

Select Auto mode for greatest compatibility. Select Performance mode for the fastest
performance among 54g certified equipment. Select LRS mode if you are experiencing
difficulty with legacy 802.11b equipment. If this does not work, you may also try 802.11b
only mode.

In Auto mode, the router will use RTS/CTS to improve 802.11g performance in mixed

802.11g/802.11b networks. Turning protection Off will maximize 802.11g throughput
under most conditions.

Short preamble is intended for applications where maximum throughput is desired but
it does not work with legacy equipment. Long preamble works with the current 1 and 2
Mbit/s DSSS specification as described in IEEE Std 802.11-1999

Set the power output (by percentage) as desired.

3G10WV HSPA Wi-Fi Router with Voice – 31

5.4 MAC Filter

This screen appears when Media Access Control (MAC) Filter is selected. This option allows access to be
restricted based upon the unique 48-bit MAC address.

To add a MAC Address filter, click the Add button shown below.

To delete a filter, select it from the table below and click the Remove button.

Option Description

MAC Restrict Mode

Disabled – Disables MAC filtering

Allow – Permits access for the specified MAC addresses.

NOTE: Add a wireless device’s MAC address before clicking the Allow radio button or else you will need

to connect to the Router’s web user interface using the supplied yellow Ethernet cable and add
the wireless device’s MAC address.

Deny – Rejects access for the specified MAC addresses

MAC Address

Lists the MAC addresses subject to the MAC Restrict Mode. The Add button prompts an
entry field that requires you type in a MAC address in a two-character, 6-byte convention:
xx:xx:xx:xx:xx:xx where xx are hexadecimal numbers. A maximum of 60 MAC addresses
can be added.

Enter the MAC address on the screen below and click Save/Apply.

32 – 3G10WV HSPA Wi-Fi Router with Voice

5.5 Wireless Bridge

The following screen appears when selecting Wireless Bridge, and goes into a detailed explanation of how to
configure wireless bridge features of the wireless LAN interface.

Click Save/Apply to implement new configuration settings.

Feature Options

AP Mode

Bridge Restrict

Selecting Wireless Bridge (Wireless Distribution System) disables Access Point (AP)
functionality while selecting Access Point enables AP functionality. In Access Point mode,
wireless bridge functionality will still be available and wireless stations will be able to
associate to the AP.

Selecting Disabled in Bridge Restrict disables Wireless Bridge restriction, which means
that any wireless bridge will be granted access. Selecting Enabled or Enabled (Scan)
allows wireless bridge restriction. Only those bridges selected in Remote Bridges will be
granted access. Click Refresh to update the station list when Bridge Restrict is enabled.

3G10WV HSPA Wi-Fi Router with Voice – 33

5.6 Station Info

The following screen appears when you select Station Info, and shows authenticated wireless stations and
their status.

Click the Refresh button to update the list of stations in the WLAN.

BSSID

Associated

Authorized

The BSSID is a 48-bit identity used to identify a particular BSS (Basic Service Set) within
an area. In Infrastructure BSS networks, the BSSID is the MAC (Media Access Control)
address of the AP (Access Point); and in Independent BSS or ad hoc networks, the BSSID
is generated randomly.

Lists all the stations that are associated with the Access Point, along with the amount of
time since packets were transferred to and from each station. If a station is idle for too
long, it is removed from this list.

Lists those devices with authorized access.

34 – 3G10WV HSPA Wi-Fi Router with Voice

Management

Management

The Management menu has the following maintenance functions and processes:

6.1 Device Settings

6.2 Simple Network Management Protocol (SNMP)

6.3 Simple Network Time Protocol (SNTP)

6.4 Access Control

6.5 Save and Reboot

6.1 Device Settings

The Device Settings screens allow you to backup, retrieve and restore the default settings of your Router. It
also provides a function for you to update your Routers firmware.

6.1.1 Backup Settings

The following screen appears when Backup is selected. Click the Backup Settings button to save the current
configuration settings.

You will be prompted to define the location of a backup file to save to your PC.

36 – 3G10WV HSPA Wi-Fi Router with Voice

6.1.2 Update Settings

The following screen appears when selecting Update from the submenu. By clicking on the Browse button, you
can locate a previously saved filename as the configuration backup file. Click on the Update settings to load it.

6.1.3 Restore Default

The following screen appears when selecting Restore Default. By clicking on the Restore Default Settings
button, you can restore your Routers default firmware settings. To restore system settings, reboot your Router.

NOTE: The default settings can be found in section 3.1 Default Settings.

Once you have selected the Restore Default Settings button, the following screen will appear. Close the
window and wait 2 minutes before reopening your browser. If required, reconfigure your PCs IP address to
match your new configuration(see section 3.2 TCP/IP Settings for details).

After a successful reboot, the browser will return to the Device Info screen. If the browser does not refresh to
the default screen, close and restart the browser.

NOTE: The Restore Default function has the same effect as the reset button. The device board hardware and the boot loader support the

reset to default button. If the reset button is continuously pushed for more than 5 seconds (and not more than 12 seconds), the
boot loader will erase the configuration settings saved on flash memory.

3G10WV HSPA Wi-Fi Router with Voice – 37

6.1.4 Update Firmware

The following screen appears when selecting Update Firmware. By following this screens steps, you can
update your Routers firmware. Manual device upgrades from a locally stored file can also be performed using
the following screen.

1: Obtain an updated software image file
2: Enter the path and filename of the firmware image file in the Software File Name field or click the Browse

button to locate the image file.

3: Click the Update Software button once to upload and install the file.

NOTE: The update process will take about 2 minutes to complete. The Router will reboot and the browser window will refresh to the

default screen upon successful installation.
It is recommended that you compare the Software Version at the top of the Basic screen (WUI homepage) with the firmware
version installed, to confirm the installation was successful.

38 – 3G10WV HSPA Wi-Fi Router with Voice

6.2 Configure SNMP agent on 3G10WV

The Simple Network Management Protocol (SNMP) allows a network administrator to monitor a network
by retrieving settings on remote network devices. To do this, the administrator typically runs an SNMP
management station program such as MIB browser on a local host to obtain information from the SNMP
agent, in this case the 3G10WV (if SNMP enabled). An SNMP ‘community’ performs the function of
authenticating SNMP traffic. A ‘community name’ acts as a password that is typically shared among SNMP
agents and managers.

By default, SNMP agent is enabled on the gateway.

Setting up SNMP agent

1. Open a web browser (IE/firefox/Safari), type in LAN address of the gateway (http://192.168.1.1 by default)
to log into the web interface.

2. The login username and password by default is admin/admin.

3. Go to Advanced Settings > SNMP for 3G10WVB, or Management> SNMP for 3G10WV. Enable SNMP
agent and set up all options according to the description form below.

4. Press Save/Apply to activate setting.

3G10WV HSPA Wi-Fi Router with Voice – 39

6.3 Simple Network Time Protocol (SNTP)

This screen allows you to configure the time settings of your Router. To automatically synchronize with Internet
timeservers, tick the box as illustrated below.

The following options should now appear (see screenshot below):

First NTP timeserver:

Second NTP timeserver:

Time zone offset:

Select the required server.

Select second timeserver, if required.

Select the local time zone.

Configure these options and then click Save/Apply to activate.

NOTE: SNTP must be activated to use Parental Control (section 7.3.2).

40 – 3G10WV HSPA Wi-Fi Router with Voice

6.4 Access Control

The Access Control option found in the Management drop down menu, configures access related parameters
in the following three areas:

• Services

• IP Addresses

• Passwords

Access Control is used to control local and remote management settings for your Router.

6.4.1 Services

The Service Control List (SCL) allows you to enable or disable your Local Area Network (LAN) or Wireless Area
Network (WAN) services by ticking the checkbox as illustrated below. These access services are available: FTP,
HTTP, ICMP, SSH, TELNET, and TFTP. Click Save/Apply to continue.

3G10WV HSPA Wi-Fi Router with Voice – 41

6.4.2 IP Address

The IP Address option limits local access by IP address. When the Access Control Mode is enabled, only the IP
addresses listed here can access the device. Before enabling Access Control Mode, add IP addresses with the
Add button.

On this screen, enter the IP address of a local PC which you wish to allow permission. Click Save/Apply to continue.

42 – 3G10WV HSPA Wi-Fi Router with Voice

6.4.3 Passwords

The Passwords option configures your account access password for your Router. Access to the device is
limited to the following three user accounts:

• admin is to be used for local unrestricted access control

• support is to be used for remote maintenance of the device

• user is to be used to view information and update device firmware

Use the fields illustrated in the screen below to change or create your password. Passwords must be 16
characters or less with no spaces. Click Save/Apply to continue.

6.5 Save and Reboot

This function saves the current configuration settings and reboots your Router.

NOTE1: It may be necessary to reconfigure your TCP/IP settings to adjust for the new configuration. For example, if you disable the

Dynamic Host Configuration Protocol (DHCP) server you will need to apply Static IP settings.

NOTE2: If you lose all access to your web user interface, simply press the reset button on the rear panel for 5-7 seconds to restore

default settings.

3G10WV HSPA Wi-Fi Router with Voice – 43

Advanced Setup

Advanced Setup

This chapter explains advanced setup for your Router:

3G10WV HSPA Wi-Fi Router with Voice – 45

7.1 Local Area Network (LAN)

This screen allows you to configure the Local Area Network (LAN) interface on your Router.

See the field descriptions below for more details.

Option Description

IP Address

Subnet Mask

Enable UPnP

Enable Half-Bridge

Enable Internet Group
Management Protocol
(IGMP) Snooping

Dynamic Host
Configuration Protocol
(DHCP) Server

Enable NAT

Enter the IP address for the LAN interface

Enter the subnet mask for the LAN interface

Tick the box to enable Universal Plug and Play

The HSPA 7.2 Mbps Wi-Fi Router can be set up as a half- transparent bridge to
cope with some special applications such as VPN pass-through. By default half­bridge is off. Please refer to Appendix B for more information.

Enable by ticking the box
Standard Mode: In standard mode, multicast traffic will flood to all bridge ports when

no client subscribes to a multicast group.
Blocking Mode: In blocking mode, the multicast data traffic will be blocked. When there

are no client subscriptions to a multicast group, it will not flood to the bridge ports.

Select Enable DHCP server and enter your starting and ending IP addresses and
the lease time. This setting configures the router to automatically assign IP, default
gateway and DNS server addresses to every DHCP client on your LAN

To enable/disable Network Address Translation (NAT, please refer to 7.2 for NAT
setting). By default NAT is enabled.

Option 42, 66,150,160

Static IP Lease List

These options are used for special DHCP set up.

To specify the IP address assigned through DHCP according to the MAC address
of the hosts connected to HSPA 7.2 Mbps Wi-Fi Router.

46 – 3G10WV HSPA Wi-Fi Router with Voice

Enable DHCP
Server Relay

Enable Half-Bridge

Enable NAT

To relay DHCP requests from the subnet with no DHCP server on it to a DHCP
server on other subnets. DHCP Server Relay is disabled by default. To access
enable DHCP relay, please un-tick NAT enable first, that means to disable NAT
first, and then press save button. The Enable DHCP server Relay option will then
show up on the same page as below:

the HSPA 7.2 Mbps Wi-Fi Router can be set up as a half- transparent bridge to
cope with some special applications such as VPN pass-through. By default half­bridge is off. Please refer to Appendix B for more information.

To enable/disable Network Address Translation (NAT, please refer to 7.2 for NAT
setting). By default NAT is enabled

Option 42, 66,150,160

Static IP Lease List

These options are used for special DHCP set up

To specify the IP address assigned through DHCP according to the MAC address
of the hosts connected to HSPA 7.2 Mbps Wi-Fi Router

Enable DHCP Server
Relay

To relay DHCP requests from the subnet with no DHCP server on it to a DHCP
server on other subnets. DHCP Server Relay is disabled by default. To access
enable DHCP relay, please un-tick NAT enable first, that means to disable NAT
first, and then press save button. The Enable DHCP server Relay option will then
show up on the same page as below

Configure a second IP address by ticking the checkbox shown below and enter the following information:

IP Address:

Subnet Mask:

NOTE: The Save button saves new settings to allow continued configuration, while the Save/Reboot button not only saves new settings

but also reboots the device to apply the new configuration (i.e. all new settings).

Enter the secondary IP address for the LAN interface.

Enter the secondary subnet mask for the LAN interface.

3G10WV HSPA Wi-Fi Router with Voice – 47

7.2 Network Address Translation (NAT)

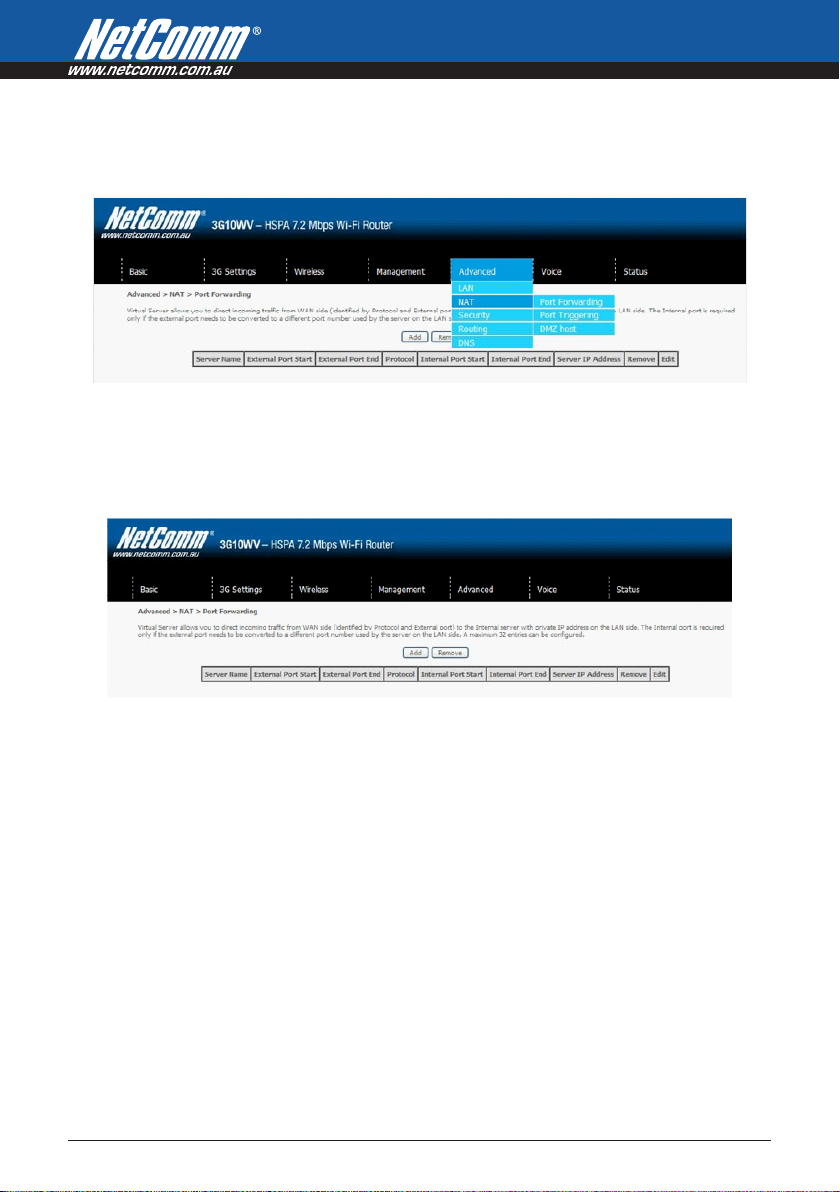

7.2.1 Port Forwarding

Port Forwarding allows you to direct incoming traffic from the Internet side (identified by Protocol and External
port) to the internal server with a private IP address on the LAN side. The Internal port is required only if
the external port needs to be converted to a different port number used by the server on the LAN side. A
maximum of 32 entries can be configured.

To add a Virtual Server, click the Add button. The following screen will display.

48 – 3G10WV HSPA Wi-Fi Router with Voice

Options Description

Select a Service

Or

Custom Server

Server IP Address

External Port Start

External Port End

Protocol

Internal Port Start

Internal Port End

User should select the service from the list.

Or

Create a customer server and enter a name for the server

Enter the IP address for the server.

Enter the starting external port number (when you select Custom Server). When a service
is selected the port ranges are automatically configured.

Enter the ending external port number (when you select Custom Server). When a service is
selected the port ranges are automatically configured.

User can select from: TCP, TCP/UDP or UDP.

Enter the internal port starting number (when you select Custom Server). When a service is
selected the port ranges are automatically configured

Enter the internal port ending number (when you select Custom Server). When a service is
selected the port ranges are automatically configured.

3G10WV HSPA Wi-Fi Router with Voice – 49

7.2.2 Port Triggering

Some applications require specific ports in the Router’s firewall to be open for access by remote parties.
Port Triggering opens up the ‘Open Ports’ in the firewall when an application on the LAN initiates a TCP/UDP
connection to a remote party using the ‘Triggering Ports’. The Router allows the remote party from the WAN
side to establish new connections back to the application on the LAN side using the ‘Open Ports’. A maximum
32 entries can be configured.

To add a Trigger Port, simply click the Add button. The following will be displayed.

50 – 3G10WV HSPA Wi-Fi Router with Voice

Options Description

Select an Application

or

Custom Application

Trigger Port Start

Trigger Port End

Trigger Protocol

Open Port Start

Open Port End

Open Protocol

User should select the application from the list.

or

User can enter the name of their choice.

Enter the starting trigger port number (when you select custom application). When an
application is selected, the port ranges are automatically configured.

Enter the ending trigger port number (when you select custom application). When an
application is selected, the port ranges are automatically configured.

TCP, TCP/UDP or UDP.

Enter the starting open port number (when you select custom application). When an
application is selected, the port ranges are automatically configured.

Enter the ending open port number (when you select custom application). When an
application is selected, the port ranges are automatically configured.

TCP, TCP/UDP or UDP.

7.2.3 Demilitarized (DMZ) Host

Your Router will forward IP packets from the Wireless Area Network (WAN) that do not belong to any of the
applications configured in the Virtual Servers table to the DMZ host computer.

Enter the computer’s IP address and click Apply to activate the DMZ host.

Clear the IP address field and click Apply to deactivate the DMZ host.

3G10WV HSPA Wi-Fi Router with Voice – 51

7.3 Security

Your Router can be secured with IP Filtering or Parental Control functions.

7.3.1 IP Filtering

The IP Filtering screen sets filter rules that limit incoming and outgoing IP traffic. Multiple filter rules can be set
with at least one limiting condition. All conditions must be fulfilled when individual IP packets pass filter.

Outgoing IP Filter

The default setting for Outgoing traffic is ACCEPTED. Under this condition, all outgoing IP packets that match
the filter rules will be BLOCKED.

To add a filtering rule, click the Add button. The following screen will display.

52 – 3G10WV HSPA Wi-Fi Router with Voice

Options Description

Filter Name

Protocol

Source IP address

Source Subnet Mask

Source Port
(port or port:port)

Destination IP address

Destination Subnet Mask

Destination port
(port or port:port)

The filter rule label

TCP, TCP/UDP, UDP or ICMP

Enter source IP address

Enter source subnet mask

Enter source port number or port range

Enter destination IP address

Enter destination subnet mask

Enter destination port number or range

Click Save/Apply to save and activate the filter.

Incoming IP Filter

The default setting for all Incoming traffic is BLOCKED. Under this condition only those incoming IP packets
that match the filter rules will be ACCEPTED.

To add a filtering rule, click the Add button. The following screen will display.

Please refer to the Outgoing IP Filter table for field descriptions.

Click Save/Apply to save and activate the filter.

3G10WV HSPA Wi-Fi Router with Voice – 53

7.3.2 Parental Control

This Parental Control allows you to restrict access from a Local Area Network (LAN) to an outside network
through the Router on selected days at certain times. Make sure to activate the Internet Time server
synchronization as described in section 6.3 SNTP, so that the scheduled times match your local time.

Click Add to display the following screen.

See instructions below and click Save/Apply to apply the settings.

Options Description

User Name

Browser’s MAC Address

Other MAC Address

Days of the Week

Start Blocking Time

End Blocking Time

54 – 3G10WV HSPA Wi-Fi Router with Voice

A user-defined label for this restriction

MAC address of the PC running the browser

MAC address of another LAN device

The days the restrictions apply.

The time the restrictions start

The time the restrictions end.

7.4 Routing

Default Gateway, Static Route and Dynamic Route settings can be found in the Routing link as
illustrated below.

7.4.1 Default Gateway

If the Enable Automatic Assigned Default Gateway checkbox is selected, this device will accept a default
Gateway assignment. If the checkbox is not selected, a field will appear allowing you to enter the static default
gateway and/or WAN interface, then click Save/Apply.

NOTE: After enabling the Automatic Assigned Default Gateway, you must re-boot the Router to activate the assigned default Gateway.

3G10WV HSPA Wi-Fi Router with Voice – 55

7.4.2 Static Route

The Static Route screen displays the configured static routes.

Click the Add or Remove buttons to change settings.

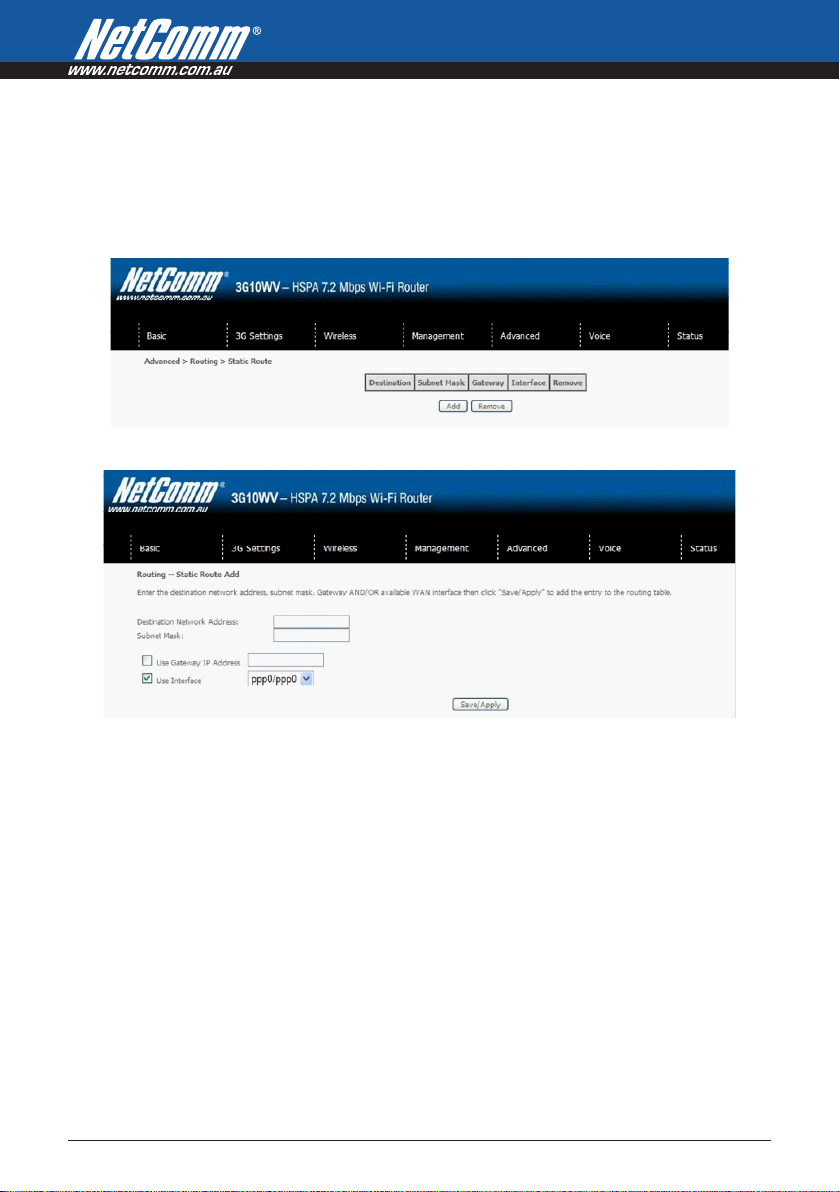

Click the Add button to display the following screen.

Enter Destination Network Address, Subnet Mask, Gateway IP Address and/or WAN Interface. Then click
Save/Apply to add the entry to the routing table.

56 – 3G10WV HSPA Wi-Fi Router with Voice

7.4.3 Dynamic Route

To activate this option, select the Enabled radio button for Global RIP Mode.

To configure an individual interface, select the desired RIP version and operation, followed by placing a check
in the Enabled checkbox for that interface. Click Save/Apply to save the configuration and to start or stop
dynamic routing.

7.5 Domain Name Servers (DNS)

7.5.1 DNS Server Configuration

If the Enable Automatic Assigned DNS checkbox is selected, this device will accept the first received DNS
assignment from the Wireless Area Network (WAN) interface during the connection process. If the checkbox
is not selected, a field will appear allowing you to enter the primary and optional secondary DNS server IP
addresses. Click on Save to apply.

NOTE: Click the Save button to save the new configuration. To make the new configuration effective, reboot your Router.

3G10WV HSPA Wi-Fi Router with Voice – 57

7.5.2 Dynamic DNS

The Dynamic DNS service allows a dynamic IP address to be aliased to a static hostname in any of a selection of
domains, allowing the router to be more easily accessed from various locations on the internet.

Note: The Add/Remove buttons will be displayed only if the router has been assigned an IP address from the remote server.

To add a dynamic DNS service, click the Add button and this screen will display.

Options Descriptions

D-DNS provider

Hostname

Interface

Username

Password

58 – 3G10WV HSPA Wi-Fi Router with Voice

Select a dynamic DNS provider from the list.

Enter the name for the dynamic DNS server.

Select the interface from the list.

Enter the username for the dynamic DNS server.

Enter the password for the dynamic DNS server.

Voice

3G10WV HSPA Wi-Fi Router with Voice – 59

Voice

The 3G10WV HSPA 7.2Mbps Wi-Fi Router with Voice allows you to make telephone calls over the 3G Mobile/
Cellular Telephone network using a standard Analogue Telephone via the built in RJ-11 Phone port.

Please refer to the documentation provided by the manufacturer for operating your Analogue Telephone.

Note that your SIM card and Mobile service needs to be provisioned for Voice Calling. Please consult with your
Network Provider for verification.

Note that any telephone calls placed using the 3G10WV may incur call usage charges determined by your
Network Provider. Please consult with your Network Provider for verification.

8.1 Configuring your 3G10WV for placing Voice Calls

Once your 3G10WV has been correctly configured to access the mobile network as outlined in Section 2.1
– Quick Setup, you can make and receive telephone calls after connecting your Analogue Telephone to the socket
labeled Voice on the back of your HSPA 7.2Mbps Wi-Fi Router with Voice.

Region specific dial-tones can be configured via the Web-User Interface by following the instructions in Section 3
Web User Interface and by selecting “Voice” from the menu at the top of the page.

To configure the 3G10WV to use dial-tones from a specific region, please select the relevant country from the
drop down list shown on this page, and click “Apply and save all Parameters” to save and apply this change.

60 – 3G10WV HSPA Wi-Fi Router with Voice

Status

Status

The Status menu has the following submenus:

• Diagnostics

• System Log

• 3G network

• Statistics

• Route

• ARP

• DHCP

• PING

62 – 3G10WV HSPA Wi-Fi Router with Voice

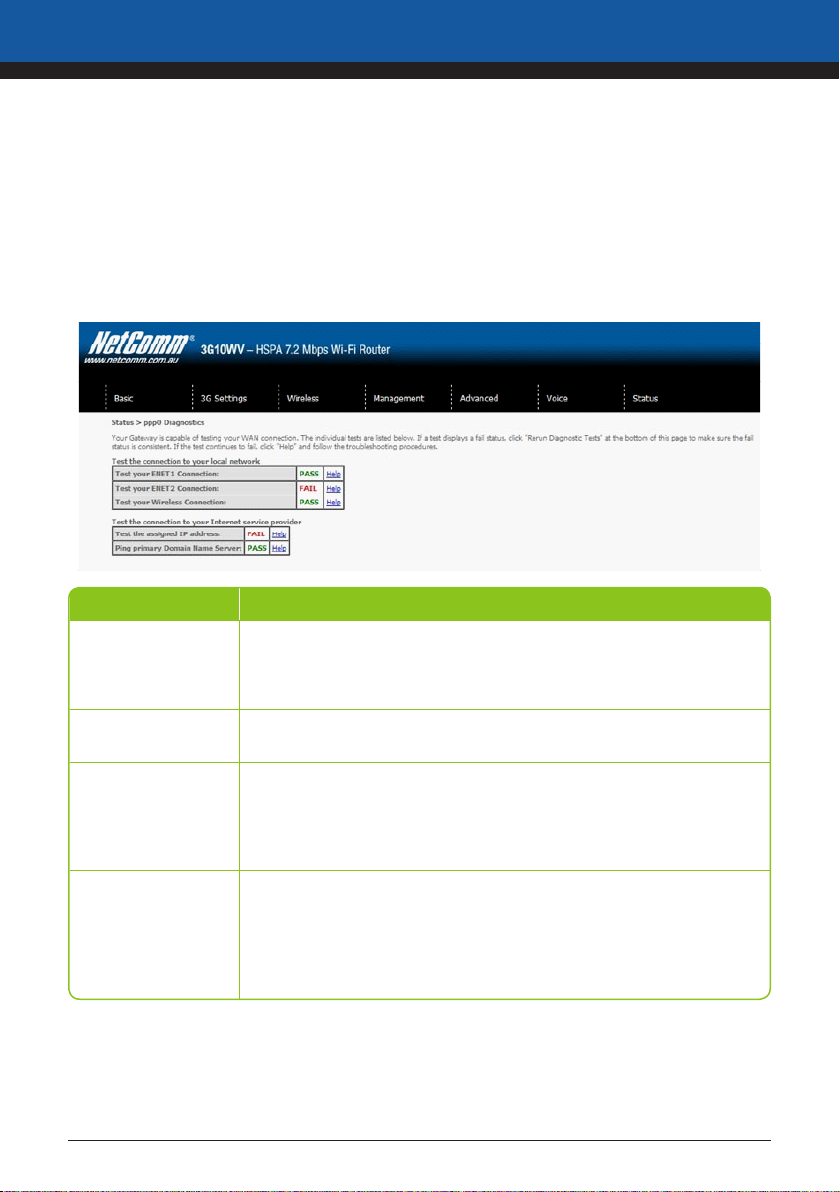

9.1 Diagnostics

The Diagnostics menu provides feedback on the connection status of the device. The individual tests are listed
below. If a test displays a fail status:

1: Click on the Help link
2: Now click Re-run Diagnostic Tests at the bottom of the screen to re-test and confirm the error
3: If the test continues to fail, follow the troubleshooting procedures in the Help screen.

Test Description

ENET Connection

Wireless connection

Ping Default Gateway

Ping Primary Domain
Name Server

Pass: Indicates that the Ethernet interface from your computer is connected to the

LAN port of this Router.
Fail: Indicates that the Router does not detect the Ethernet interface on your

computer.

Pass: Indicates that the wireless card is ON.
Down: Indicates that the wireless card is OFF.

Pass: Indicates that the Router can communicate with the first entry point to the

network. It is usually the IP address of the ISP’s local Gateway.
Fail: Indicates that the Router was unable to communicate with the first entry point

on the network, and it may not have an effect on your Internet connectivity. If this test
fails and you can access the Internet, there is no need to troubleshoot this issue.

Pass: Indicates that the Router can communicate with the primary Domain Name
Server (DNS).

Fail: Indicates that the Router was unable to communicate with the primary Domain
Name Server (DNS). It may not have an effect on your Internet connectivity. Therefore
if this test fails but you are still able to access the Internet, there is no need to
troubleshoot this issue.

3G10WV HSPA Wi-Fi Router with Voice – 63

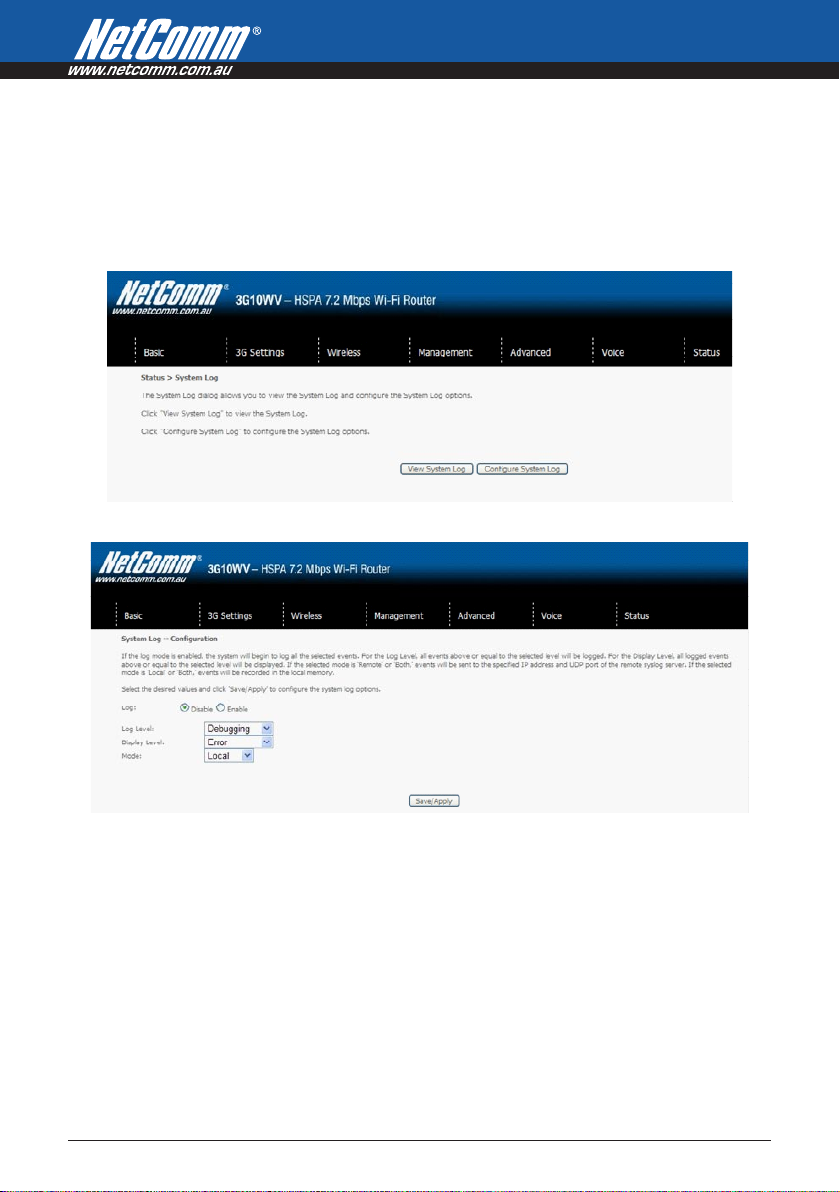

9.2 System Log

This function allows you to view system events and configure related options. Follow the steps below to enable
and view the System Log.

1: Click Configure System Log to continue.

2: Select the system log options (see table below) and click Save/Apply.

64 – 3G10WV HSPA Wi-Fi Router with Voice

Option Description

Log

Log level

Display Level

Mode

Indicates whether the system is currently recording events. You can enable or disable
event logging. By default, it is disabled.

Allows you to configure the event level and filter out unwanted events below this
level. The events ranging from the highest critical level “Emergency” down to this
configured level will be recorded to the log buffer on the Router’s SDRAM. When
the log buffer is full, the newest event will wrap up to the top of the log buffer and
overwrite the oldest event. By default, the log level is “Debugging”, which is the lowest
critical level. The log levels are defined as follows:

Emergency is the most serious event level, whereas Debugging is the least important.
For instance, if the log level is set to Debugging, all the events from the lowest
Debugging level to the most critical level Emergency level will be recorded. If the log
level is set to Error, only Error and the level above will be logged.

Allows you to select the logged events and displays on the View System Log window
for events of this level and above to the highest Emergency level.

Allows you to specify whether events should be stored in the local memory, be sent to
a remote syslog server, or to both simultaneously.

If remote mode is selected, the view system log will not be able to display events
saved in the remote syslog server. When either Remote mode or Both mode is
configured, the WEB UI will prompt the you to enter the Server IP address and Server
UDP port.

3: Click View System Log. The results are displayed as follows.

3G10WV HSPA Wi-Fi Router with Voice – 65

9.3 3G Status

Select this option for detailed status information on your Routers 3G connection.

Consult the table on the next page for detailed field descriptions.

66 – 3G10WV HSPA Wi-Fi Router with Voice

Status Description

Manufacturer

Model

FW Rev.

IMEI

FSN

IMSI

HW Rev.

Temperature

System Mode

WCDMA band

GSM band

WCDMA channel

GSM channel

GSM (PS) state

MM (CS) state

Signal Strength

The manufacturer of the embedded 3G module.

The model name of the embedded 3G module.

The firmware version of the 3G module.

The IMEI (International Mobile Equipment Identity) is a 15 digit number that is used to
identify a mobile device on a network.

Factory Serial Number of the 3G module.

The IMSI (International Mobile Subscriber Identity) is a unique 15-digit number used to
identify an individual user on a GSM or UMTS network.

The hardware version of the 3G module.

The temperature of the 3G module in degrees Celsius.

WCDMA/Europe

CDMA 2000 / America

The 3G radio frequency band which supports tri-band UTMS/HSDPA/HSUPA frequencies
(850/1900/2100 MHz), IMT2000 is 2100 MHz, WCDMA800 is 850 MHz, WCDMA1900
is 1900 MHz.

The 2G radio frequency band which supports Quad-band GSM/GRPS frequencies,
including GSM850, GSM900, DCS1800, PCS1900 with each number representing the
respective frequency in MHz.

The 3G channel.

The 2G channel.

Packet Switching state

Circuit Switching state

The 3G/2G service signal strength in dBm.

Signal
level in

-109 ~

-103

-101 ~ -93 -91 ~ -87 -85 ~ -79 -77 ~ -52

dBm

5 Signal
bars

LED Low Medium High

3G10WV HSPA Wi-Fi Router with Voice – 67

Status Description

Signal Level (RSSI)

Quality (Ec/Io)

Network Registration
Status

Network Name

Country & Network
Codes

Cell ID

Primary Scrambling
Code (PSC)

Data Session Status

HSUPA/HSDPA
Categories

Received Signal Code
Power (RSCP)

Battery Connection
Status (BCS)

Battery Charge Level
(BCL)

3G Radio Signal Strength Index

Value 2 ~ 5 6 ~ 10 11 ~ 13 14 ~ 17 18 ~ 31 99

Signal
level in

-109 ~

-103

-101 ~ -93 -91 ~

-87

-85 ~

-79

-77 ~

-52

unknown

dBm

5 Signal
bars

LED Low Medium High

The total energy per chip per power density (Ec/Io) value of the active set’s three
strongest cells.

Should display as registered with a valid unlocked SIM card.

The 3G internet Service Provider.

Each country and network has a unique code.

The network information for the “serving” cell ID.

The PSC of the reference WCDMA cell

Connected or Disconnected

The HSUPA/HSDPA categories correspond to different data transmission rates with
higher numbers generally indicating faster rates

The RSCP of the active set’s three strongest cells

BCS of the MT (Mobile Termination)

BCL of the MT (Mobile Termination)

68 – 3G10WV HSPA Wi-Fi Router with Voice

9.4 Statistics

These screens provide detailed information for:

• Local Area Network (LAN) and Wireless Local Area Network (WLAN)

• 3G Interfaces

NOTE: These statistics page refresh every 15 seconds.

9.4.1 LAN Statistics

This screen displays statistics for the Ethernet and Wireless LAN interfaces.

Interface Shows connection interfaces

Received/Transmitted

Bytes Rx/TX (receive/transmit) packet in bytes

Pkts Rx/TX (receive/transmit) packets

Errs Rx/TX (receive/transmit) packets with errors

Drops Rx/TX (receive/transmit) packets dropped

3G10WV HSPA Wi-Fi Router with Voice – 69

9.4.2 3G Statistics

Click 3G network in the Statistics submenu to display the screen below.

Service Shows the service type

Inbound

Outbound

Octets Number of received octets over the interface.

Packets Number of received packets over the interface.

Drops Received packets which are dropped.

Error Received packets which are errors.

Octets Number of Transmitted octets over the interface.

Packets Number of Transmitted packets over the interface.

Drops Transmitted packets which are dropped

Error Transmitted packets which are errors.

70 – 3G10WV HSPA Wi-Fi Router with Voice

9.5 Route

Select Route to display the paths the Router has found.

Field Description

Destination

Gateway

Subnet Mask

Flag

Metric

Service

Interface

Destination network or destination host

Next hop IP address

Subnet Mask of Destination

U: route is up

!: reject route

G: use gateway

H: target is a host

R: reinstate route for dynamic routing

D: dynamically installed by daemon or redirect

M: modified from routing daemon or redirect

The ‘distance’ to the target (usually counted in hops). It is not used by recent kernels,
but may be needed by routing daemons.

Shows the name for WAN connection

Shows connection interfaces

3G10WV HSPA Wi-Fi Router with Voice – 71

9.6 ARP

Click ARP to display the ARP information.

Field Description

IP address

Flags

HW Address

Device

Shows IP address of host pc

Complete

Incomplete

Permanent

Publish

Shows the MAC address of host pc

Shows the connection interface

9.7 Dynamic Host Configuration Protocol (DHCP)

Click DHCP to display the DHCP information.

Field Description

Hostname

MAC Address

IP address

Expires In

Shows the device/host/PC network name

Shows the Ethernet MAC address of the device/host/PC

Shows IP address of device/host/PC

Shows how much time is left for each DHCP Lease

72 – 3G10WV HSPA Wi-Fi Router with Voice

9.8 PING

The PING menu provides feedback of connection test to an IP address or a host name.

Input a IP address or a host name, e.g www.google.com and press Submit. The connection test result will be
shown as below.

The above screen is not showing successful ping result

3G10WV HSPA Wi-Fi Router with Voice – 73

CLI commands Via Telnet

74 – 3G10WV HSPA Wi-Fi Router with Voice

CLI commands via Telnet

Show all CLI commands

Description: List all available CLI commands that the 3G router supports.

Synopsis: help | ?

Example:

> help

?

help

logout

reboot

ddns

dumpcfg

arp

defaultgateway

dhcpserver

dns

lan

passwd

remoteaccess

restoredefault

route

save

ping

sntp

sysinfo

tftp

wlan

sierra

version

build

serialnumber

End the telnet session

3G10WV HSPA Wi-Fi Router with Voice – 75

Description: End the telnet session

Synopsis: logout

Example:

> logout

Reset/reboot device

Description: To reboot the router.

Synopsis: reboot

Example:

> reboot

Radio Signal Strength

Description: Display the 3G radio signal strength.

Synopsis: sierra show --signal

Example:

> sierra show --signal

signal: 23

Note: Signal value is explain in the table below

Radio Band

Description: Display the 3G band

Synopsis: sierra show --band

Example:

> sierra show --band

band: IMT2000

Note: IMT2000 is band 2100 and WCDMA800 is band 850

Connection status

Description: Display the 3G network connection status

Synopsis: sierra show –link

sierra show --gstatus

Examples:

> sierra show --link

link: Connected

> sierra show --gstatus

Current Time: 450 Temperature: 45

Bootup Time: 1 Mode: ONLINE

76 – 3G10WV HSPA Wi-Fi Router with Voice

System mode: WCDMA PS state: Attached

WCDMA band: WCDMA800 GSM band: Unknown

WCDMA channel: 4436 GSM channel: 65535

GMM (PS) state:REGISTERED NORMAL SERVICE

MM (CS) state: IDLE NORMAL SERVICE

WCDMA L1 State:L1M_FACH RRC State: CELL_FACH

RX level (dBm):-90

IMSI & IMEI read

Description: Display the IMSI and IMEI value

Synopsis: sierra show --imsi

sierra show --imei

Example:

> sierra show --imsi

imsi: 466974800524867

> sierra show --imei

IMEI: 354219010024303

Network Information

• sierra show --hsdcat

Description: To indicate the current HSDPA category.

Synopsis: sierra show --hsdcat

Example:

> sierra show --hsdcat

!HSDCAT: 8

• sierra show --hsucat

Description: To indicate the current HSUPA category.

Synopsis: sierra show --hsucat

Example:

> sierra show --hsucat

!HSUCAT: 5

• sierra show --mode

3G10WV HSPA Wi-Fi Router with Voice – 77

Description: To report the current available and supported network technologies being used.

Synopsis: sierra show --mode

Example:

> sierra show --mode

mode: UMTS

(Valid values: “GSM”, “GPRS”, “EDGE”, “UMTS”, “HSDPA”, “HSUPA”)

• sierra show --registration

Description: To display the Network Registration Status, Country code and Network code.

Synopsis: sierra show --registration

Example:

> sierra show --registration

Network Name: Telstra Mobile

Country Code: 505

Network Code: 01

Registration Status: registered.

APN (Access Point Name) read and set

Description: Allows user to read and configure the APN on the 3G router. Commands include:

• sierra show --apn <profile>

Description: To display the APN value for custom APN profile.

Synopsis: sierra show [--apn <profile>]

<profile> 1: Custom APN

Example: Display the current APN for the profile Custom APN

> sierra show --apn 1

Profile1 APN: telstra.pcpack

• sierra set --apn <profile> <apn>

Description: To configure the APN value for custom APN profile.

Synopsis: sierra set [--apn <profile> <apn>]

<profile> 1: Custom APN

Example: Set the Custom APN to test.test

> sierra set --apn 1 test.test

Authentication Method set and read

78 – 3G10WV HSPA Wi-Fi Router with Voice

Description: To set and query authentication method (PAP/CHAP/AUTO) for PDP-IP packet data calls if the
profile supports.

Synopsis: Authentication method set:

sierra set --auth <profile> <method>

<profile> 1:Custom APN

<method> 0:AUTO 1:PAP 2:CHAP

Authentication method read:

sierra show --auth <profile>

<profile> 1:Custom APN

Examples: Configure the customer profile to authentication PAP

> sierra set --auth 1 1

Display the current authentication requirement for the customer profile

> sierra show –auth 1

Profile1: “PAP”

Set Radio Band for APN profile

Description: To configure the frequency band for each APN profile.

Synopsis: sierra set [--band <profile> <band>]

<profile> 1: Custom APN

<band> 0: auto 1: 3G-850 Only 2: 3G-850/2G-900/1800 3: 3G-ALL 4: 2G-ALL

Example:

Configure the customer profile to select frequency band automatically

> sierra set --band 1 0

> reboot

(Please reboot the router to make the change to take effect after configuring the band setting)

IP header/Data compression set and read

• sierra set --comp <profile> <type> <enable|disable>

Description: To enable or disable the IP header compression and data compression functions.

Synopsis: sierra set [--comp <profile> <type> <enable|disable>]

<profile> 1: Custom APN

<type> 0:IP HEADER 1:DATA

Example: Enable the IP header compression for Custom APN

3G10WV HSPA Wi-Fi Router with Voice – 79

> sierra set --comp 1 0 enable

• sierra show --comp <profile>

Description: To display the IP header or data compression status.

Synopsis: sierra show --comp <profile>

<profile> 1: Custom APN

Examples:

> sierra show --comp 1

Profile1: IPH is Off, DATA is Off

Connect / Disconnect PPP session

Description: To connect or disconnect the PPP session. The profile to be used to develop a connection is the
latest configured by the sierra set command.

Synopsis: sierra set [--connection <connect|disconnect>]

Examples: To connect the PPP session

>sierra set –connection connect

PIN code configuration

• sierra set --PIN-LOCK <enable|disable> <PIN code> <save>

Description: To enable or disable the PIN code protection and save to the SIM card.

Synopsis: sierra set [--PIN-LOCK <enable|disable> <PIN code>] <save>

Example: To enable the SIM PIN protection with PIN code 0000

> sierra set --PIN-LOCK enable 0000 save

• sierra set --PIN <PIN code> <save>

Description: To save the PIN code into router configuration settings.

Synopsis: sierra set [--PIN <PIN code> <save>]

Example: To save the PIN code 0000 into router configuration setting

> sierra set --PIN 0000 save

• sierra show --PIN-LOCK

Description: To display the PIN code protection status.

80 – 3G10WV HSPA Wi-Fi Router with Voice

Synopsis: sierra show --PIN-LOCK

Example:

> sierra show --PIN-LOCK

PIN code protection is disabled

• sierra show --SIM

Description: To display the SIM card status.

Synopsis: sierra show --SIM

Example:

> sierra show --SIM

SIM inserted (SIM card is correctly inserted to the USIM slot)

SIM not inserted (SIM card is not inserted to the USIM slot)

USIM is PIN locked (SIM card is locked by the PIN code)

Incorrect SIM (a SIM card from other Internet service provider is inserted, SIM card can’t be recognized by the
network)

PUK locked (SIM card is locked by the PUK code)

• sierra set --PIN-CHG <old PIN code> <new PIN code>

Description: Change the current PIN code to the new one.

Synopsis: sierra set [--PIN-CHG <old PIN code> <new PIN code>]

Example: Change the PIN code from 0000 to 1111

> sierra set --PIN-CHG 0000 1111

changed the PIN code successfully

PUK code unlock

Description: Enter the new PUK code and configure the new PIN code when the modem is

PUK locked.

Synopsis: sierra set [--PUK <PUK key> <new PIN code>]

Examples: Unlock the modem with PUK key 11111111 and configure the PIN code as 0000

> sierra set --PUK 11111111 0000

PUK unlock successfully

The connection is up already!!

Wireless LAN mode set and read

Description: Allows user to configure the Wireless LAN interfaces on the 3G router.

This command can be use to configure basic feature, security feature, wireless bridge feature and MAC filter
features of the wireless LAN interface.

Synopsis:

3G10WV HSPA Wi-Fi Router with Voice – 81

> wlan

wlan command usage :

wlan config [option]

wlan security [option]

wlan macfilter [option]

wlan wds [option]

wlan info [option]

wlan –help

Each option will be explained separately below.

Note: The settings changed from these commands take effect immediately and will be updated on the web
page

1. Please enable the wireless BEFORE changing other wireless settings.

2. The wlan command will save the configuration into flash memory and the new settings will be saved.

Since the settings changed from wlan command take effect immediately, it is not recommended to modify the
wireless settings through the Web UI at the same time.

3G10WV - HSPA 7.2Mbps Wi-Fi Router with Voice USER GUIDE

Configure basic Wireless LAN features

Description: Configure basic wireless LAN features such as enable or disable the wireless LAN interface, hide
the network from active scans, set the wireless network name (also known as SSID) and restrict the channel
set based on country requirements.

Synopsis:

wlan config [--enable <0|1>] [--hide <0|1>]

[--ssid <ssidStr>] [--country <countryStr>]

[--isolate <0|1>]

[--channel <channelVal>] [--rate <rateVal>]

[--mrate <rateVal>]

[--rts <rtsThreshold>] [--frag <fragThreshold>]

[--dtim <dtimInterval>] [--beacon <beaconInterval>]

[--xpress <on|off>] [--gmode <auto|performance|lrs|802.11b>]

[--gprotect <off|auto>] [--preamble <long|short>]

Options:

--enable <0|1>

82 – 3G10WV HSPA Wi-Fi Router with Voice

Description: Enable or disable wireless LAN interface.

Valid value: 0 or 1

0 – disabled the wireless LAN interface.

1 – enabled the wireless LAN interface.

Default value: 1

--hide <0|1>

Description: Hide wireless LAN network name (SSID).

Valid value: 0 or 1

0 – not hide wireless LAN SSID.

1 – hide wireless LAN SSID

Default value: 0

--ssid <ssidStr>

Description: Set Wireless LAN network name (SSID).

Valid value: 32 characters string

--country <countryStr>

Description: Set Wireless LAN Country, only accept abbreviation.

Valid value: 2 or 3 characters string (AUSTRALIA is abbreviated to AU).

--isolate <0|1>

Description: Set wireless devices isolation. When enabled, wireless devices connected to the router will not be
able to communicate to each other

Valid value: 0 or 1

0 – not isolate wireless devices.

1 – isolate wireless devices

Default value: 0

--channel <channelVal>

Description: Set the wireless LAN channel.

Valid value: 0~14

0 means auto select channel.

Default value: 0

--rate <rateVal>

Description: Set the wireless LAN data rate.

Valid value: 0, 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 (Mbps)

0 means auto

3G10WV HSPA Wi-Fi Router with Voice – 83

Default value: 0

--mrate <rateVal>

Description: Set the wireless LAN Multicast rate.

Valid value: 0, 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 (Mbps)

0 means auto

Default value: 0

--rts <rtsThreshold>

Description: Set the wireless LAN RTS threshold.

Valid value: 0~2347

Default value: 234

--frag <fragThreshold>

Description: Set the wireless LAN fragment threshold.

Valid value: 256~2346

Default value: 2346

--dtim <dtimInterval>

Description: Set the wireless LAN DTIM interval.

Valid value: 1~255

Default value: 1

--beacon <beaconInterval>

Description: Set the wireless LAN beacon interval.

Valid value: 1~65535

Default value: 100

--xpress <on|off>

Description: Enable or disable the xpress feature

Valid value: on / off

Default value: off

--gmode <auto|performance|lrs|802.11b>

Description: Set the wireless LAN G mode

Default value: auto

--gprotect <off|auto>

Description: Enable or disable the gprotect feature

Default value: auto

--preamble <long|short>

Description: Set the wireless LAN preamble

84 – 3G10WV HSPA Wi-Fi Router with Voice

Default value: long

Example 1:

User wants to enable the wireless LAN, configure the wireless LAN network name (SSID) as “TestAP”,
configure wireless LAN channel to 5 and then hide the SSID:

wlan config --enable 1

wlan config --ssid “TestAP”

wlan config --channel 5 --hide 1

Or merge the above commands

wlan config --enable 1 --ssid “TestAP” --channel 5 --hide 1

Configure wireless LAN security

Description: Enable or disable and configure the wireless LAN security. This router supports different types of
security such as: WEP, 802.1X, WPA and WPA2.

Synopsis:

wlan security open

[--wep <enabled|disabled>] [--keybit <64|128>]

[--nkey1 <keyStr>] [--nkey2 <keyStr>]

[--nkey3 <keyStr>] [--nkey4 <keyStr>]

[--keyidx <1|2|3|4>]

wlan security shared (wep have to enable)

[--wep <enabled|disabled>] [--keybit <64|128>]

[--nkey1 <keyStr>] [--nkey2 <keyStr>]

[--nkey3 <keyStr>] [--nkey4 <keyStr>]

[--keyidx <1|2|3|4>]

wlan security radius (wep have to enable)

[--rasip <serverIp>] [--raspt <portVal>] [--raskey <”raskeyStr”>]

[--wep <enabled|disabled>] [--keybit <64|128>]

[--nkey2 <keyStr>] [--nkey3 <keyStr>]

[--keyidx <2|3>]

wlan security wpa / wpa2 / wpa2mix

[--wlPreauth <0|1>] [--wlNetReauth <interval>]

[--wpaenc <tkip|aes|tkip+aes>] [--rekey <interval>]

[--rasip <serverIp>] [--raspt <portVal>] [--raskey <”raskeyStr”>]

[--wep <enabled|disabled>] [--keybit <64|128>]

3G10WV HSPA Wi-Fi Router with Voice – 85

[--nkey2 <keyStr>] [--nkey3 <keyStr>]

[--keyidx <2|3>]

wlan security psk / psk2 / psk2mix

[--wpaenc <tkip|aes|tkip+aes>] [--rekey <interval>]

[--pskey <”pskeyStr”>]

[--wep <enabled|disabled>] [--keybit <64|128>]

[--nkey2 <keyStr>] [--nkey3 <keyStr>]

[--keyidx <2|3>]

Options:

--wep <enabled|disabled>

Description: enable or disable WEP encryption

--keybit <64|128>

Description: Set the WEP encryption strength

--nkey1 <keyStr>

--nkey2 <keyStr>

--nkey3 <keyStr>

--nkey4 <keyStr>

Description: Set the WEP key.

Note: 5 ASCII characters or 10 hexadecimal digits for 64-bit encryption keys.

13 ASCII characters or 26 hexadecimal digits for 128-bit encryption keys

--keyidx <1|2|3|4>

Description: Set the current WEP Key index.

--rasip <serverIp>

Description: Set the RADIUS server IP address.

--raspt <portVal>

Description: Set the RADIUS server port.

Valid value: 1~65535

Default value: 1812

--raskey <raskeyStr>

Description: Set the RADIUS Key.

Valid value: string of 79 characters.

--wpaenc <tkip|aes|tkip+aes>

Description: Set the WPA encryption

86 – 3G10WV HSPA Wi-Fi Router with Voice

3G10WV - HSPA 7.2Mbps Wi-Fi Router with Voice USER GUIDE

--rekey <interval>

Description: Set the Group Rekey Interval

Default value: 0

--pskey <”pskeyStr”>

Description: Set the WPA Pre-Shared Key

Valid value: string of 8 ~ 63 characters.

Note: 1. wlPreauth can only be used with WPA2.

2. When using WPA-PSK or WPA2-PSK, WPA Pre-Shared Key (pskey) must be set first.

3. WEP MUST be enable when security is set to shared / 802.1X radius security mode.

4. WEP MUST be disable when security is set to WPA/WPA-PSK security mode

5. When setting keyidx to N for WEP key, ensure that the nkeyN field has a string value.

6. Always issue a complete security command. For example, once WEP is enabled, it will still be enabled even

after changing the security mode, until the command “--wep disabled” is received by the router.

Example 2:

After setting up the wireless configuration in example 1, the user wants to configure the wireless LAN security.

Scenario 1:

WPA2 with Radius server IP address of 172.16.2.199

wlan security wpa2 --rasip 172.16.2.199 --wlPreauth 1

Scenario 2:

WPA-PSK with “123456789” as the passkey.

wlan security psk --pskey “123456789” --wpaenc aes --wep disabled

Scenario 3:

802.1X with Radius server IP of 172.16.2.199 and RADIUS key as “whatever”

wlan security radius --rasip 172.16.2.199 --raskey “whatever” --wep enabled

3G10WV HSPA Wi-Fi Router with Voice – 87

Configure wireless LAN MAC filter

Description: Enable, disable and configure the wireless LAN MAC filter feature. This feature enables the router
to allow or deny connection from wireless client based on the MAC address.

Synopsis:

wlan macfilter [--mode <disabled|allow|deny>]

[--add <MACaddress>]

[--remove <MACaddress>]

Options:

--mode <disabled|allow|deny>

Description: Disable and set the wireless LAN MAC filter mode.

Valid Value:

Disabled: disable wireless LAN MAC filter

Allow: only allow access to wireless client with the MAC address listed in the router

Deny: allow all wireless client to connect unless the MAC address is listed in the router

Default Value: disabled

--add <MACaddress>

Description: add one MAC Address entry

--remove <MACaddress>

Description: remove one MAC Address entry

Note: The setting of the MAC filter takes effect immediately. When setting up this feature through the wireless
interface, be careful of blocking the computer.

Changing the mode will make the MAC address list be reserved.

To see the list of MAC addresses, use the command “wlan info –macfilter”.

Example 3:

After Example 2, the user want to allow only wireless client with MAC address of 00:11:22:33:44:55 to be
able to connect to the router

wlan macfilter --mode allow --add 00:11:22:33:44:55

Following the command above, if the user wants to deny wireless client with MAC address of
00:11:22:33:44:55 to be able to connect to the AP.

wlan macfilter --mode deny

Configure Wireless Bridge (Wireless Distribution System/WDS)

Description: configure the wireless bridge

Synopsis:

wlan wds [--mode <ap|wds>] [--restrict <enabled|disabled>]

[--rmac1 <MACaddress>] [--rmac2 <MACaddress>]

88 – 3G10WV HSPA Wi-Fi Router with Voice

[--rmac3 <MACaddress>] [--rmac4 <MACaddress>]

Options:

--mode <ap|wds>

Description: configure wireless AP mode.

Default value: ap

--restrict <enabled|disabled>

Description: enable or disable bridge restrict mode.

Default value: disabled

--rmac1 <MACaddress>

--rmac2 <MACaddress>

--rmac3 <MACaddress>

--rmac4 <MACaddress>

Description: set remote bridge MAC address

Note: The “--restrict” option have to be enable before setting any restrict MAC address (--rmac1~4) or the
restrict MAC address setting will be ignored.

The behavior of WDS is similar to connecting two or more AP using a hub. However, please be aware of the
IP assignment to prevent assigning two or more hosts / STAs to the same IP address. To avoid IP address
conflict, only enable DHCP server in one router and disable the other router DHCP server.

WDS CLI (command line interface) does NOT support Enable (Scan) mode in Bridge Restrict while using
WUI (Web UI) does. When Bridge Restrict set to Enable (Scan) mode in WUI, the CLI will show Bridge Restrict
disabled.

Example 4:

After example 3, the user want to connect another AP which has DHCP disabled and the MAC address is
00:12:34:56:78:9a

wlan wds --mode wds --restrict enabled --rmac1 00:12:34:56:78:9a

Show wireless LAN interface configurations

Description: show the current configuration of the wireless LAN interface

Synopsis:

wlan info [--config] [--security]

[--macfilter] [--wds] [--station]

Options:

--config

Description: display the list of parameters from config option

Example:

3G10WV HSPA Wi-Fi Router with Voice – 89

> wlan info --config

Wlan Config Info :

Basic :

wlan config enable = 1

wlan config hide = 0

wlan config ssid = Series7Wireless7890

wlan config bssid = 00:11:22:33:44:56

wlan config country = AU

Advance :

wlan config isolate = 0

wlan config band = b

wlan config channel = 0

wlan config rate = 0

wlan config mrate = 0

wlan config brate = default

wlan config rts = 2347

wlan config frag = 2346

wlan config dtim = 1

wlan config beacon = 100

wlan config xpress = off

wlan config gmode = auto

wlan config gprotect = auto

wlan config preamble = long

3G10WV - HSPA 7.2Mbps Wi-Fi Router with Voice USER GUIDE

--security

Description: display the list of parameters from security option

Example:

> wlan info --security

Wlan Security Info :

wlan security auth mode = psk

wlan security wpa = aes

wlan security wpaGTKRekey = 0

wlan security wpaPresharedKey = 1234567890

wlan security Wepstate = disabled

90 – 3G10WV HSPA Wi-Fi Router with Voice

wlan security WepKeyBit = 128

wlan security WepKey2 =

wlan security WepKey3 =

wlan security WepCurrentKeyindex = 1

--macfilter

Description: display the list of parameters from macfilter option

Example:

> wlan info --macfilter

Wlan macfilter Info :

wlan macfilter mode = disabled

wlan macfilter entry :

--wds

Description: display the list of parameters from wds opiton

Example:

> wlan info --wds

Wlan wds Info :

wlan wds mode = ap

wlan wds restrict mode = disabled

--station

Description: display the list of authenticated wireless stations and their status

Example:

> --wlan info --station

--wlan info --station: not found

Configure Access Control

Description: to list and to configure access control from LAN & WAN.

(1) To set up the access control list.

Synopsis: remoteaccess service [--service <servicename>] <--interface <none|local|remote|both> >

<servicename>: FTP, HTTP, ICMP, TELNET, SSH, TFTP

<none|local|remote|both>:

3G10WV HSPA Wi-Fi Router with Voice – 91

• none: disable the service.

• local: enable the service at LAN side only

• remote: enable the service at WAN side only

• both: enable the service at both LAN and WAN sides.

(2) To add an entry of IP range that to be enable to manage the gateway. Subnet mask of 255.255.255.255 is
for a host with the specific IP address.

Synopsis: remoteaccess iprange --add <IP address> <Subnet mask> <none|local|remote|both>

<none|local|remote|both>

• none: forbid the IP range to manage the 3G10WV.

• local: permit the IP range to manage the 3G10WV from LAN side only.

• remote: permit the IP range to manage the 3G10WV from WAN side only.

• both: permit the IP range to manage the 3G10WV from both LAN and WAN.

(3) To delete an entry of IP range that to be enable to manage the gateway.

Synopsis: remoteaccess iprange --remove <IP address> <Subnet mask>

(4)To enable or disable the all the IP ranges defined by command (2).

Synopsis: remoteaccess accesscontrolmode <--enable <0|1> >

* Argument --enable 1 is to enable the access list; argument --enable 0 is to disable the access list;. Please
note (a) enabling access list mode is only for the case of at least one IP list is created; (b) after removing the
last entry in the table, the access list mode will be disabled automatically. This is to avoid no IP being on the
list when access mode is enabled; it will cause the router no being able to be managed by any IP address. The
only solution under this circumstance is to reset 3G10WVT gateway back to factory default by press the reset
button on the back of the gateway for over 8 seconds.

(5) To display all current settings for remote access.

Synopsis: remoteaccess show

(6) To view the usage of “remoteacesss” command.

Synopsis: remoteaccess –help

92 – 3G10WV HSPA Wi-Fi Router with Voice

config AP mode.

Default value : ap

--restrict <enabled|disabled>

config bridge restrict mode.

Default value : disabled

--rmac1 <MACaddress>

--rmac2 <MACaddress>

--rmac3 <MACaddress>

--rmac4 <MACaddress>

config remote bridge MAC address

NOTE 4:

You should enable the option - “restrict” before setting any restrict MAC address (setting --rmac1~4) or your
restrict MAC address setting will be ignored.

After the version – C40_R01, the wireless driver – 3.91.15.0 supports both BCM4318 and BCM4306; Version

- C39_R02 with the wireless driver - 3.61.13.0 supports only BCM4306;

The behavior of wds is similar to connect two or more AP using a hub, be aware of the IP assignment to
prevent assigning two or more hosts / STAs to the same IP address. You could enable only one DHCP server in
one router and disable all other’s to avoid the conflict of the IP assignment.

WDS CLI does NOT support Enable(Scan) mode in Bridge Restrict while WEB does. If you set Bridge Restrict to
Enable(Scan) mode, the CLI will show Bridge Restrict disabled.

Example 4:

After example 3, we want to use wds to connect with the other AP which has disabled the DHCP server (NOTE

4) and has MAC address - 00:12:34:56:78:9a; we can achieve the goal using the following command.

wlan wds --mode wds --restrict enabled --rmac1 00:12:34:56:78:9a

info: Show the configurations of WLAN interface and the information of stations connected to this AP.

Options for the info command

wlan info [--config] [--security]

[--macfilter] [--wds] [--station]

--config

list parameters of config command

--security

list parameters of security command

3G10WV HSPA Wi-Fi Router with Voice – 93

--macfilter

list parameters of macfilter command

--wds

list parameters of wds command

--station

list authenticated wireless stations and their status

NOTE 5:

You can use this command to view your wireless settings; no matter the settings are modified from web or
CLI, the command will show the latest information for you.

Example 5:

After example 4, if we forgot our ssid, we can view the ssid with the following command.

wlan info --config

--help: Display usage for WLAN interface.

Scenario 2 to configure AP with OPEN-disabled security:

wlan config --enable 1--ssid “WLAN_TLF” --hannel 8

wlan security open --wep disabled

Scenario 3 to configure AP with Shred-WEP security

wlan config --enable 1--ssid “WLAN_TLF” --hannel 8

wlan security shared --wep enabled --nkey1 1234567890123 --keyidx 1

Scenario 4 to configure AP with 802.1X security

wlan config --enable 1--ssid “WLAN_TLF” --hannel 8

wlan security radius --rasip 172.16.2.199 --raskey “whatever” --wep enabled

Scenario 5 to configure AP with WPA-PSK security

wlan config --enable 1--ssid “WLAN_TLF” --hannel 8

wlan security psk --pskey “123456789” --wpaenc aes

Scenario 6 to configure AP with WPA2 security

wlan config --enable 1--ssid “WLAN_TLF” --hannel 8

wlan security wpa2 --rasip 172.16.2.199 --wlPreauth 1

94 – 3G10WV HSPA Wi-Fi Router with Voice

3G10WV HSPA Wi-Fi Router with Voice – 95

Contact Information

If you have any technical difficulties with your product, please do not hesitate to contact NetComm’s Customer Support Department.

Email: [e-mail]

www.netcomm.com.au

Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further

information regarding the advanced features of this product, please refer to the configuring sections in the User Guide or contact a
Network Specialist.

NetComm Limited ABN 85 002 490 486
PO Box 1200, Lane Cove NSW 2066 Australia

E – [e-mail] W – www.netcomm.com.au
