USER'S MANUAL
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this man­ual for future reference.
Serial Number Decal
Model No. NTL15920 Serial No.
Find the serial number in the location shown below. Write the serial number in the space above for reference.
QUESTIONS?
If you have questions, or if there are missing parts, we will guar­antee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
Patent Pending
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

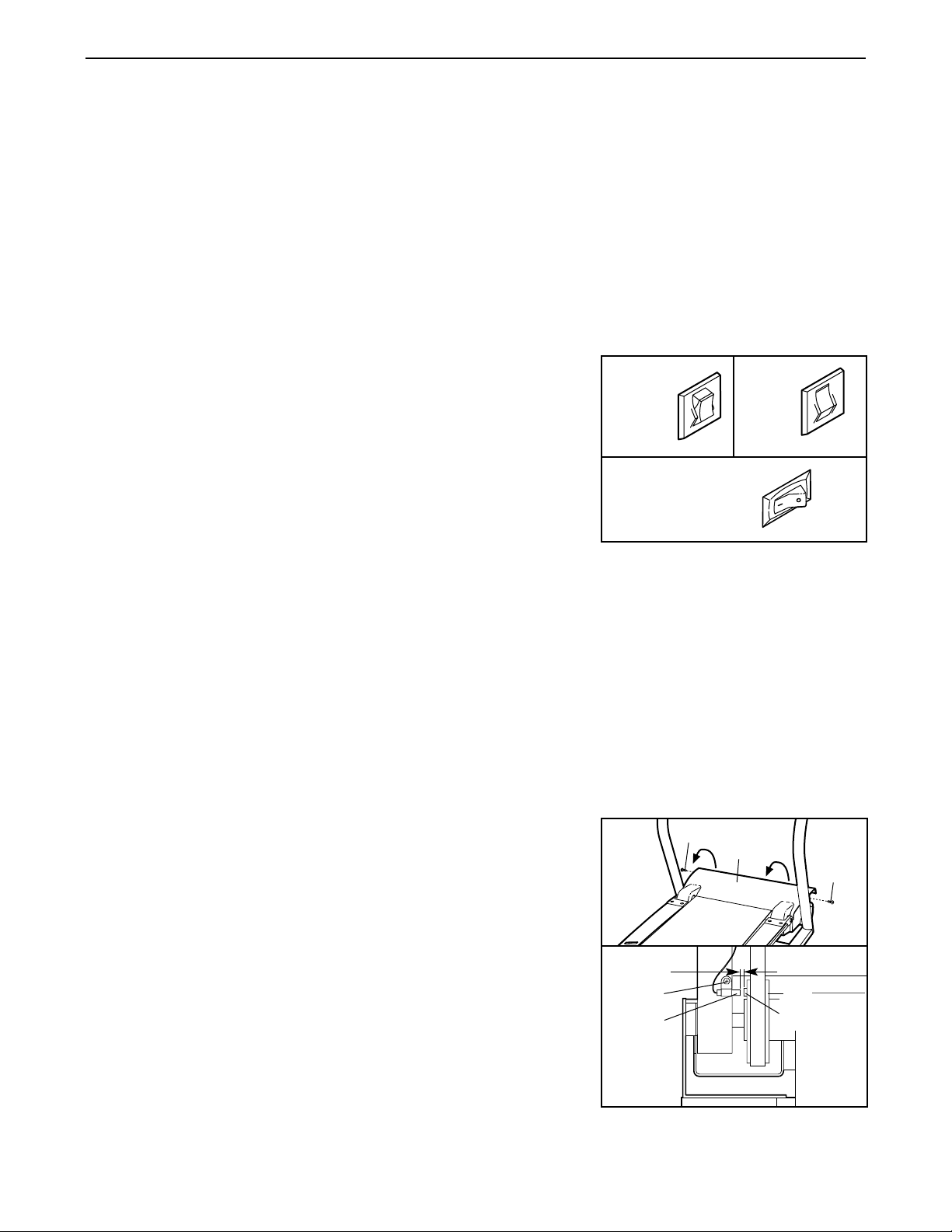

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
2
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described in this manual.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 300 pounds.
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local NordicTrack dealer or call 1-800­806-3651 and order part number 146148.
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
18. Using hand weights and not holding the handrails may compromise your ability to maintain your balance. Hand weights should be used only by experienced users.
19. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on page 5 for the loca­tion of the on/off switch.)
20. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 25.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
3
21. Do not change the incline of the treadmill by placing objects under the treadmill.
22. When folding or moving the treadmill, make sure that the storage latch is fully closed.
23. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
24. When using iFIT.com CDs and videos, you can manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
25. Always remove iFIT.com CDs and videos from
your CD player or VCR when you are not using them.
26. Inspect and properly tighten all parts of the treadmill regularly.
27. Never insert or drop any object into any opening.
28.
DANGER:Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
29. This treadmill is intended for in-home use only. Do not use this treadmill in any commer­cial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown at the right has been placed on your treadmill. If the decal is miss­ing or illegible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on page 31). Apply the decal in the location shown. Note: The decal is shown at 43% of actual size.
4
Thank you for selecting the revolutionary 3100 R treadmill from NordicTrack®. The 3100 R offers an im­pressive array of features to make your home work­outs more enjoyable and effective. And when you’re not exercising, the unique 3100 R can be folded up, re­quiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the 3100 R treadmill. If you have questions
after reading this manual, please call our Customer Service Department toll-free at 1-888-825-2588,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial num­ber before calling. The model number of the treadmill is NTL15920. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Hand Weight Holder
Lock Knob
Book Holder
Key/Clip
Circuit Breaker
On/Off Switch
Walking Belt
Flexible Walking Platform
Foot Pad
Power Cord

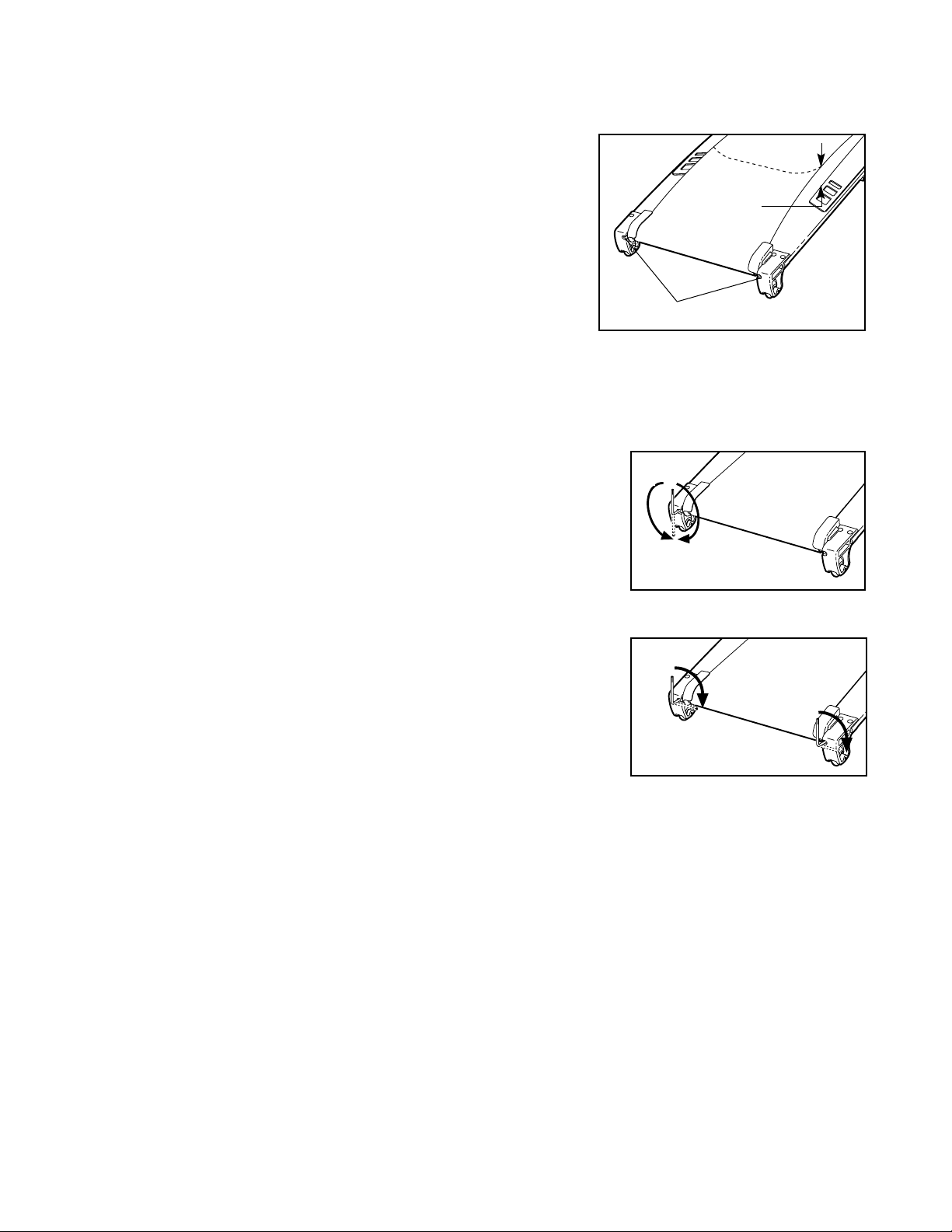

Rear Roller Adjustment Bolts
Water Bottle Holder*
Pulse Sensor
RIGHT SIDE
LEFT SIDE
*No water bottle is included.
5
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own flat-bladed screwdriver , wire cutters and adjustable wrench .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the treadmill or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt or foot pads, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
6
2. With the help of a second person, carefully raise both Uprights (99) to a vertical position. Press the Lock Knob Sleeve (111) and the Lock Knob Spacer (112) into the left Upright.
Remove the Lock Knob (113) from the Lock Pin (107). Make sure that the Lock Pin Collar (109) and the Spring (110) are on the Lock Pin. (Note: If there are two Lock Pin Collars, place one on each side of the Spring.) Insert the Lock Pin into the Lock Knob Sleeve (111) and the Left Upright (99).
Tighten the Lock Knob (113) onto the Lock Pin (107).
99
112
111
113
110
109
107
2
1. Slide the treadmill out of the box. Insert the three Cage Nuts (96) into the three indicated holes in the treadmill.
To insert each Cage Nut (96), first hook one side of the Cage Nut into the hole and then use a flat-bladed screw­driver to press the other side into the hole, as shown.
96
96
1
3. With the help of a second person, carefully raise the
Walking Platform (24) to the storage position and make sure that the lock pin is properly engaged as described on page 25.
Position the Base Plate (91) on the treadmill as shown. Attach the Base Plate with the three Base Plate Screws (92). Note: It may be helpful if a second person tips the treadmill slightly as you tighten the Screws.
Carefully lower the Walking Platform (24) to the floor as described on page 25.
91
24
92
3
7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 27). To protect the
floor or carpet from damage, place a mat under the treadmill.
7
6. Insert two Handrail Bolts (104) with Handrail Washers (105) and Handrail Bushings (106) into the right Upright (99) and the right Handrail Spacer (116). Turn the Handrail Bushings so they fit against the Upright (see the inset drawing). Lift the right Handrail (83) slightly and align the Bolts with the holes in the Handrail. Loosely thread the Bolts into the Handrail. Do not tighten the
Bolts yet.
See the inset drawing. Remove the Handrail Bolt (104) used in step 4. Place the other Handrail Spacer (116) on the left Upright (99), with the cutout toward the treadmill. Reach inside the left Upright and spread the tabs on the Grounding Bracket (115) to allow a Bolt to pass through the Grounding Bracket. Attach the left Handrail (83) as de­scribed above. Make sure that the Handrail Bushings (106) are turned properly and that the Bolt goes through the Grounding Bracket. Tighten all four Handrail Bolts. Press an Upright Endcap (118) into each Upright.
6
104
104
105
106
99
115
116
118
83
83
106
105
5. Pull the Upright Wire Harness (119) up through a Handrail Spacer (116). Place the Handrail Spacer on the right Upright (99) as shown, with the cutout toward the treadmill (see inset drawing A).
Connect the Upright Wire Harness (119) to the wires ex­tending from the Console Base (80). Insert the connec­tors and the Upright Wire Harness into the hole in the Console Base (see inset drawing B).
Set the Handrail (83) on the Handrail Spacer (116), being careful not to pinch the Upright Wire Harness (119).
116
4. See drawing 4a. While another person holds the Handrails (83), thread Handrail Bolts (104) two to three turns into the indicated holes in each Handrail. Then, re-
move the Handrail Bolts.
See drawing 4b. Pinch the tabs on the Grounding Bracket (115) so that the tabs will fit into the indicated hole in the left Upright (99). Then, insert the Grounding Bracket into the hole as far as possible.
Note: It may be helpful to set the Handrails (83) on the Uprights (99) and loosely thread a Handrail Bolt (104) into the left Upright and the left Handrail. Tip the Handrails, if necessary, to thread in the Bolt. Have an­other person support the Handrails while you complete the remaining steps.
99
104
104
83
115
4a
4b
5
119
99
83
80
116
99
116
80
119
A
B
Cutout
8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBE
TM
, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appli­ances being turned on or off. To decrease the pos-
sibility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge sup­pressor, see your local NordicTrack dealer or call 1-800-806-3651 and order part number 146148.
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is grounded before using an adapter.
DANGER:Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
9
FEATURES OF THE CONSOLE
The advanced console offers an impressive array of features to help you get the most from your exercise. When the console is in the manual mode, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the built-in pulse sensor.
Five preset workout programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effective workout. The included hand weights can be used to add upper-body exercise to your workouts as well. You can even create your own custom workout programs and store them in memory for future use.

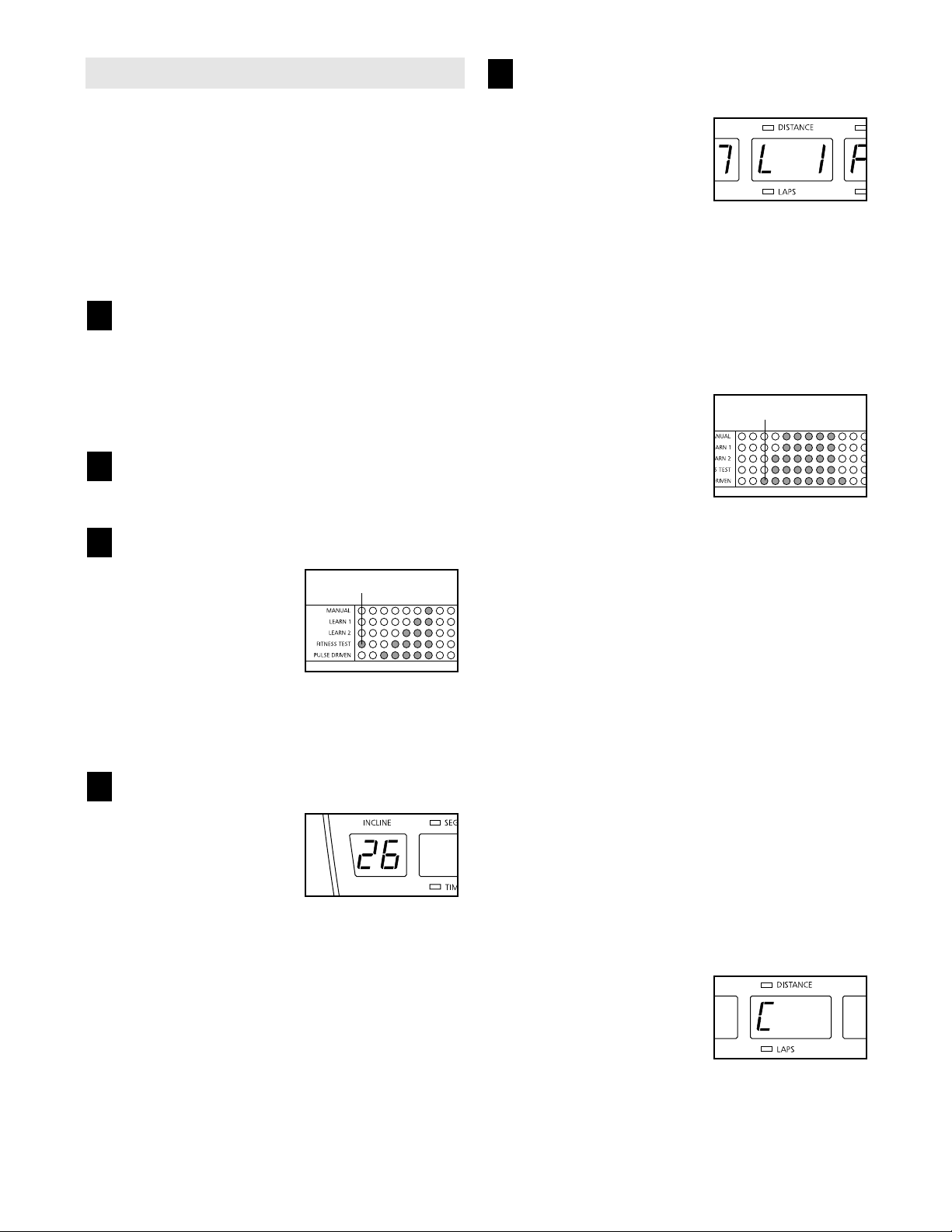

In addition, the console offers a fitness test program that measures your relative fitness level and a pulse­driven program that automatically adjusts the speed and incline of the treadmill to keep your heart rate near a target level during your workout. Note: The fitness test program and the pulse-driven program require the use of an optional chest pulse sensor (see page 24).
The console also features new iFIT.com interactive technology. IFIT.com technology is like having a per-
sonal trainer right in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, or computer and play special iFIT.com CD programs (iFIT.com CDs are avail­able separately). IFIT.com CD programs automatically control the speed and incline of the treadmill as a per­sonal trainer guides you through every step of your workout. High-energy music provides added motivation. Each CD features two programs designed by certified personal trainers.
In addition, you can connect the treadmill to your VCR and TV and play iFIT.com video programs (videocas­settes are available separately). Video programs offer the same benefits as iFIT.com CD programs, but add the excitement of working out with a class and an instructor—the hottest new trend at health clubs.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess basic programs, audio programs, and video pro­grams directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To purchase iFIT.com CDs or videocassettes, call toll­free 1-800-735-0768. For information about an optional chest pulse sensor, see page 24.

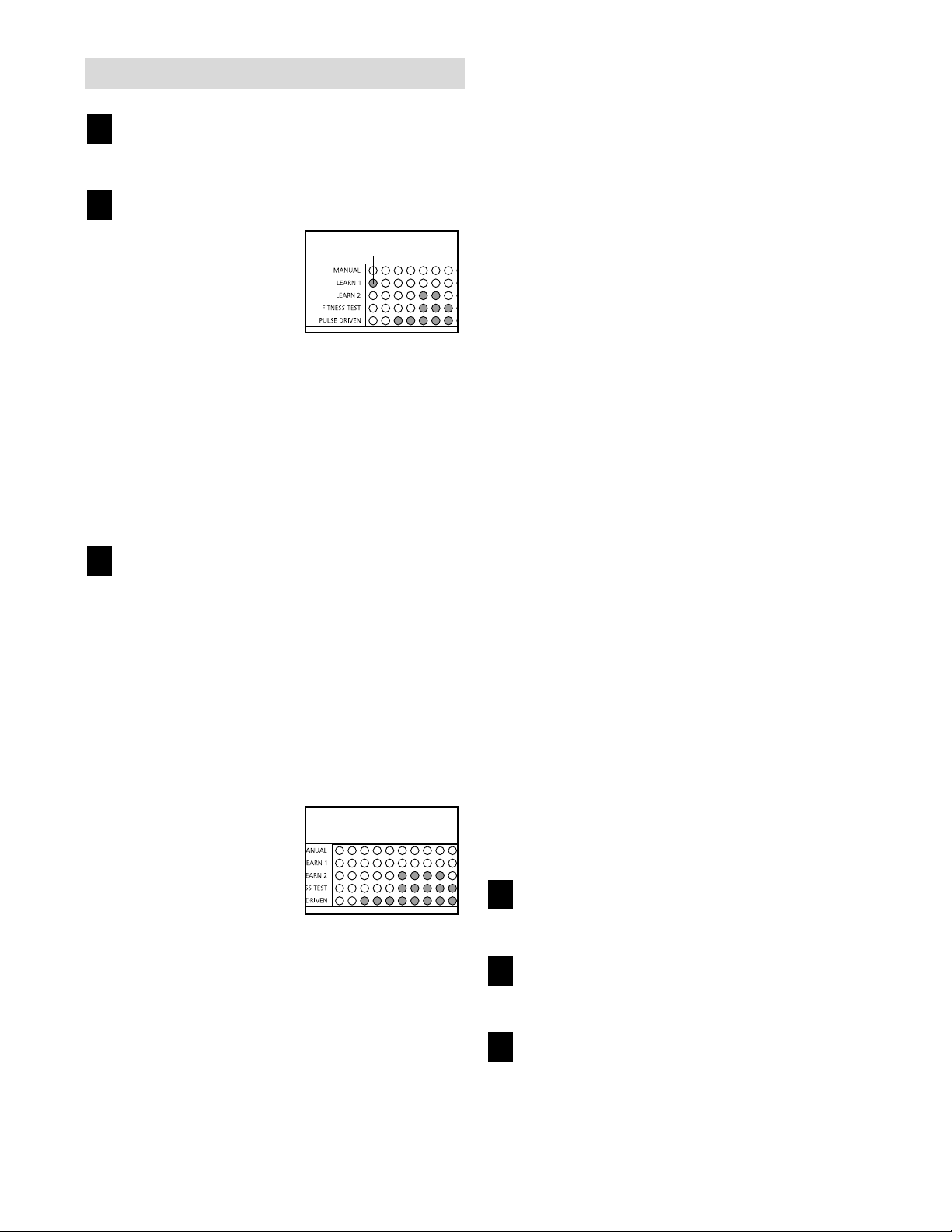

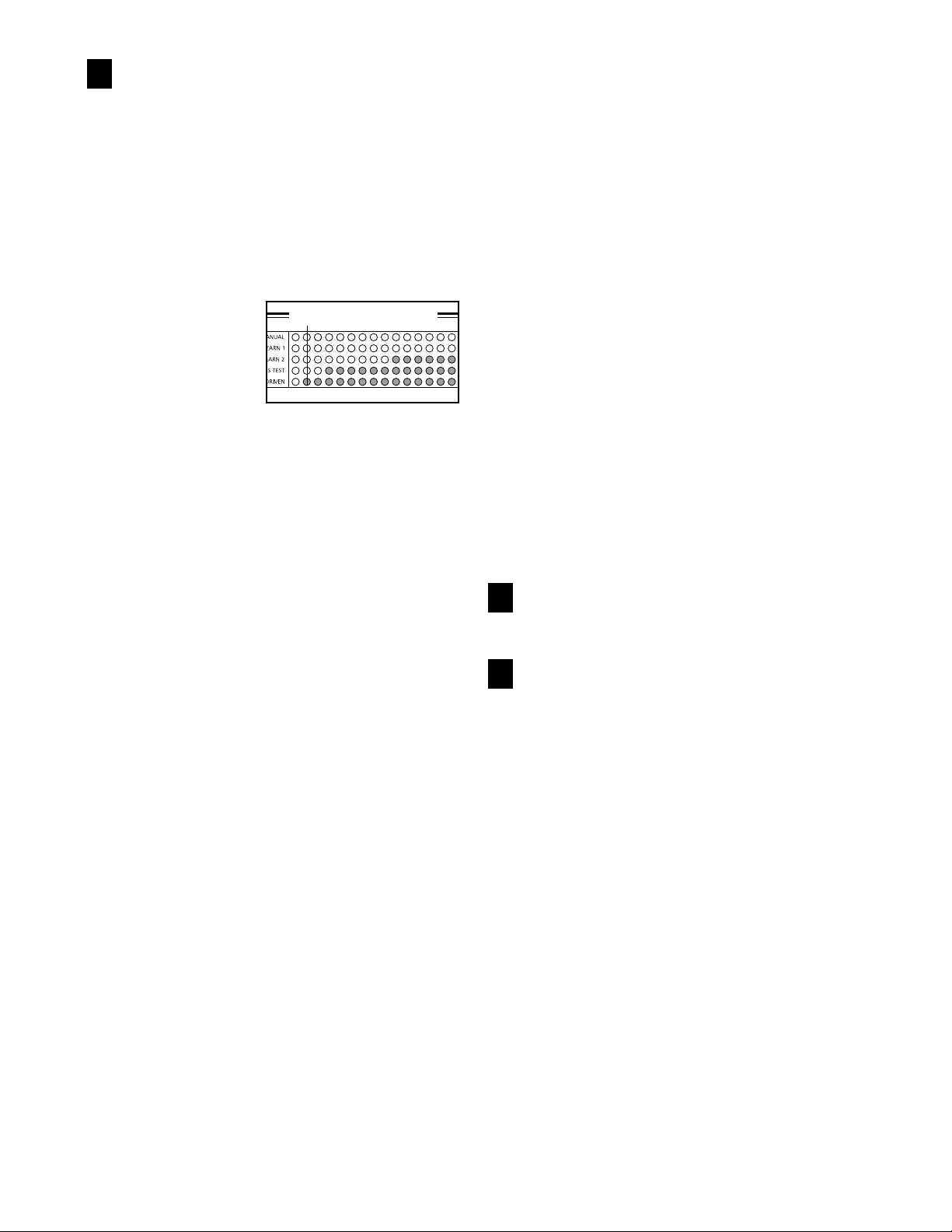

Program
Display
Pulse
Sensor
Pulse
Sensor
Clip
Key
Note: If there is a thin sheet of clear plastic on the face of the console, remove it.
10
GETTING STARTED
Attach the clip to the waistband of your clothes.
Stand on the foot pads of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Next, in­sert the key into the console. Test the clip
by carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the posi­tion of the clip as needed. Then, remove the key
from the console.
Plug in the power cord.
See HOW TO PLUG IN THE POWER CORD on page 8.
Move the on/off switch to the on position.
Locate the on/off switch on the treadmill near the power cord. Move the on/off switch to the on position.
Insert the key fully into the console.
Stand on the foot pads of the treadmill. Make sure that the clip is securely attached to the waistband of your clothes. Next, insert the key into the con­sole. After a moment, various displays and indica­tors on the console will light.
Enter your weight.
Although you can use the console without entering your weight, the console will display your calorie expenditure more accurately if you enter your weight. To enter your weight, press either of the Enter Weight buttons. The current weight set­ting will appear in the Speed/Pace display. Press the Enter Weight buttons again to enter your weight. A few seconds after the buttons are pressed, the weight setting will disappear from the display. Your weight will then be saved in memory.
To use the manual mode of the console, follow the steps beginning on page 11. To use a preset program, see page 12. To create and use a custom program, see pages 14 and 15. To use the fitness test program, see page 16. To use the pulse-driven program, see page 17. To use an iFIT.com CD or video program, see page 21. To use an iFIT.com program directly
from our internet site, see page 23.
5
4
3
2
1
CAUTION:Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn­ing on the power.
• Always wear the clip (see the drawing below) while operating the treadmill.
• Adjust the speed in small increments to avoid sudden jumps in speed.
• The pulse sensor is not a medical device. Various factors, including the user’s move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
• Using hand weights and not holding the handrails may compromise your ability to maintain your balance. Hand weights should be used only by experienced users.
•To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.
On
Position
Clip
11
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See GETTING STARTED on page 10.
Select the manual mode.
When the key is in­serted, the manual mode will be selected and the Manual indica­tor will light. If a program has been selected, press the Select Pro­gram button repeatedly to select the manual mode.
Press the Start button or the Speed + button to start the walking belt.
A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking. As you exercise, change the speed of the walking belt as desired by press­ing the Speed + and – buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed set­ting quickly, press the 1-step Speed buttons. The speed range is 0.5 mph to 12 mph. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected speed setting.
To stop the walking belt, press the Stop button. The Time display will begin to flash. To restart the walking belt, press the Start button or the Speed + button.
During the first few minutes that you use the tread­mill, inspect the alignment of the walking belt, and align the walking belt if necessary (see page 27).
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the Incline
and ▼but­tons. Each time a but­ton is pressed, the in­cline will change by
0.5% (up to 12%). To change the incline setting quickly, press the 1-step Incline buttons. The 1-step incline range is 0% to 10%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.
Follow your progress with the LED track and the displays.
The LED track—When
the manual mode or the iFIT.com mode is se­lected, the program dis­play will show an LED track representing 1/4 mile. As you exercise, the indicators around the track will light in sequence until you have walked or run 1/4 mile. A new lap will then begin.
The Training Zone dis­play—As you exercise,
the Training Zone dis­play will show the ap­proximate intensity level of your exercise. For ex­ample, if three to six indicators in the display are lit, your intensity level is ideal for fat burning.
Incline display—This display shows the incline level of the treadmill.

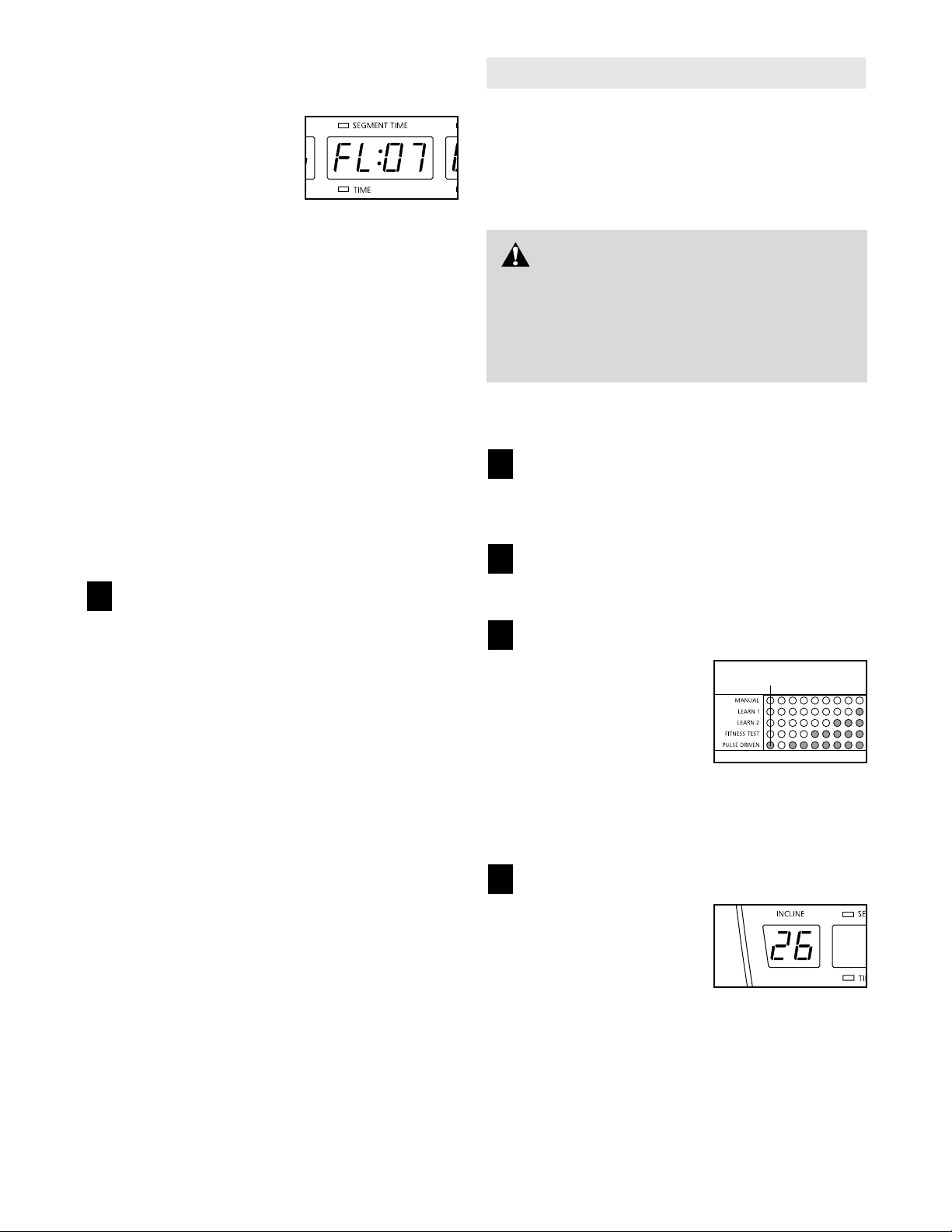

Time display—When the manual mode or the iFIT.com mode is se­lected, this display will show the elapsed time. When a preset program or a custom program is selected, the display will show the time remaining in the program and the time remaining in the current segment of the pro­gram. The display will change from one number to the other every few seconds, as shown by the indi­cators around the display.
Distance/Laps display—This display
shows the distance that you have walked and the number of 1/4-mile laps you have com­pleted. The display will change from one number to the other every few seconds.
Heart Rate/Calories display—This
display shows the approximate number of calories you have burned. When the the handgrip pulse sensor or the optional chest pulse sensor (see page 24) is used, the display will also show your heart rate.
5
4
3
2
1
Manual Indicator
