This preface provides general information about the documentation set for optical
network terminals (ONTs).
1.1Scope
This documentation set provides information about safety, features and functionality,
ordering, hardware installation and maintenance, and software installation
procedures for the current release.
1.2Audience
This documentation set is intended for planners, administrators, operators, and
maintenance personnel involved in installing, upgrading, or maintaining the ONTs.
Preface
1.3Required knowledge
The reader must be familiar with general telecommunications principles.
1.4Acronyms and initialisms
The expansions and optional descriptions of most acronyms and initialisms appear
in the glossary.
1.5Assistance and ordering phone numbers
Nokia provides global technical support through regional call centers. Phone
numbers for the regional call centers are available at the following URL:
http://support.alcatel-lucent.com
For ordering information, contact your Nokia sales representative.
Nokia’s ONT quality practices are in compliance with TL 9000 requirements. These
requirements are documented in the Fixed Networks Quality Manual
3FQ-30146-6000-QRZZA. The quality practices adequately ensure that technical
requirements and customer end-point requirements are met. The customer or its
representatives may be allowed to perform on-site quality surveillance audits, as
agreed upon during contract negotiations
1.7Safety information
For safety information, see the appropriate safety guidelines chapter.
1.8Documents
Documents are available using ALED or OLCS.
Procedure 1To download a ZIP file package of the customer documentation
1Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you
are a new user and require access to this service, please contact your Nokia sales
representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Downloads: Electronic Delivery.
4Choose Documentation from the drop-down menu and click Next.
5Select the image from the drop-down menu and click Next.
6Follow the on-screen directions to download the file.
When there are options in a procedure, they are identified by letters. When there are
required substeps in a procedure, they are identified by roman numerals.
Procedure 3Example of options in a procedure
At step 1, you can choose option a or b. At step 2, you must do what the step indicates.
1This step offers two options. You must choose one of the following:
aThis is one option.
bThis is another option.
2You must perform this step.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
Procedure 4Example of required substeps in a procedure
At step 1, you must perform a series of substeps within a step. At step 2, you must do what the
step indicates.
1This step has a series of substeps that you must perform to complete the step. You must
perform the following substeps:
iThis is the first substep.
iiThis is the second substep.
iiiThis is the third substep.
You can use Adobe Reader Release 6.0 and later to search multiple PDF f iles for a
common term. Adobe Reader displays the results in a single display panel. The
results are grouped by PDF file, and you can expand the entry for each file.
Note — The PDF files in which you search must be in the same
folder.
Procedure 5To search multiple PDF files for a common term
1Open Adobe Acrobat Reader.
2Choose Edit→Search from the Acrobat Reader main menu. The Search PDF panel appears.
Preface
3Enter the search criteria.
4Click on the All PDF Documents In radio button.
5Select the folder in which to search using the drop-down menu.
6Click on the Search button.
Acrobat Reader displays the search results. You can expand the entries for each document
by clicking on the + symbol.
This chapter provides information about the mandatory regulations that govern the
installation and operation of the optical network terminals (ONTs).
2.1Safety instructions
This section describes the safety instructions that are provided in the ONT customer
documentation and on the equipment.
2.1.1Safety instruction boxes
The safety instruction boxes are provided in the ONT customer documentation.
Observe the instructions to meet safety requirements.
ETSI ONT safety guidelines
The following is an example of the Danger box.
Danger — Possibility of personal injury.
The Danger box indicates that the described activity or situation may pose a threat
to personal safety. It calls attention to a situation or procedure which, if no t correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential informat ion to avoid the
degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with ONTs. It
does not provide safety-related instructions.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
2.1.2Safety-related labels
The ONT equipment is labeled with the specific safety instructions and compliance
information that is related to a variant of the ONT. Observe the instructions on the
safety labels.
Table 1 provides sample safety labels on the ONT equipment.
Table 1Safety labels
DescriptionLabel text
ESD warningCaution: This assembly contains an electrostatic sensitive device.
Laser classificationClass 1 laser product
PSE markingThese power supplies are Japan PSE certified and compliant with
Figure 1 shows the PSE certification.
Japan VCCI emissions standards.
18
Edition 01Issue: 01
Page 19
7368 ISAM ONT XS-240W-A XS-250WX-A Product
This is a Class B product based on the standard of the Voluntary Control Council for Interference
from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in
a domestic environment, it may cause radio interference. Install and use the equipment according
to the instruction manual.
•EN 55022 (2006): Class B, Information Technology Equipment, Radio
Disturbance Characteristics, limits and methods of measurement
•EN 55024 (2010): Information Technology Equipment, Immunity Characteristics,
limits and methods of measurement
•European Council Directive 2004/108/EC
•EN 300-386 V1.4.1: 2008
•EN 55022:2006 Class B (ONTs)
2.2.2Equipment safety standard compliance
The ONT equipment complies with the requirements of EN 60950-1, Safety of
Information Technology Equipment for use in a restricted location (per R-269).
The ONT equipment complies with the EN 300 019 European environmental
standards.
2.2.4Laser product standard compliance
For most ONTs, the ONT equipment complies with EN 60825-1 and IEC 60825-2 for
laser products. If there is an exception to this compliance regulation, you can find this
information in the standards compliance section of the unit data sheet in this Product
Guide.
2.2.5Resistibility requirements compliance
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
The ONT equipment complies with the requirements of ITU Recommendation K.21
for resistibility of telecommunication equipment installed in customer premises to
over voltage and overcurrents.
2.2.6Acoustic noise emission standard compliance
The ONT equipment complies with EN 300 753 acoustic noise emission limit and test
methods.
2.3Electrical safety guidelines
This section provides the electrical safety guidelines for the ONT equipment.
Note 1 — The ONTs comply with the U.S. National Electrical
Code. However, local electrical authorities have jurisdiction
when there are differences between the local and U.S.
standards.
The use of any non-Nokia approved power supplies or power adapters is not
supported or endorsed by Nokia. Such use will void any warranty or support contract
with Nokia. Such use greatly increases the danger of damage to equipment or
property.
2.3.2Cabling
The following are the guidelines regarding cables used for the ONT equipment:
•All cables must be approved by the relevant national electrical code.
•The cables for outdoor installation of ONTs must be suitable for outdoor use.
• POTS wiring run outside the subscriber premises must comply with the
requirements of local electrical codes. In some markets, the maximum allowed
length of the outside run is 140 feet (43 m). If the outside run is longer, NEC
requires primary protection at both the exit and entry points for the wire.
ETSI ONT safety guidelines
2.3.3Protective earth
Earthing and bonding of the ONTs must comply with the requirements of local
electrical codes.
2.4ESD safety guidelines
The ONT equipment is sensitive to ESD. Operations personnel must observe the
following ESD instructions when they handle the ONT equipment.
Caution — This equipment is ESD sensitive. Proper ESD
protections should be used when you enter the TELCO Access
portion of the ONT.
During installation and maintenance, service personnel must wear wrist straps to
prevent damage caused by ESD.
2.5Laser safety guidelines
Observe the following instructions when you perform installation, operations, and
maintenance tasks on the ONT equipment.
Only qualified service personnel who are extremely familiar with laser radiation
hazards should install or remove the fiber optic cables and units in this system.
Observe the following danger for laser hazard. Eyes can be damaged when they are
exposed to a laser beam. Take necessary precautions before you plug in the optical
modules.
2.5.1Laser classification
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
Danger — There may be invisible laser radiation at the fiber
optic cable when the cable is removed from the connector.
Avoid direct exposure to the laser beam.
Danger — Possibility of equipment damage. Risk of eye
damage by laser radiation.
The ONT is classified as a Class 1 laser product based on its transmit optical output.
2.5.1.1Laser warning labels
The following figures show the labels related to laser product, classification and
warning.
Figure 2 shows a laser product label.
Figure 2Laser product label
Figure 3 shows a laser classification label. Laser classification labels may be
provided in other languages.
Figure 4 shows a laser warning label and an explanatory label for laser products.
Labels and warning may be provided in other languages. The explanatory label
provides the following information:
ETSI ONT safety guidelines
•a warning that calls attention to the invisible laser radiation
•an instruction against staring into the beam or viewing directly with optical
instruments
•wavelength
•normal output power
•maximum output power
Issue: 01Edition 0123
Page 24
ETSI ONT safety guidelines
INVISIBLE LASER RADIATION
DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Wavelength(s): xxxx nm
Normal output power: xx m W
Max output power: yyy m W
Laser Warning Label
Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE
WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1
RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
The maximum transmit optical output of an ONT is +5 dBm.
2.5.3Normal laser operation
24
In normal operation, fiber cable laser radiation is always off until it receives signal
from the line terminal card.
Eyes can be damaged when they exposed to a laser beam. Operating personnel
must observe the instructions on the laser explanatory label before plugging in the
optical module.
Use cable supports and guides to protect the receptacles from strain.
2.6Environmental requirements
See the ONT technical specification documentation for more information about
temperature ranges.
During operation in the supported temperature range, condensation inside the ONT
caused by humidity is not an issue. To avoid condensation caused by rapid changes
in temperature and humidity, Nokia recommends:
•The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
•If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of
condensation.
•When high humidity is present, installation of a cover or tent over the ONT helps
This chapter provides information about the ETSI environmental China Restriction of
Hazardous Substances (CRoHS) regulations that govern the installation and
operation of the optical line termination (OLT) and optical network termination (ONT)
systems. This chapter also includes environmental operation parameters of general
interest.
3.1Environmental labels
This section describes the environmental instructions that are provided with the
customer documentation, equipment, and location where the equipment resides.
ETSI environmental and CRoHS guidelines
3.1.1Overview
CRoHS is applicable to Electronic Information Products (EIP) manufactured or sold
and imported in the territory of the mainland of the People’s Republic of China. EIP
refers to products and their accessories manufactured by using electronic
information technology, including electronic communications products and such
subcomponents as batteries and cables.
3.1.2Environmental related labels
Environmental labels are located on appropriate equipment. The following are
sample labels.
3.1.2.1Products below Maximum Concentration Value
(MCV) label
Figure 5 shows the label that indicates a product is below the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). Products with this label are recyclable. The label may be found in this
documentation or on the product.
3.1.2.2Products containing hazardous substances above
Maximum Concentration Value (MCV) label
Figure 6 shows the label that indicates a product is above the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). The number contained inside the label indicates the Environment-Friendly
User Period (EFUP) value. The label may be found in this documentation or on the
product.
Together with major international telecommunications equipment companies, Nokia
has determined it is appropriate to use an EFUP of 50 years for network
infrastructure equipment and an EFUP of 20 years for handsets and accessories.
These values are based on manufacturers' extensive practical experience of the
design, manufacturing, maintenance, usage conditions, operating environments,
and physical condition of infrastructure and handsets after years of service. The
values reflect minimum values and refer to products operated according to the
intended use conditions. See “Hazardous Substances Table (HST)” for more
information.
3.2Hazardous Substances Table (HST)
This section describes the compliance of the OLT and ONT equipment to the CRoHS
standard when the product and subassemblies contain hazardous substances
beyond the MCV value. This information is found in this user documentation where
part numbers for the product and subassemblies are listed. It may be referenced in
other OLT and ONT documentation.
In accordance with the People’s Republic of China Electronic Industry Standard
Marking for the Control of Pollution Caused by Electronic Information Products
(SJ/T11364-2006), customers may access the Nokia Hazardous Substance Table,
in Chinese, from the following location:
According to EN 300-019-1-2 - Class 2.3, transportation of the OLT equipment must
be in packed, public transportation with no rain on packing allowed.
3.3.4Stationary use
According to EN 300-019-1-3 - Class 3.1/3.2/3.E, stationary use of OLT equipment
must be in a temperature-controlled location, with no rain allowed, and with no
condensation allowed.
3.3.5Thermal limitations
When the OLT is installed in the CO or CEV, install air filters on the P-OLT. The
thermal limitations for OLT operation in a CO or CEV are:
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
•operating temperature: 5°C to 40°C (41°F to 104°F)
•short-term temperature: –5°C to 50°C (23°F to 122°F)
•operating relative humidity: 5% to 85%
•short-term relative humidity: 5% to 95%, but not to exceed 0.024 kg of water/kg
3.3.6Material content compliance
European Union (EU) Directive 2002/95/EC, “Restriction of the use of certain
Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium,
hexavalent chromium, and certain flame retardants in electrical and electronic
equipment. This Directive applies to electrical and electronic products placed on the
EU market after 1 July 2006, with various exemptions, including an exemption for
lead solder in network infrastructure equipment. Nokia products shipped to the EU
after 1 July 2006 comply with the EU RoHS Directive.
Nokia has implemented a material/substance content management process. The
process is described in: Nokia process for ensuring RoHS Compliance
(1AA002660031ASZZA). This ensures compliance with the European Union
Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS2). With the process equipment is
assessed in accordance with the Harmonised Standard EN50581:2012 (CENELEC)
on Technical documentation for the assessment of electrical and electronic products
with respect to the restriction of hazardous substances.
Electronic products bearing or referencing the symbol shown in Figure 7, when put
on the market within the European Union (EU), shall be collected and treated at the
end of their useful life, in compliance with applicable EU and local legislation. They
shall not be disposed of as part of unsorted municipal waste. Due to materials that
may be contained in the product, such as heavy metals or batteries, the environment
and human health may be negatively impacted as a result of inappropriate disposal.
Note — In the European Union, a solid bar under the symbol for
a crossed-out wheeled bin indicates that the product was put on
the market after 13 August 2005.
Figure 7Recycling/take back/disposal of product symbol
ETSI environmental and CRoHS guidelines
At the end of their life, the OLT and ONT products are subject to the applicable local
legislations that implement the European Directive 2012/19EU on waste electrical
and electronic equipment (WEEE).
There can be different requirements for collection and treatment in different member
states of the European Union.
In compliance with legal requirements and contractual agreements, where
applicable, Nokia will offer to provide for the collection and treatment of Nokia
products bearing the logo shown in Figure 7 at the end of their useful life, or products
displaced by Nokia equipment offers. For information regarding take-back of
equipment by Nokia, or for more information regarding the requirements for
recycling/disposal of product, contact your Nokia account manager or Nokia take
back support at sustainability.global@nokia.com.
This chapter provides information about the mandatory regulations that govern the
installation and operation of the optical network terminals or units (ONTs or ONUs)
in the North American or ANSI market.
4.1Safety instructions
This section describes the safety instructions that are provided in the ONT customer
documentation and on the equipment.
4.1.1Safety instruction boxes in customer
documentation
ANSI ONT safety guidelines
The safety instruction boxes are provided in the ONT customer documentation.
Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
Danger — Possibility of personal injury.
The Danger box indicates that the described activity or situation may pose a threat
to personal safety. It calls attention to a situation or procedure which, if no t correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential informat ion to avoid the
degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with ONTs. It
does not provide safety-related instructions.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
4.1.2Safety-related labels
The ONT equipment is labeled with specific safety compliance information and
instructions that are related to a variant of the ONT. Observe the in structions on the
safety labels.
Table 2 provides examples of the text in the various ONT safety labels.
Table 2Safety labels
DescriptionLabel text
UL complianceCommunication service equipment US listed. Type 3R enclosure -
TUV complianceType 3R enclosure - Rainproof.
ESD warningCaution: This assembly contains electrostatic sensitive device.
Laser classificationClass 1 laser product
Laser product complianceThis laser product conforms to all applicable standards of 21 CFR
FCC standards complianceTested to comply with FCC standards for home or office use.
CDRH complianceComplies with 21 CFR 1040.10 and 1040.11 except for deviations
(1 of 2)
Rainproof.
1040.10 at date of manufacture.
pursuant to Laser Notice No. 50, dated June 24, 2007
34
Edition 01Issue: 01
Page 35
7368 ISAM ONT XS-240W-A XS-250WX-A Product
18533
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
numerique de la class A est conforme a la norme NMB-003 du Canada
Tested to Comply
with FCC Standards
FOR HOME OR OFFICE USE
COMMUNICATION SERVICE EQUIPMENT
US LISTED
27FY
Type 3R Enclosure - Rainproof
CAUTION
This Assembly Contains Electrostatic Sensitive Devices
Operation conditionsThis device complies with Part 15 of the FCC Rules. Operation is
Canadian standard
compliance (modular ONT)
Canadian standard
compliance (outdoor ONT)
CE markingThere are various CE symbols for CE compliance.
(2 of 2)
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
This Class B digital apparatus complies with Canadian ICES-003.
Figure 8 shows a sample safety label on the ONT equipment.
Figure 8Sample safety label on the ONT equipment
ANSI ONT safety guidelines
4.2Safety standards compliance
This section describes the ONT compliance with North American safety standards.
Warning — Changes or modifications to this unit not expressly
Issue: 01Edition 0135
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
The ONT equipment complies with the following requirements:
•Federal Communications Commission (FCC) CFR 47, Part 15, Subpart B, Class
A requirements for OLT equipment
•GR-1089-CORE requirements, including:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
•Section 3 Electromagnetic Interference, Emissions Radiated and Conducted
•Section 3 Immunity, Radiated and Conducted
•Section 2 ESD Discharge Immunity: System Level Electrostatic Discharge and EFT
Immunity: Electrically Fast Transients
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is needed.
•Consult the dealer or an experienced radio/TV technician for help.
4.2.2Equipment safety standard compliance
The ONT equipment complies with the requirements of UL60950-1, Outdoor ONTs
to “Communication Service Equipment” (CSE) and Indoor ONTs to Information
Technology Equipment (ITE).
36
Edition 01Issue: 01
Page 37
7368 ISAM ONT XS-240W-A XS-250WX-A Product
FiOS Enabled
To Order FiOS: 888 GET-FiOSor visit Verizon.com
For Service: 888 553-1555
2301 Sugar Bush Rd.Raleigh, NC 27612
No User Serviceable Parts Inside. Refer All Servicing To Qualified Personnel.
Complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007.
The ONT equipment complies with the following standards:
•GR-63-CORE (NEBS): requirements related to operating, storage, humidity,
altitude, earthquake, office vibration, transportation and handling, fire resistance
and spread, airborne contaminants, illumination, and acoustic noise
•GR-487-CORE: requirements related to rain, chemical, sand, and dust
•GR-487 R3-82: requirements related to condensation
•GR-3108: Requirements for Network Equipment in the Outside Plant (OSP)
•TP76200: Common Systems Equipment Interconnections Standards
4.2.4Laser product standards compliance
The ONT equipment complies with 21 CFR 1040.10 and CFR 1040.11, except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007” or to 21 CFR
1040.10 U.S. Center for Devices and Radiological Health (CDRH) of the Food and
Drug Administration (FDA) Laser Notice 42 for ONTs containing Class 1 Laser
modules certified by original manufactures.
ANSI ONT safety guidelines
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such
as Nokia ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.”
Figure 9 shows a laser product label.
The ONT equipment complies with the requirements of ITU Recommendation K.21
for resistibility of telecommunication equipment installed in customer premises to
overvoltage and overcurrents.
4.3Laser safety guidelines
Only qualified service personnel who are extremely familiar with laser radiation
hazards should install or remove the fiber optic cables and units in this system.
Observe the following warnings when you perform installation, operations, and
maintenance tasks on the ONT equipment.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
Danger — There may be invisible laser radiation at the fiber
optic cable when the cable is removed from the connector.
Avoid direct exposure to beam.
Observe the following danger for a laser hazard. Eyes can be damaged when they
are exposed to a laser beam. Take necessary precautions before you plug in the
optical modules.
Danger — Possibility of equipment damage. Risk of eye
damage by laser radiation.
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such
as Nokia ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.”
4.3.1Laser warning labels
The following figures show sample labels related to laser product, classification and
warning.
Figure 11 shows a laser classification label. Laser classification labels may be
provided in other languages.
Figure 11Laser classification label
ANSI ONT safety guidelines
Figure 12 shows a laser warning label and an explanatory label for laser products.
Explanatory labels may be provided in other languages. The explanatory label
provides the following information:
•a warning that calls attention to the invisible laser radiation
•an instruction against staring into the beam or viewing directly with optical
instruments
•wavelength
•normal output power
•maximum output power
Issue: 01Edition 0139
Page 40
ANSI ONT safety guidelines
INVISIBLE LASER RADIATION
DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Wavelength(s): xxxx nm
Normal output power: xx m W
Max output power: yyy m W
Laser Warning Label
Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE
WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1
RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
The ONT is classified as a Class 1 laser product based on its transmit optical output.
For Class 1 laser products, lasers are safe under reasonably foreseeable conditions
of operation, including the use of optical instruments for intrabeam viewing.
Figure 13 shows a sample laser product safety label on the ONT equipment.
40
Edition 01Issue: 01
Page 41
7368 ISAM ONT XS-240W-A XS-250WX-A Product
18532
3FE55851ABAA
Model:
MFG:
MONTH: XX
YEAR: XXXX
ICS: XX
MRev: XX
MAC:XXXXXXXXXXXX
SN:ALCLXXXXXXXX
FCC ID: XXXXXXXXXXX
This device complies with Part 15 of the FCC Rule.
Operation issubject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including intereference that may cause undesired operation.
ASSEMBLED IN CHINA
2301 Sugar Bush Rd
.
Raleigh, NC 27612
DANGER - Invisible Laser radiation when open.
AVOID DIRECT EXPOSURE TO BEAM.
DANGER - Rayonnement Laser invisible lorsqu’elle
est ouverte. Evitee l’expostion direct au faisceau.
Complies with 21 CFR 1040.10 and 1040.11 except for deviations
pursuant to Laser Notice No. 50 dated June 24, 2007
This section provides the electrical safety guidelines for the ONT equipment.
4.4.1Power supplies
The use of any non-Nokia approved power supplies or power adapters is not
supported or endorsed by Nokia. Such use will void any warranty or support contract
with Nokia. Such use greatly increases the danger of damage to equipment or
property.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
Note — The ONTs comply with the U.S. National Electrical
Code. However, local electrical authorities have jurisdiction
when there are differences between the local and U.S.
standards.
4.4.2Cabling
The following are the guidelines regarding cables used for the ONT equipment:
•Use only cables approved by the relevant national electrical code.
•Use cables suitable for outdoor use for outdoor installation of ONTs.
•The ONTs have been evaluated for use with external POTS wiring without primary
protection that may not exceed 140 ft (43 m) in reach. However, the power cable
must not exceed 100 ft (31 m).
4.4.3Protective earth
Earthing and bonding of the ONTs must comply with the requirements of NEC article
250 or local electrical codes.
4.5ESD safety guidelines
The ONT equipment is sensitive to ESD. Operations personnel must observe the
following ESD instructions when they handle the ONT equipment.
42
Caution — This equipment is ESD sensitive. Proper ESD
protections should be used when entering the TELCO Access
portion of the ONT.
During installation and maintenance, service personnel must wear wrist straps to
prevent damage caused by ESD.
Nokia recommends that you prepare the site before you install the ONT equipment.
In addition, you must control relative humidity, use static dissipating material for
furniture or flooring, and restrict the use of air conditioning.
4.6Environmental requirements
See the ONT technical specification documentation for temperature ranges for
ONTs.
During operation in the supported temperature range, condensation inside the ONT
caused by humidity is not an issue. To avoid condensation caused by rapid changes
in temperature and humidity, Nokia recommends:
•The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
•If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of
condensation.
•When high humidity is present, installation of a cover or tent over the ONT helps
Ethernet interfaces, 1 XGE UNI port, and dual band 11n 3x3
and 11ac 4x4 WiFi radio with on/off switch.
This ONT also has 2 USB 3.0 ports.
Includes a 3-pin US power adapter.
Also includes the power supply described in Table 5.
Ethernet interfaces, 1 XGE UNI port, and dual band 11n 3x3
and 11ac 4x4 WiFi radio with on/off switch.
This ONT also has 2 USB 3.0 ports.
Includes a 3-pin EU (European) power adapter.
Also includes the power supply described in Table 5.
Ethernet interfaces, 1 XGE UNI port, and dual band 11n 3x3
and 11ac 4x4 WiFi radio with on/off switch.
This ONT also has 2 USB 3.0 ports.
Includes a 3-pin UK (British) power adapter.
Also includes the power supply described in Table 5.
BVFM
210BRA
———
———
——
Table 5 provides power supply ordering information about the XS-240W-A and
XS-250WX-A ONT. For more information on power supplies, see the 7368 ISAM ONT Power Supply and UPS Guide.
Bar
code
Table 5XS-240W-A and XS-250WX-A power supply
Power/UPS model Power UPS and cabling part number
information
Delta power adapter,
ADP-66CR BC
(AC power cable not included)
Part number: 1AF29813 AA
AC cable variants:
•1AB076760010 (UK, Ireland,
Middle East)
•1AB076760071 (Europe)
Customer
category or
country
compliance tested
(1)
for
ANSI municipality
United States,
Canada
Common European
Union countries
Notes
AC/DC 12V, 66W, 5.5A power,
Molex DC connector
•1AB076760009 (Australia, New
Zealand, and China)
•1AB076760072 (UK, South Africa,
and Middle East)
•1AB076760073 (ANSI)
Note
(1)
The list of detailed tests (for example, GR-1089i3 (ESD, EFT, RDE, CDE, RDI, and CDI), GR-1089i4 (LightningAC) and marks (for example,
FCC Class B, UL, CE Mark Class B, and K.21) are available from your Nokia technical support representative.
Table 6 provides a summary of the similarities and differences between the
XS-240W-A and the XS-250WX-A ONTs and their variants.
Table 6XS-240W-A and XS-250WX-A comparison
FeatureXS-240W-AXS-250WX-A
PON uplinkXGSPONXGSPON
10G UNI portN/A1 x 10G UNI port
OpticsIntegrated XGSPON optics on boardIntegrated XGSPON optics on board
LEDsAll LEDsNo 10G LED
ANSI (NAR) variant
ETSI (EMEA) variant•EC/WiFi Alliance•EC/WiFi Alliance
XS-240W-A and XS-250WX-A ONTs are designed to cater to business and
residential customer requirements. These ONTs offer data and video service s to the
subscriber.
XS-240W-A and XS-250WX-A indoor ONTs provide the subscriber interface for the
network by terminating the PON interface and converting it to user interfaces that
directly connect to subscriber devices. The ONT is compatible with all existing
subscriber equipment, including analog phones with both tone and rotary dial
capabilities, cordless phones, modems, fax machines, and caller ID boxes (Type I,
Type II, and Type III).
XS-240W-A and XS-250WX-A ONTs feature an XGSPON link. The XS-250WX-A
also provides one 10GE UNI port. Both ONTs provide two POTS ports and four
Ethernet interfaces.
The ONTs also feature a UPS power supply connection, on/off and reset buttons,
and two USB 3.0 ports.
On/off buttons are included for LEDs, WLAN, WPS 2.4G, and WPS 5G.
Figures 14, 15, and 16 show the back and sides of the ONT.
UPS power supplyThis connection supports the UPS power adapter described in Table 5.
Power inputThis connection is provided through the power connector. A power cable fitted with a
On/Off buttonThis button turns the ONT on or off.
Reset buttonPressing the Reset button for less than 10 seconds reboots the ONT; pressing the
LED buttonThis button turns the LEDs on or off.
WLAN buttonWi-Fi service is compliant with IEEE 802.11 standards and is enabled and disabled
WPS buttonsThe Wi-Fi Protected Setup buttons are labeled WPS2.4G and WPS5G. These buttons
USB portsThis connection is provided through 2 USB 3.0 ports. The ONT supports external USB
(1)
Description
barrel connector is used to make the connection.
Reset button for 10 seconds resets the ONT to the factory defaults, except for the
LOID and SLID.
using the WLAN button.
enable and disable WLAN data encryption.
hard drives that can be made accessible to all LAN devices.
The following rates apply to the USB 3.0 ports:
•Rate current: 900mA
•Maximum continuous current: 1.5A
•Typical short-circuit current: 2.3A
(2 of 2)
Note
(1)
The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the power
connector.
5.5XS-240W-A and XS-250WX-A LEDs
Figure 18 shows the XS-240W-A and XS-250WX-A indoor ONT LEDs.
Phone is off hook
Phone is in ‘call in’ or ‘talking’ condition
Phone is on hook
VOIP service is built up and can provide service
VOIP service is not built up or out of service
WiFi protected setup link is up (negotiation and auto-configuration successful)
WiFi protected setup link activity (negotiation and auto-configuration ongoing)
WiFi protected setup link down or no link connected (negotiation has not started or has failed)
WLAN link is enabled
Traffic is passing via WLAN link
WLAN link is disabled
WLAN link is enabled
Traffic is passing via WLAN link
WLAN link is disabled
At least one USB device is connected
There is traffic activity on at least on USB device
No USB device is connected
HSI WAN is connected: a) the device has an IP address assigned from IPCP, DHCP, or static,
and no traffic has been detected; b) the session is dropped due to idle timeout but the PON
link is still present.
PPPoE or DHCP connection in progress
HSI WAN is not connected: a) there is no physical interface connection; b) the device is in
bridged mode without an assigned IP address; c) the session has been dropped for reasons
other than idle timeout.
(2 of 2)
5.6XS-240W-A and XS-250WX-A detailed
specifications
Table 10 lists the physical specifications for XS-240W-A and XS-250WX-A indoor
ONTs.
Table 10XS-240W-A and XS-250WX-A indoor ONT physical specifications
DescriptionSpecification
Length11.4 in. (290 mm)
Width8.4 in. (213 mm)
Height3.8 in. (96 mm)
Weight [within ± 0.5 lb (0.23 kg)]3.25 lb (1.48 kg)
5.8XS-240W-A and XS-250WX-A performance
monitoring statistics
The following section identifies the supported performance monitoring statistics for
XS-240W-A and XS-250WX-A ONTs. A check mark indicates the statistic is
supported on that ONT. An empty cell indicates the statistic is not supported. The
following tables are categorized by supported alarm types:
•Table 14 provides statistics for ONTENET type counters
•Table 15 provides statistics for PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, and PONONTTCVOIP type counters
•Table 16 provides statistics for PONONTTC aggregate type counters
Note — If you have trouble accessing XS-240W-A and
XS-250WX-A ONTs performance monitoring statistics using
TL1, please contact your Nokia support representative for more
information about how to access and retrieve performance
monitoring type counters.
XS-240W-A and XS-250WX-A unit data sheet
Table 14Package P ONTs ONTENET performance monitoring statistics
ONTONTENET statistics
LC
EC
FCSE
XS-240W-A and
XS-250WX-A
Note
(1)
A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
(1)
✓✓✓✓✓
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
Table 16Package P ONTs PONONTTC aggregate performance monitor-
ing statistics
ONTPONONTTC (aggregate) statistics
XS-240W-A and
XS-250WX-A
(1)
TXBLOCKS
✓✓✓✓✓
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
58
Note
(1)
A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
5.9XS-240W-A and XS-250WX-A functional
blocks
XS-240W-A and XS-250WX-A indoor ONTs are single-residence ONTs that support
Wireless (Wi-Fi) service. Wi-Fi service on these ONTs is compliant with the IEEE
802.11 standard and enabled or disabled using a WLAN button. In addition to the
Wi-Fi service, these ONTs transmit Ethernet packets to four RJ-45 Ethernet ports
and voice traffic to two RJ-11 POTS ports. These ONTs also feature XGPON1 fiber
optic, USB, and power connectors.
Figure 20XS-240W-A and XS-250WX-A ONT hardware block
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
ONT SoC technology consists of five key elements:
•GPON MAC
The Gigabit Passive Optical Network Media Access Control (GPON MAC)
element on the SoC terminates the GPON interface using an optical diplexer. This
interface supports GPON as described in G.984.3 (GPON TC Layer) ITU
specification.
•Ethernet MAC
The SoC provides up to four GE MACs.
•DSP interface
The Digital Signal Processor (DSP) provides voice processing for 2 POTS lines
with 3-way calling. The DSP has a dedicated 64 kbyte instruction cache and
shares a 32 kbyte data cache with the Control Processor. It provides up to 4
network processor cores, each at 800MHz.
•Control Processor
The Control Processor features an integral memory management unit that
supports a dedicated 64 kbyte instruction cache and shares a single 32 kbyte data
cache with the DSP. The Control Processor and DSP also include a single
channel Data Management Application (DMA) controller with a 4 kbyte read
ahead low-latency Dynamic Random Access Memory (DRAM) access port.
•Switch matrix
The Switch matrix provides an integrated data channel between the four GE
MACs, the GPON MAC, the DSP, the control processor, and the other integrated
elements such as flash memory, DRAM, and the local bus controller.
5.10.2Energy-related products standby and off modes
compliance
Hereby, Nokia declares that the XS-240W-A and XS-250WX-A ONTs are in
compliance with the essential requirements and other relevant provisions of Directive
2009/125/EC together with Commission Regulation (EC) No 1275/2008 and
Commission Regulation (EC) No 801/2013.
The XS-240W-A and XS-250WX-A ONTS qualify as equipment with high network
availability (HiNA) functionality. Since the main purpose of XS-240W-A and
XS-250WX-A ONTs is to provide network functionality with HiNA 7 days /24 hours,
the modes Off/Standby, Power Management, and Networked Standby are
inappropriate.
For information about the type and number of network ports, see “XS-240W-A and
XS-250WX-A interfaces and interface capacity” in this chapter.
For information about power consumption, see “XS-240W-A and XS-250WX-A
detailed specifications” in this chapter.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
5.10.3FCC statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment
must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter. End-users and installers must
be provided with antenna installation instructions and consider removing the
no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including interference that
may cause undesired operation.
Caution — Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
XS-240W-A and XS-250WX-A unit data sheet
5.11XS-240W-A and XS-250WX-A special
considerations
XS-240W-A and XS-250WX-A are package P ONTs.
5.11.1Wi-Fi service
XS-240W-A and XS-250WX-A indoor ONTs feature Wi-Fi service as well as voice
and data services. Wi-Fi is a wireless networking technology that uses radio waves
to provide wireless HSI and network connections. This ONT complies with the IEEE
802.11 standards, which the Wi-Fi Alliance defines as the basis for Wi-Fi technology.
5.11.1.1Wi-Fi physical features
XS-240W-A and XS-250WX-A indoor ONTs have the following physical features that
assist in providing Wi-Fi service:
•WLAN button for enabling and disabling Wi-Fi service
•7 internal antennae: 3 for 2.4G and 4 for 5G
•two Wi-Fi Protected Setup (WPS) push buttons (one each for 2.4G and 5G) for
•Service Codes for the following features: CCW, Call Hold and Warmline
The following features are not supported in Release 5.6: port triggering, port mirroring, parental control (access
restrictions), and policy-based forwarding (in IP routing and QoS configuration).
Note 1 — Observe the local and national laws and regulations
that may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local
authorities and practices take precedent when there is
conflict between the local standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service
personnel.
•Indoor ONTs must be installed with cables that are suitably
rated and listed for indoor use.
•See the detailed specifications in the XS-240W-A and
XS-250WX-A unit data sheet for the temperature ranges for
these ONTs.
6.6Procedure
Install an XS-240W-A or XS-250WX-A indoor ONT
Use this procedure to install an XS-240W-A or XS-250WX-A indoor ONT.
1Place the indoor ONT unit:
aOn the flat surface, such as a desk; go to step 3.
Note — The XS-240W-A or XS-250WX-A cannot be stacked with
another ONT or with other equipment. The ONT mounting requirements
are:
•allow a minimum 100 mm clearance above the top cover
•allow a minimum 50 mm clearance from the side vents
•do not place any heat source directly above the top cover or below the
bottom cover
bOn a wall, go to step 2.
2Mount the XS-240W-A or XS-250WX-A indoor ONT on a wall.
The XS-240W-A or XS-250WX-A indoor ONT must be mounted in a horizontal position, as
indicated by the wall mounting key holes in Figure 21. If possible, mount the ONT on a wall
stud.
iAttach the wall mount adapter bracket (shipped wit h the ONT) to the two wall mounting
keyholes on the ONT.
Figure 21XS-240W-A and XS-250WX-A indoor ONT wall mounting key
holes
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
68
iiAttach the ONT to the wall.
3Review the connection locations as shown in Figures 22.
Figure 22XS-240W-A and XS-250WX-A indoor ONT connections
Note that the 10 GE UNI port is only featured on the XS-250WX-A.
4Connect the Ethernet cables to the RJ-45 ports; see Figure 22 for the location of the RJ-45
Read the following safety information before replacing the unit.
Danger 1 — Hazardous electrical voltages and currents can
cause serious physical harm or death. Always use insulated
tools and follow proper safety precautions when connecting or
disconnecting power circuits.
Danger 2 — Make sure all sources of power are turned off and
have no live voltages present on feed lines or terminals. Use a
voltmeter to measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access
cover of the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
Note 1 — Observe the local and national laws and regulations
that may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local
authorities and practices take precedent when there is
conflict between the local standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service
personnel.
•Indoor ONTs must be installed with cables that are suitably
rated and listed for indoor use.
•See the detailed specifications in the XS-240W-A and
XS-250WX-A unit data sheet for the ONT temperature
9If required, have approved service personnel who are trained to work with optic fiber clean
the fiber optic connection. See the 7368 ISAM ONT Configuration, Management, and Troubleshooting Guide for more information about fiber optic handling, inspection, and
cleaning.
iLocate the WPS buttons on the ONT; see Figure 24 for location of the WPS buttons for
2.4G and 5G Wi-Fi.
iiPress the WPS buttons to change the status of the Wi-Fi Protected Service.
16If used, configure the SLID; see the 7368 ISAM ONT Configuration, Management, and
Troubleshooting Guide for more information.
Note — A new SLID or the old SLID may be used with the replacement
ONT. If a new SLID is used, the new SLID must also be programmed at
the P-OLT using TL1 or a network manager. If the old SLID is used, no
changes need to be made at the P-OLT; see the operations and
maintenance documentation for the OLT for more details.
17Verify the ONT LEDs, voltage status, and optical signal levels; see the 7368 Hardware and
Cabling Installation Guide.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
18Activate and test the services; see the 7368 Hardware and Cabling Installation Guide.
19If necessary, reset the ONT.
iLocate the Reset button on a XS-240W-A or XS-250WX-A indoor ONT as shown in
Figure 25.
iiInsert the end of a straightened paper clip or other narrow object into the hole in the
Please refer to the configuration information provided with your OLT for the software
configuration procedure for an XS-240W-A or XS-250WX-A ONT.
For HTTP configuration procedures, please refer to the 7368 ISAM ONT Configuration, Management, and Troubleshooting Guide.
Configure an XS-240W-A or XS-250WX-A indoor
ONT
8.2HGU mode GUI configuration
Use the procedures below to use the web-based GUI for the XS-240W-A or
XS-250WX-A in HGU mode. This mode is preset at delivery.
A home gateway unit (HGU) is a home networking device, used as a gateway to
connect devices in the home through fiber to the Internet. An HGU provides a variety
of features for the home network including routing and firewall capability. By using
the HGU, users can connect all smart equipment in their home, including personal
computers, set-top boxes, mobile phones, and other consumer electronics devices,
to the Internet.
8.2.1Login
Use the procedure below to login to the web-based GUI for the XS-240W-A or
XS-250WX-A.
Procedure 6Login to web-based GUI
1Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears.
The default gateway IP address is http://192.168.1.254. You can connect to this IP address
using your web browser after connecting your PC to one of Ethernet ports of the ONT. The
static IP address of your PC must be in the same 192.168.1.x subnet as the ONT.
1Select Status > Device Information from the top-level menu in the 10G PON Gateway
window, as shown in Figure 27.
Figure 27Device Information window
Configure an XS-240W-A or XS-250WX-A indoor
ONT
Table 19 describes the fields in the Device Information window.
Table 19Device Information parameters
FieldDescription
Device NameName on the ONT
VendorName of the vendor
Serial NumberSerial number of the ONT
Hardware versionHardware version of the ONT
Boot versionBoot version of the ONT
Software versionSoftware version of the ONT
Wireless StatusIndicates whether the wireless is on or off
Wireless ChannelWireless channel number
SSID NameName of each SSID
Wireless Encryption StatusEncryption type used on the wireless connection
Wireless Rx PacketsNumber of packets received on the wireless connection
Wireless Tx PacketsNumber of packets transmitted on the wireless connection
Wireless Rx BytesNumber of bytes received on the wireless connection
Wireless Tx BytesNumber of bytes transmitted on the wireless connection
Power Transmission (mW)Power of the wireless transmission, in mW
Ethernet Information
Ethernet StatusIndicates whether the Ethernet connection is on or off
Ethernet IP AddressIP address of the Ethernet connection
Ethernet Subnet MaskSubnet Mask of the Ethernet connection
Ethernet MAC AddressMAC address of the Ethernet connection
Ethernet Rx PacketsNumber of packets received on the Ethernet connection
Ethernet Tx PacketsNumber of packets transmitted on the Ethernet connection
Ethernet Rx BytesNumber of bytes received on the Ethernet connection
Ethernet Tx BytesNumber of bytes transmitted on the Ethernet connection
LAN 1 to 4 and LAN 5 (10G)
information
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
This panel displays the following information for each LAN:
•status (up or down)
•duplex mode (full or auto)
•max bit rate
•errors received
•errors sent
•packets received
•packets sent
•bytes received
•bytes sent
84
(2 of 2)
2Click Refresh to update the displayed information.
1Select Status > WAN Status from the top-level menu in the 10G PON Gateway window, as
shown in Figure 29.
Figure 29WAN status window
Configure an XS-240W-A or XS-250WX-A indoor
ONT
Table 21 describes the fields in the WAN status window.
Table 21WAN status parameters
FieldDescription
WAN connection listDrop-down menu listing all WAN connections. The connection shown is the
Connection ModeConnection mode of the WAN connection
Enable/DisableSelect this checkbox to enable the WAN connection
VLANVLAN ID
WAN Link StatusWhether the WAN link is up or down
IPv4 AddressIPv4 address
NetmaskNetmask
GatewayIPv4 gateway address
Primary DNSPrimary Domain Name Server
Second DNSSecondary Domain Name Server
PON Link StatusWhether the PON link is up or down
Tx PacketsNumber of packets transmitted on the WAN connection
Rx PacketsNumber of packets received on the WAN connection
Tx DroppedNumber of packets dropped on the transmit WAN connection
Rx DroppedNumber of packets dropped on the receive WAN connection
Err PacketsNumber of errored packets on the WAN connection
(2 of 2)
2Click Refresh to update the displayed information.
1Select Status > WAN Status IPv6 from the top-level menu in the 10G PON Gateway window,
as shown in Figure 30.
Figure 30WAN status IPv6 window
Configure an XS-240W-A or XS-250WX-A indoor
ONT
Table 22 describes the fields in the WAN status IPv6 window.
Table 22WAN status IPv6 parameters
FieldDescription
WAN connection listDrop-down menu listing all WAN connections. The connection
Enable/DisableSelect this checkbox to enable the WAN connection
VLANVLAN ID
WAN Link StatusWhether the WAN link is up or down
IPv6 AddressIPv6 address that identifies the device and its location
IPv6 PrefixIPv6 Prefix
IPv6 GatewayIPv6 Gateway address
Primary DNSPrimary Domain Name Server
(1 of 2)
shown is the connection for which WAN status will be shown.
Second DNSSecondary Domain Name Server
PON Link StatusWhether the PON link is up or down
Tx PacketsNumber of packets transmitted on the WAN connection
Rx PacketsNumber of packets received on the WAN connection
Tx DroppedNumber of packets dropped on the transmit WAN connection
Rx DroppedNumber of packets dropped on the receive WAN connection
Err PacketsNumber of errored packets on the WAN connection
(2 of 2)
2Click Refresh to update the displayed information.
1Select Status > Home Networking from the top-level menu in the 10G PON Gateway window,
as shown in Figure 31.
Figure 31Home networking information window
Configure an XS-240W-A or XS-250WX-A indoor
ONT
Table 23 describes the fields in the Home networking window.
Table 23Home networking parameters
FieldDescription
Local Interface
EthernetTable displays the number of Ethernet connections and their settings
WirelessTable displays the number of wireless connections and their settings
Wireless Settings
Network NameName of the wireless network
Access PointAddress of the wireless access point
1Select Status > Voice Information from the top-level menu in the 10G PON Gateway window,
as shown in Figure 34.
Figure 34Voice Information window
Configure an XS-240W-A or XS-250WX-A indoor
ONT
Table 25 describes the fields in the Voice Information window.
Table 25Voice Information parameters
FieldDescription
LineSelect the POTS line: 1 or 2
Line StatusStatus of the selected POTS line: IDLE, Off Hook, or On Hook
Softswitch
Phone number
Register StatusRegistration status of the selected POTS port: registered or
Register Error CodeError code for the unregistered POTS port
Register Error ReasonError reason for the unregistered POTS port
Note
(1)
(1)
(1)
This field is only visible at the adminGPON level; it is not visible at the userAdmin level.
Proxy IP address; blank if the line is not registered
Phone number configured for the selected telephone line
Port Mode Port 1 - 4 and Port 5 (10G)Drop-down port mode for each port: Route mode or bridge mode
IPv4 AddressIP Address of the ONT
Subnet MaskSubnet mask of the ONT
DHCP enableSelect this checkbox to enable DHCP
DHCP Start IP AddressStarting DHCP IP address
DHCP End IP AddressEnding DHCP IP address
DHCP Lease TimeDHCP lease time (in min)
Primary DNSPrimary DNS identifier
Secondary DNSSecondary DNS identifier
Static DHCP Entry MAC AddressMAC address for the static DHCP
Static DHCP Entry IPv4 AddressIPv4 address for the static DHCP
(2 of 2)
2Select the mode for each port.
7368 ISAM ONT XS-240W-A XS-250WX-A Product
Guide
3Click Save.
4Enter the DHCP configuration information.
5Click Save.
6Enter the Static DHCP information.
7Click Add.
You can also use this panel to delete a Static DHCP MAC address or IPv4 address.

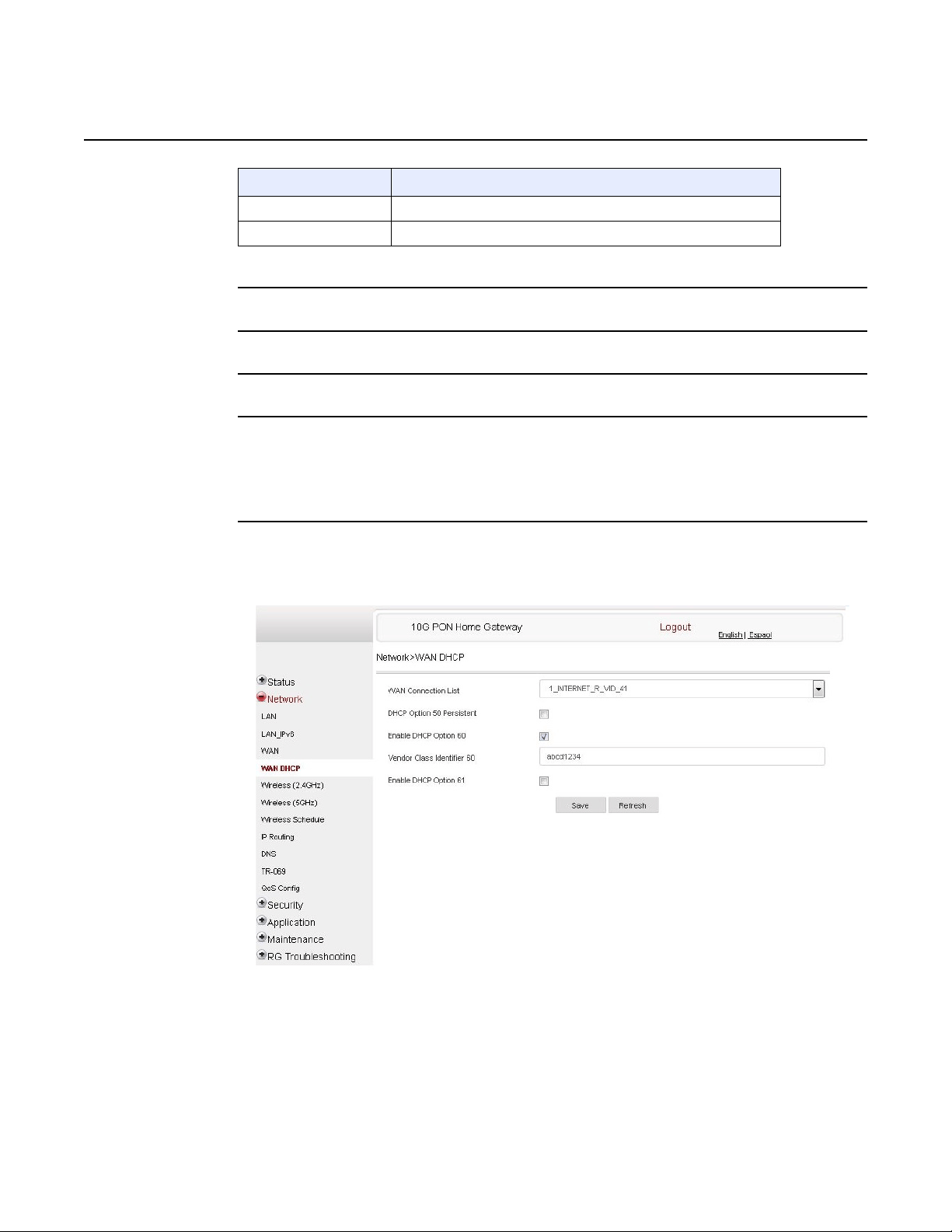

1Select Network > WAN from the top-level menu in the 10G PON Gateway window, as shown
in Figure 37.
Figure 37WAN network window
Configure an XS-240W-A or XS-250WX-A indoor
ONT
Table 28 describes the fields in the WAN network window.
Table 28WAN network parameters
FieldDescription
WAN Connection ListChoose a WAN connection from the drop-down menu to set the
Connection TypeSelect a connection type: IPoE or PPPoE
IP ModeChoose an IP mode from the drop-down menu: IPv4 or IPv6
Enable/DisableSelect this checkbox to enable the WAN connection
NATSelect this checkbox to enable NAT
ServiceSelect the checkboxes to enable service types for this connection
Enable VLANSelect this checkbox to enable VLAN
VLAN IDEnter the VLAN ID
VLAN PRIEnter the VLAN PRI
