Nokia N70 Service Manual 2 parts lists and component layouts

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 1–2 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Table of Contents

Exploded view..................................................................................................................................................................................1–5

Spare parts overview.....................................................................................................................................................................1–6

Parts lists............................................................................................................................................................................................1–7

RM-84 mechanical spare parts lists.....................................................................................................................................1–7

Component parts lists..............................................................................................................................................................1–8

Component layouts......................................................................................................................................................................1–53

List of Tables

Table 1 RM-84 component parts list (1MV_15).......................................................................................................................1–8

Table 2 RM-99 component parts list (1PP_15).....................................................................................................................1–24

List of Figures

Figure 1 RM-84 component layout - bottom view (1MV_15)..........................................................................................1–53

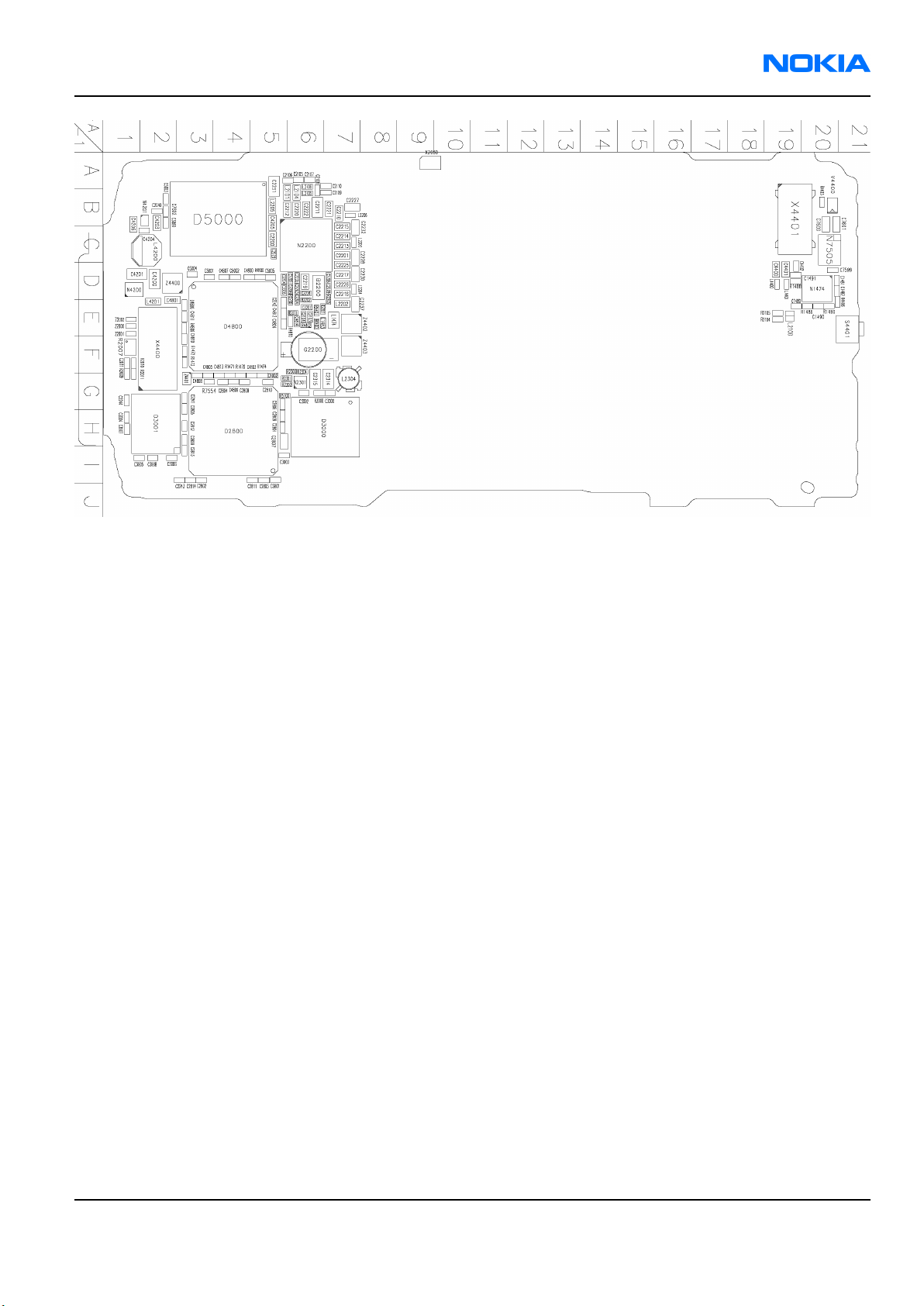

Figure 2 RM-84 component layout - top view (1MV_15)..................................................................................................1–54

Figure 3 RM-99 component layout - bottom view (1PP_15)...........................................................................................1–54

Figure 4 RM-99 component layout - top view (1PP_15)...................................................................................................1–55

Issue 1 Company Confidential Page 1–3

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 1–4 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Exploded view

Issue 1 Company Confidential Page 1–5

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Spare parts overview

Page 1–6 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Parts lists

RM-84 mechanical spare parts lists

Note: For Nokia product codes, please refer to the latest Service Bulletins on the Partner Website (PWS).

To ensure you are always using the latest codes, please check the PWS on a daily basis.

Bold = ASSY

ITEM/ CIRCUIT REF. QTY PART NAME

I001 1 A COVER ASSY

I002 1 MMC DOOR

I003 1 KEYMAT

I004 6 SCREW RF 1.8X9

1 UI FRAME ASSY

I005 1 UI FRAME

I006 1 BEZEL GROUND SPRING

I007 4 LCD GROUND PIN

I008 1 EARPIECE

I009 1 EARPIECE ADHESIVE

1 1NC UI PWB ASSY

I010 1 UI PWB

I011 1 SWITCH

I012 1 DOMESHEET

I013 1 BB SHIELD ASSEMBLY

I014 1 LCD AM 176X208

I015 1 CAMERA GASKET

I016 1 CMOS CAMERA MODULE

I017 1 ENGINE MODULE

I018 1 GSM PA SHIELDING LID

I019 1 WCDMA PA SHIELDING LID

I020 1 TAHVO SHIELDING LID

I021 1 HINKU / VINKU SHIELDING LID

I022 1 FLASH SHIELDING LID ASSY

I023 1 CAMERA MODULE 2MP

1 CHASSIS ASSY

I024 1 CHASSIS

Issue 1 Company Confidential Page 1–7

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

ITEM/ CIRCUIT REF. QTY PART NAME

I025 1 DC JACK 2mm

I026 1 MICROPHONE

I027 1 VIBRA MOTOR

I028 1 IHF SPEAKER

I029 1 IHF TOP PAD

I030 1 SLIDE DETECT LEVER

I031 1 SIM FLAP

I032 1 BT ANTENNA ASSY

I033 1 IHF COVER ASSY

I034 1 LED FLASH

I035 1 CAMERA REAR BEZEL ASSY

I036 1 CAMERA REAR BEZEL ADHESIVE

1 ANTENNA ASSY

I037 1 ANTENNA RADIATOR GSM

I038 1 ANTENNA RADIATOR WCDMA

I039 1 ANTENNA MODULE

I040 1 TYPE LABEL

I041 1 ANTENNA COVER

I042 1 POWER BUTTON

I043 1 BATTERY COVER

Component parts lists

Table 1 RM-84 component parts list (1MV_15)

Note: For Nokia product codes, please refer to the latest Service Bulletins on the Partner Website (PWS).

To ensure you are always using the latest codes, please check the PWS on a daily basis.

BTM = Bottom

Item Side Grid ref. Description and value Type

A7003 BTM D 10 SHIELD RM-84 RF ~ SHIELD_RM-84_RF

A7004 BTM B 7 SHIELD RM-84 VCO ~ SHIELD_RM-84_VCO

A7005 BTM E 12 SHIELD RM-84 GSM FLASH ~ SHIELD_RM-84_FLASH

A7006 BTM D 6 SHIELD RM-84 TAHVO ~ SHIELD_RM-84_TAHVO

A7007 BTM C 13 SHIELD RM-84 GSM WCDMA PA ~ SHIELD_RM-84_WCDMA_PA

A7008 BTM H 17 SHIELD RM-84 GSM PA ~ SHIELD_RM-84_GSM_PA

CRYSTAL 32.768KHZ +-20PPM

B2200 Top D 6

Page 1–8 Company Confidential Issue 1

12.5PF

32.768k Hz CRYSTAL_3.3X1.6_H0.9

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

C1470 BTM D 15 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C1471 BTM F 18 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C1472 BTM F 6 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C1473 BTM G 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C1476 Top I 19 Chipcap 5% NP0 27p 0402C

C1477 Top G 19 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C1478 Top I 19 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C1479 BTM E 14 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C1480 BTM D 14 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C1481 Top D 20 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C1482 Top D 20 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C1483 Top E 6 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C1484 BTM E 12 CHIPCAP X5R 4U7 K 6V3 0805 4u7 0805C

C1485 BTM E 13 CHIPCAP 2U2 K 25V 1206 2u2 1206C_H1.8

C1486 BTM E 13 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C1487 BTM C 15 Chipcap 5% NP0 10p 0402C

C1488 BTM C 15 Chipcap 5% NP0 10p 0402C

C1489 Top E 19 Chipcap 5% NP0 22p 0402C

C1490 Top E 20 Chipcap 5% NP0 22p 0402C

C1491 Top D 19 Chipcap 5% NP0 22p 0402C

C2000 BTM C 3 Chipcap 5% NP0 27p 0402C

C2002 BTM F 3 CHIPCAP X5R 2U2 K 6V3 0603 2u2 0603C

C2003 BTM F 3 CERCAP X7R 22N K 16V 0402 22n 0402C

C2004 BTM G 3 CERCAP X7R 22N K 16V 0402 22n 0402C

C2005 BTM F 2 Chipcap X7R 10% 16V 0402 10n 0402C

C2006 BTM G 2 Chipcap X7R 10% 16V 0402 10n 0402C

C2007 BTM G 2 Chipcap X7R 10% 16V 0402 10n 0402C

C2008 BTM G 2 Chipcap X7R 10% 16V 0402 10n 0402C

C2009 BTM G 2 Chipcap X7R 10% 16V 0402 10n 0402C

C2010 BTM G 3 Chipcap X7R 10% 16V 0402 10n 0402C

C2011 Top F 1 CHIPCAP NP0 270P J 25V 0402 270p 0402C

C2012 BTM C 3 CHIPCAP X5R 1U K 25V 0603 1u0 0603C_H0.95

C2070 BTM G 14 Chipcap 5% NP0 15p 0402C

C2072 BTM I 15 Chipcap 5% NP0 15p 0402C

C2100 BTM F 2 CHIPCAP X7R 15N K 16V 0402 15n 0402C

Issue 1 Company Confidential Page 1–9

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

C2101 BTM F 2 CHIPCAP X7R 15N K 16V 0402 15n 0402C

C2102 BTM F 2 CHIPCAP X5R 2U2 K 6V3 0603 2u2 0603C

C2103 Top E 6 Chipcap 5% X7R 1n0 0402C

C2104 Top E 6 Chipcap 5% X7R 1n0 0402C

C2105 Top A 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2106 Top A 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2107 Top A 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2108 Top B 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2109 Top B 7 Chipcap X7R 10% 50V 0402 1n0 0402C

C2110 Top A 7 Chipcap X7R 10% 50V 0402 1n0 0402C

C2200 Top C 5 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2201 Top C 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2202 Top D 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2203 Top D 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2204 Top E 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2205 Top D 5 Chipcap X7R 10% 50V 0402 1n0 0402C

C2206 Top D 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2207 Top E 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2208 Top D 7 Chipcap 5% NP0 27p 0402C

C2209 Top D 7 Chipcap 5% NP0 22p 0402C

C2210 Top B 7 CHIPCAP X5R 1U K 16V 0603 1u0 0603C

C2211 Top B 6 CHIPCAP X5R 4U7 K 10V 0805 4u7 0805C

C2212 Top B 6 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2213 Top C 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2214 Top C 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2215 Top C 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2216 Top D 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2217 Top D 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2219 Top D 6 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2220 Top B 6 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2221 Top B 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2222 Top B 6 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2223 Top C 5 Chipcap X7R 10% 16V 0402 10n 0402C

C2224 Top D 5 Chipcap X7R 10% 16V 0402 10n 0402C

C2225 Top D 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

Page 1–10 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

C2226 Top D 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2227 Top B 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2228 Top C 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2230 Top D 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2231 Top A 5 CHIPCAP X5R 10U M 6V3 0805 10U 0805C

C2232 Top C 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2234 Top D 6 Chipcap 5% NP0 27p 0402C

C2235 Top D 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2237 Top E 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2240 Top B 2 Chipcap 5% NP0 12p 0402C

C2241 Top G 3 Chipcap 5% NP0 12p 0402C

C2242 Top E 5 Chipcap 5% NP0 12p 0402C

C2243 Top I 3 Chipcap 5% NP0 12p 0402C

C2244 Top G 1 Chipcap 5% NP0 12p 0402C

C2300 BTM D 5 Chipcap X7R 10% 16V 0402 10n 0402C

C2301 BTM D 6 CHIPCAP X5R 22U M 6V3 0805 22u 0805C

C2302 BTM D 5 CHIPCAP X5R 22U M 6V3 0805 22u 0805C

C2303 BTM D 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2304 BTM C 6 Chipcap X7R 10% 16V 0402 10n 0402C

C2307 BTM E 7 CHIPCAP X5R 2U2 K 6V3 0603 2u2 0603C

C2309 BTM E 5 CHIPCAP X5R 22U M 6V3 0805 22u 0805C

C2312 BTM E 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2313 BTM E 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C2314 Top G 7 CHIPCAP X5R 4U7 M 25V 0805 4u7 0805C

C2315 Top G 6 CHIPCAP X5R 4U7 M 25V 0805 4u7 0805C

C2316 BTM C 6 Chipcap X7R 10% 50V 0402 1n0 0402C

C2700 BTM H 7 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2800 Top H 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2801 Top H 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2802 Top I 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2803 Top I 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2804 Top G 4 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2805 Top G 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2806 Top G 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2807 Top H 5 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

Issue 1 Company Confidential Page 1–11

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

C2808 Top G 4 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2809 Top H 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2810 Top G 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2811 Top I 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2812 Top H 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2813 Top I 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C2814 Top I 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C3000 Top G 7 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C3001 Top I 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C3002 Top G 6 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C3003 Top I 5 Chipcap X7R 10% 16V 0402 10n 0402C

C3004 Top H 1 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C3005 Top I 1 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C3006 Top I 2 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C3007 Top H 1 Chipcap X7R 10% 16V 0402 10n 0402C

C3008 Top I 2 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4200 Top D 2 CHIPCAP X5R 22U M 6V3 0805 22u 0805C

C4201 Top D 1 CHIPCAP X5R 22U M 6V3 0805 22u 0805C

C4203 Top B 2 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C4204 Top C 2 Chipcap 5% NP0 100p 0402C

C4205 Top B 5 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C4206 Top B 1 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C4400 Top D 19 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C4401 Top D 19 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C4402 Top D 19 Chipcap 5% NP0 27p 0402C

C4800 Top D 4 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4801 Top E 2 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C4802 Top G 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4803 Top G 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4804 Top E 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4805 Top G 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4806 Top E 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4807 Top D 4 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4808 Top G 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4809 Top G 4 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

Page 1–12 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

C4810 Top F 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4811 Top E 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4812 Top E 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C4813 Top G 4 Chipcap X7R 10% 50V 0402 1n0 0402C

C4814 Top E 6 Chipcap 5% NP0 22p 0402C

C5000 Top B 2 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C5001 Top D 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C5002 Top D 4 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C5003 Top B 2 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C5004 Top D 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C5005 Top D 5 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C5200 BTM H 7 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C7501 BTM C 11 Chipcap 5% NP0 18p 0402C

C7503 BTM C 11 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C7504 BTM C 11 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C7505 BTM B 11 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C7507 BTM C 10 Chipcap 5% NP0 18p 0402C

C7508 BTM B 10 Chipcap 5% NP0 18p 0402C

C7509 BTM C 11 Chipcap +-0.25pF NP0 2p7 0402C

C7512 BTM G 19 Chipcap 5% NP0 39p 0402C

C7513 BTM B 11 Chipcap X7R 10% 25V 0402 4n7 0402C

C7514 BTM G 19 Chipcap 5% NP0 39p 0402C

C7515 BTM C 9 Chipcap 5% NP0 10p 0402C

C7516 BTM C 9 Chipcap 5% NP0 150p 0402C

C7518 BTM E 9 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

C7520 BTM C 11 Chipcap 5% NP0 18p 0402C

C7522 BTM C 9 Chipcap 5% NP0 150p 0402C

C7523 BTM G 18 Chipcap +-0.25pF NP0 5p6 0402C

C7524 BTM B 9 CHIPCAP NP0 2N2 G 16V 0603 2n2 0603C

C7525 BTM G 18 Chipcap +-0.25pF NP0 5p6 0402C

C7527 BTM B 10 Chipcap 5% NP0 100p 0402C

C7528 BTM B 10 Chipcap 5% NP0 22p 0402C

C7529 BTM D 9 Chipcap 5% NP0 100p 0402C

C7530 BTM B 11 Chipcap X7R 10% 16V 0402 8n2 0402C

C7531 BTM C 10 Chipcap 5% NP0 22p 0402C

Issue 1 Company Confidential Page 1–13

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

C7532 BTM B 11 Chipcap X7R 10% 16V 0402 8n2 0402C

C7533 BTM C 8 CERCAP X7R 22N K 16V 0402 22n 0402C

C7534 BTM B 11 Chipcap X7R 10% 16V 0402 8n2 0402C

C7536 BTM B 11 Chipcap X7R 10% 16V 0402 8n2 0402C

C7541 BTM D 9 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C7543 BTM E 10 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C7545 BTM I 17 Chipcap +-0.25pF NP0 4p7 0402C

C7547 BTM D 9 Chipcap +-0.25pF NP0 1p8 0402C

C7548 BTM D 8 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C7549 BTM D 9 Chipcap 5% NP0 100p 0402C

C7550 BTM E 8 Chipcap +-0.25pF NP0 2p7 0402C

C7552 BTM D 8 Chipcap +-0.25pF NP0 2p7 0402C

C7553 BTM D 8 Chipcap X7R 10% 16V 0402 8n2 0402C

C7554 BTM B 6 Chipcap +-0.25pF NP0 4p7 0402C

C7555 BTM B 6 CHIPCAP NP0 0P5 C 50V 0402 0p5 0402C

C7556 BTM G 16 Chipcap 5% NP0 10p 0402C

C7558 BTM E 10 Chipcap 5% X7R 1n0 0402C

C7559 BTM I 18 Chipcap +-0.25pF NP0 1p0 0402C

C7560 BTM E 9 Chipcap X7R 10% 25V 0402 4n7 0402C

C7561 BTM G 17 Chipcap +-0.25pF NP0 4p7 0402C

C7563 BTM G 17 Chipcap +-0.25pF NP0 4p7 0402C

C7564 BTM H 18 Chipcap 5% X7R 1n0 0402C

C7567 BTM E 10 Chipcap 5% NP0 15p 0402C

C7568 BTM E 8 Chipcap 5% NP0 150p 0402C

C7569 BTM G 17 CHIPCAP X5R 4U7 K 6V3 0603 4u7 0603C

C7570 BTM E 9 Chipcap 5% NP0 18p 0402C

C7571 BTM B 6 CHIPCAP NP0 330P J 50V 0402 330p 0402C

C7573 BTM A 6 CHIPCAP NP0 2N2 G 16V 0603 2n2 0603C

C7575 BTM E 10 Chipcap 5% NP0 15p 0402C

C7577 BTM E 10 Chipcap 5% NP0 15p 0402C

C7579 BTM A 13 Chipcap 5% NP0 10p 0402C

C7580 BTM A 14 CHIPCAP X5R 1U K 6V3 0603 1u0 0603C

C7581 BTM G 19 Chipcap 5% NP0 39p 0402C

C7582 BTM D 9 Chipcap 5% NP0 100p 0402C

C7583 BTM D 13 CHIPCAP X5R 4U7 K 6V3 0603 4u7 0603C

Page 1–14 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

C7584 BTM G 18 Chipcap 5% NP0 39p 0402C

C7585 BTM B 13 CHIPCAP NP0 1P0 B 50V 0402 1p0 0402C

C7586 BTM B 14 Chipcap 5% NP0 10p 0402C

C7587 BTM C 14 Chipcap 5% NP0 10p 0402C

C7589 BTM D 13 CHIPCAP X5R 4U7 K 6V3 0603 4u7 0603C

C7590 BTM C 13 Chipcap 5% NP0 10p 0402C

C7591 BTM C 13 CHIPCAP NP0 470P J 6V3 0402 470p 0402C

C7592 BTM C 12 Chipcap 5% X7R 3n3 0402C

C7593 BTM G 16 CHIPCAP X5R 4U7 K 6V3 0603 4u7 0603C

C7596 BTM C 11 Chipcap +-0.25pF NP0 2p7 0402C

100u_14

C7597 BTM F 14 CHIPTCAP 100U M 14V 6X3.2X2

C7598 BTM B 8 CHIPCAP NP0 0P5 C 50V 0402 0p5 0402C

V TANT_6.3X3.5_H2.0

C7599 Top D 20 CHIPCAP X7R 33N K 10V 0402 33n 0402C

C7600 Top B 20 CHIPCAP X5R 2U2 K 6V3 0603 2u2 0603C

C7601 Top B 20 CHIPCAP X5R 2U2 K 6V3 0603 2u2 0603C

C7602 Top B 2 Chipcap 5% NP0 12p 0402C

C7604 BTM F 3 CHIPCAP X5R 100N K 10V 0402 100n 0402C

C7605 BTM F 3 CHIPCAP X5R 100N K 10V 0402 100n 0402C

C7606 BTM H 2 Chipcap 5% NP0 10p 0402C

C7607 BTM H 2 Chipcap 5% NP0 10p 0402C

C7608 BTM H 2 Chipcap 5% NP0 10p 0402C

C7609 BTM G 2 Chipcap 5% NP0 10p 0402C

C7612 BTM C 4 CHIPCAP X5R 100N K 10V 0402 100n 0402C

C7613 BTM F 3 CHIPCAP X5R 100N K 10V 0402 100n 0402C

C7614 BTM D 11 CHIPCAP NP0 1P0 B 50V 0402 1p0 0402C

C7615 BTM C 9 Chipcap +-0.25pF NP0 4p7 0402C

C7616 BTM F 3 Chipcap X7R 10% 16V 0402 10n 0402C

C7617 BTM F 3 Chipcap 5% NP0 100p 0402C

C7618 BTM F 3 CHIPCAP X5R 100N M 16V 0402 100n 0402C_H0.6

RAP3G V2.20E-PA UMC8D

D2800 Top H 4

D3000 Top H 7 FLASH 4MX16 1.8/1.8V FBGA44 4Mx16

D3001 Top H 2

Issue 1 Company Confidential Page 1–15

F761800F 12C027 ~ uBGA_289

PBFREEBGA40_64MB_54MHZ_ MAX

SDRAM 4MX16 1.8V/1.8V WBGA60 4Mx16

SDRAM_110MHZ_64MBIT_BGA 60_PBFREE_MAX

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

HELEN3 PS1.1E F761991A

D4800 Top E 4

C027 UBGA289 ~ uBGA_289

COMBO 512M DDR

D5000 Top B 4

D5001 BTM D 4 BTHFM1.0_ES3.6 MODULE ~ LGA_BTHFM_ES3.6

F2000 BTM C 2 SM FUSE F 2.0A 32V 2A 0603_FUSE_AVX2MATS

G2200 Top F 6 CELL CAPACITOR 0.01MAH 3V3 3V3 BATTER_RB414H

G7500 BTM B 9

G7501 BTM C 9 VCTCXO 38.4MHZ 2.5V 38.4MHz VCTCXO_KT21P2

G7502 BTM B 7

L1473 BTM E 11

L1474 Top E 7

L1479 BTM C 15

+512MNAND FBGA133 PBFREE

VCO 3610-4340MHZ 2.7V 17MA

VCO 3296-3980MHZ 2.7V 20MA EGSM

CHOKE 3.3UH 0R252 0A82 310 CASE SIZE 3u3H CHOKE_SER300

FERR.BEAD 0R03 42R/100MHZ 3A 0805

CHIP COIL 27N J Q27/800M 0402 27nH 0402L

32Mx16/ 64Mx8 FBGA133

36104340MH z VCO_RXUVCU

32963980MH z VCO_ENFVZ7Q95

42R/ 100MHz 0805_BLM21

L1480 BTM C 15

L2000 BTM C 2

L2001 BTM F 2

L2002 BTM G 2

L2003 BTM G 2

L2100 Top E 19

L2101 Top B 6

L2102 BTM F 18

L2103 BTM F 18

L2104 Top B 6

CHIP COIL 27N J Q27/800M 0402 27nH 0402L

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP BEAD ARRAY 2X1000R 0405

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP COIL 56N J Q38/250MHZ 0603 56nH COIL_0603CS

FERR.BEAD 220R/100M 2A 0R05 0603

220R/ 100MHz 0603_BLM

2x1000R /100MHz 0405_2_MATSU

220R/ 100MHz 0603_BLM

Page 1–16 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

FERRITE BEAD 220R 0R45 0.3A

L2105 Top B 6

L2106 Top A 6

L2202 Top E 7

L2203 Top C 7

L2204 Top D 7

L2205 Top B 5

L2206 Top B 7

L2301 BTM E 6

L2302 BTM D 5 CHOKE 10U 0.8A 0R24 4X4X1.8 10uH CHOKE_SER400

L2304 Top G 7

0402

FERRITE BEAD 220R 0R45 0.3A 0402

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

FERR.BEAD 220R/100M 2A 0R05 0603

CHOKE 22U M 1R4 0.33A

3.3X3.3X1.5 22uH CHOKE_984FB

220R/ 100MHz 0402L_XL

220R/ 100MHz 0603_BLM

600R/ 100MHz FERRITE_0402

220R/ 100MHz 0603_BLM

600R/ 100MHz FERRITE_0402

220R/ 100MHz 0603_BLM

L4200 Top C 2 CHOKE 10U 0.8A 0R24 4X4X1.8 10uH CHOKE_SER400

L4201 Top E 2

L4400 Top D 19

L4401 Top D 19

L5200 BTM H 7

L7502 BTM D 8

L7503 BTM E 10

L7504 BTM H 19

L7506 BTM H 18

L7510 BTM E 10

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

CHIP COIL 100N J Q16/300M 0402 100nH 0402L

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

CHIP COIL 47N J Q23/800MHZ 0402 47nH 0402L

CHIP COIL 12N J Q31/800M 0402 12nH 0402L

CHIP COIL 4N7 +-0N3 Q28/ 800M 0402 4n7H 0402L

220R/ 100MHz 0603_BLM

600R/ 100MHz FERRITE_0402

CHIP COIL 10N J Q30/800M

L7511 BTM D 10

Issue 1 Company Confidential Page 1–17

0402 10nH 0402L

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

CHIP COIL 4N7 +-0N3 Q28/

L7512 BTM D 10

L7514 BTM B 13

L7515 BTM C 14 CHOKE 10U 0.8A 0R24 4X4X1.8 10uH CHOKE_SER400

800M 0402 4n7H 0402L

CHIP COIL 5N6 +-0N3 Q28/ 800M 0402 5n6H 0402L

FERRITE BEAD 0.6R 600R/

L7516 BTM G 16

L7517 BTM E 8

L7518 BTM G 3

L7520 BTM D 11

N1470 BTM G 7 REG LP3990YDX-1.5V LLP-6 ~ LLP6

N1471 BTM E 13

N1472 BTM E 14

N1474 Top D 20

N2200 Top C 6

N2300 BTM D 7

100MHZ 0402

CHIP COIL 1N5 +-0N3 Q33/ 800M 0402 1n5H 0402L

CHIP COIL 68NH J Q12/100MHZ 0603 68nH COIL_LK_1608

CHIP COIL 2N7+-0N3 Q29/ 800M 0402 2n7H 0402L

STEP-UP DC/DC CONV SON3024-8 ~ SON3024_8

VREG LP3985ITLX-2.8 NOPB USMD5 ~ USMD5_1.47X1.04_H0.675

14XLEVEL SHIFTER ST16C32245TBR uTFBGA42 ~ TFBGA_42

RETU 3.02 TSA1GJWE TFBGA108 ~ TFBGA_108

TAHVO V4.1 LEADFREE TFBGA84 6X6 ~ TFBGA_84_6.15X6.15

600R/ 100MHz FERRITE_0402

WHITE LED DRIVER 4LEDS

N2301 Top G 6

N4200 Top D 1

N4201 Top B 2

N7500 BTM C 11 RF ASIC HINKU310A TFBGA84 ~ TFBGA_84_6.15X6.15

N7501 BTM E 9 RF ASIC VINKU314A TFBGA64 ~ TFBGA64_H1.2

N7502 BTM H 17

N7503 BTM B 13

N7504 BTM C 13 DC CONV SUPA LM2706 PBFREE ~ USMD10_2.534X2.026

N7505 Top C 20

R1470 Top G 4 Resistor 5% 63mW 100R 0402R

Page 1–18 Company Confidential Issue 1

500MW 8BUMP USMD8 ~ USMD8_1.69X1.69

DC/DC CONV LM3661-1.40V/

1.05V NOPB ~ USMD_10_2.458X1.899

REG+ LP3999ITLX 1.8V 150MA NOPB ~ USMD5_1.468X1.036

PW AMP PF09014B_CUT5.3 QUADBAND ~ RITSA_PA_REL3

PW AMP PF57603B CUT8.1 1920-1980MHZ ~ PW_AMP_PF57603B

REG LP3981YDX 2.8/NOPB

0.3A LLP-6 ~ LLP_6

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

R1471 Top G 4 Resistor 5% 63mW 100R 0402R

R1472 Top F 3 Resistor 5% 63mW 3k3 0402R

R1473 Top F 3 Resistor 5% 63mW 3k3 0402R

R1474 Top G 5 Resistor 5% 63mW 33R 0402R

R1475 BTM F 7 Resistor 5% 63mW 470k 0402R

R1486 Top E 20 Resistor 5% 63mW 15R 0402R

R1487 BTM E 12 CHIPRES 0W06 6R8 J 0402 6R8 0402R

R1488 Top D 19 Resistor 5% 63mW 33R 0402R

R1489 BTM E 13 Resistor 5% 63mW 3k3 0402R

R1490 Top E 20 Chipres 0W06 jumper 0402 0R 0402R

R1491 BTM E 12 Resistor 5% 63mW 10k 0402R

R2000 BTM F 3 Resistor 5% 63mW 220R 0402R

ASIP MIC W/ESD RES+CAP+ZDI

R2001 BTM F 3

R2002 BTM G 3 Resistor 5% 63mW 10R 0402R

R2003 BTM G 3 Resistor 5% 63mW 10R 0402R

R2004 BTM G 3 Resistor 5% 63mW 10R 0402R

R2005 BTM H 3 Resistor 5% 63mW 10R 0402R

R2006 BTM G 2 ASIP 4XESD **PB-FREE** BGA5 ~ uBGA5

R2007 Top F 1

R2009 Top G 1 Resistor 5% 63mW 100R 0402R

R2010 Top F 1 Resistor 5% 63mW 220k 0402R

R2011 Top G 1 Resistor 5% 63mW 120k 0402R

R2070 BTM G 14

R2071 Top E 6

R2100 BTM F 2

BGA11 ~ uBGA11_2.15X1.65

ASIP SILIC USB OTG / ESD BGA11 ~ uBGA11_1.6X2.15

CHIP VARISTOR VWM14V VC50V 0402 14V/50V 0402_VAR

NTC RES 47K J B=4050+-3% 0402 47k 0402_NTH5

ASIP SINGLE ENDED MICROPHONE INTERF BGA8 ~ FLIP_CHIP_8_1.7X1.7

R2101 BTM E 2 Resistor 5% 63mW 220R 0402R

CHIP VARISTOR VWM14V

R2104 Top E 19

R2105 Top E 19

R2106 BTM F 18

Issue 1 Company Confidential Page 1–19

VC50V 0402 14V/50V 0402_VAR

CHIP VARISTOR VWM14V VC50V 0402 14V/50V 0402_VAR

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

CHIP VARISTOR VWM14V

R2107 BTM F 18

R2200 Top E 6 Resistor 5% 63mW 100k 0402R

R2201 Top E 6 Resistor 5% 63mW 120k 0402R

R2202 Top E 6 Resistor 5% 63mW 100R 0402R

R2205 Top E 7 CHIPRES 0W06 2M2 J 0402 2M2 0402R

R2301 Top G 6 Resistor 5% 63mW 4k7 0402R

R2302 Top G 6 Resistor 5% 63mW 10k 0402R

R2303 Top F 6 Resistor 5% 63mW 1k0 0402R

R2304 Top F 6 Resistor 5% 63mW 39R 0402R

R2305 BTM C 7 Resistor 5% 63mW 33R 0402R

R2700 BTM I 6

VC50V 0402 14V/50V 0402_VAR

ASIP SIM INTERFACE **LOW CAP**BGA8 ~ uBGA8_1.47X1.47

R3000 Top G 6 Resistor 5% 63mW 10k 0402R

R4400 Top E 6 Resistor 5% 63mW 470k 0402R

R4401 Top E 6 Resistor 5% 63mW 100k 0402R

R4402 Top E 6 Resistor 5% 63mW 470k 0402R

NTC RES 47K J B=4050+-3%

R4403 Top B 20

R4406 Top E 20

R4407 BTM A 8

R4408 BTM A 8 Resistor 5% 63mW 10k 0402R

R4800 Top D 5 Resistor 5% 63mW 10R 0402R

R4809 Top E 3 Resistor 5% 63mW 1k0 0402R

R4810 Top E 6 Resistor 5% 63mW 15R 0402R

R5100 Top G 5 Resistor 5% 63mW 10k 0402R

R5200 BTM I 7

0402 47k 0402_NTH5

CHIP VARISTOR VWM14V VC50V 0402 14V/50V 0402_VAR

ASIP EMIF04-MMC02F2**PBFREE** ~ uBGA11_1.62X2.12

CHIP VARISTOR VWM14V

R5204 BTM I 15

R7501 BTM C 9 Resistor 5% 63mW 1k0 0402R

R7503 BTM C 11 Resistor 5% 63mW 4k7 0402R

R7504 BTM C 11 CHIPRES 0W06 10K F 0402 10k 0402R

R7505 BTM C 9 CHIPRES 0W06 8K2 F 0402 8k2 0402R

R7506 BTM G 17 Resistor 5% 63mW 33R 0402R

Page 1–20 Company Confidential Issue 1

VC50V 0402 14V/50V 0402_VAR

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

R7509 BTM C 8 Resistor 5% 63mW 10k 0402R

436R/

RES NETWORK 0W04 2DB ATT

R7512 BTM H 16

R7513 BTM B 7 Chipres 0W06 5R6 J 0402 5R6 0402R

R7514 BTM D 9 Resistor 5% 63mW 10k 0402R

R7516 BTM I 18 Resistor 5% 63mW 1k0 0402R

R7517 BTM D 10 Resistor 5% 63mW 3k3 0402R

R7518 BTM I 17 Resistor 5% 63mW 470k 0402R

R7519 BTM B 6 Resistor 5% 63mW 1k0 0402R

R7520 BTM D 10 Resistor 5% 63mW 270R 0402R

R7521 BTM D 9 CHIPRES 0W06 10K F 0402 10k 0402R

R7522 BTM D 12 Resistor 5% 63mW 220k 0402R

0404

11R6/ 436R 0404_RAC10

CHIPRES 0W06 9K1 F 100PPM

R7523 BTM A 6

R7525 BTM C 13 Resistor 5% 63mW 10R 0402R

R7526 BTM B 14 Resistor 5% 63mW 5k6 0402R

R7527 BTM C 14 Resistor 5% 63mW 220R 0402R

R7528 BTM C 8 Resistor 5% 63mW 470k 0402R

R7529 BTM C 13 Resistor 5% 63mW 2k2 0402R

R7530 BTM C 13 Resistor 5% 63mW 8k2 0402R

R7531 BTM C 12 Resistor 5% 63mW 8k2 0402R

R7534 BTM C 8 Resistor 5% 63mW 470k 0402R

R7541 BTM F 4 Chipres 0W06 jumper 0402 0R 0402R

R7542 BTM F 4 Chipres 0W06 jumper 0402 0R 0402R

R7543 BTM F 4 Chipres 0W06 jumper 0402 0R 0402R

R7544 BTM F 5 Chipres 0W06 jumper 0402 0R 0402R

R7549 BTM F 4 Resistor 5% 63mW 3k3 0402R

R7550 BTM F 4 Resistor 5% 63mW 3k3 0402R

0402 9k1 0402R

R7551 BTM C 4 Chipres 0W06 jumper 0402 0R 0402R

R7552 BTM F 5 Chipres 0W06 jumper 0402 0R 0402R

R7554 Top G 3 Resistor 5% 63mW 100k 0402R

R7555 BTM B 9 Resistor 5% 63mW 220R 0402R

R7556 BTM E 6 Resistor 5% 63mW 100R 0402R

R7558 BTM F 3 Resistor 5% 63mW 220R 0402R

Issue 1 Company Confidential Page 1–21

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

RES VARISTOR 14/90V 3PF

R7559 BTM G 2

R7560 BTM A 17 Chipres 0W06 jumper 0402 0R 0402R

S4401 Top E 21

S5200 BTM I 14

S5202 BTM A 9 SWITCH DETECTOR SPVM ~ SWITCH_SPVM110200

T7500 BTM D 11

T7501 BTM B 10

T7502 BTM H 16

0402 14/90V 0402_VAR

SM SW TACT SPST 12V SIDE KEY

2.2N ~ SWITCH_EVQP7A01K

SM SW DETECTOR SPST-NO 5V 1MA ~ SWITCH_SPVN220100

TRANSF BALUN 2134+-90MHZ 0805 ~ TRANS_LDB15

TRANSF BALUN 3800 +-550MHZ 0805 ~ TRANS_LDB15

TRANSF BALUN 1800 +-100mhz 2x1.25 ~ TRANS_LDB15

TRANSF BALUN 3800

T7503 BTM B 7

V1470 BTM F 14 DI SCH DUAL 0.4V 1MA SOT490 ~ SC_89

V1471 BTM E 13

V1472 BTM E 12 MOSFET N 20V 350MA SOT416 ~ SC_75A_H0.95

V2000 BTM C 3 ASIP TVS BGA4 ~ BGA4_1.01X1.07

V2300 BTM C 7

V4400 Top B 20

V7500 BTM C 14

V7501 BTM E 6 SCH DI 30V 2A SOD323F ~ SOD323F

V7502 BTM C 15 BZX884-AA ~ SOD882

X1470 BTM E 16

X1472 Top H 20

+-550MHZ 0805 ~ TRANS_LDB15

SCH DI PMEG3002 30V 500MA SOD882 ~ DIODE_PMEG3002

TR DTC143ZM N RB=4K7 RBE=47K VMT3 ~ VMT3_R

DI PHOTO PT202MR0MP 620NM 1.25X2 ~ PT202MR0MP

SCHDIX2 RF DETECTOR CT 1PF 0V39 SOT666 ~ SOT_563

CAMERA MOD.SOCKET 2X7POL SPR P1.4 ~ SOCKET_DMD10413

SMD SOCKET P0.65

8.2X8.2X3.5MM ~ SOCKET_F6

X2001 BTM F 1 SM SYSTEM CONNECTOR 14POL ~ SYSCON_MQ202_NK_14R3

MODULE ID COMPONENT

X2060 Top A 9

X2070 BTM H 14

X2700 BTM H 6 SM SIM CONN 6POL P2.54 H1.5 ~ SIM_CONN_470191501

Page 1–22 Company Confidential Issue 1

2.8X1.8X0.3 ~ TRACEABILITY_PAD

SM BATTERY CONN 3POL SPR 12V 2A ~ LYNX_BATT_CONN_H7.0

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

SM CONN 16P SPR P1.3 50V

X4400 Top F 2

X4401 Top B 19

X5200 BTM H 11 CONN SMC RS-MMC 6POL P2.5 ~

X5207 BTM H 4

X5208 BTM B 5

X5209 BTM B 4

X5210 BTM A 4

X5211 BTM A 5

PWB/PWB ~ SMK_4309_B_B_16P_V8

SM CONN 2X12F P0.4 30V 0.3A PCB/PCB ~ JST_R_JAVK_G_1_R3

MOLEX_MMC_P03_3D0545_00 1

SPRING CLIP M3E14601 NSJ-3 HD925 ~ ANT_CLIP_M3E14601

SM CONN VIBRA SPACER PAD

2.8X1.8 ~ CONTACT_PAD_2.95X1.95

SM CONN VIBRA SPACER PAD

2.8X1.8 ~ CONTACT_PAD_2.95X1.95

SM CONN VIBRA SPACER PAD

2.8X1.8 ~ CONTACT_PAD_2.95X1.95

SM CONN VIBRA SPACER PAD

2.8X1.8 ~ CONTACT_PAD_2.95X1.95

X5212 BTM C 16 CONN 2POL SPR 6.6X6.8X2.5 ~ POGO_CNO_5117_3077H

Z2000 Top E 1

Z2001 Top E 1

Z2003 Top E 1

Z4400 Top D 2

Z4401 Top G 3

Z4402 Top E 7

Z4403 Top F 7

Z7500 BTM F 14

Z7501 BTM C 10

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

ASIP 10-CH ESD EMI FILTER BGA25 ~ uBGA25_2.69X2.69

ASIP 2-CH MIC EMI/ESD **PBFREE** ~ FC6_1.65X1.15

ASIP 10-CH ESD EMI FILTER BGA25 ~ uBGA25_2.69X2.69

FERRITE BEAD 0R01 28R/ 100MHZ 0603

SAW FILTER 2140+-30MHZ/ 4DB 2X1.6

600R/ 100MHz FERRITE_0402

28R/ 100MHz FERRITE_FBMJ1608

2140MH z FILTER_SAW_2.1X1.7_H0.8

19201980/ 2110-

DUPL 1920-1980/2110-

Z7502 BTM B 16

Z7503 BTM H 18

Issue 1 Company Confidential Page 1–23

2170MHZ 9X4.3

ANT.SW+3SAW 880-960/ 1710-1990MHZ ~ ANT_SW_LMSP_0094

2170MH z DFYK61G95LBJCB

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

SAW FILTER 897.5+-17.5MHZ

Z7504 BTM I 16

Z7505 BTM B 14

Z7506 BTM D 10

Note: For Nokia product codes, please refer to the latest Service Bulletins on the Partner Website (PWS).

To ensure you are always using the latest codes, please check the PWS on a daily basis.

BTM = Bottom

Item Side Grid ref. Description and value Type

A7003 BTM D 10

A7004 BTM B 7

A7005 BTM E 12

2X1.6MM

ISOLATOR 1950+-30MHZ 13DB

3.55X3.35 ~ ISOLATOR_CEZ0047

SAW FILTER 1950+-30MHZ

2.0X1.6

Table 2 RM-99 component parts list (1PP_15)

897.5MH z FILTER_SAW_2.0X1.6_H0.68

1950MH z FILTER_SAW_2.1X1.7_H0.9

SHIELD_RM84/RM-99_RF

SHIELD_RM84/RM99_VCO

SHIELD_RM84/RM99_FLASH

SHIELD RM84/RM-99 RF ~

SHIELD RM84/RM-99 VCO ~

SHIELD RM84/RM-99 GSM FLASH ~

SHIELD_RM84/RM-

A7006 BTM D 6

A7008 BTM H 17

B2200 Top D 6

C1470 BTM D 15 0603C

C1471 BTM F 18 0603C

C1472 BTM F 6 0603C

C1473 BTM G 7 0603C

99_TAHVO

SHIELD_RM84/RM99_GSM_PA

CRYSTAL_3.3 X1.6_H0.9

SHIELD RM84/RM-99 TAHVO ~

SHIELD RM84/RM-99 GSM PA ~

CRYSTAL

32.768KHZ +-20PPM

12.5PF 32.768kHz

CHIPCAP X5R 1U K 6V3 0603 1u0

Page 1–24 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIPCAP X5R 1U K 6V3

C1479 BTM E 14 0603C

C1480 BTM D 14 0603C

C1481 Top D 20 0402C_H0.6

C1482 Top D 20 0402C_H0.6

C1483 Top E 6 0402C_H0.6

C1484 BTM E 12 0805C

0603 1u0

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 4U7 K 6V3 0805 4u7

C1485 BTM E 13 1206C_H1.8

C1486 BTM E 13 0402C_H0.6

C1487 BTM C 15 0402C

C1488 BTM C 15 0402C

C1489 Top E 19 0402C

C1490 Top E 20 0402C

C1491 Top D 19 0402C

C2000 BTM C 3 0402C

C2002 BTM F 3 0603C

CHIPCAP 2U2 K 25V 1206 2u2

CHIPCAP X5R 100N M 16V 0402 100n

Chipcap 5% NP0 10p

Chipcap 5% NP0 22p

Chipcap 5% NP0 27p

CHIPCAP X5R 2U2 K 6V3 0603 2u2

CERCAP X7R 22N K 16V

C2003 BTM F 3 0402C

Issue 1 Company Confidential Page 1–25

0402 22n

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

CERCAP X7R 22N K 16V

C2004 BTM G 3 0402C

C2005 BTM F 2 0402C

C2006 BTM G 2 0402C

C2007 BTM G 2 0402C

C2008 BTM G 2 0402C

C2009 BTM G 2 0402C

0402 22n

Chipcap X7R 10% 16V 0402 10n

C2010 BTM G 3 0402C

C2011 Top F 1 0402C

C2012 BTM C 3 0603C_H0.95

C2070 BTM G 14 0402C

C2072 BTM I 15 0402C

C2100 BTM F 2 0402C

C2101 BTM F 2 0402C

C2102 BTM F 2 0603C

Chipcap X7R 10% 16V 0402 10n

CHIPCAP NP0 270P J 25V 0402 270p

CHIPCAP X5R 1U K 25V 0603 1u0

Chipcap 5% NP0 15p

CHIPCAP X7R 15N K 16V 0402 15n

CHIPCAP X5R 2U2 K 6V3 0603 2u2

Chipcap 5%

C2103 Top E 6 0402C

Page 1–26 Company Confidential Issue 1

X7R 1n0

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

Chipcap 5%

C2104 Top E 6 0402C

C2105 Top A 6 0402C

C2106 Top A 6 0402C

C2107 Top A 6 0402C

C2108 Top B 6 0402C

C2109 Top B 7 0402C

X7R 1n0

Chipcap X7R 10% 50V 0402 1n0

C2110 Top A 7 0402C

C2200 Top C 5 0603C

C2201 Top C 7 0603C

C2202 Top D 6 0402C

C2203 Top D 6 0402C

C2204 Top E 6 0402C

C2205 Top D 5 0402C

Chipcap X7R 10% 50V 0402 1n0

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap X7R 10% 50V 0402 1n0

Chipcap X7R 10% 50V

C2206 Top D 6 0402C

C2207 Top E 6 0402C

Issue 1 Company Confidential Page 1–27

0402 1n0

Chipcap X7R 10% 50V 0402 1n0

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

Chipcap 5%

C2208 Top D 7 0402C

C2209 Top D 7 0402C

C2210 Top B 7 0603C

C2211 Top B 6 0805C

C2212 Top B 6 0603C

C2213 Top C 7 0603C

NP0 27p

Chipcap 5% NP0 22p

CHIPCAP X5R 1U K 16V 0603 1u0

CHIPCAP X5R 4U7 K 10V 0805 4u7

CHIPCAP X5R 1U K 6V3 0603 1u0

C2214 Top C 7 0603C

C2215 Top C 7 0603C

C2216 Top D 7 0603C

C2217 Top D 7 0603C

C2219 Top D 6 0603C

C2220 Top B 6 0603C

C2221 Top B 7 0603C

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 1U K 6V3

C2222 Top B 6 0603C

C2223 Top C 5 0402C

Page 1–28 Company Confidential Issue 1

0603 1u0

Chipcap X7R 10% 16V 0402 10n

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

Chipcap X7R 10% 16V

C2224 Top D 5 0402C

C2225 Top D 7 0603C

C2226 Top D 7 0603C

C2227 Top B 7 0603C

C2228 Top C 7 0603C

C2230 Top D 7 0603C

0402 10n

CHIPCAP X5R 1U K 6V3 0603 1u0

C2231 Top A 5 0805C

C2232 Top C 7 0603C

C2234 Top D 6 0402C

C2235 Top D 6 0402C

C2237 Top E 7 0603C

C2240 Top B 2 0402C

C2241 Top G 3 0402C

C2242 Top E 5 0402C

CHIPCAP X5R 10U M 6V3 0805 10U

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap 5% NP0 27p

Chipcap X7R 10% 50V 0402 1n0

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap 5% NP0 12p

Chipcap 5%

C2243 Top I 3 0402C

C2244 Top G 1 0402C

Issue 1 Company Confidential Page 1–29

NP0 12p

Chipcap 5% NP0 12p

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

Chipcap X7R 10% 16V

C2300 BTM D 5 0402C

C2301 BTM D 6 0805C

C2302 BTM D 5 0805C

C2303 BTM D 7 0603C

C2304 BTM C 6 0402C

C2307 BTM E 7 0603C

0402 10n

CHIPCAP X5R 22U M 6V3 0805 22u

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap X7R 10% 16V 0402 10n

CHIPCAP X5R 2U2 K 6V3 0603 2u2

C2309 BTM E 5 0805C

C2312 BTM E 7 0603C

C2313 BTM E 7 0603C

C2314 Top G 7 0805C

C2315 Top G 6 0805C

C2316 BTM C 6 0402C

C2700 BTM H 7 0402C_H0.6

CHIPCAP X5R 22U M 6V3 0805 22u

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 4U7 M 25V 0805 4u7

Chipcap X7R 10% 50V 0402 1n0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 100N M 16V

C2800 Top H 3 0402C_H0.6

Page 1–30 Company Confidential Issue 1

0402 100n

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIPCAP X5R 100N M 16V

C2801 Top H 5 0402C_H0.6

C2802 Top I 3 0402C_H0.6

C2803 Top I 5 0402C_H0.6

C2804 Top G 4 0402C_H0.6

C2805 Top G 3 0402C_H0.6

C2806 Top G 5 0402C_H0.6

0402 100n

CHIPCAP X5R 100N M 16V 0402 100n

C2807 Top H 5 0603C

C2808 Top G 4 0402C_H0.6

C2809 Top H 5 0402C_H0.6

C2810 Top G 5 0402C_H0.6

C2811 Top I 5 0402C_H0.6

C2812 Top H 3 0402C_H0.6

C2813 Top I 3 0402C_H0.6

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 100N M 16V

C2814 Top I 3 0402C_H0.6

Issue 1 Company Confidential Page 1–31

0402 100n

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

CHIPCAP X5R 100N M 16V

C3000 Top G 7 0402C_H0.6

C3001 Top I 5 0402C_H0.6

C3002 Top G 6 0402C_H0.6

C3003 Top I 5 0402C

C3004 Top H 1 0402C_H0.6

C3005 Top I 1 0402C_H0.6

0402 100n

CHIPCAP X5R 100N M 16V 0402 100n

Chipcap X7R 10% 16V 0402 10n

CHIPCAP X5R 100N M 16V 0402 100n

C3006 Top I 2 0402C_H0.6

C3007 Top H 1 0402C

C3008 Top I 2 0402C_H0.6

C4200 Top D 2 0805C

C4201 Top D 1 0805C

C4203 Top B 2 0603C

C4204 Top C 2 0402C

CHIPCAP X5R 100N M 16V 0402 100n

Chipcap X7R 10% 16V 0402 10n

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 22U M 6V3 0805 22u

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap 5% NP0 100p

CHIPCAP X5R 1U K 6V3

C4205 Top B 5 0603C

C4206 Top B 1 0603C

Page 1–32 Company Confidential Issue 1

0603 1u0

CHIPCAP X5R 1U K 6V3 0603 1u0

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIPCAP X5R 1U K 6V3

C4400 Top D 19 0603C

C4401 Top D 19 0603C

C4402 Top D 19 0402C

C4800 Top D 4 0402C_H0.6

C4801 Top E 2 0603C

C4802 Top G 5 0402C_H0.6

0603 1u0

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap 5% NP0 27p

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V 0402 100n

C4803 Top G 5 0402C_H0.6

C4804 Top E 5 0402C_H0.6

C4805 Top G 3 0402C_H0.6

C4806 Top E 3 0402C_H0.6

C4807 Top D 4 0402C_H0.6

C4808 Top G 3 0402C_H0.6

C4809 Top G 4 0402C_H0.6

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 100N M 16V

C4810 Top F 3 0402C_H0.6

C4811 Top E 3 0402C_H0.6

Issue 1 Company Confidential Page 1–33

0402 100n

CHIPCAP X5R 100N M 16V 0402 100n

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

CHIPCAP X5R 100N M 16V

C4812 Top E 5 0402C_H0.6

C4813 Top G 4 0402C

C4814 Top E 6 0402C

C5000 Top B 2 0402C_H0.6

C5001 Top D 3 0402C_H0.6

C5002 Top D 4 0402C_H0.6

0402 100n

Chipcap X7R 10% 50V 0402 1n0

Chipcap 5% NP0 22p

CHIPCAP X5R 100N M 16V 0402 100n

C5003 Top B 2 0402C_H0.6

C5004 Top D 3 0402C_H0.6

C5005 Top D 5 0402C_H0.6

C5200 BTM H 7 0603C

C7501 BTM C 11 0402C

C7503 BTM C 11 0603C

C7504 BTM C 11 0603C

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap 5% NP0 18p

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V

C7505 BTM B 11 0402C_H0.6

C7507 BTM C 10 0402C

Page 1–34 Company Confidential Issue 1

0402 100n

Chipcap 5% NP0 18p

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

Chipcap 5%

C7508 BTM B 10 0402C

C7509 BTM C 11 0402C

C7512 BTM G 19 0402C

C7513 BTM B 11 0402C

C7514 BTM G 19 0402C

C7515 BTM C 9 0402C

C7516 BTM C 9 0402C

NP0 18p

Chipcap +-0.25pF NP0 2p7

Chipcap 5% NP0 39p

Chipcap X7R 10% 25V 0402 4n7

Chipcap 5% NP0 39p

Chipcap 5% NP0 10p

Chipcap 5% NP0 150p

C7518 BTM E 9 0402C_H0.6

C7520 BTM C 11 0402C

C7522 BTM C 9 0402C

C7523 BTM G 18 0402C

C7524 BTM B 9 0603C

C7525 BTM G 18 0402C

C7527 BTM B 10 0402C

C7528 BTM B 10 0402C

CHIPCAP X5R 100N M 16V 0402 100n

Chipcap 5% NP0 18p

Chipcap 5% NP0 150p

Chipcap +-0.25pF NP0 5p6

CHIPCAP NP0 2N2 G 16V 0603 2n2

Chipcap +-0.25pF NP0 5p6

Chipcap 5% NP0 100p

Chipcap 5% NP0 22p

Chipcap 5%

C7529 BTM D 9 0402C

C7530 BTM B 11 0402C

Issue 1 Company Confidential Page 1–35

NP0 100p

Chipcap X7R 10% 16V 0402 8n2

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

Chipcap 5%

C7531 BTM C 10 0402C

C7532 BTM B 11 0402C

C7533 BTM C 8 0402C

C7534 BTM B 11 0402C

C7536 BTM B 11 0402C

C7541 BTM D 9 0603C

NP0 22p

Chipcap X7R 10% 16V 0402 8n2

CERCAP X7R 22N K 16V 0402 22n

Chipcap X7R 10% 16V 0402 8n2

CHIPCAP X5R 1U K 6V3 0603 1u0

C7543 BTM E 10 0603C

C7545 BTM I 17 0402C

C7547 BTM D 9 0402C

C7548 BTM D 8 0603C

C7549 BTM D 9 0402C

C7550 BTM E 8 0402C

C7552 BTM D 8 0402C

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap +-0.25pF NP0 4p7

Chipcap +-0.25pF NP0 1p8

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap 5% NP0 100p

Chipcap +-0.25pF NP0 2p7

Chipcap X7R 10% 16V

C7553 BTM D 8 0402C

C7554 BTM B 6 0402C

Page 1–36 Company Confidential Issue 1

0402 8n2

Chipcap +-0.25pF NP0 4p7

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIPCAP NP0 0P5 C 50V

C7555 BTM B 6 0402C

C7556 BTM G 16 0402C

C7558 BTM E 10 0402C

C7559 BTM I 18 0402C

C7560 BTM E 9 0402C

C7561 BTM G 17 0402C

0402 0p5

Chipcap 5% NP0 10p

Chipcap 5% X7R 1n0

Chipcap +-0.25pF NP0 1p0

Chipcap X7R 10% 25V 0402 4n7

Chipcap +-0.25pF NP0 4p7

C7563 BTM G 17 0402C

C7564 BTM H 18 0402C

C7567 BTM E 10 0402C

C7568 BTM E 8 0402C

C7569 BTM G 17 0603C

C7570 BTM E 9 0402C

C7571 BTM B 6 0402C

C7573 BTM A 6 0603C

Chipcap +-0.25pF NP0 4p7

Chipcap 5% X7R 1n0

Chipcap 5% NP0 15p

Chipcap 5% NP0 150p

CHIPCAP X5R 4U7 K 6V3 0603 4u7

Chipcap 5% NP0 18p

CHIPCAP NP0 330P J 50V 0402 330p

CHIPCAP NP0 2N2 G 16V 0603 2n2

Chipcap 5%

C7575 BTM E 10 0402C

C7577 BTM E 10 0402C

C7581 BTM G 19 0402C

Issue 1 Company Confidential Page 1–37

NP0 15p

Chipcap 5% NP0 15p

Chipcap 5% NP0 39p

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

Chipcap 5%

C7582 BTM D 9 0402C

C7584 BTM G 18 0402C

C7593 BTM G 16 0603C

C7596 BTM C 11 0402C

TANT_6.3X3.

C7597 BTM F 14

C7598 BTM B 8 0402C

5_H2.0

NP0 100p

Chipcap 5% NP0 39p

CHIPCAP X5R 4U7 K 6V3 0603 4u7

Chipcap +-0.25pF NP0 2p7

CHIPTCAP 100U M 14V 6X3.2X2 100u_14V

CHIPCAP NP0 0P5 C 50V 0402 0p5

C7599 Top D 20 0402C

C7600 Top B 20 0603C

C7601 Top B 20 0603C

C7602 Top B 2 0402C

C7604 BTM F 3 0402C

C7605 BTM F 3 0402C

C7606 BTM H 2 0402C

C7607 BTM H 2 0402C

CHIPCAP X7R 33N K 10V 0402 33n

CHIPCAP X5R 2U2 K 6V3 0603 2u2

Chipcap 5% NP0 12p

CHIPCAP X5R 100N K 10V 0402 100n

Chipcap 5% NP0 10p

Chipcap 5%

C7608 BTM H 2 0402C

C7609 BTM G 2 0402C

Page 1–38 Company Confidential Issue 1

NP0 10p

Chipcap 5% NP0 10p

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIPCAP X5R 100N K 10V

C7612 BTM C 4 0402C

C7613 BTM F 3 0402C

C7614 BTM D 11 0402C

C7615 BTM C 9 0402C

C7616 BTM F 3 0402C

C7617 BTM F 3 0402C

0402 100n

CHIPCAP X5R 100N K 10V 0402 100n

CHIPCAP NP0 1P0 B 50V 0402 1p0

Chipcap +-0.25pF NP0 4p7

Chipcap X7R 10% 16V 0402 10n

Chipcap 5% NP0 100p

C7618 BTM F 3 0402C_H0.6

D2800 Top H 4 uBGA_289

PBFREEBGA4 0_64MB_54M

D3000 Top H 7

D3001 Top H 2

D4800 Top E 4 uBGA_289

HZ_MAX

SDRAM_110 MHZ_64MBIT _BGA60_PBF REE_MAX

CHIPCAP X5R 100N M 16V 0402 100n

RAP3G V2.20E-PA UMC8D F761800F 12C027 ~

FLASH 4MX16 1.8/

1.8V FBGA44 4Mx16

SDRAM 4MX16 1.8V/

1.8V WBGA60 4Mx16

HELEN3 PS1.1E F761991A C027 UBGA289 ~

COMBO 512M DDR +512MNAND FBGA133

D5000 Top B 4 FBGA133

LGA_BTHFM_

D5001 BTM D 4

Issue 1 Company Confidential Page 1–39

ES3.6

PBFREE

BTHFM1.0_ES

3.6 MODULE ~

32Mx16/ 64Mx8

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

0603_FUSE_A

F2000 BTM C 2

G2200 Top F 6

G7500 BTM B 9

G7501 BTM C 9

G7502 BTM B 7

L1473 BTM E 11

L1474 Top E 7 0805_BLM21

VX2MATS

BATTER_RB4 14H

VCO_FDK_WB 002

NKG3176B_H

1.0

VCO_FDK_WB 002

CHOKE_SER3 00

SM FUSE F

2.0A 32V 2A

CELL CAPACITOR

0.01MAH 3V3 3V3

VCO 36104340MHZ

2.7V 15MA

VCTCXO

38.4MHZ

2.5V 38.4MHz

VCO 32963980MHZ

2.7V 20MA EGSM

CHOKE 3.3UH 0R252 0A82 310 CASE SIZE 3u3H

FERR.BEAD 0R03 42R/ 100MHZ 3A 0805 42R/100MHz

36104340MHz

32963980MHz

L1479 BTM C 15 0402L

L1480 BTM C 15 0402L

L2000 BTM C 2 0603_BLM

0405_2_MAT

L2001 BTM F 2

L2002 BTM G 2

L2003 BTM G 2

SU

0405_2_MAT SU

CHIP COIL 27N J Q27/ 800M 0402 27nH

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP BEAD ARRAY 2X1000R 0405

220R/ 100MHz

2x1000R/ 100MHz

Page 1–40 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIP BEAD ARRAY

0405_2_MAT

L2100 Top E 19

L2101 Top B 6 0603_BLM

L2102 BTM F 18 COIL_0603CS

L2103 BTM F 18 COIL_0603CS

SU

2X1000R 0405

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP COIL 56N J Q38/ 250MHZ 0603 56nH

2x1000R/ 100MHz

220R/ 100MHz

L2104 Top B 6 0603_BLM

L2105 Top B 6 0402L_XL

L2106 Top A 6 0402L_XL

L2202 Top E 7 0603_BLM

FERRITE_040

L2203 Top C 7

2

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 220R 0R45 0.3A 0402

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

220R/ 100MHz

600R/ 100MHz

FERRITE BEAD 0.6R 600R/

FERRITE_040

L2204 Top D 7

L2205 Top B 5 0603_BLM

Issue 1 Company Confidential Page 1–41

2

100MHZ 0402

FERR.BEAD 220R/100M 2A 0R05 0603

600R/ 100MHz

220R/ 100MHz

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

FERRITE BEAD 0.6R 600R/

FERRITE_040

L2206 Top B 7

L2301 BTM E 6 0603_BLM

L2302 BTM D 5

L2304 Top G 7

L4200 Top C 2

2

CHOKE_SER4 00

CHOKE_984F B

CHOKE_SER4 00

100MHZ 0402

FERR.BEAD 220R/100M 2A 0R05 0603

CHOKE 10U

0.8A 0R24 4X4X1.8 10uH

CHOKE 22U M 1R4 0.33A

3.3X3.3X1.5 22uH

CHOKE 10U

0.8A 0R24 4X4X1.8 10uH

600R/ 100MHz

220R/ 100MHz

L4201 Top E 2 0603_BLM

FERRITE_040

L4400 Top D 19

L4401 Top D 19

L5200 BTM H 7

L7502 BTM D 8 0402L

2

FERRITE_040 2

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

CHIP COIL 100N J Q16/ 300M 0402 100nH

220R/ 100MHz

600R/ 100MHz

FERRITE BEAD 0.6R 600R/

FERRITE_040

L7503 BTM E 10

Page 1–42 Company Confidential Issue 1

2

100MHZ 0402

600R/ 100MHz

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIP COIL 47N J Q23/ 800MHZ

L7504 BTM H 19 0402L

L7506 BTM H 18 0402L

L7510 BTM E 10 0402L

L7511 BTM D 10 0402L

L7512 BTM D 10 0402L

0402 47nH

CHIP COIL 12N J Q31/ 800M 0402 12nH

CHIP COIL 4N7 +-0N3 Q28/800M 0402 4n7H

CHIP COIL 10N J Q30/ 800M 0402 10nH

CHIP COIL 4N7 +-0N3 Q28/800M 0402 4n7H

FERRITE_040

L7516 BTM G 16

L7517 BTM E 8 0402L

L7518 BTM G 3

L7520 BTM D 11 0402L

N1470 BTM G 7 LLP6

2

COIL_LK_160 8

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

CHIP COIL 1N5 +-0N3 Q33/800M 0402 1n5H

CHIP COIL 68NH J Q12/ 100MHZ 0603 68nH

CHIP COIL 2N7+-0N3 Q29/800M 0402 2n7H

REG LP3990YDX-

1.5V LLP-6 ~

600R/ 100MHz

STEP-UP DC/ DC CONV

N1471 BTM E 13 SON3024_8

USMD5_1.47 X1.04_H0.67

N1472 BTM E 14

Issue 1 Company Confidential Page 1–43

5

SON3024-8 ~

VREG LP3985ITLX-

2.8 NOPB USMD5 ~

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

14XLEVEL SHIFTER ST16C32245 TBR

N1474 Top D 20 TFBGA_42

N2200 Top C 6 TFBGA_108

TFBGA_84_6.

N2300 BTM D 7

N2301 Top G 6

15X6.15

USMD8_1.69 X1.69

uTFBGA42 ~

RETU 3.02 TSA1GJWE TFBGA108 ~

TAHVO V4.1 LEADFREE TFBGA84 6X6 ~

WHITE LED DRIVER 4LEDS 500MW 8BUMP USMD8 ~

USMD_10_2.4

N4200 Top D 1

N4201 Top B 2

N7500 BTM C 11

N7501 BTM E 9

N7502 BTM H 17

N7505 Top C 20 LLP_6

58X1.899

USMD5_1.46 8X1.036

TFBGA_84_6. 15X6.15

TFBGA64_H1. 2

RITSA_PA_RE L3

DC/DC CONV LM3661-

1.40V/1.05V NOPB ~

REG+ LP3999ITLX

1.8V 150MA NOPB ~

RF ASIC HINKU310A TFBGA84 ~

RF ASIC VINKU314A TFBGA64 ~

PW AMP RF9292E9.2 QUADBAND ~

REG LP3981YDX

2.8/NOPB

0.3A LLP-6 ~

Resistor 5%

R1470 Top G 4 0402R

R1471 Top G 4 0402R

R1472 Top F 3 0402R

Page 1–44 Company Confidential Issue 1

63mW 100R

Resistor 5% 63mW 100R

Resistor 5% 63mW 3k3

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

Resistor 5%

R1473 Top F 3 0402R

R1474 Top G 5 0402R

R1475 BTM F 7 0402R

R1486 Top E 20 0402R

R1487 BTM E 12 0402R

R1488 Top D 19 0402R

R1489 BTM E 13 0402R

63mW 3k3

Resistor 5% 63mW 33R

Resistor 5% 63mW 470k

Resistor 5% 63mW 15R

CHIPRES 0W06 6R8 J 0402 6R8

Resistor 5% 63mW 33R

Resistor 5% 63mW 3k3

R1490 Top E 20 0402R

R1491 BTM E 12 0402R

R2000 BTM F 3 0402R

uBGA11_2.1

R2001 BTM F 3

R2002 BTM G 3 0402R

R2003 BTM G 3 0402R

R2004 BTM G 3 0402R

R2005 BTM H 3 0402R

R2006 BTM G 2 uBGA5

5X1.65

Chipres 0W06 jumper 0402 0R

Resistor 5% 63mW 10k

Resistor 5% 63mW 220R

ASIP MIC W/ ESD RES+CAP +ZDI BGA11 ~

Resistor 5% 63mW 10R

ASIP 4XESD **PB-FREE** BGA5 ~

ASIP SILIC

uBGA11_1.6

R2007 Top F 1

R2009 Top G 1 0402R

Issue 1 Company Confidential Page 1–45

X2.15

USB OTG / ESD BGA11 ~

Resistor 5% 63mW 100R

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

Resistor 5%

R2010 Top F 1 0402R

R2011 Top G 1 0402R

R2070 BTM G 14 0402_VAR

R2071 Top E 6 0402_NTH5

FLIP_CHIP_8_

R2100 BTM F 2

R2101 BTM E 2 0402R

1.7X1.7

63mW 220k

Resistor 5% 63mW 120k

CHIP VARISTOR VWM14V VC50V 0402 14V/50V

NTC RES 47K J B=4050 +-3% 0402 47k

ASIP SINGLE ENDED MICROPHONE INTERF BGA8 ~

Resistor 5% 63mW 220R

R2104 Top E 19 0402_VAR

R2105 Top E 19 0402_VAR

R2106 BTM F 18 0402_VAR

R2107 BTM F 18 0402_VAR

R2200 Top E 6 0402R

R2201 Top E 6 0402R

CHIP VARISTOR VWM14V VC50V 0402 14V/50V

Resistor 5% 63mW 100k

Resistor 5% 63mW 120k

Resistor 5%

R2202 Top E 6 0402R

R2205 Top E 7 0402R

R2301 Top G 6 0402R

Page 1–46 Company Confidential Issue 1

63mW 100R

CHIPRES 0W06 2M2 J 0402 2M2

Resistor 5% 63mW 4k7

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

Resistor 5%

R2302 Top G 6 0402R

R2303 Top F 6 0402R

R2304 Top F 6 0402R

R2305 BTM C 7 0402R

uBGA8_1.47

R2700 BTM I 6

R3000 Top G 6 0402R

R4400 Top E 6 0402R

X1.47

63mW 10k

Resistor 5% 63mW 1k0

Resistor 5% 63mW 39R

Resistor 5% 63mW 33R

ASIP SIM INTERFACE **LOW CAP**BGA8 ~

Resistor 5% 63mW 10k

Resistor 5% 63mW 470k

R4401 Top E 6 0402R

R4402 Top E 6 0402R

R4403 Top B 20 0402_NTH5

R4406 Top E 20 0402_VAR

R4407 BTM A 8 0402_VAR

R4408 BTM A 8 0402R

R4800 Top D 5 0402R

R4809 Top E 3 0402R

Resistor 5% 63mW 100k

Resistor 5% 63mW 470k

NTC RES 47K J B=4050 +-3% 0402 47k

CHIP VARISTOR VWM14V VC50V 0402 14V/50V

Resistor 5% 63mW 10k

Resistor 5% 63mW 10R

Resistor 5% 63mW 1k0

Resistor 5%

R4810 Top E 6 0402R

R5100 Top G 5 0402R

Issue 1 Company Confidential Page 1–47

63mW 15R

Resistor 5% 63mW 10k

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

ASIP EMIF04-

uBGA11_1.6

R5200 BTM I 7

R5204 BTM I 15 0402_VAR

R7501 BTM C 9 0402R

R7503 BTM C 11 0402R

R7504 BTM C 11 0402R

R7505 BTM C 9 0402R

2X2.12

MMC02F2**P B-FREE** ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V

Resistor 5% 63mW 1k0

Resistor 5% 63mW 4k7

CHIPRES 0W06 10K F 0402 10k

CHIPRES 0W06 8K2 F 0402 8k2

R7506 BTM G 17 0402R

R7509 BTM C 8 0402R

R7512 BTM H 16 0404_RAC10

R7513 BTM B 7 0402R

R7514 BTM D 9 0402R

R7516 BTM I 18 0402R

R7517 BTM D 10 0402R

R7518 BTM I 17 0402R

Resistor 5% 63mW 33R

Resistor 5% 63mW 10k

RES NETWORK 0W04 2DB ATT 0404

Chipres 0W06 5R6 J 0402 5R6

Resistor 5% 63mW 10k

Resistor 5% 63mW 1k0

Resistor 5% 63mW 3k3

Resistor 5% 63mW 470k

436R/11R6/ 436R

Resistor 5%

R7519 BTM B 6 0402R

R7520 BTM D 10 0402R

R7521 BTM D 9 0402R

Page 1–48 Company Confidential Issue 1

63mW 1k0

Resistor 5% 63mW 270R

CHIPRES 0W06 10K F 0402 10k

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

CHIPRES 0W06 9K1 F 100PPM

R7523 BTM A 6 0402R

R7528 BTM C 8 0402R

R7534 BTM C 8 0402R

R7541 BTM F 4 0402R

R7542 BTM F 4 0402R

R7543 BTM F 4 0402R

0402 9k1

Resistor 5% 63mW 470k

Chipres 0W06 jumper 0402 0R

R7544 BTM F 5 0402R

R7549 BTM F 4 0402R

R7550 BTM F 4 0402R

R7551 BTM C 4 0402R

R7552 BTM F 5 0402R

R7554 Top G 3 0402R

R7555 BTM B 9 0402R

R7556 BTM E 6 0402R

Chipres 0W06 jumper 0402 0R

Resistor 5% 63mW 3k3

Chipres 0W06 jumper 0402 0R

Resistor 5% 63mW 100k

Resistor 5% 63mW 220R

Resistor 5% 63mW 100R

Resistor 5%

R7558 BTM F 3 0402R

R7559 BTM G 2 0402_VAR

Issue 1 Company Confidential Page 1–49

63mW 220R

RES VARISTOR 14/90V 3PF 0402 14/90V

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

Chipres 0W06

R7560 BTM A 17 0402R

SWITCH_EVQ

S4401 Top E 21

S5200 BTM I 14

S5202 BTM A 9

T7500 BTM D 11

P7A01K

SWITCH_SPV N220100

SWITCH_SPV M110200

TRANS_LDB1 5

jumper 0402 0R

SM SW TACT SPST 12V SIDE KEY 2.2N ~

SM SW DETECTOR SPST-NO 5V 1MA ~

SWITCH DETECTOR SPVM ~

TRANSF BALUN 2134 +-90MHZ 0805 ~

TRANS_LDB1

T7501 BTM B 10

T7502 BTM H 16

T7503 BTM B 7

V1470 BTM F 14 SC_89

V1471 BTM E 13

V1472 BTM E 12

5

TRANS_LDB1 5

DIODE_PMEG 3002

SC_75A_H0.9 5

TRANSF BALUN 3800 +-550MHZ 0805 ~

TRANSF BALUN 1800 +-100mhz 2x1.25 ~

TRANSF BALUN 3800 +-550MHZ 0805 ~

DI SCH DUAL

0.4V 1MA SOT490 ~

SCH DI PMEG3002 30V 500MA SOD882 ~

MOSFET N 20V 350MA SOT416 ~

BGA4_1.01X1

V2000 BTM C 3

Page 1–50 Company Confidential Issue 1

.07

ASIP TVS BGA4 ~

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

TR DTC143ZM N RB=4K7 RBE=47K

V2300 BTM C 7 VMT3_R

PT202MR0M

V4400 Top B 20

V7501 BTM E 6 SOD323F

V7502 BTM C 15 SOD882 BZX884-AA ~

X1470 BTM E 16

P

SOCKET_DMD 10413

VMT3 ~

DI PHOTO PT202MR0M P 620NM

1.25X2 ~

SCH DI 30V 2A SOD323F ~

CAMERA MOD.SOCKET 2X7POL SPR P1.4 ~

X2001 BTM F 1

X2060 Top A 9

X2070 BTM H 14

X2700 BTM H 6

X4400 Top F 2

X4401 Top B 19

X5200 BTM H 11

SYSCON_MQ2 02_NK_14R3

TRACEABILIT Y_PAD

LYNX_BATT_C ONN_H7.0

SIM_CONN_4 70191501

SMK_4309_B _B_16P_V8

JST_R_JAVK_G _1_R3

MOLEX_MMC_ P03_3D0545 _001

SM SYSTEM CONNECTOR 14POL ~

MODULE ID COMPONENT

2.8X1.8X0.3 ~

SM BATTERY CONN 3POL SPR 12V 2A ~

SM SIM CONN 6POL P2.54 H1.5 ~

SM CONN 16P SPR P1.3 50V PWB/PWB ~

SM CONN 2X12F P0.4 30V 0.3A PCB/PCB ~

CONN SMC RS-MMC 6POL P2.5 ~

SPRING CLIP

ANT_CLIP_M3

X5207 BTM H 4

Issue 1 Company Confidential Page 1–51

E14601

M3E14601 NSJ-3 HD925 ~

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Description and value Type

SM CONN VIBRA

X5208 BTM B 5

X5209 BTM B 4

X5210 BTM A 4

X5211 BTM A 5

CONTACT_PA D_2.95X1.95

SPACER PAD

2.8X1.8 ~

SM CONN VIBRA SPACER PAD

2.8X1.8 ~

SM CONN VIBRA SPACER PAD

2.8X1.8 ~

SM CONN VIBRA SPACER PAD

2.8X1.8 ~

X5212 BTM C 16

Z2000 Top E 1

Z2001 Top E 1

Z2003 Top E 1

Z4400 Top D 2

POGO_CNO_5 117_3077H

FERRITE_040 2

uBGA25_2.6 9X2.69

CONN 2POL SPR

6.6X6.8X2.5 ~

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

ASIP 10-CH ESD EMI FILTER BGA25 ~

600R/ 100MHz

ASIP 2-CH

FC6_1.65X1.1

Z4401 Top G 3

Z4402 Top E 7

Page 1–52 Company Confidential Issue 1

5

uBGA25_2.6 9X2.69

MIC EMI/ESD **PB-FREE** ~

ASIP 10-CH ESD EMI FILTER BGA25 ~

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Description and value Type

ASIP 10-CH ESD EMI

Z4403 Top F 7

Z7500 BTM F 14

Z7501 BTM C 10

Z7503 BTM H 18

uBGA25_2.6 9X2.69

FERRITE_FBM J1608

FILTER_SAW_

2.1X1.7_H0.8

ANT_SW_M0 43B

FILTER BGA25 ~

FERRITE BEAD 0R01 28R/100MHZ 0603 28R/100MHz

SAW FILTER 2140 +-30MHZ

2.0X1.6X1.0 2140MHz

ANT.SW +3SAW 880960/17101990MHZ ~

Z7504 BTM I 16

Z7506 BTM D 10

Component layouts

FILTER_SAW_

2.1X1.7_H0.8

FILTER_SAW_

2.1X1.7_H0.8

SAW FILTER

897.5 +-17.5MHZ

2.0X1.6 897.5MHz

SAW FILTER 1950 +-30MHZ

2.0X1.6X1.0 1950MHz

Figure 1 RM-84 component layout - bottom view (1MV_15)

Issue 1 Company Confidential Page 1–53

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

Figure 2 RM-84 component layout - top view (1MV_15)

Figure 3 RM-99 component layout - bottom view (1PP_15)

Page 1–54 Company Confidential Issue 1

RM-84/99 Parts Lists and Component Layouts Nokia Customer Care

Figure 4 RM-99 component layout - top view (1PP_15)

Issue 1 Company Confidential Page 1–55

RM-84/99

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 1–56 Company Confidential Issue 1

Nokia N70 Service Manual 2 parts lists and component layouts

Specifications and Main Features

Frequently Asked Questions

User Manual

Exploded view

Spare parts overview

Parts lists

RM-84 mechanical spare parts lists

Component parts lists

Component layouts
