7368 Intelligent Services Access Manager CPE

7368 ISAM CPE A-240Z-A Product Guide

3FE-46615-AAAA-TCZZA Issue: 01

Nokia — Proprietary and confidential Use pursuant to applicable agreements



Nokia is a registered trademark of Nokia Corporation. Other products and company names mentioned herein may be trademarks or tradenames of their respective

7368 ISAM CPE A-240Z-A Product Guide

owners. The information presented is subject to change without notice. No responsibility is

not be made available to, or copied or used by anyone outside Nokia without its written authorizatio n. Not to be used or disclosed except in accor dance with applicable agreements.

2 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Preface

1 Preface

This preface provides general information about the documentation set for CPEs.

1.1 Scope

This documentation set provides information about safety, features and functionality, ordering, hardware installation and maintenance, and software installation procedures for the current release.

1.2 Audience

This documentation set is intended for planners, administrators, operators, and maintenance personnel involved in installing, upgrading, or maintaining the CPEs.

1.3 Required knowledge

The reader must be familiar with general telecommunications principles.

1.4 Acronyms and initialisms

The expansions and optional descriptions of most acronyms and initialisms appear in the glossary.

1.5 Assistance and ordering phone numbers

Nokia provides global technical support through regional call centers. Phone numbers for the regional call centers are available at the following URL: http://support.alcatel-lucent.com.

For ordering information, co ntact your Nokia sales representat ive.

Issue: 01 3FE-46615-AAAA-TCZZA 3



Preface 7368 ISAM CPE A-240Z-A Product Guide

1.6 Nokia quality processes

Nokia’s CPE quality practices are in compliance with TL 9000 requirements. The se requirements are document ed in the Fixed Networks Quality Manual 3FQ-30146-6000-QRZZA. The quality pr acti ces adequately ensure that technical requirements and cu stomer end-point requir ements are met. The customer or i ts representatives may be allowed to perform on-site quality surveillance audits, as agreed upon during contract negotiations

1.7 Safety information

For safety information, see the appropriate safety guidelines chapter.

1.8 Documents

Documents are available using ALED or OLCS.

Procedure 1 To download a ZIP file package of the customer documentation

Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you are a new user and require access to this service, please contact your Nokia sales representative.

From the Technical Content for drop-down menu, choose the product.

Click on Downloads: Electronic Delivery.

Choose Documentation from the drop-down menu an d click Next.

Select the image from the drop-down me nu and click Next.

Follow the on-screen dir ections to download the file .

4 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Preface

Procedure 2 To access individual documents

Individual PDFs of customer docume nts are also accessible throug h the Nokia Customer Support website.

Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you are a new user and require access to this service, please contact your Nokia sales representative.

From the Technical Content for drop-down menu, choose the product.

Click on Manuals and Guides to display a list of c ust ome r d ocu ment s b y title an d p art number. You can filter this list using the Release drop-down menu.

Click on the PDF to open or save the file.

1.9 Special information

The following are examples of how special information is presented in this document.

Danger — Danger indicates that the described activity or

situation may result in serious personal injury or death; for example, high volt age or electric shock hazards.

Warning — Warning indicates that the described a ctivity or

situation may, or will, cause equipment damage or serious performance problems.

Caution — Caution indicates that the des cribed activity or

situation may, or will, cause service interruption.

Note — A note provides information that is, or may be, of

special interest.

Issue: 01 3FE-46615-AAAA-TCZZA 5



Preface 7368 ISAM CPE A-240Z-A Product Guide

1.9.1

Procedures with options or substeps

When there are options in a procedure, they are identified by letters. When there are required substeps in a procedure, they are identified by roman numerals.

Procedure 3 Example of options in a procedure

At step 1, you can choose option a or b. At s tep 2, you mus t do what the step indi cates.

This step offers two o ptions. You must choos e one o f the following:

This is one option.

This is another option.

You must perform this st ep.

Procedure 4 Example of required substeps in a procedure

At step 1, you must perf orm a ser ies o f substeps within a step . At step 2, you must do what the step indicates.

This step has a serie s of substeps th at you mu st pe rf or m to complete the step. Yo u mus t perform the following substeps:

This is the first substep.

This is the second sub step.

iii

This is the third substep.

You must perform this step.

6 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Preface

1.10 Multiple PDF document search

You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a common term. Adobe Reader displays the results in a single display panel. The results are grouped by PDF file, and you can expand the entry for each file.

Note — The PDF files in which you search must be in the same

folder.

Procedure 5 To search multiple PDF files for a common term

Open Adobe Acrobat Reader.

Choose EditSearch from the Acrobat Reader main menu. The Search PDF panel appears.

Enter the search criteria.

Click on the All PDF Document s In radio button.

Select the folder in which to search using the drop-down menu.

Click on the Search button. Acrobat Reader displays the search results. You can expand the entries for each document

by clickin g on the + symbo l.

Issue: 01 3FE-46615-AAAA-TCZZA 7



Preface 7368 ISAM CPE A-240Z-A Product Guide

8 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide

Table of contents

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

1.9.1

1.10

2.1

2.1.1

2.1.2

2.2

2.2.1

2.2.2

2.2.3

2.2.4

2.2.5

2.3

2.3.1

2.3.2

2.3.3

2.4

2.5

Preface ................................................................................................. 3

Scope ..............................................................................................................3

Audience .........................................................................................................3

Required knowledge .............................................. ........ ......... ........ ........ ....... 3

Acronyms and initialisms ............................................................................... 3

Assistance and ordering phone numbers ..................................................... 3

Nokia quality processes .............................................................................. .. 4

Safety information ............................. ........ ......... ........ ........ ......... ........ ......... .. 4

Documents ......................................................................................................4

Special information .............. .... .... ..... .... .... .... .... ..... .... .... .... ......... .... .... .... ..... .. 5

Procedures with options or substeps ........................................................... 6

Multiple PDF document search ......................... .... .... .... .... ..... .... .... .... .... ....... 7

ETSI CPE safety guidelines .............................. ..... ...... ......... ..... ..... 17

Safety instructions ........... ........ ......... ........ ........ ......... ............. ........ ......... .... 17

Safety instruction boxes ................... .... .... .... ..... .... .... .... ......... .... .... .... .... ..... 17

Safety-related labels .......................................................... ............. ........ ..... 18

Safety standards compliance ....................... .... ..... .... .... ......... .... .... .... .... ..... 19

EMC, EMI, and ESD compliance .................................. .... ..... .... .... .... ......... 19

Equipment safety stan dar d compliance ........................................ ....... ...... 19

Environmental s tandard c ompliance ............................................. ... ........ .. 20

Resistibility requirements compliance .................................................. ...... 20

Acoustic noise emission standard compliance .......................................... 20

Electrical safety guidelines ........................................ .... .... ..... .... .... .... .... ..... 20

Power supplies ........................ ......... ........ ........ ......... ............. ........ ......... .... 20

Cabling ......................................................................................................... 21

Protective earth ................................. ............ ............. ............. ............ ......... 21

ESD safety guidelines .......................... ........ ......... ........ ........ ......... ........ ..... 21

Environmental requirements ................ .... .... ..... .... .... .... .... .... ..... .... .... .... ..... 21

3.1

3.1.1

3.1.2

3.1.2.1

3.1.2.2

3.2

3.3

3.3.1

3.3.2

3.3.3

3.3.4

3.3.5

3.3.6

3.3.7

Issue: 01 3FE-46615-AAAA-TCZZA 9



ETSI environmental and CRoHS guidelines ................................ 23

Environmental labels ......................................... .... .... .... .... ..... .... .... .... .... ..... 23

Overview ...................................................................................................... 23

Environmental related labels ....................................................................... 23

Products below Maximum Concentration Value (MCV) label .................... 23

Products containing hazardous subs tances above M aximum Concentration

Value (MCV) label ............................................................................ ........ .. 24

Hazardous Substances Table (HST) ......................................................... 25

Other environmental requirements ............................................................ 26

CPE environmental requirements .............................. ................................ 26

Storage ................................................. ...................................... ................. 26

Transportation .............................. ......... ........ ......... ........ ......... ........ ........ ..... 26

Stationary use ..................................................................................... ......... 26

Thermal limitations .................................................... ........ ......... ........ ......... 26

Material content compliance .............................. ............................. ............. 27

End-of-life collection and treatment............................................................ 27



7368 ISAM CPE A-240Z-A Product Guide

4.1

4.1.1

4.1.2

4.2

4.2.1

4.2.2

4.2.3

4.2.4

4.3

4.3.1

4.3.2

4.3.3

4.4

4.5

5.1

5.2

5.2.1

5.2.2

5.2.3

5.3

5.4

5.4.1

5.5

5.6

5.7

5.8

5.8.1

5.8.2

5.8.3

5.8.4

5.9

5.9.1

5.9.1.1

5.9.1.2

5.9.2

ANSI CPE safety guidelines ....................... ... ..... ... ... ...... ... ... ...... .. .. 29

Safety instructions ........... ........ ......... ........ ........ ......... ............. ........ ......... .... 29

Safety instruction boxes in customer documentation ................................ 29

Safety-related labels .......................................................... ............. ........ ..... 30

Safety standards compliance ....................... .... ..... .... .... ......... .... .... .... .... ..... 31

EMC, EMI, and ESD standards complianc e ............................................ .. 31

Equipment safety stan dar d compliance ........................................ ....... ...... 32

Environmental s tandards compliance ........................................................ 32

Resistibility requirements compliance .................................................. ...... 32

Electrical safety guidelines ........................................ .... .... ..... .... .... .... .... ..... 33

Power supplies ........................ ......... ........ ........ ......... ............. ........ ......... .... 33

Cabling ......................................................................................................... 33

Protective earth ................................. ............ ............. ............. ............ ......... 33

ESD safety guidelines .......................... ........ ......... ........ ........ ......... ........ ..... 33

Environmental requirements ................ .... .... ..... .... .... .... .... .... ..... .... .... .... ..... 34

A-240Z-A unit data sheet ............................................................... 35

A-240Z-A part numbers and identification .................................... ....... ...... 36

A-240Z-A general description ........................................................ ........ ..... 37

TR-069 object support for WiFi parameters ............................................... 39

TR69 authentication using TLS and CA certificates ................................... 39

TR-104 parameter extension support for voice service ............................. 40

A-240Z-A software and installation feature support............................. ...... 40

A-240Z-A interfaces and interface capacity ................. ......... ........ .... ......... 40

A-240Z-A connections and components ....................... ....... ........ ....... ...... 41

A-240Z-A LEDs............................................. ......... ........ ......... ........ ......... .... 42

A-240Z-A detailed specifications ....................................... ......... ........ ......... 43

A-240Z-A functional blocks . ......... ........ ............. ........ ........ ......... ........ ......... 44

A-240Z-A standards compliance ....................................................... ......... 45

Responsible party ........................................................................................ 46

Energy-related product s standb y and o ff m odes com plianc e .................... 46

FCC statement ...................................... ............. ........ ........ ......... ........ ......... 47

FCC Radiation Exposure Statement ........................................................... 47

A-240Z-A special considerations ....................................................... ......... 47

Wi-Fi service ................ .... .... ........ ..... .... .... .... .... ..... .... .... .... ..... ........ .... .... ..... 48

Wi-Fi standards and certifications ............................. .... .... ......... .... .... .... ..... 48

Wi-Fi GUI features ..................................................... .... .... ..... .... .... .... ..... .... 48

A-240Z-A CPE considerations and limitations .......................... .... .... .... ..... 48

6.1

6.2

6.3

6.4

6.5

6.6

7.1

7.2

7.3



Install an A-240Z-A CPE ................................................................ 49

Purpose................................................. ........ ......... ........ ......... ............ ......... 49

General ......................................... ............................................................... 49

Prerequisites ................................................................................................ 49

Recommended tools.................................................................................... 49

Safety information ......................... ........ ............. ........ ........ ......... ........ ......... 50

Procedure ............................................. .................................................. ..... 51

Replace an A-240Z-A CPE ....................................... ........ ...... ..... ... 53

Purpose................................................. ........ ......... ........ ......... ............ ......... 53

General ......................................... ............................................................... 53

Prerequisites ................................................................................................ 53

3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide

7.4

7.5

7.6

8.1

8.2

8.2.1

8.2.2

8.2.3

8.2.4

8.2.5

8.2.6

8.2.7

8.2.8

8.3

Recommended tools.................................................................................... 53

Safety information ......................... ........ ............. ........ ........ ......... ........ ......... 54

Procedure ................................................. ................................................... . 54

Configure an A-240Z-A CPE ......................... .......... ........ ........ ...... 57

General ......................................... ............................................................... 57

GUI configuration .................................................................................... ..... 57

Device and connection status ................................... ........ ......... ........ ......... 58

Network configuration .................................................... ......... .... .... .... ..... .... 73

Security configuration .................................................................................. 90

Application configuration .................. ........ ........ ......... ........ ......... ........ ....... 100

Maintenance ......................................... ..................................................... 110

RG troubleshooting counters ................................................. .... .... .... .... ... 122

Smart Home configuration ......................................................................... 124

IOT application software package download .................... ........ .... ... .... .... 129

Issue: 01 3FE-46615-AAAA-TCZZA



7368 ISAM CPE A-240Z-A Product Guide

12 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide

List of figures

Figure 1 PSE certification ........................... .......................... ....................... ............. 19

ETSI CPE safety guidelines ............................................ ................ 17

Figure 2 Products below MCV value label ................................... ...................... ...... 24

Figure 3 Products above MCV value label ................................................................ 25

Figure 4 Recycling/take back/disposal of product symbol .................................. ...... 27

Figure 5 Sample safety label on the CPE equipment ............................................... 31

Figure 6 A-240Z-A CPE in its stand .......................................................... ............ ..... 38

Figure 7 A-240Z-A CPE physical connections ................................ ......................... 41

Figure 8 A-240Z-A CPE LEDs ........................ ..................... ......................... ............. 42

Figure 9 Single-residence Wi-Fi CPE with Gigabit Ethernet and POTS and

Figure 10 A-240Z-A US safety label ................. ......................... ............................. ..... 45

Figure 11 A-240Z-A European (EU) safety label ........................... ................. ............. 45

Figure 12 A-240Z-A Australian (AU) saf ety label .... .......................... ....................... .. 46

Figure 13 A-240Z-A CPE connections . ........................... .......................... ................. 51

Figure 14 A-240Z-A CPE connections . ........................... .......................... ................. 55

Figure 15 Web login window ................ .............................. ............................. ............. 58

Figure 16 Device Information w indow .......... .......................... .......................... .......... 59

Figure 17 LAN status window ................................................ ............................. ......... 61

Figure 18 WAN status window ................. .......................... ............................. ............. 63

Figure 19 WAN status IPv6 window .................................................. ..................... ..... 65

Figure 20 Dongle Status window .......................... ............................. .......................... 67

Figure 21 Home networking information window .............................. .......................... 69

Figure 22 LAN ports statistics window ......................................................................... 71

Figure 23 Voice Information window .................................. .................................. ...... 72

Figure 24 LAN network window ................................ .............................. ..................... 74

Figure 25 LAN IPv6 network window ................................................. .......................... 76

Figure 26 WAN network window .............................................................................. .... 78

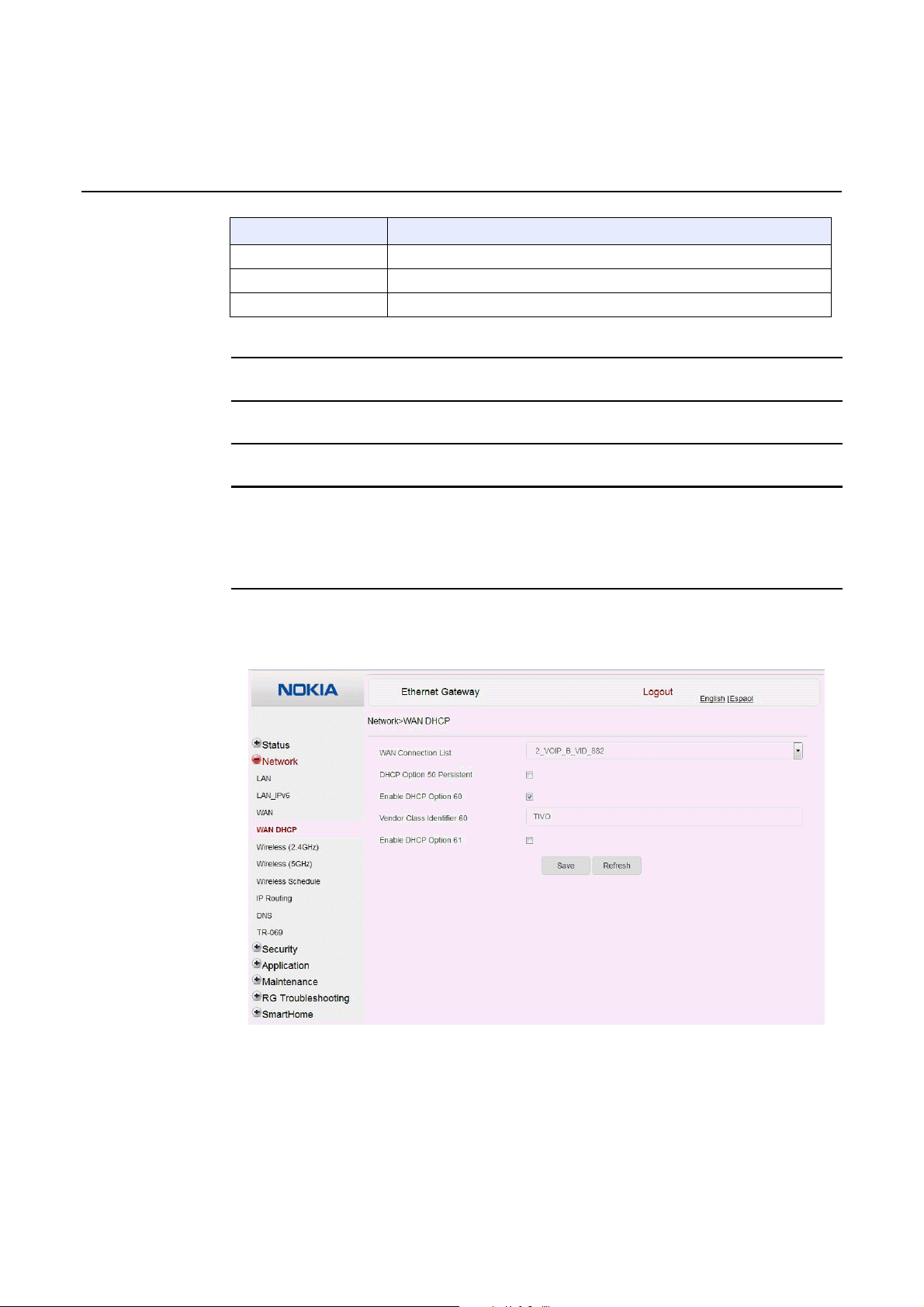

Figure 27 WAN DHCP window ......................... ............................. .............................. 79

Figure 28 Wireless 2.4GHz network window ......................................... ..................... 81

Figure 29 Wireless 5GHz network window ................................................ ................. 83

Figure 30 Wireless Schedule window .......................................................................... 85

Figure 31 Routing network window ................................................................. ............. 86

Figure 32 DNS network window ......................................... ............................. ............. 88

Figure 33 TR-069 network window ...... .............................. ............................. ............. 89

Figure 34 Firewall window ................................... ........................... .......................... .. 91

ETSI environmental and CRoHS guidelines ..... ....................... ..... 23

ANSI CPE safety guidelines ..................................................... ....... 29

A-240Z-A unit data sheet ............................................................... 35

without RF video .................. .............................. ............................. ............. 44

Install an A-240Z-A CPE ......................... .................. ...................... 49

Replace an A-240Z-A CPE ............... ...................... ..................... ... 53

Configure an A-240Z-A CPE .. ........................ ..................... ........... 57

Issue: 01 3FE-46615-AAAA-TCZZA 13



7368 ISAM CPE A-240Z-A Product Guide

Figure 35 MAC filter window ......................... ............................. ......................... ......... 92

Figure 36 IP filter window ..................................... ........ ......... ........ ......... ........ ......... .... 93

Figure 37 URL Filter window ...................................................... .......................... ...... 95

Figure 38 Parental Control window .......................................................................... .. 96

Figure 39 DMZ and ALG window .............................................................. ................. 97

Figure 40 Access Control window ............................................. ............................. ..... 99

Figure 41 Port forwarding window ....................................................................... .... 1 01

Figure 42 Port Triggering window ............ .............................. .......................... ........ 1 02

Figure 43 DDNS window ......................................................................................... ... 104

Figure 44 NTP window ....................................................................... ........................ 105

Figure 45 USB window ................................................. ..................... ................. ....... 106

Figure 46 UPnP and DLNA window ............................. .............................. ............... 108

Figure 47 Voice setting window ......................................... ........................... ........... 109

Figure 48 Password window ...................................................... ............................. ... 111

Figure 49 Speed Test window ..................... .............................. ......................... ....... 112

Figure 50 Device management window ........... ............................. ......................... ... 113

Figure 51 Uplink Management window ............... ........................... .......................... 114

Figure 52 Dongle management window .................................................................. 115

Figure 53 Backup and Restore window ......................... ........ ........ ........... ..... ...... .... 116

Figure 54 Firmware upgrade window ........................................................................ 117

Figure 55 Reboot window ................................. ......................... .............................. .. 118

Figure 56 Factory default window ........................... .......................... ....................... 119

Figure 57 Diagnostics window ............. .............................. ......................... ............... 120

Figure 58 Log window ......... ......................... .............................. ............................. ... 121

Figure 59 RG Troubleshooting Counters window ............................. .... .... .... ... .... .... 123

Figure 60 Smart Home Status window ................................................. ................... 125

Figure 61 Smart Home Configuration window ......................................................... 127

Figure 62 Smart Home Maintenance window ..... ....................... .......................... .... 1 28

14 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide

List of tables

Table 1 Safety labels ........................ ................. ................. ................. ................ ..... 18

ETSI CPE safety guidelines ............................................ ................ 17

Table 2 Safety labels ........................ ................. ................. ................. ................ ..... 30

Table 3 Identification of A-240Z-A CPEs ................................ .......................... ...... 36

Table 4 A-240Z-A power supply ............................... .................................. ............. 37

Table 5 A-240Z-A CPE interface connection capacity ....................... ..................... 40

Table 6 A-240Z-A CPE physical connections ........................................ ................. 41

Table 7 A-240Z-A CPE LEDs .................... ......................... ......................... ............. 42

Table 8 A-240Z-A CPE physical specifications .... .................................. ................. 43

Table 9 A-240Z-A CPE power consumption specifications ........................ ............. 43

Table 10 A-240Z-A CPE environmental specifications .................... .......................... 44

Table 11 Respons ible party contact information ............... ...................................... .. 46

Table 12 A-240Z-A CPE considerations and limitations ............................................ 48

Table 13 Device Information parameters .............................. .................................... 59

Table 14 LAN status parameters ..................... ................................. .......................... 61

Table 15 WAN status parameters ......................................................... ..................... 63

Table 16 WAN status IPv6 parameters ............... ............................. .......................... 65

Table 17 Dongle Status parameters .............................................................. ............. 68

Table 18 Home networking parameters ............. ................................................. ...... 69

Table 19 V oice Information paramete rs ......... ........................... .......................... ...... 72

Table 20 LAN network parameters ............................................................................. 74

Table 21 LAN IPv6 network parameters ................................................ ..................... 76

Table 22 WAN netwo rk parameters ............................................................................ 78

Table 23 WAN DHCP parameters .............................................................................. 80

Table 24 Wireless 2.4GHz network parameters ........................................... ............. 81

Table 25 Wireless 5GHz network parameters ............................................................ 84

Table 26 Rout ing network paramete rs ........................................................................ 87

Table 27 DNS network parameters ................................. .................................. ......... 88

Table 28 TR-069 network parameters ............. ............................. .............................. 89

Table 29 Firewall parameters .................................. .............................. ..................... 92

Table 30 MAC filter parameters .................................................................................. 93

Table 31 IP filter parameters ....................................... .......................... ..................... 94

Table 32 URL Filter parameters ................................. .......................... ..................... 95

Table 33 Parental control parameters ................. ......................... .............................. 96

Table 34 DMZ a nd ALG parameters .............. ........................... .......................... ...... 97

Table 35 Access control parameters .......... .......................... ......................... ............. 99

Table 36 Port forwarding parameters ..... .......................... ............................. ........... 101

Table 37 Port triggering parameters ................ ............................. ............................ 102

Table 38 DDNS parameters ....................................................................... ............... 104

Table 39 USB parameters . ......................... .............................. ............................. ... 106

Table 40 V oice setting parameters ................................ .......................... ............... 109

ANSI CPE safety guidelines ..................................................... ....... 29

A-240Z-A unit data sheet ............................................................... 35

Configure an A-240Z-A CPE .. ........................ ..................... ........... 57

Issue: 01 3FE-46615-AAAA-TCZZA 15



7368 ISAM CPE A-240Z-A Product Guide

Table 41 Password parameters........................................................ ........................ 111

Table 42 Device management parameters...................................... .... .... .... ....... .... 113

Table 43 Dongle management parameters ........... .............................. ................... 115

Table 44 RG Troubleshooting Counters parameters .............................................. 123

Table 45 Smart Home Status parameters ..... ......................................................... 126

Table 46 Smart Home Configuration parameters ................................................... 127

Table 47 Smart Home maintenance parameters ............................. ........ ....... ........ 128

16 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ETSI CPE safety guidelines

2 ETSI CPE safety guidelines

This chapter provides information about the mandatory regulations that govern the installation and operation of CPEs.

2.1 Safety instructions

This section describes the safety instructions that are provided in the CPE customer documentation and on the equipment.

2.1.1

Safety instruction boxes

The safety instruction boxes are provided in the CPE customer documentation. Observe the instructions to meet safety requirements.

The following is an example of the Danger box.

Danger — Possibility of personal injury.

The Danger box indicates that the described activity or situation may pose a threat to personal safety. It calls attention to a situation or procedure which, if not correctly performed or adhered to, may result in death or serious physical harm.

Do not proceed beyond a Danger box until the indicated conditions are fully understood and met.

The following is an example of the Warning box.

Warning 1 — Possibility of equipment damage.

Warning 2 — Possibility of data loss.

The Warning box indicates that the described activity or situation may, or will, cause equipment damage, loss of data, or serious performance problems. It identifies a possible equipment-damaging situation or provides essential information to avoid the degradation of system operations or data.

Do not proceed beyond a warning until the indicated conditions are fully understood and met.

Issue: 01 3FE-46615-AAAA-TCZZA 17



ETSI CPE safety guidelines 7368 ISAM CPE A-240Z-A Product Guide

The following is an example of the Caution box.

Caution 1 — Possibility of service interruption.

Caution 2 — Service interruption.

The Caution box indicates that the described activity or situation may, or will, cause service interruption.

Do not proceed beyond a caution until the indicated conditions are fully understood and met.

The following is an example of the Note box.

Note — Information of spe cial interest.

The Note box provides information that assist s the personnel working with CPEs. It does not provide safety-related instructions.

2.1.2

Safety-related labels

The CPE equipment is labeled with the specific safety instructions and compliance information that is related to a variant of the CPE. Obser ve the inst ructions on the safety labels.

Table 1 provides sample safety labels on the CPE equipment.

Table 1 Safety labels

Description Label text

ESD warning Caution: This assembly contains an electrostatic sensitive device. PSE marking

These power supplies are Japan PSE certified and compliant with Japan VCCI emissions standards.

Figure 1 shows the PSE certif ication.

18 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ETSI CPE safety guidelines

Figure 1 PSE certification

Warning

This is a Class B product based on the standard of the Volunta ry Control Council for Inter ference from Informat ion Tech nology Equipment (VCCI). If this is used near a radio or te levision re ceiver in a domestic environ ment, it may cause ra dio interfere nce. Install and use the equipment according to the instruction manual.

19841

2.2 Safety standards compliance

This section describes the CPE compliance with the European safety standards.

2.2.1

EMC, EMI, and ESD compliance

The CPE equipment complies with the following EMC, EMI, and ESD requirements:

• EN 300-386 V1.5.1: Electromagnetic Compatibility and Radio Spectrum Matters

(ERM): Telecommunicati ons Network Equipment; Electromagnetic Compatibility (EMC) requirements; Electrostatic Discharge (ESD) requirements

• EN 55022 (2006): Class B, Information Technology Equipment, Radio

Disturbance Characteristics, limits and methods of measurement

• EN 55024 (2010): Information Technology Equipment, Immunity Characteristics,

limits and methods of measurement

• European Council Directive 2004/108/EC

• EN 300-386 V1.4.1: 2008

• EN 55022:2006 Class B (CPEs)

2.2.2

Equipment safety standard compliance

The CPE equipment complies with the requirements of EN 60950-1, Safety of Information Technology Equipment for use in a restricted location (per R-269).

Issue: 01 3FE-46615-AAAA-TCZZA 19



ETSI CPE safety guidelines 7368 ISAM CPE A-240Z-A Product Guide

2.2.3

Environmental standard compliance

The CPE equipment complies with the EN 300 019 European environmental standards.

2.2.4

Resistibility requirements compliance

The CPE equipment complies with the requireme nts of ITU Recom mendation K.21 for resistibility of telecommunication equipment installed in customer premises to over voltage and overcurrents.

2.2.5

Acoustic noise emis sion standard compliance

The CPE equipment complies with EN 300 753 acoustic noise emission limit and test methods.

2.3 Electrical safety guidelines

This section provides the electrical safety guidelines for the CPE equipment.

Note 1 — The CPEs comply with the U.S. National Electrical

Code. However, local electrical authorities have jurisdiction when there are differences between the local and U.S. standards.

Note 2 — The CPEs comply with BS EN 61140.

2.3.1

Power supplies

The use of any non-Nokia approved power supplies or power adapters is not supported or endorsed by Nokia. Such use will void any warranty or support contract with Nokia. Such use greatly increases the danger of damage to equipment or property.

20 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ETSI CPE safety guidelines

2.3.2

Cabling

The following are the guidelines regarding cables used for the CPE equipment:

• All cables must be approved by the relevant national electrical code.

• The cables for outdoor installation of CPEs must be suitable for outdoor use.

• POTS wiring run outside the subscriber premises must comply with the

requirements of local electrical codes. In some markets, the maximum allowed length of the outside run is 140 feet (43 m). If the outside run is longer, NEC requires primary protection at both the exit and entry points for the wire.

2.3.3

Protective earth

Earthing and bonding of the CPEs must comply with the requirements of local electrical codes.

2.4 ESD safety guidelines

The CPE equipment is sensitive to ESD. Operations personnel must observe the following ESD instructions when they handle the CPE equipment.

Caution — This equipment is ESD sensitive. Proper ESD

protections should be used when you enter the TELCO Access portion of the CPE.

During installation and maint enance, ser vice personnel must wear wrist straps to prevent damage caused by ESD.

2.5 Environmental requirements

See the CPE technical specificat ion document ation for more information about temperature ranges.

Issue: 01 3FE-46615-AAAA-TCZZA 21



ETSI CPE safety guidelines 7368 ISAM CPE A-240Z-A Product Guide

During operation in the supported temperature range, condensation inside the CPE caused by humidity is not an issue. To avoid condensation caused by rapid changes in temperature and h umidit y, Nokia recomm ends:

• The door of the CPE not be opened until tem perat ure inside and outside the

enclosure has stabilized.

• If the door of the CPE must be opened after a rapid change in temperature or

humidity, use a dry cloth to wipe down the metal interior to prevent the risk of condensation.

• When high humidity is present, installation of a cover or tent over t he CPE helps

prevent condensation when the door is opened.

22 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ETSI environmental and CRoHS guidelines

3 ETSI environmental and CRoHS

guidelines

This chapter provides information abou t the ETSI environmental China Restriction of Hazardous Substances (CRoHS) regulations that govern the installati on and operation of CPEs. This chapter also includes environmental operation parameters of general interest.

3.1 Environmental labels

This section describes the environmental instructions that are provided with the customer documentation, equipment, and location where the equipment resides.

3.1.1

Overview

CRoHS is applicable to Electronic Informat ion Products (EIP) manufactured or sold and imported in the territory of the mainland of the People’s Republic of China. EIP refers to products and their accessories manufactured by using electronic information technol ogy, including electronic communications products and such subcomponents as batteries and cables.

3.1.2

Environmental related labels

Environmental labels are located on appropriat e equipment. The following are sample labels.

3.1.2.1

Products below Maximum Concentration Value (MCV) label

Figure 2 shows the label that indicates a product is below the maximum concentration value, as defined by standard SJ/T11363-2006 (Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products). Products with this label are recy clable. The label may be found in this documentation or on the product.

Issue: 01 3FE-46615-AAAA-TCZZA 23



ETSI environmental an d CRoHS guidelin es 7368 ISAM CPE A-240Z-A Product Guide

Figure 2 Products below MCV value label

18986

3.1.2.2

Products containing hazardous substances above Maximum Concentration Value (MCV) label

Figure 3 shows the label that indicates a product is above the maximum concentration value, as defined by standard SJ/T11363-2006 (Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products). The number contained inside the label indicates the Environment-Friendly User Period (EFUP) value. The label may be found in this documentation or on the product.

24 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ETSI environmental and CRoHS guidelines

Figure 3 Products above MCV value label

Together with major international telecommunicat ions equipment companies, Nokia has determined it is appropriate to use an EFUP of 50 years for network infrastructure equipment and an EFUP of 20 years for handsets and accessories. These values are based on manufacturer s' extensive practical experience of th e design, manufacturing, mainten ance, usage conditions, operat ing environments, and physical condition of infrastr ucture and handse ts after years of service. The values reflect minimum values and refer to products operated according to the intended use conditions. See “Hazardous Substances Table (HST)” for more

18985

information.

3.2 Hazardous Substances Table (HST)

This section describes the compliance of the OLT and CPE equipment to the CRoHS standard when the product and subassemblies contain hazardous substances beyond the MCV value. This information is found in this user documentation where part numbers for the product and subassemblies are listed. It may be referenced in other OLT and CPE documentatio n.

In accordance with the People’s Republic of China Electronic Industry Standard Marking for the Control of Pollution Caused by Electronic Information Products (SJ/T11364-2006), customers may access the Nokia Hazardous Substance Table, in Chinese, from the following location:

• http://www.alcatel-sbell.com.cn/wwwroot/ imag e s/u pload/ p rivate/ 1/me d ia/ Chi na Ro

HS.pdf

Issue: 01 3FE-46615-AAAA-TCZZA 25



ETSI environmental an d CRoHS guidelin es 7368 ISAM CPE A-240Z-A Product Guide

3.3 Other environmental requirements

Observe the following environme ntal requirements when handling the P-OLT or CPE equipment.

3.3.1

CPE environmental requirements

See the CPE technical specificat ion document ation for more information about temperature ranges.

3.3.2

Storage

According to ETS 300-019-1-1 - Class 1.1, storage of OLT equipment must be in Class 1.1, weather-protecte d, temperature-controlled locat ions.

3.3.3

Transportation

According to EN 300-019-1-2 - Class 2.3, transportation of the OLT equipment must be in packed, public transportation with no rain on packing allowed.

3.3.4

Stationary use

According to EN 300-019-1-3 - Class 3.1/3.2/3.E, stationary use of OLT equipment must be in a temperature-controlled loca tion, with no rain allowed, and with no condensation allowed.

3.3.5

Thermal limitations

When the OLT is installed in the CO or CEV, install air filters on the P-OLT. The thermal limitatio ns for OLT oper ation in a CO or CEV are:

• operating temperature: 5 C to 40C (41F t o 104F)

• short-term temperature: –5C to 50C (23F t o 122F)

• operating relative hu midity: 5% to 85%

• short-term relative humidity: 5% to 95%, but not to exceed 0.024 kg of water/kg

26 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ETSI environmental and CRoHS guidelines

3.3.6

Material content compliance

European Union (EU) Directive 2002/95/EC, “Restriction of the use of certain Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium, hexavalent chromi um, and certain f lame retardants in electrical and electronic equipment. This Directive applies to electrical and electroni c products placed on the EU market after 1 July 2006, with various exemption s, including an exemption for lead solder in network infrastructure equipment. Nokia products shipped to the EU after 1 July 2006 comply with the EU RoHS Directive.

Nokia has implemented a materia l/substance content managem ent process. The process is described in: Nokia process for ensuring RoHS Compliance (1AA002660031ASZZA). This ensures compliance with the European Union Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS2). With the process eq uipment is assessed in accordance with the Harmonised Standard EN50581:2012 (CENELEC) on Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances.

3.3.7

End-of-life collection and treatment

Electronic products bearing or referencing the symbol shown in Figure 4, when put on the market within the European Union (EU), shall be collected and treated at the end of their useful life, in compliance with applicable EU and local legislation. They shall not be disposed of as part of unsorted municipal wast e. Due to materia ls that may be contained in the product, such as heavy metals or batteries, the environment and human health may be negatively impacted as a result of inappropriate disposal.

Note — In the European Union, a solid bar under the symbol for

a crossed-out wheeled bin indicates that the product was put on the market after 13 August 2005.

Figure 4 Recycling/take back/disposal of product symbol

Issue: 01 3FE-46615-AAAA-TCZZA 27



ETSI environmental an d CRoHS guidelin es 7368 ISAM CPE A-240Z-A Product Guide

At the end of their life, the OLT and CPE products are subject to the applicable local legislations that implement the European Directive 2012/19EU on waste electrical and electronic equipment (WEEE).

There can be different requirements for collection and treatment in different memb er states of the European Union.

In compliance with legal requirements and contractual agreements, where applicable, Nokia will offer to provide for the collection and treatment of Nokia products bearing the logo shown in Figure 4 at the end of their useful life, or products displaced by Nokia equipment offers. For information regarding take-back of equipment by Nokia, or for more information regarding the requireme nts for recycling/disposal of product, contact your Nokia account manager or Nokia take back support at sustainability.global@nokia.com.

28 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ANSI CPE safety guidelines

4 ANSI CPE safety guidelines

This chapter provides information about the mandatory regulations that govern the installation and operat ion of CPEs in the North American or ANSI market.

4.1 Safety instructions

This section describes the safety instructions that are provided in the CPE customer documentation and on the equipment.

4.1.1

Safety instruction boxes in customer documentation

The safety instruction boxes are provided in the CPE customer documentation. Observe the instructions to meet safety requirements.

The following is an example of the Danger box.

Danger — Possibility of personal injury.

Do not proceed beyond a Danger box until the indicated conditions are fully understood and met.

The following is an example of the Warning box.

Warning 1 — Possibility of equipment damage.

Warning 2 — Possibility of data loss.

Do not proceed beyond a warning until the indicated conditions are fully understood and met.

Issue: 01 3FE-46615-AAAA-TCZZA 29



ANSI CPE safety guidelines 7368 ISAM CPE A-240Z-A Product Guide

The following is an example of the Caution box.

Caution 1 — Possibility of service interruption.

Caution 2 — Service interruption.

The Caution box indicates that the described activity or situation may, or will, cause service interruption.

Do not proceed beyond a caution until the indicated conditions are fully understood and met.

The following is an example of the Note box.

Note — Information of spe cial interest.

The Note box provides information that assist s the personnel working with CPEs. It does not provide safety-related instructions.

4.1.2

Safety-related labels

The CPE equipment is labeled with specific safety compliance information and instructions that are related to a variant of the CPE. Observe the instructions on the safety labels.

Table 2 provides ex amples of the text in the various CPE safety labels.

Table 2 Safety labels

Description Label text

ETL compliance Communication service equipment US listed. Type 3R enclosure - Rainproof. TUV compliance Type 3R enclosure - Rainproof. ESD warning Caution: This assembly contains electrostatic sensitive device. FCC standards compliance Tested to comply with FCC standards for home or office use. CDRH compliance Complies with 21 CFR 1040.10 and 1040.11. Operation conditions

CE marking There are various CE symbols for CE compliance.

This device complies with P art 15 of the FCC Ru les. Operation i s subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Figure 5 shows a sample safety label on the CPE equipment.

30 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ANSI CPE safety guidelines

Figure 5 Sample safety label on the CPE equipment

Tested to Comply with FCC Standards

FOR HOME OR OFFICE USE

COMMUNICATION SERVICE EQUIPMENT US LISTED

c ®

27FY Typ e 3R Enclosure - Rainproof

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this dev ice may not cause harmful interference, and (2) this device must accept any interference rece ived , includ ing int erf eren ce that may cause undes ired ope rat ion .

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la class A est co nfo rme a la norme NMB-003 du Canada

This Assembly Contains Electrostatic Sensitive Devices

CAUTION

18533

4.2 Safety standards compliance

4.2.1

This section describes the CPE compliance with North American safety standards.

Warning — Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the user's authority t o operate the equipme nt.

EMC, EMI, and ESD standards compliance

The CPE equipment complies with the following requir ements:

• Federal Communicat ions Commission (FCC) CFR 47, Part 15, Subpart B, Class

A requirements for OLT equipment

• GR-1089-CORE requirements, including:

• Section 3 Electromagnetic Interference, Emissions Radiated and Conducted

• Section 3 Immunity, Radiated and Conducted

• Section 2 ESD Discharge Immunity: System L evel Electrostatic Dis charge and EFT

Immunity: Electrically Fast Transien ts

Issue: 01 3FE-46615-AAAA-TCZZA 31



ANSI CPE safety guidelines 7368 ISAM CPE A-240Z-A Product Guide

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection a gainst harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that int erfer ence will not occur in a particul ar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is needed.

• Consult the dealer or an experienced radio/TV technician for help.

4.2.2

Equipment safety standard compliance

The CPE equipment complies with the requirements of UL60950-1, Outdoor CPEs to “Communication Service Equipment” (CSE) and Indoor CPEs to Information Technology Equipment (ITE).

4.2.3

Environmental standards compliance

The CPE equipment complies with the followin g standards:

• GR-63-CORE (NEBS): requirements related to operating, storage, humidity,

altitude, earthquake, office vibration, transportation and handling, fire resistance and spread, airborne contamina nts, illumination, and acoustic noi se

• GR-487-CORE: requirem ents related to rain, chemical, sand, and dust

• GR-487 R3-82: requirements related to condensation

• GR-3108: Requirements for Network Equipment in the Outside Plant (OSP)

• TP76200: Common Systems Equipment Interconnections Standards

4.2.4

Resistibility requirements compliance

The CPE equipment complies with the requireme nts of ITU Recom mendation K.21 for resistibility of telecommunication equipment installed in customer premises to overvoltage and overcurrent s.

32 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide ANSI CPE safety guidelines

4.3 Electrical safety guidelines

This section provides the electrical safety guidelines for the CPE equipment.

Note — The CPEs comply with the U.S. National Electrical

Code. However, local electrical authorities have jurisdiction when there are differences between the local and U.S. standards.

4.3.1

Power supplies

4.3.2

4.3.3

Cabling

The following are the guidelines regarding cables used for the CPE equipment:

• Use only cables approved by the relevant national electrical code.

• Use cables suitable for outdoor use for outdoor installation of CPEs.

• The CPEs have been evaluated for use with external POTS wiring without primary

protection that may not exceed 140 ft (43 m) in reach. Ho weve r , t he power cab le must not exceed 100 ft (31 m).

Protective earth

Earthing and bonding of the CPEs must comply with the requirements of NEC article 250 or local electrical codes.

4.4 ESD safety guidelines

The CPE equipment is sensitive to ESD. Operations personnel must observe the

Issue: 01 3FE-46615-AAAA-TCZZA 33



following ESD instructions when they handle the CPE equipment.

Caution — This equipment is ESD sensitive. Proper ESD

protections should be used when entering the TELCO Access portion of the CPE.



ANSI CPE safety guidelines 7368 ISAM CPE A-240Z-A Product Guide

During installation and maint enance, ser vice personnel must wear wrist straps to prevent damage caused by ESD.

Nokia recommends that you prepare the site before you install the CPE equipment. In addition, you must control relative hum idity, use static dissipating material for furniture or flooring, and restrict the use of air conditioning.

4.5 Environmental requirements

See the CPE technical specification documentation for temperature ranges for CPEs.

• The door of the CPE not be opened until tem perat ure inside and outside the

enclosure has stabilized.

• If the door of the CPE must be opened after a rapid change in temperature or

humidity, use a dry cloth to wipe down the metal interior to prevent the risk of condensation.

• When high humidity is present, installation of a cover or tent over t he CPE helps

prevent condensation when the door is opened.

34 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide A-240Z-A unit data sheet

5 A-240Z-A unit data sheet

5.1 A-240Z-A part numbers and identification

5.2 A-240Z-A general description

5.3 A-240Z-A software and installa tion feature support

5.4 A-240Z-A interfaces and interface capacity

5.5 A-240Z-A LEDs

5.6 A-240Z-A detailed specifications

5.7 A-240Z-A functional blocks

5.8 A-240Z-A standards compliance

5.9 A-240Z- A special consider ations

Issue: 01 3FE-46615-AAAA-TCZZA 35



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

5.1 A-240Z-A part numbers and identification

Table 3 provides part numbers and identification inf ormation for the A-24 0Z-A CPE.

Table 3 Identification of A-240Z-A CPEs

Ordering part number

3FE 46615 AA (CPE only;

no power supply)

3FE 46615 AB (CPE only;

no power supply)

3FE 46615 AC (CPE only;

no power supply)

3FE 46614 AA 3FE 46615 AA

3FE 46614 BA 3FE 46615 AB

3FE 46614 CA 3FE 46615 AB

Provisioning number

3FE 46615 AA

3FE 46615 AB

3FE 46615 AC

Description CLEC CPR ECI/

CPE with 1 GE uplink, 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 802.11ac 4x4 and

802.11n 2x2 WiFi radio with on/off switch. This CPE has 2 USB 2.0 ports. This CPE has integrated ZigBee and Z-Wave (US) band

chip sets for use in wireless home automation systems. CPE with 1 GE uplink, 2 POTS ports, 4 10/100/1000

Base-T Ethernet interfaces, and 802.11ac 4x4 and

802.11n 2x2 WiFi radio with on/off switch. This CPE has 2 USB 2.0 ports. This CPE has integrated ZigBee and Z-Wave (EU band

chip sets for use in wireless home automation systems. CPE with 1 GE uplink, 2 POTS ports, 4 10/100/1000

Base-T Ethernet interfaces, and 802.11ac 4x4 and

802.11n 2x2 WiFi radio with on/off switch. This CPE has 2 USB 2.0 ports. This CPE has integrated ZigBee and Z-Wave (AUS band)

chip sets for use in wireless home automation systems. CPE with 1 GE uplink, 2 POTS ports, 4 10/100/1000

Base-T Ethernet interfaces, and 802.11ac 4x4 and

802.11n 2x2 WiFi radio with on/off switch. This CPE has 2 USB 2.0 ports. This CPE has integrated ZigBee and Z-Wave (US band)

chip sets for use in wireless home automation systems. Includes power supply with US plug.

CPE with 1 GE uplink, 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 802.11ac 4x4 and

802.11n 2x2 WiFi radio with on/off switch. This CPE has 2 USB 2.0 ports. This CPE has integrated ZigBee and Z-Wave (EU band)

chip sets for use in wireless home automation systems. Includes power supply with EU plug.

CPE with 1 GE uplink, 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 802.11ac 4x4 and

802.11n 2x2 WiFi radio with on/off switch. This CPE has 2 USB 2.0 ports. This CPE has integrated ZigBee and Z-Wave (EU band)

chip sets for use in wireless home automation systems. Includes power supply with UK plug.

BVMF510BRA — —

— — —

BVMF510BRA — —

— — —

Bar code

(1 of 2)

36 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide A-240Z-A unit data sheet

Ordering part number

3FE 46614 DA 3FE 46615 AC

(2 of 2)

Table 4 A-240Z-A power supply

Power/UPS model Power UPS and cabling part number

Fuhua AC/DC switching power adapter

Provisioning number

Description CLEC CPR ECI/

CPE with 1 GE uplink, 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 802.11ac 4x4 and

802.11n 2x2 WiFi radio with on/off switch. This CPE has 2 USB 2.0 ports. This CPE has integrated ZigBee and Z-Wave (AUS band)

chip sets for use in wireless home automation systems. Includes power supply with AUS plug.

— — —

Table 4 provides the detail for t he power supply for the A-240Z-A.

information

(1)

Part number: 1AF30114 AAAA

(2)

AC power cord, 1AB07676xxxx:

• 0098: Australia

• 0099: United Kingdom

• 0100: Europe

Customer category or country compliance tested for

ANSI municipality United States, Canada

Common European Union countries

Notes

12V, 36W, 3A, 6kV surge protection

• 0101: United States

Bar code

5.2 A-240Z-A general description

The A-240Z-A CPE is the answer for home networking delivered by Gigabit Ethernet. The device is a fully integrated resident ial gateway with the latest W i-Fi techn ology that allows for a full gigabit experience toward every device with limited wiring and boxes.

The A-240Z-A has built-in concurrent dual-band Wi-Fi® 802.11b/g/n and 802.11ac networking with triple play capability that simplifies the home equipment experience.

A-240Z-A CPEs contain integrated ZigBee and Z-Wave chip sets for use in wireless home automation systems. These Zigbee and Z-wave interfaces can connect to a wide range of Internet of Things (IOT) devices.

For information about configuring hom e automation files, see the section “Smart

Home configuration” in the chapter “Configure an A-240Z-A CPE”.

A-240Z-A CPEs can also be configured using the Nokia Smart Home Mobile App, which can be downloaded on both iOS and Android devices.

Issue: 01 3FE-46615-AAAA-TCZZA 37



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

Additional informat ion about Smart Home configuration, including instructions for the Nokia Digital ONU mobile application, can be found by visiting: https://resources.nokia.com/asset/200375.

The A-240Z-A is a compact CPE that can easily fit on a desk or shelf. For dimensions, see section 5.6. Figure 6 shows the A-240Z-A in its stand.

Figure 6 A-240Z-A CPE in its stand

26017

A-240Z-A CPEs provide the following functio ns:

• GE Ethernet uplink

• Zigbee and Zwave interfaces

• Concurrent 802.11n 2x2 MIMO in 2.4GHz and 802.11ac 4x4 MIMO in 5GHz

• auto-negotiation for speed and duplex on a port by port basis

• Bridged mode or routed mode per LAN port

• Advanced data features: VLAN tag manipulat ion, classification, and filtering

• Traffic classificat ion and QoS capability

• Analog Telephone Adapter (ATA) function integrated based on SIP (RFC3261)

and H.248, with various CLASS services supported, including Caller ID, Call Waiting, Call Forwarding, and Call Transfer

• 5 REN per line

• Multiple voice Codec

• MDI/MDIX auto-negotiation

• Line Rate L2 traffic

• Internal Switch

• UPnP IGD2.0 support

• Internal DHCP server, with configurabl e DHCP pool and gateway

• 64/128 WEP encryption

• WPA, WPA-PSK/TKIP

38 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide A-240Z-A unit data sheet

• WPA2, WPA2-PSK/AES

• support for multiple SSIDs (private and public instances); contact your Nokia

representative for further details.

• LED on/off button (on back of ONT)

• WPS LED butt ons f or 2.4G and 5G

• Ethernet-based Point-to-Point (PPPoE)

• Network Address Translation (NAT)

• Network Address Port Translation (NAPT)

• ALG and UPnP port forwarding

• DMZ

• IP/MAC filter

• Multi-level firewall

• DNS server

• DHCP client/server

• support for HT40 mode for increased channel bandwidt h

• support for up to 32 simultaneous wireless connections

• External USB HD (Hard Drive) support, accessible to all LAN devices

• support for AIS with DOWN MEP

• remote software ima ge download

5.2.1

TR-069 object support for WiFi parameters

The ONT supports the status retrieval and configurat ion of the following Wi-Fi parameters via TR-069:

• channel

• SSID

• password for WPA and WEP

• Tx power (transmission rat e in dBm)

These are the same TR-069 object parameters that are supported in the GUI. For more inform atio n, see Ta bles 24 and 25 in t he cha pter “ Configure an A-240Z-A

CPE”.

5.2.2

TR69 authentication using TLS and CA certificates

A-240Z-A ONTs support TLS, as well as ACS authentication using SHA-256 pre-installed certif icates.

If the URL is set to the https://... format , by defau lt, the connection will use TLS without authentication mode. The ONT can also authent icate the ACS using a pre-installed CA certificate.

Issue: 01 3FE-46615-AAAA-TCZZA 39



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

5.2.3

TR-104 parameter extension support for voice service

A proprietary attribute has been added to the TR-104 Voice Service object structure to enable the ACS to configure the name of the embedded GSIP XML file to be selected.

The TR-104 Voice Service Object is: InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.

The proprietary attribute is: X_ALU-COM_XML_File_Nam e_Path.

5.3 A-240Z-A software and installation feature

support

For information on installing or replacing the A-240Z-A see:

• Install an A-240Z-A CPE

• Replace an A-240Z-A CPE

For information on the following topics, see the 7368 ISAM CPE Product Overview Guide:

• CPE and MDU general descriptions of features and functions

• Ethernet interface specifications

• POTS interface specif ications

• Wi-Fi specifications

• SLID entry via Ethernet port

• CPE management using a CPE interface

5.4 A-240Z-A interfaces and interface capacity

Table 5 describes the supported inte rfaces and interface capacity for A-240Z-A CPEs.

Table 5 A-240Z-A CPE interface connection capacity

CPE type and model

A-240Z-A

Maximum capacity POTS 10/ 100

(1)

2 — 4 — — — — — 1

BASE-T

10/ 100/1000 1000 BASE-T

RF video

(CATV)

MoCA VDSL2 E1/T1 Local

craft

GE uplink

Note

(1)

The A-240Z-A CPEs provide Wi-Fi service that is enabled and disabled using a Wi-Fi on/off switch.

40 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-AProduct Guide

-240Z-A unit data sheet

5.4.1

A-240Z-A connections and components

Figure 7 shows the physical connections for A-240Z-A CPEs.

Figure 7 A-240Z-A CPE physical connections

ON/OFF TEL1 TEL2 WAN LAN1 LAN2 LAN3 LAN4 USB USB UPS LED

ON/OFF

button

TEL1 and TEL2

POTS ports

(RJ-11)

WAN port

(RJ-45)

Table 6 describes the physical connect ions for A-240Z-A CPEs. Table 6 A-240Z-A CPE physical connections

(1)

Connection

On/Off button This button turns the CPE on or off. POTS ports

WAN port This connection is provided through an RJ-45 GE interface. Ethernet ports (LAN)

USB ports

UPS (p ower supply) input This connection is provided through a UPS connector. LED ON/Off button This button is used to turn all LEDs on or off. Reset button

Power input

Note

(1)

The primary path for the earth ground for these CPEs is provided by the 12V Return signal in the power connector.

LAN ports (4)

(RJ-45)

Description

This connection is provided through RJ-11 ports. Up to two POTS connections are supported.The POTS ports support voice services.

This connection is provided through Ethernet RJ-45 connectors. Up to four 10/100/1000 Base-T Ethernet interfaces are supported.The Ethernet ports can support both data and in-band video services on all four interfaces.

This connection is provided through 2 USB 2.0 ports. The maximum combined current is 1000mA. The throughput for each port is 90 Mbps. The CPE supports external USB hard drives that can be made accessible to all LAN devices.

Pressing the Reset button for less than 10 seconds reboots the CPE; pressing the Reset button for 10 seconds resets the CPE to the factory defaults, except for the LOID and SLID.

This connection is provided through the power connector . A power cable fitted with a barrel connector is used to make the connection.

POWER

USB 2.0 ports (2)

Power supply

connector

LED on/off

button

Reset button

Power

connector

26018

Issue: 01 3FE-46615-AAAA-TCZZA 41



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

5.5 A-240Z-A LEDs

Figure 8 shows the A -240Z -A CPE LE Ds.

Figure 8 A-240Z-A CPE LEDs

Power

Internet

POWER INTERNET LAN1 LAN2 LAN3 LAN4 T EL1 TEL2 VOIP WPS 2.4G WLAN 2.4G WLAN 5G

LAN 1 to 4

Tel1

Tel2 VoIP WPS

WLAN WLAN

2.4G 2.4G

Table 7 provides LED descriptions for A-240Z-A CPEs.

26019

Table 7 A-240Z-A CPE LEDs

Indicator LED color and

behavior

Power Green solid

Off Red solid (default

until software is running)

INTERNET Green solid

Green flashing

Off

LAN 1 to 4 Green solid

Green flashing Off

(1 of 2)

LED behavior description

Power on Power off CPE is operating on battery power, or light failed on startup (for example corrupt flash), or self test

failed on startup, or self test failed during regular operation.

HSI WAN is connected: a) the device has an IP address assigned from IPCP, DHCP, or static, and no traffic has been detected; b) the session is dropped due to idle timeout but the PON link is still present.

PPPoE or DHCP connection in progress HSI WAN is not connected: a) there is no physical interface connection; b) the device is in bridged

mode without an assigned IP address; c) the session has been dropped for reasons other than idle timeout.

Ethernet is linked LAN activity is present (in either direction) Ethernet is not connected, or no power to CPE

42 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide A-240Z-A unit data sheet

Indicator LED color and

TEL 1 to 2 Green solid

VOIP Green solid

WPS 2.4G and 5G

WLAN

2.4G and 5G

(2 of 2)

behavior

Green flashing Off

Off Green solid

Green flashing Off RED

Green solid Green flashing Off

LED behavior description

Telephone on POTS port has been provisioned and phone is off hook Telephone on POTS port is in ‘call in’ or ‘talking’ condition, or battery is low Telephone on POTS port is on hook, or battery missing or no power to CPE

VOIP service is built up and can provide servic e VOIP service is not built up or out of service, or no power to CPE

WPS is enabled or WPS negotiation is successful WPS is in progress WPS is disabled, or no power to CPE WPS error or session overlap

WLAN link is enabled (up) Traffic is passing on the WLAN link WLAN link is disabled (down)

5.6 A-240Z-A detailed specifications

Table 8 lists the physical specifications for A-240Z-A CPEs.

Table 8 A-240Z-A CPE physical specifications

Description Specification

Width 10.8 in. (273.5 mm) Height 6.8 in. (173 mm) Depth 3.0 in. (76.6 mm) Weight [within 0.5 lb (0.23 kg)]

Table 9 lists the power consumption specifications for A-240Z-A CPE.

Table 9 A-240Z-A CPE power consumption specifications

Maximum power (Not to exceed)

25 W

Condition Minimum

2 POTS off-hook, 4 10/100/1000 Base-T Ethernet, Wi-Fi operational, USB not connected

Table 10 lists the environmental specifications for A-240Z-A CPE.

2.1 lb (.94 kg)

power

8.9 W

Condition

2 POTS on-hook, other interfaces/services not provisioned

Issue: 01 3FE-46615-AAAA-TCZZA 43



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

Table 10 A-240Z-A CPE environmental specifications

Mounting method

On desk or shelf

Temperature range and humidity Altitude

Operating: 23F to 113F (-5C to 45C) ambient temperature

5% to 85% relative humidity, non-condensing Storage: -4F to 158F (-20C to 70C)

Contact your No kia technical support representative for more information

5.7 A-240Z-A functional blocks

A-240Z-A CPEs are single-residence CPEs that support Wireless (Wi-Fi) service. Wi-Fi service on these CPEs is compliant with the IEEE 802.11 standard. In addition to the Wi-Fi service, these CPEs transmit Ethernet packets to four RJ-45 Ethernet ports and voice traffic to two RJ-11 POTS ports. These CPEs also feature USB and power connectors.

Figure 9 shows the functional blocks for A-240Z-A CPE.

Figure 9 Single-residence Wi-Fi CPE with Gigabit Ethernet and POTS and without RF video

PHY PHY

3x3,

25241

NAND

DDR

PCM/SPI GE GE GE GE GPIO

SLIC

XFMR

4xGE

PA/LNA

uPD720202

PA/LNA

RAM

44 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide A-240Z-A unit data sheet

5.8 A-240Z-A standards compliance

A-240Z-A CPEs are compliant with the following standards:

• IEEE 802.1D (QoS), 802.1p (bridging), 802.1q (VLAN)

• IEEE 802.3 (2012) (Ethernet standard)

• IEEE 802.11ac 4x4 (WiFi 5G) and 802.11b/g/n 2x2 (WiFi 2.4G)

• G.711, G.722, G.723, G.726, G.729 A, B (voice)

• ITU-T 1.552 for POTS ports

Figure 10 shows the US safety label for the A-240Z-A CPE. Figure 10 A-240Z-A US safety label

Figure 11 shows the European (EU) safety label for the A-240Z-A CPE.

Figure 11 A-240Z-A European (EU) safety label

Figure 12 shows the Australian (AU) safety label for the A-240Z-A CPE.

Issue: 01 3FE-46615-AAAA-TCZZA 45



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

Figure 12 A-240Z-A Australian (AU) safety label

A-240Z-A Label location

5.8.1

5.8.2

Responsible party

Table 11 lists the part y in the US responsible for t his CPE. Table 11 Responsible party contact information

Legal Company name Nokia USA Inc. Address 2301 SUGAR BUSH RD. STE 300, RALEIGH,NC 27612 Phone, Fax +1 919 850 6000

Energy-related products standby and off modes compliance

Hereby, Nokia declares that the A-240Z-A CPEs are in compliance with the essential

46 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide A-240Z-A unit data sheet

requirements and other releva nt provisions of Directive 2009/125/ EC together wit h Commission Regulation (EC) No 1275/2008 and Commission Regulation (EC) No

5.8.3

801/2013. The A-240Z-A CPES qualify as equipme nt with high network availability (HiNA)

functionality. Since the main purpose of A-240Z-A CPEs is to provide network functionality with HiNA 7 days /24 hours, the modes Off/Standby, Powe r Management, and Networked Standby are inappropriate.

For information about the type and number of network ports, see “A-240Z-A

interfaces and interface capacity” in this chapter.

For information about power con sumption, see “A-240Z-A detailed specifications” in this chapter.

Canadian Additional Statement:

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

To satisfy IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à une distance de moin de 20 cm. Installer les antennes de facon à ce que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’ antenne. La FCC des éltats-unis stipule que cet appareil doit être en tout temps éloigné d’au moins 20 cm des personnes pendant son functionnement.

i. the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;4 les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

ii. for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; pour les dispositifs munis d’antennes amovibles, le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5 250 à 5 350 MHz et de 5 470

Issue: 01 3FE-46615-AAAA-TCZZA 47



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

à 5 725 MHz doit être conforme à la limite de la p.i.r.e; iii. for devices with detachable antenna(s), the maximum antenna gain permitted

for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate; and pour les dispositifs munis d’antennes amovibles, le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à point, selon le cas;

iv. where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated. les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, et énoncée à la section 6.2.2 3), doivent être clairement indiqués.

48 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide A-240Z-A unit data sheet

5.8.4

FCC statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection a gainst harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

5.8.5

FCC Radiation Exposure Statement

This device complies with FCC radiat ion exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with prov ided instr uctions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other ant enna or tra nsmitter. End-users and installers must be provided with antenna installat ion instructions and consider removing the no-collocation statement.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and

this device must accept any interference received, including interference that may cause undesired operation.

Caution — Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority t o operate the equipme nt.

5.9 A-240Z-A special considerations

This section describes the special considerations for A-240Z-A CPEs.

Issue: 01 3FE-46615-AAAA-TCZZA 49



A-240Z-A unit data sheet 7368 ISAM CPE A-240Z-A Product Guide

5.9.1

5.9.1.1

Wi-Fi service

A-240Z-A CPEs feature Wi-Fi service as well as voice and data services. Wi-Fi is a wireless networking technology that uses radio waves to provide wireless HSI and network connections. This CPE complies with the IEEE 802.11 standards, which the Wi-Fi Alliance defines as the basis for Wi-Fi tec hnology.

Wi-Fi standards and certifications

The Wi-Fi service on A-240Z-A CPEs supports the following IEEE standards and Wi-Fi Alliance certifications:

• compliant with IEEE 802.11 standards

• certified for IEEE 802.11b/g/n standards

• WPA support including WPA-PSK

• certified for WPA2-Personal and WPA2-Enterprise

5.9.1.2

Wi-Fi GUI features

A-240Z-A CPEs have HTML-based Wi-Fi configur ation GUIs.

5.9.2

A-240Z-A CPE considerations and limitations

Table 12 lists the considerations and limitations for A-240Z-A CPEs.

Table 12 A-240Z-A CPE considerations and limitations

Considerations and limitations

Call History Data collection (CPECALLHST) is supported, except for the following parameters: RTP packets (disca rded), far-end RTCP and RT CP-XR participation, RTCP average and peak round trip delay, MOS, average jitter, number of jitter-buffer over-runs and under runs.

Some voice features are configurable on a per CPE basis, including Call Waiting, Call Hold, 3-Way Calling, and Call Transfer.

The following voice features / GSIP parameters are configurable on a per-Client/ per-CPE basis (not per-Subscriber):

• Enable Caller ID and Enable Caller Name ID

• Digitmap and the associated Interdigit and Critical timers and Enter key parameters

• Warmline timer is enabled per subscriber, but the warmline timer value is configured per CPE and must have

a lower value than the Permanent time

• Miscellaneous timers: Permanent, Timed-release, Reanswer, Error-tone, and CW-alert timers

• Features / functions: Message waiting mode, WMWI refresh interval, DTMF volume level

• Service Codes for the following features: CCW, Call Hold and Warmline

50 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Install an A-240Z-A CPE

6 Install an A-240Z-A CPE

6.1

Purpose

6.2

General

6.3

Prerequisites

6.4

Recommended tools

6.5

Safety information

6.6

Procedure

6.1 Purpose

This chapter provides the steps to install an A-240Z-A CPE.

6.2 General

The steps listed in this chapter describe mounting and cabling for an A-240Z-A CPE.

6.3 Prerequisites

You need the following items before beginning the installation:

• all required cables

6.4 Recommended tools

You need the following tools for the installati on:

• #2 Phillips screwdriver

• 1/4 in. (6 mm) flat blade screwdriver

• wire strippers

• RJ-45 cable plug crimp tool

• voltmeter or multimete r

• drill and drill bits

• paper clip

Issue: 01 3FE-46615-AAAA-TCZZA 51



Install an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

6.5 Safety information

Read the following safety information before installing the unit.

Danger 1 — Hazardous electrical voltages and currents can

cause serious physical harm or death. Always use insulated tools and follow proper safety precautions when connecting or disconnecting power circuits.

Danger 2 — Make sure all sources of power are turned off and

have no live voltages present on feed lines or terminals. Use a voltmeter to measure for voltage before proceeding.

Danger 3 — Always contact the local utility company bef ore

connecting the enclosure to the utilities.

Caution — Keep indoor CPEs out of direct sunlight. Prolonged

exposure to direct sunlight can damage the unit.

Note 1 — Observe the local and national laws and regulations

that may be applicable to this installation.

Note 2 — Observe the following:

• The CPE should be installed in accordance with the

applicable requirements of the NEC or CEC. Local authorities and practices take precedent when there is conflict between the local standard and the NEC or CEC.

• The CPE must be installed by qualified service personnel.

• Indoor CPEs must be installed with cables that are suitably

rated and listed for indoor use.

• See the detailed specifications in the A-240Z-A unit data

sheet for the temperature ranges for these CPEs.

50 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-AProduct Guide Install an A-240Z-ACPE

6.6 Procedure

Use this procedure to install an A-24 0Z-A CPE.

Place the CPE unit on a flat surface, such as a desk or shelf.

Note —

other equipment. The CPE mount ing requirements are:

•

Review the connection locations as shown in Figures 13.

Figure 13 A-240Z-A CPE connections

ON/OFF TEL1 TEL2 WAN LAN1 LAN2 LAN3 LAN4 USB USB UPS LED

ON/OFF

button

TEL1 and TEL2

POTS ports

(RJ-11)

WAN port

(RJ-45)

Connect the Ethernet cables to the RJ-45 ports ; see Fig ure 13 for the location of the RJ-45 ports.

Connect the WAN cable to the RJ-45 WAN port; see Figure 13 for the location of the RJ-45 WAN port.

Route the POTS cables directly to the RJ-11 p orts as per local practices. The POTS port to the left is labeled TEL1 for Line 1 while the port on the right is labeled TEL2

for Line 2, as shown in Figure 13.

Connect the power cable to the power conne ctor.

The A-240Z-A cannot be stacked with ano ther CPE or with

allow a minimum 100 mm clearance above the top cover allow a minimum 50 mm clearance from the side vents do not place any heat source directly abov e the top cover or below the

bottom cover

POWER

LAN ports (4)

(RJ-45)

USB 2.0 ports (2)

Power supply

connector

LED on/off

button

Reset button

Power

connector

26018

Issue: 01 3FE-46615-AAAA-TCZZA 51



Install an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

If applicable, install the power supply according to manufact urer specifications.

Note — Observe the following:

• Units must be powered by a Liste d or CE approved and marked

limited power source power supply with a minimum output rate o f 12 V dc, 1.25 A.

Power up the CPE unit by using the pow er sw itch.

Verify the CPE LEDs and voltage status; see the 7368 Hardware and Cab ling Installation Guide.

Activate and test the services; see the 7368 Hardware and Cabling I nsta lla tio n Guide.

If necessary, reset the CPE.

Locate the Reset button on an A-240Z-A CPE as shown in Figure 13.

Insert the end of a straightened pa per clip or other narrow ob ject into th e hole in the Reset button to reset the CPE.

STOP. This procedure is complete.

52 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Replace an A-240Z-A CPE

7 Replace an A-240Z-A CPE

7.1

Purpose

7.2

General

7.3

Prerequisites

7.4

Recommended tools

7.5

Safety information

7.6

Procedure

7.1 Purpose

This chapter provides the steps to replace an A-240Z-A CPE.

7.2 General

The steps listed in this chapter describe mounting and cabling for an A-240Z-A CPE.

7.3 Prerequisites

You need the following items before beginning the installation:

• all required cables

7.4 Recommended tools

You need the following tools for replacing the CPE:

• #2 Phillips screwdriver

• 1/4 in. (6 mm) flat blade screwdriver

• wire strippers

• RJ-45 cable plug crimp tool

• voltmeter or multimete r

• drill and drill bits

Issue: 01 3FE-46615-AAAA-TCZZA 53



Replace an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

7.5 Safety information

Read the follo wing safet y inf ormat ion be fore replacing th e unit.

Danger 1 — Hazardous electrical voltages and currents can

cause serious physical harm or death. Always use insulated tools and follow proper safety precautions when connecting or disconnecting power circuits.

Danger 2 — Make sure all sources of power are turned off and

have no live voltages present on feed lines or terminals. Use a voltmeter to measure for voltage before proceeding.

Danger 3 — Always contact the local utility company bef ore

connecting the enclosure to the utilities.

Caution — Keep indoor CPEs out of direct sunlight. Prolonged

exposure to direct sunlight can damage the unit.

Note 1 — Observe the local and national laws and regulations

that may be applicable to this installation.

Note 2 — Observe the following:

• The CPE should be installed in accordance with the

applicable requirements of the NEC or CEC. Local authorities and practices take precedent when there is conflict between the local standard and the NEC or CEC.

• The CPE must be installed by qualified service personnel.

• Indoor CPEs must be installed with cables that are suitably

rated and listed for indoor use.

• See the detailed specifications in the A-240Z-A unit data

sheet for the CPE tempera ture ran ges for these CPEs.

7.6 Procedure

Use this procedure to replace an A-240Z-A CPE.

Deactivate the CPE services at the P-OLT.

Use the RTRV-CPE command to verify the CPE status and th associated services. Record the serial number of the CPE displayed in the c ommand output.

Example:

54 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-AProduct Guide Replace an A-240Z-ACPE

RTRV-CPE::CPE-1-1-1-1-1;

If the CPE is in service, place the CPE in OOS state. Example:

ED-CPE::CPE-1-1-1-1-1;

Power down the unit by u sing the on/off power switch. See Figur e 14 for t he connections on the A-240Z-A CPE.

Figure 14 A-240Z-A CPE connections

ON/OFF TEL1 TEL2 WAN LAN1 LAN2 LAN3 LAN4 USB USB UPS LED

POWER

ON/OFF

button

TEL1 and TEL2

POTS ports

(RJ-11)

WAN port

(RJ-45)

LAN ports (4)

(RJ-45)

Disconnect the POTS, WAN, Ethernet, and pow er cabl es from the CPE; see Fig ure 14 for the connector locatio ns on t he A-240Z-A CPE.

If applicable, disconnect the UPS.

Replace the CPE with the new unit. The CPE can be pla ced on an y flat su r fac e, su ch as a desk or shelf.

Connect the Ethernet cables dire ctly to the RJ-45 ports; se e Figure 14 for the location of the RJ-45 ports.

Connect the WAN cable directly to the RJ-45 port; see Figure 14 for the location of the RJ-45 WAN port.

Connect the POTS cables directly to the RJ-11 ports as per local practices; see Figure 14 for the location of the RJ-11 ports.

The RJ-11 port to the left is labeled TEL1 for Line 1 while the port on the right is labeled TEL 2 for Line 2.

USB 2.0 ports (2)

Power supply

connector

LED on/off

button

Reset button

Power

connector

26018

Issue: 01 3FE-46615-AAAA-TCZZA 55



Replace an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Connect the power cable to the power connector.

If applicable, install the power supply according to manufact urer specifications.

Note — Observe the following:

• Units must be powered by a Liste d or CE approved and marked

limited power source power supply with a minimum output rate o f 12 V dc, 1.25 A.

Power up the unit by using the power switch.

Verify the CPE LEDs and voltage status; see the 7368 Hardware and Cab ling Installation Guide.

Activate and test the services; see the 7368 Hardware and Cabling I nsta lla tio n Guide.

If necessary, reset the CPE.

Locate the Reset button on an A-240Z-A CPE as shown in Figure 14.

Insert the end of a straightened pa per clip or other narrow ob ject into th e hole in the Reset button to reset the CPE.

STOP. This procedure is complete.

56 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

8 Configure an A-240Z-A CPE

8.1

General

8.2

GUI configuratio n

8.3

IOT application software pack age download

8.1 General

Please refer to the configuration information provided with your OLT for the software configuration procedure for an A-240Z-A CPE.

For HTTP configuration procedures, please refer to the 7368 ISAM CPE Configuration, Management, and Troubleshooti ng Guide.

8.2 GUI configuration

Use the procedures below to use the web-based GUI for the A-240Z-A. The A-240Z-A is used as an Ethernet gateway to connect devices in the home to the

Internet. The GUI provides a variety of features for the home network including routing and firewall capability. By using the GUI, users can connect all smart equipment in their home, including personal computers, set-top boxes, mobile phones, and other consumer electronics devices, to the Internet.

8.2.1

Procedure 6 Login to web-based GUI

Use the procedure below to login to the web-based GUI for the A-240Z-A.

Open a web browser and enter the IP address o f th e CPE in the addr ess bar . The login window appe ars. The default gateway IP address is http://192.168.1.1. You can connect to this IP address

using your web browser after con necting your PC to one of Eth ernet po rts of the CPE. The static IP address of your PC must be in the same 192.168.1.x subnet as the CPE.

Enter your username and passwo rd in the L og in wi ndow, as show n in Figure 15.

Issue: 01 3FE-46615-AAAA-TCZZA 57



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

The default use r name is admin. The default password is a random number, which is included in the CPE kit.

Figure 15 Web login window

Caution — Pressing the Reset button for less than 10 seconds re boo ts

the CPE; pressing the Reset button for 10 seco nds resets th e CPE to the factory defaults .

Note — If you forget the curre nt userna me and p assword , pre ss the

reset button for 5 s and the default values for the username and password will be recovered at startup.

Click Login. The Device Information screen appears.

Note — To help protect the security of your I nt er net co nnection, t he

application displays a pop-up remind er to chan ge both the Wi-Fi password and the CPE passwor d.

To increase password sec urity, use a minimum of 10 ch aracters,

STOP. This procedure is complete.

consisting of a mix of number s and upper and lower case le tters.

8.2.2

Device and connection status

A-240Z-A CPEs support the retrieval of a variety of device and connection information, including:

• device information

• LAN status

58 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

• WAN status

• WAN status IPv6

• dongle status

• home networking information

• statistics

• voice information

Procedure 7 Device information retrieval

Select Status > Device Information from the top-level menu in the Ethernet Gatew ay window, as shown in Figure 16.

Figure 16 Device Information window

Issue: 01 3FE-46615-AAAA-TCZZA 59



Table 13 de scribes the fields in the D evice Inform atio n window.

Table 13 Device Inform ation parameters

Field Description

Device Name Name on the CPE Vendor Name of the vendor Serial Number Serial number of the CPE Hardware version Hardwar e version of the CPE

(1 of 2)



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description Boot version Boot version of the CPE Software versio n Software version of the CPE Chipset Chipset of the CPE Lot Number Production date of the CPE Device Running Time

(2 of 2)

Click Refresh to update the displayed information.

STOP. This procedure is complete.

Amount of time the device has run since last reset in hours, minutes, and seconds

60 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 8 LAN status retrieval

Select Status > LAN Status from the t op- leve l menu in the Ethernet Gateway w indow, as shown in Figure 17.

Figure 17 LAN status window

Issue: 01 3FE-46615-AAAA-TCZZA 61



Table 14 describ es the fields in the LAN status window.

Table 14 LAN status parameter s

Field Description Wireless Information

Wireless Status Indicates whether the wireless is on or off Wireless Channel Wireless channel number

(1 of 2)



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description SSID Name Name of each SSID Wireless Encry ption Status Encryption type used on the wireless connection Wireless Rx Packets Number of packets received on the wireless connection Wireless Tx Packets Number of packets transmitted on the wireless connection Wireless Rx Bytes Number of bytes received on the wireless connection Wireless Tx Bytes Number of bytes transmitted on the wireless connection Power Transmission (mW) Power of the wireless transmission, in mW Ethernet Information Ethernet Status Indicates whether the Ethernet connection is on or off Ethernet IP Address IP address of the Ethernet connection Ethernet Subnet Mask Subnet Mask of the Ethernet connection Ethernet MAC Address MAC address of the Ethernet connection Ethernet Rx Packets Num ber o f pac kets received on the Ethernet connection Ethernet Tx Packets Number of packets transmitted on the Ethernet connection Ethernet Rx Bytes Number of bytes received on the Ethernet connection Ethernet Tx Bytes Number of bytes transmitted on the Ethernet connection

(2 of 2)

Click Refresh to update the displayed information.

STOP. This procedure is complete.

62 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 9 WAN status retrieval

Select Status > WAN Status from the top-level menu in the Eth ernet Gateway w indow, as shown in Figure 18.

Figure 18 WAN status window

Issue: 01 3FE-46615-AAAA-TCZZA 63



Table 15 describes the fields in the WAN status window.

Table 15 WAN status parameters

Field Description

WAN connection list

Connection Mode Connection mode of the WAN connection Enable/Disable Select this checkbox to enable the WAN connection VLAN VLAN ID

(1 of 2)

Drop-down menu listing all WAN connections. The connection shown is the connection for which WAN status will be shown.



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description WAN Link Status Whether the WAN link is up or down BRAS Connection Status Whether the BRAS is connected or disconnected IPv4 Address IPv4 address Netmask Netmask Gateway IPv4 gateway address Primary DNS Primary Domain Name Server Second DNS Secondary Domain Name Server Ethernet Link Status Whether the PON link is up or down Tx Packets Number of packets transmitted on the WAN connection Rx Packets Number of packets received on the WAN connection Tx Dropped Number of packets dropped on the transmit WAN connection Rx Dropped Number of packets dropped on the receive WAN connection Err Packets Number of errored packets on the WAN connection

(2 of 2)

Click Refresh to update the displayed information.

STOP. This procedure is complete.

64 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 10 WAN status IPv6 retrieval

Select Status > WAN Status IPv6 from the top- level menu in the Ethernet Gatew ay window, as shown in Figure 19.

Figure 19 WAN status IPv6 window

Issue: 01 3FE-46615-AAAA-TCZZA 65



Table 16 describ es the fields in the WAN status IPv6 w indow .

Table 16 WAN status IPv6 parameters

Field Description

WAN connection list

Enable/Disable Select this checkbox to enable the WAN connection VLAN VLAN ID WAN Link Status Whether the WAN link is up or down IPv6 Address IPv6 addre ss that identifies the device and its location IPv6 Prefix IPv6 prefix IPv6 Gateway IPv6 gateway address

(1 of 2)

Drop-down menu listing all WAN connections. The connection shown is the connection for which WAN status will be shown.



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description Primary DNS Primary Domain Name Server Second DNS Secondary Domain Name Server Ethernet Link Status Whether the PON link is up or down Tx Packets Number of packets tra nsmi tted on the WAN connection Rx Packets Number of packets received on the WAN connection Tx Dropped Number of packets dropped on the transmit WAN connection Rx Dropped Number of packets dropped on the receive WAN connection Err Packets Number of errored packets on the WAN connection

(2 of 2)

Click Refresh to update the displayed information.

STOP. This procedure is complete.

66 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 11 Dongle status retrieval

Select Status > Dongle Status from the top-level menu in the Ethernet Gatew ay window, as shown in Figure 20.

Figure 20 Dongle Status window

Table 17 describ es the fields in the Dongle Status wind ow.

Issue: 01 3FE-46615-AAAA-TCZZA 67



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Table 17 Dongle Status par ameters

Field Description

USB Dongle

Displays the USB dongle information:

• USB Dongle Status

• IMEI

• Access Technology

• Network in Use

• RSSI (dBm)

SIM card

Displays the SIM card information

• Status

• IMSI

• ICCID

• MSISDN

Statistics Displays the number of bytes, sent and received, and the packet sent and received

Click Refresh to update the displayed information.

STOP. This procedure is complete.

68 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 12 Home networking information retrieval

Select Status > Home Networking from the top-level menu in the Ethernet Gateway window, as shown in Figure 21.

Figure 21 Home networking information window

Issue: 01 3FE-46615-AAAA-TCZZA 69



Table 18 de scribes the fields in th e Home n etworking w indow .

Table 18 Home networking parameters

Field Description Local Interface

Ethernet Table displays the number of Ethernet connections and their settings Wireless Table displays the number of wireless connections and their settings Wireless Settings Network Name Name of the wireless network

(1 of 2)



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description Access Point Hexa decim al address of the w ireless access point Local Devices Table entry

(2 of 2)

Click Delete to delete a particular local device connection.

Click Refresh to update the displayed information.

STOP. This procedure is complete.

Procedure 13 Statistics retrieval

Select Status > Statistics from the top-level menu in the Ethernet Gateway window.

Each entry indicates the status (active or inactive), connection type, device name, IP address, hardware address, and IP address allocation of each connected local device.

Statistics are available for LAN ports and WLAN ports. Figure 22 shows the statistics for the LA N ports.

70 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Figure 22 LAN ports statistics window

STOP. This procedure is complete.

Issue: 01 3FE-46615-AAAA-TCZZA 71



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Procedure 14 Voice information retrieval

Select Status > Voice Information from the t op-leve l menu in the Ethe rnet Gateway window , as shown in Figure 23.

Figure 23 Voice Information window

Table 19 de scribes the fields in the Voice Info rmation window.

Table 19 Voice Information parameters

Field Description

Line Select the POTS line: 1 or 2 Line Status Status of the selected POTS line: IDLE, Off Hook, or On Hook Softswitch Phone number Register Status

Register Error Code Error code for the unregistered POTS port Register Error Reason Error reason for the unregistered POTS port

Note

(1)

This field is only visible at the admin level; it is not visible at the userAdm in lev el.

Proxy IP address; blank if the line is not registered Phone number configured for the selected telephone line Registration status of the selected POTS port: registered or

unregistered

72 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Click Refresh to update the displayed information.

STOP. This procedure is complete.

8.2.3

Network configuration

A-240Z-A CPEs also support network configuration, including:

• LAN

• LAN IPv6

• WAN

• WAN DHCP

• Wireless 2.4G

• Wireless 5G

• wireless schedule

• routing

• DNS

• TR-069

Issue: 01 3FE-46615-AAAA-TCZZA 73



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Procedure 15 LAN networking configuration

Select Network > LAN from the top- level me nu in the Ethernet Gateway window, as shown in Figure 24.

Figure 24 LAN network window

74 3FE-46615-AAAA-TCZZA Issue: 01



Table 20 describ es the fields in the LAN network window .

Table 20 LAN network parameters

Field Description

IPv4 Address IP Address of the CPE Subnet Mask Subnet mask of the CPE DHCP enable Select this checkbox to enable DHCP DHCP Start IP Address Starting DHCP IP address DHCP End IP Address Ending DHCP IP address DHCP Lease Time DHCP lease time (in min)

(1 of 2)



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Field Description Primary DNS Primary domain name server Secondary DNS Secondary domain name server Static DHCP MAC Address MAC address to associate to the LAN Static DHCP IP Address IP address to associate to the bound MAC address

(2 of 2)

Configure the LAN.

Click Save.

Bind a MAC address to the LAN by enterin g the MAC and IP addresses in the St atic DHCP Entry fields and then clicki ng Add. Rep eat for all MAC addr ess es to be bound.

STOP. This procedure is complete.

Issue: 01 3FE-46615-AAAA-TCZZA 75



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Procedure 16 LAN IPv6 networking configuration

Select Network > LAN_IPv6 fr om the top-level menu in the Et hern et Gat eway window, as shown in Figure 25.

Figure 25 LAN IPv6 network window

76 3FE-46615-AAAA-TCZZA Issue: 01



Table 21 describ es the fields in t he LAN IPv6 network win dow.

Table 21 LAN IPv6 network parameters

Field Description

DNS Server Choose a DNS server from the drop-down menu. prefix config

prefix

Interface

(1 of 2)

Choose a prefix config option from the drop-down menu, either WANConnection (prefix will be obtained from the WAN) or Static (enables you to enter the prefix).

This field appears if you selected the “Static” option for the “prefix config” field. Type a connection.

This field appears if you selected the Wan Connection option for the “prefix config” field. Choose a WAN connection interface from the drop-down menu.



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Field Description DHCP Start IP Address Enter the starting DHCP IP address. DHCP End IP Address Enter the ending DHCP IP address. Whether the address info

through DCHP Whether other info obtained

through DHCP Maximum interval for

periodic RA messages Minimum interval for periodic

RA messages

(2 of 2)

Choose a DNS server, prefix config, and in ter fac e.

Select or enter the DHCP configuration information.

Enter the maximum and minimum int erv als for RA message s.

Click Save/Apply.

STOP. This procedure is complete.

Select this checkbox to enable address information retrieval through DHCP.

Select this checkbox to enable retrieval of other information through DHCP.

Enter the maximum interval (in seconds) for periodic Router Advertisement messages. The interval range is from 4 to 1800.

Enter the minimum interval (in seconds) for periodic Router Advertisement messages. The interval range is from 4 to 1800.

Issue: 01 3FE-46615-AAAA-TCZZA 77



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Procedure 17 WAN netwo rking configuration

Select Network > WAN from the top-level menu in the Ethernet Gateway window, as shown in Figure 26.

Figure 26 WAN network window

Table 22 describ es the fields in the WAN netw ork window.

Table 22 WAN network parameters

Field Description

WAN Connection List

Access Type Choose an access type from the drop-down menu Connection Type Select a connection type: IPoE or PPPoE IP Mode Choose an IP mode from the drop-down menu: IPv4 or IPv6 Enable/Disable Select this checkbox to enable the WAN connection NAT Select this checkbox to enable NAT Service Select the checkboxes to enable service types for this connection Enable VLAN Select this checkbox to enable VLAN VLAN ID Enter the VLAN ID

(1 of 2)

Choose a WAN connection from the drop-down menu to set the connection parameters

78 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Field Description VLAN PRI Enter the VLAN PRI WAN IP Mode Choose an IP mode from the drop-down menu Manual DNS Enter a DNS

(2 of 2)

Configure a specific WAN connection.

Click Save.

STOP. This procedure is complete.

Procedure 18 WAN DHCP configuration

Select Network > W AN DHCP from the to p-lev el menu in the Ether net Gateway window, as shown in Figure 27.

Figure 27 WAN DHCP wind ow

Table 23 describes the fields in the WAN DHCP window.

Issue: 01 3FE-46615-AAAA-TCZZA 79



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Table 23 WAN DHCP parameters

Field Description

WAN Connection List Choose a WAN connection from the drop-down menu DHCP Option 50 persistent Select this checkbox to enable DHCP Option 50 Enable DHCP Option 60 Select this checkbox to enable DHCP Option 60 (vendor class identifier) Vendor Class Identifier 60 Enter the identifier for the vendor class Enable DHCP Option 61 Select this checkbox to enable DHCP Option 61 (client identifier)

Configure a WAN DHCP option.

Click Save.

STOP. This procedure is complete.

80 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 19 Wireless 2.4G networking configuration

Select Network > Wireless 2.4GHz from the top-level menu in the Ethernet Gatewa y window, as shown in Figure 28.

Figure 28 Wireless 2.4GHz network window

Issue: 01 3FE-46615-AAAA-TCZZA 81



Table 24 de scribes the fields in the Wirele ss 2.4 GHz network window .

Table 24 Wireless 2.4GHz network parameters

Field Description

Enable Select this checkbox to enable WiFi

(1 of 2)



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description Mode

Channel

Bandwidth Choose 20 MHz or 40 MHz from the drop-down menu. Transmitting Power Choose the percentage transmitting power from the drop-down menu WMM Select this checkbox to enable or disable wireless multi media Total MAX Users Enter the total number of MAX users SSID Select Choose the SSID from the drop-down menu SSID Name Enter the SSID name Enable SSID Enable or disable SSID from this drop-down menu SSID Broadcast Enable or disable SSID broadcast from this drop-down menu Port Mode

Encryption Mode

WPA V ers io n

WPA Encryption Mode

WPA Key Enter the WPA key Enable WPS Enable or disable WPS from this drop-down menu WPS Mo de

Choose a Wi-Fi mode from the drop-down menu:

• auto (b/g/n)

• b

• g

• n

• b/g

Choose a channel from the drop-down menu or choose Auto to have the channel automatically assigned

Choose a port mode from the drop-down menu:

• Route

• Bridge

Choose an encryption mode from the drop-down menu:

• OPEN

• WEP

• WPA/WPA2 Personal

• WPA/WPA2 Enterpr ise

Choose a WPA version from the drop-down menu:

• WPA1

• WPA2

• WPA1/WPA2

Choose a WPA encryption mode from the drop-down menu:

• TKIP

• AES

• TKIP/AES

Select a WPS mode from the drop-down menu: PBC (Push Button Connect) or PIN (Personal Identification Number)

(2 of 2)

Configure the WiFi connection.

If you have enabled and co nfigured WPS, click WPS connect.

82 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Click Save.

STOP. This procedure is complete.

Procedure 20 Wireless 5G networking configuration

Select Network > Wireless 5GHz from the top-l evel menu in the Ethernet Gatewa y window, as shown in Figure 29.

Figure 29 Wireless 5GHz network window

Table 25 de scribes the fields in th e Wirele ss 5GH Z netw ork wi ndow.

Issue: 01 3FE-46615-AAAA-TCZZA 83



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Table 25 Wireless 5GHz network parameters

Field Description

Enable Select this checkbox to enable WiFi Bandwidth

Choose from:

• 20 MHz

• 40 MHz

• 80 MHz

Channel

Transmitting Power

Choose a channel from the drop-down menu or choose Auto to have the channel automatically assigned

Choose a percentage for the transmitting power from the drop-down menu:

• Low (20%)

• Medium (40%)

• High (60%)

• Maximum (100%)

WMM Select this checkbox to enable or disable wireless multi media Enable MU-MIMO Choose Enable or disable MU-MIMO from this drop-down menu

The default is Enable, which enables users and wireless terminals to communicate with each other.

MU-MIMO may decrease Wi-Fi performance for clients who do not support it,

in which case Nokia recommends that you choose Disable. Total MAX Users Enter the total number of MAX users DFS re-entry Select this checkbox to enable or disable DFS re-entry SSID Select Choose the SSID from the drop-down menu SSID Name Change the name of the selected SSID Enable SSID Choose Enable or disable SSID from this drop-down menu SSID Broadcast Choose Enable or disable SSID broadcast from this drop-down menu Port Mode Choose Route or Bridge from the drop-down menu MAX Users Enter the number of MAX users Encryption Mode

Choose an encryption mode from the drop-down menu:

• OPEN

• WEP

• WPA/WPA2 Personal

• WPA/WPA2 Enterprise

WPA Key Enter the WPA key Enable WPS Choose Enable or disable WPS from this drop-down menu

Notes

(1)

When Encryption Mode is set to “WPA/WPA2 Enterpri se”, the following options are no longer available: WPA version, WPA encryption mode, WPA key, Enable WPS, WPS mode.

(2)

When Encryption Mode is set to “WPA/WPA2 Enterprise”, the fo llowin g options become available: Primary RADIUS server, port and password; Secondary RADIUS server, port, and password; RADIUS accounting port.

(1)(2)

84 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Configure the Wireless connection.

If you have enabled and co nfigured WPS, click WPS connect.

Click Save.

STOP. This procedure is complete.

Procedure 21 Wireless scheduling

Select Network > Wireless Schedule from the top-level menu in the Ethernet Gateway window, as shown in Figure 30.

Figure 30 Wireless Schedule window

Select the Schedule Function checkbox to turn the wireless signal off for the configured period.

Issue: 01 3FE-46615-AAAA-TCZZA 85



Click the plus sign (+) to add a scheduling rule. A separate panel displays for configuring wireless schedule rules.



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Enter a start time and end time for the period in which you w ant the w ireless signal o ff.

Choose Everyday or Individual Days fro m the drop-dow n menu.

If you chose Individual Days, select t he checkboxes for the desired days. The Recurrence Pattern shows the rules created to date.

If desired, click the plus sign (+) to add more rules.

Click Save Changes.

STOP. This procedure is complete.

Procedure 22 Routing configuration

Select Network > Routing from the top-level menu in the Ethernet Gateway window, as shown in Figure 31.

Figure 31 Routing network window

86 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Table 26 de scribes the fields in the Routing netw ork window .

Table 26 Routing network parameters

Field Description

Enable Routing Select this checkbox to enable routing Destination IP Address Enter the destination IP address Destination Netmask Enter the destination network mask Gateway Enter the gateway address IPv4 Interface

Forwarding Policy Choose a forwarding policy from the drop-down menu

Choose a WAN connection previously created in the WAN network window from the drop-down menu

Enter the routing information.

Click Add.

STOP. This procedure is complete.

Issue: 01 3FE-46615-AAAA-TCZZA 87



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Procedure 23 DNS configuration

Select Network > DNS from the to p-level menu in the Ethernet Gat eway window, as shown in Figure 32.

Figure 32 DNS network window

Table 27 describ es the fields in the DNS networ k window.

Table 27 DNS network parameters

Field Description

DNS Proxy Select this checkbox to enable DNS proxy Domain Name Domain name IPv4 Address Domain IP address Origin Domain Origin domain name New Domain New domain name

Enter the domain name and IP address and click Add.

88 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

If required, associate an origin domain with a new domain, click Add.

STOP. This procedure is complete.

Procedure 24 TR-069 configuration

Select Network > TR-069 from the t op-level menu in the Ether net Gatew ay window, as shown in Figure 33.

Figure 33 TR-069 network window

Issue: 01 3FE-46615-AAAA-TCZZA 89



Table 28 de scribes the fields in the TR-069 ne twor k win dow.

Table 28 TR-069 network parameters

Field Description

Periodic Inform Enable Select this checkbox to enable periodic inform updates Periodic Inform Interval(s) Time between periodic inform updates, in seconds URL URL of the auto-configuration server Username U se rnam e used to log in to the CPE

(1 of 2)



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description Password Password used to log in to the CPE Connect Request Username Username used to log in to the auto- configuration server Connect Request Password Password used to log in to the auto-configuration server

(2 of 2)

Configure TR-069 by entering the required informat ion.

Click Save.

STOP. This procedure is complete.

8.2.4

Security configuration

A-240Z-A CPE also supports security configurat ion, including:

• firewall

• MAC filter

• IP filter

• URL filter

• parental control

• DMZ and ALG

• access control

90 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 25 Firewall configuration

Select Security > Firewall from the top-level menu in the Ethernet Gateway window, as shown in Figure 34.

Figure 34 Firewall window

Firewall security applies only to services provided by the CPE. Internet access from the LAN side is not affected by this firewall.

Three security levels are available: Low, Medium, and High. At the Low level, pre-routing is supported: port forwarding, DMZ, host application, and host

drop. Also supported are application services: DDNS, DHCP, DNS, H248, IGMP, NTP cli ent, SSH, Telnet, TFTP, TR-069, and VoIP.

At the Medium level, pre-routi ng is supp orted: port forwarding, DMZ, host application, and host drop. Also supported are app lication services: DDNS, DHC P, DNS, H248, IGMP, NTP client, TFTP, TR-069, and VoIP. The following types of ICMP messages are permitted: echo request and reply, destination unreachable, and TTL exceeded. Other types of ICMP messages are blocked. DNS proxy is supported from LAN to WAN but n ot from WAN to LAN.

At the High level, pre-routing and application services are not supported. UDP Port 8000 can be used to access the services, for ex ample FTP c an use 802 1 and Te lnet ca n use 802 3. Regular UDP cannot be used. RG access is permitted via the LAN side but not via the WAN side.

Table 29 describ es the fields in the firewall win dow.

Issue: 01 3FE-46615-AAAA-TCZZA 91



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Table 29 Firewall parameters

Field Description

Security level Choose the security level from the drop-down menu: low, medium, or high Attack Protect

(Protection against DoS or DDoS attacks)

Choose enable or disable attack protect from the drop-down menu The default is disable

Configure the firewall.

Click Save.

STOP. This procedure is complete.

Procedure 26 MAC filter configuration

Select Security > MAC Filter from the to p-level me nu in the Eth ernet Gateway wi ndow, as shown in Figure 35.

Figure 35 MAC filter window

Table 30 describ es the fields in the MAC f ilter w indow.

92 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Table 30 MAC filter param eters

Field Description

Enable MAC filter Select this checkbox to enable the MAC filter MAC Address Select a MAC address from the drop-down menu or enter the address in the text field MAC Filter Mode Choose the MAC filter mode from this drop-down menu: Blocked or Allowed

Click Refresh to update the information.

Configure a MAC filter.

Click Add.

STOP. This procedure is complete.

Procedure 27 IP filter configuration

Select Security > IP filter from the top-leve l menu in the Etherne t Gateway window, as shown in Figure 36.

Figure 36 IP filter window

Table 31 describes the fields in the IP filter window.

Issue: 01 3FE-46615-AAAA-TCZZA 93



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Table 31 IP filter parameters

Field Description

Enable IP Filter Select this checkbox to enable an IP filter Mode

Choose an IP filter mode from the drop-down menu:

• Drop for upstream

• Drop for downstream

Internal Client

Choose an internal client from the drop-down menu:

• Customer setting - uses the IP address input below

• IP - uses the connecting devices' IP to the CPE

Local IP Address Local IP address Source Subnet Mask Source subnet mask Remote IP Address Remote IP address Destination Subnet Mask Destination subnet mask Protocol Choose an application protocol or all from the drop-down menu

Configure the IP filter.

Click Add.

STOP. This procedure is complete.

94 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Procedure 28 URL filter configuration

Select Security > URL Filter from the top-level menu in the Ethernet Gateway window, as shown in Figure 37.

Figure 37 URL Filter window

Table 32 describ es the fields in the URL Filter win dow.

Table 32 URL Filter parameters

Field Description

Enable URL filter Select the checkbox to enable the URL filter URL filter type URL Address Type the URL address Port Number Type the port number; the default is 80

Configure the URL Filter.

Click Add Filter.

STOP. This procedure is complete.

Select the checkbox for Exclude URL or Include URL

Issue: 01 3FE-46615-AAAA-TCZZA 95



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Procedure 29 Parental control

Select Security > Parent Control from t he top-lev el menu in the Et hern et Gatew ay window , as shown in Figure 38.

Figure 38 Parental Control window

Table 33 de scribes the fields in the Pa rental Con trol window.

Table 33 Parental control parameters

Field Description

Policy Name Enter a name for the parental control policy or choose a policy from the list MAC Address Enter the MAC address or choose a MAC address from the list IPv4 Address Enter the IPv4 address for the device or choose an IPv4 address from the list Days of the week

From/To Enter the times for the policy to be in effect

Select the Access Control checkbox.

Click the plus sign (+) to add a policy. A separate panel displays for configuring the p olicy name, IP addr ess of the device, and

dates and times for the policy.

Choose Every Day, or Individual Days and select the checkboxes for the days of the week for which the policy applies

96 3FE-46615-AAAA-TCZZA Issue: 01



7368 ISAM CPE A-240Z-A Product Guide Configure an A-240Z-A CPE

Configure the parental control policy.

Click Enable to activate the policy.

STOP. This procedure is complete.

Procedure 30 DMZ and ALG configuration

Select Security > DMZ and ALG from th e top-leve l menu in the Et hernet Ga teway wi ndow, as shown in Figure 39.

Figure 39 DMZ and ALG window

Issue: 01 3FE-46615-AAAA-TCZZA 97



Table 34 describes the fields in the DMZ and ALG window.

Table 34 DMZ and ALG para meter s

Field Description

ALG Config

DMZ Config

(1 of 2)

Select the checkboxes to enable the protocols to be supported by the ALG: FTP, TFTP, SIP, H323, RTSP, L2TP, IPSEC, PPTP



Configure an A-240Z-A CPE 7368 ISAM CPE A-240Z-A Product Guide

Field Description WAN Connection List Choose a WAN connection from the drop-down menu Enable DMZ Select this checkbox to enable DMZ on the chosen WAN connection DMZ IP Address

(2 of 2)

Configure ALG.

Click Save ALG.

Configure DMZ.

Click Save DMZ.

STOP. This procedure is complete.

Choose Customer Setting and enter the DMZ IP address or choose the IP address of a connected device from the drop-down menu

98 3FE-46615-AAAA-TCZZA Issue: 01



Nokia A240ZA User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
