Nokia 8390 Service Manual 10 nsb 8 acc

PAMS T echnical Documentation
NSB-8 Series Transceivers

Accessories

Issue 1 01/02 ãNokia Corporation
NSB-8
Accessories PAMS Technical Documentation

Table of Contents

BLB-2 Standard Battery................................................................................................. 4
Product Code ...............................................................................................................4
ACP-7 Standard Charger ............................................................................................... 5
Product Codes ..............................................................................................................5
Specification ................................................................................................................5
ACP-8 Travel Charger ................................................................................................... 6
Product Codes ..............................................................................................................6
Specification ................................................................................................................6
DCD-1 Desktop Stand ................................................................................................... 7
Product Code ...............................................................................................................7
Specification ................................................................................................................7
DDC-1 Battery Charging Stand..................................................................................... 8
Product Code ...............................................................................................................8
Specifications ...............................................................................................................8
LCH-9 Mobile Charger.................................................................................................. 9
Product Code ...............................................................................................................9
Specification ................................................................................................................9
PPH-1 Plug-in HF Car Kit........................................................................................... 10
Product Code .............................................................................................................10
Specification ..............................................................................................................10
MBD-10 Mobile Holder............................................................................................... 11
Product Code .............................................................................................................11
MKU-1 Mounting Plate............................................................................................... 12
Product Code .............................................................................................................12
HHS-9 Swivel Mount................................................................................................... 13
Product Code .............................................................................................................13
HFM-8 Handsfree Microphone.................................................................................... 14
Product Code .............................................................................................................14
HDC-5 Headset............................................................................................................ 15
Product Code .............................................................................................................15
LPS-3 Loopset.............................................................................................................. 16
Product Code .............................................................................................................16
Recommended Batteries ............................................................................................17
Page 2 ãNokia Corporation Issue 1 01/02
NSB-8
PAMS Technical Documentation Accessories

List of Figures

Fig 1 View of the BLB-2 Standard Battery........................................................................4
Fig 2 View of the ACP-7 Standard Charger.......................................................................5
Fig 3 View of the ACP-8 Travel Charger...........................................................................6
Fig 4 View of the DCD-1 Desktop Stand............................................................................7
Fig 5 View of the DDC-1 Battery Charging Stand..............................................................8
Fig 6 View of the LCH-9 Mobile Charger ..........................................................................9
Fig 7 View of PPH-1 Plug-in HF Car Kit ...........................................................................10
Fig 8 View of the MBD-10 Mobile Holder.........................................................................11
Fig 9 View of the MKU-1 Mounting Plate..........................................................................12
Fig 10 View of the HHS-9 Swivel Mount...........................................................................13
Fig 11 View of the HFM-8 Handsfree Microphone ............................................................14
Fig 12 View of the HDC-5 Headset.....................................................................................15
Fig 13 View of the LPS-3 Loopset......................................................................................16
Issue 1 01/02 ãNokia Corporation Page 3
NSB-8
Accessories PAMS Technical Documentation

BLB-2 Standard Battery

The BLB-2 is a Li-ion type battery in a white plastic package.

Product Code

Battery pack BLB-2:0271570
Figure 1: View of the BLB-2 Standard Battery
Page 4 ãNokia Corporation Issue 1 01/02
NSB-8
S
PAMS Technical Documentation Accessories

ACP-7 Standard Charger

The standard charger is available for different voltage le vels and comes with different wall plugs. The standard charger can also be used as a power supply for the desktop stand.
Figure 2: View of the ACP-7 Standard Charger
ACP-7E
ACP-7C ACP-7U

Product Codes

Standard Charger (Europlug) 207-2 53 Vac ACP-7E 0675144 Standard Charger (USplug) 108-132 Vac ACP-7U 0675143 Standard Charger (USplug) 198-242 Vac ACP-7C 0675158

Specification

Output connectors: 3.5 mm DC plug, 2-pole Protection: PTC protection Output Voltage /Current (typ) 7.6 V / 370 mA
Issue 1 01/02 ãNokia Corporation Page 5
NSB-8
ACP-8E
ACP-8U
Accessories PAMS Technical Documentation

ACP-8 T ravel Charger

Operating within the voltage range 90 V...264 V AC (50 Hz...60 Hz), the Performance Travel Charger is practically current independent in normal office and household use. Like the standard charger, it is available for different wall sockets.
The Travel Charger can also be used with the desktop stand.
Figure 3: View of the ACP-8 Travel Charg er

Product Codes

ACP-8E Travel Charger Euro plug 90-264 Vac 0675195 ACP-8U Travel Charger US plug 90-264 Vac 0675196

Specification

Output connectors: 3.5 mm DC plug, 2-pole (+, -, control) Protection: Output fault voltage 16 V max. Output voltage/curre nt (typ): 6.0 V (+0.3 V)/ 620 mA
Page 6 ãNokia Corporation Issue 1 01/02
NSB-8
PAMS Technical Documentation Accessories

DCD-1 Desktop Stand

The desktop stand provides a convenient way to charge the phone in the upright position on a table.
Figure 4: View of th e DCD-1 Desktop Stand

Product Code

DCD-1 Desktop stand: 0272865

Specification

Connections: 3.5 mm DC jack (ACP-7 or ACP-8)
Issue 1 01/02 ãNokia Corporation Page 7
NSB-8
Accessories PAMS Technical Documentation

DDC-1 Battery Charging Stand

The DDC-1 Battery Charging Stand provides users the possiblity of charging a spare bat­tery .

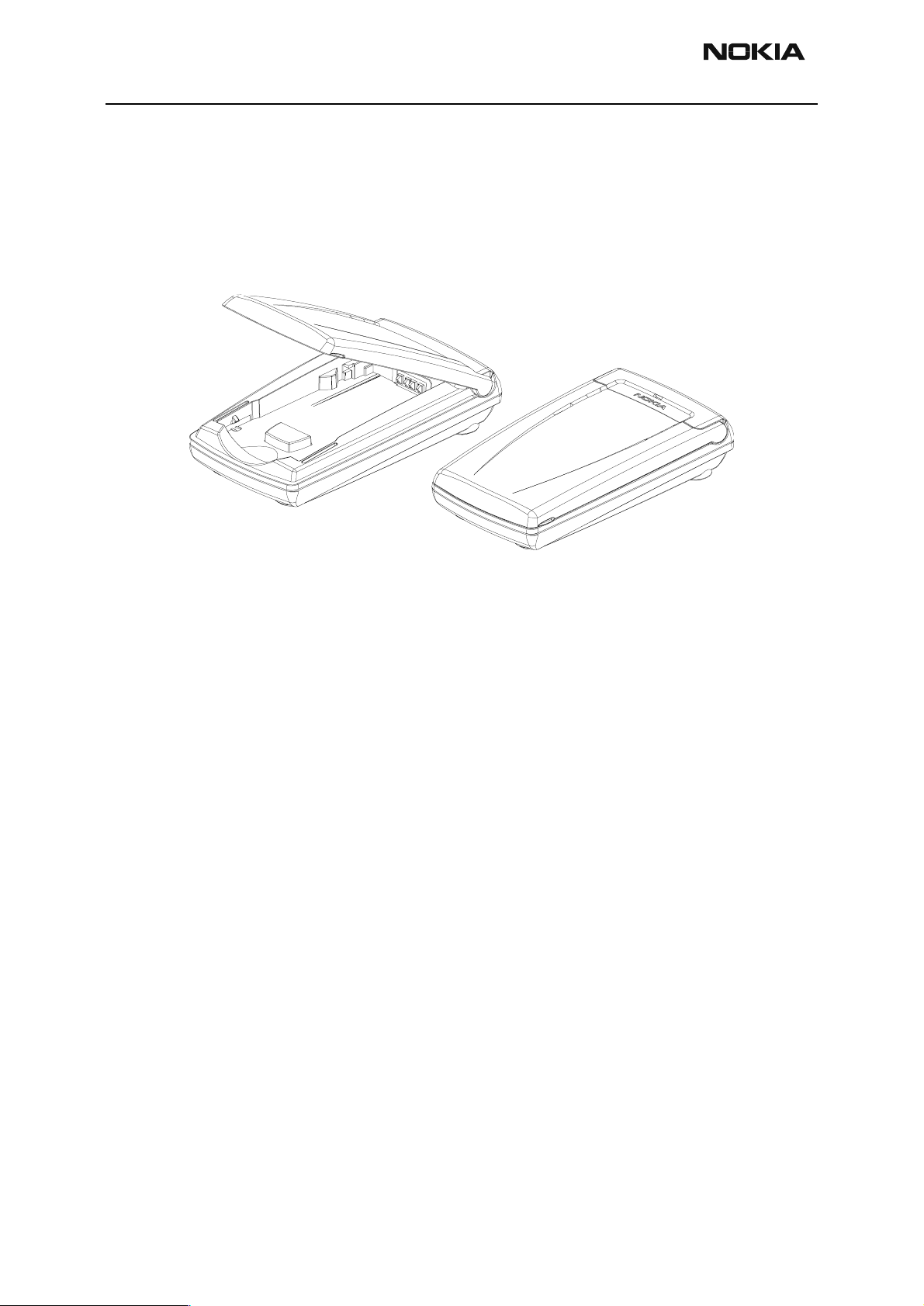

Figure 5: View of the DDC-1 Battery Charging Stand

Product Code

DDC-1 Battery Charging Stand: 0272418

Specifications

Connections: 3.5 mm DC jack (ACP-7 or ACP-8)
Page 8 ãNokia Corporation Issue 1 01/02
NSB-8
PAMS Technical Documentation Accessories

LCH-9 Mobile Charger

A green light indicates that the cigarette lighter charger is ready for charging. Check the charging status on the phone display. The input voltage can be from 11 or 32 V DC, neg­ative grounding.

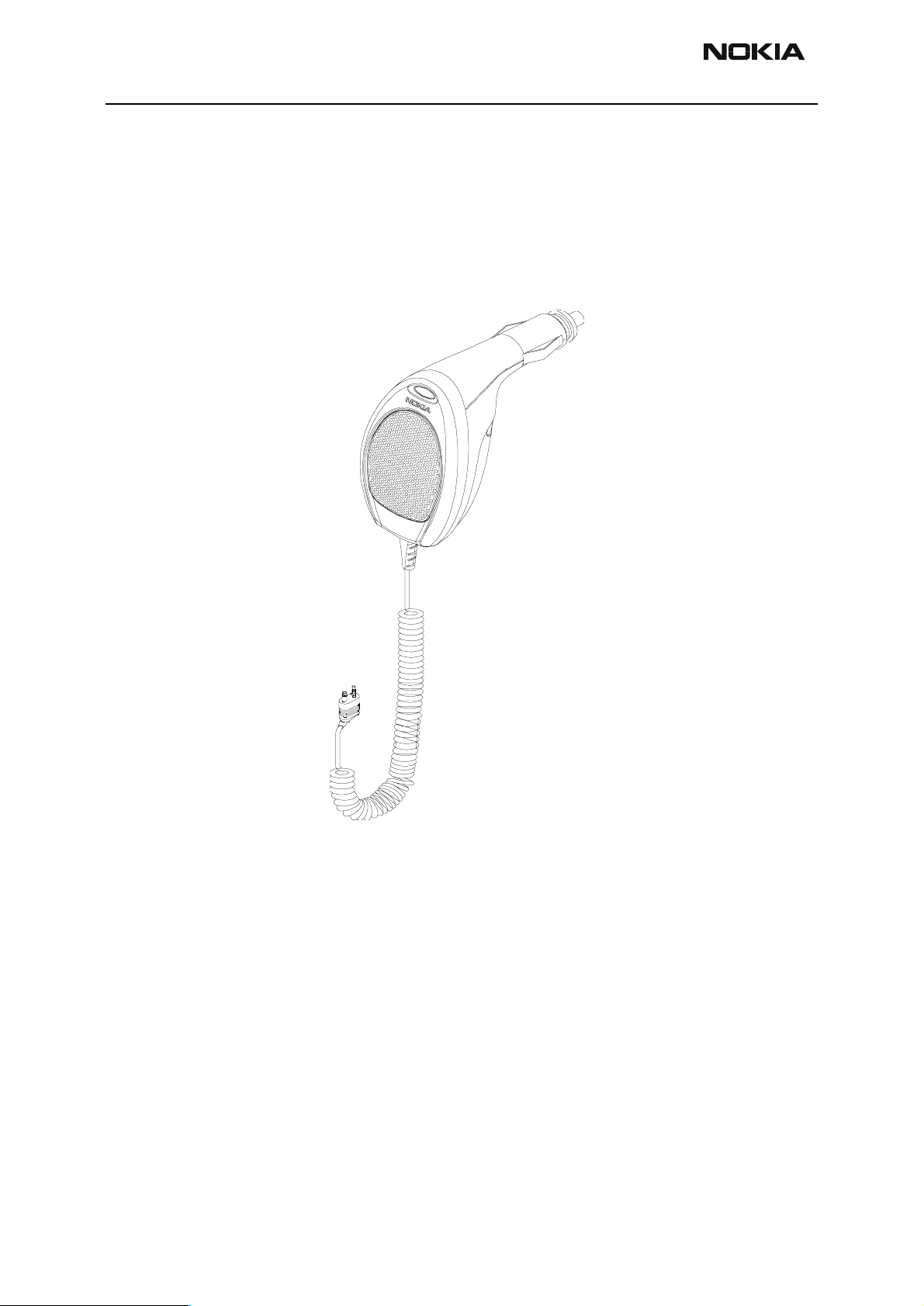

Figure 6: View of the LCH-9 Mobile Charger

Product Code

LCH-9 Mobile charger: 0675120

Specification

Connectors
input: D 21/23 mm
•output: 3.5 mm DC plug Protection: input fused, output current limit 850 mA Voltage
input: 11...32 V
output (nominal): 8.4 V Nominal output current: 800 mA
Issue 1 01/02 ãNokia Corporation Page 9
NSB-8
Accessories PAMS Technical Documentation

PPH-1 Plug-in HF Car Kit

The PPH-1 provides rapid charging for t he phone and possibility for HF operation. The PPH-1 plug and play handsfree unit is connected directly to the cigarette lighter in a car. PPH-1 is connected to the mobile phone with the cable. The cable has combined connec­tor with charger- and headset connectors.
Figure 7: View of PPH-1 Plug-in HF Car Kit

Product Code

Headset PPH-1: 0272170

Specification

Output connectors: 3.5 mm DC plug, 2-pole (+, -, control) Input voltage: 8-16VDC Protection: Output fault voltage 16 V max. Output current: 750 mA max.
Page 10 ãNokia Corporation Issue 1 01/02
NSB-8
PAMS Technical Documentation Accessories

MBD-10 Mobile Holder

The MBD-10 Mobile Holder is used in vehicle to hold the phone. Attaching can be done using a swivel or mounting plate.
Figure 8: Vie w of the MBD-10 Mobile Holde r

Product Code

Mobile Holder MBD-10: 0272866 Eur/Afr
0273412 APAC
Issue 1 01/02 ãNokia Corporation Page 11
NSB-8
Accessories PAMS Technical Documentation

MKU-1 Mounting Plate

The MKU–1 mounting plate provides a method of f ixing the MBD-10 Mobile Holder to the vehicle interior.

Product Code

MKU-1 Mounting plate: 0620036

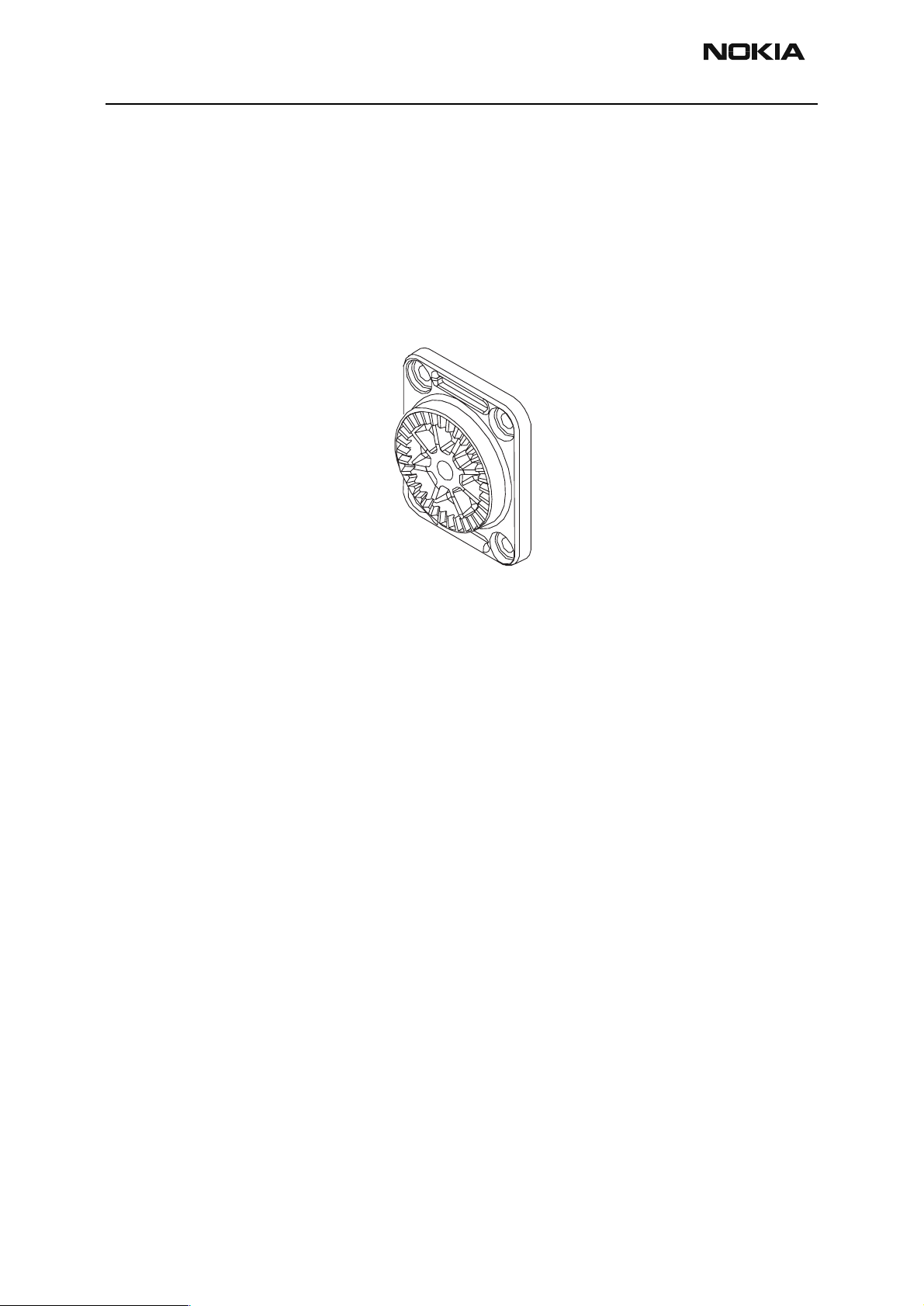

Figure 9: View of the MKU-1 Mounting Plate
Page 12 ãNokia Corporation Issue 1 01/02
NSB-8
PAMS Technical Documentation Accessories

HHS-9 Swivel Mou nt

The HHS–9 swivel mounting plate provides an a lternative (to MKU–1) method of f ixing the MBD-10 Mobile Holder.

Product Code

Swivel mounting plate HHS–9: 0620037

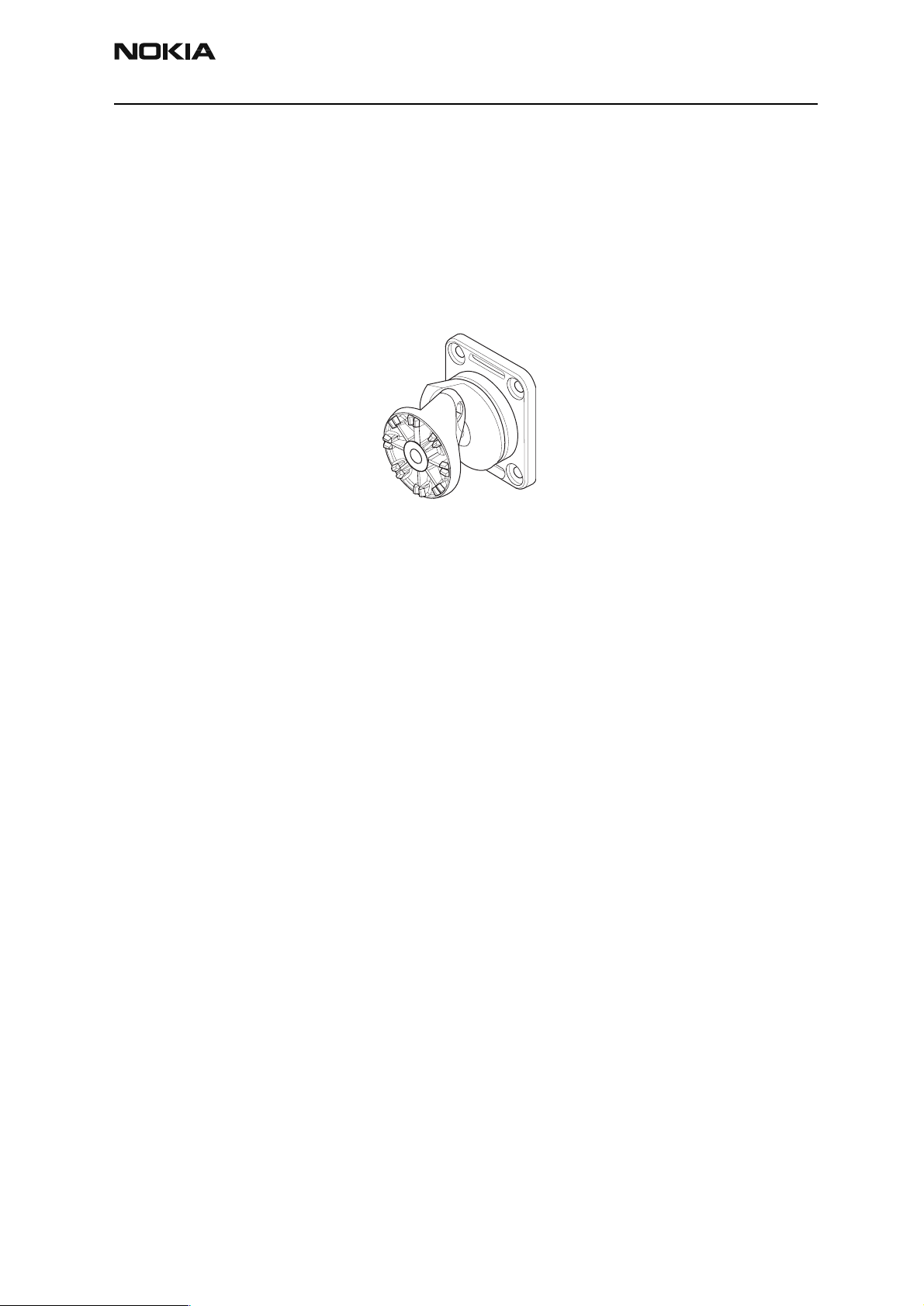

Figure 10: View of the HHS-9 Swivel Mount
Issue 1 01/02 ãNokia Corporation Page 13
NSB-8
Accessories PAMS Technical Documentation

HFM-8 Handsfree Microphone

The HFM-8 microphone can be used together with PPH-1 Plug-in Car Kit.

Product Code

HFM-8 Handsfree Microphone: 0271503

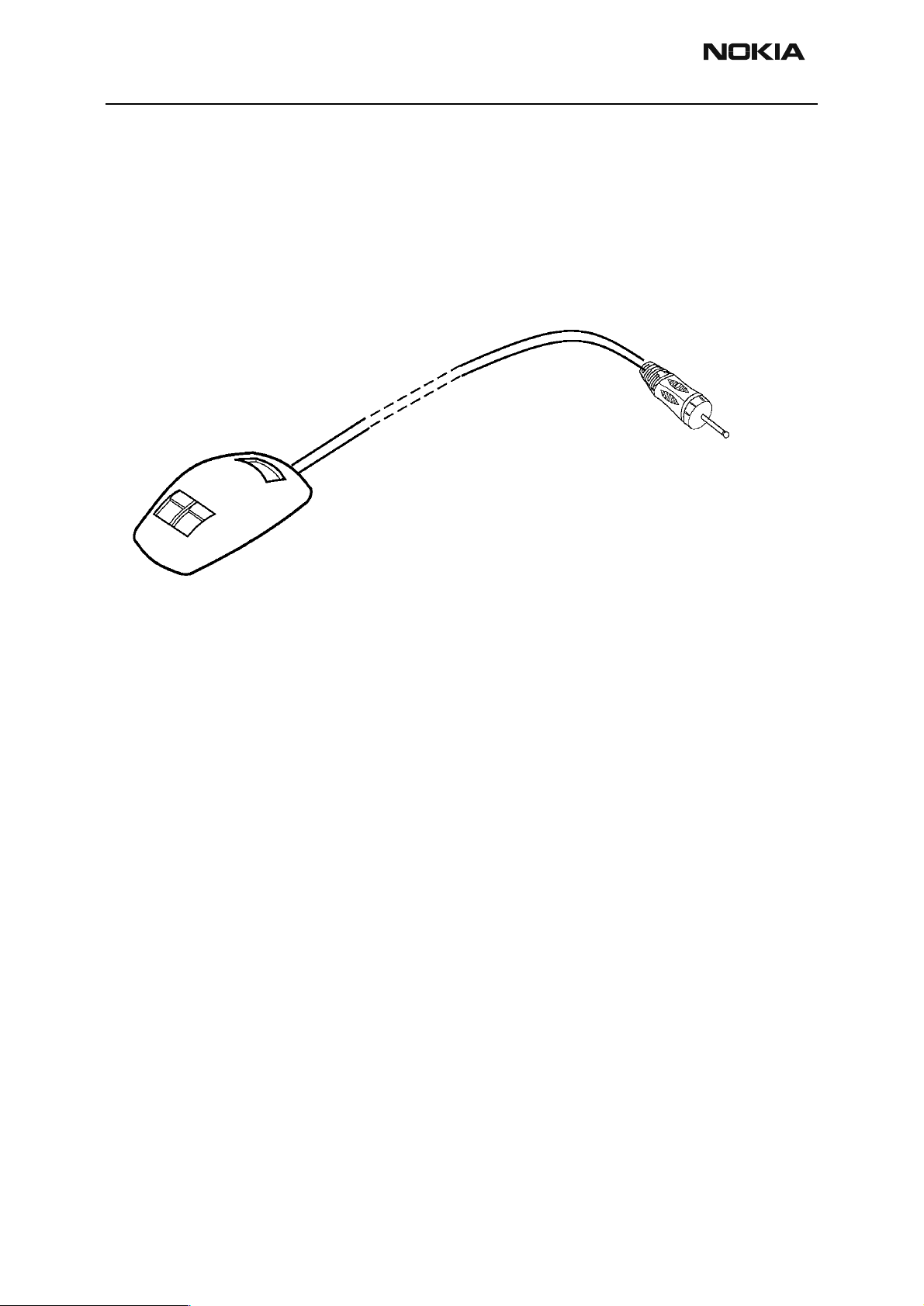

Figure 11: View of the HFM-8 Handsfree Microphone
Page 14 ãNokia Corporation Issue 1 01/02
NSB-8
PAMS Technical Documentation Accessories

HDC-5 Headset

The HDC-5 headset also provides a hook switch for the answer/end call button.

Product Code

Headset HDC-5: 0271467
Figure 12: View of the HDC-5 Headset
Issue 1 01/02 ãNokia Corporation Page 15
NSB-8
Accessories PAMS Technical Documentation

LPS-3 Loopset

The LPS-3 Loopset has been developed for hearing aid users to allow them to use mobile phones. It is based on induction technology.
All hearing aids have support for induction loop, that is, they have a little tele-coil inside. This coil can capture the signal suppli ed to the loop. Standard hearing aids have two operation modes: (1) the M-mode for normal micr ophone use and (2) the T-mode for tele-coil.
Figure 13: View of the LPS-3 Loo pset

Product Code

Loopset LPS-3: 0630244
Page 16 ãNokia Corporation Issue 1 01/02
NSB-8
PAMS Technical Documentation Accessories

Recommended Batteries

Table 1: Recommended Batteries
Type Size / IEC-type Rated
capacity
Zinc Air Hearing Aid Bat­tery
Silver Oxide Hearing Aid Battery
Alkaline Battery 675 / LR44 110 mAh 36 hours 5 500 hours or
675 / PR44 540 mAh 180 hours 840 hours or
675 / SR44 150 mAh 50 hours 7 500 hours or
Talk time
(3mA load)
Standby
(20uA load)
35 days (1)
310 days
230 days
Note: The capacity of the zinc air battery will fall 20% in a month. After the activa-
tion, the zinc air battery begins to self-discharge. The battery will be empty within 5 weeks.
Issue 1 01/02 ãNokia Corporation Page 17
NSB-8
Accessories PAMS Technical Documentation
This page intentionally left blank.
