Circuit Diagram of System Blocks (Version 16 Edit 188) for layout version 16
NSC–3System Module US4U
Original 05/98
3/A3–1

Circuit Diagram of Power Supply (Version 16 Edit 286) for layout version 16
TP4
TP
NSC–3System Module US4U
5
TP2 0
TP1 1
TP1 2
TP1 3
TP1 4
TP1 5
TP6
TP7
TP1 6
TP8
TP9
TP1 7
TP1 0
TP1 8
TP1 9
Original 05/98
3/A3–2

Circuit Diagram of CTRLU Block (Version 16 Edit 287) for layout version 16
NSC–3System Module US4U
TP1
TP2
TP3
Original 05/98
3/A3–3

Circuit Diagram of Audio (Version 16 Edit 213) for layout version 16
TP2 1
TP2 2
TP2 3
TP2 4
TP2 5
TP2 6
NSC–3System Module US4U
TP2 7
Original 05/98
3/A3–4

Circuit Diagram of Transmitter (Version 16 Edit 549) for layout version 16
TP
NSC–3System Module US4U
TP
Original 05/98
3/A3–5

Circuit Diagram of Receiver (Version 16 Edit 129) for layout version 16
NSC–3System Module US4U
Original 05/98
3/A3–6

Circuit Diagram of Synthesizer (Version 16 Edit 156) for layout version 16
NSC–3System Module US4U
TP
TP
Original 05/98
3/A3–7

Circuit Diagram of RF Block (Version 16 Edit 104) for layout version 16
NSC–3System Module US4U
Original 05/98
3/A3–8

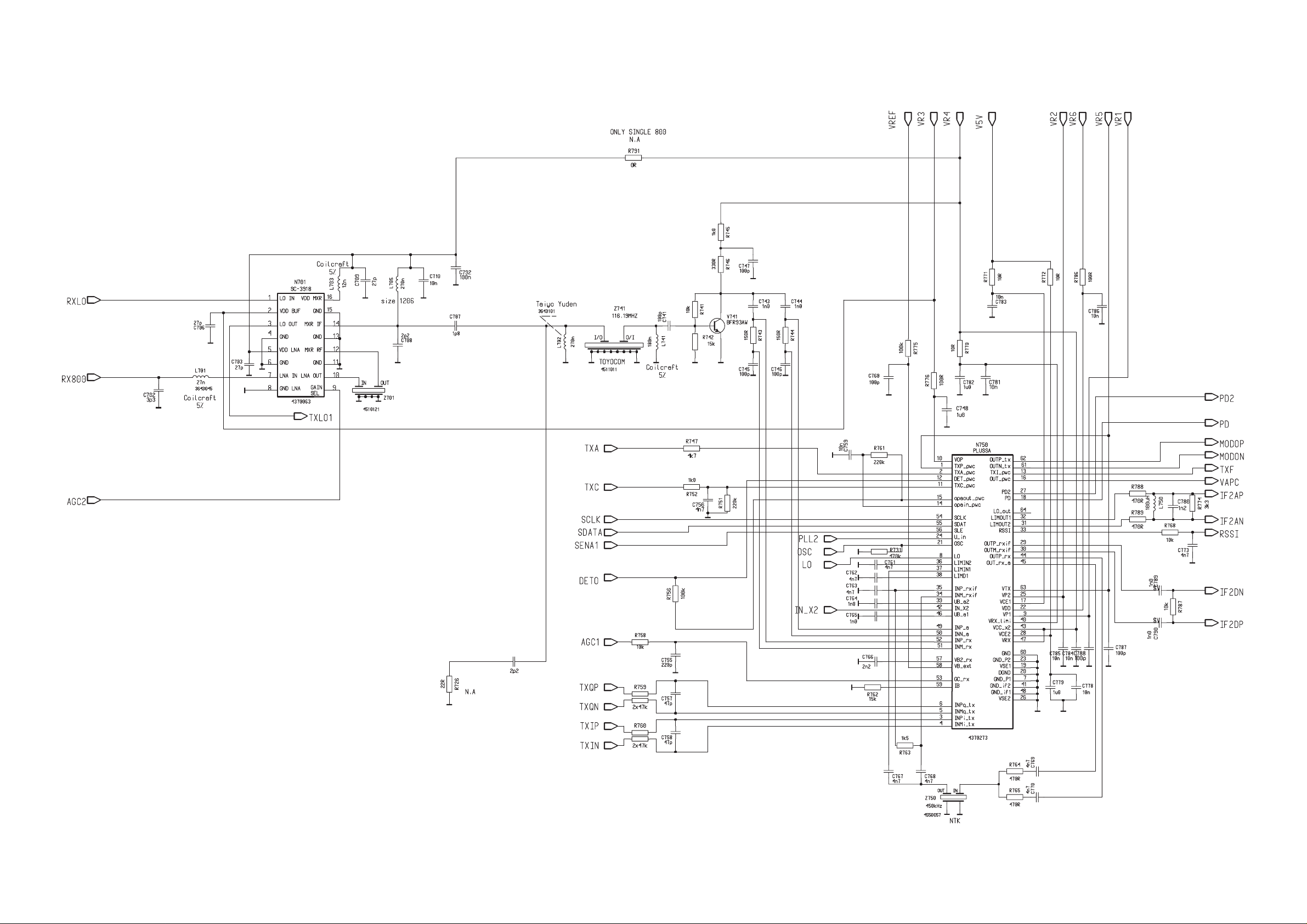

Circuit Diagram of RF–BB Interface (Version 16 Edit 70) for layout version 16
NSC–3System Module US4U
Original 05/98
3/A3–9

Layout Diagram of US4U (Layout version 16)
TOP
NSC–3System Module US4U
NOTE: Layout diagram has also upper band (TDMA1900) components included, which are not in
actual US4U PCB. Notice this also in testpoints.
testpoint name condition dc–level ac–level
J200 Only for R&D use
J201 Only for R&D use
J202 Only for R&D use
J203 Only for R&D use
TP1, D202 pin 78 HOOKINT Remote controlheadset pulse active 2.8 V, non–active 0 V
TP2, D202 pin 77 HEADSE-
TINT
TP3, D202 pin 117 TXF False transmission indicator Irregular from 0 V to 2.8 V
TP4, R153 RSENSE VOUT detection min 0V, typ 3.6 V, max 5.2 V
TP5, R153 VOUT VOUT detection min 0V, typ 3.6 V, max 5.2 V
TP30, G850 pin 3 VCTCXO power on typ. 0.8 V – 1.2 Vpp siniwave 19.44 MHz
TP31, G820 pin 3 CTL active state ch 300 typ. 2.2 V
TP32, G860 pin 3 CTL active state ch 1000 typ. 2.2 V
Headset connected pulse active 0 V, non–active 2.8 V
Original 05/98
3/A3–10

Layout Diagram of US4U (Layout version 16)
NSC–3System Module US4U
testpoint name condition dc–level ac–level
TP6, N150 pin 11 VR5 supply for TX 2.8 V min 2.7 V / max 2.85 V
TP7, N150 pin 15 VR4 regulated supply forRX2.8 V min 2.7 V / max 2.85 V
TP8, N150 pin 4 VR3 regulated supply forTX2.8 V min 2.7 V / max 2.85 V
TP9, N150 pin 9 VR2 regulated supply for
SYNT
TP10, N150 pin 25 VR1 regulated supply for
VCTCXO
TP11, N150 pin 20 VR7 regulated supply forTX2.8 V min 2.7 V / max 2.85 V
TP12, N150 pin 19 VR7BASEVR7 regulator ex-
ternal transistor
base current
TP13, N150 pin 13 VREF ref.voltage for N150 1.5 V +/– 1.5%
TP14, N150 pin 55 VBB regulated supply for
BaseBand
TP15, N150 pin 22 VR6 regulated supply for
COBBA
TP16, N150 pin 32 V5V regulated supply to
2GHz PLL
TP17, N150 pin 36 VSIM regulated supply for
flashing
2.8 V min 2.7 V / max 2.85 V
2.8 V min 2.7 V / max 2.85 V
2.8 V min 2.7 V / max 2.85 V
2.8 V min 2.7 V / max 2.85 V
2.8 V min 2.7 V / max 2.85 V
5.0 V min 4.8 V / max 5.2 V
3.0 V min 2.8 V / max 3.2 V
testpoint name condition/type dc–level ac–level
TP19, N150 pin 52 CCON-
TINT
TP20, N150 pin 48 SLCLK 32.768 kHz, poweronpulsed DC (0V/2.8 V)
TP21, N250 pin 1 RFCEN active state pulse active 2.8 V, non–active 0 V
TP22, N250 pin 54 RFCSE
TTLED
TP23, N250 pin 2 RFC 19.44 MHz sine-
TP24, N250 pin 63 COB-
BACLK
TP25, N250 pin 64 ADATA active state pulsed DC (0V/2.8V)
TP26, N250 pin 13 AFC Autom.Freq.control 0 – 2.3 V, typ. 1.15 V (room temp)
TP27, N250 pin 15 TXC TX power control
TP33, R939 DETO active state 0.4 V – 2.2 V
TP34, R220 VAPC active state 0 V – 1.5 V typ.
TP35, N702 pins
9,11,12.13,14
NOTE: Layout diagram has also upper band (TDMA1900) components included, which are not in
actual US4U PCB. Notice this also in testpoints.
VR8 –
VR 12
Charger interrupt pulse active 2.8 V, non–active 0 V
active state pulse active 2.8 V, non–active 0 V
wave
9.72 MHz, active
state
voltage
power on nominal 2.8 V
pulsed DC (0V/2.8V)
@level 10 typ.ca 0.5 V pulse
@level 2 typ.ca 1.7 V pulse
0.2Vpp–1V
pp sinewave
TP18, N150 pin 54 PURX RESET Power up/
down
Original 05/98
reset state 0 V, normal state 2.8 V
3/A3–11
