PAMS Technical Documentation
APPENDIX 1
TRANSCEIVER NSC–3
Variants
Original 11/99
NSC–3 Variants
PAMS
Appendix 1
CONTENTS
Foreword 1 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transceiver NSC–3NX 1 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modules 1 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exploded View of Transceiver NSC–3NX 1 – 4. . . . . . . . . . . . . .
Assembly Parts of NSC–3NX 1 – 5. . . . . . . . . . . . . . . . . . . . . . . .
Transceiver NSC–3NY 1 – 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modules 1 – 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exploded View of Transceiver NSC–3NY 1 – 7. . . . . . . . . . . . . .
Assembly Parts of NSC–3NY 1 – 8. . . . . . . . . . . . . . . . . . . . . . . .
Transceiver NSC–3ND 1 – 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modules 1 – 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exploded View of Transceiver NSC–3ND 1 – 11. . . . . . . . . . . . . .
Assembly Parts of NSC–3ND 1 – 12. . . . . . . . . . . . . . . . . . . . . . . .
Transceiver NSC–3NF 1 – 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modules 1 – 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exploded View of Transceiver NSC–3NF 1 – 13. . . . . . . . . . . . . .
Assembly Parts of NSC–3NF 1 – 14. . . . . . . . . . . . . . . . . . . . . . . .
Quick Guide 1 – 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General 1 – 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory 1 – 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Menu 1 – 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Documentation
Page No
Page 1 – 2
Original 11/99
PAMS
NSC–3 Variants
Technical Documentation
Foreword
This section of the service manual (Appendix) contains the specific details
for the versions of the NSC–3NX handportable telephone.
NOTE: The Service Manual is intended for use by qualified
service personnel only.
NOTE: When assembling the B–cover screws, use 17 Ncm
torque.
Transceiver NSC–3NX
Appendix 1
Modules, Phase 1
Unit/type: Product code: Module code:
Transceiver NSC–3NX 0501109
• radio module US4U 0200973
• display module UE4 0200860
• mechanics MNSC3NX 0261549
Modules, Phase 2
Unit/type: Product code: Module code:
Transceiver NSC–3NX 0502361
• radio module US4RM 0201308
• display module UE4 0200860
• mechanics MNSC3NX 0261930
Modules, Phase 3
Unit/type: Product code: Module code:
Transceiver NSC–3NX 0502898
• radio module US4RSMD 0201371
• display module UE4 0201454
• mechanics MNSC3NX 0261930
Original 11/99
Page 1 – 3
NSC–3 Variants
PAMS
Appendix 1
Exploded View of Transceiver NSC–3NX
5
4
8
7
Technical Documentation
12
10
6
15
14
11
1
M1
2
3
M2
9
Page 1 – 4
13
Original 11/99
PAMS
NSC–3 Variants
Technical Documentation
Appendix 1
Assembly Parts of NSC–3NX
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 9457804 B–cover NSW–3 DMC00756
1 9456322 B–cover Phase 2 NSW–3 DMC01766
2 5140101 Microphone + mic.boot DMC00955
3 9480340 Interboard frame DMC00856
4 0200921 LCD module GD40
4 0201366 LCD module (Seiko) Phase 3 GD40
5 2 6190015 Screw M1.6x10 T6 FeZn blk DMD01750
6 9457843 A–cover NSE–3NXDMC00943
7 9790256 Power keymat NSE–3NXDMC00951
8 5140067 Speaker + spring 103dB 32R d13.3
9 9794002 Keymat + keydome DMC00727
10 9457772 Window NSE–3NXDMC00858
11 4 6190013 Screw M1.6x7 T6 FeZn cl DMD01749
12 0660166 Antenna F.helix 824–894MHz
13 9430135 Logo label NSE–3NXDMD02637
14 9380456 Type label 4D24715
15 9451139 Dust Cap DMD02859
M1 0200973 US4U radio module
M1 0201308 US4M radio module Phase 2
M1 0201371 US4RSMD radio module Phase 3
M2 0200860 UE4 UIF
M2 0201454 UE4 UIF Phase 3
6190023 Screw M1.6x4 T6 DMD02852
Original 11/99
Page 1 – 5
NSC–3 Variants
PAMS
Appendix 1
Transceiver NSC–3NY
Modules, Phase 1
Unit/type: Product code: Module code:
Transceiver NSC–3NY 0501268
• radio module US4U 0200973
• display module UE4 0200860
• mechanics MNSC3NY 0261576
Modules, Phase 2
Unit/type: Product code: Module code:
Technical Documentation
Transceiver NSC–3NY 0501928
• radio module US4U 0200973
• display module UE4 0200860
• mechanics MNSC3NY 0261576
Modules, Phase 3
Unit/type: Product code: Module code:
Transceiver NSC–3NY 0502905
• radio module US4RSMD 0201371
• display module UE4 0201454
• mechanics MNSC3NY 0261931
Page 1 – 6
Original 11/99
PAMS
NSC–3 Variants
Technical Documentation
Exploded View of Transceiver NSC–3NY
Appendix 1
Original 11/99
Page 1 – 7
NSC–3 Variants
PAMS
Appendix 1
Technical Documentation
Assembly Parts of NSC–3NY
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 9456103 Window NSC–3NYDMC01418
2 9457950 A–cover NSC–3NYDMC01101
3 9790274 Power keymat NSK–3NYDMC01073
4 5140067 Speaker + spring 103dB 32R d13.3
5 2 6190015 Screw M1.6x10 T6 FeZn blk DMD01750
6 0660166 Antenna F.helix 824–894MHz
7 9451139 Dust Cap DMD02859
8 4 6190013 Screw M1.6x7 T6 FeZn cl DMD01749
9 9380456 Type label 4D24715
10 9456104 B–cover NSC–3NYDMC01438
11 5140101 Microphone + mic.boot DMC00955
12 9480340 Interboard frame DMC00856
13 9794009 Keymat module DMC01419
14 6330003 Logo label DMD00780
M1 0200921 LCD module GD40
M1 0201366 LCD module (Seiko) Phase 3 GD40
M2 0200973 US4U radio module
M2 0201308 US4RM radio module Phase 2
M2 0201371 US4RSMD radio module Phase 3
M3 0200860 UE4 UIF module
M3 0201454 UE4 UIF module Phase 3
6190023 Screw M1.6x4 T6 DMD02852
Page 1 – 8
Original 11/99
PAMS
NSC–3 Variants
Technical Documentation
Transceiver NSC–3ND
Modules, Phase 1
Unit/type: Product code: Module code:
Transceiver NSC–3ND 0501272
• radio module US4U 0200973
• display module UE4 0200860
• mechanics MNSC3ND 0261577
Modules, Phase 2
Unit/type: Product code: Module code:
Appendix 1
Transceiver NSC–3ND 0502525
• radio module US4RM 0201308
• display module UE4 0200860
• mechanics MNSC3ND 0261934
Original 11/99
Page 1 – 9
NSC–3 Variants
PAMS
Appendix 1

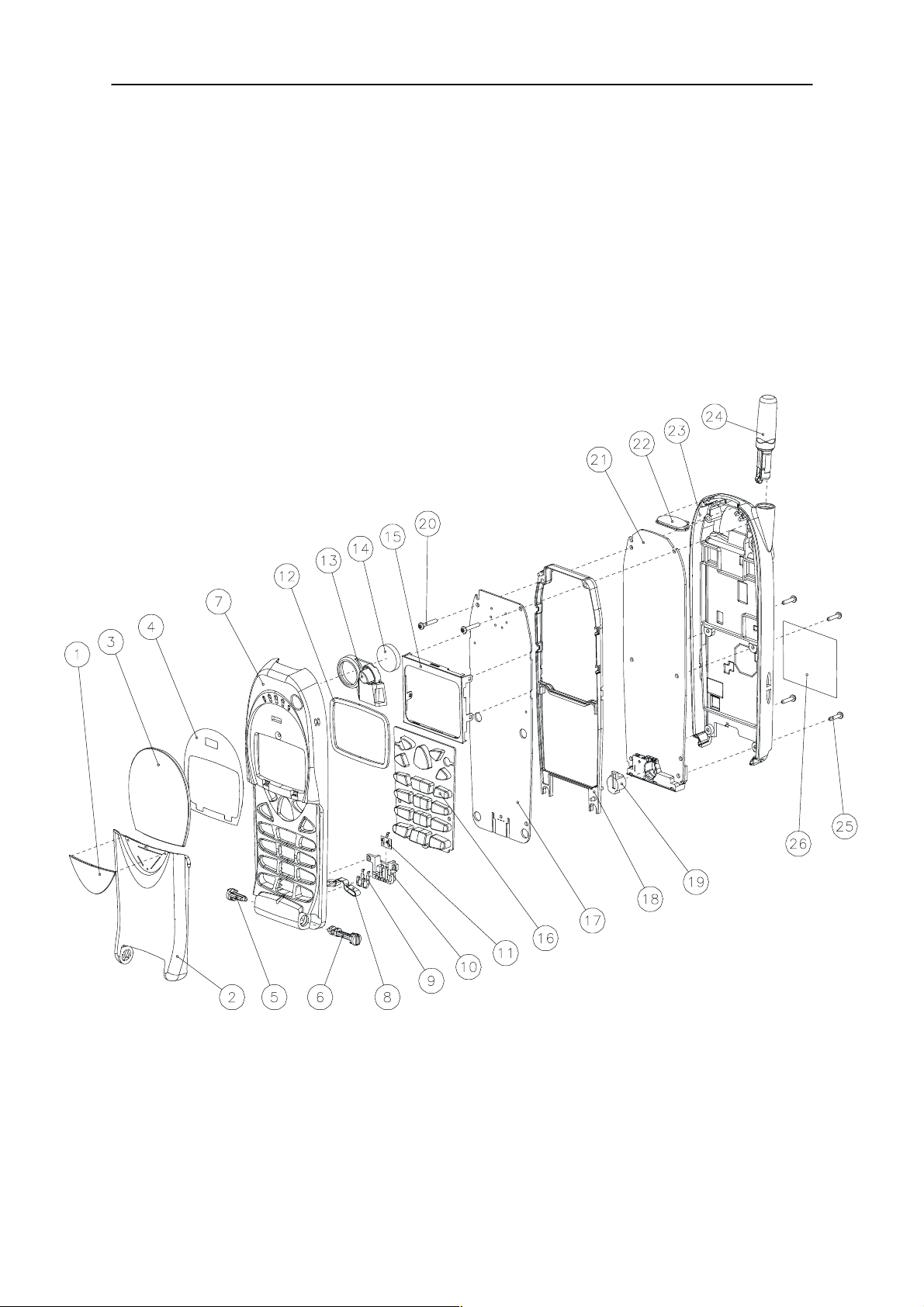

Exploded View of Transceiver NSC–3ND
7
13
14
20
15
Technical Documentation
24
22
23
27
1
3
16
17
18
19
26
25
21
2
Page 1 – 10
Original 11/99
PAMS
NSC–3 Variants
Technical Documentation
Appendix 1
Assembly Parts of NSC–3ND
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 Logo badge
2 9451266 Door NSC–3ND DMD03822
3 9456196 Window assy NSC–3ND DMC01630
9480418 Window adhesive NSC–3ND DMD03924
9451141 Hinge shaft left NSW–3NF DMD03053
9451142 Hinge shaft right NSW–3NF DMD01011
7 9451265 A–cover NSC–3ND DMD03821
9510387 Tension spring NSW–3NF DMD02961
Contact spring 1 (incl. in Hook switch) DMD02959
5400079 Hook switch DMC01007
Contact spring 2 (incl. in Hook switch) DMD02960
9480417 Display gasket NSC–3ND DMD03825
13 9790323 Power keymat DMC01582
14 5140067 Speaker + spring 103dB 32R d13.3
15 0200921 LCD module GD40
16 9794010 Keymat module NSC–3ND DMC01464
17 0200860 UE4 UIF
18 9480340 Interboard frame DMC00856
19 5140101 Microphone + mic.boot DMC00955
20 2 6190015 Screw M1.6x10 T6 FeZn blk DMD01750
21 0200973 US4U radio module
M1 0201308 US4RM radio module Phase 2
22 9451024 IR–Window NSE–3NX DMD02329
23 9451048 B–cover NSW–3 DMD02409
24 0660166 Antenna F.helix 824–894MHz
25 4 6190013 Screw M1.6x7 T6 FeZn cl DMD01749
26 9380456 Type label 4D24715
27 9451139 Dust Cap DMD02859
6190023 Screw M1.6x4 T6 DMD02852
Original 11/99
Page 1 – 11
NSC–3 Variants
PAMS
Appendix 1
Transceiver NSC–3NF
Modules, Phase 1
Unit/type: Product code: Module code:
Transceiver NSC–3NF 0502131
• radio module US4U 0200973
• display module UE4 0200860
• mechanics MNSW3NF 0261388
Modules, Phase 2
Unit/type: Product code: Module code:
Technical Documentation
Transceiver NSC–3NF 0502529
• radio module US4RM 0201308
• display module UE4 0200860
• mechanics MNSW3NF 0261935
Page 1 – 12
Original 11/99
PAMS
NSC–3 Variants
Technical Documentation

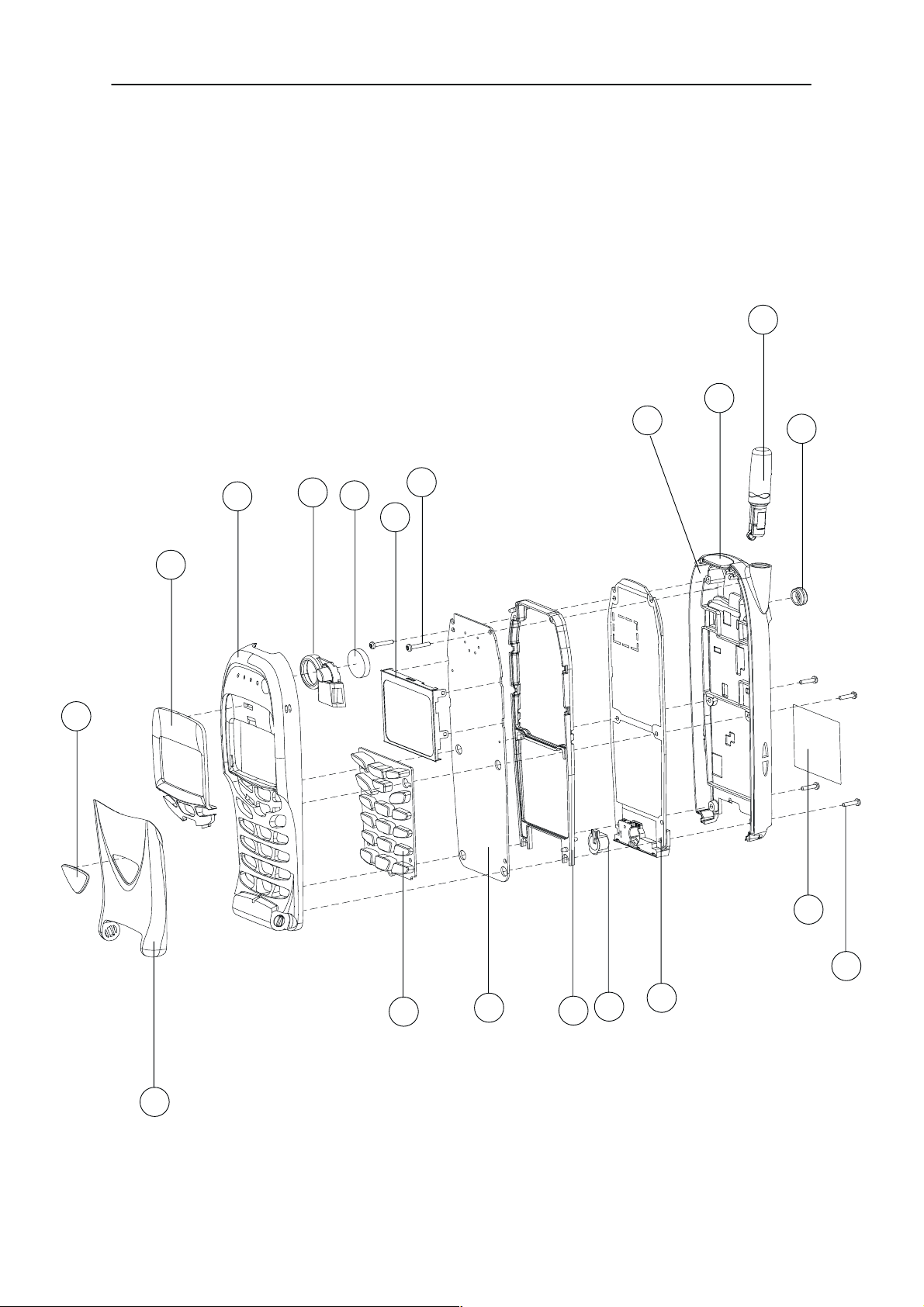

Exploded View of Transceiver NSC–3NF
Appendix 1
Original 11/99
Page 1 – 13
NSC–3 Variants
PAMS
Appendix 1
Technical Documentation
Assembly Parts of NSC–3NF
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 9457957 Logo badge DMC01000
2 9451140 Door NSW–3NF DMD03054
3 9457956 Window NSW–3NF DMC000999
4 9480373 Window adhesive NSW–3NF DMC00858
5 9451141 Hinge shaft left NSW–3NF DMD03053
6 9451142 Hinge shaft right NSW–3NF DMD01011
7 9457955 A–cover NSW–3NF DMC00943
8 9510387 Tension spring NSW–3NF DMD02961
9 Contact spring 1 (incl. in Hook switch) DMD02959
10 5400079 Hook switch DMC01007
11 Contact spring 2 (incl. in Hook switch) DMD02960
12 9480374 Display gasket NSW–3NF DMD02956
13 9790280 Power keymat DMC01001
14 5140067 Speaker + spring 103dB 32R d13.3
15 0200921 LCD module GD40
16 9794005 Keymat + keydome NSW–3NF DMC01010
17 0200860 UE4 UIF
18 9480340 Interboard frame DMC00856
19 5140093 Microphone + mic.boot DMC01151
20 2 6190015 Screw M1.6x10 T6 FeZn blk DMD01750
21 0200973 US4U radio module
M1 0201308 US4RM radio module Phase 2
22 9451024 IR–Window NSE–3NX DMD02329
23 9451048 B–cover NSW–3 DMD02409
24 0660166 Antenna F.helix 824–894MHz
25 4 6190013 Screw M1.6x7 T6 FeZn cl DMD01749
26 9380456 Type label 4D24715
9451139 Dust Cap DMD02859
6190023 Screw M1.6x4 T6 DMD02852
Page 1 – 14
Original 11/99
PAMS
NSC–3 Variants
Technical Documentation
Quick Guide
General
– Make a call Area code, phone number Talk
– End a call End
– Answer a call Talk
– Clear the display Press End
– Last number redial Talk
– Mute/unmuted Press MUTE
– Lock/unlock keypad MENU *
– Adjust earpiece Scroll ∧ or v
– Emergency services Emergency number Talk
Appendix 1
Memory
Menu
– Store a number Area code, number
(in first avail. location) SAVE, OK
– Search for a number or name ∧ or v
– Search for a name ∧ or v / NAMES, SEARCH
– Enter menu MENU
– Scroll functions ∧ or v
– Select displayed function Select
– Scroll options ∧ or v select option, OK
– Shortcut (see list below) MENU Function number
– Exit menu EXIT, BACK, End
Original 11/99
Page 1 – 15
NSC–3 Variants
PAMS
Appendix 1
Technical Documentation
This page intentionally left blank.
Page 1 – 16
Original 11/99
