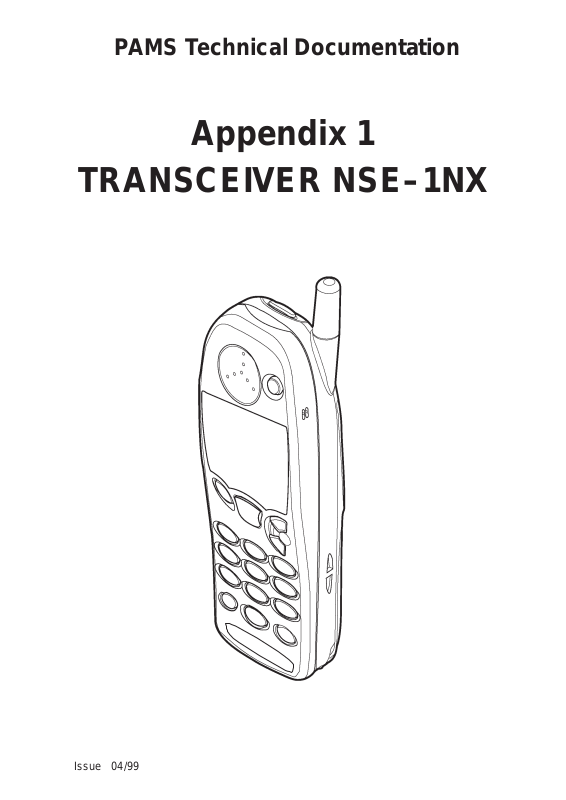

PAMS Technical Documentation
Appendix 1
TRANSCEIVER NSE–1NX
Issue 04/99
NSE–1NX
PAMS
Appendix 1
AMENDMENT RECORD SHEET
Amendment
Number
Date Inserted By Comments
1 04/99
Technical Documentation
R.Krishnan Updated contents and partslist
Repaginated
Page 1 – 2
Issue 04/99
PAMS
NSE–1NX
Technical Documentation
CONTENTS
Foreword 1 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transceiver NSE–1NX 1 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional Description 1 – 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modules 1 – 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exploded View of Transceiver NSE–1NX 1 – 6. . . . . . . . . . . . . .
Assembly Parts of NSE–1NX 1 – 7. . . . . . . . . . . . . . . . . . . . . . . .
Appendix 1
Page No
Issue 04/99
Page 1 – 3
NSE–1NX
PAMS
Appendix 1
Appendix 1
Foreword
This section of the service manual (Appendix) contains specific details for
the NSE–1NX handportable telephone.
The appendix comprises chapters as follows: Chapter 1, Foreword (this
chapter); Chapter 2, Transceiver NSE–1NX, containing an exploded view
of the NSE–1NX variant (including a list of assembly parts) plus
component parts lists covering the system module and the display
module.
NOTE: The Service Manual is intended for use by qualified
Technical Documentation
service personnel only.
Transceiver NSE–1NX
Functional Description
The NSE–1 is a radio transceiver unit designed for the GSM network. It is
a GSM phase 2, power class 4 transceiver providing 15 power levels with
a maximum output power of 2 W. The transceiver a is true 3 V transceiver.
The transceiver consists of System/RF module, User interface module
(UE4S) and assembly parts. The System/RF module used in NSE–1NX is
either UP8P, UP8R or UP8S. The baseband part is exactly the same but
the transmitter circuitry and it’s layout differs depending which one of the
two different power amplifiers is used.
Page 1 – 4
Issue 04/99
PAMS
NSE–1NX
Technical Documentation
Modules
Transceiver NSE–1NX Nokia Euro–A 0501010
Transceiver NSE–1NX Nokia Euro–A (Activa) 0502061
Transceiver NSE–1NX Nokia Euro–A (Continual) 0502060
Transceiver NSE–1NX Nokia Euro–A (TMN) 0502094
Transceiver NSE–1NX Nokia Euro–A (Vodacom) 0502057
Transceiver NSE–1NX Nokia Euro–B 0501900
Transceiver NSE–1NX Nokia Euro–B (Era) 0502056
Transceiver NSE–1NX Nokia Euro–B (Panafon) 0502059
Transceiver NSE–1NX Nokia Euro–B (Pannon) 0502055
Transceiver NSE–1NX Nokia Euro–B (Telestet) 0502058
Transceiver NSE–1NX Nokia Euro–B (Westel) 0502054
Transceiver NSE–1NX Nokia APAC, K 0501635
Transceiver NSE–1NX Nokia APAC 0501636
Transceiver NSE–1NX Nokia Eircell 0502092
Transceiver NSE–1NX Nokia Polkomtel 0501641
Transceiver NSE–1NX Nokia Max.Mobil 0501901
Transceiver NSE–1NX Nokia Telstra 0501902
Transceiver NSE–1NX Nokia CHINA, E off 0501903
Transceiver NSE–1NX Nokia MTN 0502394
Transceiver NSE–1NX Nokia Optimus 0502413
• system module UP8P 0201323 or
• system module UP8R 0201190 or
• system module UP8S 0200952
• display module UE4S 0200860
• A–cover night blue 9456132
• mechanics MNSE1 0261284
Appendix 1
Transceiver NSE–1NX Nokia Euro–A Mobilkom 0503020
Transceiver NSE–1NX Nokia Dialog 0502510
Transceiver NSE–1NX Nokia Omnitel 0501637
Transceiver NSE–1NX Nokia Plus 0502562
Transceiver NSE–1NX Nokia TIM 0501638
Transceiver NSE–1NX Nokia Movistar 0501639
Transceiver NSE–1NX Nokia Airtel 0501640
Transceiver NSE–1NX Nokia Max.Mobil 0501901
• system module UP8P 0201323 or
• system module UP8R 0201190 or
• system module UP8S 0200952
• display module UE4S 0200860
• A–cover night blue (logo recess) 9456147
• mechanics MNSE1 0261284
Transceiver NSE–1NX Nokia Euro–A (Ola) 0502063
• system module UP8S 0200952
• display module UE4S 0200860
Issue 04/99
Page 1 – 5
NSE–1NX
PAMS
Appendix 1
Technical Documentation
• mechanics MNSE–1 0261284
Transceiver NSE–1NX Nokia APAC K Black keymat 0502180
Transceiver NSE–1NX Nokia APAC Black keymat 0502183
Transceiver NSE–1NX Nokia CHINA E OFF, Bl keys0502182
• system module UP8P 0201323 or
• system module UP8R 0201190 or
• mechanics MNSE–1 0261284
Page 1 – 6
Issue 04/99
PAMS
NSE–1NX
Technical Documentation
Exploded View of Transceiver NSE–1NX
Appendix 1
Issue 04/99
Page 1 – 7
NSE–1NX
PAMS
Appendix 1
Technical Documentation
Assembly Parts of NSE–1NX
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 9457839 Window NSE–1NX DMC00937
2 9456132 A–cover (See module list)
9790257 Power Keymat NSE–1NX DMC00948
3 9790300 Keymat DMC00911
4 9460215 Transducer gasket NSE–3 DMD02687
5 5140067 Speaker + Spring
6 0200921 GD40 LCD Module
M2 0201144 UI Module UE4S
7 9460208 Frame DMD02411
8 5140101 Microphone + Boot DMC00955
M1 0201323 System/RF Module UP8P
M1 0201190 System/RF Module UP8R
M1 0200952 System/RF Module UP8S
9 9457851 B–Cover DMC00945
10 9457853 C–Cover DMC00946
11 2 6190015 Screw M1.6x10 T6
12 4 6190013 Screw M1.6x7 T6
13 0660160 Antenna 890 – 960 MHz
14 9380529 Type Label – continuous sheet
15 Logo Label
16 1 6190023 Screw M1.6x4 T6
17 9451139 Dust Cap DMD02859
18 4700057 RTC Battery assy
4700079 RTC Battery 0.05 mAh 3.3V
Page 1 – 8
Issue 04/99
