Nokia 5110 Service Manual up8ra3

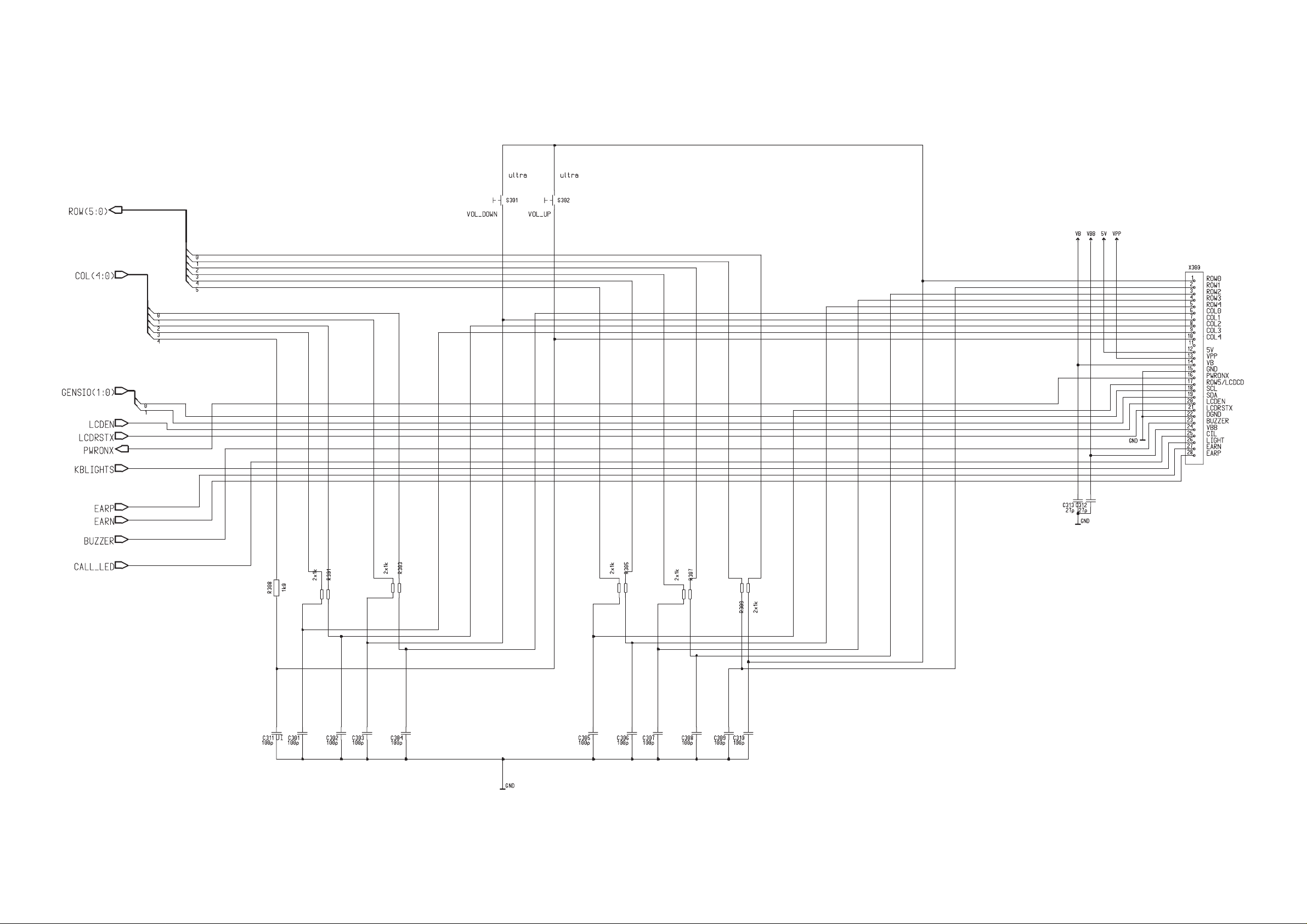

Block Diagram of System/RF Blocks

NSE–1System Module UP8R

Original 02/98

3/A3–R1

Circuit Diagram of Baseband (Version 15.1 Edit 4) for layout version 15

NSE–1System Module UP8R

Original 02/98

3/A3–R2

Circuit Diagram of Power Supply (Version 15.1 Edit 8) for layout version 15

NSE–1System Module UP8R

Original 02/98

3/A3–R3

Circuit Diagram of SIM Connectors (Version 15.1 Edit 5) for layout version 15

NSE–1System Module UP8R

Original 02/98

3/A3–R4
