Nissan Xterra 2009 Owner's Manual

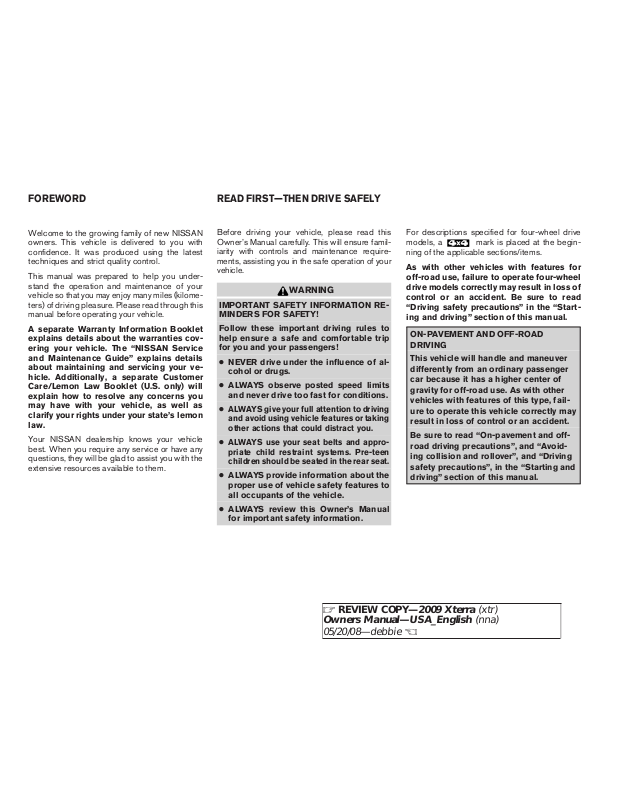

FOREWORD READ FIRST—THEN DRIVE SAFELY

Welcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.

This manual was prepared to help you under­stand the operation and maintenance of your
vehicle sothat youmay enjoymany miles(kilome­ters) ofdriving pleasure. Please read through this
manual before operating your vehicle.

A separate Warranty Information Booklet
explains details about the warranties cov­ering your vehicle. The “NISSAN Service
and Maintenance Guide” explains details
about maintaining and servicing your ve­hicle. Additionally, a separate Customer
Care/Lemon Law Booklet (U.S. only) will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state’s lemon
law.

Your NISSAN dealership knows your vehicle
best. When you require any service or have any
questions, they will be glad to assist you with the
extensive resources available to them.

Before driving your vehicle, please read this
Owner’s Manual carefully. This will ensure famil­iarity with controls and maintenance require­ments, assisting you in the safe operation of your
vehicle.

WARNING

IMPORTANT SAFETY INFORMATION RE­MINDERS FOR SAFETY!

Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!

● NEVER drive under the influence of al­cohol or drugs.

● ALWAYS observe posted speed limits
and never drive too fast for conditions.

●

ALWAYS give your full attention to driving
and avoidusing vehicle features or taking
other actions that could distract you.

●

ALWAYS use your seat belts and appro­priate child restraint systems. Pre-teen
children should be seated in the rear seat.

● ALWAYS provide information about the
proper use of vehicle safety features to
all occupants of the vehicle.

● ALWAYS review this Owner’s Manual
for important safety information.

For descriptions specified for four-wheel drive
models, a
ning of the applicable sections/items.

As with other vehicles with features for
off-road use, failure to operate four-wheel
drive models correctly may result in loss of
control or an accident. Be sure to read
“Driving safety precautions” in the “Start­ing and driving” section of this manual.

ON-PAVEMENT AND OFF-ROAD
DRIVING

This vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity for off-road use. As with other
vehicles with features of this type, fail­ure to operate this vehicle correctly may
result in loss of control or an accident.

Be sure to read “On-pavement and off­road driving precautions”, and “Avoid­ing collision and rollover”, and “Driving
safety precautions”, in the “Starting and
driving” section of this manual.

mark is placed at the begin-

WHEN READING THE MANUAL

MODIFICATION OF YOUR VEHICLE
This vehicle should not be modified.

Modification could affect its
performance, safety or durability, and
may even violate governmental
regulations. In addition, damage or per­formance problems resulting from modi­fications may not be covered under
NISSAN warranties.

This manual includes information for all options
available on this model. Therefore, you may find
some information that does not apply to your
vehicle.

All information, specifications and illustrations in
this manual are those in effect at the time of
printing. NISSAN reserves the right to change
specifications or design without notice and with­out obligation.

IMPORTANT INFORMATION ABOUT
THIS MANUAL

You will see various symbols in this manual. They
are used in the following ways:

WARNING

This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
precisely.

CAUTION

This is used to indicate the presence of a
hazard that could cause minor or moder­ate personal injury or damage to your ve­hicle. To avoid or reduce the risk, the pro­cedures must be followed carefully.

APD1005

If you see this symbol, it means “Do not do this”
or “Do not let this happen.”

If you see a symbol similar to these in an illustra­tion, it means the arrow points to the front of the
vehicle.

Arrows in an illustration that are similar to these
indicate movement or action.

Arrows in an illustration that are similar to these
call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65
WARNING

WARNING

Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de­fects or other reproductive harm. In addi­tion, certain fluids contained in vehicles
and certain products of component wear
contain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE
ADVISORY

Some vehicle parts, such as lithium batter­ies, may contain perchlorate material. The
following advisory is provided: “Perchlorate
Material – special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate.”

BLUETOOTHt is a
trademark owned by
Bluetooth SIG, Inc.,
U.S.A. and licensed to
Visteon.

© 2008 NISSAN NORTH AMERICA, INC.
All rights reserved. No part of this Owner’s

Manual may be reproduced orstored ina retrieval
system, or transmitted in any form, or by any
means, electronic, mechanical, photocopying,
recording or otherwise, without the prior written
permission of Nissan North America, Inc.

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES...

Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con­sumer Affairs Department using our toll-free
number:

For U.S. customers

1-800-NISSAN-1
(1-800-647-7261)

For Canadian customers

1-800-387-0122

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

The ConsumerAffairs Departmentwill ask for the
following information:

– Your name, address, and telephone number
– Vehicle identification number (attached to the

top of the instrument panel on the driver’s

side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR

You can write to NISSAN with the information at:

For U.S. customers

Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003

For Canadian customers

Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5

Table of

Illustrated table of contents

0

Contents

Safety—Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Heater, air conditioner, audio and phone systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

1

2

3

4

5

6

7

8

9

10

0 Illustrated table of contents

Air bags, seat belts and child restraints ..............0-2

Exterior front ......................................0-3

Exterior rear.......................................0-4

Passenger compartment ...........................0-5

Instrument panel...................................0-6

Engine compartment check locations ................0-8

Warning/indicator lights ............................0-9

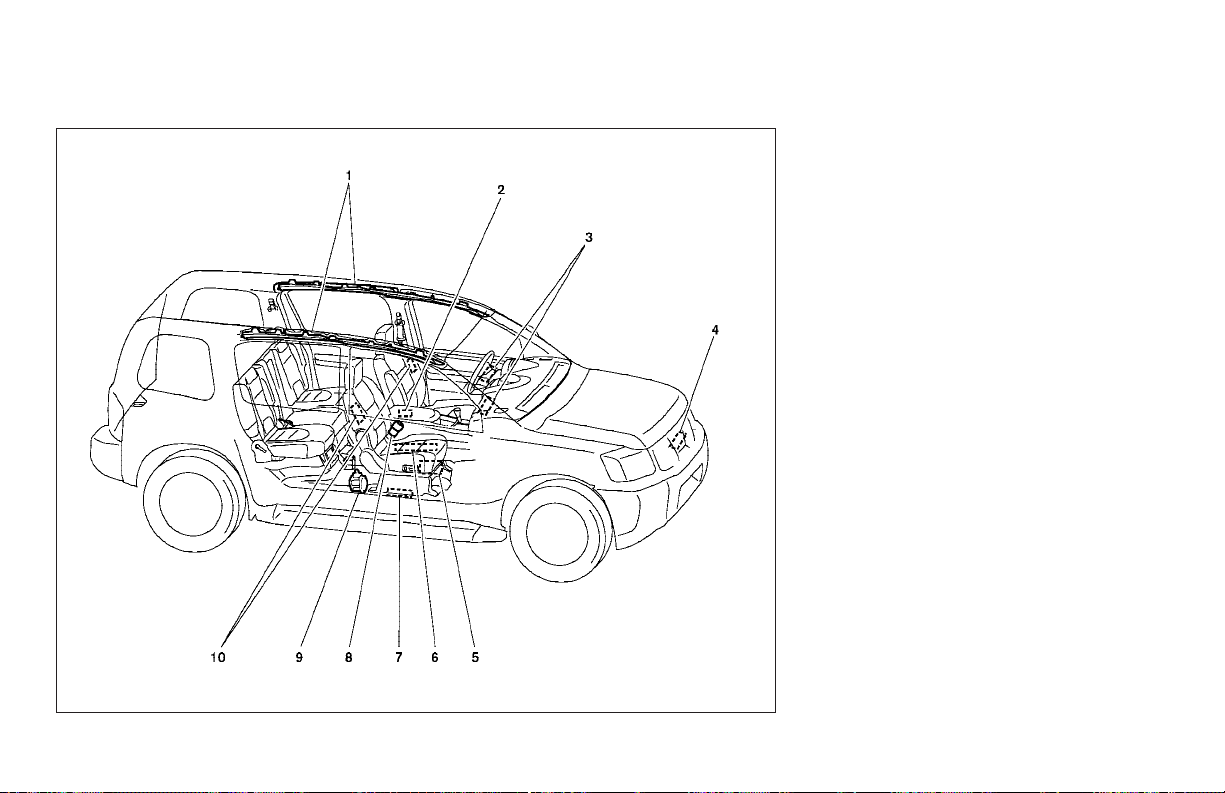

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

1. 2nd row seat belts (P. 1-10)

2. Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-42)

3. Front seat belts (P. 1-10)

4. Front-seat Active Head Restraints
(P.1-5)

5. Supplemental front-impact air bags
(P.1-42)

6. Seats (P. 1-2)

7. Occupant classification sensor
(pressure sensor) (P.1-50)

8. Seat belts with pretensioners (P. 1-55)

9. Front seat-mounted side-impact
supplemental air bag (P.1-54)

10. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-24)

See the page number indicated in paren­theses for operating details.

0-2 Illustrated table of contents

WII0134

EXTERIOR FRONT

1. Engine hood (P. 3-8)

2. Windshield wiper and washer switch
(P. 2-24)

3. Windshield (P. 8-19)

4. Power windows (P. 2-45)

5. Door locks, keyfob, keys
(P. 3-3, 3-5, 3-2)

6. Mirrors (P. 3-13)

7. Tire pressure (P. 8-32)

8. Flat tire (P. 6-2)

9. Tire chains (P. 5-37)

10. Replacing bulbs (P. 8-27)

11. Headlight and turn signal switch
(P. 2-26)

12. Fog light switch (P. 2-28)

13. Tow hooks (P.6-11)

See the page number indicated in paren­theses for operating details.

WII0058

Illustrated table of contents 0-3

EXTERIOR REAR

1. Roof rack (P. 2-42)

2. Vehicle loading (P. 9-12)

3. Rear window defrost (P. 2-26)

4. Rear window washer (P.2-25)

5. Lift gate (P. 3-9)

6. Spare tire (P.6-2)

7. Replacing bulbs (P. 8-27)

8. Fuel-filler door (P.3-10)

9. Child safety rear door lock (P.3-5)

See the page number indicated in paren­theses for operating details.

0-4 Illustrated table of contents

WII0057

PASSENGER COMPARTMENT

1. Map lights (P. 2-47)

2. Sun visors (P. 3-12)

3. Inside mirror (P.3-13)

4. Glove box (P. 2-36)

5. Console box (P. 2-36)

6. Front seats (P. 1-2)

7. Rear seats (P.1-7)

8. Storage (P. 2-35)

See the page number indicated in paren­theses for operating details.

WII0056

Illustrated table of contents 0-5

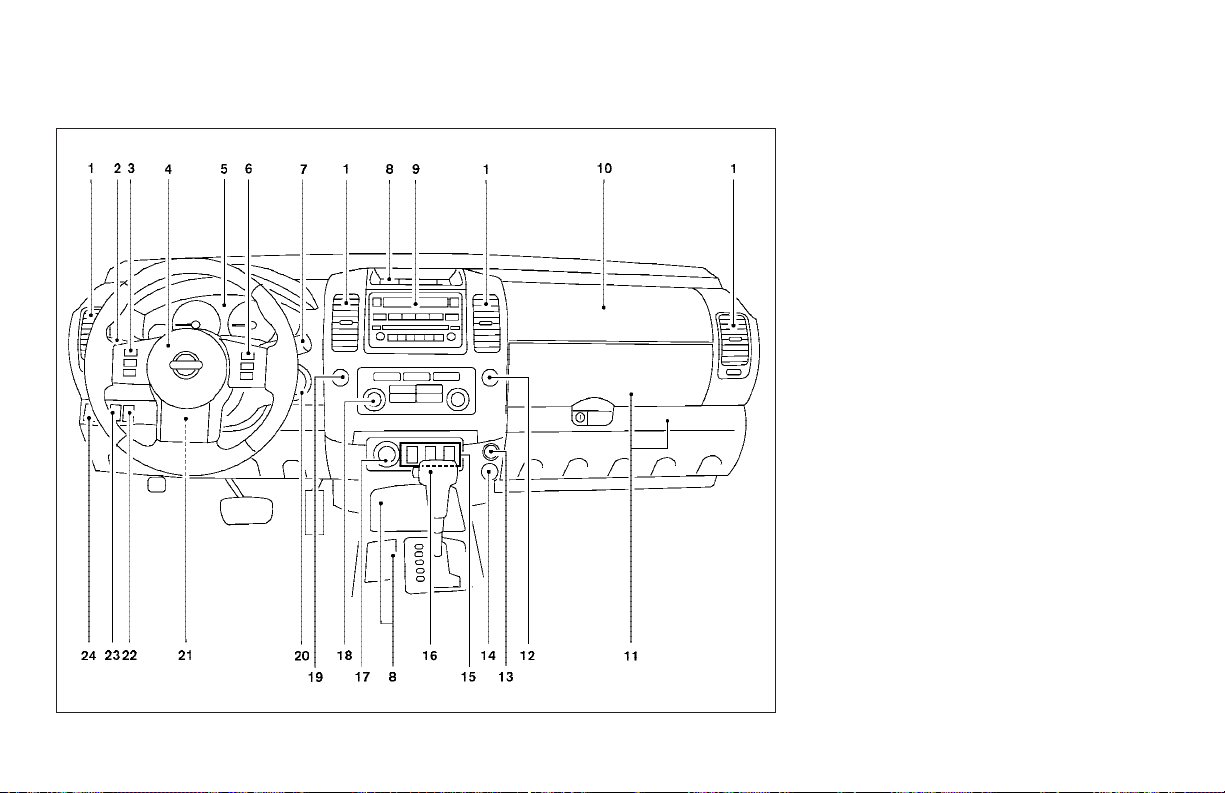

INSTRUMENT PANEL

1. Vents (P. 4-2)

2. Headlight/fog light (if so equipped)/turn

signal switch (P. 2-26)

3. Steering wheel switch for audio control

(if so equipped)/BluetoothT Hands­Free Phone System (if so equipped)
(P. 4-37, P. 4-39)

4. Driver supplemental air bag/horn

(P. 1-42, P. 2-30)

5. Meters, gauges and warning/indicator

lights (P. 2-3, 2-12)

6. Cruise control main/set switches

(P. 5-20)

7. Windshield wiper/washer switch and

rear window wiper/washer switch
(P. 2-24, P. 2-25)

8. Storage (P. 2-35)

9. Audio system controls (P. 4-17)

10. Front passenger supplemental air bag

(P. 1-42)

11. Upper and lower glove box (P. 2-36)

12. Passenger air bag status light (P. 1-51)

13. Auxiliary audio input jack (if so

equipped) (P. 4-36)

14. Power outlet (P. 2-33)

0-6 Illustrated table of contents

WIC1447

15. Electronic locking rear differential
(E-Lock) system switch
(if so equipped) (P. 2-32)
Hill descent control switch
(if so equipped) (P. 2-31)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-30)

16. Shift selector (P. 5-13)

17. 4WD shift switch (if so equipped)
(P. 5-22)

18. Climate controls (P. 4-9)

19. Hazard warning flasher switch (P. 2-29)

20. Ignition switch (P. 5-9)

21. Tilt steering wheel control (P. 3-11)

22. Off road lamps switch (P. 2-29)

23. Clutch interlock (clutch start) switch
(if so equipped) (P. 2-33)

24. Power outside mirror controls (P. 3-14)

See the page number indicated in paren­theses for operating details.

Illustrated table of contents 0-7

ENGINE COMPARTMENT CHECK
LOCATIONS

VQ40DE engine

1. Windshield washer fluid reservoir
(P. 8-13)

2. Fuse/fusible link box (P. 8-22)

3. Fuse and relay box (P. 8-22)

4. Engine oil filler cap (P. 8-8)

5. Engine oil dipstick (P. 8-8)

6. Brake fluid reservoir/Clutch fluid
reservoir (MT model) (P. 8-12)

7. Air cleaner (P. 8-17)

8. Drive belt location (P.8-16)

9. Radiator cap (P. 8-7)

10. Power steering fluid reservoir (P. 8-11)

11. Battery (P. 8-13)

12. Engine coolant reservoir (P. 8-7)

See the page number indicated in paren­theses for operating details.

0-8 Illustrated table of contents

LII0167

WARNING/INDICATOR LIGHTS

Warning

light

or

or

Name Page

Anti-lock Braking
System (ABS) warn­ing light

Automatic transmis­sion oil temperature
warning light (if so
equipped)

Automatic transmis­sion park warning
light (
model)

Brake warning light 2-14

Charge warning
light

Door open warning
light

2-13

2-13

2-13

2-14

2-14

Warning

light

Name Page

Engine oil pressure
warning light

4WD warning light
(

Low fuel warning
light

Low tire pressure
warning light

Low windshield
washer fluid warning
light

Seat belt warning
light and chime

Supplemental air
bag warning light

model)

2-14

2-15

2-15

2-15

2-17

2-17

2-17

Indicator

light

Name Page

Automatic transmis­sion position indica­tor light (if so
equipped)

Cruise main switch
indicator light

Cruise set switch
indicator light

Electronic locking
rear differential (E­Lock) system on
indicator light (if so
equipped)

4WD shift indicator
light (
model)

Front passenger air
bag status light

High beam indicator
light (Blue)

2-17

2-17

2-18

2-18

2-18

2-18

2-18

Illustrated table of contents 0-9

Indicator

light

Name Page

Indicator

light

Name Page

Hill descent control
system on indicator
light (if so equipped)

Malfunction Indica­tor Lamp (MIL)

Overdrive off indica­tor light (automatic
transmission only)

Security indicator
light

Slip indicator light
for VDC

Transfer 4LO posi­tion indicator light
(

Turn signal/hazard
indicator lights

model)

0-10 Illustrated table of contents

2-31

2-19

2-19

2-19

2-20

2-20

2-20

Vehicle Dynamic
Control off indicator
light

2-21

1 Safety—Seats, seat belts and
supplemental restraint system

Seats ............................................1-2

Front manual seat adjustment ....................1-2

Head restraint adjustment .......................1-4

Front-seat Active Head Restraints ................1-5

Flexible seating.................................1-5

Seat belts .......................................1-10

Precautions on seat belt usage..................1-10

Child safety...................................1-13

Pregnant women ..............................1-14

Injured persons................................1-14

Three-point type seat belt with retractor..........1-14

Seat belt extenders ............................1-21

Seat belt maintenance .........................1-22

Child restraints...................................1-22

Precautions on child restraints ..................1-22

LATCH (Lower Anchors and Tethers for

CHildren) SYSTEM ............................1-24

Top tether strap child restraint ..................1-26

Child restraint installation using LATCH ..........1-27

Child restraint installation using the seat

belts .........................................1-31

Booster seats ....................................1-37

Precautions on booster seats ...................1-37

Booster seat installation ........................1-40

Supplemental restraint system .....................1-42

Precautions on supplemental restraint

system .......................................1-42

Supplemental air bag warning labels.............1-57

Supplemental air bag warning light ..............1-57

SEATS

● The seatback should not be reclined
anymore than needed for comfort. Seat
belts are most effective when the pas­senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

WARNING

● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.

● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau­tions on seat belt usage” later in this
section.

● After adjustment,gently rockin theseat
to make sure it is securely locked.

● Do not leave children unattended inside
the vehicle.They could unknowingly ac­tivate switches or controls. Unattended
children could become involved in seri­ous accidents.

1-2 Safety—Seats, seat belts and supplemental restraint system

ARS1152

FRONT MANUAL SEAT
ADJUSTMENT

WRS0175 WRS0176 WRS0131

Forward and backward

Pull the lever up and hold it while you slide the
seat forwardor backward to the desiredposition.
Release the lever to lock the seat in position.

Reclining

Torecline the seatback, pull the lever up andlean
back. To bring the seatback forward, pull thelever
up and lean your body forward. Release the lever
to lock the seatback in position.

The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in thissection. Also,the seatbackcan be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in P (Park) or N
(Neutral) position with the parking brake fully
applied.

Safety—Seats, seat belts and supplemental restraint system 1-3

Seat lifter (if so equipped)

Turn either dial to adjust the angle and height of
the seat cushion to the desired position.

WRS0389 WRS0213 WRS0134

Lumbar support (if so equipped)

The lumbar support feature provides lower back
support to the driver. Move the lever forward or
backward to adjust the seat lumbar area.

HEAD RESTRAINT ADJUSTMENT

To raise the head restraint, pull it up
push and hold the lock knob
head restraint down

The head restraints on the rear seats are remov­able.

s

2

.

WARNING

Head restraints should be adjusted prop­erly as they may provide significant pro­tection against injury in an accident. Do
not remove them. Check the adjustment
after someone else uses the seat.

1-4 Safety—Seats, seat belts and supplemental restraint system

2

. To lower,

s

1

and push the

s

Adjust the head restraint so the center is level
with the center of your ears.

SPA1025

FRONT-SEAT ACTIVE HEAD
RESTRAINTS

WARNING

● Always adjust the head restraints prop­erly as specified in this section. Failure
to doso can reduce the effectiveness of
the Active Head Restraint.

● Active Head Restraints are designed to
supplement other safety systems. Al­ways wear seat belts. No system can
prevent all injuries in any accident.

● Do not attach anything to the head re­straint stalks. Doing so could impair
Active Head Restraint function.

The Active Head Restraint moves forward utiliz­ing the force that the seatback receives from the
occupant in a rear-end collision. The movement
of the head restraint helps support the occu­pant’s head by reducing its backward movement
and helping absorb some of the forces that may
lead to whiplash-type injuries.

Active HeadRestraints are effective for collisions
at low to medium speeds in which it is said that
whiplash injuries occur most.

Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.

Properly adjust the Active Head Restraints as
described earlier in this section.

FLEXIBLE SEATING

WARNING

● Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.

● Do not allow people to ride in any area
of your vehiclethat is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.

● Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats.

● Head restraints should be adjusted
properly as theymay provide significant
protection against injury in an accident.
Always replace and adjust them prop­erly if they have been removed for any
reason.

● If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to the
vehicle in case of sudden braking or an
accident.

● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi­tion. If they are not completely secured,
passengers may be injured in an acci­dent or sudden stop.

Safety—Seats, seat belts and supplemental restraint system 1-5

● Properly secure all cargo to help pre­vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In asudden stop or collision, unsecured
cargo could cause personal injury.

LRS0608 LRS0609

Folding the front passenger’s seatback
(if so equipped)

To fold the front passenger’s seatback flat for
extra storage length when transporting long
items:

1

Slide the seat to the rearmost position. Lift

s

up on the recline lever, located on the out­side edge of the seat, and fold the seatback
forward as far as it will go. Then lift up on the
latch located on the upper corner of the
seatback to release the back of the seat.

2

Once the seatback is released, it will enable

s

you to fold the front passenger seatback flat
over the seat cushion.

3. To return the front passenger’s seat to a
seating position, lift up on the seatback and
push it up to anupright position.Then pull up
on the recline lever and lean the seatback to
a proper seating position. Release the lever
to lock the seatback in position.

1-6 Safety—Seats, seat belts and supplemental restraint system

WARNING

● If you fold the front passenger’s seat­back flat forward to carry longer ob­jects, be sure this cargo is properly se­cured and not near an air bag. In a
crash, an inflating air bag might force
that object toward a person. This could
cause severe injury or even death. Se­cure objects away from the area in
which an air bag would inflate. See
“Precautions on supplemental restraint
system” later in this section.

● Never allow anyone to ride in the cargo
area or on the front passenger’s seat
when it is in the fold-down position. Use
of these areas by passengers could re­sult in serious injury in an accident or
sudden stop.

LRS0577

Folding the 2nd row bench seat

To fold the 2nd row bench seat flat for maximum
cargo hauling:

1

Disconnect and secure the center seat belt

s

and tongues into the retractor base. See
“Stowing the center seat belt” later in this
section. Then properly stow the outboard
seat belts in the seat belt hooks before fold­ing down the rear seats. See “Seat belt
hook” in this section for more information.
Lower the head restraints to the full “down”
position. Pull the strap forward, located in
the center of each seat cushion, and fold
each seat cushion toward the front of the
vehicle.

Safety—Seats, seat belts and supplemental restraint system 1-7

LRS0578 LRS0579 LRS0580

2

Then pull the straps located on the outside

s

edge of each seatback to fold the seatbacks
forward.

3

This provides a level cargo floor.

s

1-8 Safety—Seats, seat belts and supplemental restraint system

4

To return the bench seats to a seating posi-

s

tion, reverse this process. Raise the seat­backs to an upright position. Make
sure to hold the seat belts above the
seat cushion, then push the seat cush­ion down into place.

LRS0585

Removing the 2nd row bench seat
cushions

The rear seat cushion can be removed to provide
additional space when folding the 2nd row seat­backs flat. To remove the 2nd row bench seat
cushions:

1. Pull the straps forward, located in the center
of each seat cushion, to fold the seat cush­ions forward.

2. Lift up and fold each of the red release
handles on the seat base toward the front of
the vehicle. This will release the seat cushion
from the seat base.

3. Then lift up on the seat cushion to remove it
from the seat base. Be sure to store it in a
secure place.

To return the rear seatback to a seating position:

1. Push the anchor bars on the bottom of the
seat cushions down into the seat base.

2. Rotate the seat cushion toward the rear of
the vehicle and push down until they are
folded flat to secure eachseat cushion to the
seat base. Make sure to hold the seat

belts above the seat cushion and prop­erly push the seat cushion down into
place.

WARNING

● Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an acci­dent or sudden stop.

● Do not allow people to ride in any area
of your vehiclethat is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly. Never ride in the rear
seat unless the seat bottom cushions
are in place and latched.

● Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.

● When returning the seatbacks to the
upright position, be certain they are
completely secured. If they are not com­pletely secured in the latched position,
passengers may be injured in an acci­dent or sudden stop.

● If the seat cushions are removed for any
reason, they should be securely stored
to prevent them from causing injury to
passengers or damage to the vehicle in
case of sudden braking or an accident.

Safety—Seats, seat belts and supplemental restraint system 1-9

SEAT BELTS

PRECAUTIONS ON SEAT BELT
USAGE

If you are wearing your seat belt properly ad­justed andyou are sitting upright and well backin
your seat with both feeton the floor, your chances
of beinginjured or killed in an accident and/orthe
severity of injury may be greatly reduced.
NISSAN strongly encourages you and all of your
passengers to buckle up every time you drive,
even if your seating position includes a supple­mental air bag.

Most U.S. states and Canadian provinces
or territories specify that seat belts beworn
at all times when a vehicle is being driven.

SSS0136

1-10 Safety—Seats, seat belts and supplemental restraint system

WARNING

● Every person who drives or rides in this
vehicle should use a seat belt at all
times. Children should be properly re­strained in the rear seat and, if appro­priate, in a child restraint.

SSS0134 SSS0016

WARNING

● The seat belt should be properly ad­justed to a snug fit. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an acci­dent. Serious injury or death can occur
if the seat belt is not worn properly.

Safety—Seats, seat belts and supplemental restraint system 1-11

SSS0014

WARNING

● Always route the shoulder belt over
your shoulder and across your chest.
Never put the belt behind your back,
under your arm or across your neck. The
belt should be away from your face and
neck, but not falling off your shoulder.

● Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE
WAIST. A lap belt worn too high could
increase the risk of internal injuries in
an accident.

● Be sure the seat belt tongue is securely
fastened to the proper buckle.

● Do not wear the seat belt inside out or
twisted. Doing so may reduce its
effectiveness.

● Do not allow more than one person to
use the same seat belt.

● Never carry more people in the vehicle
than there are seat belts.

● If the seat belt warning light glows con­tinuously while the ignition is turned
ON with all doors closed and all seat
belts fastened, it may indicate a mal­function in the system. Have the system
checked by a NISSAN dealer.

● No changes should be made to the seat
belt system. For example, donot modify
the seat belt, add material, or install
devices that may change the seat belt
routing or tension. Doing so may affect
the operation of the seat belt system.
Modifying or tampering with the seat
belt system may result in serious per­sonal injury.

● Once a seat belt pretensioner has acti­vated, it cannot be reused and must be
replaced together with the retractor.
See your NISSAN dealer.

● Removal and installation of preten­sioner system components should be
done by a NISSAN dealer.

● All seat belt assemblies, including re­tractors and attaching hardware,
should be inspected after any collision
by a NISSAN dealer. NISSAN recom­mends that all seat belt assemblies in
use during a collision be replaced un­less the collision was minor and the
belts show no damage and continue to
operate properly. Seat belt assemblies
not in use during a collision should also
be inspected and replaced if either
damage orimproper operation is noted.

● All child restraints and attaching hard­ware should be inspected after any col­lision. Always follow the restraint
manufacturer’s inspection instructions
and replacement recommendations.
The child restraints should be replaced
if they are damaged.

1-12 Safety—Seats, seat belts and supplemental restraint system

CHILD SAFETY

Children need adults to help protect them.
They need to be properly restrained.

In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.

There are three basic types of child restraint
systems:

● Rear-facing child restraint

● Front-facing child restraint

● Booster seat

The proper restraint depends on the child’s size.
Generally, infants up to about 1 year and less
than 20lbs (9kg) should be placed in rear-facing
child restraints. Front-facing child restraints are
available for children who outgrow rear-facing
child restraints and are at least 1 year old.
Booster seats are used to help position a vehicle
lap/shoulder belt on a child who can no longer
use a front-facing child restraint.

WARNING

Infants and children need special protec­tion. The vehicle’s seat belts may not fit
them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly fit­ting seat belt could cause serious or fatal
injury. Always use appropriate child
restraints.

All U.S. states and Canadian provinces or terri­tories require the use of approved child restraints
for infants and small children. See “Child Re­straints” later in this section.

Also, there are other types of child restraints
available for larger children for additional protec­tion.

NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.

This is especially important because your
vehicle has a supplemental restraint sys­tem (Air bag system) for the front passen­ger. See “Supplemental restraint system”
later in this section.

Safety—Seats, seat belts and supplemental restraint system 1-13

Infants

Infants up to at least 1 year old should be placed
in a rear-facing child restraint. NISSAN recom­mends that infants be placed in child restraints
that comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. You should choose a child restraint
that fits your vehicle and always follow the manu­facturer’s instructions for installation and use.

Small children

Children that are over one year old and weigh at
least 20 lbs (9 kg) can be placed in a forward­facing child restraint. Refer to the manufacturer’s
instructions for minimum and maximum weight
and height recommendations. NISSAN recom­mends that small children be placed in child
restraints that comply with Federal Motor Vehicle
Safety Standards or Canadian Motor Vehicle
Safety Standards. You should choose a child
restraint that fits your vehicle and always follow
the manufacturer’s instructions for installation
and use.

Larger children

Children who are too large for child restraints
should beseated andrestrained by the seat belts
which are provided. The seat belt may not fit
properly if the child is less than 4 ft 9 in (142.5
cm) tall and weighs between 40 lbs (18 kg) and

80 lbs (36 kg). A booster seat should be used to
obtain proper seat belt fit.

NISSAN recommends that a child be placed in a
commercially available booster seat if the shoul­der beltin the child’s seating position fits closeto
the face or neck or if the lap portion of the seat
belt goes across the abdomen. The booster seat
should raise the child so that the shoulder belt is
properly positioned across the top, middle por­tion of the shoulder and the lap belt is low on the
hips. A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with Fed­eral Motor Vehicle Safety Standards or Canadian
Motor Vehicle Safety Standards. Once the child
has grown so the shoulder belt is no longer on or
near the face and neck, use the shoulder belt
without the booster seat.

WARNING

Never let a child stand or kneel on any
seat and do not allow a child in the cargo
areas while the vehicle is moving. The
child could be seriously injuredor killed in
an accident or sudden stop.

PREGNANT WOMEN

NISSAN recommends that pregnant women use
seat belts. The seat belt should beworn snugand
always position the lap belt as low as possible
around thehips, notthe waist. Place the shoulder
belt over your shoulder and across your chest.
Never run the lap/shoulder belt over your ab­dominal area. Contact your doctor for specific
recommendations.

INJURED PERSONS

NISSAN recommends that injured persons use
seat belts. Check with your doctor for specific
recommendations.

THREE-POINT TYPE SEAT BELT
WITH RETRACTOR

WARNING

● Every person who drives or rides in this
vehicle should use a seat belt at all
times.

● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.

● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat belt properly.

1-14 Safety—Seats, seat belts and supplemental restraint system

WRS0174

Manual seat shown

Fastening the seat belts

1. Adjust the seat. See “Seats” earlier in this
section.

LRS0594 LRS0595

2

Slowly pull the seat belt out of the retractor

s

and insert the tongue into the buckle until
you hear and feel the latch engage.

● The retractor is designed to lock during
a sudden stop or on impact. A slow
pulling motion permits the seat belt to
move and allows you some freedom of
movement in the seat.

● If the seat belt cannot be pulled from
its fully retracted position, firmly pull
the belt and release it. Then smoothly
pull the belt out of the retractor.

Safety—Seats, seat belts and supplemental restraint system 1-15

3

Position the lap belt portion low and snug

s

on the hips as shown.

4

Pull the shoulder belt portion toward the

s

retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.

The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:

● Emergency Locking Retractor (ELR)

● Automatic Locking Retractor (ALR)

The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to allow
the driver and passengers some freedom of
movement in the seat. TheELR locksthe seat belt
when the vehicle slows down rapidly or during
certain impacts.

The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for child
restraint installation.

When the ALR mode is activated, the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. See “Child re­straints” later in this section for more information.

The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALRmode
should not be activated. If it is activated, it
may cause uncomfortable seat belt ten­sion. It can also change the operation of
the front passenger air bag. See “Front
passenger air bag and status light” later in
this section.

WARNING

When fastening the seat belts, be certain
that the seatbacks are completely se­cured in the latched position. If they are
not completely secured, passengers may
be injured in an accident or sudden stop.

WRS0139

Unfastening the seat belts

1

Tounfasten the seatbelt, pressthe button on

s

the buckle. The seat belt automatically re­tracts.

Checking seat belt operation

Seat belt retractors are designed to lock seat belt
movement by two separate methods:

● When the seat belt is pulled quickly from the
retractor.

● When the vehicle slows down rapidly.

1-16 Safety—Seats, seat belts and supplemental restraint system

To increase your confidence in the seat belts,
check the operation as follows:

● Grasp the shoulder belt and pull forward
quickly. The retractor should lock and re­strict further belt movement.

If the retractor does not lock during this check or
if you have any questions about seat belt opera­tion, see a NISSAN dealer.

SSS0240 SSS0241

Center of the rear bench seat

The center seat belt has a connector tongue
and a seat belt tongue
tongue and the seat belt tongue must be securely
latched for proper seat belt operation.

2

. Both the connector

s

s

WARNING

1

● Always fasten the connector tongue
and the seat belt in the order shown.

● Always make sure both the connector
tongue and the seat belt tongue are
secured when using the seat belt or
installing a child restraint. Do not use
the seat belt or child restraint with only
the seat belt tongue attached. This
could result in serious personal injury in
case of an accident or a sudden stop.

Safety—Seats, seat belts and supplemental restraint system 1-17

LRS0601

Stowing the center seat belt

When folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:

1. Hold the connector tongue
seat beltdoes notretract suddenly when the
tongue is released from the connector
buckle.

2. Insert a suitable tool such as a key
the connector buckle and release the con­nector tongue

3. Fold the connector as illustrated

4. Then secure the connector tongue into the
retractor base

1

.

s

3

in the ceiling.

s

1

so that the

s

s

A

into

s

2

.

WARNING

● Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.

● When attaching the rear center seat
belt connector, be certain that the seat­backs are completely secured in the
latched position and the rear center
seat belt connector is completely
secured.

● If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or sud­den stop.

1-18 Safety—Seats, seat belts and supplemental restraint system

LRS0602

Attaching the center seat belt

Always be sure the center seat belt connector
tongue and connector buckle are attached. Dis­connect only when folding down the rear seat.

To connect the buckle:

1

Pull out the seat belt tongue from the retrac-

s

tor base.

2

Pull out the connector tongue from the

s

molded retractor base.

3

Pull the seat belt and secure the receiver

s

buckle until it clicks.

The center seat belt connector tongue and re­ceiver buckle are indicated by the > and < mark.

The center seat belt connector tongue can be
attached only into the rear center seat belt con­nector buckle.

To fasten the seat belt, see “Fastening the seat
belts” earlier in this section.

WARNING

● Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.

● When attaching the rear center seat
belt connector, be certain that the seat­backs are completely secured in the
latched position and the rear center
seat belt connector is completely
secured.

● If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or sud­den stop.

Safety—Seats, seat belts and supplemental restraint system 1-19

LRS0611 LRS0610 LRS0612

2nd row center seat belt comfort
guide

When using the 2nd row center seat belt it may
be necessary to use the comfort guide to adjust
the shoulder belt height for occupants ofdifferent
sizes for added comfort and to help obtain proper
seat belt fit.

1. Raise the head restraint on the 2nd row
driver’s side seating position. Remove the
comfort guide from the stowed position by
pulling the cord from the channel.

2. Insert the shoulder belt into the back of the
comfort guideso that the seat belt lays flatin
the guide. Be sure that the comfort guide
routes the seat belt properly over the center
of your shoulder and across your chest. The
belt should be away from your face and
neck, but not falling off of your shoulder.

1-20 Safety—Seats, seat belts and supplemental restraint system

3. To return the seat belt comfort guide to the
stowed position, route the comfort guide
strap in the channel under the 2nd row driv­er’s side seating position head restraint and
attach the guide in the clip.

WARNING

● After adjustment, release the adjust­ment button and try to move the shoul­der belt anchor up and down to make
sure it is securely fixed in position.

● The shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec­tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.

LRS0242

Front and 2nd row outboard seats

Shoulder belt height adjustment (front
and 2nd row outboard seats)

The shoulder belt anchor height should be ad­justed to the position best for you. (See “Precau­tions on seat belt usage” earlier in this section.)
To adjust, pull out
move the shoulder belt anchor
position, sothe belt passes over thecenter of the
shoulder. The belt should be away from yourface
and neck, but not falling off your shoulder. Re­lease the adjustment button to lock the shoulder
belt anchor into position.

1

the adjustment button and

s

2

to the desired

s

LRS0583

Seat belt hook

When theseat belt is not in use and when folding
down the rear seats, hook the rear seat belts on
the seat belt hooks.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is
not possible to properly fit the lap/shoulder belt
and fasten it, an extender is available which is
compatible with the installed seat belts. The ex­tender adds approximately 8 in (200 mm) of
length and may be used for either the driver or
front passenger seating position. See a NISSAN
dealer for assistance if an extender is required.

Safety—Seats, seat belts and supplemental restraint system 1-21

CHILD RESTRAINTS

WARNING

● Only NISSAN seat belt extenders, made
by the same company which made the
original equipment seat belts, should
be used with NISSAN seat belts.

● Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use could
result in serious personal injury in the
event of an accident.

● Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured in a collision or a sud­den stop.

● Periodically check to see that the seat

belt andthe metal components, such as

buckles, tongues, retractors, flexible wires
and anchors, work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire seat belt as­sembly should be replaced.

SEAT BELT MAINTENANCE

● To clean the seat belt webbing, apply a
mild soap solution or any solution recom­mended for cleaning upholstery or carpet.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.

● If dirt builds up in the shoulder belt
guide of the seat belt anchors, the seat

belts may retract slowly. Wipe the shoulder
belt guide with a clean, dry cloth.

1-22 Safety—Seats, seat belts and supplemental restraint system

ARS1098

PRECAUTIONS ON CHILD
RESTRAINTS

WRS0256

WARNING

● Infants and small children should al­ways be placed in an appropriate child
restraint while riding in the vehicle.
Failure to use a child restraint can re­sult in serious injury or death.

● Infants and small children should never
be carried on your lap. It is not possible
for even the strongest adult to resist the
forces of a severe accident. The child
could be crushed between the adult and
parts of the vehicle. Also, do not put the
same seat belt around both your child
and yourself.

● Even with the NISSAN Advanced Air
Bag System, never install a rear-facing
child restraint in the front seat. An in­flating front air bag could seriously in­jure or kill your child. A rear-facing child
restraint must only be used in the rear
seat.

● NISSAN recommends that the child re­straint be installed in the rear seat. Ac­cording to accident statistics, children
are safer when properly restrained in
the rear seat than in the front seat. If
you must install a front facing child re­straint in the front seat, see “Child re­straint installation using the seat belts”
later in this section.

● Improper use or improper installation
of a child restraint can increase the risk
or severity of injury for both the child
and other occupants of the vehicle and
can lead to serious injury or death in an
accident.

● Follow all of the child restraint manu­facturer’s instructions for installation
and use. When purchasing a child re­straint, be sure to select one which will
fit your child and vehicle. It may not be
possible to properly install some types
of child restraints in your vehicle.

● If the child restraint is not anchored
properly, the risk of a child being in­jured in a collision or a sudden stop
greatly increases.

● Child restraint anchor points are de­signed to withstand only those loads
imposed by correctly fitted child re­straints. Under no circumstances are
they to be used for adult seat belts or
harnesses.

● Adjustable seatbacks should be posi­tioned to fit the child restraint, but as
upright as possible.

● After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment or by the
seat belt path. The child restraint
should not move more than 1 inch (25
mm), from side to side. Try to tug it
forward and check to see if the belt
holds the restraint in place. If the re­straint is not secure, tighten the belt as
necessary, or put the restraint in an­other seat and test it again. You may
need to try a different child restraint.
Not all child restraints fit in all types of
vehicles.

Safety—Seats, seat belts and supplemental restraint system 1-23

● When your child restraint is not in use,
keep it secured with the LATCH system
or a seat belt to prevent it from being
thrown around in case of a sudden stop
or accident.

CAUTION

Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.

This vehicle is equipped with a universal child
restraint lower anchor system, referred to as the
LATCH (Lower Anchors and Tethers for CHil­dren) SYSTEM. Some child restraints include
two rigid or webbing-mounted attachments that
can be connected to these lower anchors. For
details, see“LATCH (Lower Anchors andTethers
for CHildren) SYSTEM” later in this section.

If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used. See
“Child restraint installation using the seat belts”
later inthis section. In general, child restraints are
also designed to be installed with a lap/shoulder
seat belt.

Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:

● Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.

● Check the child restraintin yourvehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.

● If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always followall recommended procedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on front-facing child re­straints be secured to the designated an­chor point on the vehicle.

WRS0438

LATCH system anchor locations

LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM

Your vehicle is equipped with special anchor
points that are used with Lower Anchors and
Tethers for CHildren System (LATCH) compat­ible child restraints. This system may also be
referred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint.

The LATCH anchor points are provided to install
child restraints in the rear outboard seating posi­tions only. Do not attempt to install a child restraint
in the center position using the LATCH anchors.

1-24 Safety—Seats, seat belts and supplemental restraint system

LRS0589

LATCH label locations

LATCH lower anchor point locations

The LATCH anchors are located at the rear ofthe
seat cushion near the seatback. A label is at­tached to the seatback to help you locate the
LATCH anchors.

WARNING

● Attach LATCH system compatible child
restraints only at the locations shown. If
a child restraint is not secured properly,
your child could be seriously injured or
killed in an accident.

WRS0700

LATCH lower anchor location

● Do not secure a child restraint in the
center rear seating position using the
LATCH anchors. The child restraint will
not be secured properly.

● Child restraint anchor points are de­signed to withstand only those loads
imposed by correctly fitted child re­straints. Under no circumstances are
they to be used for adult seat belts or
harnesses.

Safety—Seats, seat belts and supplemental restraint system 1-25

LRS0661

LATCH webbing-mounted attachment

Installing child restraint LATCH anchor
attachments

LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this sys­tem, you do not have to use a vehicle seat belt to
secure the child restraint. Check your child re­straint for a label stating that it is compatible with
LATCH. This information may also be in the in­structions provided by the child restraint manu­facturer.

LRS0662

LATCH rigid-mounted attachment

LATCH child restraints generally require the use
of a top tether strap. See “Top tether strap child
restraint” later in this section for installation in­structions.

When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint. See“Child
restraint installation using LATCH” later in this
section.

TOP TETHER STRAP CHILD
RESTRAINT

If the manufacturer of your child restraint requires
the use of a top tether strap, it must be securedto
the anchor point.

WARNING

● Child restraint anchor points are de­signed to withstand only those loads
imposed by correctly fitted child re­straints. Under no circumstances are
they to be used for adult seat belts or
harnesses.

● Do not allow cargo to contact the top
tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or cargo that contacts the top
tether strap may damage it during a
collision. Your child could be seriously
injured or killed in a collision if the top
tether strap is damaged.

Top tether anchor point locations

Anchor points are located on the back of each
seatback forall three seating positions of the 2nd
row bench seat as shown.

If you have any questions when installing a
top tether strap child restraint on the rear
seat, consult your NISSAN dealer for de­tails.

1-26 Safety—Seats, seat belts and supplemental restraint system

LRS0588

2nd row bench seat

Installing top tether strap

First, secure the child restraint with the LATCH
system (rear outboard seating positions only) or
the seat belt, as applicable.

1. Top tether strap

2. Anchor point

For the 2nd row bench seat, install the top tether
strap as follows:

1. Position the top tether strap over the top of
the head restraint with the head restraint in
the full “down” position.

2. Secure the tether strap to the tether anchor
point on the seat directly behind the child
restraint.

3. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.

For best child restraint fit, see the child restraint
installation instructions in this section and the
child restraint manufacturer’s instructions.

CHILD RESTRAINT INSTALLATION
USING LATCH

WARNING

● Attach LATCH compatible child re­straints only at the locations shown. For
the LATCH lower anchor locations, see
“Lower Anchors and Tethers for CHil­dren System (LATCH)” in this section. If
a child restraint is not secured properly,
your child could be seriously injured or
killed in an accident.

● The LATCH anchors are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under
no circumstance are they to be used for
adult seat belts or harnesses.

● Inspect the lower anchors by inserting
your fingers into the lower anchor area
and feeling to make sure there are no
obstructions over the LATCH anchors,
such as seat belt webbing or seat cush­ion material. The child restraint will not
be secured properly if the LATCH an­chors are obstructed.

Front-facing

Follow these steps to install a front-facing child
restraint using LATCH:

1. Position the child restraint on the seat. Al­ways follow the child restraint manufactur­er’s instructions.

Safety—Seats, seat belts and supplemental restraint system 1-27

LRS0663

Front-facing web-mounted – step 2

2. Secure the child restraint anchor attach­ments to the LATCH lower anchors. Check
to make sure the LATCHattachment isprop­erly attached to the lower anchors.

Front-facing rigid-mounted – step 2

If the seating position does not have an adjust­able head restraint and it is interfering with the
proper child restraint fit, try another seating posi­tion or a different child restraint.

3. The back of the child restraint should be
secured against the vehicle seatback.

If necessary, adjust or remove the head restraint
to obtain the correct child restraint fit. See“Head
restraint adjustment” earlier in this section.

If the head restraint is removed, store it in a
secure place. Be sure to reinstall the head re­straint when the child restraint is removed.

1-28 Safety—Seats, seat belts and supplemental restraint system

LRS0664

LRS0671

Front-facing – step 4

4. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attach­ments. Press downward and rearward firmly
in the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

5. If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Top tether strap child restraint”
earlier in this section.

7. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 6.

Rear-facing

Follow these steps to install a rear-facing child
restraint using the LATCH system:

1. Position the child restraint on the seat. Al­ways follow the child restraint manufactur­er’s instructions.

WRS0697

Front-facing – step 6

6. After attaching the child restraint, test it be­fore you place the childin it.Push it from side
to side while holding the seat near the
LATCH attachment path. The child restraint
should not move more than 1 inch (25 mm),
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the belt as necessary, or put the restraint in
another seat and test it again. You may need
to try a different child restraint. Not all child
restraints fit in all types of vehicles.

LRS0665

Rear-facing web-mounted – step 2

2. Secure the child restraint anchor attach­ments to the LATCH lower anchors. Check
to make sure the LATCHattachment isprop­erly attached to the lower anchors.

Safety—Seats, seat belts and supplemental restraint system 1-29

LRS0666

Rear-facing rigid-mounted – step 2

Rear-facing – step 3

3. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attach­ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

1-30 Safety—Seats, seat belts and supplemental restraint system

LRS0673

LRS0674

Rear-facing – step 4

4. After attaching the child restraint, test it be­fore you place the childin it.Push it from side
to side while holding the seat near the
LATCH attachment path. The child restraint
should not move more than 1 inch (25 mm),
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the belt as necessary, or put the restraint in
another seat and test it again. You may need
to try a different child restraint. Not all child
restraints fit in all types of vehicles.

5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.

WRS0256

CHILD RESTRAINT INSTALLATION
USING THE SEAT BELTS

WARNING

● Even with the NISSAN Advanced Air
Bag System, never install a rear-facing
child restraint in the front passenger
seat. Front air bags inflate with great
force. A rear-facing child restraint could
be struck by the front air bag in a crash
and could seriously injure or kill your
child.

● NISSAN recommends that child re­straints be installed in the rear seat.
However, if you must install a front­facing child restraint in the front pas­senger seat, move the passenger seat
to the rearmost position. Also, be sure
the front passenger air bag status light
is illuminated to indicate the passenger
air bag isOFF. See “Front passenger air
bag and status light” later in this sec­tion for details

● The three-point seat belt in your vehicle
is equipped with an Automatic Locking
Retractor (ALR) which must be used
when installing a child restraint.

● Failure to use the ALR mode will result
in the child restraint not being properly
secured. The restraint could tip over or
otherwise be unsecured and cause in­jury to the child in a sudden stop or
collision. Also, it can change the opera­tion of the front passenger air bag. See
“Front passenger air bag and status
light” later in this section.

Safety—Seats, seat belts and supplemental restraint system 1-31

● When using the rear center seat belt to
install a child restraint, make sure the
connector tongue and the seat belt
tongue are secured. Do not use the seat
belt with only the seat belt tongue at­tached. This could result in serious per­sonal injury in case of an accident or
sudden stop.

● A child restraint with a top tether strap
should not be used in the front passen­ger seat.

The instructions in this section apply to child
restraint installation using the vehicle seat belts in
the rear seat or the front passenger seat.

WRS0699

Front-facing (front passenger seat) – step 1

Front-facing

Follow these steps to install a front-facing child
restraint using the vehicle seat belt in the rear
seats or in the front passenger seat:

1. If you must install a child restraint in

the front seat, it should be placed in a
front-facing direction only. Move the
seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and therefore
must not be used in the front seat.

2. Position the child restraint on the seat. Al­ways follow the child restraint manufactur­er’s instructions.

The back of the child restraint should be secured
against the vehicle seatback.

If necessary, adjust or remove the head restraint
to obtain the correct child restraint fit. See“Head
restraint adjustment” earlier in this section.

If the head restraint is removed, store it in a
secure place. Be sure to reinstall the head re­straint when the child restraint is removed.

If the seating position does not have an adjust­able head restraint and it is interfering with the
proper child restraint fit, try another seating posi­tion or a different child restraint.

1-32 Safety—Seats, seat belts and supplemental restraint system

WRS0680

Front-facing – step 3

3. Route the seat belt tongue through the child
restraint andinsert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in­structions for belt routing.

LRS0667

Front-facing – step 4

4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

Safety—Seats, seat belts and supplemental restraint system 1-33

LRS0668

Front-facing – step 5

5. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in thebelt.

WRS0681

Front-facing – step 6

6. Remove any additional slack from the seat
belt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.

7. If the child restraint is equipped with a top

Front-facing – step 7

tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Top tether strap child restraint”
earlier in this section. Do not install child
restraints that require the use of a top tether
strap to seating positions that do not have a
top tether anchor.

8. After attaching the child restraint, test it be­fore you place the childin it.Push it from side
to side while holding the seat near the seat
belt path. The child restraint should not
move more than 1 inch (25 mm), fromside to
side. Try to tug it forward and check to see if

1-34 Safety—Seats, seat belts and supplemental restraint system

WRS0698

the belt holds the restraint in place. If the
restraint is not secure, tighten the belt as
necessary, or put the restraint in another
seat and test it again. You may need to try a
different child restraint. Not all child re­straints fit in all types of vehicles.

9. Check that the retractor is in the ALR mode
by trying to pull more seat belt out of the
retractor. If you cannot pull any more belt
webbing out of the retractor, the retractor is
in the ALR mode.

10. Check to make sure the child restraint is
properly secured prior to each use. If the
seat belt is not locked, repeat steps 3
through 8.

WRS0475

Front-facing – step 11

11. If the child restraint is installed in the front
passenger seat, turn the ignition switch to
the ONposition. The front passenger air bag

status light

should illuminate. If this
light is not illuminated see 9Front passenger
air bag and status light9 later in this section.

Move the child restraint to another
seating position. Have the system

checked by a NISSAN dealer.

After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child re­straint mode) is canceled.

WRS0256

Rear-facing – step 1

Rear-facing

Follow these steps to install a rear-facing child
restraint using the vehicle seat belt in the rear
seats:

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the front
seat. Position thechild restraint on the seat.

Always follow the restraint manufacturer’s
instructions.

Safety—Seats, seat belts and supplemental restraint system 1-35

WRS0761

Rear-facing – step 2

2. Route the seat belt tongue through the child
restraint andinsert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in­structions for belt routing.

LRS0669

Rear-facing – step 3

3. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor

4. Allow the seat belt to retract. Pull up on the

Rear-facing – step 4

shoulder belt to remove any slack in thebelt.
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

1-36 Safety—Seats, seat belts and supplemental restraint system

LRS0670

WRS0762

Rear-facing – step 5

5. Remove any additional slack from the child
restraint; press downward and rearward
firmly in the center of the child restraint to
compress the vehicle seat cushion and seat­back while pulling up on the seat belt.

7. Check that the retractor is in the ALR mode
by trying to pull more seat belt out of the
retractor. If you cannot pull any more seat
belt webbing out of the retractor, the retrac­tor is in the ALR mode.

8. Check to make sure thatthe child restraint is
properly secured prior to each use. If the
seat belt is not locked, repeat steps 3
through 7.

After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.

BOOSTER SEATS

WRS0763

Rear-facing – step 6

6. After attaching the child restraint, test it be­fore you place the childin it.Push it from side
to side while holding the seat near the seat
belt path. The child restraint should not
move more than 1 inch (25 mm), fromside to
side. Try to tug it forward and check to see if
the belt holds the restraint in place. If the
restraint is not secure, tighten the belt as
necessary, or put the restraint in another
seat and test it again. You may need to try a
different child restraint. Not all child re­straints fit in all types of vehicles.

ARS1098

PRECAUTIONS ON BOOSTER
SEATS

WARNING

● Infants and small children should al­ways be placed in an appropriate child
restraint while riding in the vehicle.
Failure to use a child restraint or
booster seat can result in serious injury
or death.

Safety—Seats, seat belts and supplemental restraint system 1-37

● Infants and small children should never
be carried on your lap. It is not possible
for even the strongest adult to resist the
forces of a severe accident. The child
could be crushed between the adult and
parts of the vehicle. Also, do not put the
same seat belt around both your child
and yourself.

● NISSAN recommends that the booster
seat be installed in the rear seat. Ac­cording to accident statistics, children
are safer when properly restrained in
the rear seat than in the front seat. If
you must install a booster seat in the
front seat, see “Booster seat installa­tion” in this section.

● A booster seat must only be installed in
a seating position that has a lap/
shoulder belt. Failure to use a three­point type seat belt with a booster seat
can result in a serious injury in sudden
stop or collision.

● Improper use or improper installation
of a booster seat can increase the risk
or severity of injury for both the child
and other occupants of the vehicle and
can lead to serious injury or death in an
accident.

● Do not use towels, books, pillows or
other items in place of a booster seat.
Items such as these may move during
normal driving or a collision and result
in serious injury or death. Booster seats
are designed to be used with a lap/
shoulder belt. Booster seats are de­signed to properly route the lap and
shoulder portions of the seat belt over
the strongest portions of a child’s body
to provide themaximum protection dur­ing a collision.

● Follow all of the booster seat manufac­turer’s instructions for installation and
use. When purchasing a booster seat,
be sure to select one which will fit your
child andvehicle. It may not be possible
to properly install some types of
booster seats in your vehicle.

● If the booster seat and seat belt is not
used properly, the risk of a child being
injured in a collision or a sudden stop
greatly increases.

● Adjustable seatbacks should be posi­tioned to fit the booster seat, but as
upright as possible.

● After placing the child in the booster
seat and fastening the seat belt, make
sure the shoulder portion of the belt is
away from the child’s face and neck and
the lap portion of the belt does not
cross the abdomen.

● Do not put the shoulder belt behind the
child or under the child’s arm. If you
must install a booster seat in the front
seat, see “Booster seat installation”
later in this section.

● When your booster seat is not in use,
keep it secured with a seat belt to pre­vent it from being thrown around in
case of a sudden stop or accident.

CAUTION

Remember that a booster seat left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the booster
seat.

1-38 Safety—Seats, seat belts and supplemental restraint system

LRS0455 LRS0453 LRS0464

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:

● Choose only a booster seat with a label
certifying thatit complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.

● Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.

● Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat

● If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat iscompatible withyour
child. Always follow all recommended pro­cedures.

1

is chosen, the

s

2

should be used.

s

Safety—Seats, seat belts and supplemental restraint system 1-39

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.

The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.

BOOSTER SEAT INSTALLATION

WARNING

NISSAN recommends that booster seats
be installed in the rear seat. However, if
you must install a booster seat in the front
passenger seat, move the passenger’s
seat to the rearmost position.

CAUTION

Do not use the lap/shoulder belt Auto­matic Locking Retractor mode when using
a booster seat with the seat belts.

Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:

WRS0699

1. If you must install a booster seat in the
front seat, move the seat to the rear­most position.

2. Position the booster seat on the seat. Only
place it in a front-facing direction. Always
follow the booster seat manufacturer’s in­structions.

LRS0591

Rear center position

1-40 Safety—Seats, seat belts and supplemental restraint system

4. Position the lap portion of the seat belt low
and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s in­structions for adjusting the belt routing.

5. Pull the shoulder belt portion of the seat belt
toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child’s
shoulder. Be sure to follow the booster seat
manufacturer’s instructions for adjusting the
belt routing.

LRS0586

Rear outboard position

3. The booster seat should be positioned on
the vehicle seat so that it is stable. If neces­sary, adjust or remove the head restraint to
obtain the correct booster seat fit. See
“Head restraint adjustment” earlier in this
section. If the head restraint is removed,
store it in a secure place. Be sure to reinstall
the head restraint when the booster seat is
removed. If the seating position does not
have an adjustable head restraint and it is
interfering with the proper booster seat fit,
try another seating position or a different
booster seat.

LRS0454

Front passenger position

6. Follow the warnings, cautions and instruc­tions for properly fastening a seat belt
shown in “Three-point type seat belt with
retractor” earlier in this section.

Safety—Seats, seat belts and supplemental restraint system 1-41

SUPPLEMENTAL RESTRAINT
SYSTEM

WRS0475

7. If the booster seat is installed in the front
passenger seat, place the ignition switch in
the ONposition. The front passenger air bag

status light
depending on the size of the child and the
type of booster seat being used. See “Front
passenger air bag and status light” later in
this section.

may or may not illuminate,

PRECAUTIONS ON
SUPPLEMENTAL RESTRAINT
SYSTEM

This Supplemental Restraint System (SRS) sec­tion contains important information concerning
the following systems:

● Driver and passenger supplemental front­impact air bag (NISSAN Advanced Air Bag
System)

● Front seat-mounted side-impact supple­mental air bag

● Roof-mounted curtain side-impact and roll­over supplemental air bag

● Seat belt with pretensioner

Supplemental front-impact air bag system:

The NISSAN Advanced Air Bag System can help
cushion the impact force to the head and chest of
the driver and front passenger in certain frontal
collisions.

Front seat-mounted side-impact supple­mental air bag system: This system can help

cushion the impact force to the chest area of the
driver and front passenger in certain side impact
collisions. The side air bags are designed to
inflate on the side where the vehicle is impacted.

Roof-mounted curtain side-impact and
rollover supplemental air bag system: This

system can help cushion the impact force to the
head of occupants in front and rear outboard
seating positions in certain side impact orrollover
collisions. In a side impact, the curtain and roll­over air bags are designed to inflate on the side
where the vehicle is impacted. In a rollover, both
curtain and rollover air bags are designed to
inflate and remain inflated for a short time.

These supplemental restraint systems are de­signed to supplement the crash protection pro­vided by the seat belts and are not a substitute
for them. Seat belts should always be correctly
worn and the occupant seated a suitable dis­tance away from the steering wheel, instrument
panel and door finishers. See “Seat belts” earlier
in thissection for instructions and precautions on
seat belt usage.

The supplemental air bags operate only
when the ignition switch is in the ON or
START position.

After placing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.

1-42 Safety—Seats, seat belts and supplemental restraint system

WARNING

● The front air bags ordinarily will not
inflate in the event of a side impact, rear
impact, rollover, or lower severity fron­tal collision. Always wear your seat
belts to help reduce the risk or severity
of injury in various kinds of accidents.

● The front passenger air bag will not
inflate if the passenger air bag status
light is lit or if the front passenger seat
is unoccupied. See “Front passenger air
bag and status light” later in this
section.

WRS0031

● The seat belts and the front air bags are
most effective when you are sitting well
back and upright in the seat. The front
air bags inflate with great force. Even
with the NISSAN Advanced Air Bag Sys­tem, if you are unrestrained, leaning
forward, sitting sideways or out of posi­tion in any way, you are at greaterrisk of
injury or death in a crash. You may also
receive serious orfatal injuries from the
front air bag if you are up against it
when it inflates.Always sit back against
the seatback and as far away as practi­cal from the steering wheel or instru­ment panel. Always use the seat belts.

● The driver and front passenger seatbelt
buckles are equipped with sensors that
detect if the seat belts are fastened. The
Advanced Air Bag System monitors the
severity of a collision and seat belt us­age then inflates the air bags. Failure to
properly wear seat belts can increase
the risk or severity of injury in an
accident.

● The front passenger seat is equipped
with an occupant classification sensor
(pressure sensor) that turns the front
passenger air bag OFF under some
conditions. This sensor is only used in
this seat. Failure to be properly seated
and wearing the seat belt can increase
the risk or severity of injury in an acci­dent. See “Front Passenger air bag and
status light” later in this section.

● Keep hands on the outside of the steer­ing wheel. Placing them inside the
steering wheel rim could increase the
risk that they are injured when the front
air bag inflates.

Safety—Seats, seat belts and supplemental restraint system 1-43

1-44 Safety—Seats, seat belts and supplemental restraint system

ARS1133 ARS1041

WARNING

● Never let children ride unrestrained or
extend their hands or face out of the
window. Do not attempt to hold them in
your lap or arms. Some examples of
dangerous riding positions are shown
in the illustrations.

ARS1042 ARS1043 ARS1044

WARNING

● Children may be severely injured or
killed when the front air bags, side air
bags or curtain and rollover air bags
inflate if they are not properly re­strained. Pre-teens and children should
be properly restrained in the rear seat, if
possible.

Safety—Seats, seat belts and supplemental restraint system 1-45

ARS1045 WRS0256

WARNING

● Even with the NISSAN Advanced Air
Bag System, never install a rear-facing
child restraint in the front seat. An in­flating front air bag could seriously in­jure or kill your child. See “Child re­straints” earlier in this section for
details.

1-46 Safety—Seats, seat belts and supplemental restraint system

WRS0431

Do not lean against the door.

WARNING

Front seat-mounted side-impact supple­mental air bags and roof-mounted curtain
side-impact and rollover supplemental air
bags:

● The side air bags and curtain and roll­over air bags ordinarily will not inflatein
the event of a frontal impact, rear im­pact, or lower severity side collision.
Always wear your seat belts to help
reduce the risk or severity of injury in
various kinds of accidents.

WRS0365

Do not lean against doors or windows.

SSS0162

Do not lean against doors or windows.

WARNING

● The seat belts, the side air bags and
curtain and rollover air bags are most
effective when you are sitting well back
and upright in the seat. The side air bag
and curtain and rollover air bag inflate
with greatforce. Do not allow anyone to
place their hand, leg or face near the
side air bag on the side of the seatback
of the front seat or near the side roof
rails. Do not allow anyone sitting in the
front seats or rear outboard seats to
extend their hand out of the window or
lean against the door. Some examples
of dangerous riding positions are
shown in the previous illustrations.

Safety—Seats, seat belts and supplemental restraint system 1-47

WRS0363 SSS0159

WARNING

● When sitting in the rear seat, do not
hold onto the seatback of the front seat.
If the side air bag inflates, you may be
seriously injured. Be especially careful
with children, who should always be
properly restrained. Some examples of
dangerous riding positions are shown
in the illustrations.

● Do not use seat covers on the front
seatbacks. They may interfere with side
air bag inflation.

1-48 Safety—Seats, seat belts and supplemental restraint system

WRS0871

1. Roof-mounted curtain side-impact and
rollover supplemental air bags

2. Air bag Control Unit (ACU)

3. Supplemental front-impact air bag mod­ules

4. Crash zone sensor

5. Occupant classification system control
unit

6. Occupant classification sensor (pres­sure sensor)

7. Satellite sensors

8. Seat belt buckle switches

9. Seat belt with pretensioner

10. Front seat-mounted side-impact
supplemental air bag modules

Safety—Seats, seat belts and supplemental restraint system 1-49

NISSAN Advanced Air Bag System
(front seats)

This vehicle is equipped with the NISSAN Ad­vanced Air Bag System for the driver and front
passenger seats. This system is designed to
meet certification requirements under U.S. regu­lations. It is also permitted in Canada. However,

all of the information, cautions and warn­ings in this manual still apply and must be
followed.

The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
passenger supplemental front-impact air bag is
mounted in the dashboard above the glove box.
The frontair bagsare designedto inflatein higher
severity frontal collisions, although they may in­flate if the forces in another type of collision are
similar tothose of a higher severity frontal impact.
They may not inflate in certain frontal collisions.
Vehicle damage (or lack of it) is not always an
indication of proper front air bag system opera­tion.

The NISSAN Advanced Air Bag System has dual
stage inflators. It also monitors information from
the crash zone sensor, the Air bag Control Unit
(ACU), seat belt buckle sensors, occupant clas­sification sensor (pressure sensor) and passen­ger seat belt tension sensor. Inflator operation is
based on the severity of a collision and seat belt

usage for the driver. For the front passenger, it
additionally monitors the weight of an occupant
or object on the seat and seatbelt tension.Based
on informationfrom thesensors, only one front air
bag may inflate in a crash, depending on the
crash severity and whether the front occupants
are belted or unbelted. Additionally, the front
passenger air bag may be automatically turned
OFF under some conditions, depending on the
weight detected on the passenger seat and how
the seat belt is used.If thefront passenger airbag
is OFF, the passenger air bag status light will be
illuminated (ifthe seatis unoccupied,the lightwill
not beilluminated, but the air bag will be off). See
“Front passenger air bag and status light”later in
this section for further details. One front air bag
inflating does not indicate improper performance
of the system.

If you have any questions about your air bag
system, please contact NISSAN oryour NISSAN
dealer. If you are considering modification of your
vehicle due to a disability, you may also contact
NISSAN. Contact information is contained in the
front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise
may be heard, followed by the release of smoke.
This smokeis not harmful and does not indicate a
fire. Care shouldbe takento not inhaleit, asit may

1-50 Safety—Seats, seat belts and supplemental restraint system

cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.

Front air bags, along with the use of seat belts,
help to cushion the impact force on the face and
chest of the front occupants. They can help save
lives and reduce serious injuries. However, an
inflating front air bag may cause facial abrasions
or other injuries. Front air bags do not provide
restraint to the lower body.

Even with NISSAN advanced air bags, seat belts
should be correctly worn and the driver and pas­senger seated upright as far as practical away
from the steering wheel or instrument panel. The
front air bags inflate quickly in order to help
protect the front occupants. Because of this, the
force ofthe frontair baginflating canincrease the
risk of injury if the occupant is too close to, or is
against, the front air bag module during inflation.

The front air bags deflate quickly after a collision.

The front air bags operate only when the
ignition switch is in the ON or START posi­tion.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.

WRS0475

Front passenger air bag and status light

WARNING

The front passenger air bag is designed to
automatically turn OFF under some con­ditions. Read this section carefully to
learn how it operates. Proper use of the
seat, seat belt and child restraints is nec­essary for most effective protection. Fail­ure to follow all instructions in this
manual concerning the use of seats, seat
belts and child restraints can increase the
risk or severity of injury in an accident.

Status light

The front passenger air bag status light
located near the climate controls. The light oper­ates as follows:

● Unoccupied passenger’s seat: The
OFF and the front passenger air bag is OFF
and will not inflate in a crash.

● Passenger’s seat occupied by a small adult,
child or child restraint as outlined in this

section: The

illuminates to indicate
that the front passenger air bag is OFF and
will not inflate in a crash.

● Occupied passenger seat and the passen­ger meet the conditions outlined in this sec-

tion: The light

is OFF to indicate that

the front passenger air bag is operational.

Front passenger air bag

The front passenger air bag is designed to auto­matically turn OFF when the vehicle is operated
under some conditions as described below in
accordance with U.S. regulations. If the front
passenger air bag is OFF, it will not inflate in a
crash. The driver air bagand otherair bags inyour
vehicle are not part of this system.

The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air bag
to certain front passenger seat occupants, such

Safety—Seats, seat belts and supplemental restraint system 1-51

as children, by requiring the air bag to be auto­matically turned OFF. Certain sensors are used

is

to meet the requirements.
One sensor used is the occupant classification

sensor (pressure sensor). Itis in the bottom ofthe

is

front passenger seat cushion and is designed to
detect an occupant and objects on the seat by
weight. It works together with seat belt sensors
described later. For example, if a child is in the
front passenger seat, the AdvancedAir Bag Sys­tem is designed to turn the passenger air bag
OFF in accordance with the regulations. Also, if a
child restraint of the type specified in the regula­tions is on the seat, its weight and the child’s
weight can be detected and cause the air bag to
turn OFF. Occupant classification sensor opera­tion can vary depending on the front passenger
seat belt sensors.

The front passenger seat belt sensors are de­signed to detect if the seat beltis buckledand the
amount of tension on the seat belt, such as when
it is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). Based on the
weight on the seat detected by the occupant
classification sensor and the belt tension de­tected on the seat belt, the Advanced Air Bag
System determines whether the front passenger
air bag should be automatically turned OFF as
required by the regulations.

Front passenger seat adult occupants who are
properly seated and using the seat belt as out­lined inthis manual should not cause the passen­ger air bag to be automatically turned OFF. For
small adults it may be turned OFF, however if the
occupant takes his/her weight off the seat cush­ion (for example, by not sitting upright, by sitting
on an edge of the seat, or by otherwise being out
of position), this could cause the sensor to turn
the air bag OFF. In addition, if the occupant
improperly uses the seat belt in the ALR mode,
this could cause the air bag to be turned OFF.
Always be sure to beseated and wearing the seat
belt properly for the most effective protection by
the seat belt and supplemental air bag.

NISSAN recommends that pre-teens and chil­dren be properly restrained in a rear seat.
NISSAN also recommends that appropriate child
restraints and booster seats be properly installed
in a rear seat. If this is not possible, the occupant
classification sensor and seat belt sensors are
designed to operate as described above to turn
the front passenger air bag OFF for specified
child restraints as required by the regulations.
Failing to properly secure child restraints and to
use the ALR mode mayallow the restraint to tip or
move inan accident or sudden stop. This can also
result in the passenger air bag inflating in a crash
instead of being OFF. See “Child restraints” ear­lier in this section for proper use and installation.

If the front passenger seat is not occupied the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object’s weight detected by the occupant
classification sensor. Other conditions couldalso
result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and allvehicle occupants
are seated and restrained properly.

Using the passenger air bag status light, you can
monitor when the front passenger air bag is au­tomatically turned OFF with the seat occupied.
The light will not illuminate when the front pas­senger seat is unoccupied.

If an adult occupant isin the seat but the passen­ger air bag status light is illuminated (indicating
that the air bag is OFF), it could be that the
person isa smalladult, oris notsitting onthe seat
properly or not using the seat belt properly.

If a child restraint must be used in the front seat,
the passenger air bag status light may or may not
be illuminated, depending on the size of the child
and the type of child restraint beingused. Ifthe air
bag status light is not illuminated (indicating that
the air bag might inflate in a crash), it could be
that the child restraint or seat belt is not being
used properly. Makesure that the child restraintis

1-52 Safety—Seats, seat belts and supplemental restraint system

installed properly, the seat belt is used properly
and the occupant is positioned properly. If the air
bag status light is not illuminated, reposition the
occupant or child restraint in a rear seat.

If the passenger air bag status light will not illu­minate even though you believe that the child
restraint, the seat belts and the occupant are
properly positioned, the system may be sensing
an unoccupied seat (in which case the air bag is
OFF). Your NISSAN dealer can check that the
system is OFF by using a special tool. However,
until you have confirmed with your dealer that
your air bag is working properly, reposition the
occupant or child restraint in a rear seat.

The air bag system and passenger air bag status
light will take a few seconds to register a change
in the passenger seat status. For example, if a
large adult who is sitting in the front passenger
seat exits the vehicle, the passenger air bag
status light will go from OFF to ON for a few
seconds and then to OFF. This is normal system
operation and does not indicate a malfunction.

If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning

light
area of the the instrument panel, will blink. Have
the system checked by a NISSAN dealer.

, located in the meters and gauges

Other supplemental front-impact air bag
precautions

WARNING

● Do not place any objects on the steer­ing wheel pad or on the instrument
panel. Also, do not place any objects
between any occupant and the steering
wheel or instrument panel. Such ob­jects may become dangerous projec­tiles and cause injury if the front air
bags inflate.

● Immediately after inflation, several
front air bag system components will be
hot. Do not touch them; you may se­verely burn yourself.

● No unauthorized changes should be
made to any components or wiring of
the supplemental air bag system. This is
to prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system.

● Do not make unauthorized changes to
your vehicle’s electrical system, sus­pension system or front end structure.
This could affect proper operation of
the front air bag system.

● Tampering with the front air bag system
may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and above
the instrument panel or by installing
additional trim material around the air
bag system.

● Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing mate­rial on the seat cushion or by installing
additional trim material, such as seat
covers, on the seat that are not specifi­cally designed to assure proper air bag
operation. Additionally,do not stow any
objects under the front passenger seat
or the seat cushion and seatback. Such
objects may interfere with the proper
operation of the occupant classifica­tion sensor (pressure sensor).

● No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with
the seat belt system may result in seri­ous personal injury.

● Work on and around the front air bag
system should be done by a NISSAN
dealer. Installation of electrical equip­ment should also be done by a NISSAN
dealer. The Supplemental Restraint
System (SRS) wiring should not be
modified or disconnected. Unautho­rized electrical test equipment and
probing devices should not be used on
the air bag system.

● A cracked windshield should be re­placed immediately by a qualified re­pair facility. A cracked windshield could
affect the function of the supplemental
air bag system.

● The SRS wiring harness connectors are
yellow and orange for easy
identification.

When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.

Safety—Seats, seat belts and supplemental restraint system 1-53

collisions, although they may inflate if the forces
in another type of collision are similar to those of
a higher severity side impact. They are designed
to inflate on the side where the vehicle is im­pacted. They may not inflate in certain side colli­sions.

Curtain androllover air bags are also designed to
inflate in certain types ofrollover collisionsor near
rollovers. As a result, certain vehicle movements
(for example, during severe off roading) may
cause the curtain and rollover air bags to inflate.

Vehicle damage (or lack of it) is not always an

LRS0592

Front seat-mounted side-impact
supplemental air bag and roof­mounted curtain side-impact and
rollover supplemental air bag systems

The side air bags are located in the outside of the
seatback of the front seats. The curtain and roll­over air bags are located in the side roof rails.
These systems are designed to meet voluntary
guidelines to help reduce the risk of injury to
out-of-position occupants. However, all of the

information, cautions and warnings in this
manual still apply and must be followed.

The side air bags and curtain androllover airbags
are designed to inflate in higher severity side

indication of proper side air bag and curtain and
rollover air bag operation.

When the side air bags and curtain and rollover
supplemental air bags inflate, a fairly loud noise
may be heard, followed by release of smoke. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.

Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest of
the front occupants. Curtain and rollover air bags
help to cushion the impact force to the head of
occupants in the front and rear outboard seating
positions. They can help save lives and reduce
serious injuries.However, aninflating sideair bag

1-54 Safety—Seats, seat belts and supplemental restraint system

or curtain and rollover air bag may cause abra­sions or other injuries. Side air bags and curtain
and rollover air bags do not provide restraint to
the lower body.

The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. Theside air bags and curtain and rolloverair
bags inflate quickly in order to help protect the
occupants. Because of this, the force of the side
air bag and curtain and rollover air bag inflating
can increase the risk of injury if the occupant is
too close to, or is against, these air bag modules
during inflation. The side air bag will deflate
quickly after the collision is over.

The curtain and rollover air bags will remain in­flated for a short time.

The side air bags and curtain and rollover
air bags operate only when the ignition
switch is in the ON or START position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.

WARNING

● Do not place any objects near the seat­back of the front seats. Also, do not
place any objects (an umbrella, bag,
etc.) between the front door finisher
and the front seat. Such objects may
become dangerous projectiles and
cause injury if a side air bag inflates.

● Right afterinflation, severalside airbag
and curtain and rollover air bag system
components will be hot. Do not touch
them; you may severely burn yourself.

● No unauthorized changes should be
made to any components or wiring of
the side air bag and curtain and rollover
air bag systems. This is to prevent dam­age toor accidental inflation of the side
air bag and curtain and rollover air bag
systems.

● Do not make unauthorized changes to
your vehicle’s electrical system, sus­pension system or side panel. This
could affect proper operation of the
curtain and rollover air bag systems.

● Tampering with the side air bag system
may result in serious personal injury.
For example, do not change the front
seats by placing material near the seat­backs or by installing additional trim
material, such as seat covers, around
the side air bag.

● Work around and on the side air bag
and curtain and rollover air bag systems
should be done by a NISSAN dealer.
Installation of electrical equipment
should also be done by a NISSAN
dealer. The SRS wiring harnesses*
should not be modified or discon­nected. Unauthorized electrical test
equipment and probing devices should
not be used on the side air bag or cur­tain and rollover air bag systems.

* The SRSwiring harness or connectors are
yellow or orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain and rollover air bagsystems andguide the
buyer to the appropriate sections in this Owner’s
Manual.

Seat belts with pretensioners (Front
seats)

WARNING

● The pretensioners cannot be reused af­ter activation. They must be replaced
together with the retractor and buckle
as a unit.

● If the vehicle becomes involved in a
frontal collision but a pretensioner is
not activated, be sure to have the pre­tensioner system checked and, if nec­essary, replaced by your NISSAN
dealer.

● No unauthorized changes should be
made to any components or wiring of
the pretensioner system. This is to pre­vent damage to or accidental activation
of the pretensioners. Tampering with
the pretensioner system may result in
serious personal injury.

● Work around and on the pretensioner
system should be done by a NISSAN
dealer. Installation of electrical equip­ment should also be done by a NISSAN
dealer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner system.

Safety—Seats, seat belts and supplemental restraint system 1-55

● If you need to dispose of a pretensioner
or scrap the vehicle, contact a NISSAN
dealer. Correct pretensioner disposal
procedures are set forth in the appropri­ate NISSAN Service Manual. Incorrect
disposal procedures could cause per­sonal injury.

The pretensioner system activates in conjunction
with the front air bag system. The pretensioner
system also activates with the curtain androllover
air bags in certain types of rollover collisions or
near rollovers. Working with the seat belt retrac­tor, it helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.

The pretensioner is encased with the seat belt
retractor. These seat belts areused the same way
as conventional seat belts.

When a pretensioner activates, smoke is re­leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.

After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.

If any abnormality occurs in the pretensioner sys­tem, the supplemental air bag warning

light
tently or will turn on for 7 seconds and remain on
after the ignition switch has been placed in the
ON or START position. In this case, the preten­sioner system may not function properly. They
must be checked and repaired. Take your vehicle
to the nearest NISSAN dealer.

When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.

will not come on, will flash intermit-

1-56 Safety—Seats, seat belts and supplemental restraint system

LRS0397

1. SRS Air Bag Warning Labels
The warning labels are located on the sur-

face of the sun visor.

2. SRS Side Air Bag Warning Label (if so

equipped)

The warning label is located on the side of
the passenger’s side center pillar.

SUPPLEMENTAL AIR BAG
WARNING LABELS

Warning labels about the supplemental front­impact air bag, front seat-mounted side-impact
supplemental air bag and roof-mounted curtain
side-impact and rollover supplemental air bag
systems are placed in the vehicle as shown in the
illustration.

LRS0100

SUPPLEMENTAL AIR BAG
WARNING LIGHT

The supplemental air bag warning light,
displaying

tors the circuits of the supplemental front-impact
air bag, front seat-mounted side-impact supple­mental air bag, roof-mounted curtainside-impact
and rollover supplemental air bag and seat belt
pretensioner systems. The monitored circuits in­clude the Air bag Control Unit (ACU), crash zone
sensor, satellite sensors, rollover sensor, front air
bag modules, side air bag modules, curtain and
rollover air bag modules, pretensioners and all
related wiring.

in the instrument panel, moni-

Safety—Seats, seat belts and supplemental restraint system 1-57

When the ignition switch is placed in the ON or
START position, the supplemental air bag warn­ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain and rollover air bag
and pretensioner systems need servicing:

● The supplemental air bag warning light re-

mains on after approximately 7 seconds.

● The supplemental air bag warning light

flashes intermittently.

● The supplemental air bag warning light does

not come on at all.

Under these conditions, the front air bag, side air
bag, curtain and rollover air bag or pretensioner
systems may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest NISSAN dealer.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain and rollover air bag
and/or pretensioner systems will not op­erate in an accident. To help avoid injury
to yourself or others, have your vehicle
checked by a NISSAN dealer as soon as
possible.

Repair and replacement procedure

The front air bags, side air bags, curtain and
rollover air bags and pretensioners are designed
to inflateon aone-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light remains illuminated after inflation
has occurred. Repair and replacement of these
supplemental air bag systems should be done
only by a NISSAN dealer.

When maintenance work is required on the ve­hicle, the front air bags, side air bags, curtain and
rollover air bags, pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should al­ways be in the LOCK position when working
under the hood or inside the vehicle.

WARNING

● Once a front air bag, side air bag, or
curtain and rolloverair bag has inflated,
the air bag module will not function
again and must be replaced. Addition­ally, if any of the front air bags inflate,
the activated pretensioners must also
be replaced. The air bag module and
pretensioner should be replaced by a
NISSAN dealer. The air bag module and
pretensioner cannot be repaired.

● The front air bag, side air bag, curtain
and rollover air bag systems and the
pretensioner system should be in­spected by a NISSAN dealer if there is
any damage to the front end or side
portion of the vehicle.

● If you need to dispose of a supplemen­tal air bag or pretensioner or scrap the
vehicle, contact a NISSAN dealer. Cor­rect supplemental air bag and preten­sioner system disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal pro­cedures could cause personal injury.

1-58 Safety—Seats, seat belts and supplemental restraint system

MEMO

Safety—Seats, seat belts and supplemental restraint system 1-59

2 Instruments and controls

Instrument panel...................................2-2

Meters and gauges ................................2-3

Speedometer and odometer .....................2-4

Trip computer (if so equipped) ...................2-5

Tachometer....................................2-6

Engine coolant temperature gauge ...............2-6

Fuel gauge ....................................2-7

Engine oil pressure gauge .......................2-8

Voltmeter ......................................2-8

Compass display (if so equipped) ...................2-9

Compass display ...............................2-9

Warning/indicator lights and audible reminders ......2-12

Checking bulbs ...............................2-13

Warning lights ................................2-13

Indicator lights ................................2-17

Audible reminders .............................2-21

Security systems .................................2-22

Vehicle security system.........................2-22

NISSAN vehicle immobilizer system .............2-23

Windshield wiper and washer switch ...............2-24

Switch operation ..............................2-24

Rear window wiper and washer switch..............2-25

Rear window defroster switch......................2-25

Headlight and turn signal switch....................2-26

Headlight control switch........................2-26

Daytime running light system (Canada only) ......2-27

Instrument brightness control ...................2-28

Turn signal switch .............................2-28

Fog light switch (if so equipped) ................2-28

Off road lamps switch (if so equipped) ...........2-29

Hazard warning flasher switch .....................2-29

Horn ............................................2-30

Vehicle Dynamic Control (VDC) OFF switch .........2-30

Hill descent control switch (if so equipped)..........2-31

Electronic locking rear differential (E-Lock) system

switch (if so equipped) ............................2-32

Clutch interlock (clutch start) switch

(if so equipped) ..................................2-33

Power outlet .....................................2-33

Storage .........................................2-35

Storage trays .................................2-35

Console box ..................................2-36

Glove box ....................................2-36

Sunglasses holder (if so equipped) ..............2-36

Map pockets..................................2-37

Seat pockets (if so equipped)...................2-37

Cup holders ..................................2-38

Cargo area storage ............................2-39

Luggage hooks................................2-39

Cargo nets ...................................2-41

Roof rack .....................................2-42

Windows ........................................2-45

Power windows ...............................2-45

Interior lights .....................................2-46

Map lights .......................................2-47

Cargo light ......................................2-48

INSTRUMENT PANEL

1. Vents (P. 4-2)

2. Headlight/fog light (if so equipped)/turn
signal switch (P. 2-26)

3. Steering wheel switch for audio control
(if so equipped)/BluetoothT Hands­Free Phone System (if so equipped)
(P. 4-37, P. 4-39)

4. Driver supplemental air bag/horn
(P. 1-42, P. 2-30)

5. Meters, gauges and warning/indicator
lights (P. 2-3, 2-12)

6. Cruise control main/set switches
(P. 5-20)

7. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-24, P. 2-25)

8. Storage (P. 2-35)

9. Audio system controls (P. 4-17)

10. Front passenger supplemental air bag
(P. 1-42)

11. Upper and lower glove box (P. 2-36)

12. Passenger air bag status light (P. 1-51)

13. Auxiliary audio input jack (if so
equipped) (P. 4-36)

14. Power outlet (P. 2-33)

2-2 Instruments and controls

WIC1447

15. Electronic locking rear differential
(E-Lock) system switch
(if so equipped) (P. 2-32)
Hill descent control switch
(if so equipped) (P. 2-31)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-30)

16. Shift selector (P. 5-13)

17. 4WD shift switch (if so equipped)
(P. 5-22)

18. Climate controls (P. 4-9)

19. Hazard warning flasher switch (P. 2-29)

20. Ignition switch (P. 5-9)

21. Tilt steering wheel control (P. 3-11)

22. Off road lamps switch (P. 2-29)

23. Clutch interlock (clutch start) switch
(if so equipped) (P. 2-33)

24. Power outside mirror controls (P. 3-14)

See the page number indicated in paren­theses for operating details.

METERS AND GAUGES

1. Warning/indicator lights

2. Tachometer

3. Speedometer

4. Fuel gauge

5. Voltmeter

WIC0911

6. Odometer/Twin trip odometer/Trip com­puter (if so equipped)

7. Engine oil pressure gauge

8. Engine coolant temperature gauge

Instruments and controls 2-3

1. Speedometer

2. Odometer

3. Change button

WIC0912

SPEEDOMETER AND ODOMETER
Speedometer

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.

The odometer records the total distance the ve­hicle has been driven.

The twin trip odometer records the distance of
individual trips.

LIC0780

With twin trip odometer

Changing the display:

For vehicles equipped with twin trip odometer,
pushing the change button changes the display
as follows:

2-4 Instruments and controls

Trip

→ Trip → Trip

LIC0781

With trip computer

For vehicles equipped with trip computer, push­ing the change button changes the display as
follows:

Trip
Average speed → Average fuel consumption →

Journey time → Trip
For additional information, refer to “Trip com-

puter” later in this section.

Resetting the trip odometer:

Pushing the change button for more than 1 sec­ond resets the currently displayed trip odometer
to zero.

→ Trip → Distance to Empty →

TRIP COMPUTER (if so equipped)

The display of the trip computer is situated in the
speedometer display. When the ignitionswitch is
placed in the ON position, the display scrolls all
the modes of the trip computer and then shows
the mode chosen before the ignition switch was
placed in the OFF position.

When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer change
button. The following modes can be selected:

Distance to empty (dte—mile or km)

The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly be­ing calculated, based on the amount of fuel in the
fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.
The dte mode includes a low range warning

feature: whenthe fuellevel is low, thedte modeis
automatically selected and the digits blink in or­der to draw the driver’s attention. Press the
change button if you wish to return to the mode
that was selected before the warning occurred.
The dte mark (dte) will remain blinking until the
vehicle is refueled.

When the fuel level drops even lower, the dte
display will change to (----).

NOTE:

● If the amount of fuel added while the
ignition switch is OFF is small, the dis­play just before the ignition switch is
turned OFF may continue to be dis­played.

● When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.

Average speed (MPH or km/h)

The average speed mode shows the average
vehicle speed since last reset. Resetting is done
by pressing the change button for more than
approximately 1 second. The display is updated
every 30 seconds. The first 30 seconds after a
reset, the display shows (----).

Average fuel consumption (Mpg or
l/100km)

The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the change button
for more than approximately 1 second. The dis-

Instruments and controls 2-5

play is updated every 30 seconds. At about the
first 1/3 miles (500 m) after a reset, the display
shows (----).

Journey time

The journey time mode shows the time since the
last reset. The displayed time can be reset by
pressing the change button for more than ap­proximately 1 second.

Trip computer reset

Pushing the change button for more than 3 sec­onds will reset all modes except Trip A and dis­tance to empty (dte).

LIC0738 LIC0739

TACHOMETER

The tachometer indicates engine speed in revo­lutions per minute (rpm). Do not rev the engine
into the red zone

When engine speed approaches the red
zone, shift to a higher gear or reduce en­gine speed. Operating the engine in the
red zone may cause serious engine
damage.

1

.

s

CAUTION

ENGINE COOLANT TEMPERATURE
GAUGE

The gaugeindicates theengine coolanttempera­ture. The engine coolant temperature is within the
normal range
within the zone shown in the illustration.

The engine coolant temperature varies with the
outside air temperature and driving conditions.

1

when the gauge needle points

s

2-6 Instruments and controls

CAUTION

If the gauge indicates coolant tempera­ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the nor­mal range, stop the vehicle as soon as
safely possible. If the engine is over­heated, continued operation of the ve­hicle may seriously damage the engine.
See “If your vehicle overheats” in the “In
case of emergency”section for immediate
action required.

LIC0740

FUEL GAUGE

The gauge indicates the approximate fuel level
in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

The gauge needle returns to E (Empty) after the
ignition switch is placed in the OFF position.

The low fuel warning light comes on when the
amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge regis­ters E (Empty).

The
located on the driver’s side of the vehicle.

indicates that the fuel-filler door is

CAUTION

● If the vehicle runs out of fuel,
the
(MIL) may come on. Refuel as soon as

possible. After a few driving trips,
the
light remains on after a few driving

trips, have the vehicle inspected by a
NISSAN dealer.

● For additional information, see “Mal­function Indicator Light (MIL)” later in
this section.

Malfunction Indicator Light

light should turn off. If the

Instruments and controls 2-7

LIC0741 WIC1299

ENGINE OIL PRESSURE GAUGE

The gauge indicates the engine lubrication sys­tem oil pressure while the engine is running. The
needle should be in themiddle of the gauge when
the engine is running.

CAUTION

● This gauge is not designed to indicate
low engine oil level. Use the dipstick to
check the oil level. (See “Engine oil” in
the “Maintenance and do-it-yourself”
section.)

● If the gauge needle does not move with
the proper amount of engine oil, have
the vehicle checked by a NISSAN
dealer. Continued vehicle operation in
such a condition could cause serious
damage to the engine.

VOLTMETER

When the ignition switch is placed in the ON
position, the voltmeter indicates the battery volt­age. When the engine is running, it indicates the
generator voltage.

While cranking the engine, the volts drop below
the normal range. If the needle is not in the normal
range (11 – 15 volts)
running, it may indicate that the charging system
is not functioning properly. Have the system
checked by a NISSAN dealer.

1

while the engine is

s

2-8 Instruments and controls

COMPASS DISPLAY (if so equipped)

This unit measures terrestrial magnetism and in­dicates heading direction of vehicle.

With the ignition switch in the ON position, press
the

button as described in the fallowing
chart toactivate various features of the automatic
anti-glare rearview mirror.

Push and hold
the

button for about:
1 second Compass display toggles on/off

8 seconds

11 seconds

13 seconds Compass enters calibration mode

Feature:
(Push button again for about 1 sec­ond to change settings)

Automatic anti-glare/indicator light
toggles on/off

Compass zone can be changed to
correct false compass readings

For more information about the automatic anti­glare feature, refer to “Automatic anti-glare rear­view mirror” in the “Pre-driving checks and ad­justments” section.

WIC0904

COMPASS DISPLAY

Push the button for about 1 second when
the ignition key is in the ON position to toggle the
outside temperature and compass direction dis-

1

play
direction of the vehicle’s heading.

N: North
E: East
S: South
W: West

If the “CAL” or “C” icon is illuminated in the
compass display, calibrate the compass by driv­ing the vehicle in three complete circles at less
than 5 MPH (8 km/h).

on or off. The display will indicate the

s

You can also calibrate the compass by driving
your vehicle on your everyday route. The com­pass will be calibrated once it has tracked three
complete circles.

Instruments and controls 2-9

WIC0355

Zone variation change procedure

The difference between magnetic north and geo­graphical north is known as variance. In some
areas, this difference can sometimes be great
enough to cause false compass readings. Follow
these instructions to set the variance for your
particular location if this happens:

1. Press and hold the
seconds. The current zone number will ap­pear in the display. Release the button.

2. Find your current location on the zone map.
Refer to the illustration.

3. Press the
through the zone numbers until the desired
number appears in the display. Once you
have selected a zone number, the display
will show a compass direction within a few
seconds.

NOTE:
Use zone number 5 for Hawaii.
Inaccurate compass direction

The compass display is equipped with automatic
correction function. If the correct direction is not
shown, follow this procedure.

button repeatedly to toggle

button for about 5

2-10 Instruments and controls

1. With the display turned on, press and hold
the

“CAL” icon in the compass display will illu­minate.

2. Calibrate the compass by driving the vehicle
in three complete circles at a maximum
speed of 5 MPH (8 km/h).

3. After completing the circles, the display
should return to normal.

button for about 13 seconds. The

CAUTION

● Do not install a ski rack, antenna, etc.,
which are attached to the vehicle by
means of a magnet. They affect the op­eration of the compass.

● When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as it may
cause the liquid cleaner to enter the
mirror housing.

Instruments and controls 2-11

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

or Anti-lock Braking System (ABS)

Automatic transmission oil temperature warn-

ing light (if so equipped)

Automatic transmission park warning light

(

or Brake warning light

Charge warning light Cruise main switch indicator light Slip indicator light for VDC

Door open warning light Cruise set switch indicator light Transfer 4LO position indicator light

Engine oil pressure warning light Electronic locking rear differential (E-Lock)

4WD warning light ( model) 4WD shift indicator light ( model) Vehicle Dynamic Control off indicator light

Low fuel warning light Front passenger air bag status light

Low tire pressure warning light High beam indicator light (Blue)

warning light

model)

Low windshield washer fluid warning light Hill descent control system on indicator light

Seat belt warning light and chime Malfunction Indicator Light (MIL)

Supplemental air bag warning light Overdrive off indicator light (automatic trans-

Automatic transmission position indicator light

(A/T models only)

system on indicator light (if so equipped)

(if so equipped)

mission models only)

Security indicator light

(

Turn signal/hazard indicator lights

model)

2-12 Instruments and controls

CHECKING BULBS

With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:

, or , , , ,

The following lights come on briefly and then go
off:

or , , , , , ,

,

If any light fails to come on, it may indicate
an open circuit in the electrical system.
Have the system repaired promptly.

WARNING LIGHTS

or Anti-lock Braking

System (ABS)
warning light

When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the ABS is operational.

If the ABS warning light illuminates while the
engine is running, or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.

If an ABS malfunction occurs, the anti-lock func­tion isturned off.The brake system then operates
normally, but without anti-lock assistance. See
9Brake system9 in the 9Starting and driving9 sec­tion.

Automatic transmission oil
temperature warning light (if so
equipped)

This light comeson whenthe automatic transmis­sion oil temperature is too high. If the light comes
on while driving, reduce the vehicle speed as
soon as safely possible until the light turns off.

CAUTION

Continued vehicle operation when the A/T
oil temperature warning light is on may
damage the automatic transmission.

Automatic transmission park

warning light (

WARNING

● If the ATP light is ON, this indicates that
the automatic transmission P (Park) po­sition will not function and the transfer
case is in neutral.

● When parking, always make sure that
the 4WD shift indicator light illuminates
and the parking brake is set. Failure to
engage the transferposition in 2WD, 4H
or 4LO could result in the vehicle mov­ing unexpectedly, resulting in serious
personal injury or property damage.

● Shift the 4WD switch into the 2WD, 4H
or 4LO position again to turn off the ATP
warning light when the shift selector is
in the P position and the ATP warning
light is ON. (Before shifting the 4WD
switch into the 4LO position, move the
shift selector into the N position once,
shift the shift selector into P again and
make sure the ATP warning light is
OFF.)

model)

Instruments and controls 2-13

This light indicates that the automatic transmis­sion parking function is not engaged. If the trans­fer control is not secured in any drive position
while the shift selector is in the P (Park) position,
the transmission will disengage and the drive
wheels will not lock.

or Brake warning light

This lightfunctions for both the parking brake and
the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid level.
If the light comes on while the engine is running
with the parking brake not applied, stop the ve­hicle and perform the following:

1. Check the brake fluid level. Add brake fluid
as necessary. See “Brake fluid”in the “Main­tenance and do-it-yourself” section of this
manual.

2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.

2-14 Instruments and controls

WARNING

● Your brake system may not be working
properly if the warning light is on. Driv­ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv­ing it could be dangerous.

● Pressing the brake pedal with the en­gine stopped and/or a low brake fluid
level may increase your stopping dis­tance and braking will require greater
pedal effort as well as pedal travel.

● If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.

Charge warning light

If this light comes on while the engine is running,
it may indicate the charging system is not func­tioning properly. Turn the engine off and check
the generator belt. If the belt is loose, broken,
missing, or if the light remains on, see a NISSAN
dealer immediately.

CAUTION

● Do not ground electrical accessories
directly to the battery terminal. Doing
so will bypass the variable control sys­tem and the vehicle battery may not
charge completely. Refer to “Variable
voltage control system” in the “Mainte­nance and do-it-yourself” section later
in this manual.

● Do not continue driving if the generator
belt is loose, broken or missing.

Door open warning light

This lightcomes on when any of the doors are not
closed securely while the ignition switch is
placed in the ON position.

Engine oil pressure warning

light

This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level. Use the

dipstick to check the oil level. See “Engine oil” in
the “Maintenance and do-it-yourself” section of
this manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause se­rious damage to the engine almost imme­diately. Such damage is not covered by
warranty. Turn off the engine as soon as it
is safe to do so.

4WD warning light (

model)

The 4WD warning light comes on when the igni­tion switch is turned to ON. It turns off soon after
the engine is started.

If the engine or vehicle is not functioning properly,
the warning light will either remain illuminated or
blink. See “4WD warning light” in the “Starting
and driving” section.

CAUTION

● If the warning light comes on or blinks
during operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.

● Do not drive on dry hard surface roads
in the 4H or 4LO position. If the 4WD
warning light turns on when you are
driving on dry hard surface roads:

– in the 4H position, shiftthe 4WD shift

switch to 2WD.

– in the 4LO position for automatic

transmission models, stop the ve­hicle and shift the shift selector to
the N position with the brake pedal
depressed and shift the 4WD shift
switch to 2WD.

– in the 4LO position for manual trans-

mission models, stop the vehicle and
shift the shift selector to the N posi­tion with the clutch pedal depressed
and shift the 4WD shift switch to
2WD,

● If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.

Low fuel warning light

This light comes on when the fuel level in the fuel
tank is getting low. Refuel as soon as it is conve­nient, preferably before the fuel gauge reaches E
(Empty). There willbe a small reserve of fuel

in the tank when the fuel gauge needle
reaches E (Empty).

Low tire pressure warning

light

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.

Low tire pressure warning:
If the vehicle is being driven with low tire

pressure, the warning light will illuminate.
When the low tire pressure warning light

illuminates, you should stop and adjust the
tire pressure of all 4 tires to the recom­mended COLD tire pressure shown on the
Tire and Loading Information label located

Instruments and controls 2-15

in the driver’s door opening. The low tire
pressure warning light does not automati­cally turn off when the tire pressure is ad­justed. After the tire is inflated to the rec­ommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low
tire pressure warning light. Use a tire pres­sure gauge to check the tire pressure.

For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving”section andin the“In case of emergency”
section.

TPMS malfunction:

If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi­mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after the 1 minute. Have the system checked by a
NISSAN dealer.

For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Main­tenance and do-it-yourself” section.

WARNING

● If the light does not illuminate with the
ignition switch placed in the ON posi­tion, have the vehicle checked by a
NISSAN dealer as soon as possible.

● If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in­crease the likelihood of tire failure. Se­rious vehicle damage could occur and
may lead to an accident and could re­sult in serious personal injury. Check
the tirepressure for all four tires. Adjust
the tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label located
in the driver’s door opening to turn the
low tire pressure warning light OFF. If
the light still illuminates while driving
after adjusting the tire pressure, a tire
may be flat. If you have a flat tire, re­place it with a spare tire as soon as
possible.

● When a spare tireis mountedor awheel
is replaced tire pressure will not be in­dicated, the TPMS will not function and
the low tire pressure warning light will
flash for approximately 1 minute. The
light will remain on after 1 minute. Con­tact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.

● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.

CAUTION

● The TPMS is not a substitute for the
regular tire pressure check. Be sure to
check the tire pressure regularly.

● If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h), the
TPMS may not operate correctly.

● Be sure to install the specified size of
tires to the 4 wheels correctly.

2-16 Instruments and controls

Low windshield washer fluid

warning light

This light comes on when the windshield washer
fluid is at a lowlevel. Add windshield washer fluid
as necessary. See “Window washer fluid” in the
“Maintenance and do-it-yourself” section of this
manual.

Seat belt warning light and

chime

The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime
sounds for about 6 seconds unless the driver’s
seat belt is securely fastened.

The seat belt warning light may also illuminate if
the front passenger’s seat belt is not fastened
when thefront passenger’sseat is occupied . For
7 seconds after the ignition switch is placed in
the ONposition, thesystem doesnot activate the
warning light for the front passenger.

Refer to “Seat belts” in the “Safety—Seats, seat
belts and supplemental restraint system”section
for precautions on seat belt usage.

Supplemental air bag warning

light

When the ignition switch is placed in the ON or
START position, the supplemental air bag warn­ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten­sioners need servicing and your vehicle must be
taken to a NISSAN dealer:

● The supplemental air bag warning light re­mains on after approximately 7 seconds.

● The supplemental air bag warning light
flashes intermittently.

● The supplemental air bag warning light does
not come on at all.

Unless checked and repaired, the supplemental
restraint systems (air bag system) and/or the
pretensioners may not function properly. For ad­ditional details see “Supplemental restraint sys­tem” in the “Safety—Seats, seat belts and
supplemental restraint system” section of this
manual.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bags, curtain and rollover air bags
and/or pretensioners will not operate in
an accident. To help avoid injury to your­self or others, have your vehicle checked
by a NISSAN dealer as soon as possible.

INDICATOR LIGHTS

Automatic transmission
position indicator light (A/T
models only)

When the ignition switch is in the ON position,
this indicator light shows the shift selector posi­tion. See“Driving thevehicle” in the “Starting and
driving” section of this manual.

Cruise main switch indicator

light

The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.

Instruments and controls 2-17

Cruise set switch indicator

light

The light comes on while the vehicle speed is
controlled by the cruise control system. Ifthe light
blinks while the engine is running, it may indicate
the cruise control system isnot functioning prop­erly. Have the system checked by a NISSAN
dealer.

Electronic locking rear
differential (E-Lock) system on
indicator light (if so equipped)

This light comes on when the electronic locking
rear differential (E-Lock) system clutch is fully
engaged.

The indicator light flashes when the system is first
turned on. When the system fully engages, the
light remains on. If the switch is on and the
indicator light continues to flash, the system is
not engaged.

For additional information, see “Electronic lock­ing rear differential (E-Lock) system switch” later
in this section and “Electronic locking rear differ­ential (E-Lock) system” in the “Starting and driv­ing” section of this manual.

4WD shift indicator light

(

The light should turn off within 1 second after
placing the ignition switch in the ON position.

While the engine is running, the 4WD shift indi­cator light will illuminate the position selected by
the 4WD shift switch.

The 4WD shift indicator light may blink
while shifting from one drive mode to the
other.

model)

Front passenger air bag

status light

The front passenger air bag status light ( )
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.

For frontpassenger airbag statuslight operation,
see “Front passenger air bag and status light” in
the “Safety — Seats, seat belts andsupplemental
restraint system” section of this manual.

High beam indicator light

(blue)

This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.

The high beam indicator light also comes on
when the passing signal is activated.

Hill descent control system on

indicator light (if so equipped)

When the ignition switch is placed in the ON
position, thislight comes on briefly and then turns
off.

The light comes on when the hill descent control
system is activated.

If the hill descent control switch is on and the
indicator light blinks, the system is not engaged.

If the indicator light does not come on or blink
when the hill descent switch is on, the system
may notbe functioningproperly. Havethe system
checked by a NISSAN dealer.

For additional information, see “Hill descent con­trol switch” later in this section and “Hill descent
control system” in the “Starting and driving” sec­tion of this manual.

2-18 Instruments and controls

Malfunction Indicator Light

(MIL)

If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.

The Malfunction Indicator Light may also come
on steady if the fuel-filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 gallons
(11.4 liters) of fuel in the fuel tank.

After a few driving trips, the
turn off if no other potential emission control
system malfunction exists.

If this indicator light comes on steady for 20
seconds and then blinks for 10 seconds when
the engine is not running, it indicates that the
vehicle is not ready for an emission control sys­tem inspection/maintenance test. See “Readi­ness forinspection/maintenance (I/M)test” in the
“Technical and consumer information”section of
this manual.

light should

Operation

The Malfunction Indicator Light will come on in
one of two ways:

● Malfunction Indicator Light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the

vehicle. The
a fewdriving trips. If the

turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to
the dealer.

● Malfunction Indicator Light blinking — An
engine misfirehas beendetected whichmay
damage the emission control system. To re­duce or avoid emission control system dam­age:

– do not drive at speeds above 45 MPH

(72 km/h).
– avoid hard acceleration or deceleration.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo

being hauled or towed.

light should turn off after

light doesnot

The Malfunction Indicator Light may stop blinking
and come on steady. Have the vehicle inspected
by a NISSAN dealer. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without hav­ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con­trol system.

Overdrive OFF indicator light
(A/T models only)

This light comes on when the overdrive function
is OFF.

The automatic transmission overdrive function is
controlled by the overdrive switch.

See “Driving the vehicle” in the “Starting and
driving” section of this manual.

Security indicator light

This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position. This function
indicates the security system equipped on the
vehicle is operational.

Instruments and controls 2-19

For additional information, see “Security sys­tems” later in this section.

Slip indicator light

This indicator light will blink when the traction
control system is limiting wheel spin. Slippery
road conditions may exist if the slip indicator
blinks on. If this happens, adjust your driving
accordingly.

The slip indicator light also comes on when you
place the ignition switch in the ON position. The
light will turn off after about 2 seconds if the
system is operational. If the light does not come
on or does not go off, have the traction control
system checked by a NISSAN dealer.

If the battery is removed or discharged, the trac­tion control system is disabled and the slip indi­cator light will not turn off after 2 seconds when
the ignition switch is placed in the ON position.
To reset the system, you must perform the reset
procedure. Refer to “Vehicle Dynamic Control
(VDC) system” in the “Starting and driving” sec­tion of this manual.

If the light does not go off after performing the
reset procedure,have the traction control system
checked by a NISSAN dealer.

Transfer 4LO position

indicator light (

The light should turn off within 1 second after
turning the ignition switch to ON.

This lightcomes onwhen the 4WD shift switch is
set in the 4LO position with the ignition switch in
the ON position.

The transfer case may be damaged if you shift the
switch while driving.

Make sure the transfer 4LO position indicator
light turns on when you shift the4WD shiftswitch
to 4LO.

The indicator light may blink while shifting
from one drive mode to the other.

The 4LO indicator light must stop blinking and
remain illuminated or turn off before shifting the
transmission into gear. If the shift selector is
shifted from the N (Neutral) position to any other
gear when the 4LO indicator light is blinking, the
vehicle may move unexpectedly.

model)

When you shift between 4H and 4LO, follow the
instructions below:

● For automatic transmission models, stop the
vehicle and shift the shift selector to the N
(Neutral) position with the brake pedal de­pressed, then depress and turn the 4WD
shift switch to 4LO or 4H.

● For manual transmission models, stop the
vehicle and shift the shift selector to the N
(Neutral) position with the clutch pedal de­pressed, then depress and turn the 4WD
shift switch to 4LO or 4H.

You cannot move the transfer 4WD shift switch
between 4Hand 4LO unless you stop the vehicle
and shift the shift selector to the N position with
the brake pedal (AT models) or clutch pedal (MT
models) depressed.

Turn signal/hazard indicator
lights

The appropriatelight flashes when the turn signal
switch is activated.

Both lights flash when the hazard switchis turned
on.

2-20 Instruments and controls

Vehicle Dynamic Control OFF

indicator light

This indicator light comes on when the Vehicle
Dynamic Controloff switch is pushed to OFF,the
transfer case is in the 4LO position (
model), or when the Vehicle Dynamic Control
system is not functioning properly. This indicates
the Vehicle Dynamic Control system is not oper­ating.

Push the Vehicle Dynamic Control off switch
again or restart the engine and the system will
operate normally. See “Vehicle Dynamic Control
(VDC) system” in the “Starting and driving” sec­tion of this manual.

The Vehicle DynamicControl light also comes on
when youturn the ignition key tothe ON position.
The light will turn off after about 2 seconds if the
system is operational. If the light stays on or
comes on along with the SLIP indicator light
while you are driving, have the Vehicle Dynamic
Control system checked by a NISSAN dealer.

If the battery is removed or discharged, the Ve­hicle DynamicControl systemis disabledand the
VDC indicator light will not turn off after 2 sec­onds whenthe ignitionswitch isturned tothe ON
position. To reset the system, you must perform
the reset procedure. Refer to “Vehicle Dynamic

Control (VDC) system” in the “Starting and driv­ing” section of this manual.

If the light does not go off after performing the
reset procedure,have the traction control system
checked by a NISSAN dealer.

While the Vehicle Dynamic Control system is
operating, you might feel slight vibration or hear
the system working when starting the vehicle or
accelerating, but this is normal.

The VDC system will be disabled and the VDC
light will illuminate when the electronic locking
rear differential (E-lock) system switch (if so
equipped) is turned on and the E-lock system is
engaged. If the E-lock system disengages or the
switch is turned off, the VDC system will be
enabled and the VDC light will turn off.

AUDIBLE REMINDERS
Brake pad wear warning

The discbrake padshave audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is opened
while the key is leftin the ignition switch. Remove
the key and take it with you when leaving the
vehicle.

Light reminder chime

With the ignition switch placed in the OFF posi­tion, a chime sounds when the driver’s door is
opened if the headlights or parking lights are on.

Turn the headlight control switch off before leav­ing the vehicle.

Instruments and controls 2-21

SECURITY SYSTEMS

LIC0372

Your vehicle may have two types of security sys­tems:

● Vehicle security system

● NISSAN Vehicle Immobilizer System

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual and
audible alarm signals if someoneopens thedoors
when the system is armed. It is not, however, a
motion detection type system thatactivates when
a vehicle is moved or when a vibration occurs.

The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior or
exterior vehicle components in all situations. Al-

2-22 Instruments and controls

ways secure your vehicle even if parking for a
brief period. Never leave your keys in the ignition,
and alwayslock the vehicle when unattended. Be
aware of your surroundings, and park in secure,
well-lit areas whenever possible.

Many devicesoffering additionalprotection, such
as component locks, identification markers, and
tracking systems, are available at auto supply
stores and specialty shops. Your NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discountsfor varioustheft protectionfeatures.

How to arm the vehicle security
system

1. Close all windows. (The system can be

armed even if the windows are open.)

2. Remove the key from the ignition switch.

3. Close all doors. Lock all doors. The doors
can be locked with the key, power door lock
switch (if the door is opened, locked and
then closed), or with the keyfob.

Keyfob operation:

● Push the
All doors lock. The hazard lights flash
twice and the horn beepsonce to indicate
all doors are locked.

button on the keyfob.

● When the
all doors locked, the hazard lights flash
twice and the horn beeps once as a re­minder that the doors are already locked.

The horn may or may not beep. Refer to
“Silencing the horn beep feature” in the
“Pre-driving checks and adjustments” sec­tion later in this manual.

4. Confirm that the
on. The

seconds. The vehicle security systemis now
pre-armed. After about 30 seconds the ve­hicle security system automatically shifts

into the armed phase. The
to flash once every 3 seconds. If, during the
30-second pre-arm time period, the driver’s
door is unlocked by the key or the keyfob, or
the ignition switch is placed in ACC or ON
position, the system will not arm.

● If the key is turned slowly when locking
the driver’s door, the system may not
arm. Furthermore, if the key is turned
beyond the vertical position toward the
unlock position to remove the key, the
system may be disarmed when the key
is removed. If the indicator light fails to
glow for 30 seconds, unlock the door
once and lock it again.

button is pushed with

indicator light comes

light stays on for about 30

light begins

● Even when the driver and/or passen­gers are in the vehicle, the system will
arm with all doors closed and locked
with the ignition switch placed in the
OFF position.

Vehicle security system activation

The vehiclesecurity systemwill give the following
alarm:

● The headlights blink and the horn sounds
intermittently.

● The alarm automatically turns off after ap­proximately 50seconds. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can beshut offby unlocking
the driver’s door with the key or by pressing

the

The alarm is activated by:

● opening a door without using the key or
keyfob (even if the dooris unlocked by using
the inside lock knob or the power door lock
switch).

button on the keyfob.

How to stop an activated alarm

The alarm stops only by unlocking the driver’s
door withthe keyor bypressing the

on the keyfob.

button

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of a
registered key.

If the engine fails to start using a registered key
(for example, when interference is caused by
another registered key, an automated toll road
device or automatic payment device on the key
ring), restart the engine using the following pro­cedures:

1. Leave the ignition switch in the ON position
for approximately 5 seconds.

2. Place the ignition switch in the OFF or
LOCK position and wait approximately 10
seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.

If the no start condition re-occurs, NISSAN rec­ommends placing the registered key on a sepa­rate key ring to avoid interference from other
devices.

Statement related to Section 15 of FCC
Rules for NISSAN Vehicle Immobilizer Sys­tem (CONT ASSY — IMMOBILIZER, ANT
ASSY — IMMOBILIZER)

This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow­ing two conditions;

(1) This device may not cause harmful in­terference, and (2) this device must accept
any interference received, including inter­ference that may cause undesired opera­tion of the device.

CHANGES OR MODIFICATIONS NOT EX­PRESSLY APPROVED BY THE PARTY RE­SPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER­ATE THE EQUIPMENT.

Instruments and controls 2-23

LIC0474 WIC0843

Security indicator light

The security indicator light blinks whenever the
ignition switchis placed in the LOCK, OFF or ACC
position. This function indicates the NISSAN Ve­hicle Immobilizer System is operational.

If theNISSAN Vehicle ImmobilizerSystem ismal­functioning, the light will remain on while the
ignition switch is placed in the ON position.

If the light still remains on and/or the en­gine will not start, see a NISSAN dealer for
NISSAN Vehicle Immobilizer System ser­vice as soon as possible. Please bring all
registered keys that you have when visiting
your NISSAN dealer for service.

2-24 Instruments and controls

WINDSHIELD WIPER AND WASHER
SWITCH

SWITCH OPERATION

The windshield wiper and washeroperates when
the ignition switch is in the ON position.

Push the lever down to operate the wiper at the
following speed:

1

Intermittent (INT) — intermittent operation

s

can be adjusted by turning the knob toward

A

(Slower) or

s

2

Low (LO) —continuous low speed operation

s

3

High (HI) — continuous high speed opera-

s

tion

Push the lever up
tion (MIST) of the wiper.

B

(Faster).

s

4

to have one sweep opera-

s

5

Pull the lever toward you
washer. Thewiper willalso operateseveral times.

to operate the

s

WARNING

In freezing temperatures the washer solu­tion may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm the windshield with the
defroster before you wash the windshield.

CAUTION

● Do not operate the washer continu­ously for more than 30 seconds.

● Do not operate the washer if the reser­voir tank is empty.

●

Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol based
washer fluid concentrates may perma­nently stain the grille if spilled while fill­ing the window washer reservoir tank.

● Pre-mix washer fluid concentrates with
water to the manufacturer’s recom­mended levels before pouring the fluid
into the window washer reservoir tank.
Do not use the window washer reservoir
tank to mix the washer fluid concen­trate and water.
