Nissan Xterra 2000 4WD V6 3.3L Workshop Manual

nissan :: Nissan-Datsun Truck Xterra SE 4WD V6-

3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Horn Relay > Component Information > Locations

Alarm Horn Relay: Locations

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Horn Relay > Component Information > Locations > Page 7

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Horn Relay > Component Information > Locations > Page 8

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Engine Compartment

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations

Alarm Module: Locations

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 12

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 13

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 14

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 15

Xterra SE 4WD V6-3.3L (VG33E) (2000)

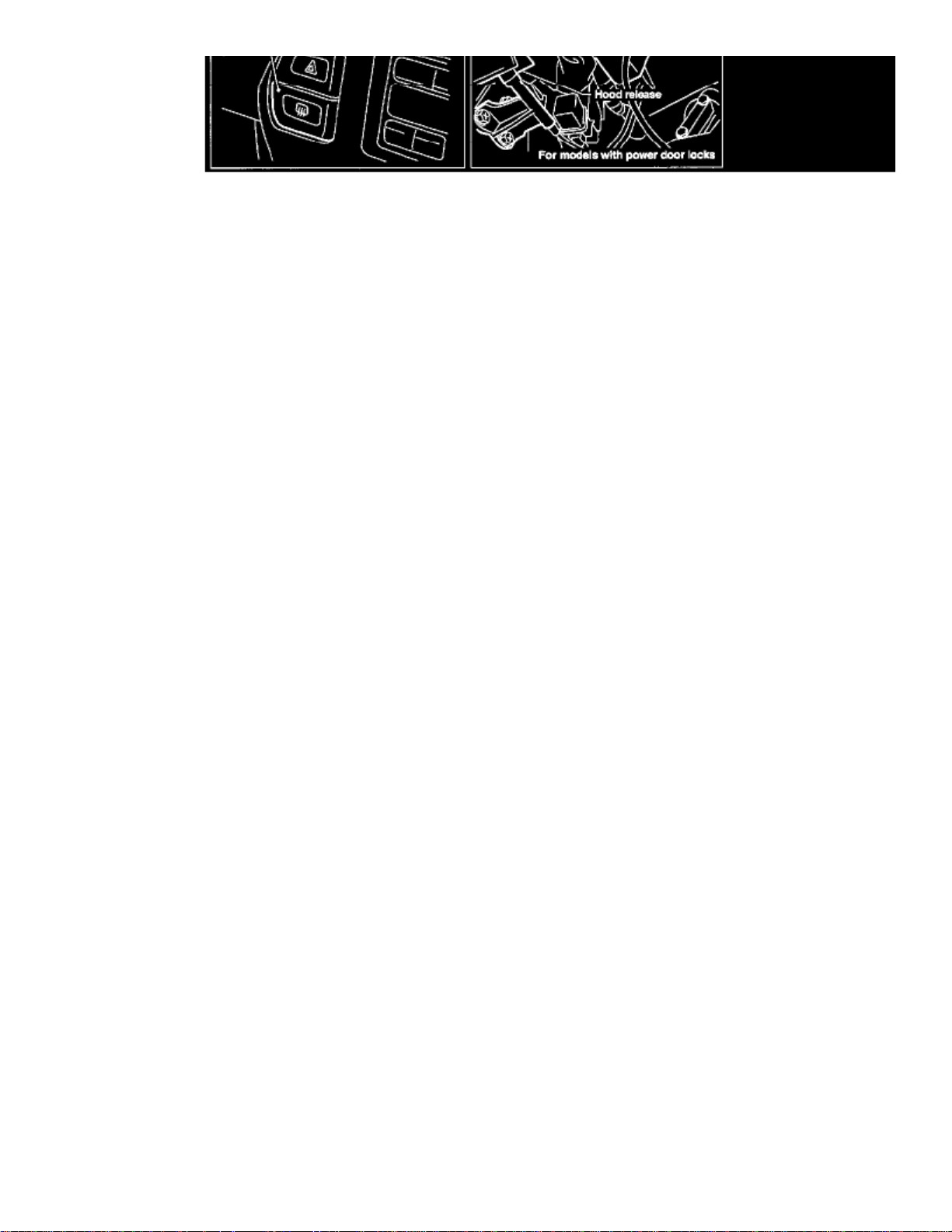

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 16

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 17

Xterra SE 4WD V6-3.3L (VG33E) (2000)

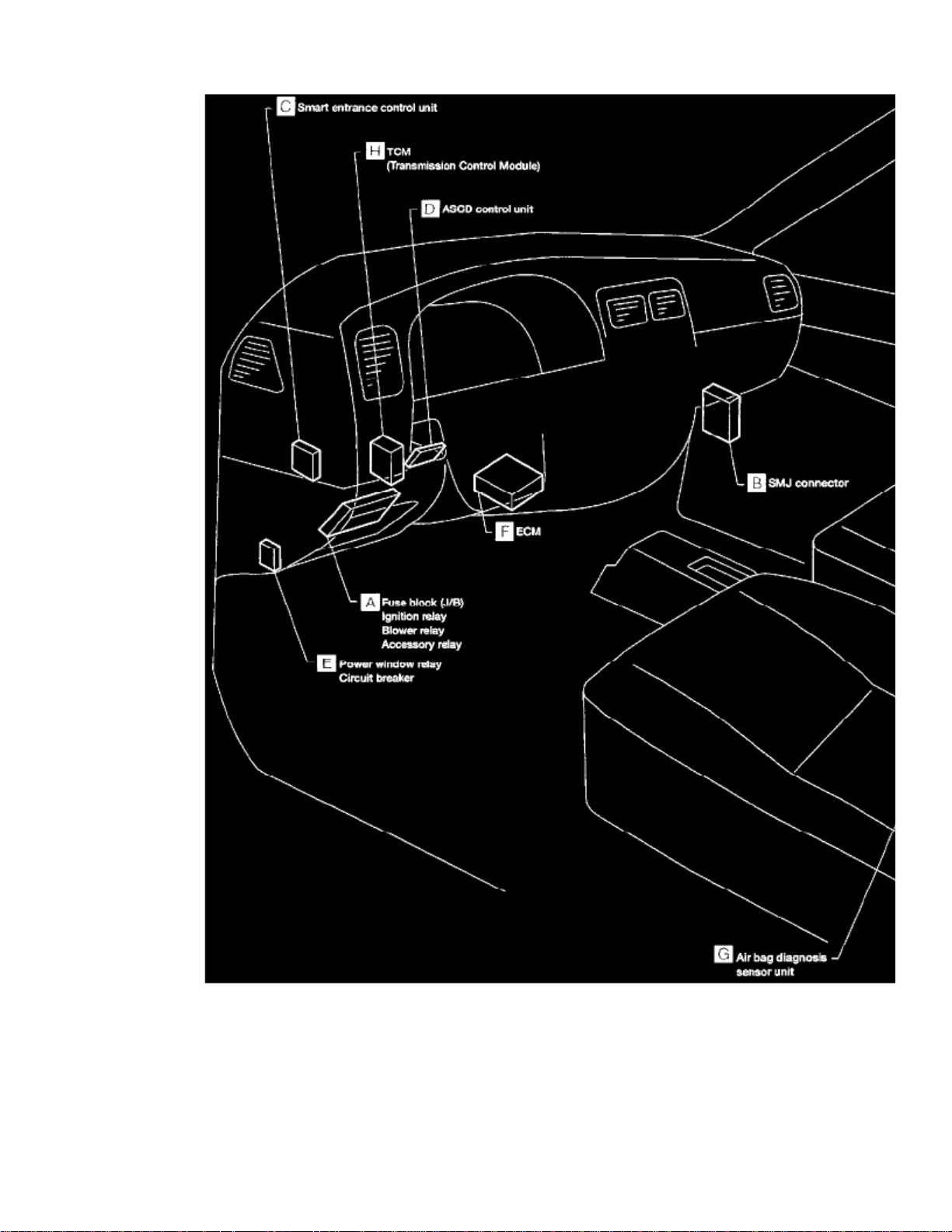

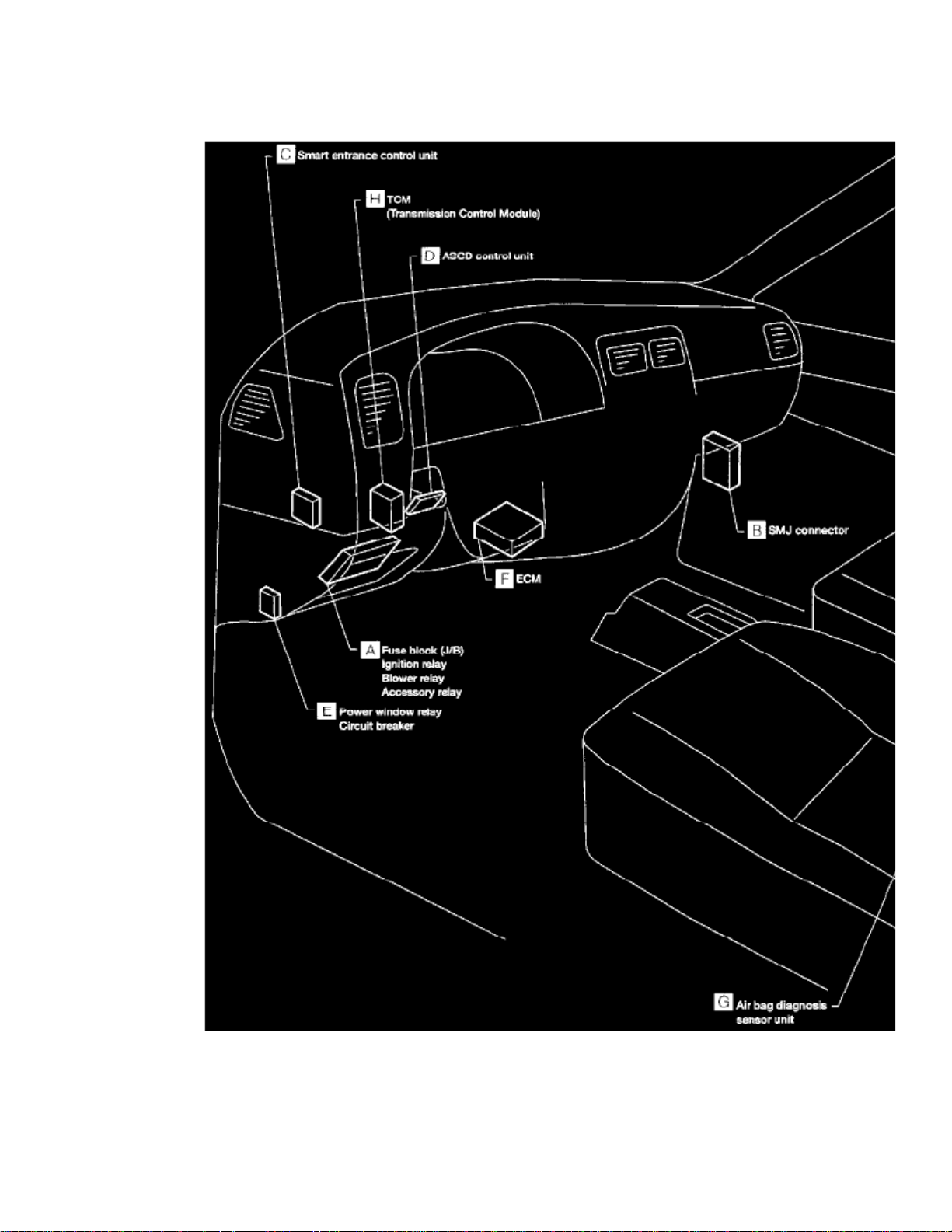

Passenger Compartment

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations

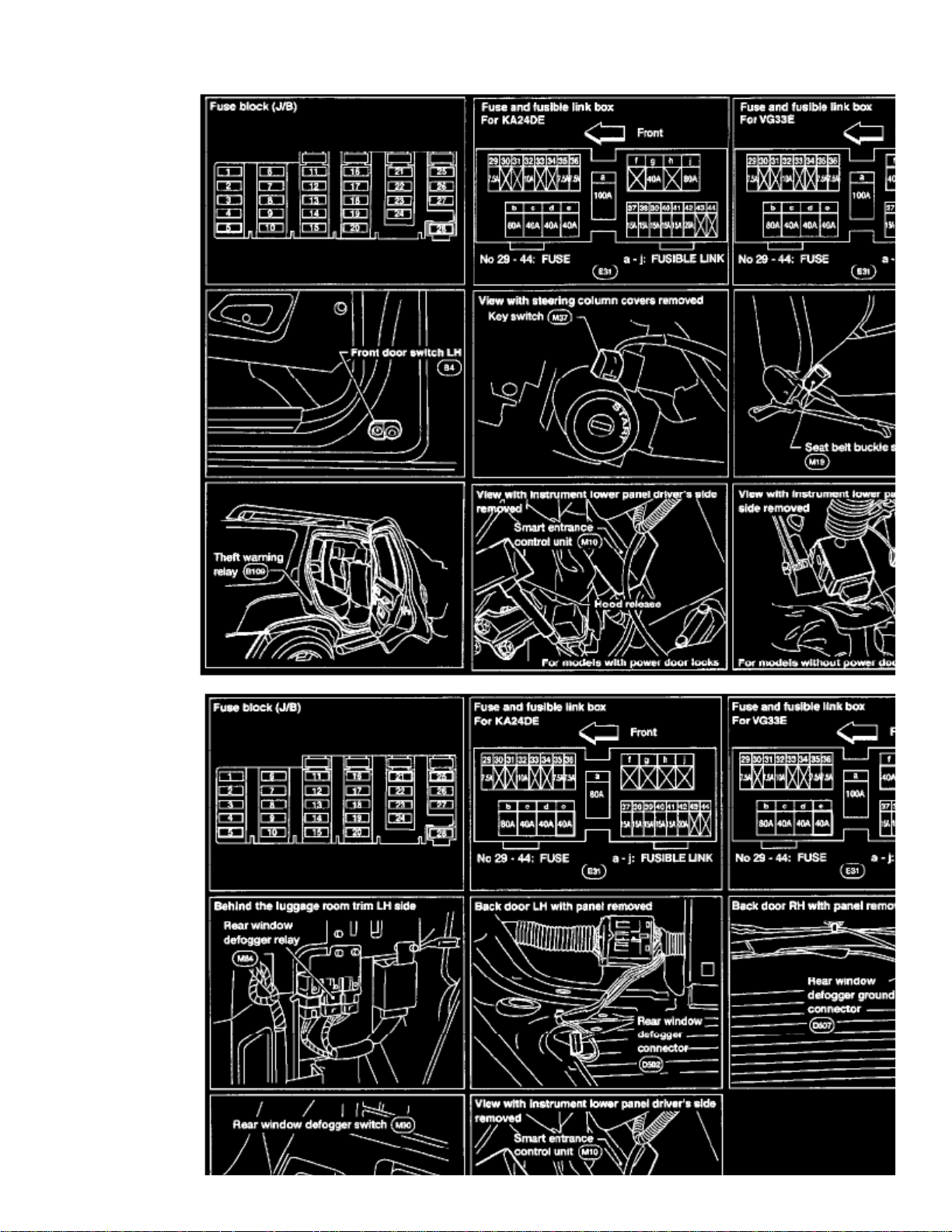

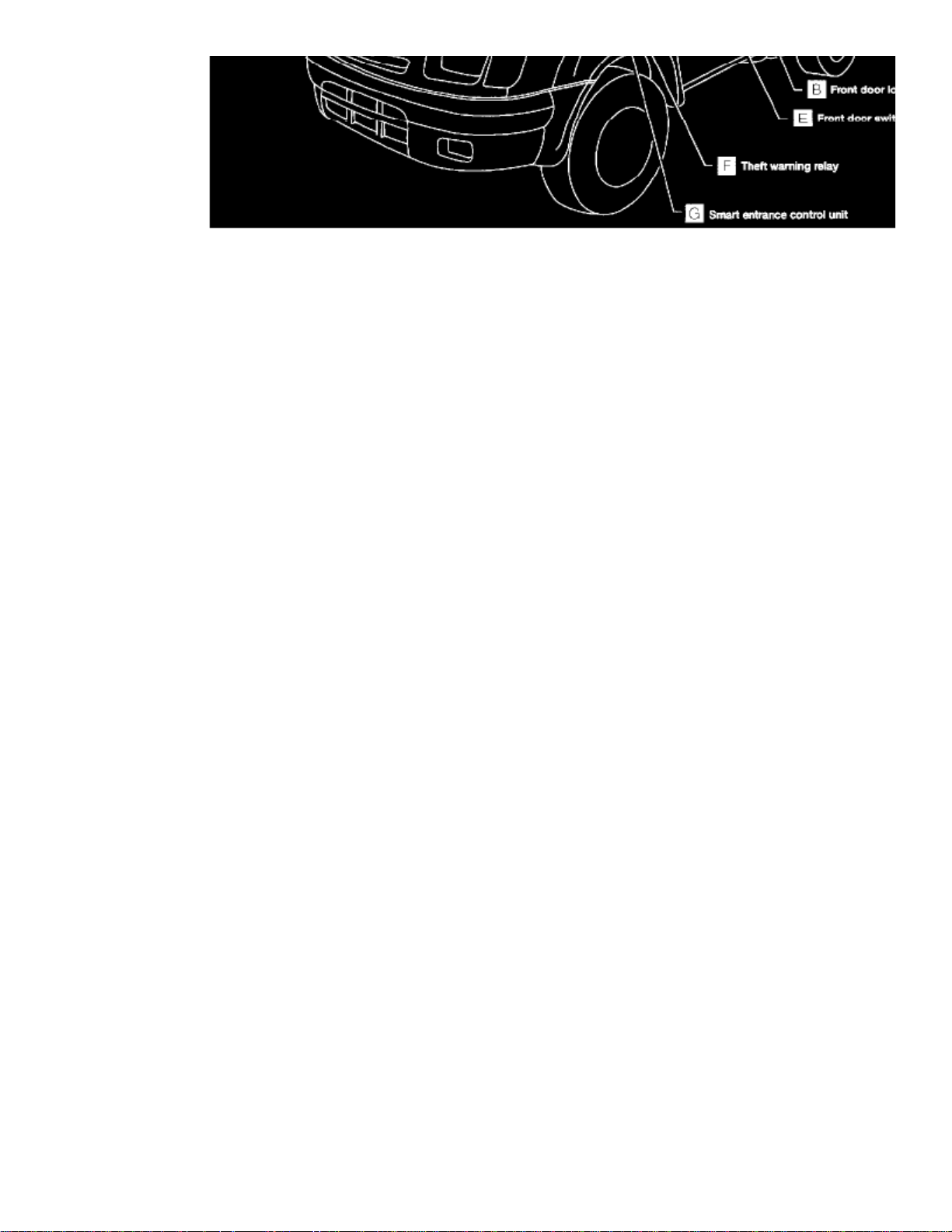

Antitheft Relay: Locations

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations > Page 21

Xterra SE 4WD V6-3.3L (VG33E) (2000)

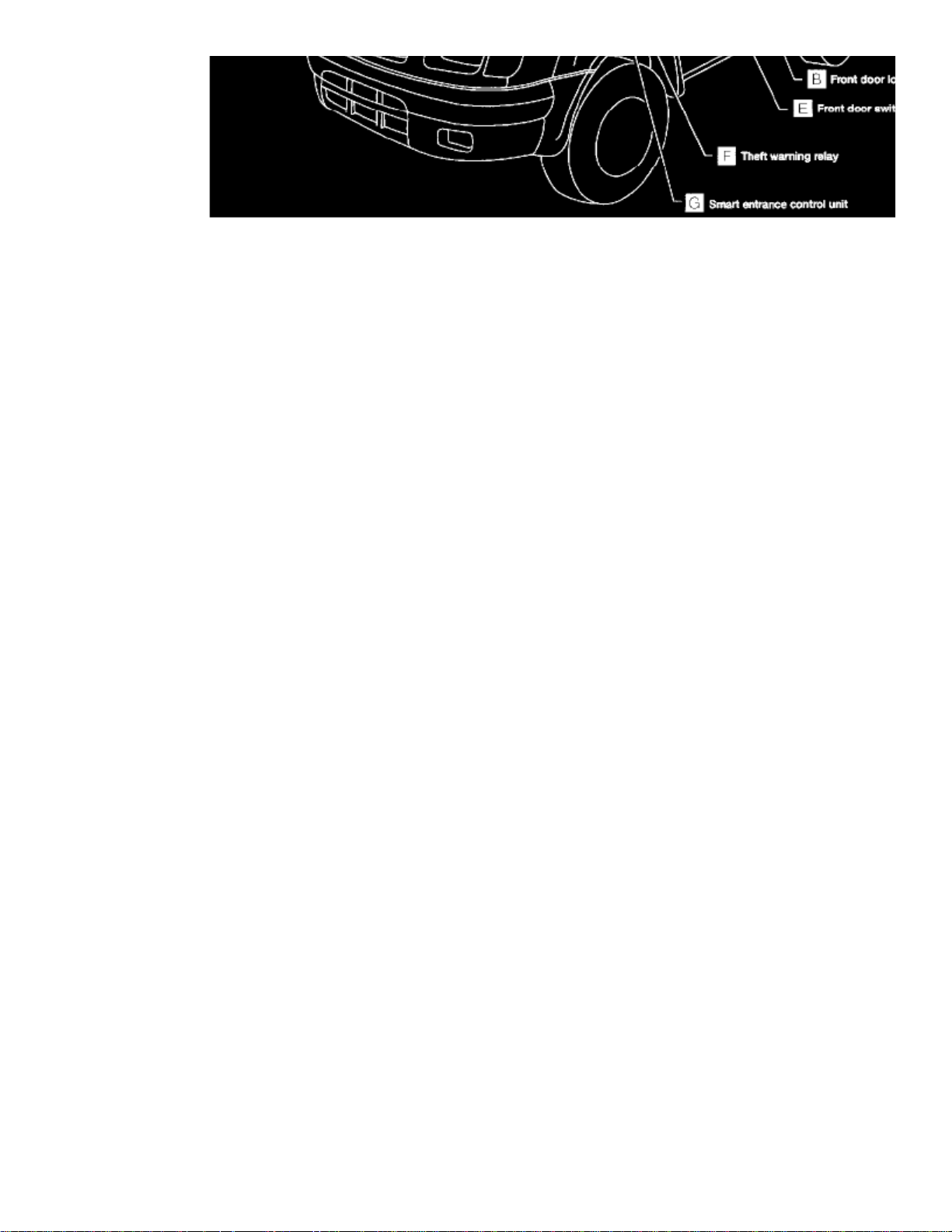

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information > Locations

Multi-Remote Control Relay: Locations

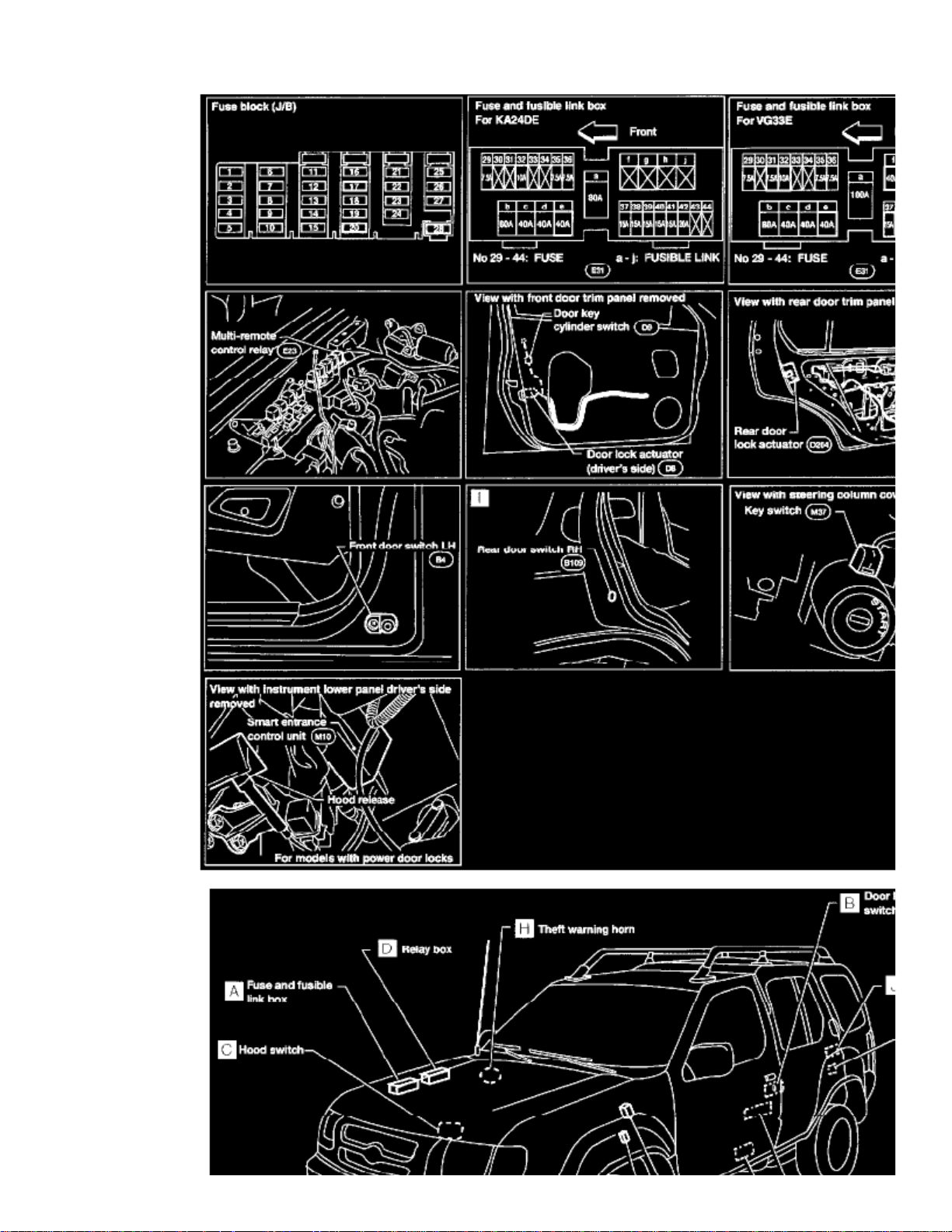

Component Parts and Harness Connection Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information >

Locations > Page 25

Xterra SE 4WD V6-3.3L (VG33E) (2000)

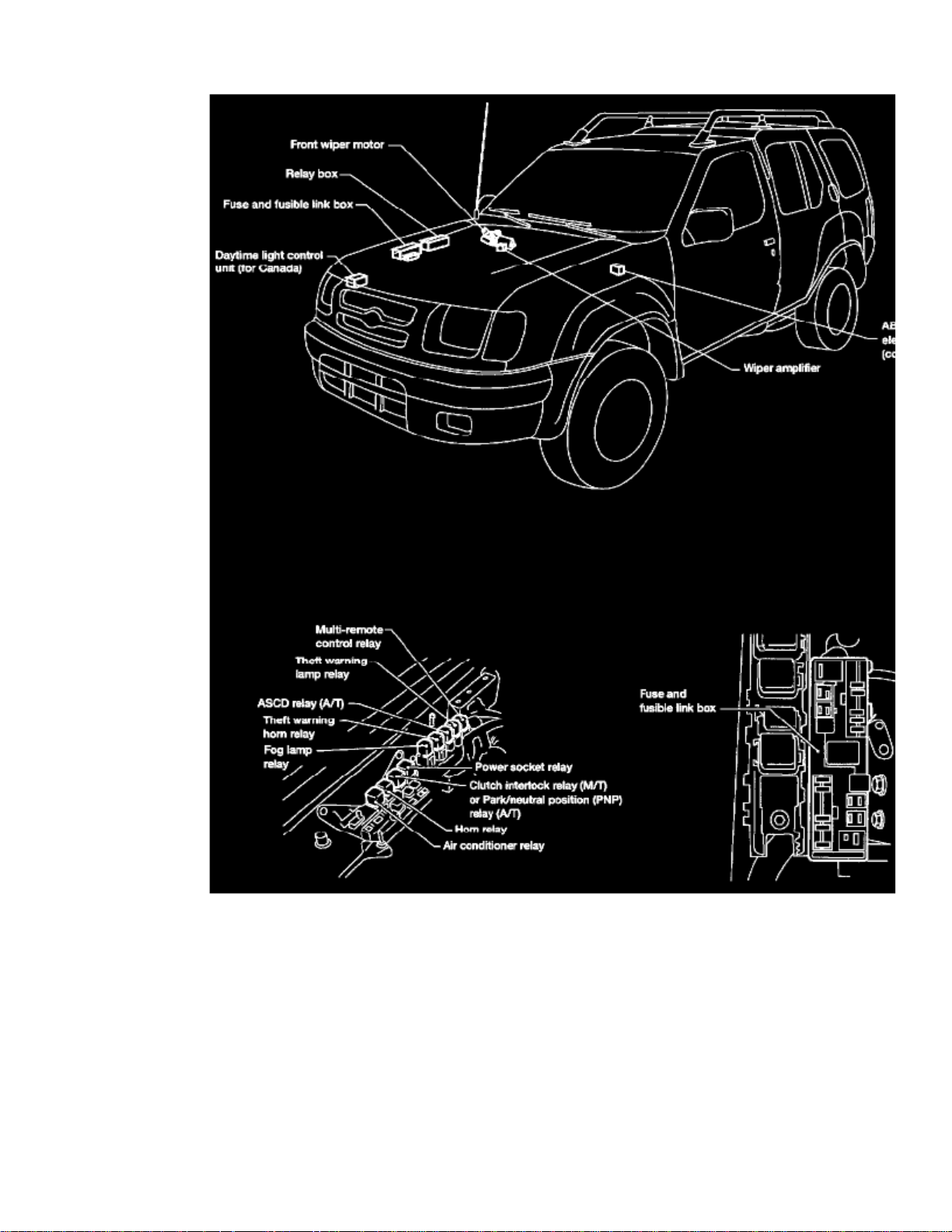

Engine Compartment

> Relays and Modules > Relays and Modules - Body and Frame > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information > Locations

Multi-Remote Control Relay: Locations

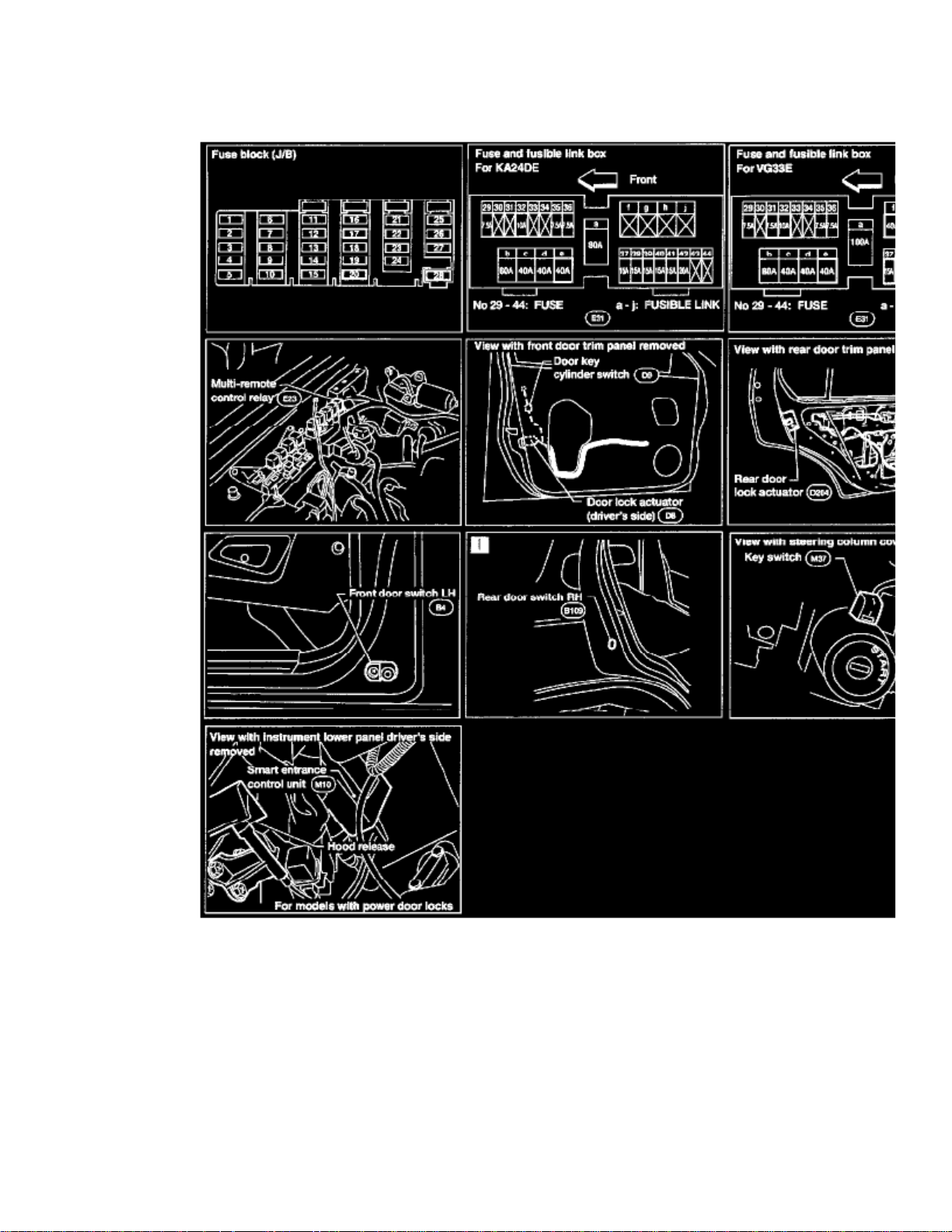

Component Parts and Harness Connection Location

> Relays and Modules > Relays and Modules - Body and Frame > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information > Locations > Page 30

Xterra SE 4WD V6-3.3L (VG33E) (2000)

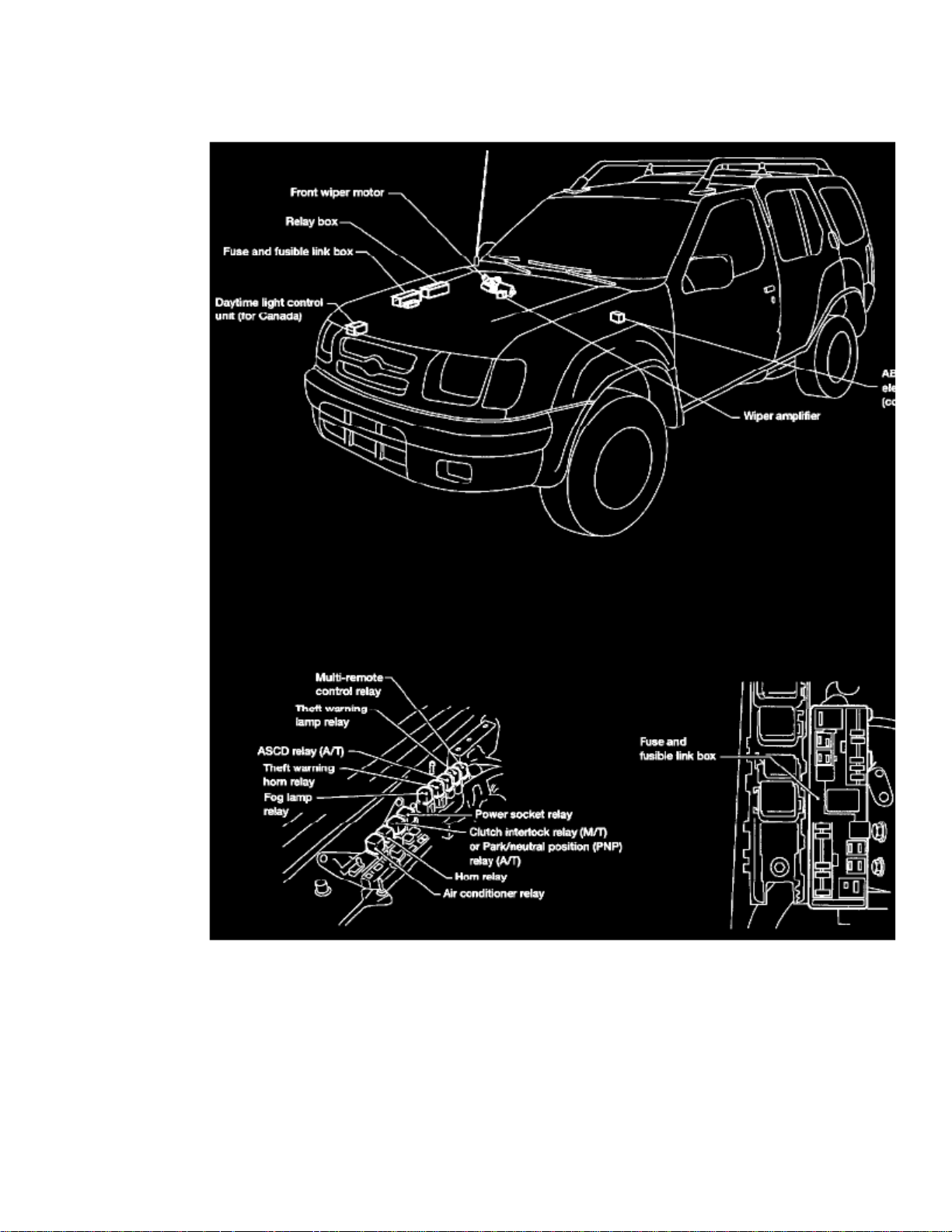

Engine Compartment

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations

Electronic Brake Control Module: Locations

Engine Compartment

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations > Page 35

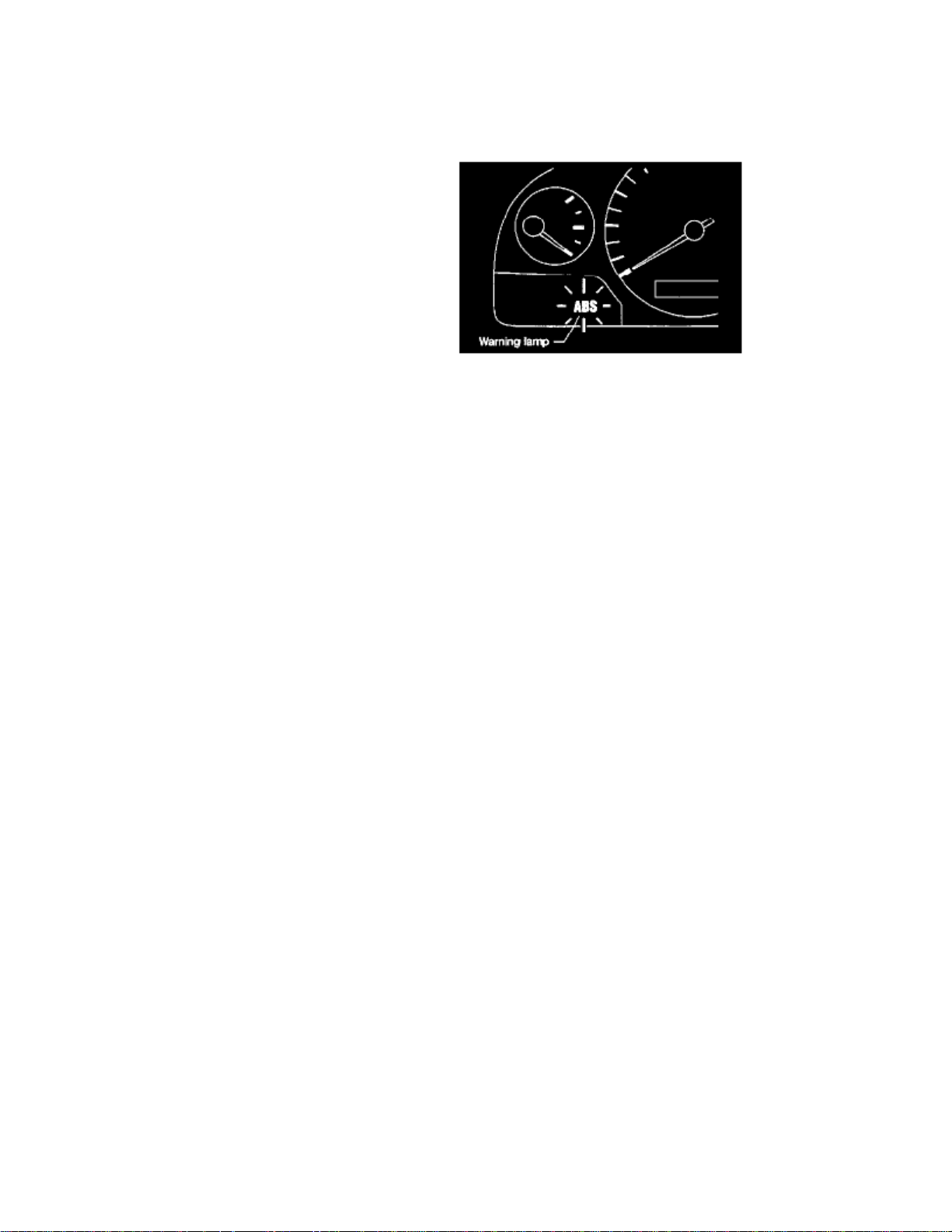

Electronic Brake Control Module: Description and Operation

CONTROL UNIT (BUILT-IN ABS ACTUATOR AND ELECTRIC UNIT)

The control unit computes the wheel rotating speed by the signal current sent from the sensor. Then it supplies a DC current to the actuator solenoidvalve. It also controls ON-OFF operation of the valve relay and motor relay. If any electrical malfunction should be detected in the system, the controlunit causes the warning lamp to light up. In this condition, the ABS will be deactivated by the control unit, and the vehicle's brake system reverts tonormal operation.

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations

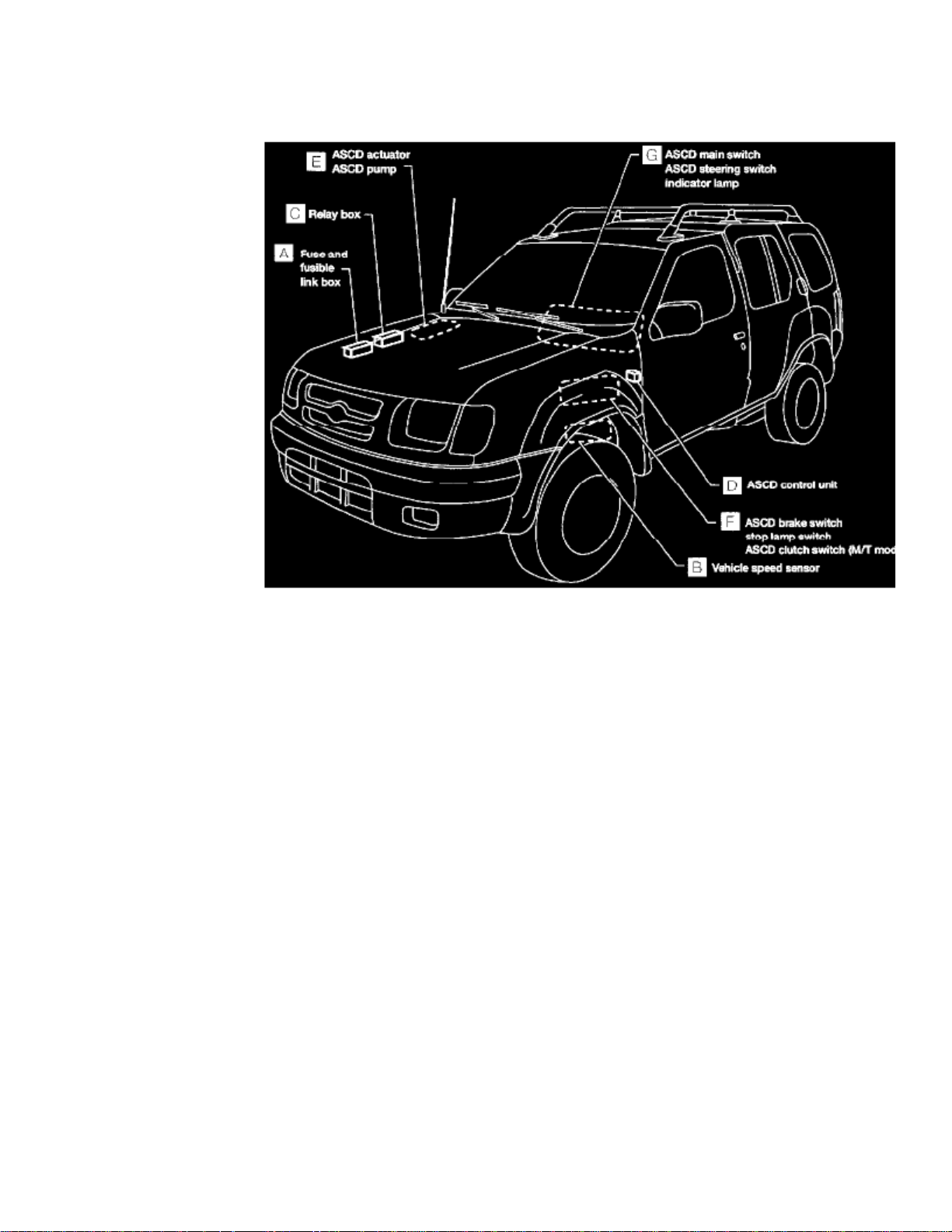

ASCD Control Unit: Locations

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations > Page 40

Xterra SE 4WD V6-3.3L (VG33E) (2000)

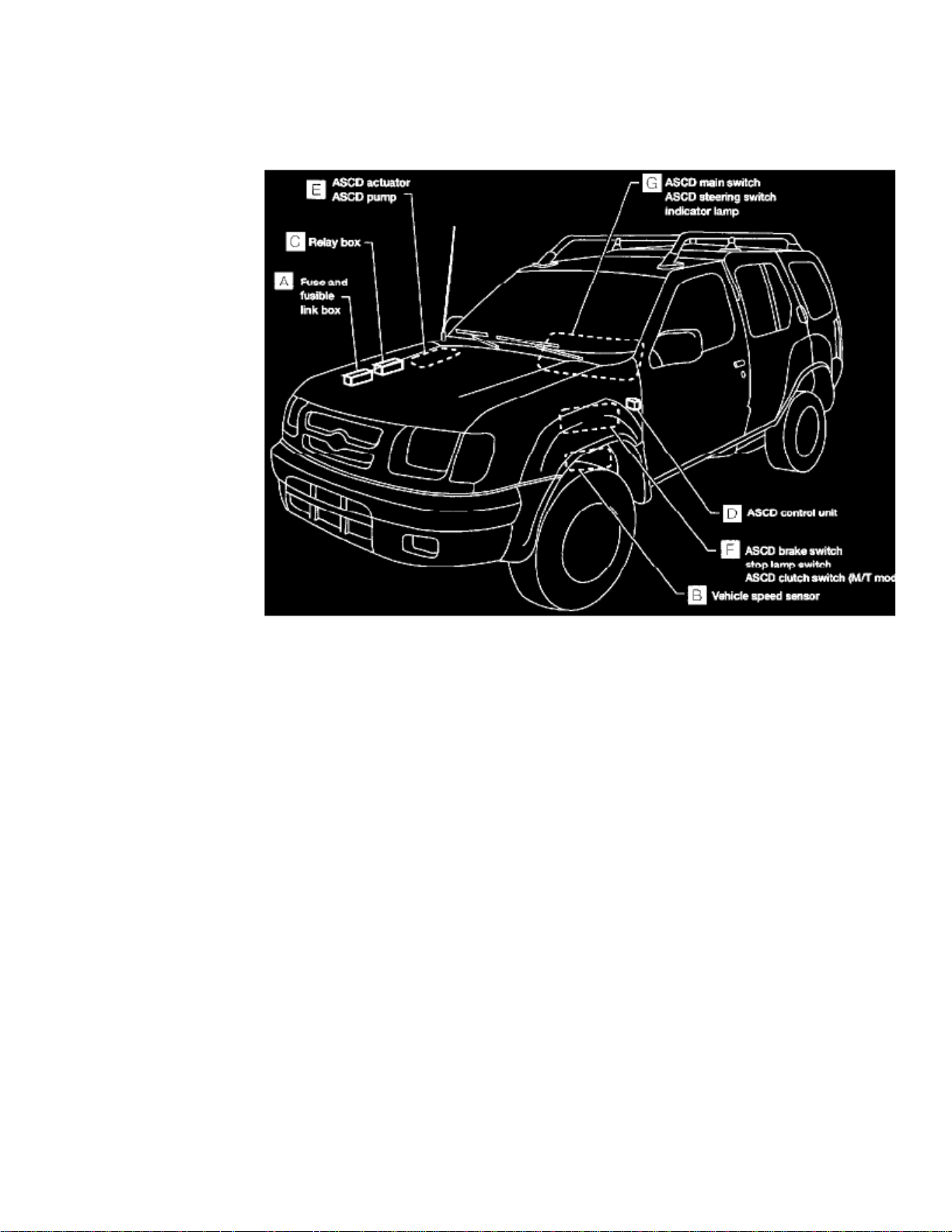

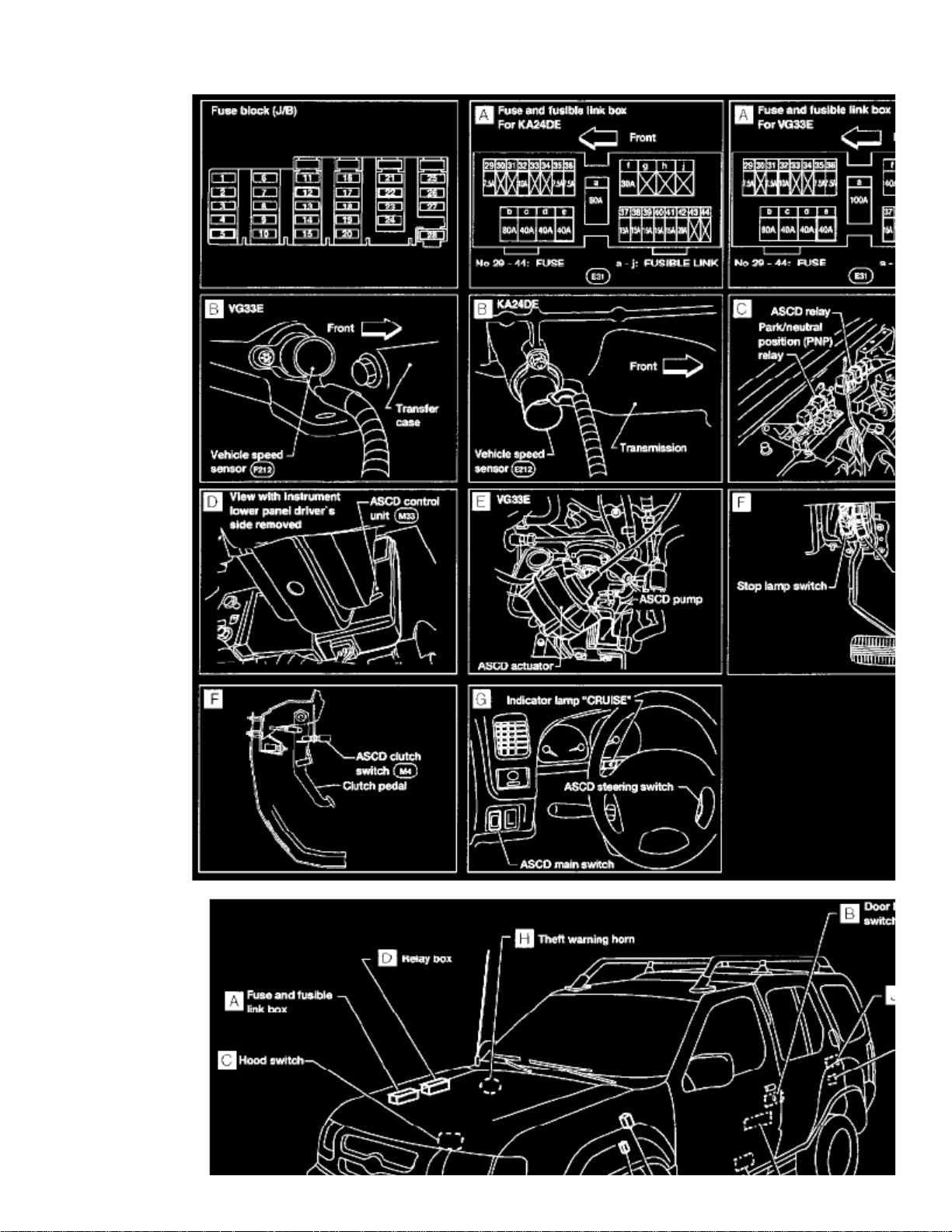

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations > Page 41

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations > Page 42

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Passenger Compartment

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay

Cruise Control Relay: LocationsASCD Relay

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 47

Xterra SE 4WD V6-3.3L (VG33E) (2000)

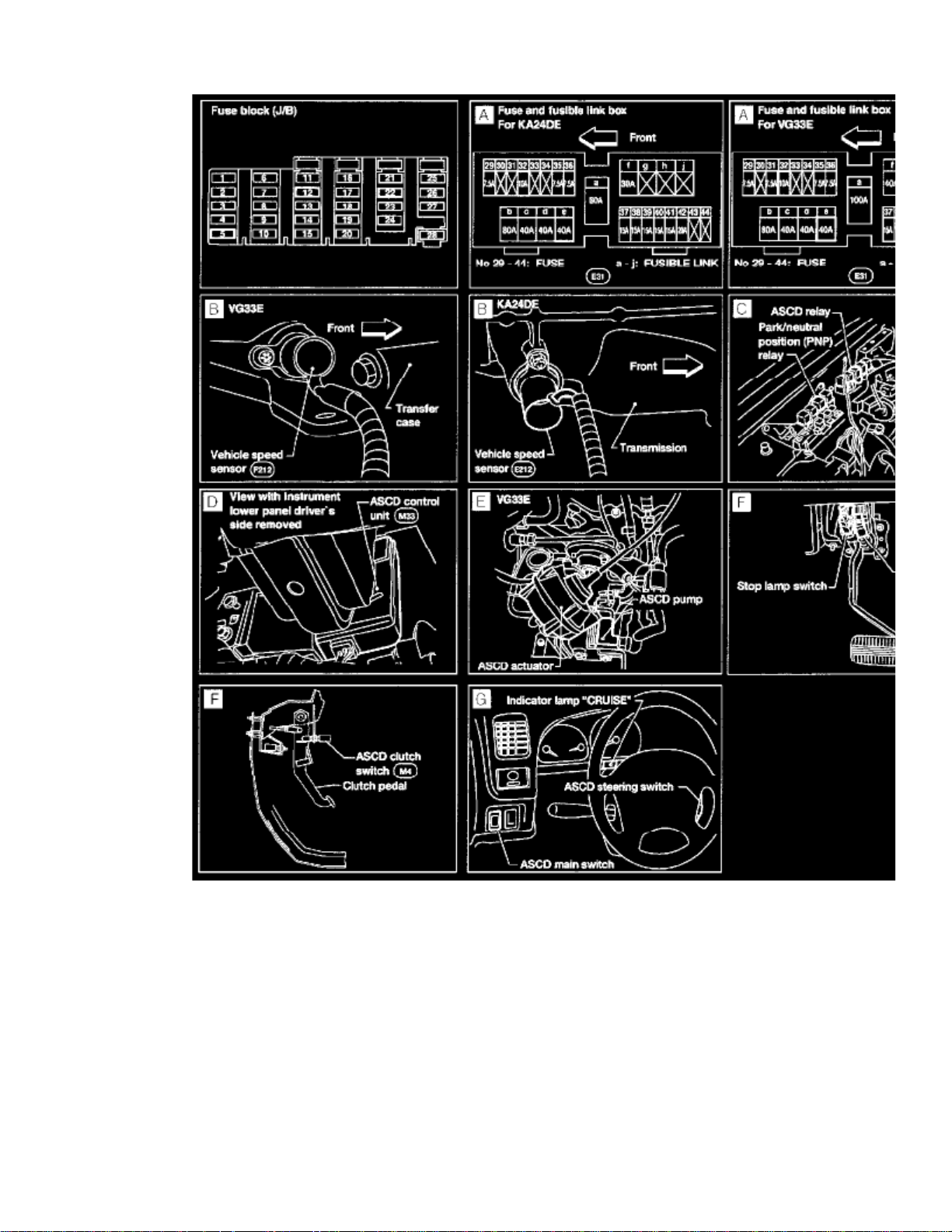

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 48

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Engine Compartment

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 49

Cruise Control Relay: LocationsPark / Neutral Position Relay

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 50

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 51

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Engine Compartment

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations

Blower Motor Relay: Locations

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 56

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Passenger Compartment

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Compressor Clutch Relay

Compressor Clutch Relay: LocationsCompressor Clutch Relay

Engine Compartment

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Compressor Clutch Relay > Page 61

Compressor Clutch Relay: LocationsCompressor Cut-Off Relay

Engine Compartment

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Page 62

Compressor Clutch Relay: Description and Operation
Compressor Cut-Off Relay

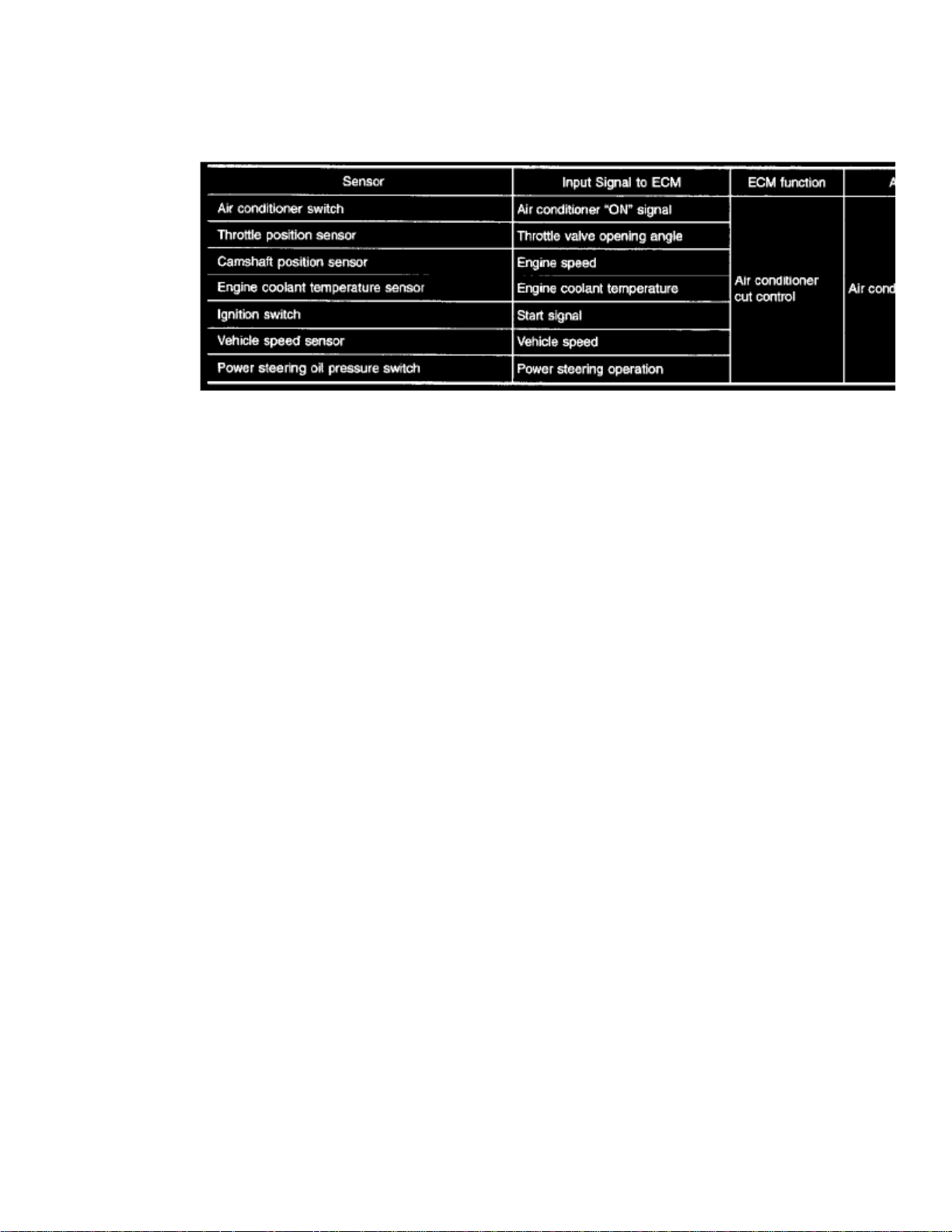

Input/Output Signal Line

System Description

This system improves engine operation when the air conditioner is used.Under the following conditions, the air conditioner is turned off.

- When the accelerator pedal is fully depressed.

- When cranking the engine.

- At high engine speeds.

- When the engine coolant temperature becomes excessively high.

- When operating power steering during low engine speed or low vehicle speed.

- When engine speed is excessively low.

> Relays and Modules > Relays and Modules - Instrument Panel > Audible Warning Device Control Module > Component Information > Locations

Audible Warning Device Control Module: Locations

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module > Component Information > Locations

Fuel Gauge Module: Locations

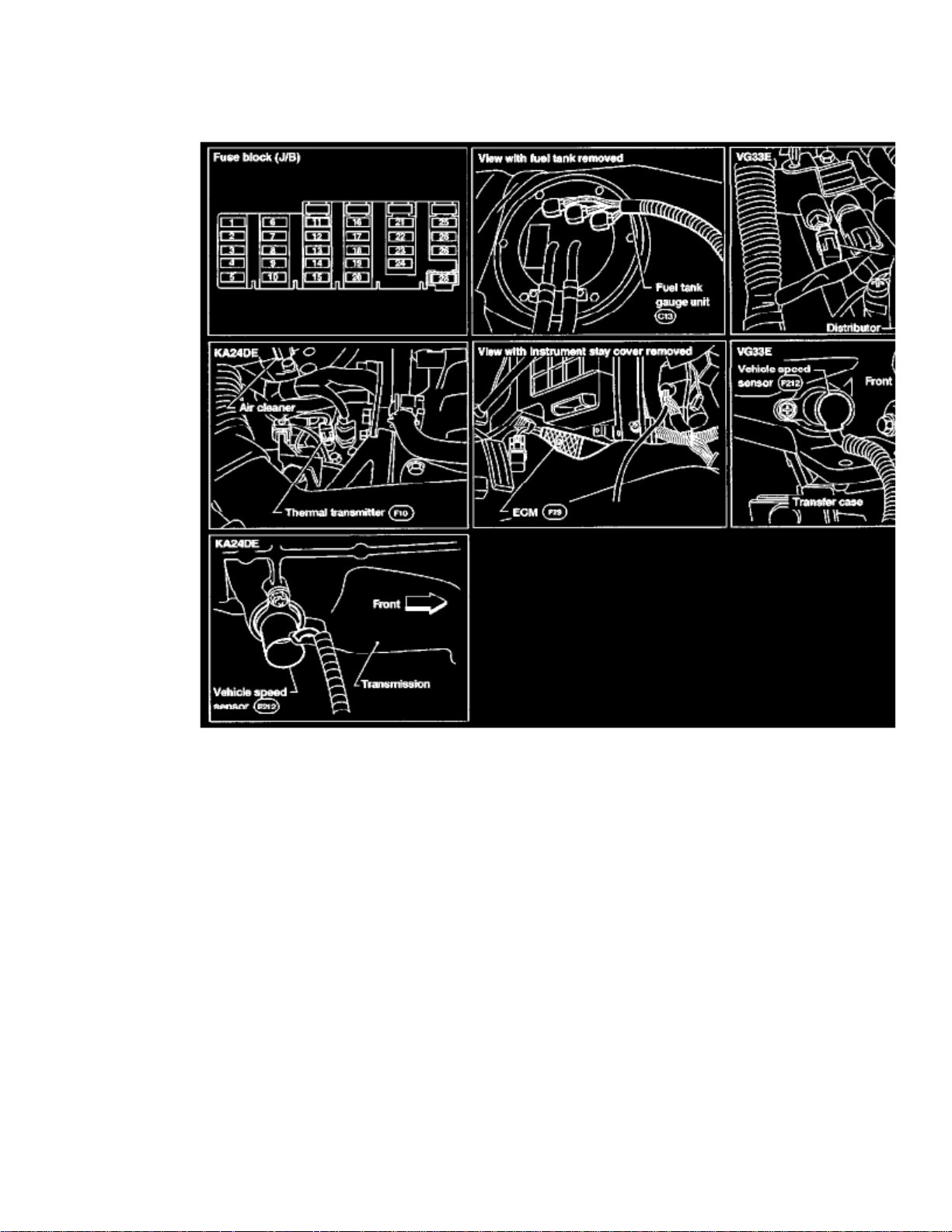

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Lighting and Horns > Exterior Lighting Module > Component Information > Locations

Exterior Lighting Module: Locations

Engine Compartment

> Relays and Modules > Relays and Modules - Lighting and Horns > Fog/Driving Lamp Relay > Component Information > Locations

Fog/Driving Lamp Relay: Locations

Engine Compartment

> Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component Information > Locations

Horn Relay: Locations

Engine Compartment

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations

Relay Box: Locations

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations > Page 84

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations > Page 85

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations > Page 86

Xterra SE 4WD V6-3.3L (VG33E) (2000)

Engine Compartment

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Technical Service Bulletins > All

Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming Interruption Recovery

Engine Control Module: All Technical Service BulletinsEngine Controls - ECM Programming Interruption Recovery

Classification: EC10-015
Reference: NTB10-078
Date: June 21, 2010

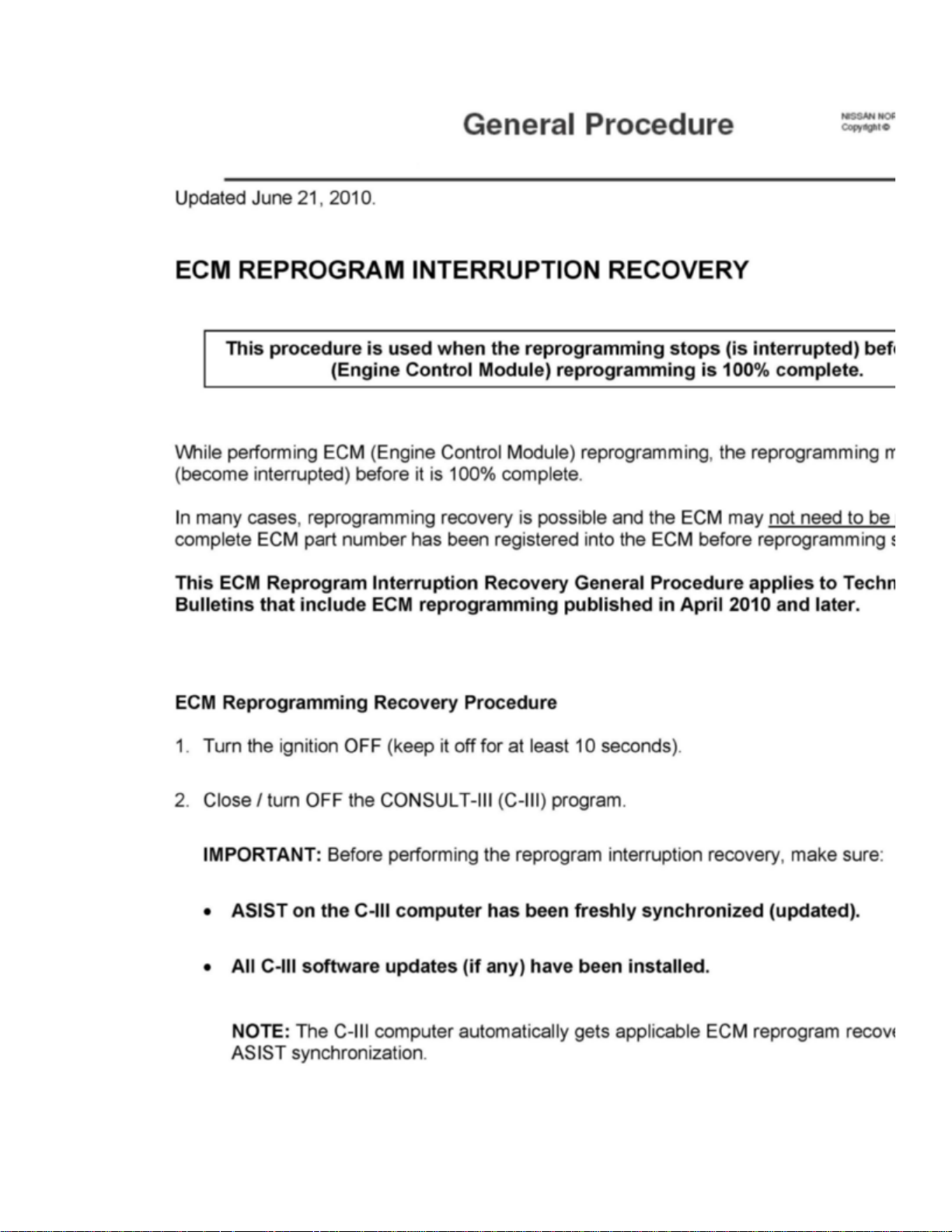

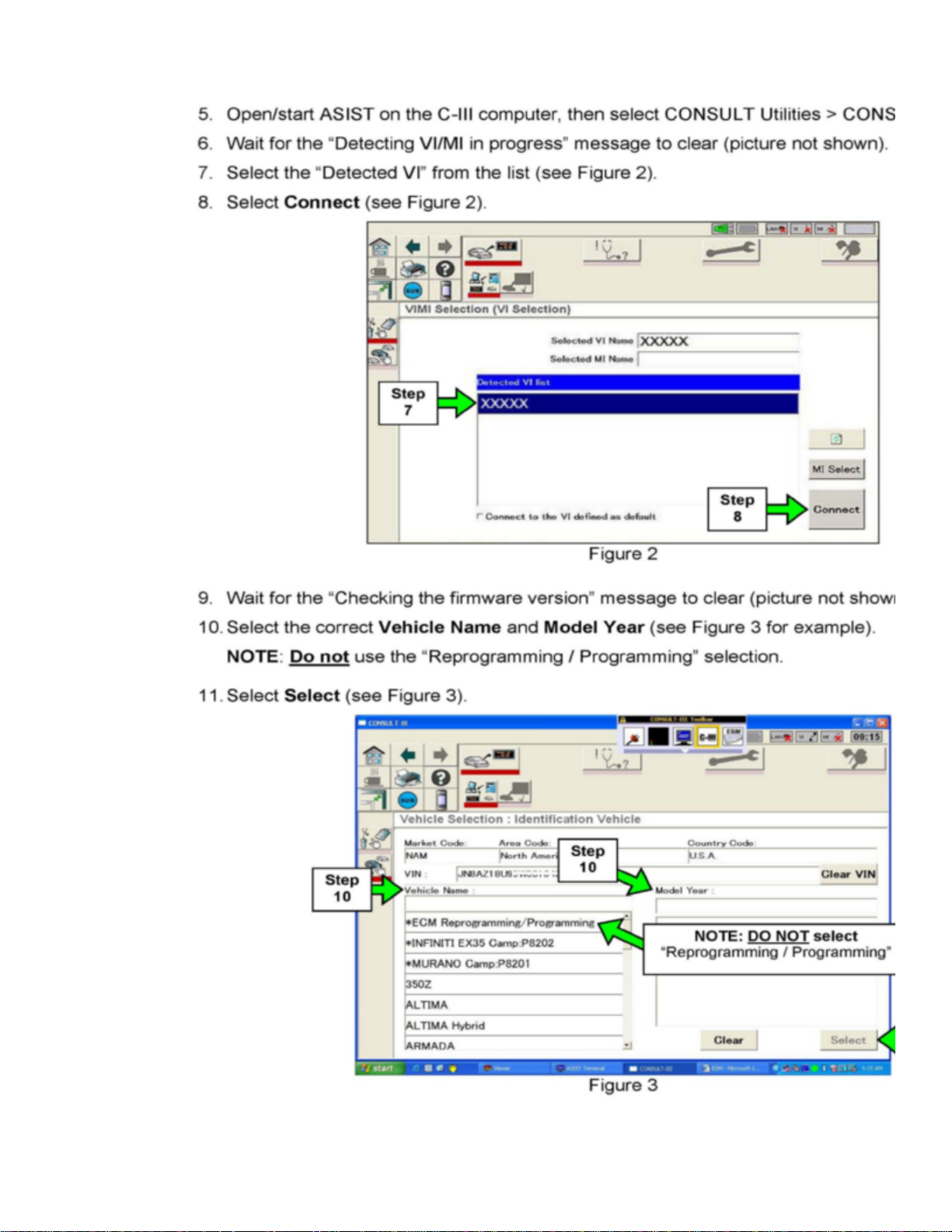

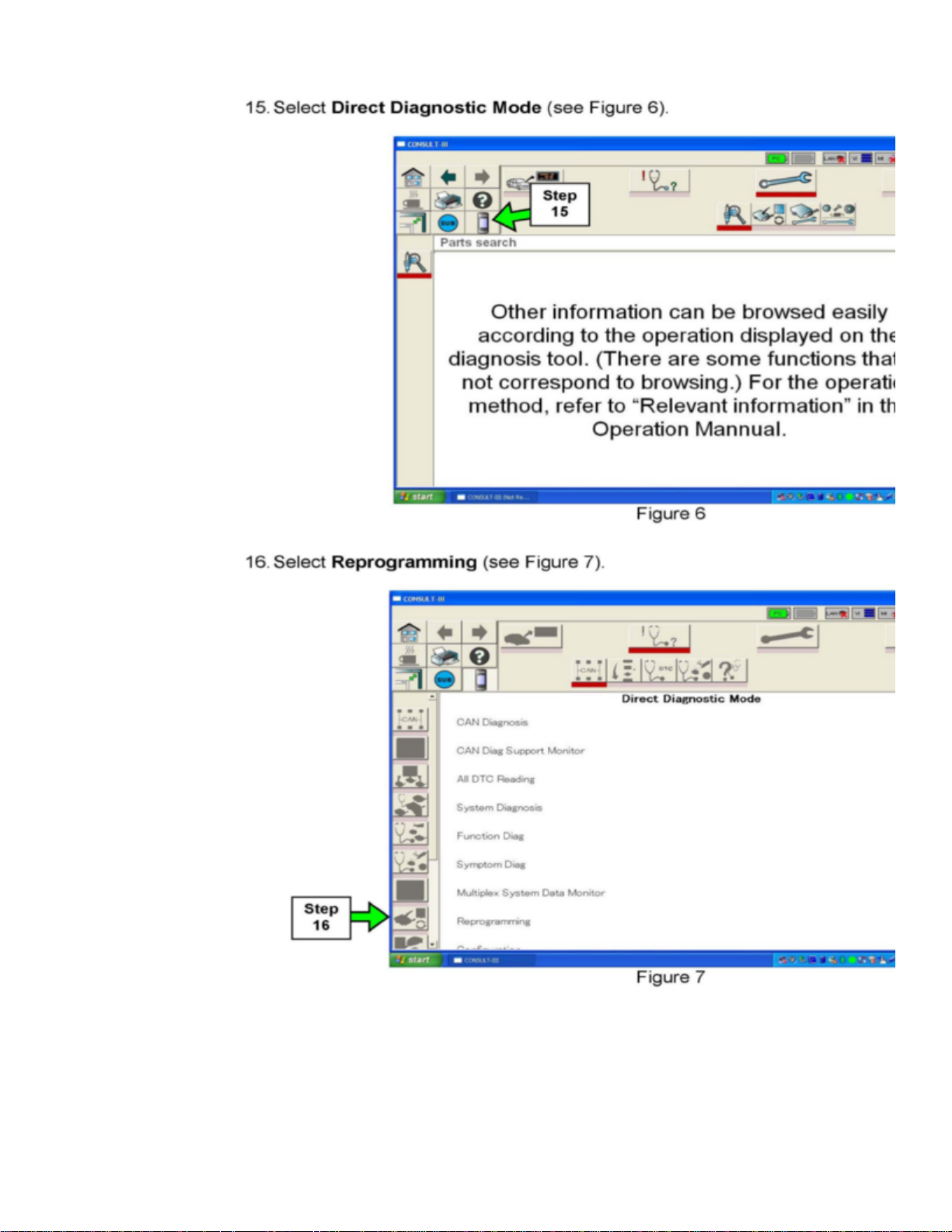

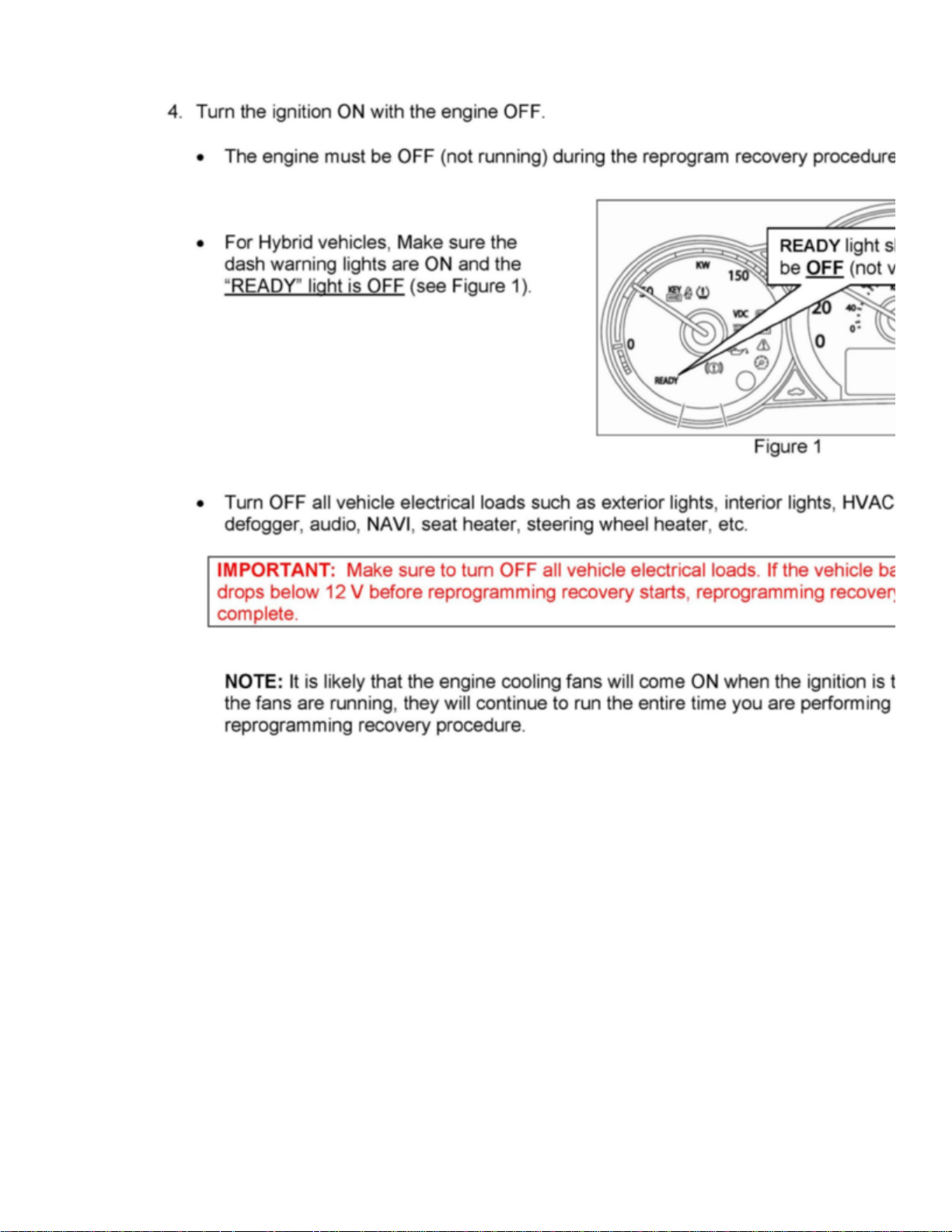

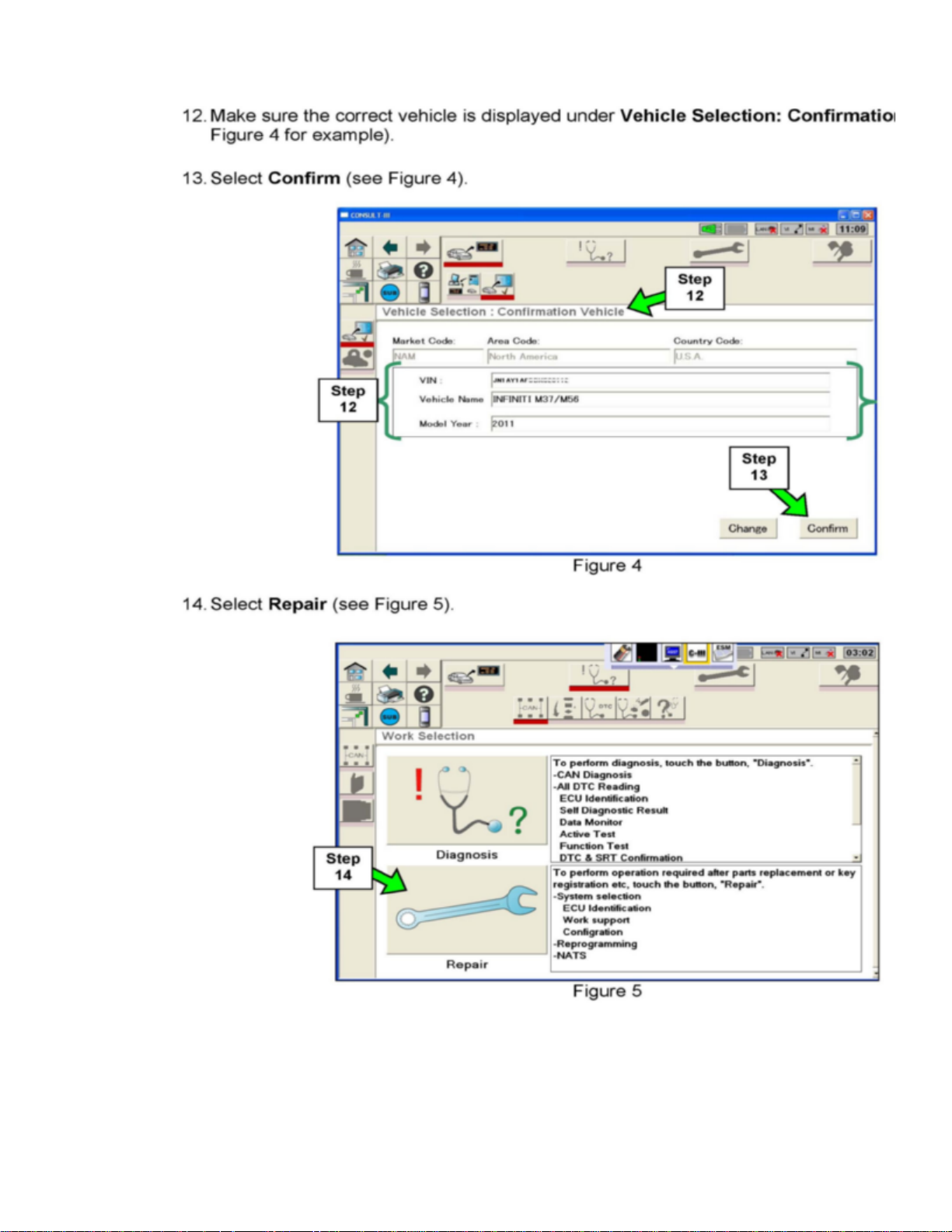

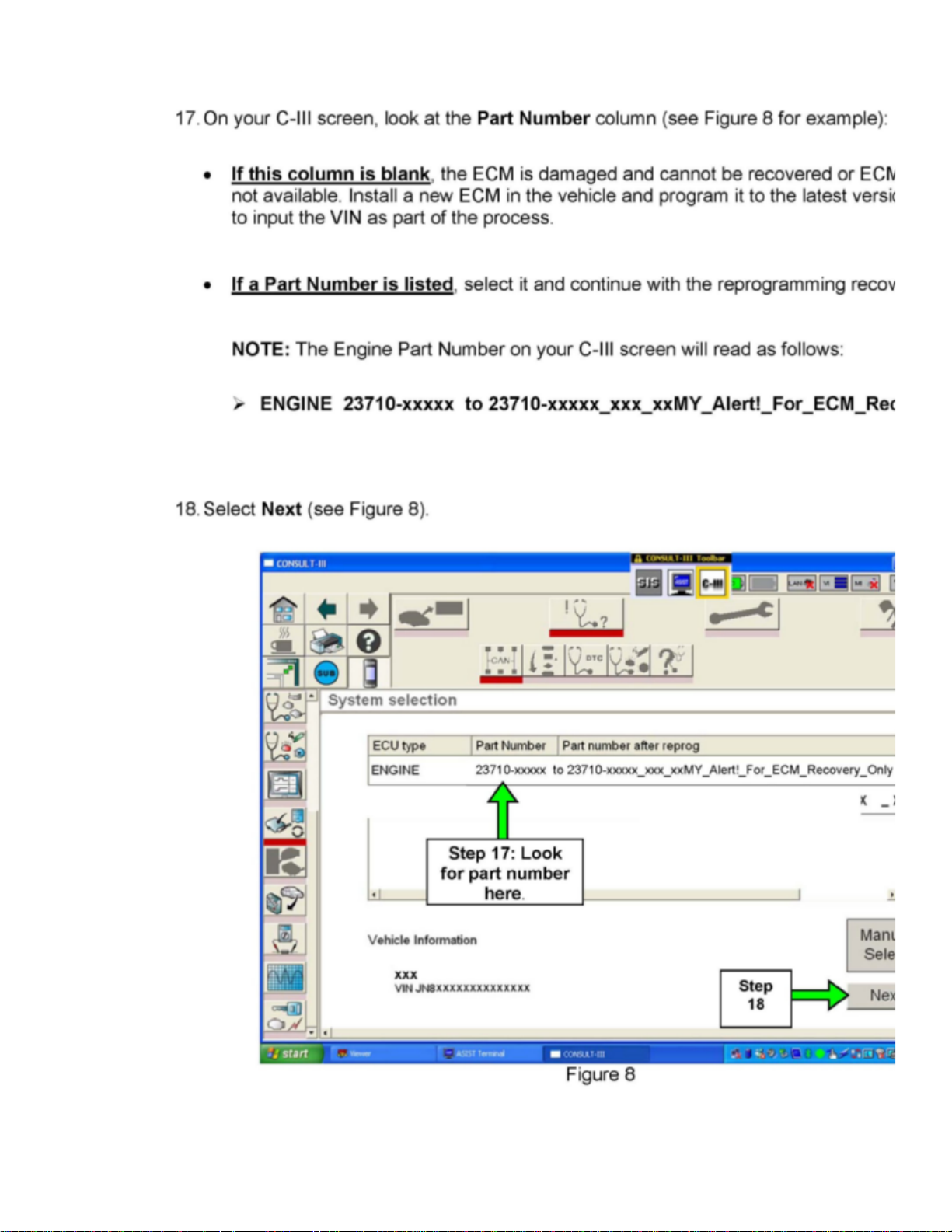

REPROGRAM INTERRUPTION RECOVERY PROCEDURE
SERVICE INFORMATION

A complete step-by-step General Procedure for CONSULT-III (C-III) ECM Reprogram Interruption Recovery is now available by attachment in thisbulletin.
While performing ECM (Engine Control Module) reprogramming, the reprogramming may stop (become interrupted) before it is 100% complete.
One of two messages may appear:
^ The VI probe is disconnected on USB, please check the connection of the probe.
^ Reprogramming fail, "Error code 0".

In many cases, reprogramming recovery is possible and the ECM may not need to be replaced if the complete ECM part number has been registered intothe ECM before reprogramming stopped.

NOTE:

ECM is referred to as ECU in C-III.

The ECM Reprogram Interruption Recovery General Procedure applies to Technical Service Bulletins that include ECM reprogramming published inApril 2010 and later.

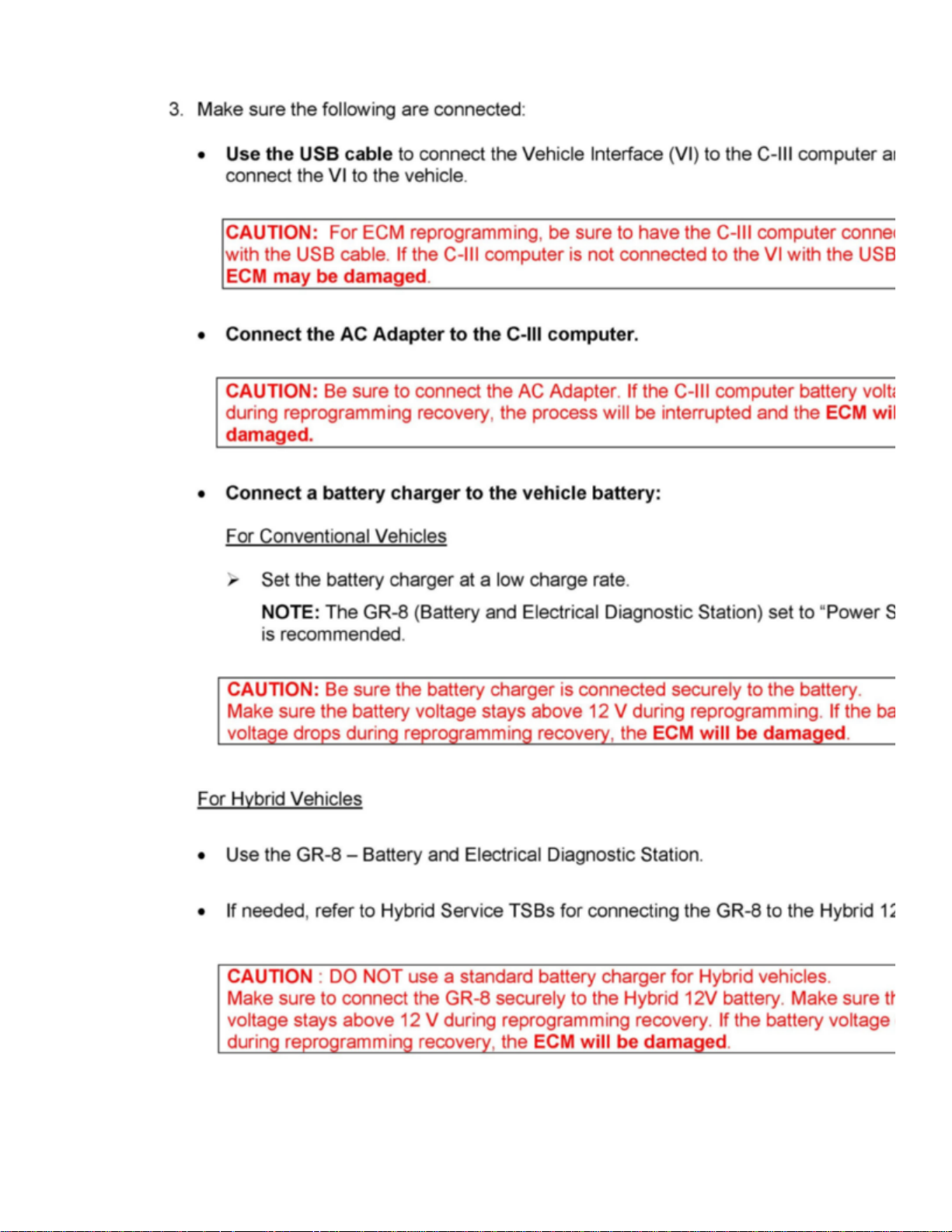

IMPORTANT: BEFORE STARTING REPROGRAMMING

^ Connect a battery charger to the vehicle battery.
^ Be sure to turn OFF all vehicle electrical loads.
^ For ECM reprogramming, the C-III MUST be connected to the VI using the USB cable.
^ Be sure to connect the AC Adapter.

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 97

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 98

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 99

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 100

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 101

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 102

Xterra SE 4WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 103

Xterra SE 4WD V6-3.3L (VG33E) (2000)
