NISSAN Murano Quick Reference Guide 2015

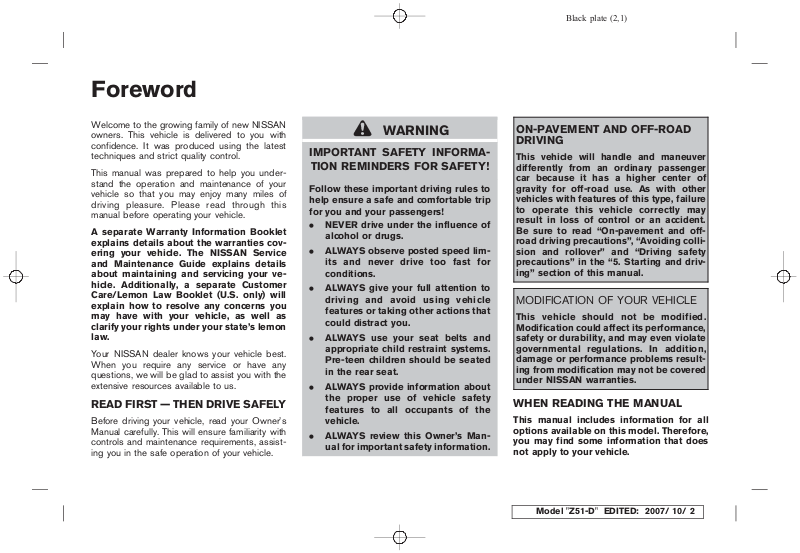

Foreword

Welcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.

This manual was prepared to help you under­stand the operation and maintenance of your
vehicle so that you may enjoy many miles of
driving pleasure. Please read through this
manual before operating your vehicle.

A separate Warranty Information Booklet
explains details about the warranties cov­ering your vehicle. The NISSAN Service
and Maintenance Guide explains details
about maintaining and servicing your ve­hicle. Additionally, a separate Customer
Care/Lemon Law Booklet (U.S. only) will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state’s lemon
law.

Your NISSAN dealer knows your vehicle best.
When you require any service or have any
questions, we will be glad to assist you with the
extensive resources available to us.

READ FIRST — THEN DRIVE SAFELY

Before driving your vehicle, read your Owner’s
Manual carefully. This will ensure familiarity with
controls and maintenance requirements, assist­ing you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMA-

TION REMINDERS FOR SAFETY!

Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!

. NEVER drive under the influence of

alcohol or drugs.

. ALWAYS observe posted speed lim-

its and never drive too fast for
conditions.

. ALWAYS give your full attention to

driving and avoid using vehicle
features or taking other actions that
could distract you.

. ALWAYS use your seat belts and

appropriate child restraint systems.
Pre-teen children should be seated
in the rear seat.

. ALWAYS provide information about

the proper use of vehicle safety
features to all occupants of the
vehicle.

. ALWAYS review this Owner’s Man-

ual for important safety information.

ON-PAVEMENT AND OFF-ROAD
DRIVING

This vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity for off-road use. As with other
vehicles with features of this type, failure
to operate this vehicle correctly may
result in loss of control or an accident.
Be sure to read “On-pavement and off­road driving precautions”, “Avoiding colli­sion and rollover” and “Driving safety
precautions” in the “5. Starting and driv­ing” section of this manual.

MODIFICATION OF YOUR VEHICLE

This vehi cle should not be modified.
Modification could affect its performance,
safety or durability, and may even violate
governmental regulations. In addition,
damage or performance problems result­ing from modification may not be covered
under NISSAN warranties.

WHEN READING THE MANUAL

This manual includes information for all
options available on this model. Therefore,
you may find some information that does
not apply to your vehicle.

All information, specifications and illustrations in
this manual are those in effect at the time of
printing. NISSAN reserves the right to change
specifications or design at any time without
notice.

IMPORTANT INFORMATION ABOUT
THIS MANUAL

You will see various symbols in this manual. They
are used in the following ways:

WARNING

This is used to indicate the presence of
a hazard that could cause death or
serious personal injury. To avoid or
reduce the risk, the procedures must
be followed precisely.

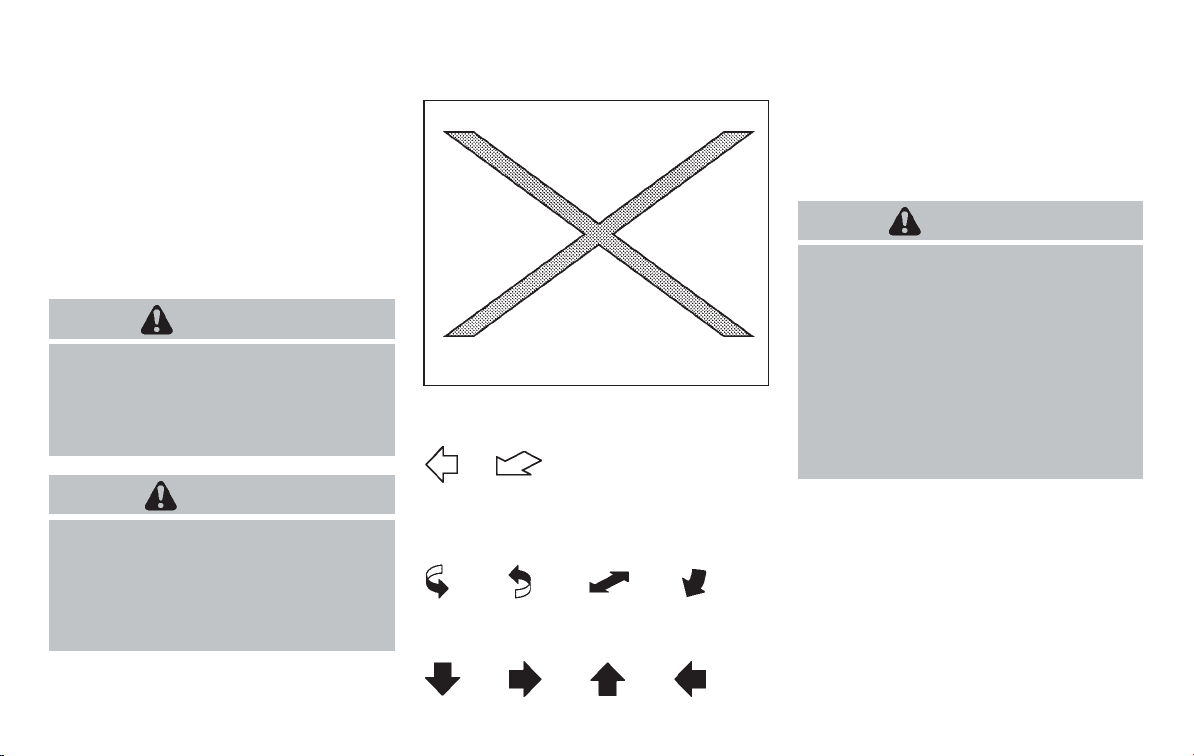

SIC0697

If you see the symbol above, it means “Do not
do this” or “Do not let this happen”.

Arrows in an illustration that are similar to those
above call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65
WARNING

WARNING

Engine exhaust, some of its constitu­ents, and certain vehicle components
contain or emit chemicals known to the
State of California to cause cancer and
birth defects or other re productive
harm. In addition, certain fluids con­tained in vehicles and certain products
of component wear contain or emit
chemicals known to the State of Cali­fornia to cause cancer and birth defects
or other reproductive harm.

CAUTION

This is used to indicate the presence of
a hazard that could cause minor or
moderate personal injury or damage to
your vehicle. To avoid or reduce the risk,
the procedures must be followed care­fully.

If you see a symbol similar to those above in an
illustration, it means the arrow points to the front
of the vehicle.

Arrows in an illustration that are similar to those
above indicate movement or action.

CALIFORNIA PERCHLORATE ADVI­SORY

Some vehicle parts, such as lithium bat­teries, may contain perchlorate material.
The following advisory is provided: “Per­chlorate Material - special handling may
apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”

BLUETOOTH®is a trademark
owned by Bluetooth SIG, Inc.,
U.S.A.

Gracenote®is a registered tra­demark of Gracenote, Inc. The
Gracenote logo and logo type,
and the “Powered by Gracenote”
logo are trademarks of Grace­note.

C

*

2007 NISSAN MOTOR CO., LTD.

All rights reserved. No part of this Owner’s
Manual may be r eproduced or stored in a
retrieval system, or transmitted in any form, or
by any means, electronic, mechanical, photo­copying, recording or otherwise, without the
prior written permission of Nissan Motor Co.,
Ltd.

NISSAN CUSTOMER CARE
PROGRAM

NISSAN CARES ...

Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is so mething that your
NISSAN dealer cannot assist you with or you
would like to provide NISSAN directly with
comments or questions, please contact the
NISSAN Consumer Affairs Department using
our toll-free number:

For U.S. customers

1-800-NISSAN-1
(1-800-647-7261)

For Canadian customers

1-800-387-0122

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

The Consumer Affairs Department will ask for
the following information:

— Your name, address, and telephone number

— Vehicle identification number (attached to

the top of the instrument panel on the
driver’s side)

— Date of purchase

— Current odometer reading

— Your NISSAN dealer’s name

— Your comments or questions

OR

You can write to NISSAN with the information at:

For U.S. customers

Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003

For Canadian customers

Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5

Table of

Illustrated table of contents

0

Contents

Safety — Seats, seat belts and supplemental
restraint system

Instruments and controls

Pre-driving checks and adjustments

Monitor, heater, air conditioner, audio, phone and
voice recognition systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

1

2

3

4

5

6

7

8

9

Index

10

0 Illustrated table of contents

Seats, seat belts and Supplemental Restraint

System (SRS) ................................................... 0-2

Exterior front ..................................................... 0-3

Exterior rear ...................................................... 0-4

Passenger compartment ...................................... 0-5

Instrument panel ................................................ 0-6

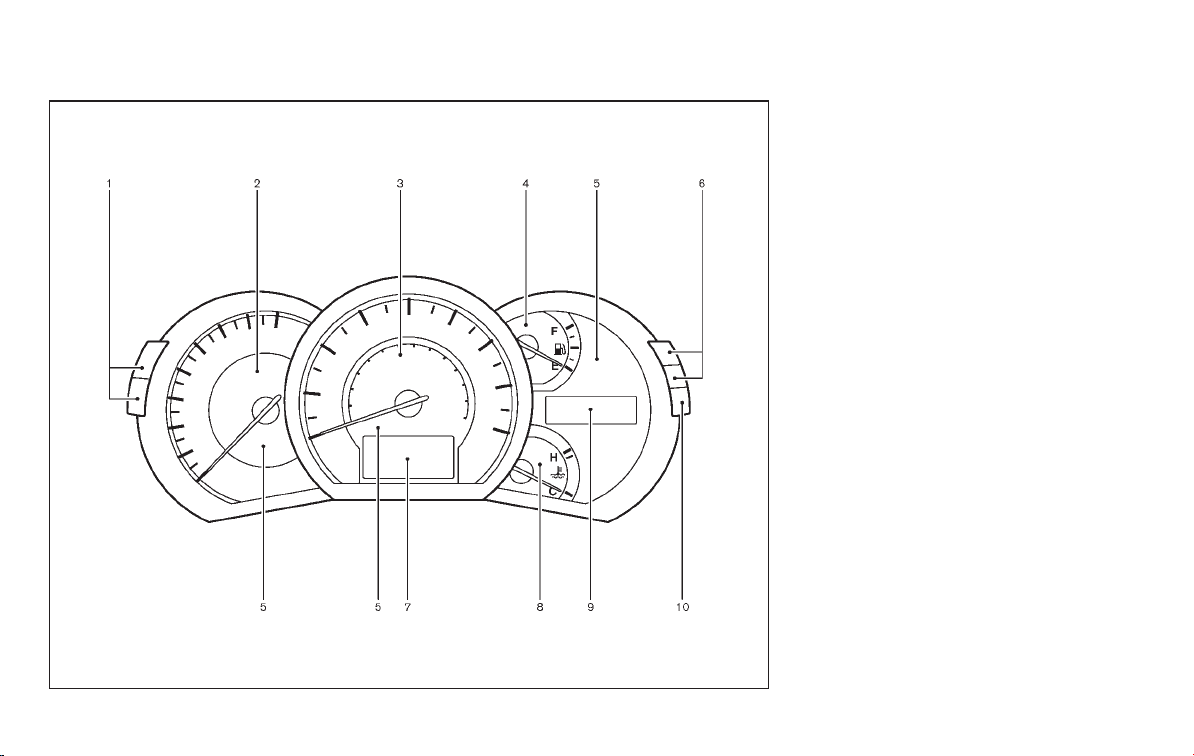

Meters and gauges............................................. 0-8

Engine compartment ........................................... 0-9

VQ35DE engine ............................................ 0-9

SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

1. Rear center seat belt (P.1-18)

2. Head restraints (P.1-8)
— Front-seat Active Head Restraints (P.1-9)

3. Seat belts (P.1-10)

4. Armrest

5. Roof-mounted curtain side-impact and rollover
supplemental air bags (P.1-41)

6. Supplemental front-impact air bags (P.1-41)

7. Child restraint anchor points (for top tether strap
child restraint) (P.1-25)

8. LATCH (Lower Anchors and Tethers for CHildren)
system (P.1-23)

9. Rear seats (P.1-6)
— Child restraints (P.1-22)

10. Front seat-mounted side-impact supplemental air
bags (P.1-41)

11. Seat belt pretensioner (P.1-53)

12. Front seats (P.1-3)

13. Occupant classification sensor (pattern sensor)
— Advanced Air Bag System (P.1-47)

0-2 Illustrated table of contents

SSI0372

EXTERIOR FRONT

SSI0373

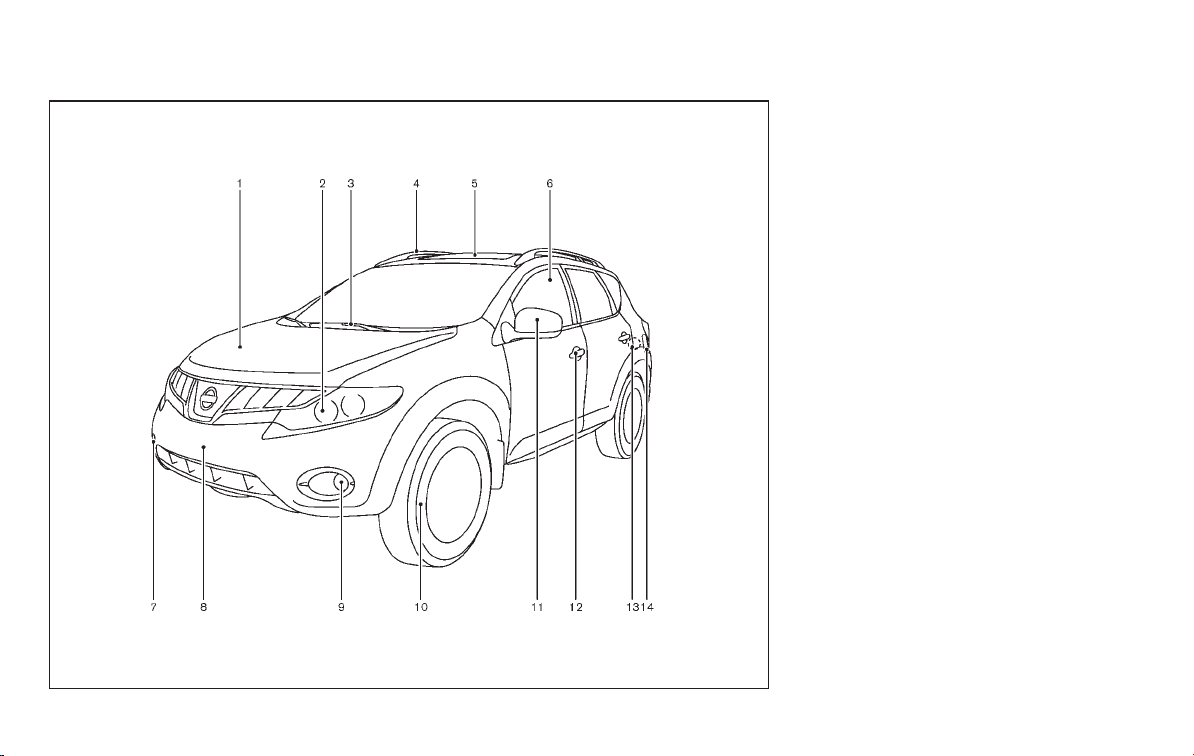

1. Hood (P.3-18)

2. Headlight and turn signal lights
— Switch operation (P.2-32)
— Bulb replacement (P.8-25)

3. Windshield wiper and washer
— Switch operation (P.2-28)
— Blade replacement (P.8-17)
— Window washer fluid (P.8-12)

4. Roof rack (rail)* (P.2-48)

5. Moonroof* (P.2-52)

6. Power windows (P.2-49)

7. Recovery hook (P.6-15)

8. License plate installation (P.9-11)

9. Fog lights*
— Switch operation (P.2-36)
— Bulb replacement (P.8-27)

10. Tires
— Wheel and tires (P.8-30, P.9-7)
— Flat tire (6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-13, P.5-3)

11. Outside mirrors (P.3-28)

12. Doors
— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system* (P.3-7)
— Remote keyless entry system (P.3-15)
— Security system (P.2-25)

13. Child safety rear door lock (P.3-7)

14. Fuel-filler door
— Operation (P.3-23)
— Fuel recommendation (P.9-3)

*: if so equipped

Illustrated table of contents 0-3

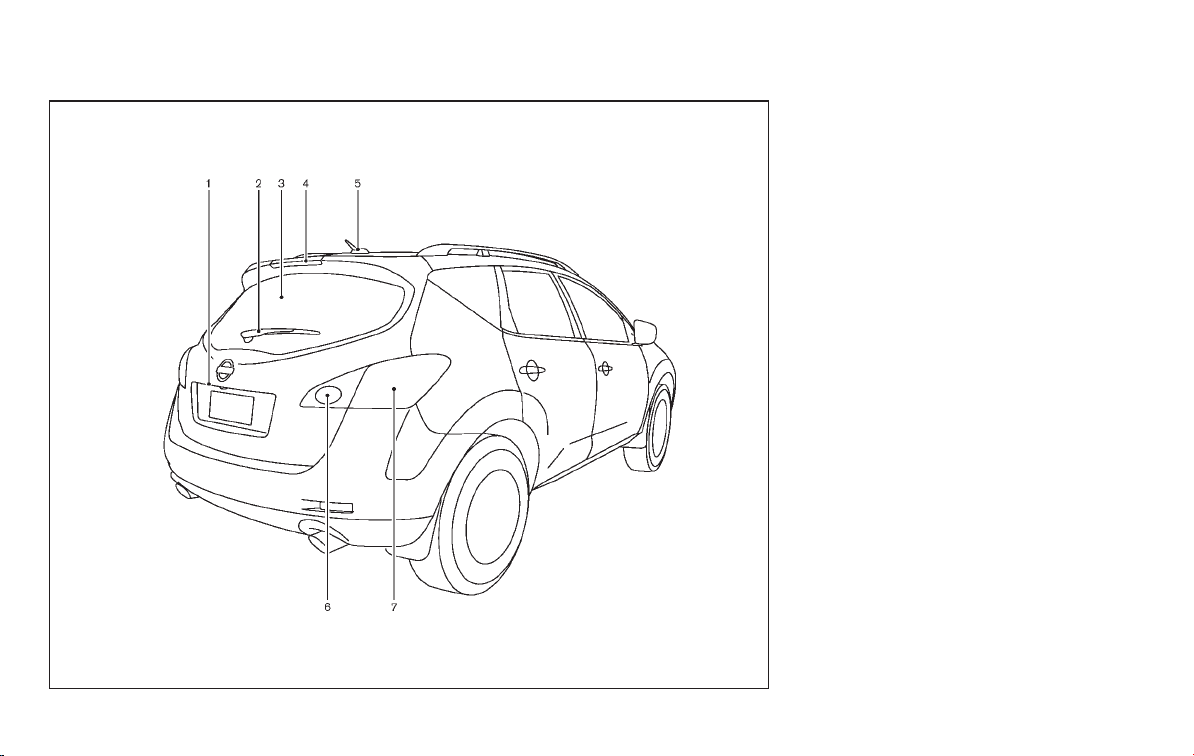

EXTERIOR REAR

1. Lift gate (P.3-18)
— Remote keyless entry system (P.3-15)
— Intelligent Key system* (P.3-7)

2. Rear window wiper and washer
— Switch operation (P.2-30)
— Window washer fluid (P.8-12)

3. Rear window defroster (P.2-31)

4. High-mounted stop light
— Bulb replacement (P.8-27)

5. Antenna (P.4-61)
— Satellite radio antenna* (P.4-32)

6. Back-up light
— Bulb replacement (P.8-27)

7. Rear combination light
— Bulb replacement (P.8-27)

*: if so equipped

0-4 Illustrated table of contents

SSI0374

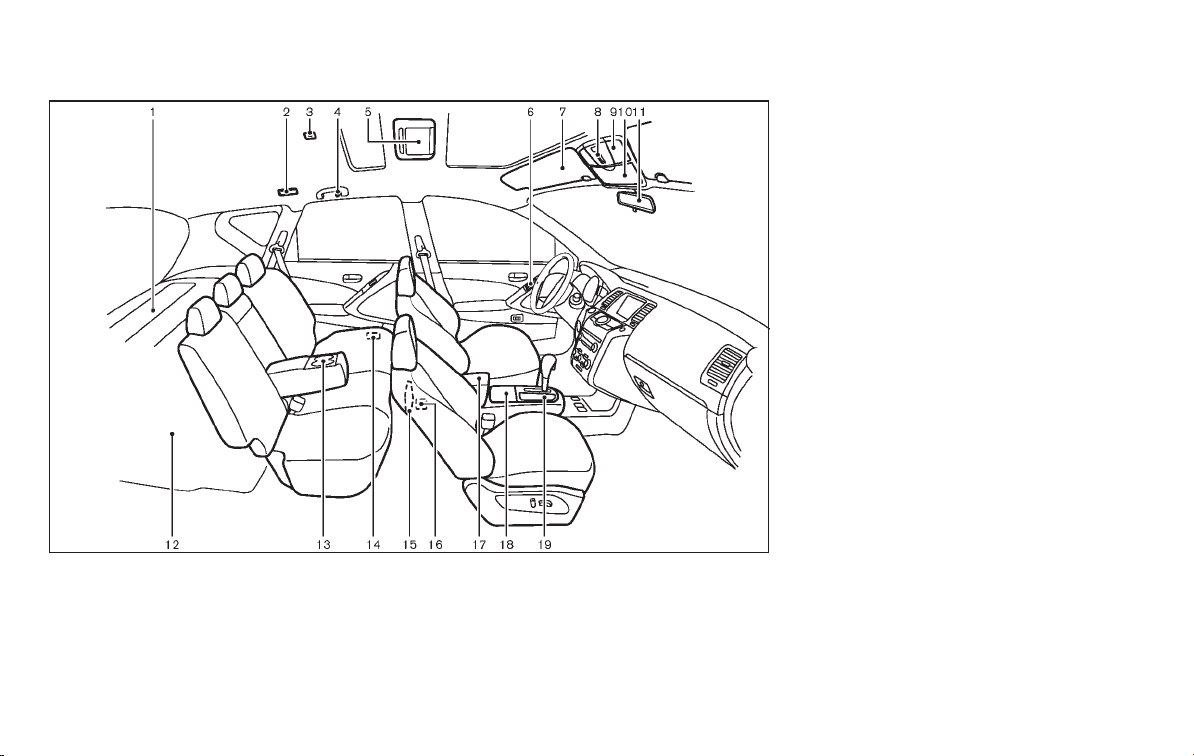

PASSENGER COMPARTMENT

SSI0375

8. Moonroof* (P.2-52)

9. Front map lights (P.2-54)

10. Sunglasses holder (P.2-42)

11. Inside rearview mirror (P.3-27)
— Anti-glare adjustment* (P.3-28)
— HomeLink
— Compass* (P.2-7)

12. Cargo area
— Storages (P.2-45)
— Luggage hooks (P.2-47)
— Cargo light* (P.2-56)
— Spare tire (P.6-3)

13. Rear cup holders (P.2-41)

14. Heated seat switch (Rear)* (P.2-37)

15. Console box - rear (P.2-44)

16. Auxiliary input jack* (P.4-48)

17. Console box (P.2-44)
— Power outlet* (P.2-39)

18. Front cup holders (P.2-41)

19. Storage box (P.2-45) or Cigarette lighter/Ashtray
(P.2-41)

*: if so equipped

®

universal transceiver* (P.2-57)

1. Cargo cover* (P.2-46)

2. Rear personal light (P.2-54)

3. Mood light (P.2-55)

4. Coat hooks (P.2-49)

5. Mobile Entertainment System (MES)*
— Flip-down screen (P.4-64)
— Digital Versatile Disc (DVD) player (P.4-62)

— DVD remote controller (P.4-66)
— Headphones (P.4-65)

6. Door armrest
— Power window switch (P.2-49)
— Power door lock switch (P.3-6)
— Outside mirror remote control switch (P.3-28)

7. Sun visors (P.3-26)

Illustrated table of contents 0-5

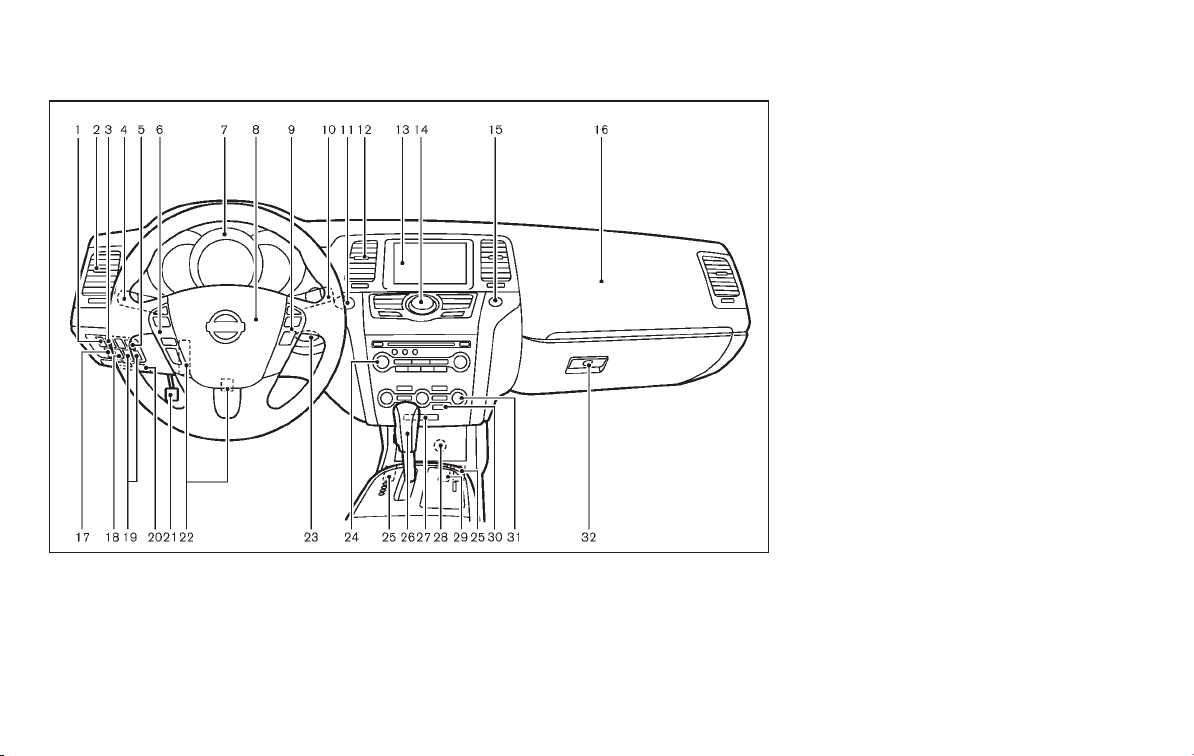

INSTRUMENT PANEL

1. Headlight aiming control* (P.2-34)

2. Side ventilator (P.4-25)

3. Power lift gate switch* (P.3-18)

4. Headlight, fog light* and turn signal switch
(P.2-32)

5. Fuel-filler door opener switch (P.3-23)

0-6 Illustrated table of contents

SSI0376

6. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-60)
— Bluetooth

®

Hands-Free Phone System control*

(P.4-75)

7. Meters and gauges (P.2-4)

8. Steering wheel
— Horn (P.2-37)
— Driver supplemental air bag (P.1-41)
— Power steering system (P.5-25)

9. Steering-wheel-mounted controls (right side)
— Cruise control switches (P.5-18)

10. Wiper and washer switch (P.2-28)

11. Push-button ignition switch (P.5-8)

12. Center ventilator (P.4-25)

13. Center display (P.4-26, P.4-31)/Center color dis­play* (P.4-2)/Navigation system**

14. Heater/air conditioner or
Center multi-function control panel*
— Navigation system**
— Vehicle information and setting buttons (P.4-8)
— Bluetooth

®

Hands-Free Phone System (P.4-75)

— Audio system (P.4-31)

15. Hazard warning flasher switch (P.2-36)

16. Front passenger supplemental air bag (P.1-41)

17. Vehicle Dynamic Control (VDC) OFF switch
(P.2-39, 5-27)

18. Power lift gate main switch (P.3-18)

19. Power seatback switch* (P.1-6)

20. Fuse box cover (P.8-21)

21. Parking brake (P.5-17)

22. Tilting telescopic steering wheel lever or switch
(P.3-25)

23. Key port (P.5-11)

24. Audio system (P.4-31)
— Clock (P.2-38)

25. Heated seat switch* (P.2-37)

26. Selector lever (P.5-13)

27. Front passenger air bag status light (P.1-48)

28. Power outlet (P.2-39)

29. All-Wheel Drive (AWD) LOCK switch* (P.5-21)

30. Rear window and outside mirror* defroster switch
(P.2-31)

31. Heater/air conditioner control (P.4-26) or Audio
system (P.4-39)

32. Glove box (P.2-43)

*: if so equipped
**: Refer to the separate Navigation System Owner’s

Manual (if so equipped) .

Illustrated table of contents 0-7

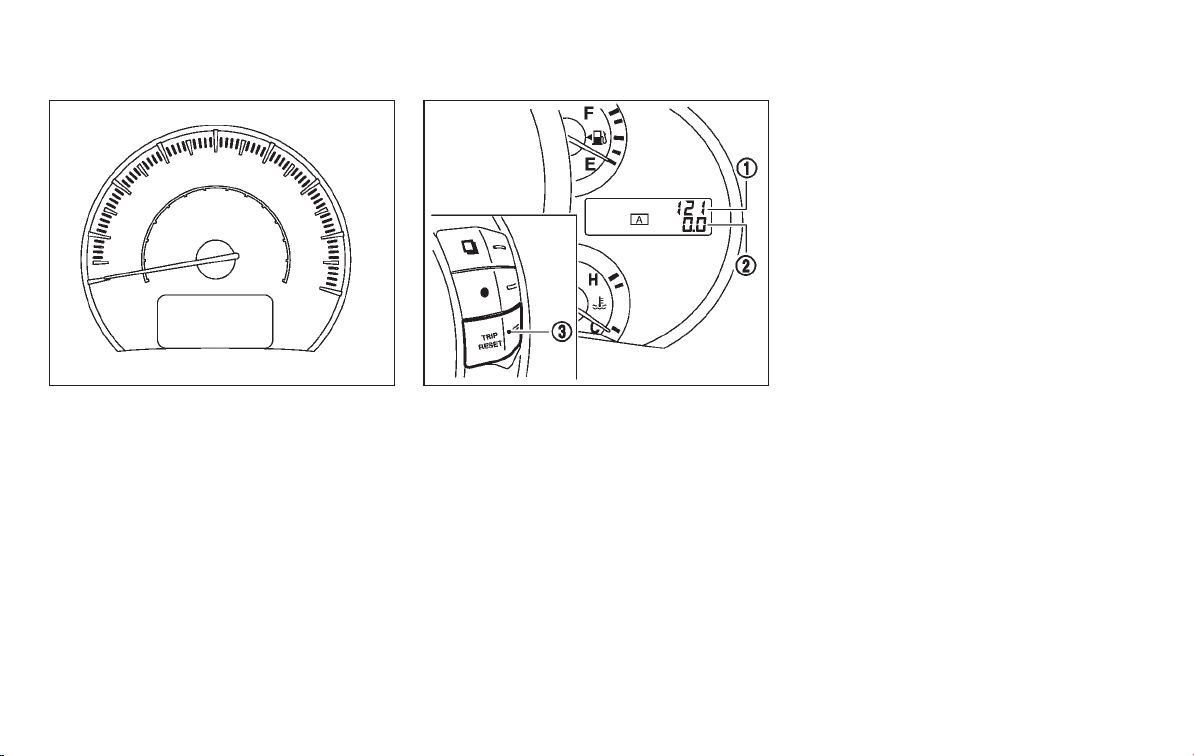

METERS AND GAUGES

1. Instrument brightness control switch (P.2-35)

2. Tachometer (P.2-6)

3. Speedometer (P.2-5)

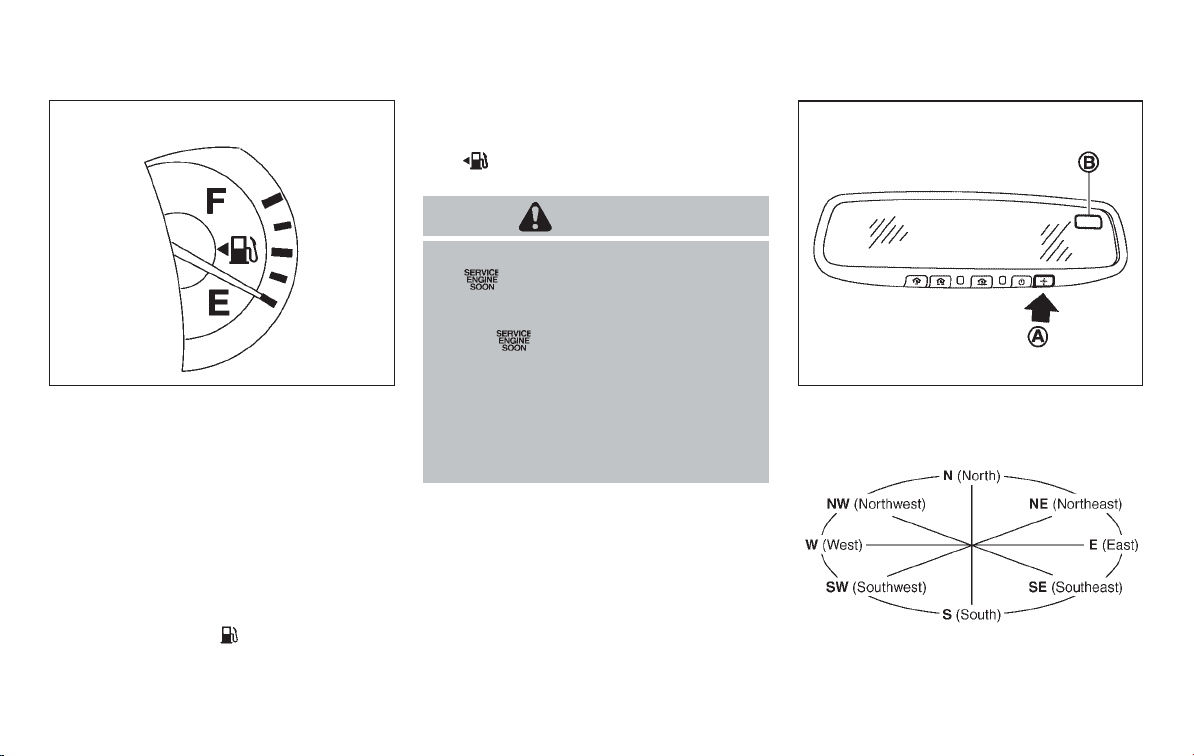

4. Fuel gauge (P.2-7)

5. Warning/indicator lights (P.2-10)

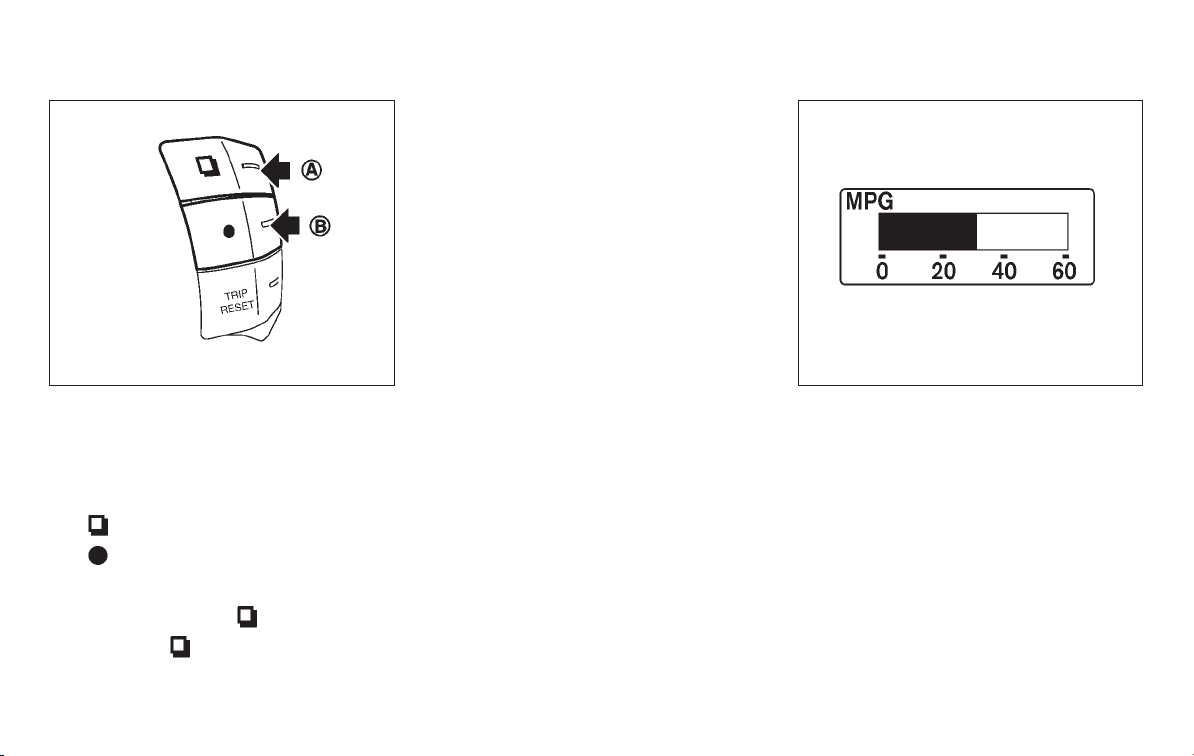

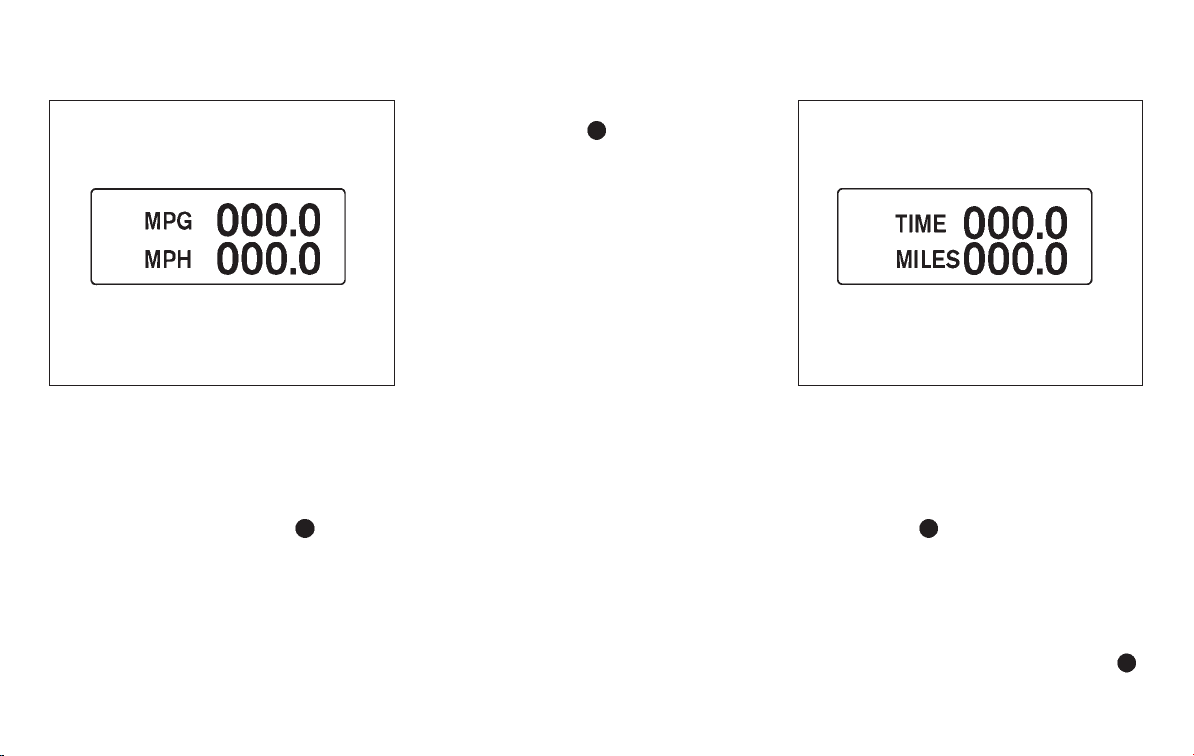

6. Trip computer switch (P.2-21)

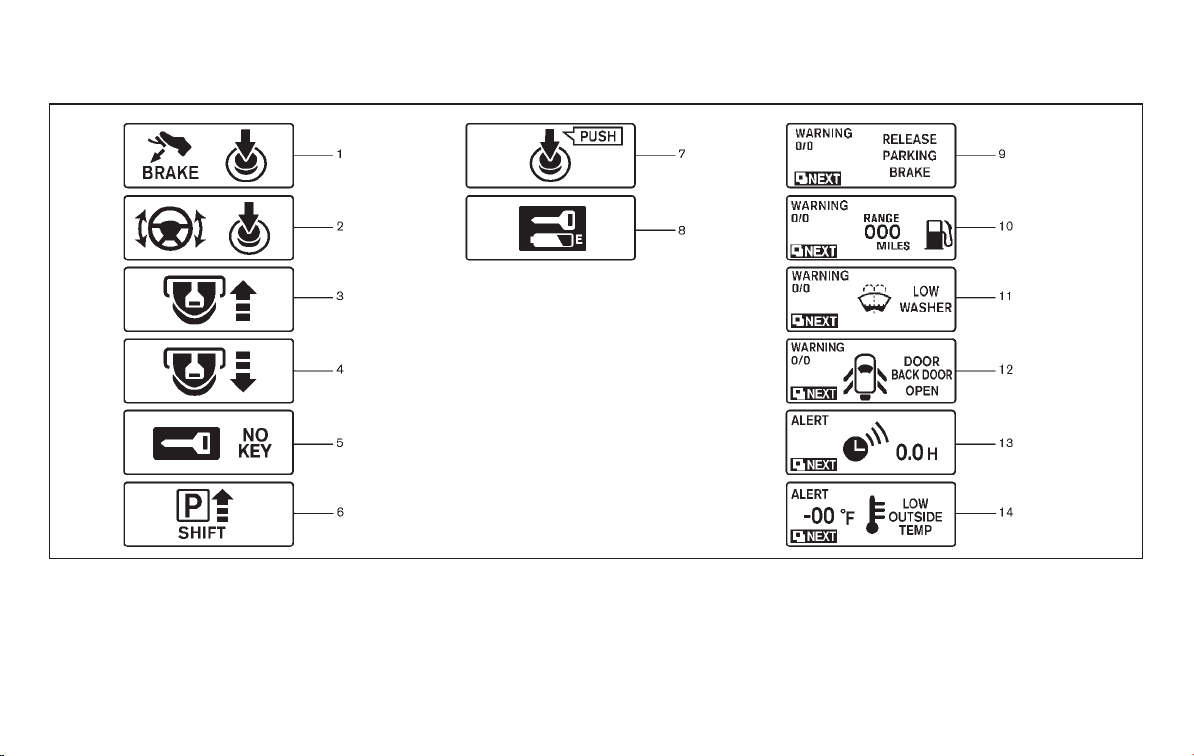

7. Dot matrix liquid crystal display (P.2-17)

8. Engine coolant temperature gauge (P.2-6)

9. Vehicle information display
— Odometer/twin trip odometer (P.2-5)
— Continuously Variable Transmission (CVT)
position indicator (P.2-15)

10. RESET switch for trip odometer (P.2-5)

0-8 Illustrated table of contents

SSI0377

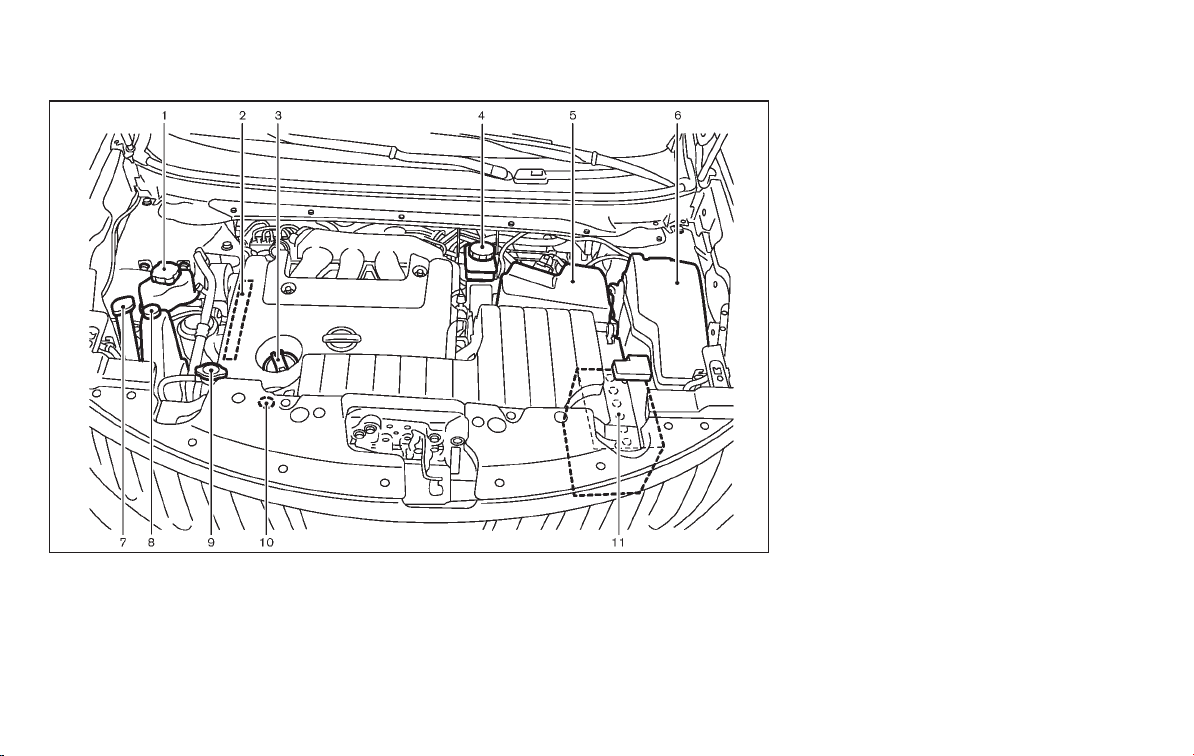

ENGINE COMPARTMENT

SDI2172

VQ35DE ENGINE

1. Power steering fluid reservoir (P.8-11)

2. Drive belt location (P.8-15)

3. Engine oil filler cap (P.8-8)

4. Brake fluid reservoir (P.8-12)

5. Air cleaner (P.8-16)

6. Fuse/fusible link holder (P.8-20)

7. Window washer fluid reservoir (P.8-12)

8. Engine coolant reservoir (P.8-7)

9. Radiator filler cap (P.8-7)

10. Engine oil dipstick (P.8-8)

11. Battery (P.8-13)

Illustrated table of contents 0-9

1 Safety — Seats, seat belts and supple-

mental restraint system

Seats .............................................................. 1-2

Front seats ................................................... 1-3

Rear seats.................................................... 1-6

Head restraints .............................................. 1-8

Front-seat Active Head Restraints ...................... 1-9

Armrest...................................................... 1-10

Seat belts ...................................................... 1-10

Precautions on seat belt usage ....................... 1-10

Child safety ................................................ 1-13

Pregnant women.......................................... 1-14

Injured persons............................................ 1-14

Three-point type seat belt .............................. 1-14

Seat belt extenders....................................... 1-21

Seat belt maintenance ................................... 1-21

Child restraints ................................................ 1-22

Precautions on child restraints......................... 1-22

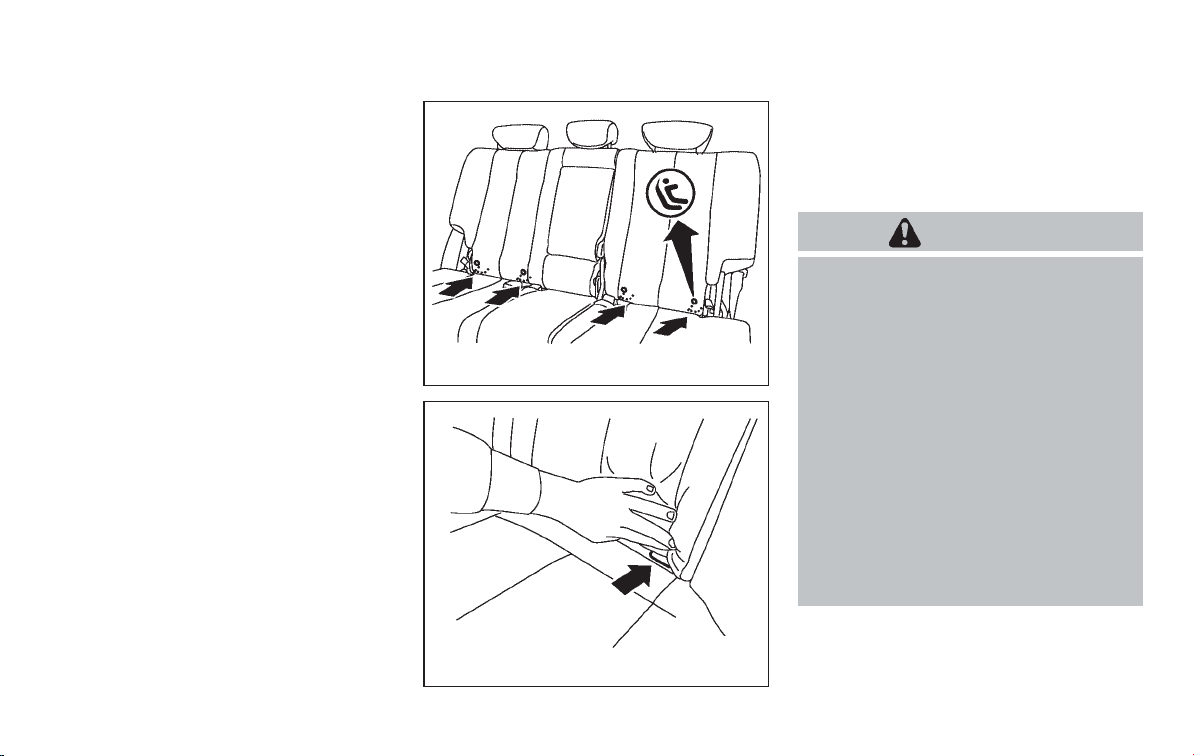

Lower Anchors and Tethers for CHildren system

(LATCH) .................................................... 1-23

Top tether strap child restraint ......................... 1-25

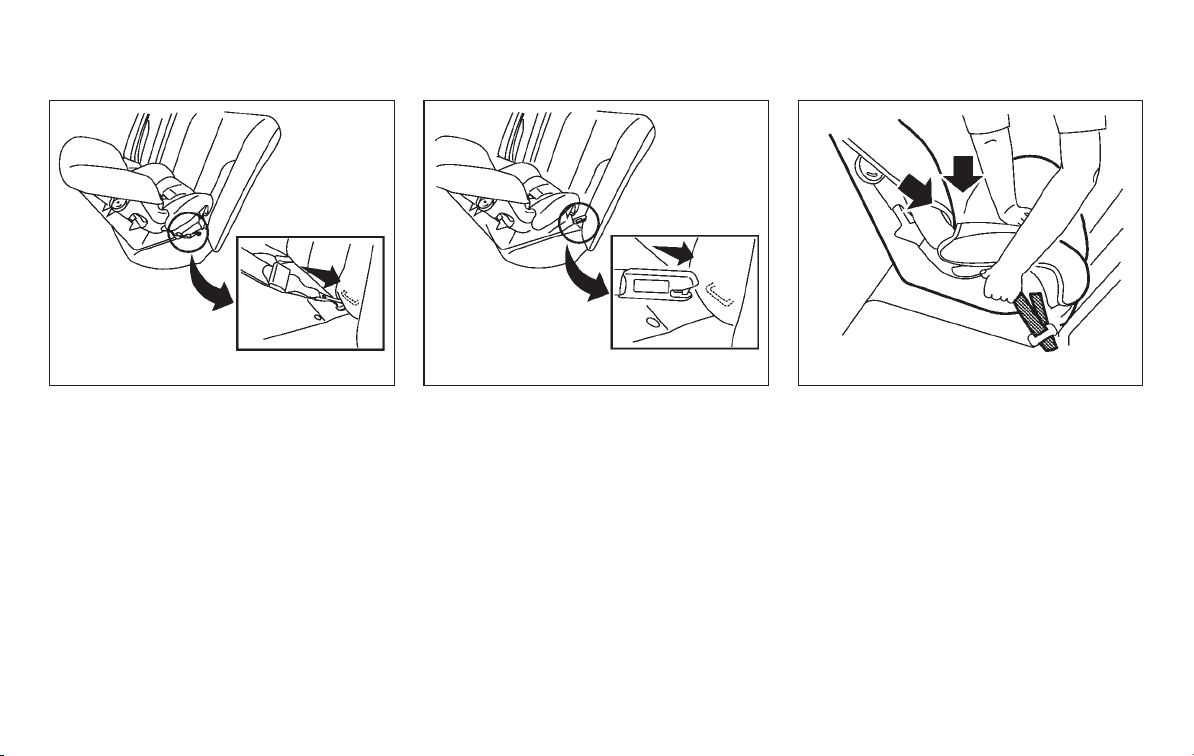

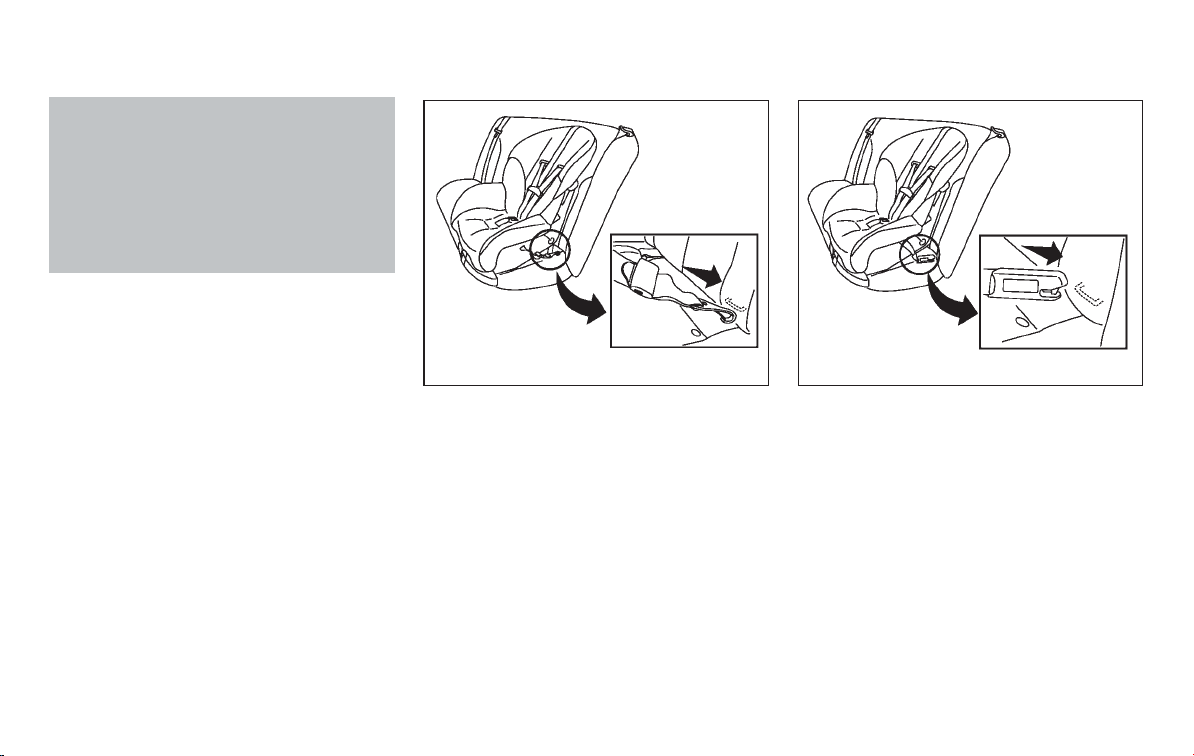

Child restraint installation using LATCH ............. 1-26

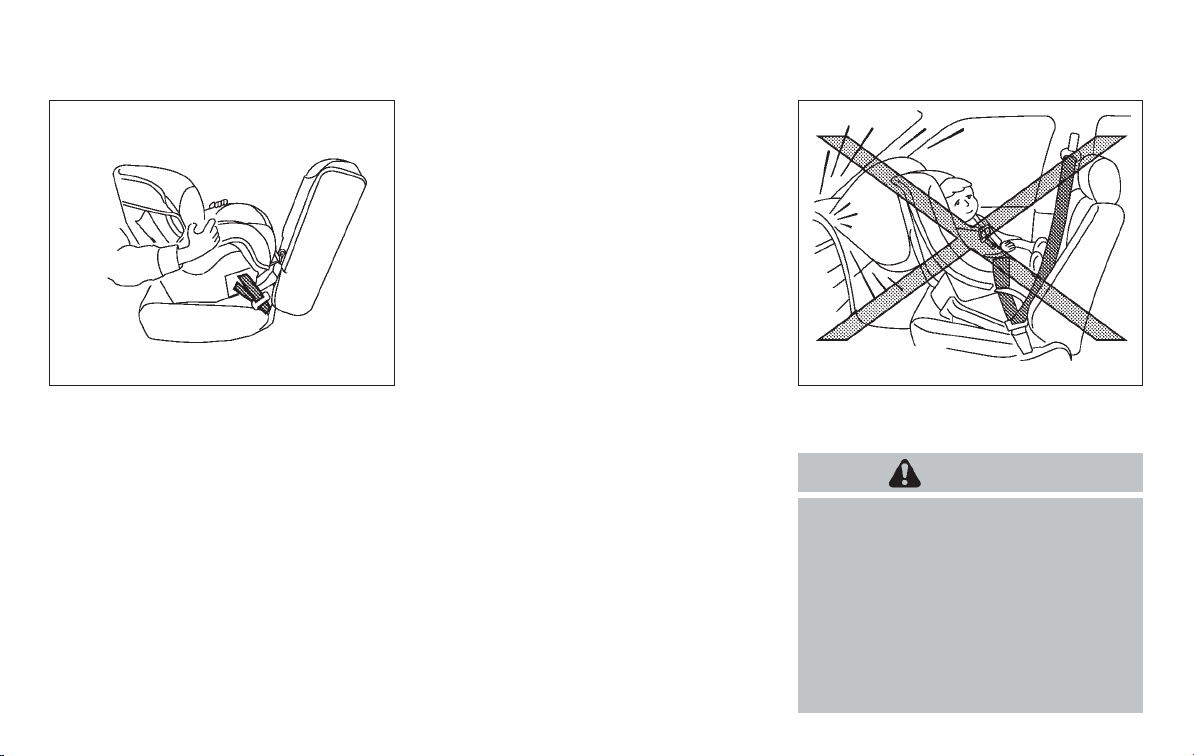

Child restraint installation using the seat belts..... 1-30

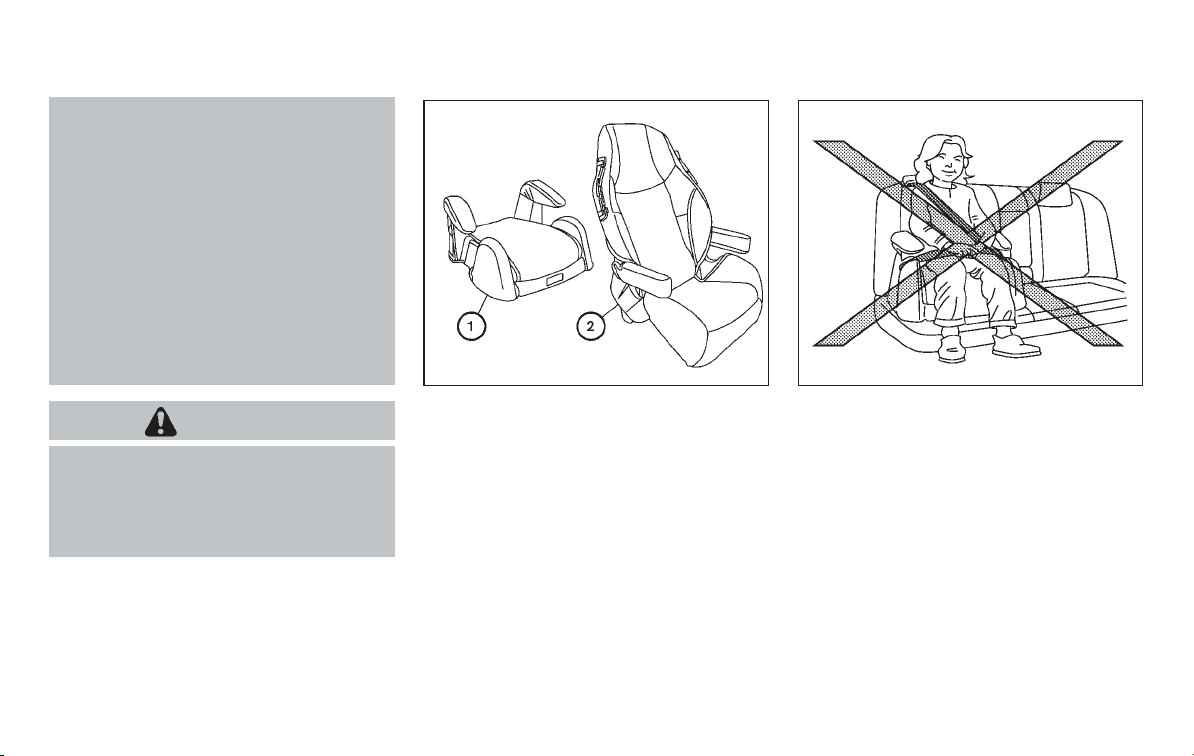

Booster seats.................................................. 1-37

Precautions on booster seats.......................... 1-37

Booster seat installation................................. 1-39

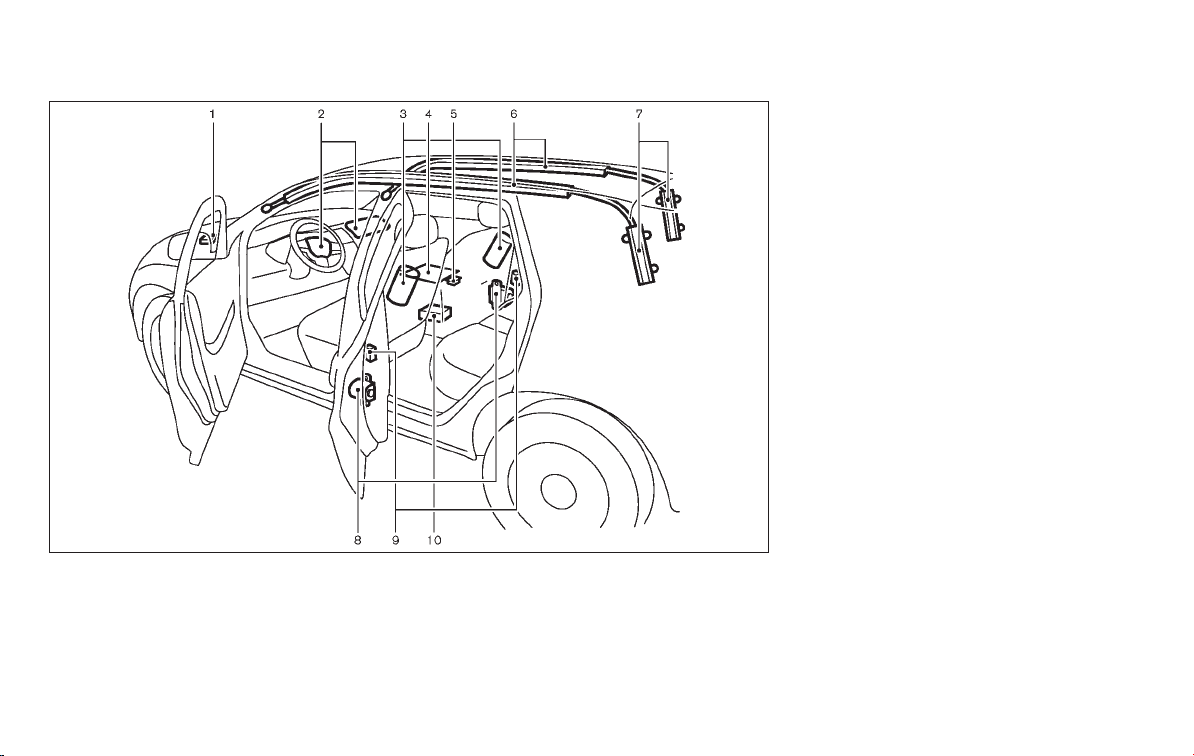

Supplemental restraint system ............................. 1-41

Precautions on supplemental restraint system . .... 1-41

NISSAN advanced air bag system (front seats) .. . 1-47

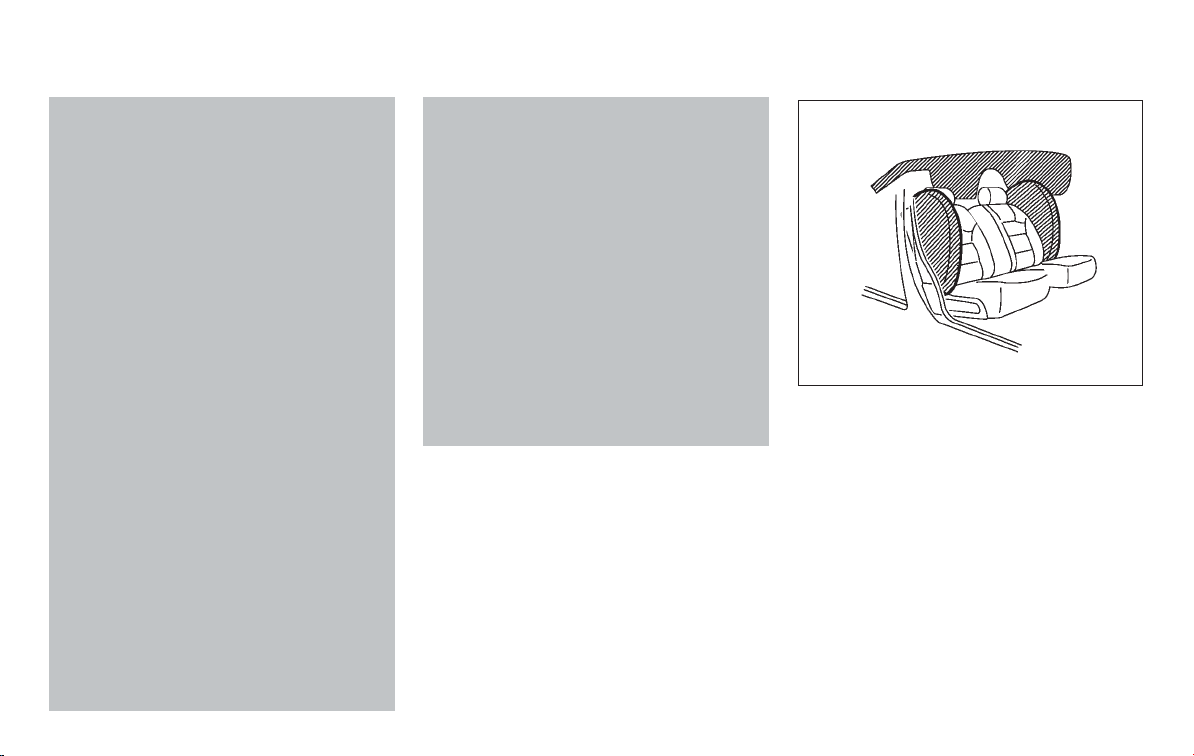

Front seat-mounted side-impact supplemental

air bag and roof-mounted curtain side-impact

and rollover supplemental air bag systems ......... 1-51

Seat belts with pretensioners (front seats) ......... 1-53

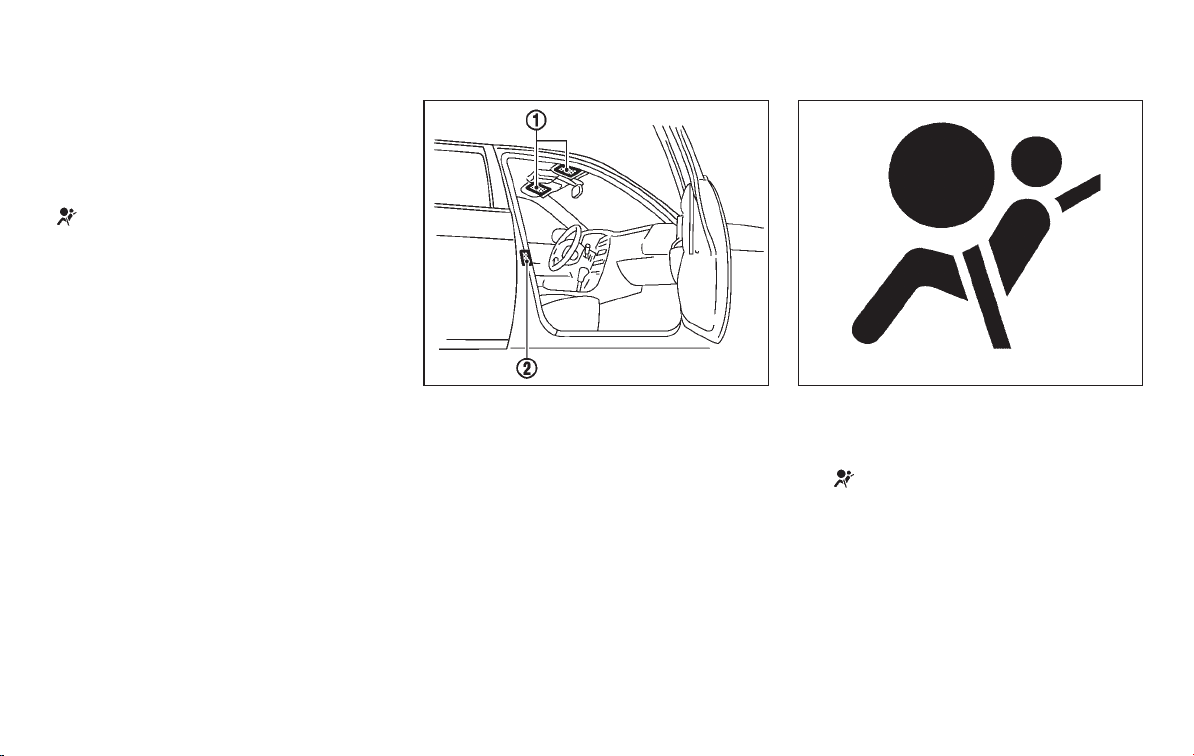

Supplemental air bag warning labels................. 1-54

Supplemental air bag warning light................... 1-54

Repair and replacement procedure................... 1-55

SEATS

inside the vehicle. They could un­knowingly activate switches or con­trols. Unattended children could
become involved in serious acci­dents.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da­mages.

SSS0133

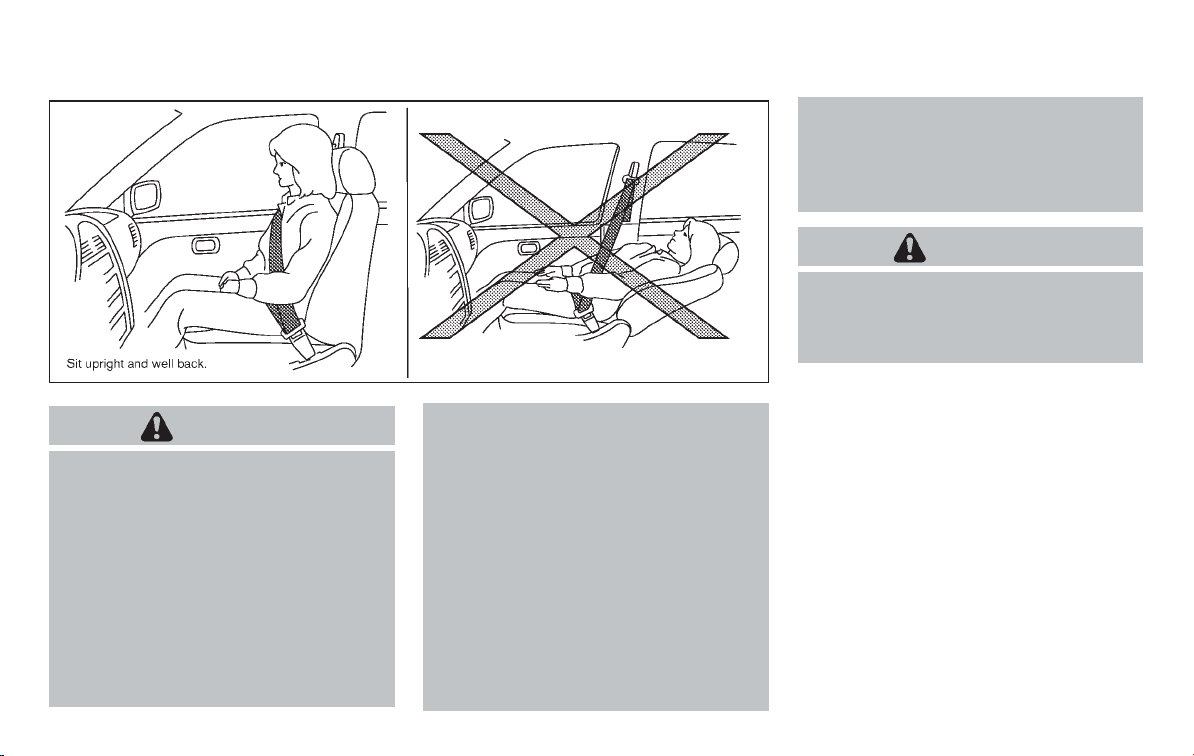

WARNING

. Do not ride in a moving vehicle

when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.

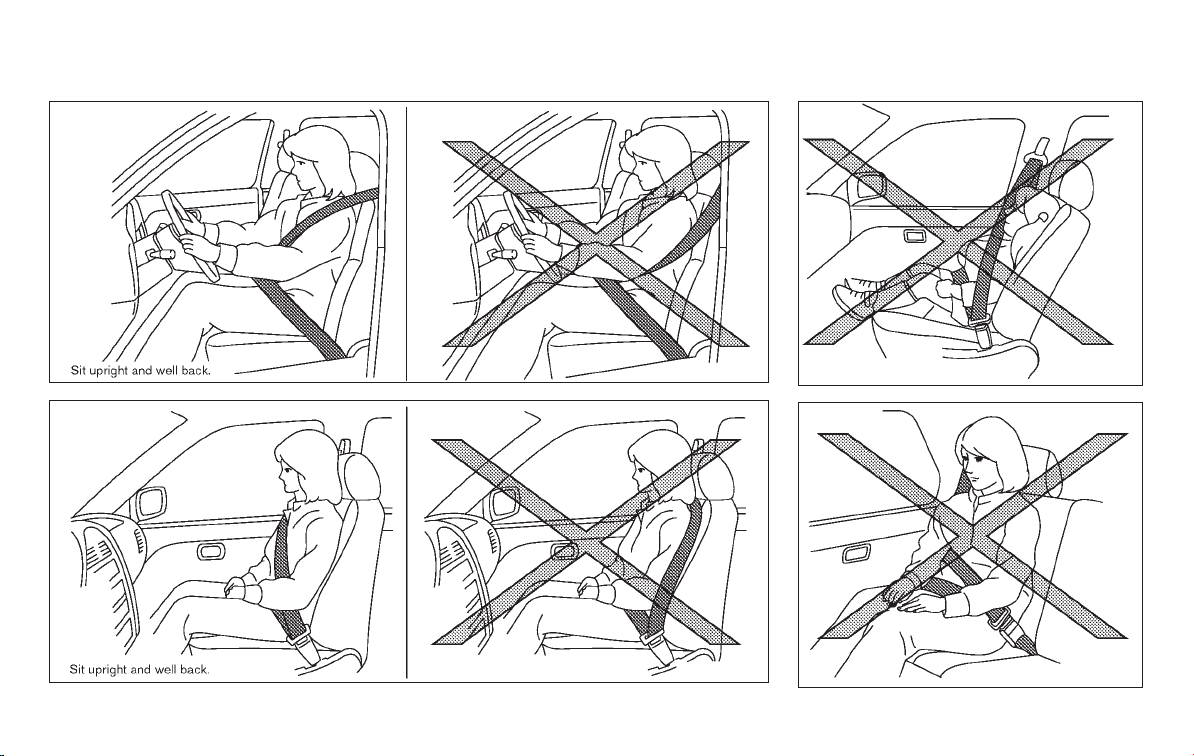

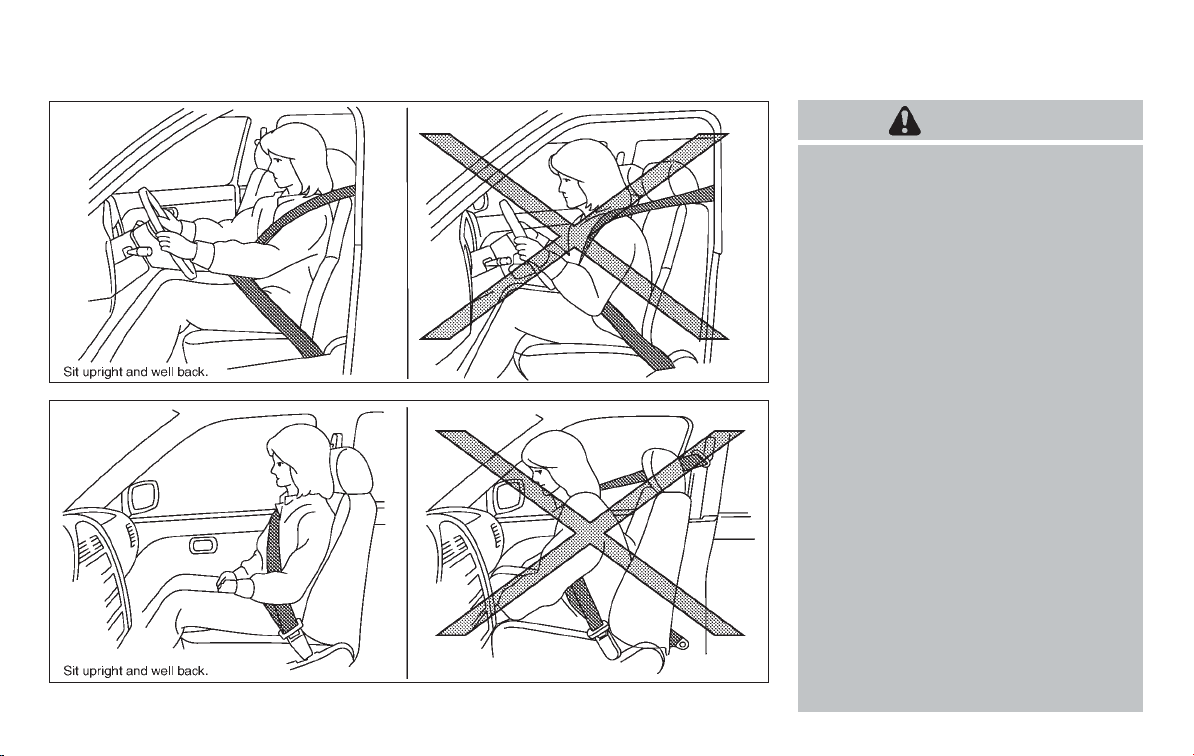

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit

well back in the seat with both feet
on the floor and adjust the seat
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.

. Do not adjust the driver’s seat while

driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.

. After adjustment, gently rock in the

seat to make sure it is securely
locked.

. Do not leave children unattended

1-2 Safety — Seats, seat belts and supplemental restraint system

SSS0792

reclined, the risk of sliding under the
lap belt and being injured is increased.

FRONT SEATS

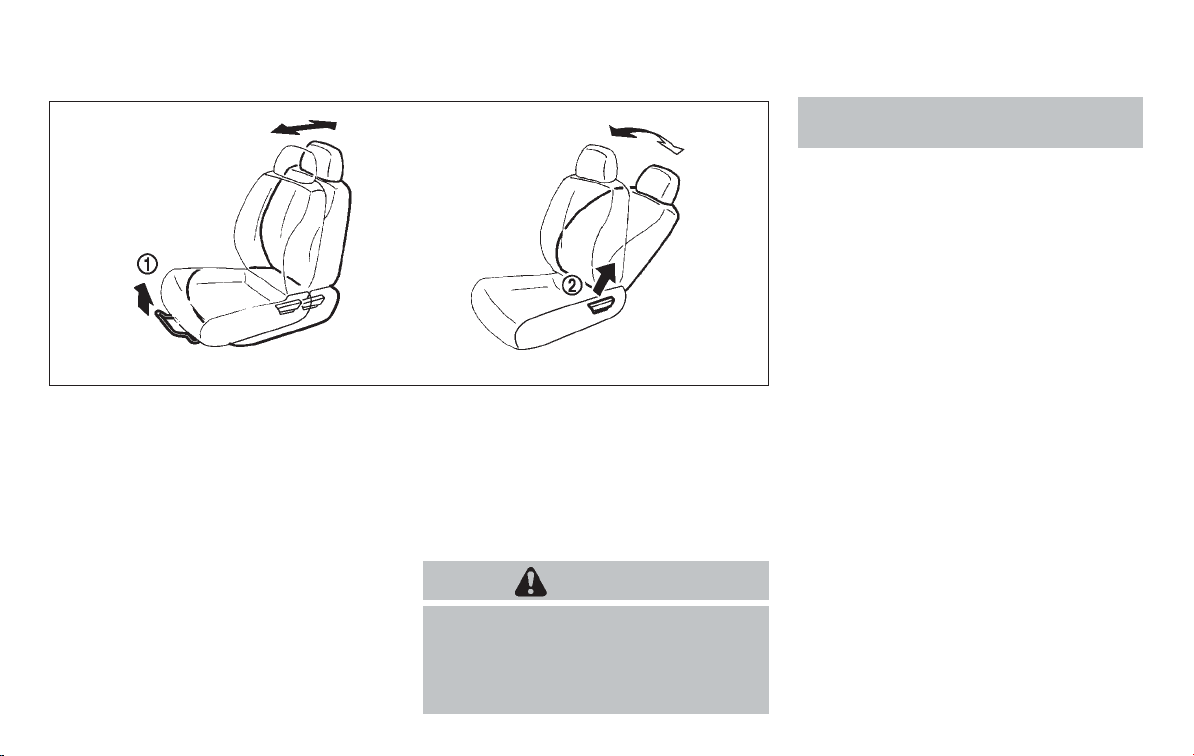

Front manual seat adjustment

Forward and backward:

Pull the lever
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.

Reclining:

To recline the seatback, pull the lever
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.

1

up and hold it while you slide

*

*

2

up and

The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission in
the P (Park) position.

WARNING

The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is

Safety — Seats, seat belts and supplemental restraint system 1-3

Front power seat adjustment

Operating tips:

. The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.

. Do not operate the power seat switch for a

long period of time when the engine is off.
This will discharge the battery.

SSS0793

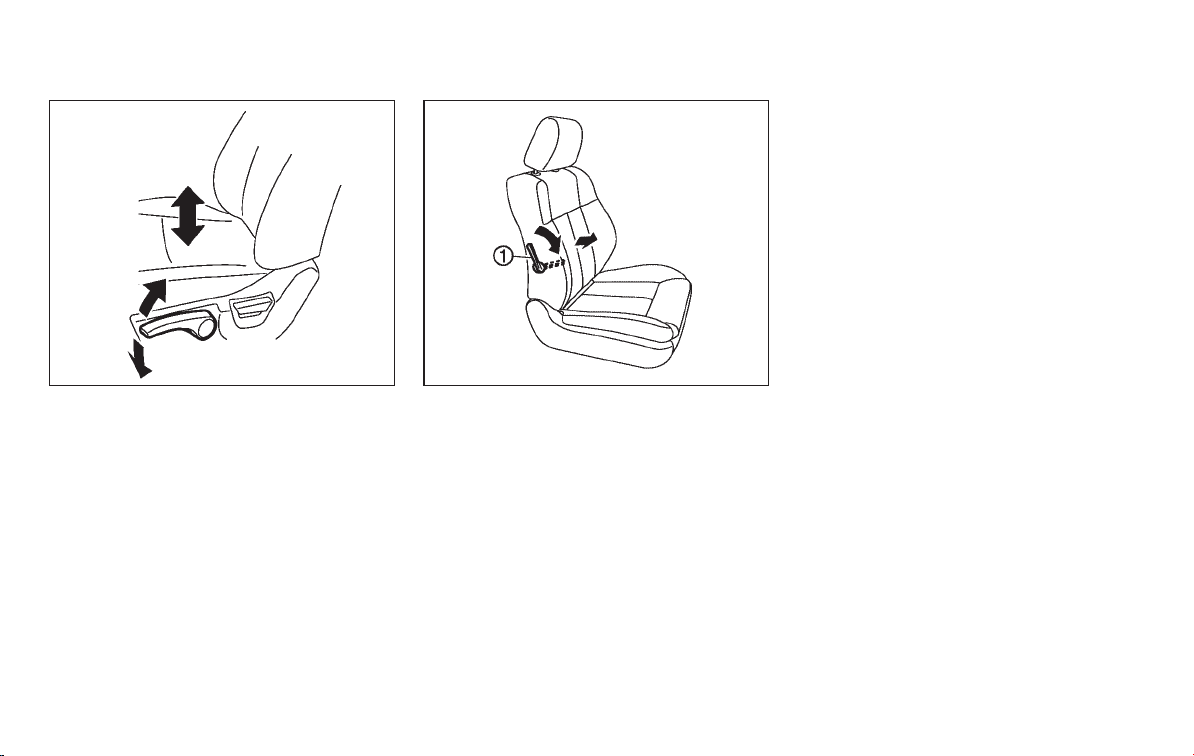

Seat lifter (if so equipped):

Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.

Lumbar support (if so equipped):

The lumbar support feature provides lower back
support to the driver.

Move the lever
seatback lumbar area.

1

*

1-4 Safety — Seats, seat belts and supplemental restraint system

SSS0684

up or down to adjust the

SSS0819

SSS0820

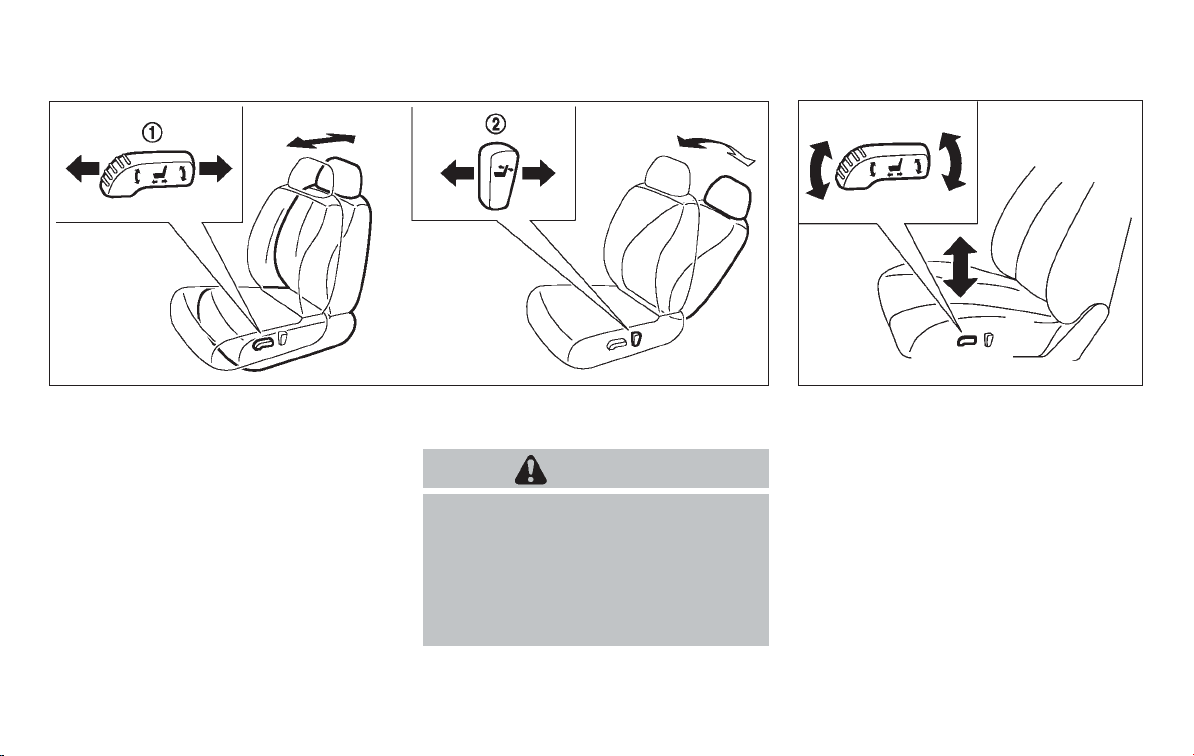

Forward and backward:

1

Moving the switch
slide the seat forward or backward to the
desired position.

Reclining:

Move the recline switch
desired angle is obtained. To bring the seatback
forward again, move the switch

The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when

forward or backward will

*

2

backward until the

*

2

forward.

*

the vehicle is stopped and the transmission is in
the P (Park) position.

WARNING

The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is
reclined, the risk of sliding under the
lap belt and being injured is increased.

Safety — Seats, seat belts and supplemental restraint system 1-5

Seat lifter (if so equipped):

Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.

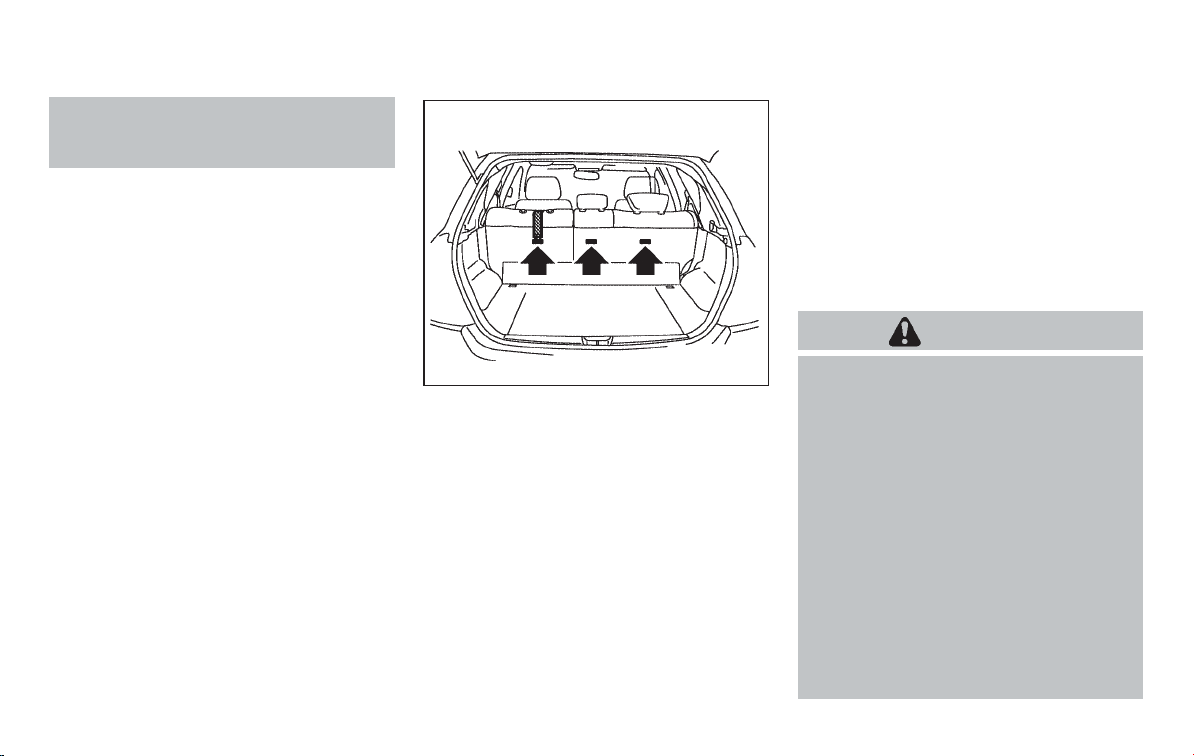

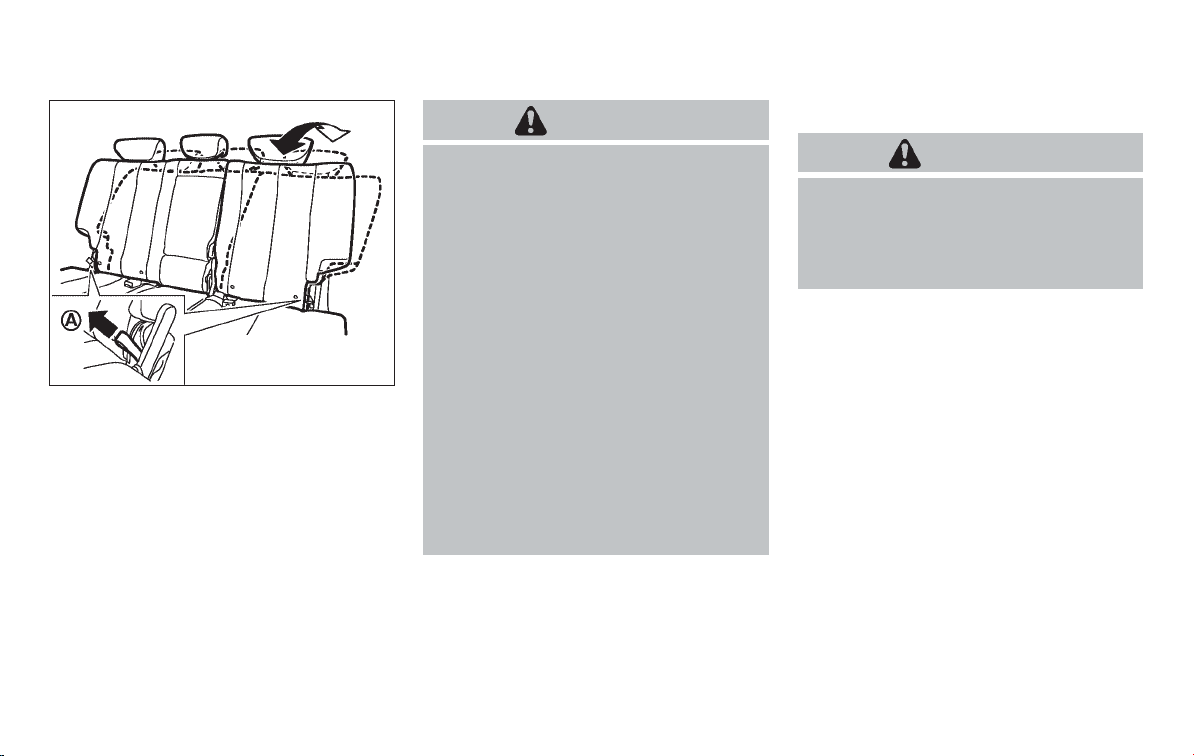

To fold down the seatbacks:

Pull the strap on the rear seat

B

beside the cargo area and fold the seat-

*

back.

A

. Pull the lever

*

SSS0795

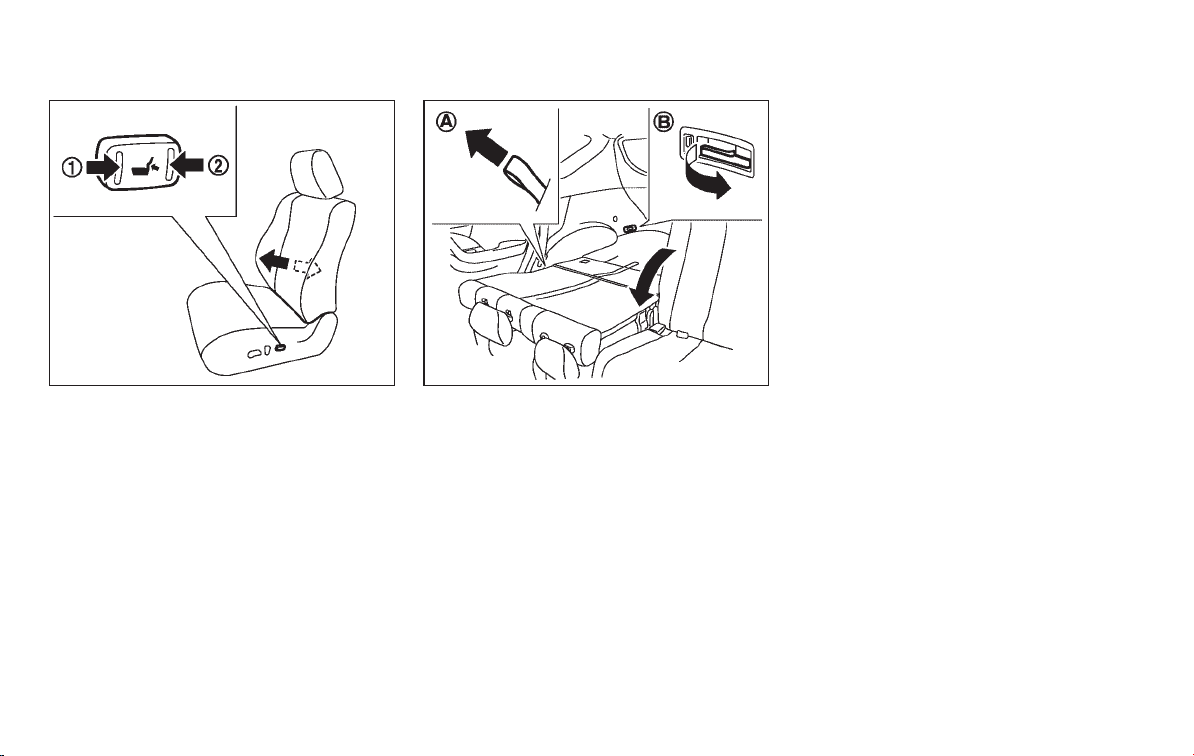

Lumbar support (if so equipped):

The lumbar support feature provides lower back
support to the driver.

1

Push the front
to adjust the seatback lumbar area.

*

or back

2

end of the switch

*

REAR SEATS
Folding

Before folding the rear seats:

. Secure the seat belts on the seat belt hooks

on the side wall. (See “Seat belt hooks” later
in this section.)

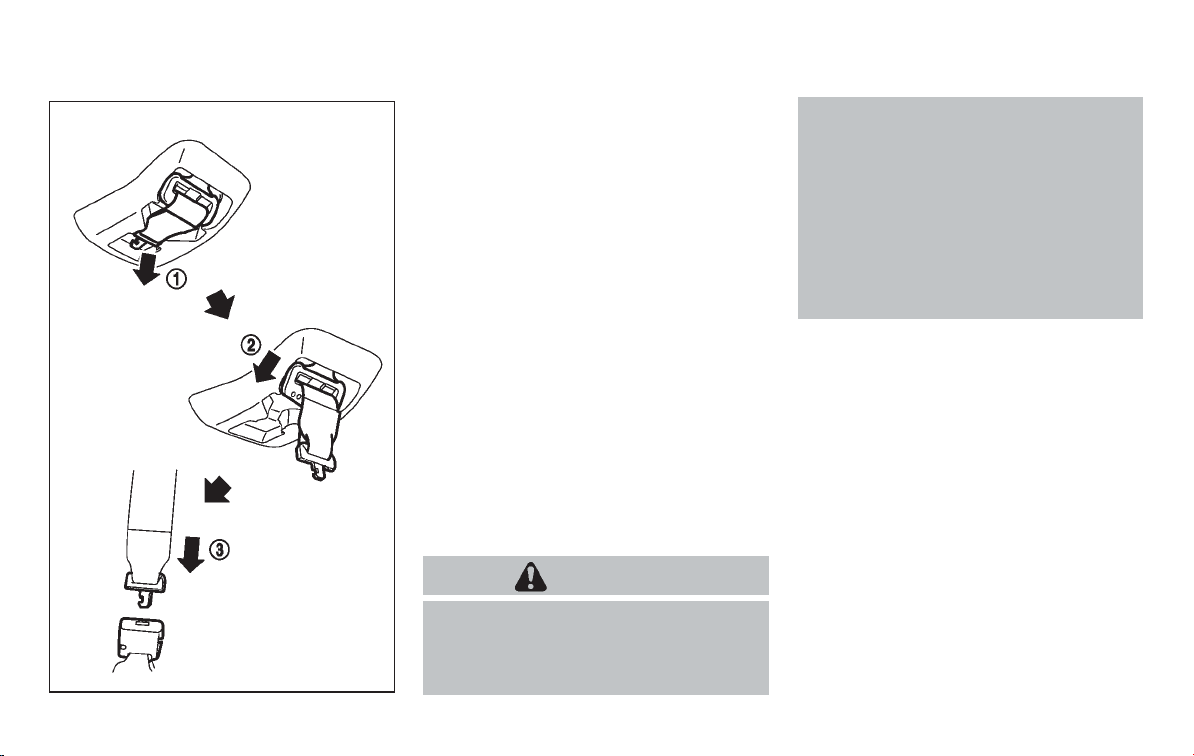

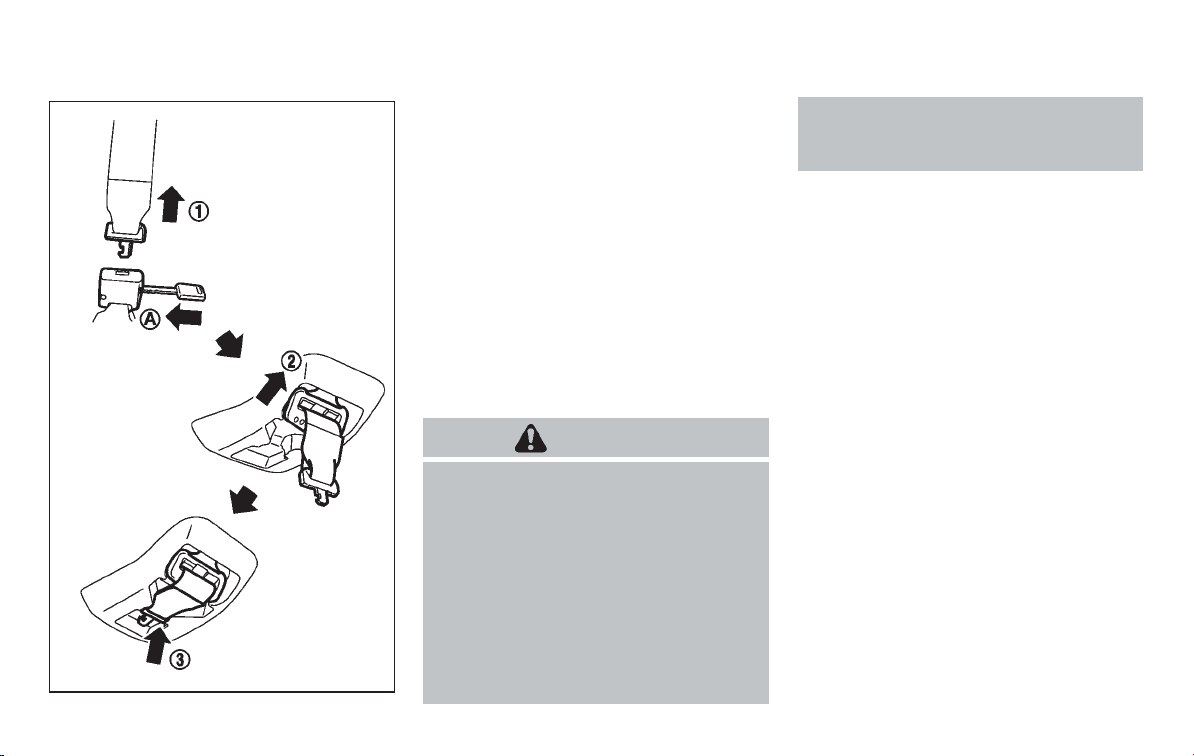

. Disconnect and stow the center seat belt

and tongue into the retractor base. (See
“Rear center seat belt” later in this section.)

. Always reconnect the center seat belt when

the seat is returned to the upright position.

. Remove drink containers from the rear cup

holder.

1-6 Safety — Seats, seat belts and supplemental restraint system

SSS0569

SSS0821

To return the seatbacks:

Manual operation:

Lift up each seatback and push it to the upright
position until it is latched.

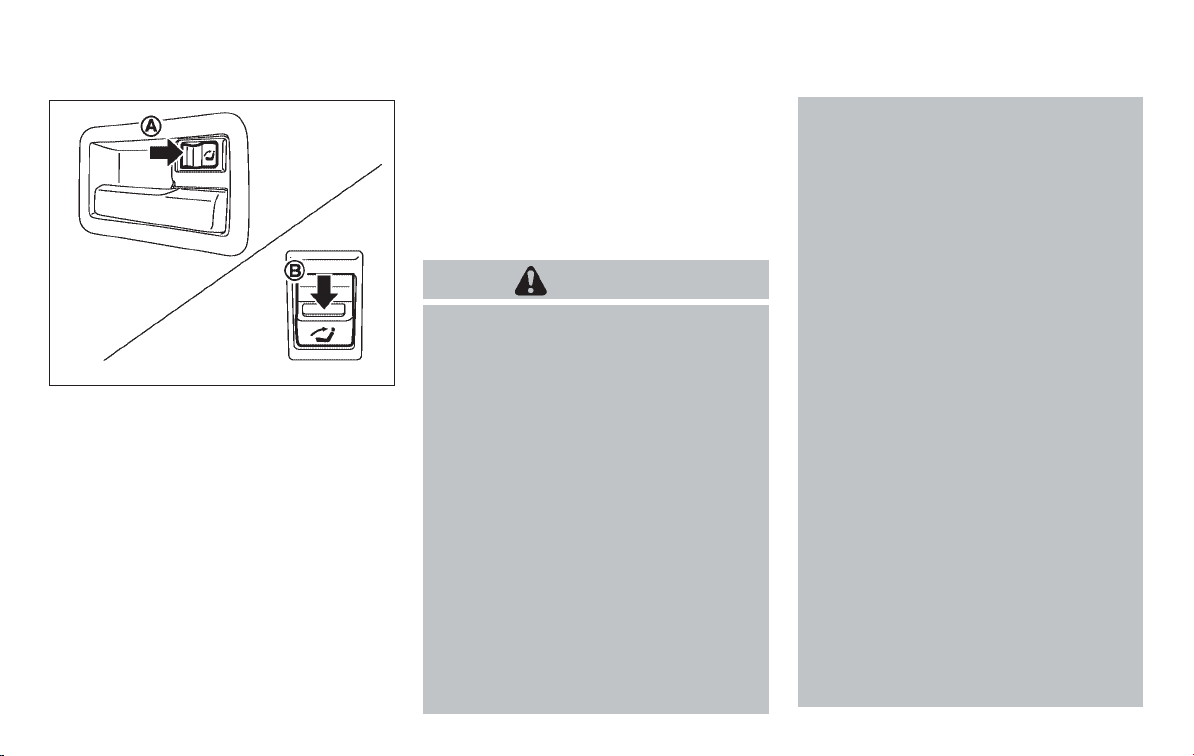

Power operation (if so equipped):

Push and hold the corresponding switch located
on the lower side of the instrument panel
the right or left side in the cargo area

A beep sounds once and the seatback will be
returned automatically.

A beep sounds twice when the seatback is fully
returned to the seating position.

A

*

*

B

.

If the control unit detects any obstacle or
malfunctions while in the power operation, a
beep sounds for 4 seconds and the seatback
will return to the folded position automatically.
Check if there are any obstacles caught that
prevents seats from retuning to the folded
position. See a NISSAN dealer if the beep still
sounds.

WARNING

. Never allow anyone to ride in the

cargo area or on the rear seats
when they are in the fold-down
position. In a collision, people riding
in these areas are more likely to be
seriously injured or killed.

. Do not allow people to ride in any

area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is
in a seat and using a seat belt

or

properly.

. Do not fold down the rear seats

when occupants are in the rear seat
area or any luggage is on the rear
seats.

. When folding or returning the seat-

backs to the upright position, to
avoid injury to yourself and others:

Safety — Seats, seat belts and supplemental restraint system 1-7

— Make sure that the seat path is

clear before moving the seat.

— Be careful not to allow hands or

feet to get caught or pinched in
the seat.

. Properly secure all cargo to help

prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.

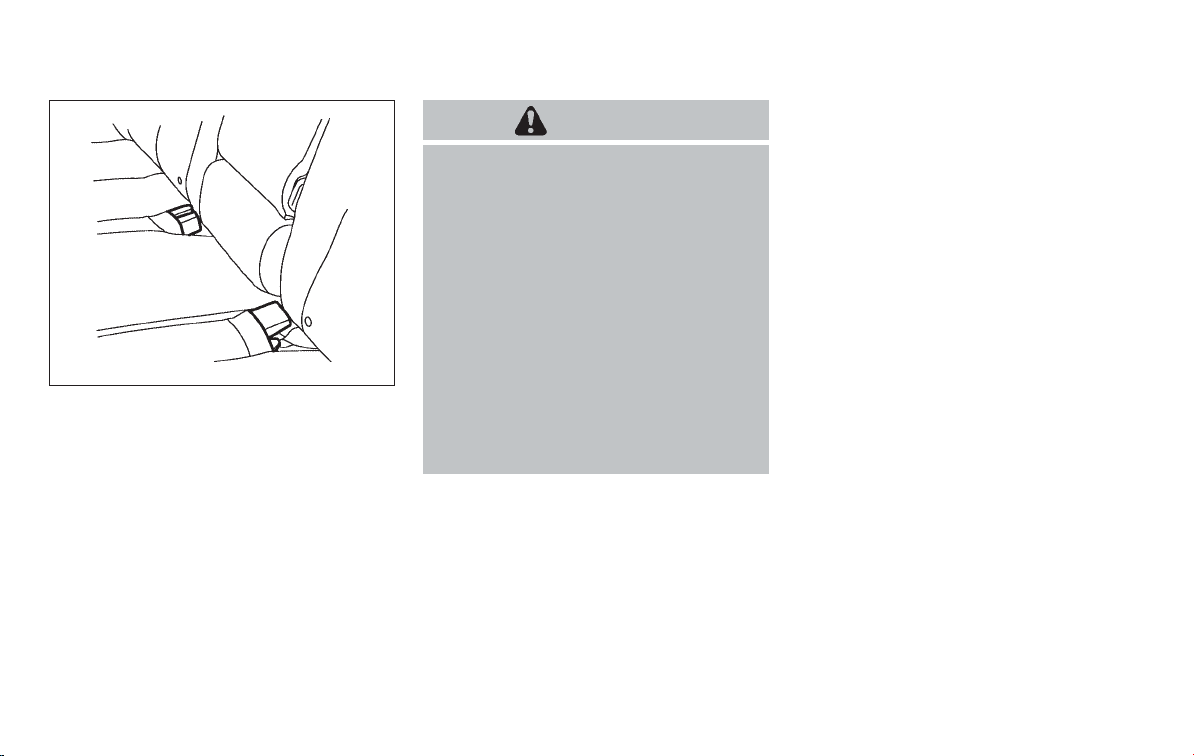

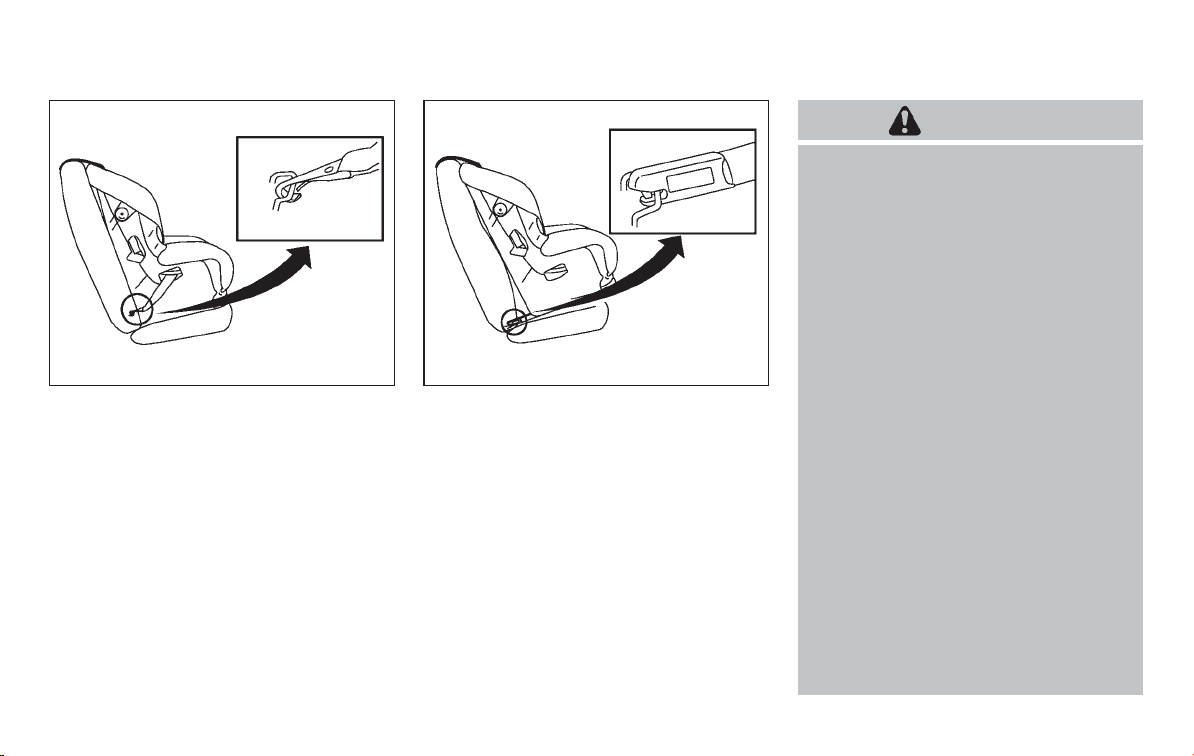

. When returning the seatbacks, be

sure to attach the rear center seat
belt connector.

. Do not unfasten the rear center seat

belt connector except when folding
down the rear seat.

. When attaching the rear center seat

belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com­pletely secured.

. If the rear center seat belt connector

and the seatbacks are not secured
in the correct position, serious per­sonal injury may result in an acci­dent or sudden stop.

SSS0227A

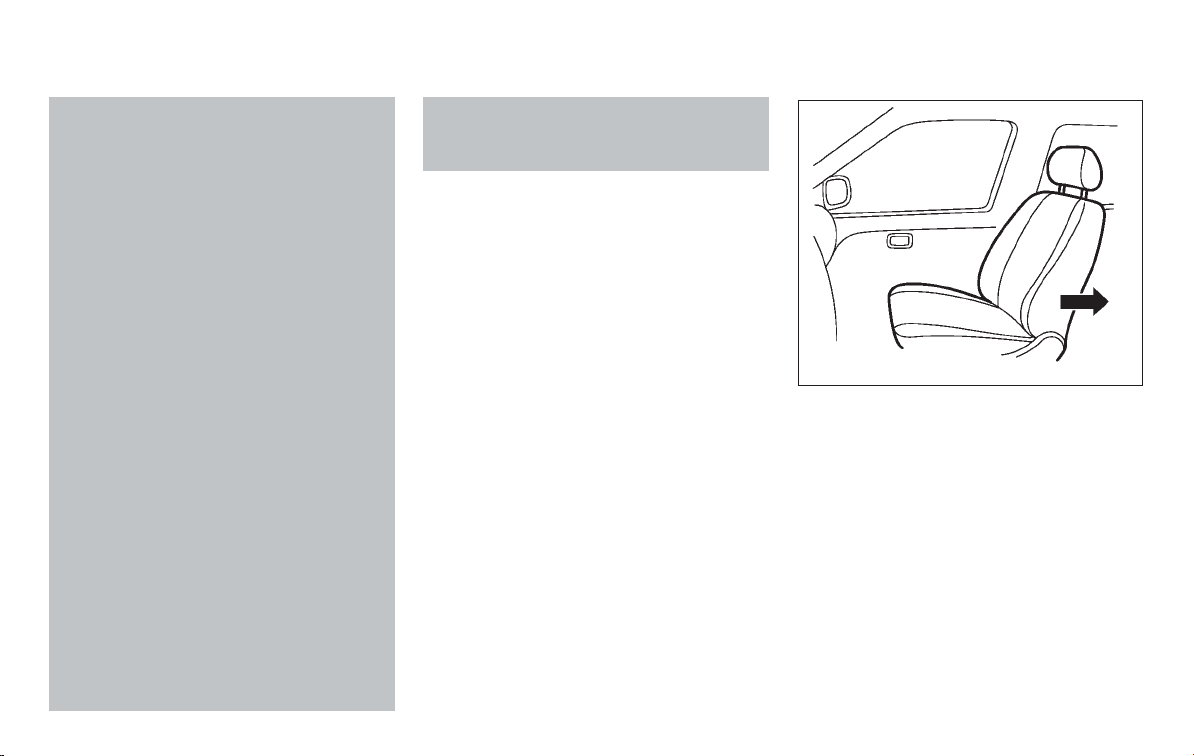

Reclining

Pull the reclining strap
seatback at the desired angle. Release the
reclining strap after positioning the seat at the
desired angle.

The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “PRECAU­TIONS ON SEAT BELT USAGE” later in this
section.) The seatback may also be reclined to
allow occupants to rest when the vehicle is
parked.

A

and position the

*

WARNING

. Do not ride in a moving vehicle

when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.

. After adjustment, check to be sure

the seat is securely locked.

HEAD RESTRAINTS

WARNING

Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust­ment after someone else uses the seat.

1-8 Safety — Seats, seat belts and supplemental restraint system

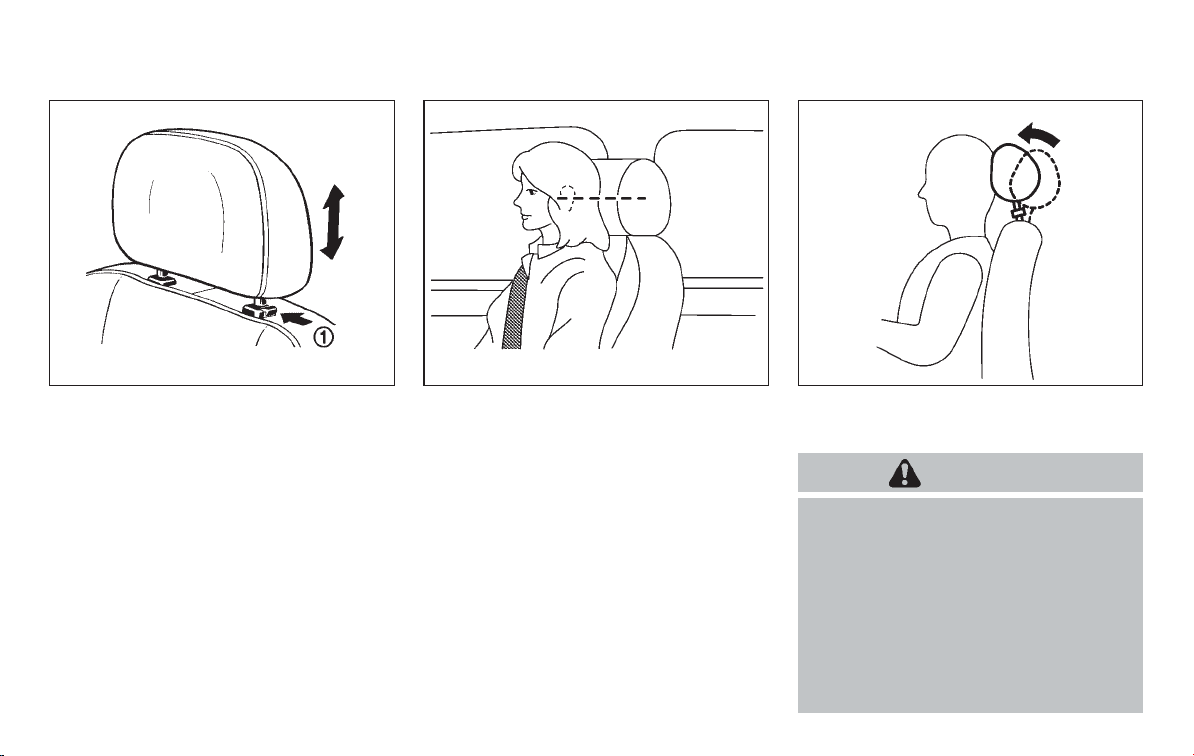

Adjustment

To raise the head restraint, pull it up.

To lower, push and hold the lock knob
push the head restraint down.

SSS0288

1

and

*

SSS0287

Adjust the head restraint so the center is level
with the center of your ears.

Safety — Seats, seat belts and supplemental restraint system 1-9

SSS0508

FRONT-SEAT ACTIVE HEAD RE­STRAINTS

WARNING

. Always adjust the head restraints

properly as specified in the previous
section. Failure to do so can reduce
the effectiveness of the Active Head
Restraint.

. Active Head Restraints are designed

to supplement other safety systems.
Always wear seat belts. No system
can prevent all injuries in any acci­dent.

SEAT BELTS

. Do not attach anything to the head

restraint stalks. Doing so could
impair Active Head Restraint func­tion.

The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash type injuries.

Active Head Restraints are effective for colli­sions at low to medium speeds in which it is said
that whiplash injury occurs most.

Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.

Properly adjust the Active Head Restraints as
described in the previous section.

SSS0229A

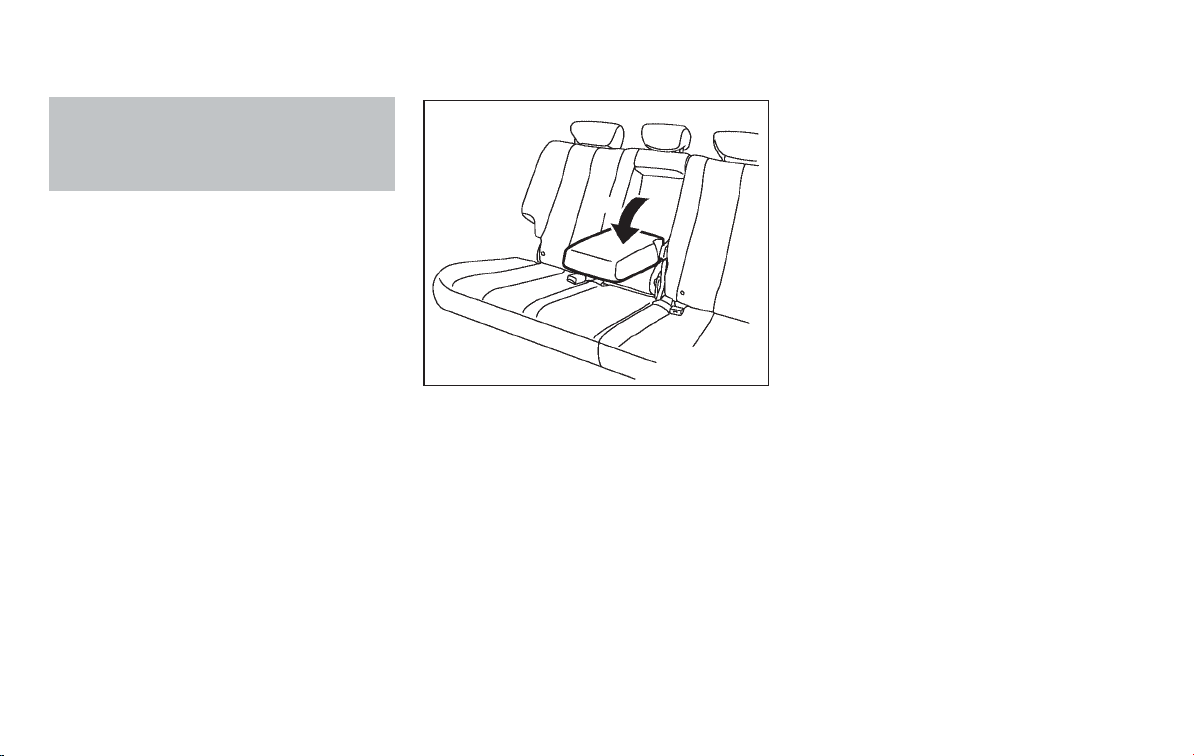

ARMREST
Rear armrest

Pull the armrest forward until it is horizontal.

PRECAUTIONS ON SEAT BELT
USAGE

If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.

Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.

1-10 Safety — Seats, seat belts and supplemental restraint system

SSS0136

SSS0016

SSS0134

SSS0014

Safety — Seats, seat belts and supplemental restraint system 1-11

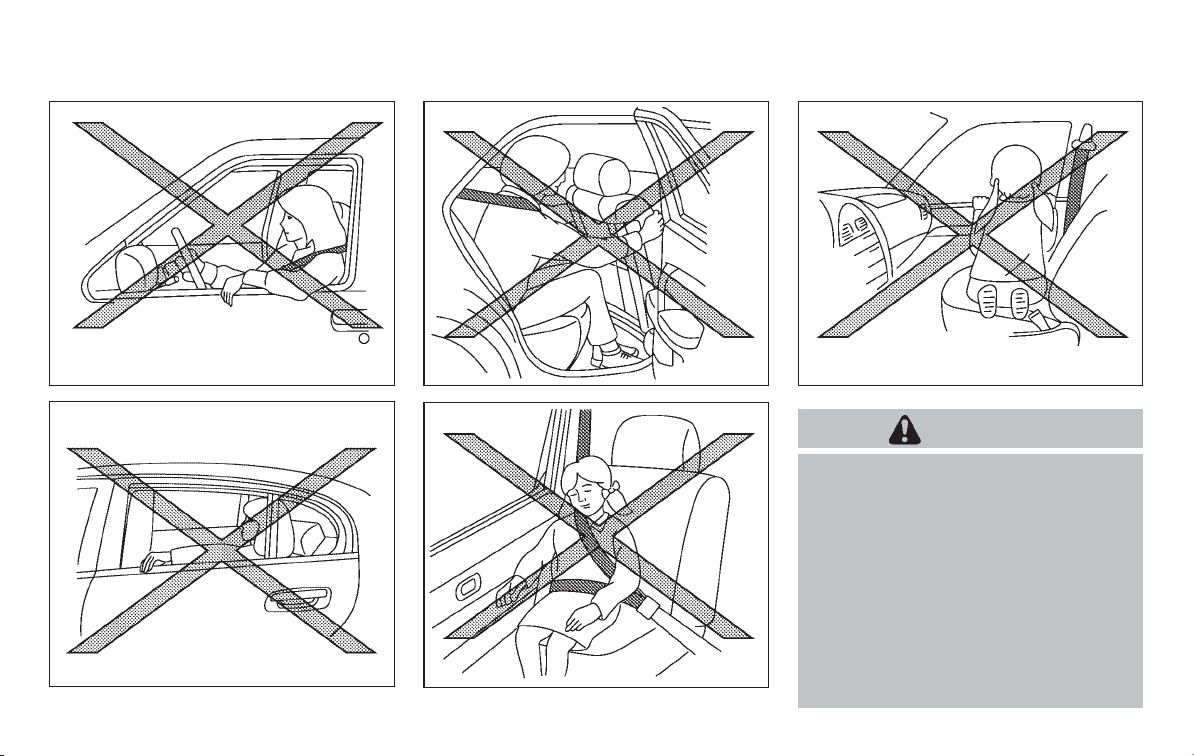

WARNING

. Every person who drives or rides in

this vehicle should use a seat belt at
all times. Children should be prop­erly restrained in the rear seat and,
if appropriate, in a child restraint.

. The seat belt should be properly

adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in­crease the chance or sever ity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.

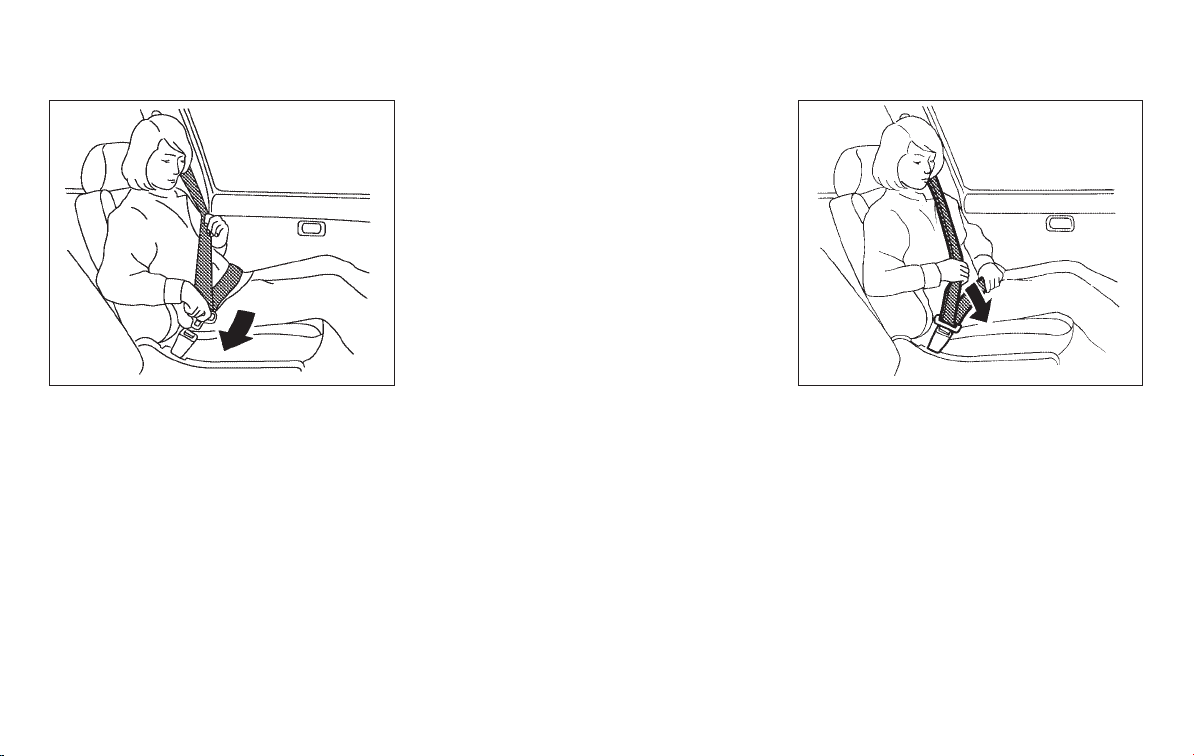

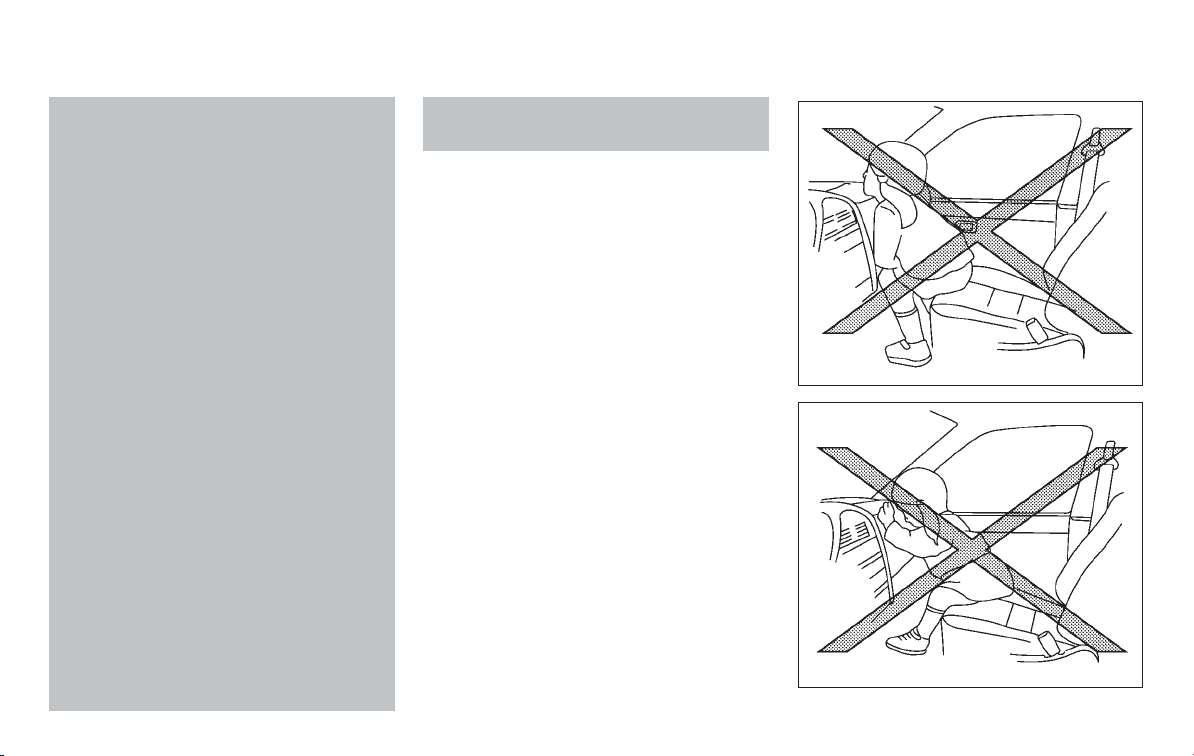

. Always route the shoulder belt over

your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.

. Position the lap belt as low and

snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci­dent.

. Be sure the seat belt tongue is

securely fastened to the proper
buckle.

. Do not wear the seat belt inside out

or twisted. Doing so may reduce its
effectiveness.

. Do not allow more than one person

to use the same seat belt.

. Never carry more people in the

vehicle than there are seat belts.

. If the seat belt warning light glows

continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in­dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.

. No changes should be made to the

seat belt system. For example, do
not modify the seat belt, add mate­rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury.

. Once a seat belt pretensioner has

1-12 Safety — Seats, seat belts and supplemental restraint system

activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.

. Removal and installation of the

pretensioner system components
should be done by a NISSAN dealer.

. All seat belt assemblies, including

retractors and attaching hardware,
should be inspected after any colli­sion by a NISSAN dealer. NISSAN
recommends that all seat belt as­semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da­mage and continue to operate prop­erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.

. All child restraints and attaching

hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re­commendations. The child restraints
should be replaced if they are
damaged.

CHILD SAFETY

Children need adults to help protect them.
They need to be properly restrained.

In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.

There are three basic types of child restraint
systems:

. Rear facing child restraint

. Front facing child restraint

. Booster seat

The proper restraint depends on the child’s size.
Generally, infants (up to about 1 year and less
than 20 lb (9 kg)) should be placed in rear
facing child restraints. Front facing child re­straints are available for children who outgrow
rear facing child restraints and are at least 1 year
old. Booster seats are used to help position a
vehicle lap/shoulder belt on a child who can no
longer use a front facing child restraint.

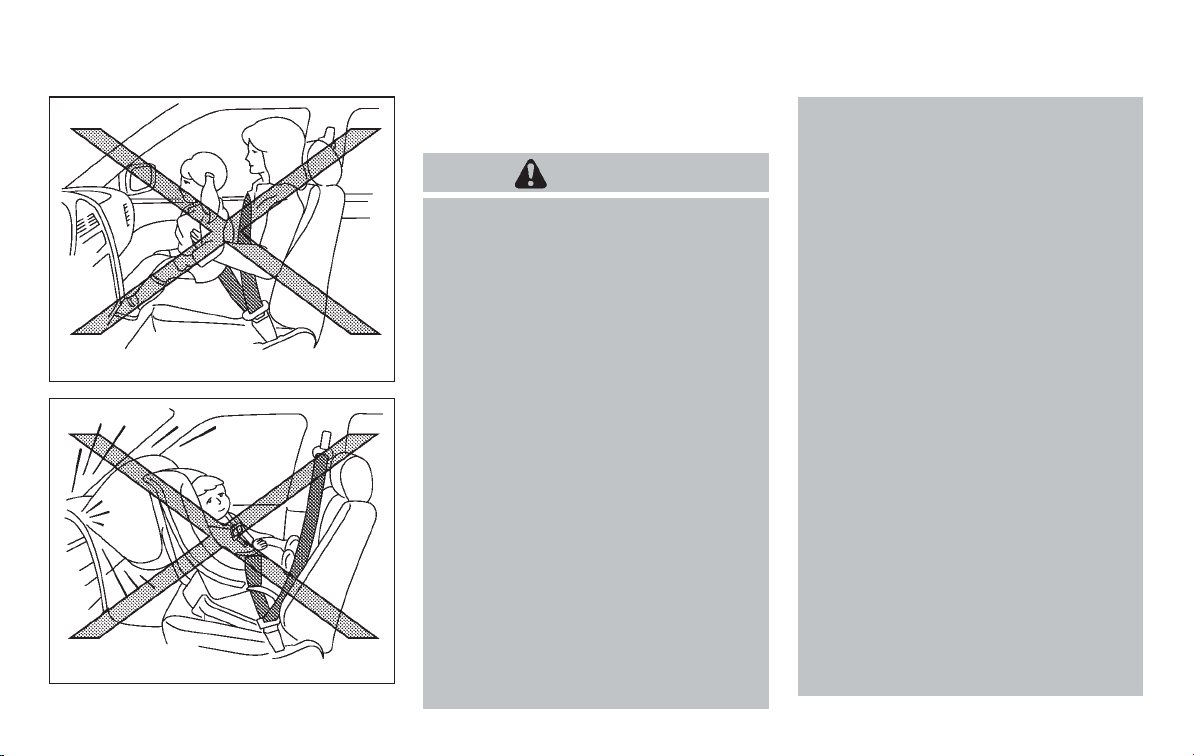

WARNING

Infants and children need special pro­tection. The vehicle’s seat belts may not

fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.

All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. (See
“CHILD RESTRAINTS” later in this section.)

Also, there are other types of child restraints
available for larger children for additional pro­tection.

NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.

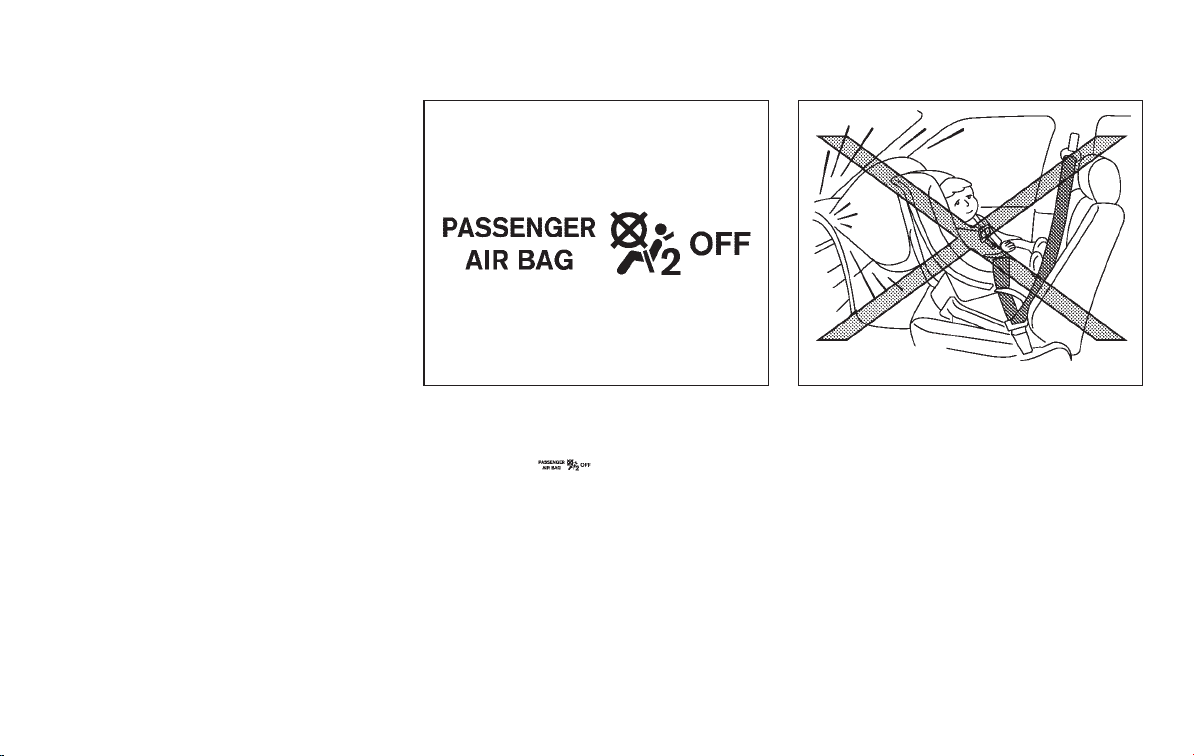

This is especially important because your
vehicle has a supplemental restraint sys­tem (air bag system) for the front passen­ger. (See “SUPPLEMENTAL RESTRAINT
SYSTEM” later in this section.)

Infants

Infants up to at least 1 year old should be placed
in a rear facing child restraint. NISSAN recom­mends that infants be placed in child restraints

Safety — Seats, seat belts and supplemental restraint system 1-13

that comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. You should choose a child restraint
that fits your vehicle and always follow the
manufacturer’s instructions for installation and
use.

Small children

Children that are over 1 year old and weigh at
least 20 lb (9 kg) can be placed in a forward
facing child restraint. Refer to the manufacturer’s
instructions for minimum and maximum weight
and height recommendations. NISSAN recom­mends that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for instal­lation and use.

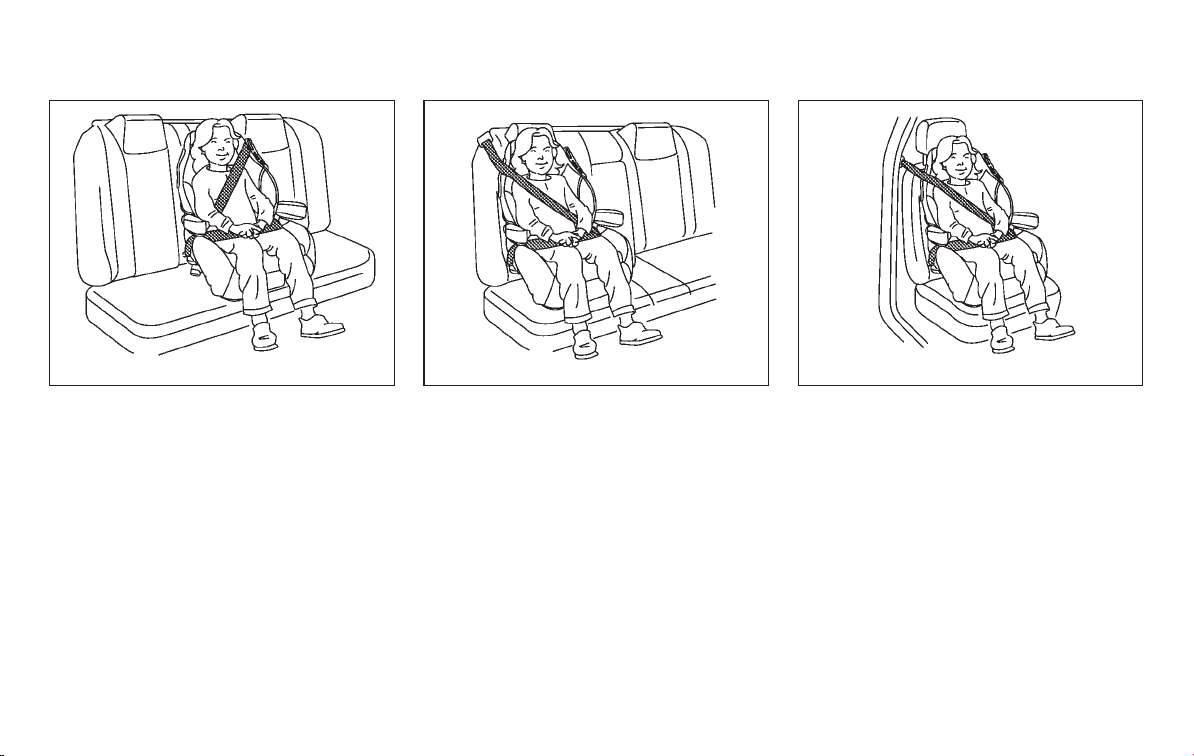

Larger children

Children who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 ft 9 in (142.5
cm) tall and weighs between 40 lb (18 kg) and
80 lb (36 kg). A booster seat should be used to
obtain proper seat belt fit.

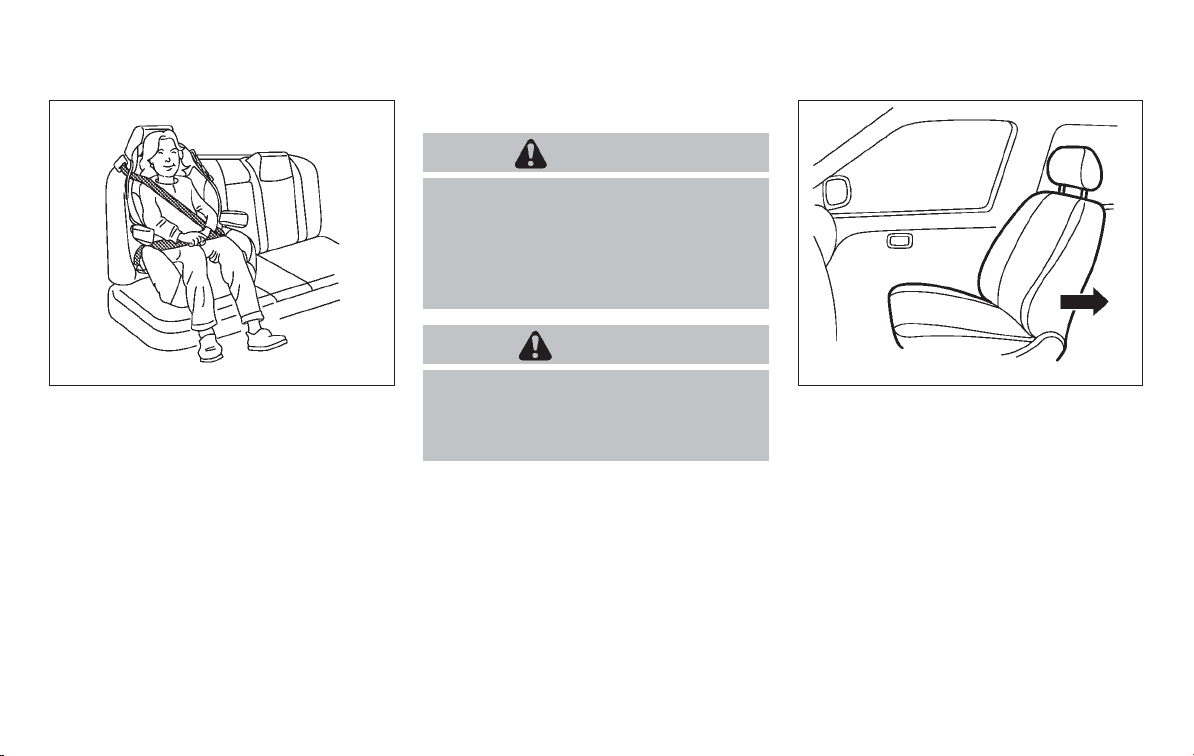

NISSAN recommends that a child be placed in a
commercially available booster seat if the
shoulder belt in the child’s seating position fits

close to the face or neck or if the lap portion of
the seat belt goes across the abdomen. The
booster seat should raise the child so that the
shoulder belt is properly positioned across the
top, middle portion of the shoulder and the lap
belt is low on the hips. A booster seat can only
be used in seating positions that have a three­point type seat belt. The booster seat should fit
the vehicle seat and have a label certifying that it
complies with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. Once the child has grown so the
shoulder belt is no longer on or near the face
and neck, use the shoulder belt without the
booster seat.

WARNING

Never let a child stand or kneel on any
seat and do not allow a child in the
cargo areas while the vehicle is moving.
The child could be seriously injured or
killed in an accident or sudden stop.

PREGNANT WOMEN

NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never run the lap/shoulder belt over

your abdominal area. Contact your doctor for
specific recommendations.

INJURED PERSONS

NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.

THREE-POINT TYPE SEAT BELT

. Every person who drives or rides in

this vehicle should use a seat belt at
all times.

. Do not ride in a moving vehicle

when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt

1-14 Safety — Seats, seat belts and supplemental restraint system

properly.

WARNING

Then smoothly pull the belt out of
the retractor.

SSS0292

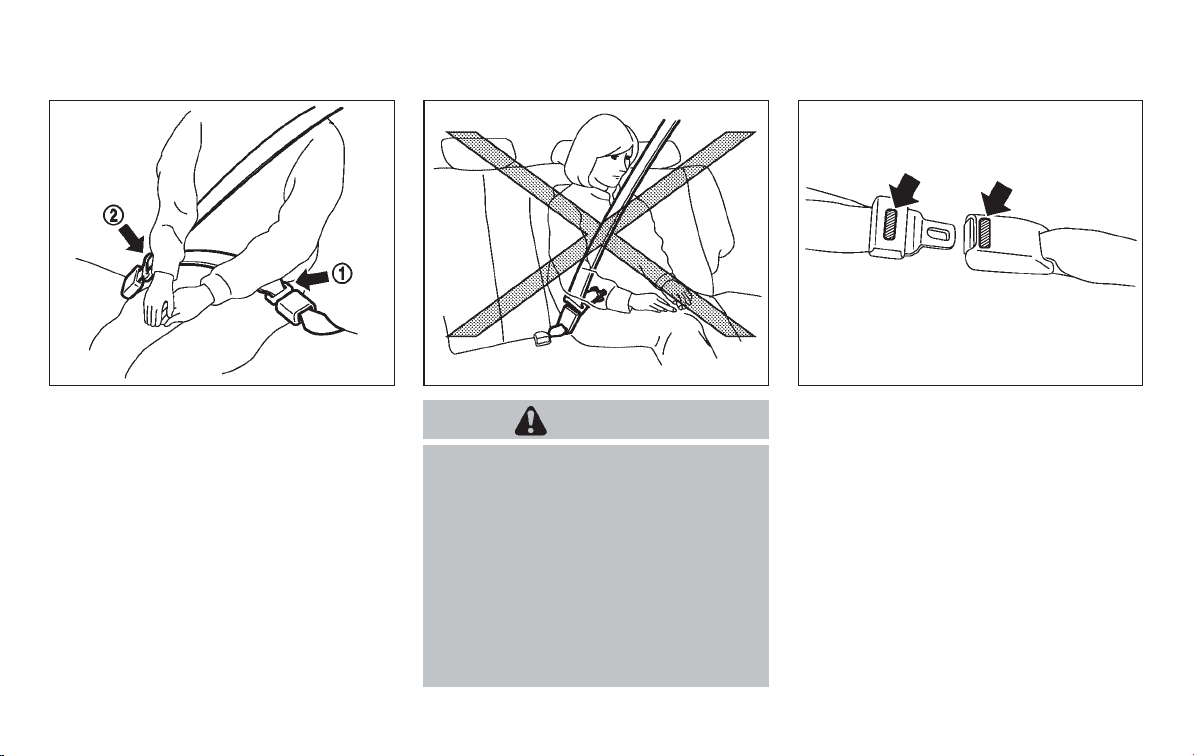

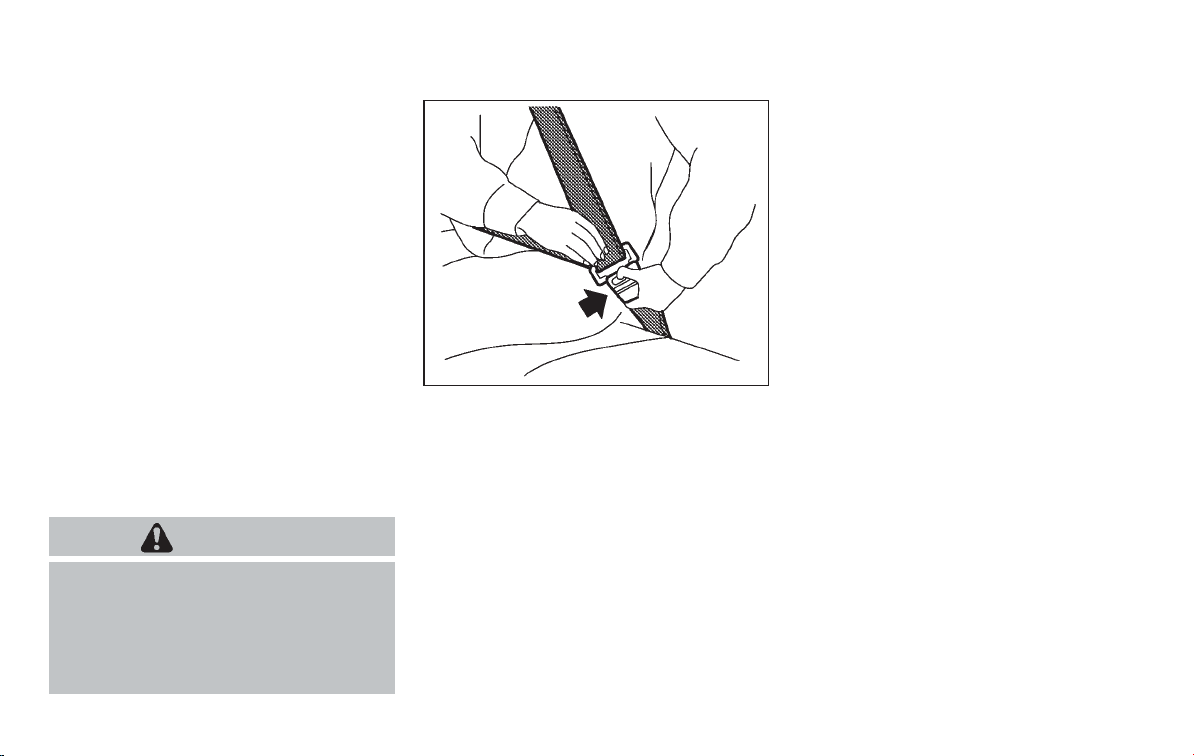

Fastening the seat belts

1. Adjust the seat. (See “SEATS” earlier in this
section.)

2. Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until
you hear and feel the latch engage.

. The retractor is designed to lock

during a sudden stop or on impact.
A slow pulling motion permits the
belt to move and allows you some
freedom of movement in the seat.

. If the seat belt cannot be pulled

from its fully retracted position,
firmly pull the belt and release it.

SSS0290

3. Position the lap belt portion low and snug
on the hips as shown.

4. Pull the shoulder belt portion toward the
retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.

The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:

. Emergency Locking Retractor (ELR)

. Automatic Locking Retractor (ALR)

The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to

Safety — Seats, seat belts and supplemental restraint system 1-15

allow the driver and passengers some freedom
of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during certain impacts.

The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.

When ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “CHILD RESTRAINTS” later in
this section.

The ALR mode should be used only for
child restraint installation. During normal
seat belt use by a passenger, the ALR
mode should not be activated. If it is
activated it may cause uncomfortable seat
belt tension.

WARNING

When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.

Unfastening the seat belts

To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.

Checking seat belt operation

Seat belt retractors are designed to lock seat
belt movement by two separate methods:

. When the belt is pulled quickly from the

retractor.

. When the vehicle slows down rapidly.

To increase your confidence in the seat belts,
check the operation as follows:

. Grasp the shoulder belt and pull forward

quickly. The retractor should lock and

1-16 Safety — Seats, seat belts and supplemental restraint system

restrict further belt movement.

If the retractor does not lock during this check or
if you have any question about seat belt
operation, see a NISSAN dealer.

SSS0326

SSS0351A

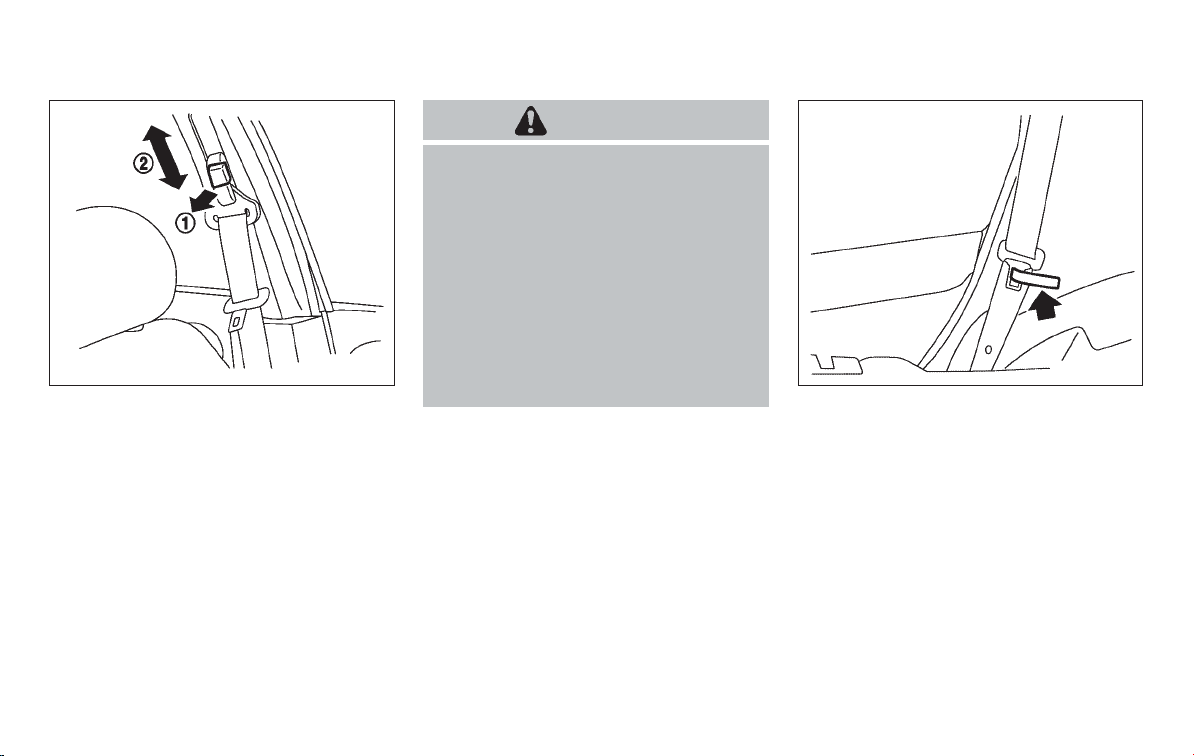

Shoulder belt height adjustment

The shoulder belt anchor height should be
adjusted to the position best for you. (See
“PRECAUTIONS ON SEAT BELT USAGE”
earlier in this section.)

To adjust, pull the adjustment button
then move the shoulder belt anchor to the
desired position
over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.

2

, so that the belt passes

*

*

1

, and

WARNING

. After adjustment, release the ad-

justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.

. The shoulder belt anchor height

should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.

SSS0845

Seat belt hooks

When the rear seat belts are not in use and
when folding down the rear seats, hook the rear
outer seat belts on the seat belt hooks.

Safety — Seats, seat belts and supplemental restraint system 1-17

SSS0846

Rear center seat belt

The rear center seat belt has a connector tongue

1

and a seat belt tongue

*

connector tongue and the seat belt tongue must
be securely latched for proper seat belt opera­tion.

1-18 Safety — Seats, seat belts and supplemental restraint system

2

. Both the

*

. Always fasten the connector tongue

and the seat belt in the order shown.

. Always make sure both the connec-

tor tongue and the seat belt tongue
are secured when using the seat
belt or installing a child restraint. Do
notusetheseatbeltorchild
restraint with only the seat belt
tongue attached. This could result
in serious personal injury in case of
an accident or a sudden stop.

WARNING

SSS0241

SSS0703

The center seat belt buckle and the tongue are
identified by the CENTER mark. The center seat
belt tongue can be fastened only into the center
seat belt buckle.

SSS0225

Stowing rear center seat belt:

When folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:

1. Hold the connector tongue
seat belt does not retract suddenly when the
tongue is released from the con nector
buckle. Release the connector tongue by
inserting a suitable tool such as key
the connector buckle.

2. Insert the seat belt tongue into the retractor
base first

3. Then secure the connector tongue into the
retractor base

2

*

.

3

.

*

*

1

so that the

A

into

*

WARNING

. Do not unfasten the rear center seat

belt connector except when folding
down the rear seat.

. When attaching the rear center seat

belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com­pletely secured.

. If the rear center seat belt connector

and the seatbacks are not secured

Safety — Seats, seat belts and supplemental restraint system 1-19

in the correct position, serious per­sonal injury may result in an acci­dent or sudden stop.

SSS0232

Attaching rear center seat belt:

Always be sure the rear center seat belt
connector tongue and connector buckle are
attached. Disconnect only when folding down
the rear seat.

To connect the buckle:

1. Pull out the connector tongue from the
retractor base

2. Pull out the seat belt tongue from the
retractor base

3. Pull the seat belt and secure the connector
buckle until it clicks

The center seat belt connector tongue and
buckle are indicated by the ! and ~ mark.

The center seat belt connector tongue can be
attached only into the rear center seat belt
connector buckle.

To fasten the seat belt, see “Fastening the seat
belts” earlier in this section.

1

*

2

*

.

.

3

.

*

WARNING

. Do not unfasten the rear center seat

belt connector except when folding
down the rear seat.

. When attaching the rear center seat

belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear
center seat belt connector is com­pletely secured.

. If the rear center seat belt connector

and the seatbacks are not secured
in the correct position, serious per­sonal injury may result in an acci­dent or sudden stop.

1-20 Safety — Seats, seat belts and supplemental restraint system

SSS0235

Storing rear seat belt buckles

Before folding down the seat, put the buckles in
the storage of the seat cushion to avoid
dropping it under the seat cushion.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender is available that is
compatible with the installed seat belts. The
extender adds approximately 8 in (200 mm) of
length and may be used for either the driver or
front passenger seating position. See a NISSAN
dealer for assistance if an extender is required.

WARNING

. Only NISSAN seat belt extenders,

made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.

. Adults and children who can use the

standard seat belt should not use an
extender. Such unnecessary use
could r esult in serious personal
injury in the event of an accident.

. Never use seat belt extenders to

install child restraints. If the child
restraint is not secured properly, the
child could be seriously injured in a
collision or a sudden stop.

SEAT BELT MAINTENANCE

. To clean the seat belt webbings, apply a

mild soap solution or any solution recom­mended for cleaning upholstery or carpets.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.

. If dirt builds up in the shoulder belt

guide of the seat belt anchors, the seat

belts may retract slowly. Wipe the shoulder
belt guide with a clean, dry cloth.

. Periodically check to see that the seat

belt and the metal components, such as

buckles, tongues, retractors, flexible wires
and anchors, work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire seat belt
assembly should be replaced.

Safety — Seats, seat belts and supplemental restraint system 1-21

CHILD RESTRAINTS

PRECAUTIONS ON CHILD
RESTRAINTS

. Infants and small children should

always be placed in an appropriate
child restraint while riding in the
vehicle. Failure to use a child re­straint can result in serious injury or
death.

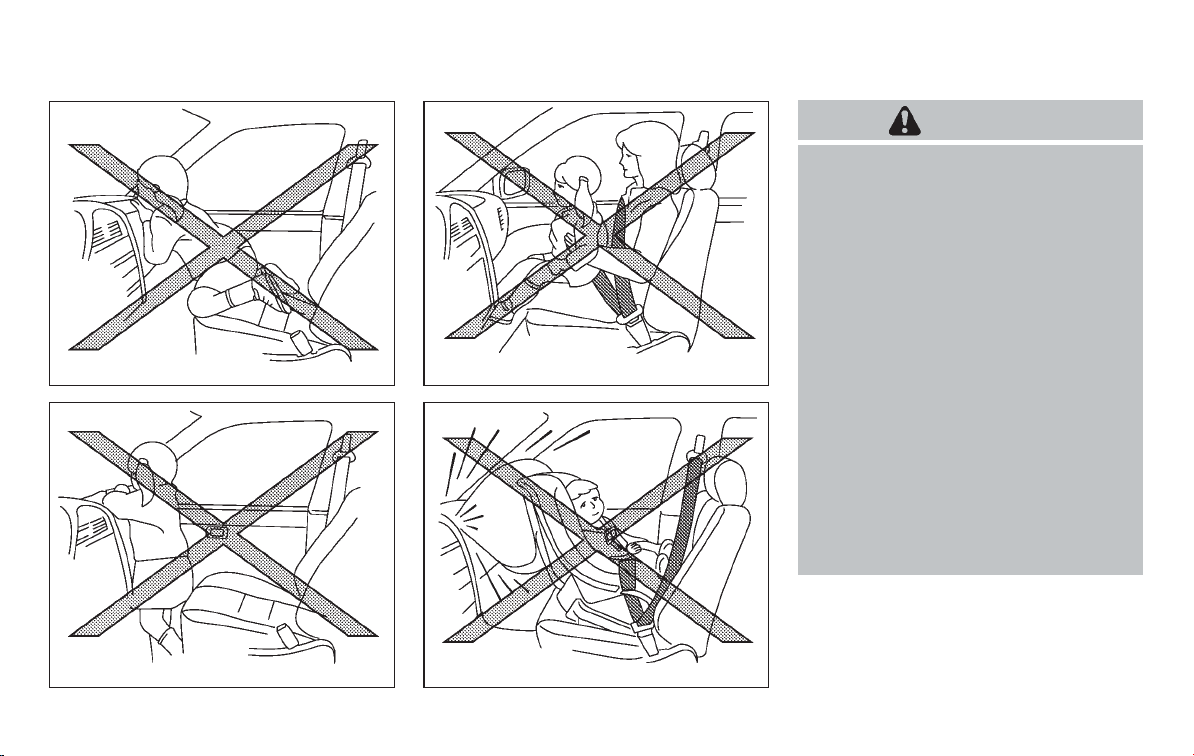

. Infants and small children should

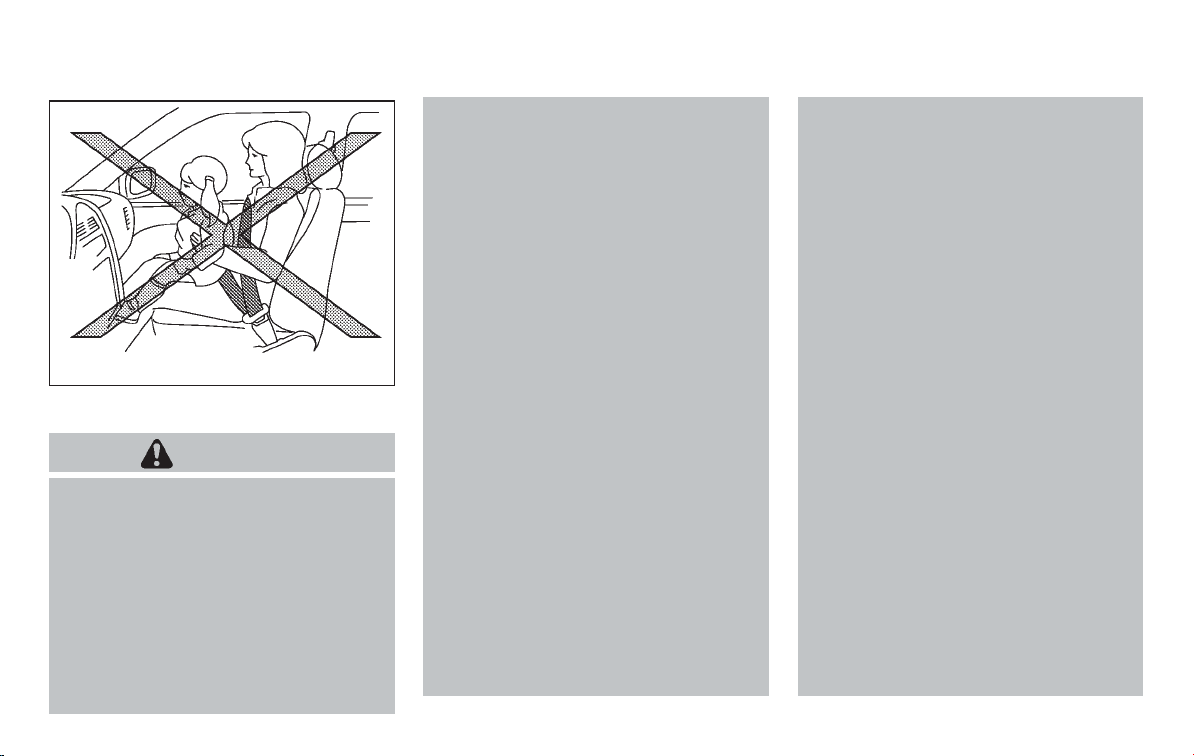

SSS0099

SSS0100

1-22 Safety — Seats, seat belts and supplemental restraint system

never be carried on your lap. It is not
possible for even the strongest
adult to resist the forces of a severe
accident. The child could be crushed
between the adult and parts of the
vehicle. Also, do not put the same
seat belt around both your child and
yourself.

. Even with the NISSAN Advanced Air

Bag System, never install a rear­facing child restraint in the front
seat. An inflating front air bag could
seriously injure or kill your child. A
rear-facing child restraint must only
be used in the rear seat.

. NISSAN recommends that the child

restraint be installed in the rear

WARNING

seat. According to accident statis­tics, children are safer when prop­erly restrained in the rear seat than
in the front seat. If you must install a
front facing child restraint in the
front seat, see “CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS” later in this section.

. Improper use or improper installa-

tion of a child restraint can increase
the risk or severity of injury for both
the child and other occupants of the
vehicle and can lead to serious
injury or death in an accident.

. Follow all of the child restraint

manufacturer’s instructions for in­stallation and use. When purchasing
a child restraint, be sure to select
one which will fit your child and
vehicle. It may not be possible to
properly install some types of child
restraints in your vehicle.

. If the child restraint is not anchored

properly, the risk of a child being
injured in a collision or a sudden
stop greatly increases.

. Child restraint anchor points are

designed to withstand only those

loads imposed by correctly fitted
child restraints. Under no circum­stances are they to be used for adult
seat belts or harnesses.

. Adjustable seatbacks should be

positioned to fit the child restraint,
but as upright as possible.

. After attaching the child restraint,

test it before you place the child in
it. Push it from side to side while
holding the seat near the LATCH
attachment or by the seat belt path.
Try to tug it forward and check to
see if the belt holds the restraint in
place. The child restraint should not
move more than 1 in (25 mm). If the
restraint is not secure, tighten the
belt as necessary, or put the re­straint in another seat and test it
again. You may need to try a differ­ent child restraint. Not all child
restraints fit in all types of vehicles.

. When your child restraint is not in

use, keep it secured with the LATCH
System or a seat belt to prevent it
from being thrown around in case of
a sudden stop or accident.

CAUTION

Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.

This vehicle is equipped with a universal child
restraint lower anchor system, referred to as the
Lower Anchors and Tethers for CHildren System
or LATCH. Some child restraints include two
rigid or webbing-mounted attachments that can
be connected to these lower anchors. For
details, see “Lower Anchors and Tethers for
CHildren SYSTEM (LATCH)” later in this sec­tion.

If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
(See “CHILD RESTRAINT INSTALLATION
USING THE SEAT BELTS” later in this section.)
In general, child restraints are also designed to
be installed with the lap portion of a lap/shoulder
seat belt.

Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:

. Choose only a restraint with a label certifying

that it complies with Federal Motor Vehicle

Safety — Seats, seat belts and supplemental restraint system 1-23

Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.

. Check the child restraint in your vehicle to

be sure it is compatible with the vehicle’s
seat and seat belt system.

. If the child restraint is compatible with your

vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.

Lower Anchors and Tethers for CHildren
SYSTEM (LATCH)

Your vehicle is equipped with special anchor
points that are used with Lower Anchors and
Tethers for CHildren System (LATCH) compa­tible child restraints. This system may also be
referred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint.

The LATCH anchor points are provided to install
child restraints in the rear outboard seating

positions only. Do not attempt to install a child
restraint in the center position using the LATCH
anchors.

LATCH system anchor location

SSS0419B

LATCH lower anchor point locations

The LATCH anchors are located at the rear of
the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.

WARNING

. Attach LATCH compatible child re-

straints only at the locations shown
in the illustration. If a child restraint
is not secured properly, your child
could be seriously injured or killed
in an accident.

. Do not secure a child restraint in the

center rear seating position using
the LATCH anchors. The child re­straint will not be secured properly.

. Child restraint anchor points are

designed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum­stance are they to be used for adult
seat belts or harnesses.

LATCH system lower anchor

1-24 Safety — Seats, seat belts and supplemental restraint system

SSS0637

LATCH webbing-mounted attachment

SSS0643

Installing child restraint LATCH anchor
attachments

LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH system. This information
may also be in the instructions provided by the
child restraint manufacturer.

LATCH child restraints generally require the use

LATCH rigid-mounted attachment

of a top tether strap. (See “TOP TETHER
STRAP CHILD RESTRAINT” later in this section
for installation instructions.)

When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint. (See
“CHILD RESTRAINT INSTALLATION USING
LATCH” later in this section.)

SSS0644

TOP TETHER STRAP CHILD RE­STRAINT

If the manufacturer of your child restraint
requires the use of a top tether strap, it must
be secured to an anchor point.

WARNING

. Child restraint anchor points are

designed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum­stances are they to be used for adult
seat belts or harnesses.

. Your child could be seriously injured

or killed in a collision if the child
restraint top tether strap is da­maged.

— If the cargo cover contacts the

top tether strap when it is at­tached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment loca­tion. If the cargo cover is not
removed, it may damage the top
tether strap during a collision.

— Do not allow cargo to contact

the top tether strap when it is
attached to the top tether an­chor. Properly secure the cargo
so it does not contact the top
tether strap. Cargo that is not
properly secured or that con-

Safety — Seats, seat belts and supplemental restraint system 1-25

tacts the top tether strap may
damage the top tether strap
during a collision.

4. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.

If you have any questions when installing a
top tether strap child restraint on the rear
seat, consult your NISSAN dealer for de­tails.

CHILD RESTRAINT INSTALLATION
USING LATCH

WARNING

Top tether anchor point locations

Anchor points are located on the seatbacks.

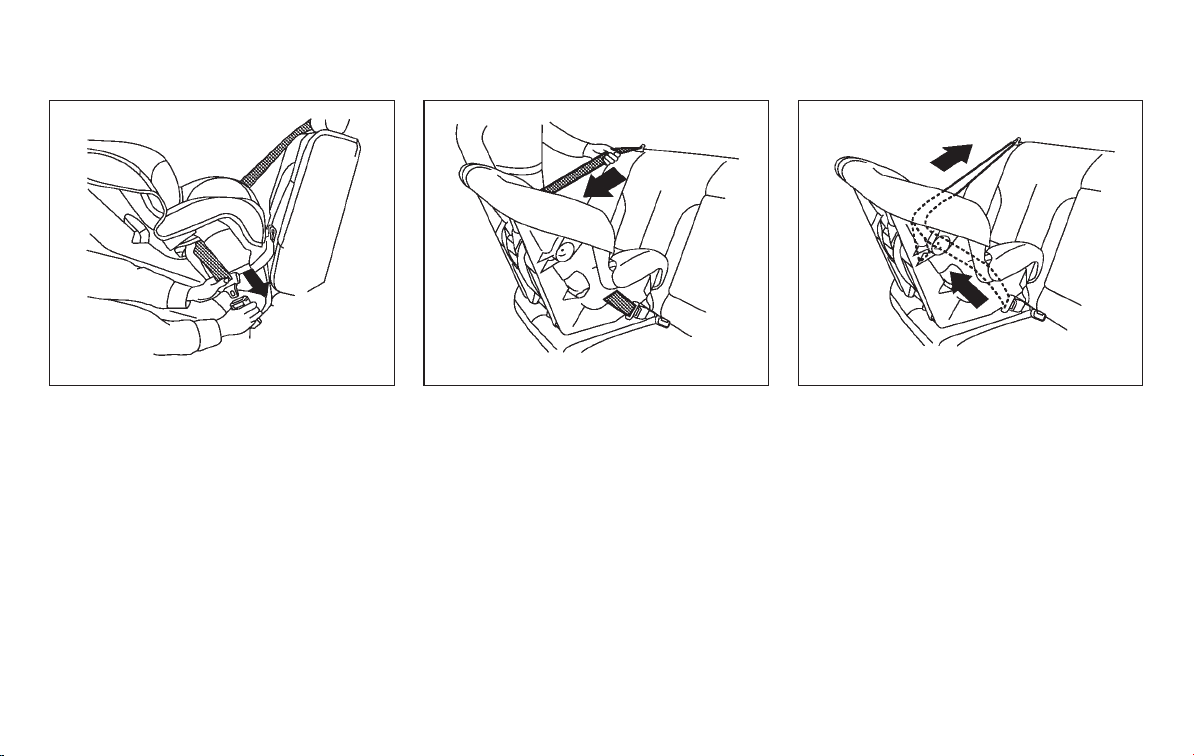

Installing top tether strap

First secure the child restraint with the LATCH
system (rear outboard seating positions only) or
the seat belt as applicable.

1. Remove the head restraint from the seat­back. Store it in a secure place.

2. Position the top tether strap over the top of
the seatback.

3. Secure the tether strap to the tether anchor
bracket that provides the straightest instal­lation.

1-26 Safety — Seats, seat belts and supplemental restraint system

SSS0822

. Attach LATCH compatible child re-

straints only at the locations shown.
For the LATCH lower anchor loca­tions, see “Lower Anchors and
Tethers for CHildren SYSTEM
(LATCH)” earlier in this section. If a
child restraint is not secured prop­erly, your child could be seriously
injured or killed in an accident.

. The LATCH anchors are designed to

withstand only those loads imposed
by correctly fitted child restraints.
Under no circumstance are they to
be used for adult seat belts or
harnesses.

. Inspect the lower anchors by insert-

ing your fingers into the lower
anchor area and feeling to make
sure there are no obstructions over
the LATCH anchors, such as seat
belt webbing or seat cushion mate­rial. The child restraint will not be
secured properly if the LATCH an­chors are obstructed.

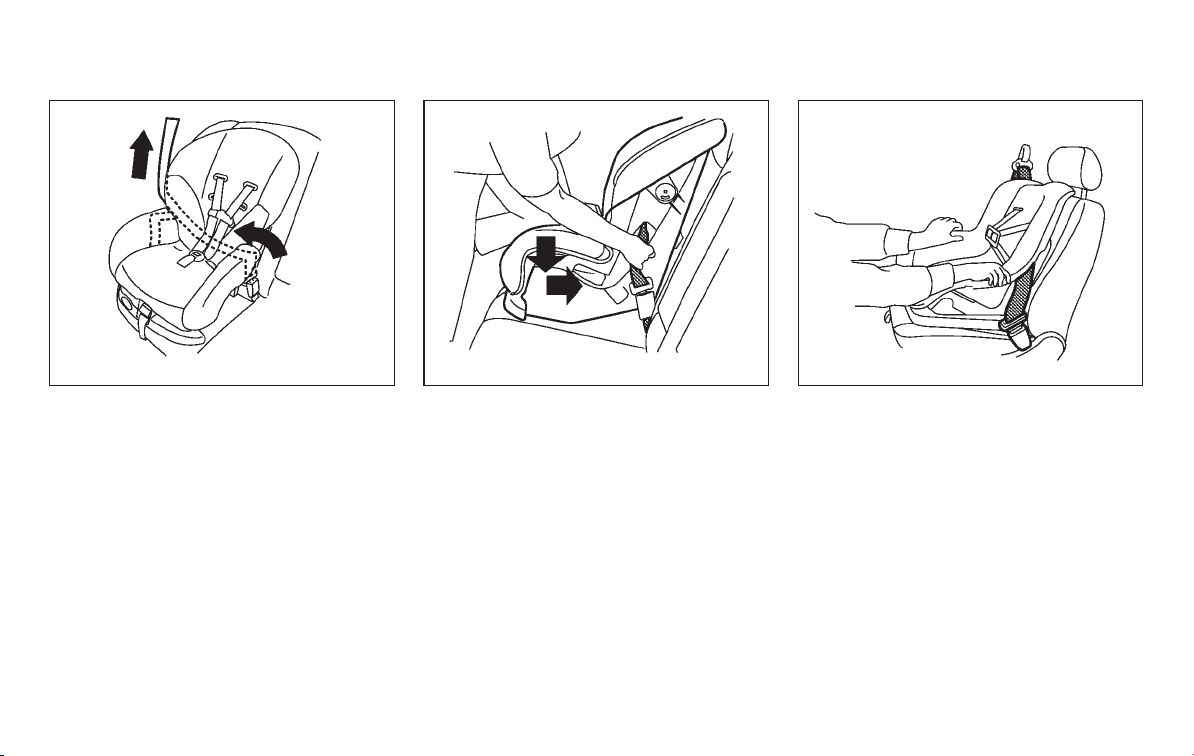

Front-facing

Follow these steps to install a front-facing child
restraint using LATCH:

1. Adjust the rear seatback to the upright
position.

2. Position the child restraint on the seat.
Always follow the child restraint manufac­turer’s instructions.

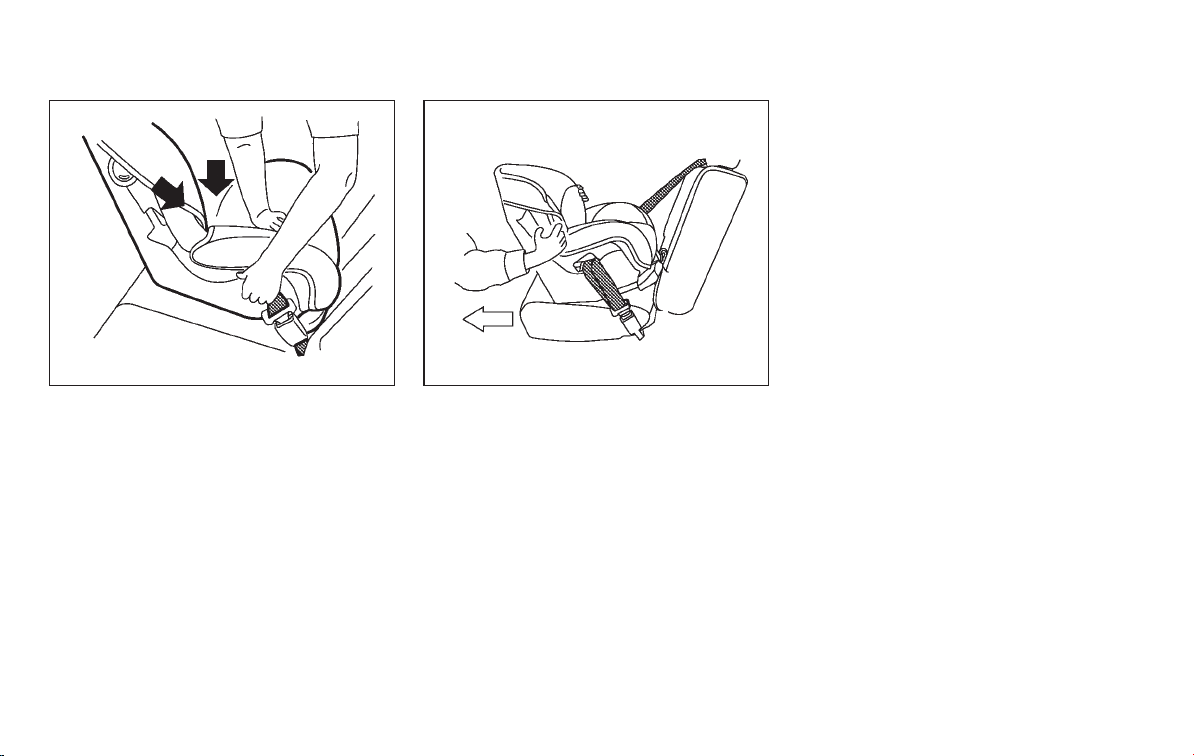

Front facing (webbing-mounted) — step 3

SSS0645

3. Secure the child restraint anchor attach­ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.

Front facing (rigid-mounted) — step 3

SSS0646

4. The back of the child restraint should be
secured against the vehicle seatback. If
necessary, adjust or remove the head
restraint to obtain the correct child restraint
fit. (See “HEAD RESTRAINTS” earlier in this
section.)

If the head restraint is removed, store it in a
secure place. Be sure to install the head
restraint when the child restraint is removed.

If the seating position does not have an
adjustable head restraint and it is interfering
with the proper child restraint fit, try another
seating position or a different child restraint.

Safety — Seats, seat belts and supplemental restraint system 1-27

8. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 4
through 7.

Rear-facing

Follow these steps to install a rear-facing child
restraint using LATCH:

1. Position the child restraint on the seat.
Always follow the child restraint manufac­turer’s instructions.

5. For child restraints that are equipped with

Front facing — step 5

webbing-mounted attachments, remove any
additional slack from the anchor attach­ments. Press downward and rearward firmly
in the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

6. If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. (See “TOP TETHER STRAP CHILD
RESTRAINT” earlier in this section.)

SSS0647

7. Before placing the child in the child restraint,

Front facing — step 7

hold child restraint near the LATCH attach­ment and use force to push the child
restraint from side to side, and tug it forward
to make sure that it is securely held in place.
It should not move more than 1 in (25 mm). If
it does move more than 1 in (25 mm), pull
again on the anchor attachments to further
tighten the child restraint. If you are unable
to properly secure the restraint, move the
restraint to another seating position and try
again, or try a different child restraint. Not all
child restraints fit in all types of vehicles.

1-28 Safety — Seats, seat belts and supplemental restraint system

SSS0638

Rear facing (webbing-mounted) — step 2

SSS0648

2. Secure the child restraint anchor attach­ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.

Rear facing (rigid-mounted) — step 2

Safety — Seats, seat belts and supplemental restraint system 1-29

SSS0649

Rear facing — step 3

SSS0639

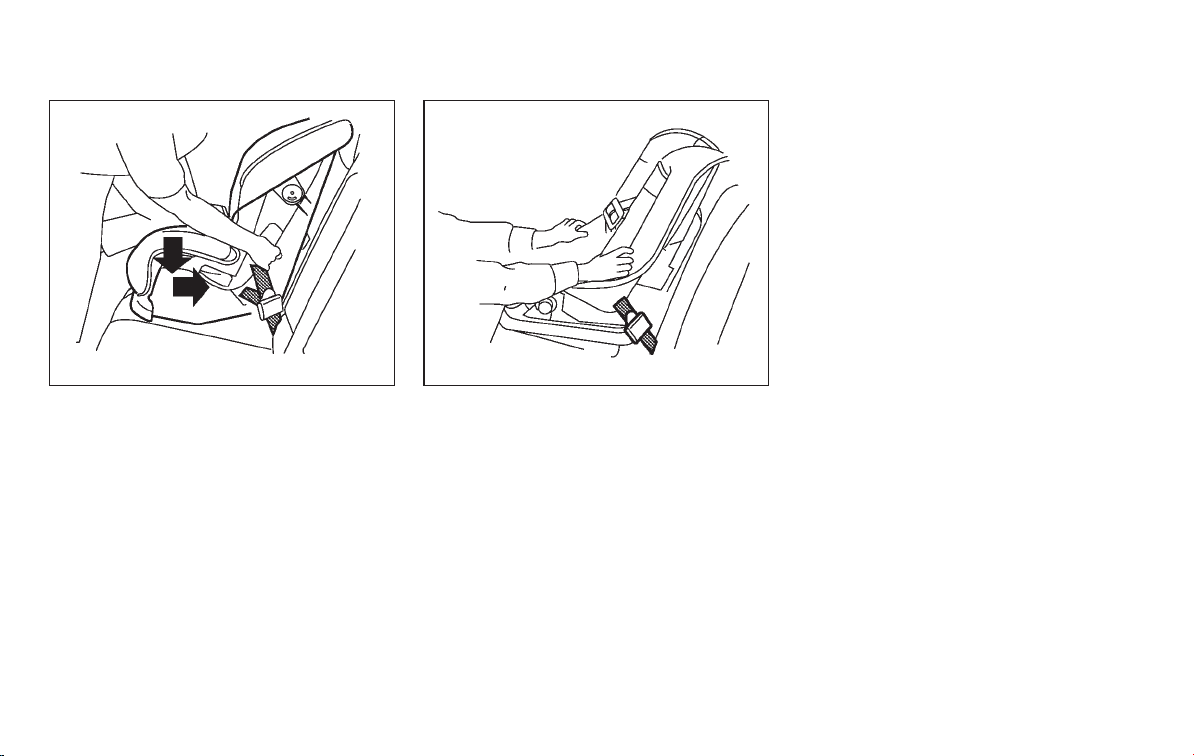

3. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attach­ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 4.

4. Before placing the child in the child restraint,

Rear facing — step 4

hold the child restraint near the LATCH
attachment and use force to push the child
restraint from side to side, and tug it forward
to make sure that it is securely held in place.
It should not move more than 1 in (25 mm). If
it does move more than 1 in (25 mm), pull
again on the anchor attachments to further
tighten the child restraint. If you are unable
to properly secure the restraint, move the
restraint to another seating position and try
again, or try a different child restraint. Not all
child restraints fit in all types of vehicles.

SSS0650

1-30 Safety — Seats, seat belts and supplemental restraint system

SSS0100

CHILD RESTRAINT INSTALLATION
USING THE SEAT BELTS

WARNING

. Even with the NISSAN Advanced Air

Bag System, never install a rear­facing child restraint in the front
passenger seat. Front air bags in­flate with great force. A rear-facing
child restraint could be struck by the
front air bag in a crash and could
seriously injure or kill your child.

. NISSAN recommends that child re-

straints be installed in the rear seat.

However, if you must install a for­ward facing child restraint in the
front passenger seat, move the
passenger seat to the rearmost
position. Also, be sure the front
passenger air bag status light is
illuminated to indicate the passen­ger air bag is OFF. See “Front
passenger air bag and status light”
later in this section for details.

. The three-point seat belt in your

vehicle is equipped with an Auto­matic Locking Retractor (ALR) mode
which must be used when installing
a child restraint.

. Failure to use the ALR mode will

result in the child restraint not being
properly secured. The restraint
could tip over or otherwise be un­secured and cause injury to the child
in a sudden stop or collision.

. When using the rear center seat belt

to install a child restraint, make sure
the connector tongue and the seat
belt tongue are secured. Do not use
the seat belt with only the seat belt
tongue attached. This could result in
serious personal injury in case of an
accident or sudden stop.

. A child restraint with a top tether

strap should not be used in the front
passenger seat.

The instructions in this section apply to child
restraint installation using the vehicle seat belts
in the rear seat or the front passenger seat.

Safety — Seats, seat belts and supplemental restraint system 1-31

Front facing (front passenger seat) — step 1

SSS0640

Front-facing

Follow these steps to install a front-facing child
restraint using the vehicle seat belt in the rear
seat or in the front passenger seat:

1. Adjust the rear seatback to the upright
position.

If you must install a child restraint in
the front seat, it should be placed in a
front-facing direction only. Move the
seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and therefore
must not be used in the front seat.

2. Position the child restraint on the seat.
Always follow the child restraint manufac­turer’s instructions.

The back of the child restraint should be
secured against the seatback. If necessary,
adjust or remove the head restraint (front
passenger seat only) to obtain the correct
child restraint fit. (See “HEAD RE­STRAINTS” earlier in this section.)

If the head restraint is removed, store it in a
secure place. Be sure to install the head
restraint when the child restraint is removed.

If the seating position does not have an
adjustable head restraint and it is interfering
with the proper child restraint fit, try another
seating position or a different child restraint.

Front facing — step 3

SSS0360B

3. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s
instructions for belt routing.

Front facing — step 4

SSS0651

4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

1-32 Safety — Seats, seat belts and supplemental restraint system

Front facing — step 5

SSS0652

5. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt.

Front facing — step 6

SSS0653

6. Remove any additional slack from the seat
belt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.

7. If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point (rear seat installation only). (See “TOP
TETHER STRAP CHILD RESTRAINT” ear­lier in this section.) Do not install child
restraints that require the use of a top tether
strap to seating positions that do not have a
top tether anchor.

Safety — Seats, seat belts and supplemental restraint system 1-33

Front facing — step 8

SSS0641

8. Before placing the child in the child restraint,
hold the child restraint near the seat belt
path and use force to push the child restraint
from side to side, and tug it forward to make
sure that it is securely held in place. It should
not move more than 1 in (25 mm). If it does
move more than 1 in (25 mm), pull again on
the shoulder belt to further tighten the child
restraint. If you are unable to properly secure
the restraint, move the restraint to another
seating position and try again, or try a
different child restraint. Not all child re­straints fit in all types of vehicles.

9. Check that the retractor is in the ALR mode
by trying to pull more seat belt out of the
retractor. If you cannot pull any more belt
webbing out of the retractor, the retractor is
in the ALR mode.

10. Check to make sure the child restraint is
properly secured prior to each use. If the
seat belt is not locked, repeat steps 3
through 9.

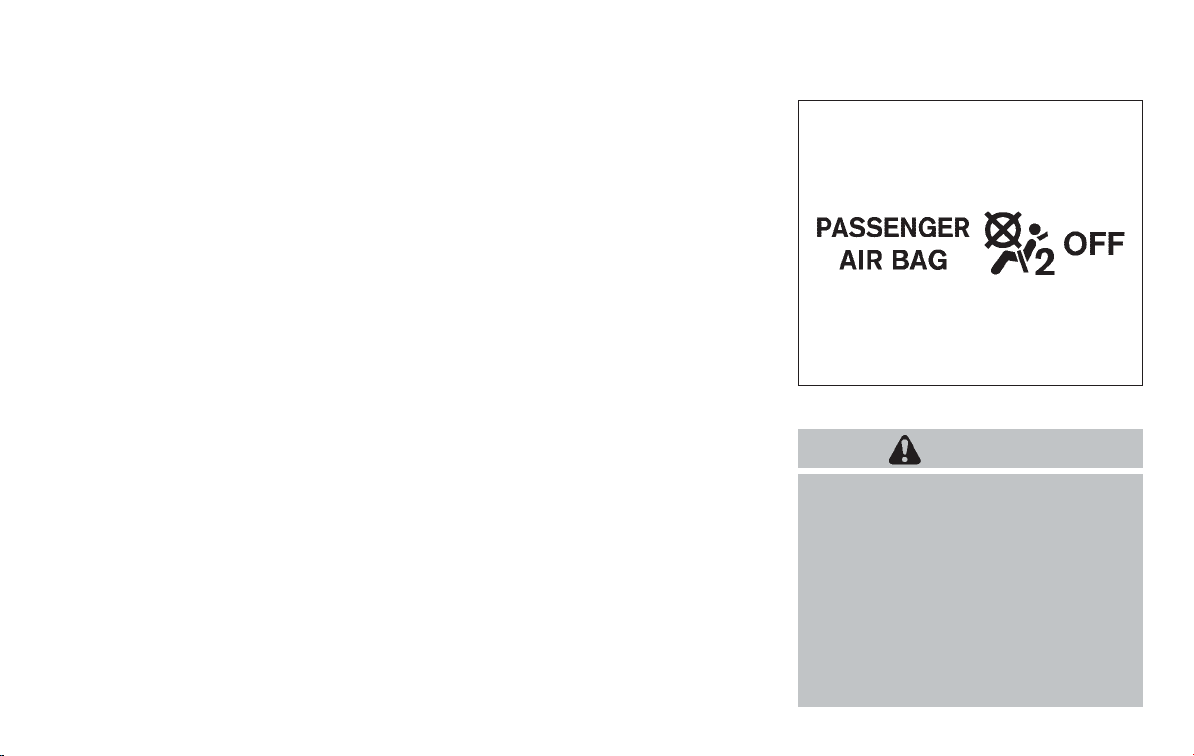

11. If the child restraint is installed in the front

Front facing — step 11

passenger seat, turn the ignition switch to
the ON position. The front passenger air bag
status light
light is not illuminated, see “Front passenger
air bag and status light” later in this section.

Move the child restraint to another
seating position. Have the system

checked by a NISSAN dealer.

After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.

1-34 Safety — Seats, seat belts and supplemental restraint system

SSS0823

should illuminate. If this

SSS0100

Rear-facing

Follow these steps to install a rear-facing child
restraint using the vehicle seat belt in the rear
seat:

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the front
seat. Position the child restraint on the seat.

Always follow the restraint manufacturer’s
instructions.

Rear facing — step 2

SSS0654

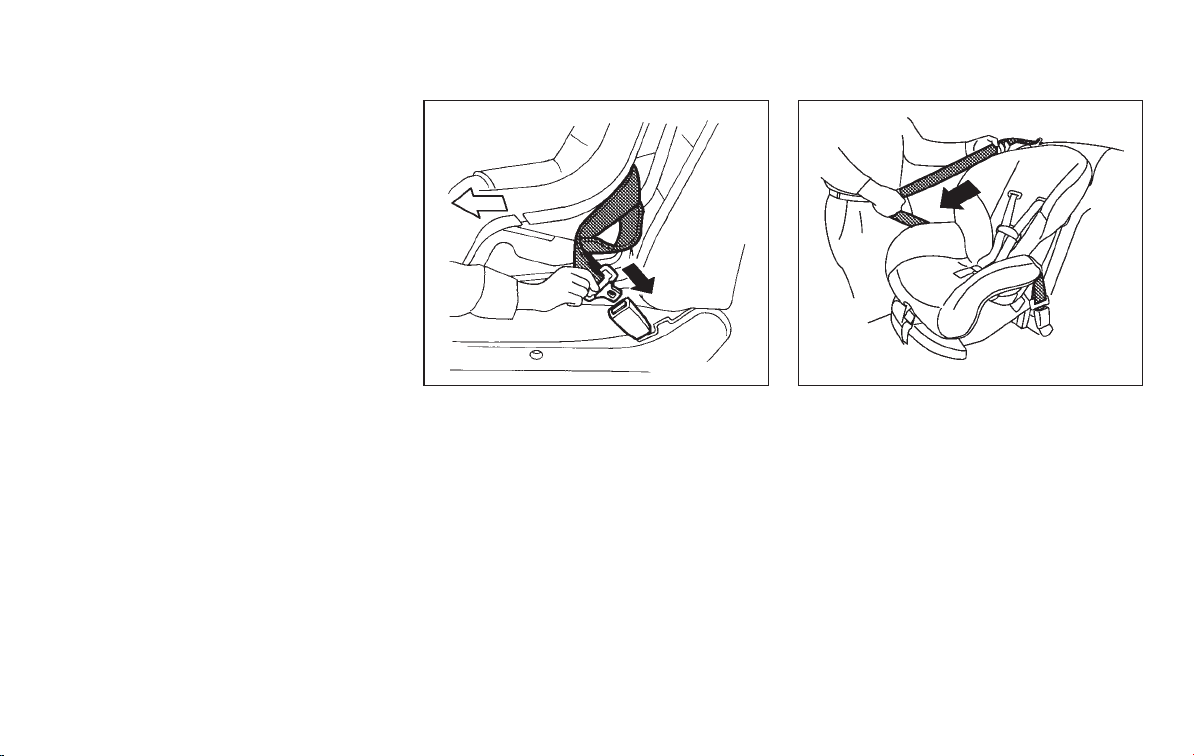

2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s
instructions for belt routing.

Rear facing — step 3

SSS0655

3. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

Safety — Seats, seat belts and supplemental restraint system 1-35

Rear facing — step 4

SSS0656

4. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt.

7. Check that the retractor is in the ALR mode
by trying to pull more seat belt out of the
retractor. If you cannot pull any more seat
belt webbin g out of the retracto r, the
retractor is in the ALR mode.

8. Check to make sure that the child restraint is
properly secured prior to each use. If the
belt is not locked, repeat steps 3 through 7.

After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.

5. Remove any additional slack from the child

Rear facing — step 5

restraint; press downward and rearward
firmly in the center of the child restraint with
your hand to compress the vehicle seat
cushion and seatback while pulling up on
the seat belt.

SSS0657

6. Before placing the child in the child restraint,

Rear facing — step 6

hold the child restraint near the seat belt
path and use force to push the child restraint
from side to side, and tug it forward to make
sure that it is securely held in place. It should
not move more than 1 in (25 mm). If it does
move more than 1 in (25 mm), pull again on
the shoulder belt to further tighten the child
restraint. If you are unable to properly secure
the restraint, move the restraint to another
rear seating position and try again, or try a
different child restraint. Not all child re­straints fit in all types of vehicles.

1-36 Safety — Seats, seat belts and supplemental restraint system

SSS0658

BOOSTER SEATS

SSS0099

PRECAUTIONS ON BOOSTER SEATS

WARNING

. Infants and small children should

always be placed in an appropriate
child restraint while riding in the
vehicle. Failure to use a child re­straint or booster seat can result in
serious injury or death.

. Infants and small children should

never be carried on your lap. It is not
possible for even the strongest
adult to resist the forces of a severe
accident. The child could be crushed

between the adult and parts of the
vehicle. Also, do not put the same
seat belt around both your child and
yourself.

. NISSAN recommends that the boos-

ter seat be installed in the rear seat.
According to accident statistics,
children are safer when proper ly
restrained in the rear seat than in
the front seat. If you must install a
booster seat in the front seat, see
“BOOSTER SEAT INSTALLATION”
later in this section.

. A booster seat must only be in-

stalled in a seating position that has
a lap/shoulder belt. Failure to use a
three-point type seat belt with a
booster seat can result in a serious
injury in sudden stop or collision.

. Improper use or improper installa-

tion of a booster seat can increase
the risk or severity of injury for both
the child and other occupants of the
vehicle and can lead to serious
injury or death in an accident.

. Do not use towels, books, pillows or

other items in place of a booster
seat. Items such as these may move

Safety — Seats, seat belts and supplemental restraint system 1-37

during normal driving or a collision
and result in serious injury or death.
Booster seats are designed to be
used with a lap/shoulder belt. Boos­ter seats are designed to properly
route the lap and shoulder portions
of the seat belt over the strongest
portions of a child’s body to provide
the maximum protection during a
collision.

. Follow all of the booster seat man-

ufacturer’s instructions for installa­tion and use. When purchasing a
booster seat, be sure to select one
which will fit your child and vehicle.
It may not be possible to properly
install some types of booster seats
in your vehicle.

. If the booster seat and seat belt is

not used properly, the risk of a child
being injured in a collision or a
sudden stop greatly increases.

. Adjustable seatbacks should be

positioned to fit the booster seat,
but as upright as possible.

. After placing the child in the booster

seat and fastening the seat belt,
make sure the shoulder portion of

the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the abdomen.

. Do not put the shoulder belt behind

the child or under the child’s arm. If
you must install a booster seat in
the front seat, see “BOOSTER SEAT
INSTALLATION” later in this section.

. When your booster seat is not in

use, keep it secured with a seat belt
to prevent it from being thrown
around in case of a sudden stop or
accident.

CAUTION

Remember that a booster seat left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the booster
seat.

LRS0455

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:

. Choose only a booster seat with a label

certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.

. Check the booster seat in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

LRS0453

. Make sure the child’s head will be properly

supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat

1

is chosen, the

*

2

should be used.

*

1-38 Safety — Seats, seat belts and supplemental restraint system

LRS0464

. If the booster seat is compatible with your

vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.

The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.

BOOSTER SEAT INSTALLATION

WARNING

NISSAN recommends that booster
seats be installed in the rear seat.
However, if you must install a booster
seat in the front passenger seat, move
the passenger’s seat to the rearmost
position.

CAUTION

Do not use the lap/shoulder belt Auto­matic Locking Retrac tor (ALR) mode
when using a booster seat with the
seat belts.

Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:

1. Adjust the rear seatback to the upright

Front passenger seat

position.

If you must install a booster seat in the
front seat, move the seat to the rear­most position.

2. Position the booster seat on the seat. Only
place it in a front facing direction. Always
follow the booster seat manufacturer’s
instructions.

SSS0640

Safety — Seats, seat belts and supplemental restraint system 1-39

3. The booster seat should be positioned on

Rear center position

the vehicle seat so that it is stable. If
necessary, adjust or remove the head
restraint to obtain the correct booster seat
fit. (See “HEAD RESTRAINTS” earlier in this
section.) If the head restraint is removed,
store it in a secure place. Be sure to install
the head restraint when the booster seat is
removed. If the seating position does not
have an adjustable head restraint and it is
interfering with the proper booster seat fit,
try another seating position or a different

LRS0451

4. Position the lap portion of the seat belt low

Rear outboard position

and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the belt routing.

5. Pull the shoulder belt portion of the seat belt
toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child’s
shoulder. Be sure to follow the booster seat
manufacturer’s instructions for adjusting the
belt routing.

booster seat.

1-40 Safety — Seats, seat belts and supplemental restraint system

LRS0452

Front passenger seat

LRS0454

6. Follow the warnings, cautions and instruc­tions for properly fastening a seat belt
shown in the “THREE-POINT TYPE SEAT
BELT” earlier in this section.

SUPPLEMENTAL RESTRAINT
SYSTEM

SSS0823

7. If the booster seat is installed in the front
passenger seat, turn the ignition switch to
the ON position. The front passenger air bag
status light
illuminated depending on the size of the
child and the type of booster seat used.
(See “Front passenger air bag and status
light” later in this section.)

may or may not be

PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM

This Supplemental Restraint System (SRS)
section contains important information concern­ing the following systems:

. Driver and passenger supplemental front-

impact air bag (NISSAN Advanced Air Bag
System)

. Front seat-mounted side-impact supple-

mental air bag

. Roof-mounted curtain side-impact and roll-

over supplemental air bag

. Seat belt pretensioner

Supplemental front-impact air bag system:

The NISSAN Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in certain
frontal collisions.

Front seat-mounted side-impact supple­mental air bag system: This system can help

cushion the impact force to the chest area of the
driver and front passenger in certain side impact
collisions. The side air bags are designed to
inflate on the side where the vehicle is impacted.

Roof-mounted curtain side-impact and
rollover supplemental air bag system: This

system can help cushion the impact force to the

head of occupants in front and rear outboard
seating positions in certain side impact or
rollover collisions. In a side impact, the curtain
and rollover air bags are designed to inflate on
the side where the vehicle is impacted. In a
rollover both curtain and rollover air bags are
designed to inflate and remain inflated for a
short period of time.

These supplemental restraint systems are de­signed to supplement the crash protection
provided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the
occupant seated a suitable distance away from
the steering wheel, instrument panel and door
finishers. (See “SEAT BELTS” earlier in this
section for instructions and precautions on seat
belt usage.)

The supplemental air bags operate only
when the ignition switch is in the ON
position.

After turning the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.

Safety — Seats, seat belts and supplemental restraint system 1-41

1-42 Safety — Seats, seat belts and supplemental restraint system

SSS0131

SSS0132

WARNING

. The front air bags ordinarily will not

inflate in the event of a side impact,
rear impact, rollover, or lower se­verity frontal collision. Always wear
your seat belts to help reduce the
risk or severity of injury in various
kinds of accidents.

. The front passenger air bag will not

inflate if the passenger air bag
status light is lit or if the front
passenger seat is unoccupied. See
“Front passenger air bag and status
light” later in this section.

. The seat belts and the front air bags

are most effective when you are
sitting well back and upright in the
seat with both feet on the floor. The
front air bags inflate with great
force. Even with the NISSAN Ad­vanced Air Bag System, if you are
unrestrained, leaning forward, sit­ting sideways or out of position in
any way, you are at greater risk of
injury or death in a crash. You may
also receive serious or fatal injuries
from the front air bag if you are up
against it when it inflates. Always sit

back against the seatback and as
far-away as practical from the steer­ing wheel or instrument panel. Al­ways use the seat belts.

. The driver and front passenger seat

belt buckles are equipped with
sensors that detect if the seat belts
are fastened. The Advanced Air Bag
System monitors the severity of a
collision and seat belt usage then
inflates the air bags. Failure to
properly wear seat belts can in­crease the risk or severity of injury
in an accident.

. The front passenger seat is

equipped with an occupant classifi­cation sensor (pattern sensor) that
turns the front passenger air bag
OFF under some conditions. This
sensor is only used in this seat.
Failure to be properly seated and
wearing the seat belt can increase
the risk or severity of injury in an
accident. See “Front passenger air
bag and status light” later in this
section.

. Keep hands on the outside of the

steering wheel. Placing them inside
the steering wheel rim could in-

crease the risk that they are injured
if the front air bag inflates.

SSS0007

SSS0006

Safety — Seats, seat belts and supplemental restraint system 1-43

SSS0008

SSS0099

WARNING

. Never let children ride unrestrained

or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some
examples of dangerous riding posi­tions are shown in the illustrations.

. Children may be severely injured or

killed when the front air bags, side
air bags or curtain and rollover air
bags inflate if they are not properly
restrained. Pre-teens and children
should be properly restrained in the
rear seat, if possible.

. Even with the NISSAN Advanced Air

Bag System, never install a rear­facing child restraint in the front
seat. An inflating front air bag could
seriously injure or kill your child.
See “CHILD RESTRAINTS” earlier in
this section for details.

SSS0009

1-44 Safety — Seats, seat belts and supplemental restraint system

SSS0100

Do not lean against doors or windows.

SSS0059A

SSS0188A

SSS0140

SSS0159

WARNING

Front seat-mounted side-impact sup­plemental air bags and roof-mounted
curtain side-impact and rollover supple­mental air bags:

. The side air bags and curtain and

rollover air bags ordinarily will not
inflate in the event of a frontal
impact, rear impact or lower severity
side collision. Always wear your
seat belts to help reduce the risk

SSS0162

Safety — Seats, seat belts and supplemental restraint system 1-45

or severity of injury in various kinds
of accidents.

. The seat belts, the side air bags and

curtain and rollover air bags are
most effective when you are sitting
well back and upright in the seat
with both feet on the floor. The side
air bag and curtain and rollover air
bag inflate with great force. Do not
allow anyone to place their hand,
leg or face near the side air bag on
the side of the seatback of the front
seat or near the side roof rails. Do
not allow anyone sitting in the front
seats or rear outboard seats to
extend their hand out of the window
or lean against the door. Some
examples of dangerous riding posi­tions are shown in the previous
illustrations.

. When sitting in the rear seat, do not

hold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe­cially careful with children, who
should always be properly re­strained. Some examples of danger­ous riding positions are shown in
the illustrations.

. Do not use seat covers on the front

seatbacks. They may interfere with

side air bag inflation.

1-46 Safety — Seats, seat belts and supplemental restraint system

1. Crash zone sensor

2. Supplemental front-impact air bag modules

3. Front seat-mounted side-impact supplemental air
bag modules

4. Occupant classification sensor (pattern sensor)

5. Occupant classification system control unit

SSS0847

6. Roof-mounted curtain side-impact and rollover
supplemental air bags

7. Roof-mounted curtain side-impact and rollover
supplemental air bag inflators

8. Seat belt pretensioners

9. Satellite sensors

10. Air bag Control Unit (ACU)

Safety — Seats, seat belts and supplemental restraint system 1-47

NISSAN ADVANCED AIR BAG SYS­TEM (front seats)

This vehicle is equipped with the NISSAN
Advanced Air Bag System for the driver and
front passenger seats. This system is designed
to meet certification requirements under U.S.
regulations. It is also permitted in Canada.

However, all of the information, cautions
and warnings in this manual still apply and
must be followed.

The driver supplemental front-impact air bag is
located in the center of the steering wheel; the
passenger supplemental front-impact air bag is
mounted in the instrument panel above the glove
box. The front air bags are designed to inflate in
higher severity frontal collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher severity
frontal impact. They may not inflate in certain
frontal collisions. Vehicle damage (or lack of it) is
not always an indication of proper front air bag
operation.

The NISSAN Advanced Air Bag System has
dual stage air bag inflators. The system monitors
information from the crash zone sensor, satellite
sensor, Air bag Control Unit (ACU), seat belt
buckle sensors and occupant classification
sensor (pattern sensor). Inflator operation is
based on the severity of a collision and seat belt
usage for the driver. For the front passenger, the
occupant classification sensor is also monitored.

Based on information from the sensors, only one
front air bag may inflate in a crash, depending on
the crash severity and whether the front
occupants are belted or unbelted. Additionally,
the front passenger air bag may be automatically
turned OFF under some conditions, depending
on the information provided by the occupant
classification sensor. If the front passenger air
bag is OFF, the passenger air bag status light
will be illuminated (if the seat is unoccupied, the
light will not be illuminated, but the air bag will
be off). (See “Front passenger air bag and
status light” later in this section for further
details.) One front air bag inflating does not
indicate improper performance of the system.

If you have any questions about your air bag
system, contact NISSAN or a NISSAN dealer. If
you are considering modification of your vehicle
due to a disability, you may also contact
NISSAN. Contact information is contained in
the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.

Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help

save lives and reduce serious injuries . However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.

Even with NISSAN Advanced Air Bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the air bag module during
inflation.

The front air bags will deflate quickly after a
collision.

The front air bags operate only when the
ignition switch is in the ON position.

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.

1-48 Safety — Seats, seat belts and supplemental restraint system

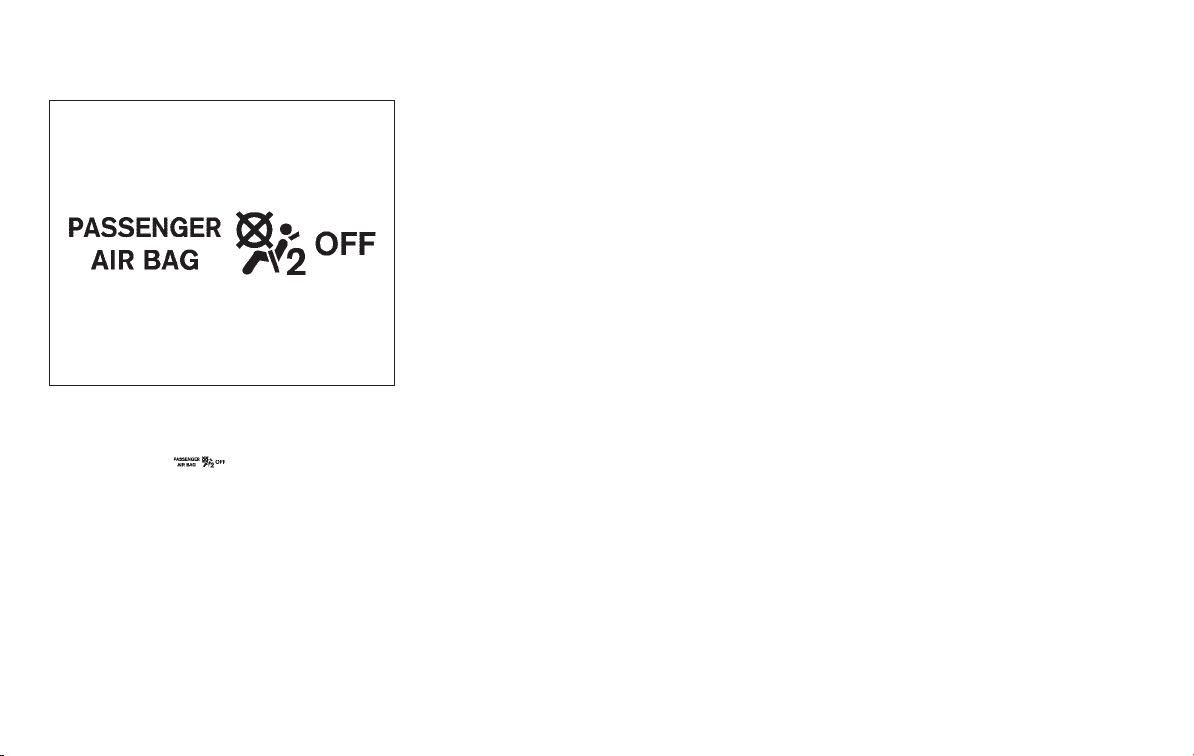

Front passenger air bag status light

SSS0823

Front passenger air bag and status light

WARNING

The front passenger air bag is designed
to automatically turn OFF under some
conditions. Read this section carefully
to learn how it operates. Proper use of
the seat, seat belt and child restraints is
necessary for most effective protection.
Failure to follow all instructions in this
manual concerning the use of seats,
seat belts and child restraints can
increase the risk or severity of injury in
an accident.

Status light:

The front passenger air bag status light
is located on the instrument panel below the air
conditioner controls. The light operates as
follows:

. Unoccupied passenger seat: The

light is OFF and the front passenger air bag
is OFF and will not inflate in a crash.

. Passenger’s seat occupied by a small adult,

child or child restraint as outlined in this
section: The

light illuminates to
indicate that the front passenger air bag is
OFF and will not inflate in a crash.

. Occupied passenger seat and the passen-

ger meets the conditions outlined in this
section: The

light is OFF to indicate
that the front passenger air bag is opera­tional.

Front passenger air bag:

The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as described
below as permitted by U.S. regulations. If the
front passenger air bag is OFF, it will not inflate
in a crash. The driver air bag and other air bags
in your vehicle are not part of this system.

The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air bag

to certain front passenger seat occupants, such
as children, by requiring the air bag to be
automatically turned OFF.

The occupant classification sensor (pattern
sensor) is in the front passenger seat cushion
and is designed to detect an occupant and
objects on the seat. For example, if a child is in
the front passenger seat, the Advanced Air Bag
System is designed to turn the passenger air
bag OFF in accordance with the regulations.
Also, if a child restraint of the type specified in
the regulations is on the seat, the occupant
classification sensor can detect it and cause the
air bag to turn OFF.

Front passenger seat adult occupants who are
properly seated and using the seat belt as
outlined in this manual should not cause the
passenger air bag to be automatically turned
OFF. For small adults it may be turned OFF,
however, if the occupant does not sit in the seat
properly (for example, by not sitting upright, by
sitting on an edge of the seat, or by otherwise
being out of position), this could cause the
sensor to turn the air bag OFF. Always be sure
to be seated and wearing the seat belt properly
for the most effective protection by the seat belt
and supplemental air bag.

NISSAN recommends that pre-teens and chil­dren be properly restrained in a rear seat.
NISSAN also recommends that appropriate
child restraints and booster seats be properly

Safety — Seats, seat belts and supplemental restraint system 1-49

installed in a rear seat. If this is not possible, the
occupant classification sensor is designed to
operate as described above to turn the front
passenger air bag OFF for specified child
restraints. Failing to properly secure child
restrains and to use the Automatic Locking
Retractor (ALR) mode (child restraint mode)
may allow the restraint to tip or move in an
accident or sudden stop. This can also result in
the passenger air bag inflating in a crash instead
of being OFF. (See “C HILD RESTRAINTS”
earlierinthissectionforproperuseand
installation.)

If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object being detected by the occupant
classification sensor. Other conditions could
also result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle
occupants are seated and restrained properly.

Using the passenger air bag status light, you can
monitor when the front passenger air bag is
automatically turned OFF with the seat occu­pied. The light will not illuminate when the front
passenger seat is unoccupied.

If an adult occupant is in the seat but the
passenger air bag status light is illuminated

(indicating that the air bag is OFF), it could be
that the person is a small adult, or is not sitting
on the seat properly.

If a child restraint must be used in the front seat,
the passenger air bag status light may or may
not be illuminated, depending on the size of the
child and the type of child restraint being used. If
the air bag status light is not illuminated
(indicating that the air bag might inflate in a
crash), it could be that the child restraint or seat
belt is not being used properly. Make sure that
the child restraint is installed properly, the seat
belt is used properly and the occupant is
positioned properly. If the air bag status light is
not illuminated, reposition the occupant or child
restraint in a rear seat.

If the passenger air bag status light will not
illuminate even though you believe that the child
restraint, the seat belts and the occupant are
properly positioned, the system may be sensing
an unoccupied seat (in which case the air bag is
OFF). Your NISSAN dealer can check that the
system is OFF by using a special tool. However,
until you have confirmed with your dealer that
your air bag is working properly, reposition the
occupant or child restraint in a rear seat.

The air bag system and passenger air bag status
light will take a few seconds to register a change
in the passenger seat status. However, if the
seat becomes unoccupied, the air bag status
light will remain off.

If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light
will blink. Have the system checked by a
NISSAN dealer.

, located in the meter and gauges area,

Other supplemental front-impact air bag
precautions

. Do not place any objects on the

steering wheel pad or on the instru­ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause
injury if the front air bag inflates.

. Do not place objects with sharp

edges on the seat. Also, do not
place heavy objects on the seat that
will leave permanent impressions in
the seat. Such objects can damage
the seat or occupant classification
sensor (pattern sensor). This can
affect the operation of the air bag
system and result in serious perso­nal injury.

. Do not use water or acidic cleaners

1-50 Safety — Seats, seat belts and supplemental restraint system

WARNING

(hot steam cleaners) on the seat.
This can damage the seat or occu­pant classification sensor. This can
also affect the operation of the air
bag system and result in serious
personal injury.

. Immediately after inflation, several

front air bag system components
will be hot. Do not touch them; you
may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring
of the supplemental air bag system.
This is to prevent accidental infla­tion of the supplemental air bag or
damage to the supplemental air bag
system.

. Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the front air bag sys­tem.

. Tampering with the supplemental

air bag system may result in serious
personal injury. Tampering includes
changes to the steering wheel and
the instrument panel assembly by

placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system.

. Modifying or tampering with the

front passenger seat may result in
serious personal injury. For exam­ple, do not change the front seats by
placing material on the seat cushion
or by installing additional trim ma­terial, such as seat covers, on the
seat that is not specifically designed
to assure proper air bag operation.
Additionally, do not stow any ob­jects under the front passenger seat
or the seat cushion and seatback.
Such objects may interfere with the
proper operation of the occupant
classification sensor.

. No unauthorized changes should be

made to any components or wiring
of the seat belt system. This may
affect the front air bag system.
Tampering with the seat belt system
may result in serious personal in­jury.

. Work on and around the front air

bag system should be done by a
NISSAN dealer. Installation of elec-

trical equipment should also be
done by a NISSAN deale r. The
Supplemental Restraint System
(SRS) wiring should not be modified
or disconnected. Unauthorized elec­trical test equipment and probing
devices should not be used on the
air bag system.

. A cracked windshield should be

replaced immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

. The SRS wiring harness connectors

are yellow and or ange for easy
identification.

When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.

Safety — Seats, seat belts and supplemental restraint system 1-51

SSS0848

FRONT SEAT-MOUNTED SIDE-IM­PACT SUPPLEMENTAL AIR BAG AND
ROOF-MOUNTED CURTAIN SIDE-IM­PACT AND ROLLOVER SUPPLEMEN­TAL AIR BAG SYSTEMS

The side air bags are located in the outside of
the seatback of the front seats. The curtain and
rollover air bags are located in the side roof rails.
These systems are designed to meet voluntary
guidelines to help reduce the risk of injury to out­of-position occupants. However, all of the

information, cautions and warnings in this
manual still apply and must be followed.

The side air bags and curtain and rollover air
bags are designed to inflate in higher severity

side collisions, although they may inflate if the
forces in another type of collision are similar to
those of a higher severity side impact. They are
designed to inflate on the side where the vehicle
is impacted. They may not inflate in certain side
collisions. Curtain and rollover air bags are also
designed to inflate in certain types of rollover
collisions or near rollovers.

Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain and
rollover air bag operation.

When the side air bags and curtain and rollover
air bags inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is not
harmful and does not indicate a fire. Care should
be taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.

Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvic area of the front occupants. Curtain
and rollover air bags help to cushion the impact
force to the head of occupants in the front and
rear outboard seating positions. They can help
save lives and reduce serious injuries . However,
side air bags and curtain and rollover air bags
may cause abrasions or other injuries. Side air
bags and curtain and rollover air bags do not
provide restraint to the lower body.

The seat belts should be correctly worn and the

driver and passenger seated upright as far as
practical away from the side air bags. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain and rollover
air bags inflate quickly in order to help protect
the occupants in the outboard seating positions.
Because of this, the force of the side air bags
and curtain and rollover air bags inflating can
increase the risk of injury if the occupant is too
close to, or is against, these air bag modules
during inflation. The side air bags and curtain
and rollover air bags will deflate quickly after the
collision is over.

The side air bags and curtain and rollover
air bags operate only when the ignition
switch is in the ON position.

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.

. Do not place any objects near the

seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door
finisher and the front seat. Such

1-52 Safety — Seats, seat belts and supplemental restraint system

WARNING

objects may become dangerous
projectiles and cause injury if a side
air bag inflates.

. Right after inflation, several side air

bag and curtain and rollover air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.

. No unauthorized changes should be

made to any components or wiring
of this side air bag and curtain and
rollover air bag systems. This is to
prevent accidental inflation of the
side air bags and curtain and roll­over air bags or damage to the side­impact air bag and curtain side­impact and rollover air bag systems.

. Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain and
rollover air bag systems.

. Tampering with the supplemental

air bag system may result in serious
personal injury. For example, do not
change the front seats by placing
material near the seatbacks or by

installing additional trim material,
such as seat covers, around the side
air bag.

. Work around and on the side air bag

and curtain and rollover air bag
systems should be done by a
NISSAN dealer. Installation of elec­trical equipment should also be
done by a NISSAN dealer. The SRS
wiring harnesses* should not be
modified or d isconnected. Un­authorized electrical test equipment
and probing devices should not be
used on the side air bag and curtain
and rollover air bag systems.

* The SRS wiring harnesses connec-

tors are yellow and orange for easy
identification.

When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain and rollover air bag systems and guide
the buyer to the appropriate sections in this
Owner’s Manual.

SEAT BELTS WITH PRETENSIONERS
(front seats)

WARNING

. The pretensioners cannot be reused

after activation. They must be re­placed together with the retractor
and buckle as a unit.

. If the vehicle becomes involved in a

frontal collision but a pretensioner
is not activated, be sure to have the
pretensioner system checked and, if
necessary, replaced by a NISSAN
dealer.

. No unauthorized changes should be

made to any components or wiring
of the pretensioner system. This is
to prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso­nal injury.

. Work around and on the preten-

sioner system should be done by a
NISSAN dealer. Installation of elec­trical equipment should also be
done by a NISSAN dealer. Un­authorized electrical test equipment

Safety — Seats, seat belts and supplemental restraint system 1-53

and probing devices should not be
used on the pretensioner system.

. If you need to dispose of a preten-

sioner or scrap the vehicle, contact a
NISSAN dealer. Correct preten­sioner disposal procedures are set
forthintheappropriateNISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.

The pretensioner system activates in conjunc­tion with the front air bag system. The preten­sioner system also activates with the curtain and
rollover air bags in certain types of rollover
collisions or near rollovers. Working with the
seat belt retractor, it helps tighten the seat belt
when the vehicle becomes involved in certain
types of collisions, helping to restrain front seat
occupants.

The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.

When a pretensioner activates, smoke is re­leased and a loud noise may be heard. The
smoke is not harmful and does not indicate a
fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.

After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.

If any abnormality occurs in the pretensioner
system, the supplemental air bag warning light

will not come on, will flash intermittently or
will turn on for 7 seconds and remain on after
the ignition switch has been pushed to the ON
position. In this case, the pretensioner may not
function properly. They must be checked and
repaired. Take your vehicle to the nearest
NISSAN dealer.

When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.

SUPPLEMENTAL AIR BAG WARNING
LABELS

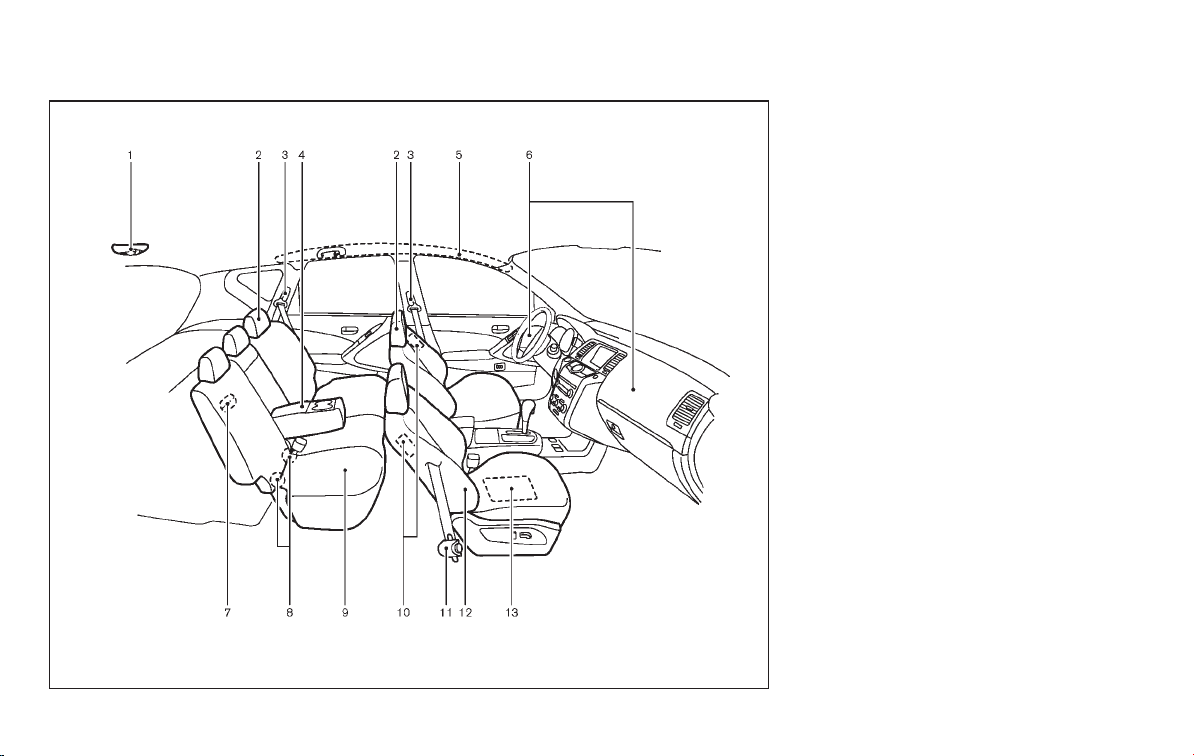

Warning labels about the supplemental front­impact air bag and front seat-mounted side­impact supplemental air bag systems are placed
in the vehicle as shown in the illustration.

1 SRS air bag

*

The warning labels are located on the surface of
the sun visors.

2 SRS side air bags

*

The warning label is located on the side of the
passenger’s side center pillar.

1-54 Safety — Seats, seat belts and supplemental restraint system

SSS0362

SPA1097

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light, display­ing
circuits of the supplemental front-impact air bag,
front seat-mounted side-impact supplemental
air bag, roof-mounted curtain side-impact and
rollover supplemental air bag and seat belt
pretensioner systems. The monitored circuits
include Air bag Control Unit (ACU), crash zone
sensor, satellite sensors, occupant classification
system, front air bag modules, side air bag
modules, curtain and rollover air bag modules,
pretensioners and all related wiring.

When the ignition switch is in the ON position,

in the instrument panel, monitors the

the supplemental air bag warning light illumi­nates for about 7 seconds and then turns off.
This means the system is operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain and rollover air bag
and pretensioner systems need servicing:

. The supplemental air bag warning light

remains on after approximately 7 seconds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light does

not come on at all.

Under these conditions, the front air bag, side air
bag, curtain and rollover air bag and preten­sioner systems may not operate properly. It must
be checked and repaired. Take your vehicle to
the nearest NISSAN dealer.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain and roll­over air bag and/or pretensioner sys­tems will not operate in an accident. To
help avoid injury to yourself or others,
have your vehicle checked by a NISSAN
dealer as soon as possible.

REPAIR AND REPLACEMENT PRO­CEDURE

The front air bags, side air bags, curtain and
rollover air bags and pretensioners are designed
to activate on a one-time -only ba sis. As a
reminder, unless it is damaged, the supplemen­tal air bag warning light will remain illuminated
after inflation has occurred. Repair and replace­ment of these systems should be done only by a
NISSAN dealer.

When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
and rollover air bags and pretensioners and
related parts should be pointed out to the
person performing the maintenance. The ignition
switch should always be in the LOCK position
when working under the hood or inside the
vehicle.

WARNING

. Once a front air bag, side air bag or

curtain and rollover air bag has
inflated, the air bag module will
not function again and must be
replaced. Additionally, if any of the
front air bags inflate, the activated
pretensioners must also be re­placed. The air bag module and
pretensioner system should be re-

Safety — Seats, seat belts and supplemental restraint system 1-55

placed by a NISSAN dealer. The air
bag modules and pretensioner sys­tem cannot be repaired.

. The front air bag, side air bag and

curtain and rollover air bag systems,
and pretensioner system should be
inspected by a NISSAN dealer if
there is any damage to the front
end or side portion of the vehicle.

. If you need to dispose of a supple-

mental air bag or pretensioner sys­tems, or scrap the vehicle, contact a
NISSAN dealer. Correct supplemen­tal air bag and pretensioner system
disposal procedures are set forth in
theappropriateNISSANService
Manual. Incorrect disposal proce­dures could cause personal injury.

2 Instruments and controls

Instrument panel ................................................ 2-2

Meters and gauges............................................. 2-4

Speedometer and odometer ............................. 2-5

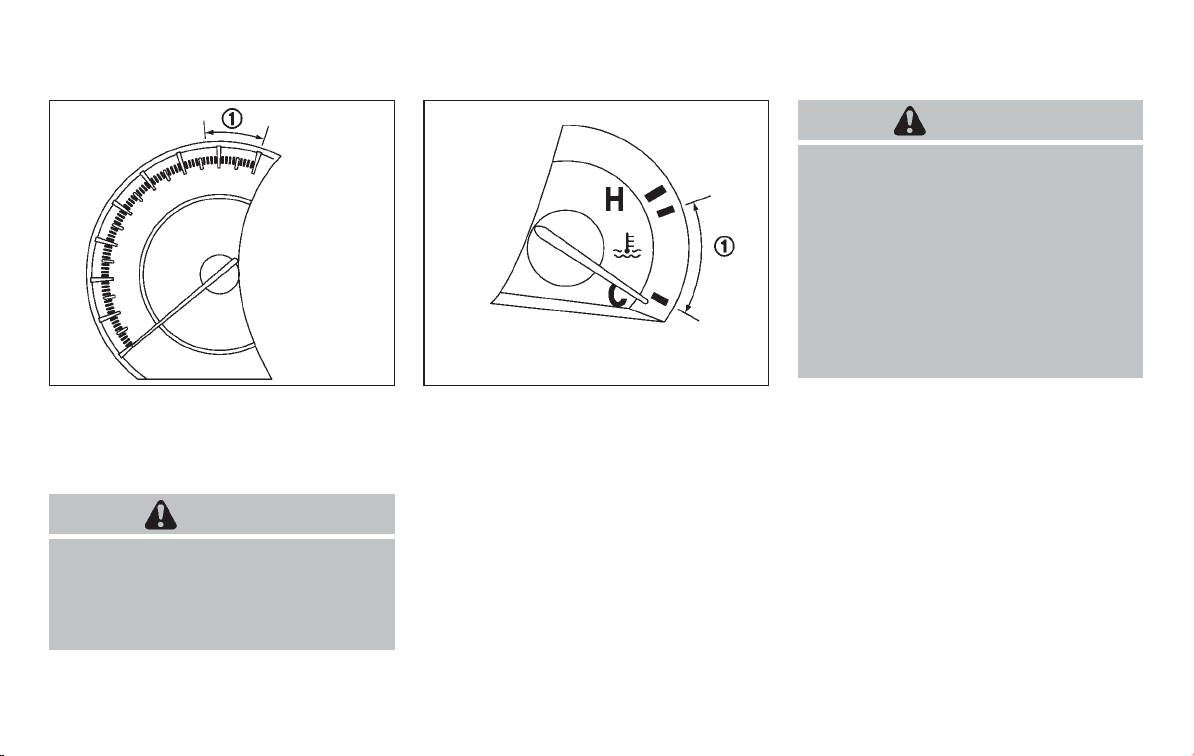

Tachometer................................................... 2-6

Engine coolant temperature gauge ..................... 2-6

Fuel gauge ................................................... 2-7

Compass (if so equipped) .................................... 2-7

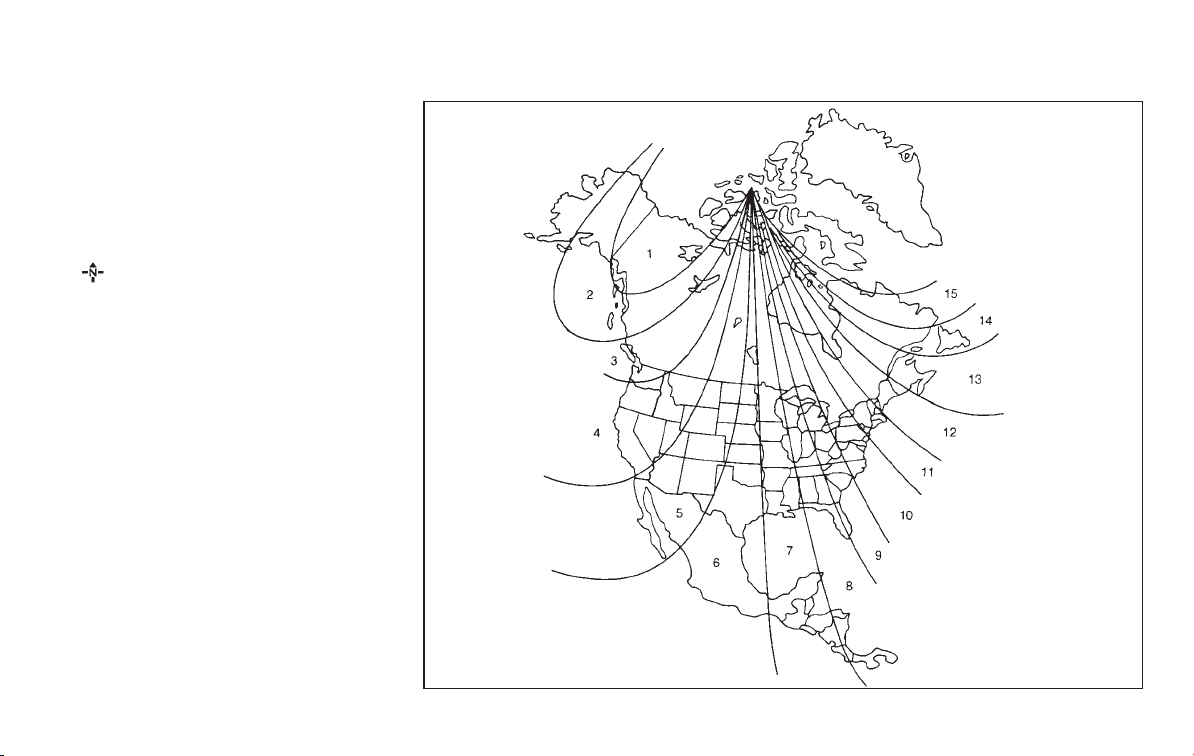

Zone variation change procedure ....................... 2-9

Warning/indicator lights and audible reminders ....... 2-10

Checking bulbs ........................................... 2-10

Warning lights ............................................. 2-10

Indicator lights............................................. 2-15

Audible reminders ........................................ 2-17

Dot matrix liquid crystal display............................ 2-17

Indicators for operation .................................. 2-18

Indicators for maintenance.............................. 2-20

Trip computer .............................................. 2-21

Security systems.............................................. 2-25

Vehicle security system (if so equipped) ............ 2-25

NISSAN Vehicle Immobilizer System ................. 2-27

Windshield wiper and washer switch .................... 2-28

Rain-sensing auto wiper system

(if so equipped) .......................................... 2-29

Rear window wiper and washer switch.................. 2-30

Rear window and outside mirror defroster switch..... 2-31

Headlight and turn signal switch .......................... 2-32

Xenon headlights (if so equipped) .................... 2-32

Headlight switch .......................................... 2-32

Turn signal switch ........................................ 2-36

Fog light switch (if so equipped)...................... 2-36

Hazard warning flasher switch............................. 2-36

Horn ............................................................. 2-37

Heated seats (if so equipped) ............................. 2-37

Clock ............................................................ 2-38

Models without color display........................... 2-38

Models with color display............................... 2-39

Vehicle Dynamic Control (VDC) OFF switch ........... 2-39

Power outlet ................................................... 2-39

Cigarette lighter and ashtray (if so equipped) .......... 2-41

Storage ......................................................... 2-41

Cup holders................................................ 2-41

Sunglasses holder........................................ 2-42

Glove box .................................................. 2-43

Console box ............................................... 2-44

Storage box (if so equipped) .......................... 2-45

Cargo floor box ........................................... 2-45

Luggage side box......................................... 2-46

Cargo cover (if so equipped) .......................... 2-46

Luggage hooks (if so equipped) ...................... 2-47

Roof rack (if so equipped).............................. 2-48

Coat hooks................................................. 2-49

Cargo net (if so equipped) ............................. 2-49

Windows ....................................................... 2-49

Power windows ........................................... 2-49

Moonroof (if so equipped) .................................. 2-52

Automatic moonroof and sunshades ................. 2-52

Interior lights ................................................... 2-54

Map lights .................................................. 2-54

Personal lights............................................. 2-54

Interior light control switch ............................. 2-54

Mood lights .................................................... 2-55

Vanity mirror lights ............................................ 2-56

Cargo lights.................................................... 2-56

HomeLink

®

Universal Transceiver (if so equipped) .... 2-57

Programming HomeLink
Programming HomeLink

customers .................................................. 2-59

Operating the HomeLink

®

............................... 2-57

®

for Canadian

®

Universal

Transceiver ................................................. 2-59

Programming trouble-diagnosis ....................... 2-59

Clearing the programmed information................ 2-59

Reprogramming a single HomeLink

®

button ........ 2-59

If your vehicle is stolen .................................. 2-60

INSTRUMENT PANEL

1. Headlight aiming control*

2. Side ventilator

3. Power lift gate switch*

4. Headlight, fog light* and turn signal switch

5. Fuel-filler door opener switch

2-2 Instruments and controls

SSI0376

6. Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth

®

Hands-Free Phone System control*

7. Meters and gauges

8. Steering wheel
— Horn
— Driver supplemental air bag
— Power steering system

9. Steering-wheel-mounted controls (right side)
— Cruise control switches

10. Wiper and washer switch

11. Push-button ignition switch

12. Center ventilator

13. Center display/Center color display*/Navigation
system**

14. Heater/air conditioner or
Center multi-function control panel*
— Navigation system**
— Vehicle information and setting buttons
— Bluetooth

®

Hands-Free Phone System

— Audio system

15. Hazard warning flasher switch

16. Front passenger supplemental air bag

17. Vehicle Dynamic Control (VDC) OFF switch

18. Power lift gate main switch

19. Power seatback switch

20. Fuse box cover

21. Parking brake

22. Tilting telescopic steering wheel lever or switch

23. Key port

24. Audio system
— Clock

25. Heated seat switch*

26. Selector lever

27. Front passenger air bag status light

28. Power outlet

29. All-Wheel Drive (AWD) LOCK switch*

30. Rear window and outside mirror* defroster switch

31. Heater/air conditioner control or Audio system

32. Glove box
*: if so equipped
**: Refer to the separate Navigation System Owner’s

Manual (if so equipped) .

Instruments and controls 2-3

METERS AND GAUGES

1. Instrument brightness control switch

2. Tachometer

3. Speedometer

4. Fuel gauge

5. Warning/indicator lights

6. Trip computer switch

7. Dot matrix liquid crystal display

8. Engine coolant temperature gauge

9. Vehicle information display
— Odometer/twin trip odometer
— Continuously Variable Transmission (CVT)
position indicator

10. RESET switch for trip odometer

The needle indicators may move slightly
after the ignition switch is pushed to the
LOCK position. This is not a malfunction.

2-4 Instruments and controls

SSI0377

Resetting the trip odometer:

Pushing the TRIP A/B RESET switch
more than 1 second resets the trip odometer to
zero.

*

3

for

Speedometer

SIC3571

SPEEDOMETER AND ODOMETER
Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).

Odometer/twin trip odometer

SIC3572

Odometer/twin trip odometer

The odometer
are displayed when the ignition switch is in the
ON position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the TRIP A/B RESET switch
right side of the combination meter panel
changes the display as follows:

TRIP A ? TRIP B ? TRIP A

1

and twin trip odometer

*

3

*

*

on the

2

Instruments and controls 2-5

SIC3573

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev the

engine into the red zone

1

*

.

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

SIC3574

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge indicates the engine coolant tem­perature.

The engine coolant temperature is within the
normal range when the gauge needle points
within the zone

The engine coolant temperature varies with the
outside air temperature and driving conditions.

1

shown in the illustration.

*

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en­gine. See “IF YOUR VEHICLE OVER­HEATS” in the “6. In case of emergency”
section for immediate action required.

2-6 Instruments and controls

SIC3575

FUEL GAUGE

The gauge indicates the approximate fuel level
in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.

Refill the fuel tank before the gauge
registers “E” (Empty).

The low fuel warning
matrix liquid crystal display when the fuel tank is
getting low. Refuel as soon as it is convenient,
preferably before the gauge reaches “E”. There

appears on the dot

will be a small reserve of fuel in the tank when
the fuel gauge needle reaches “E”.

The
located on the driver’s side of the vehicle.

indicates that the fuel-filler door is

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.

. For additional information, see

“Malfunction Indicator Light (MIL)”
later in this section.

light should turn off. If the

COMPASS (if so equipped)

SIC3181

When the ignition switch is pushed to the ON
position, the compass display
the direction of the vehicle’s heading.

*

B

will indicate

Instruments and controls 2-7

If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle
on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.

To turn on and off the compass manually, push
the

switch

A

while the ignition switch is in

*

the ON position.

2-8 Instruments and controls

Zone map

SIC0611B

ZONE VARIATION CHANGE PROCE­DURE

The difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:

1. Push the
seconds. The current zon e number will
appear in the display.

2. Find your current location and variance
number on the zone map.

NOTE:
Use zone number 5 for Hawaii.

3. Push the
new zone number appears in the display,
then release the switch. After you release
the switch, the display will show a compass
direction within a few seconds.

. If the compass deviates from the correct

indication soon after repeated adjust­ment, have the compass checked at a
NISSAN dealer.

. The compass may not indicate the

correct compass point in tunnels or
while driving up or down a steep hill.

(The compass returns to the correct com-

switch for more than 3

switch repeatedly until the

pass point when the vehicle moves to an
area where the geomagnetism is stabilized.)

CAUTION

. Do not install a ski rack, antenna,

etc., which are attached to the
vehicle by means of a magnet. They
affect the operation of the compass.

. When cleaning the mirror, use a

paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as it may cause the liquid
cleaner to enter the mirror housing.

Instruments and controls 2-9

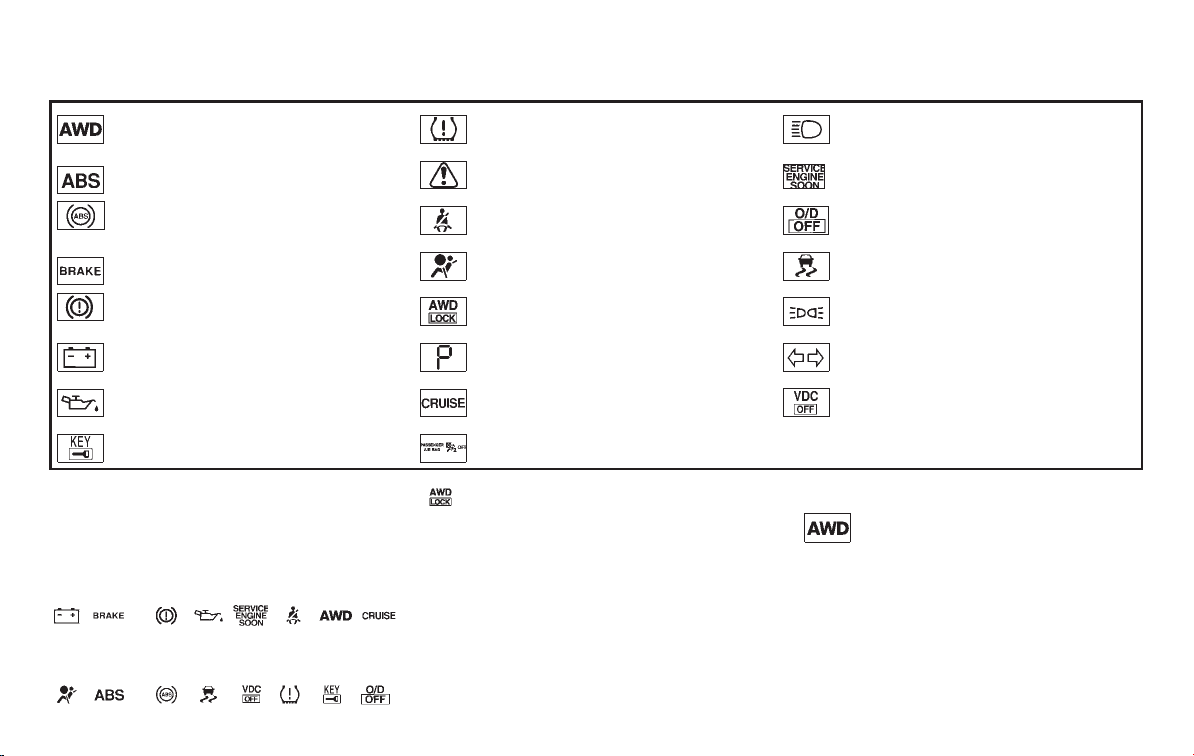

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

All-Wheel Drive (AWD) warning light (AWD
models)*

Anti-lock Braking System (ABS) wa rning
light

Brake warning light

Charge warning light

Engine oil pressure warning light Cruise main switch indicator light

Intelligent Key warning light* Front passenger air bag status light*

CHECKING BULBS

With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):

, or , , , , ,

The following lights come on briefly and then go
off (if so equipped):

, or , , , , , ,

2-10 Instruments and controls

Low tire pressure warning light High beam indicator light (Blue)

Master warning light Malfunction Indicator Light (MIL)

Seat belt warning light Overdrive off indicator light

Supplemental air bag warning light Slip indicator light

All-Wheel Drive (AWD) LOCK indicator light
(AWD mo dels)*

Continuously Variable Transmission (CVT)
position indicator light

If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.

Some indicators and warnings are also dis­played on the dot matrix crystal display between
the speedometer and tachometer. (See “DOT
MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)

Small light indicator light

Turn signal/hazard indicator lights

Vehicle Dynamic Control (VDC) off indicator
light

*: if so equipped

WARNING LIGHTS

All-Wheel Drive (AWD) warning
light (AWD models)

The light comes on when the ignition switch is
pushed to ON. It turns off soon after the engine
is started.

If the AWD system malfunctions, or the diameter
of the front and the rear wheels are different, the
warning light will either remain illuminated or

blink. (See “ALL-WHEEL DRIVE (AWD)” in the
“5. Starting and driving” section.)

CAUTION

. If the warning light comes on while

driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a NISSAN dealer as
soon as possible.

. If the AWD warning light blinks

when you are driving:
— blinks rapidly (about twice a

second):

Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you c an drive
again.

— blinks slowly (about once every

2 seconds):

Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same, tire
pressure is correct and tires are

not worn.

. If the warning light is still on after

the above operations, have your
vehicle checked by a NISSAN dealer
as soon as possible.

or Anti-lock Braking System

(ABS) warning light

When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.

If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis­tance. (See “BRAKE SYSTEM” in the “5.
Starting and driving” section.)

or Brake warning light

This light functions for both the parking brake
and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.

Low brake fluid warning light:

When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:

1. Check the brake fluid level. Add brake fluid
as necessary. (See “BRAKE FLUID” in the
“8. Maintenance and do-it-yourself” sec­tion.)

2. If the brake fluid level is correct, have the
warningsystemcheckedbyaNISSAN
dealer.

Anti-lock Braking System (ABS) warning
indicator:

When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re­paired, by a NISSAN dealer promptly. Avoid
high-speed driving and abrupt braking. (See
“Anti-lock Braking System (ABS) warning light”

Instruments and controls 2-11

earlier in this section.)

WARNING

. Your brake system may not be

working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care­fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.

. Pressing the brake pedal with the

engine stopped and/or low brake
fluid level may increase your stop­ping distance and braking will re­quire greater pedal effort as well as
pedal travel.

. If the brake fluid level is below the

minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.

Charge warning light

If the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.

CAUTION

Do not continue driving if the alternator
belt is loose, broken or missing.

Engine oil pressure warning light

This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See

“ENGINE OIL” in the “8. Maintenance and do-it­yourself” section.)

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov­ered by warranty. Turn off the engine as
soon as it is safe to do so.

Intelligent Key warning light (if so
equipped)

After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.

This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.

If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases,
contact a NISSAN dealer for repair as soon as
possible.

2-12 Instruments and controls

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire
pressure, the warning light will illuminate.

When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

For additional information, see “TIRE PRES­SURE MONITORING SYSTEM (TPMS)” in the
“5. Starting and driving” section and “TIRE

PRESSURE MONITORING SYSTEM (TPMS)”
in the “6. In case of emergency” section.

TPMS malfunction:

If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi­mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer.

For additional information, see “TIRE PRES­SURE MONITORING SYSTEM (TPMS)” in the
“5. Starting and driving” section.

WARNING

. If the light does not illuminate with

the ignition switch pushed ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.

. If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un­der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and

may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shownontheTireandLoading
Information label to turn the low
tire pressure warning light OFF. If
the light stays on after adjusting the
tire pressure and driving over 16
MPH (25 km/h) , have the system
checked by a NISSAN dealer. If you
have a flat tire, replace it with a
spare tire as soon as possible.

. When a spare tire is mounted or a

wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi­mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.

. Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

Instruments and controls 2-13

CAUTION

. The TPMS is not a substitute for the

regular tire pressure check. Be sure
to check the tire pressure regularly.

. If the vehicle is being driven at

speeds of less than 16 MPH (25
km/h), the TPMS may not operate
correctly.

. Be sure to correctly install the

specified size of tires to the four
wheels.

Master warning light

When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the dot matrix liquid
crystal display:

. No key warning

. Low fuel warning

. Low washer fluid warning

. Parking brake release warning

. Door/lift gate open warning

See “DOT MATRIX LIQUID CRYSTAL DIS­PLAY” later in this section.

2-14 Instruments and controls

Seat belt warning light

The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened.

The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For 6 seconds after the ignition
switch is in the ON position, the system does
not activate the warning light for the front
passenger.

See “SEAT BELTS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section for precautions on seat belt usage.

Supplemental air bag warning light

After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
supplemental front air bag and supplemental
side air bag, curtain side-impact air bag systems
and/or pretensioner seat belt are operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain and rollover air bag
and pretensioner systems needs servicing and

your vehicle must be taken to your nearest
NISSAN dealer.

. The supplemental air bag warning light

remains on after approximately 7 seconds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light does

not come on at all.

Unless checked and repaired, the Supplemental
Restraint Systems (air bag systems) and/or the
pretensioners may not function properly.

For additional information, see “SUPPLEMEN­TAL RESTRAINT SYSTEM” in the “1. Safety —
Seats, seat belts and supplemental restraint
system” section.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain and roll­over air bag and/or pretensioner sys­tems will not operate in an accident. To
help avoid injury to yourself or others,
have your vehicle checked by a NISSAN
dealer as soon as possible.

INDICATOR LIGHTS

All-Wheel Drive (AWD) LOCK
indicator light (AWD models)

This light illuminates when the ignition switch is
turned to the ON position, and turns off within 1
second.

When selecting the LOCK mode while the
engine is running, this light will illuminate. (See
“ALL-WHEEL DRIVE (AWD)” in the “5. Starting
and driving” section.)

Continuously Variable Transmis­sion (CVT) position indicator light

When the ignition switch is pushed to the ON
position, the indicator shows the automatic
selector shift position. (See “CONTINUOUSLY
VARIABLE TRANSMISSION (CVT)” in the “5.
Starting and driving” section.)

Cruise indicator light

Cruise main switch indicator:

This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise main switch indicator light illuminates, the
cruise control system is operational. (See

“CRUISE CONTROL” in the “5. Starting and
driving” section.)

Cruise malfunction:

If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked by a NISSAN dealer. (See
“CRUISE CONTROL” in the “5. Starting and
driving” section.)

Front passenger air bag status
light

The front passenger air bag status light
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.

For front passenger air bag status light opera­tion,see“NISSANADVANCEDAIRBAG
SYSTEM (front seats)” in the “1. Safety —
Seats, seat belts and supplemental restraint
system” section of this manual.

High beam indicator light (Blue)

This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.

Malfunction Indicator Light (MIL)

If the malfunction indicato r light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal­function.

The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the
turn off if no other potential emission control
system malfunction exists.

If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance tes t. (See “READINESS FOR
INSPECTION/MAINTENANCE (I/M) TEST” in
the “9. Technical and consumer information”
section.)

Operation:

The malfunction indicator light will come on in
one of two ways:

. Malfunction indicator light on steady — An

Instruments and controls 2-15

light should

emission control system and/or CVT mal­function has been detected. Check the fuel­filler cap. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
should turn off after a few driving trips. If the

light does not turn off after a few
driving trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.

. Malfunction indicator light blinking — An

engine misfire has been detected which may
damage the emission control system.

To reduce or avoid emission control system
damage:

a) Do not drive at speeds above 45 MPH

(72 km/h).

b) Avoid hard acceleration or deceleration.

c) Avoid steep uphill grades.

d) If possible, reduce the amount of cargo

being hauled or towed.

The malfunction indicator light may stop
blinking and remain on.

Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.

light

CAUTION

Continued vehicle operation without
having the emission control system
and/or CVT system checked and re­paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con­trol system.

Overdrive off indicator light

The overdrive off indicator light illuminates when
the overdrive off mode is selected.

For additional information, see ““CONTINU­OUSLY VARIABLE TRANSMISSION (CVT)” in
the “5. Starting and driving” section of this
manual.

Slip indicator light

This light will blink when the Vehicle Dynamic
Control (VDC) system is operating, thus alerting
the driver to the fact that the road surface is
slippery and the vehicle is nearing its traction
limits.

Small light indicator light

The light comes on when the front park, side
marker, tail and license plate lights are on.

Turn signal/hazard indicator lights

The light flashes when the turn signal switch
lever or hazard switch is turned on.

Vehicle Dynamic Control (VDC) off
indicator light

The light comes on when the Vehicle Dynamic
Control (VDC) off switch is pushed to OFF. This
indicates that the VDC system is not operating.
When the VDC off indicator light and slip
indicator light come on with the VDC system
turned on, this light alerts the driver to the fact
that the VDC system’s fail-safe mode is operat­ing, for example the VDC system may not be
functioning properly. Have the system checked
by a NISSAN dealer. If a malfunction occurs in
the system, the VDC system function will be
canceled but the vehicle is still driveable. For
additional information, see “VEHICLE DYNAMIC
CONTROL (VDC) SYSTEM” in the “5. Starting
and driving” section of this manual.

2-16 Instruments and controls

DOT MATRIX LIQUID CRYSTAL
DISPLAY

AUDIBLE REMINDERS
Key reminder chime

A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the key left in the key port.
Make sure the ignition switch is pushed to the
OFF position, and take the Intelligent Key with
you when leaving the vehicle.

Light reminder chime

A chime will sound when the driver side door is
opened with the light switch in the

position and the ignition switch in the ACC

or OFF position.

Turn the light switch off when you leave the
vehicle.

Parking brake reminder chime

The chime will sound if the vehicle is driven with
the parking brake applied. Stop the vehicle and
release the parking brake.

Seat belt warning chime

The chime will sound for about 6 seconds
unless the driver’s seat belt is securely fastened.

Brake pad wear warning

The disc brake pads have audible wear warn­ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when

the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.

or

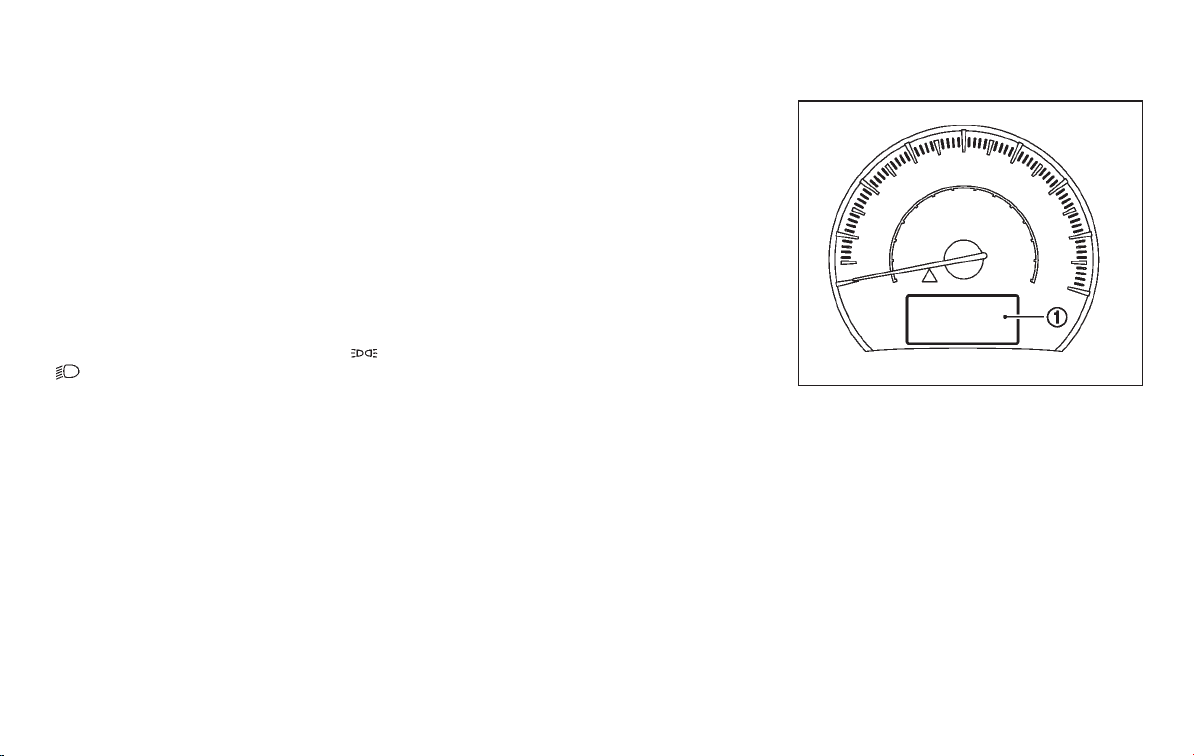

SIC3576

The dot matrix liquid crystal display
located in the speedometer, and it displays,
the key operation information and other warn­ings and information.

For the detail about the Intelligent Key System,
see “INTELLIGENT KEY SYSTEM” in the “3.
Pre-driving checks and adjustments” section.

Instruments and controls 2-17

*

1

is

SIC3577

INDICATORS FOR OPERATION

1. Engine start operation indicator

This indicator appears when the selector lever is
in the P (Park) position.

This indicator means that the engine will start by

2-18 Instruments and controls

pushing the ignition switch with the brake pedal
depressed.

2. Steering lock release malfunction
indicator

This indicator appears when the steering wheel
cannot be released from the LOCK position.

If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.

3. Key insertion indicator

This indicator appears when the key needs to be
inserted into the key port.

If this indicator appears, insert the key into the
key port in the correct direction. (See “PUSH­BUTTON IGNITION SWITCH” in the “5. Start­ing and driving” section.)

4. Key removal indicator

This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the key placed in the key
port. A key reminder chime also sounds.

If this indicator appears, remove the key from the
key port and take it with you when leaving the
vehicle.

5. NO KEY warning

This warning appears in either of the following
conditions.

No key inside the vehicle:

With Intelligent Key system:

The warning appears when the door is closed
with the key left outside the vehicle and the
ignition switch in the ACC or ON position. Make
sure that the key is inside the vehicle.

Without Intelligent Key system:

The warning appears when the key is removed
from the key port and the ignition switch is in the
ACC or ON position. Make sure that the key is
inserted into the key port.

Unregistered key:

The warning appears when the ignition switch is
pushed from the LOCK position and the key
cannot be recognized by the system. You cannot
start the engine with an unregistered key. Use
the registered key.

See “INTELLIGENT KEY SYSTEM” in the “3.
Pre-driving checks and adjustments” section for
more details.

6. SHIFT “P” warning

This warning appears when the ignition switch is
pushed to stop the engine with the selector lever
in any position except the P (Park) position.

If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.

An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre­driving checks and adjustments” section.)

7. “PUSH” warning

This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.

To push the ignition switch to the OFF position,
perform the following procedure:

SHIFT “P” warning ? (Move the selector
lever to “P”) ? PUSH warning ? (Push
the ignition switch ? ignition switch position
is turned to ON) ? PUSH warning ?
(Push the ignition switch ? ignition switch
position is turned to OFF)

8. Key battery discharge indicator

This indicator appears when the key battery is
running out of power.

If this indicator appears, replace the battery with
a new one. (See “BATTERY REPLACEMENT” in
the “8. Maintenance and do-it-yourself” section.)

9. Parking brake release warning

This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.

10. Low fuel warning

This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.

There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (E) position.

Instruments and controls 2-19

11. Low washer fluid warning

This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “WINDOW WASHER FLUID” in the “8.
Maintenance and do-it-yourself” section.)

12. Door/lift gate open warning (ignition
switch is in the ON position)

This warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.

13. “Time to rest” indicator

This indicator appears when the set “time to
rest” indicator activates. You can set the time for
up to 6 hours. (See “TRIP COMPUTER” later in
this section.)

14. Low outside temperature warning

This warning appears if the outside temperature
is below 378F(38C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later
in this section.)

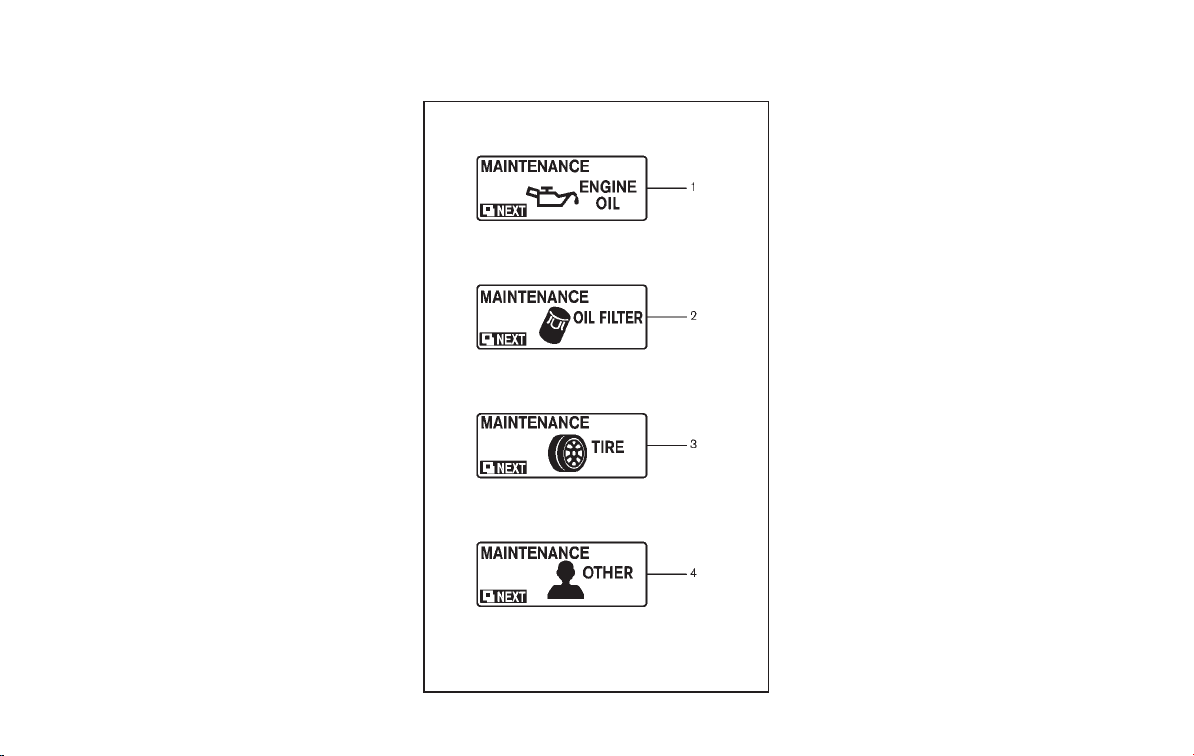

SIC3578

INDICATORS FOR MAINTENANCE

1. Engine oil replacement indicator

This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)

2. Oil filter replacement indicator

This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)

3. Tire replacement indicator

This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM­PUTER” later in this section.)

4. “OTHER” indicator

This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPU­TER” later in this section.)

More maintenance reminders are also available
on the center display. (See “HOW TO USE
INFO BUTTON” in the “4. Monitor, heater, air
conditioner, audio, phone and voice recognition
systems” section.)

2-20 Instruments and controls

Current fuel consumption ? Average fuel
consumption and speed ? Elapsed time and
trip odometer ? Distance to empty (dte) ?
Outside air temperature (ICY) ? Setting ?
Warning check

SIC3580

TRIP COMPUTER

Switches for the trip computer are located on
the right side of the combination meter panel. To
operate the trip computer, push the side or front
of the switches as shown above.

A

*

B

*

When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the

Each time the
display will change as follows:

switch

switch

switch

switch

A

is pushed, the

*

*

A

.

SIC3673

Current fuel consumption

The current fuel consumption mode shows the
current fuel consumption.

Instruments and controls 2-21

vehicle speed since the last reset. Resetting is
done by pushing the
than 1 second. (The average fuel consumption is
also reset at the same time.)

The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.

switch

*

B

for longer

SIC3674

Average fuel consumption (MPG or l
(liter)/100 km) and speed (MPH or km/h)

Fuel consumption:

The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
for longer than 1 second. (The average speed is
also reset at the same time.)

The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.

Speed:

The average speed mode shows the average

2-22 Instruments and controls

switch

*

SIC3675

Elapsed time and trip odometer (mls or
km)

Elapsed time:

The elapsed time mode shows the time since

B

the last reset. The displayed time can be reset
by pushing the
1 second. (The trip odometer is also reset at the
same time.)

Trip odometer:

The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch
elapsed time is also reset at the same time.)

B

for longer than 1 second. (The

*

switch

B

for longer than

*

pushed to the OFF position may continue to
be displayed.

. When driving uphill or rounding curves, the

fuel in the tank shifts, which may momenta­rily change the display.

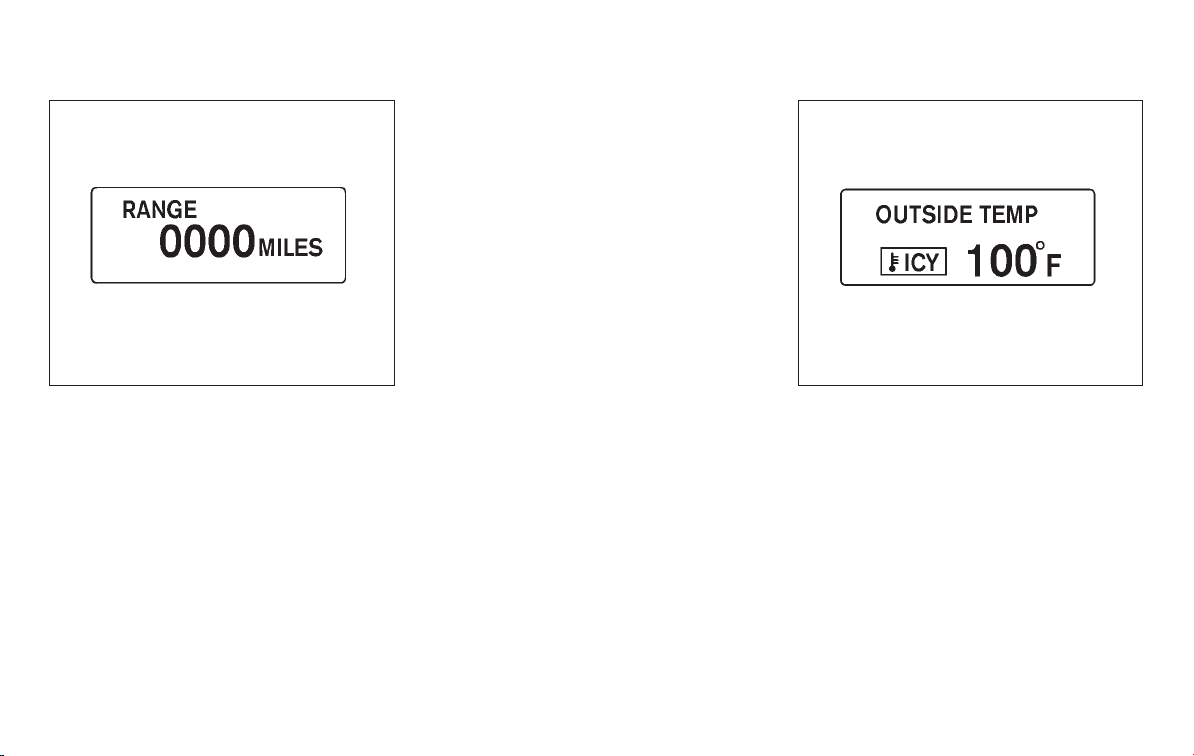

SIC3676

Distance to empty (dte — mls or km)

The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.

When the fuel level drops even lower, the dte
display will change to “——”.

. If the amount of fuel added is small, the

display just before the ignition switch is

SIC3677

Outside air temperature (ICY — 8For8C)

The outside air temperature is displayed in 8For
8C in the range of −22 to 1408F(−30 to 608C).

The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 378F(38C), the warning is
displayed on the screen.

The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill­boards.

Instruments and controls 2-23

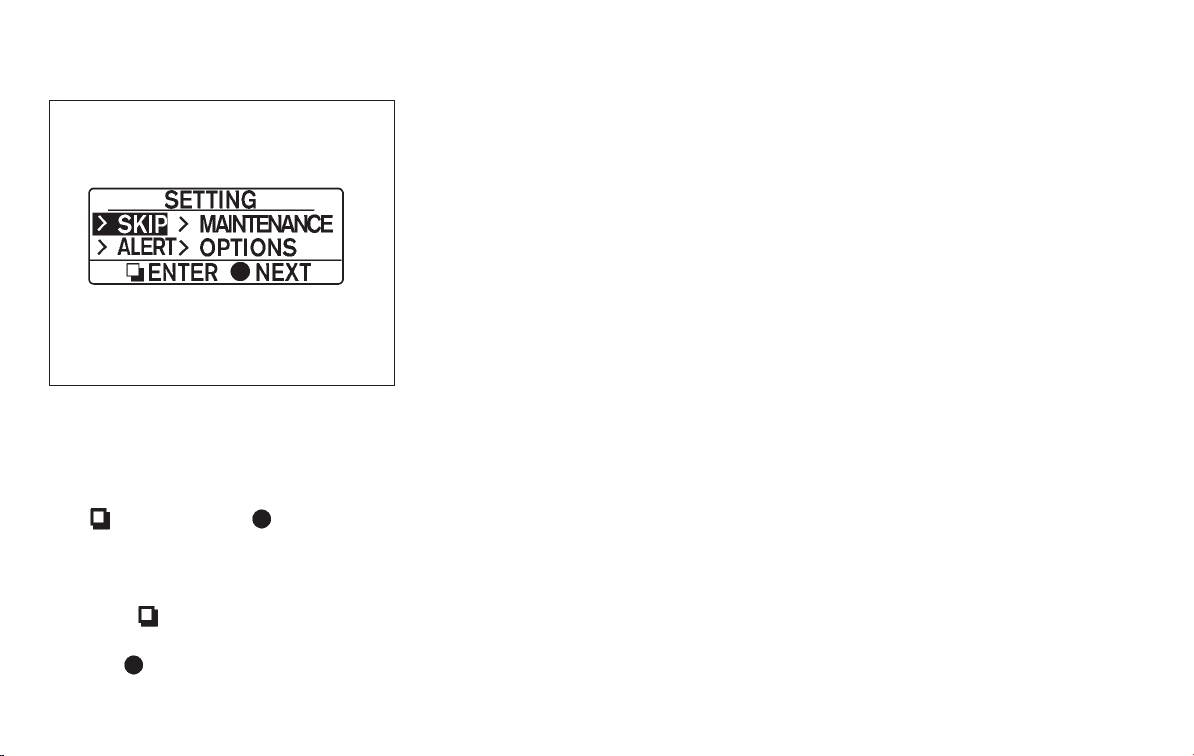

SIC3678

Setting

Setting cannot be made while driving. A
message “Setting can only be operated
when stopped” is also displayed on the dot
matrix crystal display.

The
used in the setting mode to select and decide a
menu.

SKIP:

Push the
warning check mode.

Push the

switch

A

*

switch

switch

and switch

A

to move to the

*

B

to select other menus.

*

B

*

are

ALERT:

Alert menu can be set to notify the following
items.

. TIME TO REST

Select this submenu to specify when the
“TIME TO REST” indicator activates.

. ICY

Select this submenu to display the low
outside temperature warning.

To return to the top page of the setting mode,
select “BACK”.

MAINTENANCE:

The maintenance intervals of the following items
can be set or reset for the reminders.

. ENGINE OIL

Select this submenu to set or reset the
distance for changing the engine oil.

. OIL FILTER

Select this submenu to set or reset the
distance for replacing the oil filter.

. TIRE

Select this submenu to set or reset the
distance for replacing tires.

. OTHER

Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.

To return to the top page of the setting mode,
select “BACK”.

OPTIONS:

The 3 option menus can be set to your
preference.

. LANGUAGE

Select this submenu to choose English or
French for display.

. UNIT

Select this submenu to choose the unit from
MPG or l/100 km.

. DIAL EFFECTS

Select this menu to set the dial effects
described below to on or off.

— The indicator needles sweep in the

meters and the ring illumination will be
brightened gradually when the engine is
started.

To return to the top page of the setting mode,
select “BACK”.

2-24 Instruments and controls

SKIP:

Push the
warning check mode.

Push the

DETAIL:

This item is available only when a warning is
displayed.

Select this menu to see the details of warnings.

switch

switch

A

to move to the

*

B

to select other menus.

*

SECURITY SYSTEMS

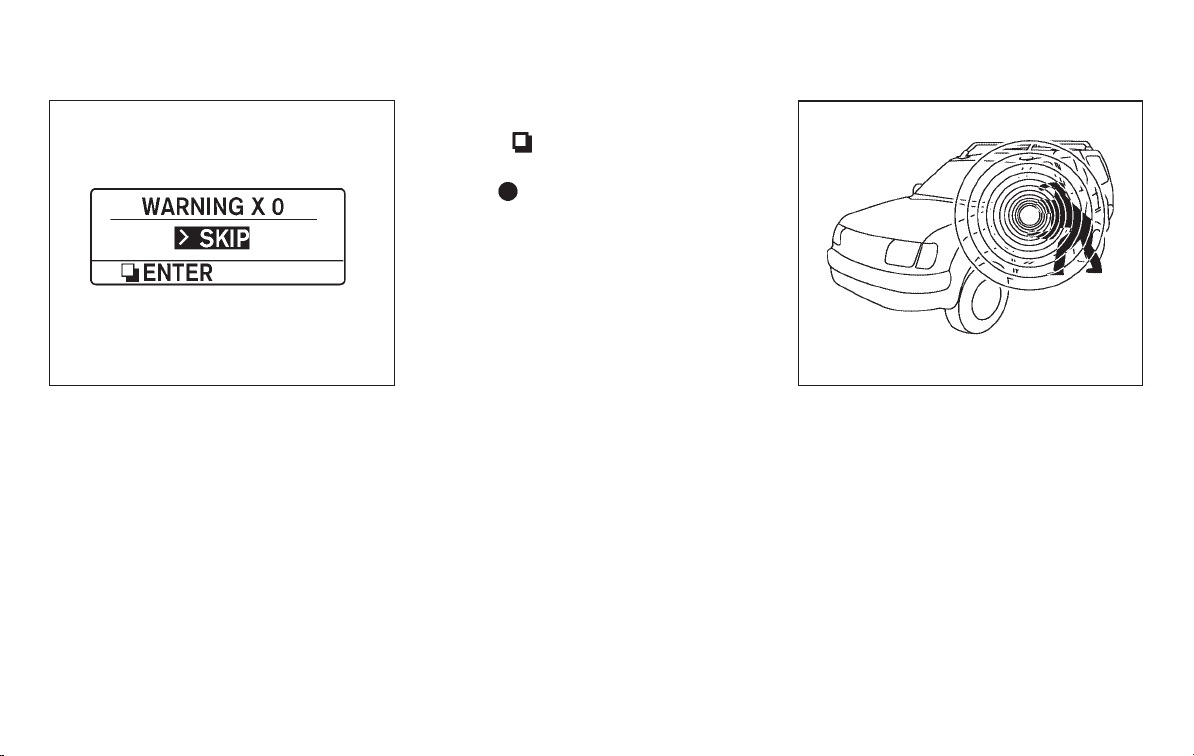

SIC3679

Warning check

To see if there are any of the following warnings
and corresponding details, select this menu.

. No key warning

. Low fuel warning

. Low washer fluid warning

. Parking brake release warning

. Door/lift gate open warning

SIC2133

Your vehicle has two types of security systems,
as follows:

. Vehicle security system (if so equipped)

. NISSAN Vehicle Immobilizer System

The security condition will be shown by the
security indicator light.

VEHICLE SECURITY SYSTEM (if so
equipped)

The vehicle security system provides visual and
audio alarm signals if someone opens the doors
or lift gate when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a

Instruments and controls 2-25

vibration occurs.

The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when unattended. Be aware
of your surroundings, and park in secure, well-lit
areas whenever possible.

Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.

2-26 Instruments and controls

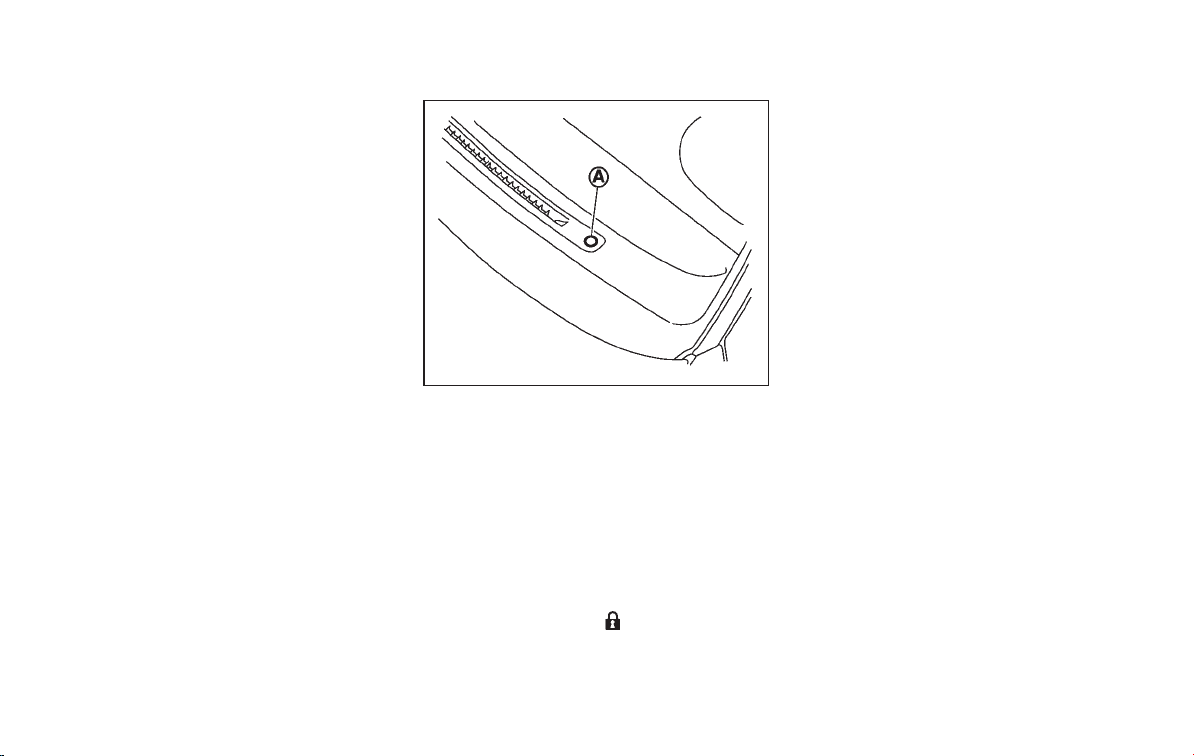

SIC1699A

How to arm the vehicle security system

1. Close all windows.

The system can be armed even if the
windows are open.

2. Push the ignition switch to the OFF position.

3. Carry the key.

4. Close all doors, hood and lift gate. Lock all
doors. The doors can be locked with:

. the lock button

. any request switch (Intelligent Key

equipped model)

. the power door lock switch

on the key

. the key — master or mechanical

5. Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.

Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood and lift gate locked
withtheignitionswitchintheLOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.

A

*

Vehicle security system activation

The vehicle security system will give the follow­ing alarm:

. The headlights blink and the horn sounds

intermittently.

. The alarm automatically turns off after

approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.

The alarm is activated by:

. Unlocking the door without using the button

on the key, the request switch (if so
equipped) or the key. (Even if the door is
opened by releasing the door inside lock
knob, the alarm will activate.)

. Opening the hood.

How to stop an activated alarm

The alarm will stop by unlocking a door by
pushing the unlock button
pushing the request switch or using the key.

If the system does not operate as de­scribed above, have it checked by a
NISSAN dealer.

on the key,

NISSAN VEHICLE IMMOBILIZER SYS­TEM

The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key. Never leave these keys in the

vehicle.

Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY - CARD SLOT)

This device complies with part 15 of the
FCC Rules and RSS-210 of Industry Cana­da. Operation is subject to the following
two conditions;

(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation of the device.

CHANGES OR MODIFICATIONS NOT EX­PRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER­ATE THE EQUIPMENT.

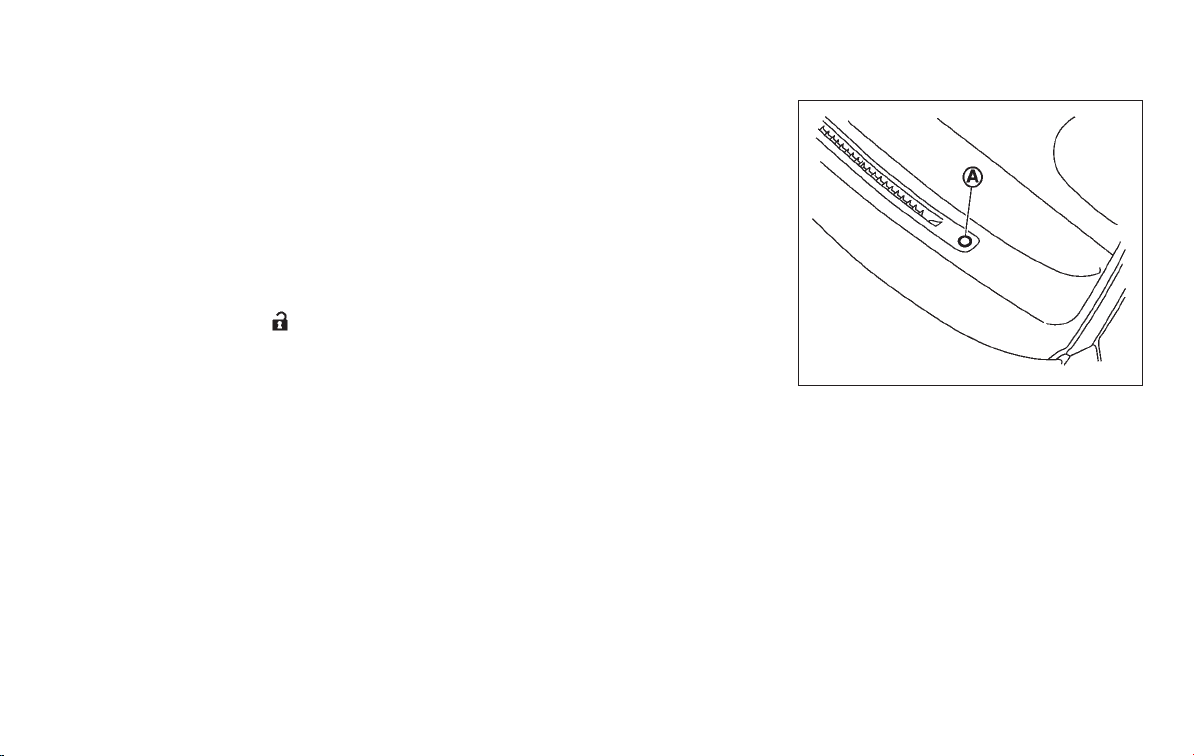

SIC1699A

Security indicator light

The security indicator light
status of the NISSAN Vehicle Immobilizer
System.

The light blinks after the ignition switch was in
the ACC, OFF and LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.

If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.

If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System

Instruments and controls 2-27

A

indicates the

*

WINDSHIELD WI PER AND WASHER
SWITCH

service as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.

2-28 Instruments and controls

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.

CAUTION

. Do not operate the washer continu-

ously for more than 30 seconds.

. Do not operate the washer if the

reservoir tank is empty.

. Do not fill the window washer

reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.

. Pre-mix washer fluid concentrates

with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not u se the
window washer reservoir tank to

mix the washer fluid concentrate
and water.

Pull the lever toward you
washer. Then the wiper will also operate several
times.

5

to operate the

*

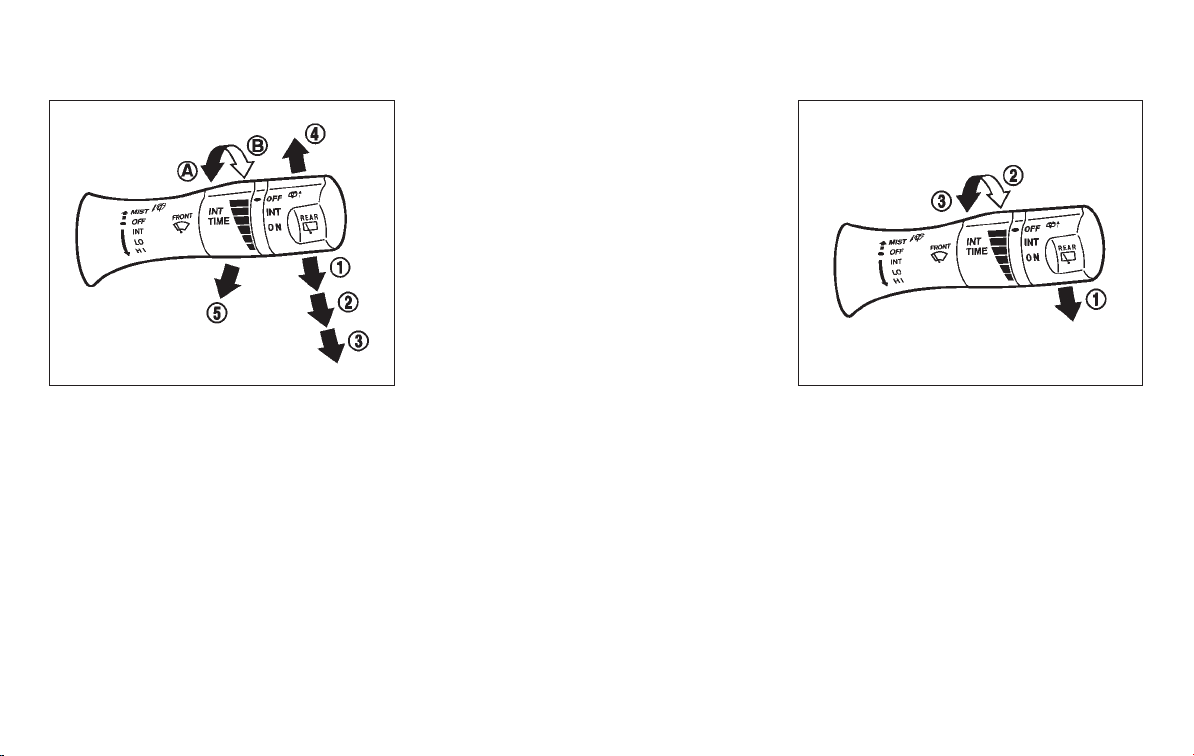

SIC3664

The windshield wiper and washer operates
when the ignition switch is in the ON position.

Push the lever down to operate the wiper at the
following speed:

1

Intermittent — intermittent operation can be

*

adjusted by turning the knob toward
(Slower) or

For models with the rain-sensing auto wiper
system, see “RAIN-SENSING AUTO WI­PER SYSTEM” later in this section.

2

Low — continuous low speed operation

*

3

High — continuous high speed operation

*

Push the lever up
operation of the wiper.

B

*

(Faster).

4

to have one sweep

*

*

SIC3665

RAIN-SENSING AUTO WIPER SYS­TEM (if so equipped)

The rain-sensing auto wiper system can auto­matically turn on the wipers and adjust the wiper
speed depending on the rainfall and the vehicle

A

speed by using the rain sensor located on the
upper part of the windshield.

To set the rain-sensing auto wiper system, push
the lever down to the INT (intermittent) position

1

. The wiper will sweep once while the ignition

*

switch is in the ON position.

The rain sensor sensitivity level can be adjusted
by turning the knob toward the front
or toward the rear

3

(Low).

*

Instruments and controls 2-29

*

2

(High)

REAR WINDOW WIPER AND
WASHER SWITCH

. High — High sensitive operation

. Low — Low sensitive operation

To turn the rain-sensing auto wiper system off,
push up the lever to the OFF position, or pull
down the lever to the LO or HI position.

CAUTION

Do not touch the rain sensor and
around it when the wiper switch is in
the INT position and the ignition switch
is in the ON position. The wipers may
operate unexpectedly and cause to an
injury or a wiper damage.

. The rain-sensing auto wipers are in-

tended for use during rain. If the switch
is left in the INT position, the wipers
may operate unexpectedly when dirt,
fingerprints, oil film or insects are stuck
on or around the sensor. The wipers
may also operate when exhaust gas or
moisture affect the rain sensor.

. The rain-sensing auto wipers may not

operate if rain does not hit the rain
sensor even if it is raining.

2-30 Instruments and controls

WARNING

In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.

CAUTION

. Do not operate the washer continu-

ously for more than 30 seconds.

. Do not operate the washer if the

reservoir tank is empty.

. Do not fill the window washer

reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.

. Pre-mix washer fluid concentrates

with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not u se the
window washer reservoir tank to
mix the washer fluid concentrate

and water.

If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi­mately 1 minute, turn the switch on again
to operate the wiper.
