Nintendo Wii Console User Manual

NINTENDO OF AMERICA INC.
P.O. BOX 957, REDMOND, WA
98073-0957 U.S.A.

NEED HELP WITH INSTALLATION,
MAINTENANCE OR SERVICE?

Nintendo Customer Service

WWW.NINTENDO.COM

or call 1-800-255-3700
TTY Hearing Impaired: 1-800-422-4281

BESOIN D’AIDE POUR L’INSTALLATION,
L’ENTRETIEN OU LA RÉPARATION?

Servi ce à la Clientè le de Ni ntendo

WWW.NINTENDO.COM

ou appelez le

Service à la clientèle ATS : 1-800-422-4281

1-800-255-3700

¿

NECESITAS AYUDA DE INSTALACION,

MANTENIMIENTO O SERVICIO?

Servicio al Cliente de Nintendo

WWW.NINTENDO.COM

o llame al 1-800-255-3700
Número de TTY de Servicio al Cliente para individuos

con impedimento auditivo: 1-800-422-4281

61914C

Wii Operations Manual

System Setup

PRINTED IN CHINA

To protect your health and safety, and for correct
use of the Wii system, please read and follow the
instructions in this operations manual before setup
or use.

Throughout this manual, you will see this symbol followed by WARNING or
CAUTION. These terms have different levels of meaning:

WARNING - Warns you about incorrect use of the Wii system that could result in

serious personal injury.

CAUTION - Cautions you about incorrect use of the Wii system that could result in

personal injury or damage to the Wii system, components, game discs or accessories.

IMPORTANT NOTE FOR PARENTS:

Before allowing any child to use the Wii system, a parent or other
responsible adult should determine whether the Wii system is appropriate
for the child. Only children who are old enough and capable of wearing the
wrist strap and properly gripping the Wii Remote should use the system. You
should also consider whether children should be supervised while playing
games, connecting to the internet, and/or downloading games. Be sure to
explain all safety and health information and instructions to any children
who are going to use the system. Failure to do so may result in injuries or
damage to the system or other property.

NOTE: This product only plays Wii Game Discs and Nintendo GameCube™ Game Discs
labeled with “For use only in USA, Canada, Mexico and Latin America”. This product
does not play CD or DVD discs. This Wii console is for use only in the United States,
Canada, Mexico or Latin America.

T

he official seal is your assurance
that this product is licensed or
manufactured by Nintendo.
Always look for this seal when
buying video game systems,
accessories, games and related
products.

Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.
This product contains PrFILE®2 FAT file system, PrMAIL mail client library, and PrUSB/Host USB host
stack of eSOL Co.,Ltd. Copyright © 2006 eSOL Co., Ltd. PrFILE®2 is a registered trademark of eSOL

Co., Ltd. in Japan. PrMAIL and PrUSB/Host are trademarks of eSOL Co., Ltd. in Japan.
The Wii console includes RSA BSAFE Cryptographic software from RSA Security Inc. RSA is a
registered trademark of RSA Security Inc. BSAFE is a registered trademark of RSA Security Inc. in
the United States and/or other countries. © 2005 RSA Security Inc. All Rights Reserved.
SD Logo is a trademark.
The Wii console uses certain fonts provided by Fontworks Japan, Inc.
Although an IBM logo appears on the Wii packaging, IBM is not responsible for warranty support
of the Wii system.

TM, ® and the Wii logo are trademarks of Nintendo. © 2006 Nintendo. All Rights Reserved.
Nintendo of Canada Ltd., Authorized User in Canada. Elements of the Wii console and the Wii
Network Services are patent pending, both in the United States and internationally.

Français – Page 35
Español – Página 71

Contents

Health and Safety Information 2-3
System Components
Wii Console 4-5
Wii Remote 6
Nunchuk 7
Sensor Bar 7
AC Adapter 8
Wii AV Cable 8
Wii Stand & Stand Plate 9
System Setup
Wii Console 10-11
Wii AV Cable 12
Sensor Bar 13-16
AC Adapter 17
TV and Audio/Video Settings 18
Setup of Wii Remote 18-19
Synchronizing Your Wii Remote and Wii Console 20-21
Using Game Discs 22
Wii System Play Guidelines 23
Using the Wii Remote 24-25
Using the Nunchuk 26-27
Using Nintendo GameCube Controllers 28-29
Using Memory Cards 30
Troubleshooting 31-32
FCC Information 33
Warranty and Service Information 34

1

Health and Safety Information

IMPORTANT SAFETY INFORMATION – READ THE FOLLOWING

WARNINGS BEFORE SETUP OR USE OF THE Wii. IF THIS

PRODUCT WILL BE USED BY YOUNG CHILDREN, THIS MANUAL

SHOULD BE READ AND EXPLAINED TO THEM BY AN ADULT.

Some people (about 1 in 4000) may have seizures or blackouts triggered by light
flashes or patterns, and this may occur while they are watching TV or playing video
games, even if they have never had a seizure before.

Anyone who has had a seizure, loss of awareness, or other symptom linked to an
epileptic condition should consult a doctor before playing a video game.

Parents should watch their children play video games. Stop playing and consult a
doctor if you or your child has any of the following symptoms:

Convulsions Eye or muscle twitching Loss of awareness
Altered vision Involuntary movements Disorientation

Health and Safety Information

To reduce the likelihood of a seizure when playing video games:

• Sit or stand as far from the screen as possible.

• Play video games on the smallest available television screen.

• Do not play if you are tired or need sleep.

• Play in a well-lit room.

• Take a 10 to 15 minute break every hour.

FAILING TO DO SO MAY CAUSE INJURY.

WARNING - Seizures

WARNING - Repetitive Motion Injuries

and Eyestrain

Playing video games can make your muscles, joints, skin or eyes hurt. Follow these
instructions to avoid problems such as tendinitis, carpal tunnel syndrome, skin
irritation or eyestrain:

• Avoid excessive play. Parents should monitor their children for appropriate play.

• Take a 10 to 15 minute break every hour, even if you don't think you need it.

• If your hands, wrists, arms or eyes become tired or sore while playing, or if you feel
symptoms such as tingling, numbness, burning or stiffness, stop and rest for
several hours before playing again.

• If you continue to have any of the above symptoms or other discomfort during or
after play, stop playing and see a doctor.

WARNING - Electric Shock

To avoid electric shock when you use this system:

• Do not use the Wii during a lightning storm. There may be a risk of electric shock
from lightning.

• Use only the AC Adapter that comes with your system.

• Do not use the AC Adapter if it has damaged, split or broken cords or wires.

• Make sure that the AC Adapter cord is fully inserted into the wall outlet or
extension cord.

• Always carefully disconnect all plugs by pulling on the plug and not on the cord.
Make sure the Wii power button is turned OFF before removing the AC Adapter
cord from an outlet.

CAUTION - Motion Sickness

Playing video games can cause motion sickness in some players. If you or your child
feel dizzy or nauseous when playing video games, stop playing and rest. Do not drive
or engage in other demanding activity until you feel better.

WARNING - Radio Frequency Interference

The Wii console and Wii Remote can emit radio waves that can affect the operation of
nearby electronics, including cardiac pacemakers.

• Do not operate the Wii console or remote within 9 inches of a pacemaker.

• If you have a pacemaker or other implanted medical device, do not use the
Wii console or remote without first consulting your doctor or the
manufacturer of your medical device.

CAUTION - Laser Device

The Wii console is a Class I laser product. Do not attempt to disassemble the Wii
console. Refer servicing to qualified personnel only.
Caution: Use of controls or adjustments or procedures other than those specified
herein may result in hazardous radiation exposure.

Specifications:
Laser Type: Semiconductor laser Laser wave length: 662nm (typ.)(647nm~687nm)
Laser power: Max. 0.9mW Numeric aperture: 0.6

NOTE: This product does not contain latex, lead, mercury, cadmium, hexavalent
chromium, PBB or PBDE.

Health and Safety Information

2 3

Co mpo nen ts

Wii Console Wii Console

Components

POWER Button

Press to turn the console ON or OFF.
NOTE: The Power LED does not go out when the
power is turned off.

Power LED

Shows the status of the Wii console.
Green - Console power is ON.

Orange - Standby mode , WiiConnect24 is ON.
Red - Standby mode, WiiConnect24 is Off.

RESET

Press to restart a game.

SYNCHRO Button (SYNC.)

Used when synchronizing a Wii Remote
with the console. See pages 20-21.

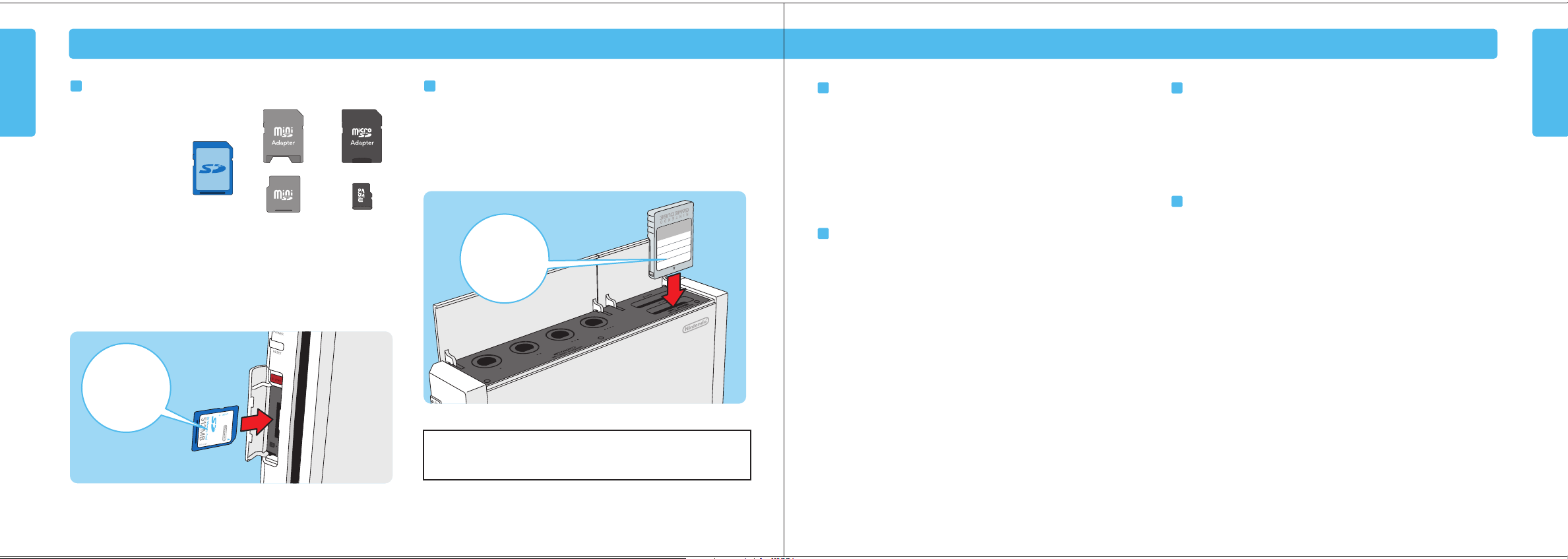

SD Card slot

For inserting an SD memory cards.
See page 30.

Game Disc slot

For inserting a Wii or Nintendo GameCube Disc.
Slot lights blue and blinks when a disc is inserted.
When WiiConnect24 is set to ON, the slot will blink
when messages or data are received.

EJECT Button

Press to eject a Wii or Nintendo
GameCube Disc.

USB Connectors

Connects to USB devices, such as the Wii
LAN Adapter. (Sold separately.)

Do not connect any device that is not
specifically designed for use with
the Wii System.

Air Vent

Do not block.

Sensor Bar Connector

Connects to the Sensor Bar.

AV Multi Out Connector

Connects to the AV cable for your television.

DC Input Connector

Connects to the Wii AC Adapter.

Slot A

Slot B

Nintendo GameCube Memory Card Slots

For use with Nintendo GameCube Memory Cards.

Nintendo GameCube Controller Sockets

For use with Nintendo GameCube Controllers.

1234

Air Intake

Battery Cover

For access to CR Coin Lithium battery (CR2032). Perchlorate Material – special handling may apply.
More information can be found at http://www.dtsc.ca.gov/HazardousWaste/Perchlorate/index.cfm.
Do not remove battery cover unless instructed to do so by a Nintendo Customer Service representative.

Components

4 5

Co mpo nen ts

Components

Wii Remote

™

Pointer Lens

Power Button

Press to turn the Wii console ON or OFF.

+

Control Pad

A Button

Home Button

Press to display the Home Menu screen.
See page 62, Wii Operations Manual ­Channel and Settings, for more
information.

Minus (–) Button

Plus (+) Button
Speaker

1 Button

2 Button

Player LEDs

Indicate which player the
remote is set up for.

Wii Remote
Wrist Strap

See page 19 for
information on wrist
strap use.

B Button
Strap Lock

Battery
Cover

SYNCRO Button
(SYNC.)

Used when
synchronizing a
Wii Remote with
the console.
See pages 20-21.

Wrist Strap
Attachment

External Extension
Connector

Allows connection of external
accessories such as the Nunchuk.

NOTE: Battery life can be checked by pressing the Home Button. See page 62, Wii
Operations Manual - Channels and Settings, for more information.

Wrist Strap
cord

Nunchuk

™

Nunchuk Plug

Control Stick

Connects to the External Extension
Connector on the Wii Remote.

Connector Hook

Insert the cord of the wrist
strap through the hook.

Z Button

C Button

Lock/Release Levers

Squeeze levers to remove
plug from Wii Remote.

NOTE: If the Control Stick is moved out of neutral position when the Wii power is
turned ON, or when connecting to the remote, that position will be set as neutral
position, causing incorrect game control during game play. To reset the Control Stick,
allow it to return to the normal neutral position, then simultaneously hold down the A,
B, Plus (+) and Minus (–) buttons on the remote for three seconds.

Sensor Bar

Sensor Bar Plug

Plugs into the Sensor Bar Connector on the back of the Wii console.
See pages 13-17 for installation instructions.

Sensor Bar Stand

See page 16 for installation instructions.

To avoid this from occurring, do not move the Contol Stick when:

• Turning the Wii console on

• Plugging the Nunchuk into the Wii Remote

• Starting Channels from the Channel Menu

• Returning to the Wii Menu from games or Channels.

Components

6 7

Co mpo n ents

Wii AC Adapter Wii Console Stand

Components

AC Plug

Connects to a 120V AC wall
outlet.

DC Plug

Connects to the DC Input connector
on the back of the Wii console.

Wii Stand PlateWii AV Cable

Video

Audio (Left)

Audio (Right)

AV Multi Out Plug

Plugs into the AV Multi Out connector
on the back of the Wii console.

8 9

RCA Plugs

Plug into the AV input
connectors on a television.

Components
