NILFISK Spectrum 12D Parts List

11-11

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

823 0103 000

1SPARE PARTS LIST

1

WHEN ORDERING PARTS

* Use the digit numbers from the "Part No." columns in this spare parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.

Model _________________________ Serial no. _______________________________

www.advance-us.com

Part number 823 0103 000 P06

823 0103 000

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

11-11

2

WIRING DIAGRAMS

Double motor version - Grounded

Single motor version - Grounded

11-11

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

823 0103 000

DESCRIPTION

DESCRIPTION PLAN

Wiring diagrams and overview 2

Body 4

Brush parts 6

Filters 8

Nozzle and tube 10

3

823 0103 000

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

11-11

4

22

BODY

23

11

19

25

1

10

14

12

13

20

16

15

18

24

17

9

20

8

21

3

7

2

4

5

6

11-11

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

823 0103 000

BODY

5

Item Part No. Qty. Description Note EAN Code

1 147 0833 500 1 HANDLE COMPLETE For all spectrum models

except 12H

2 147 0965 500 1 COVER EXHAUST FILTER.GREY 7319519663303

3 147 0847 500 1 COVER BODY FRONT. GREY 7319519664539

4 147 0864 510 1 MOTOR CASETTE 110-120V 7319519662924

5 147 1326 500 1 CARBON BRUSH KIT 2 pcs. 7319519664591

6 147 0927 500 1 JOINT BASE TO BODY W RING 7319519670639

7 147 0842 500 1 COVER TOP KIT. GREY 7319519663273

8 147 0857 500 1 LID CPL. GREY 7319519663327

9 147 0852 500 1 HOOK FOR CORD 7319519663341

10 147 0850 500 1 COVER BODY REAR 7319519663297

11 140 5496 510 1 SWITCH UL KIT 7319519631739

12 056 1014 060 1 ANTI-STRAIN CLIP BLACK 7319519352368

13 147 0843 500 1 ELECTRIC BOX 7319519662979

14 147 1062 500 1 HOLDER TUBE 7319519663587

15 140 7024 500 1 BOARD ANTI STATIC Not for US versions 7319519632590

16 140 8166 010 1 CAPACITOR Not for US versions 7319519603712

17 147 0987 500 1 BAG FULL DEVICE 7319519675108

18 140 3859 640 1 CORD SET US/TW 15M YELLOW 7319519663570

19 82240100 1 TERMINAL BLOCK 3-POLE For grounded versions 7319519493078

20 140 9214 040 1 SCREW PTK TORX 40x14MM FZB Packet contains 22 screws 7319519418606

21 107401794 1 MUSTANG BUTTON BLACK 5703887107569

22 107403706 1 CORD RELIEF KIT 12H 12H 5703887113874

23 107403708 1 PIGTAIL SET US Spectrum 12H 12H 5703887113867

24 107403709 1 EXTENSION CORD Spectrum 12H 12H 5703887113850

25 107404752 1 HANDLE KIT WITH CORD RESTRAINT For Spectrum 12H only 5703887113591

7319519663266

Note!
> Means: New or changed part number or and changed specification

823 0103 000

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

11-11

6

9

BASE

14

12

15

13

8

11

7

10

16

5

1

3

2

6

4

11-11

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

823 0103 000

11-12

BASE

7

Item Part No. Qty. Description Note EAN Code

1 147 0924 500 1 COVER BRUSH HOUSE. GREY 12”, Single 7319519664492

1 147 0924 600 1 COVER BRUSH HOUSE. GREY 12”, Dual 7319519664508

1 147 0925 500 1 COVER BRUSH HOUSE.GREY 15”, Single 7319519663105

1 147 0925 600 1 COVER BRUSH HOUSE. GREY 15”, Dual 7319519663624

1 147 0926 500 1 COVER BRUSH HOUSE GREY 18”, Dual 7319519664515

>2 107404751 1 BUMPER KIT 12H SPECTRUM 12H 7319519663211

2 147 0886 500 1 BUMPER KIT 12 INCH/305 7319519663211

2 147 0889 500 1 BUMPER KIT 15 INCH/355 7319519663136

2 147 0892 500 1 BUMPER KIT 18 INCH/455 7319519663235

3 147 0992 500 1 SUPPORT BRUSH KIT 12INCH 7319519663150

3 147 0992 510 1 SUPPORT BRUSH KIT 15INCH 7319519663167

3 147 0992 520 1 SUPPORT BRUSH KIT 18INCH 7319519663174

4 147 0935 500 1 PEDAL W SHAFT AND SPRING 7319519670646

5 147 0901 500 1 ROLLER KIT 7319519663242

6 147 0988 500 1 BRUSH SHOE 12 INCH/305 7319519663181

6 147 0989 500 1 BRUSH SHOE 15/355 7319519663198

6 147 0990 500 1 BRUSH SHOE 18/455 7319519663204

7 147 0885 500 1 CHASSIS 12 INCH /305 7319519663129

7 147 0888 500 1 CHASSIS 15 INCH/355 7319519663228

7 147 0891 500 1 CHASSIS 18 INCH/455 7319519663143

8 147 0898 500 1 WHEEL KIT 7319519663259

9 147 0906 500 1 CLUTCH AND BEARING KIT 7319519663068

10 147 0944 500 1 COVER 7319519663037

11 147 0930 500 1 BRUSH 12 INCH/305 7319519663006

11 147 0930 510 1 BRUSH 15 INCH/355 7319519663013

11 147 0930 520 1 BRUSH 18 INCH/455 7319519663020

12 147 0913 500 1 BEARING 7319519663044

13 147 0905 500 1 DRIVE BELT KIT 7319519663051

14 147 0905 510 1 DRIVE BELT KIT DOUBLE MOTOR 7319519664881

15 147 0984 510 1 MOTOR CASETTE 100-120V With Circuit Board and

Micro Switch

>15A 147 1170 500 1 MICRO SWITCH KIT for motor 147 0984 510 5715492087617

16 107401947 1 PCB 120V KIT 5703887108900

16 107401946 1 PCB 230V KIT 5703887108917

7319519662955

Note!
> Means: New or changed part number or and changed specification

823 0103 000

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

11-11

8

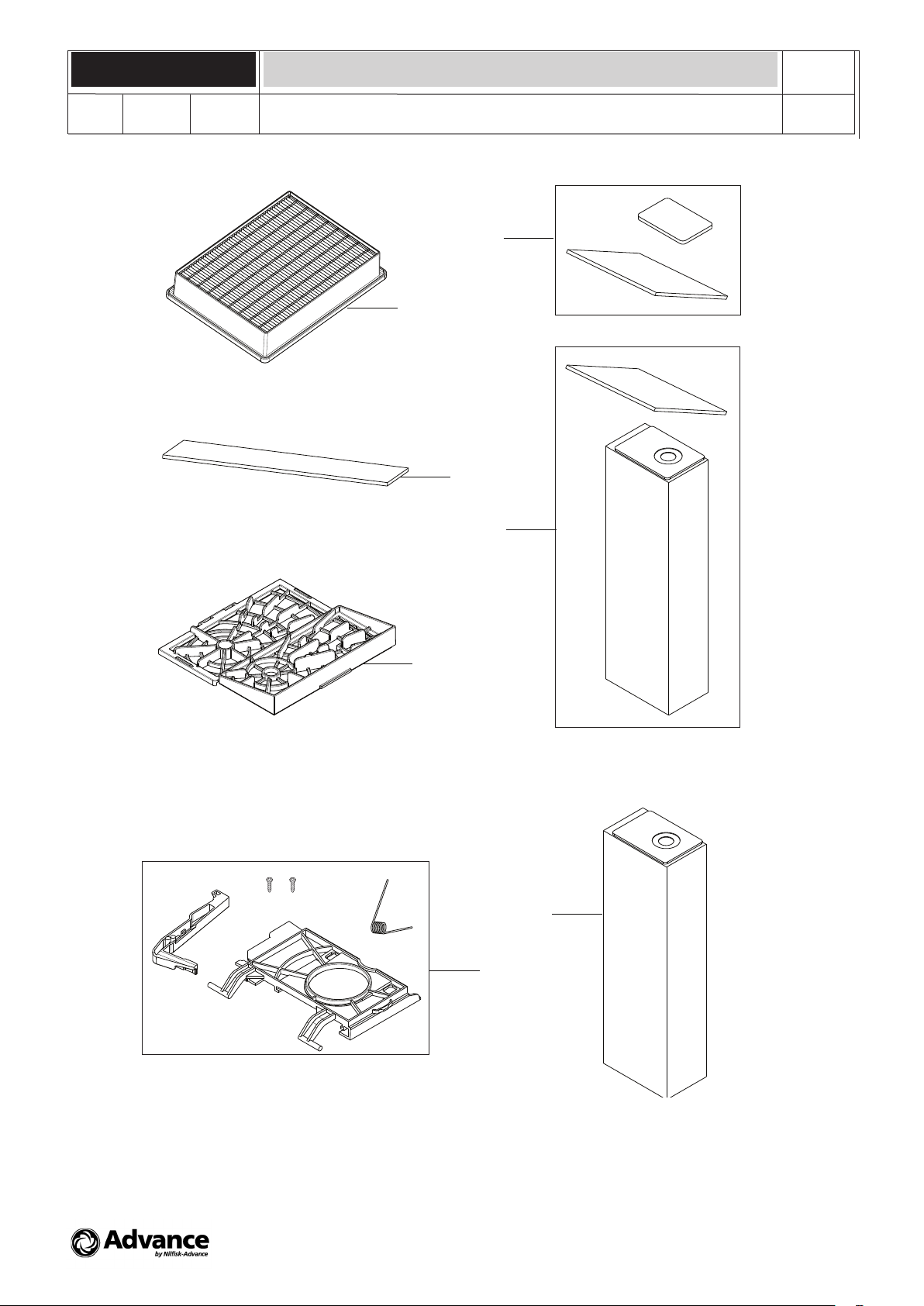

FILTERS

10-01

x1

5

x3

1

x2

2

6

3

x10

7

4

11-11

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

823 0103 000

10-01

FILTERS

9

Item Part No. Qty. Description Note EAN Code

1 147 1250 600 1 HEPA-FILTER. H13 7319519664522

2 147 0966 500 1 EXHAUST FILTER 7319519663365

3 147 0958 500 1 HOLDER PRE FILTER KIT With 1 pre lter 7319519663402

4 147 0854 500 1 HOLDER DUST BAG KIT 7319519663396

5 147 0960 500 1 PRE FILTER KIT 1 x anti smell paper

3 x pre-lters

6 147 1058 500 1 DUST BAG 408X78 10-P 10 bags, 2 pre-lters 7319519663372

7 147 1059 500 1 DUST BAG REUSEABLE 7319519664577

7319519663389

823 0103 000

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

11-11

10

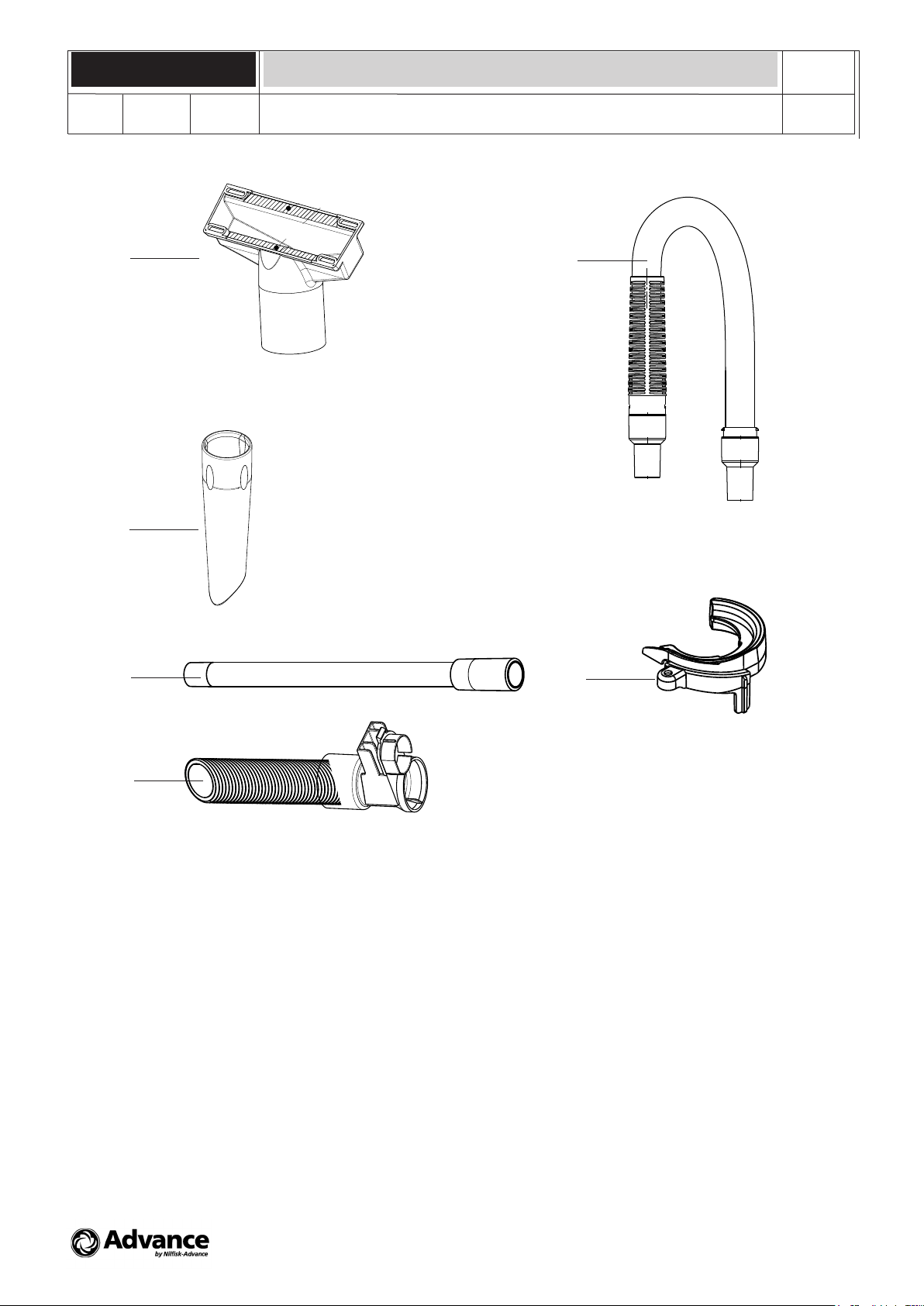

NOZZLES AND TUBE

1

2

4

08-08

3

6

5

11-11

SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

823 0103 000

08-08

NOZZLES AND TUBE

11

Item Part No. Qty. Description Note EAN code

1 147 1205 500 1 Upholstery nozzle Ø 35 mm 7319519663419

2 147 1203 500 1 Crevice nozzle Ø 35 mm

3 147 0851 500 1 Extension tube Ø 35 mm 7319519664478

4 147 0950 500 1 Hose stretchable 7319519663440

5 147 1062 500 1 Tube holder

6 147 0919 500 1 Adapter, base to tube w.hose

Soft

For the
extension tube

Hose from the
base

7319519663426

7319519663587
